BRUKSANVISNING CA-R-HO.008AE PIONEER

ATTENTION: CHANGE TIME MENU

• The vehicle must be stationary with the handbrake on
• Turn on the vehicle (Key in pos. n°2)
• Wait ignition radio
• Press button number 4 (5 secs)
• Use 4 to change the minutes
• Use 3 to change the hours
• Release the handbrake to exit the menu

Steering wheel control interface installation kit for:

HONDA

Model: HR-V / JAZZ only for vehicle with basic radio system;

Year: 2015>

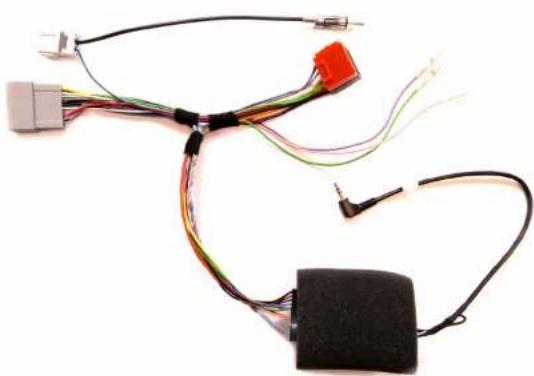

Kit content: SWC CANBUS interface wiring harness antenna adapter radio adapter

Customer code: CA-R-HO.008AE

Electrical wiring harness with black and multicolored wires, no visible text or symbols

INSTALLATION MANUAL

All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages. 05/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints. R0

All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages. 05/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.

ATTENTION!

In order to prevent ESD damage, the WHEEL REMOTE JACK must be connected before plugging in the connectors on car side.

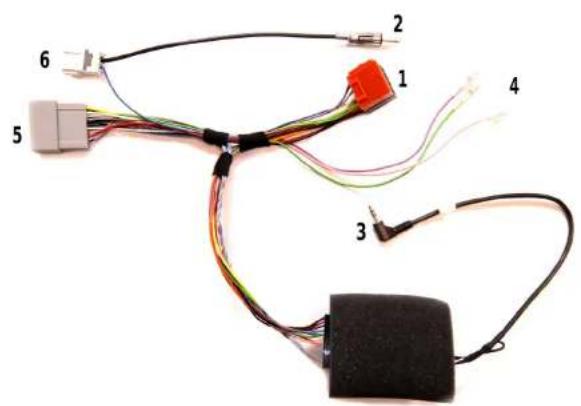

Connect cables to the radio side as follow:

1- to ISO CONNECTOR (black and red housings)
2- to RADIO ANTENNA-CONNECTOR
3- to WIRED REMOTE SOCKET (NOTE: do not connect to microphone socket)
4- to SERVICES (if required); function is marked on the wire:

Green - Parking | Violet/White - Reverse | Pink - Speed

Connect cables to the car side as follow:

5- to CAR CONNECTORS
6- to CAR ANTENNA-CONNECTOR

The steering wheel buttons perform the following functions (if supported by the radio):

1- Volume +
2- Volume -
3- Accept incoming call
4- Reject incoming call
5- Seek up
6- Seek down
7- Source
