MANUAL I PËRDORUESIT TX-14S3TW PANASONIC

Panasonic

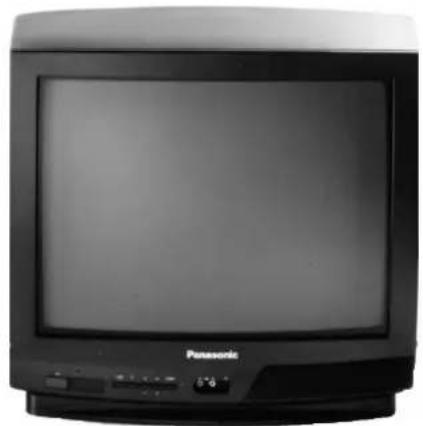

Black Panasonic CRT television with blank screen and control buttons (no visible text or symbols on screen)

TX---21S3T/Z

TX—114S3T

TX---14S3T/W

Contrast Auto Tracking System

(U.K. Sstaardachol)

CONTENTS

●Warnings and Precautions 3.
- Accessories 4.
●Fitting Remote Control Batteries 4.

• Installation and Set-up .... 5
• Location of Controls .... 7
• Menu Operation 8
• Teletext Operation .... 12
  • Audio / Video Connections ..... 13
  • VCR Installation 14
  • VCR Operation 15
• Trouble-shooting 16
• General Information 16
• Specifications 17
• Scart Terminal Information 17

●This T.V. is designed to operate on A.C. 220 --- 240V, 50Hz and is capable of receiving the PAL I transmission standard.
- Do not expose this TV set to rain or excessive moisture.
●WARNING: HIGH VOLTAGE!

Do not remove the rear cover, there are no user serviceable parts inside.

• Avoid exposing the TV set to direct sunlight or other sources of heat.
• Remove the mains plug from the wall socket when the TV set is not to be used for a prolonged period of time. Do not pull the power cable to remove the mains plug from the socket, always remove it by the plug.

●CABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabine and picture tube can be cleaned with a soft cloth moistened with mild detergent and water. Do not use solutions containing benzol or petroleum. TV sets can produce static electricity, care must be taken whenever touching the TV screen.

- Adequate ventilation is essential to prevent failure of electrical components. We recommend that a gap of at least 5cm is left all around this TV even when it is placed inside a cabinet or between shelves.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS1362.

ASA

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

Replacement fuse covers can be purchased through your local Panasonic dealer.

The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or replaced with a non-filtered mains plug this television will no longer meet the European standards for Electromagnetic Compatibility (EMC). If the fitted plug is unsuitable for the socket outlet in your home an appropriate adapter should be used.

Nonetheless, if the fitted plug is replaced, the fuse should be taken out and the cut-off plug disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13amp socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

Illustration of a plug with two yellow connectors and a black handle (no text or symbols)

Important Note : The layout of the mains plug used may differ from this illustration.

How to replace the fuse :

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug.

IMPORTANT :--The wires in the mains lead of this appliance are coloured in accordance with the following code :-

BLUE : NEUTRAL BROWN : LIVE

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceed as follows :---

1. The BLUEwire must be connected to the terminal marked 'N' or coloured black.
2. The BROWNwire must be connected to the terminal marked 'L' or coloured red.

IMPORTANT NOTE : Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug, marked with the letter 'E' or the earth symbol ( ).

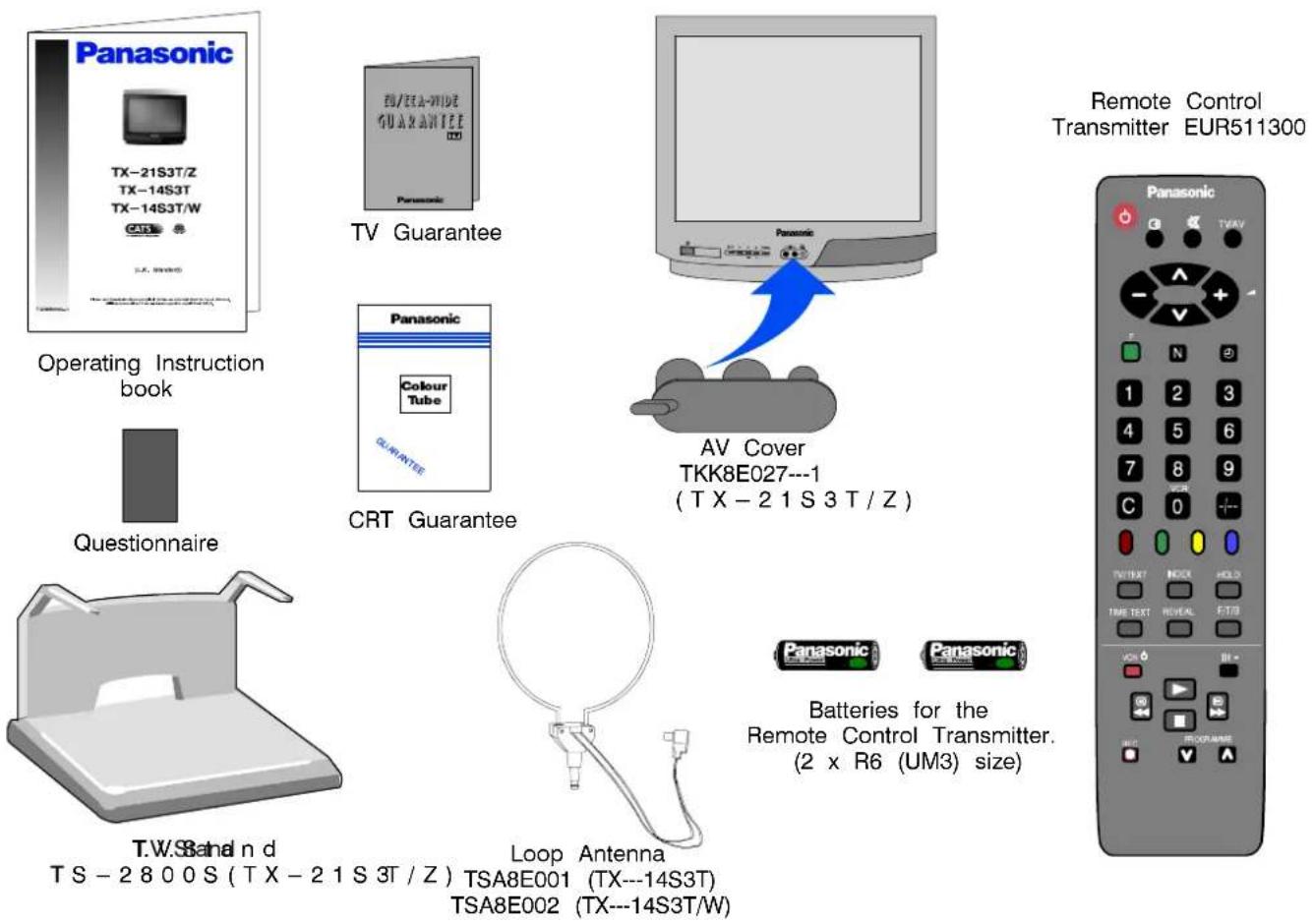

Check that you have the accessories and items shown

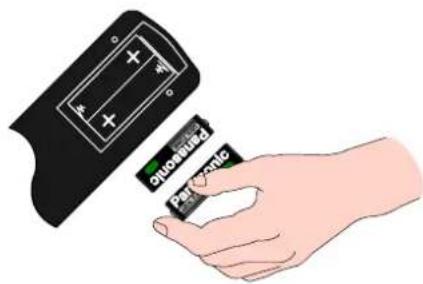

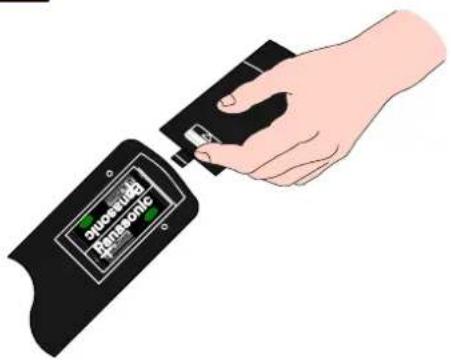

FITTING REMOTE CONTROL BATTERIES

2

3

Illustration of a hand holding a black handheld device with a small screen (no text or symbols visible)

Slide off the battery cover Insert batteries --- note correct polarity

Illustration showing a hand inserting a battery into a power plug labeled 'PAC-1000' with a battery icon and 'Battery' label.

out-of-and Panasonic

Replace the cover

• Make sure that the batteries are fitted the correct way round.
• Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.
• Do not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni–Cad) batteries.

Illustration of a Panasonic electronic device with antenna and power cord (no text or symbols on main body)

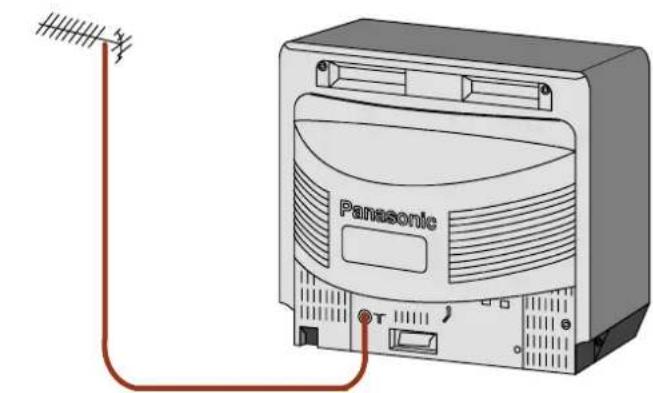

TV only

Connect Aerial co---axial cable direct to TV RF IN socket.

OR

Panasonic VCR

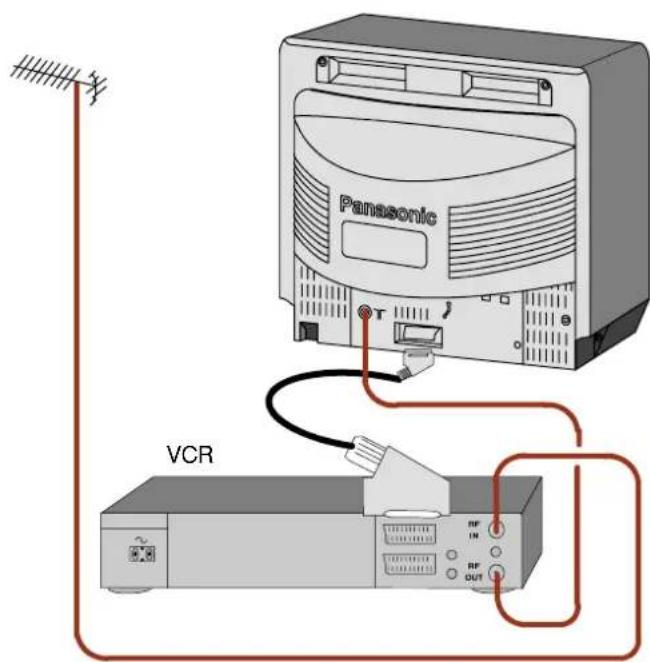

USING A VCR

Connect aerial co---axial cable to RF Input socket of VCR and a RF co-axial cable from VCR RF Out socket to TV RF IN socket.

The VCR can also be connected to the TV using a SCART to SCART lead.

Further details of Audio/Video connections can be found on page 13.

OR

USING A VCR AND SATELLITE RECEIVER

Connect aerial co---axial cable to RF Input socket of Satellite Receiver. An RF co-axial cable connects from Satellite Receiver RF Out socket to VCR RF IN socket.

A further co---axial cable connects from the VCR RF OUT socket to the TV RF IN socket.

The Satellite Receiver and VCR can also be linked by SCART to SCART lead.

Further information for VCR and Satellite Receiver installation with this TV can be found on page 14.

USING A VCR AND SATELLITE RECEIVER Connect aerial co---axial cable to RF Input socket of Satellite Receiver. An RF co--axial cable connects from Satellite Receiver RF Out socket to VCR RF IN socke A further co---axial cable connects from the VCR OUT socket to the TV RF IN socket. The Satellite Receiver and VCR can also be linked by SCART to SCART lead. SATELLITE RECEIVER Further information for VCR and Satellite Receiver installation with this TV can be found on page VCR

Ancillary equipment and leads are not supplied.

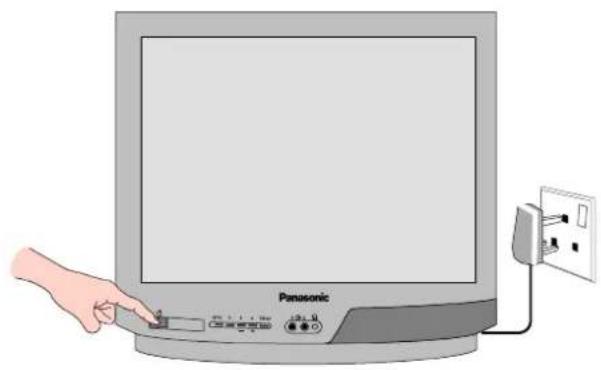

Switch ON your VCR (if connected). Switch ON your Satellite Receiver (if connected).* Plug the TV into a mains socket and switch ON. Programmes will appear immediately if your dealer has already tuned the TV for you.

Panasonic

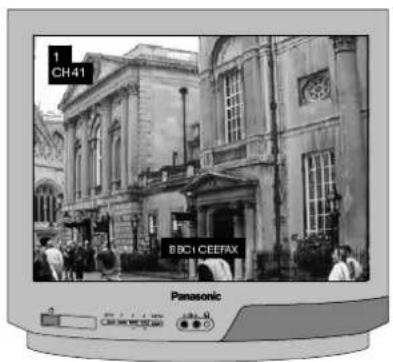

The first available channel will be displayed.

1 CH 41 BBC+CEEFAX Panasonic

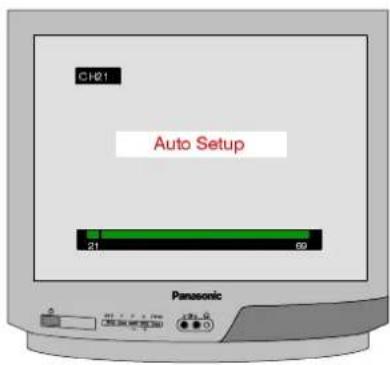

If the TV has not been tuned for you then Auto setup will begin. TV stations will be located, sorted and stored.*

CH01 Auto Setup 21 09 Panasonic

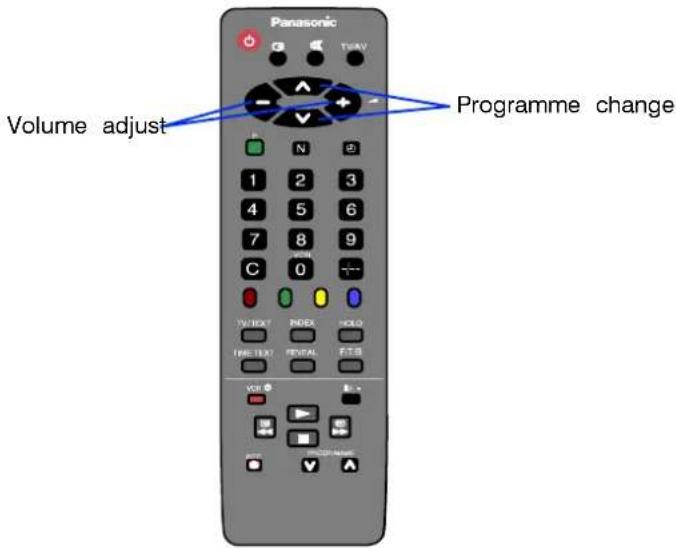

Panasonic Volume adjust N 1 2 3 4 5 6 7 8 9 C 0 TV TEXT INDEX HOLE TIME TEXT REVEAL FTG VOL B Programme change

*1. The Satellite Receiver must be tuned to either SKY ONE or SKY NEWS before starting Auto Setup. When Auto Setup has finished, the satellite position that has been stored will be listed as 'SAT'.
*2. The sorting order depends upon the TV signal, the broadcasting system, and reception conditions. If either BBC1, BBC2 or ITV are not located, then their respective pre--allocated programme positions (1 to 3) will remain unused.

Programme Position	All stations available	No CH5	No CH5 / S4C	No CH4 / CH5	No S4C	No CH4 / S4C	No CH4 / S4C / CH5
1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1	BBC1
2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2	BBC2
3	ITV	ITV	ITV	ITV	ITV	ITV	ITV
4	CH4	CH4	CH4	S4C	CH4	CH5	SAT
5	S4C	S4C	SAT	SAT	CH5	SAT
6	CH5	SAT			SAT
7	SAT
Note :The next available channel will appear, if no other stations are available then the Programme position will remain unused.

Channel 5(QB)5)arathetSatSlatebrearchain(SAT)(SAT)prarebreateddacedgtempregraninpositionsrspardivelyrespectively.

If the order is not to your preference it can be rearranged. Refer to the Tuning menu Swap feature – see page 9 for details. IT IS IMPORTANT that you only use TV programme position '0' to view your VCR. If your VCR picture does not appear on programme position '0' (the VCR position), it will be necessary to either adjust the RF channel of the VCR (refer to your VCR operating instructions) or to adjust the tuning of the TV's programme position '0' or both until the RF output channel of the VCR is received, refer to page 14 for guidance.

On Screen Displays Menu Title Cursor Bar Sub Menu Commands : A guide to the various options available when in On Screen Menu operations. Panasonic Main Menu Contrast Brightness Colour Sharpness C-A-T-S Tuning Menu V/A : Select -/+ : Adjust N : Exit Front Panel Controls Mains PowerO/O/D switch STR Stores tuning and other functions F Selects a function from : Volume, Contrast, Brightness, Colour, Sharpness, C---A---T---S and Manual Tuning. Headphone socket RCA Audio/Video sockets TV / AV Switches between TV and AV modes V/- , ^/+ Programme up / down. When a function is already displayed, allows adjustment of the function.

Remote Control keys

Standby On/Off Adjusts currently selected function. Adjusts the volume if no function is selected Function Select Press to display the On Screen Menus (Page 8) Restores the levels previously set with STR (TV front panel) Numeric keys for : Programme change Direct channel access Teletext operation Direct channel access Press and enter channel number using numeric keys Panasonic TV/AV Switches between TV and AV modes (Page 13) Sound mute On/Off Status : Displays programme position, channel number, time and teletext station name Channel up/down and Menu option select Off timer Press to select from 30, 60 or 90 minutes Selection of programmes 10---60 using numeric keys Teletext keys (Page 12) VCR Keys (Page 5) 15

Menu operation is to be used in conjunction with the On Screen Display commands to guide you through function adjustments and tuning operations

Panasonic Display Menu / Previous Menu Select Auto Setup start Adjust / Access Exit Menu 1 2 3 4 5 6 7 8 9 C 0 TV/TEXT INDEX HOLD TIME TEXT REVEAL FIT/B VCR III PROC PROGRAMME d Sharpness may be altered personal preferences.

Main Menu

Contrast

Brightness

Colour

Sharpness

The Contrast, Brightness, Colour and Sharpness may be altered to suit the viewing conditions and personal preferences.

Display Menu Select function and adjust

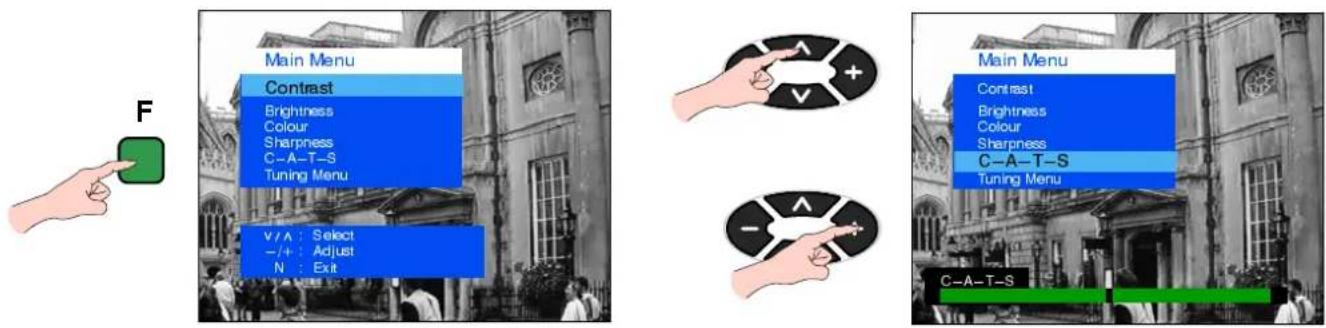

C-AA-T-TS: SonConstratisitoAttockTrnacBingeSystem

Automatically adjusts the coorabaset setting compensation rate for any changes in the ambient lighting of the using groundings. To obtain best results first set the Contrast to maximum, to allow a greater operating range for C---A---T---S, then select one of the 3 settings as desired.

Display Menu Select C---A---T---S and adjust

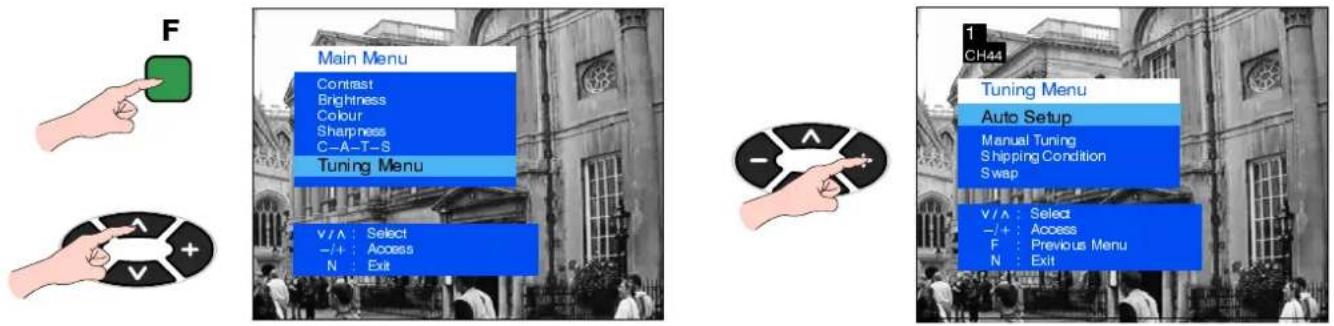

Tuning Menu

The Tuning menu provides access to both manual and automatic tuning menus.

Display Menu and select "Tuning/Maniu" Access "Tuning/Menu" Tuning Menu

F Main Menu Contrast Brightness Colour Sharpness C-A-T-S Tuning Menu V / A : Select -/+ : Access N : Exit 1 CH44 Tuning Menu Auto Setup Manual Tuning Shipping Condition Swap V / A : Select -/+ : Access F : Previous Menu N : Exit

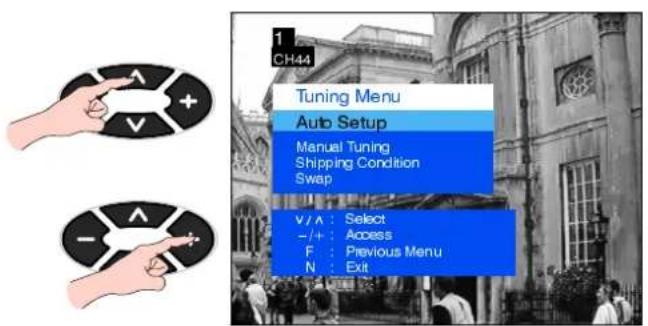

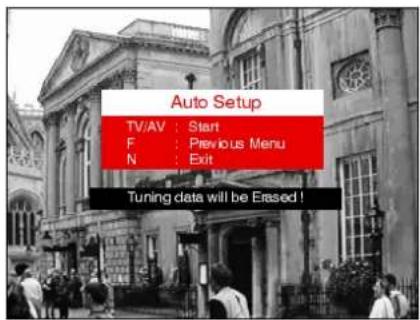

Auto Setup

The AutoS Sepupreme allows you to automatically return the TV, particularly useful if you move to are at that is debyed by a different transmitter.

First access the Tuftungmeasu descode drited above.

1

1 CH44 Tuning Menu Auto Setup Manual Tuning Shipping Condition Swap V/A : Select -/+ : Access F : Previous Menu N : Exit

2

Start

Auto Setup TV/AV : Start F : Previous Menu N : Exit Tuning data will be Erased !

3

TV/AV Auto Setup TV/AV : Yes F : Previous Menu N : Exit Tuning data will be Erased ! Are you sure ?

4

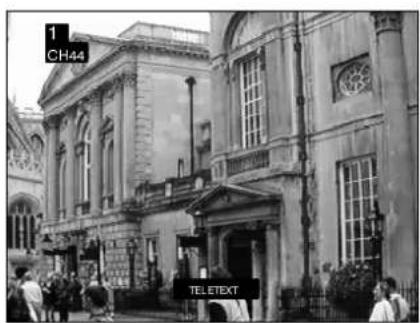

Ready to go

1 CH44 TELETEXT

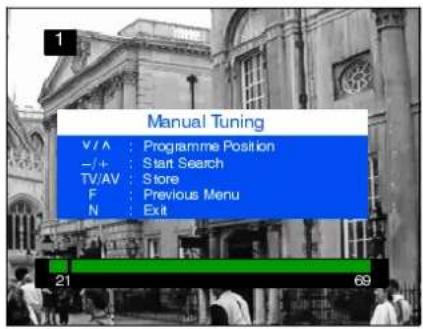

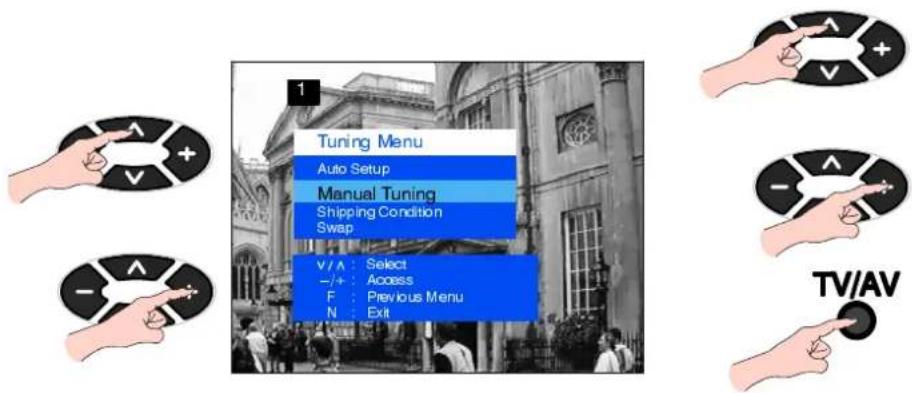

Manual Tuning

The Manual tuning menu allows individual programme positions to be tuned manually.

First access the Tuning menu as described on Page

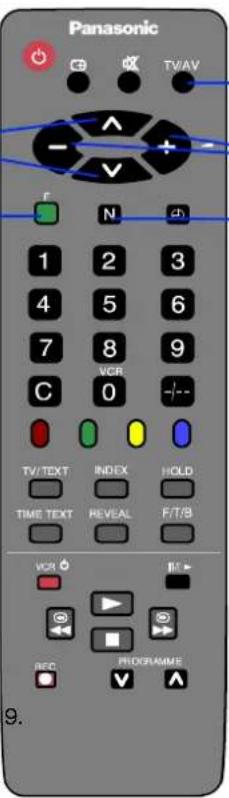

Panasonic TV/AV F N 1 2 3 4 5 6 7 8 9 C 0 TV/TEXT INDEX HOLD TIME TEXT REVEAL F/T/B VCR IM RFC PRODUARME 9.

Shipping Condition start Manual Tuning store

Adjust / Access Manual Tuning search

Exit Menu

Access "ManualTwinigg"

1. Choose programme position
2. Search forcebanceel
3. Store

Repeat steps 11to3 a senesessaly to store other channels

1 Manual Tuning V/A : Programme Position -/+ : Start Search TV/AV : Store F : Previous Menu N : Exit

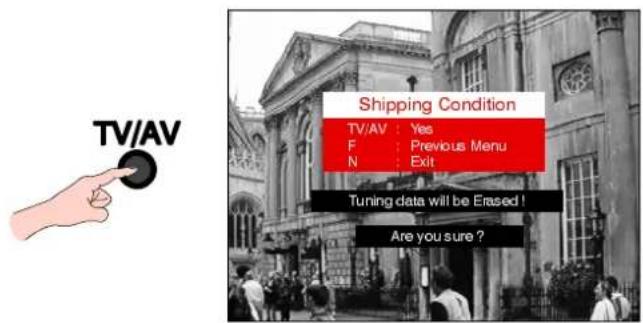

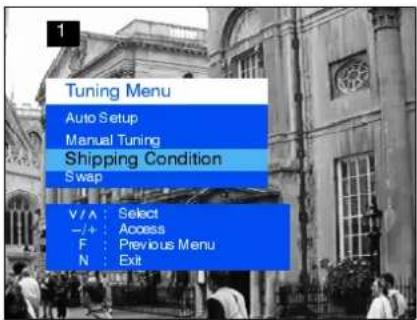

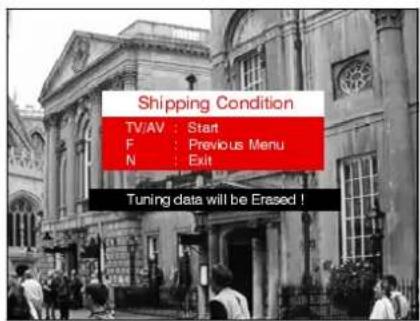

Shipping Condition

Allows you out clear all unbuging infection and reset all control levels back to the factory settings.

First access the Tuning menu as described on Page 9.

Access "Shipping Condition"

Start

Tuning Menu Auto Setup Manual Tuning Shipping Condition Swap V/A : Select -/+ : Access F : Previous Menu N : Exit

Shipping Condition TV/AV : Start F : Previous Menu N : Exit Tuning data will be Erased !

Shipping Condition(①Gotitioned)

3

TV/AV Shipping Condition TV/AV : Yes F : Previous Menu N : Exit Tuning data will be Erased ! Are you sure ?

4

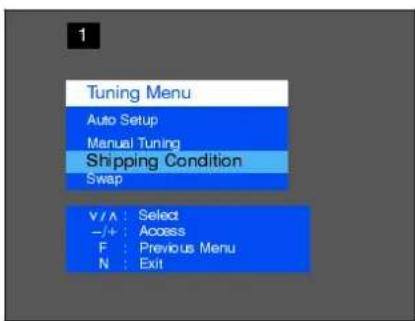

Ready for Auto Setup or Manual Tiuming.

Refer to Page 9 and 10.

1 Tuning Menu Auto Setup Manual Tuning Shipping Condition Swap V / A : Select -/+ : Access F : Previous Menu N : Exit

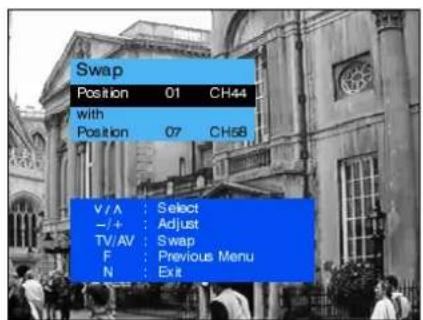

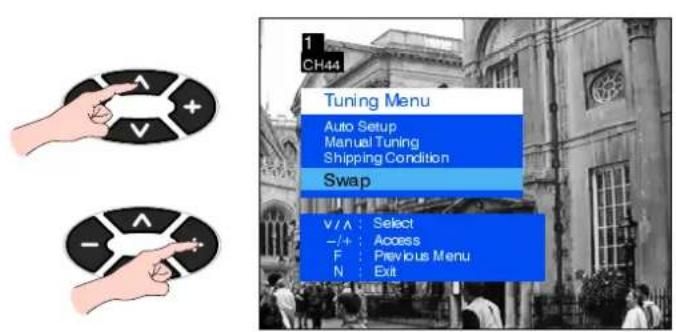

Swap

If the programme order after Auto Setup is not to your preference you can swap programmes between positions.

An example could be for regional variations, e.g. BBC1 Wales and BBC1 West, where you may want to stop them that BBC1 West appears on programme position 1. First access the Tuning menu as described on Page 9.

Access "Swap" Swap programmes

Swap programmes

1 CH44 Tuning Menu Auto Setup Manual Tuning Shipping Condition Swap V/A : Select -/+ : Access F : Previous Menu N : Exit

Swap Position 01 CH44 with Position 07 CH58 V/A : Select -/+ : Adjust TV/AV : Swap F : Previous Menu N : Exit

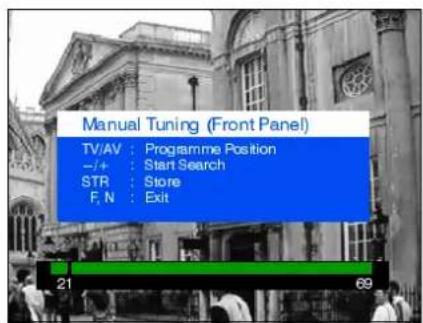

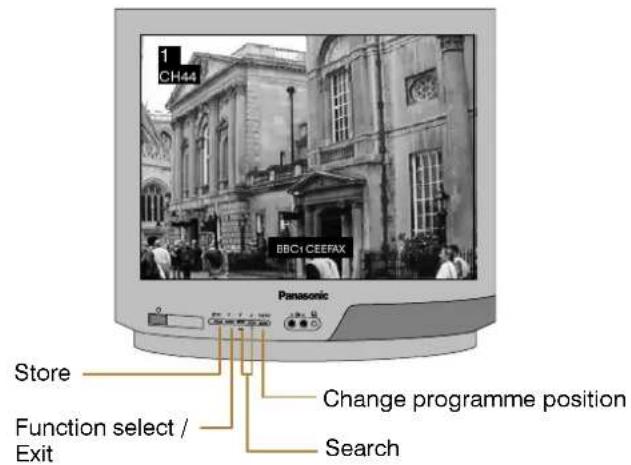

Manual Tuning (front panel of the television)

The stations may also be manually tuned using the controls on the front of the television. Press the F key (Front panel) until "Manual Tuning" is reached. Press – or + to access "Manual Tuning".

1 CH44 BBC+ CEEFAX Panasonic Store Function select / Exit Change programme position Search

Manual Tuning (Front Panel) TV/AV : Programme Position -/+ : Start Search STR : Store F, N : Exit

Teletext is the broadcasting of pages of information on your T.V. screen containing various subjects, the order and availability of which is dependant upon the Broadcasting Companies.

If the Function Select key (F) is pressed whilst in Teletext operation, only the Contrast can be adjusted.

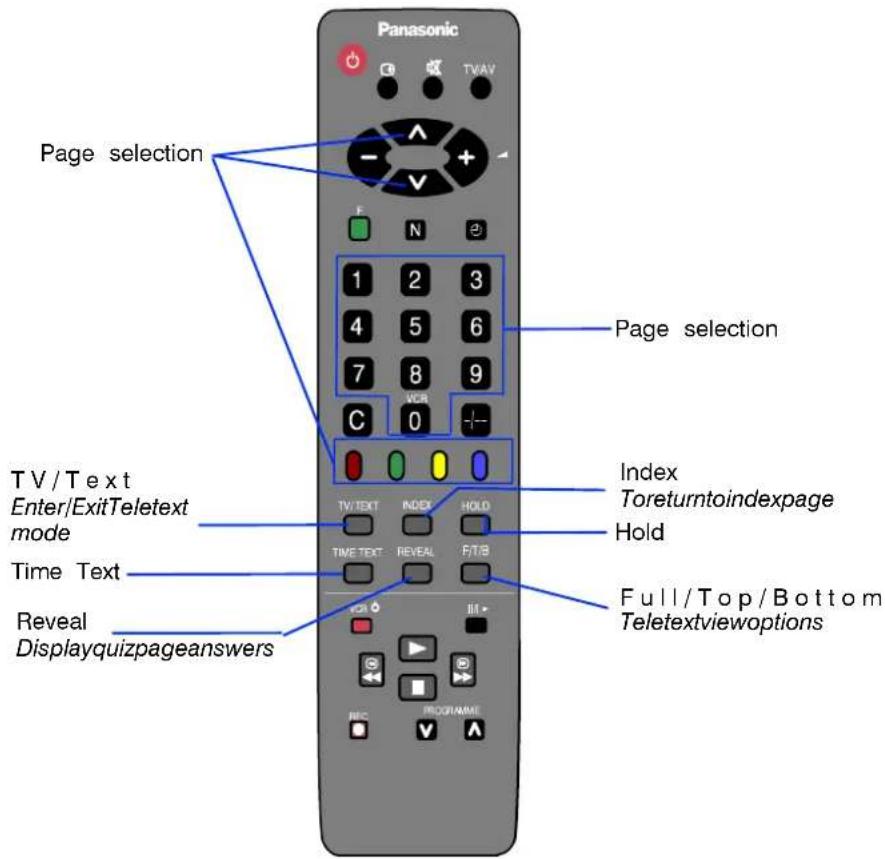

Panasonic TVAV Page selection Page selection TV / Text Enter/ExitTeletext mode Time Text Reveal Displayquizpageanswers Index Toreturntoindexpage Hold Full/Top/Bottom Teletextviewoptions

FASTEXT / Normal Automatic Selection

Sub Page Access (Time Text key)

On switching to Teletext, normal mode will be displayed whilst the search is performed for FASTEXT transmissions, if one is found, take some time for the automatic changing of the sub pages to the boxes at the bottom of the screen will change to show the available subjects. When teletext information exceeds more than one page, it may reach the sub page you require. It is possible to enter the required sub page and skip the pages in between.

If a FASTEXT signal is not found then the TV will operate in Normal mode whereby the :

Select the required page number using keys 0 --- 9.

Red key moves one page down.

Green key moves one page up.

Yellow key moves up in blocks of ten pages.

Blue key moves up in blocks of 100 pages.

Press TIME TEXT.

Press RED (−) or GREEN (+) to select the required sub page.

Index

In FASTEXT mode, returns to the relevant index page.

When the page is found, it will be displayed.

Depending on the way information is transmitted, this may have

to be pressed more than once to return to the main index page.

Press TV/TEXT to exit Teletext operation.

Red / Green / Yellow / Blue keys

Correspond to the FASTEXT or Normal mode coloured boxes.

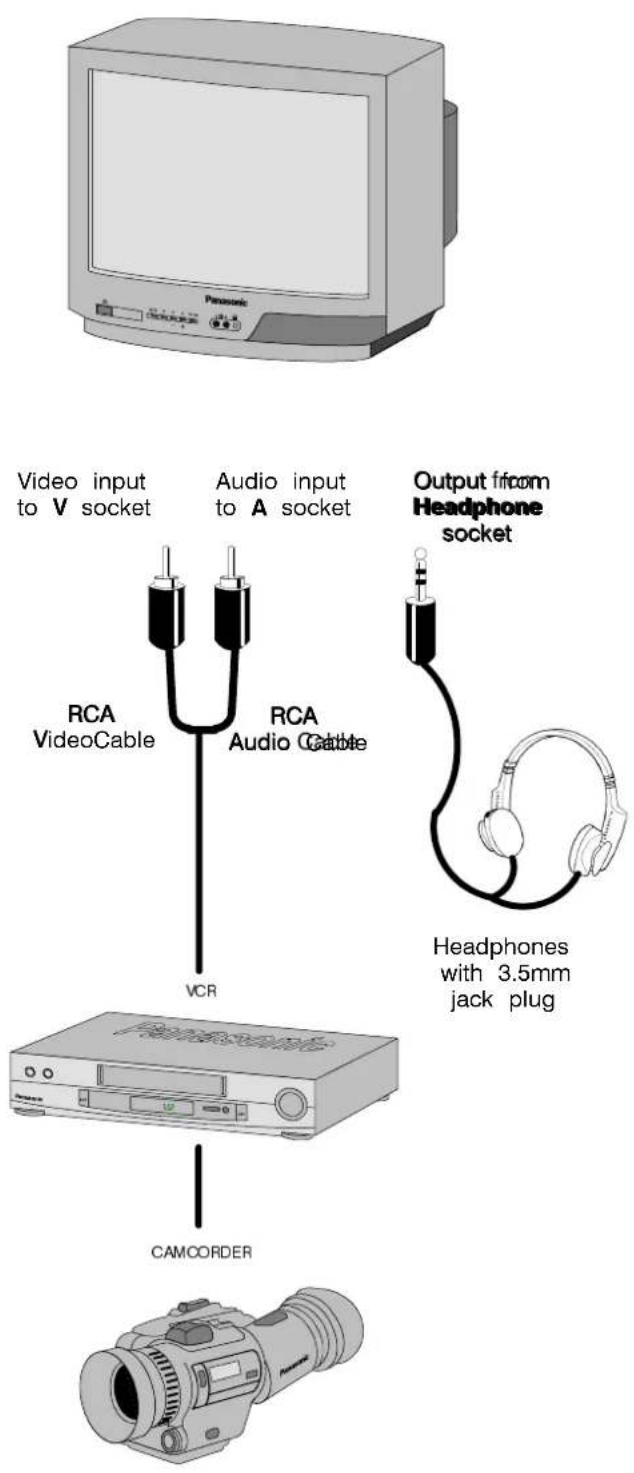

AV (Audio / Video) is a dedicated input for VCR's, Satellite Receivers and other Audio / Video equipment.

This TV is capable of switching to AV operation automatically if the equipment connected provides a switching signal to the SCART socket.

In this condition the display will show EC and it is possible to change the programme position of the TV without changing the displayed picture (this is not possible when using the front AV connections).

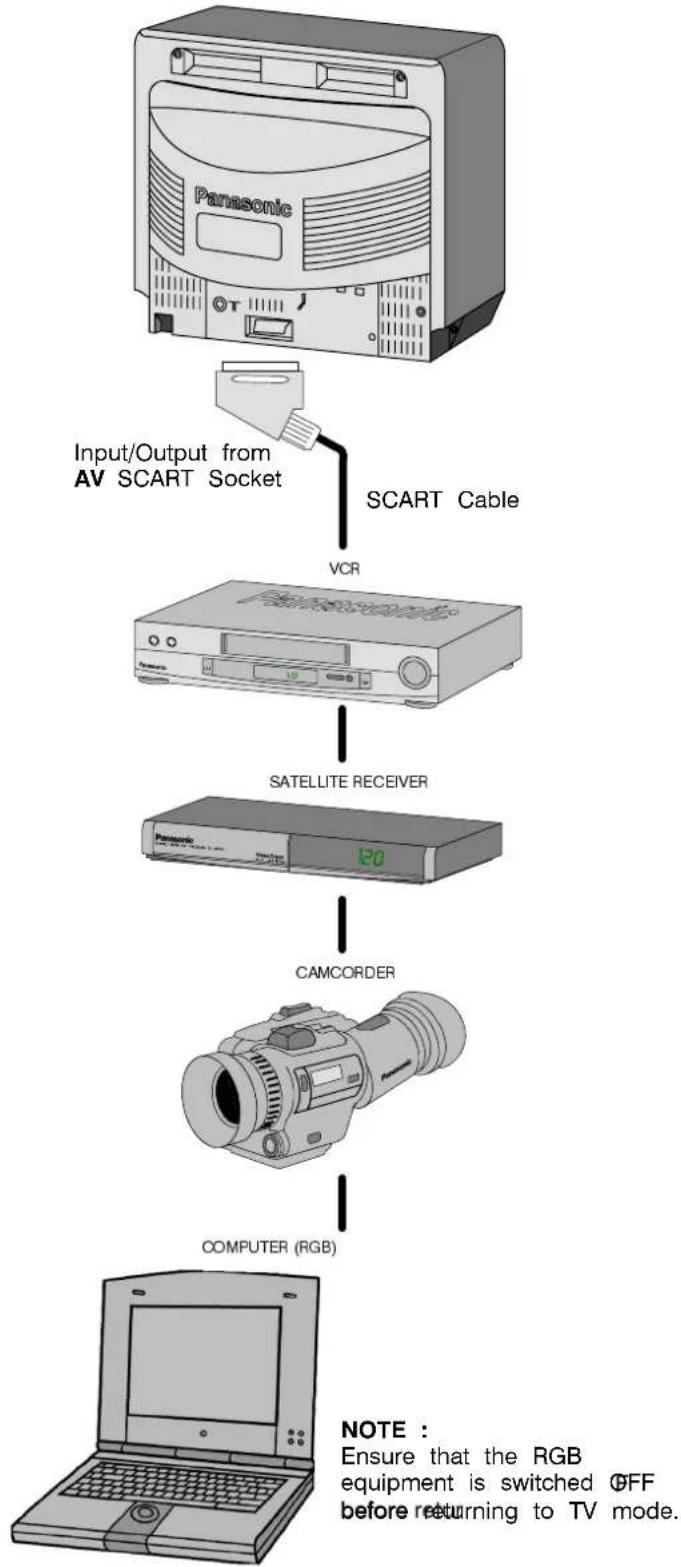

Panasonic Video input to V socket Audio input to A socket Output from Headphone socket RCA VideoCable RCA Audio Cable VCR Headphones with 3.5mm jack plug CAMCORDER

Ancillary equipment and cables shown are not supplied with this TV set.
Do not connect a computer with TTL output (5V) to this TV set.
The TV's speaker will be automatically disconnected whilst the headphones are connected.
Do not connect front and rear AV inputs simultaneously, as the sound and pictures will be mixed.

Your new TV is supplied with programme position '0' designed specifically to receive an RF signal from a VCR.

However, depending on the VCR's setting you may not receive any picture or sound from the VCR on programme position '0' of the TV. It will be necessary to either adjust the RF channel of the VCR or to adjust the tuning of the TV's programme position '0' or both until the RF output channel of the VCR is received.

It is intended that this advice is used in conjunction with the instruction books for your ancillary equipment.

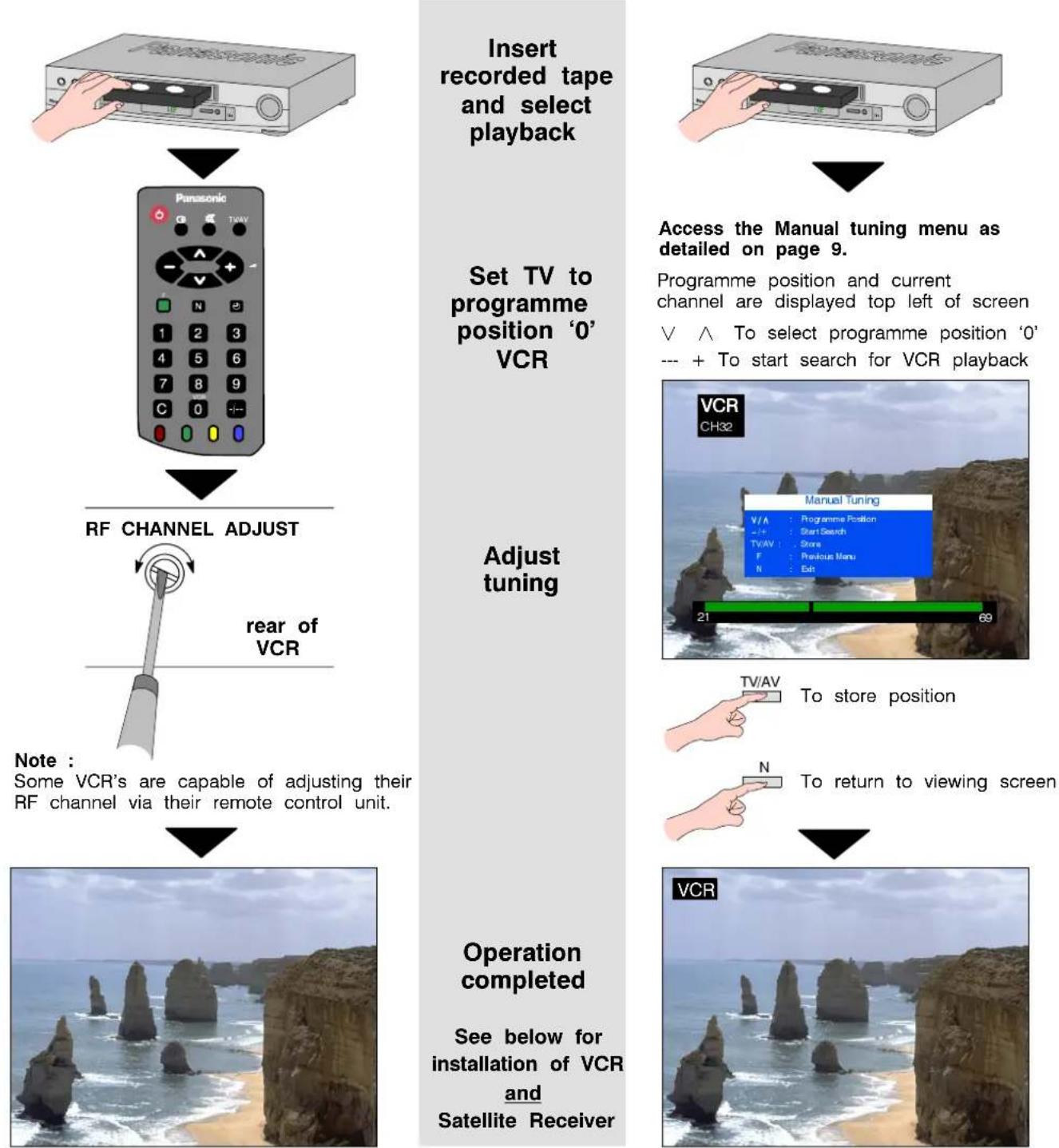

TO TUNE YOUR VCR TO THE TV

Some VCR's are capable of adjusting their RF channel via their remote control unit.

Insert recorded tape and select playback

Set TV to programme position '0' VCR

Adjust tuning

Operation completed

See below for installation of VCR and Satellite Receiver

TO TUNE YOUR TV TO THE VCR

Access the Manual tuning menu as detailed on page 9.

Programme position and current channel are displayed top left of screen ∨ ∧ To select programme position '0' --- + To start search for VCR playback

If you are going to use a Satellite Receiver and a VCR, it is important, to avoid tuning problems, that they are both tuned to output their signals on different channels. For example, if your VCR is tuned to output channel 32, your Satellite Receiver could be set to output channel 34. Refer to your Satellite Receiver and VCR instruction books for precise tuning information.

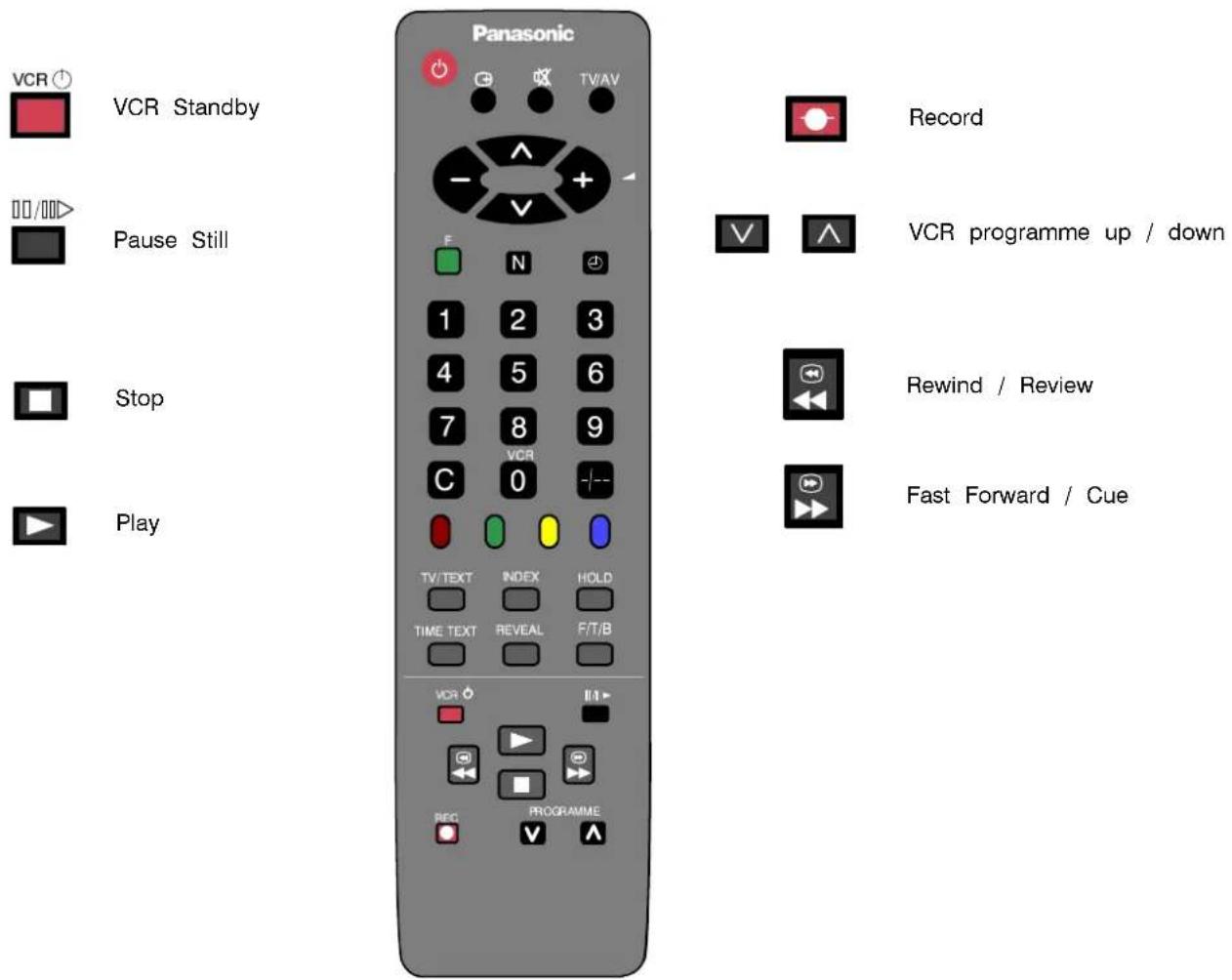

The Remote Control is capable of operating some functions of selected Panasonic VCR's, please consult your dealer for details. Some VCR's have different functions, so to ensure compatibility please refer to the VCR's instruction book.

VCR Standby Pause Still Stop Play Panasonic Record VCR programme up / down Rewind / Review Fast Forward / Cue

Before calling for service, determine the symptoms and make a few simple checks as shown below. For service please contact your local Panasonic dealer quoting the model number and serial number (both are located at the rear of the TV).

Symptoms		Checks
Picture Sound
Snowy Picture or Multiple Images	Noisy Sound or Normal Sound	Aerial location, direction or correction
Interference Noisy Sound Electrical appliances, vehicles, fluorescent lights
Normal Picture Noisy or No Sound Volume level or sound muted
No Picture No Sound		Not plugged into A.C. outlet, not switched on picture / sound controls set at minimum levels
No Colour Normal Sound Colour controls set at minimum levels
Scrambled Normal or Weak Sound Retune channel(s)

GENERAL INFORMATION

Sleep Feature

If the set is not switched off when the TV station stops transmitting, it will automatically go to standby mode after 30 minutes. This function will not operate when in AV mode.

Last Position Memory

Certain functions have a last position memory, i.e. the setting at the time of switch off will be the setting used when the receiver is switched on again:

Programme position

Colour

Volume

Contrast

Brightness

Standby

Sharpness

Status

C-A-T-S

TV Games / Home Computers

Extended use of TV games or home computers with any television set can cause a permanent 'shadow' on the screen. This type of irreversible picture tube damage can be limited by observing the following points :

• Reduce the brightness and contrast levels to a minimum viewing level.
• Do not operate the television set for a continuous period of time while using TV games or home computers.

This type of picture tube damage is not an operating defect and as such is not covered by the Panasonic warranty.

Model Number: TX--21S3T/Z TX--14S3T, TX--14S3T/W
Power Source: 220---240V 50Hz A.C.
Power Consumption: 50W 33W
Standby Power Consumption: [IMAGE]
Picture Tube: 51cm visible diagonal 34cm visible diagonal
Audio Output (music)	6W, 8Ω impedance, mono
Dimensions:	480 (H) x 520 (W) x 485 (D) mm	365 (H) x 388 (W) x 380 (D) mm
Weight:	20 kg	10 kg
Receiving Systems:	PAL I UHF E21-69PAL 525/60
Aerial (rear):	UHF
Headphones (front):	3,5mm, 8Ω impedance, mono
AV - Rear:	21 pin terminal - Audio/Video in/out, RGB in
AV - Front:	RCA Audio in/RCA Video in

Design and specifications are subject to change without notice.

Weight and dimensions shown are approximate.

SCART TERMINAL INFORMATION

20 18 16 14 12 10 8 6 4 2 1 1 1 1 1 1 1 1 21 19 17 15 13 11 9 7 5 3 1

1. Audio cout(R(R)
2. Audio iim(R)(R)
3. Audio cout (L)
4. Audio earth
5. Blue earth
6. Audio in (L)
7. Blue in
8. Status CVBS
9. Green earth
10. --
11. Green in
12. --
13. Red earth
14. Ground
15. Red in
16. Status RGB
17. CVBS earth
18. RGB Status earth
19. CVBS out (video)
20. CVBS in (video)
21. Socket earth

Panasonic (U.K.) Ltd

Willoughby Road,

Bracknell,

Berks.

RG12 8FP
