MANUAL I PËRDORUESIT TC-14S3RL PANASONIC

Panasonic

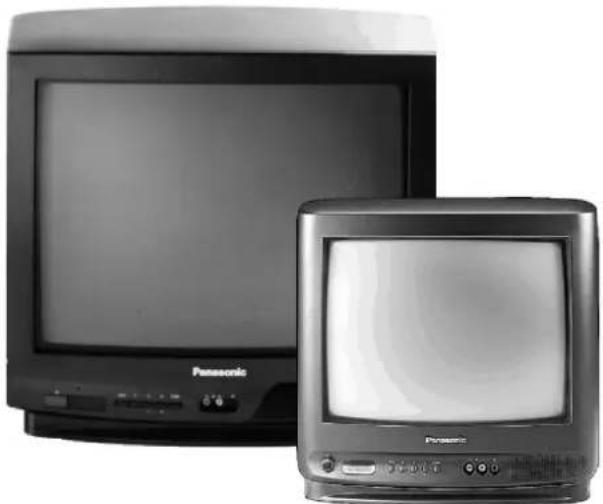

Two Panasonic TVs shown side by side, one front-mounted and one front-mounted (no visible text or labels)

TC---21S3RL

TC---14S3RL

Contrast Auto Tracking System

Please read these instructions completely before use and retain them for future reference.

CONTENTS

●Warnings and Precautions 3.
- Accessories 4.
●Fitting Remote Control Batteries 4.

• Installation and Set-up .... 5
• Location of Controls .... 7
• Menu Operation 8
  • Audio / Video Connections ..... 10
  • VCR and Satellite Receiver Installation ..... 11
• Trouble-shooting 12
• General Information 12
• Specifications 13
• Scart Terminal Information 13

- This T.V. is designed to operate on A.C. 220 --- 240V, 50Hz and is capable of receiving the PAL I transmission standard.

- Do not expose this TV set to rain or excessive moisture.

• WARNING: HIGH VOLTAGE!

Do not remove the rear cover, there are no user serviceable parts inside.

- Avoid exposing the TV set to direct sunlight or other sources of heat.

- Remove the mains plug from the wall socket when the TV set is not to be used for a prolonged period of time. Do not pull the power cable to remove the mains plug from the socket, always remove it by the plug.

CABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabir and picture tube can be cleaned with a soft cloth moistened with mild detergent and water. Do not use solutions containing benzol or petroleum. TV sets can produce static electricity, care must be taken whenever touching the TV screen.

- Adequate ventilation is essential to prevent failure of electrical components. We recommend that a gap of at least 5cm is left all around this TV even when it is plain inside a cabinet or between shelves.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING CAREFULLY

This appliance is supplied with a fitted three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. If the fuse is replaced then the replacement fuse must be 5 amp rated and should be approved by ASTA or BSI to BS136

ASA

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the fitted plug has a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

Replacement fuse covers can be purchased through your local Panasonic dealer.

The plug fitted to this appliance incorporates a mains filter circuit. If this is removed or replaced with a non-filtered mains plug this television will no longer meet the European standards for Electromagnetic Compatibility (EMC). If the fitted plug is unsuitable for the socket outlet in your home an appropriate adapter should be used.

Nonetheless, if the fitted plug is replaced, the fuse should be taken out and the cut-off plug disposed of safely. There is danger of severe electrical shock if the cut off plug is inserted into any 13amp socket.

If a new plug is to be fitted please observe the wiring code as shown below. If in any doubt please consult a qualified electrician.

Illustration of a plug with two yellow connectors and a black handle (no text or symbols)

Important Note : The layout of the mains plug may differ from this illustration

used

How to replace the fuse :

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug.

IMPORTANT :-- The wires in the mains lead of this appliance are coloured in accordance with the following code :-

BLUE : NEUTRAL

BROWN : LIVE

As the colours of the wires in the mains lead of this appliance may not correspond to the markings identifying the terminals in your plug, proceed as follows :---

1. The BLUEwire must be connected to the terminal marked 'N' or coloured black.

2. The BROWNwire must be connected to the terminal marked 'L' or coloured red.

IMPORTANT NOTE : Under no circumstances should either of these wires be connected to the Earth terminal of the three pin plug, marked with the letter 'E' or the earth symbol ().

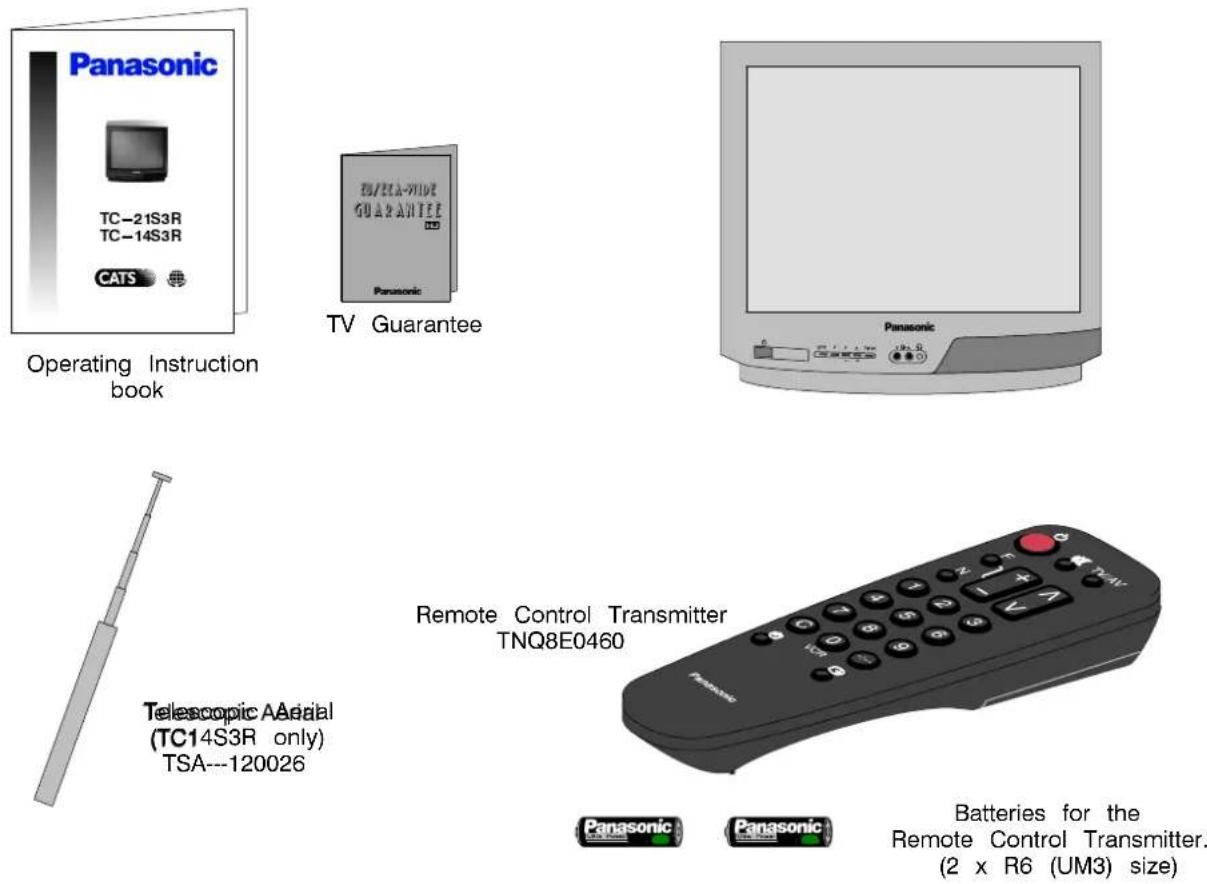

Check that you have the accessories and items shown

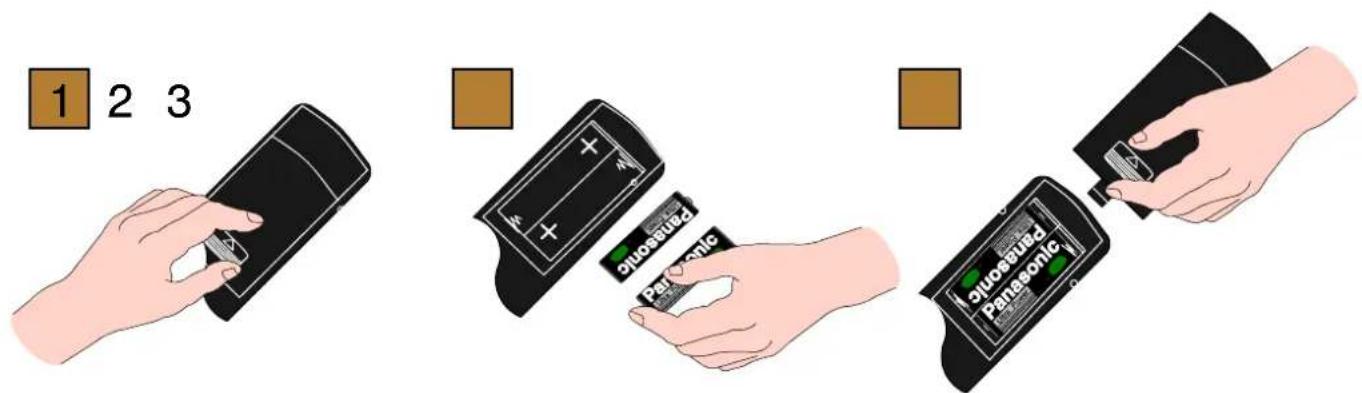

FITTING REMOTE CONTROL BATTERIES

1 2 3 200 Pancereonics 100 Pancereonics

Replace the coverSlide off the battery

• Make sure that the batteries are fitted the correct way round.
• Do not mix old batteries with new batteries. Remove old, exhausted batteries immediately.
• Do not mix different battery types, i.e. Alkaline and Manganese. Do not use rechargeable (Ni–Cad) batteries.

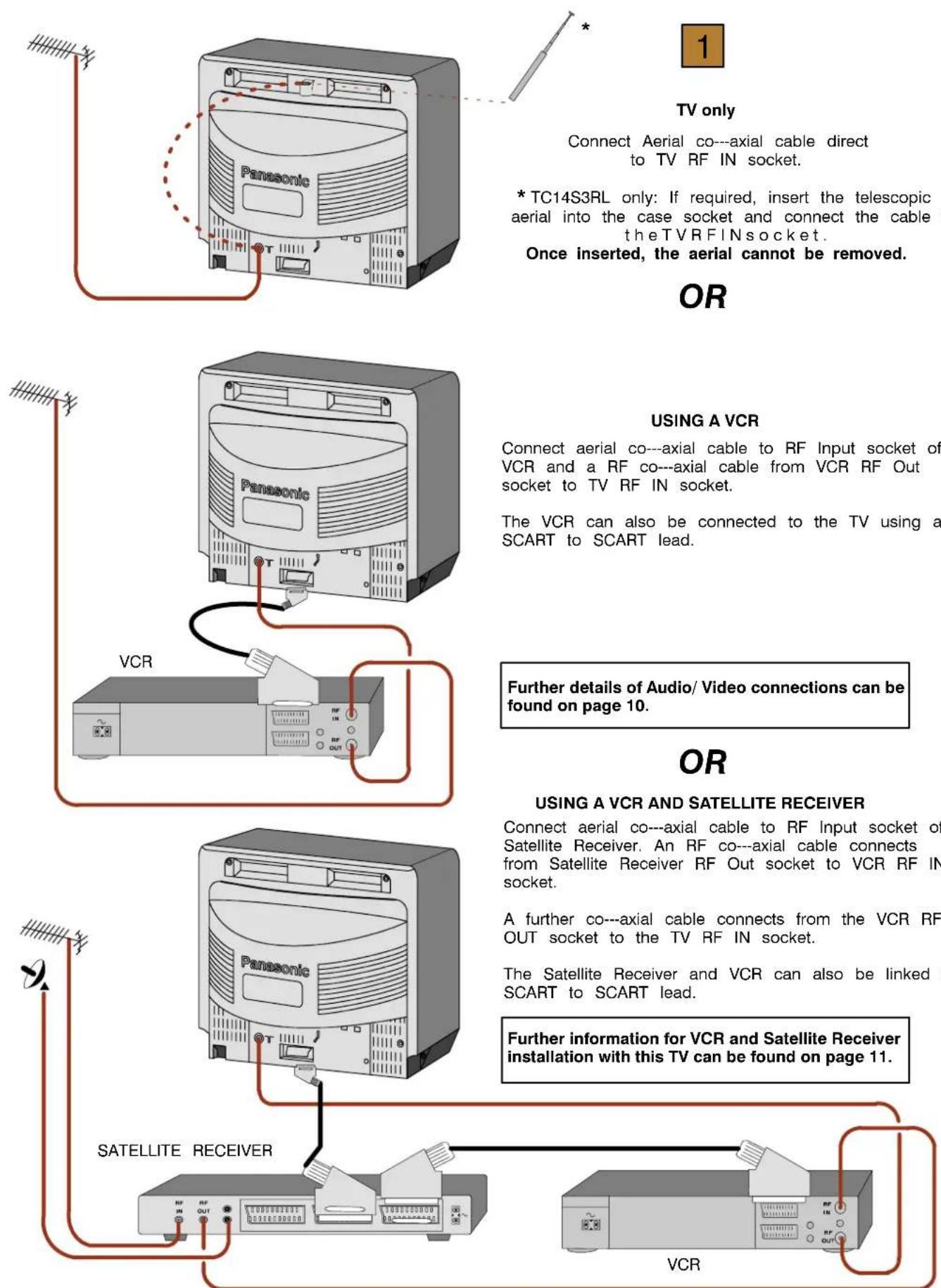

TV only

Connect Aerial co---axial cable direct to TV RF IN socket.

* TC14S3RL only: If required, insert the telescopic aerial into the case socket and connect the cable to the TVRFINsocket.

Once inserted, the aerial cannot be removed.

OR

USING A VCR

Connect aerial co---axial cable to RF Input socket of VCR and a RF co---axial cable from VCR RF Out socket to TV RF IN socket.

The VCR can also be connected to the TV using a SCART to SCART lead.

Further details of Audio/Video connections can be found on page 10.

OR

USING A VCR AND SATELLITE RECEIVER

Connect aerial co---axial cable to RF Input socket of Satellite Receiver. An RF co---axial cable connects from Satellite Receiver RF Out socket to VCR RF IN socket.

A further co---axial cable connects from the VCR RF OUT socket to the TV RF IN socket.

The Satellite Receiver and VCR can also be linked by SCART to SCART lead.

Further information for VCR and Satellite Receiver installation with this TV can be found on page 11.

Ancillary equipment and leads are not supplied.

Switch ON your VCR. *

Switch ON your Satellite Receiver.*

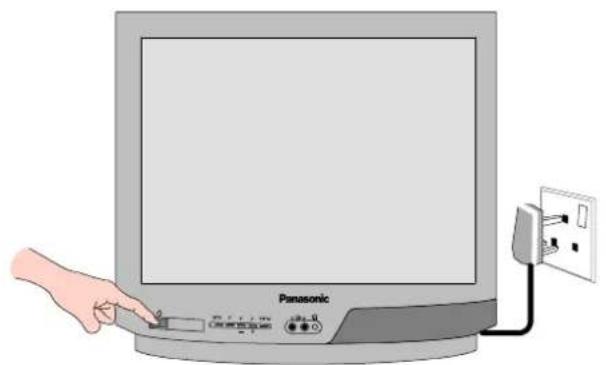

Plug the TV into a mains socket and switch ON.

Programmes will appear immediately if your dealer has programmed the TV for you.

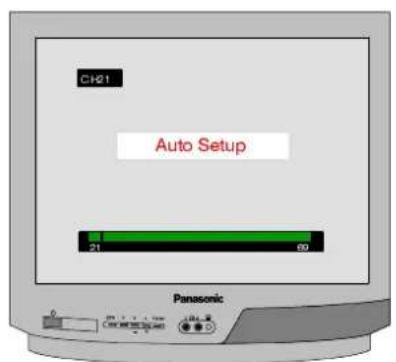

If the TV has not been programmed for you then Auto setup will begin. TV stations will be located and stored ready for use. *

Switch the VCR Test Signal 'off'. *

Panasonic

CH21 Auto Setup 21 60 Panasonic

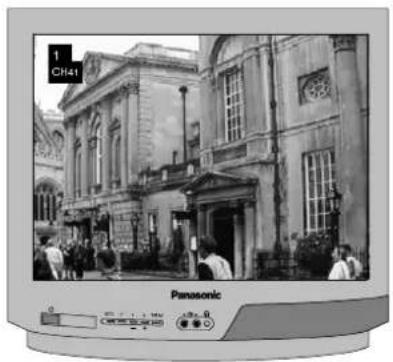

The first available channel will be displayed.

Exterior view of a historic building with classical architecture and pedestrians (no signage)

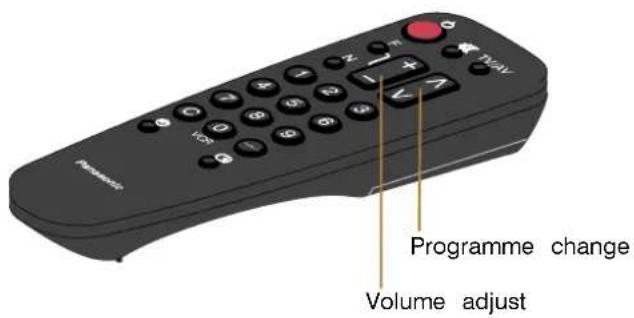

Programme change Volume adjust

*1. We recommend that you switch ON the VCR's test signal --- refer to your VCR instruction book.
*2. We recommend that your Satellite Receiver is set to either SKY ONE or SKY NEWS to ensure reliable tuning.
*3. If the order in which the stations are stored is not to your preference it can be rearranged. Refer to the Tuning menu Swap feature ---seepage9fordetails.
*4. IT IS IMPORTANT that you only use TV programme position '0' to view your VCR. If your VCR picture does not appear on programme position '0' (the VCR position), refer to page 11 for guidance.

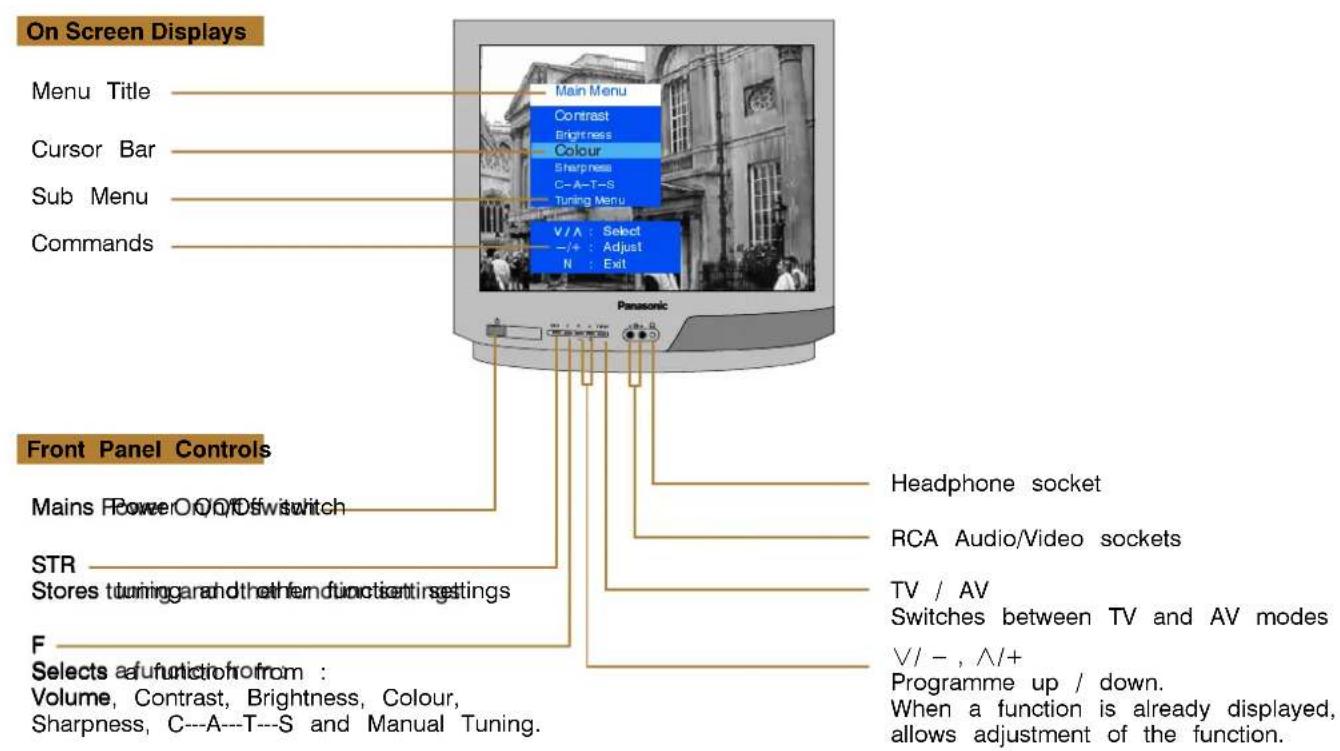

On Screen Displays Menu Title Cursor Bar Sub Menu Commands Panasonic Main Menu Contrast Brightness Colour Sharpness C-A-T-S Tuning Menu V/A : Select -/+ : Adjust N : Exit Front Panel Controls Mains Power/OFF/Off switch STR Stores tuning and other function settings F Selects ad function from : Volume, Contrast, Brightness, Colour, Sharpness, C---A---T---S and Manual Tuning. Headphone socket RCA Audio/Video sockets TV / AV Switches between TV and AV modes V/- , A/+ Programme up / down. When a function is already displayed, allows adjustment of the function.

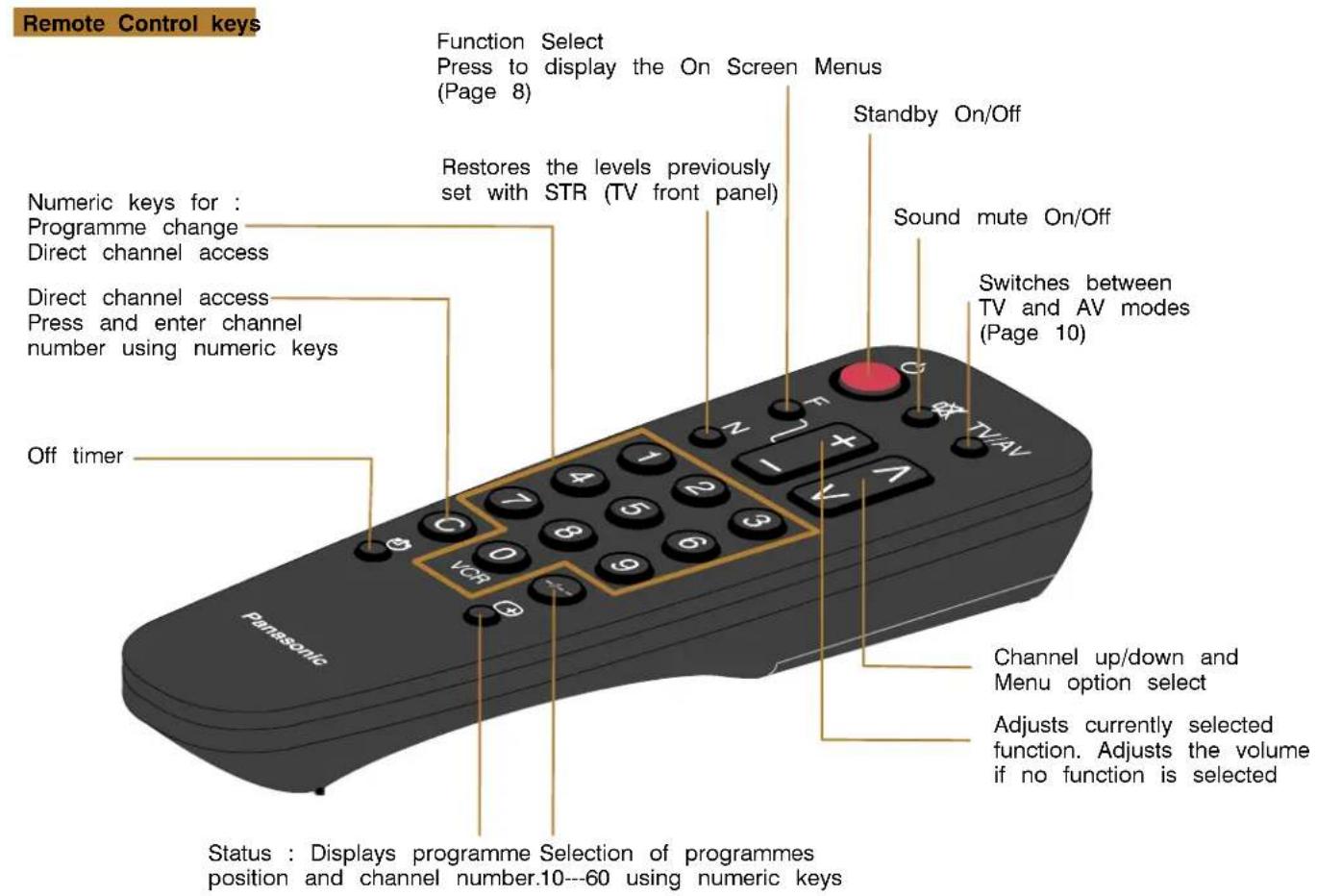

Remote Control keys Function Select Press to display the On Screen Menus (Page 8) Restores the levels previously set with STR (TV front panel) Standby On/Off Numeric keys for : Programme change Direct channel access Direct channel access Press and enter channel number using numeric keys Off timer C VCR O 7 4 2 1 N F T V 7 G C GX TV/AV Switches between TV and AV modes (Page 10) Channel up/down and Menu option select Adjusts currently selected function. Adjusts the volume if no function is selected Status : Displays programme Selection of programmes position and channel number.10---60 using numeric keys

Exit Menu Select Auto Setupstart Shipping Conditionstart Manual Tradingstore Programme Swap TVAV C VCA Display Menu / Previous Menu Adjust / Access Panasonic

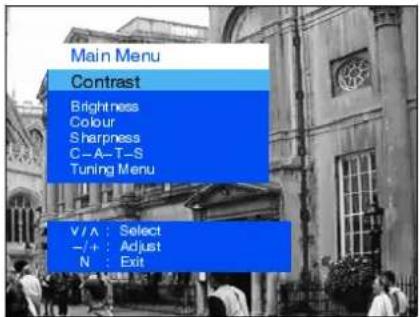

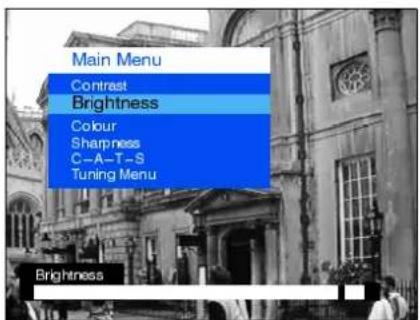

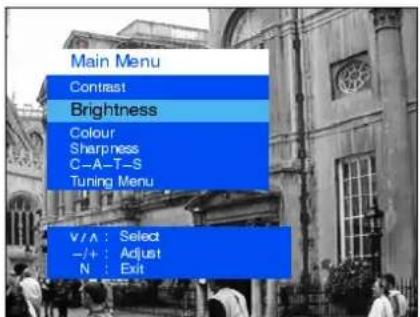

Main Menu

Contrast

Brightness

Colour

Sharpness

The Contrast Brightness, Color and Sharp Sharpness, be altered to suit the viewing conditions and personal preferences.

Main Menu Contrast Brightness Colour Sharpness C-A-T-S Tuning Menu V/A : Select -/+ : Adjust N : Exit

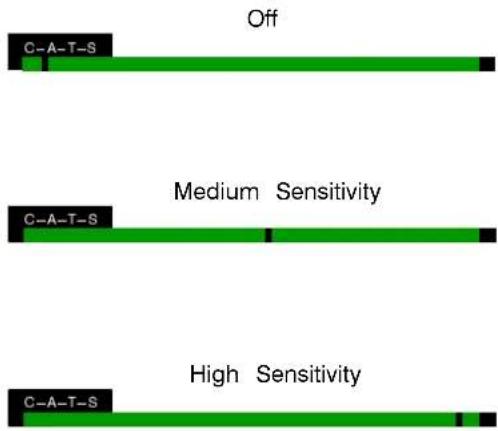

C-A-T-S: Contrast Auto Tracking System

Automatically adjusts the contrast setting to compensate for any changes in the ambient lighting of the surroundings.

To obtain best results first set the Contrast to maximum, to allow a greater operating range for C---A---T---S, then select one of the 3 settings as desired.

Main Menu Contrast Brightness Colour Sharpness C-A-T-S Tuning Menu V/A : Select -/+ : Adjust N : Exit

Off C-A-T-S Medium Sensitivity C-A-T-S High Sensitivity C-A-T-S

Main Menu Contrast Brightness Colour Sharpness C-A-T-S Tuning Menu Brightness

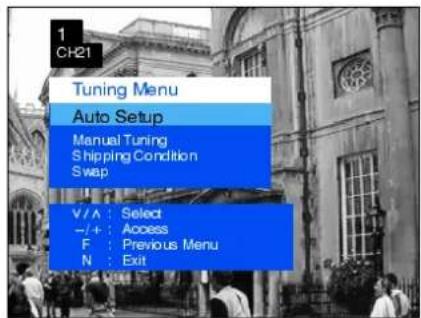

Tuning Menu

The Tüöningne provoide desesedelsstonabott amautmalid automatic tuning menus.

Auto Setup

The AutoSetSupremeAllowing to autocraticatically the Ture the TV, particularly useful if you move to area that is served served by a different transmitter.

Manual Tuning

The Manaballuringementlowallowisindividualprogramthepositions to be tuned manually.

Shipping Condition

Allows you to clear all tuning information and reset all control levels back to the factory settings.

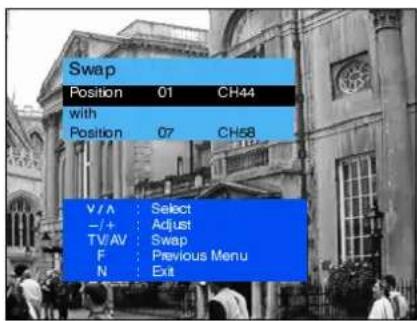

Swap

If the programme order after Auto Setup is not to your preference you can swap programmes between positions.

Swap Position 01 CH44 with Position 07 CH58 V/A Select -/+ Adjust TV/AV Swap F Previous Menu N Exit

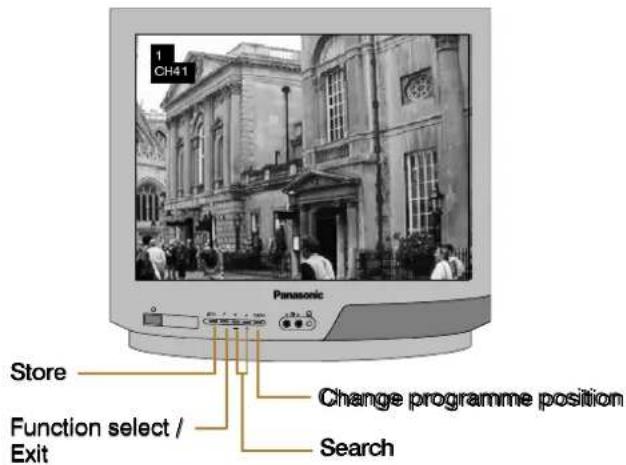

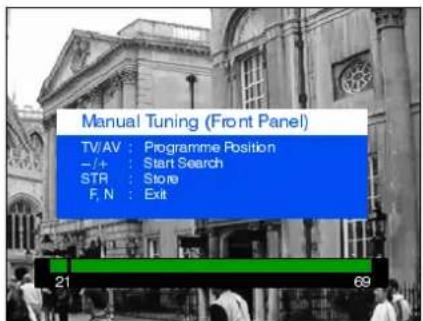

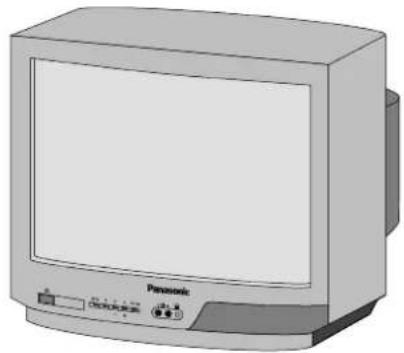

Manual Tuning (front panel of the television)

The stations may also be manually tuned using the controls on the front of the television.

Press the F key (Front panel) until "Manual Tuning" is reached. Press - or + to access "Manual Tuning".

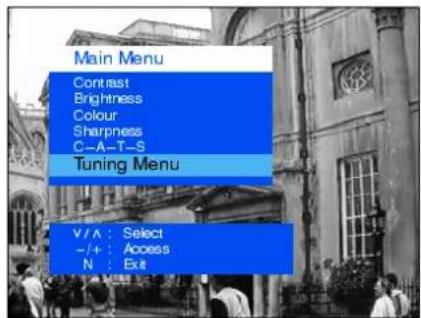

Main Menu Contrast Brightness Colour Sharpness C-A-T-S Tuning Menu V/A : Select -/+ : Access N : Exit

1 CH21 Tuning Menu Auto Setup Manual Tuning Shipping Condition Swap V/A : Select -/+ : Access F : Previous Menu N : Exit

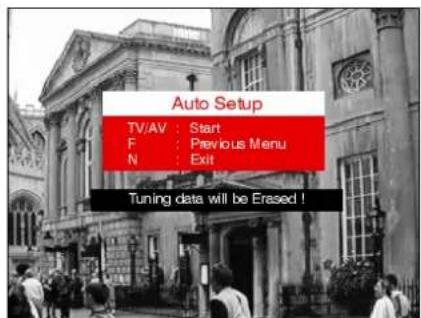

Auto Setup TV/AV : Start F : Previous Menu N : Exit Tuning data will be Erased !

1 CH41 Panasonic Store Function select / Exit Change programme position Search

Manual Tuning (Front Panel) TV/AV : Programme Position -/+ : Start Search STR : State F, N : Exit

AV (Audio / Video) is a dedicated input for VCR's, Satellite Receivers and other Audio / Video equipment.

This TV is capable of switching to AV operation automatically if the equipment connected provides a switching signal to the SCART socket.

In this condition the display will show EC and it is possible to change the programme position of the TV without changing the displayed picture (This is not possible when using the front AV connections).

Illustration of a Panasonic desktop computer with control buttons (no text or symbols on the device body)

Video input Audio input to V socket to A socket

RCA Wideo Cable RCA Audio Cable VCR

Output frioom Headphone socket

Line drawing of a pair of headphones connected by a cord (no text or symbols)

Headphones with 3.5mm jack plug

Illustration of a beige electronic device with ports and control buttons (no visible text or symbols)

CAMCORDER

Illustration of a mounted optical device with lens and adjustment knobs (no text or symbols)

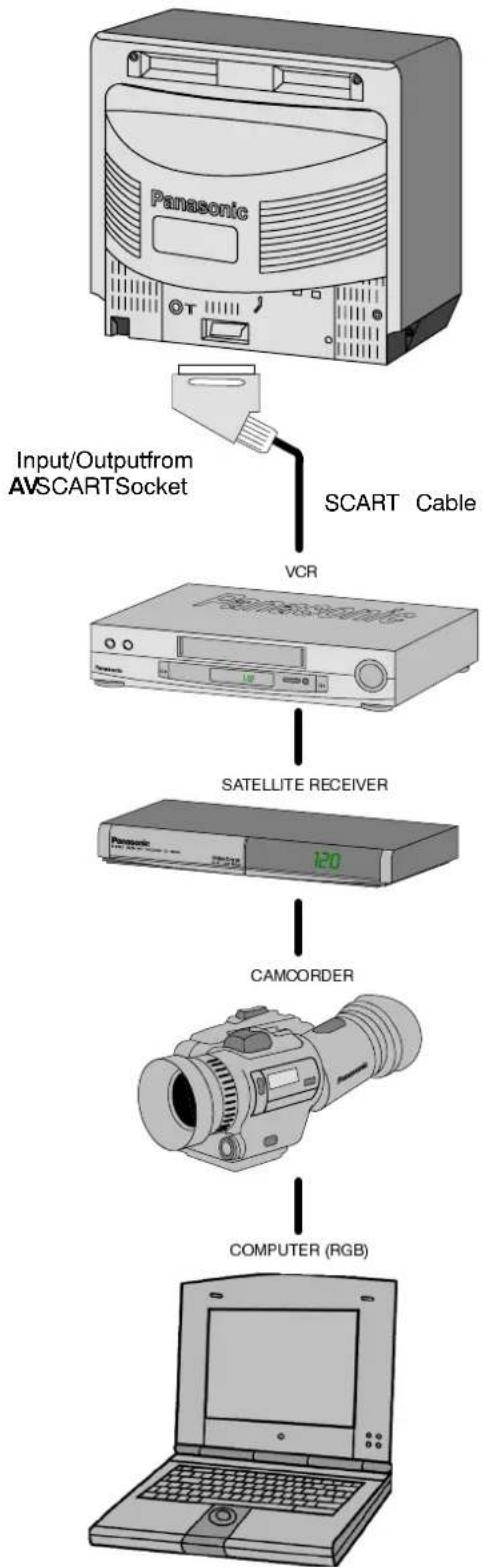


Ancillary equipment and cables shown are not supplied with this TV set.

Do not connect a computer with TTL output (5V) to this TV set.

The TV's speaker will be automatically disconnected whilst the headphones are connected.

Do not connect front and rear AV inputs simultaneously, as the sound and pictures will be mixed.

Your new TV is supplied with programme position '0' designed specifically to receive an RF signal from a VCR.

However, depending on the VCR's setting you may not receive any picture or sound from the VCR on programme position '0' of the TV. It will be necessary to either adjust the RF channel of the VCR or to adjust the tuning of the TV's programme position '0' or both until the RF output channel of the VCR is received.

It is intended that this advice is used in conjunction with the instruction books for your ancillary equipment.

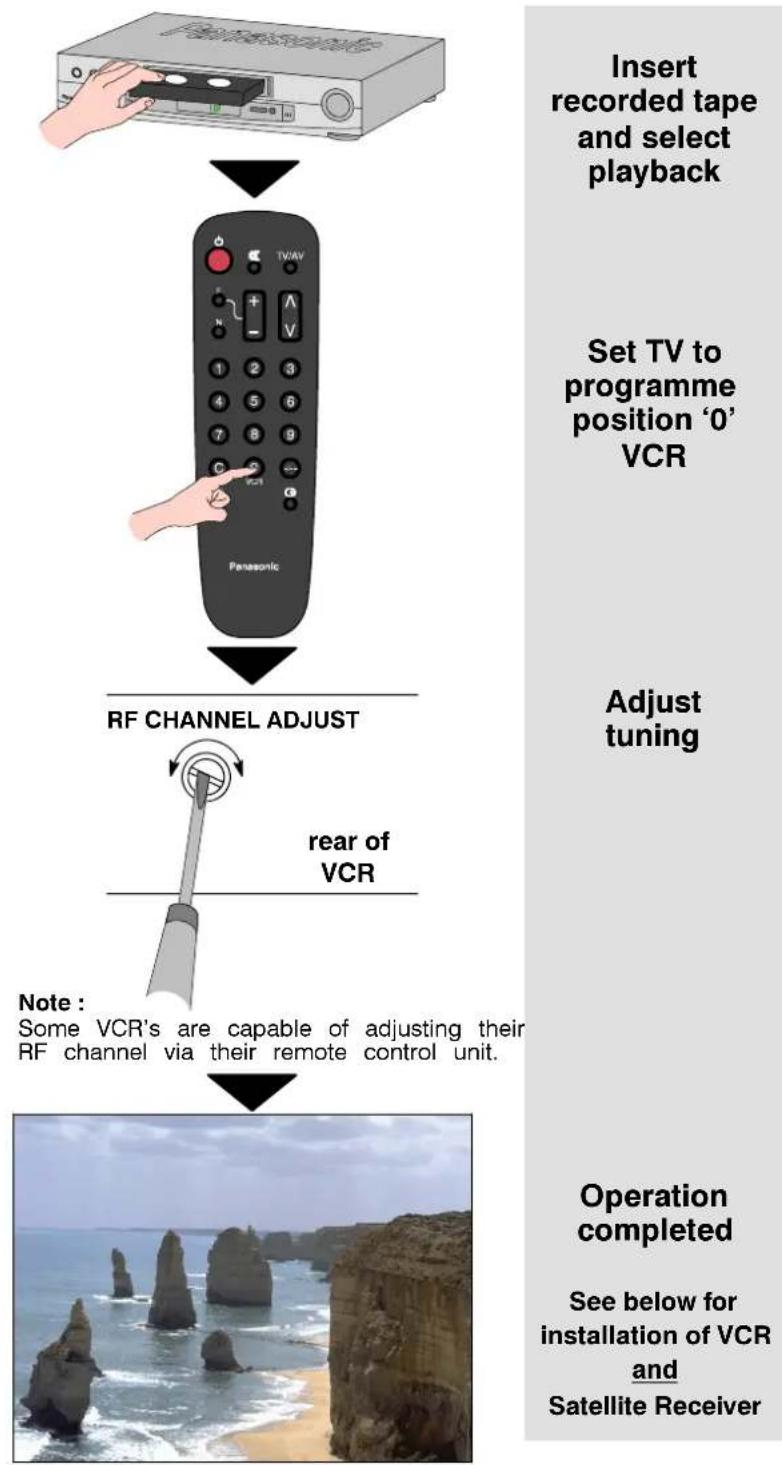

TO TUNE YOUR VCR TO THE TV

TO TUNE YOUR TV TO THE VCR

Illustration of a hand inserting into a CD into a device (no text or symbols visible)

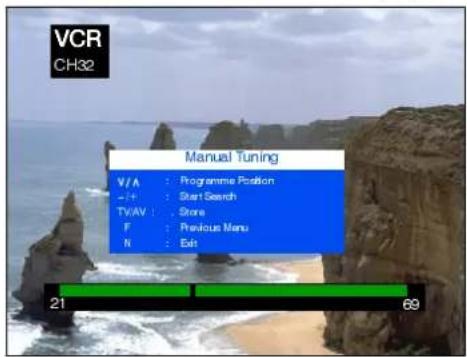

Access the Manual tuning menu as detailed on page 9.

Programme position and current channel are displayed top left of screen

∨ ∧ To select programme position '0' --- + To start search for VCR playback

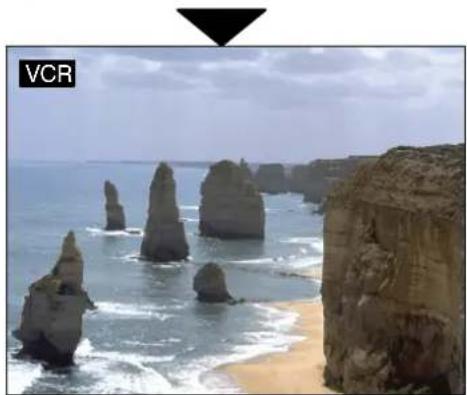

VCR CH32 Manual Tuning V/A : Programme Position -/+ : Start Search TV/AV : Store F : Previous Manu N : Exit 21 69

TV/AV Tostoreposition N To return to viewing screen

Coastal landscape with large rock formations and sandy shore, no visible text or symbols

If you are going to use a Satellite Receiver and a VCR, it is important, to avoid tuning problems, that they are both tuned to output their signals on different channels. For example, if your VCR is tuned to output channel 32, your Satellite Receiver could be set to output channel 34. Refer to your Satellite Receiver and VCR instruction books for precise tuning information.

Before calling for service, determine the symptoms and make a few simple checks as shown below. For service please contact your local Panasonic dealer quoting the model number and serial number (both are located at the rear of the TV).

Symptoms		Checks
Picture Sound
Snowy Picture or Multiple Images	Noisy Sound or Normal Sound	Aerial location, direction or connection
Interference	Noisy Sound	Electrical appliances, vehicles, fluorescent lights
Normal Picture Noisy or No Sound Volume level or sound muted
No Picture No Sound		Not plugged into A.C. outlet, not switched on picture / sound controls set at minimum levels
No Colour Normal Sound Colour controls set at minimum levels
Scrambled Normal or Weak Sound Retune channel(s)

GENERAL INFORMATION

Sleep Feature

If the set is not switched off when the TV station stops transmitting, it will automatically go to standby mode after 30 minutes. This function will not operate when in AV mode.

Last Position Memory

Certain functions have a last position memory, i.e. the setting at the time of switch off will be the setting used when the receiver is switched on again:

Programme position

Colour

Volume

Contrast

Brightness

Standby

Sharpness

Status

C-A-T-S

TV Games / Home Computers

Extended use of TV games or home computers with any television set can cause a permanent 'shadow' on the screen. This type of irreversible picture tube damage can be limited by observing the following points:

• Reduce the brightness and contrast levels to a minimum viewing level.
• Do not operate the television set for a continuous period of time while using TV games or home computers.

This type of picture tube damage is not an operating defect and as such is not covered by the Panasonic warranty.

Model Number: TC--21S3RL TC--14S3RL
Power Source: 220---240V 50Hz A.C.
Power Consumption: 50W 33V
Standby Power Consumption:
Picture Tube: 51cm visible diagonal 34cm visible diagonal
Audio Output (music)	6W, 8Ω impedance, mono
Dimensions:	480 (H) x 520 (W) x 485 (D) mm	364 (H) x 389 (W) x 384 (D) mm
Weight:	20 kg	10 kg
Receiving Systems:	PAL I UHF E21-69, VHF A1-S20, S21-41 (Hyperband)PAL 525/60 Playback of NTSC tape from PAL Video recorders (VCR)
Aerial (rear):	UHF / VHF
Headphones (front):	3,5mm, 8Ω impedance, mono
AV - Rear:	21 pin terminal - Audio/Video in/out, RGB in
AV - Front:	RCA Audio in/RCA Video in

Design and specifications are subject to change without notice.

Weight and dimensions shown are approximate.

SCART TERMINAL INFORMATION

20 18 16 14 12 10 8 6 4 2 21 19 17 15 13 11 9 7 5 3 1

1. Audio court(R)(R)
2. Audio irin(R)(R)
3. Audio cout (L)
4. Audio earth
5. Blue earth
6. Audio in (L)
7. Blue in
8. Status CVBS
9. Green earth
10. --
11. Green in
    1 2. --
12. Red earth
13. Ground
14. Red in
15. Status RGB
16. CVBS earth
17. RGB Status earth
18. CVBS out (video)
19. CVBS in (video)
20. Socket earth

Panasonic Ireland Ltd

Burton Hall Road,

Sandyford Industrial Estate,

Dublin 18
