AMERICAN ULTRA STRATOCASTER® LH (011813XXXX)

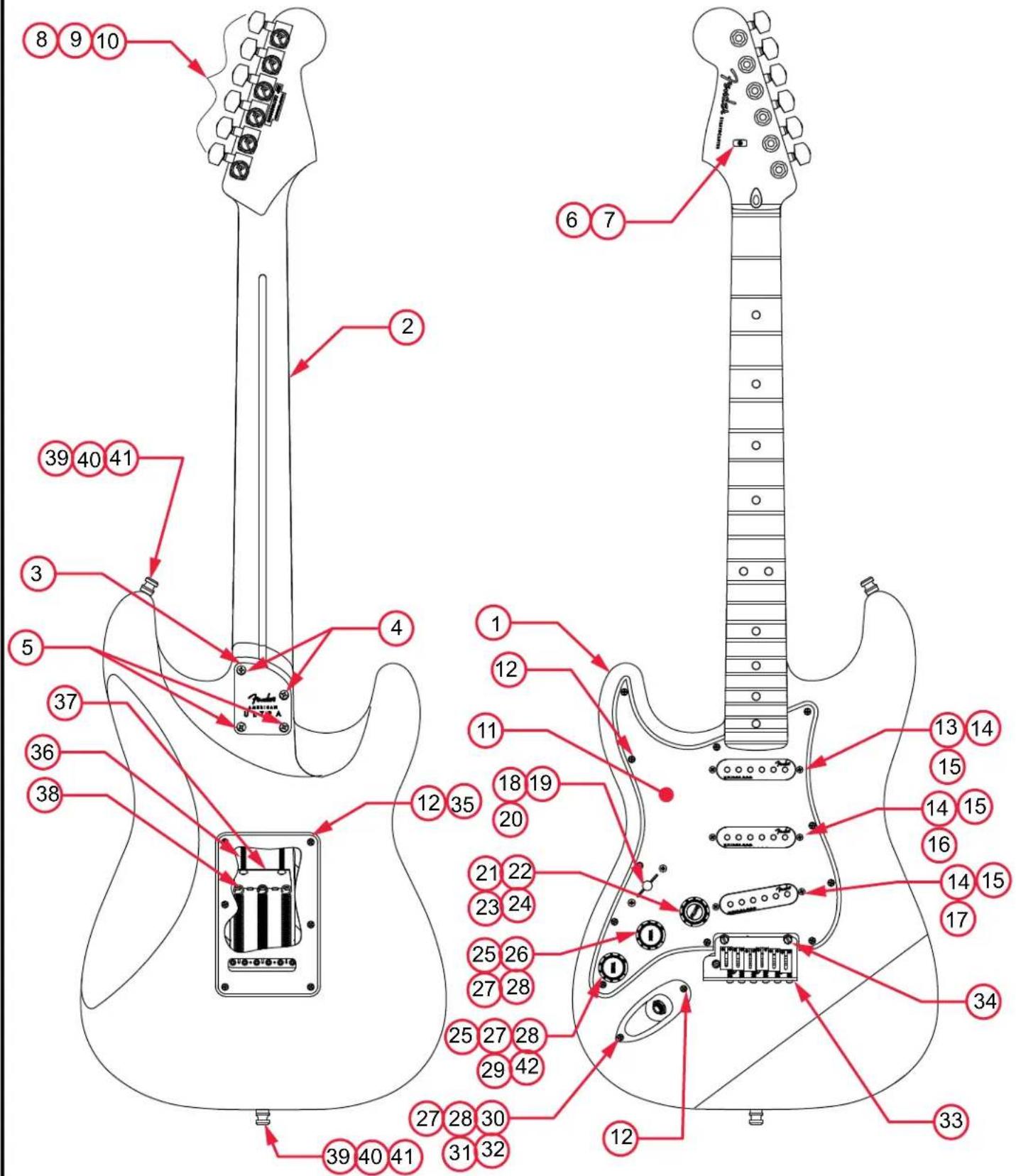

PARTS LAYOUT
AMERICAN ULTRA STRATOCASTER® LH (011813XXXX)
PARTS LIST
| REF# | DESCRIPTION PART | NUMBER |
| 1 BODY AM ULTRA STRAT ULTRBST LH 7715569512 | ||
| 1 BODY AM ULTRA STRAT COB 7715568595 | ||
| 1 BODY AM ULTRA STRAT MBST 7715569532 | ||
| 1 BODY AM ULTRA STRAT APL 7715568581 | ||
| 1 BODY AM ULTRA STRAT TXT 7715568590 | ||
| 2 NECK ASSY AM ULTRA STRAT RW LH- 7715567000 | ||
| 2 NECK ASSY AM ULTRA STRAT MPL LH 7715566000 | ||
| 3 NECK PLATE GUITAR AM ULTRA CHROME LH | 7715479000 | |
| 4 SCREW SMA 8 X 1-1/4 OHP NI | 0072900000 | |
| 5 SCREW SMA 8 X 1-1/2 OHP NI | 7716272000 | |
| 6 STRING TREE AM ELITE GTR CHR | 7708381000 | |
| 7 SCREW SMA 2 X 9/16 FHP NI | 0051621000 | |
| 8 KEY LOCKING SHORT 1,2,3 POLISH CHROME LH | 0055306000 | |
| 9 WASHERS KEY (6) | 0053106049 | |
| 10 | BUSHINGS KEY (6) | 0058820049 |
| 11 | PICKGUARD STRAT MG/BLK/MG LH | 0055320000 |
| 11 | PICKGUARD STRAT BROWN SHELL LH | 0055321000 |
| 11 | PICKGUARD STRAT AW/B/AW LH | 7719087000 |
| 11 | PICKGUARD STRAT GOLD ANOD LH | 7702187000 |
| 12 | SCREW SMAB 4 X 1/2 OHP NI | 0015578049 |
| 13 | PICKUP ASSY AM ULTRA NOISELESS STRAT VINTAGE NECK AGED WHT LH | 7715573000 |
| 14 | TUBING SIL RUB CUT RED .500 | 0063398000 |
| 15 | SCREW SPCL MACH 4-40 X 13/16 #5 HEAD NI | 0099474000 |
| 16 | PICKUP ASSY AM ULTR NOISELESS STRAT VINTAGE MID AGED WHT LH | 7715574000 |
| 17 | PICKUP ASSY AM ULTR NOISELESS STRAT VINTAGE BRIDGE AGED WHT LH | 7715575000 |
| 18 | KNOB LEVER SWITCH AGED WHT | 0994938000 |
| 19 | SWITCH 5-WAY LEVER DISCRETE/COM | 0078776000 |
| 20 | SCREW MACH 6-32 X 5/8 RHP NI | 0015800049 |
| 21 | KNOB STRAT S1 SOFT OVERMOLD AGED WHT | 7708072000 |
| 22 | SWITCH CAP SPSH STRAT AGED WHT | 0059266030 |
| 23 | SW/POT ASY S-1 250K .25B SPSH BT W/HDWR REV AUDIO | 771564400000 |
*= NOT PICTURED IN DIAGRAM
AMERICAN ULTRA STRATOCASTER® LH (011813XXXX)
| REF# | DESCRIPTION PART | NUMBER |
| 24 | PCB ASSY TREBLE BLEED AM PRO STRAT/TELE 7711092000 | |
| 25 | KNOB STRAT TONE SOFT OVERMOLD AGED WHT 7708072000 | |
| 26 | CONTROL 250K 10% TAPER SPSH R-AUDIO 0063892000 | |
| 27 | WASHER LOCK INTL 3/8 X .687 0016436049 | |
| 28 | NUT HEX 3/8-32 X 3/32 TK NI 0016352049 | |
| 29 | CAPACITOR MPF RDL .022μF 250V 10% 0024832049 | |
| 30 | FERRULE JACK CHROME 0991940100 | |
| 31 | JACK PHONE OPEN CIRCUT 11 | 0021956049 |
| 32 | 2-PIN FEMALE LOCKING QUICK CONNECT | 7717592000 |
| 33 | BRIDGE ASSY STRAT AM DLX LH | 0077093000 |
| 33A | BRIDGE PLATE DLX STRAT LH | 0055317000 |
| 33B | BLOCK TREMOLO AM DLX STRAT LH | 0077091000 |
| 33C | BRIDGE SECTION AM DLX STRAT LH | 0055316000 |
| 33D | SPRING BRIDGE 4 COIL 3/8 BLACK | 0019394049 |
| 33E | SPRING-BRIDGE 3 COIL 1/4 BLACK | 0019395049 |
| 33F | SCREW M 4-40x5/8 PHP BLK | 0017031049 |
| 33G | SCREW HEIGHT ADJ. 1/4 | 0026779049 |
| 33H | SCREW HEIGHT ADJ. 5/16 | 0026780049 |
| 33I | SCREW M 8-32x3/8 FHP NI | 0019656049 |
| 33J | SPRING CLIP, ULTRA | 0036531000 |
| 33K | BUSHING NYL BLK .31OD .22ID x .87L | 0036614000 |
| 33L | SCRW SET 10-32x3/16 HEX SKT FP BLXL | 0036615049 |
| 34 | PIVOT POST ASSY | 0093273000 |
| 35 | COVER BACK STRAT STD W/SLOT AW/BLK/AW LH | 7719091000 |
| 35 | COVER BACK STRAT STD W/SLOT BROWN SHELL LH | 0055323000 |
| 35 | COVER BACK STRAT STD W/SLOT MG/BLK/MG LH | 0055322000 |
| 35 | COVER BACK STRAT STD W/SLOT GOLD ANOD LH | 7702279000 |
| 36 | SCREW SMA 8 X 1-3/4 OHP NI | 0015636049 |
| 37 | CLAW SPRING TENSION ZINC | 0010272149 |
| 38 | SPRING TREM TENSION BLX OX | 0018671049 |
| 39 | STRAP BUTTONS ELITE/STD CHROME W/HDWR 0994914000 | |
| 40 | SCREW SMAB 5 X 1 OHP NI | 0015610049 |
| 41 | FELT WASHERS WHITE | 0994930000 |
| 41 | FELT WASHER BLACK | 0994929000 |
| 42 | CONTROL 250K 10% SPSH NO LOAD | 0078780000 |
| * | TREM ARM ULTRA SNAPIN ULTRA/DLX | 0036534049 |
| * | WRENCH .050 HEX KEY (SADDLE HEIGHT ADJUSTMENT) | 0018531049 |
| * | WRENCH 1/8 HEX KEY (TRUSS ROD ADJUSTMENT) | 7715532000 |
| * | CASE MOLDED AM ELITE GTR | 7708545000 |
*= NOT PICTURED IN DIAGRAM
AMERICAN ULTRA STRATOCASTER® LH (011813XXXX)

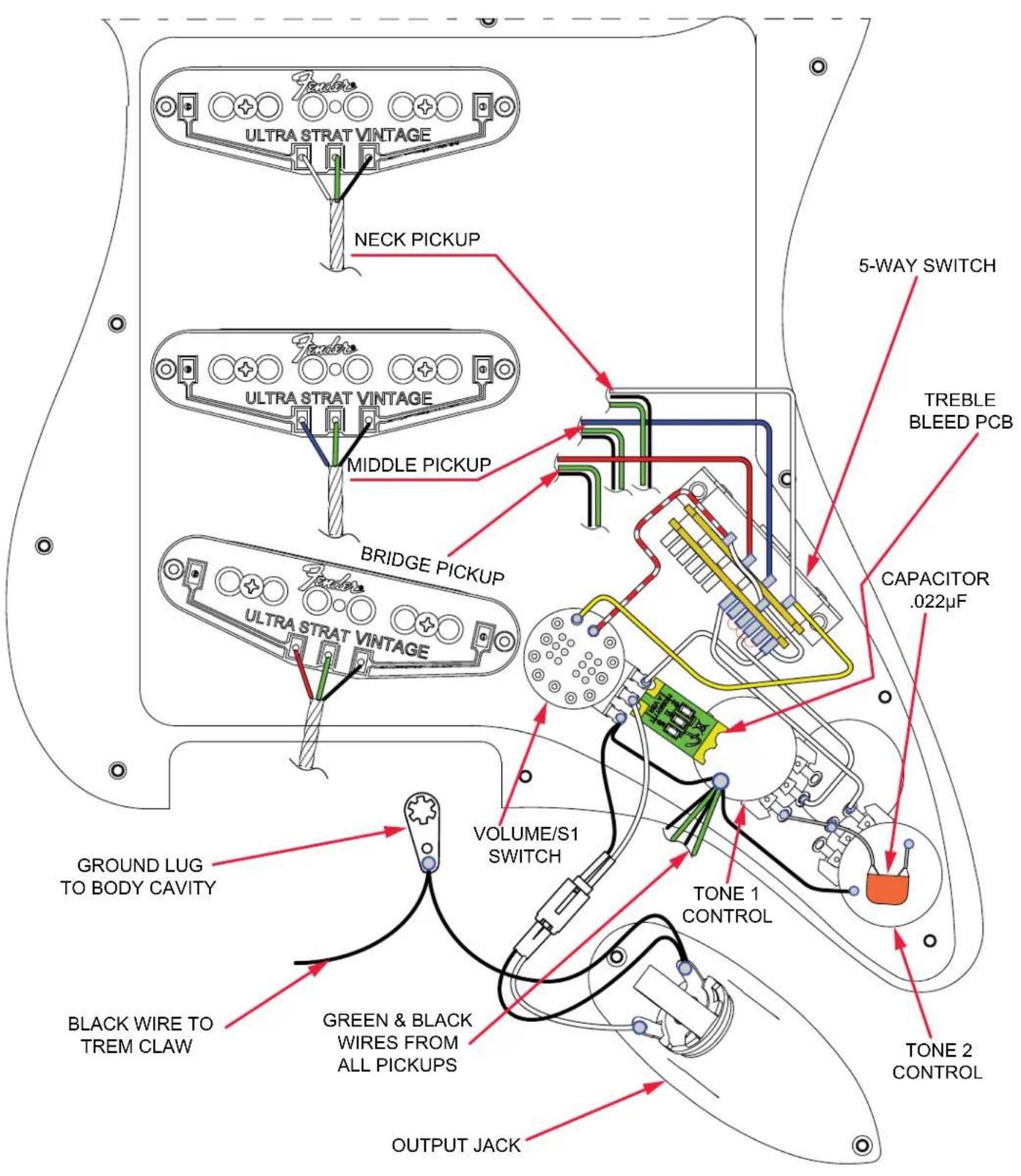

WIRING ASSEMBLY
AMERICAN ULTRA STRATOCASTER® LH (011813XXXX)

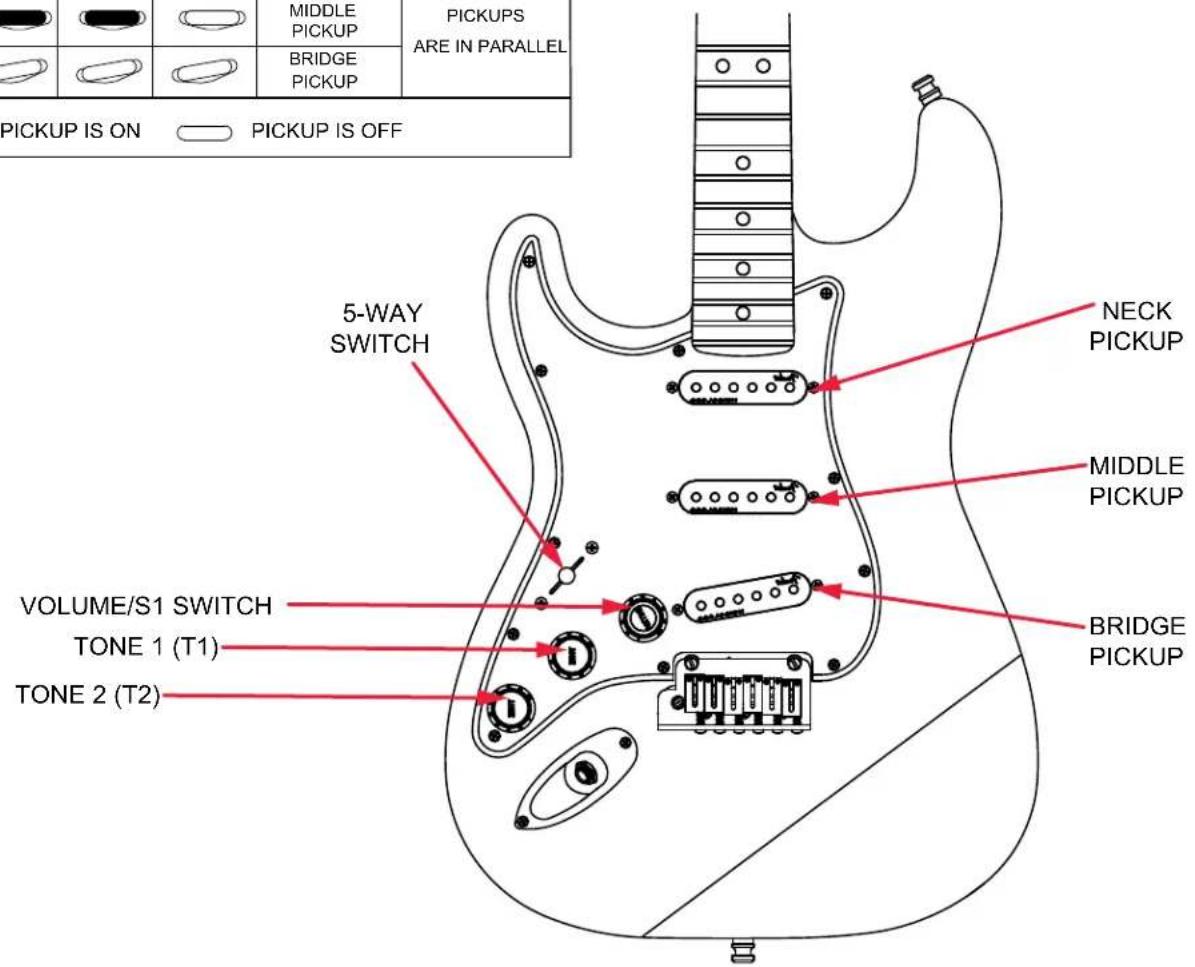

SWITCH AND CONTROL FUNCTION
| T1 ONLY | T1 ONLY T1 | ONLY | T1 ONLY | T2 ONLY | TONECONTROL |  S-1 SWITCH OFF(UP POSITION) |
| 5 WAYSELECTORPOSITION | ||||||
| NECKPICKUP | COMBINEDPICKUPSARE IN PARALLEL | |||||
| MIDDLEPICKUP | ||||||
| BRIDGEPICKUP | ||||||
| T1 ONLY | T1 ONLY | T1 ONLY | T1 ONLY | T2 ONLY | TONECONTROL |  S-1 SWITCH ON(DOWN POSITION) |
| 5 WAYSELECTORPOSITION | ||||||
| NECKPICKUP | COMBINEDPICKUPSARE IN PARALLEL | |||||
| MIDDLEPICKUP | ||||||
| BRIDGEPICKUP | ||||||
| PICKUP IS ON PICKUP IS OFF | ||||||
AMERICAN ULTRA STRATOCASTER® LH (011813XXXX)
ADDITIONAL SPECIFICATION DETAIL

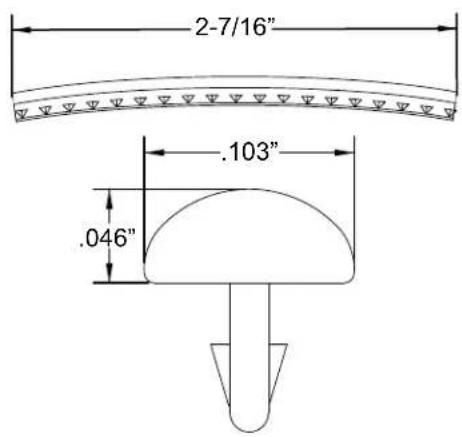

(FRET DIMENSIONS ARE BEFORE INSTALLATION)
PLEASE NOTE: AS EACH NECK IS SANDED & FINISHED BY HAND, THICKNESS DIMENSIONS MAY VARY SLIGHTLY FROM THOSE SHOWN.

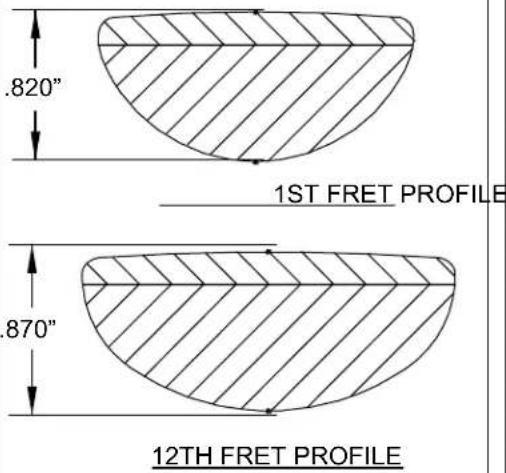

NECK PROFILE: ULTRA MODERN "D"FR
LOCKING TUNING MACHINES EA: P/N 0055306000
OUTER SHAFT DIAMETER .394"
TUNING MACHINE THRU-HOLE INNER DIAMETER .404"

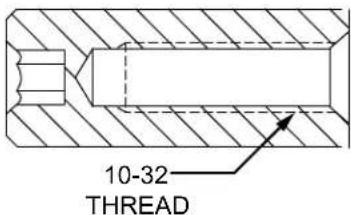

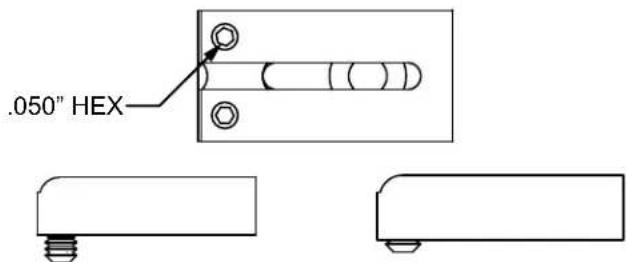

SADDLE HEIGHT ADJUSMENT WRENCH: .050" HEX KEY P/N 0018531049
TRUSS ROD NUT P/N 0994943000
TRUSS ROD ADJUSTMENT WRENCH:
1/8" HEX KEY P/N 7715532000
SADDLE HEIGHT ADJUSTMENT SCREWS:
TALL: P/N 0026780000 SHORT: P/N 0026779000
LOGO: AM ULTRA STRAT DECAL GOLD CHROME
APPLIED UNDER THE FINISH
PICKUP SPECIFICATIONS
| POSITION | MAGNETS | DC RESISTANCE | POLARITY |
| NECK | ALNICO 5 UNBEVELED | 7.9 - 8.7KΩ | NORTH |
| MIDDLE | ALNICO 5 UNBEVELED | 7.9 - 8.7KΩ | NORTH |
| BRIDGE | ALNICO 5 UNBEVELED | 9.2 - 10.0KΩ | NORTH |
