HTQ40T-XAC - Système audio SAMSUNG - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Home Cinéma
Caractéristiques techniques principales	5.1 canaux, puissance totale de 1000 W, technologie Dolby Digital
Alimentation électrique	220-240 V, 50/60 Hz
Dimensions approximatives	Dimensions du caisson de basses : 300 x 300 x 300 mm
Poids	Environ 8 kg
Compatibilités	Compatible avec les téléviseurs et lecteurs Blu-ray Samsung
Type de batterie	Non applicable (pas de batterie)
Tension	220-240 V
Puissance	1000 W (puissance de sortie totale)
Fonctions principales	Lecture de DVD, connectivité Bluetooth, entrée HDMI
Entretien et nettoyage	Nettoyer avec un chiffon doux, éviter les produits chimiques agressifs
Pièces détachées et réparabilité	Disponibilité limitée des pièces, consulter un professionnel pour les réparations
Sécurité	Ne pas exposer à l'humidité, respecter les consignes de sécurité électrique
Informations générales utiles	Vérifier la compatibilité avec les appareils existants avant l'achat

FOIRE AUX QUESTIONS - HTQ40T-XAC SAMSUNG

Comment connecter mon Samsung HTQ40T-XAC à un téléviseur ?

Pour connecter votre Samsung HTQ40T-XAC à un téléviseur, utilisez un câble HDMI. Branchez une extrémité du câble dans le port HDMI de votre système audio et l'autre dans le port HDMI de votre téléviseur. Sélectionnez ensuite l'entrée HDMI correspondante sur votre téléviseur.

Que faire si le son ne sort pas des enceintes ?

Vérifiez que les haut-parleurs sont correctement connectés au système. Assurez-vous également que le volume n'est pas au minimum et que le mode audio est correctement réglé. Si le problème persiste, essayez de redémarrer le système.

Comment mettre à jour le firmware de mon Samsung HTQ40T-XAC ?

Pour mettre à jour le firmware, connectez votre système à Internet via le Wi-Fi ou un câble Ethernet. Allez dans le menu 'Paramètres', puis sélectionnez 'Mise à jour du logiciel' et suivez les instructions à l'écran pour télécharger et installer la dernière version.

Mon Samsung HTQ40T-XAC ne s'allume pas, que faire ?

Vérifiez que l'appareil est correctement branché à une prise électrique fonctionnelle. Essayez de débrancher l'appareil pendant quelques minutes, puis rebranchez-le. Si l'appareil ne s'allume toujours pas, contactez le service clientèle.

Comment régler les paramètres audio sur le Samsung HTQ40T-XAC ?

Pour régler les paramètres audio, allez dans le menu 'Paramètres', puis sélectionnez 'Audio'. Vous pourrez ajuster les réglages tels que l'égaliseur, le volume des haut-parleurs, et d'autres options audio selon vos préférences.

Puis-je utiliser le Bluetooth avec mon Samsung HTQ40T-XAC ?

Oui, le Samsung HTQ40T-XAC prend en charge la connectivité Bluetooth. Pour connecter un appareil Bluetooth, activez le Bluetooth sur l'appareil que vous souhaitez connecter, puis dans le menu du système, sélectionnez 'Bluetooth' et recherchez les appareils disponibles.

Comment réinitialiser mon Samsung HTQ40T-XAC aux paramètres d'usine ?

Pour réinitialiser aux paramètres d'usine, allez dans le menu 'Paramètres', sélectionnez 'Réinitialisation', puis choisissez 'Réinitialiser aux paramètres d'usine'. Suivez les instructions à l'écran pour confirmer la réinitialisation.

Le téléviseur et le système audio semblent désynchronisés, que faire ?

Cela peut être dû à un décalage audio. Accédez aux paramètres audio de votre téléviseur et recherchez une option de 'synchronisation audio' ou 'retard audio'. Ajustez ce paramètre jusqu'à ce que le son corresponde à l'image.

MODE D'EMPLOI HTQ40T-XAC SAMSUNG

SAMSUNG ELECTRONICS CANADA, INC.

HEADQUARTERS

55 Standish Court Mississauga, Ontario L5R 4B2 Canada

TEL: [phone]

www.samsung.ca

SERVICE DIVISION

55 Standish Court Mississauga, Ontario L5R 4B2 Canada

1-800-SAMSUNG (1-800-726-7864)

SAMSUNG

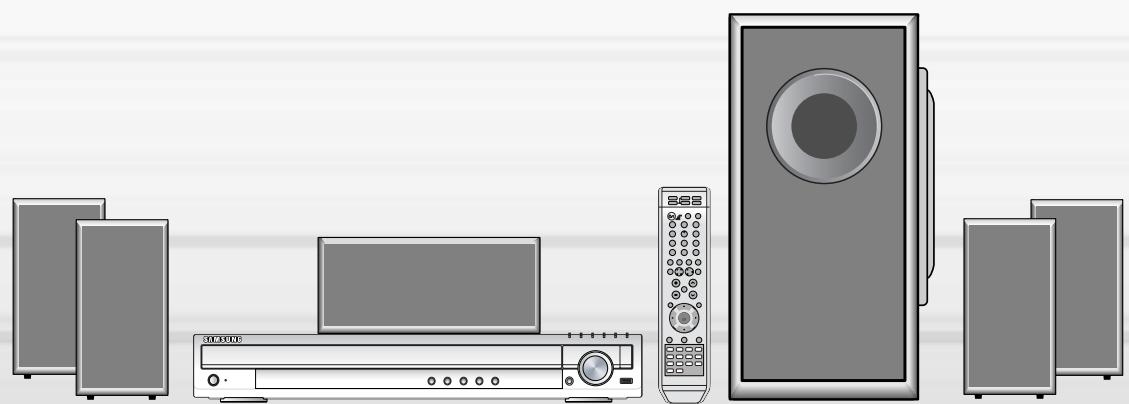

Instruction Manual

SafetyWarnings

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KCLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

Note to CATV system installer :

This reminder is provided to call the CATV system installer's attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

This symbol indicates that dangerous voltage which can cause electric shock is present inside this unit.

This symbol alerts you to important operating and maintenance instructions accompanying the unit.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Precautions

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on modules or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the Home Theater to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

During thunderstorms, disconnect AC main plug from the wall outlet.

Voltage peaks due to lightning could damage the unit.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

Protect the player from moisture(i.e. vases), and excess heat (e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e-speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.

Condensation may occur if your player or disc has been stored in cold temperatures.

If transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

The batteries used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash.

Features

Multi-DiscPlayback&FMTuner

The HT-Q40 combines the convenience of multi-disc playback capability, including DVD-AUDIO, DVD-VIDEO, VCD, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW, with a sophisticated FM tuner, all in a single player.

USB Host Play

You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, digital camera or USB memory by connecting the storage device to the USB port of the home theater.

Dolby Pro Logic II

Dolby Pro Logic II is a new form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.

DTS (Digital Theater Systems)

DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel sound.

TV Screen Saver Function

The HT-Q40 automatically brightens and darkens your TV screen after 3 minutes in the stop mode.
The HT-Q40 automatically switches itself into the power saving mode after 20 minutes in the screen saver mode.

Power Saving Function

The HT-Q40 automatically shuts itself off after 20 minutes in stop mode.

Customized TV Screen Display

The HT-Q40 allows you to select your favorite image during JPEG, DVD or VCD playback and set it as your background wallpaper.

AV SYNC Function

Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.

Contents

PREPARATION

SafetyWarnings 1

Precautions 2

Features 3

Notes on Discs 5

Description. 7

CONNECTIONS

Connecting the Speakers. 11

Connecting the Video Out to TV 13

P.SCAN(Progressive Scan) Function 14

Connecting External Components. 15

Connecting the FM Antenna. 16

OPERATION

Before Using Your Home Theater 17

DiscPlayback. 19

Selecting a Disc in the Disc changer 20

MP3/WMA-CDPlayback 21

Displaying Disc Information 22

JPEG FilePlayback 23

DivXPlayback 25

Checking the Remaining Time 27

Fast/SlowPlayback 28

Skipping Scenes/Songs 28

RepeatPlayback 29

A-B Repeat Playback 30

Step Function 31

Angle Function 31

Zoom (Screen Enlarge) Function 32

EZVIEW Function 32

Bonus Group / Navigating Pages 33

Selecting Audio/Subtitle Language 34

Playing Media Files using the USB HOST feature. 35

Moving Directly to a Scene/Song 37

Using Disc Menu 38

Using the Title Menu. 38

SETUP

Setting the Language 39

Setting TV Screen type 41

Setting Parental Controls (Rating Level) 43

Setting the Password 44

Setting the Wallpaper 45

DVDPlaybackMode 47

Setting the Speaker Mode. 48

Setting the Delay Time 49

Setting the Test Tone. 51

Setting the DRC (Dynamic Range Compression) 52

Setting the Audio 53

AVSYNC Setup 55

Sound Field (DSP)/EQ Function 56

Dolby Pro Logic II Mode 57

Dolby Pro Logic II Effect 58

RADIO OPERATION

Listening to Radio. 59

Preseting Stations 60

MISCELLANEOUS

Convenient Functions. 61

Operating a TV with the Remote Control 63

Before Calling for Service 65

Cautions on Handling and Storing Discs. 67

Language Code List 68

USB Host Feature Supported Products 69

Specifications 70

Notes on Discs

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie theater or concert hall.

DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player. (Your DVD player will only play DVDs that are labeled with identical region codes.)

Playable Discs

Disc Type	Mark (Logo)	Recorded Signals	Disc Size	Max. Playing Time
DVD-AUDIO DVD-VIDEO	AUDIO/VIDEO	Audio + Video	5"	Approx. 240 min. (single-sided)
				Approx. 480 min. (double-sided)
			3 1/2"	Approx. 80 min. (single-sided)
				Approx. 160 min. (double-sided)
VIDEO-CD	COMPACT DISC DIGITAL VIDEO	Audio + Video	5"	74 min.
			3 1/2"	20 min.
AUDIO-CD	COMPACT DISC DIGITAL AUDIO	Audio	5"	74 min.
			3 1/2"	20 min.
Divx	DIVX VIDEO	MPEG4 MP3	5"	74 min.
			3 1/2"	20 min.

Do not use the following types of disc!

• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player. If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.
  DVD discs purchased abroad may not play on this player. If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.

Copy Protection

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Disc Recording Format

This product does not support Secure (DRM) Media files.

CD-R Discs

• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.
• Use a 650MB/74 minute CD-R disc.
  Do not use CD-R discs over 700MB/80 minute as they may not be played back.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

CD-R MP3 Discs

• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +) .
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions can be played.
• Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
• A maximum of 500 tracks can be played per CD.
• A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

• Only files with the ".jpeg" and ".JPEG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +) .
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

CD-R/RW DivX Discs

• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not be played.
• Software update for unsupported formats is not supported. (Example: QPEL, GMC, resolution higher than 720 x 480 pixels, etc.)
• Sections with high frame rate might not be played while playing a DivX file.
  For more information about the formats authorized by DivX Networks, Inc., visit "www.divxnetworks.net".

Description

—Front Panel—

—Rear Panel—

Accessories

—Remote Control—

Insert Remote Batteries

1 Remove the battery cover on the back of the remote by pressing down and sliding the cover in the direction of the arrow.

2 Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and -).

3 Replace the battery cover.

Caution

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+) to (+) and (-) to (-) .
• Use the correct type of batteries. Batteries that look similar may differ in voltage.
  Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.

Range of Operation of the Remote Control

The remote control can be used up to approximately 23 feet/7 meters in a straight line. It can also be operated at a horizontal angle of up to 30^ from the remote control sensor.

Connecting the Speakers

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Position of the Home Theater

• Place it on a stand, cabinet shelf, or under the TV stand.

Front Speakers L

• Place these speakers in front of your listening position, facing inwards (about 45^ ) toward you.
• Place the speakers so that their tweeters will be at the same height as your ear.
• Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.

Center Speaker C

• It is best to install it at the same height as the front speakers.
• You can also install it directly over or under the TV.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example: For 32'' TVs 2 2.4m (6~8 feet) For 55'' TVs 3.5 4m (11~13 feet)

Rear Speakers

• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they face each other.
• Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.

Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.

Subwoofer SW

• The position of the subwoofer is not so critical. Place it anywhere you like.

1 Press and hold the terminal tab.
2 Insert the speaker cord.
3 Release your finger.

Caution

• Do not let children play with or near the speakers. They could get hurt if a speaker falls.
• When connecting the speaker wires to the speakers, make sure that the polarity (+/-) is correct.

Note

• If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.

Connecting the Video Out to TV

Choose one of the two methods for connecting to a TV.

METHOD 1 Composite Video Good Quality

Connect the supplied video cable from the VIDEO OUT jack on the back panel of the system to the VIDEO IN jack on your television.

METHOD 2 Component (Progressive Scan) Video Best Quality

If your television is equipped with Component Video inputs, connect a component video cable (not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding jacks on your television.

Note

• When the Progressive scan mode is selected, the VIDEO output (Yellow) does not output any signal.

P.SCAN(Progressive Scan) Function

Unlike regular Interlace Scan, in which two fields of picture information alternate to create the entire picture (odd scan lines, then even scan lines), Progressive Scan uses one field of information (all lines displayed in one pass) to create a clear and detailed picture without visible scan lines.

1 Press STOP button.

• If playing a disc, press the STOP button twice so that "STOP", appears on the display.

2 Press and hold P.SCAN button on the remote control for over 5 seconds.

• Pressing and holding the button for over 5 seconds will select "Progressive Scan" and "Interlace Scan" alternately.
• When you select P.SCAN, "P.SCAN" will appear on the display.
• To set P.Scan mode for DivX discs, press the P.SCAN button on the remote control for more than 5 seconds with no disc in the unit ("NO DISC" on the display), then load the DivX disc and play.

What is Progressive (or Non-Interlaced) Scanning?

Interlaced Scan (1 FRAME = 2 FIELDS)

Progressive Scan (FULL FRAME)

In interlaced-scan video, a frame consists of two inter-laced fields (odd and even), where each field contains every other horizontal line in the frame. The odd field of alternating lines is displayed first, and then the even field is displayed to fill in the alternating gaps left by the odd field to form a single frame. One frame, displayed every 1/30th of a second, contains two interfaced fields, thus a total of 60 fields are displayed every 1/60th of a second. The interlaced scanning method is intended for capturing a still object.

The progressive scanning method scans one full frame of video consecutively down the screen, line by line. An entire image is drawn at one time, as opposed to the interlaced scanning process by which a video image is drawn in a series of passes. The progressive scanning method is desirable for dealing with moving objects.

Note

• This function works only on TVs equipped with component video inputs (Y, Pr, Pb) that support Progressive Video. (It does not work on TVs with conventional component inputs, i.e., non-progressive scan TVs.)
• Depending on the capabilities of your TV, this function may not work.

Connecting External Components

Connecting an External Digital / Analog Component

Example: Digital signal components such as a Set-Top Box or CD Recorder. Analog signal components such as a VCR.

1 Connect the Digital Input (OPTICAL) to the Digital Output on the external digital component.
2 Connect AUX (Audio) In on the Home Theater to Audio Out on the external analog component.

• Be sure to match connector colors.

3 Press AUX on the remote control to select 'DIGITAL IN / AUX1/AUX2' input.

Each time the button is pressed, the selection changes as follows: AUX1 AUX2 DIGITAL IN
- You can also use the FUNCTION button on the main unit. The mode switches as follows: DVD/CD DIGITAL IN AUX1 AUX2 USB FM

Note

• You can connect the Video Output jack on your VCR to the TV, and connect the Audio Output jacks on the VCR to this product.

Connecting the FM Antenna

1 Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal.
2 Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

Cooling Fan

The cooling fan supplies cool air to the unit to prevent overheating.

Please observe the following cautions for your safety.

• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.)

Notes

• This unit does not receive AM broadcasts.

Before Using Your Home Theater

Your Home Theater is capable of playing DVD, VCD, CD, MP3/WMA and JPEG discs. Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using.

To Operate your Samsung TV and the Home Theater with the HT-Q40's Remote Control

1 Plug the main unit's power cord into the AC power supply.

2 Press TV button to set the remote to TV mode.

Press the POWER button to turn on your Samsung TV with this remote.

Press TV/VIDEO button to select VIDEO mode on your TV.

Press DVD RECEIVER button to switch to DVD RECEIVER mode.

Press FUNCTION button on the main unit or DVD button on the remote to enable DVD/CD playback.

Note

• Buttons Enabled for TV Operation: POWER, CHANNEL, VOLUME, TV/VIDEO, and Numeric (0-9) buttons.
• By default, the remote control is set to work with Samsung TVs. See page 63 for more information about remote control operation with other manufacturer's TVs.

Disc terminology

Groups and tracks (DVD-AUDIO)

• DVD-audio is divided into several large sections called "groups" and smaller sections called "tracks". Numbers are allotted to these sections. These numbers are called "group numbers" and "track numbers".

Titles and chapters (DVD-VIDEO)

DVD-video is divided into several large sections called "titles" and smaller sections called "chapters". Numbers are allotted to these sections. These numbers are called "title numbers" and "chapter numbers".

Tracks (Video and music CDs)

• Video and music CDs are divided into sections called "tracks". Numbers are allotted to these sections. These numbers are called "track numbers".

Files (DivX)

• DivX is divided into sections called "files". Numbers are allotted to these sections. These numbers are called "file numbers".

Note

• In this manual, the instructions marked with "DVD ( DVD)" are applicable to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.

Where a particular DVD type is mentioned, it is indicated separately.

• Depending on the content of the disc, the initial screen may appear different.

DiscPlayback

Selecting a Disc in the Disc changer

The DVD/CD function is automatically selected when Disc Skip is pushed.

1 Press OPEN/CLOSE button to open the disc tray.
Load a disc.

• Place a disc gently into the tray with the disc's label facing up.

Press DISC SKIP button.

• Rotate the carousel tray so you can load the third, fourth, and fifth discs.

4 Close the compartment by pressing the OPEN/CLOSE button again.

• Playback starts automatically.

To select a specific disc, press the corresponding DIRECT PLAY (1, 2, 3, 4, 5) buttons on the front panel or DISC SKIP on the remote control, until the required disc indicator flashes.

• If the disc selected is not loaded, the next disc is played automatically.

To stop playback, press STOP during playback.

• If pressed once, "PRESS PLAY" is displayed and the stop position will be stored in memory.
  If PLAY/PAUSE (▶II) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)
• If pressed twice, "STOP" is displayed, and if PLAY/PAUSE (▶/||) button is pressed, playback starts from the beginning.

To temporarily pause playback, press PLAY/PAUSE during playback.

• To resume playback, press PLAY/PAUSE (▶II) button again.

Note

• Depending on the content of the disc, the initial screen may appear different.

MP3/WMA-CD Playback

Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3/WMA format can be played.

1 t a

Press the

OPEN/CLOSE button to open the disc tray, and then load the MP3/WMA disc.

• The MP3/WMA menu screen will appear and playback will start.
• The appearance of the menu depends on the MP3/WMA disc.
• WMA-DRM files cannot be played.

To change the album, use to select another album in Stop mode, and then press the ENTER button.
- To select another album and track, repeat Steps 2 and 3 above.

Note

• Depending on the recording mode, some MP3/WMA-CDs may not play.
• Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.

To play a file icon in the screen,

Press the button when it is in stop status and select a desired icon from the top part of the menu.

• To play music files only, select the

Icon.

• To view image files only, select the

Icon.

• To view movie files only, select the

Icon.

• To select all files select the

Icon.

Music File Icon
- Image File Icon
Movie File Icon
All • All File Icon

Displaying Disc Information

You can view disc playback information on the TV screen.

Press INFO button.

Each time the button is pressed, the display changes as follows:

DVD

0

VCD

0

MP3

DivX

JPEG

0

The information Display disappears from the screen

The information Display disappears from the screen

appears on the TV screen!

If this symbol appears on the TV screen while buttons are being operated, that operation is not possible with the disc currently being played.

The information Display disappears from the screen

Note

Depending on the disc, the disc information display may appear different.
Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC.

What is a Group?
A section of tracks contained in a DVD-AUDIO disc.
What is a Title?
A movie contained in a DVD-VIDEO disc.
What is a Chapter?
Each title on a DVD disc is divided into several smaller sections called "chapters".
- What is a Track (File)?
A section of video or a music file recorded on a DVD-AUDIO, CD, or MP3-CD

Screen Display

DVD

DVD display

TITLE display

ELAPSED TIME display

LR STEREO (L/R) display

VCD

VCD display

GROUP display

REPEAT PLAYBACK display

DOLBY DIGITAL

DOLBY DIGITAL display

CD

CD display

CHAPTER display

AUDIO LANGUAGE display

ANGLE display

DVD AUDIO

DVD-AUDIO display

CHAPTER display

TRACK (FILE) display

SUBTITLE display

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater.

Slide Mode

1 Place the JPEG disc on the disc tray.

2 Press the OPEN/CLOSE button.

3 Press SLIDE MODE button.

• Playback starts automatically.
  Each time the button is pressed, the image makes the transition as follows:

SLIDE SHOW MODE :

SLIDE SHOW MODE : 2

SLIDE SHOW MODE : 10

SLIDE SHOW MODE : 11

LIDE SHOW MODE : RAND

SLIDE SHOW MODE : NONE

From top to bottom

From bottom to top

Rectangular shape in the center

Vertical blinds effect

Each time a new image is displayed, slide modes (1~11) will be applied randomly and automatically.

Cancelsthe slide mode.

Press to skip to the next slide.

Each time the button is pressed, the slide moves backward or forward.

Digest Function

You can view 9 JPEG images on the TV screen.

1 Press DIGEST button during playback.

• JPEG files will be shown in 9 windows.

Press Cursor , , , buttons to select the desired image and then press ENTER button.

• The selected image is played for 5 seconds before moving to the next image.

To view the previous or next image with 9 windows, pressI▶

Rotate/Flip Function

Press Cursor , , , buttons during playback.

Original Image

button: Flip Vertically

button: Rotate 90^ Counterclockwise

button: Rotate 90^ Clockwise

button: Flip Horizontally

Note

• The maximum resolutions supported by this product are 5120 × 3480 (or 19.0MPixel ) for standard JPEG files and 2048 × 1536 (or 3.0MPixel ) for progressive image files.

Skip Forward/Back

During playback, press the button.

• Goes to the next file whenever you press▶▶I button, if there are over 2 files in the disk.
• Goes to the previous file whenever you press button, if there are over 2 files in the disk.

Fast playback

To play back the disc at a faster speed, press or during playback.
Each time you press either button, the playback speed will change as follows:
2x 4x 8x 32x Normal.

5 Minute Skip function

During playback, press the , button.

• Playback skips 5 minutes forward whenever you press button.
• Playback skips 5 minutes back whenever you press button.

Zoom Function

1 Press ZOOM button.

Each time you press the button, your selection will toggle between "ZOOM X2" and "ZOOM OFF".

Press Cursor▲,▼, ←,▶ buttons to move to the area you want to enlarge.

Note

• DIVX file can be zoomed only in ZOOM X2 mode.
• DivX files have .Avi file extensions, however, not all .Avi files are DivX and may not be playable in this unit.

Subtitle Display

Press the SUBTITLE button.

Each time you press the button, your selection will toggle between "SUBTITLE (1/1, 1/2 ...)" and "SUBTITLE OFF".
- If the disc has only one subtitle file, it will be played automatically.
See number 2 (Caption Function) below for more details concerning Subtitle usage with DIVX discs.

Audio Display

Press the AUDIO button.

• If there are multiple audio tracks on a disc, you can toggle between them.
  Each time you press the button, your selection will toggle between "AUDIO(1/1, 1/2 ...)" and "[ll]".

Note

" is displayed when there is one supported language in the disc.

DivX(Digital internet video eXpress)

DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.

1. Supported Formats

• This product only supports the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

Supported Video Formats

Format	AVI	WMV
Supported Versions	DivX3.11 ~ 5.1	V1/V2/V3/V7

Supported Audio Formats

Format	MP3	WMA	AC3	DTS
Bit Rate	80~384kbps	56~128kbps	128~384kbps	1.5Mbps
Sampling Frequency	44.1kHz		44.1/48kHz	44.1kHz

• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio: Although default DivX resolution is 640^480 pixels (4:3), this product supports up to 720480 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.

2. Caption Function

• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption file (.smi) in the same file name as that of the DivX media file (.avi) within the same folder.

Example. Root

Samsung_007CD1.avi

Samsung_007CD1.smi

• Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.

Checking the Remaining Time

Press the REMAIN button.

• For checking the total and remaining time of a title or chapter being played.

Each time the REMAIN button is pressed

Fast/SlowPlayback

FastPlayback

Press

Each time the button is pressed during playback, the playback speed changes as follows:

Note

• During fast playback of a CD or MP3-CD, sound is heard only at 2x speed, and not at 4x, 8x, and 32x speeds.

SlowPlayback

Press SLOW button.

Each time the button is pressed during playback, the playback speed changes as follows:

DVD

VCD

Notes

• No sound is heard during slow playback and step motion play!
• Reverse slow playback does not work with VCD and DivX.

Skipping Scenes/Songs

Press

• Each time the button is pressed briefly during playback, the previous or next chapter, track, or directory (file) will be played.
• You cannot skip chapters consecutively.

• When watching a VCD with a track longer than 15 minutes, each time is pressed, playback will skip back or forward 5 minutes.

Repeat Playback

Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).

DVD

VCD

C

MP3

JPEG

Press REPEAT button.

• Each time the button is pressed during playback, the repeat playback mode changes as follows:

Repeat Playback Options

CHAPTER

Repeatedly plays the selected chapter.

TITLE

Repeatedly plays the selected title.

GROUP

Repeatedly plays the selected group.

RANDOM

Plays tracks in random order.

(A track that has already been played may be played again.)

TRACK

Repeatedly plays the selected track.

DIR

Repeatedly plays all tracks in the selected folder.

DISC

Repeatedly plays the entire disc.

OFF

Cancels Repeat Playback.

Note

• Repeat playback operation is not possible with version 2.0 VCD discs if PBC is turned on. To use Repeat Playback on a VCD with PBC, you should set the PBC to OFF in the disc menu. (See page 38.)

To Select a RepeatPlayback Mode in the Disc Information Screen

1 Press INFO button twice.

2 Press Cursor button to move to REPEAT PLAYBACK (C) display.

3 Press Cursor button to select the desired Repeat Playback mode.

4 Press ENTER button.

• For MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.

A-B Repeat Playback

You can repeatedly play back a designated section of a DVD.

DVD

VCD

Press INFO button twice.

Press Cursor button to move to REPEAT PLAYBACK (C) display.

• For a VCD, press INFO button once.

DVD EN 1/3 OFF/02

3

Press Cursor , buttons

to select 'A-' and then press ENTER button at the beginning of the desired segment.

4 button at the end of the desired segment.

• When ENTER button is pressed, the selected position will be stored in memory.

• The specified segment will be played repeatedly.

DVD EN1/3 DODP OFF/02 A-B REPEAT:A-B

REPEAT:A-

To return to normal playback, press Cursor , buttons to select OFF.

Note

• The A-B Repeat function does not operate with MP3, CD or JPEG discs.

Press STEP button.

• The picture moves forward one frame each time the button is pressed during playback.

Angle Function

DVD

This function allows you to view the same scene in different angles.

1 Press INFO button.

DVD 01/01 001/040 ① 0:00:37 1/3

Press Cursor button to move to ANGLE (81) display.

DVD 01/01 001/040 0:00:37 1/3

3 Press Cursor , or numeric buttons to select the desired angle.

Each time the button is pressed, the angle changes as follows:

Note

• The Angle function works only with discs on which multiple angles have been recorded.

Zoom (Screen Enlarge) Function

This function allows you to enlarge a particular area of the displayed image.

DVD

VCD

1 Press ZOOM button.

Press Cursor▲,▼, 2 ▲,▶ buttons to move to the area you want to enlarge.

3 Press ENTER button.

Each time the button is pressed, the zoom level changes as follows:

Note

• When a DivX disc is being played, only the 2:1 zoom-in is available.

EZ VIEW Function

DVD

Press EZ VIEW button.

• Each time the button is pressed, the zoom function will switch between On and Off.
• When a movie is played in Widescreen format, black bars at the top and bottom of the TV screen can be removed by pressing the EZ VIEW button.

Note

• This function will not work if the DVD is recorded with multi-camera angle format.
• Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.
• This feature is not supported for DivX discs.

Bonus Group / Navigating Pages

Selecting Audio/Subtitle Language

Bonus Group

Some DVD-Audio discs have an extra 'bonus' group that requires a 4-digit key number to access. See the disc packaging for details and the-key number.

When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.

Note

• If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.

Navigating Pages

During playback, press the TUNING/CH button on the remote control.

• You can select the desired image from a DVD-Audio disc containing still images.
• With some discs, you may not be able to select images.

Audio Language Selection Function DVD

Press INFO button twice.

Press Cursor , buttons or numeric buttons to select the desired audio language.

Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.

Subtitle Language Selection Function

Press INFO button twice.

Press Cursor button to move to SUBTITLE ( l ) display.

Press Cursor button or numeric buttons to select the desired subtitle.

Note

• To operate this function, you can also press the Select AUDIO or Select SUBTITLE buttons on the remote control.
  Depending on the disc, the Subtitle and Audio Language functions may not be available.

Playing Media Files using the USB HOST feature

You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera in high quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home theater.

1 Connect the USB device to the USB port on the rear of the unit.

Press the FUNCTION button on the main unit or the USB button on the remote control to select the USB mode.

• "USB" appears on the display screen and then disappears.
• USB MENU screen appears on the TV screen and the saved file is played.

To stop playback, press the STOP (■) button.

Safe USB Removal

To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable.

(1) Press the Stop button twice in a row. The display will show REMOVE USB.
(2) Remove the USB cable.

Skip Forward/Back

During playback, press the (\boxed{1}\boxed{2}\boxed{3}\boxed{4}\boxed{5}\boxed{6}\boxed{7}\boxed{8}\boxed{9}\boxed{10}\boxed{11}\boxed{12}\boxed{13}\boxed{14}\boxed{15}\boxed{16}\boxed{17}\boxed{18}\boxed{19}\boxed{20}\boxed{21}\boxed{22}\boxed{23}\boxed{24}\boxed{25}\boxed{26}\boxed{27}\boxed{28}\boxed{29}\boxed{30}\boxed{31}\boxed{32}\boxed{33}\boxed{34}\boxed{35}\boxed{36}\boxed{37}\boxed{38}\boxed{39}\boxed{40}\boxed{41}\boxed{42}\boxed{43}\boxed{44}\boxed{45}\boxed{46}\boxed{47}\boxed{48}\boxed{49}\boxed{50}\boxed{51}\boxed{52}\boxed{53}\boxed{54}\boxed{55}\boxed{56}\boxed{57}\boxed{58}\boxed{59}\boxed{60}\boxed{61}\boxed{62}\boxed{63}\boxed{64}\boxed{65}\boxed{66}\boxed{67}\boxed{68}\boxed{69}\boxed{70}\boxed{71}\boxed{72}\boxed{73}\boxed{74}\boxed{75}\boxed{76}\boxed{77}\boxed{78}\boxed{79}\boxed{80}\boxed{\textit{\textbf{n}}}

• When there is more than one file, when you press the▶ button, the next file is selected.
• When there is more than one file, when you press the button, the previous file is selected.

Fast playback

To play back the disc at a faster speed, press or during playback.

Each time you press either button, the playback speed will change as follows: 2x 4x 8x 32x Normal.

Compatible Devices

1. USB devices that support USB Mass Storage v1.0.

(USB devices that operate as a removable disk in Windows (2000 or later) without additional driver installation.)

1. MP3 Player: HDD and flash type MP3 players.

2. Digital camera: Cameras that support USB Mass Storage v1.0.

3. Cameras that operate as a removable disk in Windows (2000 or later) without additional driver installation.

4. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.

5. You may experience a difference in playback quality when you connect a USB1.1 device.

6. For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.

7. USB card Reader: One slot USB card reader and Multi slot USB card reader

8. Depending on the manufacturer, the USB card reader may not be supported.

9. If you install multiple memory devices into a multi card reader, you may experience problems.

10. If you use a USB extension cable, the USB device might not be recognized.

Supported Formats

	File name	File extension	Bit rate	Version	Pixel	Sampling Frequency
Still Picture	JPG	JPG .JPEG	-	-	640*480	-
Music	MP3	.MP3	80~384kbps	-	-	44.1kHz
	WMA	.WMA	56~128kbps	V8	-	44.1kHz
Movie	VCD	MPG.MPEG .DAT	1.5Mbps	VCD1.1,VCD2.0	320*480	44.1KHz
	WMV	.WMV	4Mbps	V1,V2,V3,V7	720*480	44.1KHz~48KHz
	DivX	.AVI,.ASF	4Mbps	DivX3.11~DivX5.1,Xvid	720*480	44.1KHz~48KHz

• CBI (Control/Bulk/Interrupt) is not supported.
• Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not supported.
• A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file system is supported.)
• Some MP3 players, when connected to this product, may not operate depending on the sector size of their file system.
• The USB HOST function is not supported if a product that transfers media files by its manufacturer-specific program is connected.
• Does not operate with Janus enabled MTP(Media Transfer Protocol) devices.
• The USB host function of this product does not support all USB devices. For information on the supported devices, see pages 69.

Moving Directly to a Scene/Song

1 Press INFO button.

Moving to a Title/Track

Press Cursor , buttons or numeric buttons to select the desired title/track and then press ENTER button.

Moving to a Chapter

Press Cursor , 3 buttons to move to Chapter ( ) display.

Moving to a Chapter

Press Cursor , buttons or numeric buttons to select the desired chapter and then press ENTER button.

Moving to a Specific Time

Press Cursor, buttons to move to time display.

Moving to a Specific Time

Press the numeric buttons to select the desired time and then press ENTER button.

Press the numeric buttons.

• The selected file will be played.
• When playing an MP3 or JPEG disc, you cannot use , to move to a folder. To move a folder, press (Stop) and then press , .

Note

• You can press on the remote control to move directly to the desired title, chapter, or track.
  Depending on the disc, you may not be able to move to the selected title or time.

Using Disc Menu

DVD

You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

1 In Stop mode, press MENU button.

• When playing a VCD (version 2.), this toggles between PBC ON and OFF.

Press Cursor , buttons to move to 'DISC MENU' and then press ENTER button.

• When you select Disc Menu and it is not supported by the disc, the "This menu is not supported" message appears on the screen.

Press Cursor , 3 , buttons to select the desired item.

• Press ENTER button.

Note

• Disc menu display may be different depending on the disc.

PBC (Playback Control) Function

When playing a VCD (version 2.0), you can select and view various scenes according to the menu screen.

PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions may be disabled. When some functions are disabled, select "PBC OFF" to enable them.

PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.

Using the Title Menu

DVD

For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary.

1 In Stop mode, press MENU button.

Press Cursor▲,▼ button to move to 'Title Menu'.

3 Press ENTER button.

• The title menu appears

Press MENU button to exit the setup screen.

Note

• Title menu display may be different depending on the disc.

Setting the Language

OSD (On-Screen Display) language is set to English by default.

1 In Stop mode, press MENU button.

Press Cursor button to move to 'Setup' and then press ENTER button.

3 Select 'Language' and then press ENTER button

Press Cursor , button to select 'OSD Language' and then press ENTER button.

Press Cursor , button to select the desired language and then press ENTER button.

• Once the setup is complete, the OSD will be English if English has been selected as language.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Note

• To select another language, select OTHER and enter the language code of your country. (See page 68 for language codes)

AUDIO, SUB TITLE and DISC MENU language can be selected.

Selecting the OSD Language

Selecting the Audio Language (recorded on the disc)

Selecting the Subtitle Language (recorded on the disc)

Selecting the Disc Menu Language (recorded on the disc)

• If the language you selected is not recorded on the disc, menu language will not change even if you set it to your desired language.

Setting TV Screen type

Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.

1 In Stop mode, press MENU button.

2 button to move to 'Setup' and then press ENTER button.

3

Press Cursor button to move to 'TV DISPLAY' and then press ENTER button.

4

Press Cursor , button to select the desired item and then press ENTER button.

• Once the setup is complete, you will be taken to the previous screen.

Adjusting the TV Aspect Ratio (Screen Size)

The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widenscreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.

• For a standard TV, select either "4:3LB" or "4:3PS" option according to personal preference. Select "16:9" if you have a widescreen TV.

WIDE

: Select this to view a 16:9 picture in the full-screen mode on your widescreen TV.

• You can enjoy the widscreen aspect.

4:3LB (4:3 Letterbox)

: Select this to play a 16:9 picture in the letter box mode on a conventional TV.

• Black bars will appear at the top and bottom of the screen.

4:3PS (4:3 Pan&Scan)

: Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.

• You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).

Note

• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
• Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Setting Parental Controls (Rating Level)

Use this to restrict playback of adult or violent DVDs you do not want children to view.

1 In Stop mode, press MENU button.

Press Cursor button to move to 'Setup' and then press ENTER button.

Press Cursor button to move to 'PARENTAL' and then press ENTER button.

4 Press Ctrl, button to select the desired rating level and then press ENTER button.

• If you have selected Level 6, you cannot view DVDs with Level 7 or higher.
• The higher the level, the closer the content is to violent or adult mater

5 Enter the password and then press ENTER button.

• The password is set to "7890" by default.
• Once the setup is complete, you will be taken to the previous screen.

Note

• This function works only if a DVD disc contains the rating level information.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Setting the Password

You can set the password for the Parental (rating level) setting.

1 Press MENU button.

Press Cursor button to move to 'Setup' and then press ENTER button.

3

Press Cursor button to move to ' PASSWORD' and then press ENTER button.

4 Press ENTER button.

5 Enter the password and then press ENTER button.

• Enter the old password, a new password, and confirm new password.
• The setting is complete.

Note

• The password is set to "7890" by default.

If you have forgotten the rating level password, do the following:

• While the player is in the no disc mode, hold the main unit's on the display and all settings will return to the default values.
• Press the POWER button.
  Using the RESET function will erase all stored settings.
  Do not use this unless necessary.

button for longer than 5 seconds. "INITIALIZE" appears

Setting the Wallpaper

While watching a DVD, VCD or JPEG CD, you can set the image you like as background wallpaper.

Setting the Wallpaper

1 During playback, press PLAY/PAUSE button when an image you like appears.

Press LOGO button.

• "COPY LOGO DATA" will be displayed on the TV screen.

3

The power will turn off and then back on.

• The selected wallpaper will be displayed.
• You can select up to 3 wallpaper settings.

Select this to set the Samsung Logo image as your wallpaper.

Select this to set the desired image as your wallpaper.

To select one of the 3 wallpaper settings you've made

1 In Stop mode, press MENU button.

Press Cursor button to move to 'Setup' and then press ENTER button.

Press Cursor button to move to 'LOGO' and then press ENTER button.

Press to select the desired 'USER', and then press ENTER.

5 Press MENU button to exit the setup screen.

This selects one of the 3 wallpaper screens

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

DVDPlaybackMode

Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.

To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.

Press the MENU button while the disc tray is open.

Press Cursor button to move to 'DVD TYPE' and then press ENTER button.

Note

DVD Play mode is set to DVD Audio as factory default setting.
- Powering off the main unit will automatically switch to the DVD Audio mode.

2

Press Cursor button to move to 'Setup' and then press ENTER button.

4

Press Cursor , button to move to DVDVIDEO' and then press ENTER button.

• Set steps 1 4 again if you want to switch to DVD AUDIO Play mode.

When Selecting DVD Play Mode:

DVDVIDEO: set to play the DVD video contents contained on a DVD audio disc.
DVD AUDIO: set to play the default DVD audio.

DivX (R) registration

• Please use the Registration code to register this player with the DivX (R) video on demand format. To learn more, go to www.divx.com/vod.

Setting the Speaker Mode

Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not.

1

In Stop mode, press MENU button.

2

Press Cursor button to move to 'Audio' and then press ENTER button.

3

In the Speaker Setup, press the ENTER button again.

Press Cursor , 4 , buttons to move to the desired speaker and then press ENTER button.

• For C, SL, and SR, each time the button is pressed, the mode switches alternately as follows: SMALL NONE.
• For L and R, the mode is set to SMALL.

SMA

Select this when using the speakers.

NON

Select this when no speakers are connected.

Note

• Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 57).

Setting the Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers.

1 In Stop mode, press MENU button.

Press Cursor button to move to 'Audio' and then press ENTER button.

3

Press Cursor button to move to 'DELAY TIME' and then press ENTER button.

4

Press Cursor , 1 , buttons to move to the desired speak and then press ENTER button.

5

Press Cursor , to set the Delay time.

• You can set the delay time for C between 00 and 05mSEC and for SL and SR between 00 and 15mSEC.

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center and Surround Speakers.

Note

• With PL (Dolby Pro Logic II), the delay time may be different for each mode.
• With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
• The Center channel is only adjustable on 5.1 channel discs.

- Setting CENTER SPEAKER

If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Dc	Delay Time
0 inch	0 ms
13.6 inches	1 ms
27.2 inches	2 ms
40.8 inches	3 ms
4.5 feet	4 ms
5.6 feet	5 ms

- Setting REAR (SURROUND) SPEAKERS

If the distance of Df is equal to the distance of Ds in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Ds	Delay Time
0 inch	0 ms
40.8 inches	3 ms
6.7 feet	6 ms
10.0 feet	9 ms
13.4 feet	12 ms
16.7 feet	15 ms

It is desirable to place all speakers within this circle

Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER

Setting the Test Tone

Use the Test Tone feature to check the speaker connections.

1

In Stop or no disc mode, press MENU button.

2

Press Cursor button to move to 'Audio' and then press ENTER button.

3

Press Cursor button to move to 'TEST TONE' and then press ENTER button.

• The test tone will be sent to L C R SR SL SW in order. If the ENTER button is pressed again at this time, the test tone will stop.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Alternate method: press the TEST TONE button on the remote.

Press TEST TONE button.

• Test tone will be produced as follows:
  When playing a DVD or CD, this will work only in Stop mode.
• Use this function to check that each speaker is correctly connected and that there is no problem.

To end the test tone, press TEST TONE button again.

L: Front Speaker (L)

C: Center Speaker

SW: Subwoofer

R: Front Speaker (R) SL: Rear Speaker (L)

SR: Rear Speaker (R)

Multi-Channel Pro Logic Mode

Setting the DRC (Dynamic Range Compression)

This feature balances the range between the loudest and quietist sounds.

You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

1

In Stop or no disc mode, press MENU button.

2

Press Cursor button to move to 'Audio' and then press ENTER button.

3

Press Cursor button to move to 'DRC' and then press ENTER button.

4

Press Cursor , to adjust the 'DRC'.

• When the Cursor button is pressed, the effect is greater, and when the Cursor button is pressed, the effect is smaller.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Setting the Audio

You can adjust the balance and level for each speaker.

Method 1 When adjusting the audio quality using the setup screen

1 In Stop mode, press MENU button.

Press Cursor button to move to 'Audio' and then press ENTER button.

3

Press Cursor button to move to 'SOUND EDIT' and then press ENTER button.

4

Press Cursor , buttons to select and adjust the desired item. Press the , buttons to adjust the settings.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Method 2 When manually adjusting with the SOUND EDIT button

Adjusting Front Speaker Balance

Press SOUND EDIT button and then press Cursor

Adjusting Rear Speaker Balance

Press SOUND EDIT button and then press Cursor

Adjusting Center Speaker Level

Press SOUND EDIT button and then press Cursor

00 F 00

00 R 00

CENTER+1 dB

Adjusting Rear Speaker Level

4 EDIT button and then press Cursor

Adjusting Subwoofer Speaker Level

Press SOUND EDIT button and then press Cursor

REAR -1 dB

S/W +1 dB

Note

Adjusting Front/Rear Speaker Balance

• You can select between 00 and -06 and OFF.
• The volume decreases as you move closer to -6 .

Adjusting Center/Rear/Subwoofer Speaker Level
- The volume level can be adjusted in steps from +6dB to -6dB .
- The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

AV SYNC Setup

Video may look slower than the audio if it is connected to a digital TV.

If this occurs, adjust the audio delay time to to match the video.

1 Press the MENU button.

• Setup menu appears.

Press Cursor , buttons to move to Audio' and then press ENTER button.

Press Cursor , buttons to move to 'AV-SYNC' and then press ENTER button.

Press Cursor , buttons to select the AV-SYNC Delay Time and then press the ENTER button.

• You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

Sound Field (DSP)/EQ Function

DSP(Digital Signal Processor) DSP modes have been designed to simulate different acoustic environments.

EQ: You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing

Press DSP/EQ button.

• "DSP" appears on the display panel.
  Each time the button is pressed, the selection changes as follows:

Note

• DSP/EQ function is only available in STEREO mode. Press the DPLI mode button to show STEREO on the display.
• This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX and Dolby Digital discs.
• When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and DSP/EQ function does not work.

POP, JAZZ, ROCK: Depending on the genre of music, you can select POP, JAZZ, and ROCK.

STUDIO : Provides a sense of presence as if in a studio

CLUB : Simulates the sound of a dance club with a throbbing bass beat.

HALL : Provides a clear vocal as if listening in a concert hall.

MOVIE: Provides the feeling of a movie theater.

CHURCH: Gives the feel of being in a grand church.

PASS: Select this for normal listening.

Dolby Pro Logic II Mode

You can select the desired Dolby Pro Logic II audio mode.

Press PL II MODE button.

Each time the button is pressed, the mode changes as follows.

Note

• When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.

PRO LOGIC II

MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance.
CINEMA: Adds realism to the movie soundtrack.
- PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left and right speakers.
- MATRIX: You will hear 5.1 channel surround sound.

STEREO: Select this to listen to sound from the front left and right speakers and the subwoofer only.

Dolby Pro Logic II Effect

This function works only in Dolby Pro Logic MUSIC mode.

Press PL II MODE button to select 'MUSIC' mode.

Press PL II EFFECT button to select Panorama, then press Cursor , buttons to select the desired effect setting.

• You can select either 0 or 1.
• This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging.

Press PL II EFFECT button to select C-Width, then press Cursor , buttons to select the desired effect setting.

• You can select between 0 and 7.
• This sets the width of the center image. The higher the setting, the less sound comes from the center speaker.

Press PL II EFFECT button to select Dimension, then press the Cursor , buttons to select the desired setting.

• You can select between 0 and 6.
• Incrementally adjusts the sound field (DSP)from the front or rear.

Note

• When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and (Dolby Pro Logic II) button does not work.

Listening to Radio

Presetting Stations

Example: Presetting FM 89.1 in the memory

Press to TUNER button and select the FM band.

2 Press TUNING/CH to select "89.10".

3 Press the TUNER MEMORY button.

• Refer to Step 2 on page 59 to automatically or manually tune in to a station.

• "PRGM" flashes in the display.

FM 8910MHz

PROA 8910 MHz

FM 9198MHz

4 Press to select preset number.

• You can select between 1 and 15 presels.

02FM 8910MHz

Press the TUNER MEMORY button again.

6 To preset another station, repeat steps 2 to 5.

• Press the TUNER MEMORY button before 'PRGM' disappears from the display.

• 'PRGM' disappears from the display and the station is stored in memory.

FM 8910

Note

• This unit does not receive AM broadcasts.

Press MO/ST button to listen in Mono/Stereo.

(This applies only when listening to an FM station.)

Each time the button is pressed, the sound switches between "STEREO" and "MONO".
- In a poor reception area, select MONO for a clear, interference-free broadcast.

To tune in to a preset station, press on the remote control to select a channel.

Sleep Timer Function

You can set the time that the Home Theater will shut itself off.

Press SLEEP button.

• "SLEEP" will be displayed. Each time the button is pressed, the preset time changes as follows: 10 20 30 60 90 120 150 OFF

SLEEP 10

To confirm the sleep timer setting, press SLEEP button.

• The remaining time before the Home Theater will shut itself off is displayed.
• Pressing the button again changes the sleep time from what you have set earlier.

To cancel the sleep timer, press SLEEP button until OFF appears on the display.

Adj usting Display Brightness

You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.

Press DIMMER button.

Each time the button is pressed, the brightness changes as follows: DAK BRIGT

Mute Function

This is useful when answering a doorbell or telephone call.

Press MUTE button.

• 'MUTE ON' appears in the display.
  To restore the sound, press the button again to select 'MUTE OFF'.

MUTE ON

Using Headphones

Use headphones (not supplied) for private listening pleasure.

Connect the headphones to the PHONES jack for private listening.

Caution

• To prevent hearing damage, do not increase the volume excessively when using headphones.

Operating a TV with the Remote Control

When operating a TV with the remote control

1 Press TV button to select TV mode.
2 Press POWER button to turn on the TV.
3 Point the remote control toward the TV.
While holding down POWER, enter the code corresponding to your brand of TV.

• If the code matches the TV's code, the TV will be turned off.
• If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.

Example: For a Samsung TV

While holding down POWER, use the number buttons to enter 000, 015, 016, 017 and 040.

5 Point the remote control toward the TV and press POWER. If the TV turns off or on, the setting is complete.

• You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).

Note

• The remote control may not work on some brands of TVs. Also, some operations may not be possible depending on your brand of TV.
• If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default.

TV Brand Code List

No.	Brand	Code	No.	Brand	Code
1	Admiral (M.Wards)	056, 057, 058	44	MTC	018
2	A Mark	001, 015	45	NEC	018, 019, 020, 040, 059, 060
3	Anam	001, 002, 003, 004, 005, 006, 007, 008, 009, 010, 011, 012, 013, 014	46	Nikei	003
			47	Onking	003
4	AOC	001, 018, 040, 148	48	Onwa	003
5	Bell & Howell (M.Wards)	057, 058, 081	49	Panasonic	006, 007, 008, 009, 054, 066, 067, 073, 074
6	Brocsonic	059, 060	50	Penney	018
7	Candle	018	51	Philco	003, 015, 017, 018, 048, 054, 059, 062, 069, 090
8	Cetronic	003	52	Philips	015, 017, 018, 048, 054, 062, 072
9	Citizen	003, 018, 025	53	Pioneer	063, 066, 080, 091
10	Cinema	097	54	Portland	015, 018, 059
11	Classic	003	55	Proton	040
12	Concerto	018	56	Quasar	006, 066, 067
13	Contec	046	57	Radio Shack	017, 048, 056, 060, 061, 075
14	Coronado	015	58	RCA/Proscan	018, 059, 067, 076, 077, 078, 092, 093, 094
15	Craig	003, 005, 061, 082, 083, 084	59	Realistic	003, 019
16	Croslex	062	60	Sampo	040
17	Crown	003	61	Samsung	000, 015, 016, 017, 040, 043, 046, 047, 048, 049, 059, 060, 098
18	Curtis Mates	059, 061, 063
19	CXC	003	62	Sanyo	019, 061, 065
20	Daewoo	002, 003, 004, 015, 016, 017, 018, 019, 020, 021, 022, 023, 024, 025, 026, 028, 029, 030, 032, 034, 035, 036, 048, 059, 090	63	Scott	003, 040, 060, 061
			64	Sears	015, 018, 019
21	Daytron	040	65	Sharp	015, 057, 064
22	Dynasty	003	66	Signature 2000 (M.Wards)	057, 058
23	Emerson	003, 015, 040, 046, 059, 061, 064, 082, 083, 084, 085	67	Sony	050, 051, 052, 053, 055
24	Fisher	019, 065	68	Soundesign	003, 040
25	Funai	003	69	Spectricon	001
26	Futuretech	003	70	SSS	018
27	General Electric (GE)	006, 040, 056, 059, 066, 067, 068	71	Sylvania	018, 040, 048, 054, 059, 060, 062
28	Hall Mark	040	72	Symphonic	061, 095, 096
29	Hitachi	015, 018, 050, 059, 069	73	Tatung	006
30	Inkel	045	74	Techwood	018
31	JC Penny	056, 059, 067, 086	75	Teknika	003, 015, 018, 025
32	JVC	070	76	TMK	018, 040
33	KTV	059, 061, 087, 088	77	Toshiba	019, 057, 063, 071
34	KEC	003, 015, 040	78	Vidtech	018
35	KMC	015	79	Videch	059, 060, 069
36	LG (Goldstar)	001, 015, 016, 017, 037, 038, 039, 040, 041, 042, 043, 044	80	Wards	015, 017, 018, 040, 048, 054, 060, 064
37	Luxman	018	81	Yamaha	018
38	LXI (Sears)	019, 054, 056, 059, 060, 062, 063, 065, 071	82	York	040
39	Magnavox	015, 017, 018, 048, 054, 059, 060, 062, 072, 089	83	Yupiteru	003
40	Marantz	040, 054	84	Zenith	058, 079
41	Matsui	054	85	Zonda	001
42	MGA	018, 040	86	Dongyang	003, 054
43	Mitsubishi/MGA	018, 040, 059, 060, 075

Before Calling for Service

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

Symptom	Check/Remedy
Disc tray does not open.	·Is the power cord plugged securely into the outlet? ·Turn off the power and then turn it back on.
Playback does not start.	·Check the region number of the DVD. DVD discs purchased from abroad may not be playable. ·CD-ROMs and DVD-ROMs cannot be played on this Home Theater. ·Make sure that the rating level is correct.
Playback does not start immediately when the Play/Pause button is	·Are you using a deformed disc or a disc with scratches on the surface? ·Wipe the disc clean.
Sound is not produced.	·No sound is heard during fast playback, slow playback, and step motion playback. ·Are the speakers connected properly? Is the speaker setup correctly customized? ·Is the disc severely damaged?
Sound can be heard only from a few speakers and not all six.	·When listening to a CD or radio, sound is output to the front speakers (L/R) only. Select "PRO LOGIC II" by pressing D/DPL II (Dolby Pro Logic II) on the remote control to use all six speakers. ·Make sure that the DVD disc is 5.1-CH compatible. ·If you set C, SL, and SR to NONE in the speaker mode in the audio setup of the setup screen, no sound is heard from the center speaker and the front left and right speakers. Set C, SL, and SR to SMALL.
Picture does not appear, sound is not produced, or the disc tray opens 2 to 5 seconds later.	·Was the Home Theater suddenly moved from a cold place to a warm one? When condensation forms inside the player, remove the disc and let the player stand for 1 or 2 hours with the power on. (You can use the player again after condensation disappears.)
Dolby Digital 5.1 CH Surround Sound is not produced.	·Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound. ·Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the information display?

Symptom	Check/Remedy
·Disc is rotating but no picture is produced. ·Picture quality is poor and picture is shaking.	·Is the TV power on? ·Are the video cables connected properly? ·Is the disc dirty or damaged? ·A poorly manufactured disc may not be playable.
The remote control does not work.	·Is the remote control being operated within its operation range of angle and distance? ·Are the batteries exhausted? ·Have you selected the mode(TV/DVD) functions of the remote control (TV or DVD) correctly?
Audio language and subtitles do not work.	·Audio language and subtitles will not work for DVDs not containing them. And depending on the disc, they may work differently.
Menu screen does not appear even when the menu function is selected.	·Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.	·You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.
·The main unit is not working. (Example: The power goes out or strange noise is heard.) ·The Home Theater is not working normally.	·Turn off the power and hold the button on the main unit for longer than 5 seconds. Using the RESET function will erase all stored settings. Do not use this unless necessary.
The password for rating level has been forgotten.	·While “NO DISC” message appears on the display of main unit, hold the main unit's button for longer than 5 seconds. “INITIALIZE” appears on the display and all settings will return to the default values. ·Press the POWER button. Using the RESET function will erase all stored settings. Do not use this unless necessary.
Can't receive radio broadcast.	·Is the antenna connected properly? ·If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause skipping. Be especially careful not to scratch discs when handling them.

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints will not get on the surface.

Do not stick paper or tape on the disc.

Disc Storage

Do not keep in direct sunlight

Keep in a cool ventilated area

Keep in a clean Protection jacket. Store vertically.

Caution

• Do not allow the discs to become contaminated with dirt.
• Do not load cracked or scratched discs.

Handling and Storing Discs

When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.
- When cleaning, wipe gently from the inside to the outside of the disc.

Note

• Condensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.

Language Code List

Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 39).

Code	Language	Code	Language	Code	Language	Code	Language
1027	Afar	1181	Frisian	1334	Latvian, Lettish	1506	Slovenian
1028	Abkhazian	1183	Irish	1345	Malagasy	1507	Samoan
1032	Afrikaans	1186	Scotts Gaelic	1347	Maori	1508	Shona
1039	Amharic	1194	Galician	1349	Macedonian	1509	Somali
1044	Arabic	1196	Guarani	1350	Malayalam	1511	Albanian
1045	Assamese	1203	Gujarati	1352	Mongolian	1512	Serbian
1051	Aymara	1209	Hausa	1353	Moldavian	1513	Siswati
1052	Azerbaijani	1217	Hindi	1356	Marathi	1514	Sesotho
1053	Bashkir	1226	Croatian	1357	Malay	1515	Sundanese
1057	Byelorussian	1229	Hungarian	1358	Maltese	1516	Swedish
1059	Bulgarian	1233	Armenian	1363	Burmese	1517	Swahili
1060	Bihari	1235	Interlingua	1365	Nauru	1521	Tamil
1069	Bislama	1239	Interlingue	1369	Nepali	1525	Tegulu
1066	Bengali; Bangla	1245	Inupiak	1376	Dutch	1527	Tajik
1067	Tibetan	1248	Indonesian	1379	Norwegian	1528	Thai
1070	Breton	1253	Icelandic	1393	Occitan	1529	Tigrinya
1079	Catalan	1254	Italian	1403	(Afan) Oromo	1531	Turkmen
1093	Corsican	1257	Hebrew	1408	Oriya	1532	Tagalog
1097	Czech	1261	Japanese	1417	Punjabi	1534	Setswana
1103	Welsh	1269	Yiddish	1428	Polish	1535	Tonga
1105	Danish	1283	Javanese	1435	Pashto, Pushto	1538	Turkish
1109	German	1287	Georgian	1436	Portuguese	1539	Tsonga
1130	Bhutani	1297	Kazakh	1463	Quechua	1540	Tatar
1142	Greek	1298	Greenlandic	1481	Rhaeto-Romance	1543	Twi
1144	English	1299	Cambodian	1482	Kirundi	1557	Ukrainian
1145	Esperanto	1300	Kannada	1483	Romanian	1564	Urdu
1149	Spanish	1301	Korean	1489	Russian	1572	Uzbek
1150	Estonian	1305	Kashmiri	1491	Kinyarwanda	1581	Vietnamese
1151	Basque	1307	Kurdish	1495	Sanskrit	1587	Volapuk
1157	Persian	1311	Kirghiz	1498	Sindhi	1613	Wolof
1165	Finnish	1313	Latin	1501	Sangro	1632	Xhosa
1166	Fiji	1326	Lingala	1502	Serbo-Croatian	1665	Yoruba
1171	Faeroese	1327	Laothian	1503	Singhalese	1684	Chinese
1174	French	1332	Lithuanian	1505	Slovak	1697	Zulu

USB Host Feature Supported Products

Digital Camera

Product	Company	Type
Finepix-A340	Fuji	Digital Camera
Finepix-F810	Fuji	Digital Camera
Finepix-F610	Fuji	Digital Camera
Finepix-f450	Fuji	Digital Camera
Finepix S7000	Fuji	Digital Camera
Finepix A310	Fuji	Digital Camera
KD-310Z	Konica	Digital Camera
Finecam SL300R	Kyocera	Digital Camera
Finecam SL400R	Kyocera	Digital Camera
Finecam S5R	Kyocera	Digital Camera
Finecam Xt	Kyocera	Digital Camera
Damage-Z1	Minolta	Digital Camera
Damage Z1	Minolta	Digital Camera
Damage X21	Minolta	Digital Camera
Coolpix4200	Nikon	Digital Camera
Coolpix4300	Nikon	Digital Camera
Coolpix 2200	Nikon	Digital Camera
Coolpix 3500	Nikon	Digital Camera
Coolpix 3700	Nikon	Digital Camera
Coolpix 4100	Nikon	Digital Camera
Coolpix 5200	Nikon	Digital Camera
Stylus 410 digital	Olympus	Digital Camera
300-digital	Olympus	Digital Camera
U300	Olympus	Digital Camera
X-350	Olympus	Digital Camera
C-760	Olympus	Digital Camera
C-5060	Olympus	Digital Camera
X1	Olympus	Digital Camera
U-mini	Olympus	Digital Camera
Lumix-FZ20	Panasonic	Digital Camera
DMC-FX7GD	Panasonic	Digital Camera
Lumix LC33	Panasonic	Digital Camera
LUMIX DMC-F1	Panasonic	Digital Camera
Optio-S40	Pentax	Digital Camera
Optio-S50	Pentax	Digital Camera
Optio 33LF	Pentax	Digital Camera
Optio MX	Pentax	Digital Camera
Digimax-420	Samsung	Digital Camera
Digimax-400	Samsung	Digital Camera
Sora PDR-T30	Toshiba	Digital Camera
Coolpix 5900	Nikon	Digital Camera
Coolpix S1	Nikon	Digital Camera
Coolpix 7600	Nikon	Digital Camera
DMC-FX7	Panasonic	Digital Camera
Damage Xt	Minolta	Digital Camera
AZ-1	Olympus	Digital Camera

USB Flash Disk

Product	Company	Type
Cruzer Micro	Sandisk	USB 2.0 USB Flash Drive 128M
Cruzer Mini	Sandisk	USB 2.0 128M
Cruzer Mini	Sandisk	USB 2.0 256M
SONY Micro Vault	Sony	USB 2.0 64MB
FLEX DRIVE	Serotech	USB 2.0 32MB
AnyDrive	A.L tech	USB 2.0 128MB
XTICK	LG	USB 2.0 128M
Micro Mini	Iomega	USB 2.0 128M
iFlash	Imation	USB 2.0 64M
LG	XTICK(M)	USB 2.0 64M
RiDATA	EZDrive	USB 2.0 64M

MP3 Player

Product	Company	Type
Creative MuVo NX128M	Creative	128 MB MP3 Player
Iriver H320	Iriver	20G HDD MP3 Player
YH-920	Samsung	20G HDD MP3 Player
YP-T7	Samsung	MP3 Player
YP-MT6	Samsung	MP3 Player
YP-T6	Samsung	MP3 Player
YP-53	Samsung	MP3 Player
YP-ST5	Samsung	MP3 Player
YP-T5	Samsung	MP3 Player
YP-60	Samsung	MP3 Player
YP-780	Samsung	MP3 Player
YP-35	Samsung	MP3 Player
YP-55	Samsung	MP3 Player
iAUDIO U2	Cowon	MP3 Player
iAUDIO G3	Cowon	MP3 Player
iAudio M3	Cowon	HDD MP3 Player
SI-M500L	Sharp	256MB MP3 Player
H10	Iriver	MP3 Player
YP-T5 VB	Samsung	MP3 Player
YP-53	Samsung	256MB MP3 Player

Multi Card Reader

Product	Company	Type
UNICORN	Unicorn	USB 2.0 7 IN 1 CARD READER UC-601R
USB 2.0 Card Reader	Billionton(Taiwan)	USB 2.0 Card Reader for SD/MMC/RS-MMC(3-in-1)

USB External HDD

Product	Company	Type
CUTIE	Serotech	POCKET HARD DISK DRIVE
MOMOBAY UX-2	Dvico	USB 2.0

Specifications

GENERAL	Power Consumption	110W
	Weight	11lbs
	Dimensions (W x H x D)	17 x 3 x 17.1 inches
	Operating Temperature Range	41°F ~ 95°F
	Operating Humidity Range	10% ~ 75%
F U N E R	Usable Sensitivity	10dB
	S/N Ratio	60dB
	Distortion	1%
V O U T	Composite Video	1.0Vp-p(75Ω load)
	Component Video	Y:1.0Vp-p(75Ω load)
		Pr:0.70Vp-p(75Ω load)
		Pb:0.70Vp-p(75Ω load)
A M P L I F I E R	Front speaker output	133W x 2(3Ω)
	Center speaker output	133W(3Ω)
	Rear speaker output	133W x 2(3Ω)
	Subwoofer speaker output	135W(3Ω)
	Frequency range	20Hz~20KHz
	S/N Ratio	70dB
	Channel separation	60dB
	Input sensitivity	(AUX)400mV
S P E A K E R	Speaker system	5.1ch speaker system
		Front/Center/Rear speaker	Subwoofer speaker
	Impedance	3Ω x 5	3Ω
	Frequency range	145Hz~20KHz	35Hz~140Hz
	Output sound pressure level	85dB/W/M	85dB/W/M
	Rated input	133W	135W
	Maximum input	266W	270W
	Dimensions (W x H x D)	Front/Rear	3.5 x 5.9 x 3.5 inches
		Center	7.9 x 3.5 x 3.6 inches
	Weights	Front/Rear	1.3 lbs/1.1 lbs
		Center	1.4 lbs

Samsung Limited Warranty

Samsung Electronics Canada Inc. (SECA), warrants that this product is free from defective material and workmanship.

SECA further warrants that if this product fails to operate properly within the specified warranty period and the failure is due to improper workmanship or defective material SECA will repair or replace the product at its option.

All warranty repairs must be performed by a SECA authorized service centre. (The name and address of the location nearest you can be obtained by calling toll free 1-800-726-7864 or visiting our web site at www.samsung.ca)

Labour

one (1) year (carry-in)

Parts

one (1) year

On carry-in models, transportation to and from the service centre is the customer's responsibility.

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service centre at the time service is requested.

Exclusions

This warranty does not cover damage due to accident, fire flood and/or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs in shipping. Exterior and interior finish, lamps and glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.
