E200 - Lecteur mp3 SANDISK - Notice d'utilisation et mode d'emploi gratuit

Intitulé	Description
Type de produit	Lecteur MP3
Capacité de stockage	2 Go, 4 Go, 8 Go
Formats audio supportés	MP3, WMA, AAC, WAV
Écran	Écran LCD de 1,4 pouces
Dimensions approximatives	8,4 x 4,2 x 1,5 cm
Poids	50 g
Alimentation	Batterie lithium-ion rechargeable
Autonomie de la batterie	Jusqu'à 20 heures
Connectivité	USB 2.0
Fonctions principales	Lecture audio, enregistrement vocal, radio FM
Entretien et nettoyage	Essuyer avec un chiffon doux, éviter l'humidité
Pièces détachées et réparabilité	Réparation limitée, pièces non disponibles sur le marché
Compatibilités	Compatible avec Windows et Mac OS
Sécurité	Ne pas exposer à l'eau, éviter les températures extrêmes
Informations générales	Produit idéal pour les utilisateurs à la recherche d'un lecteur MP3 compact et léger

FOIRE AUX QUESTIONS - E200 SANDISK

Comment réinitialiser mon SANDISK E200 ?

Pour réinitialiser votre SANDISK E200, maintenez enfoncé le bouton de mise sous tension pendant environ 10 secondes jusqu'à ce que l'appareil redémarre.

Pourquoi mon SANDISK E200 ne s'allume-t-il pas ?

Vérifiez que la batterie est chargée. Si l'appareil ne s'allume toujours pas, essayez de le charger pendant au moins 30 minutes avant de réessayer.

Comment transférer des fichiers vers mon SANDISK E200 ?

Connectez votre SANDISK E200 à votre ordinateur à l'aide du câble USB fourni. Une fois reconnu, vous pouvez faire glisser et déposer des fichiers dans le dossier approprié.

Mon SANDISK E200 ne reconnaît pas les fichiers audio, que dois-je faire ?

Assurez-vous que les fichiers audio sont dans un format compatible (comme MP3 ou WMA). Vérifiez également que les fichiers ne sont pas corrompus.

Comment augmenter le volume de mon SANDISK E200 ?

Utilisez les boutons de volume situés sur le côté de l'appareil pour augmenter ou diminuer le volume pendant la lecture.

Que faire si mon SANDISK E200 ne se connecte pas à l'ordinateur ?

Essayez un autre port USB ou un autre câble. Assurez-vous également que les pilotes de votre appareil sont à jour.

Comment formater mon SANDISK E200 ?

Connectez votre SANDISK E200 à votre ordinateur, ouvrez 'Poste de travail', faites un clic droit sur l'appareil et sélectionnez 'Formater'. Choisissez le système de fichiers souhaité et suivez les instructions.

Pourquoi mon SANDISK E200 plante-t-il parfois ?

Cela peut être dû à des fichiers corrompus ou à une mémoire insuffisante. Essayez de supprimer certains fichiers ou de réinitialiser l'appareil.

MODE D'EMPLOI E200 SANDISK

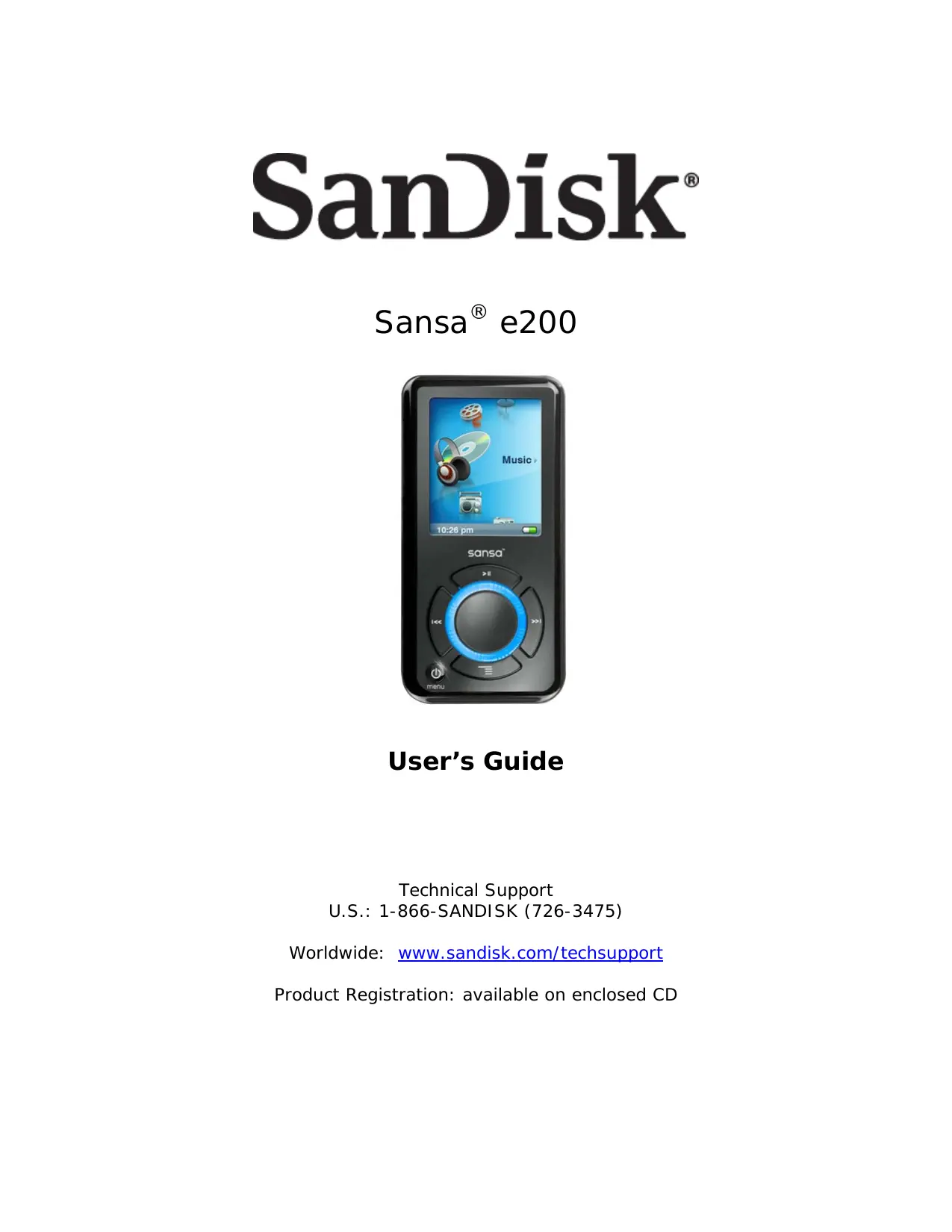

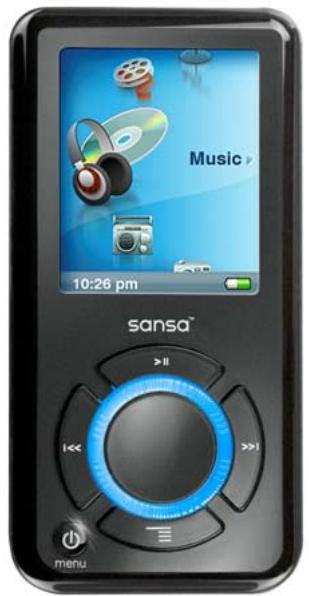

SanDisk®

Sansa ^® e200

Music 10:26 pm sansa™ >>II I<< >>I menu

User's Guide

Technical Support

U.S.: 1-866-SANDISK (726-3475)

Worldwide: www.sandisk.com/techsupport

Product Registration: available on enclosed CD

Table of Contents

Safety Instructions.... 3

Introduction 3

Package Contents 4

Getting Started....5

Device Overview....5

Music Screen....6

Playback Screen 6

Li-ion Battery 6

Charging 7

Level Indicator 7

Replacement 7

Warning 7

Hold Switch (factory set to locked position) 8

Minimum System Requirements....8

Firmware Upgrade 8

Connecting to your Computer 9

MTP Mode....9

MSC Mode 10

Transferring Files 10

Sansa Media Converter....10

Delete Photos and Video 12

Transfer Music....12

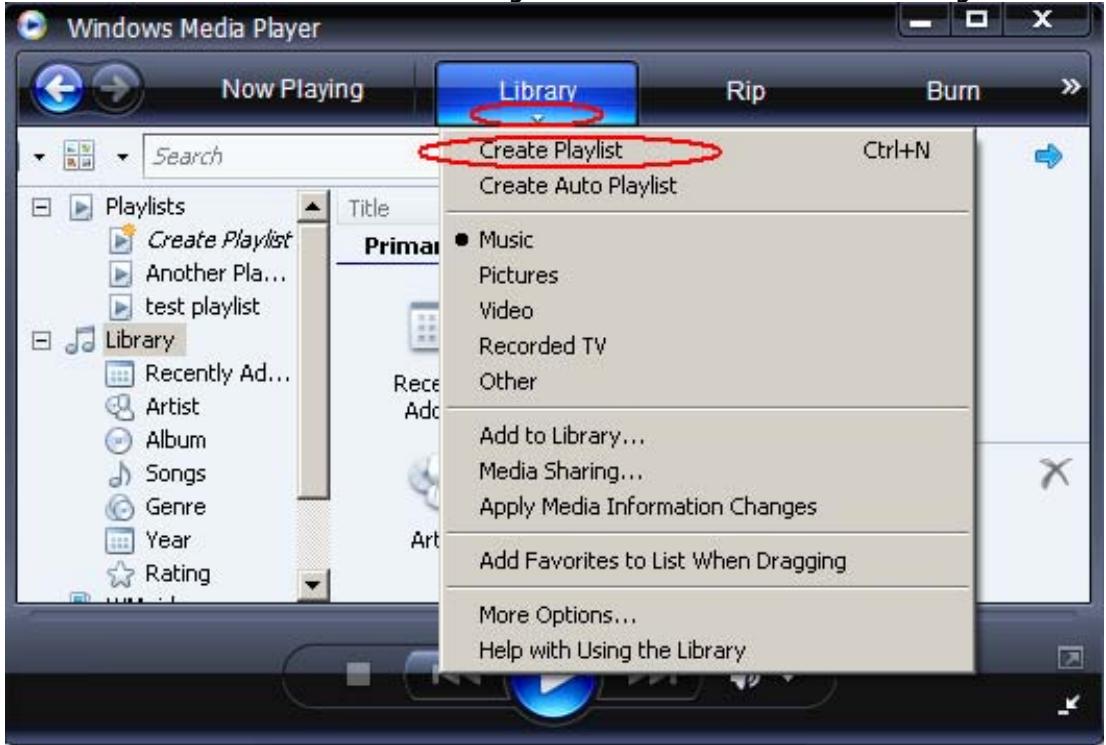

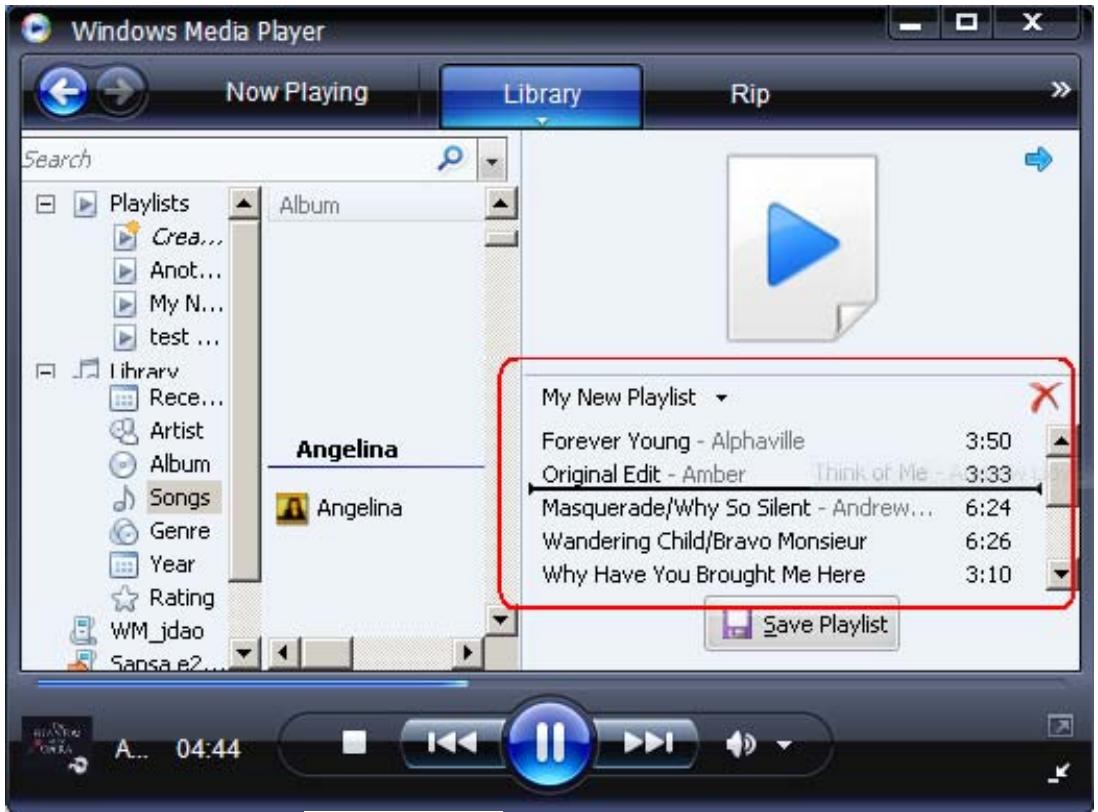

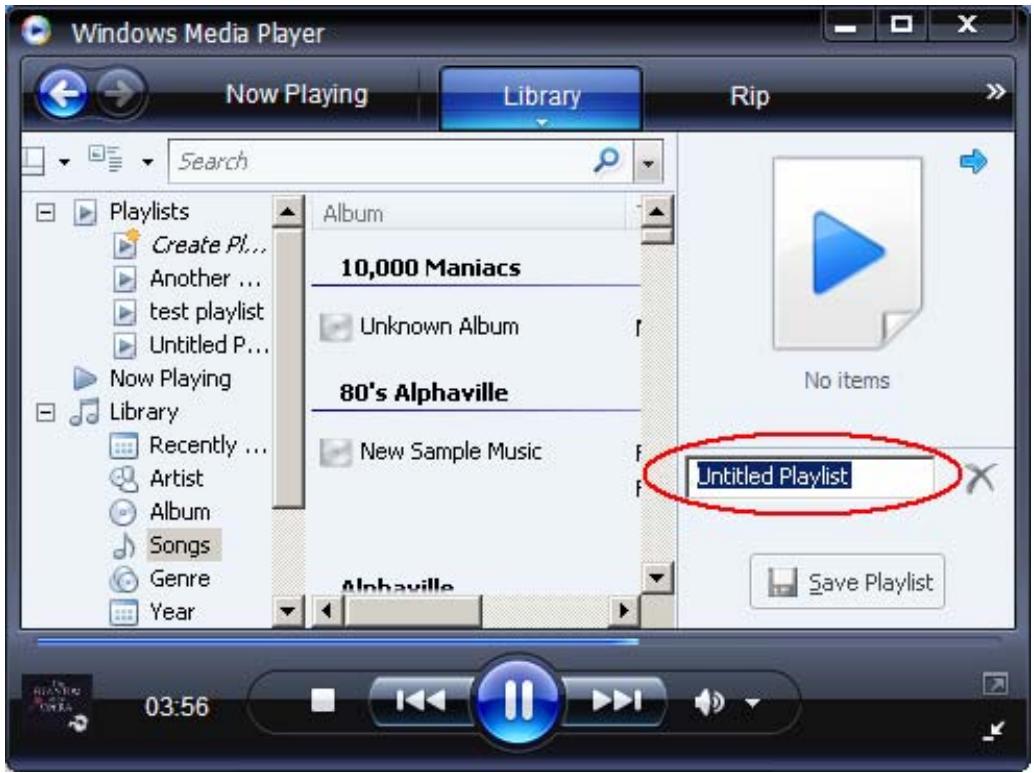

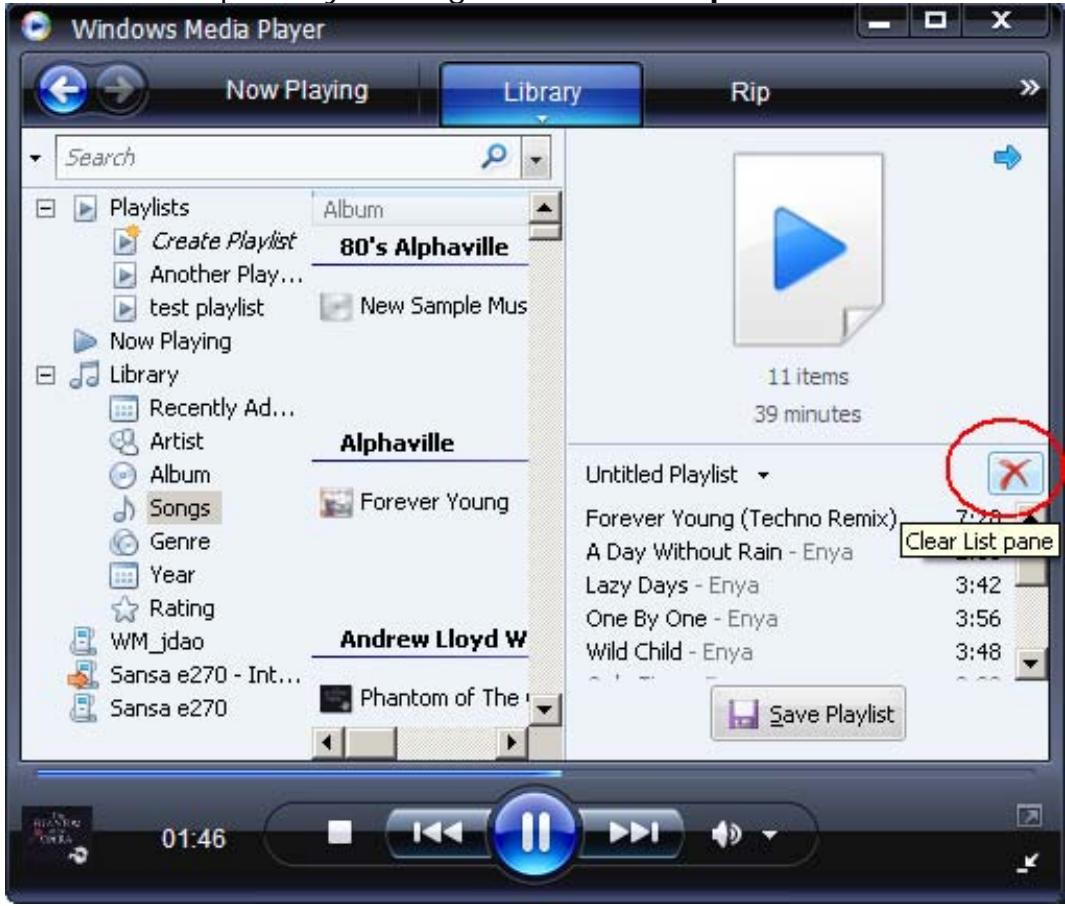

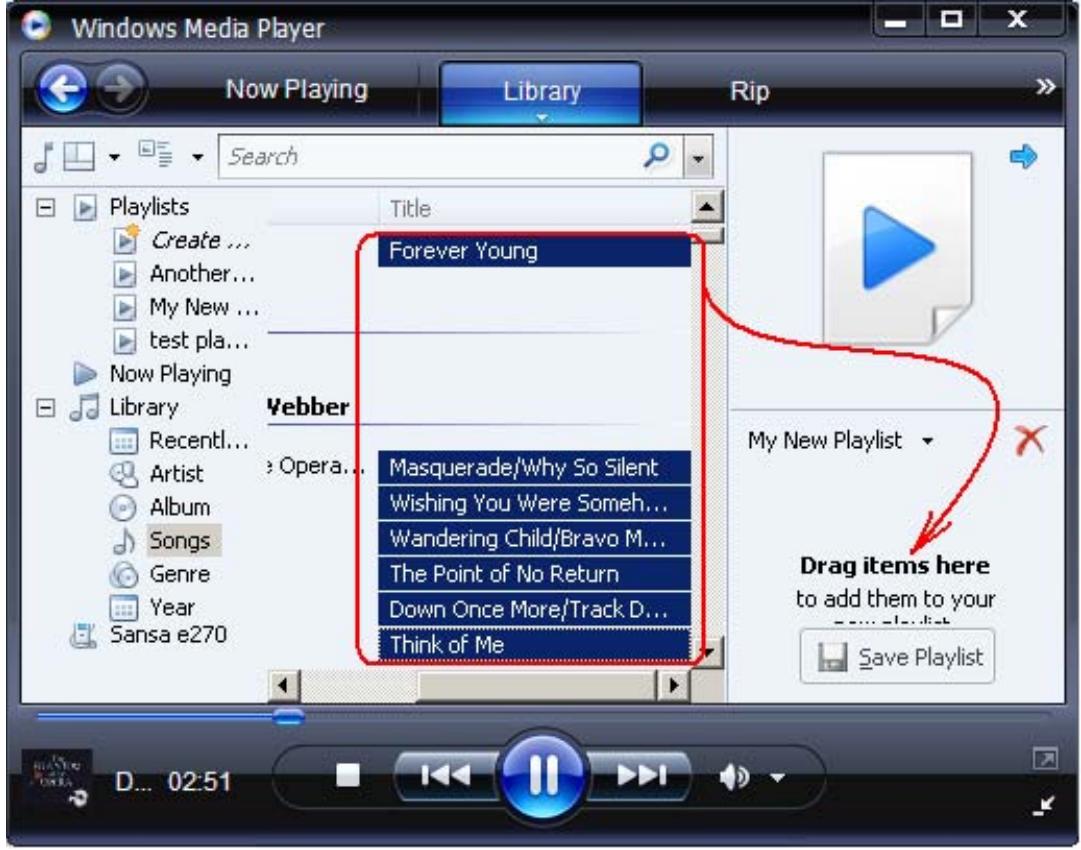

Create Playlist ....13

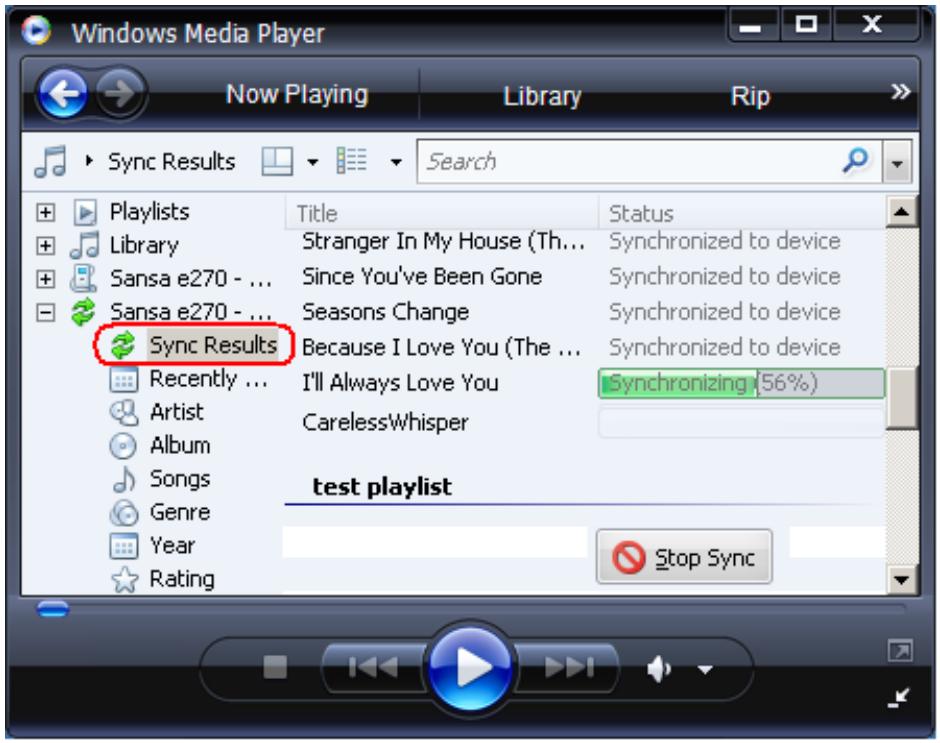

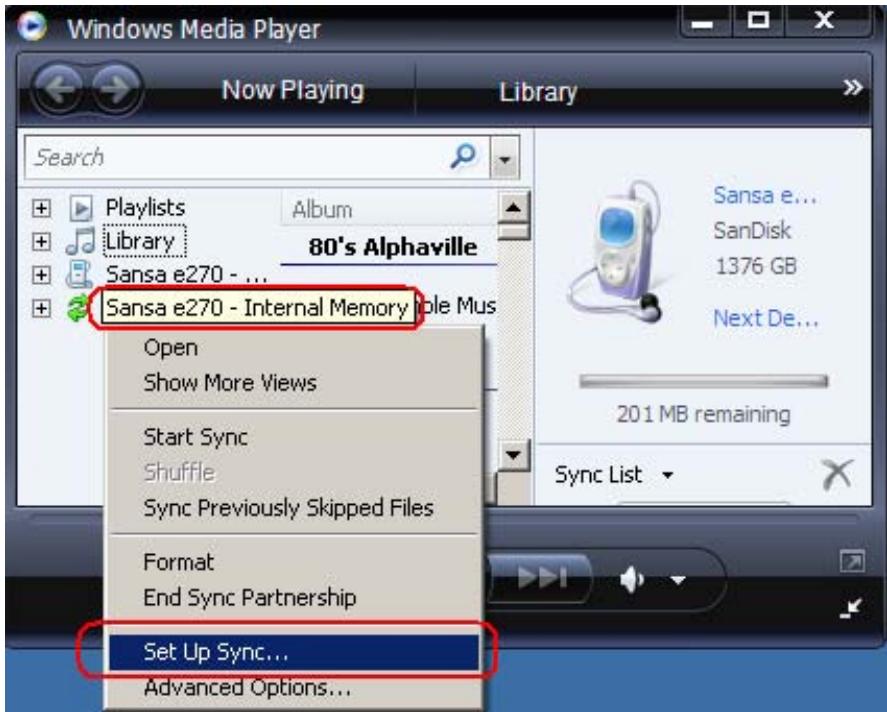

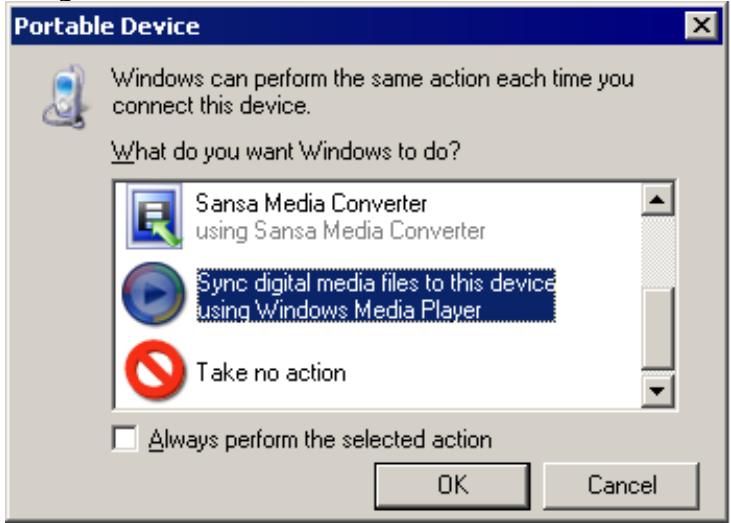

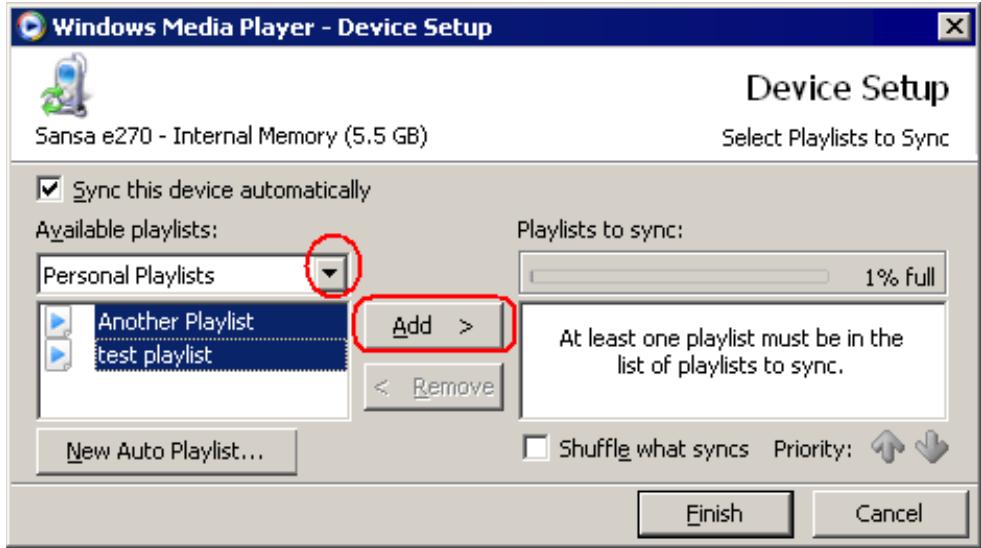

Transfer Playlist....15

Delete Music Files 17

Synchronize Files....17

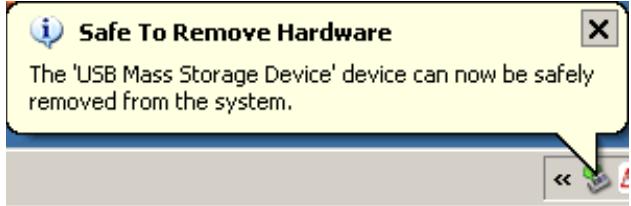

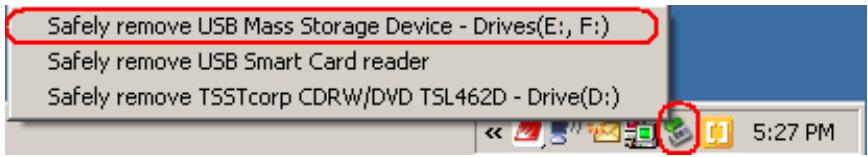

Safely Removing Sansa e200 from your computer 17

Basic Usage....18

Power Button 18

Power On.... 18

Power Off 18

Reset 18

Thumbwheel 18

Main Menu....19

Navigation Buttons 20

Submenu Button 20

Music Mode....21

Music/Voice/FM Playback 21

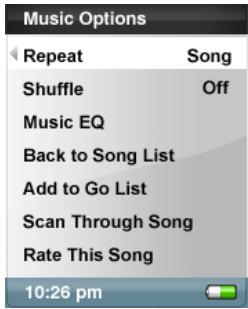

Setting Repeat Mode 21

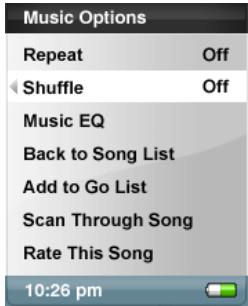

Setting Shuffle Mode 22

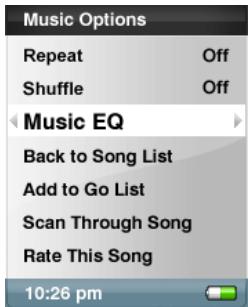

Settings Music EQ 22

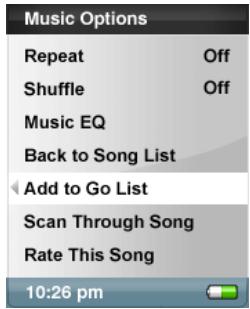

Add Songs to Go List 22

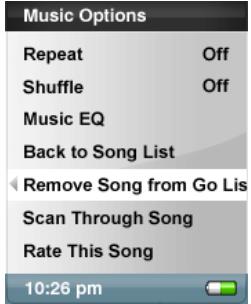

Remove Songs from Go List 23

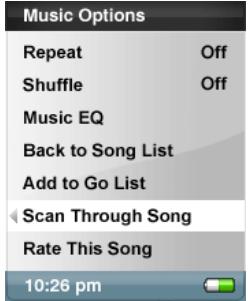

Scan through Song 23

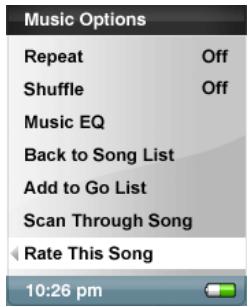

Rate This Song 23

Photo Mode....24

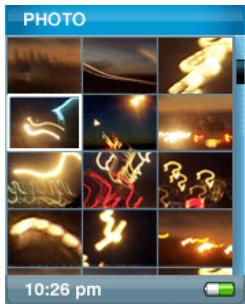

Viewing Photos 24

Slideshow 25

Slideshow Options.... 26

Video Mode....27

Playing Video 27

FM Radio Mode (if applicable) 28

FM Radio 28

FM Presets 28

Recording Mode....29

Voice Recording.... 29

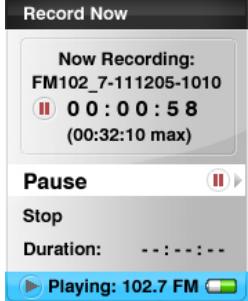

FM Radio Broadcast Recording (if applicable) 29

Settings Mode 30

Music Options.... 30

Radio Options.... 31

Slideshow Options.... 31

Backlight 31

Language 32

Date & Time.... 32

Brightness 32

Volume 32

Reset All.... 33

Info 33

Auto Shut-off 33

USB Mode.... 33

Tips, FAQ, and Troubleshooting....33

Service and Warranty Information 35

Getting Technical Support 35

Learn More 35

SanDisk Limited Warranty 35

User Notice 36

End-User License Agreement ....37

FCC Regulation 39

Important – Safety Hearing Level Info ....39

Safety Instructions

1. Read the safety instructions carefully before using your Sansa.
2. Read this entire manual to ensure proper usage.
3. Keep this User Guide for future reference.
4. Do not use Headphones/Earphones while driving, cycling, or operating any motorized vehicle. This may create a traffic hazard and may be illegal in some areas. It can also be dangerous to play your music with Headphones/Earphones at high volume while walking, or engaged in other activities. You should exercise extreme caution and discontinue use in potentially hazardous situations.
5. Avoid using Headphones/Earphones at high volume. Hearing expert's advice against continuous loud and extended music play. Keep the volume at a moderate level, so that you are better able to hear outside sound, and to be considerate of the people around you.
6. Keep your player away from sinks, drinks, bathtubs, showers, rain, and other sources of moisture. Moisture can cause electric shocks with any electronic device.

7. Follow these tips to keep your player working well for a long time:

8. Clean your player with a soft lint-free cloth used on glass lenses.

9. Do not allow young children to use your player unsupervised.

10. Never force any connector into the ports of your player or your computer. Make sure your connectors are the identical shape and size before you connect.

11. Do not dis-assemble, crush, short-circuit or incinerate battery as it May cause fire, injury, burns or other hazards

Introduction

Congratulations on your purchase of a SanDisk Sansa® e200 MP3 player.

The Sansa e200 is a high performance portable digital audio/video player with a large 1.8" TFT color screen, Digital FM tuner, voice recorder, microSD™ card expansion slot, and a replaceable and rechargeable Lithium Ion battery.

The Sansa e200 enables users to play MP3, WMA, and secure WMA audio files. It also plays video, and displays photos that are transferred to the player through the Sansa Media Converter, records FM radio broadcasts, and has a voice recorder function.

The Sansa e200 provides superior sound playback and supports Microsoft PlaysForSure subscription music. The SanDisk Media Converter supports most image formats allowing you to enjoy photos and personal videos.

The Sansa e200 is available in the following capacity points: 2GB (e250), 4GB (e260), 6GB (e270), 8GB (e280)

		2GB	4GB	6GB	8GB
MP3	Hours of Music Content	32	64	96	128
	Number of Songs	500	1000	1500	2000

Note: Approximation based on 4 minute songs at 128 kbps MP3 (3,932,160 bytes per song)

1 megabyte (MB) = 1 million bytes; 1 gigabyte (GB) = 1 billion bytes. Some of the listed capacity is used for formatting and other functions, and thus is not available for data storage.

Features:

• Digital Audio Player – supports MP3, WMA, and secure WMA, audio files. Other file types need to be converted to these formats.
• Video Player – supports video files converted and transferred to the device through the included Sansa Media Converter software.
• Photo Browser – supports photo files converted and transferred to the device through the included Sansa Media Converter software.
• FM Radio – includes an integrated FM radio for listening to live-broadcast FM radio stations.
• Voice Recorder – supports voice recording function with built-in microphone.
• FM Radio Program Recording – provides synchronous recording function for FM recorded files.
• EQ effect – you are able to select an EQ mode to personalize your music experience.
• microSD™ Slot – supports read or write of Music Files from external microSD cards.
• Internal Memory – allows users to store data on the internal memory

Package Contents

Please unpack your Sansa e200 and check that the following were included.

• Earphones
  • USB 2.0 Travel Cable
• Installation CD (User's Manual and Sansa Media Converter included)
  • CD End User License Agreement Insert in CD Sleeve
• Loud Music Warning Insert
• Quick Start Guide
• Travel Pouch
• Lanyard

Getting Started

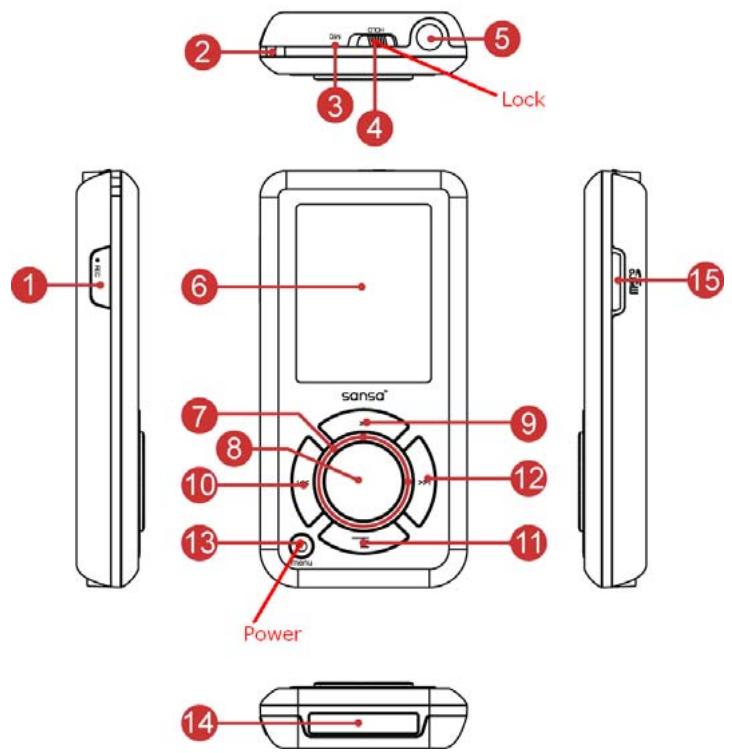

Device Overview

Lock 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Sansa® Power

1) Record Voice Record Button

2) Strap Eyelet Lanyard connection

3) MIC Internal Microphone

4) Hold/Lock Factory set to locked position (shows Orange Color). Slide to unlock controls. When locked all controls are disabled. Lock to prevent accidental activation of controls

5) Earphone Port Connect earphones here to listen to player.

6) Display Window Read status and information here.

7) Thumbwheel Rotate to select menu item or adjust volume

8) Select Button Press to select the item

9) Up/Pause/Resume Press to move up one item, pause, or resume

10) Left/Previous/Rewind Press for previous track, rewind, or move left

11) Down/Submenu Press to move down or to options menu.

12) Right/Forward Press for next track, fast forward, or move right.

13) Power/Menu/Reset Press to power on/off, enter menu, or hold 15 seconds to reset your Sansa. When the player is locked using the HOLD switch, described above, the player will not power on or off. All controls will be disabled.

14) Dock Connector Port Plug the Dock Connector Cable here.

15) microSD Card Slot Insert microSD, or gruvi™ content cards.

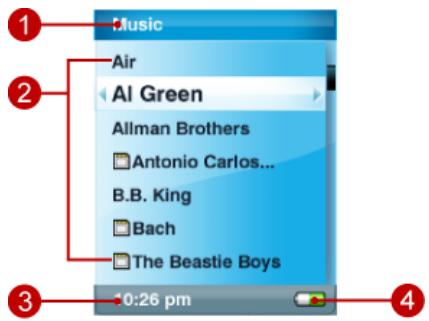

Music Screen

Music Air Al Green Allman Brothers Antonio Carlos... B.B. King Bach The Beastie Boys 0:26 pm

1) Menu Title Displays the title of the current menu.
2) Items Displays items for selection.
3) Time Indicates the current time.
4) Battery Indicates the Battery Charge Status.

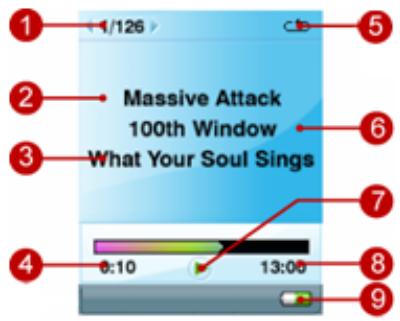

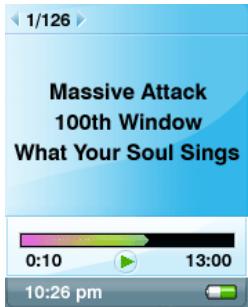

Playback Screen

1/126 Massive Attack 100th Window What Your Soul Sings 6:10 13:00

1) Track Number Display the current track number and the total number of sound tracks.
2) Artist Name Displays the current playback track artist name.
3) Song Name Displays the current playback track song name.
4) Track Timer Displays the timer of the current playback track.
5) Repeat Indicates when Repeat function is enabled.
6) Album Name Displays the album name of current playback file.
7) Play/Pause/Stop Displays the music or voice files playback status.
8) Track Length Displays the remaining timer of current playback file.
9) Battery Indicates the Battery Status.

Li-ion Battery

The Sansa e200 MP3 player comes with a replaceable and rechargeable lithium ion battery. To use the player for the very first time, remember to fully charge the Li-ion battery. You can charge your Sansa through the USB port of your computer, a car adapter (not included) USB port, or AC adapter (not included) USB port.

Charging

Please execute the following instructions for charging the battery using an USB port.

1) Connect the smaller end of the USB cable into an available USB port on the computer
2) Connect the larger end of the USB cable into the dock connector of the player
3) The computer must be on for most USB ports to charge your battery. Your Sansa will show connected and the yellow charging indicator will appear. The battery level indicator will blink while charging. You will not be able to play while connected to the computer USB.

Connected

4) To stop recharging, disconnect the cable.

The battery can also be charged using an AC adapter (not included) or a car adapter (not included) and you will be able to play your device while charging with one of the adapters. The battery will reach approximately 70% charge in 2.5 hours and full charge in about 3.5 hours. It is recommended that you fully charge your Sansa e200 before the first use.

Note: Some low-power USB ports may not be able to provide enough charge power. Also note that rechargeable batteries may eventually need to be replaced as they have limited charge cycles (which vary with use and settings).

Level Indicator

Battery is Half Full

10:26 pm

Battery is Low

10:26 pm

Replacement

The Li-ion rechargeable battery is replaceable. To purchase a replacement battery, visit your local retailer or www.sandisk.com. Follow the instructions provided with the replacement battery.

Warning

CAUTION: Do not disassemble, crush, short-circuit or incinerate your battery as it may cause fire, injury, burns or other hazards

Hold Switch (factory set to locked position)

The Sansa e200 Hold Switch is located on the top of the device, and is used to prevent any accidental operation. All function keys will be disabled once the Hold Switch is moved to the lock position (Orange Color visible). All the buttons on the Sansa e200 will not operate when the Hold Switch is active (Orange Color visible).

The following message will appear on the display screen if any buttons on the Sansa e200 is pressed while the unit is in the Locked position. The music should continue to play even if the device is locked.

Minimum System Requirements

• Windows XP SP1
  • Windows Media Player 10+
• Intel Pentium class PC or higher with a CD-ROM drive
  • USB 2.0 port required for hi-speed transfer

Firmware Upgrade

SanDisk occasionally releases firmware updates, which includes bug fixes and performance enhancements. To make sure your Sansa e200 series player has the latest firmware, please visit http://www.sandisk.com/e200series/fwupgrade and follow the instructions.

Please execute the following steps to install Sansa Updater utility. If Sansa Updater is already installed in your computer, skip to the Sansa Firmware Updater Installation session.

Sansa Updater Software Installation procedure:

1) Download the Sansa Firmware Updater from SanDisk website.
(http://www.sandisk.com/Retail/Default.aspx?CatID=1376)
SanDisk | Products | Firmware Updates | Sansa Firmware Updater

Sansa Firmware Updater

NOTE: Please unplug all devices before installing. You should have administrative rights to your computer.

Download Sansa Firmware Updater (3MB)

2) Click Download Sansa Firmware Updater.
3) Follow the onscreen instructions.

Sansa Firmware Update Procedure:

1) Turn on your Sansa player.
2) Change the USB Mode to MSC (Settings/USB Mode)
3) Connect your Sansa e200 to the computer.
4) Choose Take no action on initial connection to the computer.

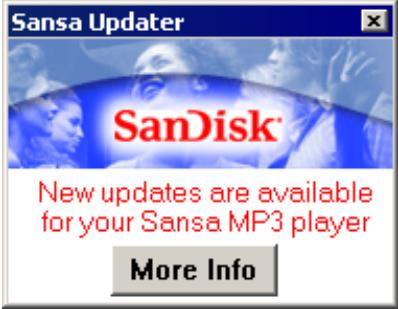

5) A Sansa Updater dialog box will appear at the lower right corner of your computer monitor when new updates are available.

Sansa Updater SanDisk® New updates are available for your Sansa MP3 player More Info

6) Click More Info.
7) Follow the on-screen instruction.

Connecting to your Computer

The Sansa e200 player can operate in 2 different USB modes, MTP (Media Transfer Protocol) and MSC (Mass Storage Class). From the Main Menu, go to Settings/USB Modes/MTP or MSC to change the mode.

To connect the Sansa to your computer, please execute the following steps:

1) Connect the smaller end of the USB cable into an available USB port on the computer
2) Connect the larger end of the USB cable into the dock connector of the player
3) The Sansa e200 will show connected on its display screen.

Connected

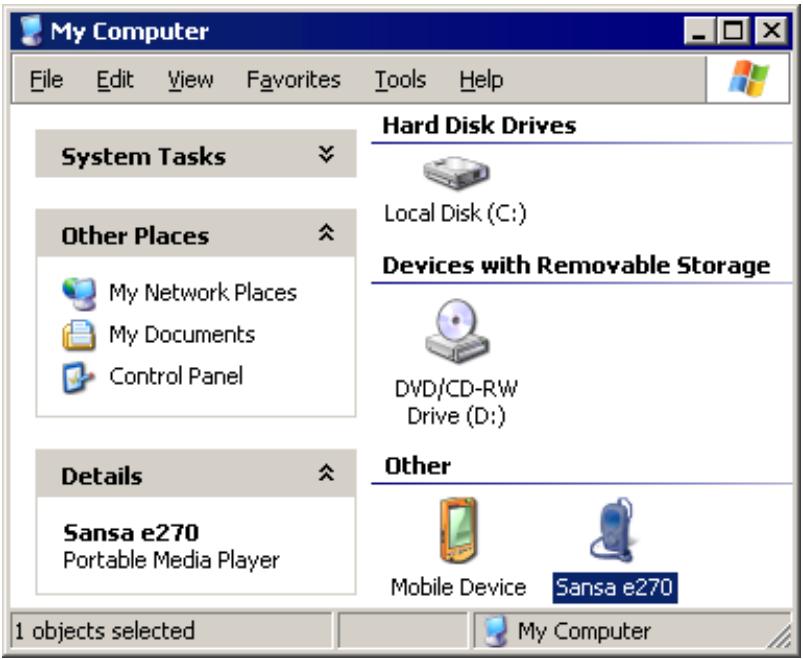

MTP Mode

The Sansa player will appear in My Computer as Sansa e200 Portable Media Player in MTP mode. The microSD card will not be displayed. MTP is needed when using your device with monthly music subscription services such as Rhapsody, Napster, and Yahoo! Music.

My Computer File Edit View Favorites Tools Help System Tasks Hard Disk Drives Local Disk (C:) Other Places Devices with Removable Storage My Network Places DVD/CD-RW My Documents Drive (D:) Control Panel Details Sansa e270 Portable Media Player Other Mobile Device Sansa e270 1 objects selected My Computer

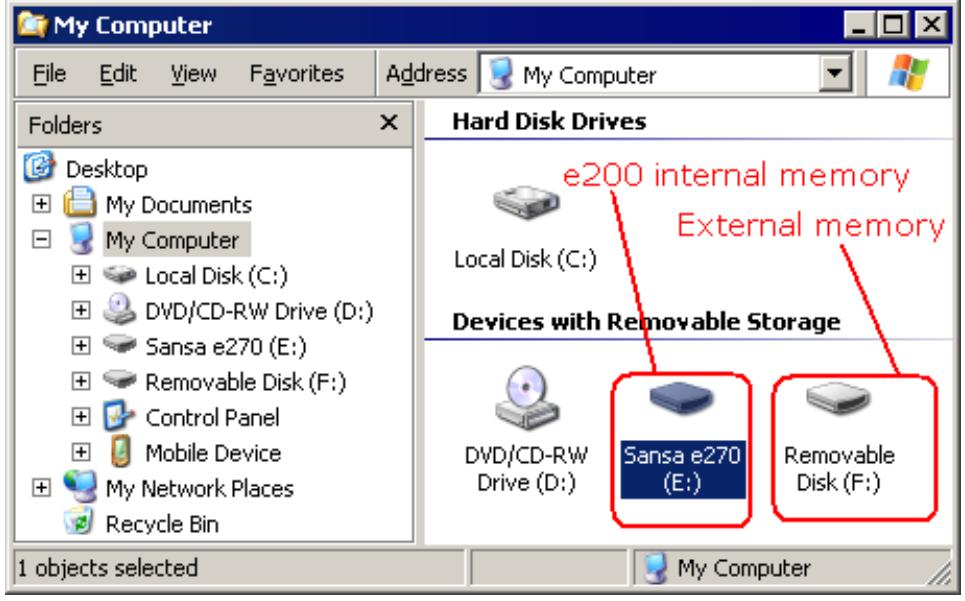

MSC Mode

In MSC mode, the Sansa e200 player will show under My Computer as Removable Drives. One drive letter is for the Sansa player. Another drive letter is for the microSD card. The Sansa e200 player can be used as another removable drive to transfer files to and from the computer

My Computer File Edit View Favorites Address My Computer Folders Desktop My Documents My Computer + Local Disk (C:) + DVD/CD-RW Drive (D:) + Sansa e270 (E:) + Removable Disk (F:) + Control Panel + Mobile Device + My Network Places + Recycle Bin 1 objects selected Hard Disk Drives e200 internal memory External memory Local Disk (C:) Devices with Removable Storage DVD/CD-RW Drive (D:) Sansa e270 (E:) Removable Disk (F:) My Computer

Transferring Files

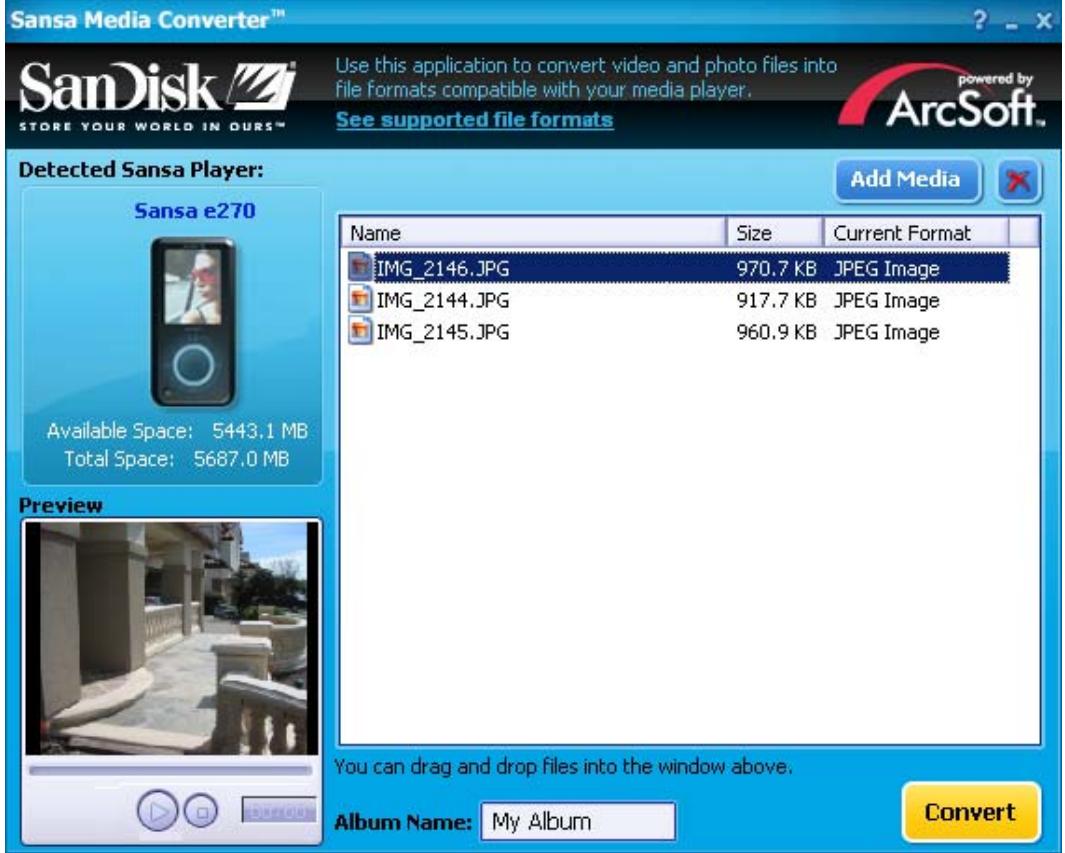

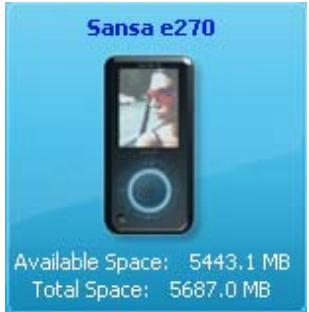

Sansa Media Converter

You will need to use Sansa Media Converter to transfer photos and video to your Sansa e200 player. Insert your SanDisk CD and select Sansa Media Converter to install it to your PC. Then you can load your personal photos

and video onto your Sansa e200 by using Sansa Media Converter. Your Sansa will only display photos in portrait orientation.

Sansa Media Converter™ SanDisk Store Your World in Ours™ Use this application to convert video and photo files into file formats compatible with your media player. See supported file formats Powered by ArcSoft... Detected Sansa Player: Sansa e270 Available Space: 5443.1 MB Total Space: 5687.0 MB Preview Name Size Current Format IMG_2146.JPG 970.7 KB JPEG Image IMG_2144.JPG 917.7 KB JPEG Image IMG_2145.JPG 960.9 KB JPEG Image You can drag and drop files into the window above. Album Name: My Album Convert

Supported IMPORT media types (Arcsoft)

• Still Image Files: JPEG, TIFF, PNG, BMP, GIF.
• Video Files: AVI, MPEG-1 & MPEG-2 in MPEG, MPG, MPE or VOB (unprotected) formats. MPEG-4 in AVI format, DAT, ASF, QuickTime MOV, and WMV. Please Note: QuickTime 6.5 or higher and Windows Media Player 9 or 10.0 are required for QuickTime MOV file. Error message will appear if not installed

Transfer Photos and Video

To transfer photos and video to your Sansa e200:

1) Connect the Sansa e200 to the computer
2) Select Converter using Sansa Media Converter on initial connection

The detected Sansa e200 will list the available space and total space on the device.

Sansa e270 Available Space: 5443.1 MB Total Space: 5687.0 MB

3) Click the Add Media icon Add Media to select photo or video files to be converted.
4) The Sansa Media Converter will place all files in My Album unless you type in a new Album Name at the bottom of the screen. Use this option to organize your files and slide shows.
5) Click the Convert icon to start the conversion process. A status box will appear showing which file(s) are being converted.

Delete Photos and Video

The photos are stored in 2 locations on your Sansa...My Album and Thumbnails. The instructions below for deleting photos and video from your player were created using Windows XP with Windows Media Player 11.

To delete photos from your Sansa, please execute the following steps:

1) Connect your Sansa e200 to your computer
2) Select Open device to view files using Windows Explorer on initial connection
3) Click the drive containing your photos
4) Click on the photo folder.
5) Highlight and delete the photos stored in My Computer\Sansa e200...\Photo\My Album and My Computer\Sansa e200...\Photo\thumbnail\My Album.

To delete videos from your Sansa, please execute the following steps:

1) Connect your Sansa e200 to your computer
2) Select Open device to view files using Windows Explorer on initial connection
3) Click on the drive containing your videos
4) Click on the video folder
5) Delete the videos stored in My Computer\Sansa e200...\video. (The player database will refresh after deleting files when you disconnect from your computer.)

Transfer Music

To transfer music files to your Sansa e200 device, please execute the following steps:

1) Connect your Sansa e200 to your computer.
2) Select Open device to view files using Windows Explorer on initial connection.
3) Double-click on Sansa device.
4) Double-click on the MUSIC folder
5) Drag and drop music files from your computer to My Computer\Sansa e200...\MUSIC. (You can also select from a variety of music software to transfer or synchronize files).
6) For correct Album Work functionality, the art and associated music file may need to be located in the same folder.

Create Playlist

1) Launch Windows Media Player 11.
2) Clear the List pane by clicking the Clear List pane button.

Windows Media Player Now Playing Library Rip Search Playlists Create Playlist Another Play... test playlist Now Playing Library Recently Ad... Artist Album Songs Genre Year Rating WM_jdao Sansa e270 - Int... Sansa e270 Album 80's Alphaville New Sample Mus Alphaville Forever Young Andrew Lloyd W Phantom of The 11 items 39 minutes Untitled Playlist ▼ Forever Young (Techno Remix) 7:28 Clear List pane A Day Without Rain - Enya Lazy Days - Enya 3:42 One By One - Enya 3:56 Wild Child - Enya 3:48 Save Playlist 01:46

3) Click the arrow below the Library Tab and select Create Playlist

Windows Media Player Now Playing Search Library Create Playlist Ctrl+N Create Auto Playlist Music Pictures Video Recorded TV Other Add to Library... Media Sharing... Apply Media Information Changes Add Favorites to List When Dragging More Options... Help with Using the Library

4) Type in the name of your Playlist

Windows Media Player Now Playing Library Rip Search Playlists Create Pl... Another ... test playlist Untitled P... Now Playing Library Recently ... Artist Album Songs Genre Year Album 10,000 Maniacs Unknown Album 80's Alphaville New Sample Music Alphaville Untitled Playlist No items Save Playlist 03:56

5) Drag the songs from Details pane to the List Pane to add them to the new playlist

Windows Media Player Now Playing Library Rip Search Playlists Create ... Another... My New ... test pla... Now Playing Library Recentl... Artist Album Songs Genre Year Sansa e270 Title Forever Young Vebber : Opera... Masquerade/Why So Silent Wishing You Were Someh... Wandering Child/Bravo M... The Point of No Return Down Once More/Track D... Think of Me My New Playlist Drag items here to add them to your save playlist D... 02:51

6) To re-arrange the songs, drag them up or down in the List pane.

Windows Media Player Now Playing Library Rip Search Playlists Album Crea... Anot... My N... test ... Library Rece... Artist Album Songs Genre Year Rating WM_jdao Sansa.e2... Angelina Angelina My New Playlist Forever Young - Alphaville 3:50 Original Edit - Amber Think of Me - 3:33 Masquerade/Why So Silent - Andrew... 6:24 Wandering Child/Bravo Monsieur 6:26 Why Have You Brought Me Here 3:10 Save Playlist A... 04:44

7) Click Save Playlist.

Transfer Playlist

To transfer playlists to the Sansa e200 using software programs like Windows Media Player v11, please execute the following steps:

1) Create a playlist in Windows Media Player 11.
2) Connect your Sansa to the computer.
3) Select Sync digital media files to this devices using Windows Media Player on initial connection.

Portable Device Windows can perform the same action each time you connect this device. What do you want Windows to do? Sansa Media Converter using Sansa Media Converter Sync digital media files to this device using Windows Media Player Take no action Always perform the selected action OK Cancel

4) Right-click on Sansa e200 Internal Memory and select Set Up Sync...

Windows Media Player Now Playing Library Search Playlists Album Library 80's Alphaville Sansa e270 - ... Sansa e270 - Internal Memory Open Show More Views Start Sync Shuffle Sync Previously Skipped Files Format End Sync Partnership Set Up Sync... Advanced Options... Sansa e... SanDisk 1376 GB Next De... 201 MB remaining Sync List

5) Select Personal Playlists from the dropdown menu on the left pane.
6) Highlight the playlists under Personal Playlists you want transfer to the Sansa e200, click Add then Finish.

Windows Media Player - Device Setup Sansa e270 - Internal Memory (5.5 GB) Device Setup Select Playlists to Sync Sync this device automatically Available playlists: Personal Playlists Another Playlist test playlist Add > < Remove Playlists to sync: 1% full At least one playlist must be in the list of playlists to sync. New Auto Playlist... Shuffle what syncs Priority: Finish Cancel

7) Synchronization will start as soon as you click Finish. To see the Sync progress, click on Sync Results.

Windows Media Player Now Playing Library Rip Sync Results Search Playlists Library Sansa e270 - ... Sansa e270 - ... Sync Results Recently ... Artist Album Songs Genre Year Rating Title Stranger In My House (Th... Since You've Been Gone Seasons Change Because I Love You (The ... I'll Always Love You CarelessWhisper test playlist Status Synchronized to device Synchronized to device Synchronized to device Synchronized to device Synchronizing (56%) Stop Sync

Delete Music Files

1) Connect your Sansa to the computer.
2) Select Open device to view files using Windows Explorer on initial connection.
3) Select the place where you want to delete music files from
4) Highlight and delete the music file/s or folder from My Computer\Sansa e200...\MUSIC folder. (You can also select from a variety of music software programs to transfer/synchronize your files).

Synchronize Files

Various software packages are available to synchronize songs on your device. Please refer to the specific software package instructions.

Safely Removing Sansa e200 from your computer

Simply disconnect the USB cable from the Sansa player after you have finished charging, transferring, firmware upgrading, or synchronizing files when you are using MTP mode.

WARNING: Do not disconnect the player while it's transferring data.

Disconnecting the Sansa e200 player from the computer while the data is being transferred can damage the device.

To safely remove the Sansa player from the computer in MSC mode, please execute the following steps:

1) Click on the Safely Remove Hardware icon from the system tray.

Safely remove USB Mass Storage Device - Drives(E:, F:) Safely remove USB Smart Card reader Safely remove TSSTcorp CDRW/DVD TSL462D - Drive(D:)

2) Click on the hardware you'd like to remove.
3) Wait until Safe to Remove Hardware message is displayed.

Safe To Remove Hardware The 'USB Mass Storage Device' device can now be safely removed from the system.

4) You can now disconnect the Sansa e200 player from the computer.

Basic Usage

Power Button

The power button is used to power on or off, putting the Sansa e200 player in standby mode as well as resetting it. For initial power-up you must unlocked the controls by moving the HOLD switch to the un-locked position (No Orange Color visible).

Power On

Press the Power Button once to turn on the Sansa e200 device. The Thumbwheel will light up and the Main Menu will appear after it has been booted up.

Power Off

To power down the Sansa e200 player, press and hold the Power Button for approximately 2 seconds or until Goodbye is displayed. Note: To prevent accidental power on, move the HOLD switch to the locked position.

Reset

If the Sansa e200 player freezes up, press the Power Button for approximately 15 seconds. This is like a power down of the device. Once you perform the reset, the adjustments you made during the last operation will be gone.

Thumbwheel

Turn the wheel clockwise to scroll down though menu items rapidly or to increase the volume during playback.

Line drawing of a hand holding a portable electronic device with a circular dial and red arrow indicating rotation (no text or symbols)

Turn the wheel counterclockwise to scroll up though menu items rapidly or decrease the volume during playback.

some

Main Menu

- Music – browse and listen to music loaded in the internal library, microSD card, or recorded files

Illustration of music-related icons including headphones, CD, radio, and a monitor on a blue background (no text or symbols)

- FM Radio (if applicable) – listen to FM broadcast radio and save presets

FM Radio 10:26 pm

- Photo – view loaded photos

Photo 10:26 pm

- Settings – view or customize the Sansa e200 player features

Settings 10:26 pm

• Voice – record voice using built-in microphone

Voice 10:26 pm

• Video – watch loaded videos

Illustration of a video game with film reel, headphones, and monitor on blue background (no text or symbols)

Navigation Buttons

Use Navigation Buttons, described in Sansa e200 Device Overview, to navigate though menus, play music, play video, browse photos and arrange files.

Submenu Button

When submenu is available, the submenu icon will display on the left bottom of the display screen. Press the Submenu button to enter submenu.

Music Mode

Music/Voice/FM Playback

1) To play music stored in the internal memory or microSD card, recorded FM or Voice recording, select Music in Main Menu.

Music 10:26 pm

2) Select Artists, Albums, Songs, Genres, Playlists, Recordings (FM/Voice), My Top Rated, and Music Options.

Music Artist Albums Songs Genre Playlists My Top Rated Recordings 10:26 pm

3) Highlight and select the desired track or file to play. You can browse other areas of your player (music lists, settings, and photos), while your music is playing.

Music Air Al Green Allman Brothers Antonio Carlos... B.B. King Bach The Beastie Boys 10:26 pm

Setting Repeat Mode

Music Options Repeat Song Shuffle Off Music EQ Back to Song List Add to Go List Scan Through Song Rate This Song 10:26 pm

1) In playback mode, press submenu.
2) Highlight and Select Repeat.
3) Select one of the following:

• Off: No repeat of tracks
• Song: Repeat the current track
• All: Repeat all selected tracks

Setting Shuffle Mode

Music Options Repeat Off ◀ Shuffle Off Music EQ Back to Song List Add to Go List Scan Through Song Rate This Song 10:26 pm

1) In playback mode, press submenu.
2) Select the Shuffle item. To play songs in random order, set Shuffle to On.

Settings Music EQ

Music Options Repeat Off Shuffle Off Music EQ Back to Song List Add to Go List Scan Through Song Rate This Song 10:26 pm

1) In playback mode, press submenu
2) Scroll and Select the Music EQ item.
3) Scroll and Select a Music EQ mode.

Add Songs to Go List

1/126 Massive Attack 100th Window What Your Soul Sings 0:10 13:00 10:26 pm

1) Play a song.
2) In playback mode, press submenu.

3) Select the Add Song to Go List.

Music Options Repeat Off Shuffle Off Music EQ Back to Song List Add to Go List Scan Through Song Rate This Song 10:26 pm

4) You can also Add to the Go List by pressing and holding the Select button
5) Select yes to confirm.

Remove Songs from Go List

1) Select GoList from Playlists and play a song.
2) In playback mode, press submenu.
3) Select the Remove Song from Go List.

Music Options Repeat Off Shuffle Off Music EQ Back to Song List Remove Song from Go Lis Scan Through Song Rate This Song 10:26 pm

Scan through Song

1) In playback mode, enter submenu.
2) Select the Scan Through Song item.

Music Options Repeat Off Shuffle Off Music EQ Back to Song List Add to Go List Scan Through Song Rate This Song 10:26 pm

3) Use the Thumbwheel to scan through the song. 3 seconds of inactivity exits Scan mode.

Rate This Song

1) In playback mode, press submenu.
2) Select the Rate This Song item.

Music Options Repeat Off Shuffle Off Music EQ Back to Song List Add to Go List Scan Through Song Rate This Song 10:26 pm

3) Use the Thumbwheel to rate the song (1 to 5 stars) and press |<< button to exit back to Music Options menu. My Top Rated Songs can be viewed in MUSIC menu.

Rate Song Exit 10:26 pm

Photo Mode

Viewing Photos

Your Sansa will only display photos in portrait orientation. You can crop your pictures with a photo editing software package prior to converting if you wish to display in full screen. The Sansa Media Converter converts the files and will transfer your photos to the player's internal memory.

1) To view photos, select Photo from the Main Menu.

Photo 10:26 pm

2) Select PhotoList or Thumbnails.

PHOTO View PhotoList View Thumbnails Slideshow Options 10:26 pm

3) If you selected Thumbnails you will see the browser screen. Scroll through the photos and select the one of interest.

Grid of 10-minute photos showing various lighting and abstract patterns, including warm, cool, and red light reflections (no text or symbols)

4) Use |<< or >>| buttons to backup or advance to another photo.

Slideshow

1) Select Photo from the Main Menu.

Photo 10:26 pm

2) Select Slideshow Options.

Photo View Photo List View Thumbnails Slideshow Options 10:51

3) Select Music.

Slideshow Options Shuffle On Loop On Slide time :04 Music 11:18

4) Select an available Playlist.

Slideshow Music Current Song Go List Another Playlist test playlist 11:18

5) Scroll down to set other preferences: Shuffle/Loop/Slide Time.

Slideshow Options ◀ Shuffle On Loop On Slide time :04 Music 11:19

6) Press the Back (|<<) button to return to Photo Menu.
7) Scroll to View Photo List.

Photo View Photo List View Thumbnails Slideshow Options 11:17

8) Select a desired album.

Photo My Album Test Album Flowers 11:19

9) Press select to view a photo

Test Album IMG_2128 IMG_2130 IMG_2131 IMG_2132 IMG_2133 IMG_2134 IMG_2135 11:20

10) Press and hold the Select button for about 1 second until the music starts playing.

Exterior view of a modern residential house with two-story windows and a low-rise roof (no signage or text visible)

11) Press the Select button again to Pause the slideshow

Slideshow Options

1) Select Slideshow Options in PHOTO menu.

PHOTO View PhotoList View Thumbnails Slideshow Options 10:26 pm

2) Personalize your Slideshow Options.

Slideshow Options Shuffle: Off Loop: Off Slide time: :02 Music 10:26 pm

• Select the Shuffle: On for Random order
• Select Loop: On to set non-stop slideshow
• Select the Slide Time for each photo view
• Select the Music for background music and select CurrentSong or GoList in the Music Submenu

3) Press | << to move to Photo menu
4) Select View Photo List
5) Select the folder you desire for the Slideshow
6) Press select button when the list of photos is displayed
7) Press Select to start and pause the show.
8) Use the Thumbwheel to control volume.
9) Press submenu to go back to View Photo List

Video Mode

Your Sansa e200 player will only play videos that are loaded through the Sansa Media Converter.

Playing Video

1) To play video select Video from the Main Menu.

Mobile app interface showing video and audio icons with no readable text or symbols

2) Select a Video to play.
3) Press Select to pause or resume the video.
4) Press and hold the |<< or >>| buttons to advance or rewind.
5) Press submenu to move to Video list

FM Radio Mode (if applicable)

FM Radio

1) To listen to the radio broadcast, select FM Radio in Main Menu.

FM Radio 10:26 pm

2) When the radio frequency appears on the screen:

Radio 102.7 FM MHz 88 108

• Press the |<< or >>| buttons to adjust and search for the desired frequency, or select preset by pressing Select.
• For fast search: Press and hold the |<< or >>| buttons. You can browse other areas of the player, like Settings and Photos, while listening to the Radio.

FM Presets

When Radio Mode is selected for the very first time, Sansa e200 will run an auto station searching and store the searched stations as the preset favorite stations.

To set Radio options, press submenu in Radio mode.

Radio Options 102.7 FM Add Preset Delete Preset Delete All Presets View All Presets Recording 10:26 pm

1) Select Add Preset to save current frequency into presets.
2) Select Delete Preset to remove current frequency from presets.
3) Select Delete All Preset to clear all presets, and next time when you enter Radio Mode, Sansa e200 will search automatically.
4) Select View All Presets to view all preset frequencies. The auto-scan option will replace existing presets

- Select Auto-Scan for Presets to allow Sansa e200 player to automatically scan and store all available FM radio stations to preset. Note: This action will erase all stored presets.

Recording Mode

Voice Recording

Use your Sansa e200 for Microphone Recording. You can record your own voice, an interview, or a speech via internal microphone.

1) Press the Menu button to return to Main Menu.
2) Press the Record button to start recording.

RecordNow Now Recording: 06:11:12_01 0:00:00 (8:53:20max) Pause Stop 15:48

3) To pause recording, select Pause in Record mode.
4) On the Display, a recording file should be generated and placed under the folder of [/RECORD/VOICE/].
5) To stop recording, select Stop in record mode, and then a pop-up window will appear on the screen. Select Yes to save recording. The recording will be saved in the RECORD folder. The file list will appear.

6) Press | << button to return to the Record, Listen, or Delete Recording Menu.

Voice Record Now Listen to Recording Delete Recording 10:26 pm

FM Radio Broadcast Recording (if applicable)

1) Select a radio broadcast channel that you want to record.
2) Press the Record button to start recording.

Record Now Now Recording: FM102_7-111205-1010 0 0 : 0 0 : 5 8 (00:32:10 max) Pause Stop Duration: - - : - : - Playing: 102.7 FM

3) To pause recording, select Pause in Record mode.
4) To set duration of the recording, select Duration and use the

Thumbwheel to adjust the time. Press Select.

Record Now Now Recording: FM102_7-111205-1010 0 0 : 0 0 : 5 8 (00:32:10 max) Pause Stop Duration: 22:01:00 Playing: 102.7 FM

5) On the Display, a recording file should be generated and placed under the folder of [/RECORD/FM/].
6) To stop recording, select Stop and the Save Recording? Window will appear. Select Yes to save recording. It will be saved in the RECORD folder. The file list will appear.

Settings Mode

You can personalize your Sansa e200 settings by scrolling down to Settings and select it from the Main Menu.

Settings 10:26 pm

Music Options

Music Options Repeat Off Shuffle Off Music EQ 16:16

Repeat:

• Off – Turn off repeat mode
• Song – Repeat current song
• All – Repeat all songs

Shuffle:

• Off – Play songs sequentially
• On – Play songs in random order

MusicEQ:

The Sansa e200 player provides various EQ modes: Rock, Pop, Jazz, Classical, Funk, Hip-Hop, Dance, Full Bass, Full Treble, and Custom.

Radio Options

Radio Options Delete AllPresets FM Region USA FM Mode Stereo 16:17

Delete All Presets: To delete all the presets Radio channels

FM Region: USA or World

FM Mode: Stereo or Mono

Slideshow Options

Slideshow Options ◀Shuffle Off Loop Off Slide time :02 Music 16:18

Shuffle:

• Off – View photos in order
• On – View photos in random order

Loop:

• Off – View all photos once
• On – View all photos continuously

Slide Time – set the duration of each slide

Music – Play music in the background while watching slideshow

Backlight

Backlight 5 seconds 10 seconds 15 seconds 30 seconds 45 seconds 60 seconds On 16:18

The Backlight timer setting can be adjusted to stay on for 5 seconds, 10 seconds, 15 seconds, 30 seconds, 45 seconds, or 60 seconds. It can also be set to always stay ON.

Language

Language English Français Italiano Deutsch Español Nederlands Swedish 16:18

Language selection

Date & Time

Date & Time Month Sep. Date 15 Year 2006 Hour 16: Minute : 19 Time 24-hrs 16:19

Date: Month, Date, and Year

Time: Hour and Minute and 12 or 24 hours

Brightness

Brightness 16:20

Use the Thumbwheel to adjust the brightness setting, and then press Select to confirm and exit.

Volume

Volume Normal High 16:20

To option will set the sound output on the Sansa e200 device's Earphone port to Normal or High.

Reset All

Reset All You are about to restore all setting to the factory defaults. Are you sure you want to continue ? Yes No 16:20

This option will reset all the Sansa e200 player's settings back to factory defaults.

Info

Info Version 01.03.05P Memory 5686 MB Free 5440 MB SD Card 968 MB Free 968 MB Songs 48 Voice Recordings 1 FM Recordings 1 16:23

This displays the Sansa e200 device's firmware version, total and available memory on the player itself as well as the microSD card (if inserted), and total number of songs/voice recordings/FM recordings (if available).

Auto Shut-off

AutoShut-Off Shut down in 5 mins 16:23

This option will put the Sansa e200 player in standby after the specified time in minutes had expired.

USB Mode

1) Select the Setting item in Main Menu.
2) Select the USB Mode item.

Tips, FAQ, and Troubleshooting

This chapter provides answers to common questions you may have.

Question: How do I reset my Sansa?

Answer: Press and hold the Power/Menu button down for approximately 15 seconds.

Question: How do I copy music files to the Sansa MP3 Player?

Answer: To transfer music to your Sansa e200.

1) Connect Sansa e200 to the computer.
2) Drag and drop files from your computer to My Computer\Sansa e200...\MUSIC after selecting NO ACTION on initial connection to the computer. You can also select from a variety of music software programs to transfer/synchronize your files.

Question: Why won't my album art display?

Answer: For correct Album Work functionality, the album art and associated music file may need to be located in the same folder. See preloaded content as an example.

Question: What music file formats does the Sansa e200 support?

Answer: The Sansa MP3 Player will support MP3, WMA, and secure WMA. Any other formats need to be converted to these formats using the Sansa Media Converter.

Question: What is MTP?

Answer: Media Transfer Protocol (MTP) is a new protocol and accompanying set of drivers developed by Microsoft to connect portable devices to a Windows XP PC and synchronize digital media content between those devices and the PC. MTP USB mode is required for WMP10.

Question: Some of my music files are on my player, but cannot be played. When I select them, another song begins to play. What is wrong?

Answer: You may not have purchased the rights to play the song on an additional device. To test this, try to play a song that you have copied from an older CD and converted to MP3 format. If you can play that song, but not the song that will not play, then you need to purchase the rights to play the song.

Question: Why doesn't my photos display in full screen?

Answer: Try cropping your pictures to 128x64 with a photo editing software package prior to converting if you wish to display in full screen.

Question: Why should I update the firmware?

Answer: You should always update the player to the latest firmware to ensure that it functions correctly and has all the latest features.

Question: How do I access the player microSD card from computer?

Answer: There is no need to change any settings. To access the card from the computer ensure the Sansa is set to MSC USB mode (in settings), open up My Computer, and your card should show up as a Removable Disk.

Question: How can I use non-supported file types with my MP3 player?

Answer: First you must convert the songs to a supported format. Then you can transfer the songs to the player.

Question: Is the player compatible with podcast?

Answer: As long as the podcast are in MP3 format and an appropriate bit rate (32-320 kbps), then the player should be capable of playing the files.

Question: Why does my player say unknown artist/album?

Answer: Normally this is because the ID3 tags are missing information. On the computer, right-click the song and choose Properties, then the Summary tab and click Advanced. Then you can input the data such as Artist, Album, Song Title, Track Number, Genre, and Year.

Service and Warranty Information

This chapter provides information about how to get support for your player and the terms of your warranty.

Getting Technical Support

Before you contact Technical Support, we encourage you to read the Tips, FAQ, and Troubleshooting section.

If you have questions about the use or features of your player, please call the SanDisk Technical Support Center at 1-866-SanDisk (1-866-726-3475), or fill out an on-line support request at http://www.sandisk.com/techsupport.

If you have questions about our partner services, please call their Technical Support Center.

When you call or contact us for support, please include as much information as you can from your packaging material. This will allow us to help you more quickly.

Learn More

You also can visit us on the web at http://www.sandisk.com to learn more about your player as well as other SanDisk products.

SanDisk Limited Warranty

SanDisk warrants that this product will be free from material defects in design and manufacture and will substantially conform to the published specifications under normal use for one year from your date of purchase, subject to the conditions below. This warranty is provided to the original end user purchasing from SanDisk or an authorized reseller, and is not transferable. Proof of purchase may be required. SanDisk is not responsible for any failure or defect caused by any third party product or component, whether authorized or not. This warranty does not apply to any third party software provided with the product and you are responsible for all service and repair needed for such software. This warranty is void if the product is not used in accordance with the product instructions, or if it is damaged as a result of improper installation, misuse, unauthorized repair, modification or accident.

To obtain warranty service contact SanDisk at 1-866-SanDisk or send an email to: [e-mail]. You must return the product in tamper resistant packaging, freight prepaid, as instructed by SanDisk. You must obtain a tracking confirmation number, which you may be required to provide to SanDisk. SanDisk will, at its option, repair or replace the product with new or refurbished product of equal or greater capacity and functionality, or refund the purchase price. The warranty duration on replaced product will be that time period remaining on the original product. THIS CONSTITUTES SANDISK'S ENTIRE LIABILITY AND YOUR EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY.

SanDisk does not warrant, and shall not be responsible for, any lost data or information contained in any product (including in any returned product), regardless of the cause of the loss. SanDisk's products are not warranted to operate without failure. SanDisk products should not be used in life support systems or other applications where failure could threaten injury or life. This warranty gives you specific legal rights, and you may also have other rights which vary by jurisdiction.

THE FOREGOING IS SANDISK'S SOLE WARRANTY. SANDISK DISCLAIMS ALL OTHER EXPRESS AND IMPLIED WARRANTIES TO THE FULLEST EXTENT PERMITTED BY APPLICABLE LAW. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THE EXPRESS WARRANTY. SOME JURISDICTIONS DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN NO EVENT SHALL SANDISK OR ANY AFFILIATED OR SUBSIDIARY COMPANY BE LIABLE UNDER ANY CIRCUMSTANCES FOR ANY DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES, ANY FINANCIAL LOSS OR ANY LOST DATA OR IMAGE, EVEN IF SANDISK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. IN NO EVENT WILL SANDISK'S LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT.

SanDisk, the SanDisk logo, Store Your World in Ours, and Sansa are trademarks of SanDisk Corporation, registered in the United States and other countries. TrustedFlash, and gruvi are trademarks of SanDisk Corporation. Other brand names mentioned herein are for identification purposes only and may be trademarks of their respective holder(s).

© 2007 SanDisk Corporation. All rights reserved.

Made in China

User Notice

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Content providers are using the digital rights management technology for Windows Media contained in this device (“WM-DRM”) to protect the integrity of their content (“Secure Content”) so that their intellectual property, including copyright, in such

content is not misappropriated. This device uses WM-DRM software to play Secure Content ("WM-DRM Software"). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content ("Secure Content Owners") may request that Microsoft revoke the WM-DRM Software's rights to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Software's ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft, may, in conjunction with such license, also download revocation lists onto your device on behalf of Secure Content Owners.

End-User License Agreement

SANDISK CORPORATION END USER LICENSE AGREEMENT

DO NOT USE OR LOAD THIS SOFTWARE until you carefully read the following terms and conditions. The firmware, computer programs, device drivers, data or information ("Software") distributed or bundled with the product is provided to you under the terms and conditions of this End User License Agreement, and may be subject to additional terms and conditions in an agreement between you and SanDisk's third party licensors. By downloading, installing or using the accompanying Software, you agree to all of the terms of this End User License Agreement between SanDisk Corporation ("SanDisk," "we," or "us") and each person who downloads, installs or uses the Software ("you" or "your"). The Software is owned by SanDisk or by others including Portal Player Inc. ("Licensors") who permit SanDisk to distribute their Software. If you do not agree to the following terms and conditions, do not install or use the Software. The Software is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties.

Software License. Subject to the terms and conditions contained herein, SanDisk grants to you a limited, non-exclusive, non-sub licensable, transferable in accordance with these terms, royalty-free right and license under SanDisk's intellectual property rights to use the Software in executable form for SanDisk products and services solely for your personal use on a single computer (the "License"). For each Software licensee, the Software can be "in use" on only one computer or hardware device at any given time. The Software is "in use" when it is either downloaded, copied, loaded into RAM or installed into the hard disk or other permanent memory of a computer or other hardware device. SanDisk and its Licensors retain all right, title and interest in and to the Software.

Restrictions. SanDisk or its Licensors retain all rights in the Software not expressly licensed to you. You may not modify, create derivative works (new versions) of, adapt or translate the Software. No source code is provided under this Agreement. You may not reverse engineer, disassemble, decompile, rent, or lease the Software, or re-create or discover the source code version of the Software. The Software contains proprietary and confidential information of SanDisk or its Licensors, which you agree not to discover or reveal to others. Any and all permitted copies of the Software that you make or distribute must be unmodified, must contain all of the

original Software's proprietary notices, and must include or be accompanied by this Agreement. You may not separate the Software into component parts for sublicense, distribution or transfer to a third party. You may not embed the Software within any other software product or modify the Software in whole or in part in any manner.

DISCLAIMER OF WARRANTIES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE SOFTWARE IS PROVIDED "AS IS" AND "AS AVAILABLE" WITH NO WARRANTIES. NEITHER SANDISK NOR ITS LICENSORS MAKE ANY REPRESENTATION OR WARRANTY, STATUTORY OR OTHERWISE, IN LAW OR FROM THE COURSE OF DEALING OR USAGE OF TRADE, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INTERFERENCE, OR NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS, OR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION. YOU ASSUME THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE SOFTWARE. SHOULD THE SOFTWARE PROVE DEFECTIVE, YOU, AND NOT SANDISK, ITS LICENSORS OR RESELLERS, ASSUME THE ENTIRE COST OF NECESSARY SERVICING, REPAIR, OR CORRECTION.

LIMITATION OF LIABILITY. IN NO EVENT WILL SANDISK OR ITS LICENSORS, OR THEIR RESPECTIVE DIRECTORS, OFFICERS, EMPLOYEES, CONSULTANTS, LICENSORS, LICENSEES OR AFFILIATES, BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES, ARISING OUT OF OR IN CONNECTION WITH THE DOWNLOAD, USE OR PERFORMANCE OR NON-PERFORMANCE OF THE SOFTWARE. THE FOREGOING LIMITATIONS OF LIABILITY SHALL APPLY NOTWITHSTANDING ANY FAILURE OF ANY REMEDY PROVIDED FOR HEREUNDER IN ITS ESSENTIAL PURPOSE. IN NO EVENT WILL SANDISK'S OR ITS LICENSORS' TOTAL LIABILITY TO YOU EXCEED THE AMOUNT YOU PAID TO US FOR THE USE OF THE SOFTWARE.

The Software is provided with “RESTRICTED RIGHTS.” Use, duplication or disclosure by the Government is subject to restrictions as set forth in FAR 52.227-14 and DFARS 252.227-7013 et seq. Use of the Software by the Government constitutes acknowledgement of SanDisk’s proprietary rights therein. Contractor or Manufacturer is SanDisk Corporation, 601 McCarthy Boulevard, Milpitas, California 95035.

Termination. We may terminate this Agreement and the license if you violate this Agreement at any time. Upon termination of this Agreement, you must delete or destroy all copies of the Software.

High Risk Activities. The Software is not fault-tolerant and is not designed or intended for use in hazardous environments requiring fail-safe performance, or any other application in which the failure of the Software could lead directly to death, personal injury, or severe physical or property damage (collectively, “High Risk Activities”). SANDISK DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR HIGH RISK ACTIVITIES AND SHALL NOT BE LIABLE FOR ANY LIABILITIES OR DAMAGES ARISING FROM SUCH USE.

General. This Agreement contains the entire understanding between the parties with respect to your use of the Software. If any part of this Agreement is found void and unenforceable, it will not affect the validity of the balance of this Agreement, which shall remain valid and enforceable according to its terms. This Agreement is governed by and construed under the laws of the State of California and the Federal laws of the United States of America without regard to conflicts of laws provisions thereof. The U.N. Convention on Contracts for the International Sale of Goods shall not apply to this Agreement. Any action or proceeding arising from or relating to this Agreement shall be adjudicated in the state or federal courts of Santa Clara County, California, and the parties hereby agree to the exclusive jurisdiction and venue of such courts. You will not remove or export from the United States or re-export from anywhere any part of the Software or any direct product thereof to any country in violation of U.S. Export Administration Regulations, or a successor thereto, or otherwise except in compliance with and with all licenses and approvals required under applicable export laws and regulations including, without limitation, those of the U.S. Department of Commerce. Any waivers or amendments of this Agreement shall be effective only if made in writing and signed by an authorized representative of each party. The provisions of Sections 3, 4, 5, 6, 7 and 8 shall survive the termination or expiration of this Agreement.

FCC Regulation

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and then on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Increase the separation between the equipment and receiver.
2) Correct the equipment to a different outlet so that the equipment and receiver are on different branch circuits.
3) Consult the dealer or an experienced radio / TV technician for help.

Important – Safety Hearing Level Info

YOU MUST READ THIS BEFORE USING YOUR SANSA MP3 PLAYER

Congratulations on the purchase of your Sansa® media player!

Your media player is equipped with a variety of features. To help you maximize your listening pleasure, SanDisk would like to advise you that it is important to use your headphones with your media player at a safe hearing level.

• Exposure or repeated exposure for an extended period of time to music and other sounds that are too loud can cause damage to your hearing resulting in temporary or even permanent “noise induced hearing loss”.
• Symptoms of hearing loss increase gradually with prolonged exposure at high levels of loudness.
• Initially, you may not even be aware of the loss unless detected with a hearing test.

HEARING LEVELS

To help you understand what may be considered a safe hearing level, the following examples are included for your reference.

Examples of Typical Approximate Sound level:

• Sound Levels in Decibels (dB)*
• Refrigerator humming 40
• Normal conversation 60
• City traffic 80
• Motorcycles and lawnmowers 90#
• Rock concerts 110-120#
• Firearms 120-140#

* A decibel (dB) is a unit of relative measurement of the strength of sound wave. In decibels (dB), a measured signal level doubles with every additional 3 dB.

These sound levels are considered harmful under extended exposure.

Information courtesy of the National Institute of Deafness & Other Communication Disorders (NIDCD) http://www.nidcd.nih.gov/health/hearing/noise.asp

FOR YOUR SAFETY!

• Your hearing may adapt to higher volumes of sound. In order to prevent any harmful impact to your hearing, you must control the sound emanating from your headphones and set the media player volume to a low setting where you can hear it clearly and comfortably.
• Studies, including one from NIDCD indicate that sounds of less than 80 decibels, even after long exposure, are unlikely to cause a hearing loss.
• Listen to your media player at such a level that you can still hear conversation and other people in your environment without shouting when you attempt to converse.
• It can also be dangerous to play your music with headphones/earphones at high volume while walking, or engaged in other activities. You should exercise extreme caution and discontinue use in potentially hazardous situations.

Do not use headphones/earphones while driving, cycling, or operating any motorized vehicle. This may create a traffic hazard and may be illegal in some areas.
