MODE D'EMPLOI HEC-DR3000 SANYO

INSTRUCTION MANUAL

Massage Lounger

HEC-DR3000

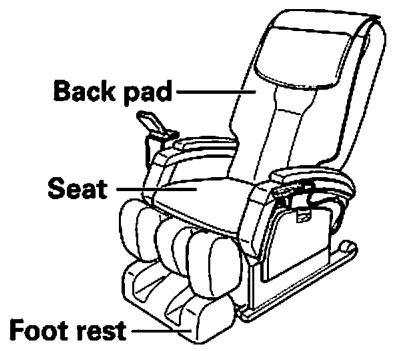

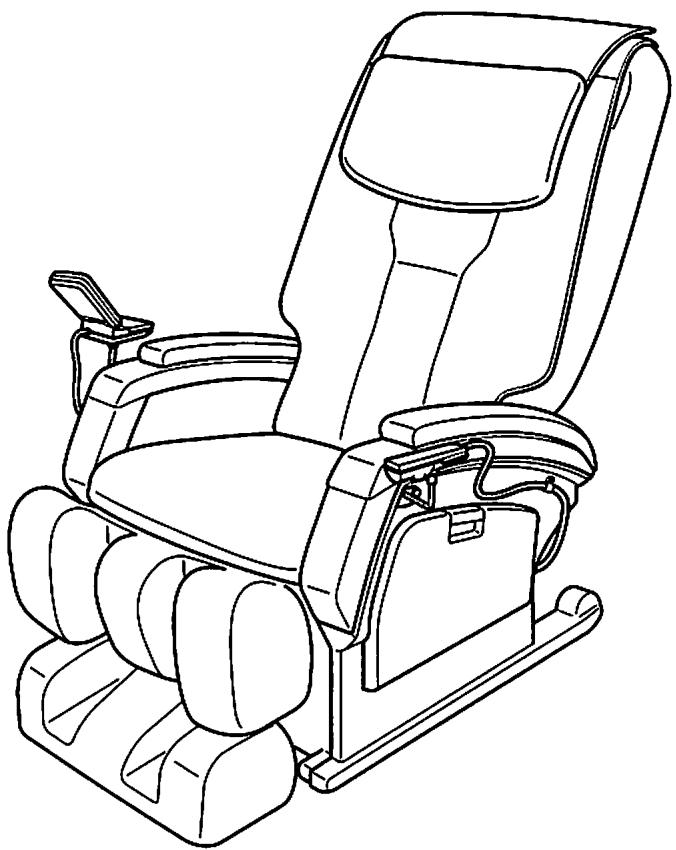

Line drawing of a massage chair with adjustable seat, lower backrest, and upper backrest (no text or symbols)

CONTENTS PAGE

IMPORTANT SAFETY INSTRUCTIONS …… 1 \~ 4

NAME/FUNCTION OF EACH PART…… 5 \~ 7

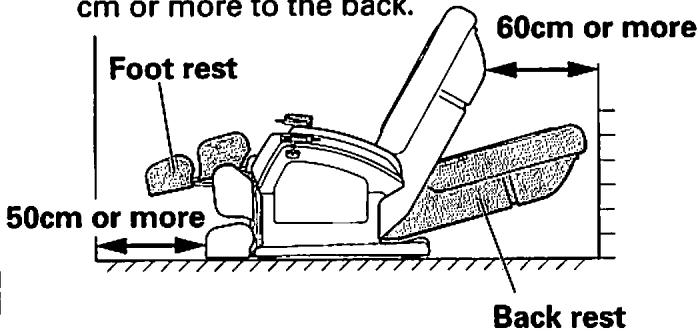

HOW TO PLACE THE MASSAGER…… 8

HOW TO USE 9

PREPARATIONS PRIOR TO USE 10

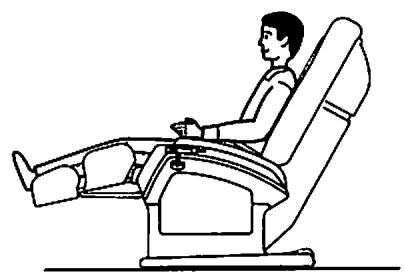

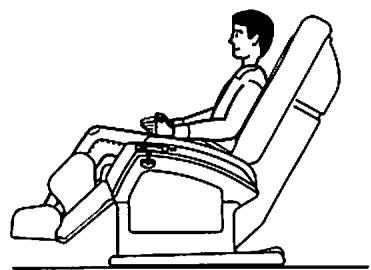

ADJUSTMENT OF CHAIR 11\~12

MASSAGING (SENSOR AUTOMATIC COURSE) …… 13～14

MASSAGING (AUTOMATIC COURSE)....15\~16

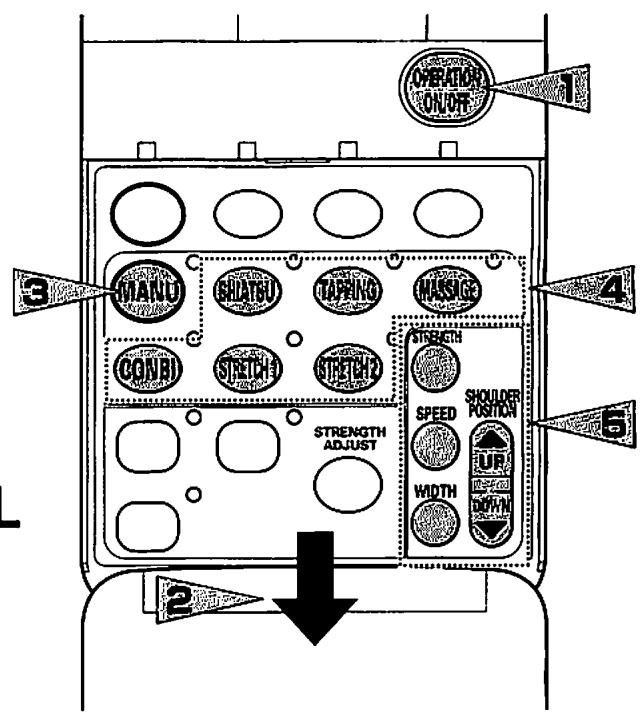

MANUAL COURSE....17\~20

AFTER USE 21

MAINTENANCE PROCEDURE....22

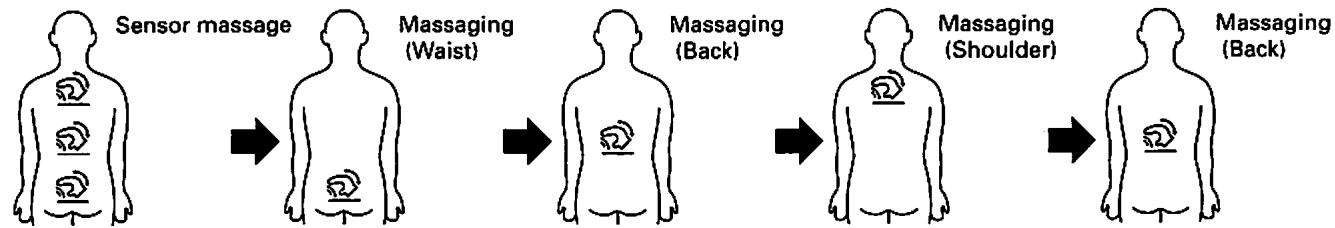

CONTENTS OF MASSAGING 23\~24

TROUBLE-SHOOTING 25

SPECIFICATIONS 26

Be sure to read this manual thoroughly in order to ensure proper use. In particular, make certain to read the section

"IMPORTANT SAFETY INSTRUCTIONS".

Keep this manual in a safe place so that it can be found easily.

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

DANGER To reduce the risk of electric shock:

Always unplug this appliance from electrical outlet immediately after using and before cleaning.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product – if it will not fit outlet, have a proper outlet installed by a qualified electrician.

WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

An appliance should never be left unattended plugged in. Unplug from outlet when not in use, and before off parts.

Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.

Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacture.

Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.

Do not carry this appliance by supply cord or use cord as a handle.

Keep the cord away form heated surfaces.

Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.

Never drop or insert any object into any opening.

Do not use outdoors.

Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

To disconnect, turn all controls to the off position, then remove plug from outlet.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

Massager is intended for Household Use Only.

Be sure to check that there is no-one (children in particular), or any pets around the massager (behind or in front of the massager) prior to reclining the back rest.

Otherwise, an injury may occur.

Be careful not to put your hand or foot into the space between the back rest and arm rest or into the space at the underside of the back rest or between the foot rest and the seat or into the space under the foot rest.

Do not wind the Power cord, the remote control cord or the sensor controller cord around the remote control, the sensor controller, the remote control stand or the sensor controller stand. Moreover, be careful not to operate the back rest with the cord hooked on some obstruction. Otherwise, unreasonable force may be applied to the cord, possibly resulting in fire or electric shock.

Do not allow children to use the massager, play on it or around it. Also, while in motion, keep children away from the massager.

Otherwise, an injury may occur.

Be sure to check that there is no-one (children in particular), or any pets under the foot rest prior to lowering the foot rest. In addition, do not leave the foot rest in the raised position.

Otherwise, an injury may occur.

Do not attempt to stand on the arm rest, foot rest, back rest, the remote control stand, or the sensor controller stand.

Otherwise, the user may fall over, resulting in injury.

Do not use the massager on the head, the chest, the abdomen or on bones (elbow, knee, etc). In addition, do not put your hand, foot or arm between the massaging balls.

Otherwise, the user may feel sick or an injury may occur. (When massaging the nape of the neck, put a soft towel on the neck in order to avoid strong stimulation.)

Be careful not to use the massager when the cord or the power plug is damaged or the plug socket is loose.

Otherwise, electric shock, short circuit or fire may occur.

The following persons are requested to consult a doctor prior to use.

Otherwise, the user may feel sick or an injury may occur.

• Those who are undergoing medical treatment and particularly those who complain of indisposition
  • Those who have malignant tumors
• Those who suffer from heart trouble
• Those who are in menstrual period or pregnant
• Those who require complete rest
• Those whose backbone is abnormal or bent
• Those who desire to use the massager on a part of the body that was previously diseased or receiving medical treatment
• Those who are feverish (38°C or over)
• Those who have weak bones (osteoporosis etc.)
• Those who use a medical electronic device implanted into the body (e.g. a pacemaker).
• Those who have a serious blood circulation disorder in the legs.

Never attempt to dismantle the massager. Do not allow any personnel other than a qualified repair engineer to dismantle or repair the massager.

Otherwise, fire, electric shock or injury may occur. Ask the sales agent if repairs are required.

Do not attempt to damage, break, modify, bend forcibly, pull, twist or bundle the cord. In addition, do not put heavy objects on the cord or jam the cord between objects.

Otherwise the cord may break, resulting in fire or electric shock.

Do not use the massager at any current other than the designated voltage.

Otherwise, fire or electric shock may occur.

Be sure to disconnect the power plug from the plug socket prior to maintenance. Also, do not attempt to plug/unplug the power plug with wet hands.

Otherwise, injury or electric shock may occur.

WARNING

Be careful not to spill water over the remote control, sensor controller, seat or foot rest. Otherwise, electric shock, short circuit or fire may occur.

Do not suddenly release your hand, while raising the foot rest with the hand. Otherwise, an injury may occur.

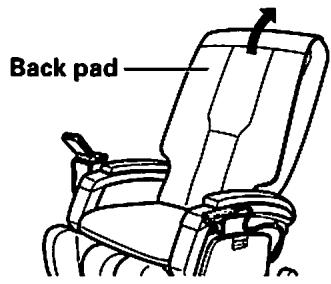

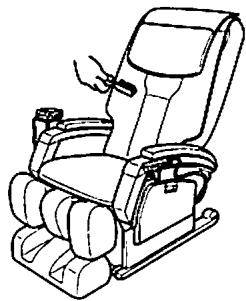

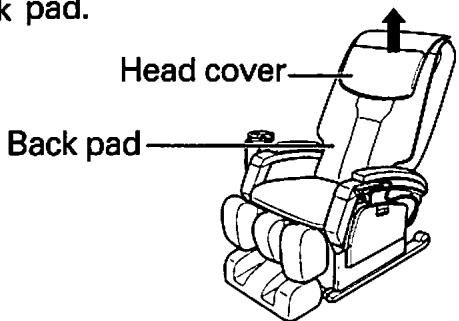

Prior to use, be sure to raise the back pad in order to check the cover cloth or the cloth of other parts is not torn. If a tear is found, however small, stop using the massager immediately, unplug the power source, and send it for repair.

If the massager is used with torn cloth, it may result in injury or electric shock.

"Use only under careful medical supervision if you have or there is a possibility that you have a medical condition that may possibly, in any way, be affected by massager"

If discomfort or pain is felt during use, stop using the massager and consult a doctor immediately. In addition, when the massage force is felt strongly, stop using it earlier than planned. Otherwise, if the user continues using in such a way, an unexpected accident may occur.

Check the massaging ball position for the sake of safety before leaning slowly back on the massager. Do not twist the body, but lean straight back on the massager, so that the massaging balls are in position on either side of the backbone. Otherwise, leaning abruptly on the massager may injure the backbone or result in some other injury.

After use, be sure to set the POWER switch to the [OFF] position, and the LOCK switch to the [LOCK] position. Otherwise, it may result in accident or injury due to a child's mischief.

Do no use the massager on top of a heated carpet or other heater, or near a stove or other heat sources. Otherwise, it may result in fire.

Do not hang from the back pad or head cover.

Do not attempt to hang from the back pad or head cover, or pull the back pad or head cover forcibly. Otherwise, the back pad or head cover may come off, possibly resulting in injury.

Aim to use the massager for up to 20 minutes at a time. Limit the use of massager on one point to 5 minutes or less. Otherwise, the continuous use of the massager on one point for an extended period may result in adverse effects or injury.

Be careful not to fall asleep during massage. Otherwise, an injury may occur.

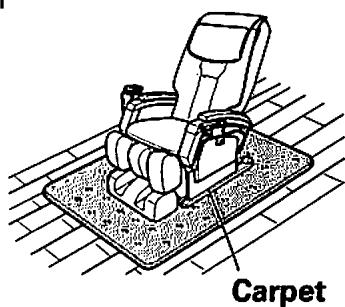

Place the massager main unit on a level floor surface. Otherwise, if it is placed at an unstable place, the main unit may fall over, possibly resulting in injury.

Do not use the massager in the bathroom, or places with high humidity. Otherwise, electric shock may occur.

Do not place anything other than the remote control and the sensor controller respectively on the remote control stand or the sensor controller stand. Otherwise, the stand may break, resulting in injury.

Do not use the massager on bare skin. Otherwise, an injury may occur.

Do not use for any other purposes other than as a massager or as a chair.

Otherwise, an accident or injury may occur.

Avoid use by those who are unable to clearly indicate their intentions, as well as by physically disabled people.

Otherwise, an injury may occur.

Do not attempt to disconnect the power plug by pulling the cord, but always by holding the power plug and pulling it out. Also, clean the dust off the power plug periodically.

Otherwise, electric shock, short circuit or fire may occur.

Switch the power [OFF] instantly if there is a power failure, and also pull the power plug out from the socket.

Otherwise, it may become dangerous when the power is restored.

Do not move the massager with a person on it.

Otherwise, the massager may fall over, resulting in injury.

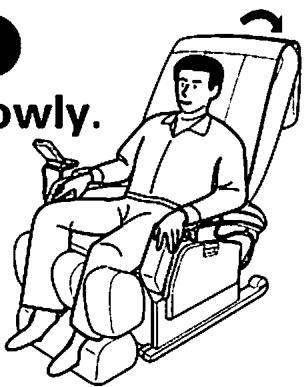

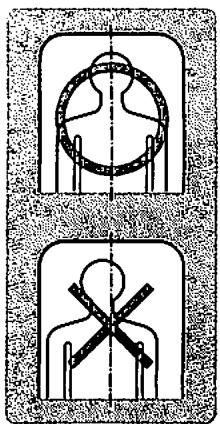

At first, do not attempt to recline the seat deeply, lean on the back rest forcibly or massage without the back pad (until you have become accustomed to massaging).

Otherwise, if the massaging force is too strong at the outset, it may result in adverse effects or injury.

Do not use the massager with other medical instruments (e.g. a low frequency medical instrument).

Otherwise, the user may feel sick or, it may cause other health problems.

If the massager becomes inoperative, disconnect the power plug immediately to prevent accidents, and ask the sales agent for inspection/repair information.

Otherwise, it may result in fire due to electric shock, current leakage, short circuit, etc.

When the equipment will not be used for an extended period, be sure to disconnect the power plug from the mains outlet socket.

Otherwise, it may result in electric shock, current leakage or fire due to damaged insulation.

Grounding Instructions

This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that look like the plug illustrated in sketch A. A temporary adapter that looks like the adapter illustrated B and C may be used to connect the plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (sketch A) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.

Whenever the adapter is used, it must be held in place by a metal screw.

The maximum permissible wight of the massager is 120 kilograms.

Otherwise, an accident may happen or damage to the machine may result.

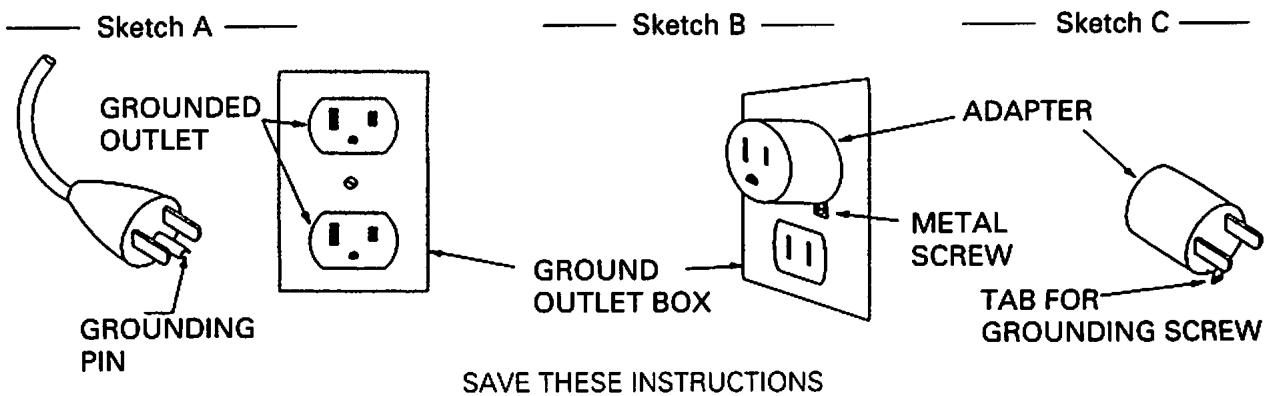

GROUNDING METHODS

Sketch A GROUNDED OUTLET GROUNDING PIN Sketch B GROUND OUTLET BOX ADAPTER METAL SCREW TAB FOR GROUNDING SCREW SAVE THESE INSTRUCTIONS

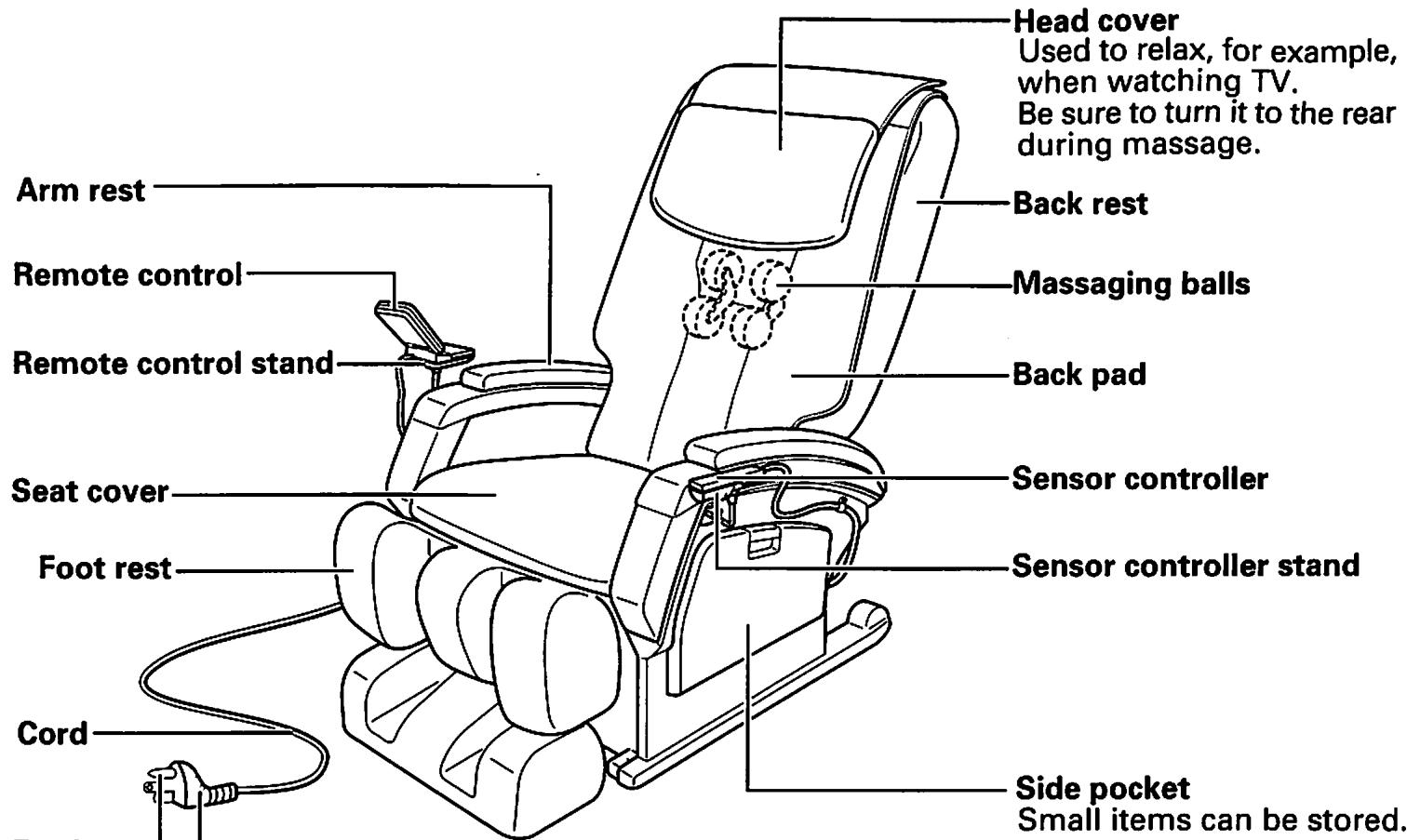

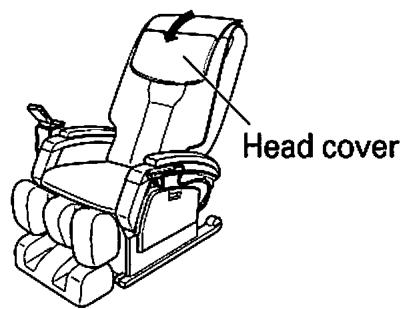

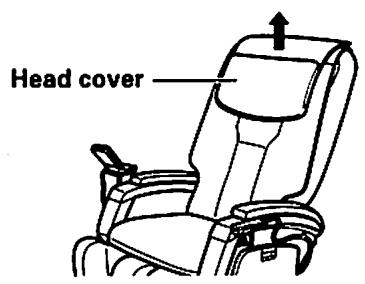

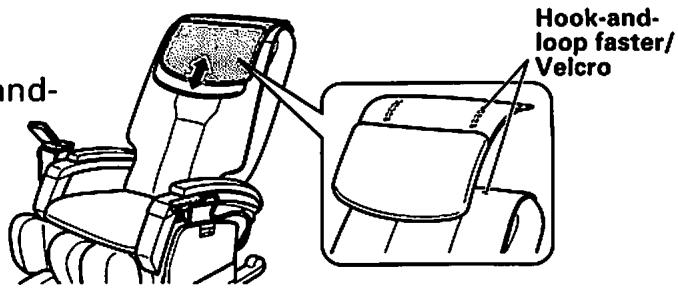

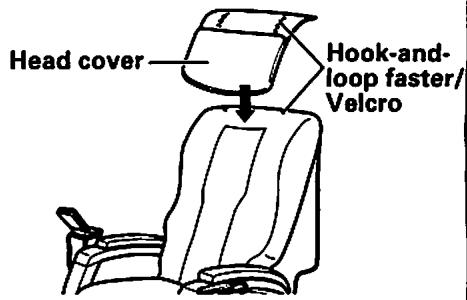

Head cover Used to relax, for example, when watching TV. Be sure to turn it to the rear during massage. Back rest Arm rest Remote control Remote control stand Massaging balls Back pad Seat cover Sensor controller Foot rest Sensor controller stand Cord Side pocket Small items can be stored.

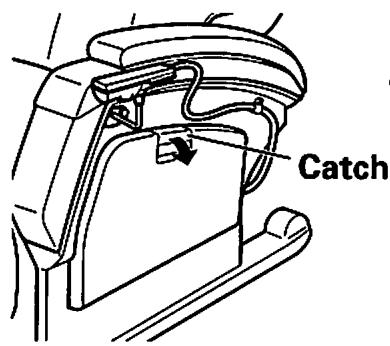

Raise the catch and pull it to the front.

Catch

NOTE

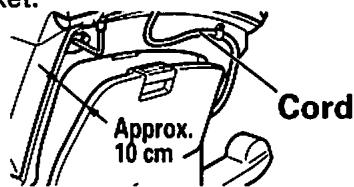

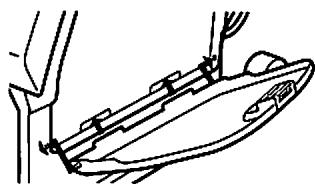

● The side pocket can be opened by up to 10 cm. If it is opened forcibly, the pocket may break.
- Do not let the remote control cord or the sensor controller cord become caught in the side pocket.

Approx. 10 cm Cord

●The side pocket will detach (a safety feature) if too much pressure is applied. If this happens, re-attach it according to the illustration below.

Line drawing of a mechanical component with attached parts, no text or symbols present

Accessories

Remote Control Stand (With two installation screws)

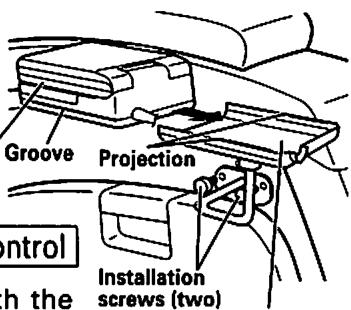

How to install the stand

● Fix it to the arm rest on the right-hand side with the installation screws.

Remote Control

Groove Projection control with the Installation screws (two)

How to set the remote control

● Mate the projection with the groove, and push it in deeper.

- When taking it off, move it in the opposite direction to that placed.

Remote Control Stand

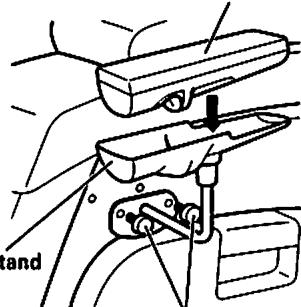

Sensor controller Stand (With two installation screws)

How to install the sand

● Fix it to the arm rest on the left-hand side with the installation screws

Sensor controller Stand
Sensor controller

and

NOTE

- Do not apply excessive pressure to the stand. Otherwise, it may break.

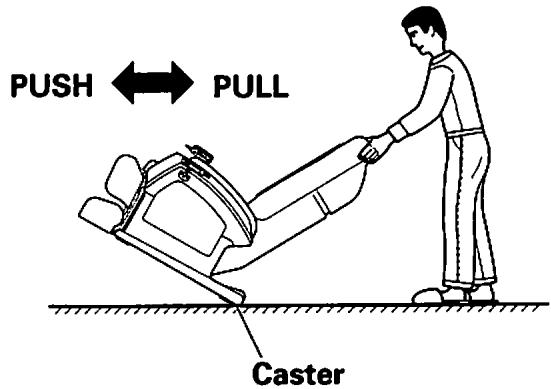

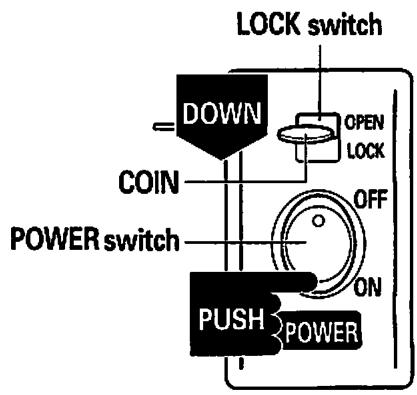

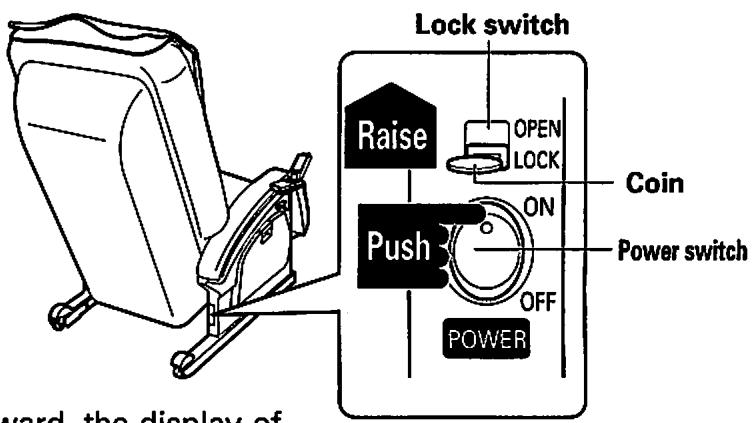

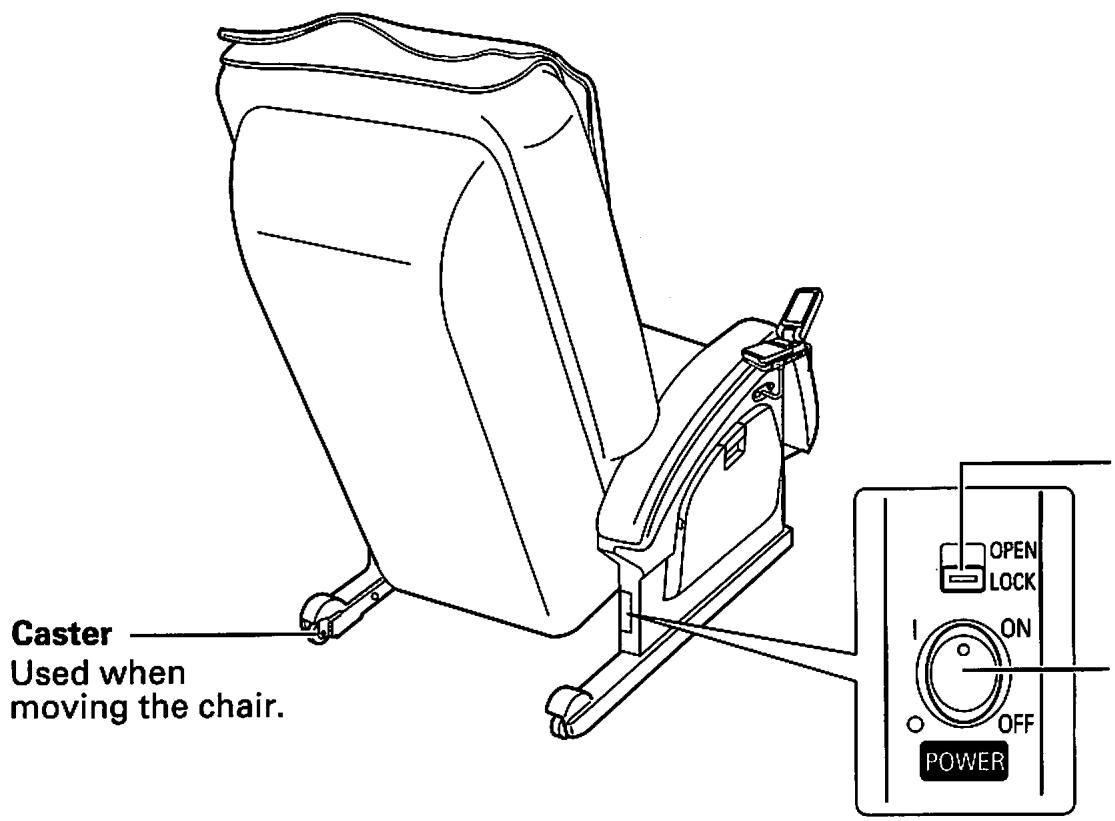

Caster Used when moving the chair. OPEN LOCK ON OFF POWER

LOCK switch

Used to lock the power switch for safety, in order not to turn on the power switch by mistake.

POWER switch

Used to turn on/off the power source.

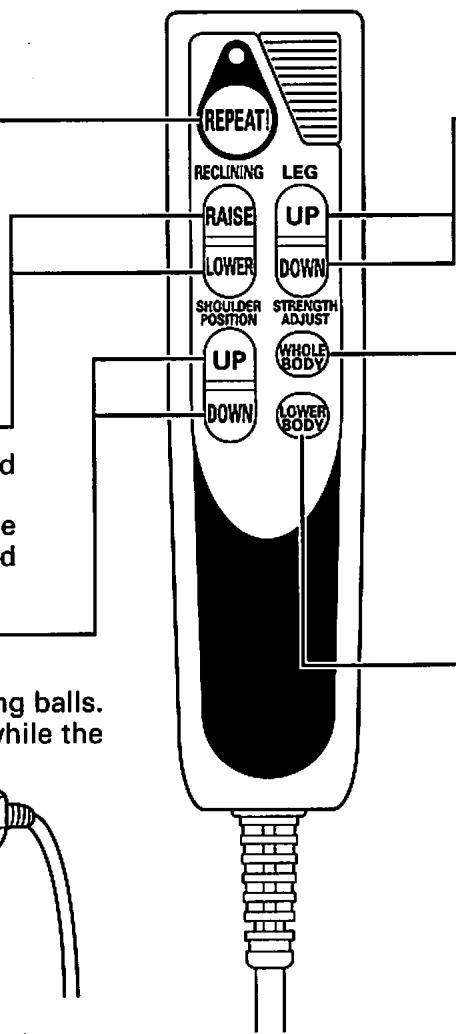

Sensor controller

Repeat! button

If this button is pressed during sensor automatic course or automatic course massaging, the current massage will be repeated once. If the button is pressed, the lamp color changes from green to red. When the operation ends, the lamp color returns to green.

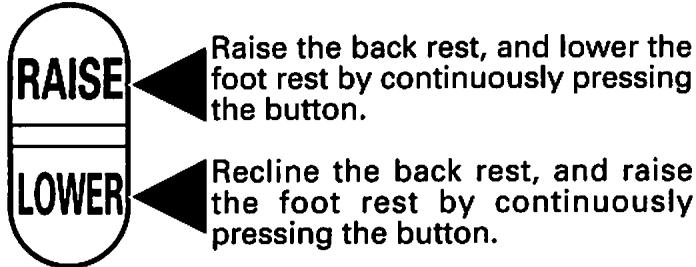

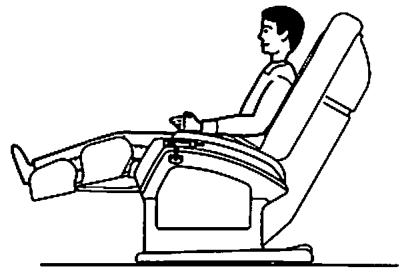

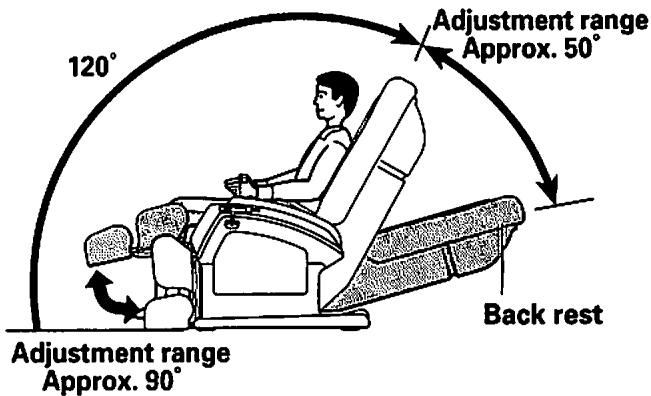

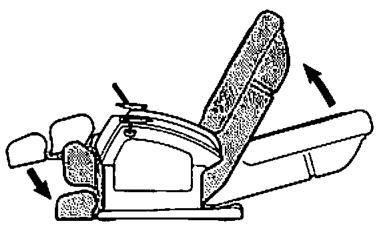

RECLINING button

Adjusts the angle between the back rest and the foot rest.

The back rest and the foot rest move simultaneously while the button is pressed and held down.

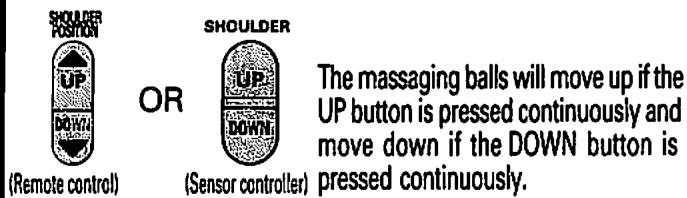

SHOULDER POSITION ADJUST button

Adjusts the UP/DOWN position of massaging balls. The massaging balls move up and down while the button is pressed and held down.

Line drawing of a handheld electronic device with ports and wiring (no text or symbols)

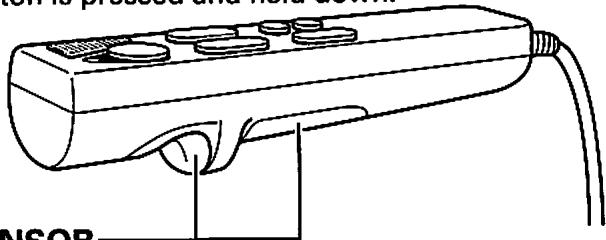

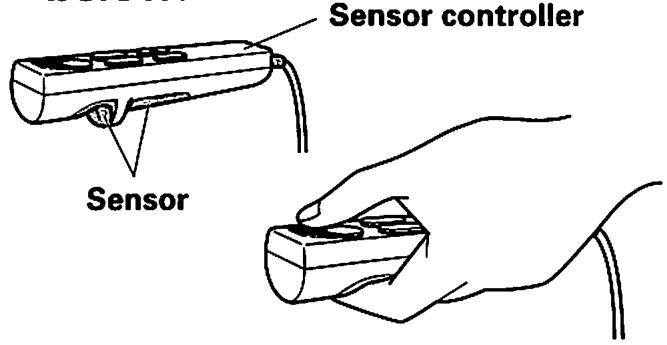

SENSOR

The degree of perspiration and pulse rate are measured if the sensor is grasped during the sensor automatic course.

REPEAT! RECLINING LEG RAISE UP LOWER DOWN SHOULDER STRENGTH POSITION ADJUST UP WHOLE BODY DOWN LOWER BODY d e d ng balls. while the

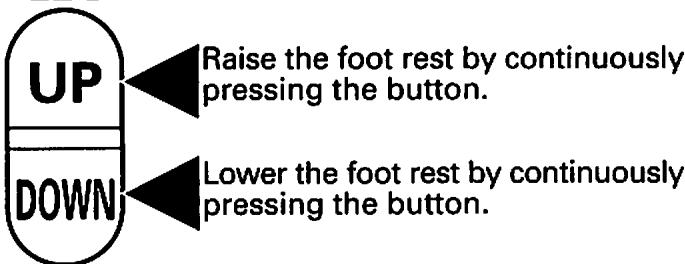

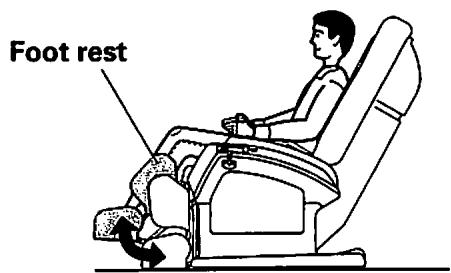

LEG UP/DOWN button

Adjusts the angle of the foot rest. The foot rest moves while the button is pressed and held down.

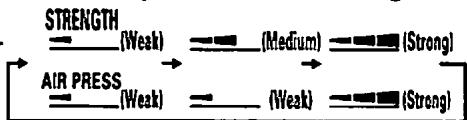

STRENGTH ADJUST (WHOLE BODY) button

Adjusts the strength of massaging of the upper body and the lower body (air). It can be adjusted in three stages for the upper body and two stages for the lower body (air).

STRENGTH ADJUST (LOWER BODY) button

Adjusts the strength of massaging the lower body (air) individually. It can be adjusted in two stages.

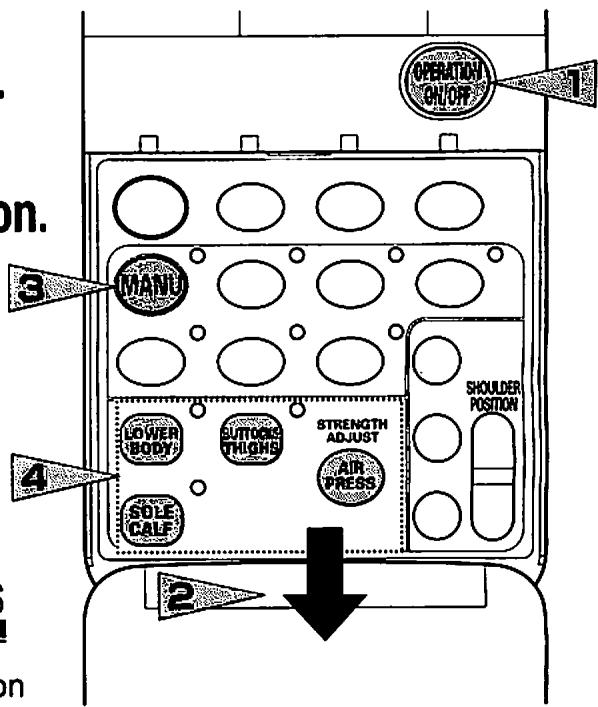

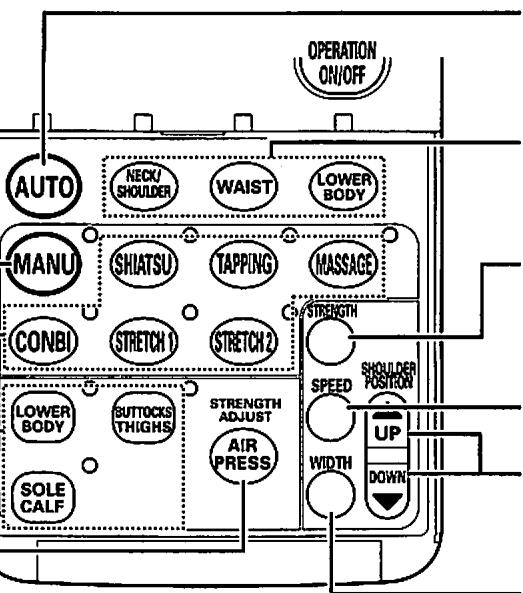

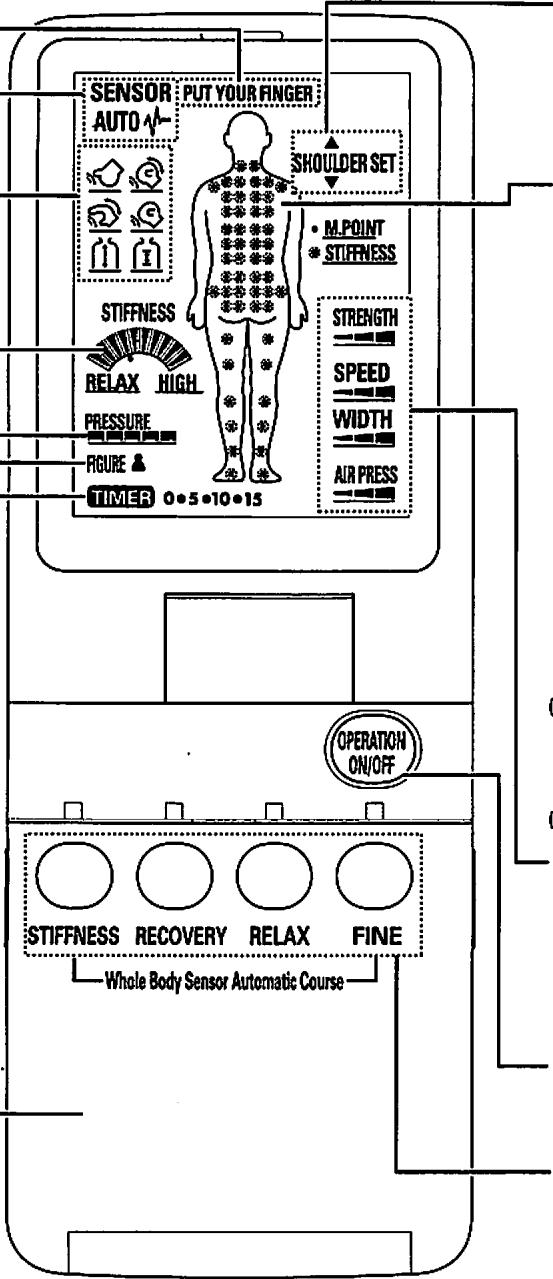

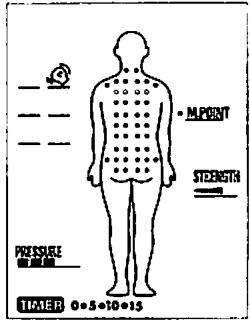

REMOTE CONTROL

※ All display parts are shown here for explanation.

Turns on if the Sensor is not grasped during the sensor automatic course.

SENSOR AUTOMATIC COURSE DISPLAY

Turns on during the sensor automatic course. ( - flickers) AUTOMATIC - does not turn on unless the detection part is grasped.

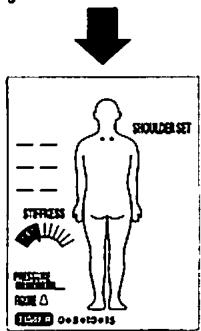

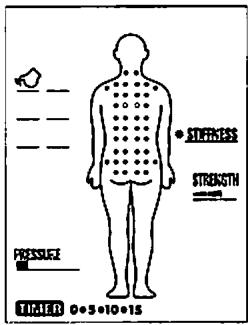

MASSAGE OPERATION DISPLAY

Displays the operation of the current massage.

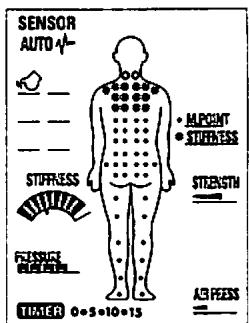

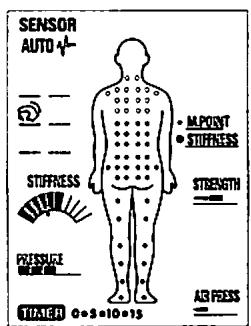

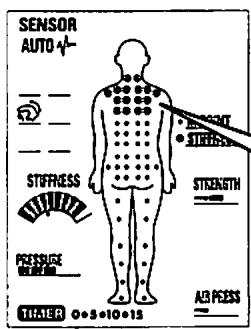

STIFFNESS DISPLAY

The more the right side of the lamp is illuminated, the higher the degree of stiffness. A buzzer sounds when the the highest degree of stiffness is reached.

BODY PRESSURE DISPLAY

Displays the strength of the pressure on the body (the pressure from the massaging balls).

BODY FIGURE DISPLAY

Turns on when the figure (the shoulder position) is being measured (▲flickers), and turns off when the measurement is over.

TIMER TIME DISPLAY

Displays the standard massage time remaining.

COVER

Opened when you want the automatic course massage or the manual course.

MANUAL SELECT button

Used for manual massaging.

MANUAL MASSAGE button

Used to select the type of massaging.

LOWER BODY (AIR) MASSAGE button

Used to choose the contents of massage of lower body (air).

AIR PRESS ADJUST button

Used to adjust the strength of massage of lower body (air).

SENSOR AUTO ↑ PUT YOUR FINGER SHOULDER SET M.POINT STIFFNESS STIFFNESS RELAX HIGH PRESSURE FIGURE # TIMER 0.5 10 15 STRENGTH SPEED WIDTH AIR PRESS OPERATION ON/OFF STIFFNESS RECOVERY RELAX FINE Whole Body Sensor Automatic Course


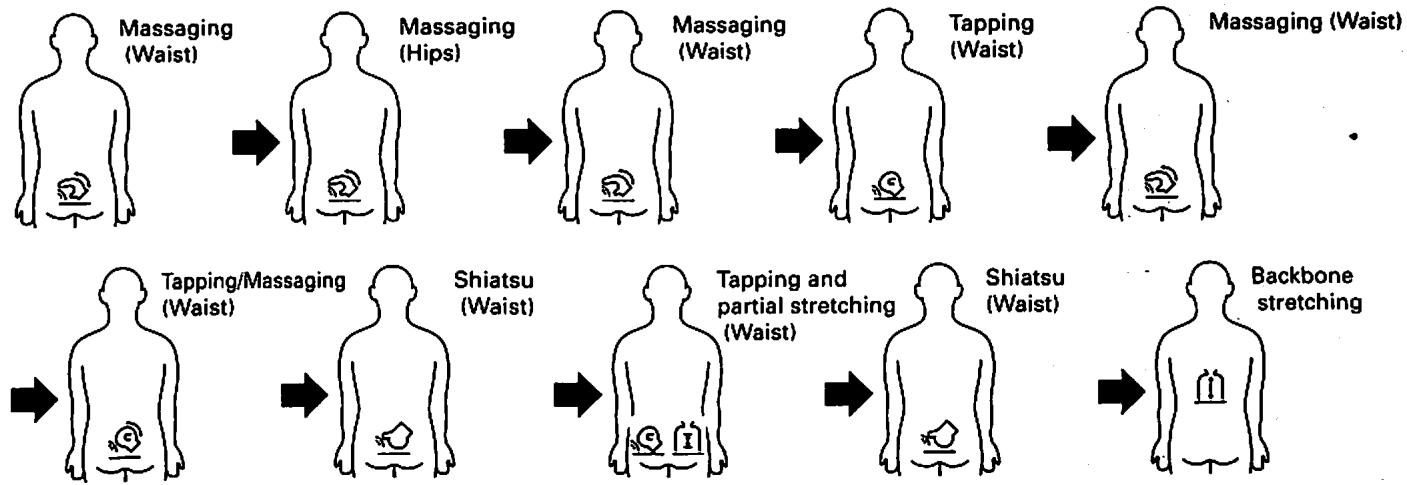

    B --> C["WAIST"]
    C --> D["LOWER BODY"]
    E["MANU"] --> F["SHIATSU"]
    F --> G["TAPPING"]
    G --> H["MASSAGE"]
    I["CONBI"] --> J["STRETCH 1"]
    J --> K["STRETCH 2"]
    L["LOWER BODY"] --> M["BUTTOCKS THIGHS"]
    M --> N["STRENGTH ADJUST AIR PRESS"]
    O["SOLE CALF"] --> P["AIR PRESS"]
    Q["OPERATION ON/OFF"] --> R["UP DOWN"]
    S["SPEED"] --> T["SHOULDER POSITION"]
    U["STRENGTH"] --> V["SPEED"]
    W["SPEED"] --> X["UP DOWN"]

(The figure when the cover is open.)

SHOULDER POSITION DISPLAY

When the measurement of the position of shoulder is over, ^▲ flickers, and when adjustment of the position of shoulder is over, "SET" illuminates and then turns off shortly afterwards.

MASSAGE POSITION DISPLAY

The display position may deviate slightly from the real position of massaging. The display position may change when the strength is adjusted because the position of massaging balls changes. The therapeutic points are not displayed.

- Positions that can be massaged

Positions where the stiffness has been detected. The Sensor will display the positions of stiffness (those where stiffness has been detected) by measuring the amount of perspiration from fingers and pulse rate in reaction to sensor massage.

○ Positions that are being massaged (flickers)

Positions where stiffness has been detected and that are being massaged (flickers)

MASSAGE ADJUST DISPLAY

STRENGTH: The strength of massaging the upper body

SPEED: The speed of massaging balls

WIDTH: The width of massaging balls

AIR PRESS: The strength of massaging the lower body (air)

OPERATION ON/OFF button

Used for switching the massaging operation on/off.

SENSOR AUTOMATIC COURSE button

Used to select the type of massaging.

AUTOMATIC COURSE SELECT button

Used for automatic massaging.

AUTOMATIC COURSE button

Used to select the type of massaging.

STRENGTH ADJUST button

Used to adjust the strength of massaging the upper body and the lower body (air).

SPEED ADJUST button

Used to adjust the speed of the massaging balls.

SHOULDER POSITION ADJUST button

Used to adjust the UP/DOWN position of massaging balls.

WIDTH ADJUST button

Used to adjust the width of the massaging balls.

※ Shoulder position adjust

The strength of the massage can be adjusted by either the remote control or the sensor controller.

How to move the massager

Raise the front side of the massager, and move it using the casters.

● Movement becomes easier when the back rest is being raised.(See page 12)

PUSH ← PULL Caster

Decide where to place it

Ensure there is sufficient space to allow the massager to recline.

- In order not to touch the wall or other things when reclined, allow a clearance of 50 cm or more to the front and 60 cm or more to the back.

60cm or more Foot rest 50cm or more Back rest

EARTH

- Ensure that an earthed wall socket is used.

NOTE

• Be careful not to damage the floor surface when putting the massager down, because it is heavy. Use a not, etc.
• Be careful not to step on the power cord or remote control during movement.
• Do not move the massager on an easily damaged floor surface or straw mat (TATAMI).
• Do not move the massager on a concrete surface using the casters. This may cause damage to the casters.

NOTE

• Place the massager on a level floor surface.
• Keep the massager at least 1 meter away from AV machines like TV or radio.
  Otherwise, the program may be disturbed by noise.
• Do not keep the massager in a place with high humidity like a bathroom.
• Do not keep the massager in a place where it will be exposed to direct sunshine for an extended period, or in a place near a heater where the temperature may reach high levels.

- Lay a carpet in order to avoid damaging the floor, and to muffle the noise during massaging. Also lay a thick mat where the foot rest touches when pushing the foot rest down and forward.

Carpet

The procedure for use of the massager is explained here. See the referred pages for details.

Prior to use, make certain to read the "IMPORTANT SAFETY INSTRUCTIONS" (Page 1-4)

1 Turn on the power. (See page 10)

2 Adjust the angle of back rest and foot rest. (See page 11-12)

- Adjust to the desired posture.

3 Massaging (See page 13-20)

① Press OPERATION ON/OFF button

② Select a massaging course

Operation Guiding Function

Describes the type of massage that can be selected with the lamp illumination on/off (in red and in green).

ON (green) ---- operation is possible. ON (red) ---- during massaging operation. OFF ---- operation is not possible.

Type of course	Features of course	Programs of each course	Features of program
SENSOR AUTOMATIC COURSE(When wanting to massage by the program of each automatic course, according to stiffness)	Measures the degree of stiffness in each part of the body, and massages automatically according to the result.※Massaging of each course is possible without grasping the Sensor.	STIFFNESS courseRECOVERY courseRELAX courseFINE course	Shiatsu firmly massages the upper body and legs.Eaes the stiffened parts.When wanting to relax the whole bodyMassages mainly to promote blood circulation.(See page 13)
AUTOMATIC COURSE(When wanting to massage easily and automatically)	Massages automatically by effective combination of shiatsu, massaging, tapping, backbone stretching, and lower body (air) massage.	NECK / SHOULDER courseWAIST courseLOWER BODY course	When wanting to massage mainly the neck and shouldersWhen wanting to massage mainly the waist.When wanting to massage the legs and soles.(See page 15)
MANUAL COURSE(When wanting to choose the massaging operation yourself)	Massages with your own adjustment of massage types such as massaging, tapping, backbone stretching and lower body (air)	14 types of massaging for upper body, and air massaging for buttocks, the legs and soles.(See page 17)

CAUTION

- When the massaging balls detach from the body during the sensor automatic course or the automatic course, the body pressure sensor will work to stop the operation by pulling back the massaging balls for safety. In such a case, begin the operation again from the start.

4 Turn off the power and finish the massage.(See page 21)

How to connect the power source

1 Connect the power plug to the mains power socket.

2 Check the cloth of the chair.

- By raising the back pad, confirm that the cloth of the main unit is not torn or the cloth of the back pad or other parts.

3 Set the LOCK switch to the "OPEN" position, using a coin.

4 Set the POWER switch to the "ON" position.

●The massaging balls move upward. The massager does not begin to operate until the massaging balls complete the upward movement, even if the button is pressed.
- While the massaging balls are moving upward, the display of the remote control (the letter of the timer) flickers, and when the movement is complete, it turns off.

Back pad Seat Foot rest

Lock switch Raise OPEN LOCK Coin Push ON Power switch OFF POWER ward, the display of

WARNING

● The following persons are requested to consult a doctor prior to use. Otherwise, the user may feel sick or an injury may occur.

• Those who are under doing medical treatment and particularly those who complain of indisposition.
• Those who have malignant tumors
• Those who suffer from heart trouble
• Those who are in menstrual period or pregnant
• Those who require complete rest
• Those whose backbone is abnormal or bent
• Those who desire to use the massager on a part of the body that was previously diseased or receiving medical treatment
• Those who are feverish (38°C or over)
• Those who have weak bones (osteoporosis etc.)
• Those who use a medical electronic device implanted into the body (e.g. a pacemaker).
• Those who have a serious blood circulation disorder in the

- Do not use the massager on the head, chest, abdomen or on bones (elbow, knee, etc). In addition, do not put your hand, foot or arm between the massaging balls.

Otherwise, the user may feel sick or an injury may occur. (When massaging the nape of the neck, put a soft towel on the neck in order to avoid strong stimulation.)

- Prior to use, be sure to raise the back pad in order to check that the cover cloth or the cloth of other parts is not torn. If a tear is found, however small, stop using the massager immediately, unplug the power source, and send it for repair. When the massager is used with a tear in the cloth, injury or electric shock may occur.

CAUTION

• If any discomfort or indisposition is felt during use, stop using the massager immediately and consult a doctor. In addition, when the massage force is felt strongly, stop using it earlier than planned.
  Otherwise, an unexpected accident may occur.
• Aim to use the massager for up to 20 minutes each time. Limit the use of the massager on one point to 5 minutes or less. Also, the total time to massage in one day should be not more than 30 minutes.
  Continuous use of the massager on one point for an extended period may result in adverse effects or injury.
  ● Do not use the massager on bare skin.
  Otherwise, an injury may occur.
  ● Be careful not to fall asleep during massage.
  Otherwise, an injury may occur.
• Check the position of the massaging balls for the sake of safety before leaning slowly back on the massager. Do not twist the body, but lean straight back on the massager, so that the massaging balls are in position on either side of the spine.
• At first, do not attempt to recline the seat deeply, lean on the back rest forcibly or massage without the back pad (until you have become used to massaging).

Otherwise, if the massaging force is too strong at the outset, adverse effects or an injury may occur.

Before sitting on the massage chair

Raise the Back rest by pressing the Reclining button. Lower the foot rest.

- If sitting on the massage chair with raised foot rest is not comfortable, press the LEG UP/DOWN button of the sensor controller to lower the foot rest.

Line drawing of a car seat assembly with directional arrows indicating motion (no text or symbols)

How to sit on the massage chair

Sit on the center of massage chair slowly.

• Sit deeply in the center of the massage chair. Lean back comfortably so that the waist touches the back rest.
• When massaging the upper body, turn the head cover to the rear.

CAUTION when massaging

At first, do not attempt to select a strong method of massaging (until you are accustomed to massaging).

• Do not attempt to recline the back rest deeply, lean on the back rest forcibly or massage without the back pad.
• Do not attempt to continuously use the massager on one place for an extended period.
• Do not attempt to speed up the movement of the massaging balls or increase the strength of massage.
  Otherwise, strong massaging at first may result in injury. Particularly, aged persons and those who have weak bones need to use the massager with great care.

Line drawing of a person seated in a massage chair, no text or symbols present

Two identical diagrams showing a person with a cross symbol crossed out of their head, enclosed in a rounded square frame (no text or labels)

CAUTION

- Check the massaging ball position for the sake of safety before leaning slowly back on the massager. Do not twist the body, but lean straight back on the massager, so that the massaging balls are in position on either side of the backbone.

After becoming accustomed to massaging (When the massage is felt to be weak)

Turn the back pad to the rear.

1 Take off the head cover from the back pad.

Head cover

2 Turn the back pad to the rear.

Back pad

3 Attach the head cover to the back rest and turn the head cover to the rear.

Head cover Hook-and- loop faster/ Velcro

Adjust the position of head cover

- Adjust the attaching position with Hook-and-loop faster (Velcro)

and- Hook-and- loop faster/ Velcro

Adjust the angle of the back rest

• Adjustment is possible even during massaging operation.
• When the back rest moves, the foot rest also moves automatically.

Adjust to the desired angle

Keep the button pressed until the desired angle is achieved.

RECLINING

RAISE LOWER Raise the back rest, and lower the foot rest by continuously pressing the button. Recline the back rest, and raise the foot rest by continuously pressing the button.

120° Adjustment range Approx. 50° Adjustment range Approx. 90° Back rest

NOTE

• Do not attempt to recline the back rest deeply at first (until the body is accustomed to massaging), so that the massage force becomes too strong.
• Be sure to check that there is no-one or any pets around the massager prior to reclining the back rest. It may result in an accident or injury.
• During (air) massaging the lower body, do not attempt to recline the back rest when the legs are fixed with the air bag. Do not pull the legs out forcibly, this may result in injury to the legs.

Adjust the angle of foot rest.

Although the foot rest moves automatically according to the movement of the back rest, when reclining, it is also possible to adjust the angle of the foot rest only with the LEG UP/DOWN button.

Adjust to the desired angle.

• Keep the LEG UP/DOWN button pressed until the desired angle is achieved.
• When massaging the sole or calf, adjust the angle so that the massaging part of the foot rest touches the sole or the calf.

LEG

UP ↓Raise the foot rest by continuously pressing the button. DOWN ↓Lower the foot rest by continuously pressing the button.

Foot rest

NOTE

- Do not attempt to climb onto or off the seat by stepping on the foot rest. Do not attempt to place anything or sit on the foot rest. The user may fall over, resulting in an accident or injury.

WARNING

- When raising the foot rest by hand, it returns to the previous position with a bang. Be careful not to catch your hand or leg when this happens.

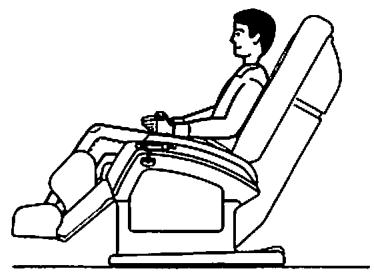

Adjust the positions of the back rest and the foot rest.

(See page 12)

1 Grasp the Sensor as shown below.

Sensor controller Sensor

2 Press the OPERATION ON/OFF button.

● The lamp of the remote control illuminates.

3 Press the desired Sensor Automatic Course button.

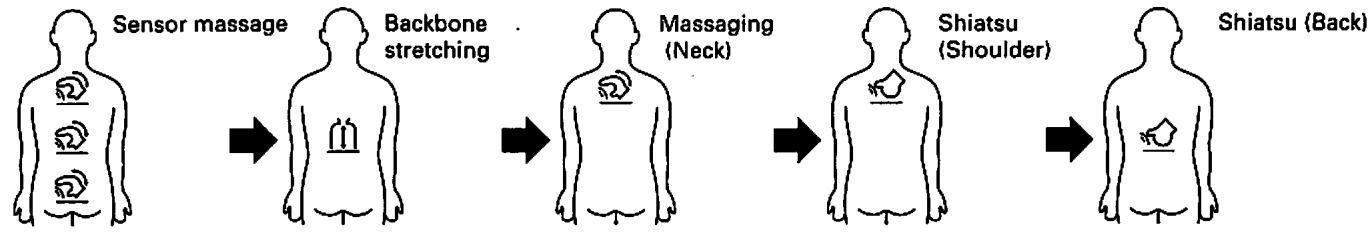

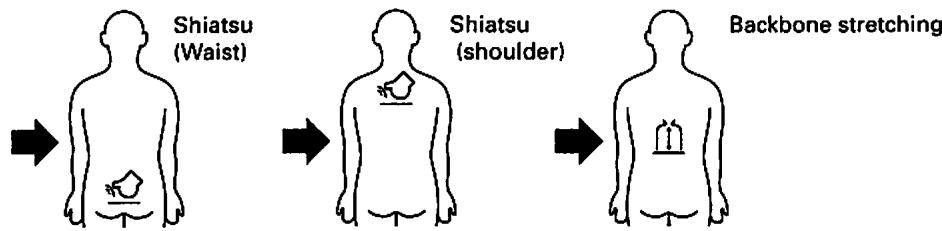

STIFFNESS

RECOVERY

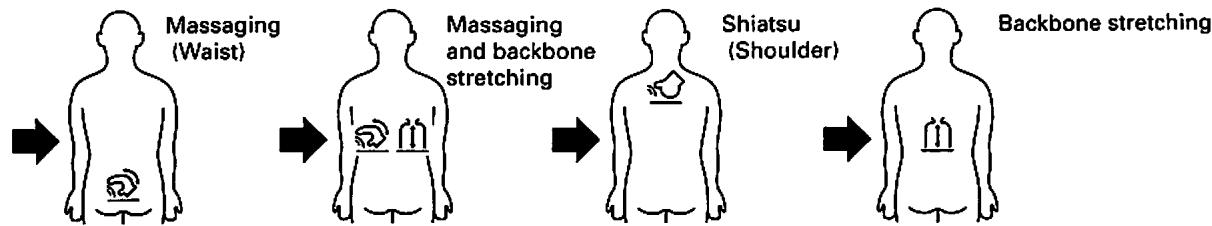

RELAX

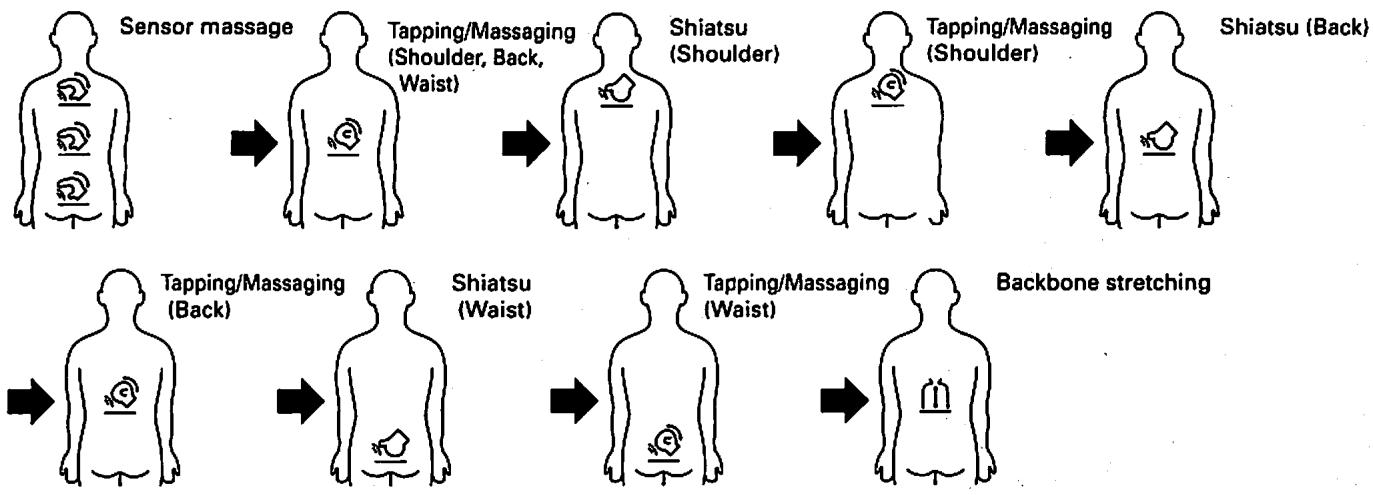

FINE

Whole Body Sensor Automatic Course

STIFFNESS

Shiatsu massages firmly to the upper body and legs.

RECOVERY

Easing the stiffened positions.

RELAX

Massages gently to relax the whole body.

FINE

Massages mainly to promote blood circulation.

- Change of course during massaging, or change to the automatic course or the manual course, is possible.

4 Starts massaging automatically.

① Measures the position (See page 14) of shoulder

- Check if the position of shoulder is correct. If not, adjust the position using the SHOULDER POSITION ADJUST button (of the remote control or the sensor controller).

② Starts sensor massage

Measures the degree of stiffness in each part of body with the sensor and informs of the degree of stiffness.

→ Massaging operation and the display of remote control. (See page 14)

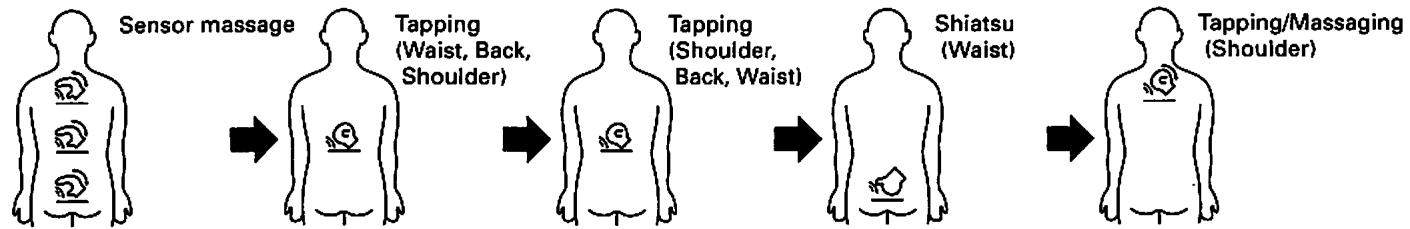

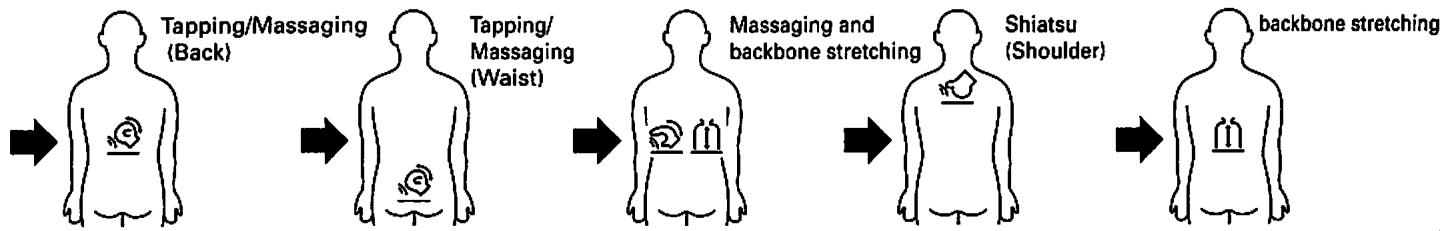

③ Massages according to the stiffness.

Adjusts the operation and strength of standard massaging according the measured degree of stiffness.

→ Massaging operation and the display of remote control. (See page 14)

●The strength of massaging can be adjusted.

(See page 14)

5 Finishes the massaging automatically by timer operation.

• Massaging balls are moved to the upper position, and stop massaging automatically. The buzzer sounds and the remote control lamp turns off.
• The massaging time differs according to the detected stiffness, but the maximum is approx.20 minutes.

NOTE

• Be sure to grasp the Sensor. Without grasping the Sensor, the degree of stiffness cannot be measured. In such a case, massages are by the standard operation of selected course.
• Massage in relaxed condition as much as possible. The degree of stiffness may not be measured correctly when the user massages immediately after taking a bath or is given stimulation other than sensor massage, like watching TV.
• The measurement result indicates the stiffness according to the body's biological reaction (the amount of perspiration from fingers or pulse) to the sensor massage, so it may differ from the stiffness the user actually feels.
• When the user's skin is dry (especially a person with dry skin), the degree of stiffness may not be measured correctly. In such a case, slightly moisten with the fingers using hand cream.

To stop the massage during massaging operation.

Press the OPERATION ON/OFF button.

●All the massaging will stop. (The massaging balls are moved to the upper position and remain in that position.)

Press the button for the current operation.

●The massaging that corresponds to the pressed button will stop.

(The Massaging balls will stop at that point.)

Measurement of Shoulder Position

Measure the position of shoulder and match the position of massaging balls to that of shoulder.

SENSOR AUTO A -- -- _ -- PUSCER DENTAL RACE A 0-3 0-13 0-13

Massaging balls move up and down to measure the position of shoulder.

(Sit deeply on the massage chair and raise your head slightly. The matching of the position of shoulder may not be possible when the head leans on the back rest.)

SENSOR AUTO ↑ —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— ———— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Massaging operation at recognized position of shoulder

Check that massaging balls match the position of your shoulder. If not, when the lamp of is flickering (a buzzer sounds), adjust the position by pressing SHOULDER POSITION ADJUST button.

SOLVER DOWN UP DOWN OR (Sensor controller) Remote control SHOULDER UP DOWN

When it is difficult to adjust with SHOULDER POSITION ADJUST button, move your body for adjustment. The height that can be adjusted is between approx. 150 cm and 180 cm.

Position too high Appropriate position Position too low

Decides the position of shoulder.

※ When wanting to change the position of shoulder after deciding it, press OPERATION ON/OFF button once to the [OFF] position, and restart.

When adjusting the strength of massage

STRENGTH
● Each time

button is pressed, the strength
(Remote control) (Sensor controller)

of massaging the upper body and the lower body (air) is changed at the same time, and is displayed by the lamp on the remote control. It can be adjusted for three stages for the upper body and two stages for the lower body (air). STRENGTH (Weak) (Medium) (Strong)

Massaging Operation and Display of Remote Control

- Displays the aim of massaging positions, the type of massaging, the stiffness, body pressure and the remaining massaging time on the remote control.

Explanation with an example of STIFFNESS

SENSOR MASSAGE

SENSOR AUTO STUFFRESS PRESSURE THIENER 0-5-10-15 M POINT STUFFNESS STRENGTH A3 PRESS

Measurement of the degree of stiffness.

The Sensor will display the positions of stiffness (those where stiffness has been felt) by measuring the amount of perspiration from fingers and pulse in reaction to sensor massage. When the measurement is over, a buzzer sounds.

SENSOR AUTO 4+ STIFFNESS PRESSURE THIAB 0.5×10.15 STRENGTH A3 PESS

Displays the position where the stiffness has been detected.

Silhouette of a human head with marked points on chest and neck (no text or symbols)

Massaging according to the degree of stiffness

SENSOR AUTO ↑ MPOINT STRESS STRESS FLUSSURE BEANS TATER 0.5-10.15 AC FEES

Shiatsu massaging

● The strength of massaging the lower body (air) can be adjusted individually in two stages.

Each time

or

button is pressed,

(Remote control)

(Sensor controller)

the strength of massaging the lower body (air) is changed, and is displayed by the lamp on the remote control.

- When it is felt that the massaging on the soles or calves is too strong even when setting the strength of lower body (air) massaging to "weak," put a towel etc. on those massaged parts.

Adjust the position of back rest and foot rest. (See page 12)

Massaging the whole lower body Massaging buttocks and thighs

Line drawing of a person seated in a car seat, no text or symbols present

Massaging soles and calves

Line drawing of a person seated in a car seat, no text or symbols present

1 Press OPERATION ON/OFF button.
2 Open the cover of the remote control.
3 Press the AUTO (AUTOMATIC SELECT) button.
4 Press the desired automatic course button.

- Change of course during massaging, or change to the automatic course or the manual course, is possible.

As for the contents of massaging of Neck/Shoulder course and Waist course, see page 24.

NECK/SHOULDER

When wanting to massage mainly the neck and shoulders.

WAIST

When wanting to massage mainly the waist.

LOWER BODY

When wanting to massage the buttocks, legs and soles.

I. OPERATIONAL CHUCKER AUTO NEW CHUCKER WAUST LOWER BODY STRENGTH SHOULDER POSITION STRENGTH: ADJUST AIR PRESS UP DOWN 2 3 4 5

5 Starts the massaging automatically.

① Measures the position of shoulder. (See page 16)
- Check if the position of shoulder is correct. If not, adjust the position using the SHOULDER POSITION ADJUST button (of the remote control or the sensor controller).
② Starts the massaging of selected course.
● The strength of massaging can be adjusted (See page 16)

6 Finishes the massaging automatically by timer operation.

- The massaging will stop automatically approx.15 minutes after starting the operation.The buzzer sounds and the remote control lamp turns off.

To stop the massage during massaging operation.

Press the OPERATION ON/OFF button.

●All the massaging will stop. (The massaging balls are moved to the upper position and remain in that position.)

Press the button for the current operation.

●The massaging that corresponds to the pressed button will stop.

(The Massaging balls will stop at that point.)

Measurement of Shoulder Position

Measure the position of shoulder and match the position of massaging balls to that of shoulder.

-- -- -- PUE#ID 0=5+10-13

Massaging balls move up and down to measure the position of shoulder.

(Sit deeply on the massage chair and raise your head slightly. The matching of the position of shoulder may not be possible when the head leans on the back rest.)

SHULDER MUSHROOM BALANCE FLOOR 0=5+10+15

Massaging operation at recognized position of shoulder

Check that massaging balls match the position of your shoulder. If not, when the lamp of is flickering (a buzzer sounds), adjust the position by pressing SHOULDER POSITION ADJUST button.

SHOULDER ASSEMBLICUM OR (Sensor controller) (Remote control) SHOULDER (Remote control) (Sensor controller)

When it is difficult to adjust with SHOULDER POSITION ADJUST button, move your body for adjustment. The height that can be adjusted is between approx. 150 cm and 180 cm.

Position too high Above course position Position too low

Massaging balls

SHOULDER SET STRESS PRESS FORCE RUM Δ FLUO O-8-O-3-O-15

Decides the position of shoulder.

Massage Operation and Display of Remote Control

- Displays the aim of massaging positions, the type of massaging, the stiffness, body pressure and the remaining massaging time.

Explanation with an example of NECK/SHOULDER

MPENT STEENSTH PRESSURE TIMEER 0=5=10=15

The position of current massage flickers.

STRESS STRENGTH PRESSURE THER 0.5×10.15

Massaging neck/shoulder mainly

Simple line drawing of a human figure in profile view (no text or symbols)

Finishes the massaging by the operation of the timer.(The displayed parts turn off)

When adjusting the strength of massage

● Each time STRENGTH or WHOLE button is pressed, the strength

(Remote control) (Sensor controller)

of massaging the upper body and the lower body (air) is changed at the same time, and is displayed by the lamp on the remote control. It can be adjusted for three stages

for the upper body and two stages for the lower body (air).

- The strength of massaging the lower body (air) can be adjusted individually in two stages.

Each time AIR PRESS or LOWER BODY button is pressed,

(Remote control) (Sensor controller)

the strength of massaging the lower body(air) is changed, and is displayed by the lamp

on the remote control.

- When it is felt that the massaging on the soles or calves is too strong even when setting the strength of lowerbody (air) massaging to "weak," put a towel etc. on those massaged parts.

Massaging of upper body

Adjust the back rest and the foot rest. (See page 12)

1. Press the OPERATION ON/OFF button.

2. Open the cover of the remote control.

3. Press the MANU (MANUAL SELECT) button.

OPERATION ON/OFF 1 2 3 MANU SHATSU TAPING MASSIGC CONRI STRETCH STRETCH2 STRENGTH ADJUST 5 STRENGTH SPEED SHOULDER POSITION UP WIDTH DOWN 2

4. Press the desired manual course button.

• The lamp of the selected button illuminates in red, and the operation is displayed on the display part of the remote control.
• Refer to page 19 for details of the contents of massage.
• For backbone stretching, measure the position of shoulder at first. When the position of shoulder is not correct, adjust the position of massaging balls. (See page 14)
• During massaging operation, the operation can be changed to other manual massage, sensor automatic course or automatic course.

5. Adjusting the height or width of massaging balls

● (There are some adjustments which are not possible, depending on the type of massage; please see page 19.)

Adjusting the height of massaging balls.

Continue pressing the SHOULDER POSITION ADJUST (UP/DOWN ADJUST) button.

OR

The massaging balls will move up if the UP button is pressed continuously and move down if the DOWN button is pressed continuously.

- The position of massaging balls are approximately indicated by the lamp.

Adjusting the width of the massaging balls.

Press the

- The speed of the massaging balls will change each time the button is pressed, and is indicated by the lamp.

Adjusting the movement speed of massaging balls.

Press the

button.

● The width of the massaging balls will change each time the button is pressed, and is indicated by the lamp.

Adjusting the strength of the massaging balls.

Press the

button or the

button.

(Remote control)

(Sensor controller)

- The strength of the massaging balls will change each time the button is pressed, and is indicated by the lamp.

6.Finishes the massage by operation of the timer.

• The massaging balls are moved to the upper position and are stopped automatically approx. 15 minutes after starting the operation. The buzzer sounds and the lamp on the remote control will turn off.
• If a different manual course button is pressed during the course of operation, the massage will be completed by operation of the timer approx. 15 minutes after starting the original massage.

To stop the massage during massaging operation.

Press the OPERATION ON/OFF button.

• All the massaging will stop.
  (The massaging balls are moved to the upper position and remain in that position.)
• The massaging that corresponds to the pressed button will stop.
  (The Massaging balls will stop at that point.)

Press the button for the current operation.

Kinds of massages and adjustments of massaging balls

14 types of desired massage can be selected.

It is possible to adjust the movement speed, height position and width of massaging balls. (There are some adjustments that are not possible, depending on the kind of massaging. Refer to the table below.)

Kinds of massage		Operation	Adjustment of massaging balls
		Shiatsu massaging (by moving the massaging balls to front and back)	(Height, speed, width and strength are adjustable.)
		Massaging by tapping operation	(Height, speed, width and strength are adjustable.)
		Massaging	(Height, speed and strength are adjustable.)
		Combined tapping and massaging actions.	(Height, speed and strength are adjustable.)
		Massaging with stretching operation of massaging balls.	(Width and strength are adjustable.)
		Massaging by stretching operation of massaging balls within a range of approx. 11cm.	(Height, width and strength are adjustable.)

	Massaging by backbone stretching, while executing Shiatsu operation.	(Speed, width and strength are adjustable.)
	Massaging by partial stretching, while executing Shiatsu operation.	(Height, speed, width and strength are adjustable.)
	Massaging by backbone stretching, while executing tapping operation.	(Speed, width and strength are adjustable.)
	Massaging by partial stretching, while executing tapping operation.	(Height, speed, width and strength are adjustable.)
	Massaging by backbone stretching, while executing massaging operation.	(Spread and strength are adjustable.)
	Massaging by partial stretching, while executing massaging operation.	(Height, speed and strength are adjustable.)
	Massaging by backbone stretching, while executing tapping and massaging operation.	(Speed and strength are adjustable.)
	Massaging by partial massaging, while executing tapping and massaging operation.	(Height, speed and strength are adjustable.)

MASSAGING (LEG MASSAGING)

• Simultaneous massaging of either "upper body" and "lower body (air)" is possible. Individual massaging of "upper body" and "lower body (air)" is possible.
• 1 to 3 are the same operation for massaging the upper body. When massaging the upper body, start from operation 4.

Adjust the position of back rest and foot rest. (See page 12).

Massaging the whole lower body Massaging buttocks and thighs

Line drawing of a person seated in a car seat, no text or symbols present

Massaging soles and calves

Line drawing of a person seated in a car seat, no text or symbols present

1 Press OPERATION ON/OFF button.
2 Open the cover of the remote control.
3 Press the MANUAL COURSE SELECT button.

4 Press your favorite button.

• During massaging operation, you can change to a different manual massage, sensor automatic course, or automatic course
  ● The strength of massage can be adjusted in two stages.

Press the

button or the

button.

(Remote control)

(Sensor controller)

The strength of massaging will change each time the button is pressed, and is indicated by the lamp.

Adjustment is possible when the air press display part is activated.

(If it is not activated, adjustment is impossible.)

5 Finishes the massage by operation of the timer.

- It will stop automatically approx. 15 minutes after starting the operation.

The buzzer sounds, and the display part of the remote control turns off.

OPERATION ON/OFF MANU LOWER BODY SOLE CALF CUTTOKS THICKS STRENGTH ADJUST AIR PRESS SHOULDER POSITION 3 4 2

To stop the massage during massaging operation.

Press the OPERATION ON/OFF button.

• All massaging will stop.
  Press the button for the current operation.
• The massaging that corresponds to the pressed button will stop.

1. Set the back rest and the foot rest to the starting position.

• Be sure to check that there are no children or pets around the massager.
• When the head cover is turned to the rear, return it to the starting position.

Foot rest Back rest

Head cover

2. Turn off the POWER.

① Press the OPERATION ON/OFF button.
- The display part of the remote control turns off. Close the cover of remote control.

② Set the POWER switch to the [OFF] position, and the LOCK switch to the [LOCK] position by using a coin.

CAUTION

• After use, be sure to set the POWER switch to the [OFF] position, and the LOCK switch to the [LOCK] position.
• When the equipment will not be used for an extended period, be sure to disconnect the power plug from the mains outlet socket.

WARNING

Be sure to disconnect the power plug from the main outlet socket prior to maintenance.

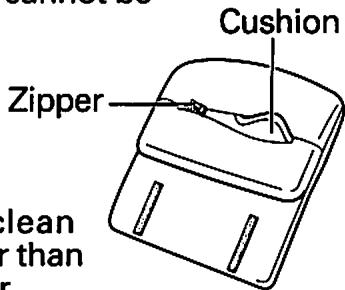

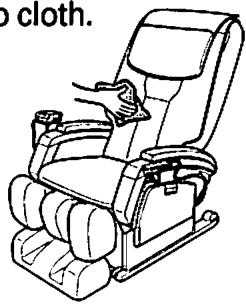

HEAD COVER, BACK PAD, SEAT COVER, ARM COVER

- Adopt the appropriate maintenance procedure according to the material type.

Polyester Type

1. Wipe them with a cloth soaked in soap solution. When they are badly stained, wash with a brush and soap solution.

NOTE

- Rubbing too hard or too much will damage the cloth.

Line drawing of a modern massage chair with adjustable arm and seat (no text or symbols)

1. Wipe off the remaining soap solution with a damp cloth.

2. Leave it to try naturally.

Line drawing of a person seated in a massage chair with a cloth (no text or symbols on the chair itself)

○ Only the head cover can be taken to a dry-cleaning shop for dry-cleaning.

1. Take off the head cover from the back pad.

k pad. Head cover Back pad

1. Take out the cushion from the head cover.

● The cushion cannot be dry-cleaned.

Cushion Zipper clean than

NOTE

- Do not dry - clean anything other than the head cover.

Artificial Leather Type

- Perform daily maintenance by wiping with a soft dry cloth. When they are badly stained, adopt the following maintenance procedure:

1. Soak a soft cloth in diluted neutral kitchen detergent, and squeeze it well.

uted ent,

1. Soak a cloth in clean water, and squeeze it well. Wipe off the remaining detergent with the damp cloth.
2. Wipe it with a dry cloth afterwards.

※ Do not force-dry with a drier.
※Do not make contact with vinyl products for an extended period. It may cause discoloration.

REMOTE CONTROL, SENSOR CONTROLLER

• Wipe with a soft dry cloth.
  ※ Do not wipe with a damp cloth.

MAIN UNIT (Cloth part, plastic part and pipe)

- Soak a soft cloth in diluted neutral kitchen detergent, and squeeze it well. Wipe the main unit with the damp cloth, and wipe it with a dry cloth afterwards.

NOTE

• Do not attempt to use benzene, thinner or alkaline detergent for cleaning, as this may result in deformation, discoloration or cracking.
• Do not wash the head cover and the back pad. This may cause discoloration or deformation.

Standard massage in STIFFNESS course

Standard massage in RECOVERY course

Standard massage in RELAX course

Standard massage in FINE course

NECK/SHOULDER course

WAIST course

WARNING

- If the trouble still persists even after the following proper countermeasures have been taken, stop using the massager to avoid possible accidents. Disconnect the power plug from the main outlet socket, and consult the sales agent.

Do not attempt to repair the equipment at home by yourself, as it is very dangerous.

Type of Trouble

Unusual sound during operation

•Rat'ing scurd dur ng 'appi-ng

- Noise during UP/DOWN operation of massaging balls

and clinking sound during massaging operation

• Creaking sound caused by massaging balls and cloth

during massaging operation

•Gear meshing sound

•Sound of an massage

"Pusshu" sound (Change valve sound)

Hissing sound (Exhaust sounds)

"Buu" sound (Sound of pump operation)

"Pako" sound (Sound when the air bag fills out)

•Wobbling foot rest

Operation failure

Movement of massaging balls in upward direction, causing operation to stop

The operation stops in the middle of massaging in the sensor automatic course or automatic course.

Impossible to recline Impossible to raise and lower the foot rest

The position of massaging balls differ between right and left.

The display of stiffness differs from the degree of stiffness actually felt.

Check points

These sounds may be unavoidably generated due to problems of construction, but they will not affect the function, etc.

Check that the power plug is securely plugged in the main outlet socket.

Check that the POWER switch is set to the ON position.

When the massaging balls detach from the body during the sensor automatic course or the automatic course, the body pressure sensor will work to stop the operation automatically.

This phenomenon is caused by the operation of the timer, but is not a problem.

When the massaging balls detach from the body, the body pressure sensor will work to stop the operation automatically.

Check that there is no obstruction.

This phenomenon is caused by the adoption of the function of alternative tapping on the right and left sides, but is not a problem.

Check that you grasp the Sensor. The measurement result indicates the stiffness according to the body's biological reaction to the sensor massage, so it may differ from the stiffness the user actually feels. Massage in relaxed condition as much as possible during massage. The degree of stiffness may not be measured correctly when the user massages immediately after taking a bath or is given stimulation other than sensor massage, like watching TV.

Countermeasure

Push the power plug into the main outlet socket securely. (See page 10)

With the LOCK switch set to unlock, turn on the POWER switch. (See page 10)

Begin the operation again from the start. (See page 9)

Begin the operation again from the start. (See page 9)

Remove the obstruction. (See page 11)

Grasp the Sensor (See page 13)

Power consumption	250W
Rated time	30 min.
Timer	(MANUAL COURSE) Approx. 15 minutes(SENSOR AUTOMATIC COURSE)Approx. 13-15 minutes (maximum Approx. 20 minutes)(AUTOMATIC COURSE) Approx. 15 minutes (maximum Approx. 20 minutes)
Dimensions	730 mm[width] × 1,240 mm[depth] × 1,200 mm[height]28.7 "[width] × 48.8" [depth] × 47.2 "[height]※ When not reclined (with foot rest retracted)-730 mm[width] × 1,940 mm[depth] × 630 mm[height]28.7 "[width] × 76.4" [depth] × 24.8"[height]※ When reclined (with foot rest set horizontally)
Weight	Approx. 66kgApprox. 145 lbs.
Accessories	Remote control stand, Sensor controller stand, installation screws
Exterior cloth	Polyester 100% Artificial leather 100%※ Materials differ according to type.
Massaging Frequency	(3 stages) Approx. 10 times/min., 20 times/min., 30 times/min.
Tapping Frequency (Upper body)	(3 stages) Approx. 300 times/min., 480 times/min., 600 times/min.
Tapping width (Upper body)	(3 stages) Approx. 70mm, 100mm, 130mmApprox. 2.8", 3.9", 5.1"
Vertical movement speed	One up/down pass in approx. 35 sec.
Backbone stretching width	(3 stages) Approx. 70mm, 100mm, 130mmApprox. 2.8", 3.9", 5.1"
Range of partial stretching	Repetition within Approx.110mmApprox. 4.3"
Massaging balls up/down range	Approx. 720mmApprox. 28.3"
Height adjustment of massaging balls	No gradation (Automatic)
Reclining angle	Approx. 120 ~ 170°
Reclining method	Motor-driven type (Linked with foot rest)
Leg Massaging (air pressure)	Strong: Approx. 27kPa※ There is a slight difference according to the part.Weak: Approx. 21kPa

Do not use the massager on other the designated voltage.
