MM 550 TRAVEL - Casque audio sans fil SENNHEISER - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Casque Bluetooth à réduction de bruit active
Caractéristiques techniques principales	Réduction de bruit active, son stéréo de haute qualité, connectivité sans fil Bluetooth
Alimentation électrique	Batterie rechargeable lithium-ion
Dimensions approximatives	Dimensions pliées : 195 x 150 x 60 mm
Poids	Approx. 240 g
Compatibilités	Compatible avec tous les appareils Bluetooth
Type de batterie	Batterie lithium-ion intégrée
Tension	3.7 V
Puissance	20 mW
Fonctions principales	Appels mains libres, contrôle de la musique, réduction de bruit active
Entretien et nettoyage	Essuyer avec un chiffon doux, éviter l'eau et les produits chimiques
Pièces détachées et réparabilité	Pas de pièces détachées disponibles, réparation limitée

FOIRE AUX QUESTIONS - MM 550 TRAVEL SENNHEISER

Comment connecter les écouteurs SENNHEISER MM 550 TRAVEL à mon appareil Bluetooth ?

Pour connecter vos écouteurs, activez le mode Bluetooth de votre appareil et maintenez le bouton d'alimentation des écouteurs enfoncé jusqu'à ce que le témoin lumineux clignote en bleu et rouge. Sélectionnez 'SENNHEISER MM 550 TRAVEL' dans la liste des appareils disponibles sur votre appareil.

Comment recharger la batterie des écouteurs ?

Utilisez le câble USB fourni pour connecter vos écouteurs à un port USB ou à un adaptateur secteur. La LED de charge s'allumera en rouge pendant la charge et deviendra verte lorsque la batterie est complètement chargée.

Que faire si les écouteurs ne s'allument pas ?

Vérifiez si les écouteurs sont chargés. Si la LED ne s'allume pas lorsque vous appuyez sur le bouton d'alimentation, veuillez charger les écouteurs pendant au moins 2 heures avant de réessayer.

Comment régler le volume sur les écouteurs ?

Pour augmenter le volume, appuyez sur le bouton '+' sur l'écouteur droit. Pour diminuer le volume, appuyez sur le bouton '-' sur l'écouteur gauche.

Comment activer la fonction de réduction de bruit ?

Pour activer la réduction de bruit, appuyez sur le bouton de réduction de bruit situé sur l'écouteur droit. Vous entendrez un signal sonore indiquant que la fonction est activée.

Comment réinitialiser les écouteurs ?

Pour réinitialiser vos écouteurs, éteignez-les, puis maintenez enfoncés les boutons '+' et '-' simultanément pendant environ 5 secondes jusqu'à ce que la LED clignote en rouge et bleu.

Les écouteurs sont-ils compatibles avec les assistants vocaux ?

Oui, les écouteurs SENNHEISER MM 550 TRAVEL sont compatibles avec les assistants vocaux tels que Siri et Google Assistant. Pour activer l'assistant, appuyez sur le bouton de contrôle multifonction.

Que faire si le son est faible ou de mauvaise qualité ?

Vérifiez si les écouteurs sont correctement connectés à votre appareil. Assurez-vous également que le volume est réglé à un niveau adéquat. Si le problème persiste, essayez de réinitialiser les écouteurs.

Les écouteurs sont-ils résistants à l'eau ?

Les écouteurs SENNHEISER MM 550 TRAVEL ne sont pas conçus pour être résistants à l'eau. Évitez de les exposer à l'humidité ou à la pluie.

MODE D'EMPLOI MM 550 TRAVEL SENNHEISER

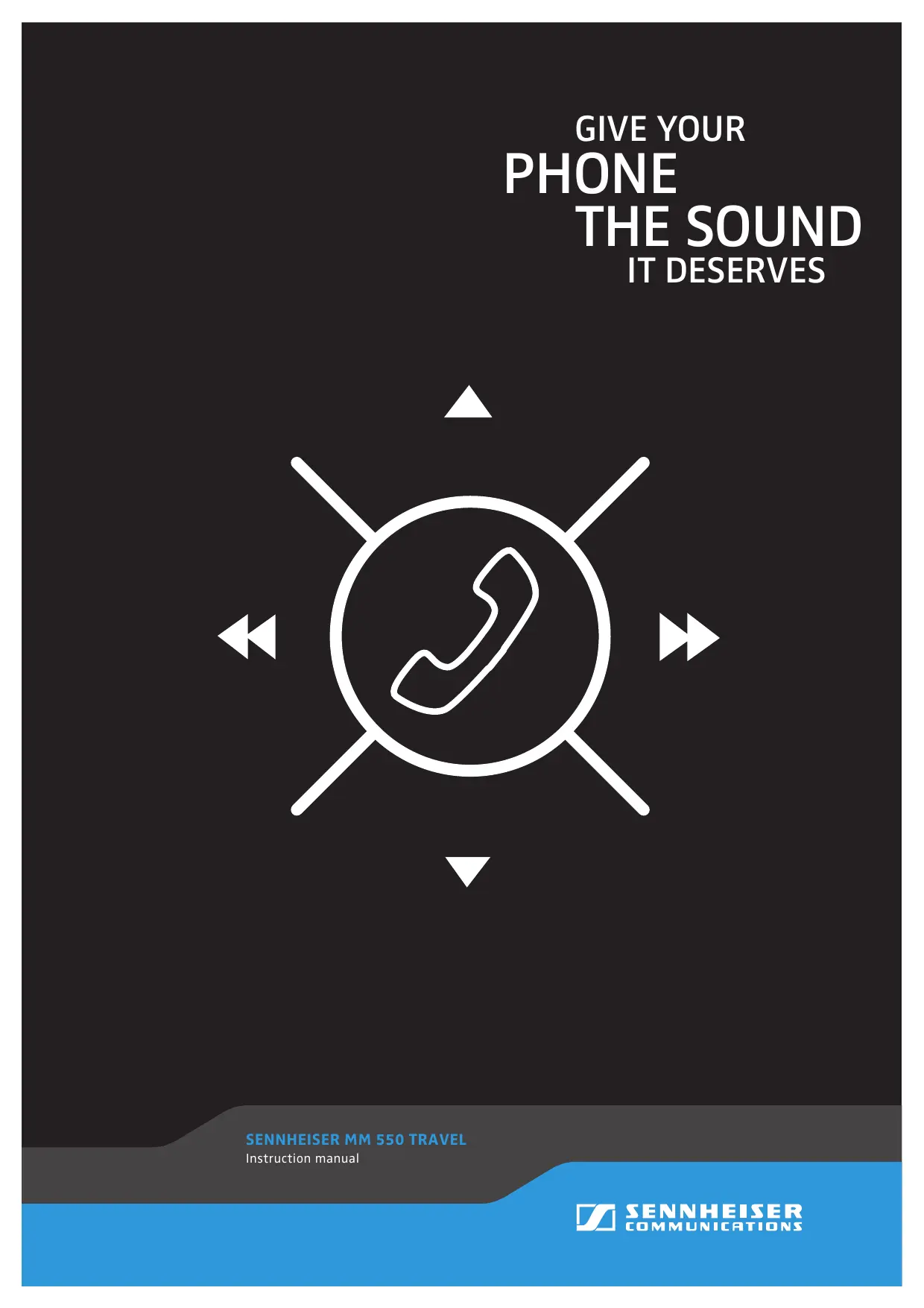

GIVE YOUR

PHONE

THE SOUND

IT DESERVES

SENNHEISER MM 550 TRAVEL

Instruction manual

Contents

Important safety instructions 2
MM 550 4
Delivery includes 5
Product overview 7
Putting the MM 550 into operation 8

Charging the battery pack 8
Adjusting the headband 10
Switching the MM 550 on/off 11
Connecting the MM 550 to the audio source 12
Connecting the MM 550 using the audio cable 15

Using the MM 550 16

Adjusting the MM 550 to the listening situation 16
Changing the volume 17
Remote-controlling connected devices from the MM 550 18
Resetting the settings of the MM 550 20

Transporting the MM 550 21
Cleaning and maintaining the MM 550 22
If a problem occurs 23
Accessories 25
Specifications 26
SRS WOW HD 27
Manufacturer Declarations 28

Important safety instructions

• Please read these instructions carefully and completely before using the product.
• Make these instructions easily accessible to all users at all times. Always include these instructions when passing the product on to third parties.
• Only use the product in aircraft where wireless Bluetooth® transmission is permitted.
• Do not use the product in situations which require special attention (e.g. in traffic or when performing skilled jobs).
• Always keep the product dry and do not expose it to extreme temperatures (normal operating temperatures: 0^ C / 32^ F to 35^ C / 95^ F ).
• Use the product with care and store it in a clean, dust-free environment.
• Switch off the product after use to conserve battery power. Remove the batteries if the product will not be used for extended periods of time.
• The headset contains magnets that generate a magnetic field which could cause interference with cardiac pacemakers and implanted defibrillators. Keep the headset at least 1.2'' (3 cm) from cardiac pacemakers or implanted defibrillators.
• Please protect your hearing from high volume levels. Sennheiser headsets also sound exceptionally good at low volumes.
• Only use the mains units and charging cables supplied by Sennheiser.
• To reduce the risk of fire or electric shock, do not use the product near water and do not expose it to rain or moisture.

• Unplug the mains unit from the wall socket

• to completely disconnect the product from the mains

• during lightning storms or

• when unused for long periods of time.

• Only operate the mains unit from the type of power source specified in the chapter "Specifications" (see page 26).

• Ensure that the mains unit is

• in a safe operating condition and easily accessible,

• properly plugged into the wall socket,

• only operated within the permissible temperature range,
  not covered or exposed to direct sunlight for longer periods of time in order to prevent heat accumulation (see "Specifications" on page 26).

• Do not operate the product near any heat sources.

• Only use attachments/accessories specified by Sennheiser (see "Accessories" on page 25).

Intended use

Intended use includes:

• having read this instruction manual, especially the chapter "Important safety instructions" on page 2,
• using the product within the operating conditions and limitations described in this instruction manual.

"Improper use" means using the product other than as described in this instruction manual, or under operating conditions which differ from those described herein.

Safety instructions for the Lithium-Polymer battery pack

If abused or misused, the battery pack may leak. In extreme cases, it may even present

• a heat hazard,
• a fire hazard,
• an explosion hazard,
• a smoke or gas hazard.

Please understand that Sennheiser does not accept liability for damage arising from abuse or misuse.

Keep away from children.	When not using the product for extended periods of time, remove the battery pack from the product.
Immediately remove the battery pack from an obvi-ously defective product.	Only use battery packs recommended by Sennheiser.
Dispose of the battery pack at special collection points or return it to your specialist dealer.	Switch battery pack-powered products off after use.
Only charge the battery pack with the appropriate Sennheiser chargers.	When not using the battery pack for extended periods of time, charge it regularly (about every 3 months).
Only charge the battery pack at ambient temperatures between 10°C/50°F and 40°C/104°F.	Do not heat above 70°C/158°F, e.g. do not expose to sunlight or throw into a fire.
Do not mutilate or dismantle.	Do not continue to use a defective battery pack.
Do not short-circuit.	Do not expose to moisture.

MM 550

The MM 550 is an accessory which allows for wireless music enjoyment when used with mobile phones or other Bluetooth devices/Bluetooth compliant devices. Its circumaural, closed design and the latest active noise compensation technology (NoiseGard) make the MM 550 especially suitable for use with in-flight entertainment systems. Due to its active and passive attenuation of ambient noise, it lets you enjoy music even in noisy environments.

Bluetooth

The MM 550 complies with the new Bluetooth 2.1 standard. Via its Bluetooth interface, it can be connected to a wide variety of Bluetooth enabled devices. Bluetooth wireless technology allows the MM 550 to communicate with your Bluetooth enabled device (e.g. mobile phone, MP3 player, PC or PDA) within a range of up to 10 meters.

SRS WOW HD™

SRS WOW HD improves the dynamic audio performance of compressed and uncompressed audio by expanding the size of the audio image and creating a deep, rich bass response. The patented techniques in SRS WOW HD widen the horizontal sound field and raise the vertical sound image, retrieving information lost in the mixing process to create a more natural audio experience.

NoiseGardTM

The NoiseGard active noise compensation system is based on the principle of cancelling out sound using "anti-sound" (phase-inverted sound). Tiny microphones pick up low-frequency ambient noise (up to 1kHz ) near the ear. The NoiseGard electronics use this noise to generate a sound wave which is the exact opposite (IE: at the same level but polarity reversed -180^ out-of-phase), the effect being that the polarity reversed signal cancels most of the outside noise.

TalkThrough

The MM 550 has a TalkThrough function, which allows you to communicate with other people without having to remove the headset. When TalkThrough is activated, professional quality microphones mounted on the outside of the headset pick up all acoustic signals in the immediate vicinity. Annoying background noise is electronically filtered out, only allowing the voice of the other person to pass through the headset clearly.

Additional features

• Great for travel: comfortable, rugged and foldable headset construction
• Optional connection via audio cable for music enjoyment without Bluetooth technology
  Outstanding sound quality due to Duofol diaphragms
• Optimum protection against ambient noise due to active and passive noise attenuation

Delivery includes

1 MM 550 headset
1 BA 370 PX battery pack
1 USB charging cable
1 mains unit with country adapters
1 stereo audio cable (2.5 mm to 3.5 mm jack plug)
1 audio adapter (3.5 mm jack socket to 14'' (6.35 mm) jack plug)
1 in-flight adapter (3.5 mm jack socket to 3.5 mm double mono jack plug)
1 transport case
1 quick start guide incl. CD ROM with detailed instruction manual as PDF
1 safety guide

Overview of the pictograms

Meaning of the pictograms for pressing a button

Pictogram	Meaning
↓4s	Briefly press this button.
4s	Keep this button pressed for 4 seconds.
↓	Keep this button pressed until the desired setting is made or the desired action is completed.

Meaning of the pictograms for the flashing of the LED

Pictogram	Meaning
	This pictogram symbolizes a flashing.
-	This pictogram symbolizes an interruption.
1s	This pictogram symbolizes an interval.
→	This pictogram symbolizes a continuous flashing.

Examples of some of the pictograms that are used throughout this instruction manual:

Pictogram	Meaning
3s	The LED flashes once every 3 seconds.
1s	The LED flashes 3 times per second.
1s	The LED flashes in a rhythmic sequence.
- - - -	The LED flashes blue 3 times and then goes off.

The pictogram "i"

This note provides important information!

Notes marked with the pictogram "i" provide important information on the use of the headset.

Product overview

Headband
Microphone
3 NoiseGard button
SRS button
5 Socket for audio cable

6 Bluetooth button
7 Ear pad
8 Socket for charging cable
Battery pack compartment
10 Microphone

A Operating panel

① LED
② Fast-forward button
③ Volume button

④ Rewind button
⑤ Master button
Volume button

Putting the MM 550 into operation

Before using the MM 550 for the first time, remove the protection strip from the battery pack.

Charging the battery pack

Before using the battery pack for the first time, charge it for at least 3 hours. The battery pack can also be charged inside the headset during operation.

When charging the battery pack, the LED 11 on the battery pack lights up red. When the battery pack is fully charged, the LED 11 on the battery pack lights up green.

When the battery pack is almost flat, the LED ① flashes red. You hear a short, descending acknowledgement tone.

The operating time of the battery pack depends on the device settings, the listening situation and the audio sources used. The operating time will be reduced if you use SRS WOW HD.

Type of use	Operating time
NoiseGard and Bluetooth technology	8 hours
NoiseGard without Bluetooth technology	20 hours
Bluetooth technology without NoiseGard	10 hours

Remove the battery pack if the headset will not be used for extended periods of time.

Possibilities of charging the battery pack

First, connect the charging cable 12 to the battery pack as described in section a and then connect the charging cable 12 to a power source as described in section b.

Connecting the charging cable to the battery pack

You can charge the battery pack either inside or outside the headset. This is helpful if you are using a spare battery pack (to be ordered separately).

To charge the battery pack inside the headset:

Open the cover of the battery pack compartment on the left ear cup.
Connect the charging cable 12 to the socket for charging cable 8 on the headset.

To charge the battery pack outside the headset:

Open the cover of the battery pack compartment on the left ear cup.
Press the button next to the battery pack compartment and remove the battery pack.

Connect the charging cable 12 to the socket for charging cable 8 on the battery pack.

Connecting the charging cable to the mains unit, to a PC or to other USB devices

In order to charge the battery pack, you can connect the charging cable to either the USB socket of your PC or the supplied mains unit or to other USB devices.

To connect the charging cable to a PC:

Connect the USB plug of the charging cable 12 to the USB socket of your PC.

The battery pack is being charged. The LED 11 on the battery pack lights up red.

To connect the charging cable to the mains unit:

Connect the charging cable 12 to the mains unit.
Plug the suitable country adapter onto the mains unit.
Plug the mains unit into a wall socket. The battery pack is being charged. The LED 1 on the battery pack lights up red.
After charging, unplug the mains unit from the wall socket.

If you have charged the battery pack outside the headset:

Insert the charged battery pack into the headphone's battery pack compartment until it locks into place.
Close the cover of the battery pack compartment 9.

Adjusting the headband

For optimum transmission quality, good noise attenuation and best possible comfort, the headband has to be adjusted to properly fit your head:

Wear the headset so that the headband 1 runs over the top of your head.
Adjust the length of the headband so that

• the ear pads ⑦ rest comfortably against the ears,
• you feel even, gentle pressure around your ears,
• a snug fit of the headband ① on the head is ensured.

To ensure maximum noise attenuation, final adjustment is best made in a noisy environment.

Switching the MM 550 on/off

CAUTION Hearing damage due to high volumes!

Listening at high volume levels for long periods can lead to permanent hearing defects.

Before putting the headset on, set the volume to a low level.
Do not continuously expose yourself to high volumes.

Switching the MM 550 on

Press the Master button ⑤ and keep it pressed until the LED ① flashes blue. You hear an ascending beep.

• When switching the headset on for the first time, it will automatically go into pairing mode.

The headset is waiting to be paired with a Bluetooth enabled device (see page 12).

• When the headset is already paired with an audio source, the Bluetooth connection is automatically established. You hear an ascending beep and then you hear your audio source.
• When the headset is already paired with an audio source but the audio source is switched off or out of range, the LED ① flashes blue.

The headset will try for 3 minutes to connect to one of the up to 8 previously paired audio sources. If this fails, the headset automatically switches off after 60 minutes.

Switching the MM 550 off

Press the Master button ⑤ and keep it pressed until the LED ① flashes 3 times red.

You hear a descending beep. The Bluetooth connection is automatically deactivated. The headset switches off.

Connecting the MM 550 to the audio source

CAUTION Danger of malfunction!

The transmitted radio waves can impair the operation of sensitive and unprotected devices.

Only use the headset in aircraft where wireless Bluetooth transmission is permitted or use the audio cable instead (see "Connecting the MM 550 using the audio cable" on page 15).

The headset complies with the Bluetooth 2.1 standard. In order that data can be transmitted wirelessly using Bluetooth technology, you have to register your headset with your audio source (pairing).

The headset can save the connection profiles of up to 8 Bluetooth devices with which it has been paired. After switch-on, the headset automatically connects to one of these devices.

If you pair the headset with a ninth audio source, the saved connection profile of the first Bluetooth device will be overwritten. If you want to re-establish a connection with the first audio source, you have to pair the headset with this audio source again.

If your audio source does not have a Bluetooth interface, use an optional dongle (see "Accessories" on page 25).

For an optimum listening experience, your audio source has to support the A2DP profile.

Pairing the MM 550 with an audio source

Make sure that your headset is switched off (see "Switching the MM 550 off" on page 11).

When switching the headset on for the first time, it will automatically go into pairing mode. The headset is waiting to be paired with a Bluetooth enabled device (see page 12).

Press the Master button ⑤ and keep it pressed until the LED ① alternately flashes blue and red.
On your audio source, activate the Bluetooth function "Add a new device".
Proceed as described in the instruction manual of the audio source.

If a suitable audio source is found, the devices will exchange device identification information. The LED ① flashes 3 times blue and you hear an ascending beep. The devices have identified each other and the headset is paired with the audio source.

PIN code

When the audio source prompts for a password or PIN code, enter the default PIN code "0000".

If no device is found within approx. 5 minutes, the LED ① flashes 3 times red and you hear a descending beep. The headset will then try for 3 minutes to connect to one of the up to 8 previously paired audio sources. If this fails, the headset automatically switches off after 60 minutes.

In this case, repeat the necessary steps to pair the headset with the audio source again.

Switching the "Bluetooth connection" flashing on/off

Switch the headset off (see "Switching the MM 550 off" on page 11).

To switch the flashing on during a Bluetooth connection:
Press the Master button ⑤ and keep it pressed until the LED ① alternately flashes blue and red.
Briefly press the Volume button ⑥.

To switch the flashing off during a Bluetooth connection:

Briefly press the Volume button ③.

Disconnecting the Bluetooth connection

The Bluetooth button is backlit, indicating the current setting. The backlighting goes off after a short time to conserve energy.

Press any button on the headset to display the current setting of the Bluetooth function.

To disconnect the Bluetooth connection to the audio source, you can switch off the headset or the Bluetooth function. This setting is retained until the Bluetooth function is switched on again.

To switch the headset off:

Press the Master button ⑤ and keep it pressed until the LED ① flashes 3 times red.

You hear a descending beep. The Bluetooth connection is automatically deactivated. The headset switches off.

To switch the Bluetooth function off:

Press the Bluetooth button 6 and keep it pressed until the LED ① flashes 3 times red. You hear a descending beep.

The Bluetooth button goes off. The Bluetooth function is switched off.

Connecting the MM 550 using the audio cable

Connecting the audio cable

You can connect the headset to the audio source using the audio cable if:

• you do not want to use the Bluetooth function,
• you are not allowed to use the Bluetooth function (some airlines do not allow Bluetooth transmission) or
  the battery pack is flat.

When the audio cable is connected to the headset, the Bluetooth function cannot be switched on.

If the headset is already connected to the audio source via the Bluetooth interface, the Bluetooth connection is automatically disconnected when you connect the audio cable. The LED① flashes 3 times red and you hear a descending beep.

Connect the 2.5mm jack plug of the audio cable to the socket 5 of the headset.
Connect the 3.5mm jack plug of the audio cable 13 to

• the headphone socket of your audio source or
• the audio adapter for 14'' (6.35 mm) jack socket 14 if the 3.5 mm jack plug of the audio cable is too small
• the in-flight adapter 15 if you want to use the headset with an in-flight entertainment system.

When the audio cable is connected to your audio source, you hear the sound from your audio source and the LED ① flashes blue.

Detaching the audio cable

If you only want to use the MM 550 as a Bluetooth headset, you can detach the audio cable 13.

Pull the 2.5mm jack plug of the audio cable 13 from the socket 5 of the headset.

When detaching the audio cable, the Bluetooth function is not automatically switched on.
Switch the Bluetooth function on again (see "Switching the Bluetooth function on/off" on page 17).

Using the MM 550

Adjusting the MM 550 to the listening situation

The headset has a SRS WOW HD function, a NoiseGard function, a Bluetooth function and a TalkThrough function. Depending on the listening situation, you can switch these functions on or off.

Switching the SRS WOW HD function on/off

SRS WOW HD ensures enhanced sound quality and bass boost performance, thus allowing for a spectacular sound experience.

To switch the SRS WOW HD sound enhancement on:

Briefly press the SRS button 4.

The button is backlit in yellow and the SRS WOW HD function is switched on.

To switch the SRS WOW HD sound enhancement off:

Briefly press the SRS button 4.

The yellow backlighting goes off and the SRS WOW HD function is switched off.

Switching the NoiseGard function on/off

The NoiseGard button 3 is backlit, indicating the current setting. The backlighting goes off after a short while in order to conserve energy.

Press any button on the headset to display the current setting of the NoiseGard active noise compensation.

The NoiseGard function has to be switched on to be active. If the NoiseGard function is switched off, the MM 550 can also be used as a conventional headset.

To switch the NoiseGard function on:

Press the NoiseGard button 3 for 2 seconds.

The button is backlit in red and the NoiseGard function is switched on.

To switch the NoiseGard function off:

Press the NoiseGard button 3 for 2 seconds.

The red backlighting goes off and the NoiseGard function is switched off.

Conserving energy

Switch the NoiseGard function off after use to conserve energy.

Switching the TalkThrough function on/off

The MM 550 provides excellent attenuation of ambient noise. The Talk-Through function allows you to communicate undisturbed with other people without having to remove the headset even when NoiseGard is switched on.

To switch the TalkThrough function on:

• Briefly press the NoiseGard button 3. The LED ① lights up red. The TalkThrough function is switched on.

To switch the TalkThrough function off:

• Briefly press the NoiseGard button 3. The LED ① goes off. The TalkThrough function is switched off.

When the TalkThrough function is switched on, you cannot listen to music.

Switching the Bluetooth function on/off

Via the Bluetooth interface, the headset can be connected to a wide variety of Bluetooth enabled devices.

To switch the Bluetooth function on:

Press the Bluetooth button 6 and keep it pressed until the LED ① flashes 3 times blue. The Bluetooth function is switched on.

To switch the Bluetooth function off:

Press the Bluetooth button and keep it pressed until the LED ① flashes 3 times red. You hear a descending beep. The Bluetooth button goes off. The LED ① flashes blue and the Bluetooth function is switched off.

Changing the volume

The MM 550 allows you to change the volume of the audio signal during a call or while listening to music:

Button	Duration	Function	Button	Duration	Function
		Incremen- tally increases the volume			Incremen- tally reduces the volume
	1s	Continuously increases the volume		1s	Continuously reduces the volume

If you press the respective button briefly, the volume is changed incrementally; if you hold down the button, the volume is changed continuously.

When the minimum or maximum volume is reached, you hear an acknowledgement tone.

Remote-controlling connected devices from the MM 550

You can directly remote-control any device supporting the AVRCP profile and connected to the MM 550 by using the buttons on the headset. Please refer to the instruction manual of your audio source for information on whether your device supports the AVRCP profile.

Remote-controlling the audio source from the MM 550

If your headset has a Bluetooth connection to an audio source (e.g. mobile phone, iPod, MP3 or CD player), you can use the MM 550 to remote-control the audio source as follows:

Button	Duration	Function	Button	Duration	Function
		Incrementally increases the volume			Incrementally reduces the volume
	1s	Continuously increases the volume		1s	Continuously reduces the volume
		Skipping to the next track			Skipping to the previous track
	1s	Fast-forwards the track*		1s	Rewinds the track*
		Plays the track		1s	Stops the track (acknowledgement tone)

• These functions are not supported by all connected Bluetooth devices.

Remote-controlling a mobile phone from the MM 550

If your MM 550 has a Bluetooth connection to your mobile phone, the LED ① on the headset flashes to indicate that the mobile phone is ringing. The LED flashes 3 times blue. After a pause, the flashing is repeated. You can also hear the ring tone of your mobile phone if your mobile phone supports this function.

Switching the Bluetooth function off

If you press the Bluetooth button too long, the Bluetooth function switches off!

You can use the MM 550 to remote-control different functions of your mobile phone.

If the mobile phones rings:

Button		Duration	Function
or			Accepts the call
or		2s	Rejects the call (acknowledgement tone)
or			Ends the call

If the mobile phone is switched on, does not ring and you do not make a phone call:

Button	Duration	Function
	2s	Redials the last number (acknowledgement tone)
		Activates voice dial

During a call:

Button	Duration	Function
		Transfers the ongoing call back to the mobile phone
		Activates the muting function (acknowledgement tone)
Any button		Deactivates the muting function

Resetting the settings of the MM 550

You can reset all settings of your headset to the factory default settings. This allows you to prevent that other users of the headset can access your Bluetooth enabled devices. You can then pair five new devices with the headset.

Press the Master button ⑤ and keep it pressed until the LED ① flashes 3 times red. The headset switches off (see “Switching the MM 550 off” on page 11).

Press the Master button ⑤ and keep it pressed until the LED ① alternately flashes blue and red.

Press the Bluetooth button 6 and keep it pressed until the settings of the headset are reset.

Transporting the MM 550

For space-saving transportation, the headset can be folded up flatly and compactly.

Rotate the ear cups by 90^ .
Fold the ear cups inwards.
Place the headset flat into the transport case.

Your accessories can be transported in the front bag of the transport case:

Audio adapter (1 / 4^ (6.35 mm) jack plug)
In-flight adapter (3.5 mm double mono jack)

Cleaning and maintaining the MM 550

Cleaning the MM 550

CAUTION Liquids can damage the electronics of the product!

Liquids entering the housing of the product can cause a short-circuit and damage the electronics.

Keep all liquids far away from the product.
Do not use any solvents or cleansing agents.

For reasons of hygiene, you should clean the headset regularly:

Before cleaning, make sure that the product is not recharged via the mains.
Only use a dry and soft cloth to clean the product.

Replacing the ear pads

You can replace the ear pads. Spare ear pads are available from your Sennheiser partner or can be ordered at www.sennheiser.com under "Service & Support".

▶ Grasp the edge of the ear pad ⑦ behind the ear cup and peel it up and away from the ear cup.
▶ Slide the new ear pad onto the ear cup.

If a problem occurs …

Problem	Possible cause	Solution	Page
No operation indicator – headset cannot be switched on	The battery pack is flat.	Recharge the battery pack.	8
No audio signal when the audio cable is connected	The jack plug of the audio cable is not properly connected.	Check the connection to your audio source.	15
No audio signal during Bluetooth connection	The headset is switched off.	Switch the headset on.	11
	The headset is not paired with an audio source.	Check if the headset is paired. If necessary, pair the headset with the audio source again.	12
	The Bluetooth function on the headset is switched off.	Switch the Bluetooth function on the headset on.	17
	The audio cable is connected to the headset.	The connection of the audio cable automatically switches off the Bluetooth connection. Remove the audio cable and then switch the Bluetooth function on again.	15
	The volume is adjusted too low.	Increase the volume.	17
Headset cannot be paired	The pairing does not work.	Check if the audio source supports the A2DP profile. If not, use one of the optional dongles.	-
	The audio source is switched off.	Switch the audio source on.	12
No audio signal during NoiseGard operation	The headset is switched off.	Switch the headset on.	11
	The TalkThrough function is switched on. When in Talk-Through mode, the audio signal is not available.	Switch the TalkThrough function off.	17
Headset do not react to any button press	The operation of the headset is faulty.	Remove the battery pack from the headset. Reinsert the battery pack into the headset. Switch the headset on again.	-
Bluetooth connection is suddenly interrupted	The Bluetooth button has been pressed too long.	Switch the Bluetooth function on.	17

If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your Sennheiser partner for assistance.

To find a Sennheiser partner in your country, search at www.sennheiser.com.

Accessories

Cat. No. Accessory

540364 Ear pads, 1 pair

540363 Headband padding, 1 pair

525776 PSC 03R-050 mains unit with 4 country adapters (EU/UK/US/AUS)

531406 Stereo audio cable

(2.5 mm jack plug to 3.5 mm jack plug)

088526 In-flight adapter

(3.5 mm jack socket to 3.5 mm double mono jack plug)

077046 Audio adapter

(3.5 mm jack socket to 14'' (6,35 mm) jack plug)

531407 USB cable

(microUSB to USB)

535105 BA 370 PX battery pack

502388 BTD 300 Audio

502390 BTD 300 USB

502389 BTD 300i

Specifications

Transducer principle

Ear coupling

Frequency response

Nominal impedance

active/passive

Sound pressure level at

1 kHz and 1 Volt

THD at 1 kHz

Audio connection

Audio adapter

In-flight adapter

Cable length

Audio cable

Charging cable

Weight

BA 370 PX battery pack

Charging time

Operating time

Operating temperature range

Storage temperature range

Passive noise attenuation

NoiseGard

active noise compensation

dynamic, closed

circumaural

15-22,000 Hz

590/100Ω

107 dB SPL

< 0.1%

3.5 mm stereo jack socket

1/4" (6.35 mm) stereo jack plug

3.5 mm double mono jack plug

1.4 m

0.8 m

179g

3.7 V; 250 mAh Lithium-Polymer

3 hrs

8 hrs/10 hrs/20 hrs

0^ to +40^

-10°C to +70°C

25 dB

23 dB

PSC 03R-050 mains unit

Nominal input voltage

Nominal input current

Mains frequency

Nominal output voltage

Nominal output current

Operating temperature range

Storage temperature range

Relative humidity

Weight

110-240 V~

max. 0.2 A

50-60Hz

5V---

max. 0.5 A

0^ to +45^

-40°C to +85°C

20 to 90%

approx.61g

Bluetooth

Bluetooth

Bluetooth®

Range

Transmission frequency

Transmission power

Profiles

Codec

Bluetooth QD ID PX

version 2.1 + EDR

up to 10 m

2.4 GHz

8 dBm

HSP, HFP, A2DP, AVRCP

SBC

B014795

SRS WOW HD

Remarkable enhancement for mono and stereo playback

SRS WOW HD™ improves the dynamic audio performance of compressed and uncompressed audio by expanding the size of the audio image and creating a deep, rich bass response. The patented techniques in SRS WOW HD widen the horizontal sound field and raise the vertical sound image, retrieving information lost in the mixing process to create a more natural audio experience. SRS WOW HD also shapes a maximized bass response using sculpted filters and driver physics to go beyond the low-frequency limitations of speakers and headphones. SRS WOW HD also adds Definition™ Control, for realistic clarity, and the new Center Control, for dynamic extraction and positioning of dialog.

Immersive 3D audio

SRS WOW HD adjusts the space of the stereo image and eliminates the narrow stereo sweet spot and creates an immersive stereo image from mono and stereo source material. It also restores audio realism which is often masked by traditional recording and playback techniques.

Center Control

SRS WOW HD adjusts the mix of the center information into the stereo image. It works in tandem with the space control to create the perfect balance, acting as a "zoom" lens for sound. It can bring content to the forefront to dominate the mix or fade it backward, virtually eliminating the content all together.

Optimal headphone listening

SRS WOW HD includes techniques based on patented HRTFs to deliver a natural, non-fatiguing headphone listening experience by placing the perception of the stereo sound image outside of one's head making it more realistic and immersive.

Elevated sound image

SRS WOW HD adjusts the horizontal plane of the audio image from non-optimally placed speakers placing it at an appropriate listening level.

Definition Control

SRS WOW HD delivers a livelier, more brilliant sound. The purified sound can be heard in musical vocals, high-frequency instruments, and exposes details of ambient sound present in the audio source.

Bigger bass

SRS WOW HD includes psychoacoustic bass enhancement techniques which enhance the perception of low bass frequencies from speakers and headphones which, under normal conditions, can not produce these frequencies due to the inherent low frequency cut off and driver size limitations.

Audio level management

SRS WOW HD includes an audio level management system which monitors the output levels of the entire product audio system and manages the level dynamically to prevent sudden audio clipping.

Features of SRS WOW HD

• Stereo enhancement which improves dynamic audio performance
• Sculpted bass response for maximum thump on small speakers
• More natural audio with a wider sound field and raised sound image
  High-definition control for realistic clarity
  Center Control for dynamic extraction and positioning of dialog

Manufacturer Declarations

Warranty

Sennheiser Communications A/S gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

Declaration of Conformity

This product complies with the basic requirements and other relevant provisions of the following directives:

R&TTE Directive (1999/5/EC)
EMC Directive (2004/108/EC)
Low Voltage Directive (2006/95/EC)
RoHS Directive (2002/95/EC)
WEEE Directive (2002/96/EC)
Battery Directive (2006/66/EC)

The declarations are available on the internet at www.sennheiser.com. Before putting the product into operation, please observe the respective country-specific regulations!

Statements regarding FCC and Industry Canada

FCC Declaration of Conformity (DoC)

We,

Sennheiser Electronic Corporation
Strat. Marketing • Stefanie Reichert
One Enterprise Drive • Old Lyme • CT 06371 • USA
Tel: [phone], ext. 144
Fax: [phone]

declare the above device comply with the requirements of Federal Communications Commission.

This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

Responsible Party: John Falcone

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This class B digital apparatus complies with the Canadian ICES-003.

Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment.

RF Radiation Exposure Information

Since the radiated output power of this Class1 BT device is far below the FCC radio frequency exposure limits, it is not subjected to routine RF exposure evaluation as per Section 2.1093 of the FCC rules.

In compliance with:

USA	FCC ID: DMOCBSSAB FCFC
Canada	IC: 2099D – MMBTX
Europe	CE 0889 ☑ ☑
Australia/ New Zealand	CN340
Singapore	Complies with IDA Standards DB100582
Taiwan	CCAB10LP0980T1
Japan	R 203 WW JN000022
Russia	PCT ME61
Korea	SC9 - MM550
China	CMIIT ID: 2010DJ1403

Trademarks

Sennheiser and NoiseGard™ are registered trademarks of Sennheiser electronic GmbH & Co. KG.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sennheiser electronics GmbH & Co. KG is under license.

iPhone® and iPod® are registered trademarks of Apple Inc, registered in the U.S. and other countries.

SRS WOW HD^TM is a registered trademark of SRS Labs, Inc.

Definition™ Control is a registered trademark of SRS Labs, Inc.

Sennheiser Communications A/S

Langager 6, 2680 Solrd Strand, Denmark

www.sennheisercommunications.com

Publ. 05/10

540045/A01
