Type de produit	Appareil photo numérique étanche
Marque	OLYMPUS
Modèle	TG-1
Résolution effective	12 mégapixels
Capteur	CMOS 1/2,3" (filtre couleur primaire)
Objectif	Olympus 4,5-18,0 mm (équiv. 24-100 mm en 35 mm), f/2,0-4,9
Zoom optique	4x
Écran	3,0" OLED, 614 000 points
Résistance à l'eau	Jusqu'à 12 m (IPX8 selon norme IEC)
Résistance à la poussière	IP6X selon norme IEC
GPS	Oui, avec A-GPS (fréquence 1575,42 MHz)
Formats d'image	JPEG, MPO (3D)
Formats vidéo	MOV H.264 / PCM linéaire
Stockage	Mémoire interne + carte SD/SDHC/SDXC/Eye-Fi
Dimensions (L×H×P)	111,5 × 66,5 × 29,1 mm
Poids	230 g (avec batterie et carte)
Alimentation	Batterie lithium-ion LI-90B (3,6 V, 1270 mAh)
Autonomie de la batterie	Environ 300 cycles de charge
Connectivité	USB, HDMI micro (type D), AV composite
Accessoires fournis	Batterie LI-90B, chargeur USB F-2AC, câbles USB et AV, courroie, CD-ROM, carte de garantie

FOIRE AUX QUESTIONS - TG-1 OLYMPUS

Comment utiliser l'appareil photo sous l'eau ?

Sélectionnez un mode de prise de vue adapté dans SCN (Snapshot, Wide1, Wide2 ou Macro). Verrouillez bien les couvercles du compartiment batterie/carte et du connecteur. L'appareil est étanche jusqu'à 12 mètres. Évitez les chocs et ne l'utilisez pas dans l'eau salée sans rinçage.

Comment mettre à jour les données A-GPS ?

Téléchargez le logiciel OLYMPUS A-GPS Utility depuis le site officiel, installez-le sur votre ordinateur, connectez l'appareil via USB et suivez les instructions. Les données doivent être mises à jour tous les 14 jours.

Quelle est l'autonomie de la batterie ?

La batterie lithium-ion LI-90B (1270 mAh) offre environ 300 cycles de charge. Le temps de charge complet est d'environ 4 heures avec le chargeur fourni. L'autonomie en utilisation varie selon les réglages (GPS, flash, etc.).

Comment transférer des photos sur un ordinateur ?

Connectez l'appareil à l'ordinateur via le câble USB fourni. Réglez USB Connection sur Storage dans le menu des réglages. L'ordinateur reconnaîtra l'appareil comme un périphérique de stockage. Vous pouvez alors copier les images.

Comment utiliser le mode macro ?

Appuyez sur la touche ◀ pour afficher le menu des fonctions, sélectionnez l'icône Macro et choisissez Macro (distance mini 15 cm en grand-angle, 10 cm en télé), Super Macro (1 cm, zoom fixe) ou S-Macro LED (avec éclairage LED).

Comment changer la langue du menu ?

Appuyez sur MENU en mode prise de vue ou lecture, utilisez les touches fléchées pour aller dans l'onglet ☐ (Réglages 2), sélectionnez ☐ (Language) et choisissez votre langue.

Comment utiliser le flash en mode manuel ?

Le flash se règle via le menu des fonctions (touche ◀). Options : Auto, Redeye (réduction d'yeux rouges), Fill In (forcé), Flash Off (désactivé). Disponible aussi en Slave pour flash externe (menu Accessory).

Comment prendre des photos en rafale ?

Dans le menu des fonctions, sélectionnez Drive et choisissez Hi1 (15 img/s) ou Hi2 (60 img/s). La taille d'image est limitée à 3M. La mise au point, l'exposition et la balance des blancs sont verrouillées sur la première photo.

Comment protéger des photos contre l'effacement ?

En mode lecture, affichez la photo, appuyez sur MENU, allez dans l'onglet ▶ (Lecture), sélectionnez ☐ (Protéger) et appuyez sur Ⓞ. Les images protégées ne peuvent pas être effacées par les fonctions d'effacement standard.

Que faire si l'appareil ne s'allume pas ?

Vérifiez que la batterie est chargée et correctement insérée. Si le message Battery Empty clignote en rouge, rechargez la batterie. Essayez d'enlever et de remettre la batterie. Si le problème persiste, contactez un centre de service agréé Olympus.

MODE D'EMPLOI TG-1 OLYMPUS

DIGITAL CAMERA

TG-1

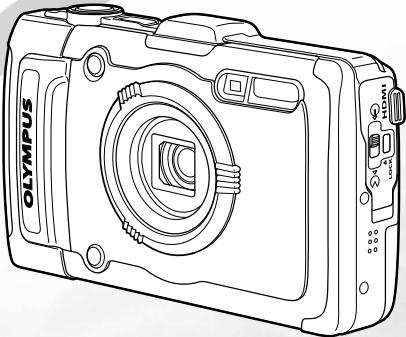

Instruction Manual

Line drawing of a digital camera with visible lens and control buttons (no text or symbols)

• Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.
• We recommend that you take test shots to get accustomed to your camera before taking important photographs.
• The screen and camera illustrations shown in this manual may differ from the actual product.

Checking the contents of the box

Line drawing of a digital camera with lens and buttons (no text or symbols)

Digital camera

Strap

Lithium Ion Battery (LI-90B)

or

USB-AC adapter (F-2AC)

USB cable (CB-USB8)

AV cable (CB-AVC3)

OLYMPUS Setup CD-ROM

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

Names of Parts

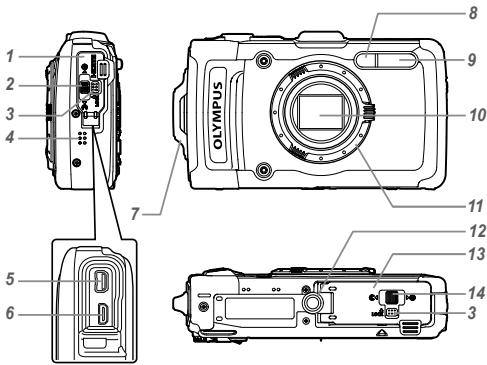

Camera unit

1 2 3 4 5 6 7 8 9 10 11 12 13 14 3

1 Connector cover
2 Connector cover lock
3 LOCK knob
4 Speaker
5 Multi-connector
6 HDMI micro connector
7 Strap eyelet
8 Self-timer lamp/LED Illuminator/AF illuminator
9 Flash
10 Lens
11 Lens ring
12 Tripod socket
13Battery/card compartment cover
14 Battery/card compartment lock

Diagram of a digital camera with numbered parts for identification and assembly reference.

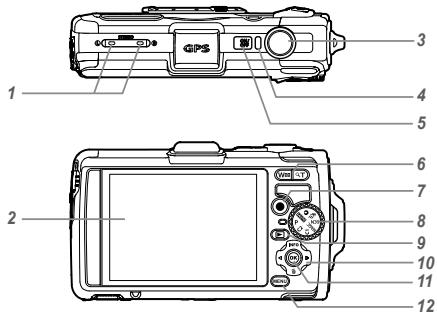

1 Stereo microphone
2 Monitor
3 Shutter button
4 Indicator lamp
5 ON/OFF button
6 Zoom buttons
7 Ⓞ button (shooting movies)
8 Mode dial
9 ▶ button (switching between shooting and playback)
10Arrow pad INFO (changing information display) (erase)
11 Ⓞ button (OK)
12 MENU button

Attaching the camera strap

Illustration of a rope being twisted with arrows indicating rotational motion (no text or symbols)

Diagram showing a door handle mechanism with arrows indicating rotation (no text or symbols)

Diagram of a door handle with rope routing and directional arrows indicating movement (no text or symbols)

! Pull the strap tight so that it does not come loose.

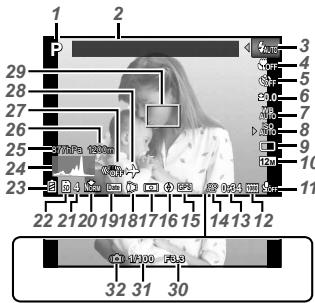

Shooting mode display

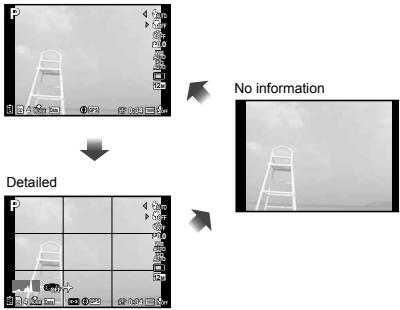

1 2 P 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 15 14 13 12 32 31 30

1 Shooting mode .....p. 17, 24
2 Landmark ......p. 43
3 Flash....p. 20
Flash standby/Flash charge ....p. 59
4 Macro/super macro/ S-Macro LED ......p. 29
5 Self-timer....p. 29
6 Exposure compensation ......p. 30
7 White balance......p. 30
8 ISO....p. 31
9 Drive....p. 31
10 Image size (still images) ......p. 32, 66
11 Recording with sound (movies)/ Wind noise reduction/ Recording Volume .....p. 40
12 Image size (movies) ......p. 40, 67
13 Recording length(movies) p. 18
14 Movie recording icon ....p. 18
15 GPS icon ......p. 16
GPS : Searching GPS signal GPS : Receiving GPS signal

16 Direction information
17 Metering ......p. 37
18 Conversion Lens ....p. 38, 68
19 Date stamp ......p. 39
20 Compression (still images) ......p. 36, 66
21 Number of storable still pictures (still images) ......p. 17
22 Current memory ......p. 65
23 Battery check......p. 13, 60
24 Histogram....p. 20
25 Atmospheric/ Hydraulic pressure.....p. 16
26 Altitude/Water depth.....p. 16
27 Image stabilization (still images)....p. 37
28 World time ......p. 51

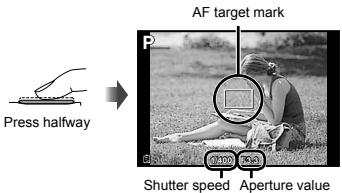

29 AF target mark......p. 18
30 Aperture value ......p. 18
31 Shutter speed......p. 18
32 Camera shake warning

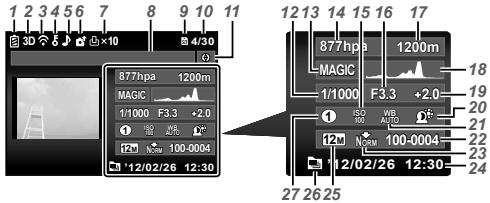

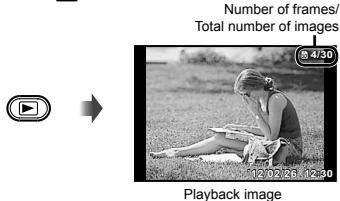

Playback mode display

• Standard display


Black-and-white photo of a ladder on a hilltop against a cloudy sky, with no visible text or symbols.

Still image

Black-and-white photo of a bird in flight with measurement scale and frame markers (no readable text or symbols)

Movie

• Advanced display

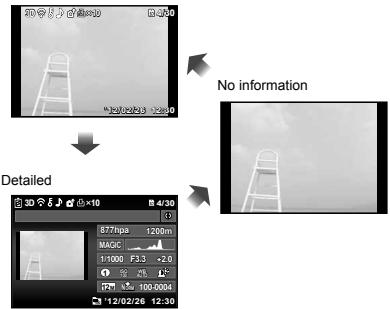

1 2 3 4 5 6 7 8 9 10 11 3D × 5 × 10 4/30 877hpa 1200m MAGIC F3.3 +2.0 1/1000 F3.3 +2.0 1200-0004 12/02/26 12:30 877hpa 1200m MAGIC F3.3 +2.0 1/1000 F3.3 +2.0 1200-0004 12/02/26 12:30 18 19 20 21 22 23 24 27 26 25

18 Histogram......p. 20
19 Exposure compensation ......p. 30
20 Shadow Adjustment Technology....p. 36
21 White balance......p. 30
22 File number

23 Compression (still images) ......p. 36, 66
24 Date and time .....p. 15, 50
25 Image size ......p. 32, 40, 66, 67
26 Grouped image......p. 34
27 MAGIC mode ......p. 28
28 Volume ......p. 21, 46

1 Battery check......p. 13, 60
2 3D image....p. 35
3 Eye-Fi transferred.....p. 45
4 Protect......p. 44
5 Adding sound ......p. 42
6 Upload order......p. 44
7 Print reservation/number of prints....p. 57/p. 56
8 Landmark ......p. 43
9 Current memory ......p. 65
10Frame number/total number of images (still images)....p. 21 Elapsed time/total shooting time (movies)....p. 22
11 Direction information
12 Shutter speed....p. 18
13 Shooting mode .....p. 17, 24
14 Atmospheric/ Hydraulic pressure.....p. 16
15 ISO ......p. 31
16 Aperture value ......p. 18
17 Altitude/Water depth .....p. 16

Camera Settings

Using the Buttons

Frequently used functions can be accessed using the buttons.

Line drawing of a digital camera module with buttons and display screen (no text or symbols)

Shutter button (p. 18, 59)

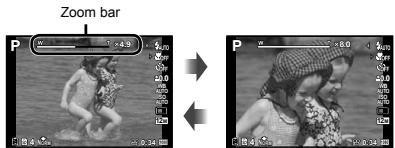

Zoom buttons (p. 19, 23)

◎ button (shooting movies) (p. 18)

Mode dial (p. 17, 24)

▶ button (switching between shooting and playback) (p. 18, 21, 46)

MENU button (p. 9)

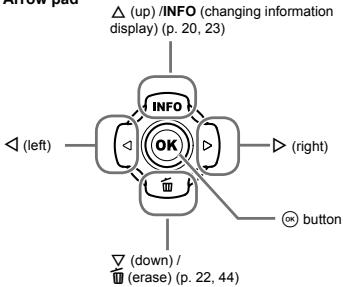

Arrow pad


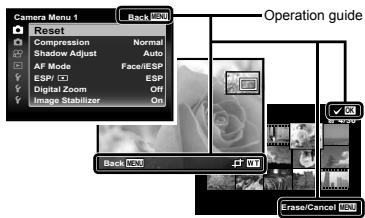

Operation guide

The symbols displayed for image selections and settings indicate that the arrow pad shown on the right is to be used.

Back MENU 2:02.26 12:30 Y/M/D

Operation guides displayed on the screen indicate that the MENU button, ⏻ button, or zoom buttons can be used.

Camera Menu 1 Reset Compression Normal Shadow Adjust Auto AF Mode FaceIESP ESP ESP Digital Zoom Off Image Stabilizer On Operation guide Back OK Exit Erase/Cancel OK

Operating the camera by tapping the body

You can operate the camera by tapping the body when [Tap Control] (p. 52) is [On].

Line drawing of a hand holding a digital camera with a starburst effect (no text or symbols)

Using the Menu

Use the menu to change camera settings.

There may be menus that are unavailable depending on other related settings or the shooting mode (p. 24).

Function menu

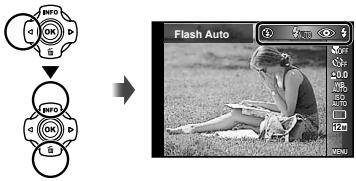

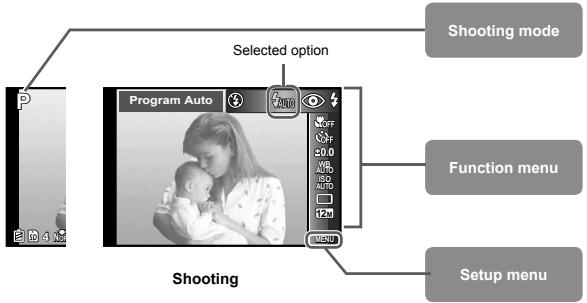

Press ◀ during shooting to display the function menu. The function menu provides access to frequently used shooting settings.

Selected option Shooting mode Program Auto Function menu Setup menu

To select the function menu

Use to select a menu and use to select a menu option. Press the OK button to set the function menu.

Setup menu

Press the MENU button during shooting or playback to display the setup menu. The setup menu provides access to a variety of camera settings, including options not listed in the function menu, display options, and the time and date.

1 Press the MENU button.

- The setup menu is displayed.

Camera Menu 1 Reset Compression Normal Shadow Adjust Auto AF Mode Face/iESP ESP ESP Digital Zoom Off Image Stabilizer On

2 Press ◀ to select the page tabs. Use △▽ to select the desired page tab and press ▷.

Page tab Settings Menu 2 Back (Back) File Name Reset Pixel Mapping - 1 Info Off 10sec TV Out Power Save Off English Settings Menu 2 Back (Back) File Name Reset Pixel Mapping - 1 Info Off 10sec TV Out Power Save Off English Submenu 1

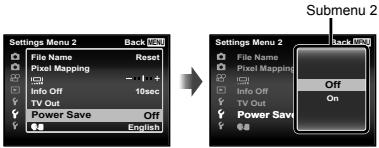

3 Use to select the desired submenu 1 and then press the OK button.

Settings Menu 2 Back File Name Reset Pixel Mapping -1.1+ Info Off 10sec TV Out Power Save Off English Settings Menu 2 Back File Name Reset Pixel Mapping -1.1+ Info Off 10sec TV Out Power Save Off Submenu 2

4 Use △▽ to select the desired submenu 2 and then press the Ⓞ button.

- Once a setting is selected, the display returns to the Submenu 1.

There may be additional operations. "Menu Settings" (p. 36 to 54)

Settings Menu 2 File Name Reset Pixel Mapping Info Off 10sec TV Out Power Save On English

5 Press the MENU button to complete the setting.

Menu Index

① P 图 50 4 No

Program Auto OFF ±0.0 Auto 12° MENU

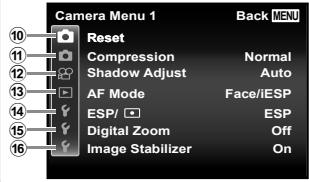

Camera Menu 1 Reset Compression Normal Shadow Adjust Auto AF Mode Face/iESP ESP/ ESP Digital Zoom Off Image Stabilizer On

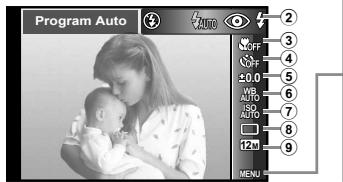

① Shooting mode .....p. 17, 24

P (Program Auto)

iAUTO (iAUTO)

(Low Light)

(Super Sport)

SCN (Scene Mode)

MAGIC (Magic Filter)

C1 (Custom Mode 1)

C2 (Custom Mode 2)

② Flash....p. 20
③ Macro ......p.29
④ Self-timer ......p.29

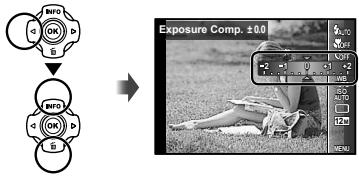

⑤ Exposure compensation...p. 30
⑥ White balance......p.30
⑦ ISO ......p. 31

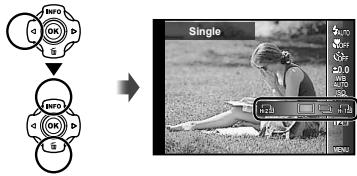

⑧ Drive....p.31

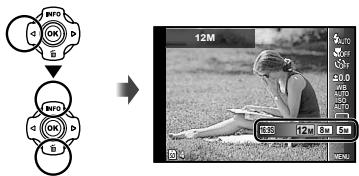

⑨ Image Size ......p.32
⑩ (Camera Menu 1)......p.36

Reset

Compression

Shadow Adjust

AF Mode

ESP/

Digital Zoom

Image Stabilizer

⑪ (Camera Menu 2)......p.38

Accessory Settings

AF Illuminat.

Rec View

Pic Orientation

Icon Guide

Date Stamp

Super-Res Zoom

⑫ (Movie Menu)......p.37

Image Size

IS Movie Mode

(Movie sound recording)

Wind Noise Reduction

Recording Volume

⑬ (Playback Menu) ......p.41

Slideshow

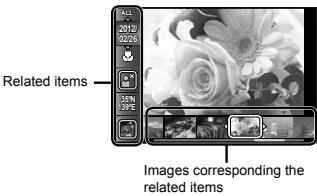

Photo Surfing

Edit

Erase

Print Order

(Protect)

Upload Order

⑭ (Settings Menu 1)...... p.45

Memory Format/Format

Backup

Eye-Fi

Custom Mode Setup

USB Connection

Power On

Sound Settings

⑮ (Settings Menu 2)..... p.47

File Name

Pixel Mapping

(Monitor)

Info Off

TV Out

Power Save

☐ (Language)

⑯ (Settings Menu 3)...... p. 51

Date/time

World Time

Reset Database

Beauty Settings

Tough Settings

GPS Settings

Preparing the Camera

Inserting the battery and card

1

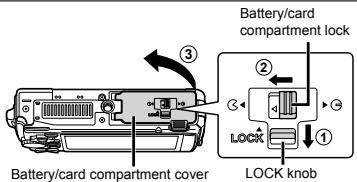

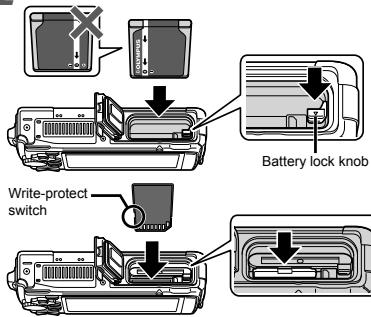

Battery/card compartment lock ② ③ ① LOCK knob Battery/card compartment cover

2

Write-protect switch Battery lock knob

Insert the battery as illustrated with the ⚡ mark toward the battery lock knob.
Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.
Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.
Insert the battery while sliding the battery lock knob in the direction of the arrow.
Insert the card straight until it clicks into place.
Turn off the camera before opening the battery/card compartment cover.
When using the camera, be sure to close and lock the battery/card compartment cover.
! Slide the battery lock knob in the direction of the arrow to unlock, and then remove the battery.
Always use SD/SDHC/SDXC cards or Eye-Fi card with this camera. Do not insert other types of memory cards. "Using the card" (p. 65)
Do not touch the contact area of the card directly.
This camera can be used without a card by storing images in its internal memory.

3

Diagram showing a device with labeled components including an icon labeled 'LOCK' and numbered parts ①, ②, ③.

“Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and cards” (p. 66, 67)

To remove the card

1

Diagram of a mechanical device with internal components and a downward arrow indicating a process (no text or symbols present)

2

Diagram of a device interior with a top component and an arrow indicating direction (no text or symbols)

! Press the card in until it clicks and comes out slightly, then remove the card.

Charging the battery with the included USB-AC adapter

The included F-2AC USB-AC adapter (hereafter referred to as USB-AC adapter) differs depending on the region where you purchased the camera. If you received a plug-in type USB-AC adapter, plug it directly into AC outlet.
The included USB-AC adapter has been designed to be used for charging and playback. Do not take pictures while the USB-AC adapter is connected to the camera.
Be sure to unplug the power plug of the USB-AC adapter from the wall outlet when the charging is complete or the playback ends.
The battery can be charged while the camera is connected to the computer. Charging time varies depending on the performance of a computer. (There may be cases in which it takes approx. 10 hours.)

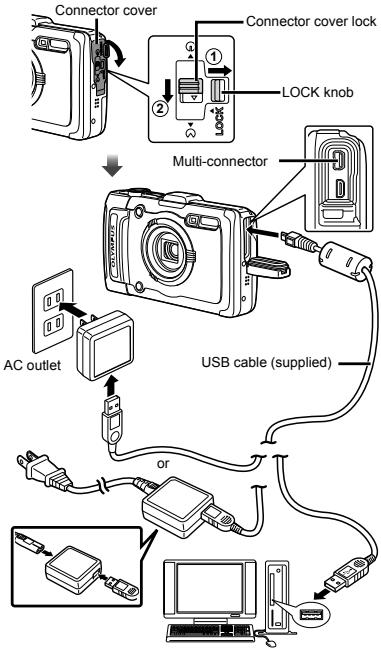

Connecting the camera

Indicator lamp

Diagram of a GPS camera module with no visible text or symbols

Indicator lamp
On: Charging
Off: Charged

The battery is not fully charged at shipment. Before use, be sure to charge the battery until the indicator lamp turns off (up to 4 hours).
If the indicator lamp does not light, the USB-AC adapter is not connected to the camera correctly, or the battery, camera, or USB-AC adapter may be broken.

When to charge the batteries

Charge the battery when the error message shown below appears.

Flashes in red Error message Battery Empty

Installing the PC software and registering user

! Installation of [ib] computer software using the supplied CD is available on Windows computers only.

Windows

1 Insert the supplied CD in a CD-ROM drive.

Windows XP

- A "Setup" dialog will be displayed.

Windows Vista/Windows 7

- An Autorun dialog will be displayed. Click "OLYMPUS Setup" to display the "Setup" dialog.

Olympus Registration Thank you for purchasing this Olympus project OLYMPUS Viewer 2 OLYMPUS ib Camera Instruction Manual

If the "Setup" dialog is not displayed, select "My Computer" (Windows XP) or "Computer" (Windows Vista/Windows 7) from the start menu. Double-click the CD-ROM (OLYMPUS Setup) icon to open the "OLYMPUS Setup" window and then double-click "Launcher.exe".
If a "User Account Control" dialog is displayed, click "Yes" or "Continue".

2 Register your Olympus product.

- Click the "Registration" button and follow the on-screen instructions.

To register the camera must be connected to the computer. "Connecting the camera" (p. 12)

If nothing is displayed on the camera screen even after connecting the camera to the computer, the battery may be exhausted. Charge the battery and then connect the camera again.

3 Install OLYMPUS Viewer 2 and [ib] computer software.

• Check the system requirements before beginning installation.
• Click the "OLYMPUS Viewer 2" or "OLYMPUS ib" button and follow the on-screen instructions to install the software.

OLYMPUS Viewer 2

Operating System	Windows XP (Service Pack 2 or later)/ Windows Vista/Windows 7
Processor	Pentium 4 1.3 GHz or better (Core 2 Duo 2.13 GHz or better required for movies)
RAM	1 GB or more (2 GB or more recommended)
Free Hard Drive Space	1 GB or more
Monitor Settings	1024 × 768 pixels or more Minimum 65,536 colors (16,770,000 colors recommended)

[ib]

Operating System	Windows XP (Service Pack 2 or later)/ Windows Vista/Windows 7
Processor	Pentium 4 1.3 GHz or better(Core 2 Duo 2.13 GHz or better required for movies)
RAM	512 MB or more (1 GB or more recommended)(1 GB or more required for movies—2 GB or more recommended)
Free Hard Drive Space	1 GB or more
Monitor Settings	1024 × 768 pixels or moreMinimum 65,536 colors (16,770,000 colors recommended)
Graphics	A minimum of 64 MB video RAM with DirectX 9 or later.

* See online help for information on using the software.

4 Install the camera manual.

- Click the "Camera Instruction Manual" button and follow the on-screen instructions.

Macintosh

1 Insert the supplied CD in a CD-ROM drive.

• Double-click the CD (OLYMPUS Setup) icon on the desktop.
• Double-click the "Setup" icon to display the "Setup" dialog.

Setup OLEMPUS Setup OLEMPUS Viewer 2 Camera Instruction Manual Thank you for purchasing this Olympus viewer! Olympus SET OLEMPUS MANUAL COM Close

2 Install OLYMPUS Viewer 2.

• Check the system requirements before beginning installation.
• Click the "OLYMPUS Viewer 2" button and follow the on-screen instructions to install the software.

You can register via "Registration" in OLYMPUS Viewer 2 "Help".

OLYMPUS Viewer 2

Operating System	Mac OS X v10.4.11-v10.7
Processor	Intel Core Solo/Duo 1.5 GHz or better
RAM	1 GB or more (2 GB or more recommended)
Free Hard Drive Space	1 GB or more
Monitor Settings	1024 × 768 pixels or moreMinimum 32,000 colors (16,770,000 colors recommended)

* Other languages can be selected from the language combo box. For information on using the software, see online help.

3 Copy the camera manual.

- Click the "Camera Instruction Manual" button to open the folder containing the camera manuals. Copy the manual for your language to the computer.

Language, date, time, and time zone

You can also choose the language for the menus and messages displayed in the monitor. The date and time set here are saved to image file names, date prints, and other data.

1 Press the ON/OFF button to turn on the camera, use △▽◀▷ to select your language and press the Ⓞk button.

The menus can be used to change the selected language. [☐] (p. 50)

2 Use to select the year for [Y].

INFO OK B Back Y M D Time 2012 --- --- --- Y/M/D

Date and time setting screen

3 Press ▷ to save the setting for [Y].

INFO OK B Y M D Time 2012 Y/M/D Back

4 As in Steps 2 and 3, use △▽◀▷ to set [M] (month), [D] (day), [Time] (hours and minutes), and [Y/M/D] (date order), and then press the Ⓞ button.

For precise time setting, press the ⏻ button as the time signal strikes 00 seconds.
To change the date and time, adjust the setting from the menu. [💡] (Date/time) (p. 50)

5 Use ◀▶ to select the [↑] time zone and then press the Ⓞ button.

- Use to turn daylight saving time ([Summer]) on or off.

12.02.26 12:30 Seoul Tokyo Summer

The menus can be used to change the selected time zone. [World Time] (p. 51)

Before Using GPS

The camera's GPS (Global Positioning System) feature determines your position (latitude and longitude) and stores this information with pictures taken with the camera.

The camera uses supplementary orbital data (assisted GPS or A-GPS) for improved signal acquisition.

A-GPS data must be updated every 14 days.

Before using GPS, you will need to set the camera clock to the correct date and time. (p. 15)

Updating A-GPS Data

1 Install the update software (OLYMPUS A-GPS Utility).

- Download the update software from the following website and install it on your computer. http://sdl.olympus-imaging.com/agps/

2 Connect the camera to the computer and launch the update software.

"Connecting the camera" (p. 12)

Once the software has started, follow the on-screen instructions.

1 Select [On] for [GPS Settings] > [GPS] in the (Settings Menu 3) tab. “Setup menu” (p. 9)

- Once the camera has determined the position, GPS and location coordinates will appear in the display.

Black-and-white photo of a person sitting on grass, holding an object, with no visible text or symbols in the main image area.

GPS	Blink:	Searching GPS signal
GPS	Light:	Receiving GPS signal

The camera may take a few minutes to determine position after a period of disuse.

If the icon is still flashing after several minutes, the camera is probably having difficulty detecting a signal. Move to an unobstructed outdoor area or otherwise change your location.

2 Press and hold MENU button in the shooting or playback display.

• Your location will be displayed in the monitor.
• Nearby landmarks in the GPS database will be displayed.

Back LENO Latitude/Longitude N123°56'78" E123°56'78" Balance 877hpa Attitude/Water Depth 1200m 2012/02/26 00:00 Updated 1 min ago Update GPS OK

① Landmark name ⑥ Latitude
② Landmark information ⑦ Longitude
position ⑧ Atmospheric/
③ Electronic compass Hydraulic pressure
④ Update status ⑨ Altitude/Water depth
⑤ GPS tracking active ⑩ Current date and time

Δ∇	Select a landmark.
OK	Update GPS data.

Some countries or regions may regulate the use of GPS devices. Follow all local regulations.
Turn GPS off when on board aircraft and in other locations in which the use of GPS devices is prohibited.
The provision of A-GPS data may be terminated without prior notice.
! Position data may be unavailable or contain errors in the following locations:

• Locations without a clear view of the sky (indoors, underground or underwater, or near trees or tall buildings)
• Locations subject to strong magnetic or radio interference (near high-voltage power lines, magnets, electronic devices, or cell phones operating in the 1.5 GHz band)

GPS data may take more time acquire or be unavailable in some locations or at certain times of day.
Do not cover the GPS antenna with your hands or metal objects.
If the battery is low, the camera cannot acquire GPS data while the camera turns off.
The camera is not equipped for GPS navigation.
While [Track] is [On], the GPS receiver will continue to draw power from the battery when the camera is off.
! GPS data are not recorded with movies.
! Press the INFO button while the camera is turned off. The current time and the shooting location are displayed for approx. 30 seconds.

Shooting, Playback, and Erasing

Shooting with the optimum aperture value and shutter speed (P mode)

In this mode, automatic shooting settings are activated while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, etc. as needed.

The default settings of the function are highlighted in

1 Set the mode dial to P.

2 Press the ON/OFF button to turn on the camera.

P mode indicator

Black-and-white photo of a girl sitting on grass, holding an object (no visible text or symbols)

Number of storable still pictures (p. 66)
Monitor (standby mode screen)

3 Hold the camera and compose the shot.

Illustration of hands holding a camera and a photo album (no text or symbols)

Horizontal grip

Line drawing of hands holding a digital camera (no text or symbols)

Vertical grip

When holding the camera, take care not to cover the flash and microphone with your fingers, etc.
! Press and hold Ⓞ button to brighten the monitor when there is difficulty in seeing the monitor. The monitor brightness returns to the default setting if no operations are performed for 10 seconds.

4 Press the shutter button halfway down to focus on the subject.

• When the camera focuses on the subject, the exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green.
• The camera was unable to focus if the AF target mark flashes red. Try focusing again.

AF target mark Press halfway Shutter speed Aperture value

! "Focusing" (p. 61)

5 To take the picture, gently press the shutter button all the way down while being careful not to shake the camera.

Press fully Image review screen

To view images during shooting

Pressing the ▶ button enables playback of images. To return to shooting, either press the ▶ button or press the shutter button halfway down.

To turn off the camera

Press the ON/OFF button again.

Shooting movies

1 Press the Ⓞ button to start recording.

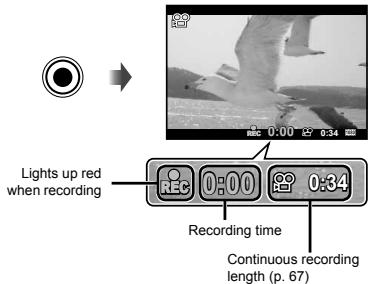

Lights up red when recording 0:00 0:34 Recording time Continuous recording length (p. 67)

The effects of the set shooting mode can be used when shooting movies. When the set shooting mode is SCN (some modes) or MAGIC (some modes), shooting is performed in P mode.
! Sound will also be recorded.
2 Press the Ⓞ button again to stop recording.

Using the zoom

Pressing the zoom buttons adjusts the shooting range.

W side T side

Zoom bar P 9.43 50.0 20.0 10.0 5.0 0.0 P 8.0 50.0 20.0 10.0 5.0 0.0 P 7.0 50.0 20.0 10.0

! Optical zoom: 4×

Super-resolution zoom: 2×

Digital zoom: 4×

To take larger images [Super-Res Zoom] (p. 40), [Digital Zoom] (p. 37)

The type and amount of zoom can be identified from the appearance of the zoom bar. The display differs depending on the options selected for [Super-Res Zoom] (p. 40), [Digital Zoom] (p. 37) and [Image Size] (p. 32).

Optical zoom:

Image size	Zoom bar
12M/16:9L	Optical zoom range
Other	The magnification ratio changes depending on the image size setting.*1

[On] selected for [Super-Res Zoom]:

Image size	Zoom bar
12M	Super-resolution zoom range

[On] selected for [Digital Zoom]:

Image size	Zoom bar
12M/16:9L	Digital zoom range
Other	ratio changesdepending on theimage size setting. ^**Digital zoom range

* If [Image Size] is less than the full resolution, after reaching the maximum optical zoom, the camera will automatically resize and crop the image to the selected [Image Size], then enter the digital zoom range if [Digital Zoom] is [On].
Photographs taken with the zoom bar displayed in red may appear “grainy.”

Using the flash

The flash functions can be selected to best match the shooting conditions.

1 Select the flash option in the function menu.

INFO OK P S INFO OK P S Flash Auto

2 Use ◀▷ to select the setting option, and press the Ⓞ button to set.

Option	Description
Flash Auto	The flash fires automatically in low-light or backlight conditions.
Redeye	Pre-flashes are emitted to reduce the occurrence of red eye in your photos.
Fill In	The flash fires regardless of the available light.
Flash Off	Flash Off
Remote Control	For details, see “Taking pictures with the Olympus Wireless RC Flash System” (p. 67).
Slave

[Remote Control] and [Slave] are not displayed when [Remote Flash] (p. 38) is set to [Off].

Changing the shooting information display

The display of the screen information can be changed to best match the situation, for example, the need for a clear view of the screen or for making a precise composition by using the grid display.

1 Press △ (INFO).

- The displayed shooting information changes in the order shown below each time the button is pressed.

Normal

Reading a histogram

If the peak fills too much of the frame, the image will appear mostly white.

If the peak fills too much of the frame, the image will appear mostly black.

Abstract white shape on dark background with no text or symbols

The green section shows luminance - distribution within the screen's center.

1 Press the ▶ button.

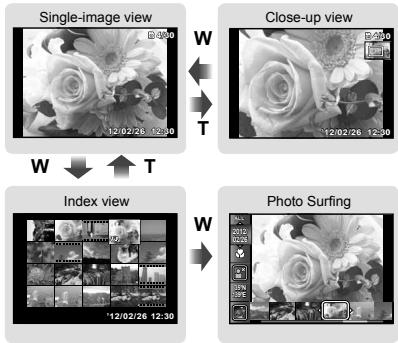

Number of frames/ Total number of images 4/30 Playback image

Pictures taken using · B ^+ mode are displayed as a group. Press the T button to play back the image in the group.

2 Use ◀▷ to select an image.

Displays previous image

Displays next image

! Hold ▷ to fast forward and hold ◀ to reverse.
The display size of the images can be changed. "Index view and close-up view" (p. 23)

To play sound recordings

To play sound recorded with an image, select the image and press the Ⓞ button.

Black-and-white photo of a person sitting on grass reading a book (no visible text or symbols)

During audio playback

! Press to adjust volume.

To play back movies

Select a movie, and press the Ⓞ button.

Black-and-white photo of two birds in flight over water, captured during a movie play (no visible text or symbols)

Movie

Pausing and restarting playback	Press the ☑ button to pause playback. During pause, fast forward or reverse, press the ☑ button to restart playback.
Fast forward	Press ▷ to fast forward. Press ▷ again to increase the fast forward speed.
Rewind	Press ◀ to rewind. The speed at which the recording rewinds increases each time ◀ is pressed.
Adjusting the volume	Use △▽ to adjust the volume.

Operations while playback is paused

Elapsed time/ Total shooting time

Black-and-white photo of a bird in flight over water, no visible text or symbols

During pause

Cueing	Use to display the first frame and press to display the last frame.
Advancing and rewinding one frame at a time	Press or to advance or rewind one frame at a time. Hold or pressed for continuous advance or rewind.
Resuming playback	Press the button to resume playback.

To stop movie playback

Press the MENU button.

To play back movies on the computer, the included PC software is recommended. For the first use of the PC software, connect the camera to the computer, then launch the software.

Erasing images during playback (Single image erase)

1 Display the image you want to erase and press (☐).

INFO OK G Erase Back 4/30 Erase Cancel

2 Press △▽ to select [Erase], and press the Ⓞ button.

! Multiple images or all images can be erased at a time (p. 44).

Index view and close-up view

Index view enables quick selection of a desired image. Close-up view (up to 10× magnification) allows checking of image details.

1 Press the zoom buttons.

Single-image view Close-up view Index view Photo Surfing

To select an image in index view

Use △▽◀▷ to select an image, and press the Ⓞ button to display the selected image in single-image view.

To scroll an image in close-up view

Use to move the viewing area.

To stop photo surfing

Use to select [ALL], and press the Ⓞ button.

Changing the image information display

Shooting information settings displayed on the screen can be changed.

1 Press (INFO).

- The displayed image information changes in the order shown below each time the button is pressed.

Normal

No information Detailed 877fps 1200m MAGIC 1:1000 F3.3 -2.0 100.0004 '12/02/26 12:30

To change the shooting mode

The shooting mode (P, IAUTO, 0, 📋, SCN, MAGIC, C1, C2) can be changed by rotating the mode dial. "Mode dial" (p. 6)

Shooting with automatic settings (iAUTO mode)

The camera will automatically select the optimal shooting mode for the scene. The shooting condition is decided by the camera and settings cannot be changed, excepting some functions.

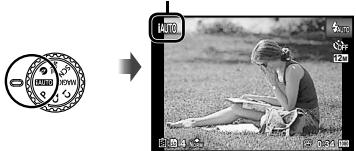

1 Set the shooting mode to iAUTO.

The icon changes depending on the scene that the camera automatically selects

Black-and-white photo of a person sitting on grass reading, with a circular logo and arrow pointing to the right (no visible text or symbols)

In some cases, the camera may not select the desired shooting mode.
When the camera cannot identify the optimal mode, P mode will be selected.

Taking pictures under low light (Low Light)

Use ⚠ (low light) mode to take pictures under low light without a tripod.

1 Rotate the mode dial to Ⓔ.

Shooting with Super Sport mode (✗ Super Sport)

In the ⚡ (Super Sport) mode, you can shoot the fast-moving objects such as sports.

1 Rotate the mode dial to ≈.

Using the best mode for the shooting scene (SCN mode)

1 Set the shooting mode to SCN.

2 Use ◀▶ to select the mode and then press the Ⓞ button to set.

Portrait photo of a smiling person with no visible text or symbols

Icon indicating the scene mode that is set

In SCN modes, the optimum shooting settings are pre-programmed for specific shooting scenes. Functions may be limited in some modes.

Option	Application
Portrait/-B:Beauty/ Landscape/Night Scene'1/2:Night+Portrait'1/Indoor/4:Candle'1/Self Portrait/Sunset'1/Fireworks'1/F|Cuisine/Documents/ Beach & Snow/Snapshot/1Wide1/2Wide2/Macro/Pet Mode - Cat/Pet Mode - Dog/3Snow/Panorama/3D 3D Photo/Backlight HDR*2	The camera takes a picture using the optimum settings for the scene conditions.

*1 When the subject is dark or when taking fireworks, noise reduction is automatically activated. This approximately doubles the shooting time during which no other pictures can be taken.

*2 When set to [F Backlight HDR], [Image Size] (p. 32) is limited to [5M] or lower. This is recommended for shooting a fixed subject.

To take photos with the · B^+ (Beauty) setting

Depending on the picture, the editing may not be effective.

① Select [ · B^+ Beauty] .
② Press to go to the submenu.

Black-and-white photo of a person sitting on grass reading a book, no visible text or symbols

③ Use ◀▶ to select the retouching setting, and press the ⏻ button to set.

SN Retouching setting

- [Set 1], [Set 2] or [Set 3] retouches the image according to the Beauty Settings. [Beauty Settings] (p. 51)

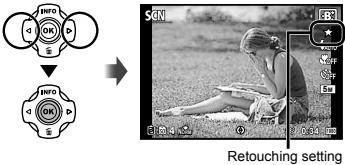

④ Point the camera toward the subject. Check the frameappearing around the face detected by the camera, and then press the shutter button to take the picture.
The unedited image and edited image are both saved.
If the image cannot be retouched, only the unedited image is saved.
The [Image Size] (p. 32) of the retouched image is limited to [5_M] or lower.
⑤ Select [OK] or [Beauty Fix] on the review screen, and press the Ⓞ button to save or to retouch the image additionally.

OK Beauty Fix Back MENU

Beauty Fix

① Use △▽◀▷ to select a retouching item, and press the Ⓞ button.

Eye Color Back MEN Off

② Check the retouched effects on the review screen, then press the OK button to start the retouch process and save.

- Settings for Beauty Fix can be registered.

To take underwater photos

Select [Snapshot], [Wide1], [Wide2] ^*1 , [Macro].

*1 When set to [◆2 Wide2], the focus distance is automatically fixed to approx. 5.0 m (16.4 ft.).

“Important information about water and shock resistant features” (p. 69)

To lock the focus distance for underwater shoots (AF lock)

When [Snapshot], [Wide1], or, [Macro] is selected, press the OK button.

AF lock mark 5CM

To cancel, press the Ⓞ button again to clear the AF lock mark.

To take pictures of your pet's face, select ([Pet Mode - Cat]/[Pet Mode - Dog])

Use ◀▶ to select [💡] or [💡] and press the ⏻ button to set.

• [Auto Release] is automatically selected, and when the subject's face is recognized, the picture is taken automatically.
• To cancel [Auto Release], see "Using the self-timer" (p. 29).

To take panoramic photos ([Panorama])

① Use ◀▶ to select [Auto], [Manual] or [PC], and press the ⏻ button to set.

Submenu 1	Application
Auto	Three frames are taken and combined by the camera. The user only composes the shots so that the target marks and pointers overlap, and the camera automatically releases the shutter.
Manual	Three frames are taken and combined by the camera. The user composes the shots using the guide frame and manually releases the shutter.
PC	The frames that were taken are combined into a panorama image using the PC software.

For details on installing the PC software, see "Installing the PC software and registering user" (p. 13).
When set to [Auto] or [Manual], [Image Size] (p. 32) is fixed to 2MB or equivalent.
The focus, exposure, zoom position (p. 19), and white balance (p. 30) are locked at the first frame.
The flash (p. 20) is fixed to ⏻ (Flash Off) mode.

Taking pictures with [Auto]

① Press the shutter button to take the first frame.
② Move the camera slightly in the direction of the second frame.

Target mark Pointer Cancel MENU Save OK

Screen when combining images from left to right

③ Move the camera slowly while keeping it straight, and stop the camera where the pointer and target mark overlap.

- The camera releases the shutter automatically.

To combine only two pictures, press the Ⓞ button before taking a third frame.

④ Repeat Step ③ to take a third frame.

- After the third frame is taken, the camera automatically processes the frames and the combined panorama image is displayed.

To exit the panorama function without saving an image, press the MENU button.

If the shutter does not automatically release, try [Manual] or [PC].

Taking pictures with [Manual]

① Use to specify at which edge the next picture is to be connected.

Direction for combining the next frame

② Press the shutter button to take the first frame. The white-boxed part of the first frame is displayed on joint area 1.

Two black-and-white photos showing a bridge and cityscape, connected by an arrow (no text or symbols)

1st frame

③ Compose the next shot so that joint area 1 overlaps joint area 2.
④ Press the shutter button to take the next shot.
! Press the Ⓞ button to combine just 2 frames.
⑤ Repeat steps ③ and ④ to take a third frame.

- After the third frame is taken, the camera automatically processes the frames and the combined panorama image is displayed.

To exit the panorama function without saving an image, press the MENU button.

Taking pictures with [PC]

① Use to select the direction that the frames are combined.
② Press the shutter button to take the first frame, and then point the camera for the second frame. The shooting procedure is same as that of [Manual].
Panorama shooting is possible for up to 10 frames.
③ Repeat Step ② until the number of desired frames is taken, and then press the ⏻ button or MENU button when finished.
Refer to the PC software help guide for details on how to make panorama images.

Shooting 3D images

In this mode, 3D images are shot for viewing on 3D-compatible display devices.

! Images shot in 3D mode cannot be displayed in 3D on this camera's monitor.
① Use ◀▶ to select [Auto] or [Manual] and then press the ⏻ button to set.

Submenu 1	Description
Auto	The user only composes the shots so that the target marks and pointers overlap, and the camera automatically releases the shutter.
Manual	After shooting the first frame, move the camera to overlap the subject with the image in the monitor. Then manually release the shutter.

Depending on the subject or the situation (if the distance between the camera and subject is too short), the image may not look 3D.
The 3D viewing angle varies depending on the subject, etc.
To exit 3D shooting mode without saving an image, press the MENU button.
The [Image Size] (p. 32) is fixed to [16:9S].
! The zoom ratio is fixed.
The focus, exposure and the white balance are fixed when the first image is taken.
! The flash is fixed to [⚡Flash Off].

Shooting with special effects (MAGIC mode)

To add expression to your photo, select the desired special effect.

1 Set the shooting mode to MAGIC.

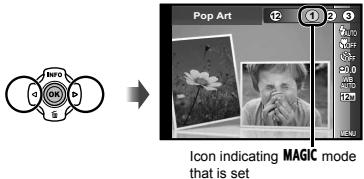

2 Use ◀▶ to select the desired effect and then press the Ⓞ button to set.

Pop Art Icon indicating MAGIC mode that is set

Shooting mode	Option
Magic Filter	1 Pop Art2 Pin Hole*13 Fish Eye4 Drawing*1, 25 Soft Focus*16 Punk7 Sparkle*18 Watercolor*19 Reflection10 Miniature11 Fragmented12 Dramatic

*1 The [Image Size] (p. 32) of the retouched image is limited to [5M] or lower.
^*2 Two images are saved, an unmodified image and an image to which the effect has been applied.
In MAGIC mode, the optimum shooting settings are pre-programmed for each scene effect. For this reason, some settings cannot be changed in some modes.
The selected effect is applied to the movie. The effect may not be applied depending on the shooting mode.

Recalling saved settings (C1, C2 Mode Setup)

Modes C1 and C2 are used to take pictures using custom settings saved using the [Custom Mode Setup] (p. 45) option in the setup menu.

1 Set the shooting mode to C1 or C2.

ng Shooting Functions

"Using the Menu" (p. 8)

Shooting closeups (Macro shooting)

This function enables the camera to focus and shoot subjects at close distances.

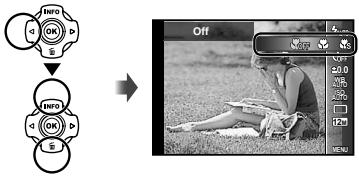

1 Select the macro option in the function menu.

OK S OK S Off 2.0 12.0 12.0

2 Use ◀▶ to select the setting option, and press the Ⓞ button to set.

Option	Description
Off	Macro mode is deactivated.
Macro	You can shoot the image at a closer range. 15 cm (5.9 in.)^*1 10 cm (3.9 in.)^*2
Super Macro ^-3	This enables shooting as close as 1 cm/0.4 in. to the subject. Subjects at 60 cm/23.6 in. or farther cannot be brought into focus.
S-Macro LED ^-3, *4	The LED illuminator lights the area 7 to 20 cm (2.8 to 7.9 in.) from the lens, while the shutter button is pressed halfway down.

*1 When the zoom is at the widest (W) position.

^*2 When the zoom is at the most telephoto (T) position.

^*3 The zoom is automatically fixed.

^*4 ISO sensitivity (p. 31) is automatically fixed to [ISO Auto].

The flash (p. 20) and zoom (p. 19) cannot be set when [Is Super Macro] or [Is S-Macro LED] is selected.

Using the self-timer

After the shutter button is pressed all the way down, the picture is taken after a short delay.

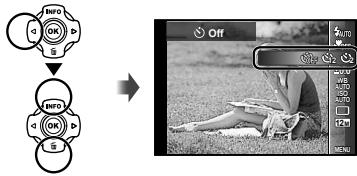

1 Select the self-timer option in the function menu.

Diagram illustrating camera mode selection and exposure adjustment, showing ON/OFF modes and a photo editing interface.

2 Use ◀▶ to select the setting option, and press the Ⓞ button to set.

Option	Description
Off	The self-timer is deactivated.
12 sec	The self-timer lamp turns on for approx. 10 seconds, then blinks for approx. 2 seconds, and then the picture is taken.
2 sec	The self-timer lamp blinks for approx. 2 seconds, then the picture is taken.
Auto Release*1	When your pet (cat or dog) turns its head towards the camera, its face is recognized and the picture is taken automatically.

^*1 [Auto Release] is displayed only when the SCN mode is [💡] or [💡].

To cancel the self-timer after it starts

Press the MENU button.

Adjusting the brightness

(Exposure compensation)

The standard brightness (appropriate exposure) set by the camera can be adjusted brighter or darker to obtain a desired shot.

The brightness cannot be changed in some shooting modes.

Select the exposure compensation option in the function menu.

Exposure Comp. ±0.0 OK P OK P OK P B V21 V22 V23 V24 V25 V26 V27 V28 V29 V30 V31 V32 V33 V34 V35 V36 V37 V38 V39 V40 V41 V42 V43 V44 V45 V46 V47 V48 V49 V50 V51 V52 V53 V54 V55 V56 V57 V58 V59 V60

Use ◀▷ to select the desired brightness, and press the Ⓞ button.

Adjusting to a natural color scheme (White balance)

For more natural coloring, choose a white balance option suited to the scene.

Select the white balance option in the function menu.

WB WB Auto AUTO OFF OFF 40.0 WB AUTO AUTO 12% MENO

Use ◀▷ to select the setting option, and press the Ⓞ button to set.

Option	Description
WB Auto	The camera automatically adjusts the white balance according to the shooting scene.
	For shooting outdoors under a clear sky.
	For shooting outdoors under a cloudy sky.
	For shooting under tungsten lighting.
	For shooting under white fluorescent lighting.
	For underwater shooting.
1	For setting the subtle shades of color that cannot be adjusted by Auto, Sunny, Cloudy, Incandescent, or Fluorescent.

Using the one touch white balance

① Select the white balance option in the function menu.
② Use ◀▶ to select [●1] or [●2], and face the camera toward white paper.

• Set the paper to fill the entire screen, and make sure that there is no shadow area.
• Perform this procedure under the light where the pictures are actually taken.

③ Press the MENU button.

• The camera releases the shutter and the white balance is registered.
• The registered white balance is stored in the camera. The data will not be cleared by turning off the power.
• When the [_1] or [_2] whose white balance has already been registered is selected in Step ②, new white balance will be registered.

When the white area is not large enough or when the color is too bright, too dark, or loud, the white balance cannot be registered. Return to Step ②. Or, set the other white balance.

Selecting the ISO sensitivity

1 Select the ISO setting option in the function menu.

INFO OK S INFO OK S ISO Auto 1400 / 2.5 9.5 3.5 20.0 12.5

2 Use ◀▶ to select the setting option, and press the Ⓞ button to set.

Option	Description
ISO Auto	The camera automatically adjusts the sensitivity according to the shooting scene.
High ISO Auto	The camera uses a higher sensitivity compared to [ISO Auto] to minimize blur caused by a moving subject or by camera shake.
Value	The ISO sensitivity is fixed to the selected value.

In the ISO setting, although smaller values result in less sensitivity, sharp images can be taken under fully lit conditions. Larger values result in higher sensitivity, and images can be taken at fast shutter speeds even under low light conditions. However, high sensitivity introduces noise into the resulting picture, which may give it a grainy appearance.

Sequential shooting (Drive)

Pictures are taken sequentially while the shutter button is held down.

1 Select the drive option in the function menu.

Single 12.0 25.0 30.0 45.0 60.0 75.0 90.0 105.0 120.0 135.0 150.0 165.0 180.0 195.0 210.0 225.0 240.0 255.0 270.0 285.0 300.0 315.0 330.0 345.0 360.0 375.0 390.0 405.0 420.0 435.0 450.0 465.0 480.0 495.0 510.0 525.0 540.0 555.0 570.0 585.0 600.0 615.0 630.0 645.0 660.0 675.0 690.0 705.0 720.0 735.0 750.0 765.0 780.0 795.0 810.0 825.0 840.0 855.0 870.0 885.0 900.0 915.0 930.0 945.0 960.0 975.0 990.0

2 Use ◀▶ to select the setting option, and press the Ⓞ button to set.

Option	Description
	One frame is shot each time the shutter button is pressed.
	The camera takes sequential shots at approximately 5 frames/sec.
	The camera takes sequential shots at approximately 15 frames/sec.
	The camera takes sequential shots at approximately 60 frames/sec.

*1 The shooting speed varies depending on the settings for [Image Size] (p. 32) or [Compression] (p. 36).
When set to [Hi1] or [Hi2] , [Image Size] is limited to [3M] or lower, and the ISO sensitivity is fixed to [ISO Auto].
When set to [☐], the flash (p. 20) cannot be set to [Redeye]. When set to other than [☐] or [☐], the flash is fixed to [☑Flash Off].
When set to [Hi1] or [Hi2] , the digital zoom (p. 37) is not available.
! With settings other than [☐], the focus, exposure and the white balance are fixed when the first frame is shot.

Selecting the image size for still images (Image Size)

1 Select the image size option in the function menu.

12M 12M 12m 5.0 4.0 3.0 2.0 1.0 0.0 -0.0 -0.5 -1.0 -1.5 -2.0 -2.5 -3.0 -3.5 -4.0 -4.5 -5.0 -5.5 -6.0 -6.5 -7.0 -7.5 -8.0 -8.5 -9.0 -9.5 -10.0

2 Use ◀▶ to select the setting option, and press the ⏻ button to set.

Option	Description
12M (3968×2976)	Suitable for printing pictures over A3 (11×17 in.).
8M (3264×2448)	Suitable for printing pictures up to A3 (11×17 in.).
5M (2560×1920)	Suitable for printing pictures at A4 (8.5×11 in.).
3M (2048×1536)	Suitable for printing pictures up to A4 size (8.5×11 in.).
2M (1600×1200)	Suitable for printing pictures at A5 (5×7 in.).
1M (1280×960)	Suitable for printing pictures at postcard size.
VGA (640×480)	Suitable for viewing pictures on a TV or using pictures on emails and web sites.
16:9L (3968×2232)	Suitable for playing pictures on a widescreen TV and for printing on A3 or 11"×17".
16:9S (1920×1080)	Suitable for playing pictures on a widescreen TV and for printing on A5 or 5"×7".

Using the LED illuminator

In a dark location, the LED illuminator can be used as an auxiliary light to see things or compose shots.

1 Set [LED Illuminator] (p. 53) to [On].

2 Press and hold the INFO button down until the LED illuminator lights up.

- If you perform an operation when the LED illuminator is on, it will illuminate up to approx. 90 seconds.

LED illuminator

The LED illuminator turns off if no operation is performed for approx. 30 seconds.
Even when the camera's power is turned off, if the INFO button is pressed until the LED illuminator lights up, it lights for 30 seconds.

To turn the LED illuminator off

Press and hold the INFO button down, until the LED illuminator turns off.

Playing back grouped images

Depending on the settings, the taken images are displayed as a group during playback. Several operations are available for the grouped images; such as expanding to view or erase images respectively, or erasing the grouped images collectively.

T side	Expands.Select the image and press the⊗ button to display the images respectively.Use ◁▷ to view the previous/next frame.
⊗ button	Playback/pauses playback.
Δ ▽	Adjusts the volume when playing back images with sound.

If a group frame is erased, all images in that group are erased collectively. If the group includes images you want to keep, expand the group and protect them respectively.

Playing back panorama images

Panorama images that were combined together using [Auto] or [Manual] can be scrolled for viewing.

"To take panoramic photos ([Panorama])" (p. 26)

1 Select a panorama image during playback.

! "Viewing images" (p. 21)

Black-and-white cityscape photo of a suspension bridge with waterfront buildings in the foreground (no visible text or symbols)

2 Press the Ⓞ button.

Black-and-white photo of a suspension bridge over a cityscape with visible trusses and water reflection (no text or symbols)

Viewing area

To control panorama image playback

Zoom in/Zoom out: Press the Ⓞ button to pause playback. Then press the zoom button to enlarge/shrink the image.

Playback direction: Press the Ⓞ button to pause playback. Then press △▽◀▶ to scroll the image in the direction of the pressed button.

Pause: Press the Ⓞ button.

Restart scrolling: Press the Ⓞ button.

Stop playback: Press the MENU button.

Playing back 3D images

3D images shot with this camera can be played back on 3D-compatible devices connected to this camera using an HDMI cable (sold separately).

"Shooting 3D images" (p. 27)
When playing back 3D images, read the warnings in the instruction manual for the 3D-compatible devices carefully.
1 Connect the 3D-compatible device and camera using the HDMI cable.
For the connection and setting method, see "Connection via HDMI cable" (p. 49)
2 Use △▽ to select [3D Show] and then press the Ⓞ button.
3 Use △▽◀▷ to select the 3D image to play back and then press the Ⓞ button.
To start a slideshow, press the MENU button. To stop the slideshow, press the MENU or OK button.
3D images are composed of JPEG files and MPO files. If any files are deleted on a computer, playback of 3D images may not be possible.

Menus for Shooting Functions

The default settings of the function are highlighted in ____.
For information on using the menus, see "Using the Menu" (p. 8).

Restoring the shooting functions to the default settings [Reset]

(Camera Menu 1) ▶ Reset

Submenu 2	Application
Yes	Restores the following menu functions to the default settings.• Flash (p. 20)• Macro (p. 29)• Self-timer (p. 29)• Exposure compensation (p. 30)• White balance (p. 30)• ISO (p. 31)• Drive (p. 31)• Image Size (still images) (p. 32)• Menu functions in [☐, ☐] (p. 36 to 40)
No	The settings will not be changed.

Selecting the image quality for still images [Compression]

(Camera Menu 1) ▶ Compression

Submenu 2	Application
Fine	Shooting at high quality.
Normal	Shooting at normal quality.

“Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and cards” (p. 66, 67)

Brightening the subject against backlight [Shadow Adjust]

(Camera Menu 1) ▶ Shadow Adjust

Submenu 2	Application
Auto	Automatically On when a compatible shooting mode is selected.
Off	The effect is not applied.
On	Shoot with automatic adjustment to brighten an area that has become darker.

When set to [Auto] or [On], [ESP/●] (p. 37) is automatically fixed to [ESP].

Selecting the focusing area [AF Mode]

(Camera Menu 1) ▶ AF Mode

Submenu 2	Application
Face/iESP	The camera focuses automatically. (If a face is detected, it is shown by a white frame ^1 ; when the shutter button is pressed halfway and the camera focuses, the frame turns to green ^2 . If no face is detected, the camera chooses a subject in the frame and focuses automatically.)
Spot	The camera focuses on the subject located within the AF target mark.
AF Tracking	The camera tracks the subject movement automatically to focus on it continuously.

*1 For some subjects, the frame may not appear or may take some time to appear.

^2 If the frame blinks in red, the camera cannot focus. Try refocusing on the subject.

To focus on a moving subject continuously (AF Tracking)

① Hold the camera to align the AF target mark on the subject and press the Ⓞ button.
② When the camera recognizes the subject, the AF target mark automatically tracks the subject movement to focus on it continuously.
③ To cancel the tracking, press the Ⓞ button.
Depending on the subjects or the shooting conditions, the camera may be unable to lock the focus or fail to track the subject movement.
When the camera fails to track the subject movement, the AF target mark changes to red.

Selecting the method for measuring the brightness [ESP/□]

(Camera Menu 1) ▶ ESP/☐

Submenu 2	Application
ESP	Shoots to obtain a balanced brightness over the entire screen (Meters the brightness at the center and surrounding areas of the screen separately).
(spot)	Shoots the subject at the center during backlighting (Meters the brightness at the center of the screen).

When set to [ESP], the center may appear dark when shooting against strong backlighting.

Shooting at higher magnifications than optical zoom [Digital Zoom]

(Camera Menu 1) ▶ Digital Zoom

Submenu 2	Application
Off	Disable digital zoom.
On	Enable digital zoom.

[Digital Zoom] is not available when [s Super Macro], [s S-Macro LED] (p. 29), or [hi1]/[hi2]] (p. 31) is selected.
The option selected for [Digital Zoom] affects the appearance of the zoom bar. "To take larger images" (p. 19)

Reducing the blur caused by the camera shake when shooting [Image Stabilizer] (still images)/[IS Movie Mode] (movies)

(Camera Menu 1)
▶Image Stabilizer (still images)/
(Movie Menu) ▶ IS Movie Mode (movies)

Submenu 2	Application
Off	The image stabilizer is deactivated. This is recommended for shooting when the camera is fixed in place on a tripod or other stable surface.
On	The image stabilizer is activated.

Default setting [Image Stabilizer] [On], [IS Movie Mode] [Off]
There may be a noise coming from inside the camera when the shutter button is pressed with [Image Stabilizer] (still images) set to [On].

Images may not be stabilized if camera shake is too severe.
When the shutter speed is extremely slow, such as when taking pictures at night, [Image Stabilizer] (still images) may not be as effective.

Using separately sold accessories [Accessory]

(Camera Menu 2) ▶ Accessory

Submenu 2	Submenu 3	Application
Remote Flash	Off	The external flash is not available.
	RC	An Olympus Wireless RC Flash System compatible flash is used for taking pictures. (Channel: CH1, Group: A)
	Slave	The commercially-available slave flash that is synchronized with the camera flash is used for taking pictures. The flash intensity setting can be adjusted.
Conversion lens	Off	Select when taking pictures without a conversion lens.
	PTWC-T01	Select depending on designated optional conversion lenses.
	FCON-T01
	TCON-T01

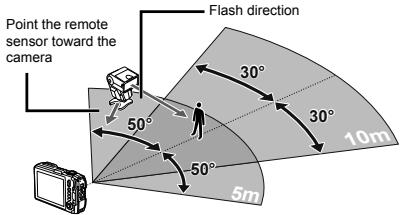

“Taking pictures with the Olympus Wireless RC Flash System” (p. 67)

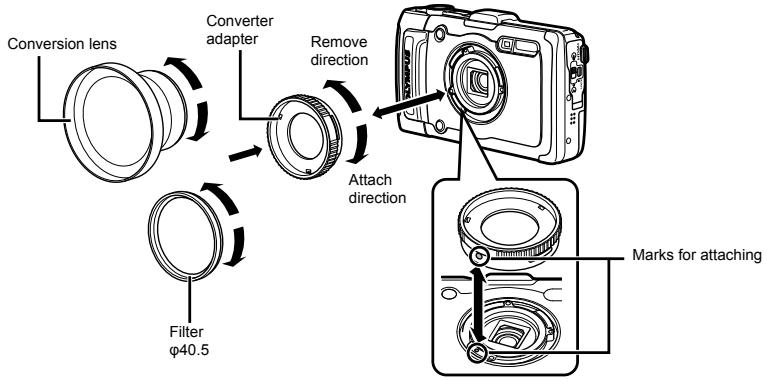

"Use the conversion lens (sold separately)" (p. 68)

Using the AF illuminator to focus on a shadowed subject [AF Illuminat.]

(Camera Menu 2) ▶ AF Illuminat.

Submenu 2	Application
Off	The AF illuminator is not used.
On	When the shutter button is pressed halfway down, the AF illuminator turns on to aid focusing.

AF illuminator

Viewing the image immediately after shooting [Rec View]

(Camera Menu 2) ▶ Rec View

Submenu 2	Application
Off	The image being recorded is not displayed. This allows the user to prepare for the next shot while following the subject in the monitor after shooting.
On	The image being recorded is displayed. This allows the user to make a brief check of the image that was just taken.

Automatically rotating images shot with the camera in a vertical position during playback [Pic Orientation]

(Camera Menu 2) ▶ Pic Orientation

During shooting, the [☐] (p. 43) setting on the playback menu is set automatically.
This function may not work properly if the camera is facing up or down during shooting.

Submenu 2	Application
Off	Information about the vertical/horizontal orientation of the camera during shooting is not recorded with images. Images shot with the camera in a vertical position are not rotated during playback.
On	Information about the vertical/horizontal orientation of the camera during shooting is recorded with images. Images are automatically rotated during playback.

Displaying icon guides [Icon Guide]

(Camera Menu 2) ▶ Icon Guide

Submenu 2	Application
Off	No icon guide is displayed.
On	The explanation of the selected icon will be displayed when a shooting mode or function menu icon is selected (position the cursor on the icon for a while to display the explanation).

ISO Auto The camera will automatically set the ISO sensitivity for optimal image quality. Icon guide

Imprinting the date of recording [Date Stamp]

(Camera Menu 2) ▶ Date Stamp

Submenu 2	Application
Off	Do not imprint the date.
On	Stamp new photographs with the date of recording.

When the date and time are not set, [Date Stamp] cannot be set.
"Language, date, time, and time zone" (p. 15)

! The date stamp can not be deleted.

! [Date Stamp] is not available when [✉], [3D], [•B*], or [MAGIC] is selected.

When drive settings (p. 31) are set to other than [☐], [Date Stamp] cannot be set.

Shooting larger pictures than when using optical zoom with low degrading of image quality [Super-Res Zoom]

(Camera Menu 2) ▶ Super-Res Zoom

Submenu 2	Application
Off	Disable super-resolution zoom.
On	Enable super-resolution zoom.

[Super-Res Zoom] is available only when [Image Size] (p. 32) is set to [12_M] .
[Super-Res Zoom] is not available when [♥s Super Macro], [♥s S-Macro LED] (p. 29) or [Hi 1J]/[Hi 2J] (p. 31) is selected.

Selecting the image size for movies [Image Size]

(Movie Menu) ▶ Image Size

Submenu 2	Application
1080p720pVGA (640×480)	Select the image quality based on the image size and frame rate.

“Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and cards” (p. 66, 67)

Recording sound when shooting movies [ψ]

(Movie Menu) ▶

Submenu 2	Application
Off	No sound is recorded.
On	Sound is recorded.

Reduce wind noise in the recorded sound when recording movie [Wind Noise Reduction]

(Movie Menu) ▶ Wind Noise Reduction

Submenu 2	Application
Off	Disable Wind Noise Reduction.
On	Uses Wind Noise Reduction.

Adjusting the microphone volume [Recording Volume]

(Movie Menu) ▶ Recording Volume

Submenu 2	Application
Normal	Set the microphone level to Normal for general use.
Low	Set the microphone level to Low not to produce clipping sound when the microphone level is high.

Menus for Playback, Editing, and Printing Functions

The default settings of the function are highlighted in
Data must be created with the ib (PC software) before using some functions.
Refer to the ib (PC software) help guide for details on how to use the ib (PC software).
For details on installing the ib (PC software), see "Installing the PC software and registering user" (p. 13).

Playing back pictures automatically [Slideshow]

▶ (Playback Menu) ▶ Slideshow

Submenu 2	Submenu 3	Application
Slide	All/Event/Collection*1	Selects the content to be included in the slideshow.
BGM	Off/Cosmic/Breeze/Mellow/Dreamy/Urban	Selects the background music options.
Type	Normal/Fader/Zoom	Selects the type of transition effect used between slides.
Start	—	Starts the slideshow.

*1 The [Collection] that has been created with the ib (PC software) and imported back from a computer can play back.
During a slideshow, press ▷ to advance one frame, ◀ to go back one frame.

Searching for images and playing back the related images [Photo Surfing]

▶ (Playback Menu) ▶ Photo Surfing

In [Photo Surfing], images can be searched and related images can be played back by selecting the related items.

To start [Photo Surfing]

Press the Ⓞ button to start [Photo Surfing].

When a related item of the image displayed is selected with , images related to the item are displayed in the lower part of the monitor. Use ◀▶ to display an image.

To select related items that are not displayed, press the Ⓞ button when selecting an item.

To stop [Photo Surfing], use to select [ALL], and press the Ⓞ button.

Related items Images corresponding the related items

Using the ib (PC software) and importing data back to the camera

Refer to the ib (PC software) help guide for details on how to use the ib (PC software).
The ib (PC software) may not work properly on the pictures edited by other application software.

The following [Photo Surfing] functions can be performed when data created with the ib (PC software) is imported back to the camera.

Information of persons or shooting locations and new Collections can be added in the related items.

Changing the image size [√]

(Playback Menu) ▶ Edit ▶

Submenu 3	Application
VGA 640×480	This saves a high-resolution image as a separate image with a smaller size for use in e-mail attachments and other applications.
CVGA 320×240

① Use ◀▷ to select an image.
② Use to select an image size and press the OK button.

- The resized image is saved as a separate image.

Cropping image [☐]

(Playback Menu) ▶ Edit ▶

① Use ◀▶ to select an image, and press the Ⓞ button.
② Use the zoom buttons to select the size of the cropping frame, and use △▽◀▷ to move the frame.

Cropping frame Back menu WT

③ Press the Ⓞ button after you have selected the area to trim.

- The edited image is saved as a separate image.

Adding sound to still images [ψ]

(Playback Menu) ▶ Edit ▶ ⏻

① Use ◀▶ to select an image.
② Aim the microphone toward the sound source.

STRAWO

Microphone

③ Press the Ⓞ button.

• Recording starts.
• The camera adds (records) sound for approx. 4 seconds while playing back the image.

Retouching faces on still images [Beauty Fix]

(Playback Menu) ▶ Edit ▶ Beauty Fix

Depending on the picture, the editing may not be effective.

① Use ◀▶ to select an image, and press the Ⓞ button.
② Use to select a retouching item, and press the Ⓞ button.
③ Select [OK] or [Beauty Fix] on the review screen, and press the Ⓞ button to save or to retouch the image additionally.

- The retouched image is saved as a separate image.

OK Beauty Fix Back MENJ

The [Image Size] (p. 32) of the retouched image is limited to [5_M] or lower.

Beauty Fix

① Select a retouching item, and press the Ⓞ button.

Eye Color Back MEN Off

② Press the Ⓞ button on the review screen.

Brightening areas that are dark due to backlight or other reasons [Shadow Adj]

▶ (Playback Menu) ▶ Edit ▶ Shadow Adj

① Use ◀▶ to select an image, and press the Ⓞ button.

- The edited image is saved as a separate image.

Depending on the picture, the editing may not be effective.

The retouching process may lower the image resolution.

Retouching red eyes in flash shooting [Redeye Fix]

▶ (Playback Menu) ▶ Edit ▶ Redeye Fix

① Use ◀▶ to select an image, and press the Ⓞ button.

- The edited image is saved as a separate image.

Depending on the picture, the editing may not be effective.

The retouching process may lower the image resolution.

Changing the landmark information recorded on the images [Landmark]

▶ (Playback Menu) ▶ Edit ▶ Landmark

You can change the landmark information (such as place names and names of buildings) recorded on the images when they were shot using the GPS function to different landmark information registered near the place where you shot the images.

Refer to “Recording the shooting location and time information on the images shot [GPS Settings]” (p. 54).

① Select the image using ◀, and press the Ⓞ button.

- If the target landmark is at a distance from the position recorded on the images, it may not be displayed.

- A list of the landmarks registered near the position recorded on the images are displayed.

② Select the new landmark to be recorded on the image using , and press the OK button.

③ Select [OK] using , and press the Ⓞ button.

Rotating images [☐]

▶ (Playback Menu) ▶ Edit ▶

① Use ◀▶ to select an image.

② Press the Ⓞ button to rotate the image.

③ If necessary, repeat Steps ① and ② to make settings for other images, and press the MENU button.

The new picture orientations will be saved even after the power is turned off.

Erasing images [Erase]

▶ (Playback Menu) ▶ Erase

Submenu 2	Application
All Erase	All images in the internal memory or card will be erased.
Sel. Image	Images are individually selected and erased.
Erase	Deletes the image displayed.

When erasing pictures in the internal memory, do not insert the card into the camera.
! Protected images cannot be erased.

To individually select and erase images [Sel. Image]

① Use to select [Sel. Image], and press the ☐ button.
② Use ◀▶ to select the image to be erased, and press the ⏻ button to add a √ mark to the image.

Sel. Image (1) ✓ OK 4/30 mark Erase/Cancel MENU

③ Repeat Step ② to select the images to be erased, and then press the MENU button to erase the selected images.
④ Use to select [Yes], and press the Ⓞ button. • The images with a √ mark are erased.

To erase all images [All Erase]

① Use to select [All Erase], and press the ☑ button.
② Use to select [Yes], and press the Ⓞ button.

Saving print settings to the image data [Print Order]

▶ (Playback Menu) ▶ Print Order

"Print reservations (DPOF)" (p. 57)
! Print reservation can be set only for still images that are recorded to the card.

Protecting images [5]

▶ (Playback Menu) ▶

Protected images cannot be erased by [Erase] (p. 22, 44), [Sel. Image] (p. 44), or [All Erase] (p. 44), but all images are erased by [Memory Format]/[Format] (p. 45).

① Use ◀▶ to select an image.
② Press the Ⓞ button.

- Press the Ⓞ button again to cancel the settings.

③ If necessary, repeat Steps ① and ② to protect other images, and press the MENU button.

Select images for upload to the Internet using the supplied OLYMPUS Viewer 2 software [Upload Order]

▶ (Playback Menu) ▶ Edit ▶ Upload Order

① Use ◀▶ to select an image.
② Press the Ⓞ button.
- Press the Ⓞ button again to cancel the settings.
③ Repeat Steps ① and ② as required.
④ Press the MENU button.

! Only JPEG files can be selected for upload.

Only JPEG files can be selected for upload.

! See on-line help for upload instructions.

GPS data recorded with images can not be deleted. Select [Off] for [GPS Settings] if you do not wish to reveal the locations where photographs were taken.

Menus for Other Camera Settings

The default settings of the function are highlighted in ____.

Erasing data completely [Memory Format]/[Format]

f (Settings Menu 1) ▶ Memory Format/Format

Before formatting, check that no important data is left in the internal memory or card.
Cards must be formatted with this camera before first use or after being used with other cameras or computers.
Be sure to remove the card before formatting the internal memory.

Submenu 2	Application
Yes	Completely erases the image data in the internal memory or card (including protected images).
No	Cancels formatting.

Copying images in the internal memory to the card [Backup]

¶ (Settings Menu 1) ▶ Backup

Submenu 2	Application
Yes	Backs up image data in the internal memory to the card.
No	Cancels the backup.

Using an Eye-Fi card [Eye-Fi]

¶ (Settings Menu 1) ▶ Eye-Fi

Submenu 2	Application
All	Transfers all images.
Sel. Image	Transfers only selected image.
Off	Disable Eye-Fi communication.

When using an Eye-Fi card, read the Eye-Fi card instruction manual carefully, and comply with the instructions.
Use the Eye-Fi card in compliance with the laws and regulations of the country where the camera is used.
In locations such as on an airplane, where the Eye-Fi communication is prohibited, remove the Eye-Fi card from the camera, or set [Eye-Fi] to [Off].
This camera does not support the Eye-Fi card's Endless mode.

Saving custom settings [Custom Mode Setup]

f (Settings Menu 1) ▶ Custom Mode Setup

The screen to select the Custom Mode1 or Custom Mode2 is displayed.

Submenu 2	Application
Set	Save current settings.
Reset	Return to the default setting.

Selecting a method for connecting the camera to other devices [USB Connection]

f (Settings Menu 1) ▶ USB Connection

Submenu 2	Application
Auto	When the camera is connected to another device, the settings selection screen is displayed.
Storage	Select when connecting the camera to a computer via a storage device.
MTP	Select when transferring images without using the supplied [ib] (PC software) on Windows Vista/Windows 7.
Print	Select when connecting to a PictBridge-compatible printer.

System requirements

Windows : Windows XP Home Edition/Professional (SP1 or later)/Vista/Windows 7

Macintosh : Mac OS X v10.3 or later

When using another system other than Windows XP (SP2 or later)/Windows Vista/Windows 7, set to [Storage].
Even if a computer has USB ports, proper operation is not guaranteed in the following cases:

• Computers with USB ports installed using an expansion card, etc.
• Computers without a factory-installed OS and home-built computers

Turning on the camera with the ▶ button [▶ Power On]

f (Settings Menu 1) ▶ Power On

Submenu 2	Application
No	The camera is not turned on. To turn on the camera, press the ON/OFF button.
Yes	Press and hold the ▶ button to turn the camera on in the playback mode.

Selecting the camera sound and its volume [Sound Settings]

¶ (Settings Menu 1) ▶ Sound Settings

Submenu 2	Submenu 3	Application
Sound Type	12/3	Selects the camera sounds (operation sounds, shutter sound, and warning sound).
Volume	0/1/2[3]4/5	Selects the operation volume of camera buttons.
▶ Volume	0/1/2[3]4/5	Selects the image playback volume.

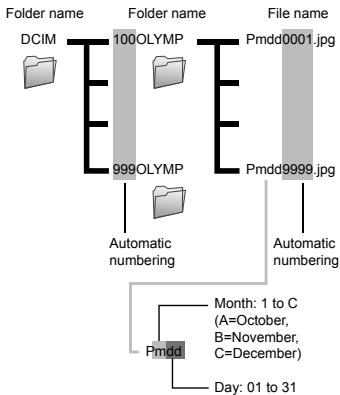

Resetting the file names of pictures [File Name]

¶ (Settings Menu 2) ▶ File Name

Adjusting the image processing function [Pixel Mapping]

¶ (Settings Menu 2) ▶ Pixel Mapping

This function has already been adjusted at factory shipping, and no adjustment is needed right after purchase. Approximately once a year is recommended.
For best results, wait at least one minute after taking or viewing pictures before performing pixel mapping. If the camera is turned off during pixel mapping, be sure to perform it again.

To adjust the image processing function

Press the Ⓞ button when [Start] (Submenu 2) is displayed.

- The check and adjustment of the image processing function starts

Submenu 2	Application
Reset	This resets the sequential number for the folder name and file name whenever a new card is inserted. ^1 This is useful when grouping images on separate cards.
Auto	Even when a new card is inserted, this continues the numbering for the folder name and file name from the previous card. This is useful for managing all image folder names and files names with sequential numbers.

^*1 The number for the folder name is reset to 100, and the one for the file name is reset to 0001.

Adjusting the brightness of the monitor [☐☐]

f (Settings Menu 2) ▶

To adjust the monitor brightness

① Use to adjust the brightness while viewing the screen, and then press the OK button.

Black-and-white exterior view of a traditional arched bridge over water, no visible text or symbols

Displaying indicators [Info Off]

f (Settings Menu 2) ▶ Info Off

Submenu 2	Application
10 sec	Indicators automatically clear from the display if no operations are performed for 10 seconds.
Hold	Indicators are always displayed during shooting.

! Indicators that are always displayed may "burn in" to the monitor. "Monitor" (p. 79)

Playing back images on a TV [TV Out]

f (Settings Menu 2) ▶ TV Out

Submenu 2	Submenu 3	Application
NTSC/PAL	NTSC	Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on.
	PAL	Connecting the camera to a TV in European countries, China, and so on.
HDMI Out	480p/576p720p1080i	Set the signal format to be given priority. If the TV setting does not match, it is changed automatically.
HDMI Control	Off	Operate with the camera.
	On	Operate with the TV remote control.

The factory default settings differ according to the region where the camera is sold.

To play back camera images on a TV

- Connection via AV cable

① Use the camera to select the same video signal system as the one of connected TV ([NTSC]/[PAL]).

② Connect the TV and camera.

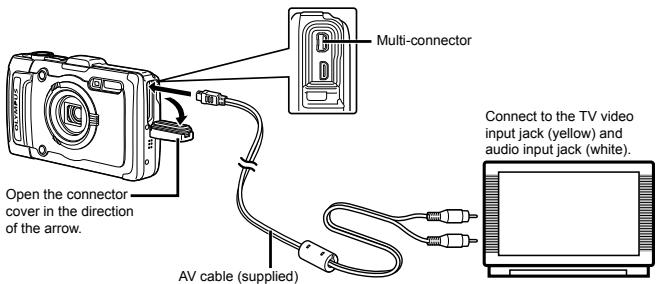

Open the connector cover in the direction of the arrow. Multi-connector AV cable (supplied) Connect to the TV video input jack (yellow) and audio input jack (white).

- Connection via HDMI cable

① On the camera, select the digital signal format that will be connected ([480p/576p]/[720p]/[1080i]).
② Connect the TV and camera.
③ Turn on the TV, and change "INPUT" to "VIDEO (an input jack connected to the camera)".
④ Turn on the camera, and use to select the image for playback.

The TV video signal system varies depending on the countries and regions. Before viewing camera images on your TV, select the video output according to your TV's video signal type.
When the camera is connected to the computer by the USB cable, do not connect the HDMI cable to the camera.

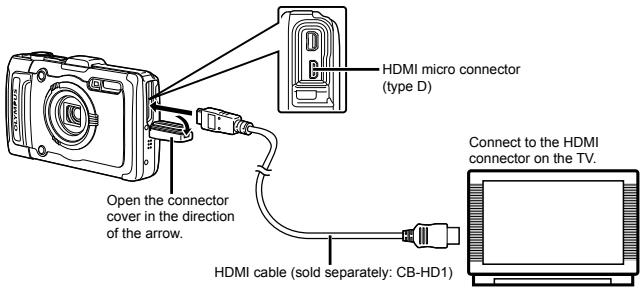

HDMI micro connector (type D) Open the connector cover in the direction of the arrow. HDMI cable (sold separately: CB-HD1) Connect to the HDMI connector on the TV.

For details on changing the input source of the TV, refer to the TV's instruction manual.
When the camera and TV are connected by both an AV cable and an HDMI cable, the HDMI cable will take priority.
Depending on the TV's settings, the displayed images and information may become cropped.

To operate images with the TV remote control

① Set [HDMI Control] to [On], and turn off the camera.
② Connect the camera and TV with an HDMI cable. "Connection via HDMI cable" (p. 49)
③ First turn on the TV, and then turn on the camera.

- Operate by following the operation guide that is displayed on the TV.

With some TVs, operations cannot be performed with the TV remote control even though the operation guide is displayed on the screen.
If operations cannot be performed with the TV remote control, set [HDMI Control] to [Off] and operate using the camera.

Saving battery power between shots [Power Save]

f (Settings Menu 2) ▶ Power Save

Submenu 2	Application
Off	Cancels [Power Save].
On	When the camera is not being used for approx. 10 seconds, the monitor automatically turns off to save battery power.

To resume standby mode

Press any button.

Changing the display language [☐]

f (Settings Menu 2) ▶

Submenu 2	Application
Languages	The language for the menus and error messages displayed on the monitor is selected.

Setting the date and time [∅]

f (Settings Menu 3) ▶

! "Language, date, time, and time zone" (p. 15).

Choosing home and alternate time zones [World Time]

ƒ (Settings Menu 3) ▶ World Time

You will not be able to select a time zone using [World Time] if the camera clock has not first been set using [💡].

Submenu 2	Submenu 3	Application
Home/Alternate		The time in the home time zone (the time zone selected for in submenu 2).
		The time in the travel destination time zone (the time zone selected for in submenu 2).
^-1	—	Select the home time zone ( ).
^-1,2	—	Select the travel destination time zone ( ).

^*1 In areas where daylight saving time is in effect, use to turn daylight saving time ([Summer]) on.
*2 When you select a time zone, the camera automatically calculates the time difference between the selected zone and the home time zone (↑) to display the time in the travel destination time zone (→).

Restoring data in the camera [Reset Database]

f (Settings Menu 3) ▶ Reset Database

Playback will become available by performing [Reset Database] when the Photo surfing function is not activated properly. However, data such as collections and other groups created with the ib (PC software) is deleted from the database in the camera. Import the data back into the camera from a computer to playback the data created with the ib (PC software).

Registering the settings for Beauty Fix [Beauty Settings]

ƒ (Settings Menu 3) ▶ Beauty Settings

Depending on the picture, the editing may not be effective.

① Use to select a retouching setting, and press the OK button.
② Press the shutter button to take a portrait picture.

Take a portrait picture.

! The image is not saved.
③ Select a retouching item, and press the Ⓞ button.

Eye Color Back MENU Off

④ Press the Ⓞ button on the review screen to save the image.

- Registration is complete.

Displaying the current altitude/water depth (atmospheric/hydraulic pressure) [Manometer]

f (Settings Menu 3) ▶ Tough Settings
▶ Manometer

The readings may have a margin of error depending on meteorological conditions. Use the readings only for your reference.

Submenu 2	Submenu 3	Application
Manometer	Off	Cancels the manometer display.
	On	Displays the current altitude/water depth (atmospheric/hydraulic pressure) in the shooting standby mode screen. (-12 m to 5,000 m)
	Calibrate	Proceed to the setting screen. See below.

When set to [On], a warning message appears in the monitor as a water depth close to 10 m (32.8 ft) is reached.

To adjust the altitude/water depth display

① Use to select the current altitude/water depth, and press the OK button to set.

Calibrate 1200m Back MEN

Setting the units of elevation, depth, etc. [m/ft settings]

¶ (Settings Menu 3) ▶ Tough Settings
▶ m/ft settings

Submenu 2	Submenu 3	Application
m/ft settings	m	This displays in meters.
	ft	This displays in feet.

Operating the camera by tapping the body [Tap Control]

f (Settings Menu 3) ▶ Tough Settings
▶ Tap Control

Submenu 2	Submenu 3	Application
Tap Control	Off	Cancels [Tap Control].
	On	[Tap Control] is activated.
	Calibrate	Adjusts the tap strength and intervals between multiple taps on each side of the camera body. (top, left, right, & back)

Operating during shooting mode (Example: Flash mode)

① Tap the right or left side of the camera body once.
- The flash mode selection screen is displayed.
② Tap the right or left side of the camera body to select a function.

③ Tap the back of the camera body twice to confirm your selection.

Black-and-white photo of a person sitting on grass reading a book, no visible text or symbols

! Tap the camera firmly using the pad of your finger.
When the camera is stabilized on a tripod for example, tap control may not work properly.
To prevent dropping the camera when using tap control, strap the camera to your wrist.

Operating during playback mode

When switched to playback mode by tapping the top of the camera body twice, the operations below can be used.

Display next image: Tap the right side of the camera once.

Display previous image: Tap the left side of the camera once.

Fast forward and reverse: Tilt the camera to the right or the left.

Return to the shooting mode: Tap the top side of the camera twice.

Take a picture: Tap the back of the camera twice (Only for the [8 Snow] mode).

Line drawing of a hand inserting a camera into a display case (no text or symbols)

When tapping the camera's top

To adjust the tap control

① Select [Calibrate] in Submenu 3 and press the Ⓞ button.
② Select the part to adjust with and press the ☑ button.
③ Select the [Str] setting with and press .
④ Select the [Intvl] setting with and press the OK button.

Top Str Avg Intvl Norm Back MENU

Check the operation of the camera by tapping on the camera after making the settings.

Using the LED illuminator as an auxiliary light [LED Illuminator]

f (Settings Menu 3) ▶ Tough Settings

▶ LED Illuminator

Submenu 2	Submenu 3	Application
LED Illuminator	Off	Disables the LED illuminator.
	On	Enables the LED illuminator.

! "Using the LED illuminator" (p. 33)

Recording the shooting location and time information on the images shot [GPS Settings]

¶ (Settings Menu 3) ▶ GPS Settings

The [Track] option records GPS data to create a GPS track log.

Submenu 2	Submenu 3	Application
GPS	Off	When the GPS function is not going to be used.
	On	When the GPS function is going to be used.
	Status	When the location information screen is to be displayed.
Auto Time Adjust	Off	Do not adjust the clock.
	On	Adjust the clock using GPS UTC data.
Track	Off	Turn GPS tracking off.
	Auto	Automatically track an optimal route.
	1min	Create a track log at intervals of 1 minute.
	30sec	Create a track log at intervals of 30 seconds.
	10sec	Create a track log at intervals of 10 seconds.
	Save	Create a track log manually.
Country/Region	Off	When the country or region is not to be displayed.
	On	When the country or region is to be displayed.
State/Province	Off	When the state or province is not to be displayed.
	On	When the state or province is to be displayed.
City	Off	When the city is not to be displayed.
	On	When the city is to be displayed.
Landmark	Off	When the landmark is not to be displayed.
	On	When the landmark is to be displayed.

[Auto Time Adjust] applies only when ⬆ (home time zone) is selected for [World Time].

Track logs are stored in the GPSLOG folder on the memory card. A new file is created each time you select [Save].

Multiple files will be created if:

• The date changes during tracking
• You set [Track]

Tracking ends automatically when:

• The battery is exhausted
- The camera is left off for more than 24 hours

For information on such topics as viewing GPS tracks, see the manual for your GPS tracking software.

Printing

Direct printing (PictBridge ^4 )

By connecting the camera to a PictBridge-compatible printer, you can print images directly without using a computer.

To find out if your printer supports PictBridge, refer to the printer's instruction manual.

*1 PictBridge is a standard for connecting digital cameras and printers of different makers and printing out pictures directly.
The printing modes, paper sizes, and other parameters that can be set with the camera vary depending on the printer that is used. For details, refer to the printer's instruction manual.
For details on the available paper types, loading paper, and installing ink cassettes, refer to the printer's instruction manual.

Printing images at the printer's standard settings [Easy Print]

In the setup menu, set [USB Connection] to [Print]. [USB Connection] (p. 46)
1 Display the image to be printed on the monitor.
! "Viewing images" (p. 21)

2 Turn on the printer, and then connect the printer and camera.

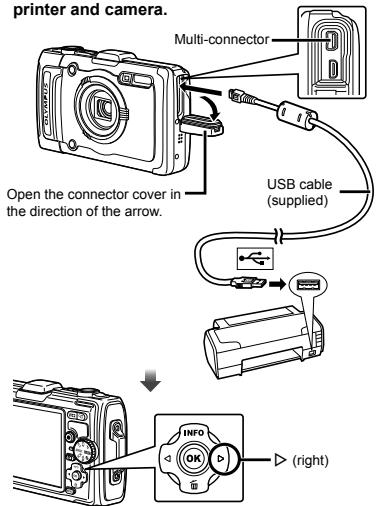

printer and camera. Multi-connector Open the connector cover in the direction of the arrow. USB cable (supplied) INFO OK (right)

3 Press ▷ to start printing.
4 To print another image, use ◀ to select an image, and press the Ⓞ button.

To exit printing

After a selected image is displayed on the screen, disconnect the USB cable from the camera and printer.

Changing the printer's settings for printing [Custom Print]

1 Follow Steps 1 and 2 for [Easy Print] (p. 55).
2 Press the Ⓞ button.
3 Use to select the print mode, and press the OK button.

Submenu 2	Application
Print	This prints the image selected in Step 6.
All Print	This prints all images stored in the internal memory or card.
Multi Print	This prints one image in a multiple layout format.
All Index	This prints an index of all images stored in the internal memory or card.
Print Order ^-1	This prints images based on the print reservation data on the card.

^*1 [Print Order] is available only when print reservations have been made. “Print Reservations (DPOF)” (p. 57)

4 Use to select [Size] (Submenu 3), and press .
If the [Printpaper] screen is not displayed, the [Size], [Borderless], and [Pics/Sheet] are set to the printer's standard.

Printpaper Back MENU Size Borderless Standard Standard

5 Use △▽ to select the [Borderless] or [Pics/ Sheet] settings, and press the Ⓞ button.

Submenu 4	Application
Off/On ^-1	The image is printed with a border around it ([Off]). The image is printed to fill the entire paper ([On]).
(The number of images per sheet varies depending on the printer.)	The number of images per sheet ([Pics/Sheet]) is selectable only when [Multi Print] is selected in Step 3.

*1 The available settings for [Borderless] vary depending on the printer.

If [Standard] is selected in Steps 4 and 5, the image is printed at the printer's standard settings.

6 Use ◀▶ to select an image.

7 Press to make a print reservation for the current image. Press to make the detailed printer settings for the current image.

To make the detailed printer settings

① Use △▽◀▷ to select the setting, and press the Ⓞ button.

Submenu 5	Submenu 6	Application
	0 to 10	This selects the number of prints.
Date	With/Without	Selecting [With] prints the images with the date.Selecting [Without] prints the images without the date.
File Name	With/Without	Selecting [With] prints the file name on the image.Selecting [Without] does not print any file name on the image.
	(Proceeds to the setting screen.)	This selects a portion of the image for printing.

To crop an image [☐]

① Use the zoom buttons to select the size of the cropping frame, use △▽◀▷ to move the frame, and then press the Ⓞ button.

Cropping frame Back 120 WT

② Use to select [OK], and press the ☑ button.

8 If necessary, repeat Steps 6 and 7 to select the image to be printed, make the detailed settings, and set [Single Print].

9 Press the Ⓞ button.

Print Back MENU Print Cancel

10 Use △▽ to select [Print], and press the Ⓞ button.

• Printing starts.
• When [Option Set] is selected in [All Print] mode, [Print Info] screen is displayed.
• When printing is finished, the [Print Mode Select] screen is displayed.

Print Mode Select Back MENU Print All Print Multi Print All Index Print Order

To cancel printing

① Press the MENU button while [Do Not Remove USB Cable] is displayed.
② Select [Cancel] using and then press the Ⓞ button.

11 Press the MENU button.

12 When the message [Remove USB Cable] is displayed, disconnect the USB cable from the camera and printer.

Print Reservations (DPOF ^4 )

In print reservations, the number of prints and date imprint option are saved in the image on the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer or a camera.

^*1 DPOF is a standard for storing automatic printout information from digital cameras.

! Print reservations can be set only for the images stored on the card.
DPOF reservations set by another DPOF device cannot be changed by this camera. Make changes using the original device. Making new DPOF reservations with this camera will erase the reservations made by the other device.
DPOF print reservations can be made for up to 999 images per card.

Single-frame print reservations [☐]

1 Display the setup menu.
! "Setup menu" (p. 9)
2 From the playback menu ▶, select [Print Order] and then press the OK button.

3 Use △▽ to select [☐], and press the Ⓞ button.

Print Order Print OK 4/30 12:00 100-0004 12/02/26 12:30

4 Use ◀▶ to select the image for print reservation. Use △▽ to select the quantity. Press the ⏻ button.
5 Use △▽ to select the [◀] (date print) screen option, and press the Ⓞ button.

Submenu 2	Application
No	This prints the image only.
Date	This prints the image with the shooting date.
Time	This prints the image with the shooting time.

6 Use to select [Set], and press the OK button.

Reserving one print each of all images on the card [ALL]

1 Follow Steps 1 and 2 in [☐] (p. 57).
2 Use △▽ to select [ALL], and press the OK button.
3 Follow Steps 5 and 6 in [☐].

Resetting all print reservation data

1 Follow Steps 1 and 2 in [☐] (p. 57).
2 Select either [☐] or [[ALL], and press the OK button.
3 Use △▽ to select [Reset], and press the OK button.

Resetting the print reservation data for selected images

1 Follow Steps 1 and 2 in [☐] (p. 57).
2 Use △▽ to select [☐], and press the Ⓞ button.
3 Use △▽ to select [Keep] and press the Ⓞ button.
4 Use ◀▷ to select the image with the print reservation you want to cancel. Use △▽ to set the print quantity to "0".
5 If necessary, repeat Step 4, and then press the Ⓞ button when finished.
6 Use △▽ to select the [◀] (date print) screen option, and press the Ⓞ button.

- The settings are applied to the remaining images with the print reservation data.

7 Use △▽ to select [Set], and press the OK button.

Usage Tips

If the camera does not work as intended, or if an error message is displayed on the screen, and you are unsure of what to do, refer to the information below to fix the problem(s).

Troubleshooting

Battery

"The camera does not work even when batteries are installed".

• Insert recharged batteries in the correct direction.
  "Inserting the battery and card" (p. 11), "Charging the battery with the included USB-AC adapter" (p. 12)
• Battery performance may have been reduced temporarily due to low temperature. Take the batteries out of the camera, and warm them by putting them in your pocket for a while.

Card/Internal memory

"An error message is displayed".

"Error message" (p. 60)

Shutter button

"No picture is taken when the shutter button is pressed".

• Cancel sleep mode.
  To save battery power, the camera automatically goes into sleep mode and the monitor turns off if there is no operation for 3 minutes when the camera is turned on. No picture is taken even if the shutter button is fully pressed in this mode. Operate the zoom buttons or other buttons to restore the camera from sleep mode before taking a picture. If the camera is left for another 12 minutes, it automatically turns off. Press the ON/OFF button to turn the camera on.

- Press the ▶ button to switch to the shooting mode.

- Wait until ⬆ (flash charge) stops blinking before taking pictures.

- With prolonged camera use, the internal temperature may increase, resulting in automatic shutdown. If this occurs, remove the battery from the camera and wait until the camera has sufficiently cooled. The camera's external temperature may also increase during use, however this is normal and does not indicate malfunction.

Monitor

"Difficult to see".

- Condensation may have occurred. Turn off the power, and wait for the camera body to become acclimated to the surrounding temperature and dry out before taking pictures.

"The light is caught in the picture".

- Shooting with flash in dark situations results in an image with many flash reflections on dust in the air.

Date and time function

"Date and time settings return to the default setting".

- If the batteries are removed and left out of the camera for about 3 days ^4 , the date and time settings return to the default setting, and must be reset.

*1 The time until the date and time settings return to the default setting varies depending on how long the batteries have been loaded.

"Language, date, time, and time zone" (p. 15)

Miscellaneous

"The camera makes a noise when taking pictures".

- The camera may activate the lens and make a noise even if no operation is performed. This is because the camera automatically performs actions of auto focus as far as it is ready to shoot.

"The compass heading is not correct or the compass needle flashes".

- The compass does not function as expected in the vicinity of strong electromagnetic fields such as those produced by televisions, microwaves, large electric motors, radio transmitters, and high-voltage power lines. Normal function can sometimes be restored by moving the camera through a figure eight while rotating your wrist.

Error message

When one of the messages below is displayed on the monitor, check the corrective action.

Error message	Corrective action
Card Error	Card problemInsert a new card.
Write Protect	Card problemThe card write-protect switch is set to the “LOCK” side. Release the switch.
Memory Full	Internal memory problem• Insert a card.• Erase unwanted images.” ^1
Card Full	Card problem• Replace the card.• Erase unwanted images.” ^1
	Card problemUse to select [Format], and press the Ⓞ button. Next, use to select [Yes], and press the Ⓞ button.” ^2
	Internal memory problemUse to select [Memory Format], and press the Ⓞ button. Next, use to select [Yes], and press the Ⓞ button.” ^2
No Picture	Internal memory/Card problemTake pictures before viewing them.
Picture Error	Problem with selected imageUse photo retouch software, etc. to view the image on a computer. If the image still cannot be viewed, the image file is corrupted.

Error message	Corrective action
The Image Cannot Be Edited	Problem with selected imageUse photo retouch software, etc. to edit the image on a computer.
[STKC]Battery Empty	Battery problemCharge the battery.
[AZBY]No Connection	Connection problemConnect the camera and computer or printer correctly.
No Paper	Printer problemLoad paper into the printer.
No Ink	Printer problemRefill the ink in the printer.
Jammed	Printer problemRemove the jammed paper.
Settings Changed*3	Printer problemReturn to the status where the printer can be used.
[XC08]Print Error	Printer problemTurn off the camera and printer, check the printer for any problems, and then turn the power on again.
Cannot Print*4	Problem with selected imageUse a computer to print.

*1 Before erasing important images, download them to a computer.
^*2 All data will be erased.
*3 This is displayed, for instance, when the printer's paper tray has been removed. Do not operate the printer while making the print settings on the camera.
*4 This camera may be unable to print images taken by other cameras.

Shooting tips

When you are unsure of how to take a picture that you envision, refer to the information below.

Focusing

"Focusing on the subject"

- Taking a picture of a subject not in the center of the screen

After focusing on an object at the same distance as the subject, compose the shot, and take the picture.

Pressing the shutter button halfway (p. 18)

• Set [AF Mode] (p. 36) to [Face/iESP]
  • Taking a picture in [AF Tracking] mode (p. 37)

The camera tracks the subject movement automatically to focus on it continuously.

- Taking a picture of subjects where autofocus is difficult

In the following cases, after focusing on an object (by pressing the shutter button halfway down) with high contrast at the same distance as the subject, compose the shot, and take the picture.

Subjects with low contrast

Line drawing of a classic car (no text or symbols)

When extremely bright objects appear in the center of the screen

Line drawing of a car parked on a roadside with trees and a fence in the background (no text or symbols)

Object with no vertical lines ^4

Simple line drawing of a window with horizontal slats and a decorative plant beside it (no text or symbols)

^*1 It is also effective to compose the shot by holding the camera vertically to focus, and then returning to the horizontal position to take the picture.

When objects are at different distances

Illustration of a tiger inside vertical bars (no text or symbols)

Fast-moving object

Illustration of a person riding a scooter with motion blur (no text or symbols)

The subject is not in the center of the frame

Line drawing of a person sitting on grass reading a book, with mountains and water in the background (no text or symbols)

"Taking pictures without camera shake"

• Taking pictures using [Image Stabilizer] (p. 37)
  The image pickup device shifts to correct for camera shake even if the ISO sensitivity is not increased. This function is also effective when taking pictures at a high zoom magnification.
• Shooting movies using [IS Movie Mode] (p. 37)
• Select [✗ Super Sport] in the shooting mode (p. 24)

The [✗ Super Sport] mode uses a fast shutter speed and can reduce the blur incurred by a moving subject.

• Taking pictures at a high ISO sensitivity

If a high ISO sensitivity is selected, pictures can be taken at a high shutter speed even at locations where a flash cannot be used.

"Selecting the ISO sensitivity" (p. 31)

Exposure (brightness)

"Taking pictures with the right brightness"

- Taking pictures of a subject against a backlight

Faces or backgrounds are bright even when shot against backlight.

[Shadow Adjust] (p. 36)

• Taking pictures using [Face/iESP] (p. 36)

Appropriate exposure is obtained for a face against backlight, and the face is brightened.

- Taking pictures using [☐] for [ESP/☐] (p. 37)

Brightness is matched with a subject in the center of the screen and the image is not affected by background light.

- Taking pictures using [Fill In] (p. 20) flash

A subject against backlight is brightened.

• Taking pictures of a white beach or snow scene Set the mode to [Beach & Snow] (p. 25).
• Taking pictures using exposure compensation (p. 30)

Adjust the brightness while viewing the screen for taking the picture. Normally, taking pictures of white subjects (such as snow) results in images that are darker than the actual subject. Use the exposure compensation to adjust in the positive (+) direction to express whites as they appear. When taking pictures of black subjects, on the other hand, it is effective to adjust in the negative (-) direction.

Color hue

WB

"Taking pictures with colors at the same shade as they appear"

- Taking pictures by selecting white balance (p. 30)

Best results in most environments can normally be obtained with the [WB Auto] setting, but for some subjects, you should try experimenting with different settings. (This is especially true for sunshade under a clear sky, mixed natural and artificial light settings, and so on.)

Image quality

"Taking sharper pictures"

• Taking pictures with the optical zoom or super-resolution zoom
  Avoid using digital zoom (p. 37) to take pictures.
  • Taking pictures at a low ISO sensitivity
  If the picture is taken with a high ISO sensitivity, noise (small colored spots and color unevenness that were not in the original image) can occur, and the image can appear grainy.
  "Selecting the ISO sensitivity" (p. 31)

Panorama

"Taking pictures so that the frames are stitched smoothly"

- A tip for panoramic shooting

Taking pictures by pivoting with the camera at the center prevents shifting of the image. When taking pictures of close objects in particular, pivoting with the lens end at the center produces favorable results.

"To take panoramic photos ([Panorama])" (p. 26)

Batteries

"Making batteries last longer"

- Set [Power Save] (p. 50) to [On]

Playback/Editing tips

Playback

"Playing images in the internal memory and card"

- Remove the card and display the images in internal memory

- "Inserting the battery and card" (p. 11)

"Viewing images with high picture quality on a high-definition TV"

- Connect the camera to the TV using an HDMI cable (sold separately)

- "Playing back images on a TV" (p. 48)

Editing

"Erasing the sound recorded to a still image"

- Record over the sound with silence when playing back the image

"Adding sound to still images [ψ]" (p. 42)

Appendix

Camera care

Exterior

• Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and wrung well.
• If any dirt, dust, sand, or other foreign materials adhere to the camera after use, wash the camera using the method described on p. 70.

Monitor

- Wipe gently with a soft cloth.

Lens

- Blow dust off the lens with a commercial blower, then wipe gently with a lens cleaner.

Do not use strong solvents such as benzene or alcohol, or chemically treated cloth.

! Mold may form on the lens surface if the lens is left dirty.

Battery/USB-AC adapter

- Wipe gently with a soft, dry cloth.

Storage

• When storing the camera for extended periods, remove the battery, USB-AC adapter and card, and keep in a cool, dry place that is well ventilated.
• Periodically insert the battery and test the camera functions.

Avoid leaving the camera in places where chemical products are handled since this may result in corrosion.

Using a separately sold USB-AC adapter

The USB-AC adapter F-3AC (sold separately) can be used with this camera. Do not use any USB-AC adapter other than the dedicated one. When using F-3AC, be sure to use the USB cable included with this camera.

Do not use any other USB-AC adapter with this camera.

Using a separately sold charger

A charger (UC-90: sold separately) can be used to charge the battery.

Using your charger and USB-AC adapter abroad

• The charger and USB-AC adapter can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the charger and USB-AC adapter may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent.
• Do not use travel voltage converters as they could damage your charger and USB-AC adapter.

Cards compatible with this camera

SD/SDHC/SDXC/Eye-Fi card (commercially available) (for compatibility card details, visit the Olympus website.)

SD™ SD™ HC XC

• The Eye-Fi card may become hot during use.
- When using an Eye-Fi card, the battery may run out faster.
- When using an Eye-Fi card, the camera may function more slowly.

SD/SDHC/SDXC card write-protect switch

The SD/SDHC/SDXC card body has a write-protect switch. If you set the switch to the "LOCK" side, you will not be able to write to the card, delete data or format. Return the switch to enable writing.

3.25 LOCK

Checking the image saving location

The memory indicator shows whether the internal memory or card is being used during shooting and playback.

Current memory indicator

IN: Internal memory is being used

SD: Card is being used

Even if [Memory Format]/[Format], [Erase], [Sel. Image], or [All Erase] is performed, the data in the card is not completely erased. When disposing of the card, damage the card to prevent the disclosure of personal data.

Readout/recording process of the card

During shooting, the current memory indicator lights up in red while the camera is writing data. Never open the battery/card compartment cover or unplug the USB cable. This can not only damage the image data but also render the internal memory or card unusable.

Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards

The figures for the number of storable still pictures and recording length are approximate. The actual capacity varies with shooting conditions and the card used.

Still images

Image Size	Compression	Number of storable still pictures
		Internal memory	SD/SDHC/SDXC card (4 GB)
12M 3968×2976	FINE	1	663
	NORM	2	1,298
8M 3264×2448	FINE	2	968
	NORM	3	1,877
5M 2560×1920	FINE	3	1,544
	NORM	6	3,128
3M 2048×1536	FINE	4	2,346
	NORM	9	4,692
2M 1600×1200	FINE	8	3,935
	NORM	15	7,624
1M 1280×960	FINE	12	5,809
	NORM	23	11,087
VGA 640×480	FINE	42	20,314
	NORM	69	30,452
f69L 3968×2232	FINE	1	877
	NORM	3	1,718
f69S 1920×1080	FINE	7	3,697
	NORM	14	6,777

Movies

Image Size	Recording length
	Internal memory	SD/SDHC/SDXC card (4GB)
1080 1920×1080 ^-1	2 sec.	24 min. 45 sec.
720 1280×720 ^-1	4 sec.	29 min.
KG 640×480	10 sec.	96 min. 15 sec.

The maximum file size of a single movie is 2 GB, regardless of the capacity of the card.

Increasing the number of pictures that can be taken

Either erase unwanted images, or connect the camera to a computer or other device to save the images, and then erase the images in the internal memory or card.

[Erase] (p. 22, 44), [Sel. Image] (p. 44), [All Erase] (p. 44), [Memory Format]/[Format] (p. 45)

Taking pictures with the Olympus Wireless RC Flash System

You can take pictures with a wireless flash when using a flash compatible with the Olympus Wireless RC Flash System. The camera's built-in flash is used for communication between the camera and flash.

For details about operation of a wireless flash, refer to the instruction manual for the special external flash.

1 Set the wireless flash based on the guidelines below.

Wireless flash setup range guidelines

The setup range varies depending on the ambient environment.

Point the remote sensor toward the camera Flash direction 30° 30° 10m 50° 50° 5m

2 Turn on the wireless flash.
3 Use the MODE button on the wireless flash to set to RC mode, and make the channel and group settings. (Channel: CH1, Group: A)
4 Set [Remote Flash] (p. 38) on the camera to [⚡RC].

5 Select the flash option in the function menu, and then select the remote control.
“Using the flash” (p. 20)
6 Take a test shot to check the operation of the flash and the resulting image.
! Be sure to check the charge level of the camera and wireless flash before taking pictures.

Although there is no limit on the number of wireless flash units that are set up, usage of a maximum of three units is recommended to prevent malfunction due to interference with each other.
When the camera flash is set to [RC], the camera built-in flash is used for communication with the wireless flash. It cannot be used for taking pictures.

Use the conversion lens (sold separately)

Conversion lens	Converter adapter
Fish Eye converter (FCON-T01)	CLA-T01
Teleconverter (TCON-T01)

To use the conversion lens (sold separately), remove the lens ring which has been attached to the camera and then attach the converter adapter (sold separately) to the camera.

To attach/remove the lens ring

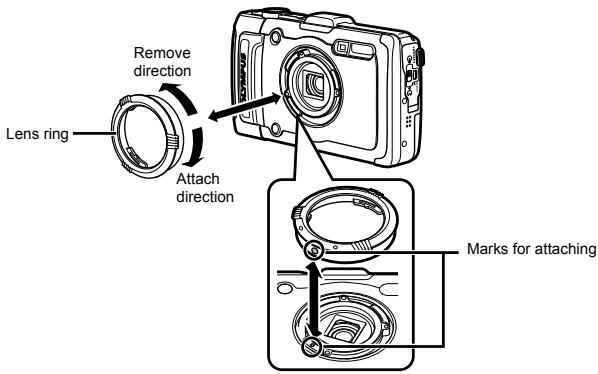

Lens ring Remove direction Attach direction Marks for attaching

To attach/remove the conversion lens/filter

Conversion lens Converter adapter Remove direction Attach direction Filter φ40.5 Marks for attaching

• To attach the lens ring or converter adapter to the camera, align the marks and screw it in the direction of attaching until it clicks into place.
• For details, please visit the Olympus website for your local area.

Important information about water and shock resistant features

Water resistance: The waterproof feature is warranted ^1 to operate at depths up to 12 m (39.8 feet) for up to one hour. The waterproof feature may be compromised if the camera is subject to substantial or excessive impact.

Shock resistance: The anti-shock feature warrants ^2 the operation of the camera against accidental impact incurred from everyday use of your digital compact camera. The anti-shock feature does not unconditionally warrant all defective operation or cosmetic damage. Cosmetic damage, such as scratches and dents, are not covered under the warranty.

As with any electronic device, proper care and maintenance are required to preserve the integrity and operation of your camera. To maintain camera performance, please take your camera to the nearest Olympus Authorized Service Center to have it inspected after any major impact. In the event the camera is damaged as a result of negligence or misuse, the warranty will not cover costs associated with the service or repair of your camera. For additional information on our warranty, please visit to the Olympus website for your local area.

Please observe the following care instructions for your camera.

*1 As determined by Olympus pressure testing equipment in accordance with IEC Standard Publication 529 IPX8 - This means that the camera can be used normally under water at a specified water pressure.
*2 This anti-shock performance is confirmed by Olympus' testing conditions in accordance with MIL-STD-810F, Method 516.5, Procedure IV (Transit Drop Test). For more details of Olympus' testing conditions, please refer to the Olympus website for your local area.

Before Use:

• Check the camera for foreign material including dirt, dust or sand.
• Firmly close the battery/card cover latch and LOCK knob.
• Do not open the battery/card compartment cover and connector cover with wet hands, while under water, or in a damp or dusty environment (e.g. beach).

After Use:

• Be sure to wipe off any excess water or debris after using the camera under water.
  • After the camera is used under seawater, immerse the camera in a bucket containing fresh water for about 10 minutes (with the battery/card compartment cover and connector cover firmly closed). After that, dry the camera in the shade with good ventilation.
• Water drops may be observed on the inner surface of the battery/card compartment cover or connector cover after you open each cover. If any water drops are found, be sure to wipe them off before using the camera.

Notes after use

- Foreign materials may be attached to the camera when using the camera in conditions with foreign materials such as dirt, dust or sand. If you continue to use the camera in such conditions, it could cause damage to the camera. To avoid such damage, wash the camera using the following method.

① Firmly close the battery/card cover latch and LOCK knob.
② Fill a bucket or other container with fresh water, immerse the camera facing downward in the bucket and shake the camera thoroughly. Or rinse the camera by placing it directly under a strong stream of tap water and pressing the buttons.

Illustration of a hand holding a car with motion lines indicating speed (no text or symbols)

Storage and Maintenance

• Do not leave the camera in an environment at high temperature (40°C (104°F) or more) or at low temperature (-10°C (14°F) or less). Failure to do so may break down water resistance.
• Do not use chemicals for cleaning, rust prevention, anti-fogging, repairing, etc. Failure to do so may break down water resistance.
• Do not leave the camera in water for a long time. Prolonged exposure to water will cause damage to the camera's appearance and/or deteriorate water resistance.
• In order to preserve the water resistant feature, as with any underwater housing, it is recommended that the waterproof packing (and seals) are replaced annually. For the Olympus distributors or service stations where the waterproof packing can be replaced, visit Olympus website for your local area.

The included accessories (e.g. USB-AC adapter) do not offer shock or water resistance.

Concerning GPS

Place Names for Locations Outside Japan

Terms and Conditions

Personal Use Only

You agree to use this Data together with this digital camera for the solely personal, non-commercial purposes for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to the restrictions set forth in the following paragraphs, you may copy this Data only as necessary for your personal use to (i) view it, and (ii) save it, provided that you do not remove any copyright notices that appear and do not modify the Data in any way. You agree not to otherwise reproduce, copy, modify, decompile, disassemble or reverse engineer any portion of this Data, and may not transfer or distribute it in any form, for any purpose, except to the extent permitted by mandatory laws. Multi-disc sets may only be transferred or sold as a complete set as provided by OLYMPUS IMAGING CORPORATION and not as a subset thereof.

Restrictions

Except where you have been specifically licensed to do so by OLYMPUS IMAGING CORPORATION, and without limiting the preceding paragraph, you may not use this Data (a) with any products, systems, or applications installed or otherwise connected to or in communication with vehicles, capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet management or similar applications; or (b) with or in communication with any positioning devices or any mobile or wireless-connected electronic or computer devices, including without limitation cellular phones, palmtop and handheld computers, pagers, and personal digital assistants or PDAs.

Warning

The Data may contain inaccurate or incomplete information due to the passage of time, changing circumstances, sources used and the nature of collecting comprehensive geographic data, any of which may lead to incorrect results.

No Warranty

This Data is provided to you "as is," and you agree to use it at your own risk. OLYMPUS IMAGING CORPORATION and its licensors (and their licensors and suppliers) make no guarantees, representations or warranties of any kind, express or implied, arising by law or otherwise, including but not limited to, content, quality, accuracy, completeness, effectiveness, reliability, fitness for a particular purpose, usefulness, use or results to be obtained from this Data, or that the Data or server will be uninterrupted or error-free.

Disclaimer of Warranty:

OLYMPUS IMAGING CORPORATION AND ITS LICENSORS (INCLUDING THEIR LICENSORS AND SUPPLIERS)
DISCLAIM ANY WARRANTIES, EXPRESS OR IMPLIED, OF QUALITY, PERFORMANCE, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. Some States, Territories and Countries do not allow certain warranty exclusions, so to that extent the above exclusion may not apply to you.

Disclaimer of Liability:

OLYMPUS IMAGING CORPORATION AND ITS LICENSORS (INCLUDING THEIR LICENSORS AND SUPPLIERS) SHALL NOT BE LIABLE TO YOU: IN RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THE INFORMATION; OR FOR ANY LOSS OF PROFIT, REVENUE, CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF YOUR USE OF OR INABILITY TO USE THIS INFORMATION, ANY DEFECT IN THE INFORMATION, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVEN IF OLYMPUS IMAGING CORPORATION OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some States, Territories and Countries do not allow certain liability exclusions or damages limitations, so to that extent the above may not apply to you.

Export Control

You agree not to export from anywhere any part of the Data provided to you or any direct product thereof except in compliance with, and with all licenses and approvals required under, applicable export laws, rules and regulations.

Entire Agreement

These terms and conditions constitute the entire agreement between OLYMPUS IMAGING CORPORATION (and its licensors, including their licensors and suppliers) and you pertaining to the subject matter hereof, and supersedes in their entirety any and all written or oral agreements previously existing between us with respect to such subject matter.

Governing Law

The above terms and conditions shall be governed by the laws of the State of Illinois, without giving effect to (i) its conflict of laws provisions, or (ii) the United Nations Convention for Contracts for the International Sale of Goods, which is explicitly excluded. You agree to submit to the jurisdiction of the State of Illinois for any and all disputes, claims and actions arising from or in connection with the Data provided to you hereunder.

United States Government End Users

If the Data is being acquired by or on behalf of the United States government or any other entity seeking or applying rights similar to those customarily claimed by the United States government, the Data is a “commercial item” as that term is defined at 48 C.F.R. (“FAR”) 2.101, is licensed in accordance with the End-User Terms under which this Data was provided, and each copy of the Data delivered or otherwise furnished shall be marked and embedded as appropriate with the following “Notice of Use,” and shall be treated in accordance with such Notice:

NOTICE OF USE

CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME: NAVTEQ

CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: 425 West Randolph Street, Chicago, Illinois 60606

This Data is a commercial item as defined in FAR 2.101 and is subject to the End-User Terms under which this Data was provided.

© 1993-2011 NAVTEQ. All rights reserved.

If the Contracting Officer, federal government agency, or any federal official refuses to use the legend provided herein, the Contracting Officer, federal government agency, or any federal official must notify NAVTEQ prior to seeking additional or alternative rights in the Data.

Place Names for Locations in Japan

- The extraction by any means of all or part of these data (whether pertaining to landmarks, countries, regions, states, provinces, territories, prefectures, municipalities, or other territorial divisions) from image data files in which they are included is forbidden.

- Neither you nor any third party shall, by any means, reproduce, copy, modify, disassemble, decompile, reverse engineer, or in any other way attempt to analyze or determine the nature of the data incorporated in this camera.

Countries and regions where landmarks can be displayed and recorded

Country or regions	Screen display
Canada	CANADA
United States of America	USA
Barbados	BARBADOS
Jamaica	JAMAICA
Argentine Republic	ARGENTINA
Bolivarian Republic of Venezuela	VENEZUELA
Commonwealth of The Bahamas	BAHAMAS
Dominican Republic	DOMINICAN REPUBLIC
Federative Republic of Brazil	BRAZIL
Republic of Chile	CHILE
Republic of Colombia	COLOMBIA
Republic of Costa Rica	COSTA RICA
Republic of Ecuador	ECUADOR
Republic of El Salvador	EL SALVADOR
Republic of Honduras	HONDURAS
Republic of Panama	PANAMA
Republic of Peru	PERU
The Oriental Republic of Uruguay	URUGUAY
United Mexican States	MEXICO
Ireland	IRELAND
Federal Republic of Germany	GERMANY
French Republic	FRANCE
Grand Duchy of Luxembourg	LUXEMBOURG
Hellenic Republic	GREECE
Kingdom of Belgium	BELGIUM
Kingdom of Denmark	DENMARK
Kingdom of Norway	NORWAY
Kingdom of Spain	SPAIN
Kingdom of Sweden	SWEDEN
Kingdom of the Netherlands	NETHERLANDS
Portuguese Republic	PORTUGAL
Principality of Andorra	ANDORRA
Principality of Liechtenstein	LIECHTENSTEIN
Principality of Monaco	MONACO
Republic of Finland	FINLAND
Republic of Iceland	ICELAND
Republic of Italy	ITALY
Republic of Malta	MALTA
Republic of San Marino	SAN MARINO
State of the City of Vatican	VATICAN CITY STATE
Swiss Confederation	SWITZERLAND
England	ENGLAND
Bosnia and Herzegovina	BOSNIA AND HERZEGOVINA
Montenegro	MONTENEGRO
Romania	ROMANIA
Ukraine	UKRAINE
Czech Republic	CZECH REPUBLIC
Former Yugoslav Republic of Macedonia	MACEDONIA
Republic of Albania	ALBANIA
Republic of Austria	AUSTRIA
Republic of Belarus	BELARUS
Republic of Bulgaria	BULGARIA
Republic of Croatia	CROATIA
Republic of Estonia	ESTONIA
Republic of Hungary	HUNGARY
Republic of Kazakhstan	KAZAKHSTAN
Republic of Latvia	LATVIA
Republic of Lithuania	LITHUANIA
Republic of Poland	POLAND
Republic of Serbia	SERBIA
Republic of Slovenia	SLOVENIA
Republic of Uzbekistan	UZBEKISTAN
Russian Federation	RUSSIA
Slovak Republic	SLOVAK REPUBLIC
Arab Republic of Egypt	EGYPT
Kingdom of Bahrain	BAHRAIN
Kingdom of Saudi Arabia	SAUDI ARABIA
Republic of Turkey	TURKEY
State of Kuwait	KUWAIT
State of Qatar	QATAR
Sultanate of Oman	OMAN
United Arab Emirates	UAE
Federal Republic of Nigeria	NIGERIA
Kingdom of Lesotho	LESOTHO
Kingdom of Morocco	MOROCCO
Republic of Angola	ANGOLA

Country or regions	Screen display
Republic of Ghana	GHANA
Republic of Mozambique	MOZAMBIQUE
Republic of Namibia	NAMIBIA
Republic of South Africa	SOUTH AFRICA
Republic of Kenya	KENYA
New Zealand	NEW ZEALAND
Commonwealth of Australia	AUSTRALIA
Hong Kong Special Administrative Region	HONG KONG
Macao Special Administrative Region	MACAU
Taiwan	TAIWAN
Japan	JAPAN
Malaysia	MALAYSIA
Brunei Darussalam	BRUNEI
Kingdom of Thailand	THAILAND
Republic of Indonesia	INDONESIA
Republic of Singapore	SINGAPORE
Republic of the Philippines	PHILIPPINES
Socialist Republic of Viet Nam	VIETNAM
Republic of India	INDIA
Cayman Islands	CAYMAN ISLANDS
Guadeloupe	GUADELOUPE-FRANCE
Martinique	MARTINIQUE-FRANCE
Puerto Rico	PUERTO RICO
US Virgin Islands	US VIRGIN ISLANDS
Réunion	REUNION-FRANCE
French Guiana	GUYANE-FRANCE
Gibraltar	GIBRALTAR
Channel Islands	CHANNEL ISLANDS
Isle of Man	ISLE OF MAN
Northern Ireland	NORTHERN IRELAND
Scotland	SCOTLAND
Wales	WALES
Republic of Bolivia	BOLIVIA
Republic of Guatemala	GUATEMALA
Republic of Nicaragua	NICARAGUA
Republic of Paraguay	PARAGUAY
Republic of Trinidad and Tobago	TRINIDAD AND TOBAGO
Republic of Burundi	BURUNDI

Countries and regions with no landmark information

Country or regions	Screen display
Antigua and Barbuda	ANTIGUA AND BARBUDA
Belize	BELIZE
Grenada	GRENADA
Saint Lucia	SAINT LUCIA
St. Vincent and the Grenadines	SAINT VINCENT AND THE GRENADINES
Commonwealth of Dominica	DOMINICA
Co-operative Republic of Guyana	GUYANA
Federation of Saint Kitts and Nevis	SAINT KITTS AND NEVIS
Republic of Cuba	CUBA
Republic of Haiti	HAITI
Republic of Suriname	SURINAME
Republic of Cyprus	CYPRUS
Turkmenistan	TURKMENISTAN
Burkina Faso	BURKINA FASO
Central African Republic	CENTRAL AFRICAN REPUBLIC
Democratic Republic of Congo	CONGO, DEMOCRATIC REPUBLIC
Democratic Republic of Sao Tome and Principe	SAO TOME AND PRINCIPE
Federal Islamic Republic of the Comoros	COMOROS
Gabonese Republic	GABON
Republic of Benin	BENIN
Republic of Cameroon	CAMEROON
Republic of Cape Verde	CAPE VERDE
Republic of Chad	CHAD
Republic of Congo	CONGO, REPUBLIC OF THE
Republic of Cote d'Ivoire	COTE D'IVOIRE (IVORY COAST)
Republic of Equatorial Guinea	EQUATORIAL GUINEA
Republic of Guinea	GUINEA
Republic of Guinea - Bissau	GUINEA-BISSAU
Republic of Liberia	LIBERIA
Republic of Madagascar	MADAGASCAR

Country or regions	Screen display
Republic of Mali	MALI
Republic of Mauritius	MAURITIUS
Republic of Niger	NIGER
Republic of Rwanda	RWANDA
Republic of Senegal	SENEGAL
Republic of Seychelles	SEYCHELLES
Republic of Sierra Leone	SIERRA LEONE
Republic of Togo	TOGO
Republic of Tunisia	TUNISIA
Solomon Islands	SOLOMON ISLANDS
Tuvalu	TUVALU
Federated States of Micronesia	MICRONESIA
French Polynesia	FRENCH POLYNESIA
Kingdom of Tonga	TONGA
Papua New Guinea	PAPUA NEW GUINEA
Republic of Kiribati	KIRIBATI
Republic of Nauru	NAURU
Republic of Palau	PALAU
Republic of the Fiji Islands	FIJI
Republic of the Marshall Islands	MARSHALL ISLANDS
Republic of Vanuatu	VANUATU
Mongolia	MONGOLIA
Republic of Korea	SOUTH KOREA
Kingdom of Cambodia	CAMBODIA
Lao People's Democratic Republic	LAOS
Union of Myanmar	BURMA (MYANMAR)
Democratic Socialist Republic of Sri Lanka	SRI LANKA
Kingdom of Bhutan	BHUTAN
People's Republic of Bangladesh	BANGLADESH
Republic of Maldives	MALDIVES
Republic of Nepal	NEPAL
New Caledonia	NEW CALEDONIA
Saint Helena	SAINT HELENA
Mayotte	MAYOTTE
Falkland Islands	FALKLAND ISLANDS (ISLAS MALVINAS)
Bermuda	BERMUDA
Turks and Caicos	TURKS AND CAICOS ISLANDS
Saint Pierre and Miquelon	SAINT PIERRE AND MIQUELON
Anguilla	ANGUILLA
Aruba	ARUBA
Netherlands Antilles	NETHERLANDS ANTILLES
Montserrat	MONTSERRAT
Greenland	GREENLAND
Guam	GUAM
Norfolk Island	NORFOLK ISLAND
American Samoa	AMERICAN SAMOA
Cook Islands	COOK ISLANDS
Wallis and Futuna	WALLIS AND FUTUNA
Niue	NIUE
Northern Mariana islands	NORTHERN MARIANA ISLANDS
Tokelau	TOKELAU

Types of lands marks

Natural landmarks	Natural topography
	Ports and harbors
Government and public offices	Prefectural government offices
	Town halls and city halls
	Town and village offices
	Embassies and consulates
	Government agencies
Transportation facilities	Railway stations
	Airports and airstrips
	Ferry terminal buildings
Sports facilities	Sport facilities (stadiums, sports grounds, gymnasiums)
	Golf courses

Amusement parks	Museums
	Art museums, art galleries
	Zoos
	Botanical gardens
	Aquariums
	Recreation grounds
	Leisure parks
Places of interest	Places of interest, tourist destinations, scenic spots
Institutions, etc.	Theaters
	Towers
	Churches
	Marinas

In some countries or regions, there may be few landmarks or their names may differ from what they are officially called.
The landmark information is current as of July 2011, and it cannot be updated.

NAVTEQ MAPS™

© 1993-2011 NAVTEQ. All rights reserved.

© Her Majesty the Queen in Right of Canada, © Queen's Printer for Ontario, © Canada Post Corporation, GeoBase®, ©Department of Natural Resources Canada. All rights reserved. ©United States Postal Service® 2010. Prices are not established, controlled or approved by the United States Postal Service®. The following trademarks and registrations are owned by the USPS: United States Postal Service, USPS, and ZIP+4.

Simple line drawing of two stylized apples with stems and leaves (no text or symbols)

MAPPLE

© Shobunsha Publications, Inc.

"MAPPLE" is a registered trademark of Shobunsha Publications, Inc. in Japan.

Landmark data for Japan is provided by Shobunsha Publications, Inc.

Australia	© Hema Maps Pty. Ltd, 2011. Copyright. Based on data provided under license from PSMA Australia Limited (www.psma.com.au). Product incorporates data which is © 2011 Telstra Corporation Limited, GM Holden Limited, Intelematics Australia Pty Ltd, NAVTEQ International LLC, Sentinel Content Pty Limited and Continental Pty Ltd.
Austria	© Bundesamt für Eich- und Vermessungswesen
Canada	The Data for areas of Canada includes information taken with permission from Canadian authorities, including: © Her Majesty the Queen in Right of Canada, © Queen's Printer for Ontario, © Canada Post Corporation, GeoBase®, ©Department of Natural Resources
Croatia, Cyprus, Estonia, Latvia, Lithuania, Poland, Slovenia, Ukraine	© EuroGeographics
Ecuador	INSTITUTO GEOGRAFICO MILITAR DEL ECUADRO AUTORIZACION N° IGM-2011-01- PCO-01 DEL 25 DE ENERO DE 2011
France, French Guiana, Guadeloupe, Martinique, Réunion	source: © IGN 2009 – BD TOPO ®
Germany	Die Grundlagendaten wurden mit Genehmigung der zustaeindigen Behoerden entnommen.
Great Britain	Contains Ordnance Survey data © Crown copyright and database right 2010 Contains Royal Mail data © Royal Mail copyright and database right 2010
Greece	Copyright Geomatics Ltd.

Guatemala	Aprobado por el INSTITUTO GEOGRAFICO NACIONAL – Resolución del IGN No 186-2011
Hungary	Copyright © 2003; Top-Map Ltd.
Italy	La Banca Dati Italiana è stata prodotta usando quale riferimento anche cartografia numerica ed al tratto prodotta e fornita dalla Regione Toscana.
Mexico	Fuente: INEGI (Instituto Nacional de Estadística y Geografia.)
Mozambique	Certain Data for Mozambique provided by Cenacarta © 2011 by Cenacarta
Norway	Copyright © 2000; Norwegian Mapping Authority
Portugal	Source: IgeoE – Portugal
Spain	Información geográfica propiedad del CNIG
Sweden	Based upon electronic data © National Land Survey Sweden.
Switzerland	Topografische Grundlage: © Bundesamt für Landestopographie
United States	©United States Postal Service® 2011. Prices are not established, controlled or approved by the United States Postal Service®. The following trademarks and registrations are owned by the USPS: United States Postal Service, USPS, and ZIP+4.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.

DANGER

If the product is used without observing the information given under this symbol, serious injury or death may result.

WARNING

If the product is used without observing the information given under this symbol, injury or death may result.

CAUTION

If the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

WARNING!

TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections.

Location — To avoid damage to the product, mount the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the power source described on the product label.

Lightning — If a lightning storm occurs while using a USB-AC adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a metal object into the product.

Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers.

Handling the Camera

WARNING

• Do not use the camera near flammable or explosive gases.
• Do not use the flash and LED (including AF illuminator) on people (infants, small children, etc.) at close range.

- You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject's eyes could cause a momentary loss of vision.

- Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.
• Accidentally swallowing the battery, cards or other small parts.
• Accidentally firing the flash into their own eyes or those of another child.

• Accidentally being injured by the moving parts of the camera.

• Do not look at the sun or strong lights with the camera.

• Do not use or store the camera in dusty or humid places.
• Do not cover the flash with a hand while firing.
• Use SD/SDHC/SDXC memory cards or Eye-Fi cards only. Never use other types of cards.

If you accidentally insert another type of card into the camera, contact an authorized distributor or service center. Do not try to remove the card by force.

- If you find that the USB-AC adapter is extremely hot or notice any unusual odors, noise, or smoke around it, unplug the power plug from wall outlet immediately and stop using it. Then, contact an authorized distributor or service center.

CAUTION

- Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

- Never remove the batteries with bare hands, which may cause a fire or burn your hands.

- Do not leave the camera in places where it may be subject to extremely high temperatures.

• Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger or USB-AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fire.
• Handle the camera with care to avoid getting a low-temperature burn.
• When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following:

- When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

- In places subject to extremely cold temperatures, the temperature of the camera's body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

- Be careful with the strap.

• Be careful with the strap when you carry the camera. It could easily catch on stray objects and cause serious damage.
• Do not touch the metallic parts of the camera for a long period of time at low temperatures.
• This may damage your skin. At low temperatures, handle the camera while wearing gloves.
• To protect the high-precision technology contained in this product, never leave the camera in the places listed below, no matter if in use or storage:
• Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifiers.
  • In sandy or dusty environments.
• Near flammable items or explosives.
• In wet places, such as bathrooms or in the rain. When using products with weatherproof designs, read their manuals as well.
  • In places prone to strong vibrations.
• Never drop the camera or subject it to severe shocks or vibrations.
• When attaching the camera to or removing it from a tripod, rotate the tripod screw, not the camera.
• Before transporting the camera, remove a tripod and all other non-OLYMPUS accessories.
• Do not touch electric contacts on cameras.
• Do not leave the camera pointed directly at the sun. This may cause lens or shutter curtain damage, color failure, ghosting on the image pickup device, or may possibly cause fires.
• Do not push or pull severely on the lens.

• Before storing the camera for a long period, remove the batteries. Select a cool, dry location for storage to prevent condensation or mold from forming inside the camera. After storage, test the camera by turning it on and pressing the shutter button to make sure that it is operating normally.

• The camera may malfunction if it is used in a location where it is subject to a magnetic/electromagnetic field, radio waves, or high voltage, such as near a TV set, microwave, video game, loud speakers, large screen unit, TV/radio tower, or transmission towers. In such cases, turn the camera off and on again before further operation.

• Always observe the operating environment restrictions described in the camera's manual.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

• The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified USB-AC adapter or charger. Do not use any other USB-AC adapters or chargers.
• Never heat or incinerate batteries.
  • Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.
• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.
• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc.
• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.
  • Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.
• If you cannot remove the battery from the camera, contact an authorized distributor or service center. Do not try to remove the battery by force.

Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.

WARNING

• Keep batteries dry at all times.
• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.
• Insert the battery carefully as described in the operating instructions.
• If rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them.
• Do not use a battery if it is cracked or broken.

• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.

• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.

• Never subject batteries to strong shocks or continuous vibration.

CAUTION

• Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.
• The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.
• Always unload the battery from the camera before storing the camera for a long period.
• This camera uses one Olympus lithium ion battery (LI-90B). No other type of batteries can be used.
  There is a risk of explosion if the battery is replaced with the incorrect battery type.
• Power consumption by the camera varies depending on which functions are used.
• During the conditions described below, power is consumed continuously and the battery becomes exhausted quickly.
  • The zoom is used repeatedly.
• The shutter button is pressed halfway repeatedly in shooting mode, activating the auto focus.
• A picture is displayed on the screen for an extended period of time.
• The camera is connected to a printer.
• Using an exhausted battery may cause the camera to turn off without displaying the battery level warning.
• The Olympus lithium ion battery is designed to be used only for the Olympus digital camera. Do not use the battery to other devices.
• If the battery's terminals get wet or greasy, camera contact failure may result. Wipe the battery well with a dry cloth before use.
• Always charge a battery when using it for the first time, or if it has not been used for a long period.
• When operating the camera with battery power at low temperatures, try to keep the camera and spare battery as warm as possible. A battery that has run down at low temperatures may be restored after it is warmed at room temperature.
• Before going on a long trip, and especially before traveling abroad, purchase extra batteries. A recommended battery may be difficult to obtain while traveling.
• When storing the battery for a long period, select a cool location for storage.
• Please recycle batteries to help save our planet's resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

USB-AC adapter

• The included USB-AC adapter F-2AC is designed to be used only with this camera. Other cameras cannot be charged with this USB-AC adapter.
• Do not connect the included USB-AC adapter F-2AC to equipment other than this camera.
• For plug-in type USB-AC adapter:
  The included USB-AC adapter F-2AC is intended to be correctly orientated in a vertical or floor mount position.

Use Only Dedicated Rechargeable Battery, Battery Charger and USB-AC adapter

We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery, battery charger and USB-AC adapter with this camera. Using a non-genuine rechargeable battery, battery charger and/or USB-AC adapter may result in fire or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability for accidents or damage that may result from the use of a battery, battery charger and/or USB-AC adapter that are not genuine Olympus accessories.

Monitor

• Do not push the monitor forcibly; otherwise the image may become vague, resulting in a playback mode failure or damage to the monitor.
• A strip of light may appear on the top/bottom of the monitor, but this is not a malfunction.
• When a subject is viewed diagonally in the camera, the edges may appear zigzagged on the monitor. This is not a malfunction; it will be less noticeable in playback mode.
• Static images displayed on organic EL monitors for extended periods of time may "burn in", causing a drop in brightness or discoloration in some areas of the display, which may be permanent in some cases. This phenomenon has no effect on images recorded with the camera.
• The monitor of this product is manufactured with high-quality accuracy, however, there may be a stuck or dead pixel on the monitor. These pixels do not have any influence on the image to be saved. Because of the characteristics, the unevenness of the color or brightness may also be found depending on the angle, but this is due to the structure of the monitor. This is not a malfunction.

Legal and Other Notices

• Olympus makes no representations or warranties regarding any damages, or benefit expected by using this unit lawfully, or any request from a third person, which are caused by the inappropriate use of this product.
• Olympus makes no representations or warranties regarding any damages or any benefit expected by using this unit lawfully which are caused by erasing picture data.

Disclaimer of Warranty

• Olympus makes no representations or warranties, either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment. Some countries do not allow the exclusion or limitation of liability for consequential or incidental damages or of the implied warranty, so the above limitations may not apply to you.
Olympus reserves all rights to this manual.

Warning

Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners.

Copyright Notice

All rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice.

FCC Notice

• Radio and Television Interference

• Changes or modifications not expressly approved by the manufacturer may void the user's authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
• This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Adjust or relocate the receiving antenna.
• Increase the distance between the camera and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help. Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers (PC).

Any unauthorized changes or modifications to this equipment would void the user's authority to operate it.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number: TG-1

Trade Name: OLYMPUS

Responsible Party:

OLYMPUS IMAGING AMERICA INC.

Address: 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A.

Telephone Number: 484-896-5000

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

For customers in CANADA

This Class B digital apparatus complies with Canadian ICES-003.

OLYMPUS WORLDWIDE LIMITED WARRANTY - IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus® imaging product(s) and related Olympus® accessories (individually a “Product” and collectively the “Products”) will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase.

If any Product proves to be defective within the one-year warranty period, the customer must return the defective Product to any of Olympus Service Centers, following the procedure set forth below (See "WHAT TO DO WHEN SERVICE IS NEEDED").

Olympus, at its sole discretion, will repair, replace, or adjust the defective Product, provided that Olympus investigation and factory inspection disclose that (a) such defect developed under normal and proper use and (b) the Product is covered under this limited warranty. Repair, replacement, or adjustment of defective Products shall be Olympus's sole obligation and the customer's sole remedy hereunder. The customer is liable and shall pay for shipment of the Products to the Olympus Service Center.

Olympus shall not be obligated to perform preventive maintenance, installation, deinstallation, or maintenance.

Olympus reserves the right to (i) use reconditioned, refurbished, and/or serviceable used parts (that meet Olympus's quality assurance standards) for warranty or any other repairs and (ii) make any internal or external design and/or feature changes on or to its products without any liability to incorporate such changes on or to the Products.

WHAT IS NOT COVERED BY THIS LIMITED WARRANTY

Excluded from this limited warranty and not warranted by Olympus in any fashion, either express, implied, or by statute, are:

(a) products and accessories not manufactured by Olympus and/or not bearing the “OLYMPUS” brand label (the warranty coverage for products and accessories of other manufacturers, which may be distributed by Olympus, is the responsibility of the manufacturers of such products and accessories in accordance with the terms and duration of such manufacturers’ warranties);
(b) any Product which has been disassembled, repaired, tampered with, altered, changed, or modified by persons other than Olympus's own authorized service personnel unless repair by others is made with the written consent of Olympus;
(c) defects or damage to the Products resulting from wear, tear, misuse, abuse, negligence, sand, liquids, impact, improper storage, nonperformance of scheduled operator and maintenance items, battery leakage, use of non-“OLYMPUS” brand accessories, consumables, or supplies, or use of the Products in combination with non-compatible devices;
(d) software programs;

(e) supplies and consumables (including but not limited to lamps, ink, paper, film, prints, negatives, cables and batteries); and/or
(f) Products which do not contain a validly placed and recorded Olympus serial number, unless they are a model on which Olympus does not place and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY SET FORTH ABOVE, OLYMPUS MAKES NO AND DISCLAIMS ALL OTHER REPRESENTATIONS, GUARANTIES, CONDITIONS, AND WARRANTIES CONCERNING THE PRODUCTS, WHETHER DIRECT OR INDIRECT, EXPRESS OR IMPLIED, OR ARISING UNDER ANY STATUTE, ORDINANCE, COMMERCIAL USAGE OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OR REPRESENTATION AS TO THE SUITABILITY, DURABILITY, DESIGN, OPERATION, OR CONDITION OF THE PRODUCTS (OR ANY PART THEREOF) OR THE MERCHANTABILITY OF THE PRODUCTS OR THEIR FITNESS FOR A PARTICULAR PURPOSE, OR RELATING TO THE INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER PROPRIETARY RIGHT USED OR INCLUDED THEREIN.

IF ANY IMPLIED WARRANTIES APPLY AS A MATTER OF LAW, THEY ARE LIMITED IN DURATION TO THE LENGTH OF THIS LIMITED WARRANTY.

SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR LIMITATION OF WARRANTIES AND/OR LIMITATION OF LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY.

THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/OR ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM STATE TO STATE.

THE CUSTOMER ACKNOWLEDGES AND AGREES THAT OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES THAT THE CUSTOMER MAY INCUR FROM DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE, WHETHER LIABILITY IS ASSERTED IN CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY) OR OTHERWISE. IN NO EVENT SHALL OLYMPUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND (INCLUDING WITHOUT LIMITATION LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any person, including but not limited to dealers, representatives, salespersons, or agents of Olympus, which are inconsistent or in conflict with or in addition to the terms of this limited warranty, shall not be binding upon Olympus unless reduced to writing and approved by an expressly authorized officer of Olympus.

This limited warranty is the complete and exclusive statement of warranty which Olympus agrees to provide with respect to the Products and it shall supersede all prior and contemporaneous oral or written agreements, understandings, proposals, and communications pertaining to the subject matter hereof. This limited warranty is exclusively for the benefit of the original customer and cannot be transferred or assigned.

WHAT TO DO WHEN SERVICE IS NEEDED

The customer must transfer any image or other data saved on a Product to another image or data storage medium and/or remove any film from the Product prior to sending the Product to Olympus for service.

IN NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA SAVED ON A PRODUCT RECEIVED BY IT FOR SERVICE, OR ON ANY FILM CONTAINED WITHIN A PRODUCT RECEIVED BY IT FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE FOR ANY DAMAGES IN THE EVENT ANY IMAGE OR DATA IS LOST OR IMPAIRED WHILE SERVICE IS BEING PERFORMED (INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.

Package the Product carefully using ample padding material to prevent damage in transit and either deliver it to the Authorized Olympus Dealer that sold you the Product or ship it postage prepaid and insured to any of our Olympus Service Centers. When returning Products for service, your package should include the following:

1 Sales receipt showing date and place of purchase.
2 Copy of this limited warranty bearing the Product serial number corresponding to the serial number on the Product (unless it is a model on which Olympus does not place and record serial numbers).
3 A detailed description of the problem.

4 Sample prints, negatives, digital prints (or files on disk) if available and related to the problem.

When service is completed, the Product will be returned to you postage prepaid.

WHERE TO SEND PRODUCT FOR SERVICE

See "WORLDWIDE WARRANTY" for the nearest service center.

INTERNATIONAL WARRANTY SERVICE

International warranty service is available under this warranty.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

For customers in the EU: Hereby, Olympus Imaging Corp. and Olympus Europa Holding GmbH declare that this TG-1 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For details visit: http://olympus-europa.com/

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex II] indicates separate collection of waste batteries in the EU countries.

Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries.

Provisions of warranty

1 If this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during the applicable national warranty period and has been purchased from an authorized Olympus distributor within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus.com this product will be repaired, or at Olympus's option replaced, free of charge. To claim under this warranty the customer must take the product before the end of the applicable national warranty period to the dealer where the product was purchased or any other Olympus service station within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus.com. During the one year period of the World Wide Guarantee the customer may turn the product in at any Olympus service station. Please notice that not in all countries such Olympus service station exists.

2 The customer shall transport the product to the dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.

Provisions of Guarantee

1 "OLYMPUS IMAGING CORP., Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan grants a one year World Wide Guarantee. This worldwide Guarantee must be presented at an Olympus authorized repair service station before any repair can be made under conditions of this Guarantee. This Guarantee is valid only if the Guarantee Certificate and proof of purchase are presented at the Olympus repair service station. Please note that this Guarantee is in addition to and does not affect the customer's legal warranty rights under the applicable national legislation governing the sale of consumer goods mentioned above.

2 This Guarantee does not cover the following and the customer will be required to pay repair charge, even for defects occurring within the Guarantee period referred to above.

a. Any defect that occurs due to mishandling (such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)
b. Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station.
c. Any defect or damage that occurs due to transport, a fall, shock, etc. after purchase of the product.
d. Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.

e. Any defect that occurs due to careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc.
f. Any defect that occurs due to exhausted batteries, etc.
g. Any defect that occurs due to sand, mud, etc. entering the inside of the product casing.
h. When the Guarantee Certificate is not returned with the product.
i. When any alterations whatsoever are made to the Guarantee Certificate regarding the year, month and date of purchase, the customer's name, the dealer's name, and the serial number.
j. When proof of purchase is not presented with this Guarantee Certificate.

3 This Guarantee applies to the product only; the Guarantee does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.
4 Olympus's sole liability under this Guarantee shall be limited to repairing or replacing the product. Any liability under the Guarantee for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect of the product, and in particular any loss or damage caused to any lenses, films, other equipment or accessories used with the product or for any loss resulting from a delay in repair or loss of data, is excluded. Compelling regulations by law remain unaffected by this.

Notes regarding Guarantee maintenance

1 This Guarantee will only be valid if the Guarantee Certificate is duly completed by Olympus or an authorized dealer or other documents contain sufficient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed or the original invoice or the sales receipt (indicating the dealer's name, the date of purchase and product type) is attached to this Guarantee Certificate. Olympus reserves the right to refuse free-of-charge service if neither Guarantee Certificate is completed nor the above document is attached or if the information contained in it is incomplete or illegible.
2 Since this Guarantee Certificate will not be re-issued, keep it in a safe place.
* Please refer to the list on the web site: http://www.olympus.com for the authorized international Olympus service network.

For customers in Asia

Provisions of warranty

1 If this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during a period of up to one year from the date of purchase this product will be repaired, or at Olympus's option replaced, free of charge. To claim under warranty the customer must take the product and this Warranty certificate before the end of the one year warranty period to the dealer where the product was purchased or any Olympus authorized service station listed in the instructions and request the necessary repairs.
2 The customer shall transport the product to the dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.
3 This warranty does not cover the following and the customer will be required to pay repair charge, even for defects occurring within the one year period referred to above.

a. Any defect that occurs due to mishandling (such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)
b. Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station.
c. Any defect or damage that occurs due to transport, a fall, shock, etc. after purchase of the product.
d. Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.
e. Any defect that occurs due to careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc.
f. Any defect that occurs due to exhausted batteries, etc.
g. Any defect that occurs due to sand, mud, etc. entering the inside of the product casing.
h. When this Warranty Certificate is not returned with the product.
i. When any alterations whatsoever are made to the Warranty Certificate regarding the year, month and date of purchase, the customer's name, the dealer's name, and the serial number.
j. When proof of purchase is not presented with this Warranty Certificate.

4 This Warranty applies to the product only; the Warranty does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.
5 Olympus' sole liability under this warranty shall be limited to repairing or replacing the product and any liability for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect in the product, and in particular any loss or damage caused to any film or lenses or other equipment or accessories used with the product or for any loss resulting from delay in repair, is excluded.

Notes;

1 This Warranty is in addition to and does not affect the customer's statutory right.
2 If you have any queries regarding this Warranty, call any of the Olympus authorized service stations listed in the instructions.

Notes regarding warranty maintenance

1 This Warranty will only be valid if the Warranty Certificate is duly completed by Olympus or the dealer. Make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed.
2 Since this Warranty Certificate will not be re-issued, keep it in a safe place.
3 Any request for repair by a customer in same country where the product was purchased shall be subject to the terms of the warranty issued by the Olympus distributor in that country. Where the local Olympus distributor does not issue a separate warranty or where the customer is not in the country where the product was purchased the terms of this worldwide warranty shall apply.
4 Where applicable, this Warranty is valid worldwide. The Olympus authorized service stations listed in this Warranty will gladly honor it.
* Please refer to the appended list for the authorized international Olympus service network.

Disclaimer of Warranty

Olympus makes no representations or warranties, either expressed or implied, by or concerning any content if these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use of inability to use these written materials or software. Some states do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you.

For customer in Thailand

This telecommunication equipment conforms to NTC technical requirement.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.
- Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a trademark of Apple Inc.
• The SDHC/SDXC logo is a trademark.
- Eye-Fi is a registered trademark of Eye-Fi, Inc.
- "Shadow Adjustment Technology" function contains patented technologies from Apical Limited.

• All other company and product names are registered trademarks and/or trademarks of their respective owners.
• The standards for camera file systems referred to in this manual are the “Design rule for Camera File system/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

The software in this camera may include third party software. Any third party software is subject to the terms and conditions, imposed by the owners or licensors of that software, under which software is provided to you.

Those terms and other third party software notices, if any, may be found in the software notice PDF file stored within the accompanying CD-ROM or at http://www.olympus.co.jp/en/support/imsg/digicamera/download/notice/notice.cfm

Powered by ARCSOFT.

Camera

Product type	: Digital camera (for shooting and displaying)
Recording system
Still pictures	: Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))
Applicable standards	: Exif 2.3, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge
3D still image	: MP format
Sound with still pictures	: Wave format
Movie	: MOV H.264 linear PCM
Memory	: Internal memorySD/SDHC/SDXC/Eye-Fi card
No. of effective pixels	: 12,000,000 pixels
Image pickup device	: 1/2.3" CMOS (primary color filter)
Lens	: Olympus lens 4.5 to 18.0 mm, f2.0 to 4.9(Equivalent to 25 to 100 mm on a 35 mm film)
Photometric system	: Digital ESP metering, spot metering system
Shutter speed	: 4 to 1/2000 sec.
Shooting range
Normal	: 0.6 m (2.0 ft.) to ∞
Macro mode	: 0.15 m (0.5 ft.) to ∞ (W), 0.1 m (0.3 ft.) to ∞ (T)
Super macro mode	: 0.01 m (0.03 ft.) to 0.6 m (2.0 ft.) (f=13.47 mm (fixed))
Monitor	: 3.0" organic EL display, 614,000 dots
Connector	: Multi-connector (DC-IN jack, USB connector, A/V OUT jack)/HDMI micro connector (type D)
Automatic calendar system	: 2000 up to 2099
Water resistance
Type	: Equivalent to IEC Standard publication 529 IPX8 (under OLYMPUS test conditions),available in 12m (39.3 ft.) deep water
Meaning	: Camera can normally be used under water at a specified water pressure.
Dust resistance	: IEC Standard publication 529 IP6X (under OLYMPUS test conditions)
GPS	: Reception frequency: 1575.42 MHz (C/A code)
Geodetic system	: WGS84
Operating environment
Temperature	:-10 °C to 40 °C (14 °F to 104 °F) (operation)/-20 °C to 60 °C (-4 °F to 140 °F) (storage)
Humidity	: 30 % to 90 % (operation)/10 % to 90 % (storage)
Power supply	: One Olympus lithium ion battery (LI-90B) or separately sold USB-AC adapter
Dimensions	: 111.5 mm (W) × 66.5 mm (H) × 29.1 mm (D)(4.4 × 2.6 × 1.1 in.) (excluding protrusions)
Weight	: 230 g (8.1 oz) (including battery and card)

Lithium ion battery (LI-90B)

Product type	: Lithium ion rechargeable battery
Model No.	: LI-90B
Standard voltage	: DC 3.6 V
Standard capacity	: 1270 mAh
Battery life	: Approx. 300 full charges (varies on usage)
Operating environment
Temperature	: 0 °C to 40 °C (32 °F to 104 °F) (charging)

USB-AC adapter (F-2AC)

Model No.	: F-2AC-1B/F-2AC-2B
Power requirements	: AC 100 to 240 V (50/60 Hz)
Output	: DC5V, 500mA
Operating environment
Temperature	: 0 °C to 40 °C (32 °F to 104 °F) (operation)/ -20 °C to 60 °C (-4 °F to 140 °F) (storage)

Design and specifications subject to change without notice.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

OLYMPUS KOREA CO., LTD.

10F, Olympus Tower A, 114-9, Samsung-dong, Gangnam-gu, Seoul, Korea. 135-090

http://www.olympus.co.kr Tel. [phone]

OLYMPUS (MALAYSIA) SDN. BHD.

10-8, Menara 1 MK, Kompleks '1 Mont Kiara', No.1, Jalan Kiara, Mont Kiara, 50480

Kuala Lumpur, Malaysia.

Tel:[phone]/Fax:[phone]

BRANCHES:

PENANG OFFICE

Suite 3A-6, Level 3A, Wisma Great Eastern

No.25, Lebuh Light, 10200 Penang

Tel:[phone]/ Fax:[phone]

KUCHING OFFICE

Level 6-5A, 6th Floor Menara MAA,

Lot 86, Section 53,

Jalan Central Timur,

93300 Kuching, Sarawak

Tel:[phone]/ Fax:[phone]

http://www.olympus.com.my

OLYMPUS

http://www.olympus.com/

OLYMPUS IMAGING CORP.

Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS IMAGING AMERICA INC.

3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help:

http://www.olympusamerica.com/support

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 9 am to 9 pm (Monday to Friday) ET

http://olympusamerica.com/contactus

Olympus software updates can be obtained at:

http://www.olympusamerica.com/digital

OLYMPUS EUROPA HOLDING GMBH

Premises: Wendenstrasse 14-18, 20097 Hamburg, Germany

Tel: [phone] / Fax: [phone]

Goods delivery: Bredowstrasse 20, 22113 Hamburg, Germany

Letters: Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

* Please note some (mobile) phone services providers do not permit access or request an additional prefix to +800 numbers.

For all European Countries not listed and in case that you can't get connected to the above mentioned number, please make use of the following

CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 4899

Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday)

OLYMPUS IMAGING CHINA CO.,LTD.

Customer Support: 400-650-0303 Homepage: http://www.olympus.com.cn

Customer Service Center:

A8F, Ping An International Financial Center, No. 1-3,

Xinyuan South Road, Chaoyang District, Beijing

Tel: [phone] Fax: [phone] Zip: 100027

A,32F Shanghai Industrial Investment Building 18

Cao Xi Road(N), Xuhui District, Shanghai

Tel: [phone] Fax: [phone] Zip: 200030

Rm.1605-1608, Guangzhou International Electronic tower, No403,

Huan Shi East Road, Guang Zhou

Tel: [phone] Fax: [phone] Zip: 510095

16F Huamin Hanzun Internation Plaza, No.1, Fuxing Street,

Chengdu

Tel: [phone] Fax: [phone] Zip: 610016

OLYMPUS HONG KONG AND CHINA LIMITED

Digital Camera Repair Centre

L4207, Office Tower, Langham Place, 8 Argyle Street, Mongkok, Kowloon, Hong Kong

Customer Hotline: [phone] Fax: [phone]

http://www.olympus.com.hk
