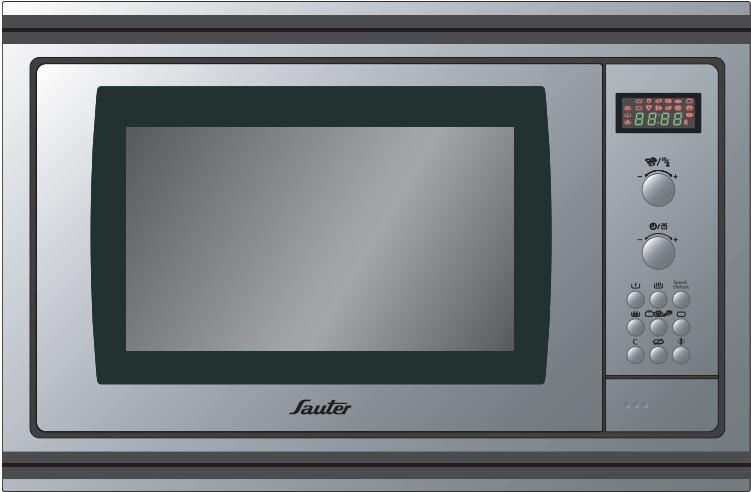

SME630XI1 - Micro-ondes SAUTER - Notice d'utilisation et mode d'emploi gratuit

Type d'appareil	Four micro-ondes
Capacité	Environ 20-30 litres
Puissance	700-1000 W
Modes de cuisson	Micro-ondes, décongélation
Commandes	Manettes et boutons
Affichage	Écran digital
Plateau tournant	Oui
Type d'installation	Encastrable
Dimensions (LxHxP)	Non précisé
Poids	Non précisé
Couleur	Acier inoxydable
Fonction minuterie	Oui
Sécurité enfant	Non précisé
Accessoires inclus	Non précisé
Type d'ouverture	Porte à charnière latérale
Consommation électrique	Non précisé

FOIRE AUX QUESTIONS - SME630XI1 SAUTER

Comment régler la température de mon SAUTER SME630XI1 ?

Pour régler la température, utilisez le bouton de sélection de température situé sur le panneau de commande. Tournez-le jusqu'à atteindre la température souhaitée.

Que faire si mon four ne s'allume pas ?

Vérifiez d'abord que le four est correctement branché et que la prise fonctionne. Assurez-vous également que le disjoncteur n'a pas sauté.

Comment nettoyer l'intérieur de mon four SAUTER SME630XI1 ?

Utilisez un détergent doux et un chiffon non abrasif pour nettoyer l'intérieur. Évitez les produits chimiques agressifs qui pourraient endommager le revêtement.

Mon four fait un bruit étrange, que faire ?

Un bruit léger peut être normal lors de la ventilation. Si le bruit persiste ou s'intensifie, débranchez le four et contactez le service client.

Comment utiliser la fonction de cuisson à la vapeur ?

Pour utiliser la fonction de cuisson à la vapeur, remplissez le réservoir d'eau, sélectionnez le mode vapeur sur le panneau de commande, puis réglez la durée de cuisson souhaitée.

Est-ce que je peux utiliser des plats en métal dans mon four ?

Oui, vous pouvez utiliser des plats en métal, mais évitez les plats avec des décorations en métal qui pourraient endommager l'intérieur du four.

Quel est le temps de préchauffage du SAUTER SME630XI1 ?

Le temps de préchauffage dépend de la température sélectionnée, mais il est généralement d'environ 10 à 15 minutes pour atteindre 180 °C.

Comment réinitialiser mon four en cas de problème ?

Débranchez le four pendant environ 5 minutes, puis rebranchez-le. Cela peut aider à réinitialiser les paramètres.

Où puis-je trouver le mode d'emploi de mon four SAUTER SME630XI1 ?

Le mode d'emploi est disponible sur le site web de SAUTER dans la section support, ou vous pouvez le demander directement à leur service client.

MODE D'EMPLOI SME630XI1 SAUTER

Instruction Manual

Microwave oven

fauter

ENVIRONMENTAL PROTECTION

This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.

We thank you doing your part to protect the environment.

CONTENTS

Installation 4
Warning 10
General description 11
The control panel 12
Setting the clock / Microwave power settings 13
The display 14
The selector knobs / Programming 15
Microwave programming 16
The Speed Defrost function 18
Thegrill function 19
Programming the grill / the microwave + grill function . . . .20
The pizza function 21
Programming the pizza function 22
The pizza dish 23
Linked programming 24
Recommendations 25
Care & cleaning 26
Troubleshooting guide 27
After Sales Service 27

Important safety instructions.

Read carefully and keep for future reference.

INSTALLATION

BEFORE CONNECTION

• Check whether your oven has suffered any damage during transport (deformed door or door seal, etc.). If you see any signs of damage, contact your dealer before use.
• Verify the power voltage. If there is a PERMANENT undervoltage (200-210 volts), consult your electrical installer.

LOCATION

• The oven must be set on a work surface at least 85~cm above floor level.
• Place the oven on a flat and horizontal surface, away from any source of heat or steam. To ensure the stability of the microwave oven, the front left foot is adjustable (5 positions). Turn it to raise or lower the appliance.
• Make sure that air may circulate freely around the oven.

Leave sufficient space around the oven :

• 5 cm between the sides of the oven and any walls or objects
• 14 cm above the oven

• 10 cm behind the oven.

• Allow nothing to obstruct the ventilation louvers at the back of the appliance.

• Make sure the electrical plug will be accessible after installation.
• Do not use your appliance immediately (wait approx. 1-2 hours) after transfer from a cold place to a warm place as condensation may cause a malfunction.

ELECTRICAL CONNECTION

• Your installation must be protected by a 16 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordance with current safety regulations.
• In your electrical installation, provide a device that is accessible to the installer, capable of separating the appliance from the mains power and whose contact opening is at least 3mm at all of the poles.
• Never operate the oven if the supply cord and/ or its plug are damaged. In case of damage, call in a specialised technician trained by the manufacturer.

INSTALLATION

BUILDING IN KIT

INSTALLATION

BUILDING IN KIT

INSTALLATION

BUILDING IN KIT

INSTALLATION

BUILDING IN KIT

INSTALLATION

BUILDING IN KIT

WARNING

• Your appliance is designed exclusively for the domestic purposes of defrosting, heating or cooking foods. The manufacturer bears no responsibility in the case of improper usage.
• Only use ustensils that are suitable for use in microwave ovens. Do not leave any accessories in the oven when it is not operating.
• To avoid deterioration of your microwave oven, never operate it empty or without the turntable.
• Never tamper with the lock mechanism of your microwave oven; you could cause damage requiring repair by an authorised technician.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• It is not advisable to use metal recipients, forks, spoons, knives, metal ties or staples for deep-freeze bags.
• The contents of feeding bottles are baby food jars shall be stirred or shaken and the temperature checked before consumption in order to avoid burns.
• Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
• Liquids and other foods must not be heated in sealed containers they are liable to explode.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• For small amounts (one sausage, a single croissant, etc.), place a glass of water alongside the food item.
• Time settings that are too long may dry out and burn the food. To avoid such incidents, never use the same cooking times as those recommended for traditional ovens.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• In order to evacuate moisture, your appliance is fitted with a delayed ventilation function. Depending on the applied cooking mode (solo/grill/combination), the oven ventilation will continue to operate after the cooking end.

GENERAL DESCRIPTION

THE TURNTABLE :

ensures equal cooking of food throughout with no need to stir or turn the dish.

• It may be used as a cooking platter.
• Rotation is controlled by the drive shaft and the wheel support.
• The turntable revolves in both directions.
• If it does not turn, verify that all components are properly positioned.
• For easy removal, wells are provided on either side.

TURNTABLE OFF

stops the turntable from revolving in order to use platters which require the entire oven space.

THE WHEEL SUPPORT :

Do not try to rotate the roller ring manually, as you could damage the drive system. If it does not turn smoothly, make sure that there is nothing in the well beneath the turntable.

CONTROL PANEL

A Display window :

to simplify programming, the display indicates : the time of day, the types of food and functions, the minutes / seconds, or weight programmed.

B The food type selector knob

to choose the food type or function.

C The time / weight selector knob

0/：

to choose the programme time or weight.

D-E-F The Heat / Cook / Speed Defrost keys :

Speed Defrost automatically set the appropriate programme time according to the weight and the selected food type.

G The microwave key :

to choose the microwave power setting.

H The Grill / Microwave + Grill / Pizza key

：

to directly programme the grill / microwave + grill / pizza function.

The KEEP WARM key :

to keep your dish warm.

J The STOP/CANCEL key C:

to interrupt (press once) or to cancel a programme (press twice). Also used to set the clock.

K STOP-TURNTABLE key :

to stop the turntable from revolving.

L START key :

to start all programmes.

SETTING THE CLOCK

After first plugging in your microwave oven or after a power outage, the clock reads 00:00 and the two dots flash.

To set the clock :

• Press the PAUSE / CANCEL key C for 5 seconds.

"00:00" flashes, and a tone sounds requesting the hour be set.

• Turn the selector knob to display the correct time.
• Validate by pressing the PAUSE / CANCEL key C. Your clock is set.

00:00

12:00

MICROWAVE POWER SETTINGS

POWER SETTING	APPLICATION
DEFROST	To defrost all frozen food or to top off cooking of delicate dishes or to cook very slowly.
SIMMER	To cook fish and poultry. To finish programmes begun with the HIGH COOK power setting, for instance beans, lentils, or dairy products. (This power setting is available when you pro-gramme the function using the microwave key).
HEAT	To heat up all liquids and all fresh or frozen pre-cooked dishes.
HIGH COOK	To cook vegetables and soup.
Microwave output power: 900 W

THE DISPLAY

The display and the selector knobs guide you in your choice of :

food types

the weight for an AUTO programme

the length of the programme (or time of day) 12:00

The food type or function being selected will flash in the display.

THE SELECTOR KNOBS

The 2 selector knobs are used for the various programmes :

The first to select :

• the food type

• the function

Food type selector

Time / weight selector

the second to programme :

• the length of the programme

• the weight of the food

PROGRAMMING

Your microwave oven is now plugged in and the clock is set.

Open the door. Set the dish inside, close the door. If the door is not properly shut, the appliance will not operate.

• 3 beeps announce the end of a programme. The beeps are repeated every minute for 10 minutes until you open the door.
• If you think there is insufficient space for the dish to turn freely inside the oven, press the STOP TURNTABLE key before or during the programme.
• If there is an error in the programming, press the CANCEL key C twice.

MICROWAVE PROGRAMMING

Available programmes :

Express programming

① Set the desired programme length (ex. 2 minutes) with the time selector knob.

2:00

2 Press Start. The maximum power setting is programmed directly for quick reheating.

Programming with the microwave key

Press the microwave key, press again to select the desired microwave power setting.
The SIMMER function is available in this mode.
2 Set the desired programme length (ex. 5 minutes), with the time selector knob.

5:00

3 Press Start.

MICROWAVE PROGRAMMING

Programming with the Heat, Cook, or Speed Defrost keys :

Speed Defrost the appropriate time is automatically programmed!

1 Choose the food type with the food type selector knob (ex. fish).

② Press one of the microwaving keys, heat, cook or Speed defrost (ex. cook).

The weight 50 g flashes in the display.

③ Programme the weight of your food item using the weight selector knob (ex. 500 g).

500 g

4 Press Start. The appropriate power level is programmed, the adequate programme length is displayed automatically (ex. 7 min) and the programme begins.

7:00

The keep warm function

Press the KEEP WARM key , 10:00 is displayed. You may shorten the time with the time selector knob.

Press Start. Your dish is kept warm for ten minutes.

10:00

THE SPEED DEFROST FUNCTION

With the Speed DEFROST key you can quickly defrost all types of frozen food. To guarantee quality results, use Speed DEFROST for dishes weighing up to 500g. To defrost food items over 500g, use the microwave key.

(1) For quick defrosting of meat, poultry, fish, vegetables and beverages, press the Speed DEFROST key :

is displayed.

For quick defrosting of bread, rolls and pastry, press the Speed DEFROST key twice :

is displayed.

Wait until 100 g flashes.

Use the weight selector knob to enter the weight of your food item (up to 500g).
ex. 400 g
③ Press START

The defrost time corresponding to the given weight is automatically calculated.

Necessary time may vary according to the initial temperature of the food (the defrost times were calculated for food frozen at -18^ ).
The defrost time is displayed and the programme begins.
When using Speed DEFROST or the defrost function 水 0.0 a beep indicates the midpoint of the programme (the oven continues to operate). To obtain the best results, turn the food at this time, close the door and press the START key to continue the second half of the programme.

THE GRILL FUNCTION

This function enables you to brown dishes such as gratins or meat. It may be used before or after cooking, as called for in the recipe.

2 grilling levels are available :
HIGH GRILL and LOW GRILL. As a rule, use the HIGH GRILL level to grill meat and fish and the LOW GRILL level to brown delicate dishes.
WARNING : certain exposed parts may heat up during use of the grill. Be sure to keep children away.
- After grilling make sure to use an oven mitt to handle dishes, and remember to use only ovenproof cookware such as ceramic dishes or heat resistant glass. Always allow the grill to cool down for 25 minutes before touching it.

the grilling rack

The rack is for use with the GRILL function, to brown shallow dishes.

• When grilling, you may either set dishes directly on the turntable or on the rack.
• Make sure that the rack is always well centered on the turntable.
• Never use any metal dish with the rack with the microwave, grill + microwave or pizza functions.

Nevertheless you may heat up food in an aluminium tray if you place a plate between the tray and the rack.

Programming the grill / Microwave + Grill

Using the 2 level grill

▼ Press the grill key once to choose the LOW GRILL, twice to choose the HIGH GRILL.
Set the desired programme length with the selector knob and press Start.

Using the microwave + grill function

This function enables you to use the microwaves and grill simultaneously, for rapid cooking.

To ensure best results, an intermediate microwave power level together with the high grill are programmed.
① Select the microwave + grill function by pressing the microwave + grill key 4 times.

is displayed

2 Set the programme length with the time selector knob, ex. 10 min.

is displayed

③ Press Start.

The Pizza function

With the PIZZA function you can save time and energy cooking your favorite dishes and have them turn out as crispy, tasty and golden brown as if cooked in a traditional oven.

Use of the PIZZA key together with the PIZZA dish, allows you to use the grill and microwave functions simultaneously.
The PIZZA dish features a special coating that absorbs microwaves through its bottom.
It radiates heat from below the food to cook or reheat it, giving it the required color and crispness while the grill browns the top.

2 cooking methods :

• Without preheating - by using the PIZZA function you can cook and brown most frozen meals and fresh, dough-based dishes without preheating the PIZZA dish. They turn out as crispy as if cooked in a traditional oven.
• With preheating - the PIZZA dish can be preheated using the PIZZA key for a maximum of 2 minutes. Preheating is recommended to cook or brown small pieces of meat or fish and some dough-based, frozen and take-out dishes.

Recommendations

Take foods out of their metallic or plastic packaging before cooking or reheating them with the PIZZA function.
It is advisable to program shorter cooking times and extend if necessary.
- All foods with a skin or wrapping, such as potatoes and sausages, must be pierced before cooking.
- Make sure pieces of meat are completely thawed out and dried off before searing with the PIZZA function.
- Keep an eye on the food's coloring, just as you would with a traditional oven.
- Protect your hands when taking out the dish because it can be extremely hot.
- Do not serve stuffed foods (apple pastry for example) too quickly because they can be warm on the surface whereas the filling is extremely hot.
- Cooking or reheating of eggs with the PIZZA function is prohibited.
If you wish to cook several dishes consecutively with the PIZZA function, allow the oven to cool 10 minutes between dishes for better browning.

PROGRAMMING THE PIZZA FUNCTION

Example : to cook a frozen pizza (350 g)

Place the frozen pizza directly on the PIZZA dish, place the PIZZA dish on the middle of the turntable.

Programming

① Press the pizza key 3 times:

is displayed

2 Program 7 minutes with the time selector.

7:00

is displayed

3 Press START.

The turntable revolves, the oven light comes on.

Be sure and use an oven mitt to remove the pizza dish.

THE PIZZA DISH

Care of the PIZZA dish

• The inside of the dish is covered with a non-stick coating, so it is not necessary to grease it before use.
• Do not cut foods directly in the PIZZA dish as this damages the non-stick coating.
  The PIZZA dish is dishwasher-safe.
• Use a sponge, hot water and dishwashing liquid to wash the dish. Do not use a metallic sponge or scouring powder.

Recommendations

• Do not place the PIZZA dish on the rack; this could cause irreversible damage to your oven.

• Do not place the PIZZA dish in a traditional oven, on gas, electric or other stoves or on any very hot surface.

• The PIZZA dish may be preheated for certain purposes but never preheat for longer than 2 minutes.

• Do not leave any utensils in a hot PIZZA dish as the high temperature may damage them.

• If you wish to cook several dishes consecutively with the PIZZA function, allow the oven to cool 10 minutes between dishes for better browning.

LINKED PROGRAMMING

You may link 2 different programmes, combining any of the available functions : microwave / grill / microwave + grill / pizza / keep warm.

Example : Using linked programming for a 10-minute defrost programme followed by a 20-minute simmer level microwave + grill programme

① Proceed as if setting only a defrost programme : - press the microwave key and select the defrost function.
② Set the programme time (ex. 10 min)

Instead of pressing START, programme the next operation : - press the grill key 4 times to select the microwave + grill function.

④ Set the programme length by adding the microwave + grill time (ex. 20 min) to the defrost time (10 min).

⑤ Press Start.

The linked microwave + grill programme will automatically begin at the end of the defrost programme.

RECOMMANDATIONS

WHILE THE OVEN IS OPERATING :

• You may stop or start the turntable revolving during a programme by pressing the TURNTABLE STOP key .
• To change the food type or function selection, press the CANCEL key C twice and programme again.
• If you open the door before the end of the programme, shut the door and press the START key to continue the programme.
• When using the defrost and Speed Defrost functions _ a beep indicates the midpoint of the programme (the oven continues to operate); to obtain the best results, turn the food at this time, close the door and press the START key to continue the second half of the programme.
• If you remove a dish before the end of the programme, press the CANCEL key C twice to erase the programme.

REMARKS :

If you wait longer than 4 minutes to press the START key 1 after having entered a programme, it will be cancelled (the clocktime will be displayed).
- If you wish to defrost frozen food after using one of the grill functions, for better results, first let the microwave oven cool down for about ten minutes.

TROUBLESHOOTING GUIDE

Problem

The time counts down, but the appliance does not function (the turntable does not rotate, the light does not come on and the food is not heated).
The microwave oven is noisy when operating.
Condensation forms on the door glass.
The turntable does not revolve correctly.
The microwave programmes do not produce the desired results.
The appliance produces sparks.

Suggestion

Press the TURNTABLE OFF key for five seconds.
Adjust the front left foot. Clean the wheels and the well area beneath the turntable.
Clean the vents under the appliance.
Clean the wheels and the well beneath the turntable.
Clean the vents under the appliance. Make sure that you use only containers which are suitable for microwave cooking.
Check whether the wheel support is correctly positioned.
Thoroughly clean the appliance: remove any greasy deposits, cooking residue, etc...
Move any metal objects away from the oven walls.
Never use metallic containers with a rack.

CARE & CLEANING

WARNING : It is recommended to clear the oven regularly and to remove any food deposit inside and outside the appliance. Use a soapy and wet cloth. If the appliance is not kept clean, its surface could deteriorate and adversely affect its lifespan and possibly result in a hazardous situation. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
A steam cleaner is not to be used.
- Do not use abrasives, alcohol or solvents as they are liable to damage the oven.
- In the event of unsavory odors or caked-on dirt, boil water containing lemon juice or vinegar in a cup for 2 minutes and clean the walls with a little dishwashing liquid.
- When using the grill functions, the top and rear air vents become very hot. Do not touch these parts after use; wait till the appliance has cooled down in order to clean it. Use a fine steel wool pad on the metal parts.
- The turntable can be removed for cleaning.
Wells are provided on both sides for easy access. If you remove the drive shaft, do not allow water to enter the motor shaft hole.
Be sure to put the turntable, the drive shaft and the wheel support back in their proper place.

AFTER SALES SERVICE

If the equipment has sustained any damage :

• Check that the door is not deformed.

If the oven does not operate, before calling the repairman :

• Check the electrical supply.
• Check that the door is properly closed.
• Check your programming.

CAUTION : never attempt to repair your oven yourself.

WARNING : it is dangerous for anyone other than qualified personnel to make any repairs requiring removal of the cover providing protection from exposure to microwave energy.

Only a specially trained technician is qualified to repair your microwave oven.
