S7500-24Y4C - Commutateur TP-LINK - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Commutateur L3 géré empilable
Marque	TP-Link
Modèle	S7500-24Y4C
Dimensions (L x P x H)	440 x 380 x 44 mm (17.3 x 15.0 x 1.7 pouces)
Alimentation	100-240 V~, 50/60 Hz, consommation max 137.63 W, redondance N+1 (2 modules hot-swappable, 1 fourni)
Interfaces	24 ports SFP28 1/10/25G, 4 ports QSFP28 40/100G, 1 port de gestion RJ45, 2 ports USB 3.0, ports console RJ45 et USB Type-C
Capacité de commutation	2000 Gbps
Taux de transfert	810 Mpps
Table d'adresses MAC	128K entrées
Fonctions L3	OSPFv2/v3, BGP, IS-IS, RIP, VRRPv2/v3, PIM-SM/DM/SSM, ECMP, PBR
Fonctions L2	VLAN 802.1Q (4K), QinQ, GVRP, STP/RSTP/MSTP, LLDP-MED, ERPS, LACP, Port Mirroring, RSPAN
Sécurité	Secure Boot, RADSEC, IMPB, SFTP, 802.1X, ACL (IPv4/IPv6/MAC/Combinées), DoS Defend, RA Guard
Qualité de service (QoS)	8 files d'attente, SP/WRR, limitation de débit, contrôle de tempête, WRED
Gestion	Web (HTTP/HTTPS), CLI (SSH/Telnet/Console), SNMP v1/v2c/v3, NETCONF, Omada Pro SDN Controller (cloud ou sur site)
Empilage	Jusqu'à 12 unités en mode autonome, 4 en mode contrôleur Omada, bande passante stacking jusqu'à 800 Gbps
Redondance et maintenance	Alimentations et ventilateurs hot-swappable, sauvegarde/restauration configuration, mise à jour firmware via TFTP/HTTP/USB, configuration rollback, hot patching
Environnement	Température fonctionnement : -5°C à 50°C (jusqu'à 300 m), humidité 10% à 90% sans condensation
Certifications	CE, FCC, RoHS
Entretien et nettoyage	Débrancher avant nettoyage ; utiliser un chiffon sec et doux ; ne pas utiliser de liquides ou aérosols
Pièces détachées et réparabilité	Modules d'alimentation PSM550-AC et ventilateurs hot-swappable ; modules SFP/SFP+/SFP28/QSFP28 en option ; câbles DAC

FOIRE AUX QUESTIONS - S7500-24Y4C TP-LINK

Quelles sont les principales caractéristiques du TP-Link S7500-24Y4C ?

Le S7500-24Y4C est un commutateur L3 géré empilable avec 24 ports 25G SFP28 et 4 ports 100G QSFP28. Il offre une capacité de commutation de 2000 Gbps, supporte les protocoles de routage avancés (OSPF, BGP, IS-IS), le stacking physique (jusqu'à 12 unités), et une gestion centralisée via Omada Pro.

Comment configurer le stacking sur ce commutateur ?

Le stacking s'effectue via les ports QSFP28 100G. Vous pouvez utiliser jusqu'à 4 ports comme ports de stacking, offrant une bande passante stacking allant jusqu'à 800 Gbps. En mode autonome, jusqu'à 12 unités peuvent être empilées ; en mode contrôleur Omada, jusqu'à 4 unités. La configuration se fait via l'interface web ou CLI.

Le commutateur prend-il en charge OSPF et BGP ?

Oui, le S7500-24Y4C supporte OSPFv2 (jusqu'à 16 instances), OSPFv3, BGP, IS-IS et RIP. Ces protocoles permettent un routage dynamique avancé pour les réseaux d'agrégation et cœur.

Quelle est la capacité de commutation et le débit ?

La capacité de commutation est de 2000 Gbps (full-duplex), et le taux de transfert de paquets atteint 810 Mpps. Cela permet de gérer un trafic réseau important avec une faible latence.

Comment gérer le commutateur à distance via le cloud ?

Le commutateur est compatible avec Omada Pro SDN Controller (cloud-based ou sur site). Via l'interface web ou l'application Omada, vous pouvez centraliser la gestion, appliquer des configurations, surveiller le réseau et effectuer des mises à jour à distance. L'approvisionnement zero-touch est disponible avec le contrôleur cloud.

Quels types de modules SFP sont compatibles ?

Le commutateur accepte une large gamme de modules : SFP (1G), SFP+ (10G), SFP28 (25G), QSFP28 (40/100G). TP-Link propose des modules correspondants, y compris des câbles DAC passifs. Les modules tiers compatibles peuvent également fonctionner.

Comment assurer la redondance d'alimentation ?

Le S7500-24Y4C est livré avec un module d'alimentation hot-swappable PSM550-AC (550W). Il accepte un second module en option pour une redondance N+1. En cas de panne d'une alimentation, l'autre prend le relais sans interruption.

Quelles sont les fonctionnalités de sécurité intégrées ?

Le commutateur inclut Secure Boot pour protéger le firmware, RADSEC pour une authentification RADIUS sécurisée, IMPB (IP-MAC-Port Binding), SFTP pour les transferts de fichiers chiffrés, 802.1X pour le contrôle d'accès, et des ACL (IPv4/IPv6/MAC) pour filtrer le trafic. Des protections contre les attaques DoS sont également présentes.

Comment mettre à jour le firmware ?

Les mises à jour peuvent être effectuées via l'interface web (HTTP/HTTPS), la CLI (TFTP/Flash/USB) ou via le contrôleur Omada. Le commutateur dispose d'un système de dual image avec basculement en cas d'échec. La fonction de configuration rollback permet de revenir à une version antérieure.

Quelle est la garantie de ce produit ?

TP-Link offre une garantie limitée standard. Pour les détails précis, consultez le site officiel TP-Link ou le revendeur. Le commutateur bénéficie également d'un support technique via la documentation en ligne et le service client.

MODE D'EMPLOI S7500-24Y4C TP-LINK

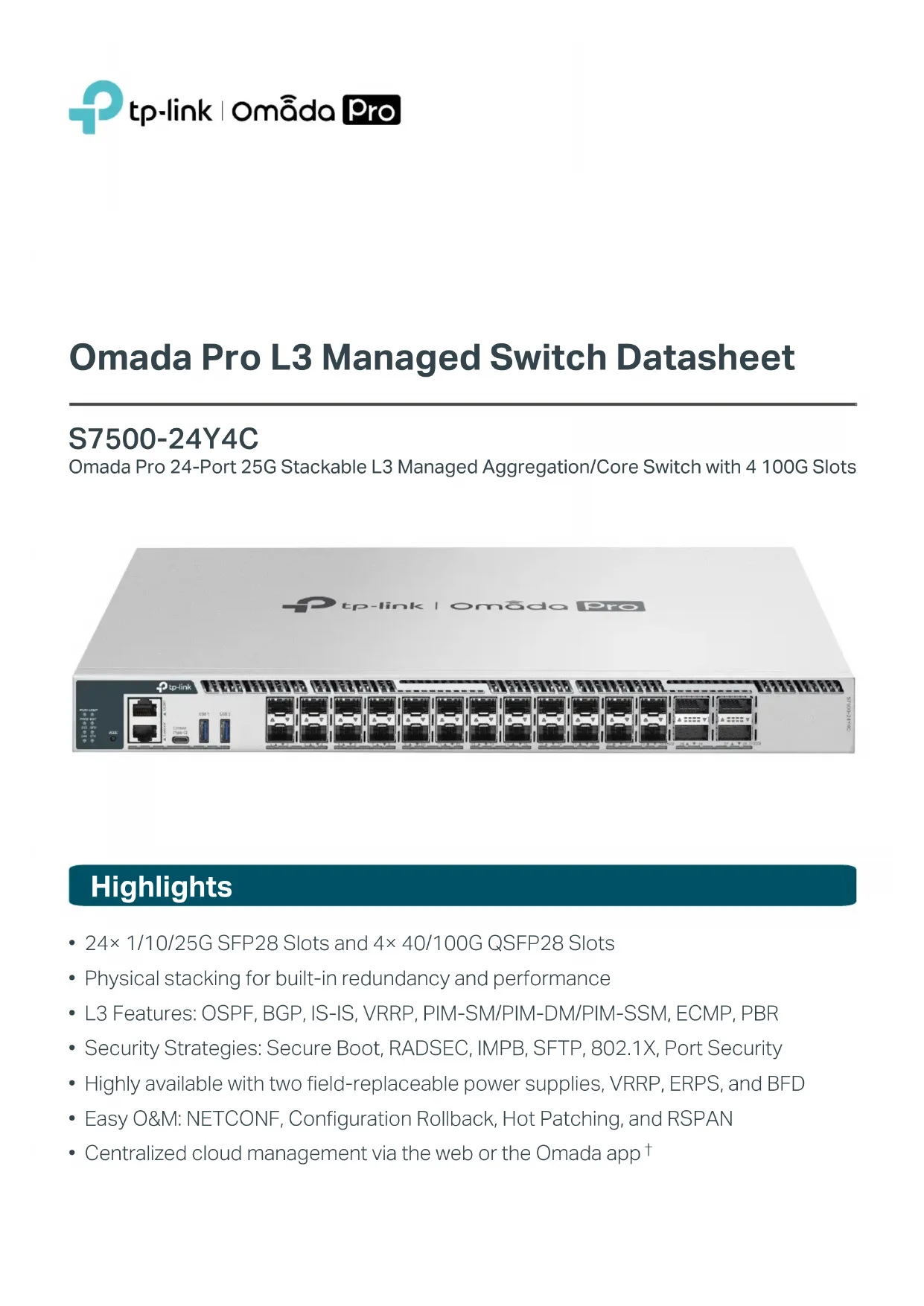

Omada Pro L3 Managed Switch Datasheet

S7500-24Y4C

Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots

tp-link | omāda Pro tp-link USB1 USB2 USB3 USB4 USB5 USB6 USB7 USB8 USB9 USB10 USB11 USB12 USB13 USB14 USB15 USB16 USB17 USB18 USB19 USB20 USB21 USB22 USB23 USB24 USB25 USB26 USB27 USB28 USB29 USB30 USB31 USB32 USB33 USB34 USB35 USB36 USB37 USB38 USB39 USB40 USB41 USB42 USB43 USB44 USB45 USB46 USB47 USB48 USB49 USB50 USB51 USB52 USB53 USB54 USB55 USB56 USB57 USB58 USB59 USB60 USB61 USB62 USB63 USB64 USB65 USB66 USB67 USB68 USB69 USB70 USB71 USB72 USB73 USB74 USB75 USB76 USB77 USB78 USB79 USB80

Highlights

• 24× 1/10/25G SFP28 Slots and 4× 40/100G QSFP28 Slots
  • Physical stacking for built-in redundancy and performance
  • L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
  • Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
  • Highly available with two field-replaceable power supplies, VRRP, ERPS, and BFD
• Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
• Centralized cloud management via the web or the Omada app ^+

Product Pictures

440 mm 1 RJ45 Management Port 380 mm 44 mm 1 RJ45 + 1 USB Type C Console Ports 2 USB 3.0 Ports 24× 1/10/25G SFP28 Slots 4× 40/100G QSFP28 Slots

Omada Pro Solution

Omada Pro is an intelligent cloud solution for enterprise networking, offering enterprise-grade product line designed to meet the high-capacity, security, and management needs of various industries, such as MDUs, hospitality, K-12 education, public works, and more.

MDUs

Hospitality

Public Works

Catering

Manufacturing

Retail

Specifications

Hardware Features & Performance

Model S7500-24Y4C
General	Interface	24×1/10/25G SFP28 Slots4×40/100G QSFP28 Slots
	Console Ports 1 × RJ45	+1 × USB Type C
	Management Port 1 × RJ45
	USB Ports 2 × USB 3.0
	Flash 2×4 MB Nor + 8 GB EMMC
	DRAM 8GB DDR4
	Processor Quad-Core ARM @1.2GHz CPU
Performance	Switching Capacity 2000 Gbps
	Forwarding Bandwidth 1000 Gbps
	Packet Forwarding Rate 810 Mpps
	MAC Address Table 128K
	Packet Buffer 8 MB
	Stacking Port 100G QSFP28 slot (all uplink ports can be used as stacking ports)*
	Stacking Bandwidth Up to 800 Gbps (4 stacking ports)
	Max Stacking Number	12 in standalone mode, 4 in Omada controller mode
	Compatible Models for Stacking	S7500-24Y4C
	Transmission Method	Store and Forward
	Jumbo Frame	9 KB
	Power Supply	100-240 V ~50/60 Hz
	Redundant Power Supply	Max 2 hot swappable power supply module, N+1 redundant (shipping with one PSM550-AC module by default)
	Suitable Power Supply Module	PSM550-AC
	Max Power Consumption	137.63W (220 V/50 Hz)
	Max Heat Dissipation	469.6BTU/hr (220 V/50 Hz)
Physical & Environmet	Standby Power Consumption	43.72W (220 V/50 Hz)
	Noise	1× PSM550-AC power supply module:Min: 35.6 dBA @ 1m 25 °CMax: 54.2 dBA @ 1m 25 °C
	Fan Quantity	4 hot swappable fan modules, N+1 redundant
	Airflow	Front-to-back
	Surge Protection	Service port: ±6 kV in common modePower port: ±4 kV in differential mode; ±4 kV in common mode
	ESD Protection	Air: ±15 kV, Contact: ±8 kV
	MTBF	382,117 h @ 25 °C
	Dimensions (W x D x H)	17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
	Installation	Rackmount
	Operating Temperature & Altitude	-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters**
	Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
	Operation Humidity	10% to 90% RH, non-condensing
	Storage Humidity	5% to 90% RH, non-condensing
	Certification	CE, FCC, RoHS

Software Features ^a
Model S7500-24Y4C
System	System Info	Device Description- Name- Location- System ContactSystem Time- Manual- Synchronize with PC's Clock- SNTP ClientDST- Predefined Mode- Recurring Mode- Date Mode	LED- LED on/offSystem IP- Static IP/DHCP/BOOTPSystem IPv6- Link-local Address Config- Global Address Autoconfig via RA Message- Global Address Autoconfig via DHCPv6 Server- Add a Global Address Manually
	User Management	User SettingsAccess Level: 4 levels	Password Recovery Settings
	System Tools	Config Restore/Backup- Web: HTTP- CLI: TFTP/Flash/USBFirmware Upgrade- Web: HTTP- CLI: TFTP/Flash/USB	System RebootSystem ResetBoot Config (Dual Image)Reboot ScheduleConfig RollbackHot Patch
	Access Security	Access Control Config- IP-based- MAC-based- Port-based- IPv6-basedHTTP Config- Enable/Disable- Session Config- Access User Number- Port SettingSSL Config- SSLv3/TLSv1 Enable/Disable- CipherSuite Config- IPv6 SSL	SSH Config- Enable/Disable-v2- Encryption Algorithm- Data Integrity Algorithm- Port Setting- IPv6 SSHTelnet Config- Enable/Disable- Port Setting- IPv6 TelnetConsole Port- Baud Rate setting
	Stack	Stack SettingStack-port LAG: up to 6 groups, each group supports a maximum of all stackable-ports	Stackable Devices: up to 12 devicesStack MAC Address Switching Delay
	SDM Template	Default Template- IPv4 ACL Rules: 2000 entries- MAC ACL Rules: 2000 entries- Combined ACL: 2000 entries- IPv4 Source Guard: 899 entriesIPv4 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 2000 entries- Combined ACL: 4000 entries- IPv4 Source Guard: 999 entries	IPv6 Access- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 2200 entries- IPv6 ACL: 24000 entries- IPv6 Source Guard: 749 entriesOmada- IPv4 ACL Rules: 0 entries- MAC ACL Rules: 0 entries- Combined ACL: 4000 entries- IPv6 ACL: 1700 entries- IPv4 Source Guard: 0 entries
	Time Range	Time Range Config	Holiday Config
	File System	File OperationFTP SFTP	SCP TFTP USB Storage
Software Features ^4
Model S7500-24Y4C
L2 Features	Port	• Port config- Status- Speed and Duplex- Flow Control(802.3x)- Jumbo Frame: 1518-9216 KB• Port Mirror- Ingress (Many to One)- Egress (Many to One)- RSPAN	• Port Security- Learn mode: Dynamic/Static/Permanent/Sticky- Port Max Learned MAC: 64- Current Learned Number- Status- Exceed Max Learned Trap• Port Isolation• Loopback Detection- Alert- Port Based- VLAN Based
	DDM
	LAG	• Hash Algorithm: SRC MAC/DSTMAC/SRC MAC +DST MAC/SRC IP/DST IP/SRC IP +DST IP	• Static LAG: Up to 120 groups, up to 8 ports per group• LACP(802.3ad)
	Traffic Monitor	• TX Packets/Bytes• RX Packets/Bytes• TX Unicast/Multicast/Broadcast• RX Unicast/Multicast/Broadcast	• TX Errors• RX Errors• RX Packet Size Analysis
	MAC Address	• MAC Address Table: 128K entries• IVL/SVL: IVL• Create Static Unicast Address	• Bind Dynamic Address• Create Filtering Address• MAC Notification Settings
	VLAN	• 802.1Q VLAN(802.1q): 4K VLANs• MAC VLAN: 200 entries• Protocol VLAN- 16 Protocol VLAN Template- 12 Protocol VLAN Group	• QinQ(VLAN VPN): 256 entries• Private VLAN• GVRP
	Multicast	• Max Multicast Groups: 4K (IPv4,IPv6)• IGMP Snooping- IGMP V1/V2/V3- Report Message Suppression- Fast Leave- Unknown Multicast Discard- Static Multicast Groups- IGMP Snooping Querier- IGMP Packet Statistics- IGMP Authentication- Multicast Filtering: 256 profiles and 16 entries per profile- Router Port Setting: Static Router Port/Forbidden Router Port• MVR	• MLD Snooping- MLD V1/V2- Report Message Suppression- Unknown Multicast Discard- Fast Leave- Static Multicast Groups- MLD Snooping Querier- MLD Packet Statistics- Multicast Filtering: 256 profiles and 16 entries per profile- Router Port Setting: Static Router Port/Forbidden Router Port• Multicast Table- IPv4 Multicast Table- IPv6 Multicast Table
	STP	• STP(802.1d)• RSTP(802.1w)• MSTP(802.1s)• MSTI entries: 64	• STP Security- Loop Protect- Root Protect- TC Protect- BPDU Protect- BPDU Filter
	LLDP (802.1ab)	• Enbale/Disable• Local Info• Neighbor Info• Statistic Info	• LLDP-MED- Local Info- Neighbor Info
	L2PT • Layer 2 Protocol Tunneling
	PPPoE ID Insertion	• Circuit-ID Type- IP- MAC- UDF- UDF-ONLY	• Remote-ID
	ERPS • Ring: 64
	Virtual MAC
	Sticky MAC
Software Features*
Model S7500-24Y4C
L3 Features	L3 INTERFACE: 256(IPv4,IPv6)
	STATIC ROUTE: 2048 IPv4, 1024 IPv6
	IPv4 Host Router entries + IPv6 Host Router entries: 15300
	IPv4 Network Router entries: 102400 (shared with IPv6 Network Router entries)IPv6 Network Router entries: 51200 (shared with IPv4 Network Router entries)
	ECMP	• ECMP entries: 256• MAX-PATH: 32
	ARP	• Static ARP: 1024• Dynamic ARP: 24576
	ND: 24576
	DHCP	• DHCP Server - IP Pool: 64 - IP MAX entries: 8000 - Manual Binding: 1000 - Excluded IP Range: 100 • VRRP V2/V3 • VRRP Instance: 64 • VRRP Virtual IP: 32 per instance
	VRRP	• OSPFv2 - OSPF Instance: 16 - Network entries: 256 entries - Area entries For Stub Or NSSA: 16 per instance - AreaRange entries: 16 per instance - Virtual-link entries: 16 per instance - Redistribute: conneted/static/RIP/OSPF/IS-IS/BGP - Graceful Restart - OSPFv2 BFD
	OSPF	• RIPv1/v2 - Network entries: 256 - Redistribute entries: 20 - Redistribute: BGP/connected/OSPF/IS-IS/static
	RIP	• IS-IS Interfaces: 128 • IS-IS Area Numbers: 3 • Redistribute: BGP/connected/OSPF/OSPFv3/RIP/static/RIPng
	IS-IS	• IS-IS Interfaces: 128 • IS-IS Area Numbers: 3 • Redistribute: BGP/connected/OSPF/OSPFv3/RIP/static/RIPng
	BGP	• Redistribute: IS-IS/connected/OSPF/RIP/static
	PIM	• PIM DM • PIM SM • PIM SSM
	IGMP • Version: v1/v2/v3 • IGMP Multicast Groups: 2K
	BFD • Template Numbers: 16 • Session Numbers: 8
	PBR
	uRPF
QoS	Class of Service	• Priority Queues: 8 Queues • Port Priority • 802.1P Priority • DSCP/ToS Priority • Priority Schedule Mode: SP/WRR per Queue • Queue Weight Config: For WRR/SP+WRR Mode
	Bandwidth Control	• Rate Limit - Ingress Rate Limit - Egress Rate Limit - Rate Limit Grade: 64kbps • Storm Control - Control Mode: kbps/ratio - Broadcast - Multicast - Unknown Unicast
	Voice VLAN • Supported OUI Numbers: 64
	WRED • WRED profile: 16

Software Features*
Model S7500-24Y4C
Network Security	IP-MAC Binding	Binding entries: 1024 entriesManual Binding	ARP ScanningDHCP Snooping
	IPv6-MAC Binding	Binding entries: 1024 entriesManual Binding	DHCPv6 SnoopingND Snooping
	ARP Inspection	ARP Detect entries: 1024 entriesARP Detect	ARP DefendARP Statistics
	ND Detection	ND Detection entries: 1024 entriesND Detect	ND Statistics
	IP Source Guard	IP Source Guard entries- Default SDM Template: 899- IPv4 SDM Template: 999- IPv6 SDM Template: 0	Security Type- Source IP- Source IP + Source MAC
	IPv6 Source Guard	IPv6 Source Guard entries- Default SDM Template: 0- IPv4 SDM Template: 0- IPv6 SDM Template: 749	Security Type- Source IPv6- Source IPv6 + Source MAC
	RA Guard: 30 entries
	DoS Defend	Scan SYNFINXmascanNULL Scan	SYN sPort less 1024Ping FloodingSYN/SYN-ACK Flooding
	DHCP Filter	DHCPv4 Filter- Legal Server entries: 200	DHCPv6 Filter- Legal Server entries: 200
	802.1x	Control Type- Port Based- MAC BasedAuth Method: PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP	Radius AuthenticationRadius AccountingRadius Server Load BalancingRADSECGuest VLAN
	AAA
	ACL	Time-Range- Time Slice- Week Time-Range- Absolute Time-Range- HolidayMAC ACL- Source MAC- Destination MAC- VLAN ID- EtherType- User PriorityIP ACL- Source IP- Destination IP- IP Protocol- TCP Flag- TCP/UDP Source Port- TCP/UDP Destination Port- DSCP/IP ToSCombined ACLIPv6 ACLRule Operation- Permit- DenyPolicy Action- Mirror- Rate Limit- Redirect- QoS RemarkBinding- Port Binding- VLAN Binding	Default Template- IPv4 ACL Rules: 2000 entries- IPv6 ACL Rules: 0 entries- MAC ACL Rules: 2000 entries- Combined ACL: 2000 entriesIPv4 Access- IPv4 ACL Rules: 0 entries- IPv6 ACL Rules: 0 entries- MAC ACL Rules: 2000 entries- Combined ACL: 4000 entriesIPv6 Access- IPv4 ACL Rules: 0 entries- IPv6 ACL Rules: 2400 entries- MAC ACL Rules: 2200 entries- Combined ACL: 0 entriesOmada- IPv4 ACL Rules: 0 entries- IPv6 ACL Rules: 1700 entries- MAC ACL Rules: 0 entries- Combined ACL: 4000 entries
	Secure Boot
Virtualization IP Tunnel		IPv6 over IPv4IPv6 over IPv4 GRE	IPv4 over IPv4 GRETunnel entries: 100

Software Features ^a
Model S7500-24Y4C
	System Monitor	CPU MonitorMemory Monitor
	sFlow
	OAM	EFM- Link Monitoring- Remote Failure Indication Config- Statistics
	DLDP
	SNMP	SNMP Version: v1/v2c/v3SNMP Config- Global Config-SNMP View-SNMP Group-SNMP User-SNMP CommunityNotification- Trap: IPv4/IPv6-Inform: IPv4/IPv6-RMON v1/v2Public MIBsPrivate MIBs
	MIBs	MIB II (RFC1213)Interface MIB (RFC2233)Ethernet Interface MIB (RFC1643)Bridge MIB (RFC1493)P/Q-Bridge MIB (RFC2674)RMON MIB (RFC2819)RMON2 MIB (RFC2021)RADIUS Accounting Client MIB (RFC2620)RADIUS Authentication Client MIB (RFC2618)Remote Ping, Traceroute MIB (RFC2925)Support TP-Link Private MIB
	NETCONF
	DHCP Auto Install
	Log	Display/FilteringSeverity LevelSave to FlashRemote HostBackup Log
	Network Diagnostics	PingIPv6 PingTracertIPv6 Tracert
Others	Index
	Show running config	Use the show running config command to view device's running status via telnet.Configuration File: Import/Export/Edit
Omada SDN Controller	Omada Pro SDN controller

Ordering Information

Host Switch

Model Description

S7500-24Y4C Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots

Power Supply Module

Model Description

PSM550-AC 550 W AC Power Supply Module

SFP/SFP+/SFP28/QSFP28 Modules

Model Description
SM311LS Gigabit	SFP module, Single-mode, LC interface, Up to 20km distance
SM311LM Gigabit	SFP module, Multi-mode, LC interface, Up to 550m distance
SM321A Gigabit	WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 20 km
SM321A-2 Gigabit	WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1550 nm/RX: 1310 nm, 2 km
SM321B Gigabit	WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 20 km
SM321B-2 Gigabit	WDM Bi-Directional SFP Module, single-mode, LC connector, TX: 1310 nm/RX: 1550 nm, 2 km
SM5110-LR 10GBase-LR SFP+ LC Transceiver, single-mode, LC connector, 1310nm, 10 km
SM5110-SR 10GBase-SR SFP+ LC Transceiver, multi-mode, LC connector, 850nm, 300 m
SM6110-LR 25GBase-LR SFP28 LC Transceiver, single-mode, LC connector, 1310nm, 10 km
SM6110-SR 25GBase-SR SFP28 LC Transceiver, multi-mode, LC connector, 850nm, 300 m
SM9110-SR4 100GBASE-SR4 QSFP28 Transceiver

Direct Attach Cable

Model Description

SM5220-1M 1 Meter 10G SFP+ Direct Attach Cable

SM5220-3M 3 Meters 10G SFP+ Direct Attach Cable

SM6220-1M 1 Meter 25G SFP28 Direct Attach Cable

SM9220-1M 1 Meter 100G QSFP28 Direct Attach Cable

RJ45 SFP/SFP+ Modules

Model Description
SM331T	1000BASE-T RJ45 SFP Module
SM5310-T	10GBASE-T RJ45 SFP+ Module

MC Series Media Converter

Model Description
MC210CS Gigabit	Single-Mode Media Converter, up to 20 km, chassis mountable
MC200CM Gigabit	multi-mode SC SFP Transceiver, up to 550 m, chassis mountable
MC200L Gigabit	SFP slot supporting mini-GBIC modules, chassis mountable
MC1400 14-slot	power supply chassis for TP-LINK MC Series Media Converter, 19-inch rack-mountable

FC Series Media Converter

Model Description
FC311A-2 Gigabit	Single-Mode WDM Media Converter, up to 2 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-2	Gigabit Single-Mode WDM Media Converter, up to 2 km, TX:1310nm, RX:1550nm, chassis mountable
FC311A-20	Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1550nm, RX:1310nm, chassis mountable
FC311B-20	Gigabit Single-Mode WDM Media Converter, up to 20 km, TX:1310nm, RX:1550nm, chassis mountable
FC1400	14-slot power supply chassis for TP-LINK FC Series Media Converter, 19-inch rack-mountable

†These functions require the use of the Omada Pro SDN Controller. Zero-Touch Provisioning requires the use of the Omada Pro Cloud-Based Controller.

The model featured in this guide may be unavailable in your country or region. Visit TP-Link website for local sales information: www.tp-link.com.

Specifications are subject to change without notice. All the brands and product names are trademarks or registered trademarks of their respective holders. © 2024 TP-Link
