MODE D'EMPLOI FV-0510VSC1 PANASONIC

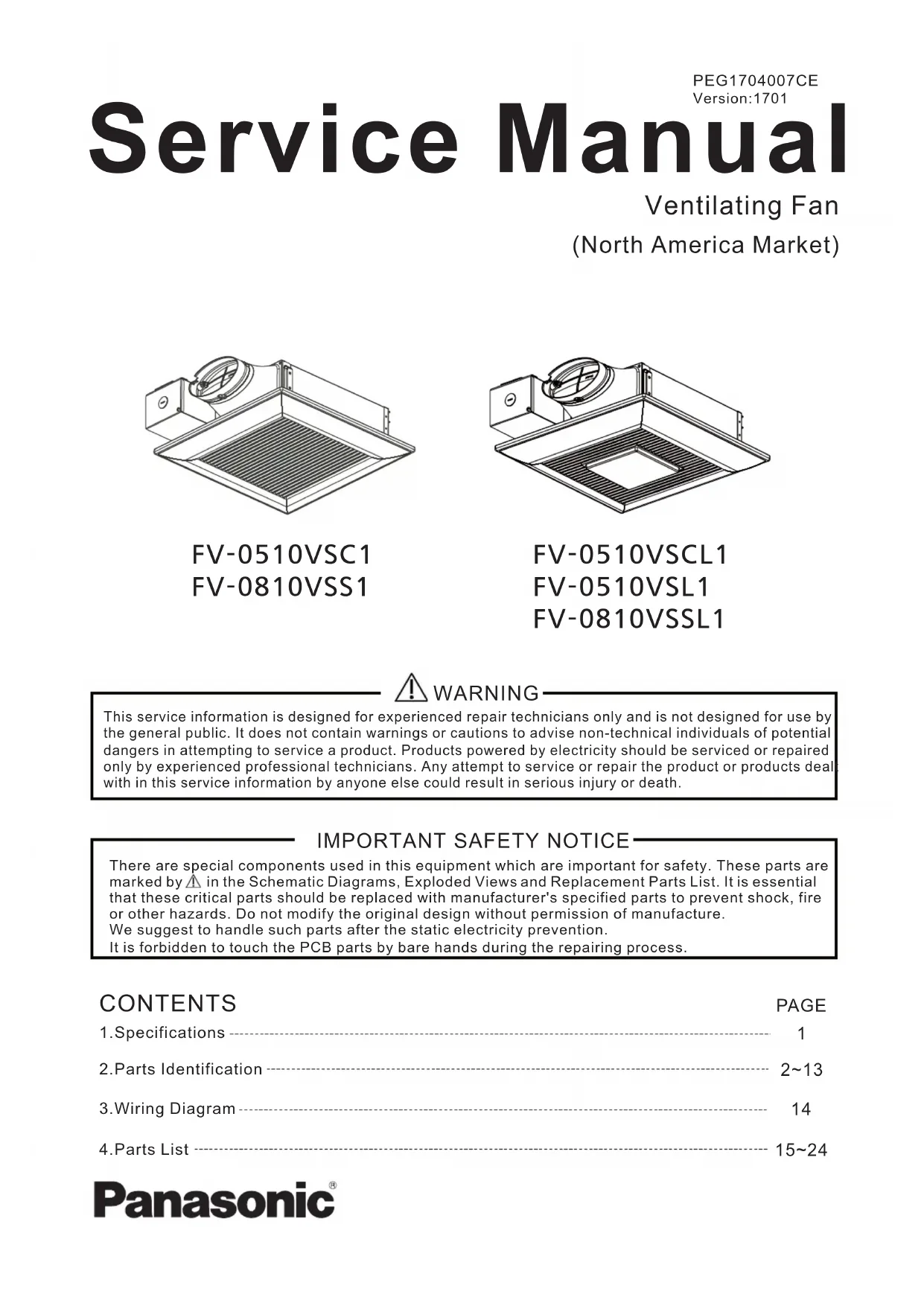

Service Manual

Ventilating Fan

(North America Market)

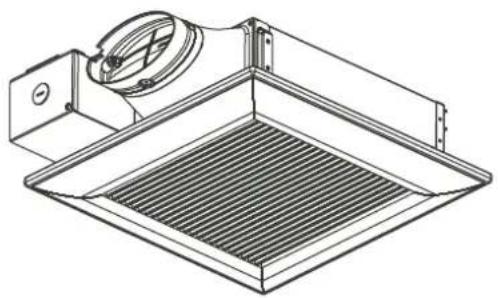

PANASONIC FV-0510VSC1 - Service Manual - 1

natural_image Technical line drawing of a mechanical ventilation unit with grating and fan (no text or symbols)

FV-0510VSC1

FV-0810VSS1

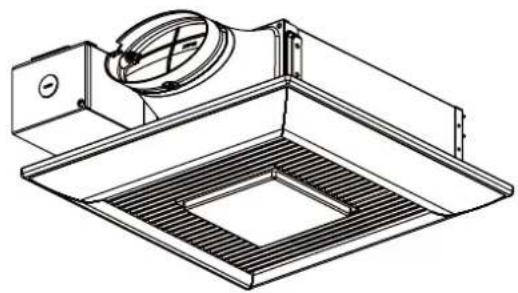

PANASONIC FV-0510VSC1 - Service Manual - 2

natural_image Technical line drawing of a mechanical ventilation or HVAC unit with a central fan and gridded base (no text or symbols)

FV-0510VSCL1

FV-0510VSL1

FV-0810VSSL1

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products deal with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by ⚠ in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of manufacture.

We suggest to handle such parts after the static electricity prevention.

It is forbidden to touch the PCB parts by bare hands during the repairing process.

CONTENTS

PAGE

  1. Specifications 1
  2. Parts Identification 2\~13
    3.Wiring Diagram 14
    4.Parts List 15\~24

1. Specifications

Model No.Air directionVoltage (V)Frequency (Hz)Duct diameter (inches)Air volume at 0.1" WG (CFM)Noise (sones)Speed (rpm)Power (W)Weight lb.(kg)
FV-0510VSC1Exhaust12060450<0.37334.57.0(3.2)
800.48568.5
1000.997013.4
FV-0810VSS1Exhaust12060430<0.37113.4
40<0.37233.8
50<0.37334.5
60<0.37705.3
70<0.38056.5
800.48568.5
1000.997013.4
FV-0510VSL1Exhaust12060450<0.37334.57.9(3.6)
800.48568.5
FV-0510VSCL11000.997013.4
FV-0810VSSL1Exhaust12060430<0.37113.4
40<0.37233.8
50<0.37334.5
60<0.37705,3
70<0.38056.5
800.48568.5
1000.997013.4

HVI Certified performance based on HVI Procedures 915, 916, and 920.

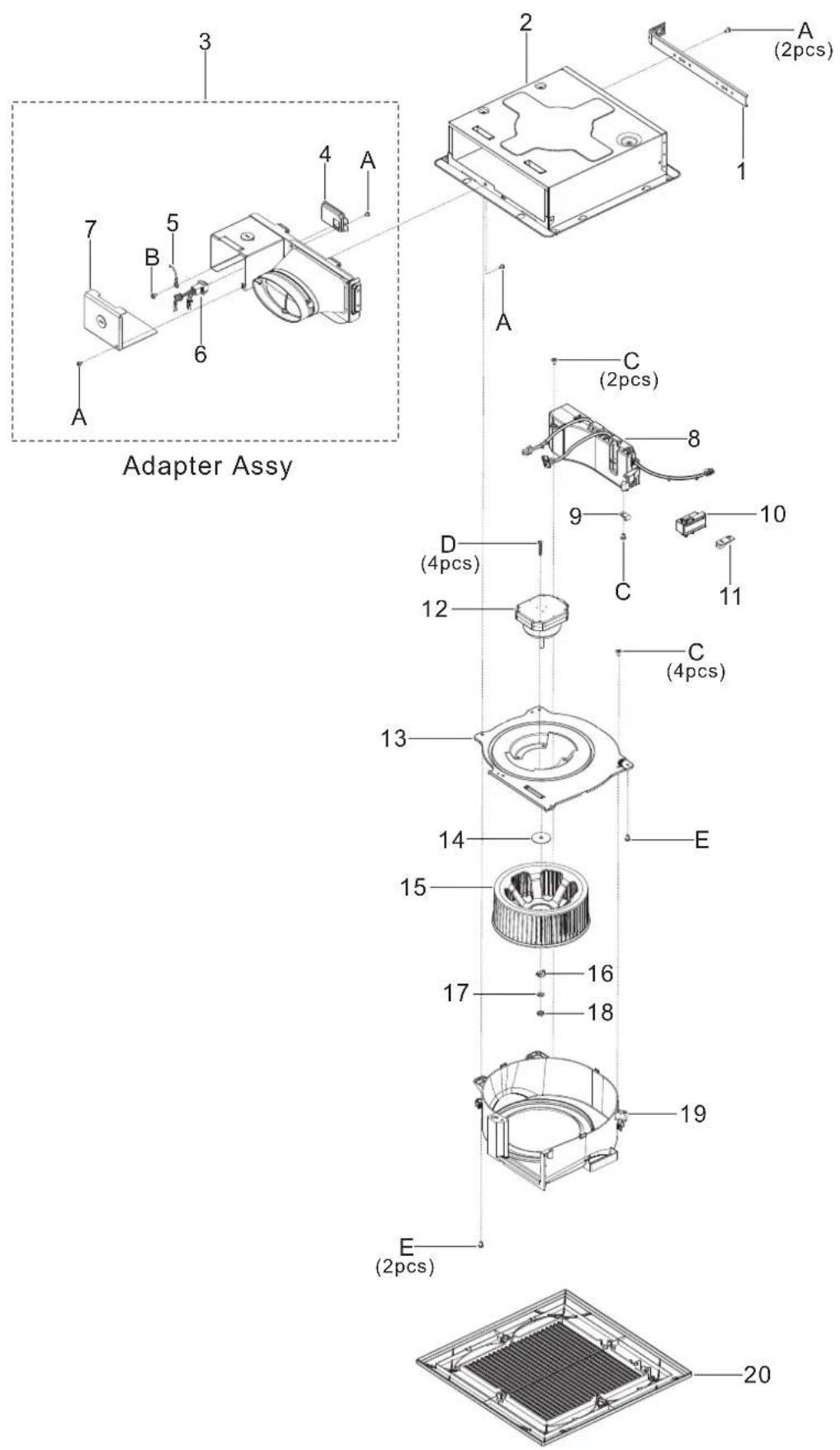

Main Body Section
Adapter Assy 3 2 A (2pcs) 1 4 7 5 B 6 A C (2pcs) 8 9 10 D (4pcs) C (4pcs) 11 12 13 14 E 15 16 17 18 19 E (2pcs) 20

2. Parts Identification

FV-0510VSC1

Main Labels

Panasonic Ventilating Fan/Ventilateur Model No. FV-0510VSC1 AC 120V 60 Hz 0.39 A Ser. No. Panasonic Corporation of North America Made in China/Fabriqué en Chine S 21 22 TESTED/CERTIFIED 2100 Energy Star ENERGY STAR Not to be used in packaging areas for installation. Industries (from design) are done on the right. Industries - Chemicals, Non-Cured & Electrical and other non-cured - Controls and Industries for the industries.

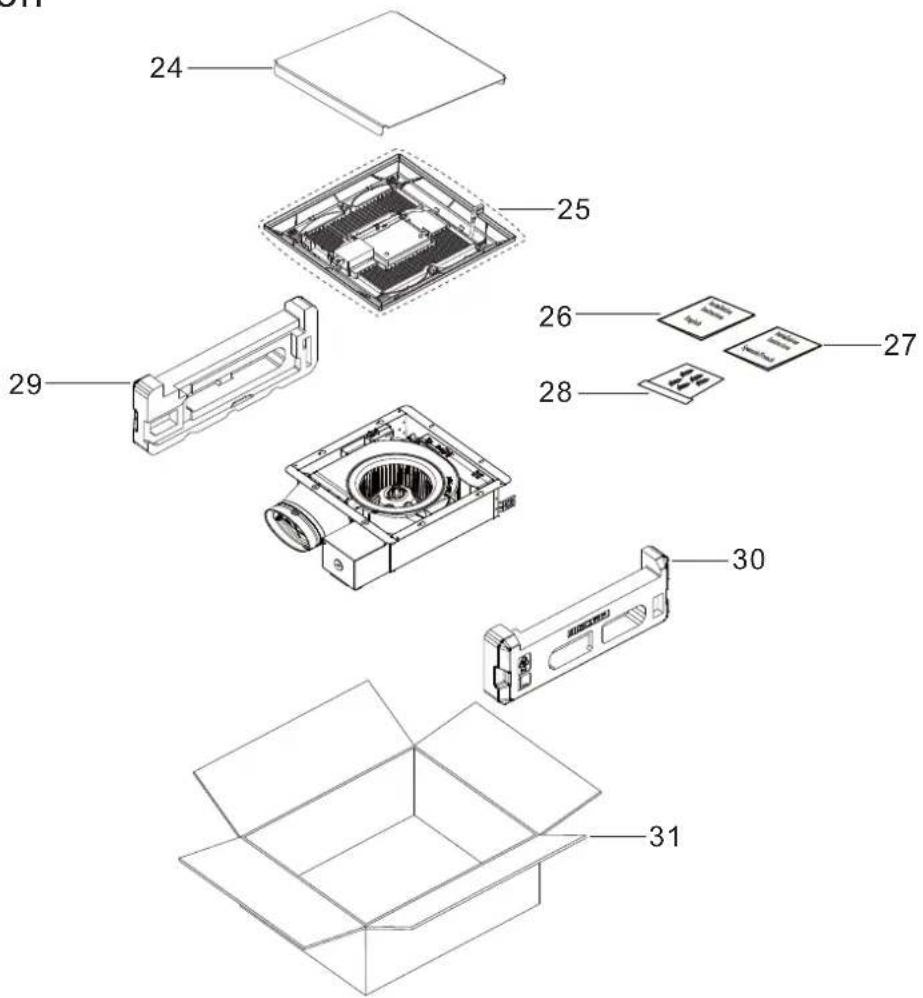

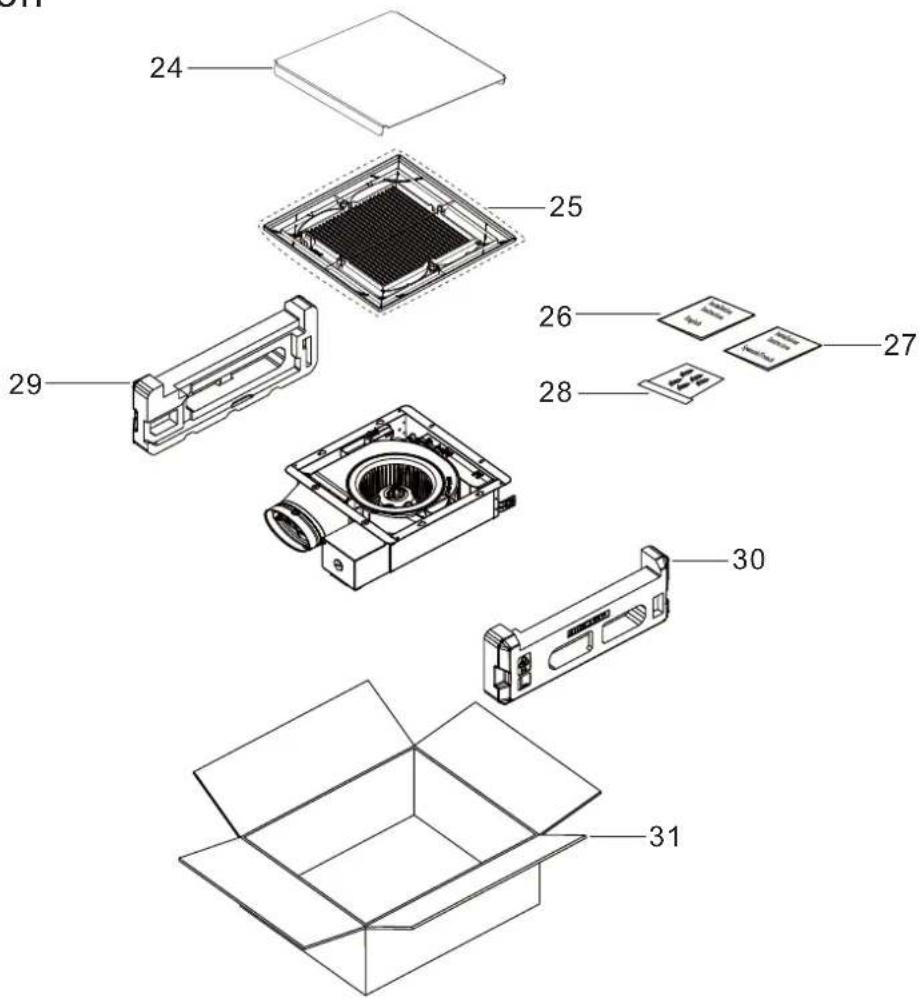

Packing Section

24 25 26 27 28 29 30 31

Main Body Section
Adapter Assy 3 2 A (2pcs) 1 4 7 5 B 6 A C (2pcs) 8 D (4pcs) 9 C (4pcs) 10 E 11 12 13 14 15 16 E (2pcs) 17

2. Parts Identification

Main Labels

Panasonic Ventilating Fan/Ventilateur Model No. FV-0810VSS1 AC 120V 60 Hz 0.39 A Ser. No. Panasonic Corporation of North America Made in China/Fabrique en Chine S 18 C74- 19 TESTED/CERTIFIED 2100 Energy Star ENERGY STAR Not to be used in cooking, wear-free instructions instructions. From design is to come out on -ve instructions. In installation, Can use the space choice we consider - Consider the instructions for installation 19 20

Packing Section

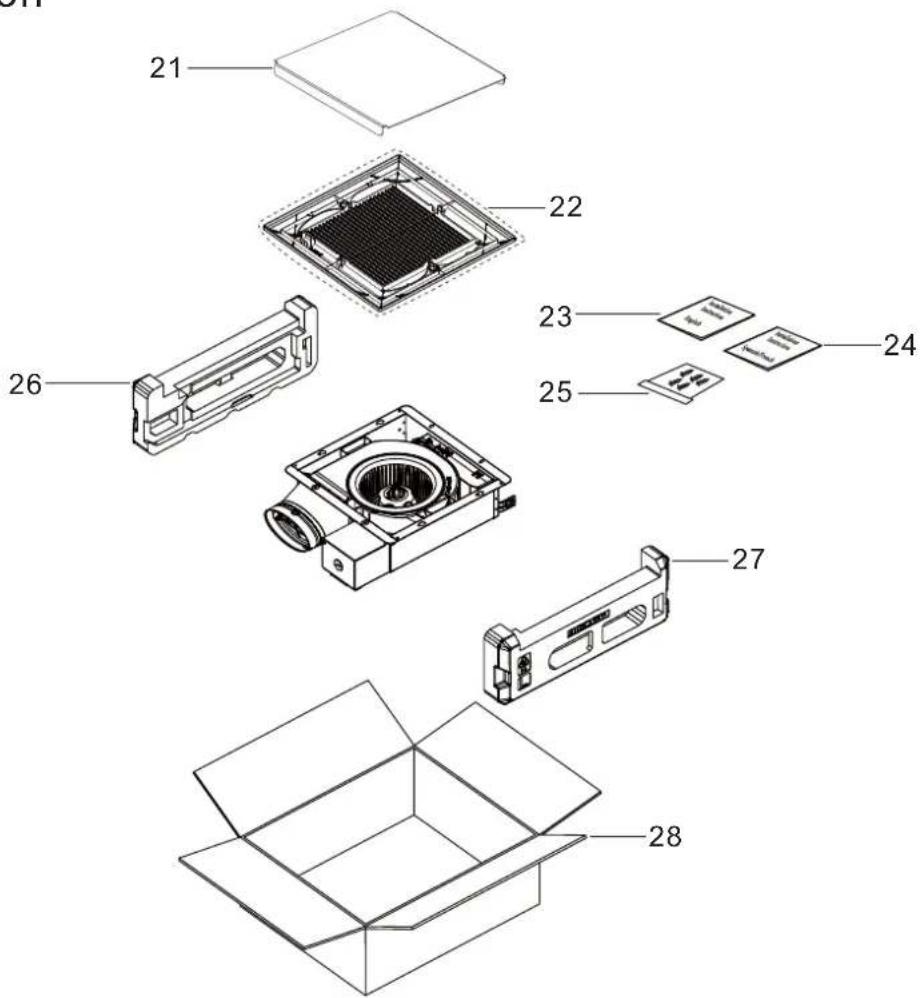

Exploded view diagram of a device showing internal components with numbered labels

Main Body Section
Adapter Assy Louver Assy

2. Parts Identification

FV-0510VSL1

Main Labels

Panasonic Ventilating Fan/Ventilateur Model No. FV-0510VSL1 FC AC 120 V 60 Hz 0.39 A (Fan) 0.1 A (Light) Ser. No. Panasonic Corporation of North America Made in China/Fabrique en Chine S Type IC - Inherently Protected. Type IC - Protection Inherente. 22 23 TESTED/CERTIFIED 2100 N. Energy Star 24 Not be certified or registered with the following: industments from design to a complete assembly. Your industments are not allowed. Not can be used to be in accordance with the requirements. Can also be indicated by the manufacturer.

Packing Section
25 26 30 27 28 29 31 32

2. Parts Identification

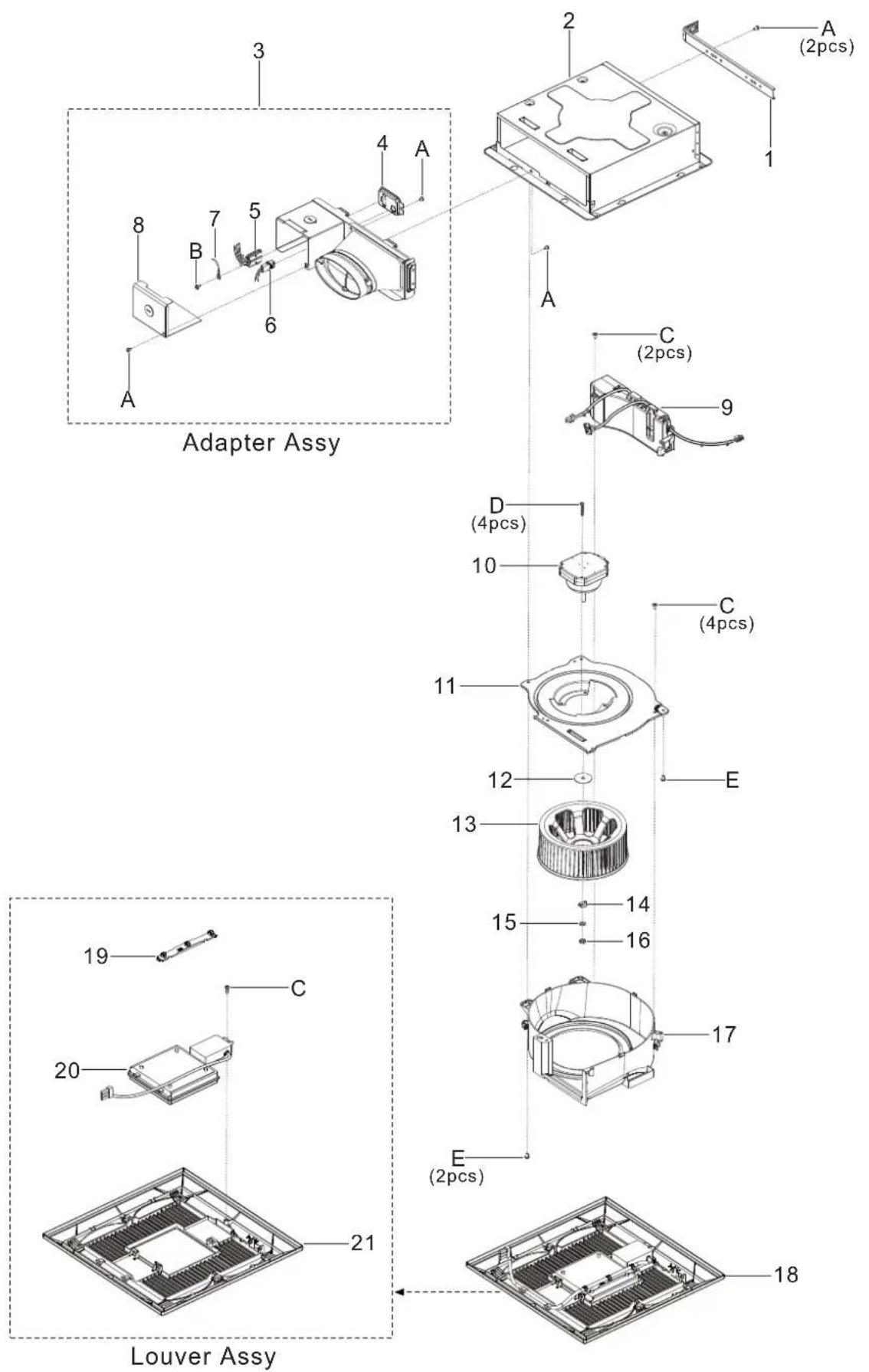

Main Body Section
Adapter Assy Louver Assy

2. Parts Identification

FV-0510VSCL1

Main Labels

Panasonic Ventilating Fan/Ventilateur Model No. FV-0510VSCL1 AC 120 V 60 Hz 0.39 A (Fan) 0.1 A (Light) Ser. No. Panasonic Corporation of North America Made in China/Fabrique en Chine Type IC - Inherently Protected. Type IC - Protection Inherente. 21 22 TESTED/CERTIFIED 2100 N. Energy Star Not be tested for making new fan installations. inhibitors. Even design is a custom system. Your inhibitors are not allowed. For use or use the inhibitors - Can be listed as manufacturers for installation. 23

Packing Section
24 25 26 27 28 29 30 31

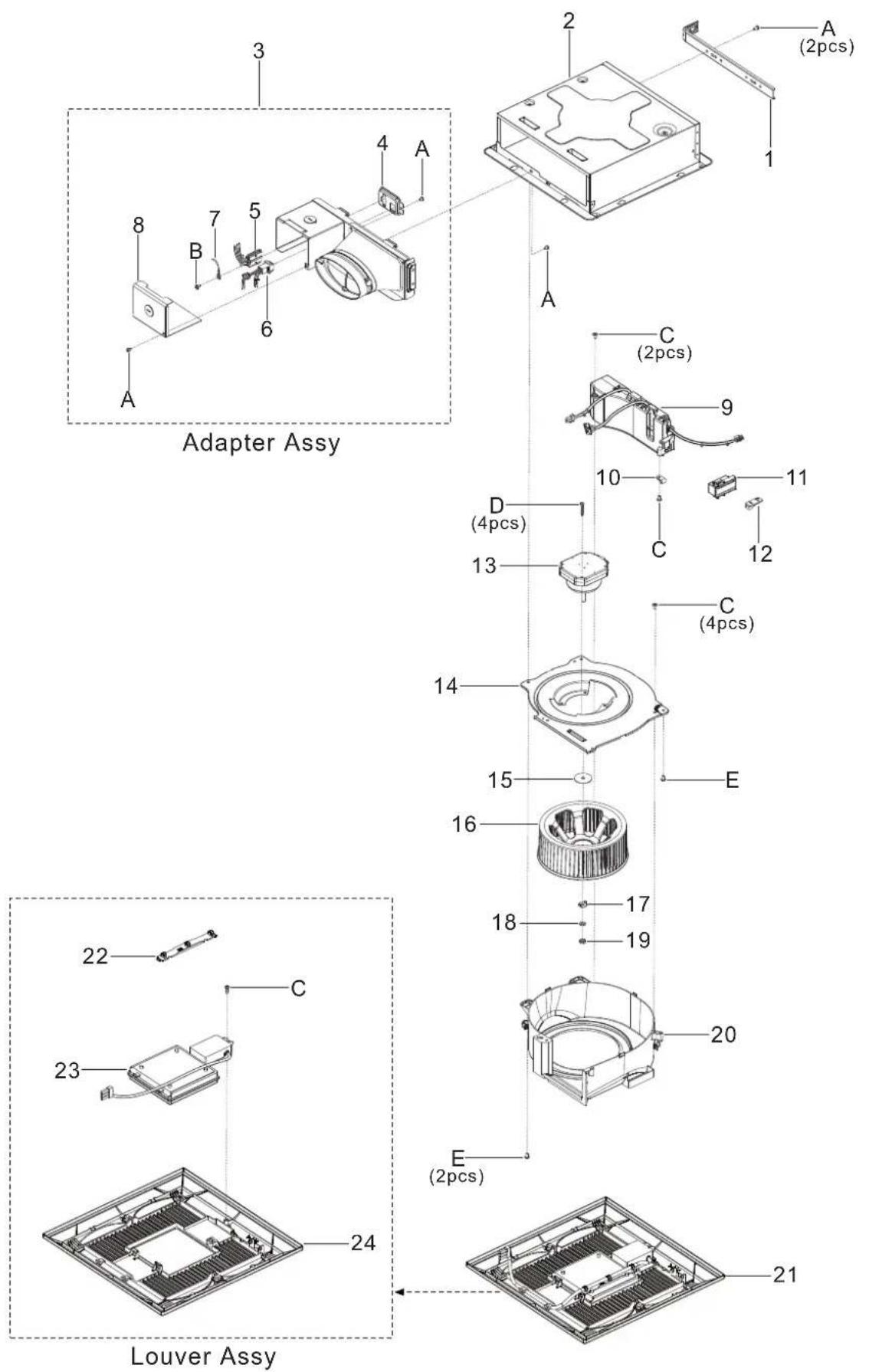

Main Body Section
Adapter Assy Louver Assy

2. Parts Identification

FV-0810VSSL1

Main Labels

Panasonic Ventilating Fan/Ventilateur Model No. FV-0810VSSL1 AC 120 V 60 Hz 0.39 A (Fan) 0.1 A (Light) Ser. No. Panasonic Corporation of North America Made in China/Fabrique en Chine Type IC - Inherently Protected. Type IC - Protection inhérente. 22 23 24 TESTED/CERTIFIED 2100 Energy Star Energy Testing Institute Energy Testing Institute Energy Testing Institute Energy Testing Institute Energy Testing Institute Energy Testing Institute Energy Testing Institute Energy Testing Institute

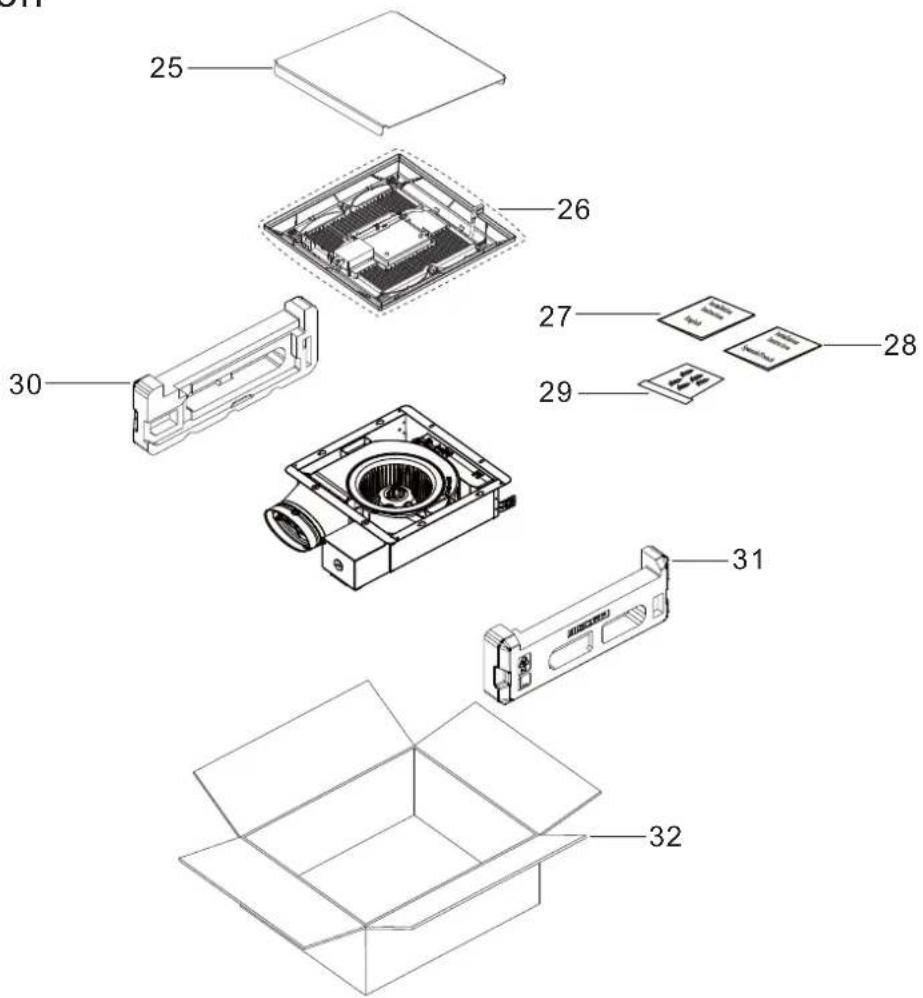

Packing Section

25 26 30 27 28 29 31 32

Replace Motor Assy Method (Only for FV-0510VSCL1 reference)
PANASONIC FV-0510VSC1 - Packing Section - 2

PANASONIC FV-0510VSC1 - Packing Section - 3

PANASONIC FV-0510VSC1 - Packing Section - 4

2. Parts Identification

Replace Motor Assy Method

(Only for FV-0510VSCL1 reference)

Step 10.
PANASONIC FV-0510VSC1 - Replace Motor Assy Method - 1

natural_image Close-up of a white electronic device with wires and a black cable, no visible text or symbols

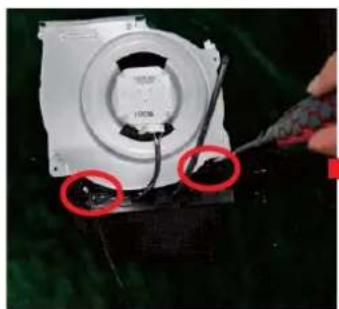

Remove 3pcs screws

PANASONIC FV-0510VSC1 - Replace Motor Assy Method - 2

Step 11. Step 12.

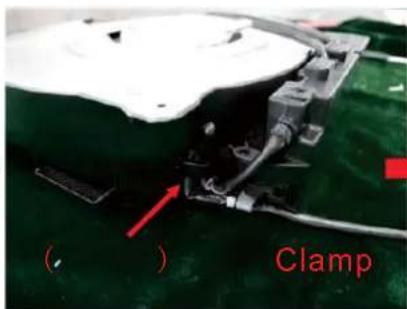

( ) Clamp

Pull out the humidity sensor lead from casing clamp, Then take out the PCB assy unit form casing unit

PANASONIC FV-0510VSC1 - Replace Motor Assy Method - 4

natural_image Close-up of a mechanical component with red circles highlighting features, no visible text or symbols

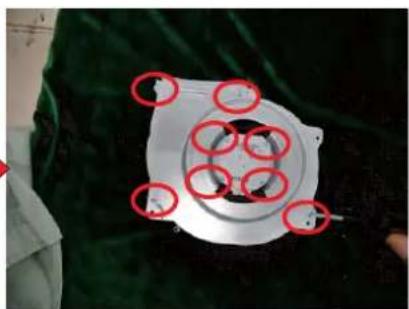

Remove 8pcs screws, Then take out the casing from casing unit

Step 13. Step 14.
PANASONIC FV-0510VSC1 - Replace Motor Assy Method - 5

natural_image Close-up of a hand using red pliers to adjust or install a black electric fan on a green fabric background (no text or symbols visible)

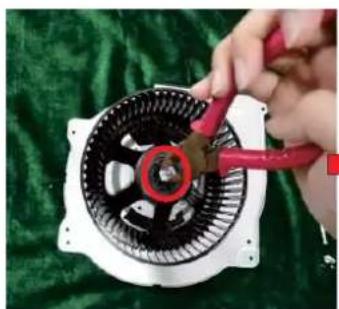

Remove the hexagon nut, Then take out the undee washer, blade fix ring, blade and blade plate

PANASONIC FV-0510VSC1 - Replace Motor Assy Method - 6

PANASONIC FV-0510VSC1 - Replace Motor Assy Method - 7

natural_image Close-up of a green textured surface with a white circular object and a small circle, no visible text or symbols.

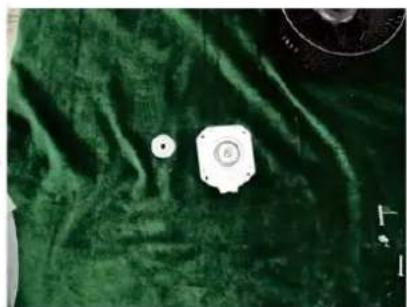

Replace the motor assy

Replace Led Unit Method

Step 1. Step 2. Step 3.

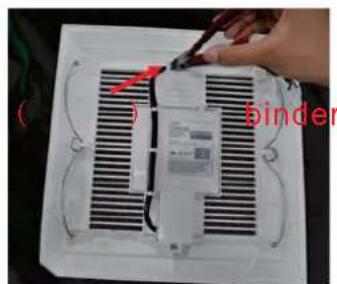

( ) binder

Cut the binder

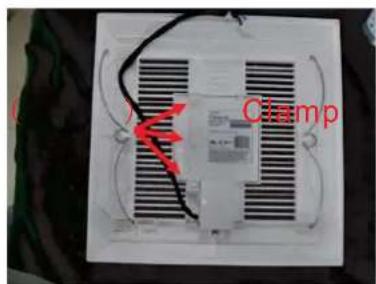

(Clamp)

Pull out the Led unit lead from louver assy

PANASONIC FV-0510VSC1 - Replace Led Unit Method - 3

PANASONIC FV-0510VSC1 - Replace Led Unit Method - 4

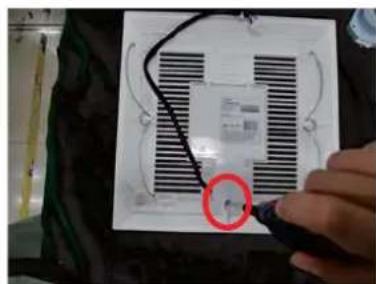

natural_image Close-up of a person holding a small electronic component with a red circle highlighting a small feature (no visible text or symbols)

Remove 1pc screw, Then take out the led unit from louver assy

PANASONIC FV-0510VSC1 - Replace Led Unit Method - 5

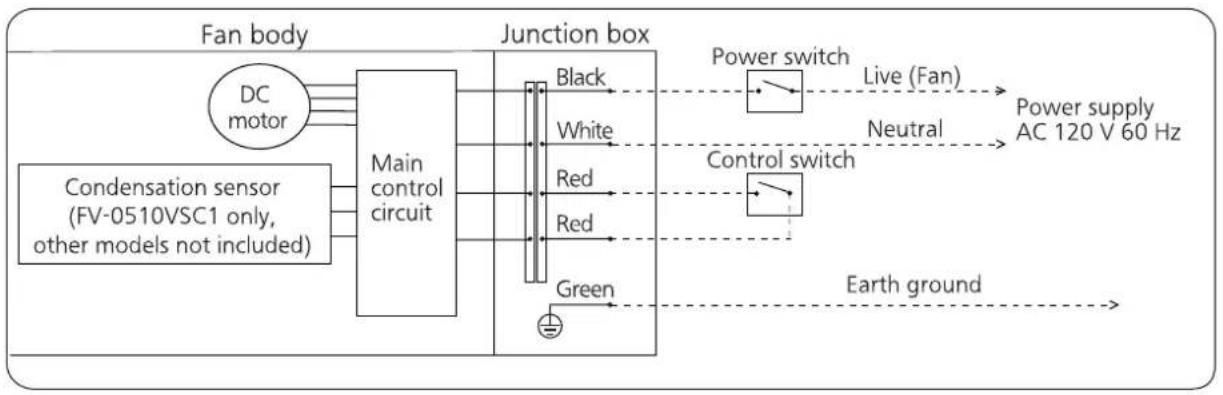


FV-0510VSL1

FV-0510VSCL1

FV-0810VSSL1

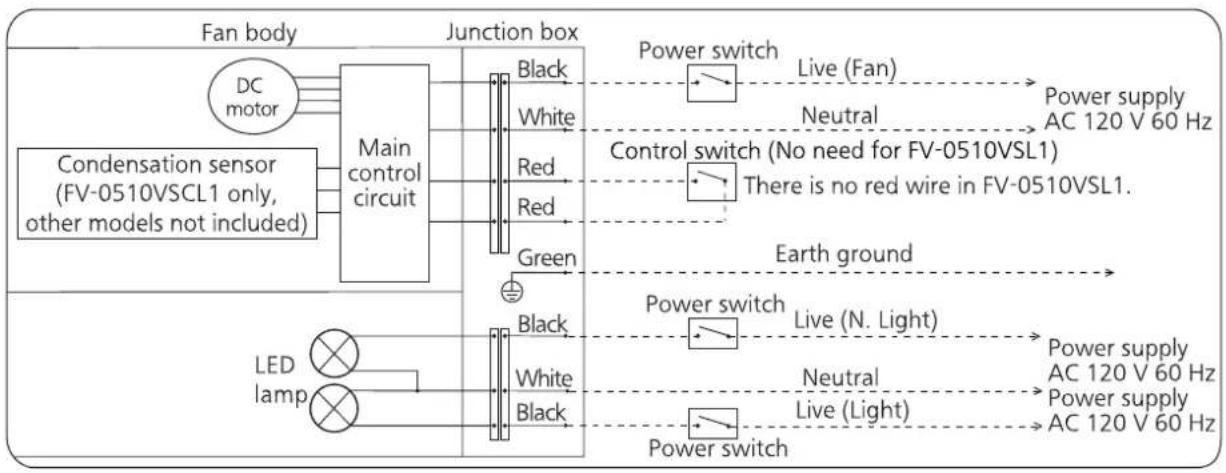

PANASONIC FV-0510VSC1 - Replace Led Unit Method - 6

Main Body Section

No.Part No.Part NameQ'ty Remark
1FFV5710025SSuspension Bracket 1
2FFV1600159SFrame Assy1
3FFV0000171SAdapter Assy1⚠️
4FFV0900053SConnector Plate1
5FFV3450010SEarth Lead Wire1⚠️
6FFV0900073SConnector Assy (V)1⚠️
7FFV2800027SJunction Cover1
8FFV4700073SPCB Assy Unit1⚠️
9FFV0740026SCord Clip1
10FFV0010266SHumidity Sensor Box1
11FFV0010222SHumidity Sensor1⚠️
12FFV3700347SMotor Assy1⚠️
13FFV3700348SMotor Support Unit1
14FFV0400127SBlade Plate1
15FFV0400128SBlade1
16FFV0400113SBlade Fix Ring1
17FFV7010058SUndee Washer1
18FFV7020024SHexagon Nut1
19FFV1610080SCasing Unit1
20FFV3400146SLouver Assy1
AFFV7000108STruss Tap Screw5
BFFV7000227SEarth Screw Assy1Include Spring Washer⚠️
CFFV7000089STruss Tap Screw7
DFFV7000163SPan Tap Screw4
EFFV7000202SBind Tap Screw3

Main Labels

No.Part No. PartName Q'tyRemark
21FFV4020907SName Plate1Stuck On Casing Unit
22FFV2260003SUL Mark1Stuck On Frame Assy
23FFV0810011SCaution Label 11Stuck On Frame Assy

Packing Section

No.Part No.Part Name Q'ty Remark
24FFV4710381SLouver Case Assy 1
25FFV4650016SPoly Cover1
26FFV2540209SInstallation Instructions1English,For USA/CA Market
27FFV2540210SInstallation Instructions1Spanish,For USA Market
(27)FFV2540211SInstallation Instructions1French,For CA Market
28FFV0010267SAccessory A1
29FFV4710431SRight Pad1
30FFV4710432SLeft Pad 1
31FFV9001333SPacking Case Assy1

Main Body Section

No.Part No.Part Name Q'ty Remark
1FFV5710025SSuspension Bracket 1
2FFV1600159SFrame Assy1
3FFV0000171SAdapter Assy1
4FFV0900053SConnector Plate1
5FFV3450010SEarth Lead Wire1
6FFV0900073SConnector Assy (V)1
7FFV2800027SJunction Cover1
8FFV4700074SPCB Assy Unit1
9FFV3700347SMotor Assy1
10FFV3700348SMotor Support Unit1
11FFV0400127SBlade Plate1
12FFV0400128SBlade1
13FFV0400113SBlade Fix Ring1
14FFV7010058SUndee Washer1
15FFV7020024SHexagon Nut1
16FFV1610080SCasing Unit1
17FFV3400146SLouver Assy1
AFFV7000108STruss Tap Screw5
BFFV7000227SEarth Screw Assy1Include Spring Washer
CFFV7000089STruss Tap Screw6
DFFV7000163SPan Tap Screw4
EFFV7000202SBind Tap Screw3

Main Labels

No.Part No. PartName Q'ty Remark
18FFV4020908SName Plate1Stuck On Casing Unit
19FFV2260003SUL Mark1Stuck On Frame Assy
20FFV0810011SCaution Label 11Stuck On Frame Assy

Packing Section

No.Part No.Part Name Q'ty Remark
21FFV4710381SLouver Case Assy 1
22FFV4650016SPoly Cover1
23FFV2540209SInstallation Instructions1English,For USA/CA Market
24FFV2540210SInstallation Instructions1Spanish,For USA Market
(24)FFV2540211SInstallation Instructions1French,For CA Market
25FFV0010267SAccessory A1
26FFV4710431SRight Pad1
27FFV4710432SLeft Pad 1
28FFV9001334SPacking Case Assy1

Main Body Section

No.Part No.Part Name Q'ty Remark
1FFV5710025SSuspension Bracket 1
2FFV1600159SFrame Assy1
3FFV0000173SAdapter Assy1⚠️
4FFV0900074SConnector Plate1
5FFV0900069SConnector Assy (L)1⚠️
6FFV0900072SConnector Assy (V)1⚠️
7FFV3450010SEarth Lead Wire1⚠️
8FFV2800027SJunction Cover1
9FFV4700070SPCB Assy Unit1⚠️
10FFV3700347SMotor Assy1⚠️
11FFV3700348SMotor Support Unit1
12FFV0400127SBlade Plate1
13FFV0400128SBlade1
14FFV0400113SBlade Fix Ring1
15FFV7010058SUndee Washer1
16FFV7020024SHexagon Nut1
17FFV1610080SCasing Unit1
18FFV3400147SLouver Assy1⚠️
19FFV2520040SInsulation Plate1
20FFV3400148SLed Unit1⚠️
21FFV3400149SLouver Unit1
AFFV7000108STruss Tap Screw5
BFFV7000227SEarth Screw Assy1Include Spring Washer ⚠️
CFFV7000089STruss Tap Screw7
DFFV7000163SPan Tap Screw4
EFFV7000202SBind Tap Screw3

Main Labels

No.Part No. PartName Q'ty Remark
22FFV4020910SName Plate1Stuck On Casing Unit
23FFV2260003SUL Mark1Stuck On Frame Assy
24FFV0810011SCaution Label 11Stuck On Frame Assy

Packing Section

No.Part No.Part Name Q'ty Remark
25FFV4710381SLouver Case Assy 1
26FFV4650016SPoly Cover1
27FFV2540212SInstallation Instructions1English,For USA/CA Market
28FFV2540213SInstallation Instructions1Spanish,For USA Market
(28)FFV2540214SInstallation Instructions1French,For CA Market
29FFV0010267SAccessory A1
30FFV4710431SRight Pad1
31FFV4710432SLeft Pad 1
32FFV9001336SPacking Case Assy1

Main Body Section

No.Part No.Part Name Q'ty Remark
1FFV5710025SSuspension Bracket 1
2FFV1600159SFrame Assy1
3FFV0000172SAdapter Assy1⚠️
4FFV0900054SConnector Plate1
5FFV0900069SConnector Assy (L)1⚠️
6FFV0900073SConnector Assy (V)1⚠️
7FFV3450010SEarth Lead Wire1⚠️
8FFV2800027SJunction Cover1
9FFV4700073SPCB Assy Unit1⚠️
10FFV0740026SCord Clip1
11FFV0010266SHumidity Sensor Box1
12FFV0010222SHumidity Sensor1⚠️
13FFV3700347SMotor Assy1⚠️
14FFV3700348SMotor Support Unit1
15FFV0400127SBlade Plate1
16FFV0400128SBlade1
17FFV0400113SBlade Fix Ring1
18FFV7010058SUndee Washer1
19FFV7020024SHexagon Nut1
20FFV1610080SCasing Unit1
21FFV3400147SLouver Assy1⚠️
22FFV2520040SInsulation Plate1
23FFV3400148SLed Unit1⚠️
24FFV3400149SLouver Unit1
AFFV7000108STruss Tap Screw5
BFFV7000227SEarth Screw Assy1Include Spring Washer ⚠️
CFFV7000089STruss Tap Screw8
DFFV7000163SPan Tap Screw4
EFFV7000202SBind Tap Screw3

Main Labels

No.Part No. PartName Q'tyRemark
21FFV4020909SName Plate1Stuck On Casing Unit
22FFV2260003SUL Mark1Stuck On Frame Assy
23FFV0810011SCaution Label 11Stuck On Frame Assy

Packing Section

No.Part No.Part Name Q'ty Remark
24FFV4710381SLouver Case Assy 1
25FFV4650016SPoly Cover1
26FFV2540212SInstallation Instructions1English,For USA/CA Market
27FFV2540213SInstallation Instructions1Spanish,For USA Market
(27)FFV2540214SInstallation Instructions1French,For CA Market
28FFV0010267SAccessory A1
29FFV4710431SRight Pad1
30FFV4710432SLeft Pad 1
31FFV9001335SPacking Case Assy1

Main Body Section

No.Part No.Part Name Q'ty Remark
1FFV5710025SSuspension Bracket 1
2FFV1600159SFrame Assy1
3FFV0000171SAdapter Assy1⚠️
4FFV0900054SConnector Plate1
5FFV0900069SConnector Assy (L)1⚠️
6FFV0900073SConnector Assy (V)1⚠️
7FFV3450010SEarth Lead Wire1⚠️
8FFV2800027SJunction Cover1
9FFV4700074SPCB Assy Unit1⚠️
10FFV3700347SMotor Assy1⚠️
11FFV3700348SMotor Support Unit1
12FFV0400127SBlade Plate1
13FFV0400128SBlade1
14FFV0400113SBlade Fix Ring1
15FFV7010058SUndee Washer1
16FFV7020024SHexagon Nut1
17FFV1610080SCasing Unit1
18FFV3400147SLouver Assy1⚠️
19FFV2520040SInsulation Plate1
20FFV3400148SLed Unit1⚠️
21FFV3400149SLouver Unit1
AFFV7000108STruss Tap Screw5
BFFV7000227SEarth Screw Assy1Include Spring Washer ⚠️
CFFV7000089STruss Tap Screw7
DFFV7000163SPan Tap Screw4
EFFV7000202SBind Tap Screw3

Main Labels

No.Part No. PartName Q'ty Remark
22FFV4020911SName Plate1Stuck On Casing Unit
23FFV2260003SUL Mark1Stuck On Frame Assy
24FFV0810011SCaution Label 11Stuck On Frame Assy

Packing Section

No.Part No.Part Name Q'ty Remark
25FFV4710381SLouver Case Assy 1
26FFV4650016SPoly Cover1
27FFV2540212SInstallation Instructions1English,For USA/CA Market
28FFV2540213SInstallation Instructions1Spanish,For USA Market
(28)FFV2540214SInstallation Instructions1French,For CA Market
29FFV0010267SAccessory A1
30FFV4710431SRight Pad1
31FFV4710432SLeft Pad 1
32FFV9001337SPacking Case Assy1
Assistant notice
Powered by Anthropic
En attente de votre message
Informations produit

Marque : PANASONIC

Modèle : FV-0510VSC1

Catégorie : Hotte
