CE Plus - Chaudière STIEBEL ELTRON - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Chaudière électrique sans réservoir (chauffe-eau instantané) pour usage commercial/industriel
Modèle	CE Plus
Marque	Stiebel Eltron
Dimensions (L x H x P)	Variables selon la puissance : de 23 1/32 x 28 1/4 x 11 11/32 pouces (585 x 718 x 288 mm) pour les modèles 12-36 kW, jusqu’à 39 5/16 x 50 13/32 x 14 pouces (998 x 1280 x 356 mm) pour le 144 kW
Poids	Environ 30 à 80 kg selon la puissance (estimation)
Alimentation électrique	Tripasé (3 phases) : 208, 240, 480 ou 575 V ; plage de puissance de 12 à 144 kW
Type de démarrage	Démarrage à froid (cold-start) : aucun élément chauffant actif au repos, activation par débit
Plage de température de sortie	60 à 180 °F (16 à 82 °C) réglable par incréments de 1 °F
Débit d’activation minimum	0,75 GPM (2,84 L/min)
Matériau de l’échangeur de chaleur	Acier inoxydable 316L
Gaine des éléments chauffants	Incoloy 840
Nombre d’éléments	De 3 à 24 selon la puissance
Protection antigel	Intégrée de série
Indice de protection du boîtier standard	NEMA 3 (protection contre la pluie, la neige et la poussière)
Options de boîtier	NEMA 4 et NEMA 4X étanches disponibles en option
Sécurité	4 protections contre les surchauffes (logiciel de protection contre la chaleur latente, coupe-circuits thermostatiques réarmables, capteur de pression, etc.)
Affichage	Température de sortie réelle et consigne affichées sur le panneau avant
Réglage de température	Commutateur à bascule sur le boîtier (incréments de 1 °F)
Raccordements d’eau	Filetage femelle 3/4", 1" ou 1 1/4" selon la puissance ; vannes à bille incluses
Garantie	6 ans sur les fuites/échangeur, 2 ans sur les composants électriques
Entretien et nettoyage	Nettoyer l’extérieur avec un chiffon doux ; vérifier périodiquement les connexions électriques et le capteur de débit ; détartrage recommandé selon la dureté de l’eau
Pièces détachées et réparabilité	Éléments chauffants, carte électronique (PCB), fusibles, capteurs, transformateur disponibles ; remplacement des éléments sans démontage de l’échangeur
Informations générales	Fabriqué aux États-Unis (Sarasota, Floride) ; certifié ANSI/UL 499 et CSA C22.2 No. 88

FOIRE AUX QUESTIONS - CE Plus STIEBEL ELTRON

Quelle est la différence entre le CE Plus et le CF Plus ?

Le CE Plus est un modèle cold-start : il ne consomme aucune énergie au repos et ne produit de l'eau chaude qu'à la demande, avec un léger délai de 30 secondes environ. Le CF Plus est un modèle hot-start qui maintient l'eau chaude dans l'échangeur pour une réponse instantanée, mais avec des pertes thermiques au repos plus élevées.

Quelles tensions d'alimentation sont disponibles pour le CE Plus ?

Le CE Plus fonctionne en triphasé (3 phases) et est disponible en 208 V, 240 V, 480 V (delta ou étoile) et 575 V, selon la puissance.

Comment régler la température de sortie ?

Un commutateur à bascule situé sur le boîtier permet d'ajuster la température par incréments de 1 °F (0,5 °C). La température réelle et la consigne s'affichent sur le panneau avant.

Quel est le débit d'eau minimum pour déclencher le chauffage ?

Le débit d'activation minimum est de 0,75 GPM (2,84 L/min). En dessous de ce seuil, l'appareil ne s'allume pas.

Le CE Plus peut-il être installé à l'extérieur ?

Oui, le boîtier standard NEMA 3 est conçu pour une utilisation en extérieur, protégeant contre la pluie, la neige et la poussière. Des boîtiers étanches NEMA 4/4X sont disponibles en option pour les environnements plus exigeants.

Quelle est la garantie du CE Plus ?

La garantie est de 6 ans sur les fuites et l'échangeur de chaleur, et de 2 ans sur les composants électriques.

Comment entretenir mon chauffe-eau CE Plus ?

Nettoyez l'extérieur avec un chiffon doux. Vérifiez périodiquement les connexions électriques et le capteur de débit. Selon la dureté de l'eau, un détartrage peut être nécessaire pour éviter l'accumulation de calcaire.

Que faire en cas de code d'erreur ?

Consultez la notice d'utilisation pour identifier le code. Les codes courants incluent une protection contre les surchauffes ou un défaut de capteur. Réinitialisez l'appareil en coupant l'alimentation pendant quelques secondes. Si le problème persiste, contactez un technicien agréé.

Peut-on réparer le CE Plus soi-même ?

Certaines interventions simples (remplacement de fusibles, réarmement du thermostat) sont possibles. Pour le remplacement des éléments chauffants ou de la carte électronique, faites appel à un professionnel qualifié.

Où puis-je trouver les pièces détachées ?

Les pièces détachées sont disponibles auprès de Stiebel Eltron ou de revendeurs agréés. Référez-vous à la notice pour les numéros de pièces.

MODE D'EMPLOI CE Plus STIEBEL ELTRON

Product Catalog

1 October 2021

C Series Commercial/Industrial 3-Phase Electric Tankless Water Heaters

C Series 3-phase electric tankless water heaters are designed to provide hot water for commercial and industrial use. Tankless water heaters do not store hot water as a tank water heater does, but make it on demand as it is needed. There are several major benefits of tankless water heaters over tanks because of this difference.

First, a tankless water heater never runs out of hot water. As long as it is needed, a tankless water heater will make and deliver hot water at the specified set point temperature. Second, tankless water heaters are not storing hot water, and they have no standby heat losses. This results in energy savings on the order of 20% over an electric tank. The exception is hot-start tankless models like our CF Plus, but their standby heat loss is minimal when compared to the extensive surface area of a standard tank. And third, tankless water heaters are considerably smaller than a tank, saving space, and are not prone to leakage. Electric tankless water heaters also do not need venting.

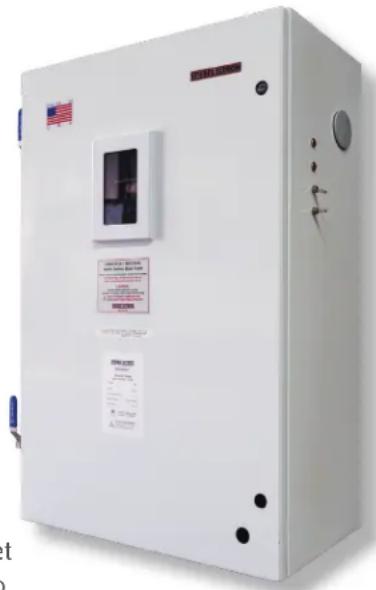

Exterior view of a white industrial electrical cabinet with U.S. flag and control panel (no visible text or symbols)

C Series common features

Fabrication & enclosures

• All machining, welding, assembly, and testing done in Sarasota, Fla.
• Each unit is tested at full and partial load amp draw to ensure measurement accuracy and proper operation
  Standard NEMA 3 enclosure is hinged and swings to the left for accessible service. All components are intuitively laid out and designed, including element replacement without removing the heat exchanger.

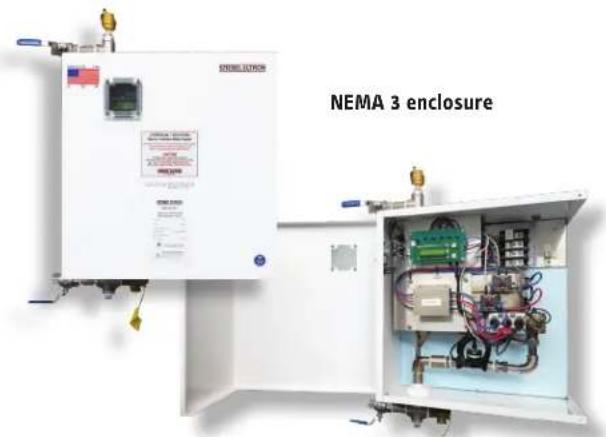

• NEMA 4 and NEMA 4X watertight enclosures available if required

Plumbing

Unique water flow relieves air build-up for increased longevity
- Freeze protection is a standard feature
- Minimal pressure drop. See charts on website for details
- Heat exchangers and pipe connections are 316L stainless steel
- Inlet and outlet stub piping with ball valves included and pre-installed
- Lead-free brass pressure relief valve and air vent included
^3/4 , 1", & 1 ^1/4 " female water connection sizes depending on heating capacity

Electronic control

“3i” is Stiebel Eltron’s closed loop control circuit with measurement of flow rate, inlet temperature, and outlet temperature

The amount of energy needed to meet demand is electronically controlled so only the minimum number of elements necessary to satisfy demand are activated
All models electronically flow activated using a vortex flow sensor available in 4 sizes, DN 10, 15, 20, 25, for customization to individual application
- Completely pre-wired with only mains power connection needed
▶ Printed circuit board (PCB), including triac driver, protected by metal oxide varistor (MOV) against high voltage spikes from AC mains power
- Printed circuit board (PCB) optimized to provide safety for triac control
- Triac cooling accomplished with massive aluminum plate for reliability

Safety

▶ Four over-temperature protections
- Latent heat protection though controller software eliminates timer switch
Each heating element circuit protected by dry-mounted, manually resettable temperature/safety cut-off providing greater safety and leak risk reduction than immersed bi-metal thermostat
- Pressure sensor provides dry-fire protection on all models

MADE IN THE USA

Intertek
Tested to ANSI/UL-499 Tested to CAN/CSA C22.2 No. 36

6 years
leaks/heat exchanger 2 years
electrical components

CF Plus CE Plus CES Plus CERO Plus

General description	Hot StartPrecise temp. controlSingle temp. output	Cold StartPrecise temp. controlVariable temp. output	Cold StartPrecise temperature control within OSHA tepid water requirements	Cold StartPrecise temperature control and corrosion resistance for heating caustic fluids	Various Various
Typical applications	Circulation systemBoiler replacementProcess manufacturing Cleanup	Process manufacturing Safety showersBoiler replacement Cleanup	Tepid water for Eyewash stationsSafety showersOSHA compliance	Caustic fluidsReverse osmosis (RO) water	Various Various
Size Range kW	12-144 kW	12-144 kW	12-144 kW	12-144 kW	5-144 kW	3-200+ kW
Size Range Btu/hr	40-491 kBtu/hr	40-491 kBtu/hr	40-491 kBtu/hr	40-491 kBtu/hr	17-491 kBtu/hr	9-600 kBtu/hr
Voltages, 3-phase	208, 240, 480, 575	208, 240, 480, 575	208, 240, 480, 575	208, 240, 480, 575	208, 240, 480, 575, 600 V	208, 240, 480, 575, 600 V 1- & 3-phase
Heat exchanger	316L Stainless Steel	316L Stainless Steel	316L Stainless Steel	316L Stainless Steel	Copper & Brass	Plastic
Element sheathing	840 Incoloy	840 Incoloy	840 Incoloy	Titanium	840 Incoloy	None
Elements individually fused	Yes	Yes	Yes	Yes	Yes	Yes
Temperature range & adjustability	60-180°F (16-82°C)Set as fixed output temperature but adjustable by 1°F / 1°C	60-180°F (16-82°C)by 1°F / 1°C	60-90°F (16-32°C)by 1°F / 1°C	60-180°F (16-82°C)by 1°F / 1°C	60-200°F(16-93°C)	60-180°F(16-82°C)
Is output temperature measured and displayed?	Yes. Actual and requested output temperatures shown if unit is over capacity	Yes. Actual and requested output temperatures shown if unit is over capacity	Yes. Actual and requested output temperatures shown if unit is over capacity	Yes. Actual and requested output temperatures shown if unit is over capacity	Yes	Yes NEMA3No NEMA 4
Over-temperature protections	4	4	4	4	4	Unknown
Activation flow rate	0.75, 1.25, 1.75, 3.75 GPM(constant hot)	0.75, 1.25, 1.75, 3.75 GPM	0.75, 1.25, 1.75, 3.75 GPM	0.75, 1.25, 1.75, 3.75 GPM	1.5 GPM	0.7, 1.0, 2.5 GPM
Flow rate(@ 40 PSI)	up to 40 GPM, dependent on pipe size	up to 40 GPM, dependent on pipe size	up to 40 GPM, dependent on pipe size	up to 40 GPM, dependent on pipe size	13-50 GPM	8-40 GPM, pipe size dependent
Pipe size	3/4-1 14"	3/4-1 14"	3/4-1 14"	3/4-1 14"	3/4-1 14"	1/2-1 14"
Freeze protection	Standard	Standard	Standard	Standard	Standard	Optional
Standard enclosure	NEMA 3	NEMA 3	NEMA 3	NEMA 3	NEMA 3	NEMA 3
Optional enclosures	NEMA 4, NEMA 4X	NEMA 4, NEMA 4X	NEMA 4, NEMA 4X	NEMA 4, NEMA 4X	NEMA 4 and 4X	NEMA 4 and 4X
Warranty	6-year heat exchanger2-year electrical	6-year heat exchanger2-year electrical	6-year heat exchanger2-year electrical	6-year heat exchanger2-year electrical	8-year heat exchanger2-year electrical	5-year heat exchanger1-year electrical

12 kW

15 kW

18 kW

24 kW

27 kW

36 kW

48 kW

54 kW

60 kW

72 kW

81 kW

90 kW

108 kW

120 kW

144 kW

CF Plus

208 volt

■

■

■

■

■

■

■

■

■

■

240 volt

■

■

■

■

■

■

■

■

■

■

480 volt

■

■

■

■

■

■

■

■

■

■

■

■

■

■

■

575 volt

■

■

■

■

■

■

Water connection

314"

1"

114"

CE Plus & CES Plus

208 volt

■

■

■

■

■

■

■

■

■

■

240 volt

■

■

■

■

■

■

■

■

■

■

480 volt

■

■

■

■

■

■

■

■

■

■

■

575 volt

■

■

■

■

■

■

Water connection

314"

1"

114"

CERO Plus

208 volt

■

■

■

■

■

■

240 volt

■

■

■

■

■

■

■

■

■

480 volt

■

■

■

■

■

■

■

■

■

■

■

■

575 volt

■

■

■

■

■

■

Water connection

314"

1"

114"

CF Plus | General Purpose Water Heaters

CF Plus models are electronically-controlled, hot-start models that will deliver immediate hot water. When shipped they are set to output hot water at a single temperature specified when ordering. Output temperature can be easily adjusted on the printed circuit board, but CF models lack an external toggle switch to make a temperature adjustment. CF Plus models are accurate to ±1.5^ F at low flow rates. They are used for applications where continuous delivery of hot water is demanded and an immediate start is important. Typical applications include circulation systems, boiler replacement, process manufacturing, and cleanup. CF Plus models can also be used in safety shower applications, but a mixing valve may need to be installed.

UNIVERSAL INDUSTRIAL South Tennessee State Plant CETITION INDUSTRIAL INDUSTRIAL UNITED BY: National Oil Corporation Name: 100% Rating: 100% Exhibit No. 100% Exhibit Date: 2015-04-23 Exhibit Number: 100% Exhibit Status: Not Applicable Exhibit Description: Not Applicable Exhibit Type: Not Applicable Exhibit Description: Not Applicable

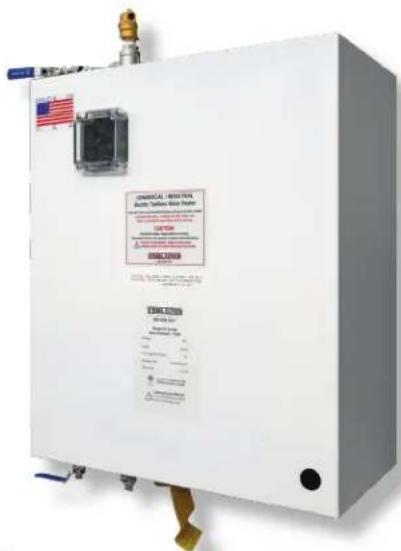

Shown: CF Plus,
24 - 36 kW models configuration,
Standard NEMA 3 enclosure

Features

• Minimum activation rate of 0.75 gpm
• Activates on demand but stays hot without flow, ensuring immediate hot water on demand
• Inside of enclosure is insulated to reduce standby heat loss
• Individually fused element circuits
  840 Incoloy sheathing material for the elements
• User set output temperature 60-180° Fahrenheit
• Temperature of output water and set point temperature both displayed behind front panel window

Options

- NEMA 4 and NEMA 4X enclosures are available

Labeled diagram of an electronic device interior with numbered components and a vertical list of numbered items on the right.

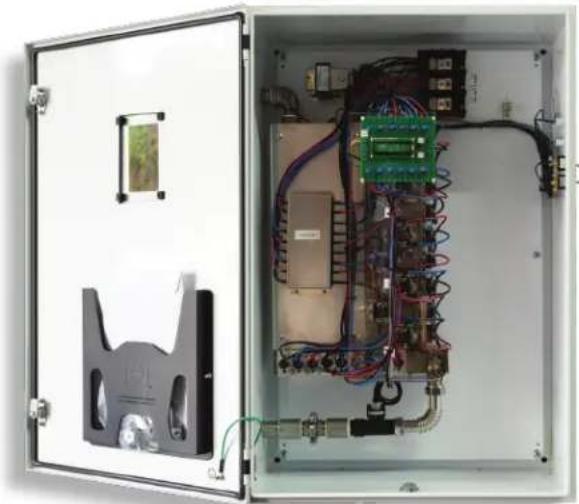

Interior view of an open white electrical enclosure with internal circuit board and wiring (no visible text or symbols)

1 Element
2 Individual element thermostat/safety cut-off
3 Pressure sensor switch
4 Flow sensor
5 Terminal block
6 Electronic board PCB
7 Fuse box
8 Transformer
9 Power indicator light
10 On/off indicator light
11 On/off switch
12 Mains power knockout

6 years leaks/heat exchanger 2 years electrical components

Intertek Certified to ANSI/UL 499 ms to Can/CSA Std. C22.2 No. 88.

Pros Cons

Hot-start maintains heated water in heat exchanger for immediate start

Heat loss is greater than cold-start models

CF Plus models and specifications

Model Item Number Voltage		3-phase	kW actual output	Full Load Amp Draw	3P Breaker Size (A)	No. of Elements	Pipe Size (inches)	Enclosure Size Standard NEMA 3 Including fittings (W x H x D in inches)
CF Plus 12KW	CFPLUS-012-208	208	11.27	31.27	35	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CFPLUS-012-240	240	12.50	30.07	35
	CFPLUS-012-480Y	480 Wye	13.50	16.24	20
CF Plus 15KW	CFPLUS-015-208	208	15.77	43.78	50	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CFPLUS-015-240	240	15.00	36.08	40
	CFPLUS-015-480Y	480 Wye	16.65	20.03	25
CF Plus 18KW	CFPLUS-018-208	208	18.00	49.96	60	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CFPLUS-018-240	240	18.00	43.30	50
	CFPLUS-018-480Y	480 Wye	18.00	21.65	25
	CFPLUS-018-480D*	480	18.00	21.65	25	6*		22^5/_8 × 30^11/_16 × 9^15/_16
CF Plus 24KW	CFPLUS-024-208	208	22.53	62.55	70	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CFPLUS-024-240	240	25.00	60.14	70
	CFPLUS-024-480	480	25.00	30.07	35
	CFPLUS-024-575	575	24.00	24.10	30
CF Plus 27KW	CFPLUS-027-208	208	27.04	75.06	80	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CFPLUS-027-240	240	27.02	65.01	80
	CFPLUS-027-480	480	27.02	32.51	40
CF Plus 36KW	CFPLUS-036-208	208	36.00	99.93	110	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CFPLUS-036-240	240	36.00	86.60	100
	CFPLUS-036-480	480	36.00	43.30	50
	CFPLUS-036-575	575	36.00	36.15	40
CF Plus 48KW	CFPLUS-048-208	208	45.07	125.09	150	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CFPLUS-048-240	240	50.00	120.28	150
	CFPLUS-048-480	480	50.00	60.14	70
	CFPLUS-048-575	575	47.99	48.19	60
CF Plus 54KW	CFPLUS-054-208	208	54.08	150.11	175	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CFPLUS-054-240 240	54.05 130.02		150
	CFPLUS-054-480	480	54.05	65.01	80
CF Plus 60KW	CFPLUS-060-208	208	63.09	175.13	200	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CFPLUS-060-240	240	60.00	144.34	175
	CFPLUS-060-480	480	60.00	72.17	80
CF Plus 72KW	CFPLUS-072-208	208	72.00	199.85	225	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CFPLUS-072-240	240	72.00	173.21	200
	CFPLUS-072-480	480	72.00	86.60	100
	CFPLUS-072-575	575	72.00	72.29	80
CF Plus 81KW	CFPLUS-081-480	480	81.07	97.52	110	18	1	37^5/_16 × 38^13/_32 × 14
CF Plus 90KW	CFPLUS-090-480	480	90.00	108.25	125	18	1	37^5/_16 × 38^13/_32 × 14
CF Plus 108KW	CFPLUS-108-480	480	108.00	129.90	150	18	1	37^5/_16 × 38^13/_32 × 14
	CFPLUS-108-575	575	108.00	108.44	125
CF Plus 120KW	CFPLUS-120-480	480	120.00	144.34	175	24	1^1/_4	39^5/_16 × 50^13/_32 × 14
CF Plus 144KW	CFPLUS-144-480	480	144.00	173.21	200	24	1^1/_4	39^5/_16 × 50^13/_32 × 14
	CFPLUS-144-575	575	144.00	144.59	175

*CFPLUS-018-480D is a 6-element Delta heater. The enclosure is larger than other 18 kW heaters. Available at extra cost.

CE Plus | General Purpose Water Heaters

CE Plus models are electronically-controlled, cold-start models. No energy is used when the unit is idle other than the indicator light. CE Plus models are accurate to ±1.5^ F at low flow rates. They are used for applications where continuous delivery of hot water is necessary on demand. Typical applications include safety showers, boiler replacement, process manufacturing, and cleanup.

Features

• Minimum activation rate of 0.75 gpm
• User set output temperature 60-180° Fahrenheit
• Rocker switch on outside of enclosure adjusts temperature in increments of 1° Fahrenheit
• Individually fused element circuits
  840 Incoloy sheathing material for the elements
• Temperature of output water and set point temperature both displayed behind front panel window

Options

- NEMA 4 and NEMA 4X enclosures are available

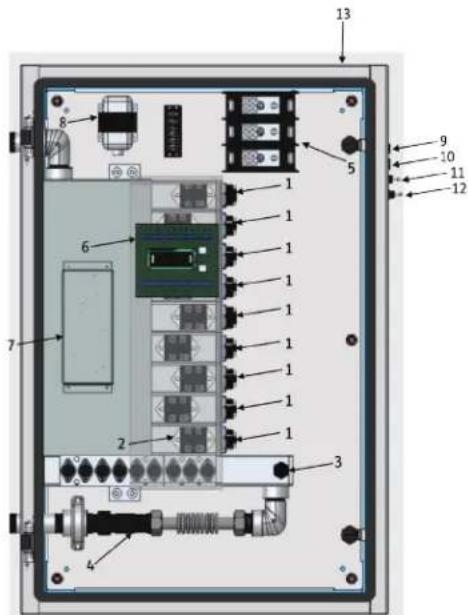

13 8 5 9 10 11 12 6 1 1 1 1 1 1 1 2 3 4 7 1 2 3 4 5 6 7 8

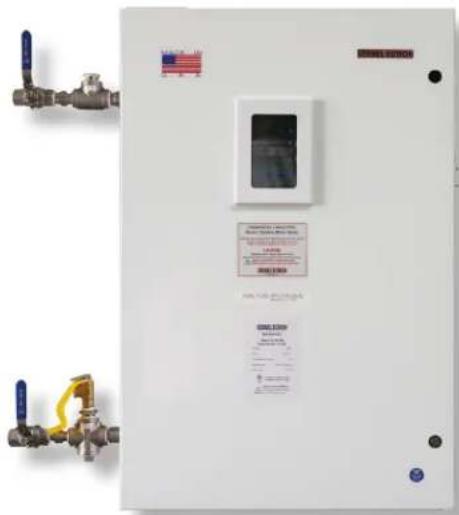

Front view of an industrial control panel with visible warning labels and U.S. flag, showing internal components and safety warnings.

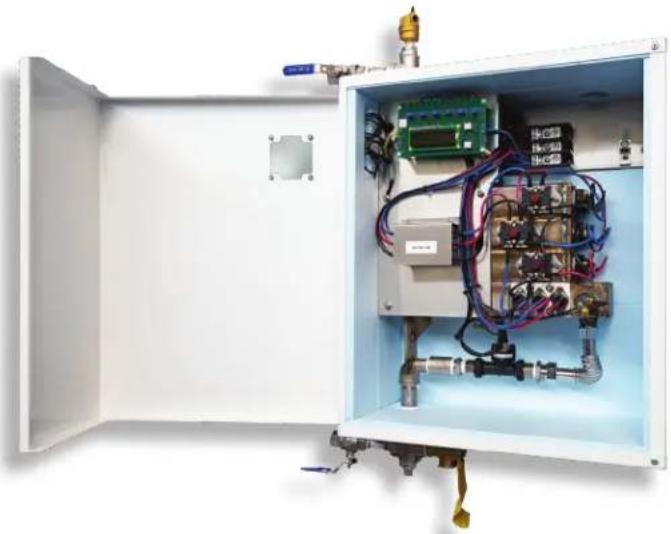

Interior view of an open electrical enclosure showing internal circuitry and wiring (no visible text or symbols)

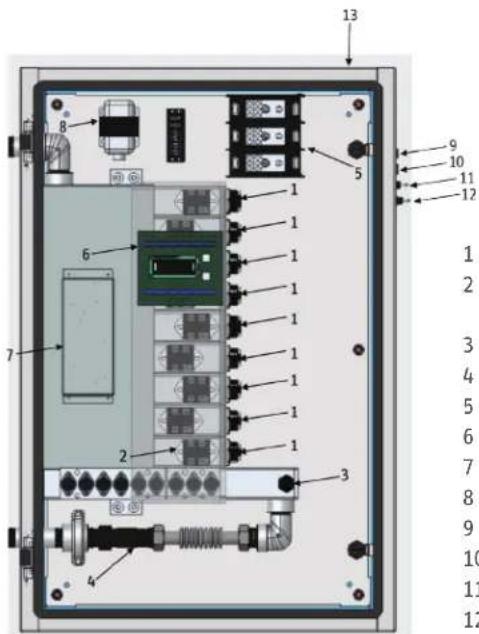

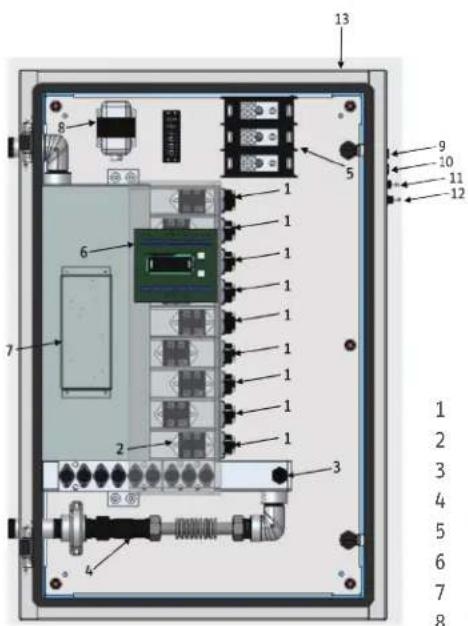

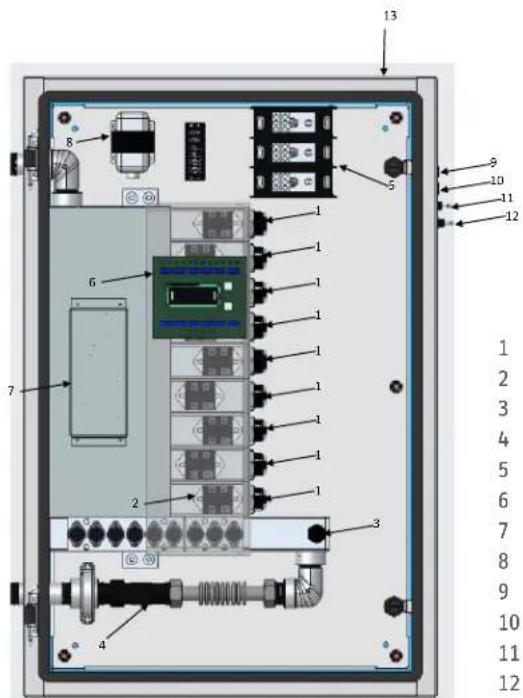

1 Element
2 Individual element thermostat/safety cut-off
3 Pressure sensor switch
4 Flow sensor
5 Terminal block
6 Electronic board PCB
7 Fuse box
8 Transformer
9 Power indicator light
10 On/off indicator light
11 On/off switch
12 Temperature set switch
13 Mains power knockout

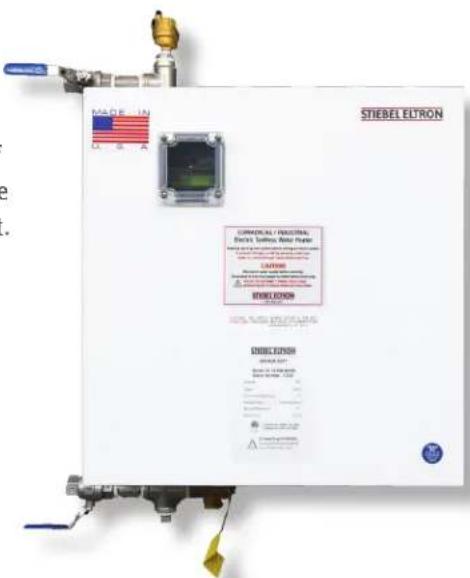

Shown:

CE Plus,

81-108 kW models configuration,

Standard NEMA 3 enclosure

6 years

leaks/heat exchanger

2 years

electrical components

Intertek

Certified to ANSI/UL 499 ns to Can/CSA Std. C22.2 No. 88.

Pros

Temperature adjustable on PCB or external toggle switch

Less energy use than CF Plus due to flow activation

Cons

Cold-start means 30 second delay before hot water at set temperature is delivered

CE Plus models and specifications

Model Item Number Voltage		3-phase	kW actual output	Full Load Amp Draw	3P Breaker Size (A)	No. of Elements	Pipe Size (inches)	Enclosure Size Standard NEMA 3 Including fittings (W x H x D in inches)
CE Plus 12KW	CEPLUS-012-208	208	11.27	31.27	35	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CEPLUS-012-240	240	12.50	30.07	35
	CEPLUS-012-480Y	480 Wye	13.50	16.24	20
CE Plus 15KW	CEPLUS-015-208	208	15.77	43.78	50	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CEPLUS-015-240	240	15.00	36.08	40
	CEPLUS-015-480Y	480 Wye	16.65	20.03	25
CE Plus 18KW	CEPLUS-018-208	208	18.00	49.96	60	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CEPLUS-018-240	240	18.00	43.30	50
	CEPLUS-018-480Y	480 Wye	18.00	21.65	25
	CEPLUS-018-480D*	480	18.00	21.65	25	6*		22^5/_8 × 30^11/_16 × 9^15/_16
CE Plus 24KW	CEPLUS-024-208	208	22.53	62.55	70	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CEPLUS-024-240	240	25.00	60.14	70
	CEPLUS-024-480	480	25.00	30.07	35
	CEPLUS-024-575	575	24.00	24.10	30
CE Plus 27KW	CEPLUS-027-208	208	27.04	75.06	80	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CEPLUS-027-240	240	27.02	65.01	80
	CEPLUS-027-480	480	27.02	32.51	40
CE Plus 36KW	CEPLUS-036-208	208	36.00	99.93	110	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CEPLUS-036-240	240	36.00	86.60	100
	CEPLUS-036-480	480	36.00	43.30	50
	CEPLUS-036-575	575	36.00	36.15	40
CE Plus 48KW	CEPLUS-048-208	208	45.07	125.09	150	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CEPLUS-048-240	240	50.00	120.28	150
	CEPLUS-048-480	480	50.00	60.14	70
	CEPLUS-048-575	575	47.99	48.19	60
CE Plus 54KW	CEPLUS-054-208	208	54.08	150.11	175	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CEPLUS-054-240 240 CEPLUS-054-480	480	54.05 130.02 54.05	150 65.01	80
CE Plus 60KW	CEPLUS-060-208	208	63.09	175.13	200	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CEPLUS-060-240	240	60.00	144.34	175
	CEPLUS-060-480	480	60.00	72.17	80
CE Plus 72KW	CEPLUS-072-208	208	72.00	199.85	225	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CEPLUS-072-240	240	72.00	173.21	200
	CEPLUS-072-480	480	72.00	86.60	100
	CEPLUS-072-575	575	72.00	72.29	80
CE Plus 81KW	CEPLUS-081-480	480	81.07	97.52	110	18	1	37^5/_16 × 38^13/_32 × 14
CE Plus 90KW	CEPLUS-090-480	480	90.00	108.25	125	18	1	37^5/_16 × 38^13/_32 × 14
CE Plus 108KW	CEPLUS-108-480	480	108.00	129.90	150	18	1	37^5/_16 × 38^13/_32 × 14
	CEPLUS-108-575	575	108.00	108.44	125
CE Plus 120KW	CEPLUS-120-480	480	120.00	144.34	175	24	1^1/_4	39^5/_16 × 50^13/_32 × 14
CE Plus 144KW	CEPLUS-144-480	480	144.00	173.21	200	24	1^1/_4	39^5/_16 × 50^13/_32 × 14
	CEPLUS-144-575	575	144.00	144.59	175

*CEPLUS-018-480D is a 6-element Delta heater. The enclosure is larger than other 18 kW heaters. Available at extra cost.

CES Plus | Eyewash & Emergency Shower Water Heaters

CES Plus models are designed to heat water for emergency eyewash/face wash stations and emergency drench showers to meet OSHA requirements. The CES Plus has the same operation, capacity, and voltage ranges as the CE Plus series. It differs from the CE Plus by limiting temperature control to 60-90°F and using a 180°F manual-reset safety cut-off.

CES Plus 12 kW through CES Plus 36 kW units should be used solely for eyewash station applications. Depending on size, they will heat up to 7 gallons per minute by 35°F (20°C) and limit the output temperature to OSHA requirements. CES Plus 60 kW through CES Plus 144 kW units will meet OSHA requirements for many installations including emergency drench showers.

Incoming water temperature must be measured on a cold day to verify the kilowatt size needed to comply with emergency shower and eyewash/face wash requirements. Only the largest models will be sufficient for cold temperate climates. We recommend targeting 85°F for best results. To meet regulations 60°F must be attained. Regulations also require at least 20 GPM per minute per shower for 15 minutes to comply, plus eyewash/face wash station requirements.

Features

• Meets all OSHA and ANSI Z 358.1 requirements
• Minimum activation rate of 0.75 gpm
  Output temperature range 60-90° Fahrenheit
• Rocker switch on outside of enclosure adjusts temperature in increments of 1° Fahrenheit
• Individually fused element circuits
• 840 Incoloy sheathing material for the elements
• Temperature of output water and set point temperature both displayed behind front panel window

Options

- NEMA 4 and NEMA 4X enclosures are available

1 Element
2 Individual element thermostat/safety cut-off
3 Pressure sensor switch
4 Flow sensor
5 Terminal block
6 Electronic board PCB
7 Fuse box
8 Transformer
9 Power indicator light
10 On/off indicator light
11 On/off switch
12 Temperature set switch
13 Mains power knockout

MAINT-IR MINI-ETRON CAPSICAL EQUIPMENT Schematic Power transformer MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-ETRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINI-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON MINII-EUTRON

Shown:
CES Plus,
120-144 kW models configuration,
Standard NEMA 3 enclosure

Labeled diagram of an electronic device interior showing numbered components and ports

6 years
leaks/heat exchanger
2 years
electrical components

Intertek
Certified to ANSI/UL 499 ns to Can/CSA Std. C22.2 No. 88.

CES Plus models and specifications

Model Item Number Voltage		3-phase	kW actual output	Full Load Amp Draw	3P Breaker Size (A)	No. of Elements	Pipe Size (inches)	Enclosure Size Standard NEMA 3 Including fittings (W x H x D in inches)
CES Plus 12KW	CESPLUS-012-208	208	11.27	31.27	35	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CESPLUS-012-240	240	12.50	30.07	35
	CESPLUS-012-480Y	480 Wye	13.50	16.24	20
CES Plus 15KW	CESPLUS-015-208	208	15.77	43.78	50	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CESPLUS-015-240 240	15.00 36.08	40
	CESPLUS-015-480Y	480 Wye	16.65	20.03	25
CES Plus 18KW	CESPLUS-018-208	208	18.00	49.96	60	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CESPLUS-018-240	240	18.00	43.30	50
	CESPLUS-018-480Y	480 Wye	18.00	21.65	25
	CESPLUS-018-480D*	480	18.00	21.65	25	6*		22^5/_8 × 30^11/_16 × 9^15/_16
CES Plus 24KW	CESPLUS-024-208	208	22.53	62.55	70	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CESPLUS-024-240	240	25.00	60.14	70
	CESPLUS-024-480	480	25.00	30.07	35
	CESPLUS-024-575	575	24.00	24.10	30
CES Plus 27KW	CESPLUS-027-208	208	27.04	75.06	80	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CESPLUS-027-240	240	27.02	65.01	80
	CESPLUS-027-480	480	27.02	32.51	40
CES Plus 36KW	CESPLUS-036-208	208	36.00	99.93	110	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CESPLUS-036-240	240	36.00	86.60	100
	CESPLUS-036-480	480	36.00	43.30	50
	CESPLUS-036-575	575	36.00	36.15	40
CES Plus 48KW	CESPLUS-048-208	208	45.07	125.09	150	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CESPLUS-048-240	240	50.00	120.28	150
	CESPLUS-048-480	480	50.00	60.14	70
	CESPLUS-048-575	575	47.99	48.19	60
CES Plus 54KW	CESPLUS-054-208	208	54.08	150.11	175	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CESPLUS-054-240	240	54.05	130.02	150
	CESPLUS-054-480	480	54.05	65.01	80
CES Plus 60KW	CESPLUS-060-208	208	63.09	175.13	200	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CESPLUS-060-240	240	60.00	144.34	175
	CESPLUS-060-480	480	60.00	72.17	80
CES Plus 72KW	CESPLUS-072-208	208	72.00	199.85	225	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CESPLUS-072-240	240	72.00	173.21	200
	CESPLUS-072-480	480	72.00	86.60	100
	CESPLUS-072-575	575	72.00	72.29	80
CES Plus 81KW	CESPLUS-081-480	480	81.07	97.52	110	18	1	37^5/_16 × 38^13/_32 × 14
CES Plus 90KW	CESPLUS-090-480	480	90.00	108.25	125	18	1	37^5/_16 × 38^13/_32 × 14
CES Plus 108KW	CESPLUS-108-480	480	108.00	129.90	150	18	1	37^5/_16 × 38^13/_32 × 14
	CESPLUS-108-575	575	108.00	108.44	125
CES Plus 120KW	CESPLUS-120-480	480	120.00	144.34	175	24	1^1/_4	39^5/_16 × 50^13/_32 × 14
CES Plus 144KW	CESPLUS-144-480	480	144.00	173.21	200	24	1^1/_4	39^5/_16 × 50^13/_32 × 14
	CESPLUS-144-575	575	144.00	144.59	175

*CESPLUS-018-480D is a 6-element Delta heater. The enclosure is larger than other 18 kW heaters. Available at extra cost.

CERO Plus | Caustic Fluid Heaters

CERO Plus models are designed to heat reverse osmosis (RO) water and caustic fluids. They have corrosion-free titanium-sheathed elements that will last longer in a caustic environment than standard Incoloy-sheathed elements. CERO Plus has the same electronic operation as the CE Plus series, calculating the amount of energy needed to meet hot water demand, then activating the minimum number of elements necessary to satisfy that demand, depending on flow rate and temperature measurement. No energy is used when the unit is idle other than the indicator light.

Features

• Minimum activation rate of 0.75 gpm
• User set output temperature 60–180° Fahrenheit
• Rocker switch on outside of enclosure adjusts temperature in increments of 1° Fahrenheit
• Individually fused element circuits
• Titanium-sheathed elements for resistance to caustic fluids
• Temperature of output water and set point temperature both displayed behind front panel window

Options

- NEMA 4 and NEMA 4X enclosures are available NEMA 4X is recommended for highly corrosive environments.

STIEBEL ELTRON COMMERCIAL / INDUSTRIAL Electric Turbines Motor Heater BYD 2015 SAB 2015 LASTTRON SAB 2015 STIEBEL ELTRON STIEBEL ELTRON BYD 2015 SAB 2015 STIEBEL ELTRON BYD 2015 STIEBEL ELTRON BYD 2015 STIEBEL ELTRON BYD 2015 STIEBEL ELTRON BYD 2015 STIEBEL ELTRON BYD 2015 STIEBEL ELTRON BYD 2015 STIEBEL ELTRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BEYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2015 STIEBEL ELETRON BYD 2

Shown:
CERO Plus,
12-18 kW models configuration,
Standard NEMA 3 enclosure

Technical diagram of an electronic device rear panel with numbered components and labeled ports

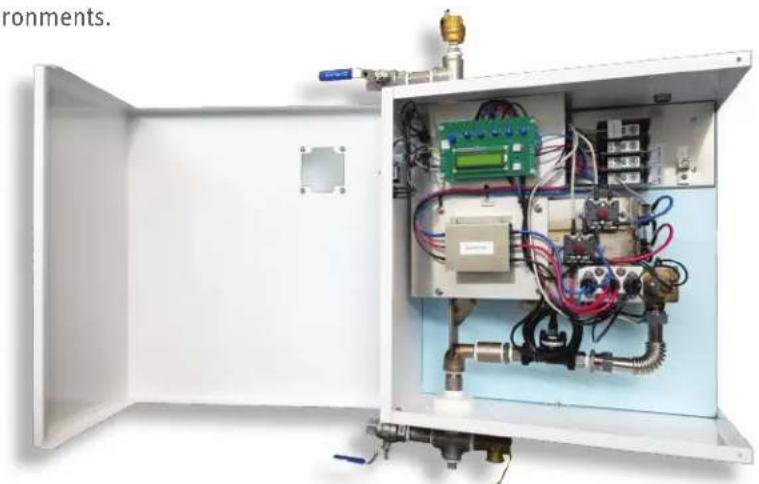

Interior view of an open industrial control cabinet with visible wiring, sensors, and circuitry (no text or symbols)

1 Element
2 Individual element thermostat/safety cut-off
3 Pressure sensor switch
4 Flow sensor
5 Terminal block
6 Electronic board PCB
7 Fuse box
8 Transformer
9 Power indicator light
10 On/off indicator light
11 On/off switch
12 Temperature set switch
13 Mains power knockout

leaks/heat exchanger
2 years
electrical components

Intertek
Certified to ANSI/UL 499
Conforms to Can/CSA Std. C22.2 No. 88.

CERO Plus models and specifications

Model Item Number Voltage		3-phase	kW actual output	Full Load Amp Draw	3P Breaker Size (A)	No. of Elements	Pipe Size (inches)	Enclosure Size Standard NEMA 3 Including fittings (W x H x D in inches)
CERO Plus 12KW	CEROPLUS-012-208	208	10.15	28.17	35	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CEROPLUS-012-240	240	12.50	30.07	35
	CEROPLUS-012-480Y	480 Wye	11.10	13.35	15
CERO Plus 15KW	CEROPLUS-015-208	208	13.52	37.53	45	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CEROPLUS-015-240 240	13.51 32.51 40
	CEROPLUS-015-480Y	480 Wye	16.65	20.03	25
CERO Plus 18KW	CEROPLUS-018-208	208	18.00	49.96	60	3	^3/_4	23^1/_32 × 28^1/_4 × 11^11/_32
	CEROPLUS-018-240	240	18.00	43.30	50
	CEROPLUS-018-480Y	480 Wye	18.00	21.65	25
	CEROPLUS-018-480D*	480	16.66	20.04	25	6*		22^5/_8 × 30^11/_16 × 9^15/_16
CERO Plus 24KW	CEROPLUS-024-208	208	20.30	56.34	70	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CEROPLUS-024-240	240	25.00	60.14	70
	CEROPLUS-024-480	480	25.00	30.07	35
	CEROPLUS-024-575	575	24.00	24.09	30
CERO Plus 27KW	CEROPLUS-027-208	208	27.04	75.06	80	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CEROPLUS-027-240	240	27.02	65.01	80
	CEROPLUS-027-480	480	27.02	32.50	40
CERO Plus 36KW	CEROPLUS-036-240	240	36.00	86.60	100	6	^3/_4	22^5/_8 × 30^11/_16 × 9^15/_16
	CEROPLUS-036-480	480	36.00	43.30	50
	CEROPLUS-036-575	575	36.00	36.15	40
CERO Plus 48KW	CEROPLUS-048-240	240	50.00	120.28	150	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CEROPLUS-048-480	480	50.00	60.14	70
	CEROPLUS-048-575	575	47.99	48.19	60
CERO Plus 54KW	CEROPLUS-054-208	208	54.08	150.11	175	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CEROPLUS-054-240	240	54.05	130.02	150
	CEROPLUS-054-480	480	54.05	65.01	70
CERO Plus 72KW	CEROPLUS-072-240	240	72.00	173.21	200	12	1	22^27/_32 × 38^25/_32 × 9^7/_8
	CEROPLUS-072-480	480	72.00	86.60	100
	CEROPLUS-072-575	575	71.99	72.28	80
CERO Plus 81KW	CEROPLUS-081-480	480	81.07	97.52	110	18	1	37^5/_16 × 38^13/_32 × 14
CERO Plus 108KW	CEROPLUS-108-480	480	108.00	129.90	150
	CEROPLUS-108-575	575	108.00	108.44	125
CERO Plus 144KW	CEROPLUS-144-480	480	144.00	173.21	200
	CEROPLUS-144-575	575	144.00	144.59	175

*CEROPLUS-018-480D is a 6-element Delta heater. The enclosure is larger than other 18 kW heaters. Available at extra cost.

All models | Flow Rate vs Temp. Rise

	Power Flow Rate Temperature Rise
	Output of Model1	Gallons/Min. Gallons/Hr.	20°F	30°F	40°F	50°F	60°F	70°F	80°F	90°F	100°F	110°F	120°F	130°F
Ships via UPS	12 kW	GPM	4.1	2.7	2.1	1.6	1.4	1.2	1.0	0.9	0.8	0.7	0.7	0.6
		GPH	246	164	123	98	82	70	61	55	49	45	41	38
	15 kW	GPM	5.1	3.4	2.6	2.1	1.7	1.5	1.3	1.1	1.0	0.9	0.9	0.8
		GPH	307	205	154	123	102	88	77	68	61	56	51	47
	18 kW	GPM	6.1	4.1	3.1	2.5	2.1	1.8	1.5	1.4	1.2	1.1	1.0	1.0
		GPH	369	246	184	147	123	105	92	82	74	67	61	57
	24 kW	GPM	8.2	5.5	4.1	3.3	2.7	2.3	2.1	1.8	1.6	1.5	1.4	1.3
		GPH	492	328	246	197	164	140	123	109	98	89	82	76
	27 kW	GPM	9.2	6.1	4.6	3.7	3.1	2.6	2.3	2.1	1.8	1.7	1.5	1.4
		GPH	553	369	277	221	184	158	138	123	111	101	92	85
	36 kW	GPM	12.3	8.2	6.1	4.9	4.1	3.5	3.1	2.7	2.5	2.2	2.1	1.9
		GPH	737	492	369	295	246	211	184	164	147	134	123	113
Ships via Common Carrier	48 kW	GPM	16.4	10.9	8.2	6.6	5.5	4.7	4.1	3.6	3.3	3.0	2.7	2.5
		GPH	983	655	492	393	328	281	246	218	197	179	164	151
	54 kW	GPM	18.4	12.3	9.2	7.4	6.2	5.3	4.6	4.1	3.7	3.4	3.1	2.8
		GPH	1106	737	553	442	369	316	277	246	221	201	184	170
	60 kW	GPM	20.5	13.7	10.2	8.2	6.8	5.9	5.1	4.6	4.1	3.7	3.4	3.2
		GPH	1229	819	614	492	410	351	307	273	246	223	205	189
	72 kW	GPM	24.6	16.4	12.3	9.8	8.2	7.0	6.1	5.5	4.9	4.5	4.1	3.8
		GPH	1475	983	737	590	492	421	369	328	295	268	246	227
Ships via Common Carrier with crate	81 kW	GPM	27.7	18.4	13.8	11.0	9.2	7.9	6.9	6.1	5.5	5.0	4.6	4.3
		GPH	1659	1106	829	664	553	474	415	369	332	302	277	255
	90 kW	GPM	30.7	20.5	15.4	12.3	10.2	8.8	7.7	6.8	6.1	5.6	5.1	4.7
		GPH	1843	1229	922	737	614	527	461	410	369	335	307	284
	108 kW GPM	36.9	^2	24.6	18.4	14.7	12.3	10.5	9.2	8.2	7.4	6.7	6.1	5.7
		GPH 2212 ^2	1475	1106	885	737	632	553	492	442	402	369	340	316
	120 kW GPM	40.0	^2	27.3	20.5	16.4	13.7	11.7	10.2	9.1	8.2	7.5	6.8	6.3
		GPH 2400 ^2	1638	1229	983	819	702	614	546	492	447	410	378	351
	144 kW GPM	40.0	^2	32.8	24.6	19.7	16.4	14.0	12.3	10.9	9.8	8.9	8.2	7.6
		GPH 2400 ^2	1966	1475	1180	983	843	737	655	590	536	492	454	421

^1 Actual power output varies by model depending on voltage which will affect achievable temp. rise. ^2 Assumes 1^1/4 " pipe size

Options

The standard enclosure is NEMA 3

• Made in Florida specifically for Stiebel Eltron
• Front cover and right-hand side are one piece, hinged, and swing open to the left to allow servicing and element replacement
• NEMA 3 is powder-coated and Alpine white color
• NEMA 3 enclosures are constructed for either indoor or outdoor use to provide a degree of protection to personnel against incidental contact with the enclosed equipment; to provide a degree of protection against falling dirt, rain, sleet, snow, and windblown dust; and will be undamaged by the external formation of ice on the enclosure.

NEMA 4 & NEMA 4X are optional enclosures

• NEMA 4 is painted steel in Alpine white color

  NEMA 4X is stainless steel

• NEMA 4 and NEMA 4X are watertight and come with watertight fittings, lights, switches, etc., except for drain at bottom

NEMA 3 enclosure

	Dimensions (HxWxD) Applicable Plus Models
NEMA 4 Enclosure3- or 6-element heater	24 x 24 x 12 CF 12, 15, 18, 24, 27, 36CE 12, 15, 18, 24, 27, 36CES 12, 15, 18, 24, 27, 36CERO 12, 15, 18, 24, 27, 36
NEMA 4 Enclosure12- or 18-element heater	36 x 24 x 12 CF 48, 54, 60, 72, 81, 90, 108CE 48, 54, 60, 72, 81, 90, 108CES 48, 54, 60, 72, 81, 90, 108CERO 48, 54, 72, 81, 90, 108
NEMA 4 Enclosure24-element heater	48 x 24 x 12 CF 120, 144CE 120, 144CES 120, 144CERO 144
NEMA 4X Enclosure3- or 6-element heater	24 x 24 x 12 CF 12, 15, 18, 24, 27, 36CE 12, 15, 18, 24, 27, 36CES 12, 15, 18, 24, 27, 36CERO 12, 5, 18, 24, 27, 36
NEMA 4X Enclosure12- or 18-element heater	36 x 24 x 12 CF 48, 54, 60, 72, 81, 90, 108CE 48, 54, 60, 72, 81, 90, 108CES 48, 54, 60, 72, 80, 90, 108CERO 48, 54, 72, 81, 90, 108
NEMA 4X Enclosure24-element heater	48 x 24 x 12 CF 120, 144CE 120, 144CES 120, 144CERO 144

NEMA 4X enclosure

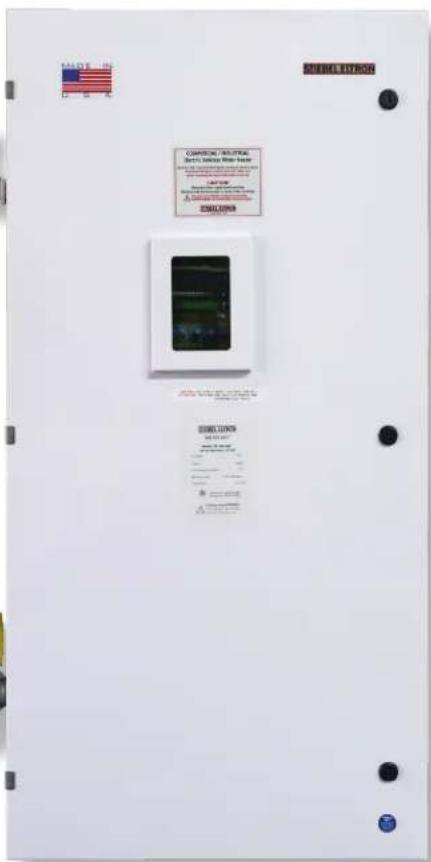

Industrial control panel with U.S. flag and warning label, showing industrial equipment and warning text

Options Description Applicable Models

NEMA 4 Enclosure dust-tight and water-tight painted white steel	Includes all drains and fittings surrounding the plumbing. Powder-coated white. Includes water-tight window to view the control boards in the electronic models.	All series and models
NEMA 4X Enclosure dust-tight and water-tight stainless steel	Including all drains and fittings surrounding the plumbing. Includes water-tight window to view the control boards in the electronic models.	All series and models
External Kill Switch	Mounted to the outside door of a NEMA 4 or NEMA 4X enclosure, allows the customer to kill power inside the unit by depressing the red button.	Requires NEMA 4 or NEMA 4X enclosure
Class 1 Division 2 NEMA 4 or NEMA 4X enclosure required All series and models
Element Indication Lights All series and models

All NEMA 4 and 4X enclosures will be shipped via Common Carrier, regardless of size of unit.

Quote/Order Check List

Date ____ Manufacturer's Rep. or Wholesaler ____

Company Name ____

Company Address

ADDRESS CITY STATE/PROVINCE ZIP/P.C.

Company Contact Person

Contact Phone Email

Project Installation Address

CITY STATE/PROVINCE COUNTRY

Application / Intended Use

Fluid To Be Heated: CITY WELL CAUSTIC/ RECIRCULATING Min. ambient temp. at heater location:

WATER WATER DE-IONIZED WATER WATER FOR OUTDOOR INSTALLATION FROST PROTECTION (°F or °C?)

Winter Inlet Water Temperature at Installation Address ____ (°F or °C?) Required Outlet Water Temperature ____ (°F or °C?)

Minimum Water Flow Required ____ Maximum Water Flow Required ____

GALLONS PER MINUTE (GPM) GALLONS PER MINUTE (GPM)

Inlet Water Pipe Size ____ Outlet Water Pipe Size ____ Max. System Static Pressure ____

Specify the maximum amperage available for each 3-phase voltage available at the installation site:

3-Phase Voltage: 208 Volt 240 Volt 480 Volt Delta 480 Volt Wye 575 Volt

Amperage Available: Amps Amps Amps Amps Amps

Notes

Hand holding pen writing on a printed document with mathematical formulas and diagrams visible

STIEBEL ELTRON

COMMERCIAL INDUSTRIAL 3-PHASE WATER HEATING

2060 Whitfield Park Ave., Sarasota, FL 34243

800-TANKLESS(800.826.5537)

FAX [phone]

[e-mail]

Due to our continuous process of engineering and technological advancement, specifications may change without notice.
