MODE D'EMPLOI ADBE-10341 ADIDAS


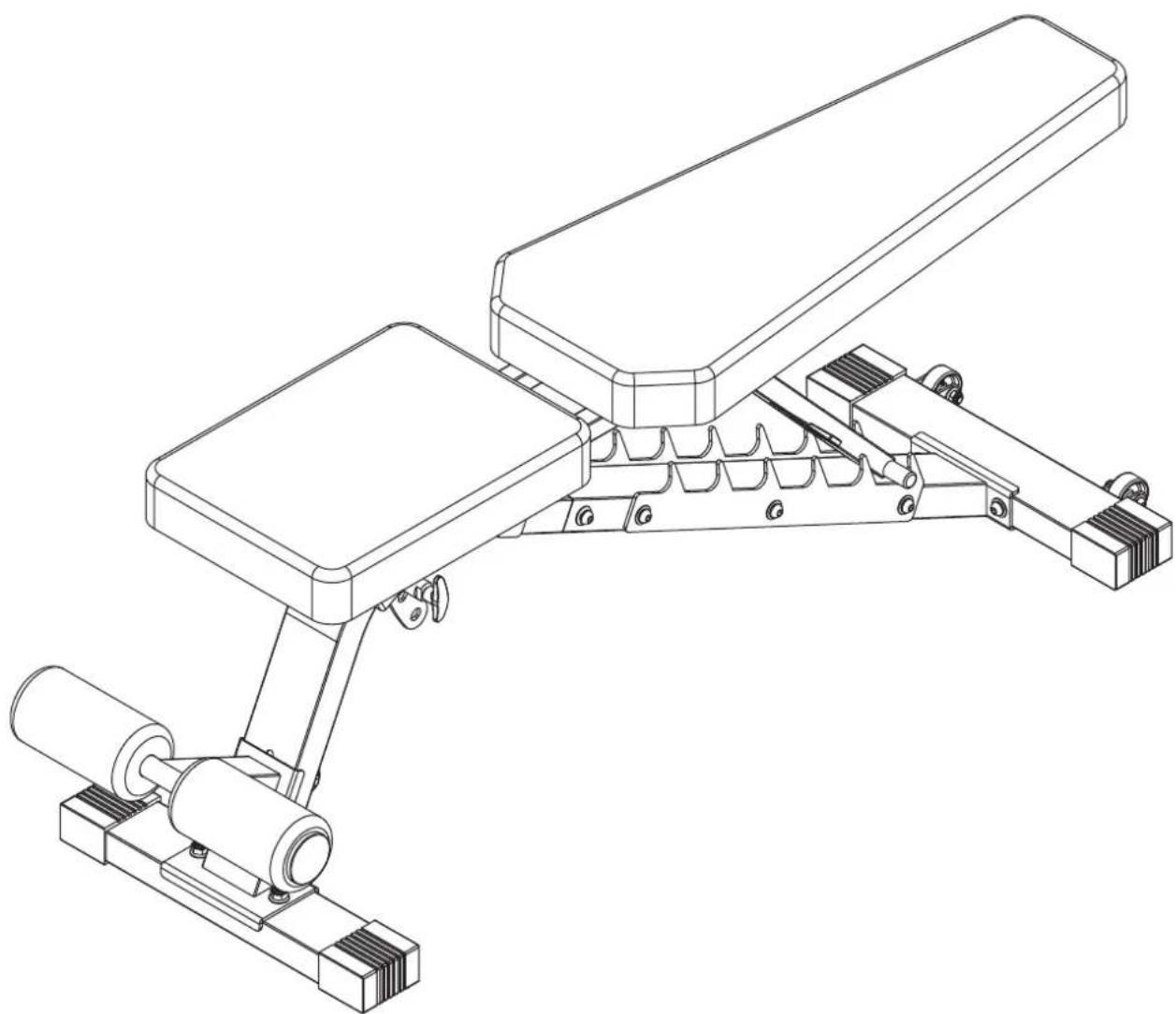

adidasSPORTS UTILITY BENCH ADBE - 10341

22 M10x25 Allen Bolt Qty: 4


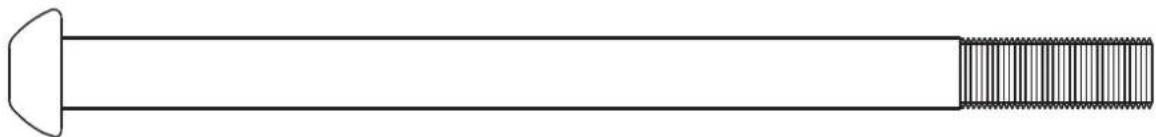

Simple line drawing of a long rod with a small protrusion on the left end, no text or symbols present.25 M10x155 Allen Bolt Qty: 2

⑳ M8x25 Allen Bolt Qty: 6

⑲29 M10 Washer Qty: 20

30 M8 Washer Qty: 10

③1 M10 Nylon Nut Qty: 9

③3 M10 Spring Washer Qty: 13

③4 M8 Spring Washer Qty: 10


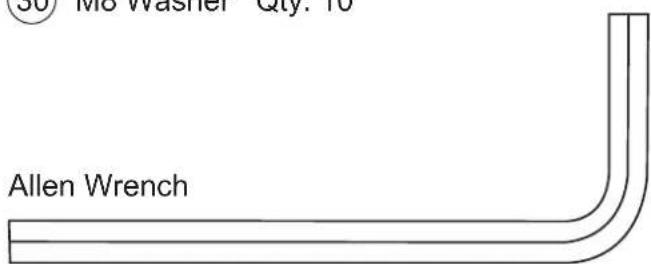

⑥ Mo Washer - Qty. 10 Allen Wrench


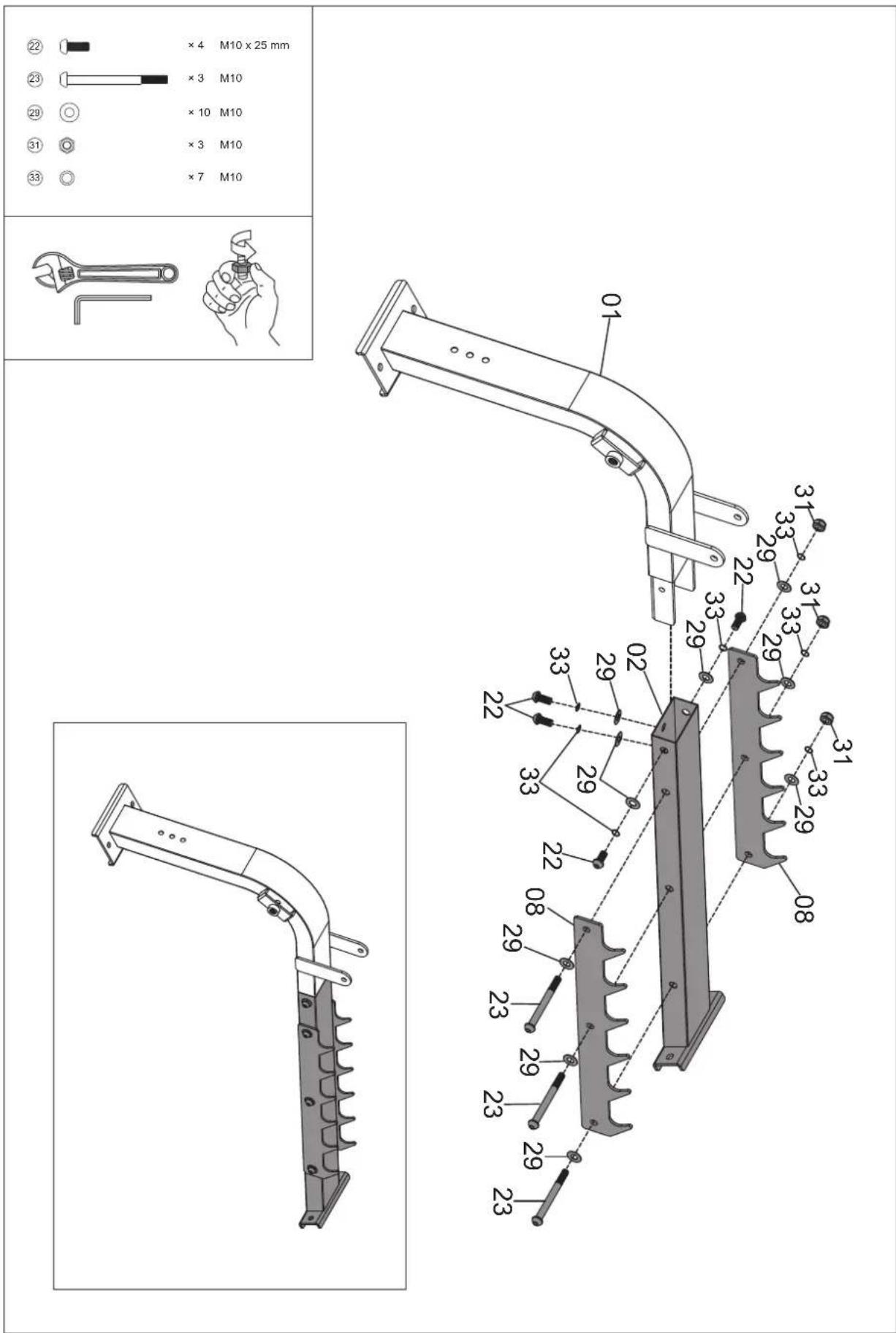

22 × 4 M10 x 25 mm 23 × 3 M10 29 × 10 M10 31 × 3 M10 33 × 7 M10 01 31 33 31 33 31 33 29 22 29 22 29 22 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29 29


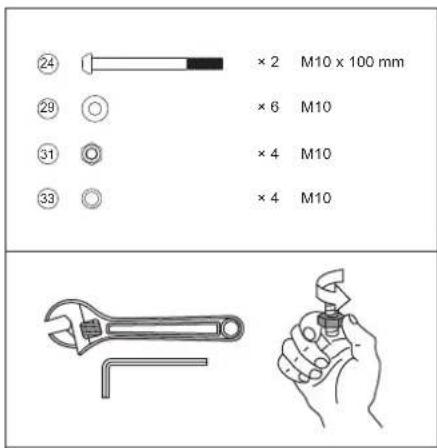

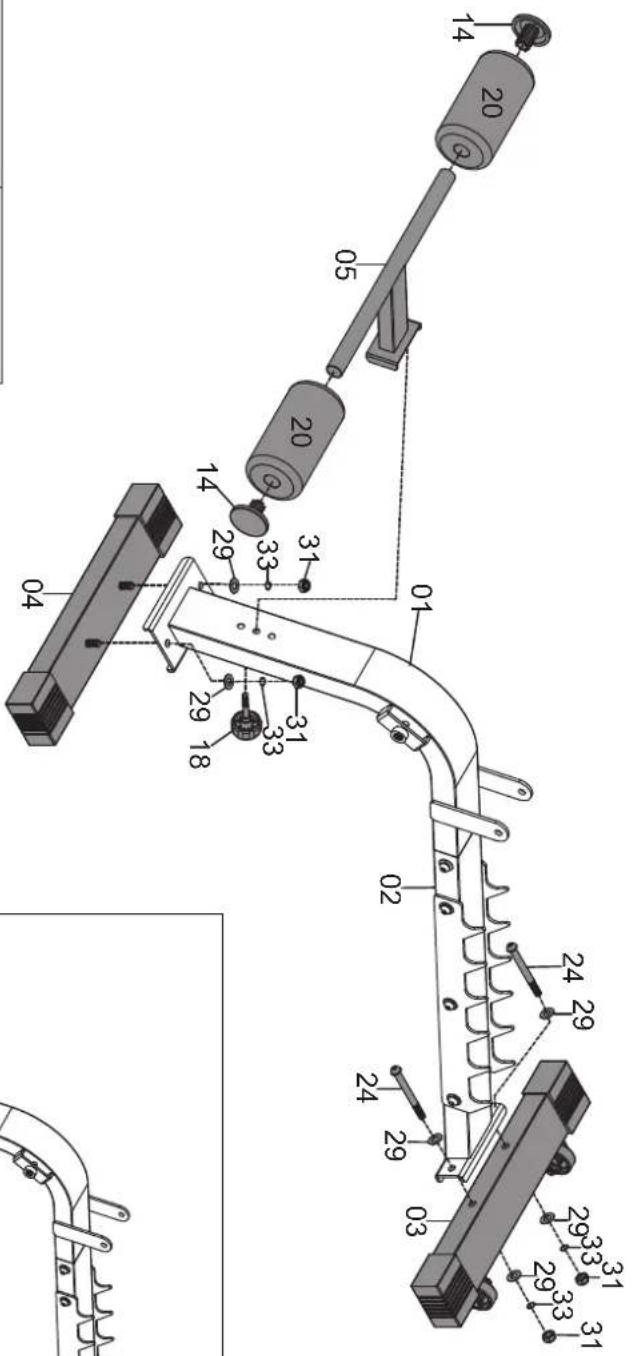

24 × 2 M10 x 100 mm 29 × 6 M10 31 × 4 M10 33 × 4 M10


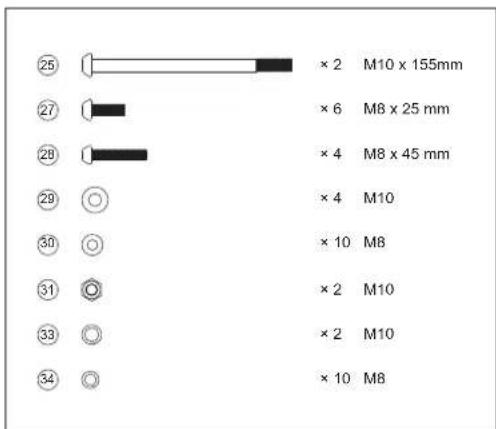

25 × 2 M10 x 155mm 27 × 6 M8 x 25 mm 28 × 4 M8 x 45 mm 29 × 4 M10 30 × 10 M8 31 × 2 M10 33 × 2 M10 34 × 10 M8


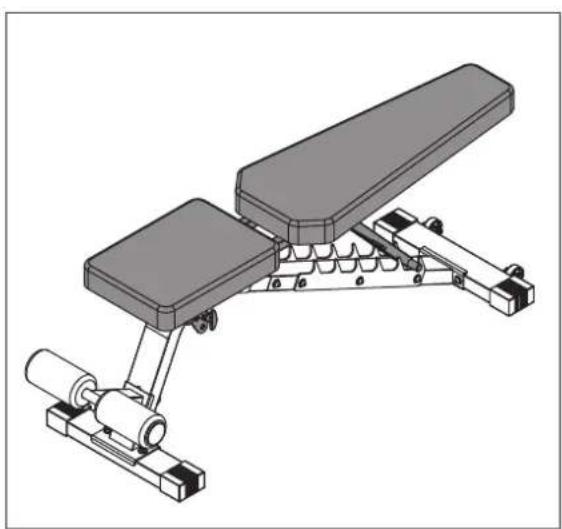

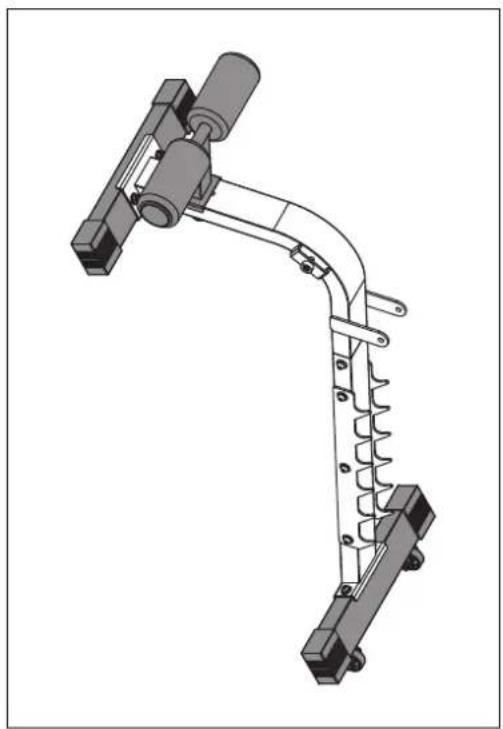

Technical illustration of a gym bench with adjustable arms and legs (no text or symbols)


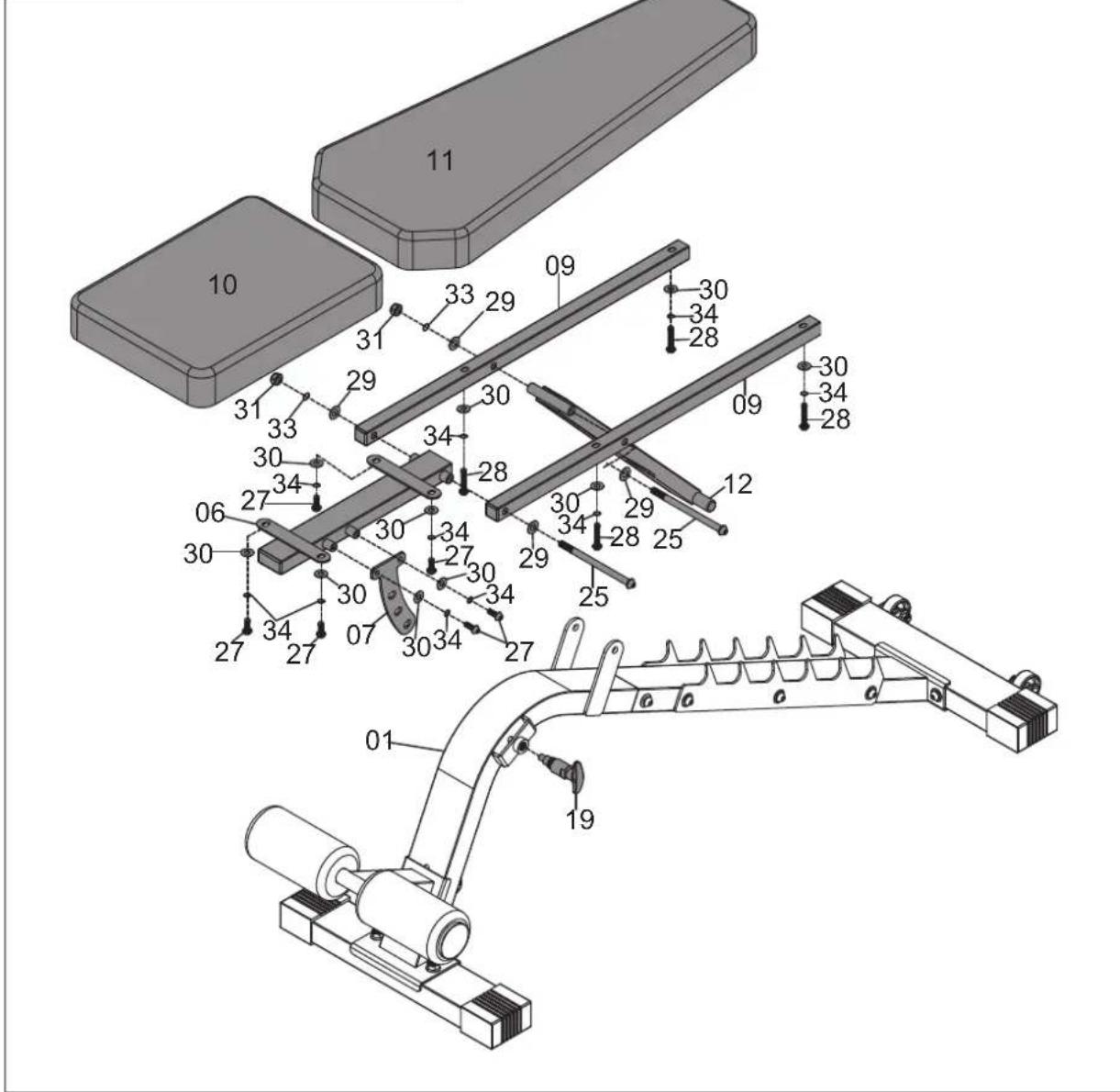

Technical diagram of a mechanical assembly with numbered components and labeled parts


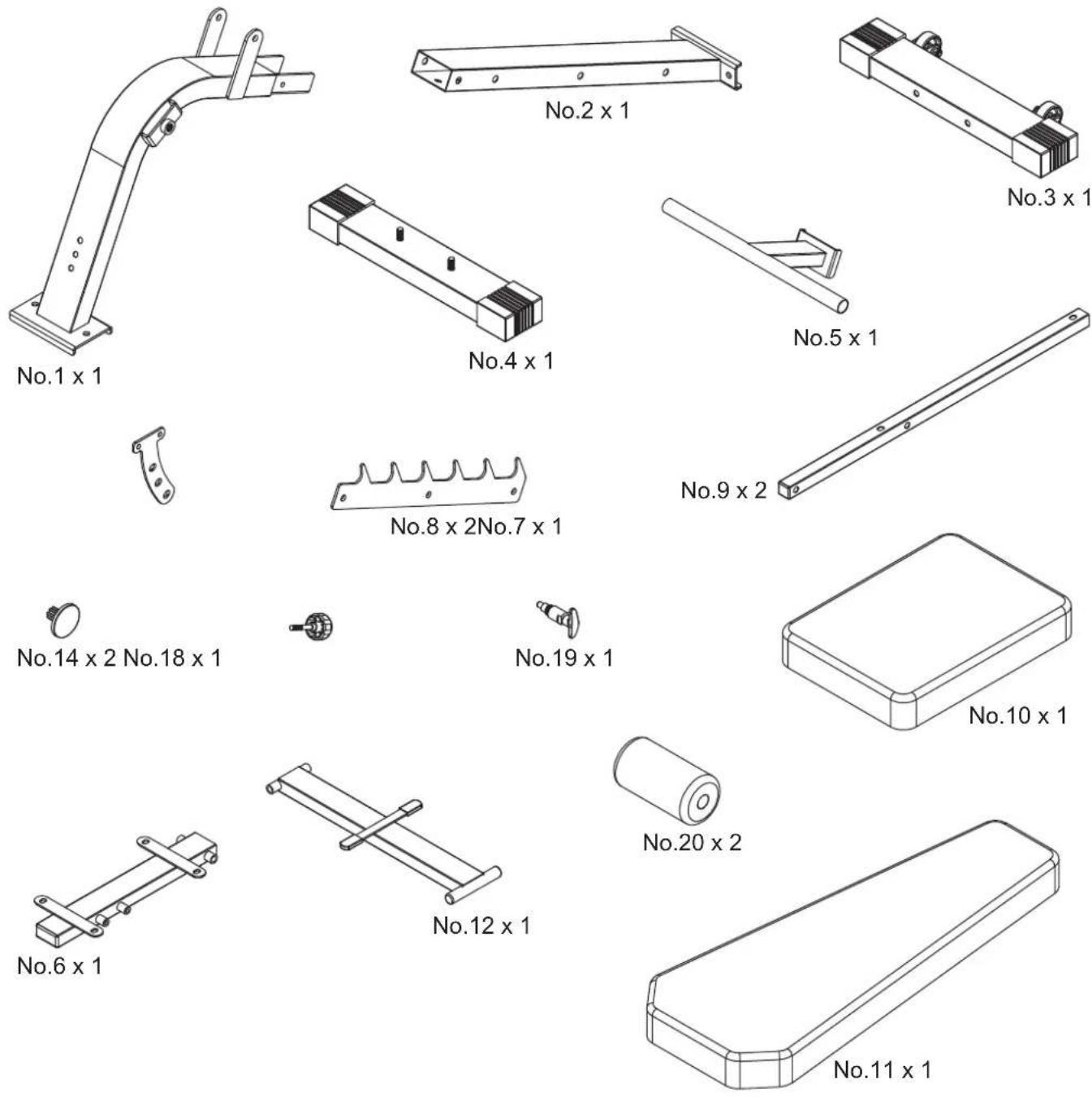

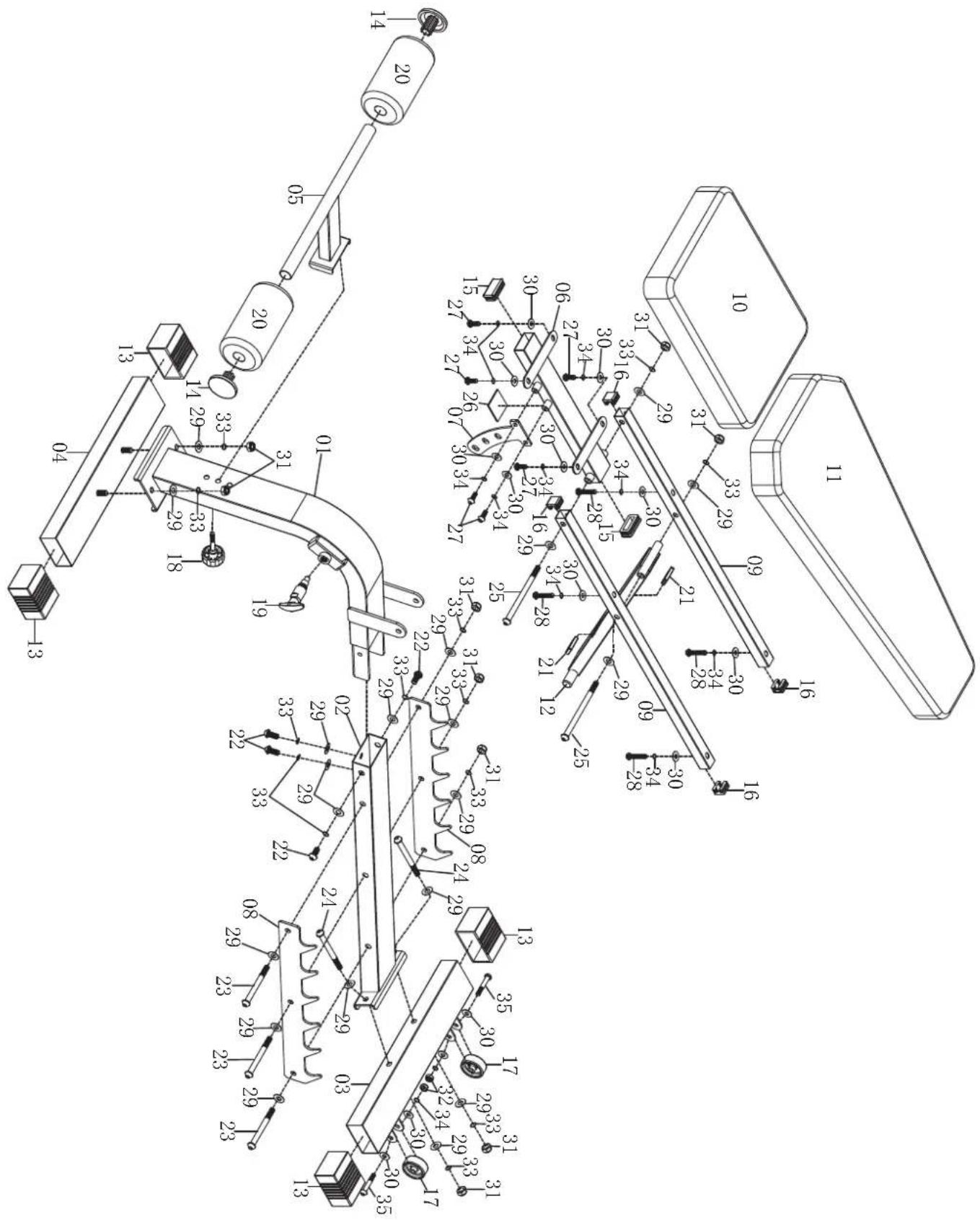

Technical diagram of a mechanical assembly with numbered components and dimensional annotations| No. | Part No. Description Qty. | ||
| 1 | FM-AD714S-01 | Main frame front | 1 |
| 2 | FM-AD714S-02 | Main frame back | 1 |
| 3 | FM-AD714S-03 | Back base tube | 1 |
| 4 | FM-AD714S-04 | Front bas e tube | 1 |
| 5 | FM-AD714S-05 | Leg tube | 1 |
| 6 | FM-AD714S-06 | Seat frame | 1 |
| 7 | FM-AD714S-07 | Seat adjustable plate | 1 |
| 8 | FM-AD714S-08 | Backrest Tube | 2 |
| 9 | FM-AD714S-09 | Pad Tube | 2 |
| 10 | FM-AD714S-10 | Seat | 1 |
| 11 | FM-AD714S-11 | Backrest | 1 |
| 12 | FM-AD714S-12 | Backrest support tube | 1 |
| 13 | FM-AD714S-13 | Foot cap | 4 |
| 14 | FM-AD714S-14 | Φ25mm Round Inner Cap | 2 |
| 15 | FM-AD714S-15 | 50x25 End Cap | 2 |
| 16 | FM-AD714S-16 | 25 End Cap | 4 |
| 17 | FM-AD714S-17 | Wheel | 2 |
| 18 | FM-AD714S-18 | Knob | 1 |
| 19 | FM-AD714S-19 | Pull Pin | 1 |
| 20 | FM-AD714S-20 | Foam Roll | 2 |
| 21 | FM-AD714S-21 | Rubber Cover | 2 |
| 22 | FM-AD714S-22 | M10x25 Allen Bolt | 4 |
| 23 | FM-AD714S-23 | M10x105 Allen Bolt | 3 |
| 24 | FM-AD714S-24 | M10x100 Allen Bolt | 2 |
| 25 | FM-AD714S-25 | M10x155 Allen Bolt | 2 |
| 26 | FM-AD714S-26 | Rubber Cushion | 1 |
| 27 | FM-AD714S-27 | M8x25 Allen Bolt | 6 |
| 28 | FM-AD714S-28 | M8x45 Allen Bolt | 4 |
| 29 | FM-AD714S-29 | M10 Washer | 20 |
| 30 | FM-AD714S-30 | M8 Washer | 14 |
| 31 | FM-AD714S-31 | M10 Nylon Nut | 9 |
| 32 | FM-AD714S-32 | M8 Nylon Nut | 2 |
| 33 | FM-AD714S-37 | M10 Spring Washer | 13 |
| 34 | FM-AD714S-38 | M8 Spring Washer | 10 |
| 35 | FM-AD714S-35 | M8x40 Allen Bolt | 2 |
| 36 | Allen Wrench | 1 | |
For product information or service please contact:
UK:
RFE Europa Ltd. 8 Clarendon Drive, Wymbush, Milton Keynes, MK8 8ED.
Customer Service: Tel: +44 (0)800 440 2459
Email: techsupport@rfeinternational.com
Europe:
Email: serviceeuropa@rfeinternational.com
Spain:
Email: serviciotecnico@rfeinternational.com
APAC (excluding Australia):
RFE Asia Pacific, 2608-1609, 1 Hung To Road, Kwun Tong, Kowloon, Hong Kong.
Customer Service: Tel: +852 34685027
Email: techsupportapac@rfeinternational.com
Australia:
Email: techsupportaustralia@rfeinternational.com
USA:
RFE Sporting Goods Inc., 1300 Smith Road, STE 104, Austin, Texas, 78721, USA.
Customer Service: Tel: +1 (800) 215 6216
Email: techsupportusa@rfeinternational.com
