Caractéristiques techniques	Support mural pour écran jusqu'à 42 pouces, capacité de charge maximale de 30 kg, inclinaison de 15 degrés.
Utilisation	Idéal pour les installations de télévision dans les salons, bureaux ou espaces publics, permettant un gain de place et un meilleur angle de vision.
Maintenance et réparation	Vérifier régulièrement les fixations pour assurer la stabilité, nettoyer avec un chiffon doux pour éviter les rayures.
Sécurité	Installer sur un mur solide, utiliser les vis et chevilles fournies, respecter la capacité de charge maximale.
Informations générales	Compatible avec la plupart des marques de téléviseurs, instructions de montage incluses, garantie de 2 ans.

FOIRE AUX QUESTIONS - WM-42T-04 Gembird

Comment installer le support mural Gembird WM-42T-04 ?

Pour installer le support mural Gembird WM-42T-04, commencez par fixer les supports muraux à l'aide des vis fournies. Assurez-vous de les ancrer dans des montants solides. Ensuite, fixez le support au dos de votre appareil et accrochez-le sur les supports muraux.

Quels types d'appareils peuvent être utilisés avec le support WM-42T-04 ?

Le support mural Gembird WM-42T-04 est compatible avec la plupart des téléviseurs et écrans de 32 à 55 pouces, pesant jusqu'à 40 kg.

Quelle est la distance maximale entre les trous de fixation pour le WM-42T-04 ?

La distance maximale entre les trous de fixation pour le support WM-42T-04 est de 400 mm x 400 mm, ce qui est compatible avec de nombreux modèles de téléviseurs.

Comment ajuster l'angle du support mural après installation ?

Après installation, vous pouvez ajuster l'angle du support mural en dévissant légèrement les boulons de réglage situés sur les bras du support. Ajustez l'angle souhaité et resserrez les boulons pour sécuriser la position.

Que faire si le support ne semble pas stable ?

Si le support ne semble pas stable, vérifiez que toutes les vis sont correctement serrées et que le support est bien fixé au mur. Assurez-vous également que le téléviseur est correctement installé sur le support.

Le support WM-42T-04 est-il compatible avec les murs en béton ?

Oui, le support mural Gembird WM-42T-04 peut être installé sur des murs en béton. Assurez-vous d'utiliser des chevilles adaptées pour béton lors de l'installation.

Quelles sont les dimensions du support mural Gembird WM-42T-04 ?

Les dimensions du support mural Gembird WM-42T-04 sont de 42 x 30 x 6 cm.

Où puis-je trouver le manuel d'utilisation du Gembird WM-42T-04 ?

Le manuel d'utilisation du Gembird WM-42T-04 est généralement inclus dans l'emballage du produit. Vous pouvez également le télécharger depuis le site web de Gembird dans la section support.

MODE D'EMPLOI WM-42T-04 Gembird

GENERAL INFORMATION

This product has been manufactured by or on behalf of Gembird Europe B.V.. Inquiries to the EU Importer or related to product compliance in Europe should be sent to: Gembird Europe B.V., Wittevrouwen 56, 1358 CD, Almere, The Netherlands. www.gmb.nl

Warranty conditions: www.qmb.nl/warranty

Product support: www.gmb.nl/service and/or [e-mail]

SAFETY

(ENG) To ensure safe handling of the product, follow the safety advice on: (DE/AT) Hinweise zum sicheren Gebrauch der Produkte finden Sie auf: (NL/BE) Voor een veilig gebruik van het product volgt ude algemene veiligheidsaanwijzingen op: (ES) Para garantizar una manipulación segura de los dispositivos, siga las advertencias de seguridad disponibles en: (CB) Abyste zajestilli bezpečnou manipulaci s vyrobkem, dodržuje bezpečnostní pokyny na: (FR/BE) Pour garantir une manipulation sûre des appareils, suivze les consignes de sécurité sur: (IT) Per garantire una manipolazione sicura del prodotto, seguire i consigli di sicurezza su: (PT) Para garantir o manuseio seguro do produto, siga as recomendações de segurança em: (PL) Aby obchodzić się bezpiecznie z produktami, należy przestrzegać wskazwoek dotyczących bezpieceristwa: (RO) Pentru asigurarea unei manipulari in condiíti de segurança a produsului, urmați recomandárie de securitate de pe: (SK) Na zaistenie bezpečnej manipulácie so zariadeniemi sa riadežte bezpečnostnymi pokynami na: (SL) Za gotavljanje varnega ravnanja z napravami, upoštevatje varnostna navodila, ki jih najdette na: (HR) Da biste osigurali sigurno rukovanje uređajima, prafite sigurnosne savjete na web-mjestu: (HU) A készülékek biztonságos kezellesének érdekében kövesse a biztonsági tanácsokat (BG) 3 da osигурите безопасna работа на устройствата, следвайте съветите за безопасност по-допу: www.gmb.nl/safety

EN) WARRANTY CONDITIONS The receipt must clearly list the date of purchase and the part numbers, in addition it should be printed. Keep the receipt for the entire period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or expaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a warranty period. The manufacturer reserves the right to avoid any warranty claim for damages on defects due to misuse, abuse or external impact falling down, impact of ingress, water dist, containment or breakout. The manufacturer has not yet been issued to buy any material or equipment that is not suitable for any purpose of sale or otherwise. For any purpose of sale, no liability shall be incurred. If you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, you may have a copy of this report, your credit card and/or other information. Note: The credit card will always be calculated on the basis of the current market value of the defective products. Gambier Europe B.V. Wittevownsen 56, 1358CD Alme. Netherlands www.gembier.nl/service.com (www.gembier.nl) and also includes an insurance coverage and/or other insurance coverage. In addition to the use of the product, we are not to be used as follows: (1) All rights reserved by applicable authorities; (2) All rights reserved by applicable authorities; (3) All rights reserved by applicable authorities; (4) All rights reserved by applicable authorities; (5) All rights reserved by applicable authorities; (6) All rights reserved by applicable authorities; (7) All rights reserved by applicable authorities; (8) All rights reserved by applicable authorities; (9) All rights reserved by applicable authorities; (10) All rights reserved by applicable authorities; (11) All rights reserved by applicable authorities; (12) All rights reserved by applicable authorities; (13) All rights reserved by applicable authorities; (14) All rights reserved by applicable authorities; (15) All rights reserved by applicable authorities; (16) All rights reserved by applicable authorities; (17) All rights reserved by applicable authorities; (18) All rights reserved by applicable authorities; (19) All rights reserved by applicable authorities; (20) All rights reserved by applicable authorities; (21) All rights reserved by applicable authorities; (22) All rights reserved by applicable authorities; (23) All rights reserved by applicable authorities; (24) All rights reserved by applicable authorities; (25) All rights reserved by applicable authorities; (26) All rights reserved by applicable authorities; (27) All rights reserved by applicable authorities; (28) All rights reserved by applicable authorities; (29) All rights reserved by applicable authorities; (30) All rights reserved by applicable authorities; (31) All rights reserved by applicable authorities; (32) All rights reserved by applicable authorities; (33) All rights reserved by applicable authorities; (34) All rights reserved by applicable authorities; (35) All rights reserved by applicable authorities; (36) All rights reserved by applicable authorities; (37) All rights reserved by applicable authorities; (38) All rights reserved by applicable authorities; (39) All rights reserved by applicable authorities; (40) All rights reserved by applicable authorities; (41) All rights reserved by applicable authorities; (42) All rights reserved by applicable authorities; (43) All rights reserved by applicable authorities; (44) All rights reserved by applicable authorities; (45) All rights reserved by applicable authorities; (46) All rights reserved by applicable authorities; (47) All rights reserved by applicable authorities; (48) All rights reserved by applicable authorities; (49) All rights reserved by applicable authorities; (50) All rights reserved by applicable authorities; (51) All rights reserved by applicable authorities; (52) All rights reserved by applicable authorities; (53) All rights reserved by applicable authorities; (54) All rights reserved by applicable authorities; (55) All rights reserved by applicable authorities; (56) All rights reserved by applicable authorities; (57) All rights reserved by applicable authorities; (58) All rights reserved by applicable authorities; (59) All rights reserved by applicable authorities; (60) All rights reserved by applicable authorities; (61) All rights reserved by applicable authorities; (62) All rights reserved by applicable authorities; (63) All rights reserved by applicable authorities; (64) All rights reserved by applicable authorities; (65) All rights reserved by applicable authorities; (66) All rights reserved by applicable authorities; (67) All rights reserved by applicable authorities; (68) All rights reserved by applicable authorities; (69) All rights reserved by applicable authorities; (70) All rights reserved by applicable authorities; (71) All rights reserved by applicable authorities; (72) All rights reserved by applicable authorities; (73) All rights reserved by applicable authorities; (74) All rights reserved by applicable authorities; (75) All rights reserved by applicable authorities; (76) All rights reserved by applicable authorities; (77) All rights reserved by applicable authorities; (78) All rights reserved by applicable authorities; (79) All rights reserved by applicable authorities; (80) All rights reserved by applicable authorities; (81) All rights reserved by applicable authorities; (82) All rights reserved by applicable authorities; (83) All rights reserved by applicable authorities; (84) All rights reserved by applicable authorities; (85) All rights reserved by applicable authorities; (86) All rights reserved by applicable authorities; (87) All rights reserved by applicable authorities; (88) All rights reserved by applicable authorities; (89) All rights reserved by applicable authorities; (90) All rights reserved by applicable authorities; (91) All rights reserved by applicable authorities; (92) All rights reserved by applicable authorities; (93) All rights reserved by applicable authorities; (94) All rights reserved by applicable authorities; (95) All rights reserved by applicable authorities; (96) All rights reserved by applicable authorities; (97) All rights reserved by applicable authorities; (98) All rights reserved by applicable authorities; (99) All rights reserved by applicable authorities; (100) All rights reserved by applicable authorities;

↓ gembird®

USER MANUAL • HANDBUCH • HANDLEIDING • MANUALE D'USO

- MANUAL DE USUARIO • MANUAL DO USUÁRIO • MANUEL

DESCRIPTIF • INSTRUKCJA OBSŁUGI • UŻIVATELSKÝ MANUÁL

• ІНСТРУКЦІЯ КОРИСТУВАЧА • POUŽÍVATELŠKÁ PRÍRUČKA

• VARTOTOJO VADOVAS • MANUAL DE UTILIZARE

VESA Compatible 50x50 75x75 100x100 200x100 200x200

WM-42T-04

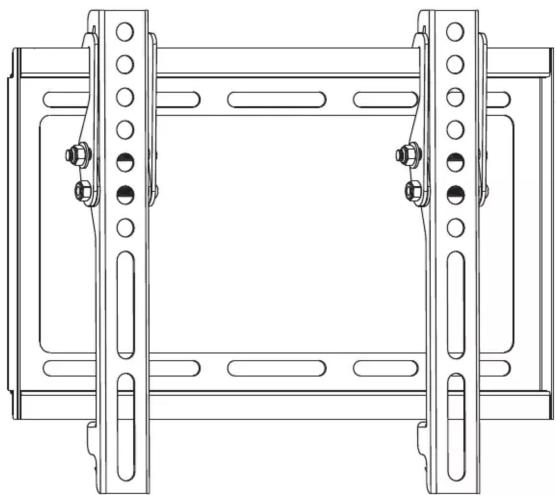

Technical line drawing of a mechanical frame assembly with mounting holes and structural brackets (no text or symbols)

TV WALL MOUNT (TILT), 23"-42"

A (x1)	M-A (x4)M4x14M-D (x4)M8x15	M-B (x4)M5x14M-E (x4)D5	M-C (x4)M6x14M-F (x4)D8
	W-A (x4)ST6.3x55	W-B (x4)∅10x45	[KZZ2]W-C (x4)D6

M-A (x4)
M4×14
M-D (x4)
M8x15
M-R (x4)
M5×14
M-E (x4)
D5
M-C (x4)
M6×14
M-F (x4)
D8
W-A (x4)
ST6.3×55
W-B (x4)
∅10x45
W-C (x4)
D6

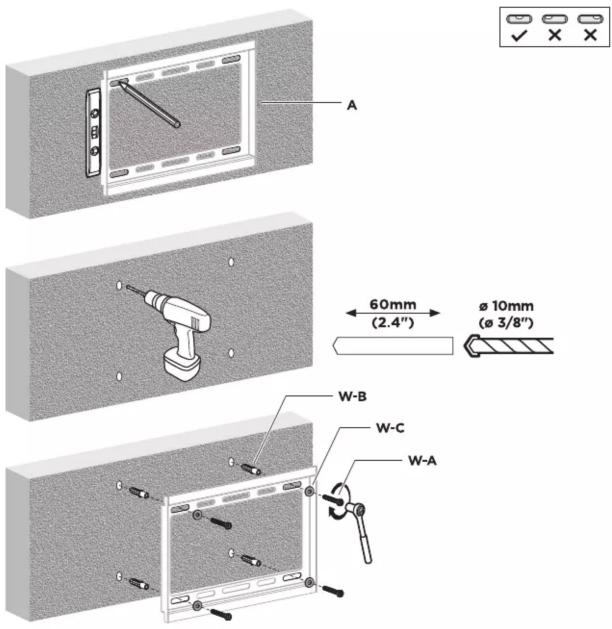

A 60mm (2.4") Ø 10mm (Ø 3/8") W-B W-C W-A

2

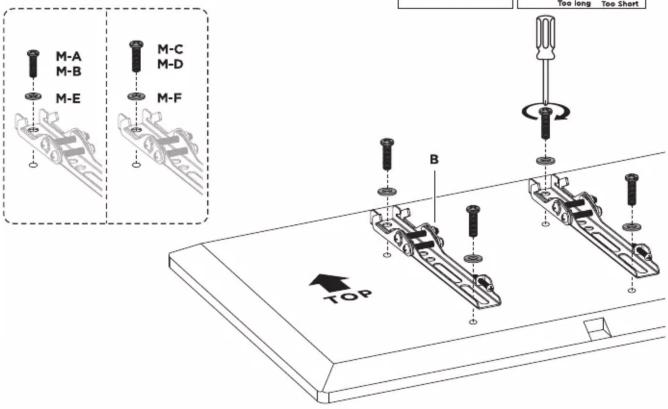

M-A M-B M-C M-D M-E M-F B TOP Too long Too Short

3

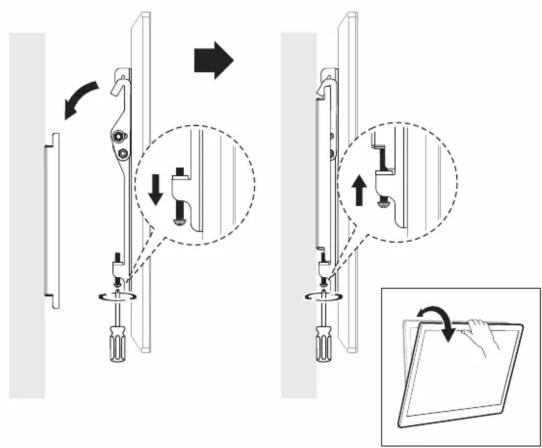

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows
