NikonF-801s FAA22052 N8008s FAA22152

REPAIR MANUAL

Nikon

NIKON CORPORATION

Tokyo, Japan

CONTENTS

Specifications M1

ELECTRIC CIRCUIT E1

Exploded Drawings & Parts List

[1] Exploded Drawings

BODY DIECASTING, SHUTTER UNIT, DB.DX CONTACT BASE PLATE UNIT ---- F 1

REWIND BASE PLATE, CAMERA BACK OPEN/CLOSE KEY, FILM DETECTION SW --- F 2

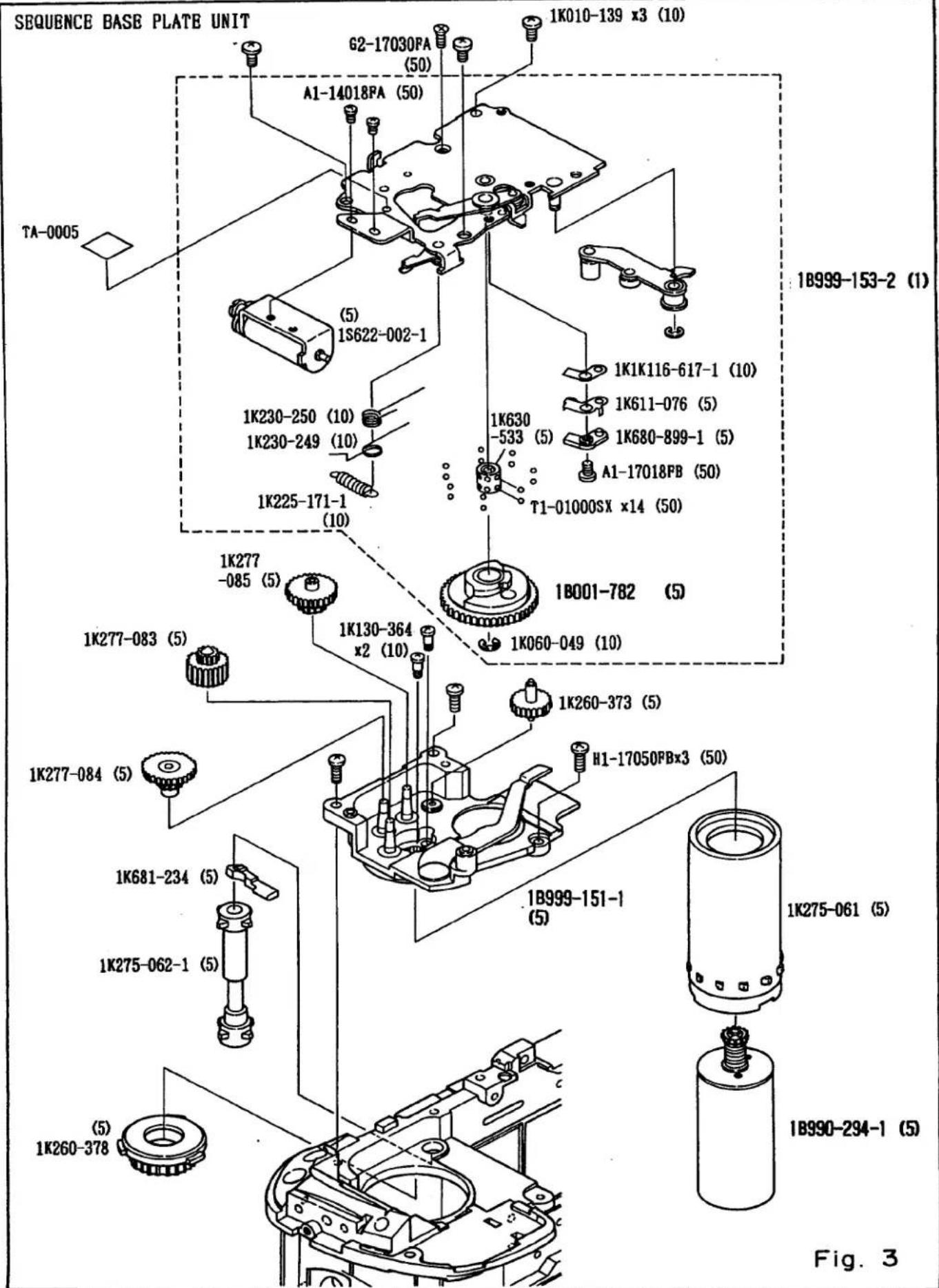

SEQUENCE BASE PLATE UNIT . F 3

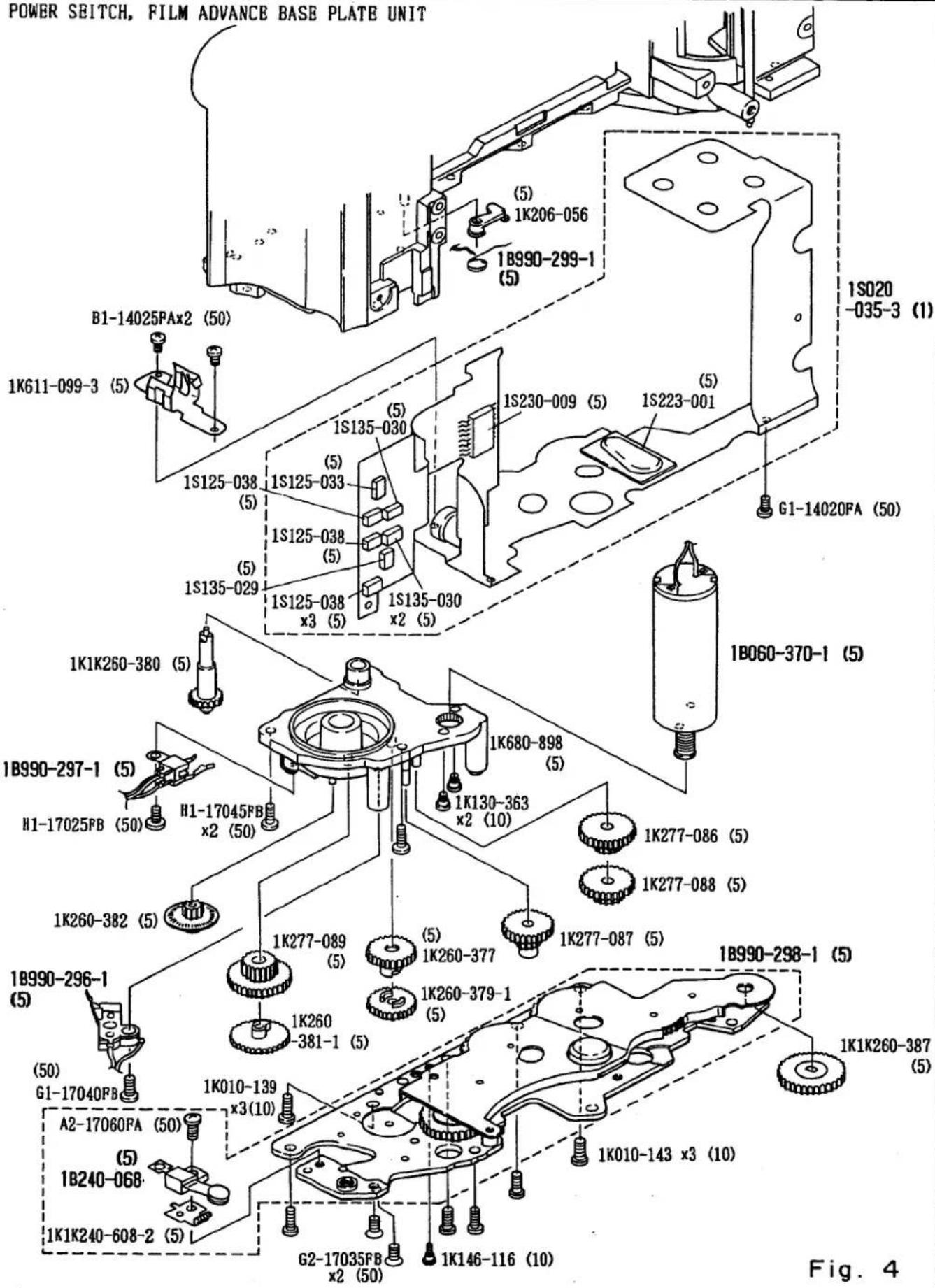

POWER SEITCH, FILM ADVANCE BASE PLATE UNIT F 4

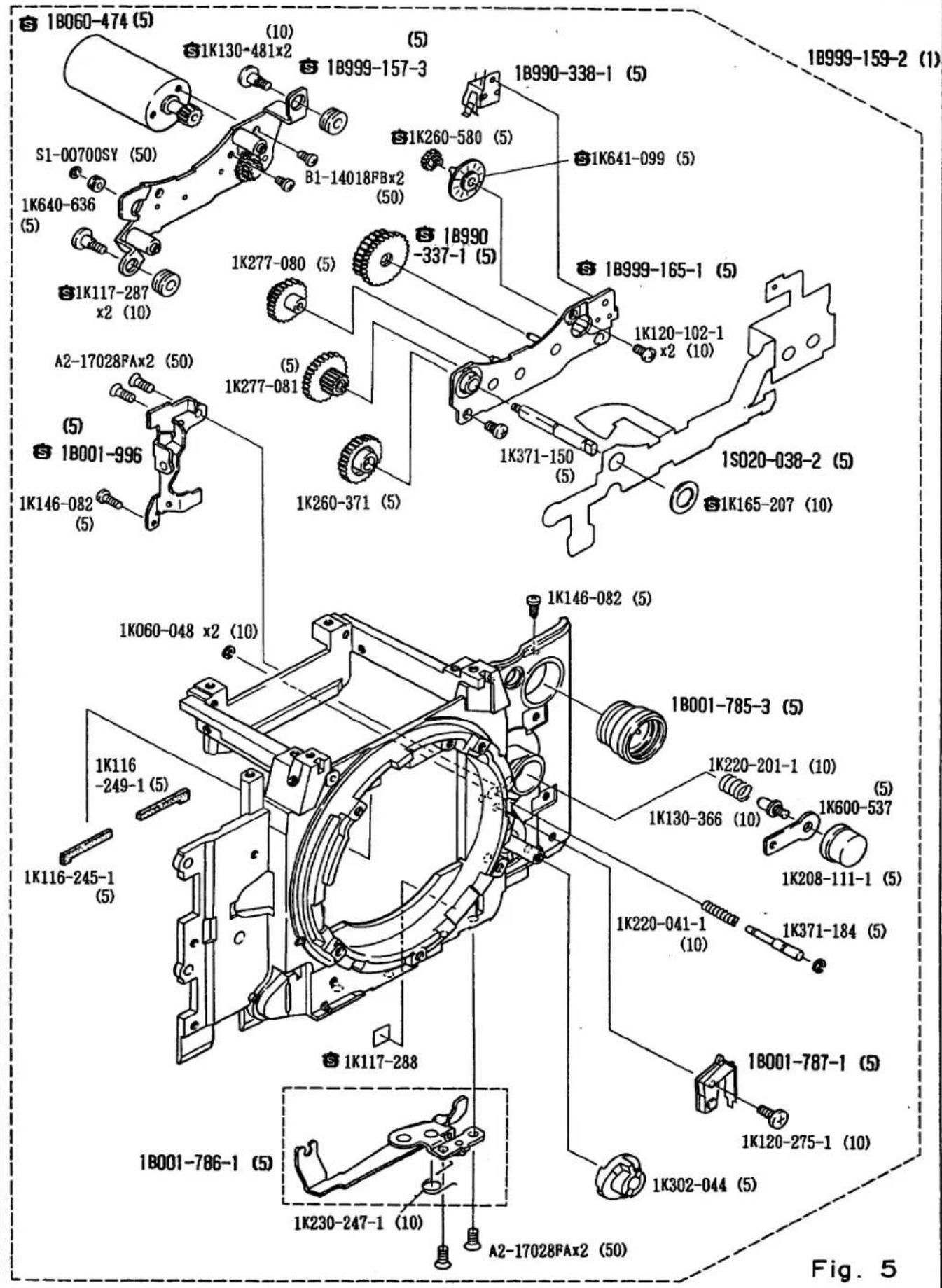

FRONT BODY, AF BASE PLATE UNIT F 5

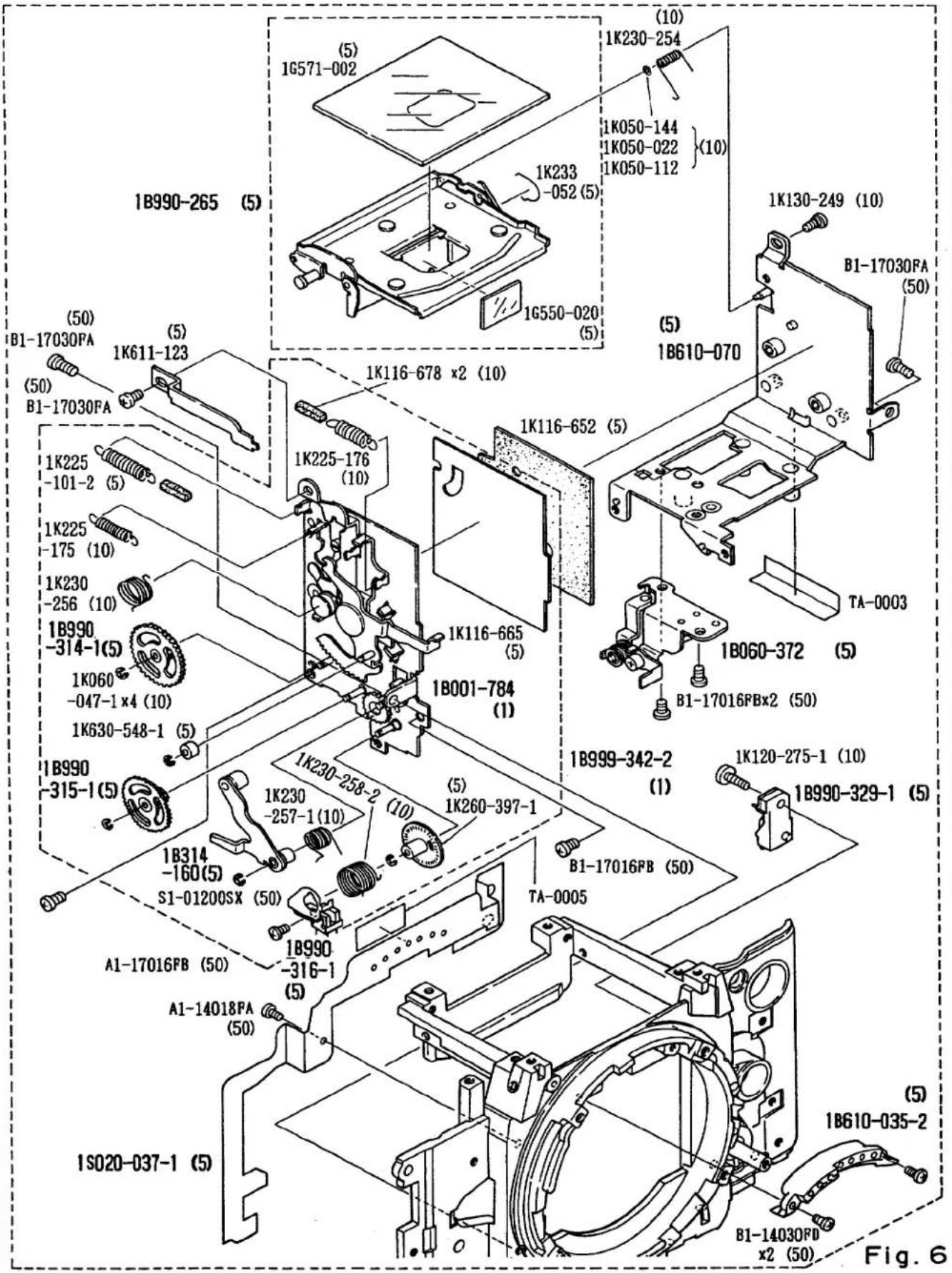

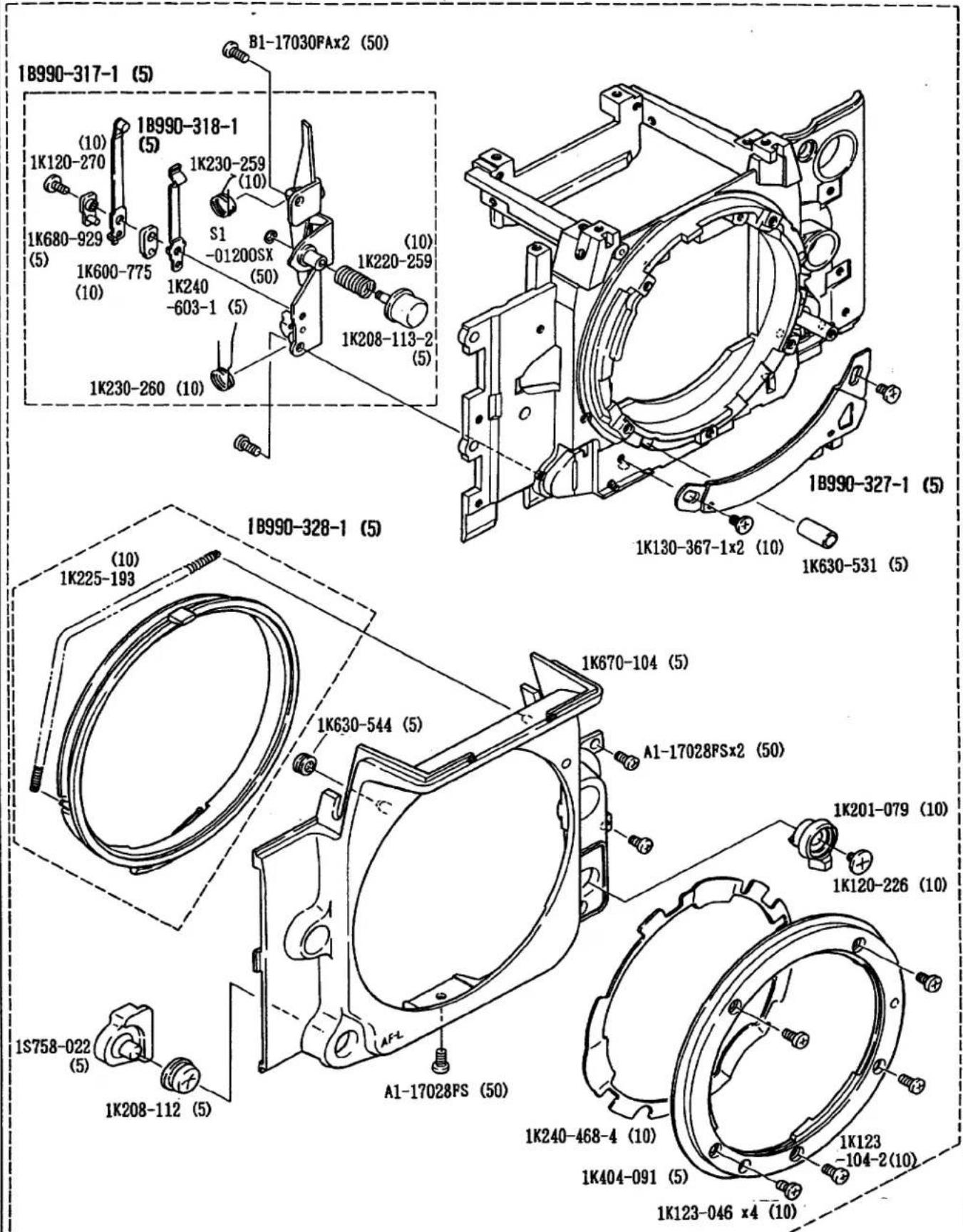

FRONT BODY, MIRROR BOX F 6

FRONT BODY, APRON, MANUAL APERTURE BASE PLATE F 7

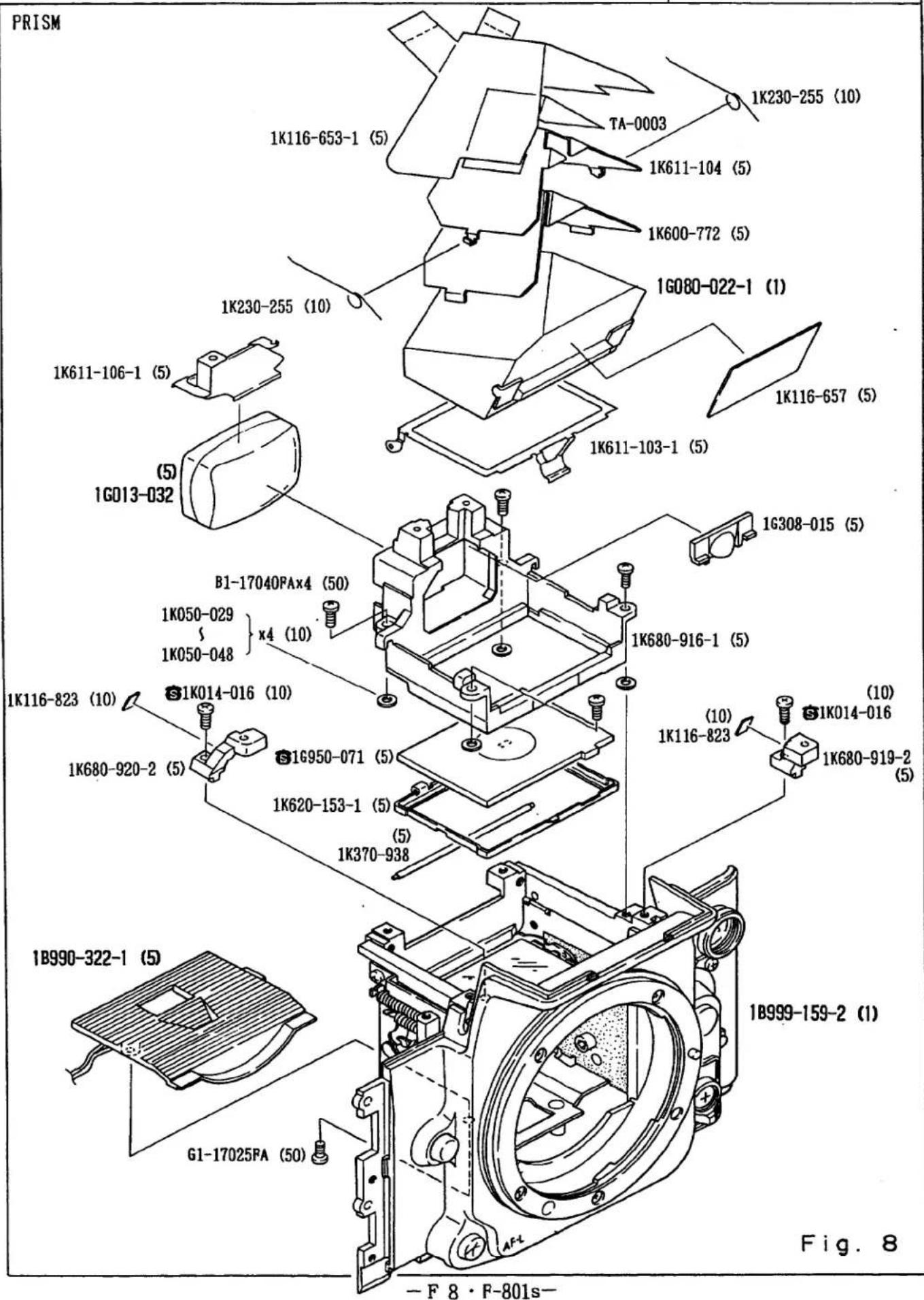

PRISM F 8

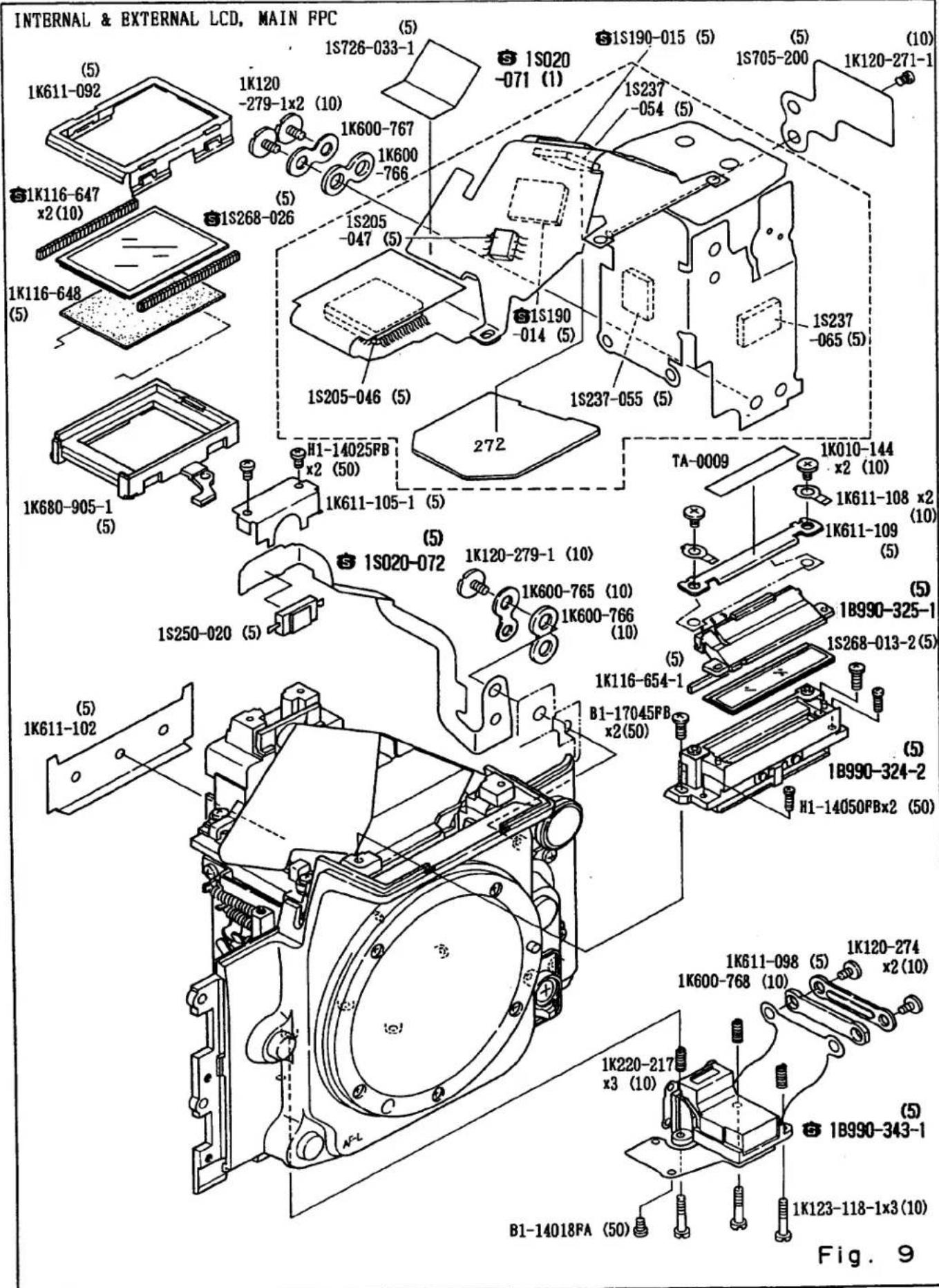

INTERNAL & EXTERNAL LCD, MAIN FPC F 9

EXTERNAL PARTS F 10

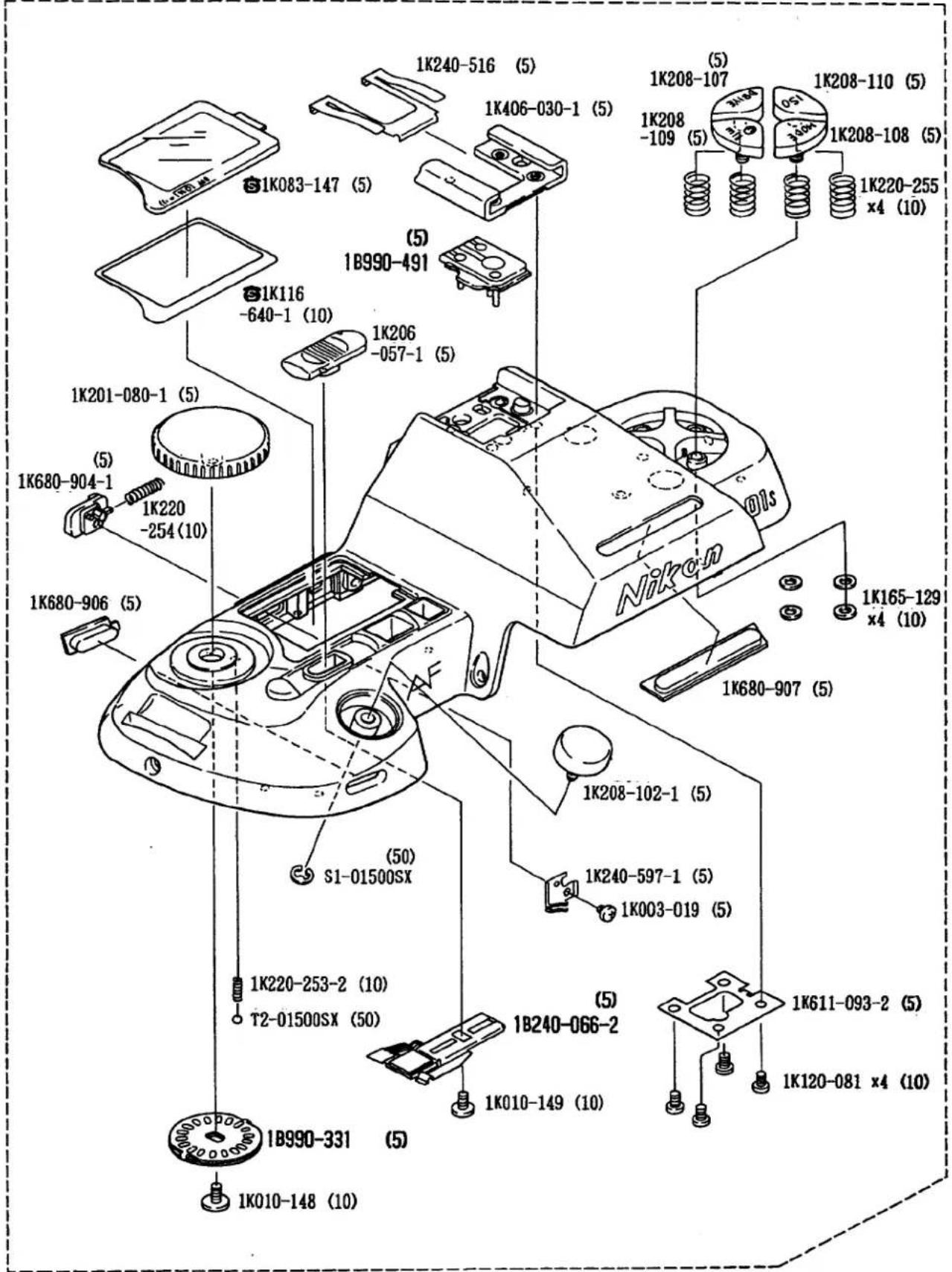

TOP COVER F11

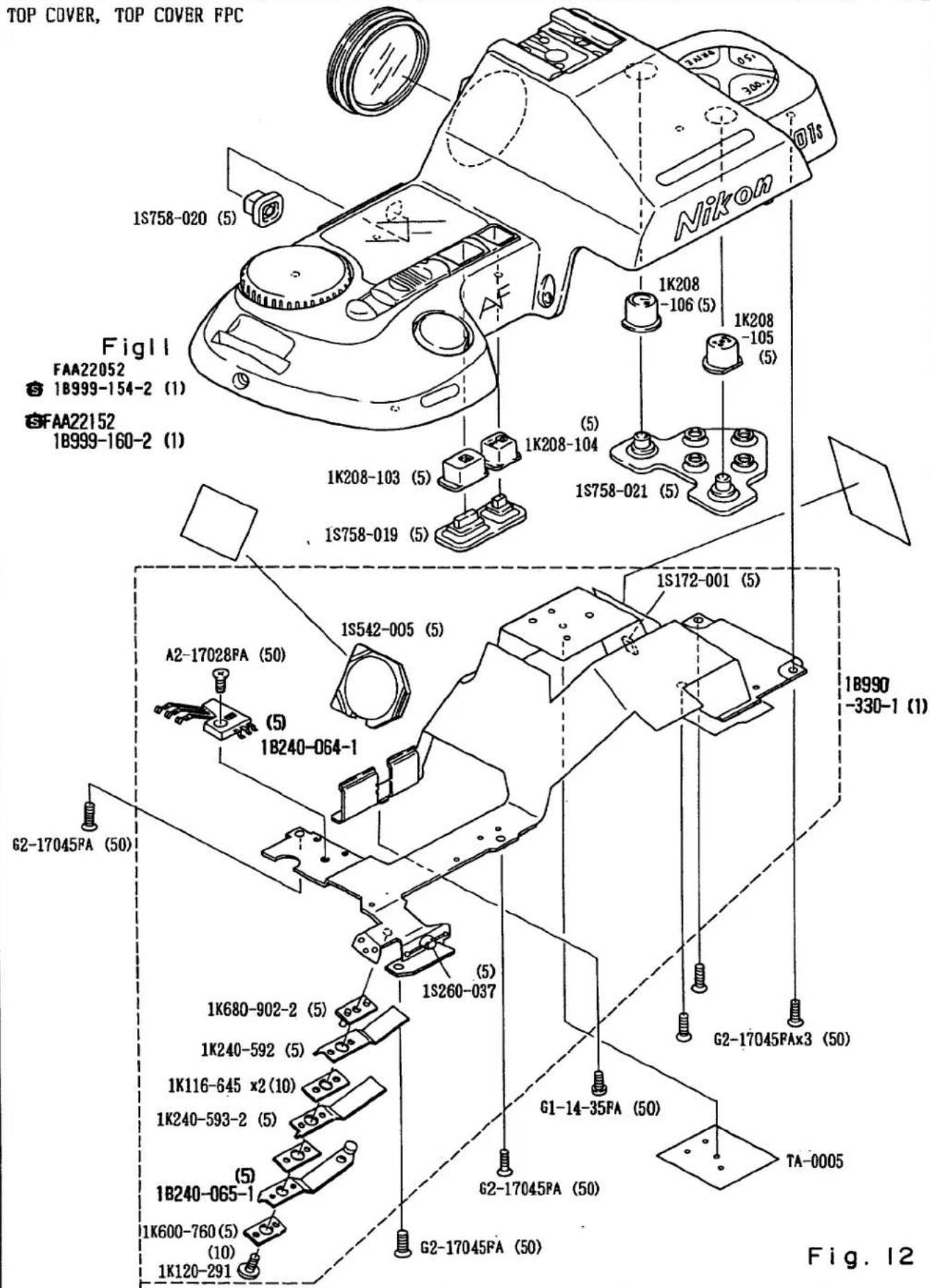

TOP COVER, TOP COVER PPC. F 1 2

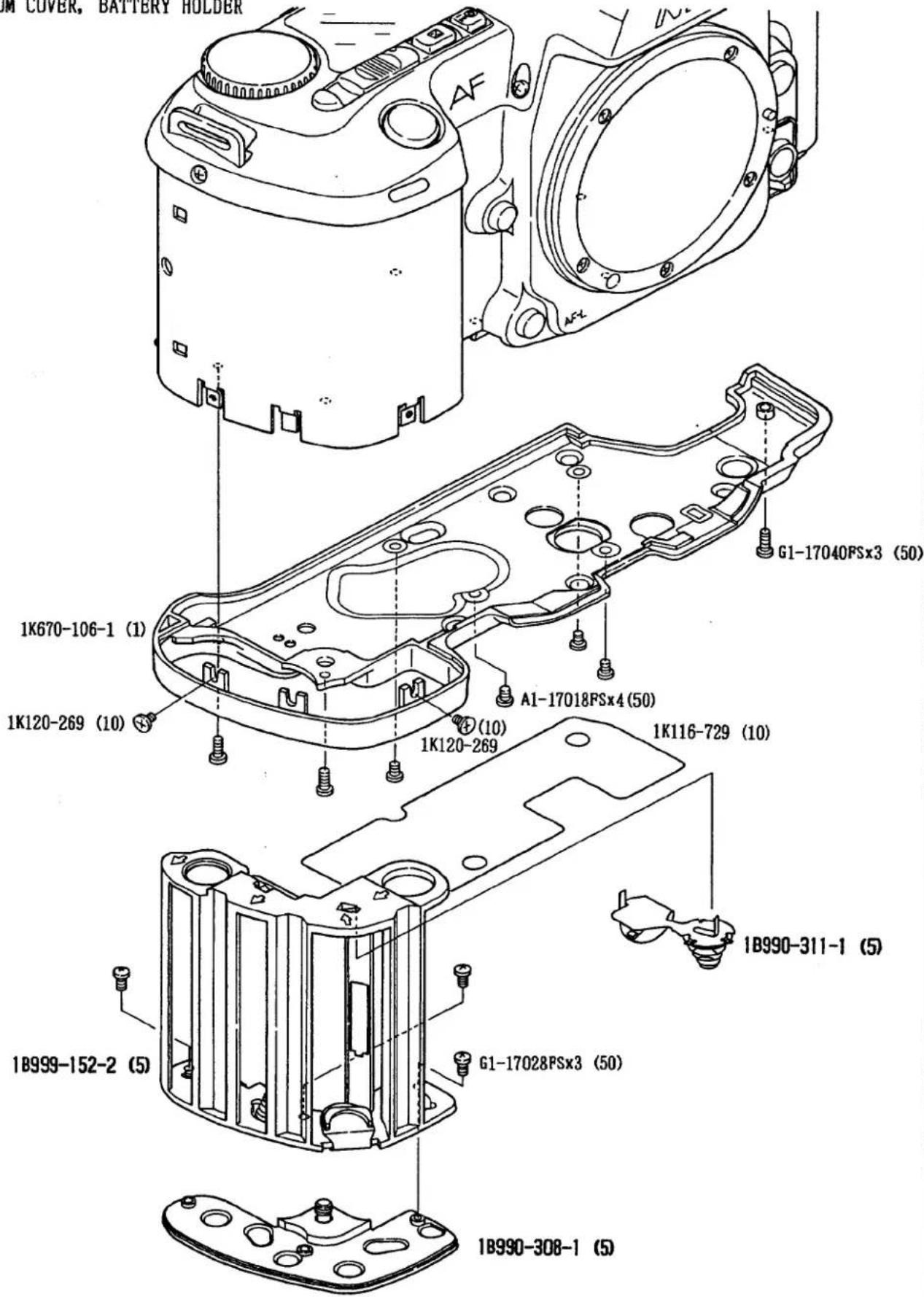

BOTTOM COVER, BATTERY HOLDER F 13

CAMERA BACK F 1 4

[2] Parts List

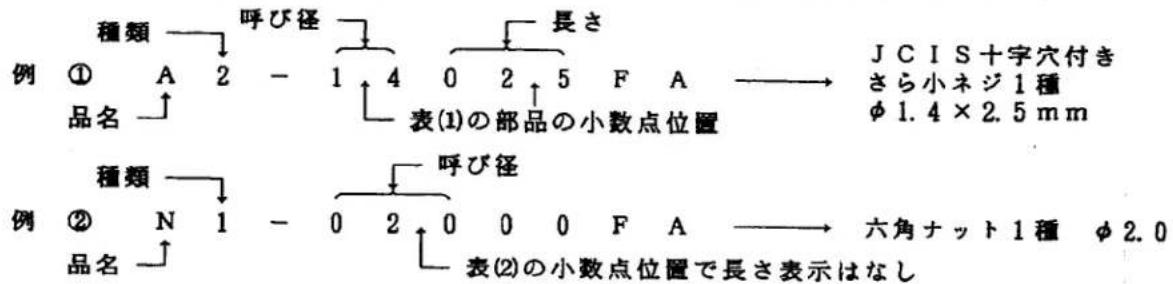

MARKS IN THE PARTS LIST

PARTS LIST P 1

ASSEMBLY LIST P 29

Supplementary specifications.

(In this paper we will mainly discuss the difference between F-801s (N8008S) and F-801(N8008.)

1. Newly added functions.

a. AF function.

(1) Focus tracking function.

(2) High-speed AF operation.

Along with the introduction of a new CPU, AF computation time is reduced. Power of AF driving motor is increased.

Speed reducing gear ratio of the speed reducing gear systems is modified.

(3) Low-noise AF driving sysytem.

b. AE function.

(1) Sopt metering.

Other features are common to those of F-801(N8008).

2. AP related functions.

a. Focusing range.

Luminance range : EV -1 to EV 19 (ISO 100, at room temperature.)

Full aperture value (Fo) : 1.1 ≤ Fo ≤ 5.6

(1) But excepting some reflex lenses.
(2) Limited utilization when used in combination with teleconverter lenses.

(3) Even if the full aperture value (Fo) exceeds 5.6, in-focus indicator appears in focus-aid mode.

For more details, refer to Instruction Manual.

b. Focus tracking.

(1) When the focus mode is set to continuous Servo (AF-C) mode and film advance mode to low-Speed Continuous (CL) mode, the camera automatically goes into focus tracking mode when the subject is detected moving.

(2) Shutter prerelease timer is to hold for 8 seconds. Since both sequence and AF motors are driven at the same time during focus tracking (while main mirror is being up), current load becomes greater as battery voltage lowers. As a result, the focus tracking function is disabled under the voltage condition where holding shutter prerelease timer is less than 0 sec. so that AF motor does not drive while the mirror is being up.

(3) Focus indicators (◀▶) during focus tracking are displayed on LCD panel. (Simple inspection method of focus tracking:

Mount an AF Micro lens (AF 60mm f/2.8 or etc.) and move the camera back and forth while focusing on the target placed within 1m distance (near distance).

If the focus indicators (◀▶) appear, the focus tracking function works effectively.

This inspection method is commonly used with F4 and F-601 models.)

1. AE related functions.

a. Metering system.

Three types of metering systems are available Matrix, Center-weighted, and Spot metering.

(Matrix metering cannot work if Ais and Ai lenses (with no CPU built-in) and modified Ai lens are mounted, and the metering system is switched over to Center-weighted automatically.)

b. Metering range.

Matrix metering : EVO - EV21 (f/1.4 lens, ISO 100)

Center-weighted metering : EVO - EV21 (f/1.4 lens, ISO 100)

Spot metering : EV4 - EV21 (f/1.4 lens, ISO 100)

c. Matrix metering.

Single SPD cell (six segments) reads each of five-segment area and determines the exposure level.

d. Center-weighted metering.

Metering is computed by using the sum of metering output of A area and B area.

Concentration of meter's sensitivity into the center: approx. 75% (at. 12).

e. Spot metering.

Metering is computed by using the metering output of seneor in the spot metering area.

Concentration of meter's sensitivity into the spot : Approx. 80% +20 -0 (at φ3.5).

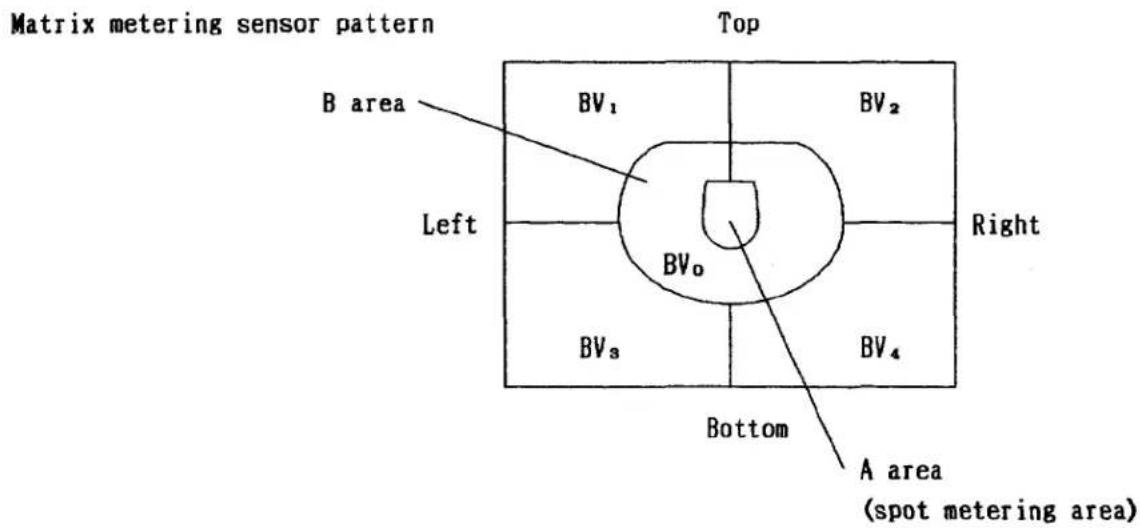

Matrix metering sensor pattern Top B area BV₁ BV₂ Left BV₀ Right BV₃ BV₄ Bottom A area (spot metering area)

1. Film advance speed.

The film advance speed is same as that of F-801.

But in AF-C + CL mode (focus tracking mode.), the film advance speed is approx. 2.8 frames /sec.

1. Current consumption.

a. Standard current consumption values are shown below at room temperature using fresh batteries*.

Main switch is OFF. : 75μA(max.)

Main switch is ON and shutter prerelease switch is OFF. : 150μA(max.)

Shutter prerelease switch is ON and metering, focusing and AF lens (AF 50mm f/1.8)*** are in operation. : 400mA(max.)

Shutter prerelease timer is ON and metering and focusing are in operation (AF lens is not in operation). : 150mA(max.)

Mirror is moving up. : 650mA (max.)

Shutter is in operation. : 250mA(max.)

Mirror is moving down (film is not advanced). : 650mA(max.)

Film is being advanced** (mirror is not moving down). : 650mA(max.)

Film is being rewound. : 500mA(max.)

Illuminator is being lit up (shutter prerelease timer is on and AP lens is not operation). : 250mA(max.)

* : In place of batteries, a regulated DC power supply (5.5V) is used.

** : Using HR-100 film or equivalent.

*** : Using torque-controlled reference tool lens.

FAA22052-R.3287.A

b. Continuous bulb operation.

Bulb life is more than 4 hours when using fresh alkaline-manganese batteries (at room temperature).

1. Other differences.

a. Disassembling, assembling and wiring arrangements are almost common to those of F-801. (but the positioning of the 6 segment SPD is made in the same manner as that of F-601).

b. With the change of software of CPU, adjustment and inspection software are modified.

Use dedicated software to F-801s when making adjustment and inspection.

c. If no command (instruction) comes in more than 3 minutes after entering into inspection mode, using personal computer, the system automatically gose out if inspection mode.

d. The system cannot enter in inspection mode if the camera back switch is OFF (or camera back is closed).

e. Watchdog-timer circuit is added on Main PPC for checking communication between the system and microcomputer.

The watchdog-timer circuit will reset the microcomputer forcefully if no communication between the system and microcomputer is made for a certain period of time (or some malfunction occurs in the microcomputer).

f. Condition of next shutter release operation when release switch is ON in single-frame shooting (S) mode:

F-801 : Turn OFF shutter prerelease switch once for next shutter release operation.

F-801s : Once shutter release switch OFF, the next shutter release operation becomes possible.

g. If no pulse comes from the film advance photointerruptor in more than 2 seconds when rewinding film, "E" mark appears on the LCD panel.

This time interval is prolonged from 2 to 4 seconds.

h. Focusing screens.

Focusing screen types B, E, and J are available for F-801 and types B and J are available for F-801s.

(Standard focusing screen is type B for both models).

Those focusing screen are basically interchangeable between F-801 and F-801s. There is 3.5mm circle (showing spot metering range) in the focusing screens for F-801s since F-801s is available with spot metering.

Therefore, take notice of compatibility on the following items carefully.

(1) When mounting focusing screen types B and E designed for F-801s on F-801: Usable though 3.5mm circle showing spot metering range means nothing.
(2) When mounting focusing screen types B and E designed for F-801 on F-801s: Not recommendable though usable, for no metering range is found on it.
(3) When mounting focusing screen type J designed for F-801 on F-801s: Use with spot metering is not possible.

1. Major parts not commonly used with F-801.

(Note: Parts not commonly used are listed below just for reference. For more details, refer to parts list when ordering).

a. Main FPC.

Main FPC	1S020-071
CPU (HD4074418H)	1S190-014	*SQ-MCU
CPU (H8/330 HD6473308)	1S190-015	*AF-MCU
IC (M52922FP)	1S237-065	*Metering IC
LCD panel	1S268-026
SPD FPC	1S020-072
Photo diode	1S250-020

b. External body.

Top cover (F-801s)	1B999-154-2
Top cover (N8008s)	1B999-160-2	*FAA22152
LCD panel window	1K083-232
Bottom cover	1K999-034-1
	*First number of product serial No. is 3.

c. Front body.

Front plate	1B999-159-2
AF base plate	1B999-157-3
AF driving gear base plate	1B999-165-1
AF gear	1K260-580
AF vertical lever	1B001-996
AF motor	1B060-474
AF counter disk	1K641-099

d. Others

Presnel	1G950-071
Film detection ring	1K681-234-1
Film guide rail	1K611-078-1
Film guide roller	1K371-169-3
Speed reducing gear color	1K630-532
Film rewind coupling shaft	1K371-198-1

1. F-801s (N8008s) EEPROM DATA TABLE

Address	Contents	Value to be written
		Fixed	Initial	Standard
0	AF data	7	←—	←—
1	AF data	130	←—	←—
2	△Z adjustment data		0	Indefinite
3	△Z adjustment data		0	Indefinite
4	AF data		37	Unsettled
5	AF data		61	Unsettled
6	AF data		59	Unsettled
7	AF data		63	Unsettled
8	X ber P adjustment data		140	Unsettled
9	Camera control data	224	←—	←—
10	AE level (B) adjustment data		145	Unsettled
11	AF data	48	←—	←—
12	AE level (upper right) adjustment data		150	Unsettled
13	AE gamma adjustment data		183	Unsettled
14	AE level (upper left) adjustment data		145	Unsettled
15	TTL-gamma adjustment data		104	Unsettled
16	AE level (lower left) adjustment data		155	Unsettled
17	TTL level adjustment data		45	Unsettled
18	AE level (lower right) adjustment data		155	Unsettled
19	TTL data	51	←—	←—
20	Camera control data	10	←—	←—
21	Camera control data	125	←—	←—
22	Battery check level adjustment data (4.8V)		154	Unsettled
23	Battery check level adjustment data (4.5V)		144	Unsettled
24	Battery check level adjustment data (2.5V)		77	Unsettled
25	AF data	56	←—	←—
26	AF data	56	←—	←—
27	AE level (spot) adjustment data		195	Unsettled
28
29
30
31
32	Camera control data
33	Camera control data
34	Camera control data

FAA22052-R.3287.A

Address	Contents	Value to be written
		Fixed	Initial	Standard
3 5	Camera control data			To be changed due to the conditions.
3 6	Camera control data
3 7	Camera control data
3 8	Camera control data
3 9	Camera control data
4 0	Camera control data
4 1	Camera control data
4 2	Upper byte: Camera control dataLower byte: Error data
4 3	Camera control data
4 4	Camera control data
4 5	Camera control data
4 6	Shutter operation times
4 7	Shutter operation times
4 8	M8000 adjustment data		8	Unsettled
4 9	2: Leave film leader0: Not Leave film leader		0
5 0	Camera control data	7 5	←→	←→
5 1	Camera control data	6 0	←→	←→
5 2	Camera control data	1 9 1	←→	←→
5 3	Camera control data	2 0 6	←→	←→
5 4	Camera control data	2 0 1	←→	←→
5 5	Camera control data	2 2 6	←→	←→
5 6	Factry used only
5 7	Factry used only
5 8	Factry used only
5 9	Factry used only
6 0	Factry used only
6 1	Factry used only
6 2	Factry used only
6 3	Factry used only

The fixed value: The Value which is fixed. The change is not allowed.

The initial value: The value which is originally written to the PPC assembled unit. In the adress which needs the adjustment, rough values are written as well as adress which need the fixed values.

The standard value: The rough value of addresses which need the adjustment. Although they have not been settled as yet, they will be clarified in future.

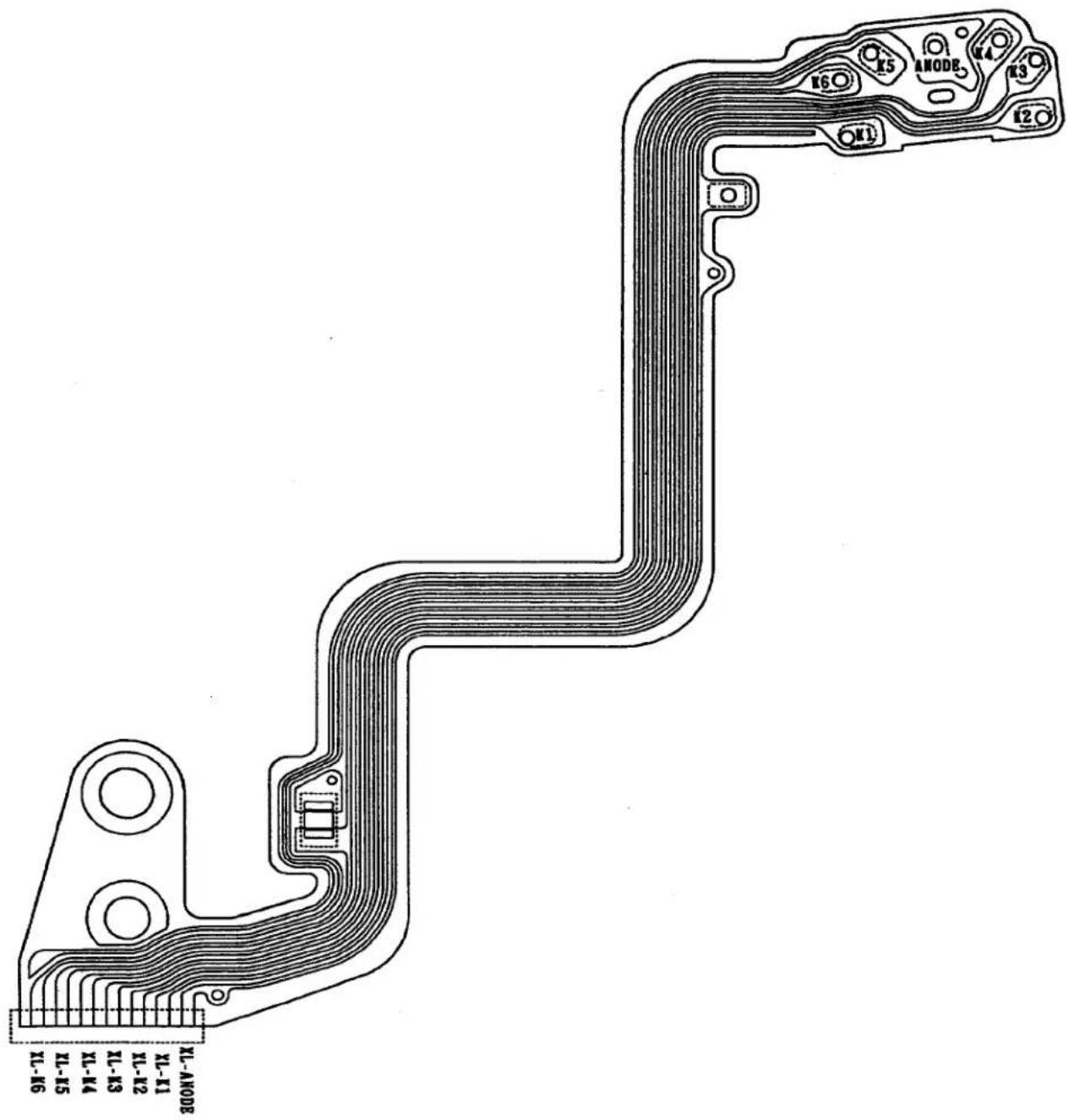

AESPD FPC

K1-AM008 K1-K2 K1-K3 K1-K4 K1-L5 K1-M6 K1-M7 K1-M8 K1-M9 K1-M10 K1-M11 K1-M12 K1-M13 K1-M14 K1-M15 K1-M16 K1-M17 K1-M18 K1-M19 K1-M20 K1-M21 K1-M22 K1-M23 K1-M24 K1-M25 K1-M26 K1-M27 K1-M28 K1-M29 K1-M30 K1-M31 K1-M32 K1-M33 K1-M34 K1-M35 K1-M36 K1-M37 K1-M38 K1-M39 K1-M40 K1-M41 K1-M42 K1-M43 K1-M44 K1-M45 K1-M46 K1-M47 K1-M48 K1-M49 K1-M50 K1-M51 K1-M52 K1-M53 K1-M54 K1-M55 K1-M56 K1-M57 K1-M58 K1-M59 K1-M60 K5 ANODE K4 K3 K2 K1

A

B

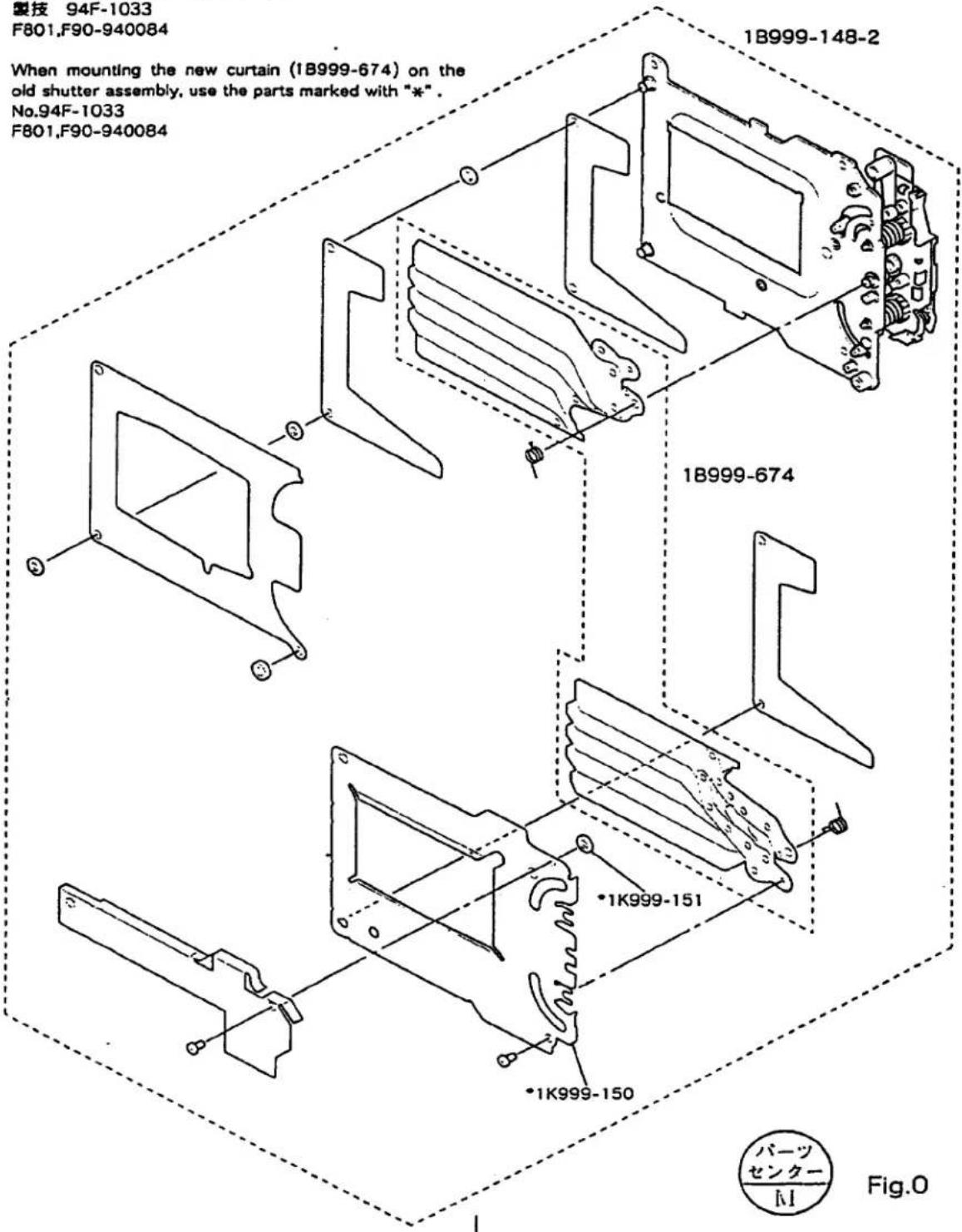

F801 シャッター部

FAA22051-R.3241.B

F801 Shutter

旧シャッター組品に新シャッター幕1B999-674を取付

ける時は * の部品を使用すること

製技 94F-1033

F801,F90-940084

When mounting the new curtain (1B999-674) on the old shutter assembly, use the parts marked with "*". No.94F-1033

F801,F90-940084

1B999-148-2

型技 94F-1033 F801,F90-940084 When mounting the new curtain (1B999-674) on the old shutter assembly, use the parts marked with "*". No.94F-1033 F801,F90-940084 1B999-148-2 1B999-674 1K999-151 1K999-150 バーツ センター M Fig.0

Added page(追加)
-F0·F801-
SEP. 5.1995

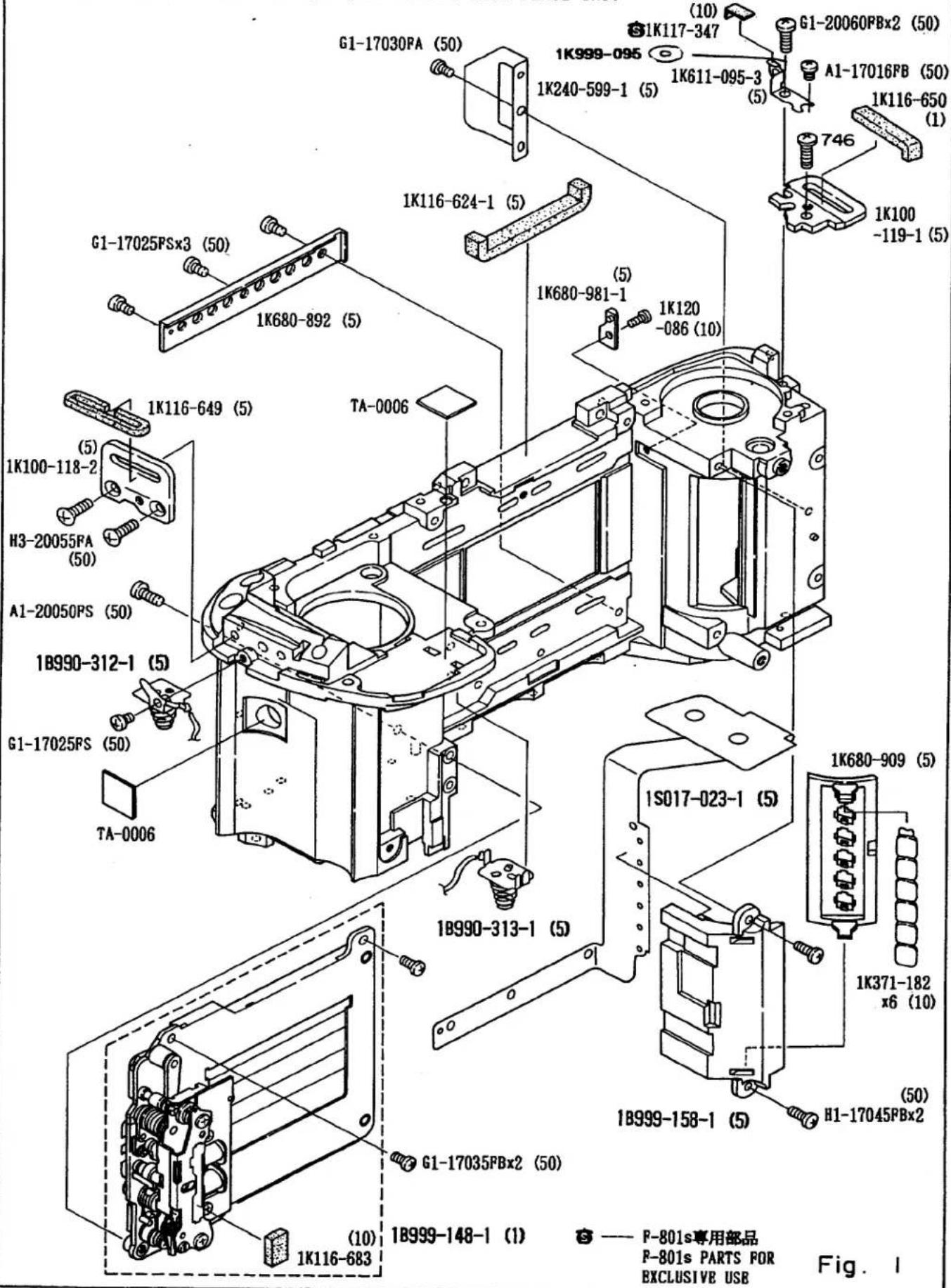

BODY DIECASTING, SHUTTER UNIT, DB.DX CONTACT BASE PLATE UNIT

G1-17030FA (50) G1-20060FBx2 (50) 1K999-095 1K611-095-3 1K240-599-1 (5) A1-17016FB (50) 1K116-650 (1) 746 1K100 -119-1 (5) G1-17025FSx3 (50) 1K680-892 (5) 1K116-624-1 (5) 1K680-981-1 1K120 -086 (10) TA-0006 1K100-118-2 H3-20055FA (50) A1-20050PS (50) 1B990-312-1 (5) G1-17025FS (50) TA-0006 1S017-023-1 (5) 1K680-909 (5) 1K371-182 x6 (10) G1-17035FBx2 (50) 1B999-158-1 (5) H1-17045FBx2 (50) (10) (1) 1B999-148-1 (1) F-801s專用部品 F-801s PARTS FOR EXCLUSIVE USE Fig. Ⅰ

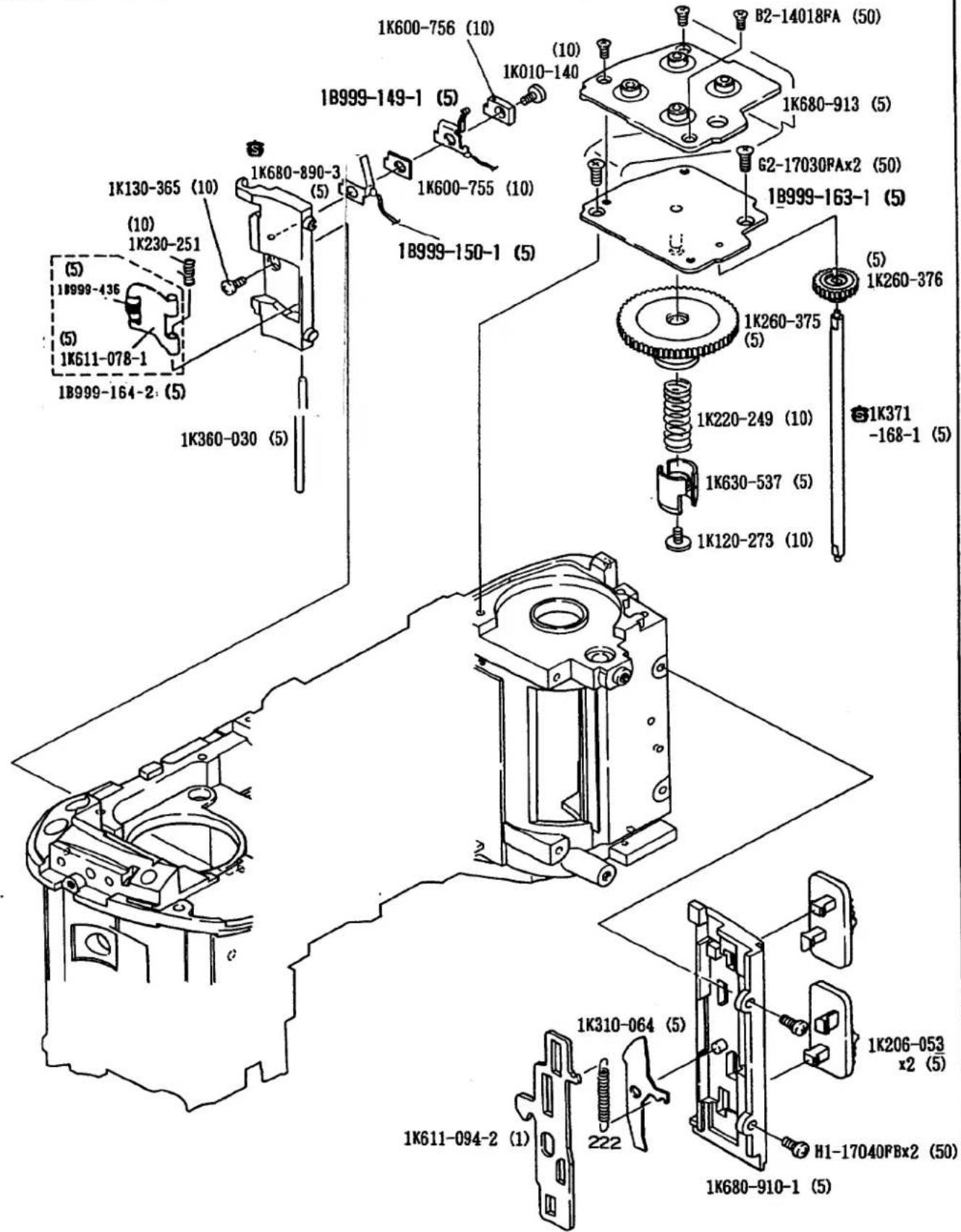

REWIND BASE PLATE, CAMERA BACK OPEN/CLOSE KEY, FILM DETECTION SW

1K600-756 (10) 1K010-140 18999-149-1 (5) 1K680-890-3 (5) 1K600-755 (10) 1B999-150-1 (5) 1K130-365 (10) 1K230-251 (5) 1B999-436 (5) 1K611-078-1 1B999-164-2: (5) 1K360-030 (5) B2-14018PA (50) 1K680-913 (5) G2-17030FAx2 (50) 1B999-163-1 (5) (5) 1K260-376 1K260-375 (5) 1K220-249 (10) 1K630-537 (5) 1K120-273 (10) 1K371 -168-1 (5) (5) 1K371 (5)

Fig. 2

SEQUENCE BASE PLATE UNIT TA-0005 G2-17030FA (50) A1-14018PA (50) 1K010-139 x3 (10) 1S622-002-1 (5) 1K230-250 (10) 1K230-249 (10) 1K225-171-1 (10) 1K630 -533 (5) 1K1K116-617-1 (10) 1K611-076 (5) 1K680-899-1 (5) A1-17018FB (50) T1-01000SX x14 (50) 1B999-153-2 (1) 1B001-782 (5) 1K277 -085 (5) 1K277-083 (5) 1K277-084 (5) 1K681-234 (5) 1K275-062-1 (5) 1K260-378 (5) 1K130-364 x2 (10) 1K060-049 (10) H1-17050FBx3 (50) 1B999-151-1 (5) 1K260-373 (5) 1K275-061 (5) 1B990-234-1 (5) Fig. 3

-F3·P-801s-

POWER SEITCH, FILM ADVANCE BASE PLATE UNIT

POWER SWITCH, FILM ADVANCE BASE PLATE UNIT 1K206-056 1B990-299-1 (5) (5) 1S020 -035-3 (1) B1-14025PAx2 (50) 1K611-099-3 (5) 1S125-038 (5) 1S125-033 (5) 1S125-038 (5) 1S135-029 (5) 1S135-030 x3 (5) 1S230-009 (5) 1S223-001 G1-14020FA (50) 1B060-370-1 (5) 1K1K260-380 (5) 1B990-297-1 (5) H1-17025FB (50) H1-17045FB x2 (50) 1K680-898 (5) 1K130-363 x2 (10) 1K277-086 (5) 1K277-088 (5) 1K260-382 (5) 1K277-089 (5) 1K260-377 (5) 1K277-087 (5) 1B990-298-1 (5) 1B990-296-1 (5) G1-17040FB (50) A2-17060FA (50) (5) 1B240-068 (5) 1K1K240-608-2 (5) G2-17035FB x2 (50) 1K146-116 (10) 1K010-139 x3 (10) 1K010-143 x3 (10) Fig. 4

1B060-474 (5) S1-00700SY (50) 1K640-636 (5) S1K117-287 x2 (10) A2-17028FAx2 (50) (5) 1B001-996 1K146-082 (5) 1K060-048 x2 (10) 1K116 -249-1 (5) 1K116-245-1 (5) 1B001-786-1 (5) 1K230-247-1 (10) A2-17028FAx2 (50) (5) 1K277-080 (5) 1K277-081 1K260-371 (5) 1K371-150 (5) 1K302-044 (5) 1K371-184 (5) 1K220-041-1 (10) 1K220-201-1 (10) 1K600-537 (5) 1K641-099 (5) 1K990-338-1 (5) B1-14018FBx2 (50) (5) 1B999-157-3 (5) (5) 1B990-338-1 (5) (5) 1B999-165-1 (5) (5) 1K260-580 (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (1) B999-159-2 (1)

FRONT BODY, MIRROR BOX

1B999-159-2 (1)

Technical diagram of an electronic device with labeled components and part numbers, including exploded views and assembly details.

PRISM 1K116-653-1 (5) TA-0003 1K230-255 (10) 1K611-104 (5) 1K600-772 (5) 1G080-022-1 (1) 1K230-255 (10) 1K611-106-1 (5) 1G013-032 (5) B1-17040PAx4 (50) 1K050-029 x4 (10) 1K050-048 1K116-823 (10) S1K014-016 (10) S16950-071 (5) 1K680-920-2 (5) 1K620-153-1 (5) (5) 1K370-938 (10) 1K116-823 (10) S1K014-016 1K680-919-2 (5) 1B990-322-1 (5) G1-17025PA (50) 1B999-159-2 (1) Fig. 8 -F 8 · F-801s- -AF-L

FRONT BODY, APRON, MANUAL APERTURE BASE PLATE

1B999-159-2 (1)

1B990-317-1 (5) B1-17030FAx2 (50) 1B990-318-1 (10) 1K120-270 1K680-929 (5) 1K600-775 (10) 1K240 -603-1 (5) S1 -01200SX (50) 1K230-260 (10) 1K220-259 (10) 1K208-113-2 (5) 1K230-260 (10) 1B990-328-1 (5) 1B990-327-1 (5) 1K130-367-1x2 (10) 1K630-531 (5) 1K225-193 (10) 1K670-104 (5) 1K630-544 (5) A1-17028FSx2 (50) 1K680-929 (5) 1K208-112 (5) 1K201-079 (10) 1K120-226 (10) 1S758-022 (5) 1K240-468-4 (10) 1K404-091 (5) 1K123 -104-2 (10) 1K123-046 x4 (10)

Fig. 7

INTERNAL & EXTERNAL LCD, MAIN FPC 1K611-092 1K116-647 x2 (10) 1K116-648 (5) 1K680-905-1 (5) 1K611-102 (5) 1K120 -279-1x2 (10) 1K600-767 1K600 -766 1S268-026 1S205 -047 (5) 1S205-046 (5) H1-14025FB x2 (50) 1K611-105-1 (5) 1S250-020 (5) 1S237-055 (5) 272 1S237 -054 (5) 1S237 -065 (5) 1S237 -014 (5) 1S237-015 (5) 1S705-200 1K120-271-1 (10) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5)

TOP COVER

FAA22052

SFAA22152

S 1B999-154-2 (1) 1B999-160-2 (1)

1K240-516 (5) 1K406-030-1 (5) 1K208-107 (5) 1K208-110 (5) 1K208-108 (5) 1K220-255 x4 (10) 1K208-109 (5) 1B990-491 1K116 -640-1 (10) 1K206 -057-1 (5) 1K201-080-1 (5) 1K680-904-1 (5) 1K220 -254 (10) 1K680-906 (5) 1K680-907 (5) 1K208-102-1 (5) 1K240-597-1 (5) 1K003-019 (5) 1K220-253-2 (10) T2-01500SX (50) 1B240-066-2 1K010-149 (10) 1K611-093-2 (5) 1K120-081 x4 (10) 1B990-331 (5) 1K010-148 (10)

Fig. 11

TOP COVER, TOP COVER FPC 1S758-020 (5) 1K208 -106 (5) 1K208 -105 (5) Fig11 FAA22052 1B999-154-2 (1) SFAA22152 1B999-160-2 (1) 1K208-103 (5) 1K208-104 1S758-021 (5) 1S758-019 (5) 1S542-005 (5) A2-17028FA (50) 1B240-064-1 1S260-037 G2-17045FA (50) 18990 -330-1 (1) G2-17045PAx3 (50) G1-14-35FA (50) TA-0005 G2-17045FA (50) G2-17045FA (50) 1K680-902-2 (5) 1K240-592 (5) 1K116-645 x2 (10) 1K240-593-2 (5) 1B240-065-1 1K600-760 (5) (10) 1K120-291 Fig. 12

BOTTOM COVER, BATTERY HOLDER

DM COVER, BATTERY HOLDER 1K670-106-1 (1) 1K120-269 (10) 1K120-269 G1-17040FSx3 (50) A1-17018FSx4 (50) 1K116-729 (10) 1B990-311-1 (5) 1B990-308-1 (5) 1B999-152-2 (5) G1-17028FSx3 (50)

Fig. 13

CAMERA BACK

1B999-155-3 (1)

1K371-181 (5) 1K220-252 (10) 1K371-180 (5) 1K126-080-1 (10) 1K116-620-1 (5) 1K611-165 (5) 1K600-898 (5) 1B990-334-1 (5) 1K010-145 x4 (10) 1K611-138 x4 (10) 1K611 -277 1K6i1-085-2 G1-17035FA x2 (50) 1K116-619 (5) (5) (5) G1-17025FAx2 (50) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5) (5)

Fig. 14

記号説明 MARKS IN THE PARTS LIST

(1) 機械標準品

下の表に示す機械標準品の部品番号は品名、種類、呼び径、長さを示しています。

種類 呼び径 長さ 例 ① A 2 - 1 4 0 2 5 F A → J C I S 十字穴付き 品名 ↑ 表(1)の部品の小数点位置 さら小ネジ 1 種 φ 1.4 × 2.5 mm 種類 呼び径 例 ② N 1 - 0 2 0 0 0 F A → 六角ナット 1 種 φ 2.0 品名 ↑ 表(2)の小数点位置で長さ表示はなし

(1) Standard mechanical parts Reference Number in the Parts List

A. Screw · Pin A 2 - 1 4 0 2 5 F A ↑ Item ↑ Type Diameter Length

B. Nut · Washer · Snap ring N 1 - 0 2 0 0 0 F A ↑ Item Type Diameter

表 1

品名 Item		種類 Type		品名 Item			種類 Type
JCIS十字穴付き小ねじ1種Cross-point screw 1	A	なべPan	1	すりわり付き止めねじSplitted set screw		K	丸先Round point	1
		さらCountersunk	2				とがり先Cone point	2
		丸さらOval	3				くぼみ先Half point	3
JCIS十字穴付き小ねじ3種Cross-point screw 3	B	なべPan	1	六角穴付き止めねじHexagon socket head setscrew		L	とがり先Cone point	2
		さらCountersunk	2				くぼみ先Half point	3
		丸さらOval	3				平先Normal	4
十字穴付き小ねじCross-point screw	C	なべPan	1	六角穴付きボルトHexagon socket head bolt		M		1
							M2, M2.6	2
		さらCountersunk	2	平行ピンStraight pin	P			1
		丸さらOval	3			ステンレスStainless steel		5
				テーパーピンTaper pin				2
		トラスTrus	4	スプリングピンSpring cotter		一般用Normal		3
十字穴付きタップタイタイトねじB型Cross-point tapped screw B	F	なべPan	1			軽荷重用Light		4
		さらCountersunk	2
				表2
十字穴付きタップタイタイトねじB型1種Cross-point tapped screw B1	G	なべPan	1	品名 Item			種類 Type
		さらCountersunk	2	六角ナットHexagon nut		K	1種 Type 1	1
							1種 Type 3	3
		丸さらOval	3
				平座金Washer		R	小形丸	1
十字穴付きタップタイタイトねじB型3種Cross-point tapped screw B3	H	なべPan	1	ばね座金Spring washer				5
		さらCountersunk	2	E型止め環B-snap ring		S	E型 Type B	1
							G型 Type G	2
		丸さらOval	3				GS型 Type GS	3

(2) 販売区分欄 The term of sale column

記号 Mark	説明 Explanation
○	Can be Supplied individually	単独部品として販売するもの
△	Not supplied individually but only as subassembly.	部組品でなければ販売しないもの
○△	Supplied either as part or subassembly	単独部品でも部組品でも販売するもの
×	Not considered as repair part	修理部品と考えないもの
※	Shuld be sent to the factory if the repair needed.	単体では交換できないので、組む場合に工場での加工が必要なもの
◎	Delivered as a product from the sales department (i.e., not supplied as repair part)	商品として販売店で販売しているもの(修理部品扱いはしない)

(3) 備考欄 The remarks colum

F-601M	Part number used in common	共通部品番号
(Blue × 125mm)	Lead wire (color × length)	コードの色と長さ
53P-2013(PM-780028)	Technical information ref. number(number in parenthesis; English edition)	製品技術資料No ( )内は英文
(2.1×3.8 × 0.07)	Washer (internal diameter × external diameter × thickness)	ワッシャー(内径×外径×厚さ)
(Black)	Black-finished parts	黒部品
(d=0.2)	Diameter of wire	線型=0.2
(t= 1)	Thickness	厚さ=1
Rev.	Revision	訂正
Add.	Addition	追加
Dis.	Discontinuation	廃止
OLD	Parts of the intial design	旧部品
◆	Limited part	RP限定出庫部品
RP-9001	Repair part information No.	RP情報No.
R1... D1... W1...C1... Q1... P1...	Abbreviation for electronic part	電気部品記号

* VERSATILE PART
* 既出部品

Apart made with this pentagonal symbol is used commonly in the architecture of other products. That is called "VERSATILE PART". Note that every part, bearing new part number of eleven places, will turn into a VERSATILE PART when it is used in the design of future product.

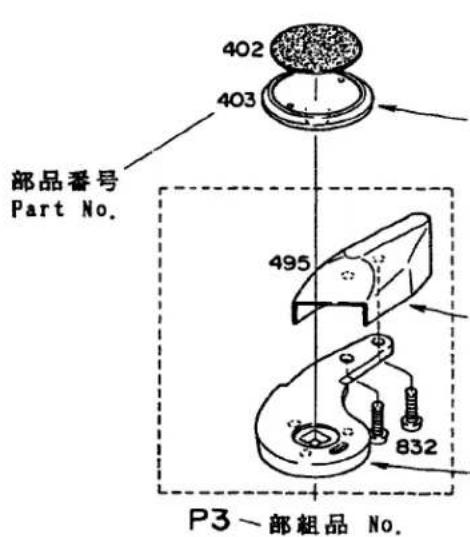

展開図の見方 How to use explosion drawings

402 403 部品番号 Part No. 495 832 P3～部粗品 No.

項目Part Classification	販売区分Term of Supply	記号Mark
破線外で部番の入っているものPart with Part No., shown outside the broken line	単部品で要求できるものAvailable as individual part	○
破線外で部番のないものPart without Part No., shown outside the broken line	修理部品と考えないものNot available as repair part	×
破線内で部番の入っているものPart with Part No., shown inside the broken line	単部品でも部組品でも要求できるものAvailable as assembly or individually	○△
破線内で部番のないものPart without Part No., shown inside the broken line	部組品でなければ要求できないものAvailable only as assembly	△

Assembly No. (component parts shown inside the broken line)

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	-名称Name	1台分個数Pcs.PerUnit	部粗品番号Assembly	參照図書Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty perorder
*1K001-055(B1-17070PB)	724	Screw	2		10	O	P-801	10
*1K003-019	556	Screw	1	18999-154-218999-160-2	11	O△	P-801	10
*1K010-138	624	Screw	4	18999-155-3	14	O△	P-801	10
*1K010-139	841	Screw	5		3.4	O	P-801	10
*1K010-140	842	Screw	1		2	O	P-801	10
*1K010-141	844	Screw	3		10	O	P-801	10
*1K010-142-(D:5)/K010-220	845	Screw	1		10	O	P-801	10
*1K010-143	846	Screw	3		4	O	P-801	10
*1K010-144	847	Screw	2		9	O	P-801	10
*1K010-145	848	Screw	4	18999-155-3	14	O△	P-801	10
*1K010-146	849	Screw	1		10	O	P-801P-601P-601M	10
*1K010-148	517	Screw	1	18999-154-218999-160-2	11	O△	P-801P-601P-601M	10
*1K010-149	549	Screw	1	18999-154-218999-160-2	11	O△	P-801	10
*1K010-150	284	Screw	4		10	O	P-801	10
*1K014-016	721	Screw	2	18999-159-2	8	O△		10

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図書Plg.No.	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty per order
*1K050-022	801	Washer	0	1B999-159-2	6	O△	P-801P-601P-601M	10
*1K050-029	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-030	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-031	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-032	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-033	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-034	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-035	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-036	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-037	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-038	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-039	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-040-1(1K050-040)	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-041	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-042-1(1K050-042)	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-043-1(1K050-043)	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-044	811	Washer	0-4		8	O	P-801P-601P-601M	10
*1K050-045-1(1K050-045)	811	Washer	0-4		8	O	P-801P-601P-601M	10

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図等Fig.No.	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty per.order
=1K050-046-1(1K050-046)	811	Washer	0-4		8	○	P-801P-601P-601M	10
=1K050-047-1(1K050-047)	811	Washer	0-4		8	○	P-801P-601P-601M	10
=1K050-048	811	Washer	0-4		8	○	P-801P-601P-601M	10
=1K050-112	801	Washer	0		6	○	P-801P-601P-601M	10
=1K050-144	801	Washer	0		6	○	P-801P-601P-601M	10
=1K060-047-1(1K060-047)	824	E-ring	4	18999-342-21B999-159-2	6	○△	P-801P-601P-601M	10
=1K060-048	825	E-ring	4	18999-153-21B990-294-11B999-159-2	5	○△	P-801P-601P-601M	10
=1K060-049	827	E-ring	1	18999-153-2	3	○△	P-801	10
1K050-373	763					○	91F 2015FAA24051 (F-60)

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty per order
*1K083-145	954	AFモードSW銘板Focus mode plate	1		10	○	P-801	5
1K083-232	566	外部LCD窓LCD window	1	1B999-154-21B999-160-2	11	○△		5
*1K100-118-2(1K100-118)	231	耳環A(巻上側)Byelet A (film advance side)	1		1	○	P-801	5
*1K100-119-1(1K100-119)	232	耳環B(巻尻側)Bylet B (rewind side)	1		1	○	P-801	5
*1K115-660-1	668	アセテートテープ(6x13)Cloth tape	1	1B999-159-2	6	○△	P-601	10
*1K116-124	675	ペンタ押さえシート接着テープAdhesive tape, pentaprismretainer sheet	1		7	×	TA-0003
*1K116-245-1	416	ミラー受けモルトAMirror holder sponge A	1	1B999-159-2	5	○△	P-801	5
*1K116-249-1	417	ミラー受けモルトBMirror holder sponge B	1	1B999-159-2	5	○△	P-801	5
*1K116-616-1(1K116-616)	953	AFモードSWノブカバーCover, focus mode SW knob	1		10	○	P-801F-601	10
*1K116-617-1(1K116-617)	146	シーケンスモーター停止SW絶縁板AInsulation plate A	1	1B999-153-2	3	○△	P-801	10
*1K116-618	170	フィルム位置マークFilm leader index mark	1		10	○	P-801P4	10
*1K116-619	607	裏蓋窓モルトSponge, camera back window	1	1B999-155-3	14	○△	P-801	5
*1K116-620-1(1K116-620)	628	裏蓋軸部遮光モルトLight-tight sponge, cameraback shaft	1	1B999-155-3	14	○△	P-801	5
*1K116-621	629	裏蓋圧部遮光モルトLight-tight sponge, cameraback bottom	1	1B999-155-3	14	○△	P-801	5
*1K116-622	665	L基板絶縁テープInsulation tape, base plate L	1	1B999-159-2	6	×	TA-0003

部品表 Parts List
FAA22052-R. 3287.A

部品番号Part No.	補助番号Ckt No.	-名称Name	1台分個数Pcs, Per Unit	部組品番号Assembly	参照図番Fig.No	販売区分Term of Delivery	備考Remarks	要求单位Q'ty per order
*1K116-624-1(1K116-624)	667	接眼部遮光モルトLight-tight sponge, eyepiece	1		1	○	P-801	5
*1K116-625-2(1K116-625-1)	671	グリップゴム接着テープAA adhesive tape A, grip rubber	1		10	○	P-801	5
*1K116-626	673	巻き戻し側接着テープAA adhesive tape A, rewind side rubber	1		10	○	P-801	5
*1K116-627-1(1K116-627)	674	巻き戻し側ゴム接着テープBA adhesive tape B, rewind side rubber	1		10	○	P-801	10
*1K116-642	692	シュー接点絶縁テープInsulation tepe, shoe contact	1	18999-154-21B999-160-2	12	x	TA-0005
*1K116-645-1	534	レリーズ接片絶縁シートInsulation sheet, release contact	2	18990-330-1	12	○△	P-801	10
*1K116-647	563	外部LCDゼブラゴムLCD rubber	2		9	○	P-801	10
*1K116-648	569	LCD受けシートLCD sheet	1		9	○	P-801	5
*1K116-649-1	593	上カバー防滴シールDrip-proof seal, top cover	1		1	○	P-801	5
*1K116-650	236	耳環B防滴シールDrip-proof seal, eyelet B	1		1	○	P-801(1 シート X50)	1
*1K116-651	241	電池室遮光テープLight-tight tape, battery chamber	2		1	x	TA-0006

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図書Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty perorder
*1K116-652	418	L基板植毛紙Plocked sheet,base plate L	1	1B999-159-2	6	○△	P-801	5
*1K116-653-1(1K116-653)	429	ペンタ押さえ絶縁シートInsulation sheet,pentaprism	1		8	○	P-801	5
*1K116-654-1(1K116-654)	459	内部LCDゼブラゴムLCD rubber	1		9	○	P-801	5
*1K116-657	463	ペンタ反射防止シールPentaprism reflex-proof seet	1		8	○	P-801	5
*1K116-665	346	植毛紙Plocked sheet	1	1B999-342-21B999-159-2	6	○△	P-801	5
*1K116-678	328	振動防止モルトVibration-proof sponge	2	1B999-342-21B999-159-2	6	○△	P-801	10
*1K116-679-1	666	接眼部遮光モルトLight-tight sponge,eyepiece	1		10	○	P-801	5
1K116-683	696	DC.DC.ICモルtSponge	1	1B999-148-1	1	○△	P-801	10
*1K116-685-1	687	両面テープ(3.2x26)Adhesive tape	2	1B990-324-2	12	x	TA-0003
1K116-726	699	キズ防止テープTape	1		13	○		10
*1K116-727	688	スコッチテープ(10x6)Tape	1		12	x	TA-0005
*1K116-744	664	カプトンテープ(6x27)Tape	1		9	x	TA-0009
*1K116-749	662	スコッチテープ(7x7)Tape	1		3	x	TA-0005
*1K116-823	464	ネオプレーンゴムRubber	2	1B999-159-2	8	○△	P-801	10

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No.	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty perorder
1K117-287	937	ゴムRubber	2	1B999-157-31B999-159-2	5	○△		10
1K117-288	939	ゴムRubber	1		5	○		10
1K117-293	690	LCD窓接着テープAdhesive tape, LCD window	1	1B999-154-21B999-160-2	11	○△		10
1K117-347	645	モルトSponge	1		1	○		10
*1K120-003	780	Screw	3		10	○	F-801	10
*1K120-081	577	Screw	4	1B999-154-21B999-160-2	11	○△	F-801	10
*1K120-086	790	Screw	1		1	○	P-801F-601P-601M	10
*1K120-102-1	926	Screw	2	1B999-159-2	5	○△	P-801P-601	10
*1K120-226	951	Screw	1	1B999-159-2	7	○△	P-801P-601	10
*1K120-269	781	Screw	2		13	○	P-801	10
*1K120-270	785	Screw	1	1B990-317-11B999-159-2	7	○△	P-801	10
*1K120-271-1	786	Screw	1		9	○	P-801	10
*1K120-272	787	Screw	2		10	○	P-801	10
*1K120-273	788	Screw	1		2	○	P-801	10

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty per order
*1K120-274	294	Screw	2		9	○	P-801P-601	10
*1K120-275-1(1K120-275)	507	Screw	2	1B999-159-2	5.7	○△	P-801P-601	10
*1K120-279-1(1K120-279)	289	Screw	3		9	○	P-801	10
*1K120-291	539	Screw	1	1B990-330-1	12	○△	P-801	10
*1K123-046	473	Screw	4	1B999-159-2	7	○△	P-801P-601P-601M	10
*1K123-104-2(1K123-104-1)	475	Screw	1	1B999-159-2	7	○△	P-801	10
*1K123-118-1(1K123-118)	405	Screw	3		9	○	P-801	10
*1K126-063	178	Screw	1		10	○	P-801P-601P-601M	10
*1K126-080-1(1K126-080)	636	Screw	1	1B999-155-3	14	○△	P-801	10
*1K130-249	789	Screw	1	1B999-159-2	6	○△	P-801	10
*1K130-363	782	Screw	2		4	○	P-801	10
*1K130-364	783	Screw	2		3	○	P-801	10
*1K130-365	784	Screw	1		2	○	P-801	10
*1K130-366	444	レンズ着脱軸Lenz release shaft	1	1B999-159-2	5	○△	P-801	10
*1K130-367-1(1K130-367)	488	Screw	2	1B999-159-2	7	○△	P-801	10

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs, Per Unit	部組品番号Assembly	参照図番Fig.No	販売区分Term of Delivery	備考Remarks	要求単位Q'ty per order
1K130-481	918	Screw	2	1B999-159-2	5	○△		10
*1K146-082	771	Screw	2	1B999-159-2	5	○△	P-801P-601	5
*1K146-116	90	裏蓋SWピンPin, camera back SW	1		4	○	P-801	10
*1K165-129	828	Washer	4	1B999-154-21B999-160-2	11	○△	F-801	10
1K165-207	938	Washer (rubber)	1	1B999-159-2	5	○△		10
*1K201-079	950	AFモードSWノブKnob, focus mode SW	1	1B999-159-2	7	○△	P-801F-601	5
*1K201-080-1(1K201-080)	515	電子ダイヤルElectrical dial	1	1B999-154-21B999-160-2	11	○△	P-801P-601P-601W	5
*1K206-056	91	裏蓋SWレバーLever, camera back SW	1		4	○	P-801	5
*1K206-057-1(1K206-057)	541	電源SWレバーPower SW lever	1	1B999-154-21B999-160-2	11	○△	P-801	5
*1K206-058-1(1K206-058)	223	裏蓋開閉キースライダーSlider, camera back open/close key	2		2	○	P-801	5
*1K208-102-1	531	レリーズ釦Shutter release button	1	1B999-154-21B999-160-2	11	○△	P-801	5
*1K208-103	546	露出補正釦Exposure compensation button	1		12	○	P-801	5
*1K208-104	547	R釦Rewind button	1		12	○	P-801	5
*1K208-105	583	測光切り換え釦Metering switch button	1		12	○	P-801	5
*1K208-106	584	セルフ釦Self-timer button	1		12	○	P-801	5

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部粗品番号Assembly	参照図番Fig.No.	販売区分Tera ofDelivery	備考Remarks	要求单位Q'ty per order
*1K208-107	585	ドライブ釦Drive button	1	18999-154-218999-160-2	11	○△	P-801	5
*1K208-108	586	モード釦Mode selector button	1	18999-154-218999-160-2	11	○△	P-801	5
*1K208-109	587	多重撮影釦Multiple exposure button	1	18999-154-218999-160-2	11	○△	P-801	5
*1K208-110	588	ISO釦ISO button	1	18999-154-218999-160-2	11	○△	P-801	5
*1K208-111-1(1K208-111)	441	レンズ着脱釦Lens release button	1	18999-159-2	5	○△	P-801	5
*1K208-112	491	AFロック釦AF lock button	1	18999-159-2	7	○△	P-801	5
*1K208-113-2(1K208-113)	351	手動絞り釦Manual aperture button	1	18990-317-118999-159-2	7	○△	P-801	5
*1K220-041-1(1K220-041)	446	レンズ着脱ピンパネSpring, lens release pin	1	18999-159-2	5	○△	P-801P-601P-601M	10
*1K220-201-1	445	レンズ着脱軸パネSpring, lens release shaft	1	18999-159-2	5	○△	P-801P-601P-601M	5
*1K220-217	406	AFセンサー調整パネAdjustment spring, AP sensor	3		9	○	P-801P-601	10
*1K220-249	164	巻き戻しフォークパネRewind fork spring	1		2	○	P-801	10
*1K220-252	637	裏蓋軸着脱パネSpring, camera back shaft release	1	18999-155-3	14	○△	P-801	10
*1K220-253-2(1K220-253)	519	電子ダイアルクリックパネSpring, electrical dial click	1	18999-154-218999-160-2	11	○△	P-801P-601P-601M	10
*1K220-254	555	AEロックパネAE lock spring	1	18999-154-218999-160-2	11	○△	P-801	10
*1K220-255	589	釦パネSpring	4	18999-154-218999-160-2	11	○△	P-801	10

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs, Per Unit	部組品番号Assembly	参照図番Fig.No	販売区分Term of Delivery	備考Remarks	要求単位Q'ty per order
*1K220-259	353	手動絞り卸バネSpring, manual aperture spring	1	1B990-317-11B999-159-2	7	○△	F-801	10
*1K225-101-2(1K225-101)	313	絞り戻しバネAperture reset spring	1	1B999-342-21B999-159-2	6	○△	P-801P-601P-601M	5
*1K225-171-1	137	シーケンッス係止解除バネSpring, sequence latch release	1	1B999-153-2	3	○△	F-801	10
*1K225-174	222	裏蓋開閉キーパネSpring, camera back open/close key	1		2	○	F-801	10
*1K225-175	306	ミラーアップ縦レバー戻しバネSpring, mirror-up lever reset	1	1B999-342-21B999-159-2	6	○△	F-801	10
*1K225-176	310	絞りレバー駆動バネSpring, aperture lever actuating	1	1B999-342-21B999-159-2	6	○△	F-801	10
*1K225-193	484	F - F o バネF - Po spring	1	1B990-328-11B999-159-2	7	○△	P-801	10
*1K230-247-1(1K230-247)	932	A F 横レバーバネSpring, AP lever	1	1B001-786-1	5	○△	P-801	10
*1K230-249	143	ソレノイドレバーバネSolenoid lever spring	1	1B999-153-2	3	○△	F-801	10
*1K230-250	148	シーケンスモーター停止SWワイヤWire, sequence motor stop SW	1	1B999-153-2	3	○△	F-801	10
*1K230-251	182	ガイド板バネGuide plate spring	1		2	○	F-801	10
*1K230-254	410	主ミラーグウンバネMirror-down spring	1	1B999-159-2	6	○△	F-801	10
*1K230-255	427	ペンク押さえバネPentaprism retainer spring	2		8	○	F-801	10
*1K230-256	305	ミラーアップバネMirror-up spring	1	1B999-342-21B999-159-2	6	○△	F-801	10
*1K230-257-1(1K230-257)	324	シャッターレリーズバネSpring, shutter release	1	1B999-342-21B999-159-2	6	○△	P-801	10

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs, Per Unit	部組品番号Assembly	参照関番Fig.No.	販売区分Term of Delivery	備考Remarks	要求单位Q'ty per order
*1K230-258-2(1K230-258-1)	341	絞りカウンター円板パネSpring, aperture counter disc	1	1B999-342-21B999-159-2	6	○△	P-801	10
*1K230-259-1	359	リセット大レバーバネSpring, large reset lever	1	1B990-317-11B999-159-2	1	○△	P-801	10
*1K230-260	362	リセットレバーバネReset lever spring	1	1B990-317-11B999-159-2	7	○△	P-801	10
*1K233-052	397	サブミラーバネSub-mirror spring	1	1B990-2651B999-159-2	6	○△	P-801P-601	5
*1K240-468-4(1K240-468-2)	472	パヨネットパネBayonet spring	1	1B999-159-2	7	○△	P-801P-601P-601M	10
*1K240-516	573	シューバネShue spring	1	1B999-154-21B999-160-2	11	○△	P-801P-601P-601M	5
*1K240-588-2(1K240-588)	631	パトローネ規制パネFilm cartridge stopper spring	1	1B999-155-3	14	○△	P-801	10
*1K240-592	535	レリーズ共通接片Release contact blade	1	1B990-330-1	12	○△	P-801	5
*1K240-593-2(1K240-593-1)	536	半押しSW接片Pre-release SW contact blade	1	1B990-330-1	12	○△	P-801	5
*1K240-597-1(1K240-597)	557	AEロックSW押さえ板AE lock SW retainer plate	1	1B999-154-21B999-160-2	11	○△	P-801	5
*1K240-599-1(1K240-599)	217	パトローネ押さえパネSpring, film cartridge retainer	1		1	○	P-801P-601P-601M	5
*1K240-603-1(1K240-603)	365	手動絞りSW, AManual aperture sw A	1	1B990-317-11B999-159-2	7	○△	P-801	5
*1K240-608-2(1K240-608)	96	電池SW接片Battery switch contact	1	1B990-298-1	4	○△	P-801	5
*1K260-371	910	AFカップリングギアAP coupling gear	1	1B999-159-2	5	○△	P-801P-601	5
*1K260-373	109	鍼連ギアRReducing gear R	1		3	○	P-801	5

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Pig.No	販売区分Term ofDelivery	備考Remarks	要求単位Q'ty per order
*1K260-375	161	巻き戻しフォークギアRewind fork gear	1		2	○	P-801	5
*1K260-376	165	巻き戻し連結ギアLRewind coupling gear L	1		2	○	P-801	5
*1K260-377	50	フィルム給送モーター減速ギアFReducing gear P, film advance motor	1		4	○	P-801	5
*1K260-378	52	フィルム給送モーター減速ギアHReducing gear H, film advance motor	1		3	○	P-801	5
*1K260-379-1(1K260-379)	53	フィルム給送モーター減速ギアWReducing gear W, film advance motor	1		4	○	P-801	5
*1K260-380	57	スプロケットギASprocket gear	1		4	○	P-801	5
*1K260-381-1	58	基準ギAReference gear	1		4	○	P-801	5
*1K260-382	59	カウンターギアCounter gear	1		4	○	P-801	5
*1K260-387	85	巻き戻し連結ギアKRewind coupling gear K	1		4	○	P-801	5
*1K260-397-1(1K260-397)	339	絞りカウンター円板Aperture counter disk	1	1B999-342-21B999-159-2	6	○△	P-801	5
1K260-580	921	AFギAAF gear	1	1B999-159-2	5	○△		5
*1K275-061	55	スプールSpool	1		3	○	P-801	5
*1K275-062-1(1K275-062)	56	スプロケットSprocket	1		3	○	P-801	5
*1K277-080	908	AFギア4.5AP gear 4.5	1	1B999-159-2	5	○△	P-801	5
*1K277-081	909	AFギア6.7AP gear 6.7	1	1B999-159-2	5	○△	P-801P-601	5

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図書Fig.No.	販売区分Term of Delivery	備考Remarks	要求単位Q'ty per order
*1K277-083	106	減速ギアOReducing gear 0	1		3	○	P-801	5
*1K277-084	107	減速ギアPReducing gear P	1		3	○	P-801	5
*1K277-085	108	減速ギアQReducing gear Q	1		3	○	P-801	5
*1K277-086	47	フィルム給送モーター減速ギアAReducing gear A, film advance motor	1		4	○	F-801	5
*1K277-087	48	フィルム給送モーター減速ギアBReducing gear B, film advance motor	1		4	○	P-801	5
*1K277-088	49	フィルム給送モーター減速ギアCReducing gear C, film advance motor	1		4	○	P-801	5
*1K277-089	51	フィルム給送モーター減速ギアGReducing gear G, film advance motor	1		4	○	P-801	5
*1K302-044	952	AFモードSWカムAP mode SW cam	1	18999-159-2	5	○△	P-801P-601	5
*1K310-064	224	裏蓋開閉キーロックレバーLever, camera back open/close key lock	1		2	○	P-801	5
*1K360-030	183	ガイド板軸Guide plate shaft	1		2	○	F-801	5
*1K370-938	423	スクリーン枠支持軸Shaft, screen frame support	1		8	○	F-801	5
*1K371-150	911	AFカップリング軸AP Coupling shaft	1	18999-159-2	5	○△	P-801	5

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部粗品番号Assembly	参照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty per order
*1K371-168-1	166	輪き戻し連結軸Rewind coupling shaft	1		2	○		5
1K371-109-3	184	ガイドローラーGuide roller	1	1B999-164-1	2	○△	P-801	5
*1K371-180	634	裏蓋軸ACamera back shaft A	1	1B999-155-3	14	○△	P-801	5
*1K371-181	635	裏蓋軸BCamera back shaft B	1	1B999-155-3	14	○△	P-801	5
*1K371-182	216	DX接点DX contact	6		1	○	P-801	10
*1K371-184	443	レンズ着脱ピンLens release pin	1	1B999-159-2	5	○△	P-801P-601P-601M	5
*1K404-091	471	パヨネットBayonet	1	1B999-159-2	7	○△	P-801P-601	5
*1K406-030-1(1K106-030)	571	シューShue	1	1B999-154-21B999-160-2	11	○△	P-801P-601P-601M	5
*1K467-042	469	リモートコネクターキャップRemote connecter cap	1		10	○	P-801	5
*1K600-537	442	レンズ着脱板Lens release plate	1	1B999-159-2	5	○△	P-801	5
*1K600-755	189	F検知絶縁板Insulation plate, film detection	1		2	○	P-801	10
*1K600-756	191	F検知絶縁板Insulation plate, film detection	1		2	○	P-801	10
*1K600-760	538	レリーズSW接片押さえ板Retainer plate, release SW blade	1	1B990-330-1	12	○△	P-801	5
*1K600-762	282	圧接ゴムPress-contact rubber	4		10	○	P-801	10
*1K600-763	283	圧接押さえ板Press-contact retainer plate	2		10	○	P-801	10

部品表 Parts List
FAA22052-R. 3287. A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No.	販売区分Tera ofDelivery	備考Remarks	要求単位Q'ty per order
*1K600-765	286	A F接点F P C压接板FPC press-contact plate	1		9	○	P-801	10
*1K600-766	287	A F接点F P C压接ゴムFPC press-contact rubber	2		9	○	P-801	10
*1K600-767	288	A F基板F P C压接板FPC press-contact plate	1		9	○	P-801	10
*1K600-768	292	A P 2.F P C压接ゴムAP2 FPC press-contact rubber	1		9	○	P-801	10
*1K600-772	428	ペンタ押さえシートPentaprism retainer sheet	1		8	○	P-801	5
*1K600-775	368	手動校りSW絶縁AInsulator A, manual aperture SW	1	1B990-317-11B999-159-2	7	○△	P-801	10
*1K600-857	272	メインF P C裏打板Plate for main PPC	1		9	○	P-801	5
*1K600-897	626	ロット軸調整板ARod shaft adjusting plate A	1	1B999-155-3	14	○△	P-801	5
*1K600-898	627	ロット軸調整板BRod shaft adjusting plate B	1	1B999-155-3	14	○△	P-801	5
*1K611-076	145	シーケンスモーター停止SWSequence motor stop SW	1	1B999-153-2	3	○△	P-801	5
*1K611-077-1	175	実装カバー板Cover plate	1		10	○	P-801	5
1K611-078-1	181	フィルムガイド板Film guide plate	1	1B999-164-1	2	○△	P-801	5
*1K611-079-1(1K611-079)	36	グリップGrip	1		10	○	P-801	1
*1K611-085-2(1K611-085)	609	裏蓋爪Camera back latch	1	1B999-155-3	14	○△	P-801	5
*1K611-091	559	コード押さえ板Wire retainer plate	1		10	○	P-801	5

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Pig.No.	販売区分Term ofDelivery	備考Remarks	要求単位Q'ty per order
*1K611-092	562	外部LCD押さえ板LCD retainer plate	1		9	○	P-801	5
*1K611-093-2(1K611-093-1)	576	シュー裏打ち板Shoe backing plate	1	1B999-154-21B999-160-2	11	○△	P-801P-601P-601M	5
*1K611-094-2(1K611-094)	221	裏蓋開閉キー板Camera back open/close key plate	1		2	○	P-801	1
*1K611-095-3(1K611-095)	235	耳璐Bアース板Earth plate, eyelet B	1		1	○	P-801	5
*1K611-098	293	AP 2.FPC圧板押さえ板Retainer plate, AP2 FPCpress-contact	1		9	○	P-801	5
*1K611-099-3(1K611-099-1)	296	インダクタ保持板Inductor support plate	1		4	○	P-801	5
*1K611-102	413	ミラー後チタン板Titanium plate	1		9	○	P-801	5
*1K611-103-1(1K611-103)	425	視野枠Viewfield frame	1		8	○	P-801	5
*1K611-104	426	ペンク押さえ板Pentaprism retainer plate	1		8	○	P-801	5
*1K611-105-1(1K611-105)	432	測光素子押さえ板Metering sensor plate	1		9	○	P-801	5
*1K611-106-1(1K611-106)	433	接眼遮光板Eyepiece light-tight plate	1		8	○	P-801	5
*1K611-108	457	採光ブリズム押さえ板Prism retainer plate	2		9	○	P-801	10
*1K611-109	458	内部LCD圧接板LCD press-contact plate	1		9	○	P-801	5
*1K611-111-1(1K611-111)	663	グリップ導電シールGrep conductive seal	1		10	○	P-801	5
*1K611-123	345	アオリ防止板Flop preventative plate	1	1B999-159-2	6	○△	P-801	5

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求単位Q'ty per order
*1K611-165	622	板バネ(裏蓋部)Plate (camera back)	1	1B999-155-3	14	○△	P-801	5
*1K611-277	633	板バネ(裏蓋部)Plate (camera back)	1	1B999-155-3	14	○△	P-801	5
*1K620-153-1(1K620-153)	422	スクリーン枠Screen frame	1		8	○	P-801	5
*1K630-531	956	A FカップリングチューブAP coupling tube	1	1B999-159-2	7	○△	P-801P-601	5
1K630-533	116	リテーナーColler	1	1B999-153-2	3	○		5
*1K630-537	163	巻き戻しフォークRetainer	1		2	○	P-801	5
*1K630-544	485	F-F o バネローラーF-Po spring roller	1	1B999-159-2	7	○△	P-801	5
*1K630-548-1(1K630-548)	309	紋りローラーAperture roller	1	1B999-342-21B999-159-2	6	○△	P-801	5
*1K640-636	913	A FカップリングカラーAP coupling collar	1	1B999-159-2	5	○△	P-801P-601	5
1K641-099	923	A Fカウンター円板AP counter disk	1	1B999-159-2	5	○△		5
*1K670-104	22	エプロンApron	1	1B999-159-2	7	○△	P-801	5
*1K680-889-1(1K680-889)	147	シーケンスモーター停止SW絶縁板BInsulation plate B, sequence motor stop SW	1	1B999-153-2	3	○△	P-801	5
1K680-890-3	180	スプロカバー基板Sprocket cover base plate	1		2	○		5
*1K680-892	190	D B接点カバーData back contact cover	1		1	○	P-801	5

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty per order
*1K680-893	35	グリップ赤ラインGrip red line	1		10	○	P-801	5
*1K680-894-2	37	グリップゴムGrip rubber	1		10	○	P-801	5
*1K680-895	38	前補助カバーSupplementary front cover	1		10	○	P-801	5
*1K680-896	39	裏蓋受けゴムCamera back cushion rubber	1		10	○	P-801	5
*1K680-897-3(1K680-897-2)	40	裏蓋ヒンジカバーCamera back hinge cover	1		10	○	P-801	5
*1K680-898	41	フィルム給送モーター基板Film advance motor base plate	1		4	○	P-801	5
*1K680-902-2(1K680-902)	533	レリーズ接片モールド座Release contact blade mold base	1	1B990-330-1	12	○△	P-801	5
*1K680-904-1	552	A EロックラバーSWAE lock rubber SW	1	1B999-154-21B999-160-2	11	○△	P-801	5
*1K680-905-1	561	外部LCDハウジングLCD housing	1		9	○	P-801	5
*1K680-906	567	セルフ窓Self-timer window	1	1B999-154-21B999-160-2	11	○△	P-801	5
*1K680-907	568	探光窓Lighting window	1	1B999-154-21B999-160-2	11	○△	P-801	5
*1K680-909	215	DX接点モールド座DX contact mold base	1		1	○	P-801	5
*1K680-910-1(1K680-910)	220	裏蓋開閉キーモールド座Camera back open/close key moldbase	1		2	○	P-801	5
*1K680-913	281	圧接基板Press-contact base plate	1		2	○	P-801	5
*1K680-916-1(1K680-916)	421	プリズムボックスPrism box	1		8	○	P-801	5

部品表 Parts List
FAA22052-R. 3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No.	販売区分Term ofDelivery	備考Remarks	要求単位Q'ty perorder
*1K680-919-2(1K680-919-1)	454	表示系ブロック保持脚ADisplay block supporter A	1	1B999-159-2	8	○△	F-801	5
*1K680-920-2(1K680-920-1)	455	表示系ブロック保持脚BDisplay block supporter B	1	1B999-159-2	8	○△	F-801	5
*1K680-929	369	手動絞りSW絶縁BInsulator B,manual aperture SW	1	1B990-317-11B999-159-2	7	○△	F-801	5
*1K680-981-1	177	パトローネ受けFilm cartridge set mold	1		1	○	F-601F-601M	5
1K681-234-1	186	F検知環Film detecting ring	1		3	○		5
1K999-034-1	24	圧カバーBottom cover	1		13	○	No配入部品3~	1
1K999-045	D.S	Washer +=0.15	/		10	○	91F 2015

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1合分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty per-order
*1S125-033	1065	デジタルトランジスクTransistor	1	1S020-035-3	4	○△	P-801	5
*1S125-038	1077	パワートランジタPower transistor	3	1S020-035-3	4	○△	P-801P-601P-601M	5
*1S135-029	1062	パワートランジスタPower transistor	1	1S020-035-3	4	○△	P-801	5
*1S135-030	1078	パワートランジタPower transistor	2	1S020-035-3	4	○△	P-801P-601P-601M	5
*1S172-001	1079	トライアックTriac	1	1B990-330-1	12	○△	P-801	5
1S190-014	1041	CPU IC (HD4074418H)	1	1S020-071	9	○△		5
1S190-015	1042	CPU IC (H8/330 HD6473308)	1	1S020-071	9	○△		5
*1S205-046	1046	IC (HD61602H)	1	1S020-071	9	○△	P-801	5
*1S205-047	1049	EEPROM (CXX1011M)	1	1S020-071	9	○△	P-801	5
*1S223-001	1047	IC (W57922)	1	1S020-035-3	4	○△	P-801	5
*1S230-009	1048	IC (IC-LVC555P-2)	1	1S020-035-3	4	○△	P-801	5
*1S237-054	1044	IC (W52921PP)	1	1S020-071	9	○△	P-801	5
*1S237-055	1045	IC (W52920PP)	1	1S020-071	9	○△	P-801	5
1S237-065	1043	IC (W52922PP)	1	1S020-071	9	○△	P-801	5
*1S250-020	1021	フォトダイオードPhoto diode	1		9	○	P-601	5

部品表 Parts List
FAA22052-R. 3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs. Per Unit	部組品番号Assembly	参照図番Fig.No.	販売区分Term of Delivery	備考Remarks	要求単位Q'ty per order
*1S260-037	1026	LED	1	1B990-330-1	12	○△	P-801	5
*1S268-013-2(1S268-013-1)	451	内部LCDInternal LCD	1		9	○	P-801	5
1S268-026	560	外部LCDExternal LCD	1		9	○		5
*1S542-005	1031	圧電ブザーBuzzer	1		12	○	P-801	5
*1S622-002-1(1S622-002)	139	ソレノイドSolenoid	1	1S020-0711B999-153-2	3	○△	P-801	5
1S705-200	1009	フレキシブルプリント板FPC	1		9	○		5
1S726-033-1	693	コード整理テープATape	1		9	○	P-801	5
*1S758-019	545	露出補正/Rラバー-SWExposure compensation rubber SW	1		12	○	P-801	5
*1S758-020	553	イルミラバー-SWIllumination rubber SW	1	1B999-154-21B999-160-2	12	○△	P-801	5
*1S758-021	582	巻き戻し側設定釦ラバー-SWRewind-side setting button rubber SW	1		12	○	P-801	5
*1S758-022	492	AFロックSWゴムAF lock SW rubber	1	1B999-159-2	7	○△	P-801	5

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図書Fig.No.	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty per order
*1S811-015	1143	Lead wire L=90 (yellow)	1	1B999-149-1		x	W-0056Y8
*1S811-016	1144	Lead wire L=50 (brown)	1	1B999-150-1		x	W-0056BN
*1S811-017	1145	Lead wire L=40 (brown)	1	1B999-153-2		x	W-0056BN
*1S811-019-1	1147	Lead wire L=105 (green)	1	1B990-296-1		x	W-0056GN
*1S811-020-2	1148	Lead wire L=25 (black)	1	1B990-296-1		x	W-0056BK
*1S811-021	1149	Lead wire L=25 (brown)	1	1B990-338-11B999-159-2		x	W-0056BN
*1S811-022	1150	Lead wire L=25 (orange)	1	1B990-338-11B999-159-2		x	W-0056OR
*1S811-023-1	1151	Lead wire L=50 (red)	1	1B990-338-11B999-159-2		x	W-0056RE
*1S811-024	1152	Lead wire L=40 (yellow)	1	1B990-322-1		x	W-0056YE
*1S811-025	1153	Lead wire L=50 (green)	1	1B990-322-1		x	W-0056GN
*1S811-026-1	1154	Lead wire L=58 (orange)	1	1B990-297-1		x	W-0056OR
*1S811-027	1155	Lead wire L=90 (purple)	1			x	W-0056PU
*1S811-028	1156	Lead wire L=20 (brown)	1	1B990-325-1		x	W-0056BN
*1S811-029	1157	Lead wire L=20 (orange)	1	1B990-325-1		x	W-0056OR
*1S811-030	1158	Lead wire L=20 (white)	1	1B990-325-1		x	W-0056Mn
*1S811-031	1159	Lead wire L=90 (purple)	1	1B990-330-1		x	W-0056PU
*1S811-032	1160	Lead wire L=170 (orange)	1	1B990-299-1		x	W-0056OR
*1S811-035	1171	Lead wire L=25 (red)	1			x	W-0080RE

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部粗品番号Assembly	参照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty perorder
*1S811-036	1172	Lead wire L=70 (black)	1	1B990-312-1		x	W-0080BK
*1S811-037	1173	Lead wire L=95 (black)	1			x	W-0080BK
*1S811-038	1174	Lead wire L=100 (gray)	1			x	W-0080GY
*1S811-039	1175	Lead wire L=85 (pink)	1			x	W-0080PK
*1S811-041-1	1177	Lead wire L=25 (orange)	1	1B990-343-1		x	W-0080OR
*1S811-042	1178	Lead wire L=160 (pink)	1	1B990-330-1		x	W-0080PK
*1S811-044	1180	Lead wire L=40 (black)	1			x	W-0080BK
*1S811-063	1142	Lead wire L=85 (white)	1	1S020-071		x	W-0056WH
*1S811-065	1161	Lead wire L=40 (white)	2			x	W-0056WH
*1S811-102	1164	Lead wire L=43 (yellow)	1	1B990-297-1		x	W-0056YB
*1S811-103	1165	Lead wire L=15 (blue)	1	1S020-035-3		x	W-0056BB
*1S811-104	1141	Lead wire L=40 (green)	1	1B990-297-1		x	W-0056GN
*1S811-223	1166	Lead wire L=45 (blue)	1			x	W-0056BB
*1S811-332	1163	Lead wire L=35 (orange)	1	1S020-071		x	W-0056OR
1S811-410	1167	Lead wire L=30 (blue)	1	1S020-071		x	W-0056BB
1S811-454	1168	Lead wire L=50 (blue)	1			x	W-0056BB
1S811-455	1169	Lead wire L=55 (yellow)	1			x	W-0056YB
1S811-456	1170	Lead wire L=55 (white)	1			x	W-0056WH

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty perorder
A1-14018PA	701	Screw	3	1B999-153-21B999-159-2	3.6	O△		50
A1-17016PB	714	Screw	2	1B999-342-21B999-159-2	1.6	O△		50
A1-17018PB	711	Screw	1	1B999-153-2	3	O△		50
A1-17018FS	702	Screw	4		13	O		50
A1-17022PB	703	Screw	2		10	O		50
A1-17028FS	705	Screw	3	1B999-159-2	7	O△		50
-A1-17050FS-(Di)1K999-09x	709	Screw	2		10	O		50
A1-20050FS	712	Screw	1		1	O		50
A2-17028FA	726	Screw	5	1B990-330-11B999-159-2	5.12	O△		50
A2-17060FA	727	Screw	1	1B990-298-1	4	O△		50
B1-14018FA	715	Screw	1		9	O		50
B1-14018FB	716	Screw	2	1B999-159-2	6	O△		50
B1-14025PA	718	Screw	2		4	O		50
B1-14030FD	717	Screw	2	1B999-159-2	6	O△		50
B1-17016PB	719	Screw	4	1B999-159-2	6	O△		50
B1-17030FA	720	Screw	5	1B999-159-2	6.7	O△		50

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	參照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty perorder
B1-17040FA	722	Screw	4		8	O		50
B2-14018PA	728	Screw	3		2	O		50
G1-14020FA	732	Screw	1		4	O		50
G1-14035FA	731	Screw	1		12	O		50
G1-17025FA	733	Screw	3	1B999-155-3	8.14	O△		50
G1-17025PS	734	Screw	4		1	O		50
G1-17028PS	736	Screw	3		13	O		50
G1-17030FA	735	Screw	1		1	O		50
G1-17035FA	737	Screw	2	1B999-155-3	14	O△		50
G1-17035PB	738	Screw	2		1	O		50
G1-17040FA	740	Screw	2		10	O		50
G1-17040PB	741	Screw	1		4	O		50
G1-17040PS	742	Screw	4		1013	O		50
G1-17055PS	743	Screw	3		10	O		50
G1-20050PB	745	Screw	3		10	O		50

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	部組品番号Assembly	参照図番Fig.No.	販売区分Term ofDelivery	備考Remarks	要求单位Q'ty perorder
G1-20060PB	746	Screw	2		1	O		50
G2-17030PA	761	Screw	3		2.3	O		50
G2-17030PB	762	Screw	2		10	O		50
G2-17035PB	765	Screw	2		4	O		50
G2-17045PA	763	Screw	6		12	O		50
H1-14025PB	748	Screw	2		9	O		50
H1-14050PB	749	Screw	2		9	O		50
H1-17025PB	750	Screw	1		4	O		50
H1-17040PB	751	Screw	2		2	O		50
H1-17045PB	752	Screw	4		1.4	O		50
H1-17050PB	753	Screw	3		3	O		50
H3-20055PA	766	Screw	2		1	O		50
S1-00700SY	821	B ring	1	18999-159-2	5	O△		50
S1-01200SX	822	B ring	2	18999-342-218999-159-218990-317-1	6.7	O△		50
S1-01500SX	823	E ring	1	18999-154-218999-160-2	11	O△		50
T1-01000SX	831	Ball	14	18999-153-2	3	O△		50
T2-01500SX	832	Ball	1	18999-154-218999-160-2	11	O△		50

部品表 Parts List
FAA22052-R.3287.A

部品番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs, PerUnit	部組品番号Assembly	参照図番Fig.No	販売区分Term ofDelivery	備考Remarks	要求単位Q'ty per order
*16308-015	G11	測光レンズMetering lens	1		8	○	P-801	5
*16550-020	G2	サブミラーSub-mirror	1	18990-26518999-159-2	6	○△	P-801F-601	5
*16571-002	G1	メインミラーMain mirror	1	18990-26518999-159-2	6	○△	P-801F-601	5
16950-071	G3	フレネルScreen	1		8	○		5

部組品表 Assembly List
FAA22052-R.3287.A

部組番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs.PerUnit	大部組品番号Main assembly No.	参照図番Fig.No	備考Remarks	要求单位Q'ty per order
*1B001-755-1	B603	圧板Pressure plate	1		14	P-801P-601P-601M	5
*1B001-782	B111	シーケンスギアSequence gear	1		3	P-801	5
*1B001-784	B301	I基板Base plate I	1	18999-342-218999-159-2	6	P-801	1
*1B001-785-3(1B001-785)	B466	リモートコネクタRemote connector	1	18999-159-2	5	P-801	5
*1B001-786-1(1B001-786)	B930	A F横レバー基板AP transverse lever plate	1	18999-159-2	5	P-801	5
*1B001-787-1(1B001-787)	B940	A FモードSWFocus mode SW	1	18999-159-2	5	P-801	5
1B001-996	B936	A F繊レバーAP lever	1	18999-159-2	5		5
*1B060-370-1	B32	フィルム給送モーターFilm advance motor unit	1		4	P-801	5
*1B060-372	B380	絞りMg基板Aerture Mg base plate unit	1	18999-159-2	6	P-801	5
1B060-474	903	A FモーターAP motor	1	18999-159-2	5		5
*1B240-064-1(1B240-064)	B522	電子ダイヤル接片座Electrical dial contact unit	1	18990-330-1	12	P-801	5
*1B240-065-1(1B240-065)	B537	レリーズSW接片Release SW contact unit	1	18990-330-1	12	P-801	5
*1B240-066-2(1B240-066)	B542	電源SWPower SW unit	1	18999-154-218999-160-2	11	P-801	5
*1B240-068	B95	電池室スイッ接片組Switch contact,battery house	1	18990-298-1	4	P-801	5
*1B314-160	B321	シャッターレリーズレバーShutter release lever	1	18999-342-218999-159-2	6	P-801	5
*1B610-035-2(1B610-035-1)	B474	A F接点AP contact unit	1	18999-159-2	6	P-801P-601P-601M	5

部組品表 Assembly List
FAA22052-R.3287.A

部組番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs. PerUnit	大部組品番号Main assembly No.	参照図番Fig.No	備考Remarks	要求单位Q'ty perorder
*1B999-342-2(1B999-342)	B3018	I基板組品Unit, base plate I	1		6	P-801	1
*1G013-032	G5.6	接眼レンズByepiece lens	1		8	P-801	5
*1G080-022-1(1G080-022)	G4.10	ペンタブリズム部Pentaprism unit	1		8	P-801	1
*1S017-023-1(1S017-023)	B1006	DB. DX FPCData back DX PPC unit	1		1	P-801	5
*1S020-035-3(1S020-035-2)	B1005	電源FPCPower SW PPC unit	1		4	P-801	1
*1S020-037-1	B1003	AF接点FPCAP contact PPC unit	1	1B999-159-2	6	P-801	5
*1S020-038-2(1S020-038)	B1004	AF基板FPCAP base plate PPC unit	1	1B999-159-2	5	P-801	5
1S020-071	B1001	メインFPCMain PPC unit	1		9		1
1S020-072	B1008	SPD FPCSPD PPC	1		9		5

部組品表 Assembly List
FAA22052-R.3287.A

部組番号Part No.

補助番号Ckt No.

名称Name

1台分個数Pcs.PerUnit

大部組品番号Main assembly No.

参照図番Fig.No.

備考Remarks

要求单位Q'ty perorder

*1B990-318-1(1B990-318)

B366

手動校りSW BManual aperture SW B

1

1B990-317-11B999-159-2

7

P-801

5

*1B990-322-1(1B990-322)

B420

ミラーボックス座板Mirror box bottom plate

1

8

P-801

5

*1B990-324-2(1B990-324-1)

B452

表示系ブロックDisplay block

1

9

P-801

5

*1B990-325-1(1B990-325)

B453

採光ブリズムLighting prism

1

9

P-801

5

*1B990-327-1(1B990-327)

B481

F-Fo抵抗基板F-Po resistance base plate

1

1B999-159-2

7

P-801

5

*1B990-328-1(1B990-328)

B482

F-Fo連動環F-Po coupling ring

1

1B999-159-2

7

P-801

5

*1B990-329-1(1B990-329)

B503

A.F.M切り換えSWFocus mode SW unit

1

1B999-159-2

6

P-801

5

*1B990-330-1(1B990-330)

B2007

上カバー部FPCPPC unit for top cover

1

12

P-801

1

*1B990-331

B514

電子ダイヤルパターン基板Electrical dial pattern plate

1

1B999-154-21B999-160-2

11

P-801P-601P-601M

5

*1B990-334-1(1B990-334)

B612

ロッド軸基板Rod shaft plate

1

1B999-155-3

14

P-801

5

1B990-337-1(1B990-337)

B906

フリクションギアFriction gear

1

1B999-159-2

5

5

*1B990-338-1(1B990-338)

B924

A F フォトインクラブタAP photo interrupter

1

1B999-159-2

5

P-801

5

1B990-343-1(1B990-343)

B2401

A P 2組品AP2 unit

1

9

5

*1B990-491

B572

シュー一座Shoe base unit

1

1B999-154-21B999-160-2

11

P-801P-601P-601M

5

*1B999-148-1(1B999-148)

B3001

シャッター組品Shutter unit

1

1

P-801

1

追加ADO-ED

*1B999-436

ガイドローラーGuide roller

1

1B999-164-2

2

F-801RP-9116

5

部組品表 Assembly List
FAA22052-R.3287.A

部組番号Part No.	補助番号Ckt No.	名称Name	1台分個数Pcs. Per Unit	大部組品番号Main assembly No.	参照図番Fig.No.	備考Remarks	要求単位Q'ty per order
*1B999-149-1(1B999-149)	B3002	F検知スイッチAPilm detection switch A	1		2	P-801	5
*1B999-150-1(1B999-150)	B3003	F検知スイッチBFilm detection switch B	1		2	P-801	5
*1B999-151-1(1B999-151)	B3004	シーケンスギア基板下地板Film advance mechanism unit	1		3	P-801	5
*1B999-152-2(1B999-152)	B3005	電池ホルダーハウスBattery holder house	1		13	P-801	5
*1B999-153-2(1B999-153)	B3006	シーケンス基板上地板Film advance lever unit	1		3	P-801	1
1B999-154-2	B3007	上カバー (P-801S)Top cover (P-801S)	1		1112		1
*1B999-155-3(1B999-155-2)	B3008	裏蓋Camera back	1		14	P-801	1
1B999-157-3	B3009	AF基板AF base plate	1	1B999-159-2	5		5
*1B999-158-1(1B999-158)	B3010	DX接点基板DX contact plate	1		1	P-801	5
1B999-159-2	B3011	前板Front plate	1		5,67,8		1
PAA221521B999-160-2	B3012	上カバー (N8008S)Top cover (N8008S)	1		1112		1
*1B999-163-1(1B999-163)	B3013	巻き戻し基板Rewind base plate	1		2	P-801	5
*1B999-164-1(1B999-164-2(1B999-164)	B3014	フィルムガイドローラーFilm guide roller	1		2	P-801	5
1B999-165-1	B3015	AF駆動ギア基板部AP driving gear plate	1	1B999-159-2	5		5
*1B999-197	B3017	シャッター幕組Shutter curtain	1			P-801	50
