Caractéristiques techniques	Capteur Super 35mm, 4.6K, 4608 x 2592 pixels, 15 stops de plage dynamique
Formats d'enregistrement	RAW, ProRes, jusqu'à 120 fps en 4.6K
Objectifs compatibles	Monture EF, compatible avec une large gamme d'objectifs Canon
Écran	Écran tactile LCD de 4 pouces, résolution 1920 x 1200
Connectivité	HDMI, SDI, USB-C, entrée audio XLR
Utilisation	Conçu pour la production cinématographique, la télévision et les documentaires
Maintenance	Nettoyage régulier du capteur recommandé, mise à jour du firmware
Sécurité	Utiliser des cartes mémoire compatibles, éviter l'exposition à l'humidité
Informations générales	Poids : 2.1 kg, dimensions : 12.5 x 15.5 x 15.5 cm

FOIRE AUX QUESTIONS - URSA Mini Pro 4.6K G2 Blackmagic Design

Comment allumer l'URSA Mini Pro 4.6K G2 ?

Pour allumer l'appareil, maintenez enfoncé le bouton d'alimentation situé sur le côté de l'appareil pendant quelques secondes jusqu'à ce que l'écran s'allume.

Comment changer la résolution d'enregistrement ?

Accédez au menu principal, sélectionnez 'Paramètres de la caméra', puis choisissez 'Résolution' pour ajuster la résolution d'enregistrement selon vos besoins.

Pourquoi l'écran reste-t-il noir ?

Vérifiez si la batterie est correctement chargée et installée. Si l'écran reste noir, essayez de redémarrer l'appareil.

Comment formater une carte mémoire ?

Insérez la carte mémoire, accédez au menu 'Stockage', sélectionnez la carte, puis choisissez l'option 'Formater'.

Comment résoudre les problèmes de surchauffe ?

Assurez-vous que l'appareil est bien ventilé et évitez de l'utiliser dans des environnements très chauds. Si la surchauffe persiste, laissez l'appareil refroidir avant de l'utiliser à nouveau.

Comment mettre à jour le firmware de l'appareil ?

Téléchargez la dernière version du firmware depuis le site de Blackmagic Design, copiez-la sur une carte mémoire, insérez la carte dans l'appareil et suivez les instructions à l'écran pour effectuer la mise à jour.

Comment régler la balance des blancs ?

Accédez au menu 'Paramètres de la caméra', puis sélectionnez 'Balance des blancs'. Vous pouvez choisir un préréglage ou effectuer un réglage manuel.

Pourquoi le son n'est-il pas enregistré ?

Vérifiez si le microphone est correctement connecté et sélectionné dans le menu audio. Assurez-vous également que les niveaux audio ne sont pas coupés.

Comment utiliser le mode RAW ?

Dans le menu 'Paramètres de la caméra', sélectionnez 'Format d'enregistrement' et choisissez 'RAW' pour activer l'enregistrement en format RAW.

Comment nettoyer l'objectif de l'appareil ?

Utilisez un chiffon en microfibre propre et sec pour essuyer délicatement la lentille. Évitez d'utiliser des produits chimiques agressifs.

Comment régler la vitesse d'obturation ?

Accédez au menu 'Paramètres de la caméra', puis sélectionnez 'Vitesse d'obturation' pour ajuster la vitesse selon vos besoins.

MODE D'EMPLOI URSA Mini Pro 4.6K G2 Blackmagic Design

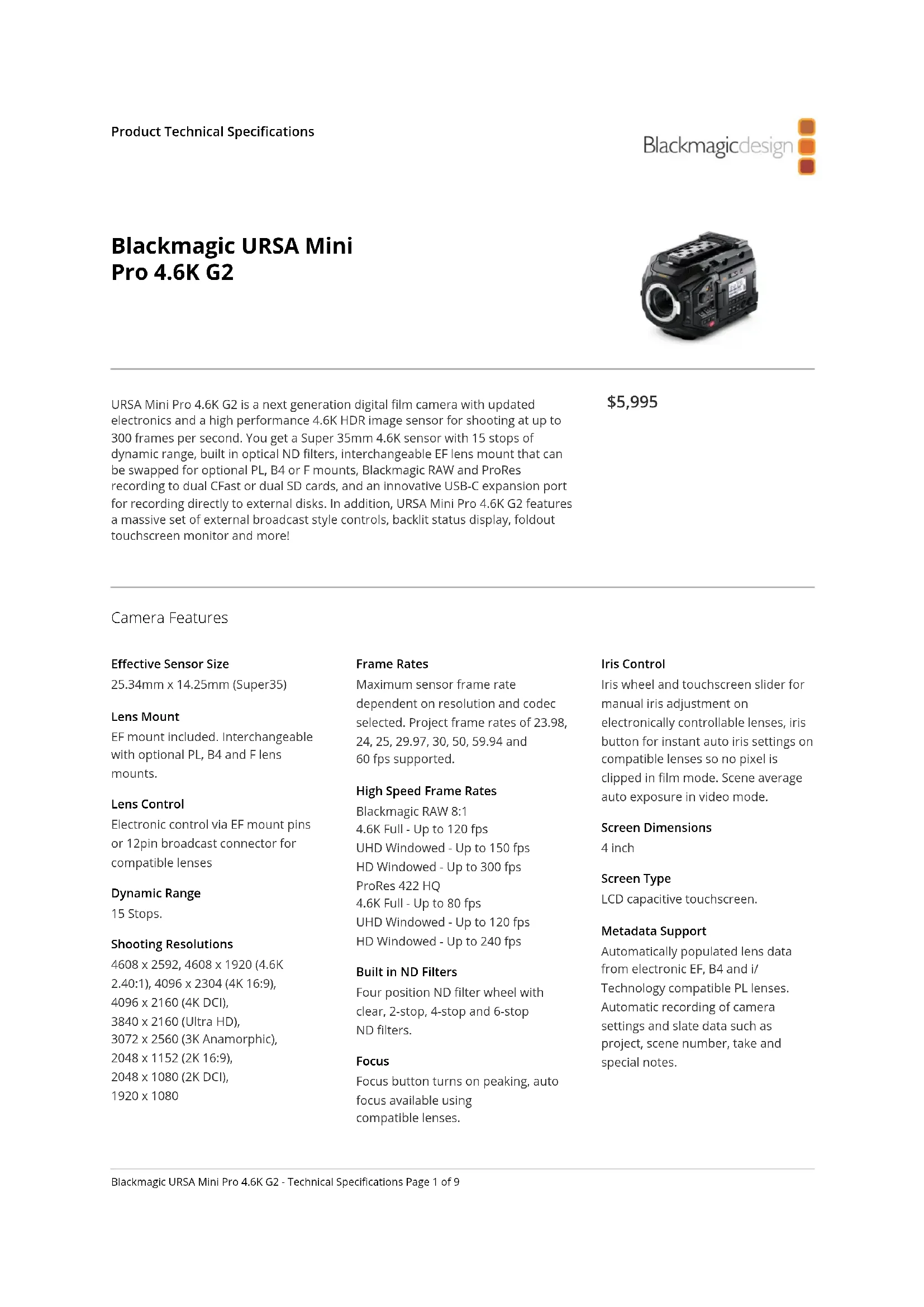

Blackmagic URSA Mini Pro 4.6K G2

Black studio video camera with lens and control buttons (no visible text or symbols)

URSA Mini Pro 4.6K G2 is a next generation digital film camera with updated electronics and a high performance 4.6K HDR image sensor for shooting at up to 300 frames per second. You get a Super 35mm 4.6K sensor with 15 stops of dynamic range, built in optical ND filters, interchangeable EF lens mount that can be swapped for optional PL, B4 or F mounts, Blackmagic RAW and ProRes recording to dual CFast or dual SD cards, and an innovative USB-C expansion port for recording directly to external disks. In addition, URSA Mini Pro 4.6K G2 features a massive set of external broadcast style controls, backlit status display, foldout touchscreen monitor and more!

\$5,995

Camera Features

Effective Sensor Size

25.34mm x 14.25mm (Super35)

Lens Mount

EF mount included. Interchangeable with optional PL, B4 and F lens mounts.

Lens Control

Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses

Dynamic Range

15 Stops.

Shooting Resolutions

4608 x 2592, 4608 x 1920 (4.6K)

2.40:1), 4096 x 2304 (4K 16:9),

4096 x 2160 (4K DCI),

3840 x 2160 (Ultra HD),

3072 x 2560 (3K Anamorphic),

2048 × 1152 (2K 16:9),

2048 x 1080 (2K DCI),

1920 × 1080

Frame Rates

Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.

High Speed Frame Rates

Blackmagic RAW 8:1

4.6K Full - Up to 120 fps

UHD Windowed - Up to 150 fps

HD Windowed - Up to 300 fps

ProRes 422 HQ

4.6K Full - Up to 80 fps

UHD Windowed - Up to 120 fps

HD Windowed - Up to 240 fps

Built in ND Filters

Four position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters.

Focus

Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screen Dimensions

4 inch

Screen Type

LCD capacitive touchscreen.

Metadata Support

Automatically populated lens data from electronic EF, B4 and i/ Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Controls

Touchscreen menus on 4 inch screen.

Push buttons for other controls.

2 assignable shortcut keys.

Timecode Clock

Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

Total Video Inputs

1 x SDI

Total Video Outputs

1 x SDI, 1 x SDI Monitoring.

SDI Rates

1.5G, 3G, 6G, 12G.

Analog Audio Inputs

2 x XLR analog switchable between mic, line and AES audio. Phantom power support.

Analog Audio Outputs

1 x 3.5mm headphone jack, supports iPhone microphone for talkback.

Reference Inputs

Tri-Sync/Black Burst/Timecode.

Remote Control

2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.

Computer Interface

USB Type-C 3.1 Gen 1 for external drive recording and software updates.

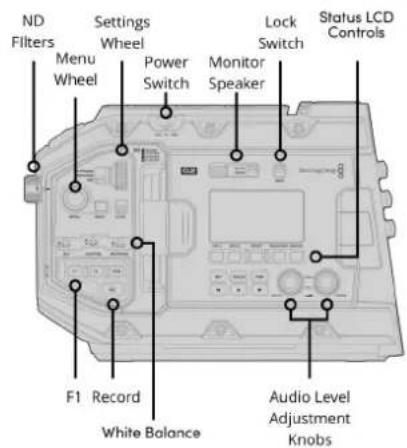

ND Filters Menu Wheel Settings Wheel Power Switch Monitor Speaker Lock Switch Status LCD Controls F1 Record White Balance Audio Level Adjustment Knobs

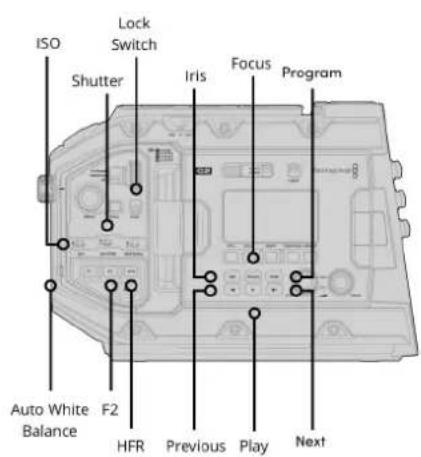

ISO Lock Switch Shutter Iris Focus Program Auto White Balance F2 HFR Previous Play Next

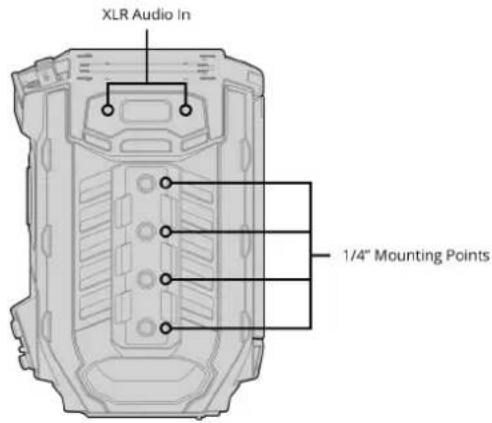

XLR Audio In 1/4" Mounting Points

3G SDI Out +12V Power Output Rosette LANC Broadcast Lens ControlConnector

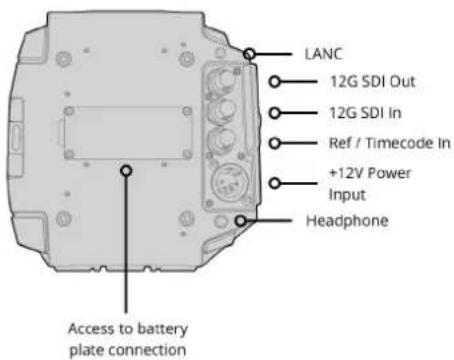

LANC 12G SDI Out 12G SDI In Ref / Timecode In +12V Power Input Headphone Access to battery plate connection

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Standards

SD Video Standards

None.

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

SDI Compliance

SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1

SDI Audio Sampling

48 kHz and 24 bit

Media

Media

2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 1

expansion port for external media for Blackmagic RAW and

ProRes recording.

Please refer to either the Manual or the Information Note

at www.blackmagicdesign.com/support for compatible media.

Media Format

Can format media to ExFAT

(Windows/Mac) or HFS+ (Mac)

file systems.

Supported Codecs

Codecs

Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1,

Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5, Apple ProRes XQ QuickTime, Apple ProRes 444 QuickTime,

Apple ProRes 422 HQ QuickTime, Apple ProRes 422 QuickTime,

Apple ProRes 422 HQ QuickTime,

Apple ProRes 422 LT QuickTime and

Apple ProRes 422 Proxy QuickTime.

Control

External Control

Blackmagic SDI Control Protocol, iPad control, Bluetooth control, 2 x 2.5mm LANC for lens and record control.

Color Corrector

Color Corrector

DaVinci YRGB.

Talkback and Tally

Talkback

SDI Channels 15/16 and iPhone

headset.

Live Tally Indicator

Tally on LCD, URSA Viewfinder and

URSA Studio Viewfinder.

Storage Features

Storage Type

2 x CFast 2.0

2 x SD UHS-II cards

1 x high speed USB-C expansion port

for external media.

Storage Rates

Storage rates based on 30 frames

per second.

4608 × 2592

Blackmagic RAW 5:1 - 110 MB/s

Blackmagic RAW 8:1 - 68 MB/s

Blackmagic RAW 12:1 - 46 MB/s

Blackmagic RAW Q0 - 110 to 274 MB/

s*

Blackmagic RAW Q5 - 27 to 78 MB/s

**

Apple ProRes XQ - 360 MB/s

Apple ProRes 444 - 238 MB/s

Apple ProRes HQ - 158 MB/s

Apple ProRes 422 - 106 MB/s

Apple ProRes LT - 73.5 MB/s

Apple ProRes Proxy - 32.3 MB/s

3840 × 2160

Blackmagic RAW 3:1 - 127 MB/s

Blackmagic RAW 5:1 - 76 MB/s

Blackmagic RAW 8:1 - 48 MB/s

Blackmagic RAW 12:1 - 32 MB/s

Blackmagic RAW Q0 - 76 to 191 MB/s

*

Blackmagic RAW Q5 - 19 to 55 MB/s

**

Apple ProRes XQ - 250 MB/s

Apple ProRes 444 - 165 MB/s

Apple ProRes HQ - 110 MB/s

Apple ProRes 422 - 73.6 MB/s

Apple ProRes LT - 51 MB/s

Apple ProRes Proxy - 22.4 MB/s

1920 × 1080

Blackmagic RAW 3:1 - 33 MB/s

Blackmagic RAW 5:1 - 20 MB/s

Blackmagic RAW 8:1 - 12 MB/s

Blackmagic RAW 12:1 - 8 MB/s

Blackmagic RAW Q0 - 20 to 49 MB/s *

Blackmagic RAW Q5 - 5 to 14 MB/s **

Apple ProRes XQ - 62.5 MB/s

Apple ProRes 444 - 41.25 MB/s

Apple ProRes HQ - 27.5 MB/s

Apple ProRes 422 - 18.4 MB/s

Apple ProRes LT - 12.75 MB/s

Apple ProRes Proxy - 5.6 MB/s

* Constant Quality setting Q0 storage rates quoted are indicative only, based on a 2:1 - 5:1 compression range.

** Constant Quality setting Q5 storage rates quoted are indicative only, based on a 7:1 - 20:1 compression range.

Actual storage rates are entirely dependent on image subject matter.

Recording Formats

Blackmagic RAW Q0, Q5, 3:1, 5:1, 8:1

and 12:1 at 4608 x 2592, 4608 x 1920,

4096 x 2304, 4096 x 2160, 3840 x

2160, 3072 x 2560, 2048 x 1152, 2048

x 1080 and 1920 x 1080 with film,

extended video or video

dynamic range.

ProRes at 4608 x 2592, 4608 x 1920,

4096 x 2304, 4096 x 2160, 3840 x

2160, 3072 x 2560, 2048 x 1152, 2048

x 1080 and 1920 x 1080 with film,

extended video or video

dynamic range.

Software

Software Included

URSA Mini Operating System

DaVinci Resolve Studio for Mac and Windows including activation key

Blackmagic Camera Setup

Blackmagic RAW Player

Blackmagic RAW QuickLook Plugin

Blackmagic RAW SDK

Operating Systems

Mac 10.13 High Sierra,

Mac 10.14 Mojave or later.

Windows 8.1 or Windows 10.

Power Requirements

Power Supply

1 x External 12V power supply. 12 pin Molex connector for rear battery plate.

External Power Input

1 x 4 pin XLR port for external power or battery use.

1 x 12 pin molex connector on rear battery plate.

Custom V-mount battery plate with

D-tap +12V regulated output from camera.

Power

Rear camera mount compatible with industry standard V-mount or gold mount battery plates.

Accessories

Optional Accessories

URSA Mini Pro PL, EF, B4 and F Mounts

URSA Mini Pro Shim Kit

URSA Mini Shoulder Kit including top handle and extender arm

URSA Viewfinder

URSA Studio Viewfinder

URSA Mini SSD Recorder

URSA VLock Battery Plate

URSA Gold Battery Plate

URSA Mini Mic Mount

URSA Mini Top Handle

URSA Handgrip

Blackmagic Camera Fiber Converter

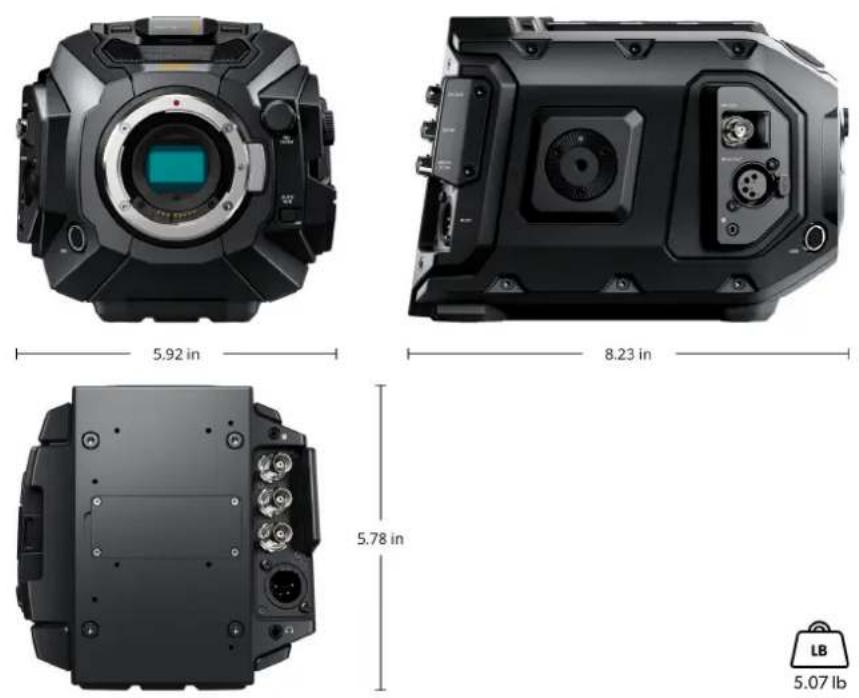

Physical Specifications

Environmental Specifications

Operating Temperature

0^ to 40^ (32° to 104°F)

Storage Temperature

-20° to 45°C (-4° to 113°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic URSA Mini Pro 4.6K G2 body

Turret dust cap

EF lens mount

Power supply

SD card with software and manual

DaVinci Resolve Studio with activation key

Warranty

12 Month Limited Manufacturer's

Warranty.
