MZ-R91 - Lecteur MiniDisc SONY - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Lecteur/enregistreur MiniDisc portable
Marque	Sony
Modèle	MZ-R91
Dimensions (L x H x P)	78,9 x 18,0 x 72,0 mm
Poids	110 g (corps seul), 153 g (avec batterie NH-14WM)
Alimentation	Adaptateur secteur CA (fourni), batterie rechargeable NH-14WM (fournie), piles alcalines LR6 (non fournies)
Autonomie en enregistrement	Environ 6,5 h (batterie NH-14WM), environ 4 h (pile alcaline)
Autonomie en lecture	Environ 12 h (batterie NH-14WM), environ 16,5 h (pile alcaline)
Fonctions principales	Enregistrement numérique/analogique, lecture, édition de pistes (nommer, déplacer, effacer), copie de texte CD, enregistrement synchro, contrôle manuel du niveau d’enregistrement, mémoire antichoc (40 secondes)
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Ne pas utiliser de solvants ni de produits abrasifs.
Sécurité	Ne pas exposer à l’humidité, aux chocs violents ou à des températures extrêmes. Utiliser uniquement les accessoires recommandés.
Pièces détachées et réparabilité	Batterie rechargeable NH-14WM, télécommande filaire, adaptateur secteur, câbles optiques et audio disponibles en option.
Informations générales	Relecture de disques MiniDisc enregistrés et préenregistrés. Fonction d’étiquetage des pistes et disques. Horloge intégrée avec estampille temporelle.

FOIRE AUX QUESTIONS - MZ-R91 SONY

Comment enregistrer un disque MiniDisc avec le Sony MZ-R91 ?

Connectez la source audio (analogique ou numérique) au lecteur, insérez un MiniDisc enregistrable, puis faites glisser l'interrupteur REC vers la droite. L'enregistrement commence. Appuyez sur ■ pour arrêter.

Comment charger la batterie rechargeable NH-14WM ?

Insérez la batterie dans le lecteur, branchez l'adaptateur secteur fourni, puis appuyez sur /CHARGE. Le témoin Charging clignote. La charge complète prend environ 3 heures.

Que faire si le message 'PROTECTED' apparaît ?

Le disque est protégé contre l'écriture. Faites glisser la languette sur le côté du MiniDisc vers la position ouverte (non protégée).

Comment effacer une piste enregistrée ?

Pendant la lecture de la piste à effacer, appuyez sur la molette jusqu'à voir 'EDIT', sélectionnez 'Erase', puis confirmez. La piste est supprimée.

Comment nommer une piste ou un disque ?

Appuyez sur la molette en mode arrêt ou lecture pour entrer dans le menu EDIT, sélectionnez 'Name', puis saisissez le nom (jusqu'à 200 caractères) à l'aide de la molette. Validez en maintenant la molette enfoncée 2 secondes.

Quelle est la durée de vie de la batterie rechargeable ?

Avec la batterie NH-14WM, vous obtenez environ 6,5 heures d'enregistrement ou 12 heures de lecture. Les piles alcalines LR6 offrent environ 4 heures d'enregistrement ou 16,5 heures de lecture.

Puis-je utiliser des piles alcalines ?

Oui, utilisez le boîtier à piles fourni avec deux piles LR6 (AA). Insérez-les en respectant la polarité.

Comment régler le volume ?

Utilisez les touches VOL + et VOL - sur le lecteur ou la télécommande. Si le paramètre 'AUDIO OUT' est réglé sur 'LINE OUT', le volume ne fonctionne pas.

Que signifie 'TOC Edit' ?

Le lecteur met à jour la table des matières du disque. Ne pas déplacer l'appareil ni couper l'alimentation pendant que ce message clignote.

Comment connecter l'appareil à une chaîne stéréo ?

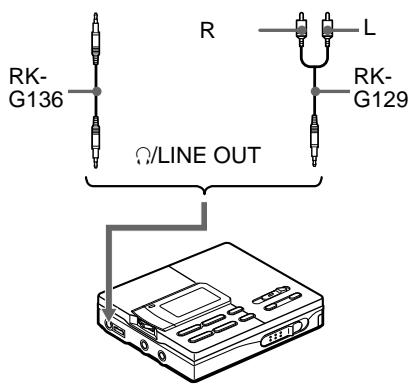

Branchez un câble audio (non fourni) de la prise /LINE OUT du lecteur à l'entrée LINE IN de l'ampli. Réglez le paramètre 'AUDIO OUT' sur 'LINE OUT' via la molette.
