MODE D'EMPLOI ME03CE1 GIGABYTE

GIGABYTE

ME03-CEO

ME03-CE1

AMD EPYC™ 8004 UP Server Board

User Manual

Rev. 1.0

Copyright

© 2023 Giga Computing Technology CO., LTD. All rights reserved.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of Giga Computing. Changes to the specifications and features in this manual may be made by Giga Computing without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without Giga Computing's prior written permission.

Documentation Classifications

In order to assist in the use of this product, Giga Computing provides the following types of documentation:

■ User Manual: detailed information & steps about the installation, configuration and use of this product (e.g. motherboard, server barebones), covering hardware and BIOS.
■ User Guide: detailed information about the installation & use of an add-on hardware or software component (e.g. BMC firmware, rail-kit) compatible with this product.
■ Quick Installation Guide: a short guide with visual diagrams that you can reference easily for installation purposes of this product (e.g. motherboard, server barebones).

Please see the support section of the online product page to check the current availability of these documents.

For More Information

For related product specifications, the latest firmware and software, and other information please visit our website at http://www.gigabyte.com/Enterprise

For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our reseller portal: http://reseller.b2b.gigabyte.com

For further technical assistance, please contact your GIGABYTE representative or visit https://esupport.gigabyte.com/ to create a new support ticket

For any general sales or marketing enquiries, you may also message GIGABYTE server directly by email: [e-mail]

Table of Contents

ME03-CE0/ME03-CE1 Motherboard Layout 5
Block Diagram 7

Chapter 1 Hardware Installation .8

1-1 Installation Precautions 8
1-2 Product Specifications 9
1-3 Installing and Removing the CPU 12
1-4 Installing and Removing Memory 13

1-4-1 Six-Channel Memory Configuration 13
1-4-2 Installing and Removing a Memory Module 14
1-4-3 DIMM Population Table 15
1-4-4 Processor and Memory Module Matrix Table 15

1-5 Installing the M.2 SSD Module 16
1-6 Back Panel Connectors 17
1-7 Internal Connectors 19
1-8 Jumper Settings 27

Chapter 2 BIOS Setup 28

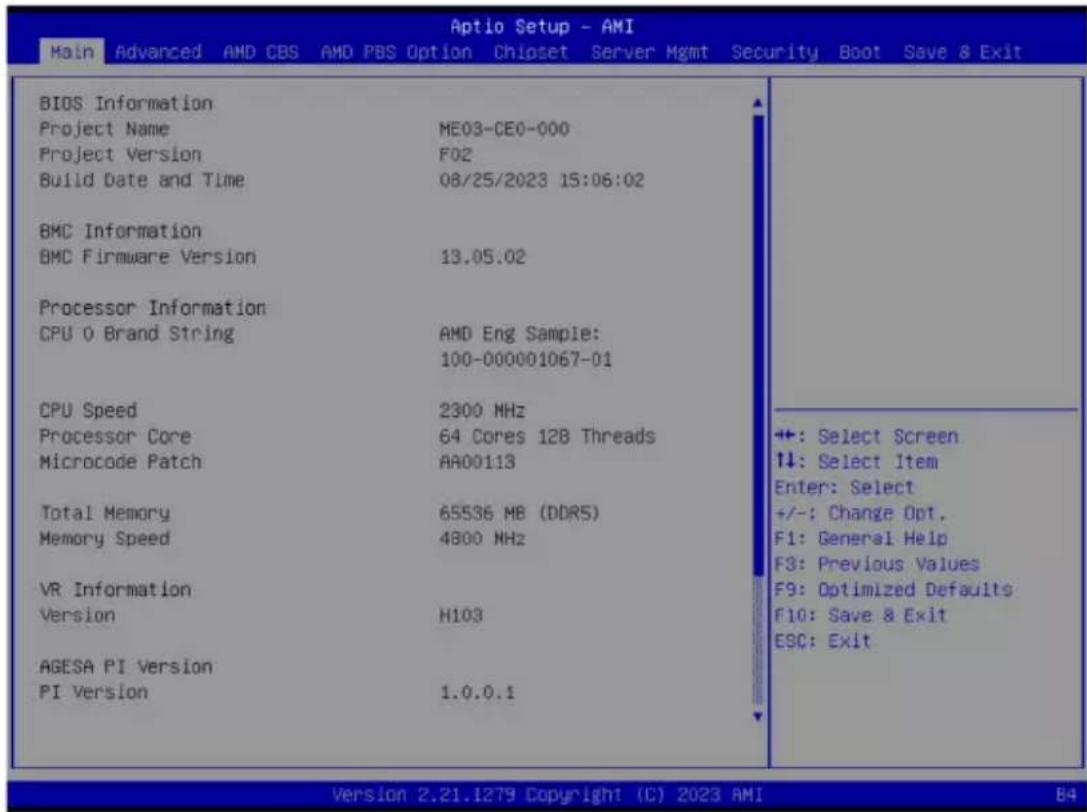

2-1 The Main Menu 30

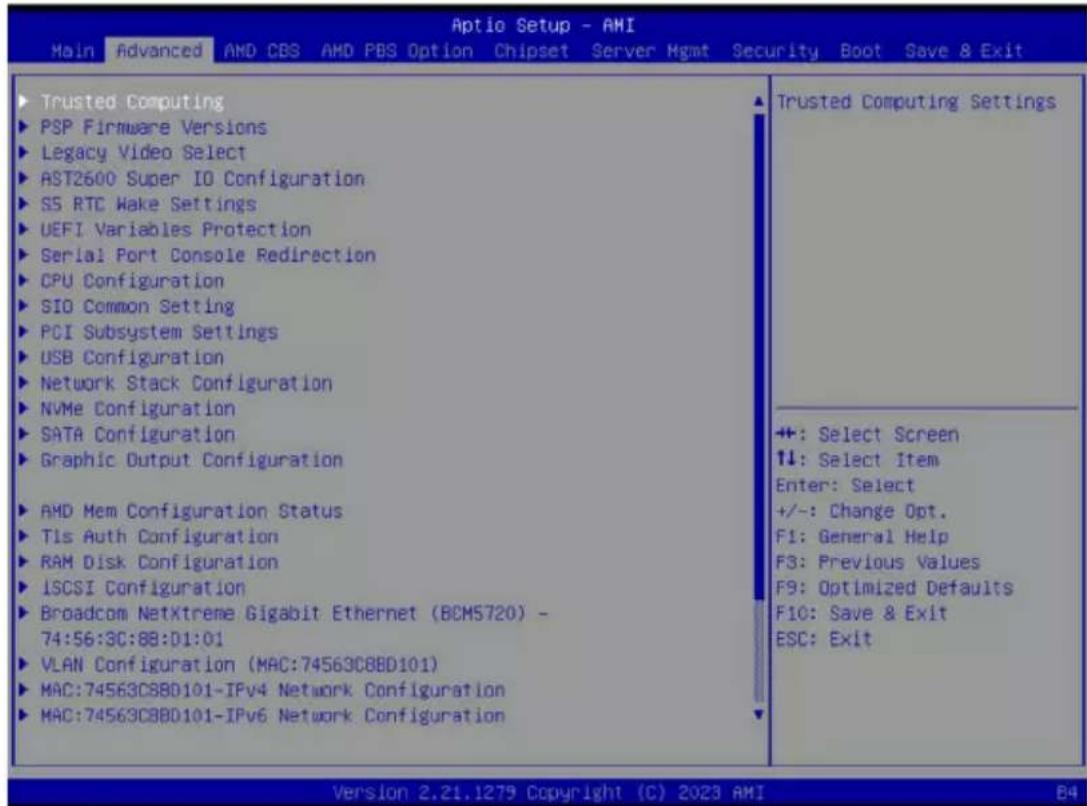

2-2 Advanced Menu 33

2-2-1 Trusted Computing 36
2-2-2 PSP Firmware Versions. 37

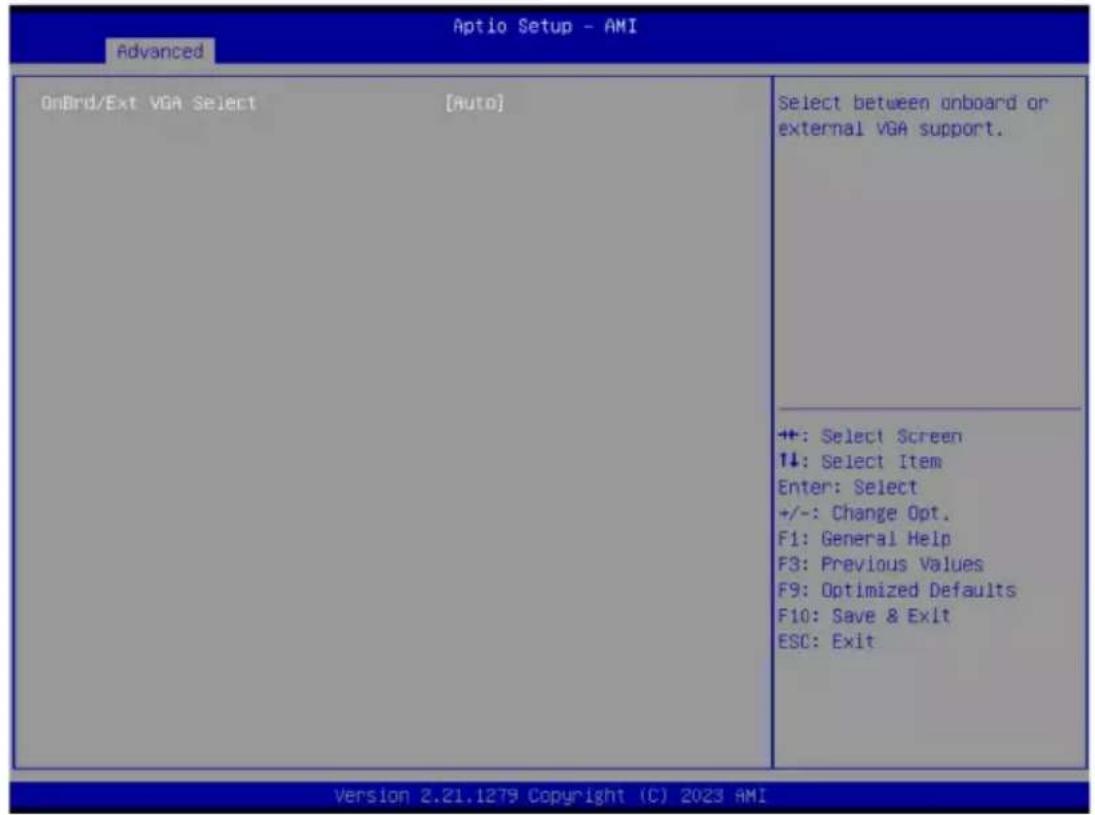

2-2-3 Legacy Video Select 38

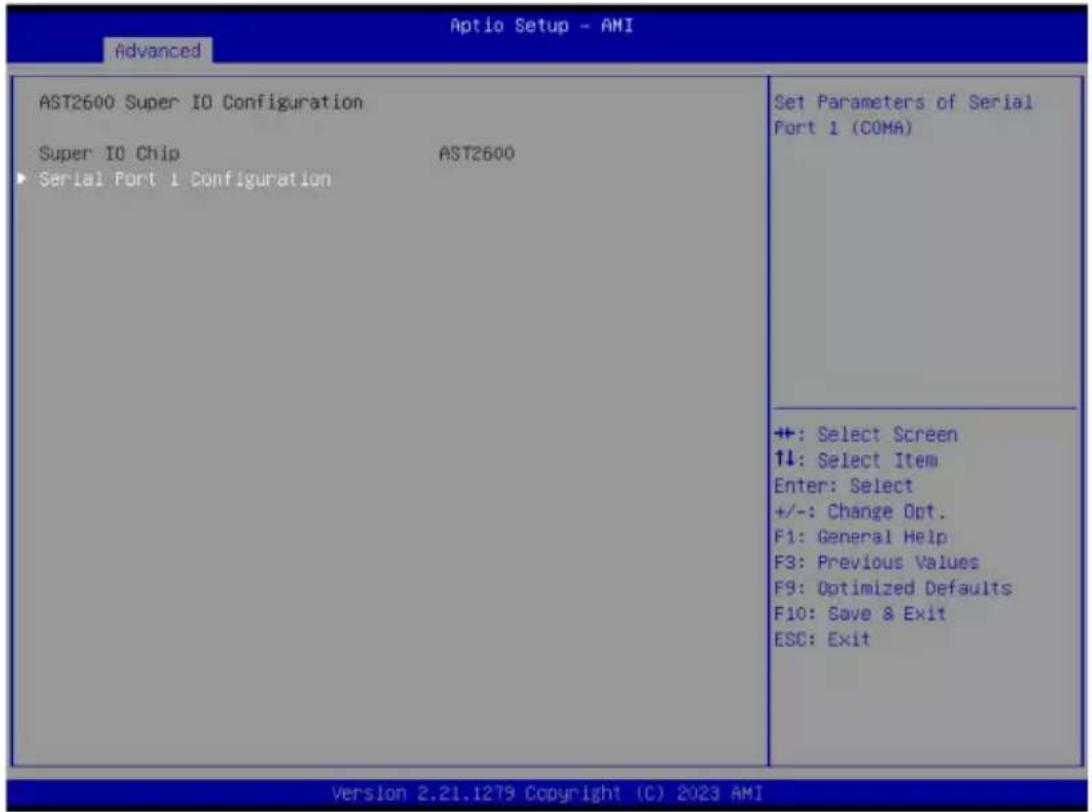

2-2-4 AST2600 Super IO Configuration 39

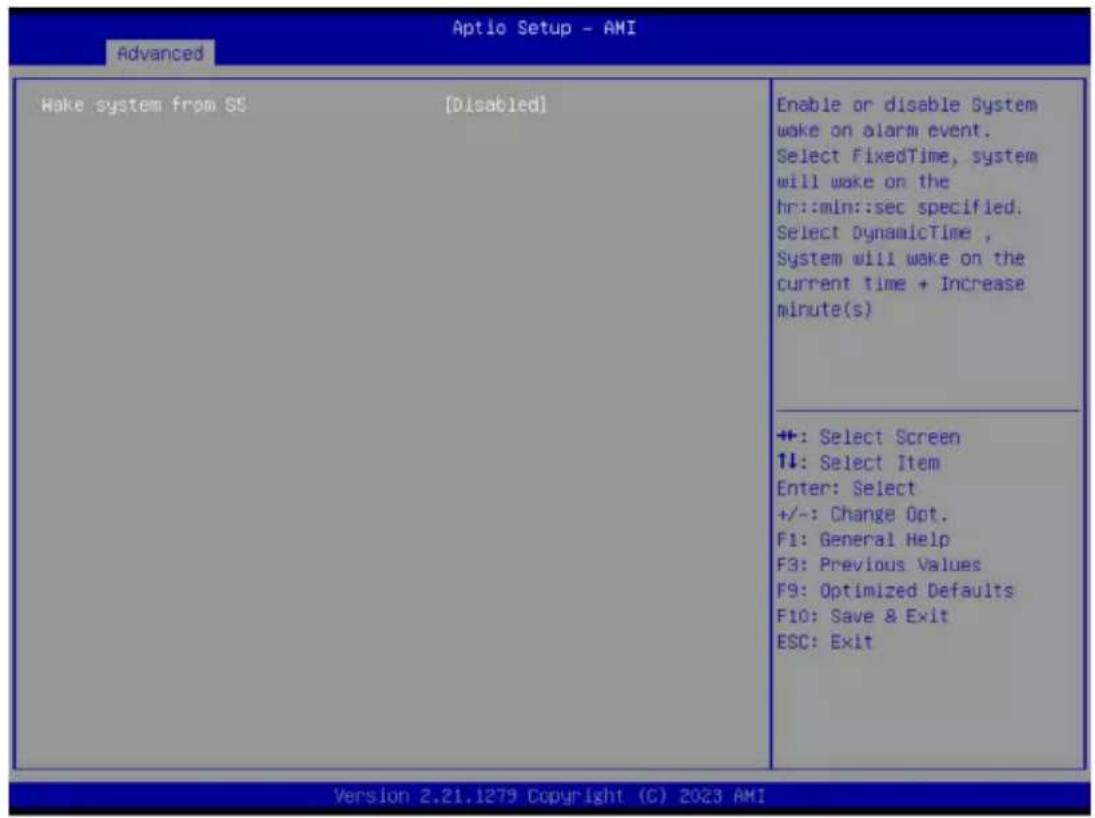

2-2-5 S5 RTC Wake Settings. 41
2-2-6 UEFI Variables Protection 42
2-2-7 Serial Port Console Redirect 43

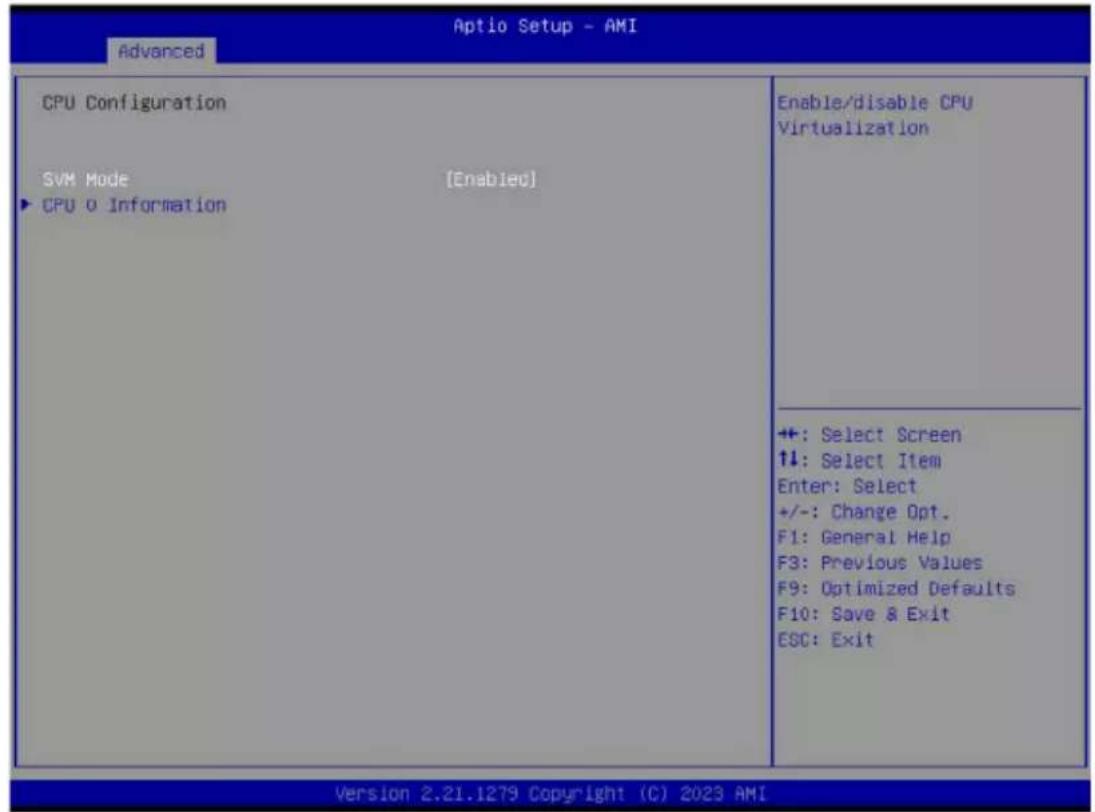

2-2-8 CPU Configuration 47

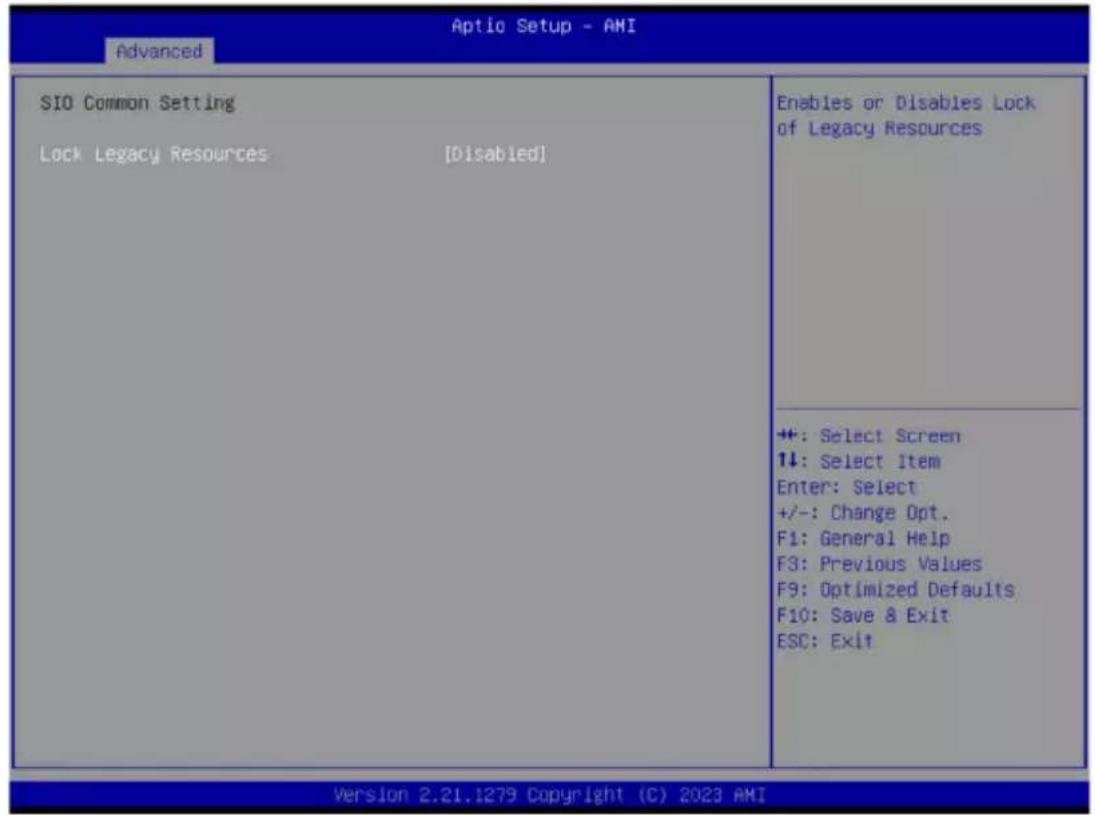

2-2-9 SIO Common Setting. 48

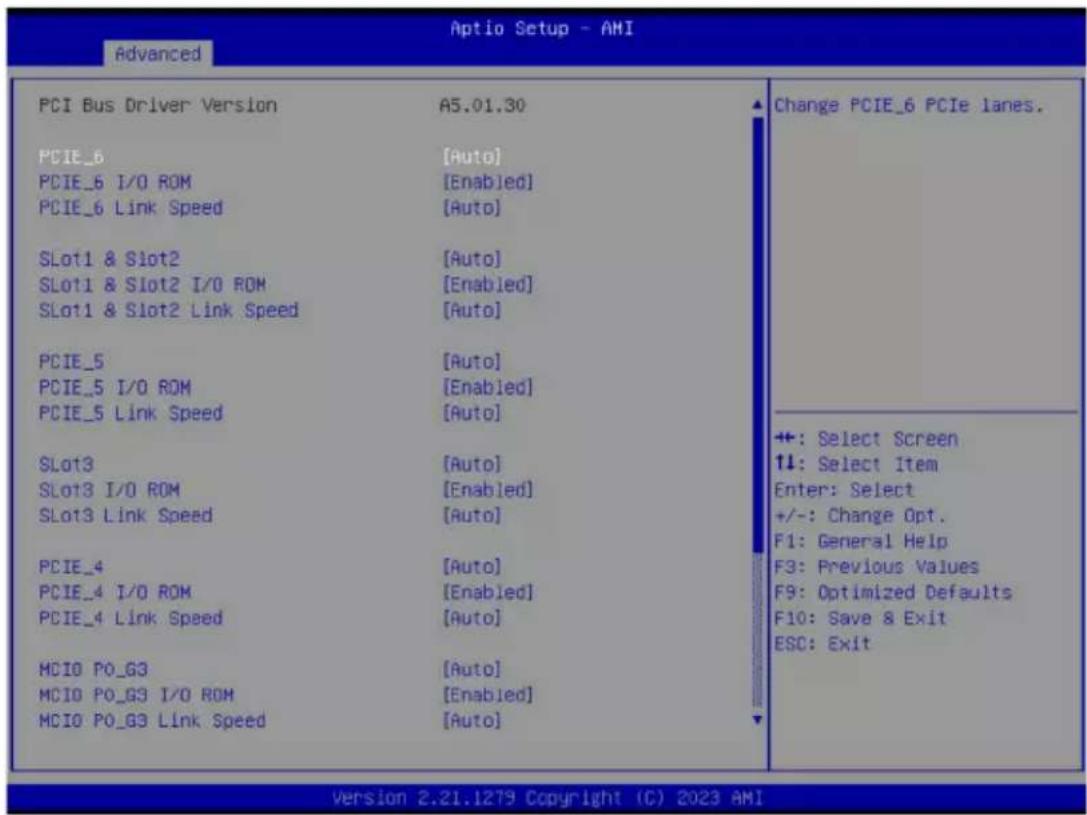

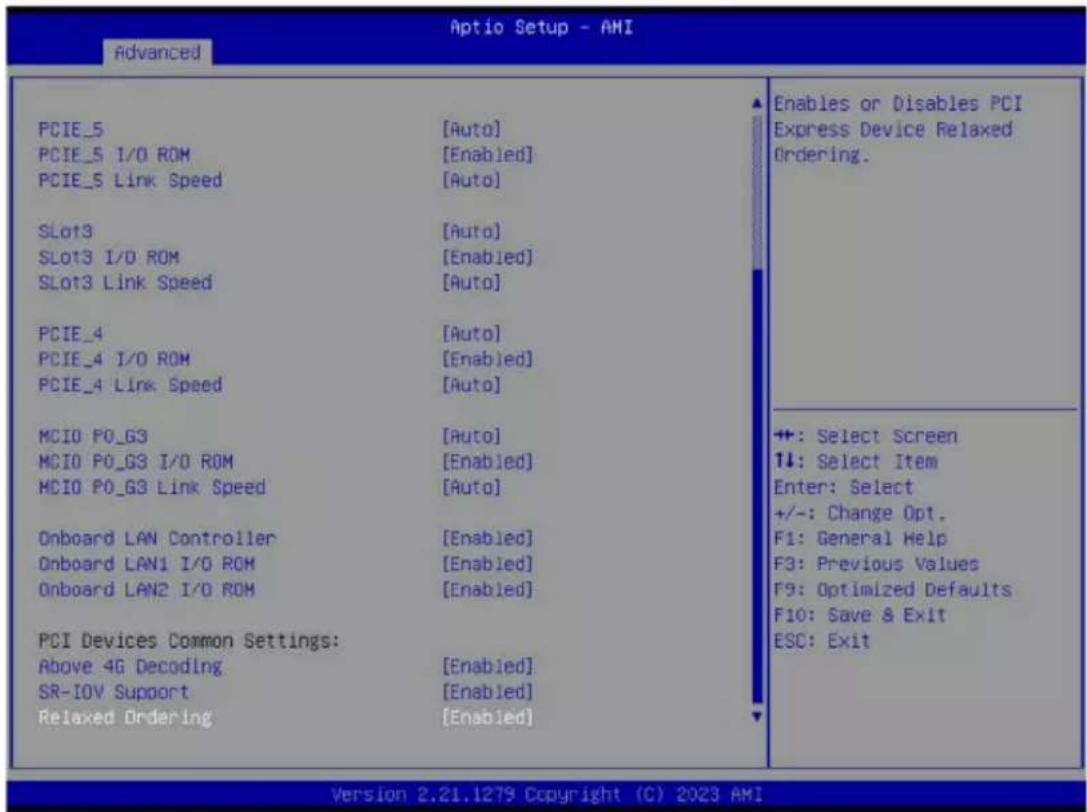

2-2-10 PCI Subsystem Settings. 49

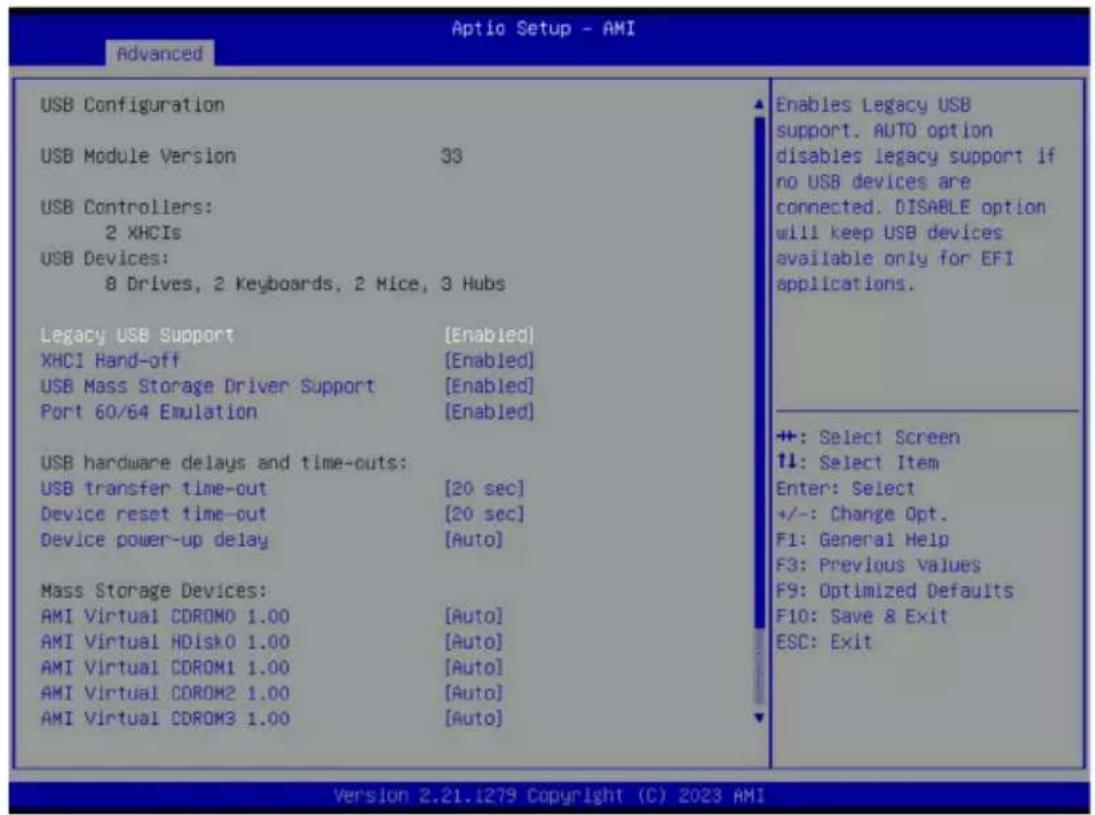

2-2-11 USB Configuration 51
2-2-12 Network Stack Configuration 53

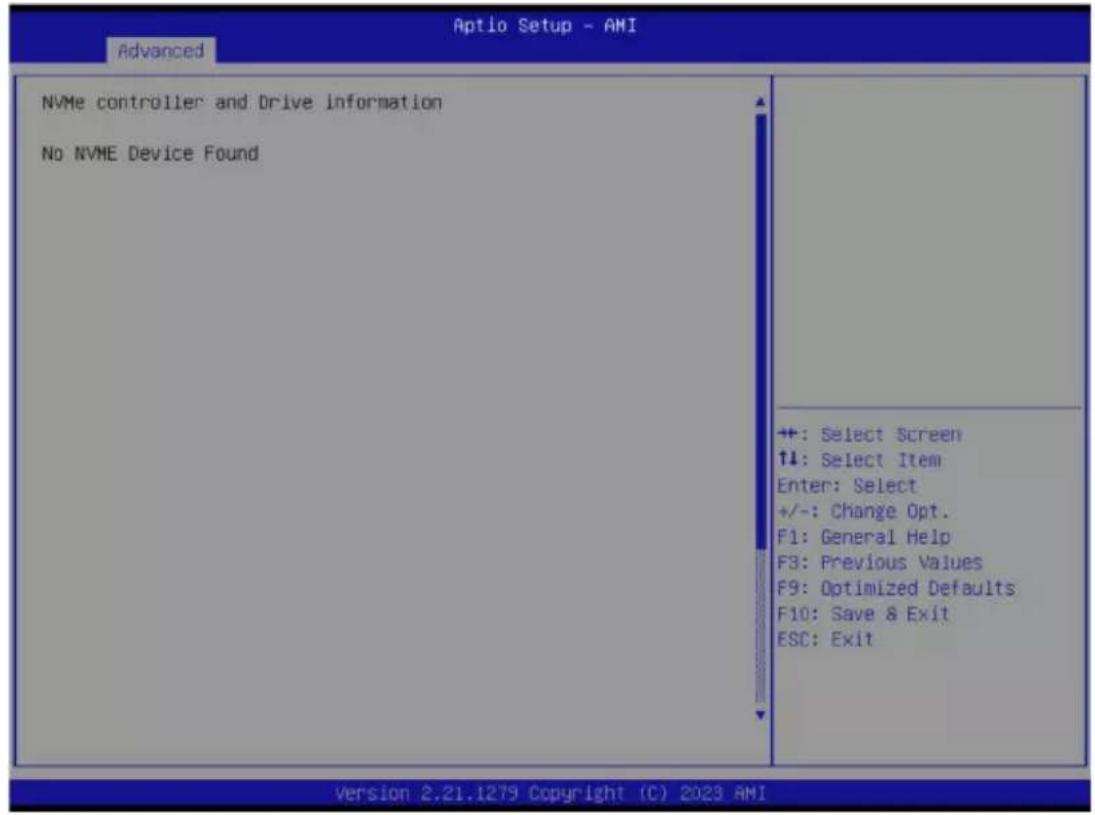

2-2-13 NVMe Configuration 54

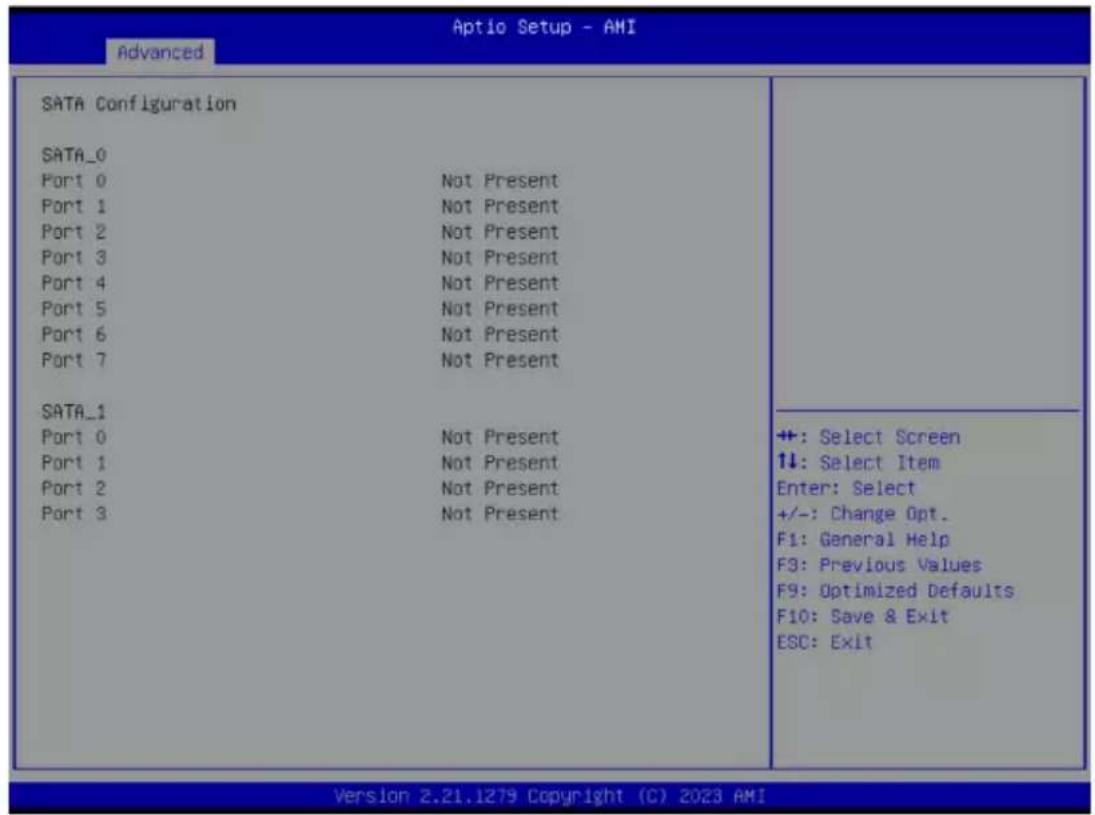

2-2-14 SATA Configuration 55
2-2-15 Graphic Output Configuration. 56
2-2-16 AMD Mem Configuration Status 57
2-2-17 TIs Auth Configuration 58

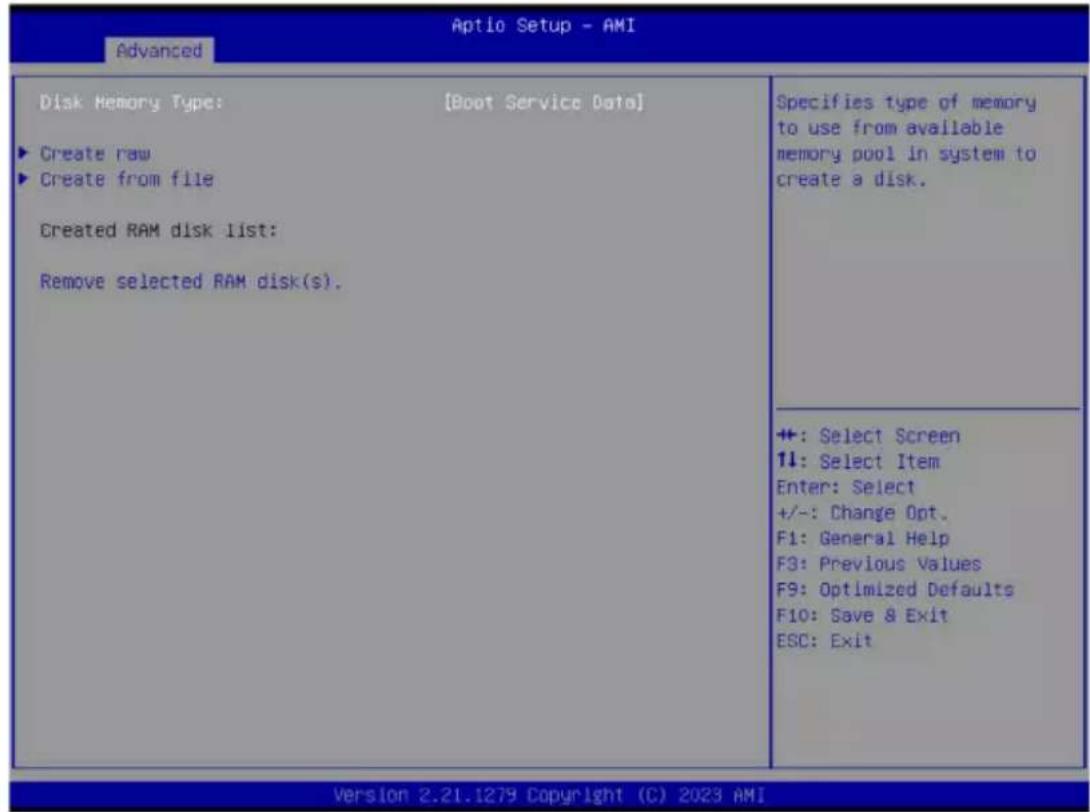

2-2-18 RAM Disk Configuration 59

2-2-19 iSCSI Configuration 60
2-2-20 Broadcom BCM57416 NetXtreme-E 10GBASE-T RDMA Ethernet. 61

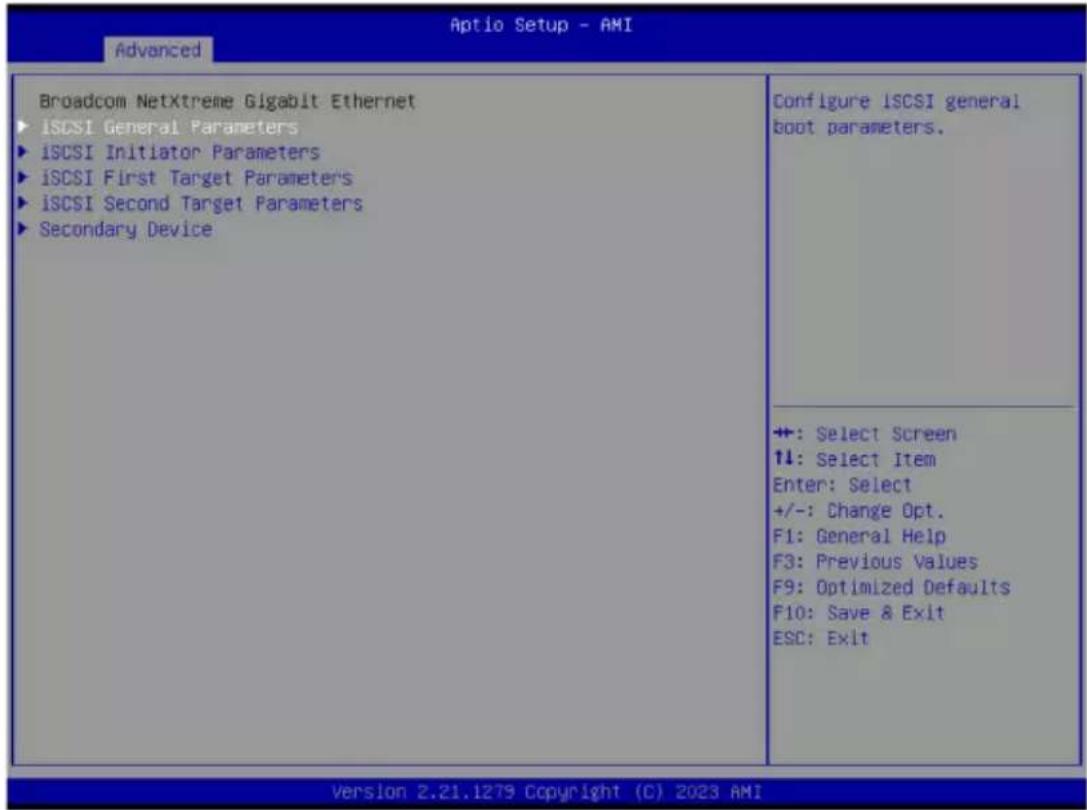

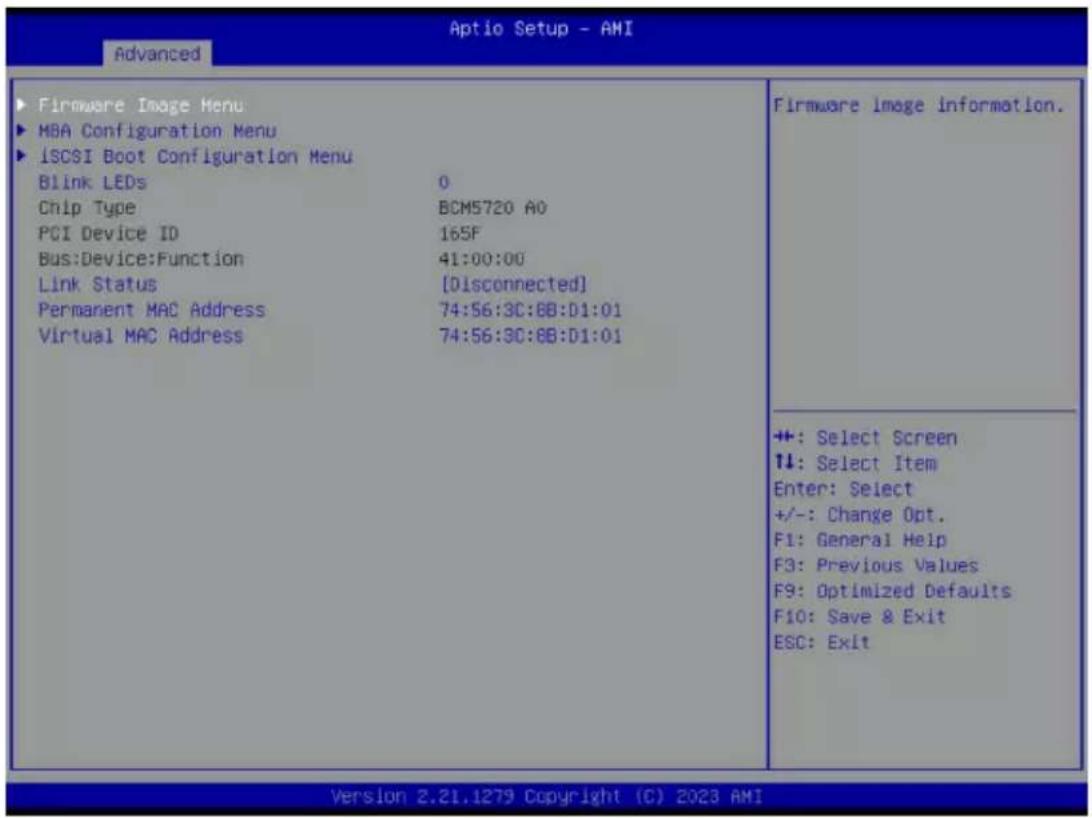

2-2-21 Broadcom NetXtreme BCM5720 Gigabit Ethernet 64
2-2-22 VLAN Configuration 69

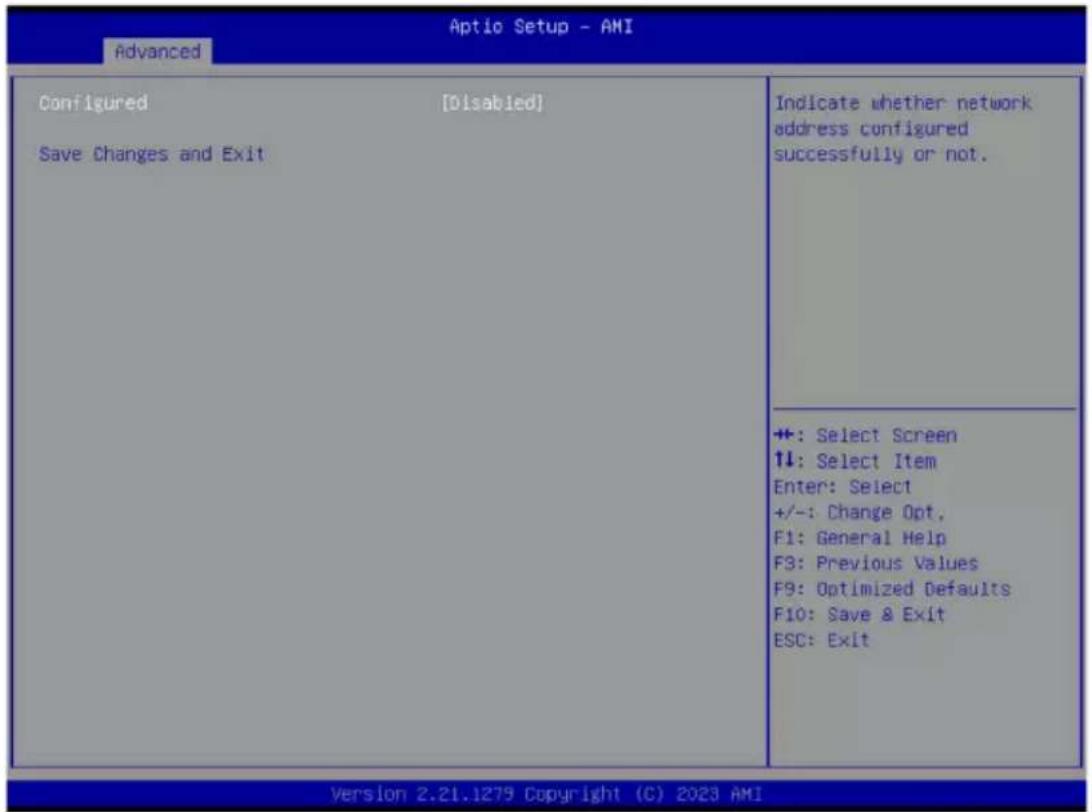

2-2-23 MAC IPv4 Network Configuration 70

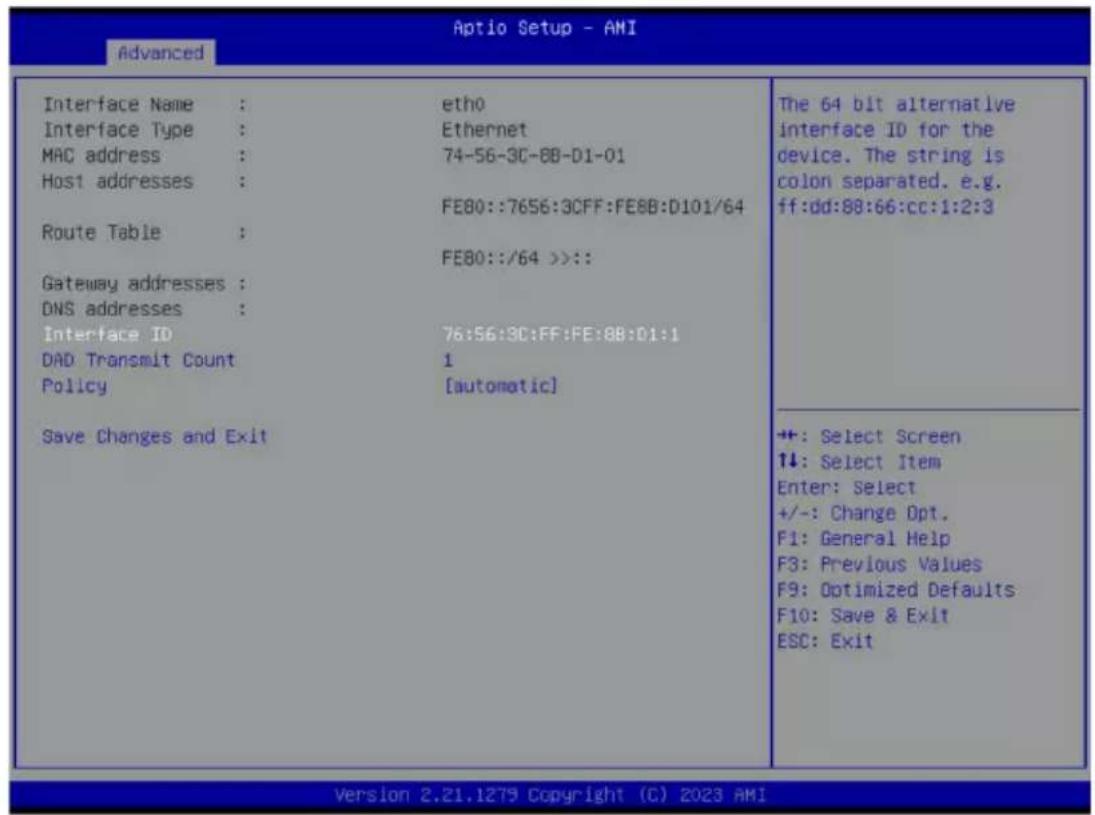

2-2-24 MAC IPv6 Network Configuration 71

2-3 AMD CBS Menu 72

2-3-1 CPU Common Options 73
2-3-2 DF Common Options. 79

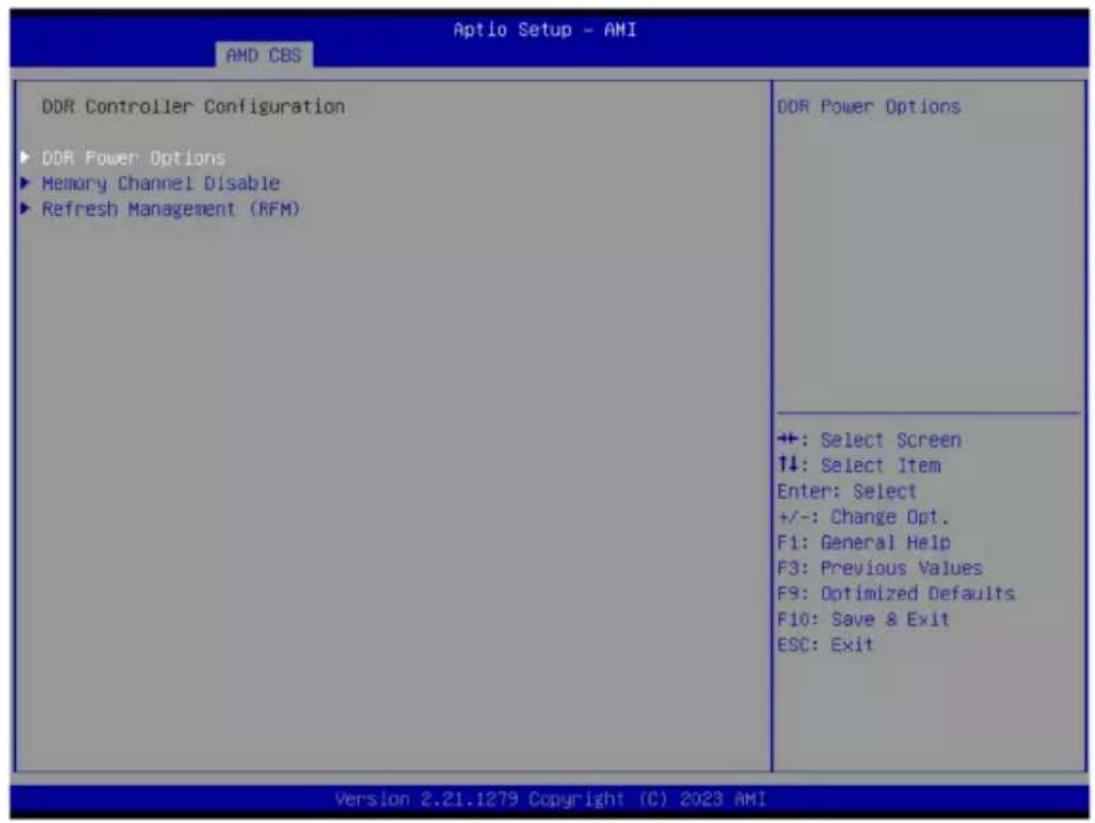

2-3-3 UMC Common Options 87

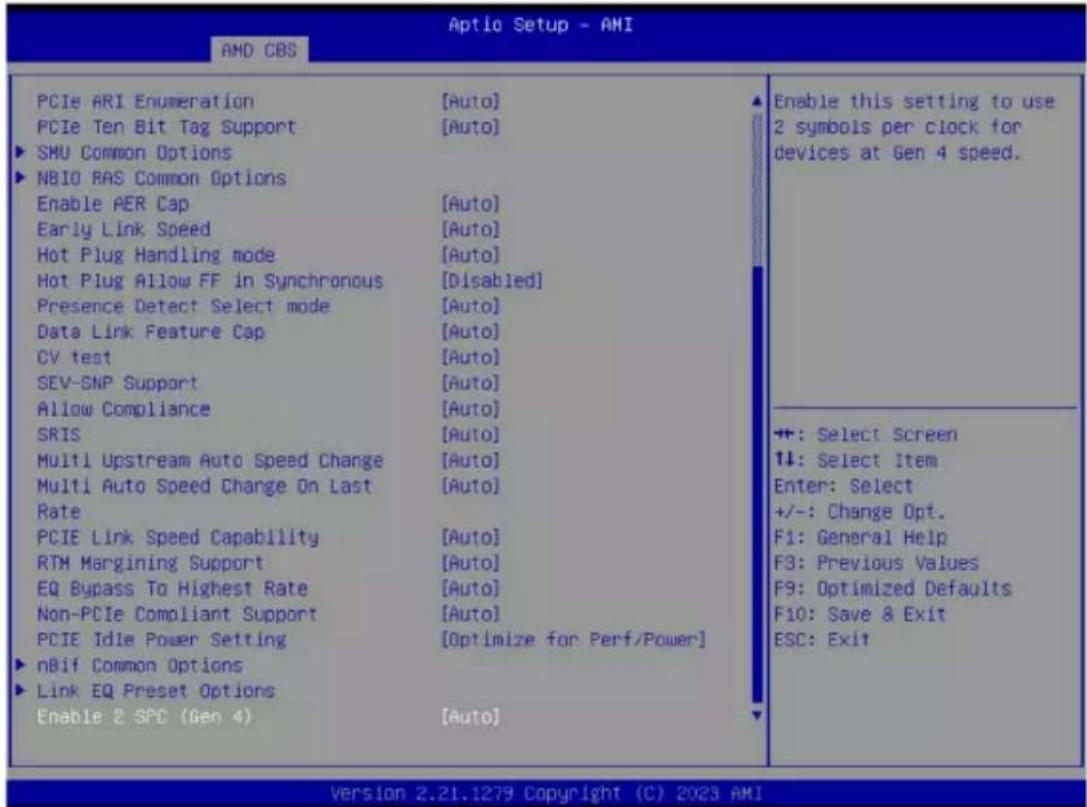

2-3-4 NBIO Common Options 108
2-3-5 FCH Common Options 119
2-3-6 SOC Miscellaneous Control 128

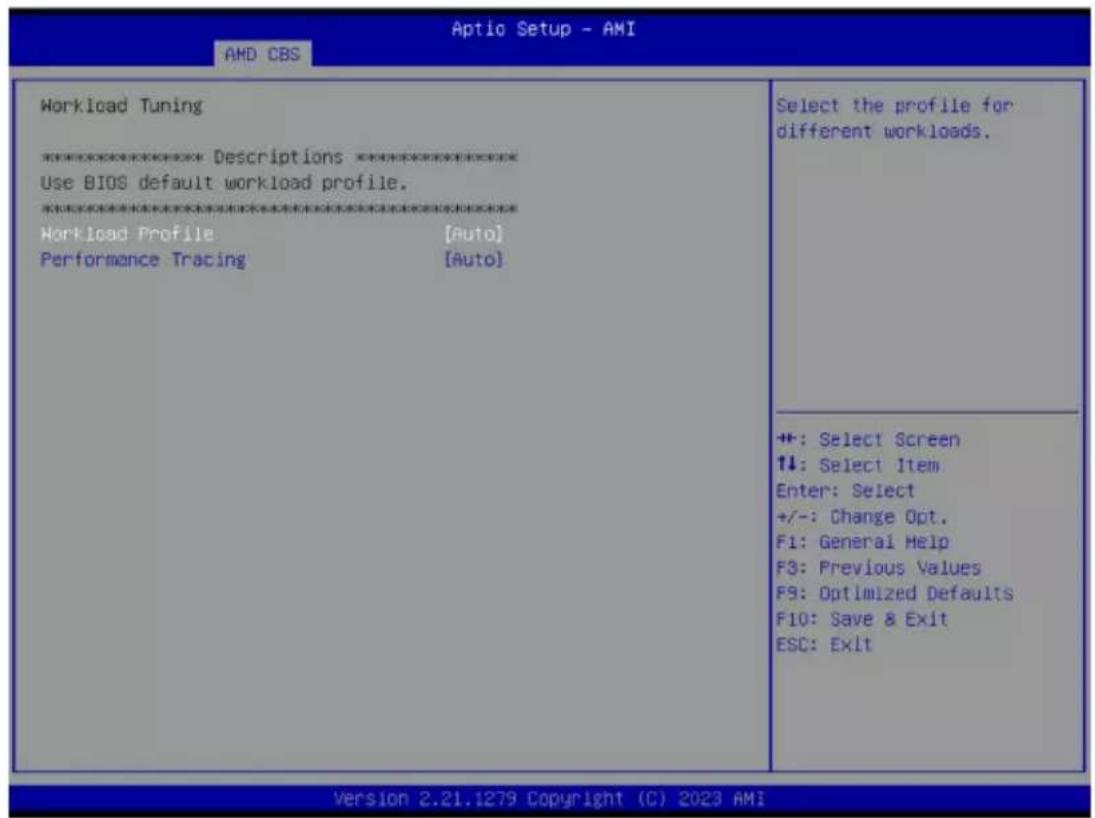

2-3-7 Workload Tuning. 130
2-3-8 CXL Common Options. 131

2-4 AMD PBS Menu 132

2-4-1 RAS 133

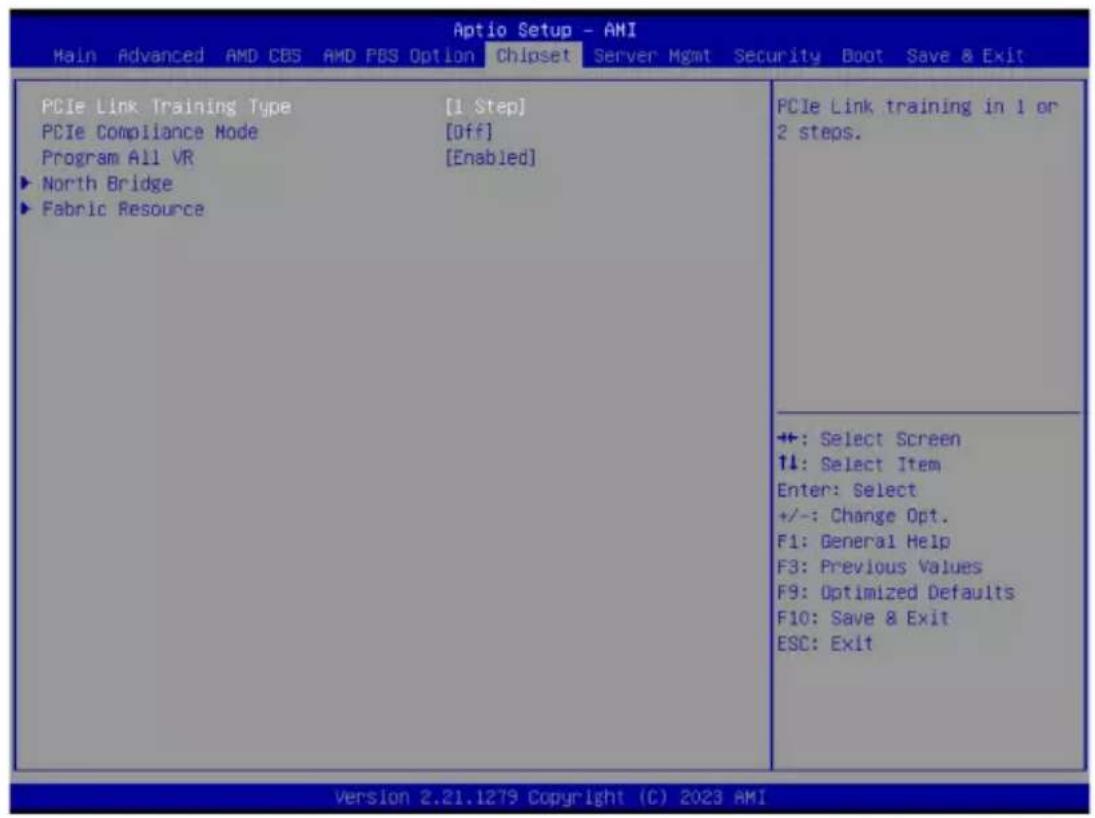

2-5 Chipset Setup Menu. 135

2-5-1 North Bridge 136

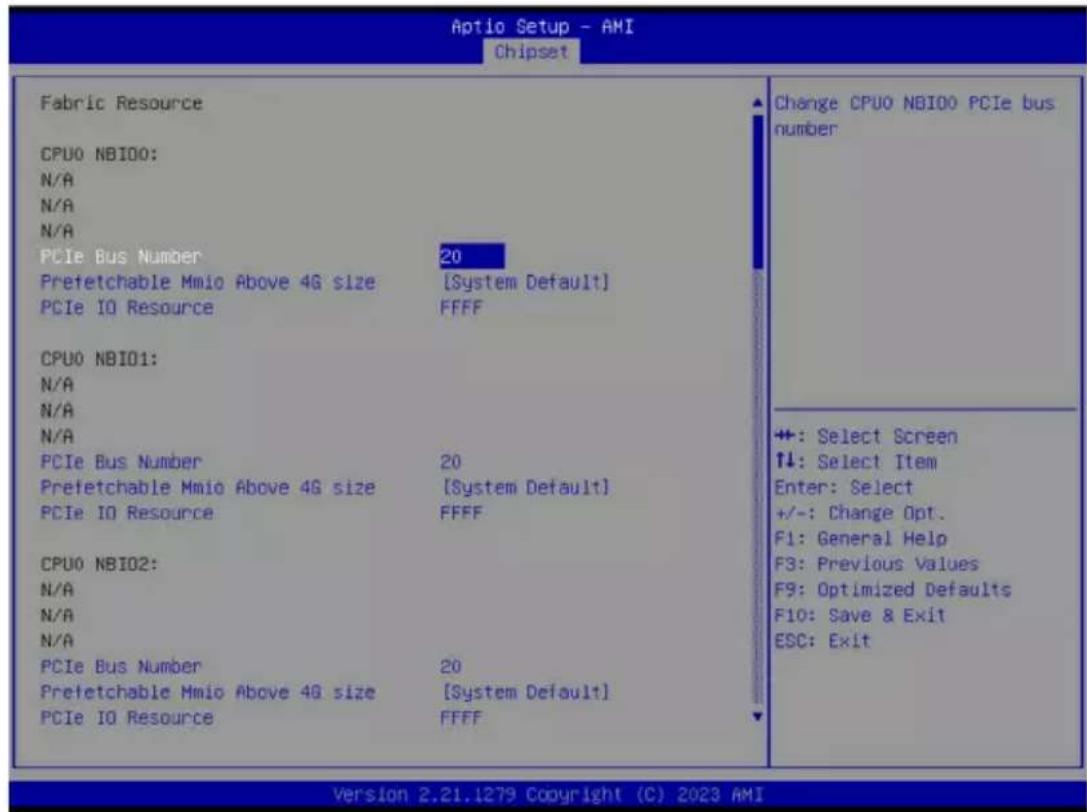

2-5-2 Fabric Resource 137

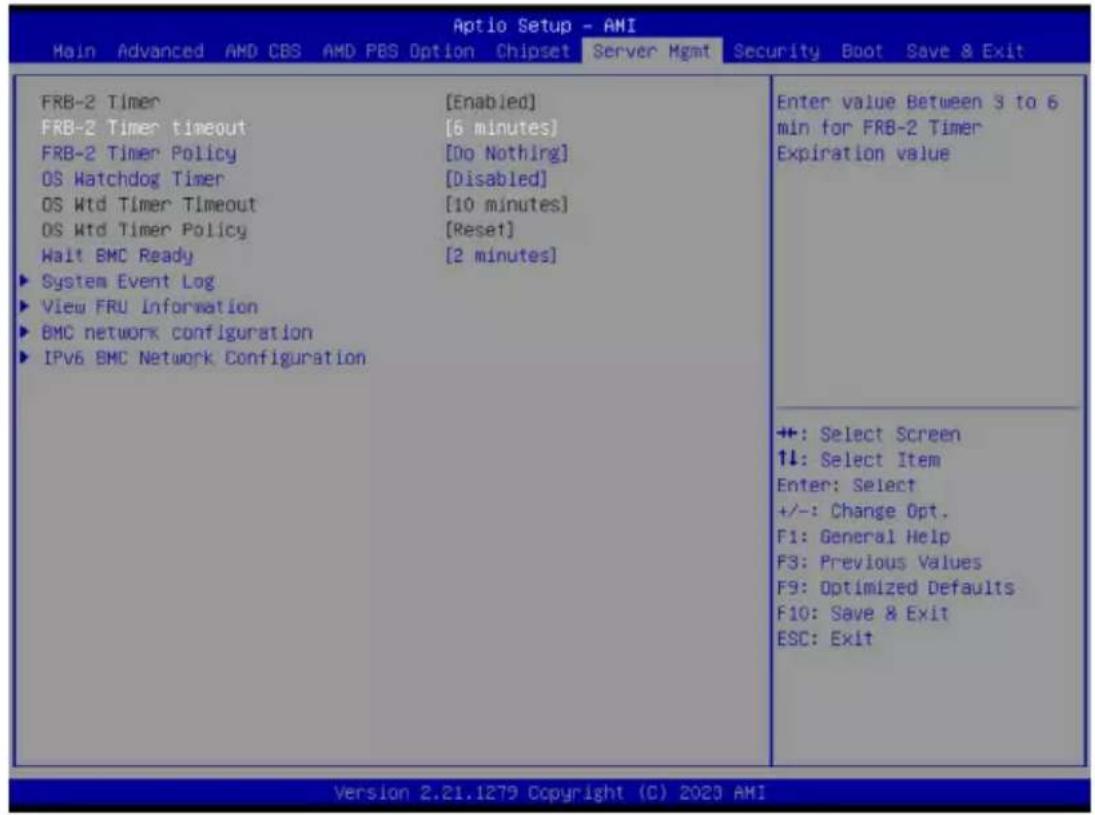

2-6 Server Management Menu. 139

2-6-1 System Event Log 141
2-6-2 View FRU Information 142

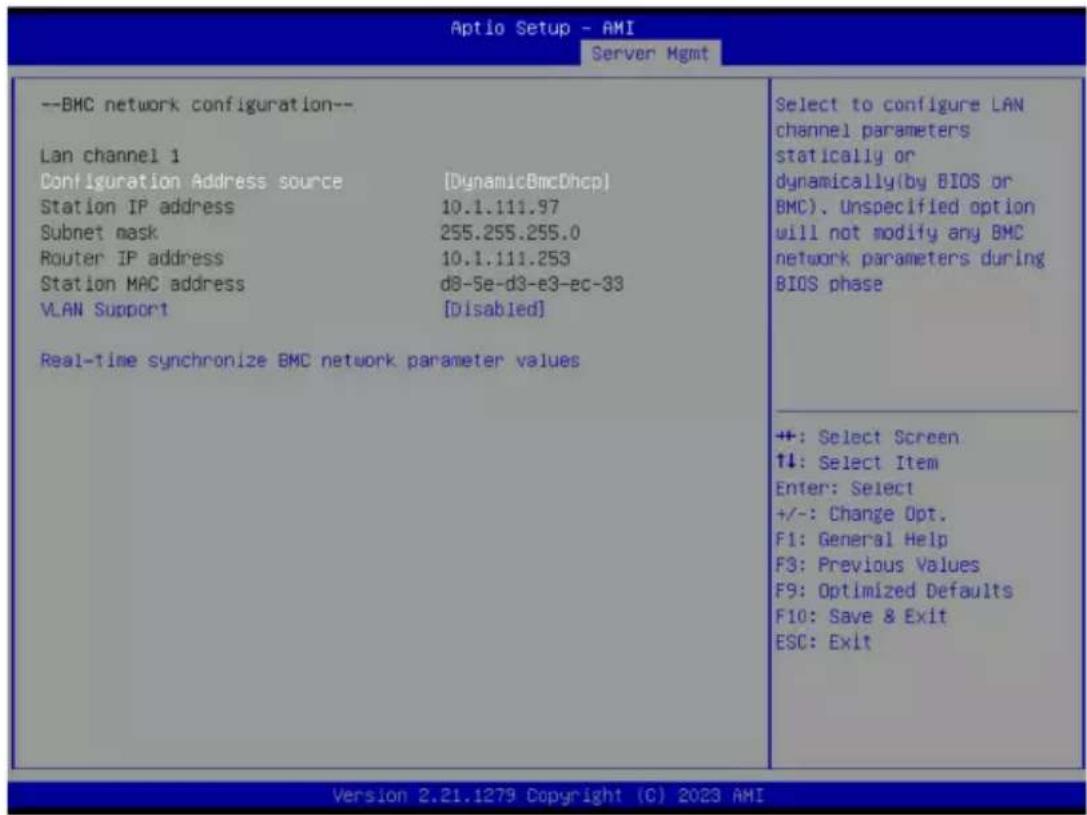

2-6-3 BMC Network Configuration 143
2-6-4 IPv6 BMC Network Configuration 144

2-7 Security Menu 145

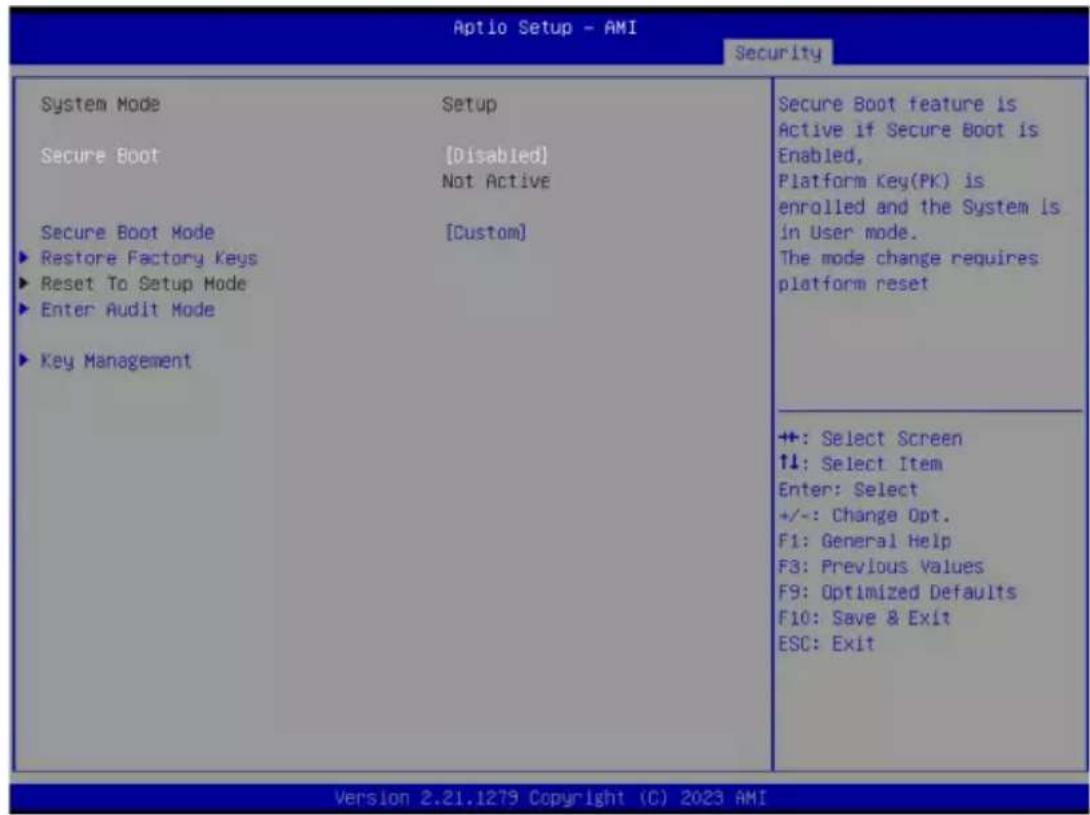

2-7-1 Secure Boot 146

2-8 Boot Menu. 148

2-9 Save & Exit Menu 150

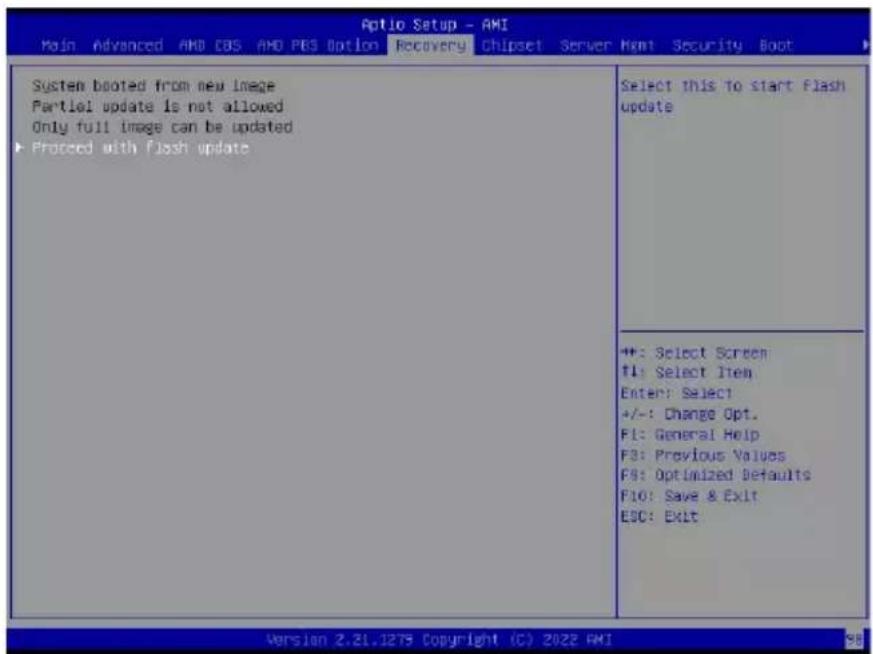

2-10BIOSRecovery 151

2-11 BIOS POST Beep code (AMI standard) 152

2-11-1 PEI Beep Codes 152
2-11-2 DXE Beep Codes 152

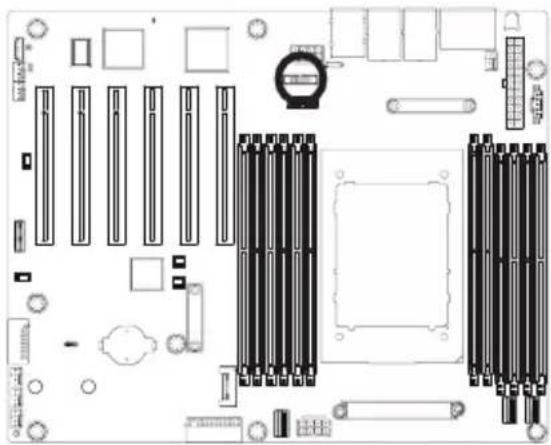

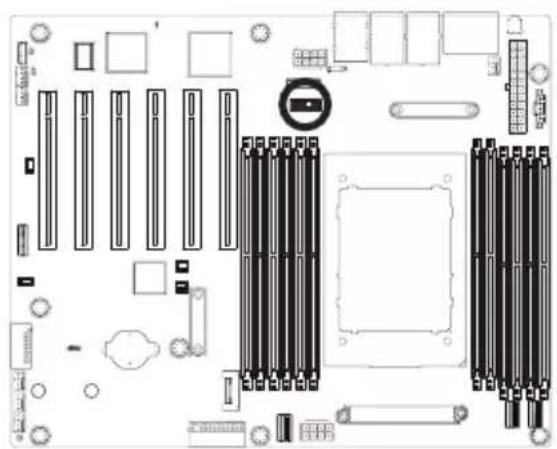

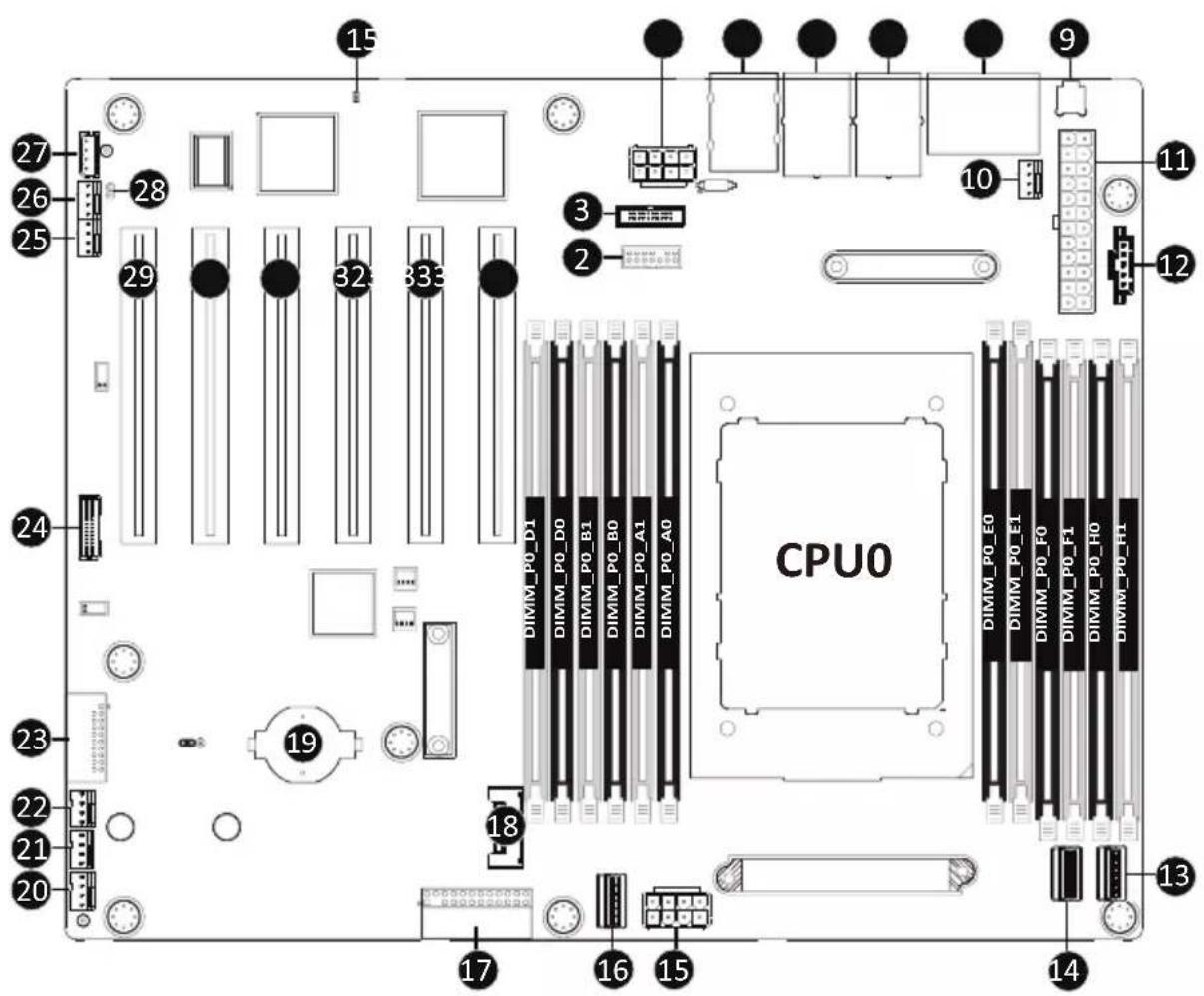

ME03-CE0/ME03-CE1 Motherboard Layout

Item Code Description

1 LED_BMC BMC Firmware Readiness LED
2 SPI_TPM1 TPM Connector
3 CN_NCSI1 NCSI Connector
4 P12V_CPU2 2x4 Pin 12V Power Connector
5 USB3_MLAN Sever Management LAN Port (Top)/USB 3.2 Gen1 Ports (Bottom)
6 LAN1 10GbE LAN Port #1 (ME03-CE0)/1GbE LAN Port #1 (ME03-CE1)
7 LAN2 10GbE LAN Port #2 (ME03-CE0)/1GbE LAN Port #2 (ME03-CE1)
8 COM1_VGA Serial Port (Top)/VGA Port (Bottom)
9 SW_ID2 ID Button with LED
10 CPU0_FAN CPU Fan Connector

11ATX 2x12Pin Main Power Connector
12 PMBUS1 PMBus Connector
13 U2_P0_G3A0 MCIO Connector
14 U2_P0_G3A1 MCIO Connector
15 P12V_CPU1 2x4 Pin 12V Power Connector
16 U2_P0_G3B0 MCIO Connector

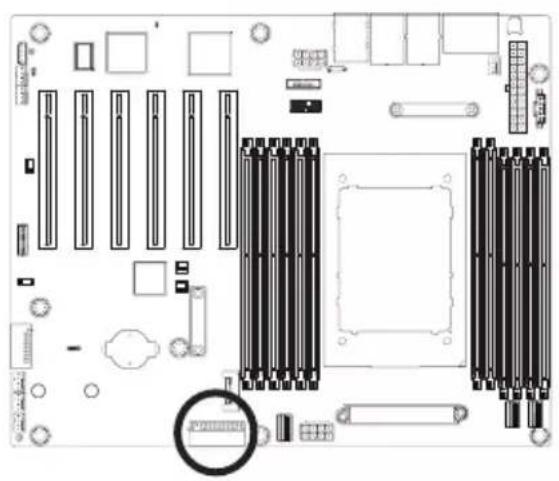

17 FP_1 Front Panel Header
18 M2_0 M.2 Slot (PCIe Gen3 x4, Support NGFF-2280/22110)
19 BAT Battery Socket
20 SYS_FAN4 System Fan Connector #4
21 SYS_FAN5 System Fan Connector #5
22 SYS_FAN2 System Fan Connector #2
23 F_USB3_1 Front Panel USB 3.2 Gen1 Connector

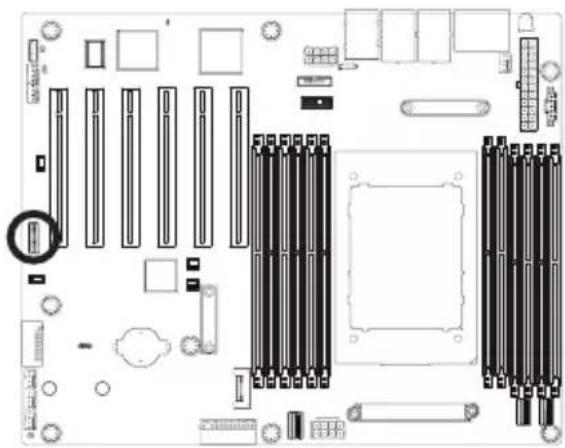

24BP_1 HDDBackplaneBoardConnector
25 SYS_FAN3 System Fan Connector #3
26 SYS_FAN1 System Fan Connector #1
27 IPMB1 IPMB Connector
28 CASE_OPEN Case Open Intrusion Alert Header
29 PCIE_1 PCIe x16 Slot #1 (Gen4 x16)
30 PCIE_2 PCIe x16 Slot #2 (Gen4 x8)
31 PCIE_3 PCIe x16 Slot #3 (Gen4 x16)
32PCIE_4 PCIex16Slot#4(Gen5x16)
33 PCIE_5 PCIe x16 Slot #5 (Gen5 x16)
34PCIE_6 PCIex16Slot#6(Gen5x16)

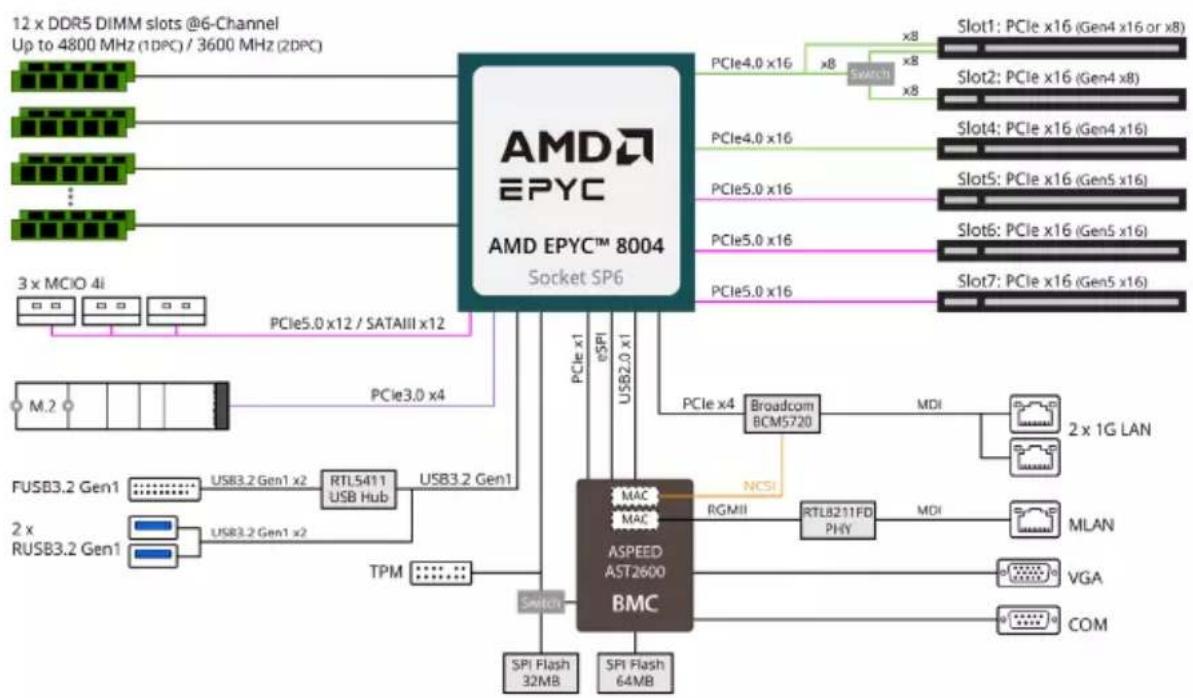

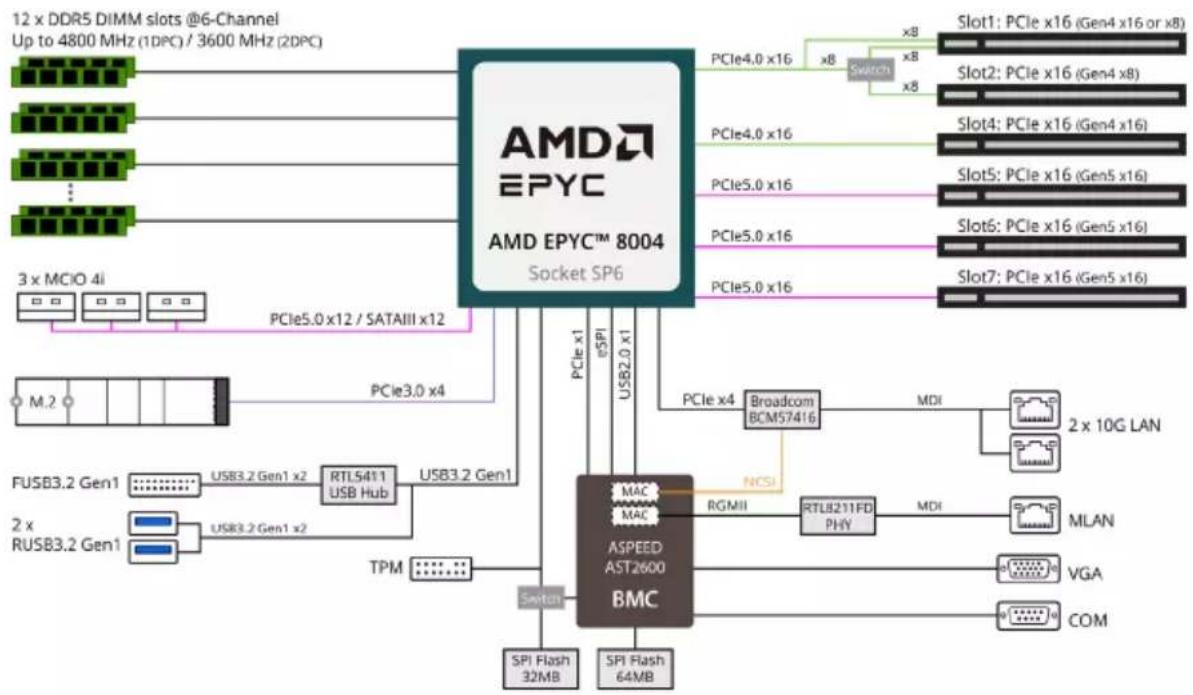

Block Diagram

ME03-CEO Block Diagram
ME03-CE1 Block Diagram

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard, make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep your hands dry and first touch a metal object to eliminate static electricity.
• Prior to installing the motherboard, please have it on top of an antistatic pad or within an electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power supply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hardware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.
• Do not place the computer system on an uneven surface.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.
• To avoid any potential short circuit of the DIMM slots, please remove any stand-offs from the chassis that will be located underneath the DIMM slots, before installing the motherboard into the chassis.

1-2 Product Specifications

NOTE:

We reserve the right to make any changes to the product specifications and product-related information without prior notice.

Form Factor	ATX 304.8W x 254D (mm)
CPU	AMD EPYCTM 8004 series processors Single processor, 5nm technology Up to 64-core, 128 threads per processor cTDP up to 225W
Socket	1 x LGA 4844 Socket SP6
Chipset	System on Chip
Memory	12 x DIMM slots DDR5 memory supported only 6-Channel memory architecture RDIMM modules up to 96GB supported Memory speed: Up to 4800 MHz (1DPC), 3600 MHz (2DPC)
LAN ME03-CE0:	2 x 10Gb/s BASE-T LAN ports (1 x Broadcom® BCM57416) NCSI function supported ME03-CE1: 2 x 1Gb/s BASE-T LAN ports (1 x Broadcom® BCM5720) NCSI function supported 1 x 10/100/1000 management LAN
Onboard Graphics	Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage Interface	3 x MCIO 4i for 12 x SATA
RAID	N/A
Expansion Slots	Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot Slot_2: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_1: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_2 1 x M.2 slot: - M-key - PCIe Gen3 x4 - Supports 2280/22110 cards 3 x MCIO 4i connectors for 3 x Gen5 NVMe or 12 x SATA
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 3 x MCIO 4i connectors 1 x M.2 slot 1 x CPU fan header 5 x System fan headers 2 x USB 3.2 Gen1 headers 1 x TPM header 1 x Front panel header 1 x Backplane board header 1 x PMBus connector 1 x IPMB connector 1 x Clear CMOS jumper 1 x BIOS recovery jumper
Rear I/O Connectors	2 x USB 3.2 Gen1 1 x VGA 1 x COM 2 x RJ45 1 x VLAN 1 x ID button with LED
TPM	1 x TPM Header with SPI Interface Optional TPM2.0 kit: CTM010
Board Management	◆Aspeed® AST2600 Management Controller ◆GIGABYTE Management Console (AMI MegaRAC SP-X) Web Interface ◆ Dashboard ◆ HTML5 KVM ◆ Sensor Monitor (Voltage, RPM, Temperature, CPU Status ...etc.) ◆ Sensor Reading History Data ◆ FRU Information ◆ SEL Log in Linear Storage / Circular Storage Policy ◆ Hardware Inventory ◆ Fan Profile ◆ System Firewall ◆ Power Consumption ◆ Power Control ◆ LDAP / AD / RADIUS Support ◆ Backup & Restore Configuration ◆ Remote BIOS/BMC/CPLD Update ◆ Event Log Filter ◆ User Management ◆ Media Redirection Settings ◆ PAM Order Settings ◆ SSL Settings ◆ SMTP Settings
Operating Properties	◆ Operating temperature: 10°C to 40°C ◆ Operating humidity: 8-80% (non-condensing) ◆ Non-operating temperature: -40°C to 60°C ◆ Non-operating humidity: 20%-95% (non-condensing)

1-3 Installing and Removing the CPU

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU.
• Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
• Unplug all cables from the power outlets.
• Disconnect all telecommunication cables from their ports.
• Place the system unit on a flat and stable surface.
• Open the system according to the instructions.

WARNING!

Failure to properly turn off the server before you start installing components may cause serious damage. Do not attempt the procedures described in the following sections unless you are a qualified service technician.

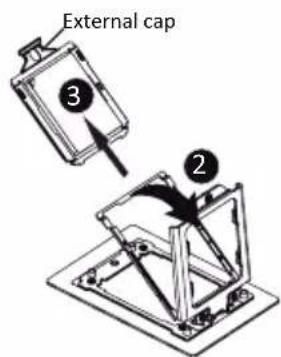

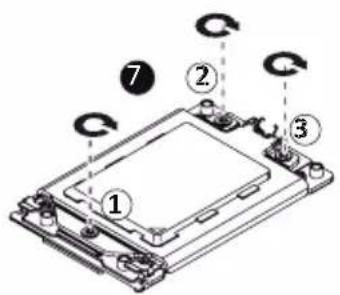

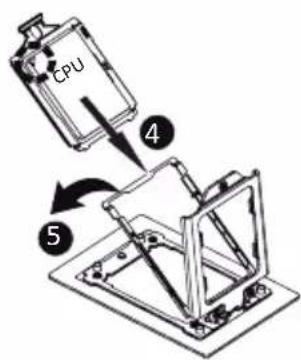

Follow these instructions to install the CPU:

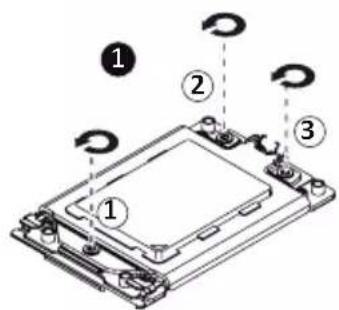

1. Loosen the three captive screws securing the CPU cover in sequential order (1 2 3
2. Flip open the CPU cover.
3. Remove the CPU carrier from the CPU frame using the handle on the CPU carrier.
4. Using the handle on the CPU carrier insert the new CPU carrier with CPU installed into the CPU frame.

NOTE: Ensure the CPU is installed in the CPU carrier in the correct orientation, with the triangle on the CPU aligned to the top left corner of the CPU carrier.

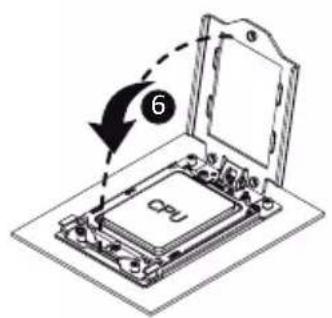

1. Flip the CPU frame with CPU installed into place in the CPU socket.
2. Flip the CPU cover into place over the CPU socket.

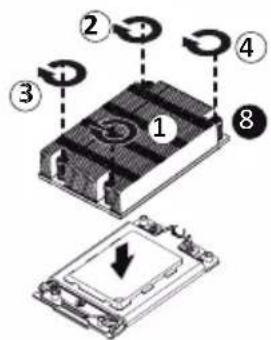

3. Tighten the CPU cover screws in sequential order (1 2 3 ) to secure the CPU cover in place.

• Tighten the CPU cover screws, use T-20 6-Lobe driver to tighten 3 captive nuts in sequence as 1-3. The screw tightening torque: 13.8 ± 1.3 kgf-cm.
• The illustrations of the heat-sink installation shown are for reference only.

1-4 Installing and Removing Memory

Read the following guidelines before you begin to install the memory:

• Make sure that the motherboard supports the memory. It is recommended to use memory of the same capacity, brand, speed, and chips.
• Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction.

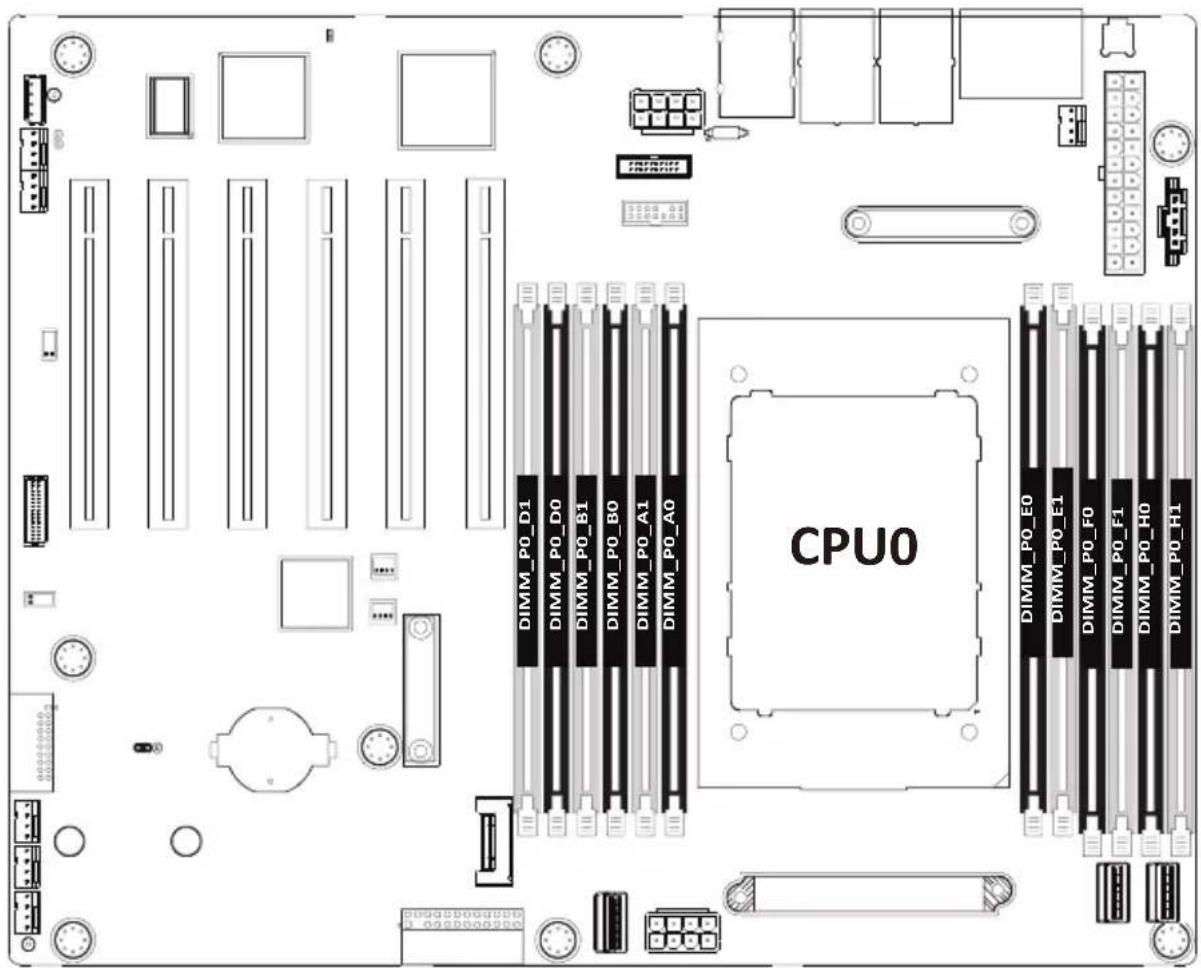

1-4-1 Six-Channel Memory Configuration

This motherboard provides 12 DDR5 memory slots and supports Six-Channel Technology. After the memory is installed, the BIOS will automatically detect the specifications and capacity of the memory.

1-4-2 Installing and Removing a Memory Module

Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module.

Be sure to install DDR5 DIMMs on this motherboard.

Make sure your DIMM slots have a single latch or a double latch.

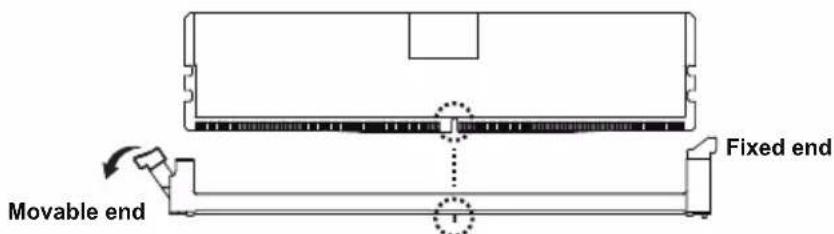

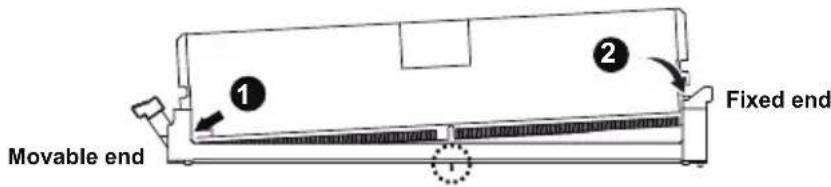

Follow these instructions to install a DIMM module with Single Latch :

1. Open the plastic latch of the memory slot, then place the memory module as pre-inserted vertically position.

1. Hold it with both hands, insert the memory module into the movable end first, and then insert the memory module into the fixed end.

1. Then use both hands to insert the memory module vertically into the DIMM slot and push it down. Close the plastic latch at the edge of the DIMM slots to lock the memory module.

1. Reverse the installation steps when you want to remove the memory module.

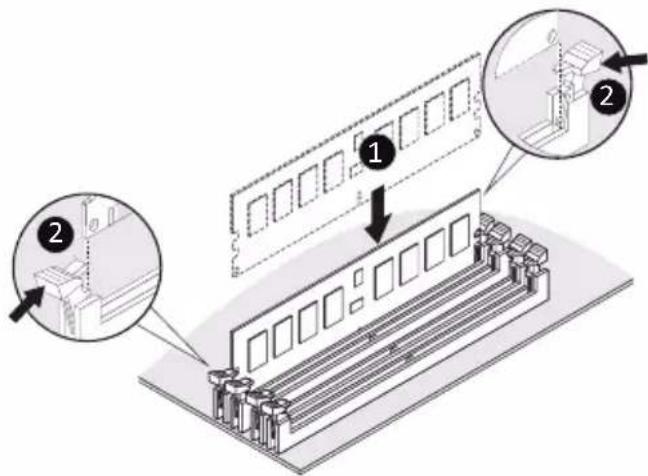

Follow these instructions to install a DIMM module with Double Latch:

1. Insert the DIMM memory module vertically into the DIMM slot and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.

1-4-3 DIMM Population Table

DIMM Type	DIMM Population DDR5 Frequency (MT/s)
	DIMM 0 DIMM	1	14-layer 77mil PCB stackup
RDIMM	-- 1R 4800
	1R 1R 4000
	-- 2R 4800
	2R 2R 3600

1-4-4 Processor and Memory Module Matrix Table

Memory Q'ty

CPU0

D1

D0

B1

B0

A1

A0

E0

E1

F0

F1

H0

H1

1 DIMM

V

2 DIMM

V

V

4 DIMM

V

V

V

V

6 DIMM

V

V

V

V

V

V

8 DIMM

V

V

V

V

V

V

V

V

12 DIMM

V

V

V

V

V

V

V

V

V

V

V

V

1-5 Installing the M.2 SSD Module

WARNING:

Installation of the thermal pad over the M.2 device is required when installing an M.2 device. Lack of the thermal pad may result in the system overheating and throttle the system performance.

CAUTION

The position of the stand-off screw will depend on the size of the M.2 device. The stand-off screw is pre-installed for 22110 cards as standard. Refer to the size of the M.2 device and change the position of the stand-off screw accordingly.

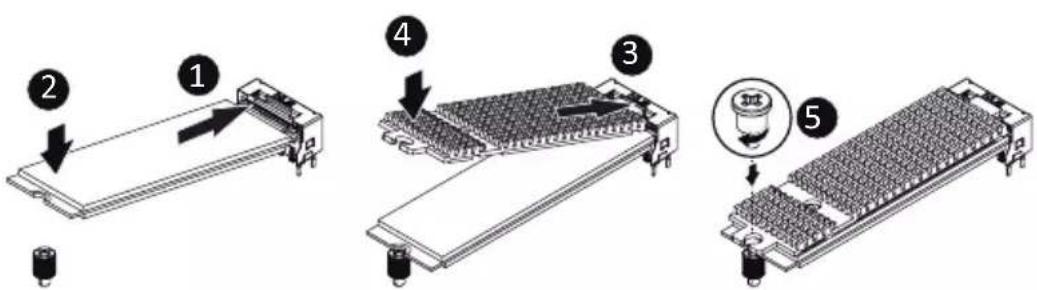

Follow these instructions to install the M.2 device and heat sink:

1. Insert the M.2 device into the M.2 connector.
2. Press down on the M.2 device.
3. Install the thermal pad of the M.2 device to the M.2 device.
4. Press down on the thermal pad.
5. Secure the M.2 device and its thermal pad to the motherboard with a single screw.
6. Reverse steps 1-5 to remove the M.2 device.

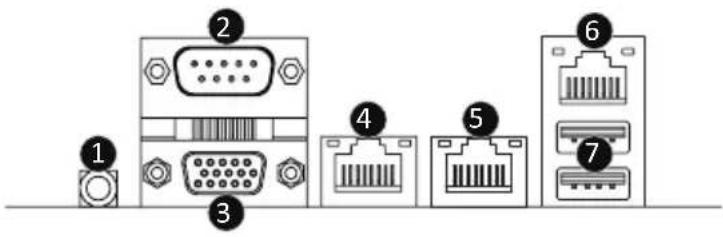

1-6 Back Panel Connectors

ID button with LED

When the system identification is active, the ID LED on the front/ back panel glows blue.

Serial Port

Connect to serial-based mouse or data processing devices.

VGA Port

Connect to a monitor device.

10GbE LAN Port #2 (ME03-CE0)

The Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. See the section below for a description of the states of the LAN port LEDs.

1GbELANPort#2(ME03-CE1)

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section below for a description of the states of the LAN port LEDs.

10GbE LAN Port #1 (ME03-CE0)

The Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. See the section below for a description of the states of the LAN port LEDs.

1GbELANPort#1(ME03-CE1)

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. See the section below for a description of the states of the LAN port LEDs.

Server Management LAN Port

The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is the dedicated LAN port for Server Management.

USB 3.2 Gen1 Ports

The USB port supports the USB 3.2 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive etc.

LAN and ID Button LEDs

Speed LED Link/Activity LED

LAN Port

10Gb LAN LED:

State Description

Yellow On 5Gbps, 2.5Gbps, 1Gps data rate

Green On 10Gbps data rate

Off 100Mbps data rate

10/100/1000 LAN LED:

State Description

Yellow On 1Gbps data rate

Green On 100Mbps data rate

Off 10Mbps data rate

ID button/LED:

State Description

Blue On System identification is active

Off System identification is disabled

• When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector.

1-7 Internal Connectors

1) ATX 11) SPI_TPM1

2) P12V_CPU1 12) IPMB1

3) P12V_CPU2 13) CN_NCSI1

4) CPU0_FAN 14) LED_BMC

5) SYS_FAN2/4/5 15) BAT

6) SYS_FAN1/3 16) CASE_OPEN

7) PMBUS1

8) F_USB3_1

9) FP_1

10) BP_1

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has been securely attached to the connector on the motherboard.

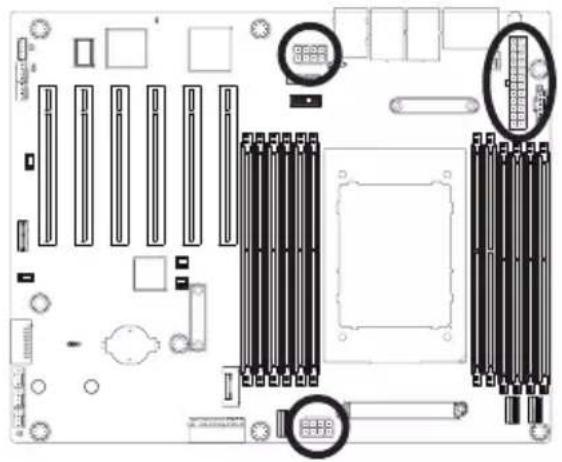

1/2/3)ATX1/P12V_CPU1/P12V_CPU2

(2x12 Main Power Connector and 2x4 12V Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation. The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected, the computer will not start.

To meet expansion requirements, it is recommended that a power supply that can withstand high power consumption be used (500W or greater). If a power supply is used that does not provide the required power, the result can lead to an unstable or unbootable system.

ATX

P12V_CPU1/P12V_CPU2

Pin No. Definition Pin	No. Definition
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 Power Good 20 NA
9 5V\$B 21 +5V
10 +12V	22 +5V
11 +12V	23 +5V
12 3.3V 24 GND

Pin No.	Definition
1	GND
2	GND
3	GND
4	GND
5	+12V
6	+12V
7	+12V
8	+12V

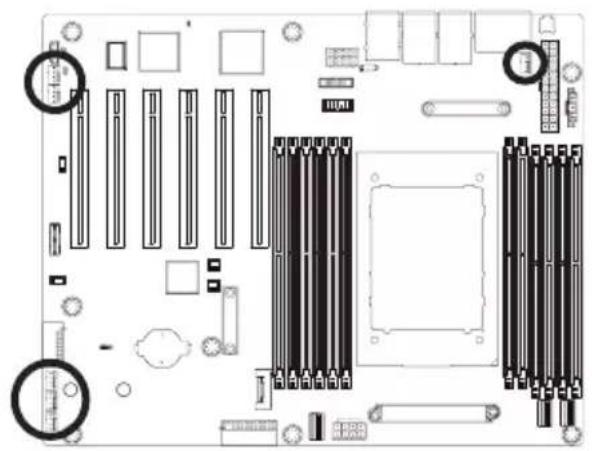

4/5/6) CPU0_FAN/SYS_FAN1/SYS_FAN2/SYS_FAN3/SYS_FAN4/SYS_FAN5 (Fan Headers)

The motherboard has one 4-pin CPU fan header (CPU_FAN), and five 4-pin (SYS_FAN) system fan headers. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The motherboard supports CPU fan speed control, which requires the use of a CPU fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.

Pin No.	Definition
1	GND
2	+12V
3	Sense
4 Speed Control

• Be sure to connect fan cables to the fan headers to prevent your CPU and system from overheating. Overheating may result in damage to the CPU or the system may hang.
  These fan headers are not configuration jumper blocks. Do not place a jumper cap on the headers.

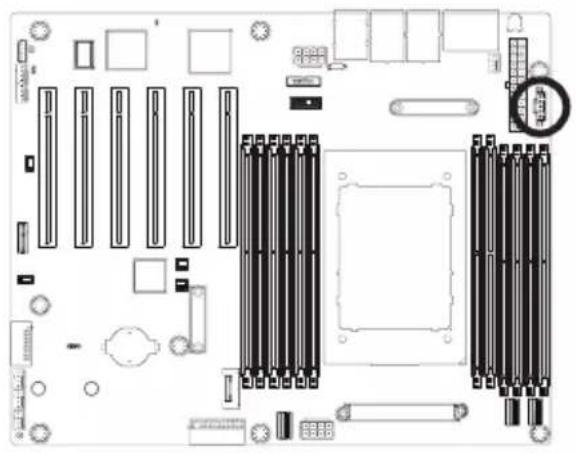

7) PMBUS1 (PMBus Connector)

The Power Management Bus (PMBus) is a variant of the System Management Bus (SMBus) which is targeted at digital management of power supplies.

Pin No.	Definition
1 PMBus Clock
2 PMBus Data
3 PMBus Alert
4	GND
5 3.3V	Sense

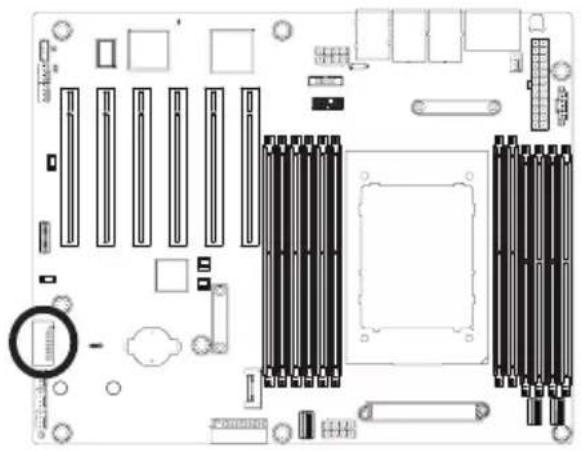

8) F_USB3_1 (Front Panel USB 3.2 Gen1 Connector)

The connector/ header conform to USB 3.2 specification. Each USB connector/ header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

Pin No.	Definition	Pin No	Definition
1	Power 11 IntA_P2_D+
2	IntA_P1_SSRX- 12 IntA_P2_D-
3	IntA_P1_SSRX+ 13 GND
4	GND 14 IntA_P2_SSTX+
5	IntA_P1_SSTX- 15 IntA_P2_SSTX-
6	IntA_P1_SSTX+ 16 GND
7	GND 17 IntA_P2_SSRX+
8	IntA_P1_D- 18 IntA_P2_SSRX-
9	IntA_P1_D+ 19 Power
10	NC	20	No Pin

9) FP_1 (Front Panel Header)

Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

Pin No.	Definition	Pin No.	Definition
1	Power LED+	2	5V Standby
3	No Pin	4	ID LED+
5	Power LED-	6	ID LED-
7	HDD LED+	8	System Status LED+
9	HDD LED-	10	System Status LED -
11	Power Button	12	LAN1 Active LED+
13	GND	14	LAN1 Link LED-
15	Reset Button	16	SMBus Data
17	GND	18	SMBus Clock
19	ID Button	20	Case Open
21	GND	22	LAN2 Active LED+
23	NMI Switch	24 LAN2 Link LED-

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

10) BP_1 (HDD Backplane Board Connector)

Pin No.	Definition	Pin No.	Definition
1	Reserved 2	BPMI DIN/OUT
3	GND 4	BPMI DOUT/IN
5	BPMI_LOAD 6	GND
7	BPMI_CLK 8	PLD_Program_EN
9	GLED_AMB_N	10 GLED_SRN_N
11	FAN_IRQ_N	12 Reserved
13	BP_SCL	14 GND
15	BP_SDA	16 BP_RST_N
17	SMB_U2_TEMP_SCL	18 GND
19	SMB_U2_TEMP_SDA	20 I2C_DEV_RST
21	PH_HP_SCL0	22 GND
23	PH_HP_SDA0	24 GND
25	Reserved	26 GND
27	Reserved	28 GND
29	P3/V3 AUX	30 P3V3 AUX

11) SPI_TPM1 (Trusted Platform Module Connector)

Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated microcontroller designed to secure hardware through integrated cryptographic keys.

Pin No.	Definition	Pin No.	Definition
1	Clock	8	NC
2	P_3V3_AUX	9	NC
3	LPC_RST 10 No Pin
4	NC	11	NC
5	SPI_MISO 12 GND
6	IRQ_SPI	13	SPI_C$_N
7	SPI_MOSI 14 GND

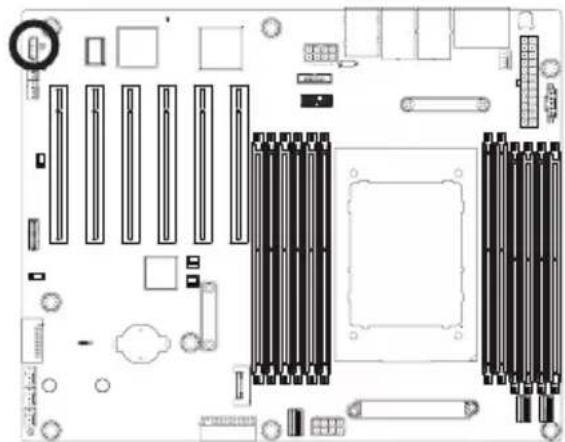

12) IPMB1 (Intelligent Platform Management Bus) Connector

The Intelligent Platform Management Bus Communications Protocol defines a byte-level transport for transferring Intelligent Platform Management Interface Specification (IPMI) messages between intelligent I2C devices.

Pin No.	Definition
1	Clock
2	GND
3	Data
4	VCC

13) CN_NCSI1 (NCSI Connector)

Pin No.	Definition	Pin No.	Definition
1	NCSI_CLK 2 GND
3	NCSI_RX_D0 4 GND
5	NCSI_RX_D1 6 GND
7	NCSI_CRS_DV 8 GND
9	NCSI_RX_ER 10 GND
11	P3V3_AUX 12 GND
13	NCSI_TX_D1 14 GND
15	NCSI_TX_D0 16 GND
17	NCSI_TX_EN	18 GND
19	NCSI_PRESENT 20	P3V3_AUX

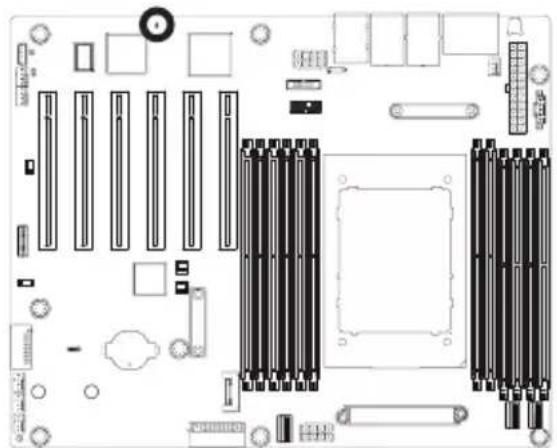

14) LED_BMC (BMC Firmware Readiness LED)

State Description
On BMC firmware is initial
Blink BMC firmware is ready
Off AC loss

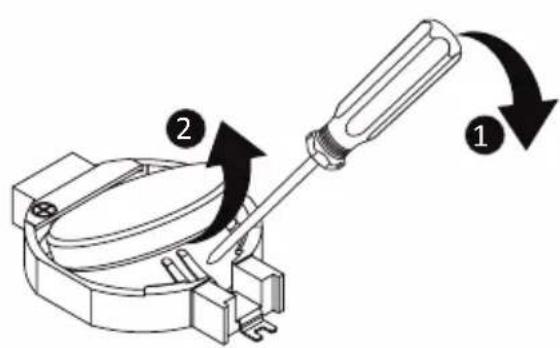

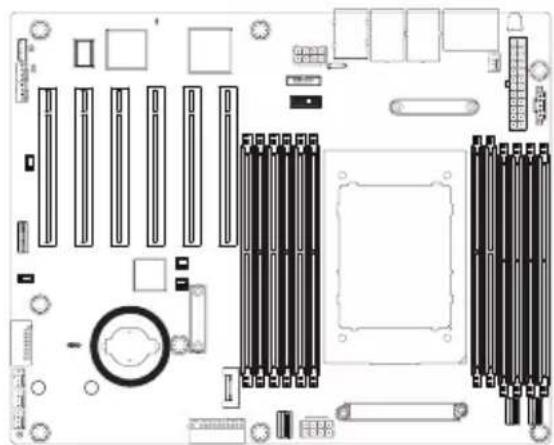

15) BAT (Battery Socket)

The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost.

• Always turn off your computer and unplug the power cord before replacing the battery.
• Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect model.
• Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain about the battery model.
• Used batteries must be handled in accordance with local environmental regulations.

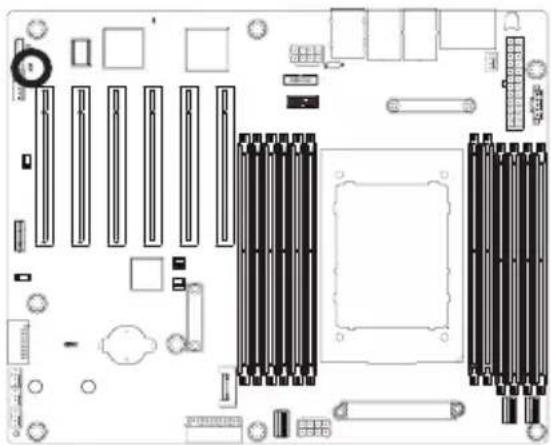

16) CASE_OPEN (Case Open Intrusion Alert Header)

This motherboard provides a chassis detection feature that detects if the chassis cover has been removed. This function requires a chassis with chassis intrusion detection design.

Open: Normal Operation (Default)

Closed: Active Chassis Intrusion Alert

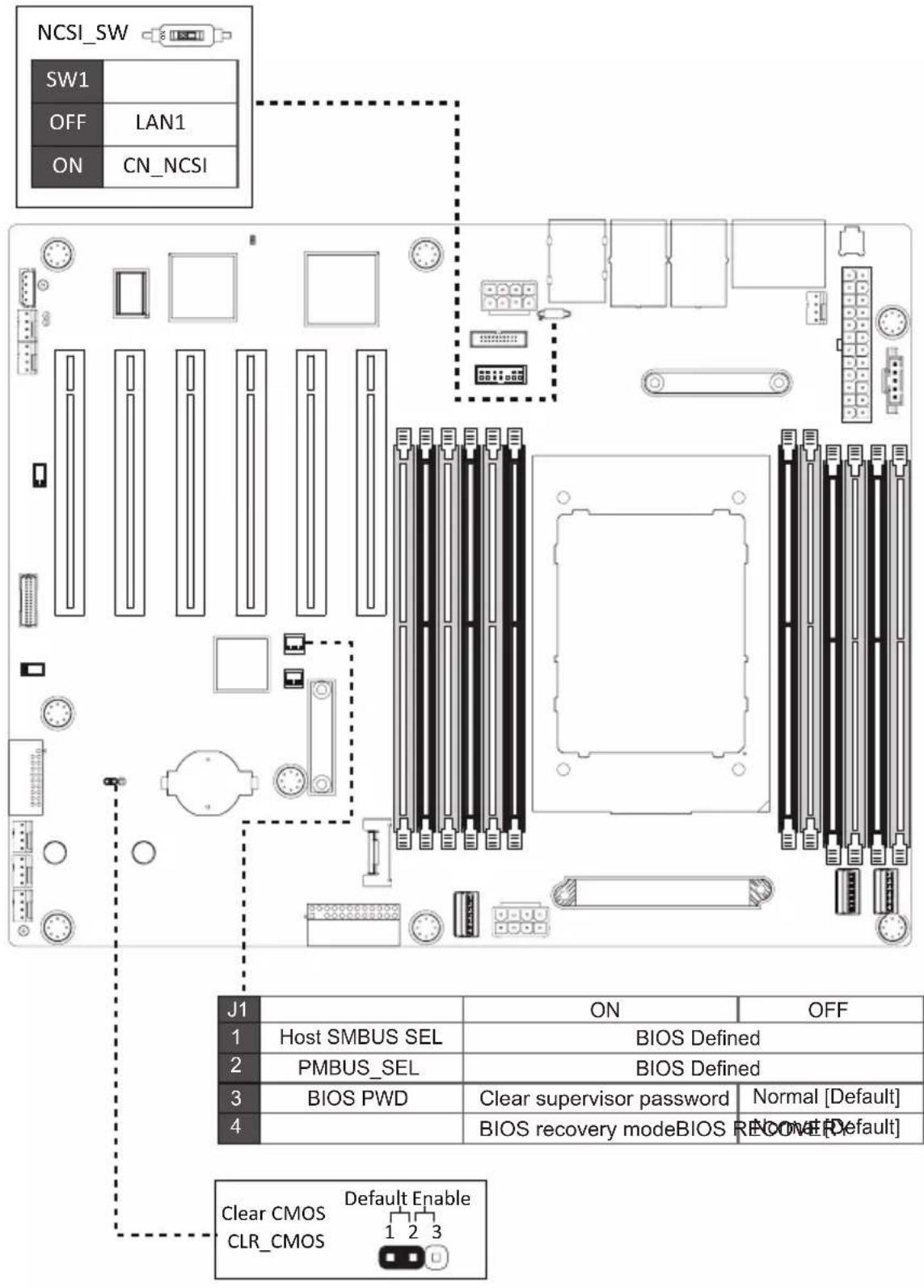

1-8 Jumper Settings

Chapter 2 BIOS Setup

BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to keep the configuration values in the CMOS.

To access the BIOS Setup program, press the key during the POST when the power is turned on.

BIOS flashing is potentially risky, if you do not encounter any problems when using the current BIOS version, it is recommended that you don't flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
- It is recommended that you not alter the default settings (unless you need to) to prevent system instability or other unexpected results. Inadequately altering the settings may result in system's failure to boot. If this occurs, try to clear the CMOS values and reset the board to default values. (Refer to the Exit section in this chapter or introductions of the battery/clearing CMOS jumper in Chapter 1 for how to clear the CMOS values.)

BIOS Setup Program Function Keys

<←><→> Move the selection bar to select the screen
<↑><↓> Move the selection bar to select an item
<++> Increase the numeric value or make changes
<-> Decrease the numeric value or make changes
<Enter> Execute command or enter the submenu
<Esc> Main Menu: Exit the BIOS Setup program
	Submenus: Exit current submenu
<F1> Show descriptions of general help
<F3> Restore the previous BIOS settings for the current submenus
<F9> Load the Optimized BIOS default settings for the current submenus
<F10> Save all the changes and exit the BIOS Setup program

Main

This setup page includes all the items of the standard compatible BIOS.

Advanced

This setup page includes all the items of AMI BIOS special enhanced features.

(ex: Auto detect fan and temperature status, automatically configure hard disk parameters.)

■ AMD CBS

This setup page includes the common items for configuration of AMD motherboard-related information.

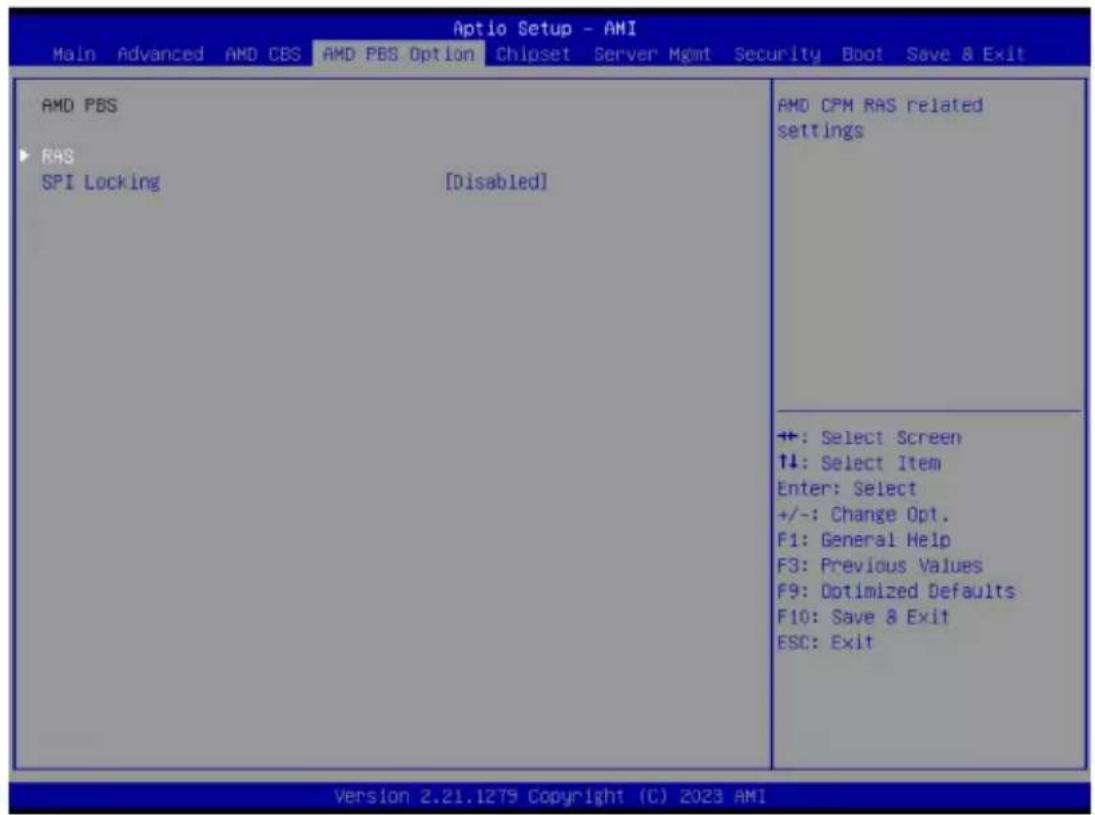

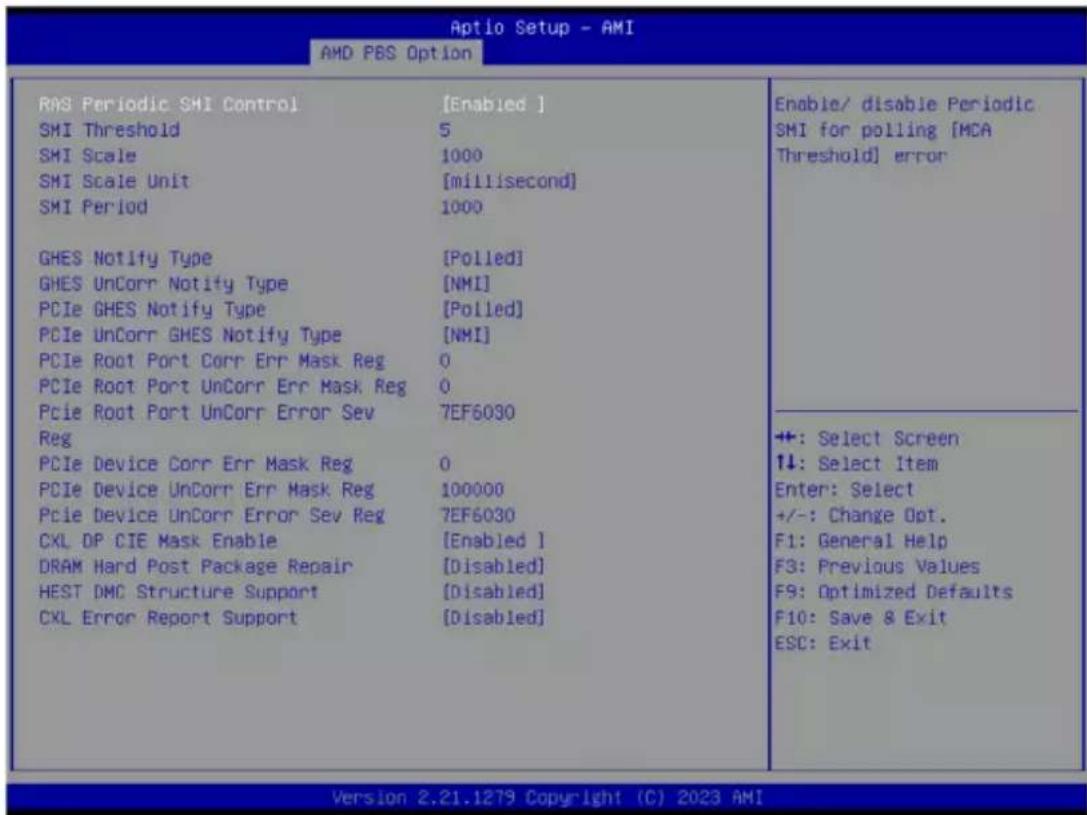

AMD PBS Option

This setup page includes the common items for configuration of AMD CPM RAS related settings.

Chipset

This setup page includes all the submenu options for configuring the functions of the North Bridge.

Server Management

Server additional features enabled/disabled setup menus.

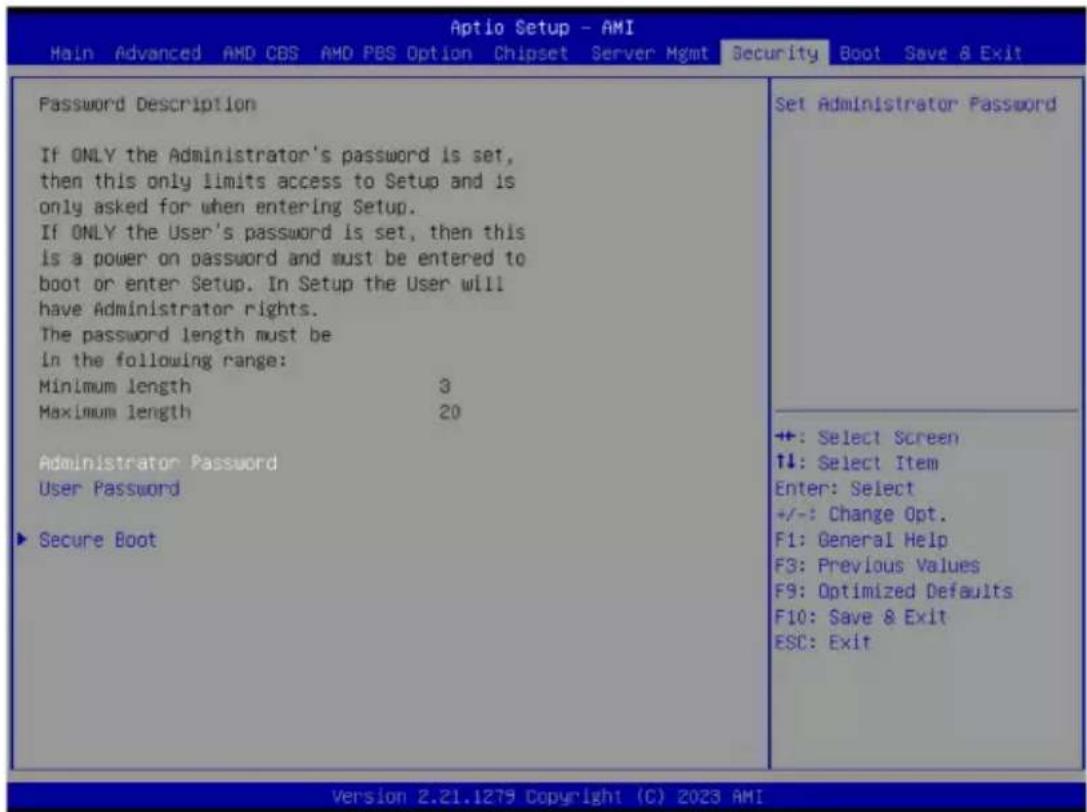

Security

Change, set, or disable supervisor and user password. Configuration supervisor password allows you to restrict access to the system and BIOS Setup.

A supervisor password allows you to make changes in BIOS Setup.

A user password only allows you to view the BIOS settings but not to make changes.

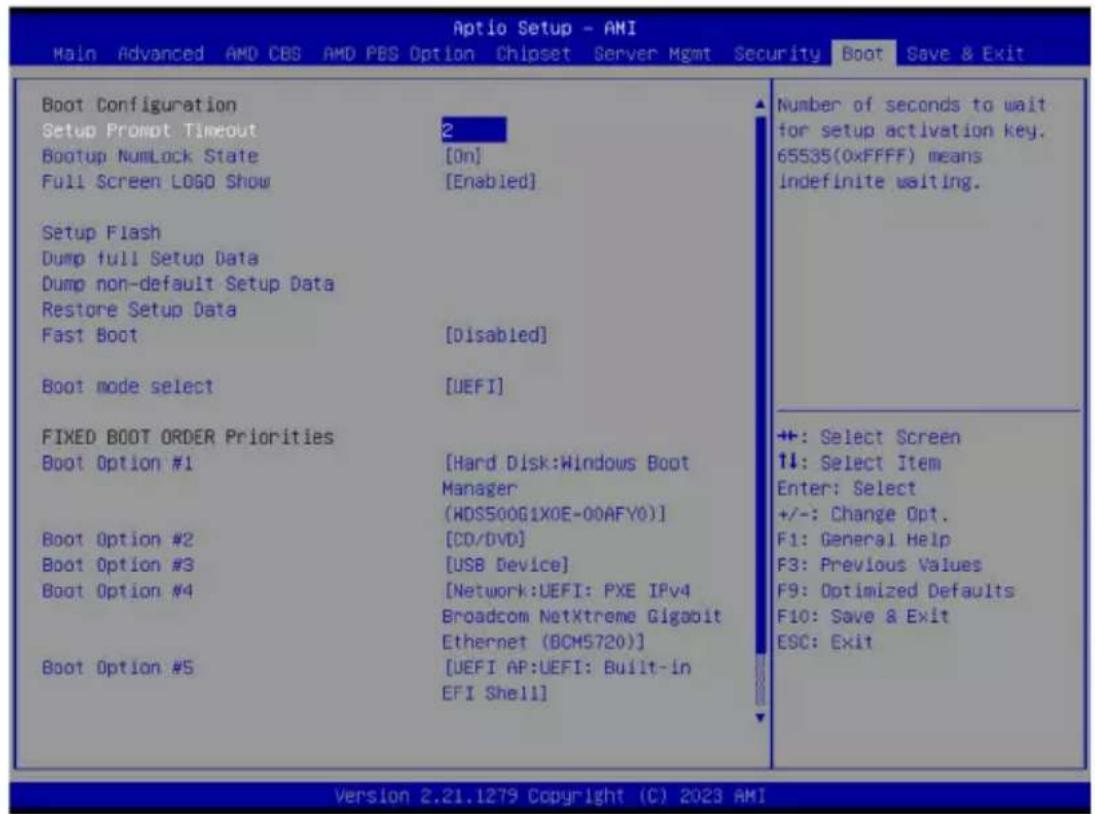

Boot

This setup page provides items for configuration of the boot sequence.

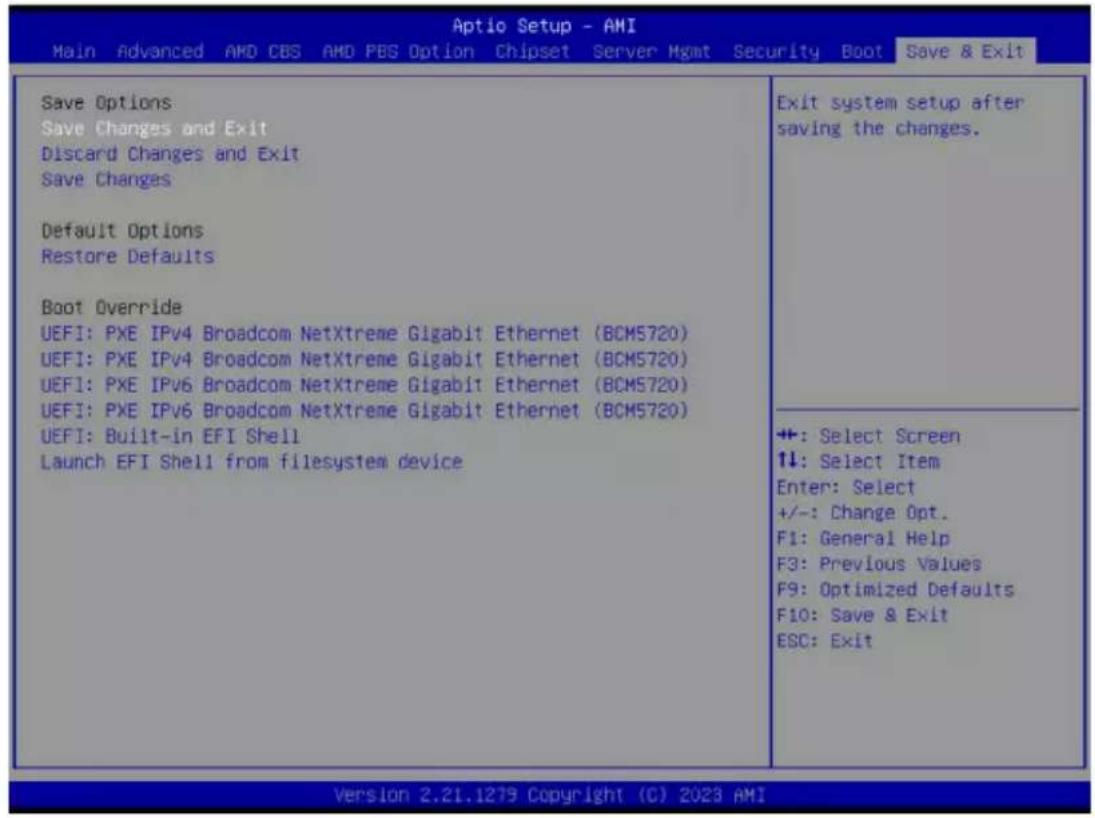

Save & Exit

Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup. (Pressing <F10> can also carry out this task.)

Abandon all changes and the previous settings remain in effect. Pressing Y to the confirmation message will exit BIOS Setup. (Pressing Esc can also carry out this task.)

2-1 The Main Menu

Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press to accept or enter other sub-menu.

Main Menu Help

The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.

Submenu Help

While in a submenu, press to display a help screen (General Help) of function keys available for the menu. Press to exit the help screen. Help for each item is in the Item Help block on the right side of the submenu.

• When the system is not stable as usual, select the Restore Defaults item to set your system to its defaults.
• The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version.

Parameter	Description
BIOS Information
Project Name	Displays the project name information.
Project Version	Displays version number of the BIOS setup utility.
Build Date and Time	Displays the date and time when the BIOS setup utility was created.
BMC Information(Note1)
BMC Firmware Version(Note1)	Displays BMC firmware version information.
Processor Information
CPU Brand String/ CPU Speed / Processor Core / Microcode Patch	Displays the technical specifications for the installed processor(s).
Total Memory(Note2)	Displays the total memory size of the installed memory.
Memory Speed(Note2)	Displays the frequency information of the installed memory.
VR Information Version Displays VR version information.
AGESA PI Version
PI Version Displays AGESA PI version information.

(Note1) Functions available on selected models.
(Note2) This section will display capacity and frequency information of the memory that the customer has installed.

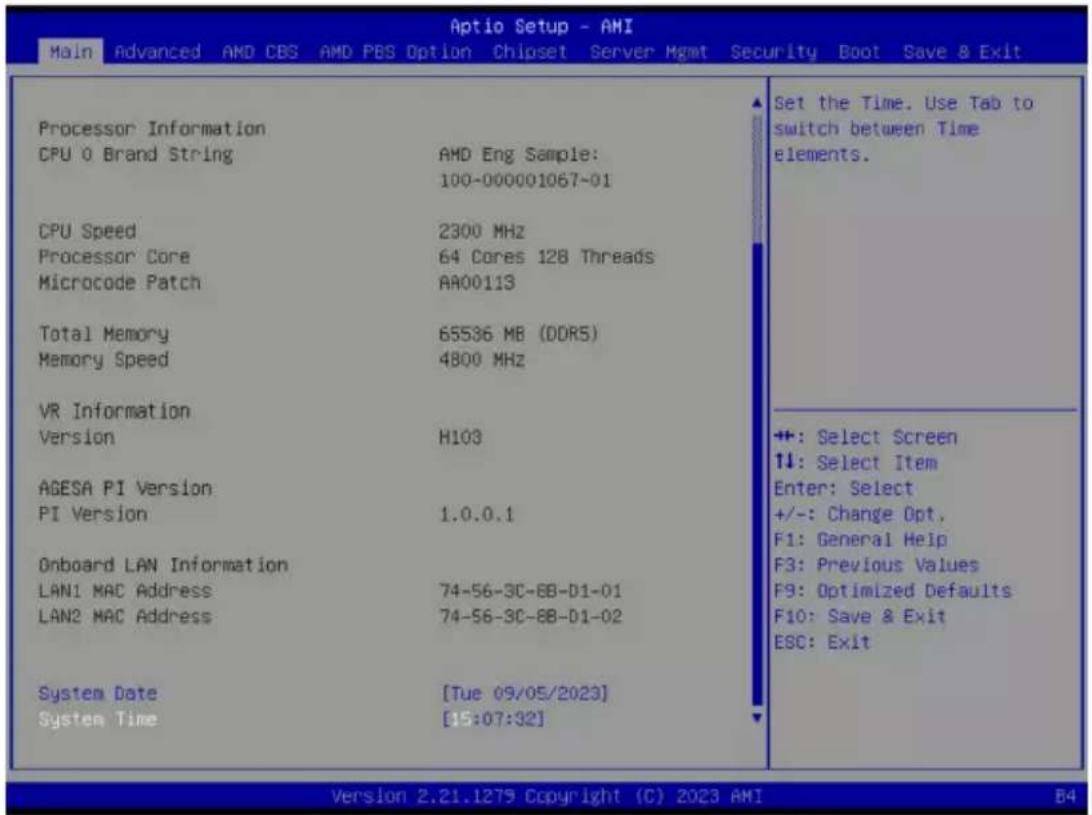

Parameter	Description
Onboard LAN Information
LAN1 MAC Address (Note)	Displays LAN MAC address information.
LAN2 MAC Address (Note)	Displays LAN MAC address information.
System Date	Sets the date following the weekday-month-day-year format.
System Time	Sets the system time following the hour-minute-second format.

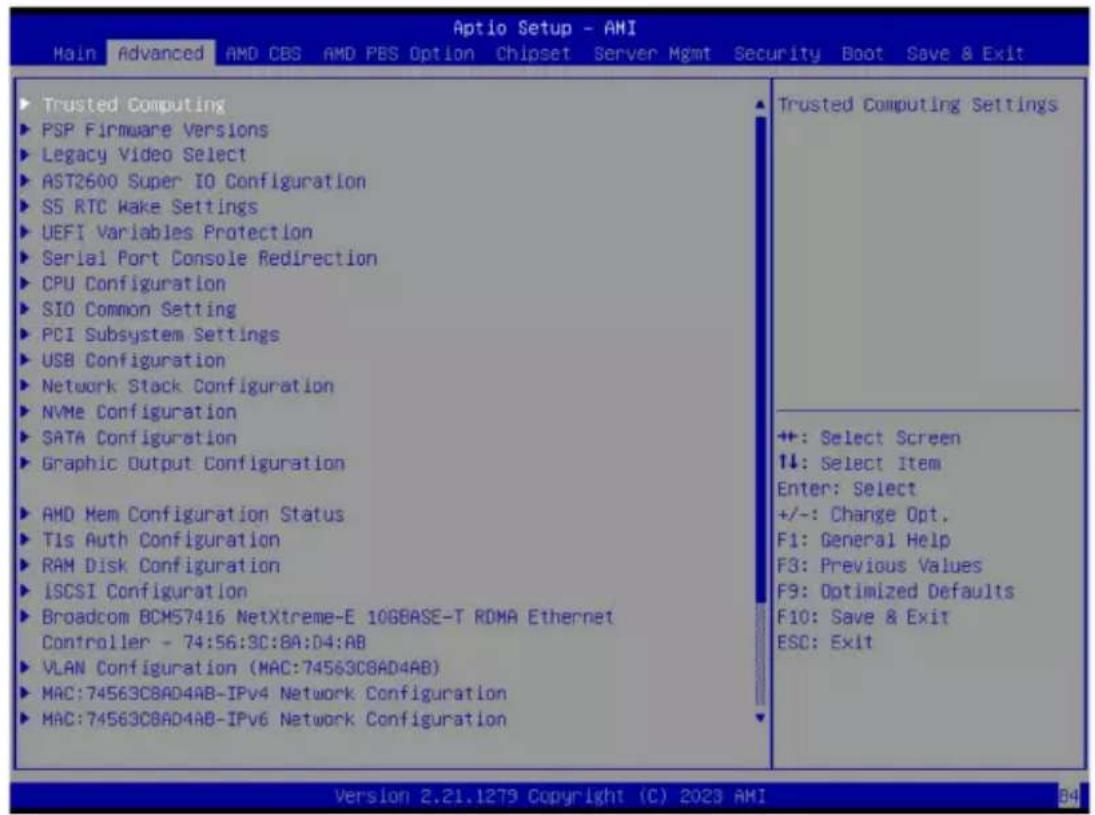

2-2 Advanced Menu

The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press to access the related submenu screen.

When Boot Mode Select is set to UEFI (Default)

ME03-CEO

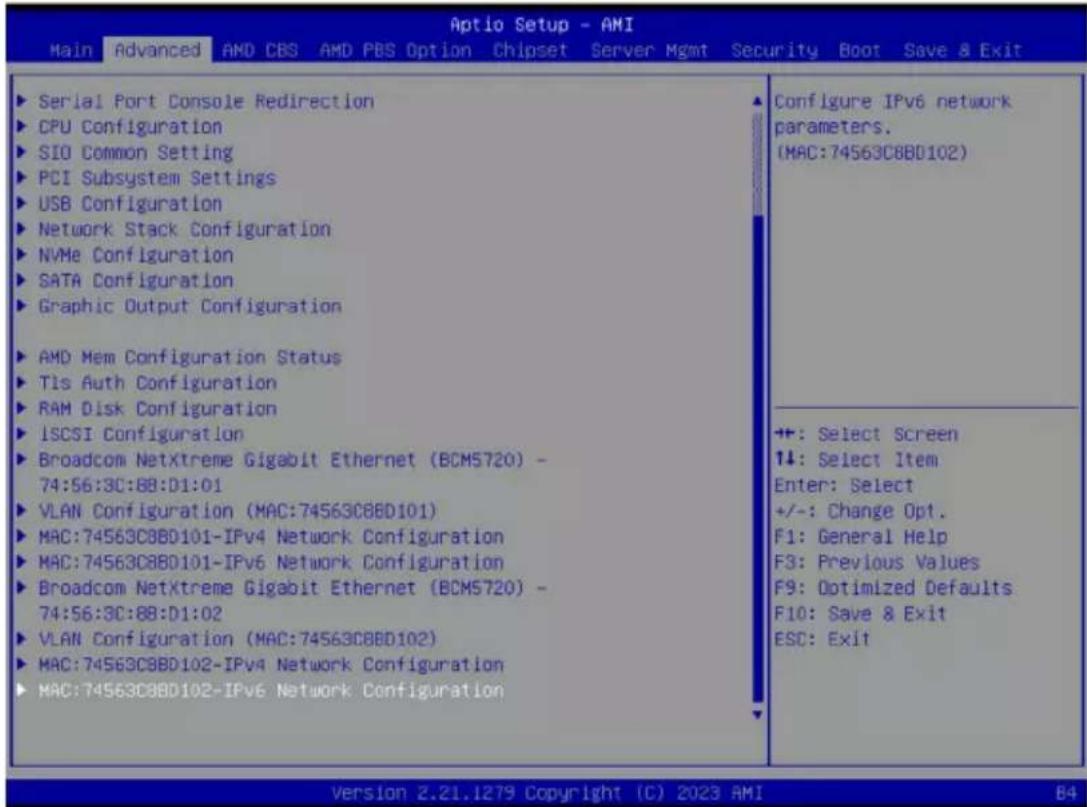

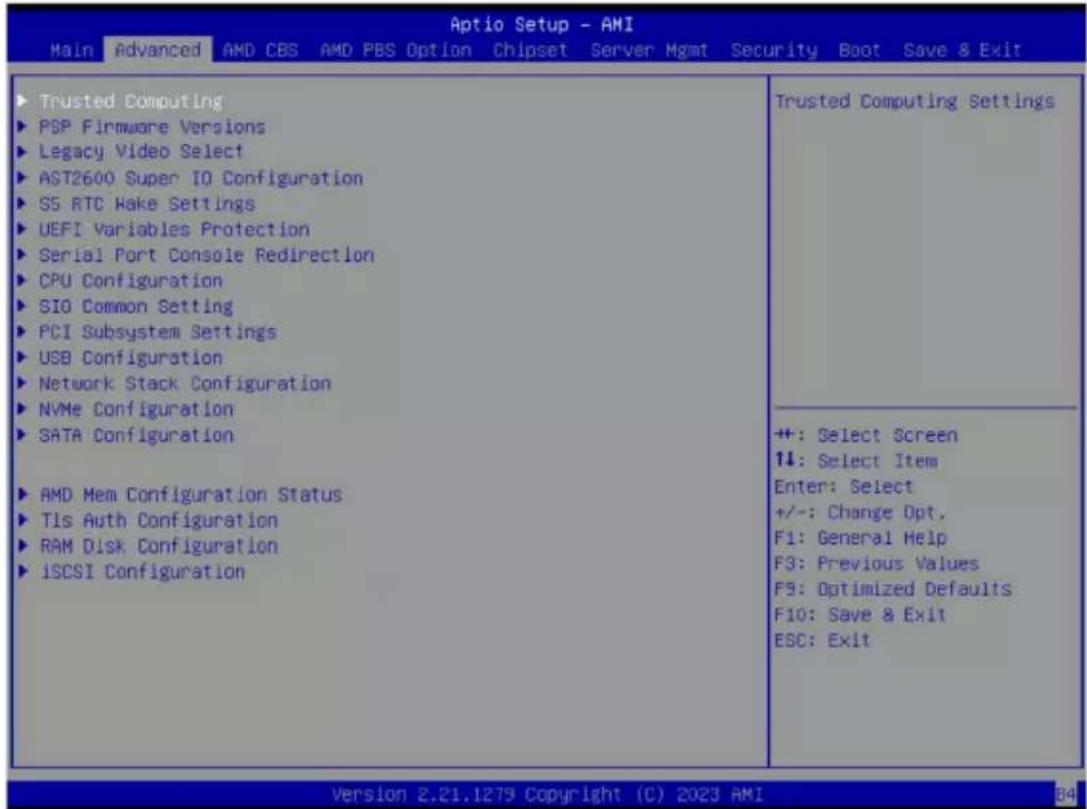

When "Boot Mode Select" is set to Legacy in the Boot > Boot Mode Select section

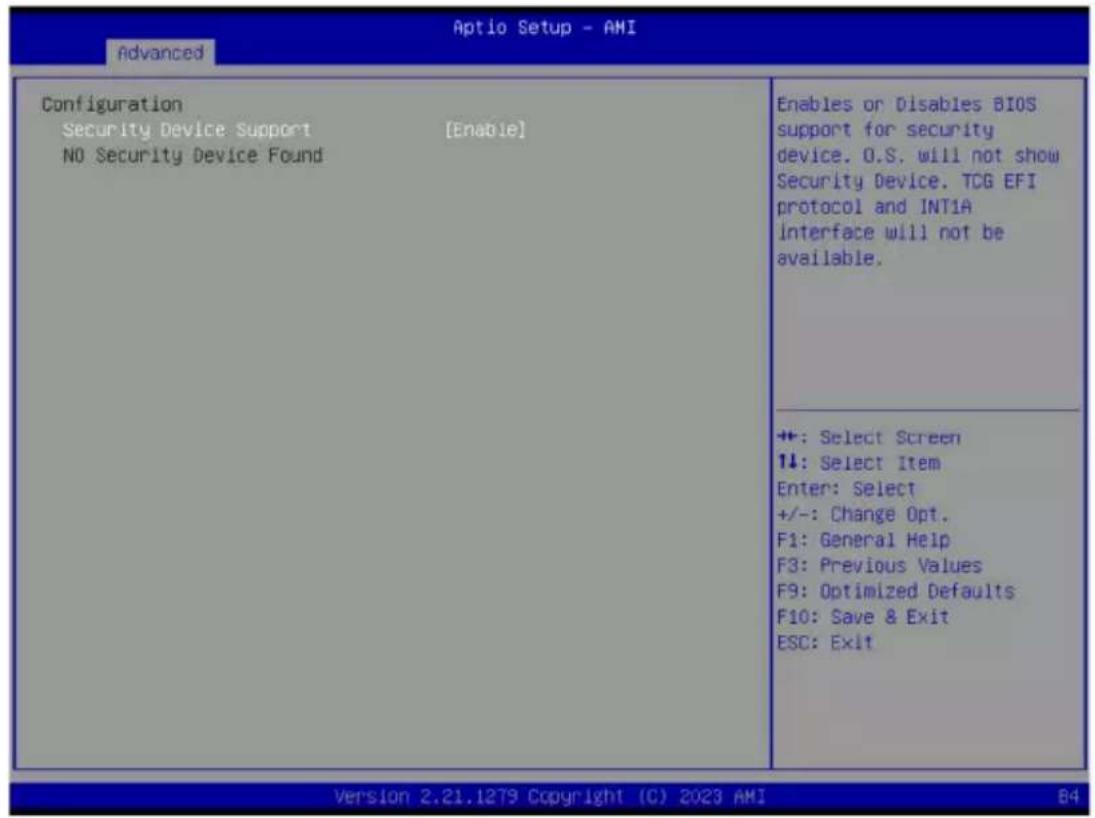

2-2-1 Trusted Computing

Parameter	Description
Configuration
Security Device Support	Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be available. Options available: Disable, Enable. Default setting is Enable.

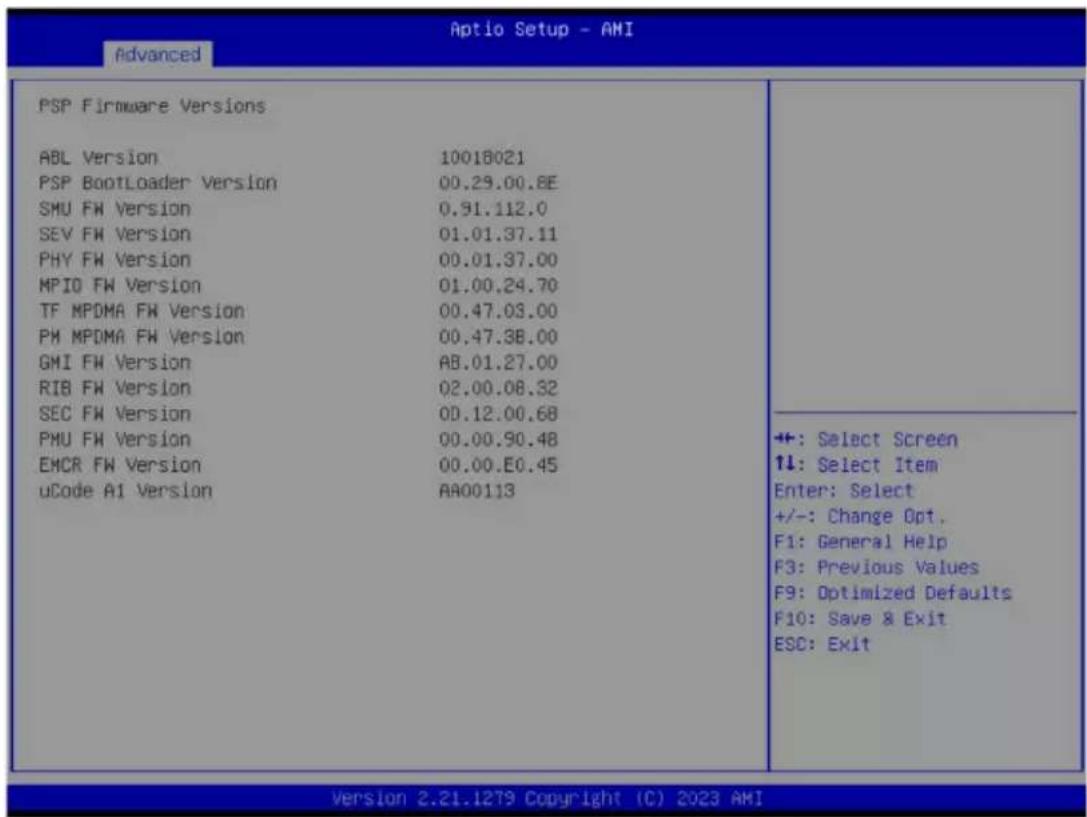

2-2-2 PSP Firmware Versions

The PSP Firmware Versions page displays the basic PSP firmware version information. Items on this window are non-configurable.

2-2-3 Legacy Video Select

Parameter	Description
OnBrd/Ext VGA Select	Selects between onboard or external VGA support. Options available: Auto, Onboard, External. Default setting is Auto.

(Note) This configurable option will be displayed when "Boot Mode Select" is set to Legacy in the Boot > Boot Mode Select section.

2-2-4 AST2600 Super IO Configuration

Parameter	Description
AST2600 Super IO Configuration
Super IO Chip Displays the super IO chip information
Serial Port 1Configuration	Press [Enter] for configuration of advanced items.

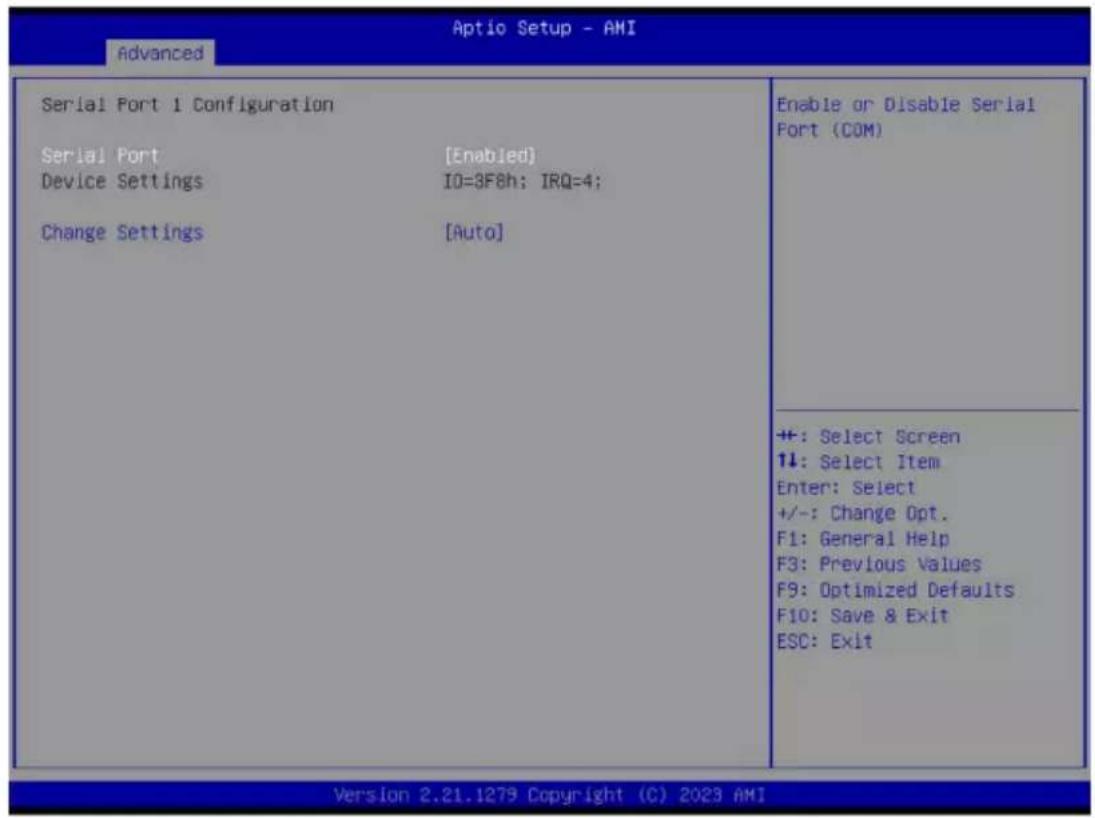

2-2-4-1 Serial Port 1 Configuration

Parameter	Description
Serial Port 1 Configuration
Serial Port (Note)	Enable/Disable the Serial Port (COM). When set to Enabled allows you to configure the Serial port 1 settings. When set to Disabled, displays no configuration for the serial port. Options available: Disabled, Enabled. Default setting is Enabled.
Devices Settings Displays the Serial Port 1 device settings.
Change Settings	Select an optimal settings for Super IO Device. Options available for Serial Port 1: Auto IO=3F8h; IRQ=4; IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Default setting is Auto.

(Note) Advanced items prompt when this item is defined.

2-2-5 S5 RTC Wake Settings

Parameter	Description
Wake System from S5	Enable/Disable system wake on alarm event. Options available: Disabled, Fixed Time, Dynamic Time. When Fixed Time is selected, system will wake on the hr:min:sec specified. Default setting is Disabled.

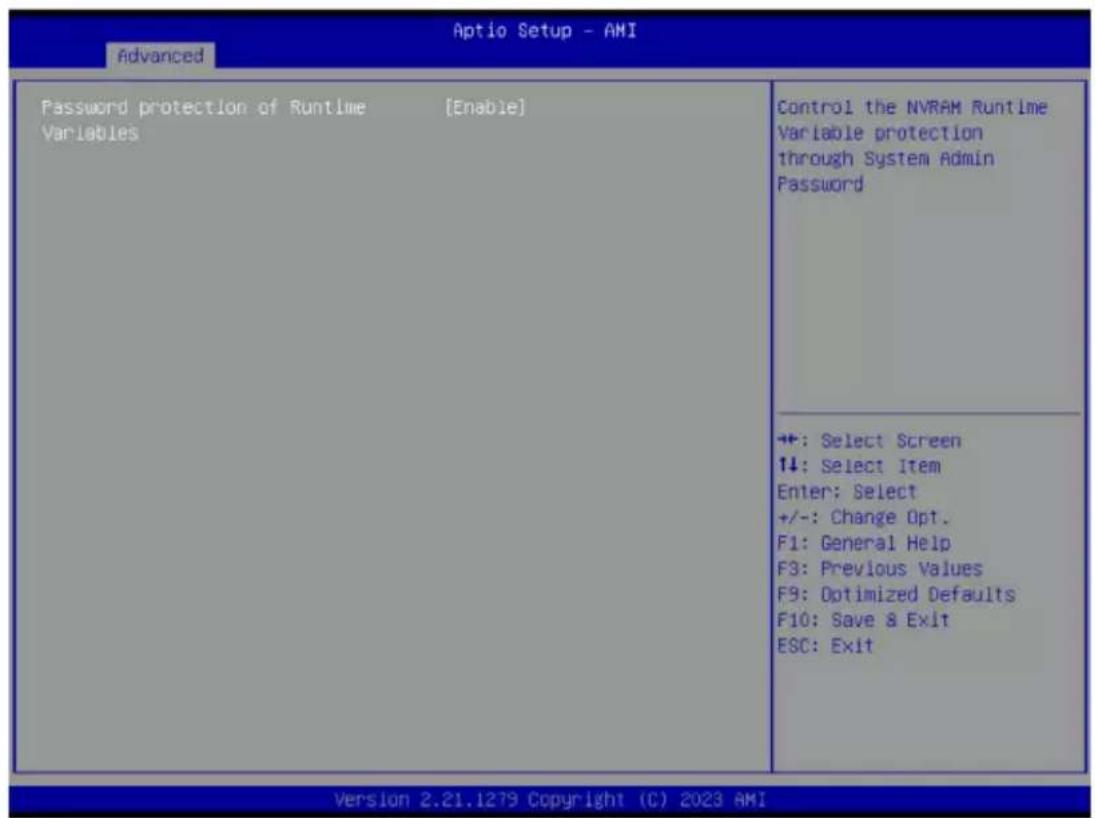

2-2-6 UEFI Variables Protection

Parameter	Description
Password protection of Runtime Variables	Control the NVRAM Runtime Variable protection through System Admin Password. Options available: Enable, Disable. Default setting is Enable.

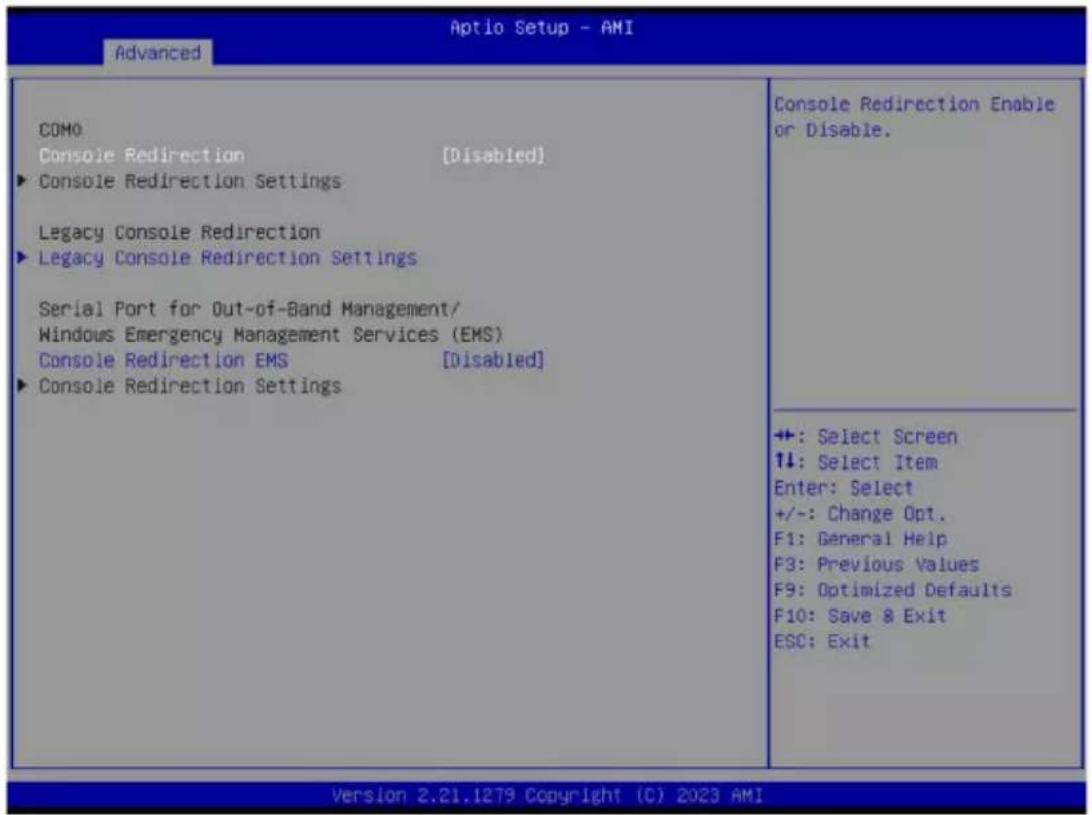

2-2-7 Serial Port Console Redirection

Parameter	Description
COM0 Console Redirection(Note)	Select whether to enable console redirection for specified device. Console redirection enables the users to manage the system from a remote location. Options available: Enabled, Disabled. Default setting is Disabled.
COM0 Console Redirection Settings	Press [Enter] to configure advanced items. Please note that this item is configurable when COM0 Console Redirection is set to Enabled. • Terminal Type - Selects a terminal type to be used for console redirection. - Options available: VT100, VT100Plus, ANSI, VT-UTF8. Default setting is ANSI. • Bits per second - Selects the transfer rate for console redirection. - Options available: 9600, 19200, 38400, 57600, 115200. Default setting is 115200. • Data Bits - Selects the number of data bits used for console redirection. - Options available: 7, 8. Default setting is 8.

(Note) Advanced items prompt when this item is defined.

Parameter	Description
COM0 Console Redirection Settings (continued)	• Parity - A parity bit can be sent with the data bits to detect some transmission errors. - Even: parity bit is 0 if the num of 1's in the data bits is even. - Odd: parity bit is 0 if num of 1's in the data bits is odd. - Mark: parity bit is always 1. Space: Parity bit is always 0. - Mark and Space Parity do not allow for error detection. - Options available: None, Even, Odd, Mark, Space. Default setting is None. • Stop Bits - Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. - Options available: 1, 2. Default setting is 1. • Flow Control - Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals. - Options available: None, Hardware RTS/CTS. Default setting is None. • VT-UTF8 Combo Key Support - Enable/Disable the VT-UTF8 Combo Key Support. - Options available: Enabled, Disabled. Default setting is Enabled. • Recorder Mode - When this mode enabled, only texts will be send. This is to capture Terminal data. - Options available: Enabled, Disabled. Default setting is Disabled. • Resolution 100x31 - Enable/Disable extended terminal resolution. - Options available: Enabled, Disabled. Default setting is Enabled. • Putty KeyPad - Selects Function Key and KeyPad on Putty. - Options available: VT100, LINUX, XTERM6, SC0, ESCN, VT400. Default setting is VT100.
Legacy Console Redirector
Legacy Console Redirector Settings	Press [Enter] to configure advanced items. • Redirection COM Port - Selects a COM port for Legacy serial redirection. - Default setting is COM0. • Resolution - Selects the number of rows and columns used in Console Redirector for legacy OS support. - Options available: 80x24, 80x25. Default setting is 80x24. • Redirect After POST - When Bootloader is selected, then Legacy Console Redirector is disabled before booting to legacy OS. When Always Enable is selected, then Legacy Console Redirector is enabled for legacy OS. - Options available: Always Enable, BootLoader. Default setting is Always Enable.
Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS) Console Redirector (Note)	EMS console redirection allows the user to configure Console Redirector Settings to support Out-of-Band Serial Port management. Options available: Disabled, Enabled. Default setting is Disabled.
Serial Port for Out-of-Band EMS Console Redirector Settings	Press [Enter] to configure advanced items. Please note that this item is configurable when Serial Port for Out-of- Band Management EMS Console Redirector is set to Enabled. • Out-of-Band Mgmt Port - Microsoft Windows Emergency Management Service (EMS) allows for remote management of a Windows Server OS through a serial port. - Default setting is COM0. • Terminal Type - Selects a terminal type to be used for console redirection. - Options available: VT100, VT100Plus, ANSI, VT-UTF8. Default setting is ANSI. • Bits per second - Selects the transfer rate for console redirection. - Options available: 9600, 19200, 57600, 115200. Default setting is 115200.

(Note) Advanced items prompt when this item is defined.

Parameter

Description

Serial Port for Out-of-Band EMS Console Redirection Settings(continued)

• Flow Control - Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can be sent to stop the data flow. Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals. - Options available: None, Hardware RTS/CTS, Software Xon/Xoff. Default setting is None.

2-2-8 CPU Configuration

Parameter	Description
SVM Mode	Enable/Disable the CPU Virtualization. Options available: Disabled, Enabled. Default setting is Enabled.
CPU 0 Information	Press [Enter] to view the memory information related to CPU 0.

2-2-9 SIO Common Setting

Parameter	Description
Lock Legacy Resources	Options available: Disabled, Enabled. Default setting is Disabled.

2-2-10 PCI Subsystem Settings

Parameter	Description
PCI Bus Driver Version	Displays the PCI Bus Driver version information.
PCIE #(Note1)	Change the PCIe lanes.
SLOT #(Note1)	Options available: Disabled, Auto, x16, x8x8, x8x4x4, x4x4x8, x4x4x4x4. Default setting is Auto.
PCIE #(I/O ROM)(Note1)	When enabled, this setting will initialize the device expansion ROM for the related PCI-E slot.
SLOT #(I/O ROM)(Note1)	Options available: Disabled, Enabled. Default setting is Enabled.
PCIE #(Link Speed)(Note1)	Configure PCIe max link speed.
SLOT #(Link Speed)(Note1)	Options available: Auto, Gen4, Gen3, Gen2, Gen1. Default setting is Auto.
MCIO P0_G3 (Note2)	Change MCIO P0_G3 PCIe lanes.
	Options available: Disabled, Auto, SATA, x4x4x4. Default setting is Auto.
MCIO P0_G3 I/O ROM (Note2)	When enabled, this setting will initialize the device expansion ROM for the related devices.
	Options available: Disabled, Enabled. Default setting is Enabled.
MCIO P0_G3 Link Speed (Note2)	Configure MCIO PCIe max link speed.
	Options available: Auto, Gen4, Gen3, Gen2, Gen1. Default setting is Auto.
Onboard LAN Controller (Note3)	Enable/Disable the onboard LAN devices.
	Options available: Disabled, Enabled. Default setting is Enabled.
Onboard LAN# I/O ROM (Note3)	Enable/Disable the onboard LAN devices, and initializes device expansion ROM.
	Options available: Disabled, Enabled. Default setting is Enabled.
PCI Devices Common Settings
Above 4G Decoding	Enable/Disable memory mapped I/O to 4GB or greater address space (Above 4G Decoding).
	Options available: Disabled, Enabled. Default setting is Enabled.
SR-IOV Support	If the system has SR-IOV capable PCIe devices, this item Enable/ Disable Single Root IO Virtualization Support.
	Options available: Disabled, Enabled. Default setting is Enabled.
Relaxed Ordering	Enable/Disable PCI express device relaxed ordering.
	Options available: Disabled, Enabled. Default setting is Enabled.

(Note1) This section is dependent on the available PCIe Slot.

(Note2) This section is dependent on the available MCIO connector.

(Note3) This section is dependent on the available LAN controller.

2-2-11 USB Configuration

Parameter	Description
USB Configuration
USB Module Version	Displays the USB module version information.
USB Controllers	Displays the supported USB controllers.
USB Devices:	Displays the USB devices connected to the system.
Legacy USB Support	Enable/Disable the Legacy USB support function. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. Options available: Enabled, Disabled, Auto. Default setting is Enabled.
XHCI Hand-off	Enable/Disable the XHCI Hand-off support. Options available: Enabled, Disabled. Default setting is Enabled.
USB Mass Storage Driver Support (Note)	Enable/Disable the USB Mass Storage Driver Support. Options available: Disabled, Enabled. Default setting is Enabled.
Port 60/64 Emulation	Enable I/O port 60h/64h emulation support. This should be enabled for the complete USB Keyboard Legacy support for non-USB aware OS. Options available: Enabled/Disabled. Default setting is Enabled.
USB hardware delays and time-outs

(Note) This item is present only if you attach USB devices.

Parameter	Description
USB transfer time-out	Selects the time-out value for USB Control/Bulk/Interrupt transfers. Options available: 1 sec, 5 sec, 10 sec, 20 sec. Default setting is 20 sec.
Device reset time-out	Selects the time-out value during a USB mass storage device reset. Options available: 10 sec, 20 sec, 30 sec, 40 sec. Default setting is 20 sec.
Device power-up delay	Maximum time the device will take before it properly reports itself to the Host Controller. "Auto" uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Options available: Auto, Manual. Default setting is Auto.

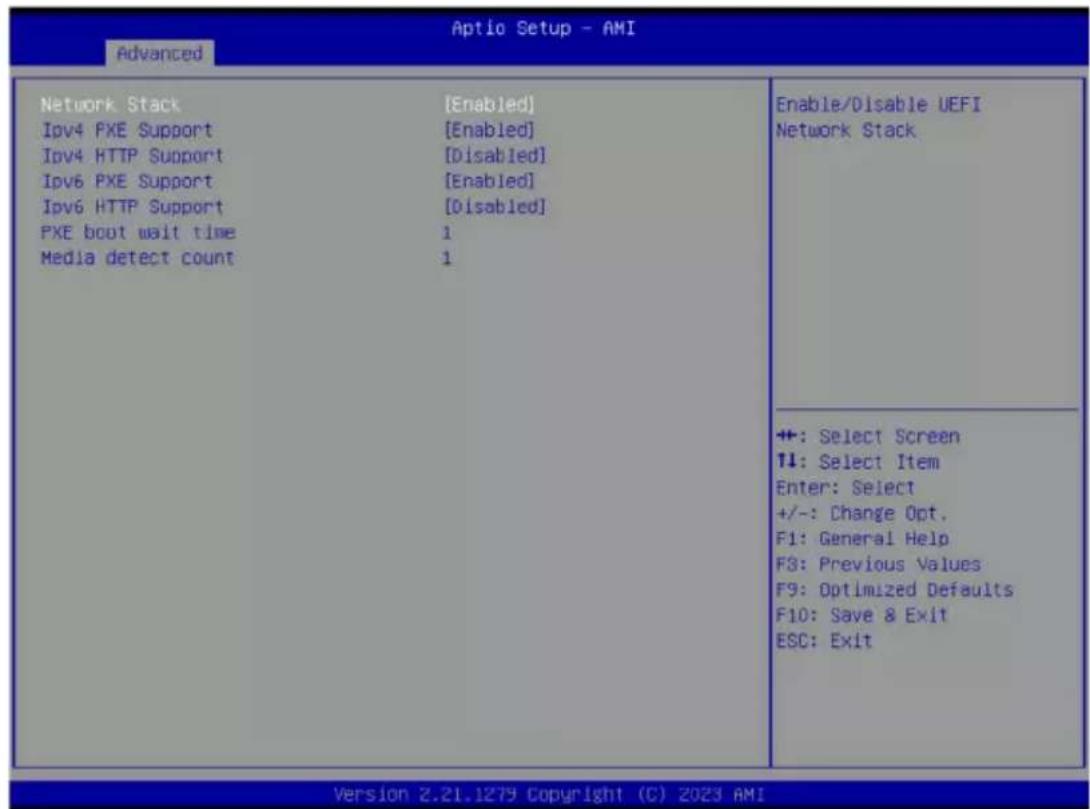

2-2-12 Network Stack Configuration

Parameter	Description
Network Stack	Enable/Disable the UEFI network stack. Options available: Enabled, Disabled. Default setting is Enabled.
Ipv4 PXE Support (Note)	Enable/Disable the Ipv4 PXE feature. Options available: Enabled, Disabled. Default setting is Enabled.
Ipv4 HTTP Support (Note)	Enable/Disable the Ipv4 HTTP feature. Options available: Enabled, Disabled. Default setting is Disabled.
Ipv6 PXE Support (Note)	Enable/Disable the Ipv6 PXE feature. Options available: Enabled, Disabled. Default setting is Enabled.
Ipv6 HTTP Support (Note)	Enable/Disable the Ipv6 HTTP feature. Options available: Enabled, Disabled. Default setting is Disabled.
PXE boot wait time (Note)	Wait time in seconds to press ESC key to abort the PXE boot. Press the <+> / <-> keys to increase or decrease the desired values.
Media detect count (Note)	Number of times the presence of media will be checked. Press the <+> / <-> keys to increase or decrease the desired values.

(Note) This item appears when Network Stack is set to Enabled.

2-2-13 NVMe Configuration

Parameter	Description
NVMe Configuration	Displays the NVMe devices connected to the system.

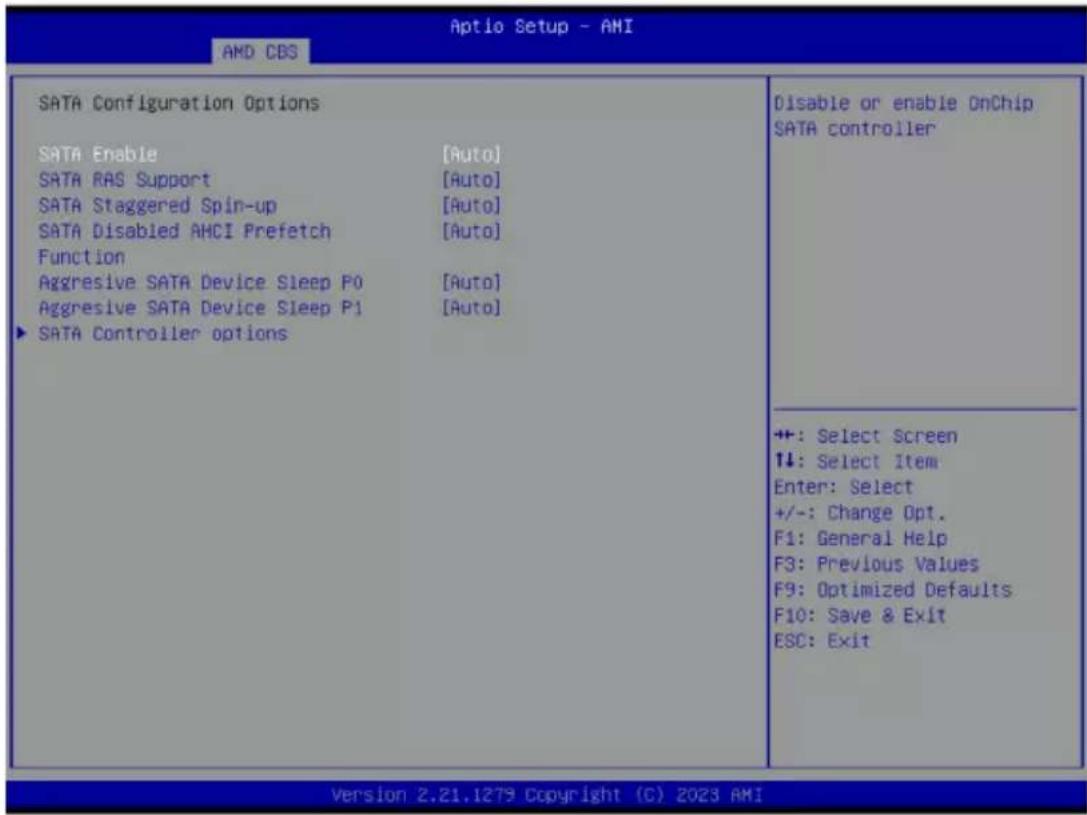

2-2-14 SATA Configuration

Parameter	Description
SATA Configuration	Displays the installed HDD devices information. System will automatically detect HDD type.

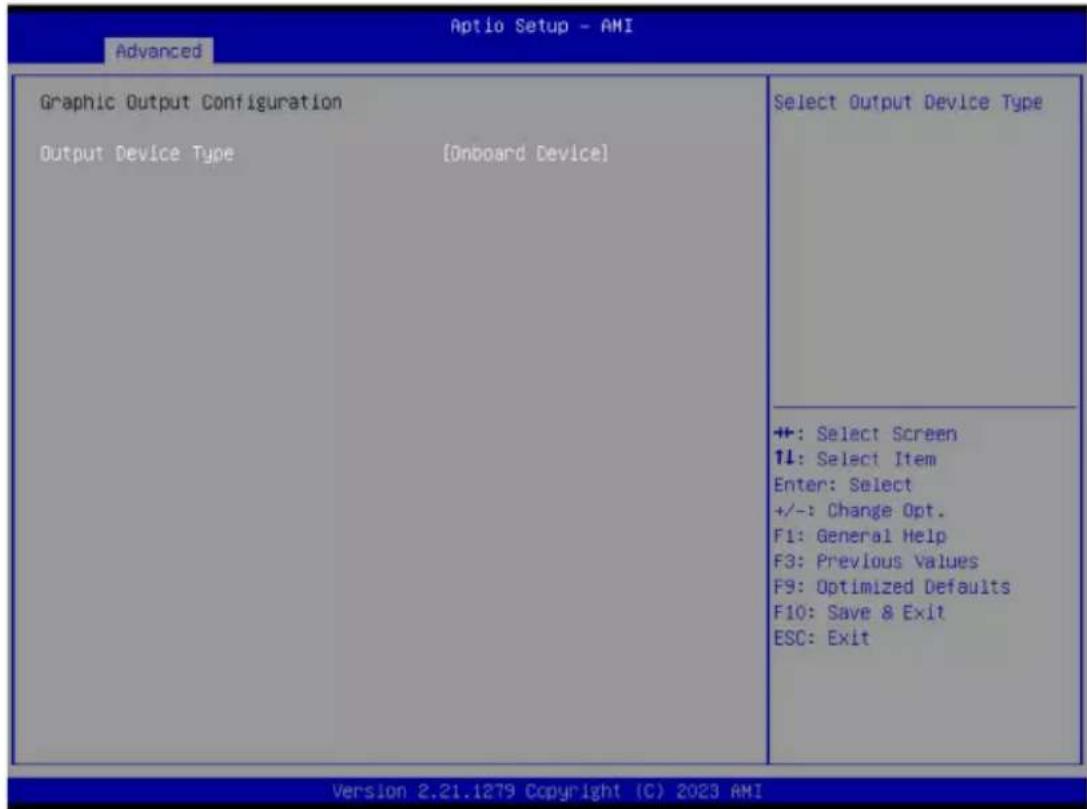

2-2-15 Graphic Output Configuration

Parameter	Description
Output Device Type	Selects output device type. Options available: First loaded Device, Onboard Device, External Device, Specific Device. Default setting is Onboard Device.

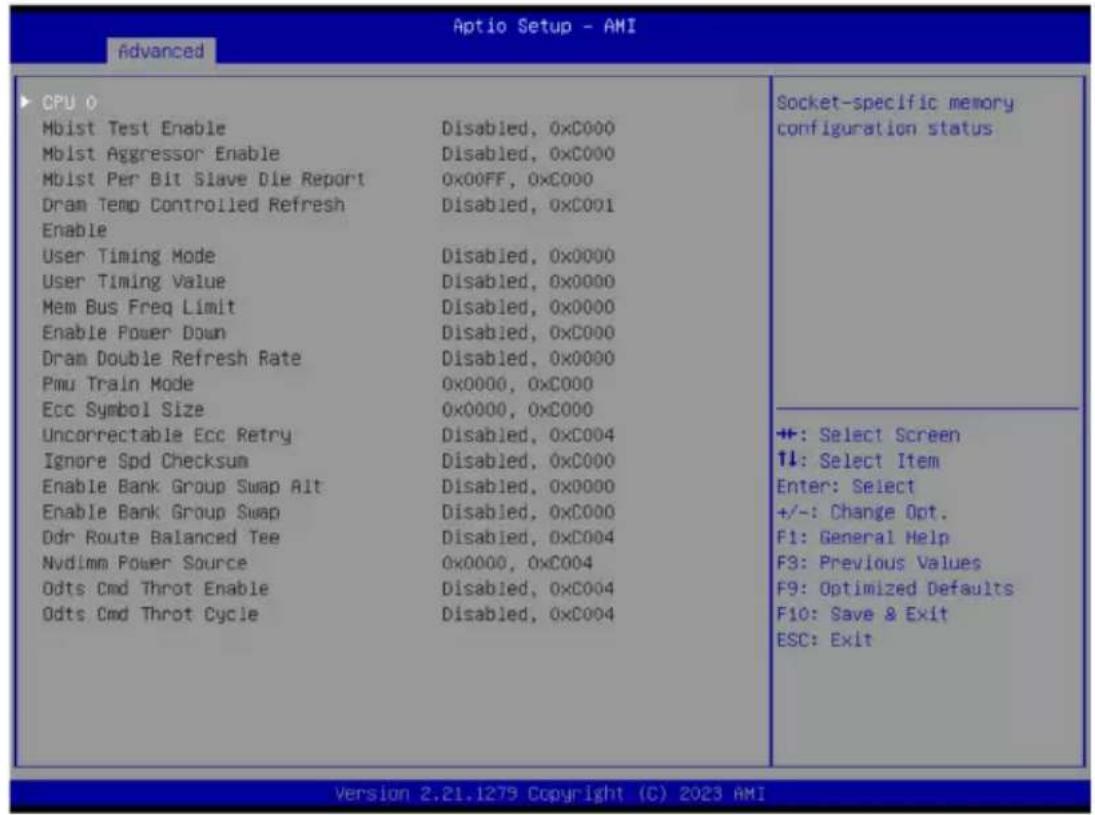

2-2-16 AMD Mem Configuration Status

Parameter	Description
CPU 0	Press [Enter] to view the memory configuration status related to CPU 0.

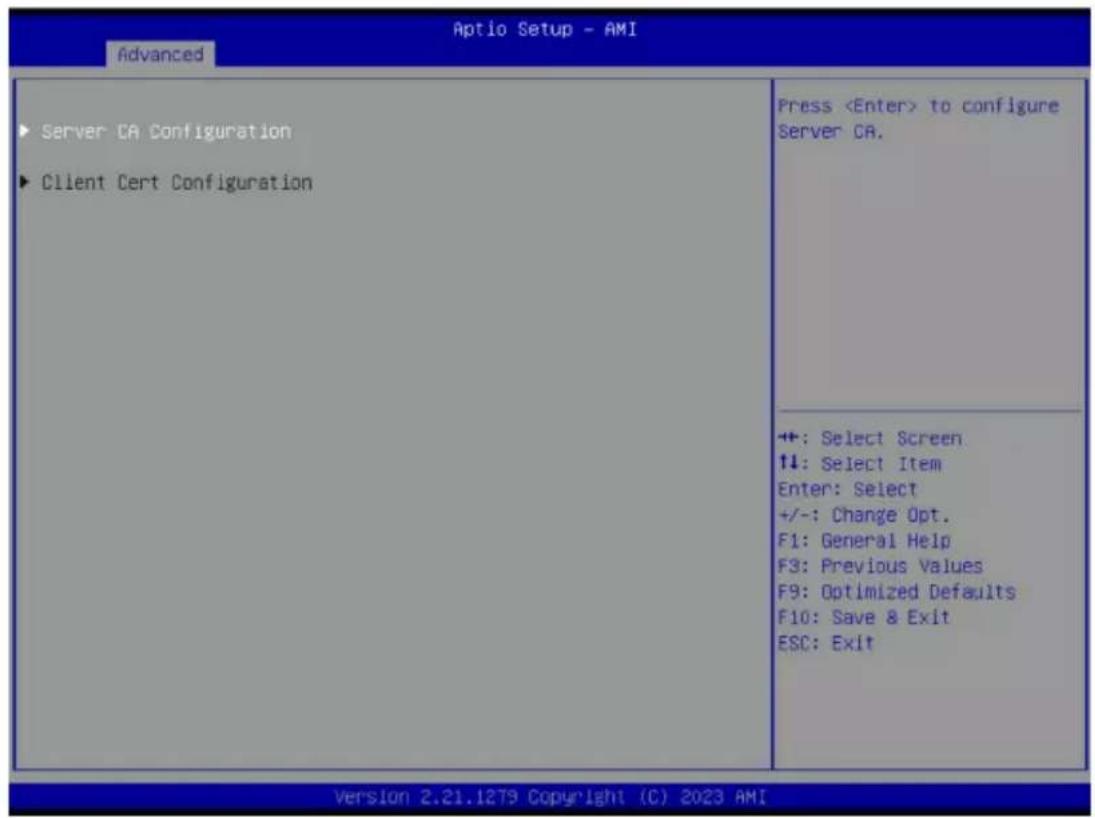

2-2-17 TIs Auth Configuration

Parameter Description
Server CA Configuration	Press [Enter] for configuration of advanced items. Enroll Cert - Press [Enter] to enroll a certificate Enroll Cert Using File Cert GUID Input digit character in 1111111-2222-3333-4444-1234567890ab format. - Commit Changes and Exit - Discard Changes and Exit Delete Cert
Client Cert Configuration	Press [Enter] for configuration of advanced items.

2-2-18 RAM Disk Configuration

Parameter	Description
Disk Memory Type	Specifies the type of memory to use from available memory pool in system to create a disk. Options available: Boot Service Data, Reserved. Default setting is Boot Service Data.
Create Raw	Creates a raw RAM disk. • Size (Hex) - Input a valid RAM disk size that should be multiple of the RAM disk block size. • Create & Exit • Discard & Exit
Create from file	Creates a RAM disk from a given file.
Created RAM disk list
Remove selected RAM disk(s)	Selects the RAM disk(s) to remove.

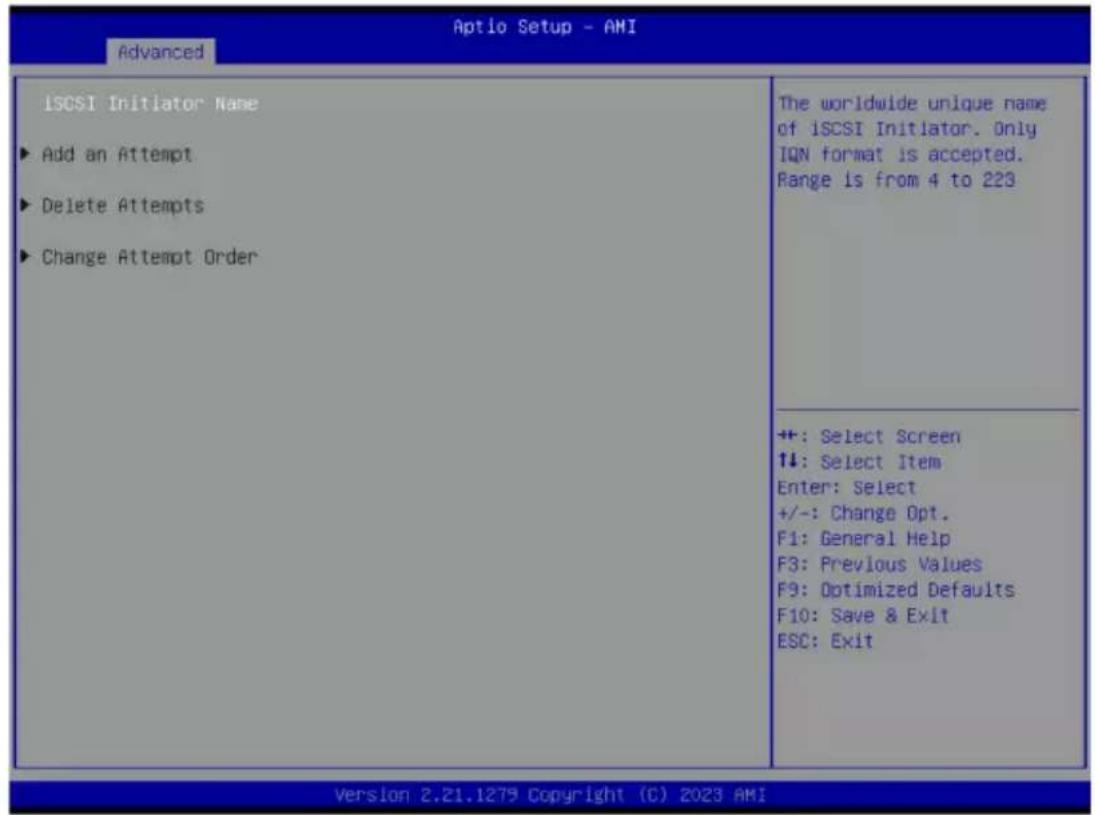

2-2-19 iSCSI Configuration

Parameter	Description
iSCSI Initiator Name	Press [Enter] and name iSCSI Initiator. Only IQN format is accepted. Range: from 4 to 223
Add an Attempt	Press [Enter] to configure advanced items.
Delete Attempts	Press [Enter] to configure advanced items.
Change Attempt Order	Press [Enter] to configure advanced items.

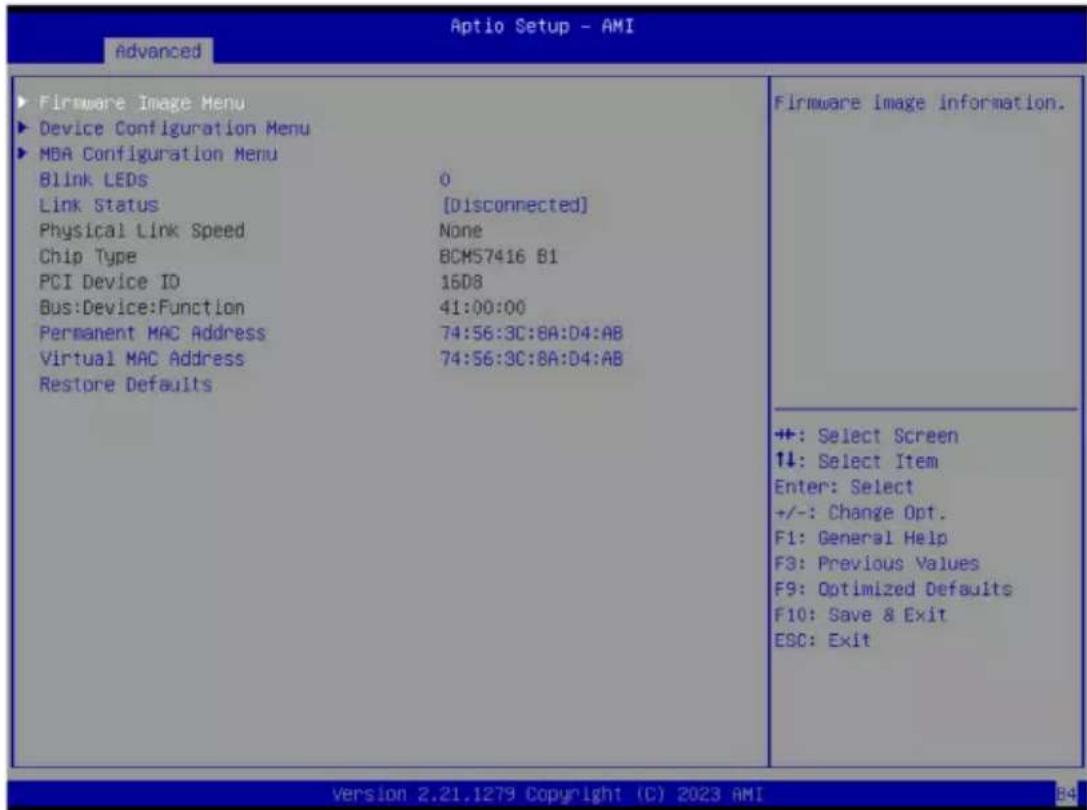

2-2-20 Broadcom BCM57416 NetXtreme-E 10GBASE-T RDMA Ethernet

Parameter Description
Firmware Image Menu	Press [Enter] to view firmware image information.
	Press [Enter] to configure advanced items. • Multi-Function Mode - Configures the NIC Hardware Mode. - Options available: SF, NPAR 1.0. Default setting is SF. • SR-IOV - Enable/Disable Single Root I/O Virtualization. - Options available: Disabled, Enabled. Default setting is Disabled. • Number of MSI-X Vectors per VF - Configures the number of MSI-X Vectors per VF (0-128). - Default setting is 16.
Device Configuration Menu	• Maximum Number of PF MSI-X Vectors - Configures the maximum number of PF MSI-X Vectors (0-512 per controller). - Default setting is 74. • Energy Efficient Ethernet - Enable/Disable Energy Efficient Ethernet operation. - Options available: Disabled, Enabled. Default setting is Disabled. • Operational Link Speed - Configures the link speed setting to be used as the default link speed for the selected port. - Options available: AutoNeg. Default setting is AutoNeg.
Parameter	Description
Device Configuration Menu(continued)	Support RDMA- Enable/Disable RDMA support for this port.- Options available: Disabled, Enabled. Default setting is Disabled.DCB Protocol- Enable/Disable DCB protocol.- Options available: Disabled, Enabled (IEEE only), CEE (only), Both (IEEE preferred with fallback to CEE). Default setting is Disabled.LLDP nearest bridge- Enable/Disable LLDP nearest bridge state.- Options available: Disabled, Enabled. Default setting is Enabled. Default EVB Mode- Configures the default Edge Virtual Bridging mode.- Options available: VEB, VEPA, None. Default setting is VEB.Enable PME Capability- Enable/Disable PME Capability support.- Options available: Disabled, Enabled. Default setting is Enabled-flow Offload- Options available: Enabled, Disabled. Default setting is Disabled.Live Firmware Upgrade- Options available: Enabled, Disabled. Default setting is Disabled.Adapter Error Recovery- Options available: Enabled, Disabled. Default setting is Disabled.
MBA Configuration Menu	Press [Enter] to configure advanced items.Option ROM- Enable/Disable Boot Option ROM.- Options available: Disabled, Enabled. Default setting is Enabled.Legacy Boot Protocol- Selects non-UEFI Boot Protocol: Preboot Execution Environment (PXE)/iSCSI.- Options available: PXE, iSCSI, NONE. Default setting is PXEBOOT Strap Type- Selects the boot strap type. Options available: Auto Detect, BBS, Int 18h, Int 19h. Default setting is Auto Detect.Hide Setup Prompt- Configures whether the Setup Prompt is displayed during ROM initialization.- Options available: Disabled, Enabled. Default setting is Disabled.Setup Key Stroke- Configures key strokes to invoke the configuration menu.- Options available: Ctrl-S, Ctrl-B. Default setting is Ctrl-S.Banner Message Timeout- Selects the timeout value. (0 defaults to 4 seconds, 15 is no delay, 1-14 is timeout value in seconds)- Default setting is 5.
Parameter Description
MBA Configuration Menu (continued)	Pre-boot Wake On LAN - Configures Pre-boot Wake on LAN (WOL). - Options available: Disabled, Enabled. Default setting is Enabled. VLAN Mode - Configures the virtual LAN (VLAN) mode. - Options available: Disabled, Enabled. Default setting is Disabled. VLAN ID - Configures the VLAN ID (1...4094). - This item is available only when VLAN Mode is Enabled. Boot Retry Count - Selects the number of boot retries. - Options available: No Retry, 1 Retry, 2 Retries, 3 Retries, 4 Retries, 5 Retries, 6 Retries, Indefinite Retries. Default setting is No Retry.
Blink LEDs	Identifies the physical network port by blinking the associated LED. Press the numeric keys to adjust desired values.
Link Status	Specifies the link status of the port.
Physical Link Speed	Displays the technical specifications for the Network Interface Controller.
Chip Type	Displays the technical specifications for the Network Interface Controller.
PCI Device ID	Displays the technical specifications for the Network Interface Controller.
Bus:Device:Function	Displays the technical specifications for the Network Interface Controller.
Permanent MAC Address	Displays the MAC address of the Ethernet controller.
Virtual MAC Address	Displays the virtual MAC address of the Ethernet controller.
Restore Defaults	Reset the adapter to factory defaults.

2-2-21 Broadcom NetXtreme BCM5720 Gigabit Ethernet

Parameter Description
Firmware Image Menu	Press [Enter] to view firmware image information.
	Press [Enter] to configure advanced items. • Legacy Boot Protocol - Selects non-UEFI Boot Protocol: Preboot Execution Environment (PXE)/iSCSI. - Options available: PXE, iSCSI, NONE. Default setting is PXE. • Boot Strap Type - Selects the boot strap type. Options available: Auto Detect, BBS, Int 18h, Int 19h. Default setting is Auto Detect.
MBA Configuration Menu	Hide Setup Prompt - Configures whether the Setup Prompt is displayed during ROM initialization. - Options available: Disabled, Enabled. Default setting is Disabled. • Setup Key Stroke - Configures key strokes to invoke the configuration menu. - Options available: Ctrl-S, Ctrl-B. Default setting is Ctrl-S. • Banner Message Timeout - Selects the timeout value. (0 defaults to 4 seconds, 15 is no delay, 1-14 is timeout value in seconds) - Default setting is 5.

Parameter Description

MBA Configuration Menu (continued)	• Link Speed - Configures link speed. - Options available: AutoNeg, 10Mbps Half, 10Mbps Full, 100Mbps Half, 100Mbps Full. Default setting is AutoNeg. • Pre-boot Wake On LAN - Configures Pre-boot Wake on LAN (WOL). - Options available: Disabled, Enabled. Default setting is Enabled. • VLAN Mode - Configures the virtual LAN (VLAN) mode. - Options available: Disabled, Enabled. Default setting is Disabled. • VLAN ID - Configures the VLAN ID (1...4094). - This item is available only when VLAN Mode is Enabled.
iSCSI Boot Configuration Menu	Press [Enter] to configure advanced items.
Blink LEDs	Identifies the physical network port by blinking the associated LED. Press the numeric keys to adjust desired values.
Chip Type	Displays the technical specifications for the Network Interface Controller.
PCI Device ID	Displays the technical specifications for the Network Interface Controller.
Bus:Device:Function	Displays the technical specifications for the Network Interface Controller.
Link Status	Specifies the link status of the port.
Permanent MAC Address	Displays the MAC address of the Ethernet controller.
Virtual MAC Address	Displays the virtual MAC address of the Ethernet controller.

2-2-21-1 iSCSI Boot Configuration Menu

Parameter Description

iSCSI General Parameters	Press [Enter] to configure advanced items.
	• TCP/IP Parameters via DHCP
	- Acquires TCP/IP Parameters via DHCP.
	- Options available: Disabled, Enabled. Default setting is Enabled.
	• IP Autoconfiguration
	- Auto-configures the IP configuration.
	• iSCSI Parameters via DHCP
	- Acquires iSCSI Parameters via DHCP.
	- Options available: Disabled, Enabled. Default setting is Disabled.
	• CHAP Authentication
	- Enable/Disable the CHAP authentication.
	- Options available: Disabled, Enabled. Default setting is Disabled.
	• Boot to iSCSI Target
	- Enable/Disable booting to iSCSI target after log-on.
	- Options available:Disabled, Enabled, One Time Disabled. Default setting is Enabled.
	• DHCP Vendor ID
	- Configures the DHCP vendor ID (up to 32 characters long).
	• Link Up Delay Time
	- Configures the link up delay time in seconds (0-225).
Parameter	Description
iSCSI General Parameters(continued)	Use TCP Timestamp- Enable/Disable the TCP timestamp.- Options available: Disabled, Enabled. Default setting is Disabled.Target as First HDD- Enable/Disable target appears as first hard disk drive (HDD) in the system.- Options available: Disabled, Enabled. Default setting is Disabled.LUN Busy Retry Count- Configures the number of retries in 2 second intervals when LUN is busy (0-60).- Default setting is 0.IP Version- Displays the IP version supported. Modifying this parameter will reset all IP-related fields.- Options available: IPv4, IPv6. Disabled. Default setting is IPv4.
iSCSI Initiator Parameters	Press [Enter] to configure advanced items.IP Address- Configures the initiator IP address.Subnet Mask- Configures the IP subnet mask.Default Gateway- Configures the default gateway IP address.Primary DNS- Configures the primary DNS IP address.Secondary DNS- Configures the secondary DNS IP address.iSCSI Name- Configures the iSCSI name.CHAP ID- Configures the Challenge-Handshake Authentication Protocol(CHAP) ID (up to 128 characters in length).CHAP Secret- Configure the Challenge-Handshake Authentication Protocol(CHAP) Secret (12 to 16 characters in length).
iSCSI First/Second Target Parameters	Press [Enter] to configure advanced items Connect- Enable/Disable the target establishment.- Options available: Disabled, Enabled. Default setting is Disabled.IP Address- Configures the Target IP address.TCP Port- Configures the Target TCP port number (1-65535).
iSCSI First/Second Target Parameters (continued)	• Boot LUN - Configures the Target boot LUN number (0-255). • iSCSI Name - Configures the iSCSI name.
	• CHAP ID - Configures the Challenge-Handshake Authentication Protocol (CHAP) ID (up to 128 characters in length).
	• CHAP Secret - Configure the Challenge-Handshake Authentication Protocol (CHAP) Secret (12 to 16 characters in length).
Secondary Device	Press [Enter] to configure advanced items.
	• Secondary Device - Inputs the secondary device MAC address.
	• Use Independent Target Portal - Use Independent target portal when multipath I/O is enabled. - Options available: Disabled, Enabled. Default setting is Disabled.
	• Use Independent Target Name - Use Independent target name when multipath I/O is enabled. - Options available: Disabled, Enabled. Default setting is Disabled.

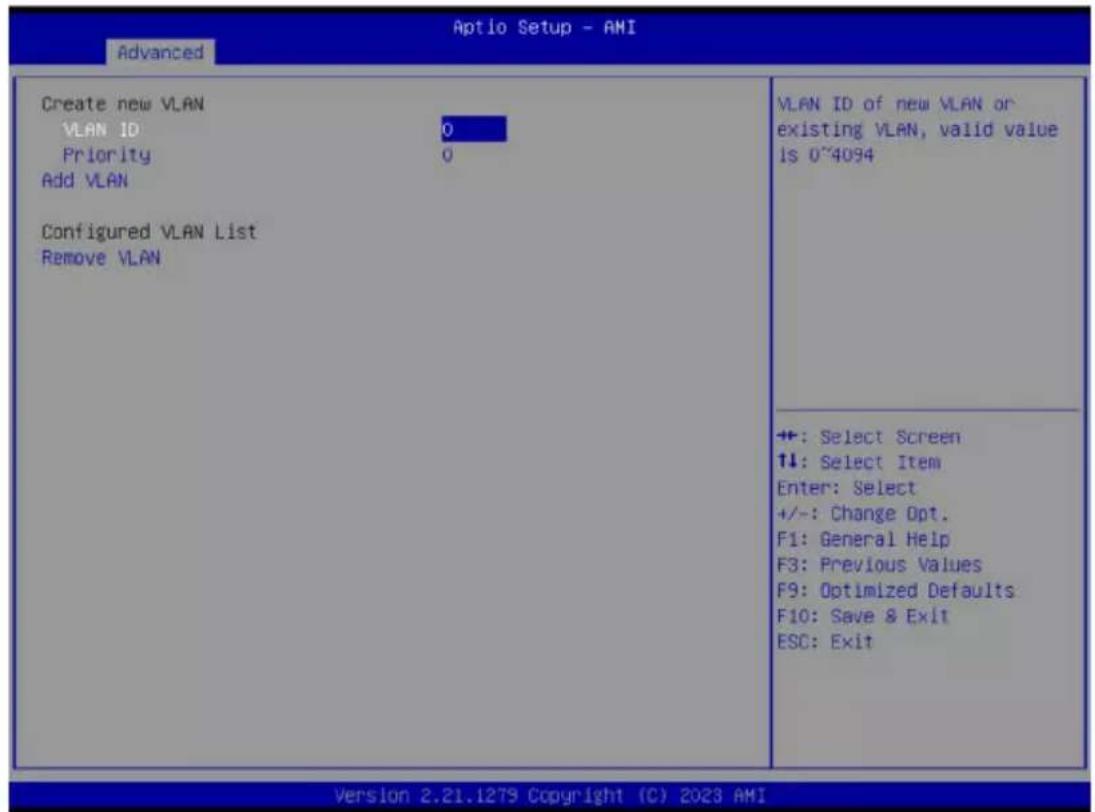

2-2-22 VLAN Configuration

Parameter

Description

Enter Configuration Menu

Press [Enter] to configure advanced items.Create new VLANVLAN ID- Sets VLAN ID for a new VLAN or an existing VLAN.- Press the <+> / <-> keys to increase or decrease the desired values.- The valid range is from 0 to 4094.Priority- Sets 802.1Q Priority for a new VLAN or an existing VLAN.- Press the <+> / <-> keys to increase or decrease the desired values.- The valid range is from 0 to 7.Add VLAN- Press [Enter] to create a new VLAN or update an existing VLAN.Configured VLAN ListRemove VLAN- Press [Enter] to remove an existing VLAN.

2-2-23 MAC IPv4 Network Configuration

Parameter Description
Configured	Indicates whether network address is configured successfully or not. Options available: Enabled, Disabled. Default setting is Disabled.
Enable DHCP(Note)	Options available: Enabled, Disabled. Default setting is Disabled.
Local IP Address(Note)	Press [Enter] to configure local IP address.
Local NetMask(Note)	Press [Enter] to configure local NetMask.
Local Gateway(Note)	Press [Enter] to configure local Gateway
Local DNS Servers(Note)	Press [Enter] to configure local DNS servers
Save Changes and Exit Press [Enter] to save all configurations.

(Note) This item appears when Configured is set to Enabled.

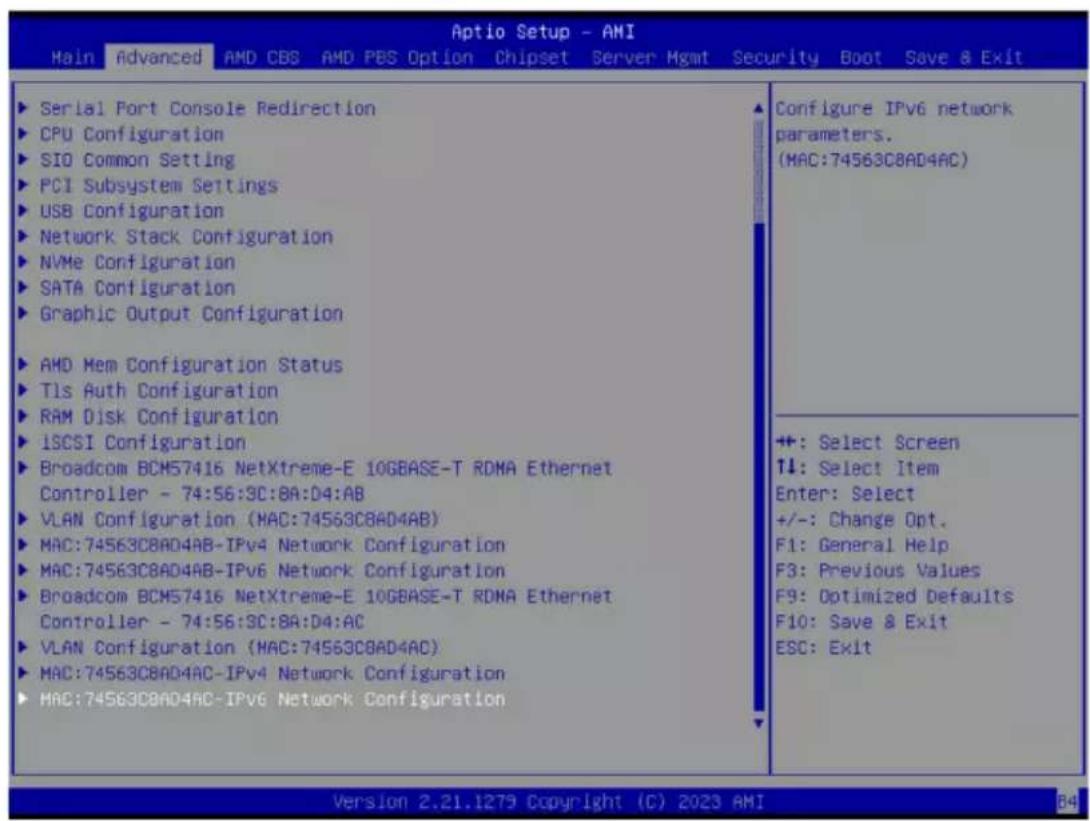

2-2-24 MAC IPv6 Network Configuration

Parameter	Description
Enter Configuration Menu	Press [Enter] to configure advanced items.
	• Displays the MAC Address information.
	• Interface ID
	- The 64 bit alternative interface ID for the device. The string is colon separated. e.g. ff:dd:88:66:cc:1:2:3.
	• DAD Transmit Count
	- The number of consecutive Neighbor solicitation messages sent while performing Duplicate Address Detection on a tentative address. A value of zero indicates that Duplicate Address Detection is not performed.
	• Policy
	- Options available: automatic, manual. Default setting is automatic.
	• Save Changes and Exit
	- Press [Enter] to save all configurations.

2-3 AMD CBS Menu

AMD CBS menu displays submenu options for configuring the CPU-related information that the BIOS automatically sets. Select asubmenu item, then press [Enter] to access the relatedsubmenu screen.

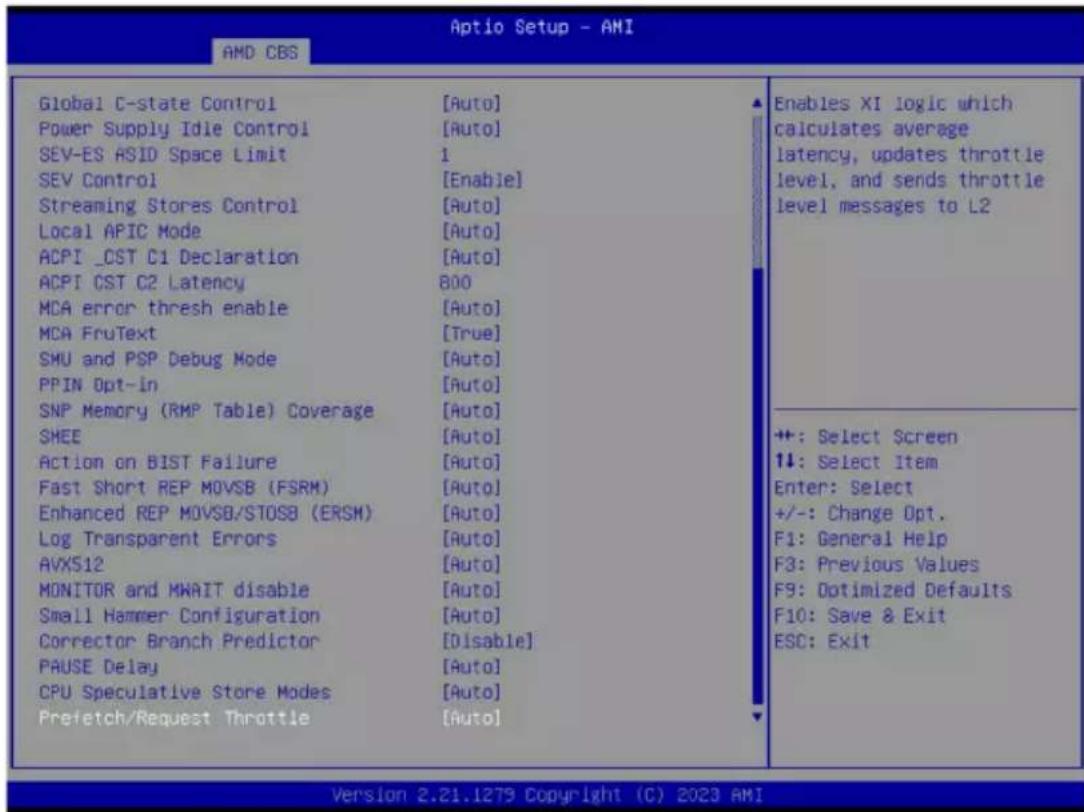

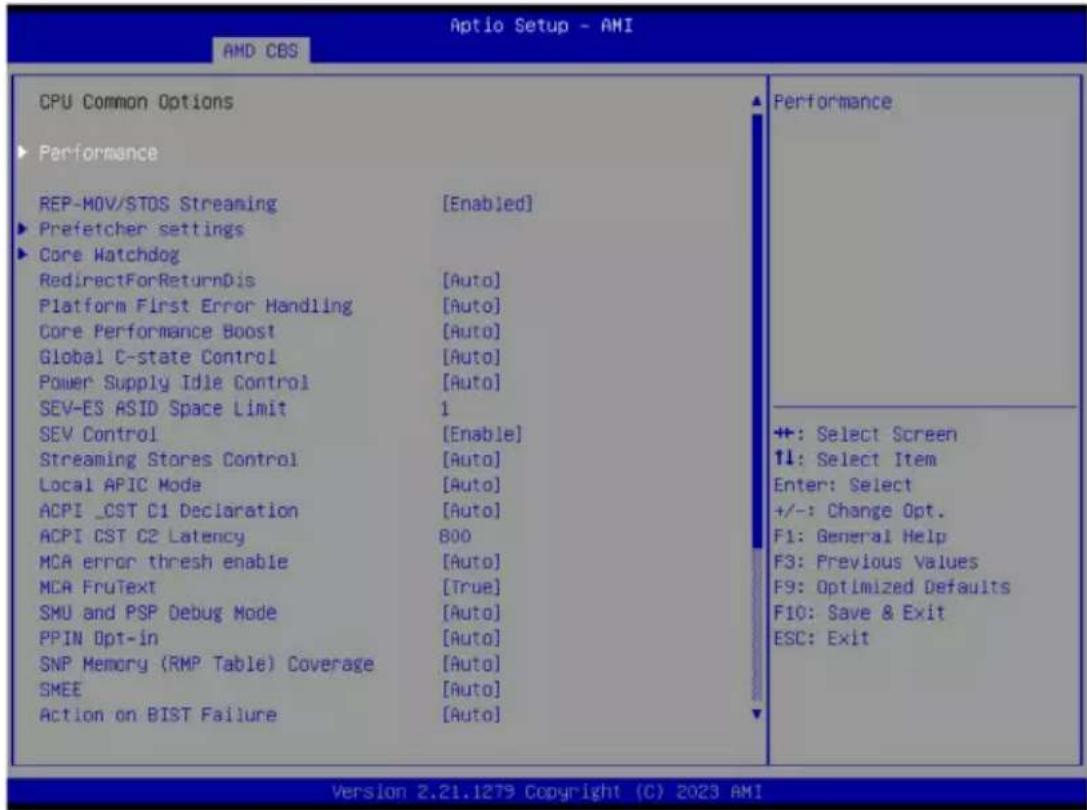

2-3-1 CPU Common Options

Parameter Description
CPU Common Options
Performance Press [Enter] for configuration of advanced items.
REP-MOV/STOS Streaming	Allow REP-MOV/STOS to use non-caching streaming stores for large sizes. Options available: Disabled, Enabled. Default setting is Enabled.
Prefetcher settings Press [Enter] for configuration of advanced items.
Core Watchdog Press [Enter] for configuration of advanced items.
RedirectForReturnDis	From a workaround for GCC/C000005 issue for XV Core on CZ A0, setting MSRC001_1029 Decode Configuration (DE_CFG) bit 14 [DecfgNoRrectForReturns] to 1. Options available: Auto, 1, 0. Default setting is Auto.
Platform First Error Handling	Enable/Disable PFEH, cloak individual banks, and mask deferred error interrupts from each bank. Options available: Enabled, Disabled, Auto. Default setting is Auto.
Core Performance Boost	Enable/Disable the Core Performance Boost function. Options available: Disabled, Auto. Default setting is Auto.
Global C-state Control	Controls the IO based C-state generation and DF C-states. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Power Supply Idle Control	Configs the Power Supply Idle Control. Options available: Low Current Idle, Typical Current Idle, Auto. Default setting is Auto.
SEV-ES ASID Space Limit	Configs the Space limit for SEV-ES ASIDs. Default setting is 1.
SEV Control	Enable/Disable SEV control. Options available: Enabled, Disable. Default setting is Enable.
Streaming Stores Control	Enable/Disable the Streaming Stores functionality. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Local APIC Mode	Sets the Local APIC Mode. Options available: Compatibility, xAPIC, x2APIC, Auto. Default setting is Auto.
ACPI_CST C1 Declaration	Determines whether or not to declare the C1 state to the OS.. Options available: Disabled, Enabled, Auto. Default setting is Auto.
ACPI CST C2 Latency Enter in microseconds (decimal value).
MCA error thresh enable	Enable MCA error thresholding. Options available: False, True, Auto. Default setting is True.
MCA FruText	Enable MCA FruText. Options available: False, True. Default setting is True.
SMU and PSP Debug Mode	When this option is enabled, specific uncorrected errors detected by the PSP FW or SMU FW will hand and not reset the system. Options available: Disabled, Enabled, Auto. Default setting is Auto.
PPIN Opt-in	Enable/Disable the PPIN feature. Options available: Disabled, Enabled, Auto. Default setting is Auto.
SNP Memory (RMP Table) Coverage	Enabled: Enter system memory is covered. Options available: Disabled, Enabled, Custom, Auto. Default setting is Auto.
SMEE	Controls the Secure Memory Encryption Enable (SMEE) function. Options available: Disable, Enable, Auto. Default setting is Auto.
Action on BIST Failure	Action to take when a CCD BIST failure is detected. Options available: Do nothing, Down-CCD, Auto. Default setting is Auto.
Fast Short REP MOVSB (FSRM)	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Enhanced REP MOVSB/ STOSB (ERMSB)	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Log Transparent Errors	Enable/Disable the log Transparent errors function. Options available: Auto, Disabled, Enabled. Default setting is Auto.
AVX512	Enable/Disable AVX512. Options available: Disabled, Enabled, Auto. Default setting is Auto.
MONITOR and MWAIT disable	The MONITOR, MWAIT, MONITORX and MWAITX opcodes become invalid when enabled. Options available: Enabled, Disabled, Auto. Default setting is Auto
Small Hammer Configuration	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Corrector Branch Predictor Options available: Disable, Enable. Default setting is Disable.
PAUSE Delay	Number a cycles thread will be idle after a PAUSE instruction. Options available: Auto, Disable, 16 cycles, 32 cycles, 64 cycles, 128 cycles. Default setting is Auto.
CPU Speculative Store Modes	Select the CPU speculative store modes. Options available: Balanced, More Speculative, Less Speculative, Auto. Default setting is Auto.
Prefetch/Request Throttle	Enables XI logic which calculates average latency, updates throttle level, and sends throttle level messages to L2. Options available: Disable, Enable, Auto. Default setting is Auto.

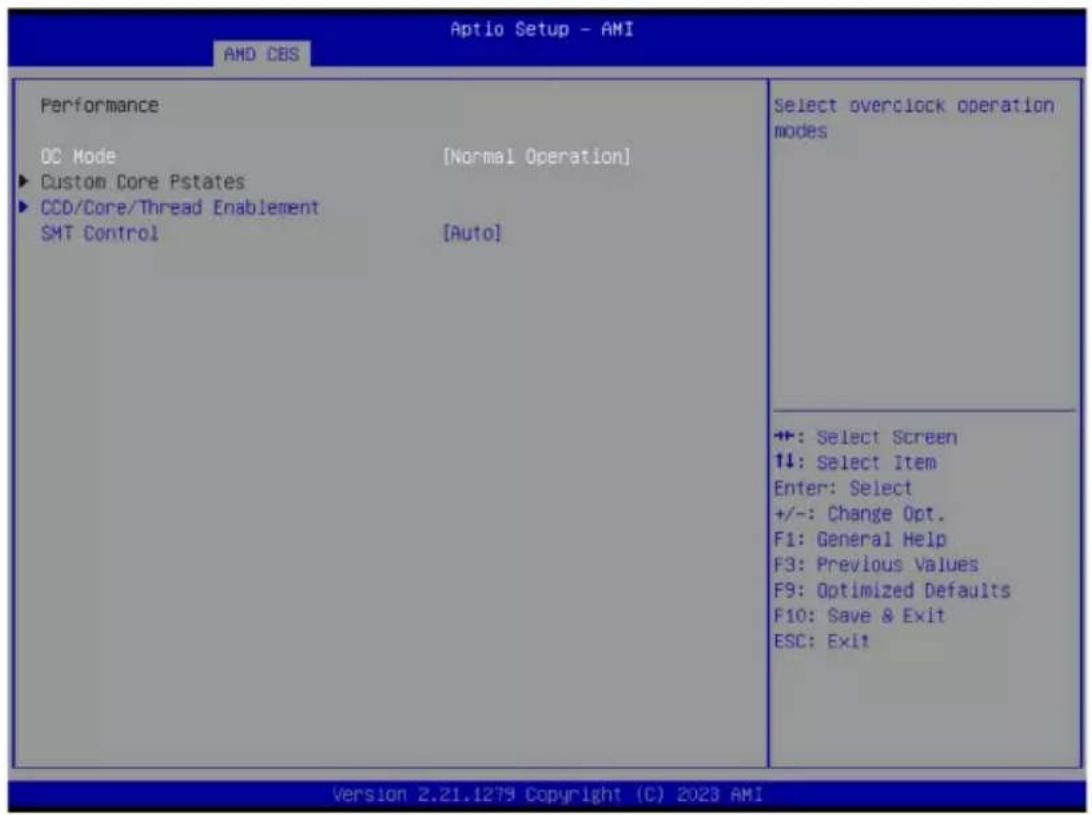

2-3-1-1 Performance

Parameter Description
Performance
OC Mode(Note)	Options available: Normal Operation, Customized. Default setting is Normal Operation.
Custom Core Pstates	Allows you to accept or decline enabling Custom Core Pstates. When accepted, you can disable or customize core pstates.
CCD/Core/Thread Enablement	Allows you to accept or decline enabling CCDs, processor cores and threads. When accepted, you can control the number of CCDs to be used, and the number of cores to be used. • CCD Control - Options available: Auto, 2 CCDs. Default setting is Auto. • Core Control - Options available: Auto, TWO(1+1), FOUR(2+2), SIX(3+3), EIGHT(4+4), TEN(5+5), TWELVE(6+6), FOURTEEN(7+7). - Default setting is Auto.
SMT Control	Can be used to disable symmetric multithreading. To re-enable SMT, a POWER CYCLE is needed after select the 'Enable' option. Select 'Auto' base on BIOS PCD. (PcdAmdSmtMode) default setting. Options available: Disable, Enable, Auto. Default setting is Enable.

(Note) Advanced items are configurable when this item is defined.

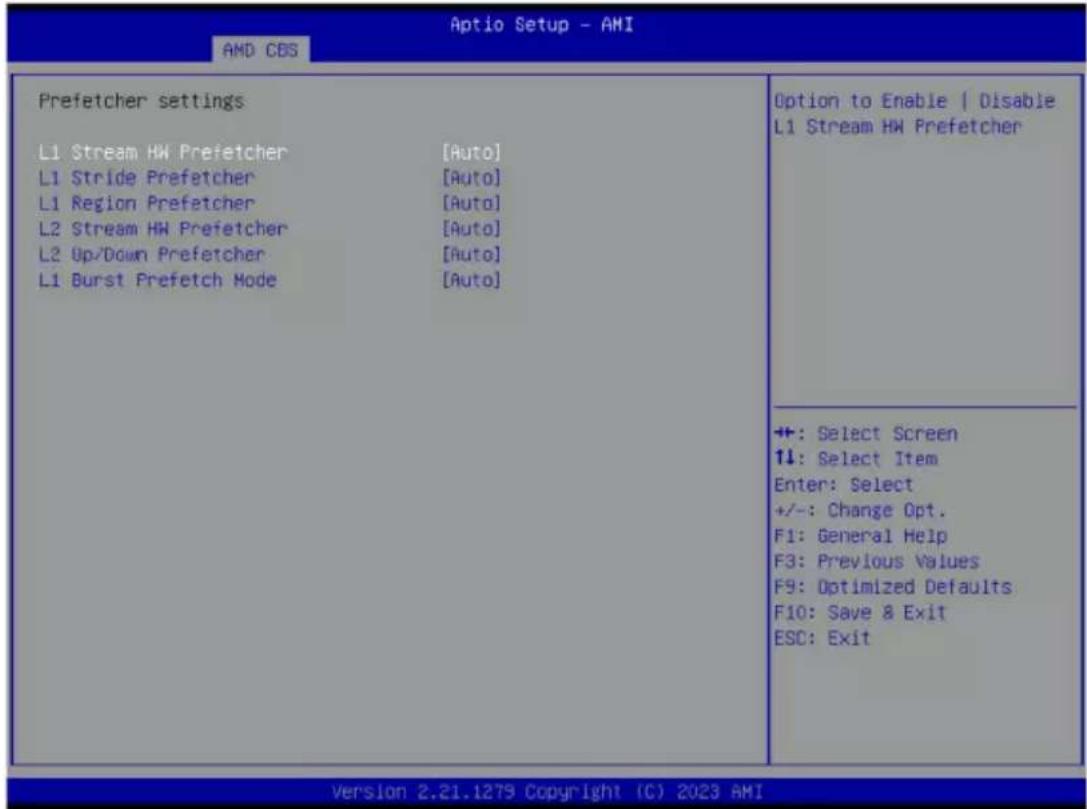

2-3-1-2 Prefetcher Settings

Parameter Description
Prefetcher settings
L1 Stream HW Prefetcher	Enable/Disable L1 Stream HW Prefetcher. Options available: Disable, Enable, Auto. Default setting is Auto.
L1 Stride Prefetcher	Use memory access history of individual instructions to fetch additional lines when each access is a constant distance from the previous. Enable/Disable L1 Stride Prefetcher. Options available: Disable, Enable, Auto. Default setting is Auto.
L1 Region Prefetcher	Use memory access history to fetch additional lines when the data access for a given instruction tends to be followed by other data accesses. Enable/Disable L1 Region Prefetcher. Options available: Disable, Enable, Auto. Default setting is Auto.
L2 Stream HW Prefetcher	Enable/Disable L2 Stream HW Prefetcher. Options available: Disable, Enable, Auto. Default setting is Auto.
L2 Up/Down Prefetcher	Use memory access history to determine whether to fetch the next or previous line for all memory accesses. Enable/Disable L2 Up/Down Prefetcher. Options available: Disable, Enable, Auto. Default setting is Auto.
L1 Burst Prefetch Mode	Enable/Disable L1 Burst Prefetch Mode. Options available: Disable, Enable, Auto. Default setting is Auto.

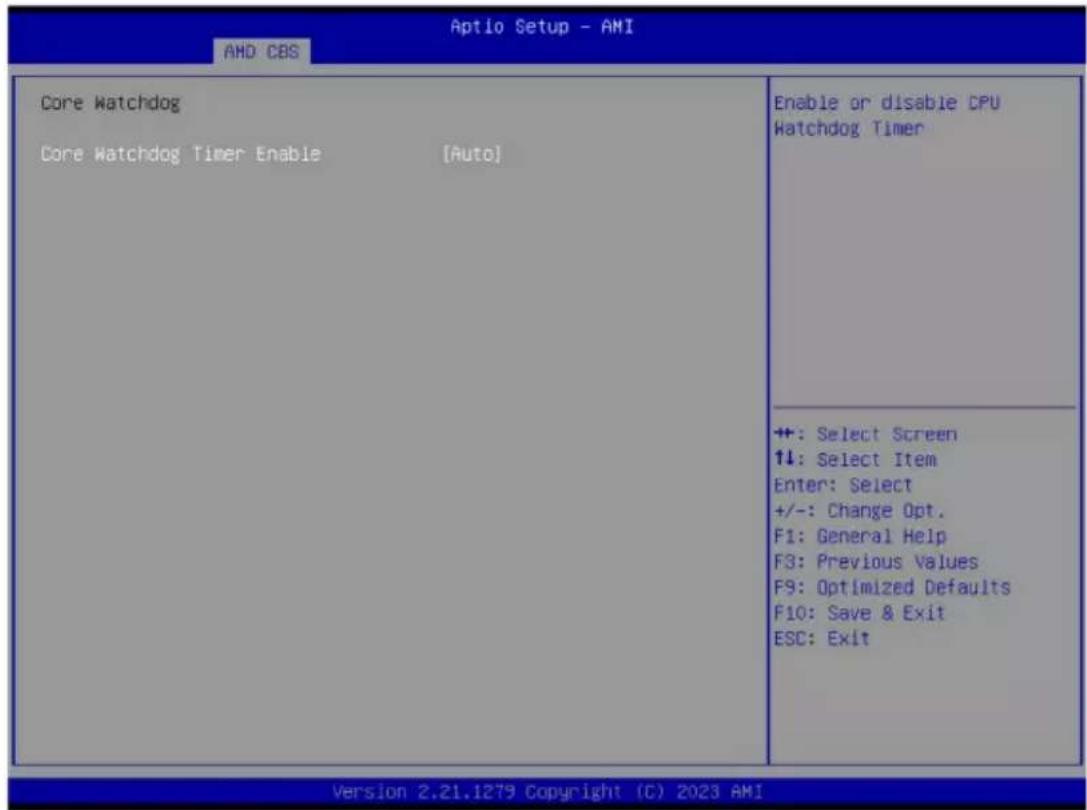

2-3-1-3 Core Watchdog

Parameter Description

Core Watchdog

Core Watchdog Timer Enable(Note)	Enable/Disable CPU Watchdog Timer. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Core Watchdog Timer Interval	Select the CPU Watchdog Timer interval. Options available: 2.681s, 1.340s, 669.41ms, 334.05ms, 166.37ms, 82.53ms, 40.61ms, 20.970ms, 10.484ms,5.241ms, 2.620ms, 1.309ms, 654.08us, 326.4us, 162.56us, 80.64us, 39.68us, Auto. Default setting is Auto.

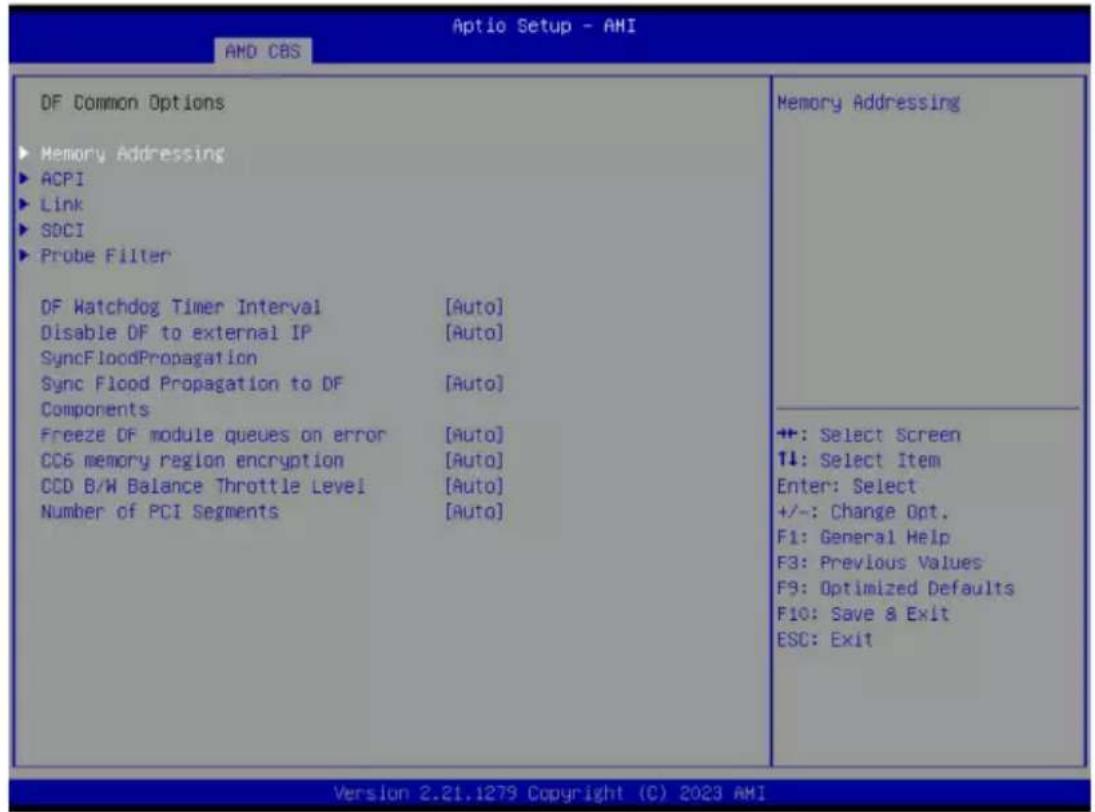

2-3-2 DF Common Options

Parameter Description
DF Common Options
Memory Addressing Press [Enter] for configuration of advanced items.
ACPI Press [Enter] for configuration of advanced items.
Link Press [Enter] for configuration of advanced items.
SDCI Press [Enter] for configuration of advanced items.
Probe Filter Press [Enter] for configuration of advanced items.
DF Watchdog Timer Interval	Configs the Data Fabric watchdog timer interval. Options available: Auto, 41ms, 166ms, 334ms, 669ms, 1.34 seconds, 2.68 seconds, 5.36 seconds. Default setting is Auto.
Disable DF to external IP sync flood propagation	Enable/Disable SyncFlood to UMC & downstream slaves. Options available: Sync flood disabled, Sync flood enabled, Auto. Default setting is Auto.
Sync flood propagation to DF Components	Enable/Disable DF Sync Flood propagation. Options available: Sync flood disabled, Sync flood enabled, Auto. Default setting is Auto.
Freeze DF module queues on error	Options available: Disabled, Enabled, Auto. Default setting is Auto.
CC6 memory region encryption	Controls whether or not the CC6 save/restor memory is encrypted. Options available: Disabled, Enabled, Auto. Default setting is Auto.
CCD B/W Balance Throttle Level	Options available: Auto, Level 0, Level 1, Level 2, Level 3, Level 4. Default setting is Auto.
Number of PCI Segments	Options available: 1 Segment, 2 Segments, 4 Segments, Auto. Default setting is Auto.

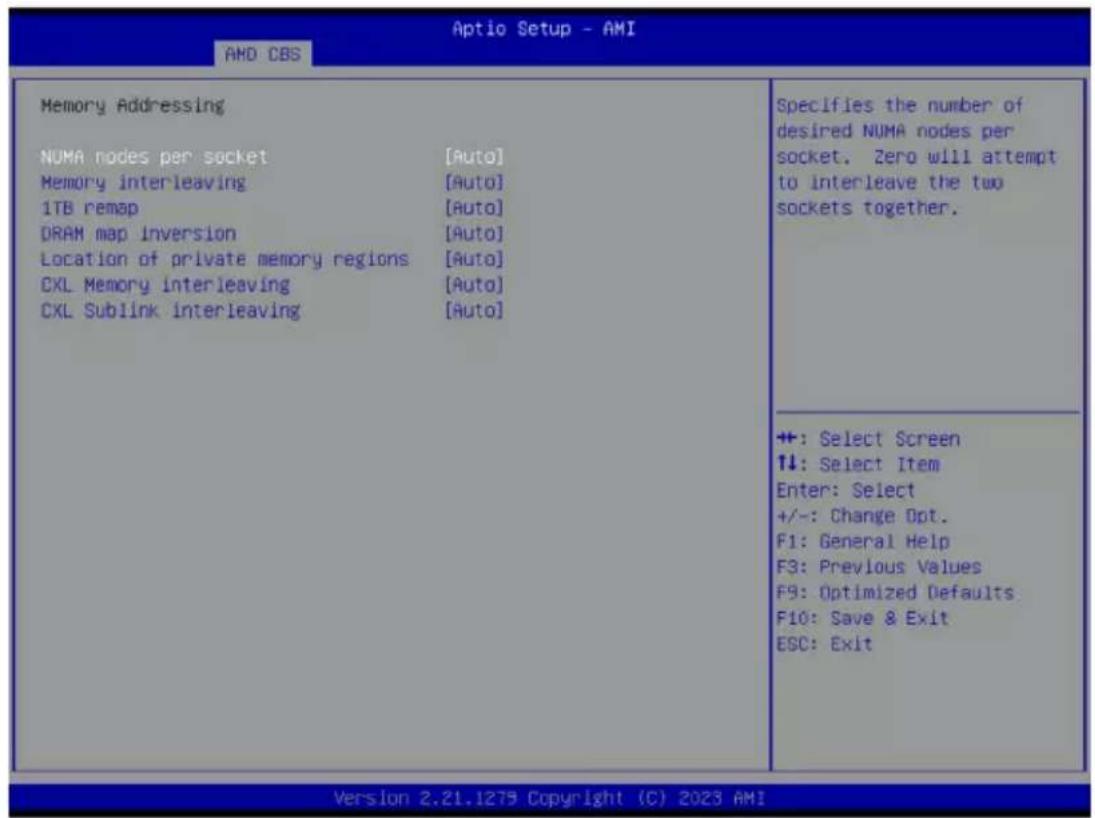

2-3-2-1 Memory Addressing

Parameter Description
Memory Addressing
NUMA nodes per socket	Specifies the number of desired NUMA nodes per socket. Options available: NPS0, NPS1, NPS2, NPS4, Auto. Default setting is Auto. NOTE! • Available options may vary by system configuration. • Only dual processor configuration supports NPS0.
Memory interleaving	Enable/Disable the Memory interleaving feature. Options available: Disabled, Auto, Enabled. Default setting is Auto.
1TB remap	Enable/Disable to remap DRAM out of the space just below the 1TB boundary. The ability to remap depends on DRAM configuration, NPS, and interleaving selection, and may not always be possible. Options available: Do not remap, Attempt to remap, Auto. Default setting is Auto.
DRAM map inversion	Enable/Disable the DRAM map inversion function. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Location of private memory regions	Controls whether or not the private memory regions (PSP, SMU and CC6) are at the top of DRAM or distributed. Options available: Distributed, Consolidated, Auto. Default setting is Auto.
CXL Memory interleaving Options available: Disabled, Enabled, Auto. Default setting is Auto.
CXL Sublink interleaving Options available: Enable, Disable, Auto. Default setting is Auto.

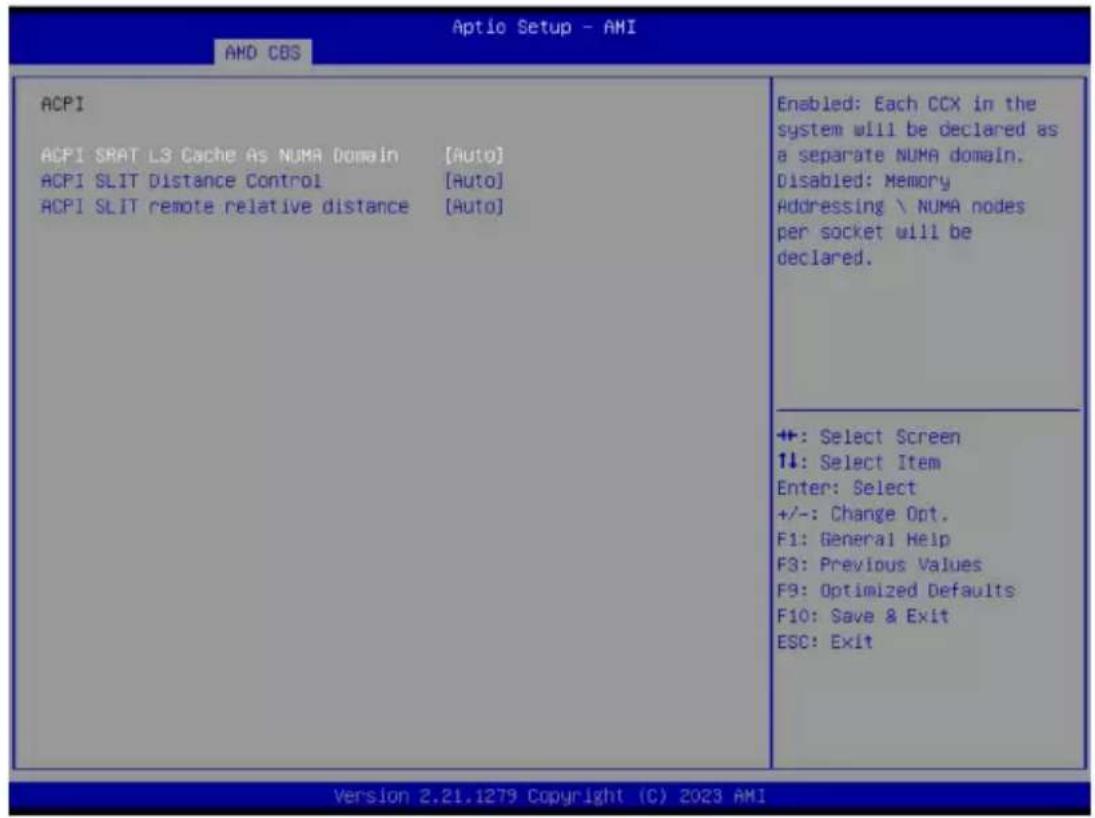

2-3-2-2 ACPI

Parameter Description
ACPI
ACPI SRAT L3 Cache As	Enable/Disable report each L3 cache as a NUMA Domain to the OS.
NUMA Domain	Options available: Disabled, Enabled, Auto. Default setting is Auto.
ACPI SLIT Distance Control	Determines how the SLIT distances are declared. Options available: Manual, Auto. Default setting is Auto.
ACPI SLIT remote relative distance	Sets the remote socket distance for 2P systems as near (2.8) or far (3.2). Options available: Near, Far, Auto. Default setting is Auto.

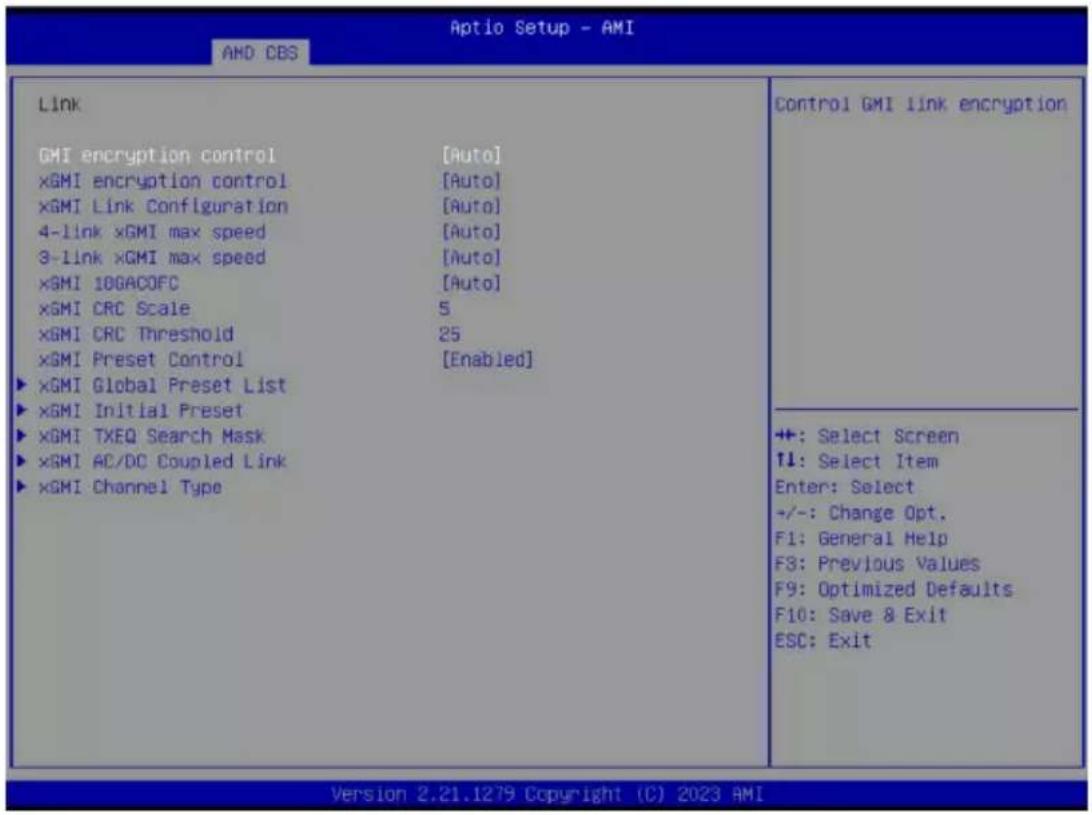

2-3-2-3 Link

Parameter Description
GMI encryption control	Enable/Disable GMI link encryption. Options available: Disabled, Enabled, Auto. Default setting is Auto.
xGMI encryption control	Enable/Disable xGMI link encryption. Options available: Disabled, Enabled, Auto. Default setting is Auto.
xGMI Link Configuration	Configs the number of xGMI2 links used on a multi-socket system. Options available: Auto, 3 xGMI Links, 4 xGMI Links. Default setting is Auto.
4-link xGMI max speed	Specifies the max speed of 4-link xGMI. Options available: 12Gbps, 16Gbps, 17Gbps, 18Gbps, 20Gbps, 22Gbps, 23Gbps, 24Gbps, 25Gbps, 26Gbps, 27Gbps, 30Gbps, 32Gbps, Auto. Default setting is Auto.
3-link xGMI max speed	Specifies the max speed of 3-link xGMI. Options available: 12Gbps, 16Gbps, 17Gbps, 18Gbps, 20Gbps, 22Gbps, 23Gbps, 24Gbps, 25Gbps, 26Gbps, 27Gbps, 30Gbps, 32Gbps, Auto. Default setting is Auto.
xGMI 18GACOFC	Configs xGMI 18GACOFC. Options available: Auto, Enable, Disable. Default setting is Auto.
xGMI CRC Scale	Configs leaky bucket scale for xGMI and WAFL CRC errors. Every scale milliseconds an error will leak from the CRC counter. Default setting is 7.
xGMI CRC Threshold	Configs leaky bucket threshold for xGMI and WAFL CRC errors. If link CRC counter exceeds this threshold, an error will be logged. Default setting is 25.
xGMI Preset Control	Enable/Disable xGMI Preset control. Options available: Disabled, Enabled, Auto. Default setting is Auto.
xGMI Global Preset List Press [Enter] to configure the xGMI Preset list.
xGMI Initial Preset Press [Enter] to configure the xGMI Initial Preset CPU link.
xGMI TXEQ Search Mask Press [Enter] to configure the xGMI TXEQ Search Mask CPU link.
xGMI AC/DC Coupled Link	Press [Enter] to configure the xGMI AC/DC Coupled link. • xGMI AC/DC Coupled Link Control (Note) - Options available: Manual, Auto. Default setting is Auto.
xGMI Channel Type	Press [Enter] to configure the xGMI Channel Type. • xGMI Channel Type Control (Note) - Options available: Manual, Auto. Default setting is Auto.

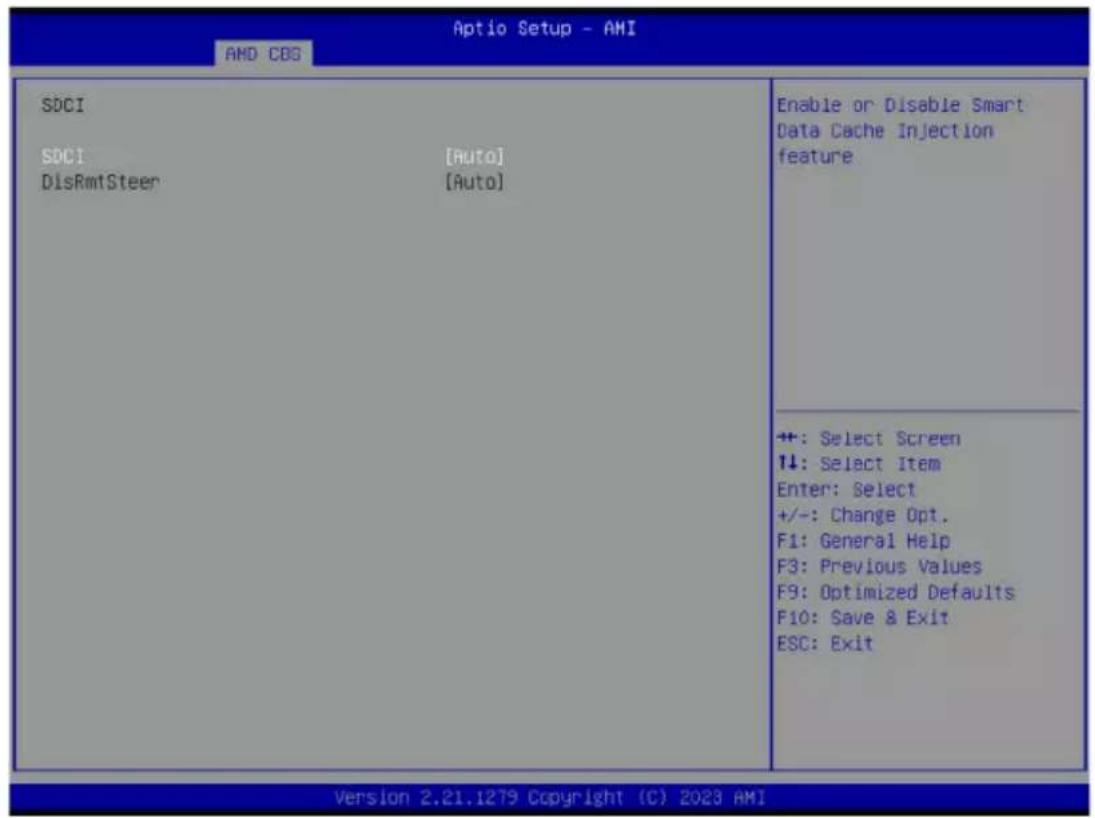

2-3-2-4 SDCI

Parameter Description
SDCI(Note)	Options available: Disabled, Enabled, Auto. Default setting is Auto.
DisRmSteer Options available: Disabled, Enabled, Auto. Default setting is Auto.

(Note) Advanced items prompt when this item is defined.

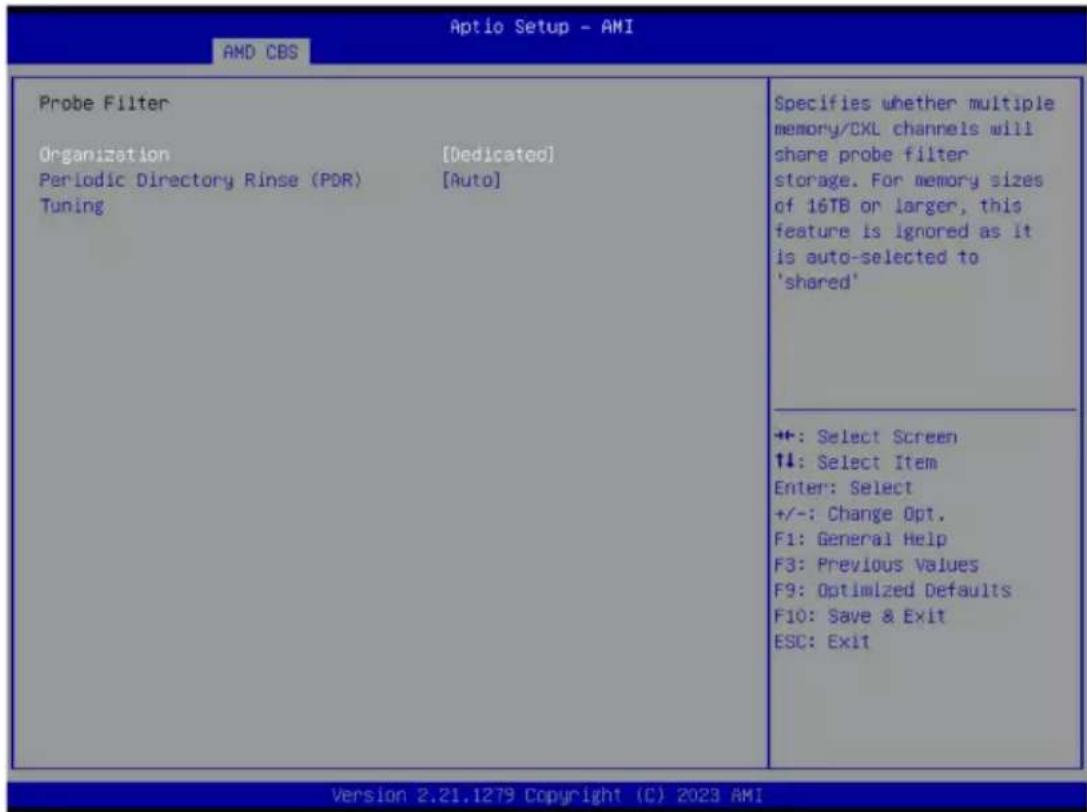

2-3-2-5 Probe Filter

Parameter Description
Organization	Specifies whether multiple memory/CXL channels will share probe filter storage. Options available: Auto, Dedicated, Shared. Default setting is Dedicated.
Periodic Directory Rinse (PDR)	Controls PDR settings that may impact performance by workload and/or processor.
Tuning	Options available: Memory-Sensitive, Cache-Bound, Neutral, Auto. Default setting is Auto.

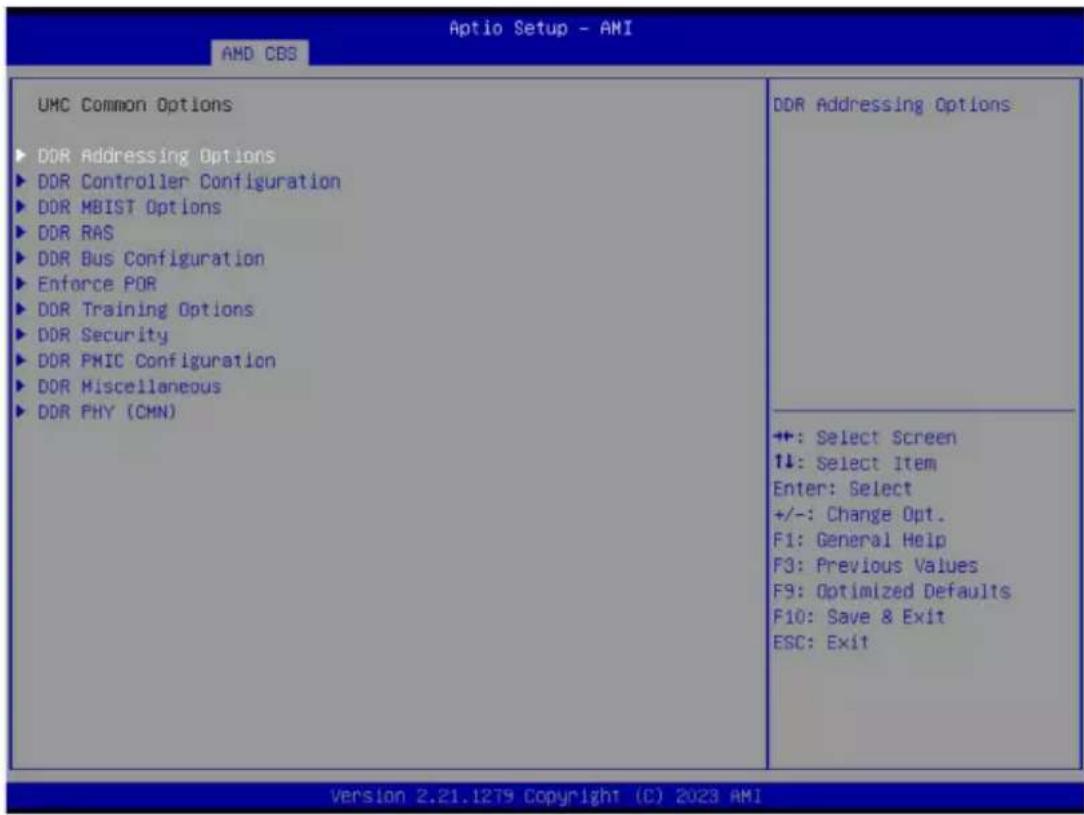

2-3-3 UMC Common Options

Parameter Description

UMC Common Options

DDR Addressing Options Press [Enter] for configuration of advanced items.

DDR Controller Configuration Press [Enter] for configuration of advanced items.

DDR MBIST Options Press [Enter] for configuration of advanced items.

DDR RAS Press [Enter] for configuration of advanced items.

DDR Bus Configuration Press [Enter] for configuration of advanced items.

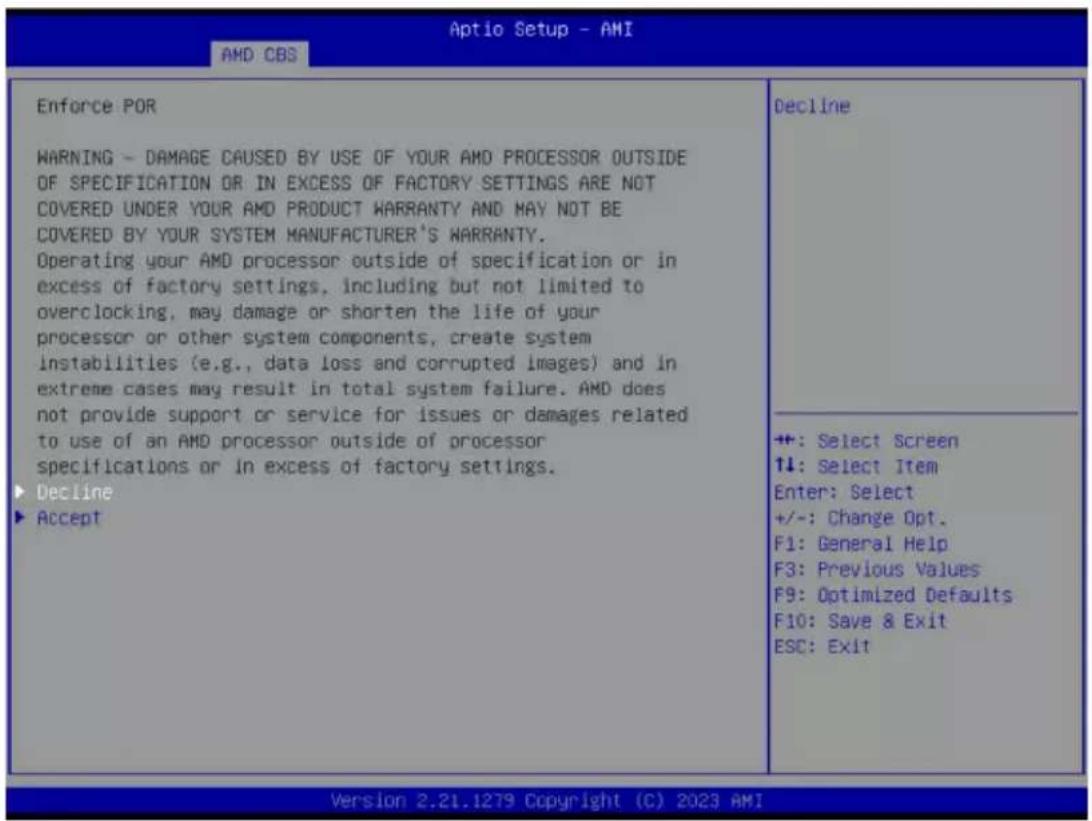

Enforce POR Press [Enter] for configuration of advanced items.

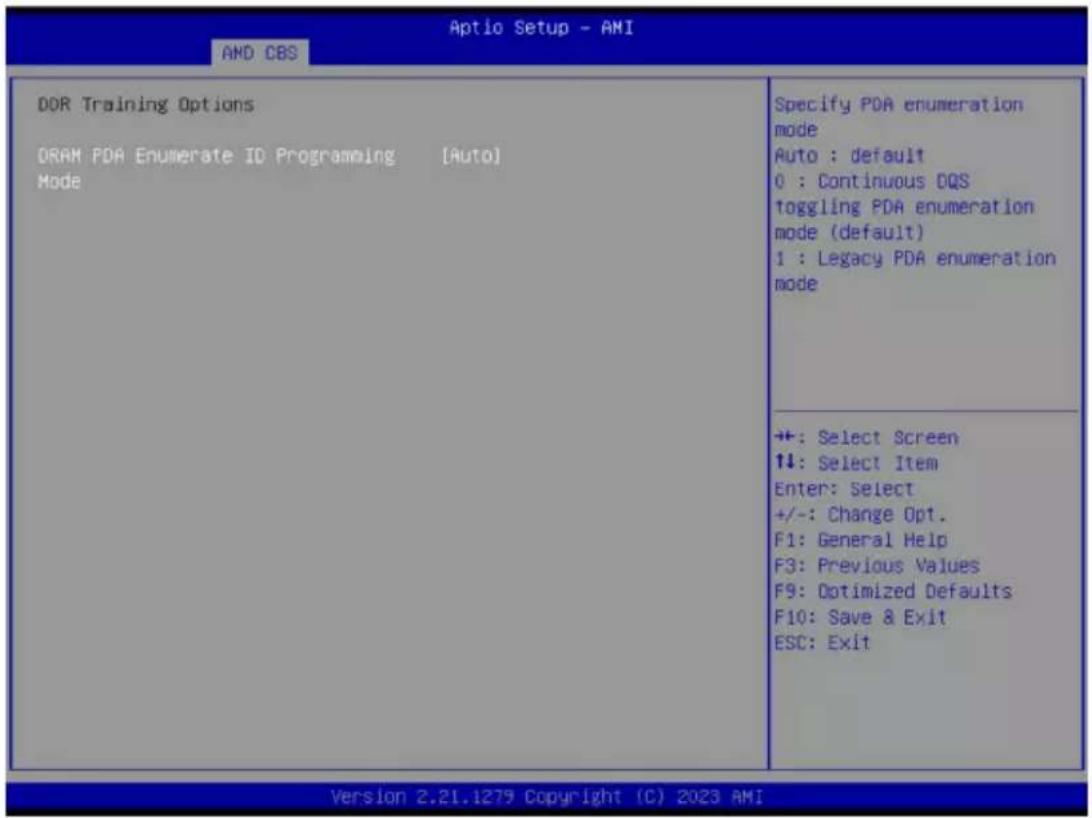

DDR Training Options Press [Enter] for configuration of advanced items.

DDR Security Press [Enter] for configuration of advanced items.

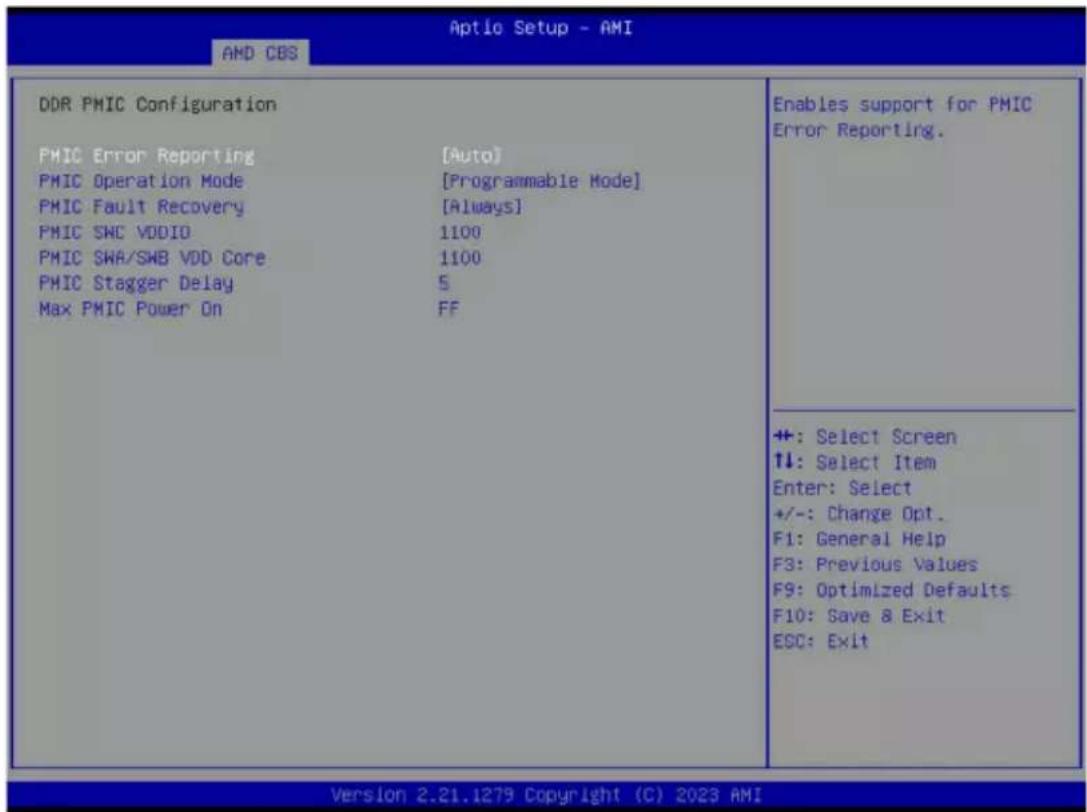

DDR PMIC Configuration Press [Enter] for configuration of advanced items.

DDR Miscellaneous Press [Enter] for configuration of advanced items.

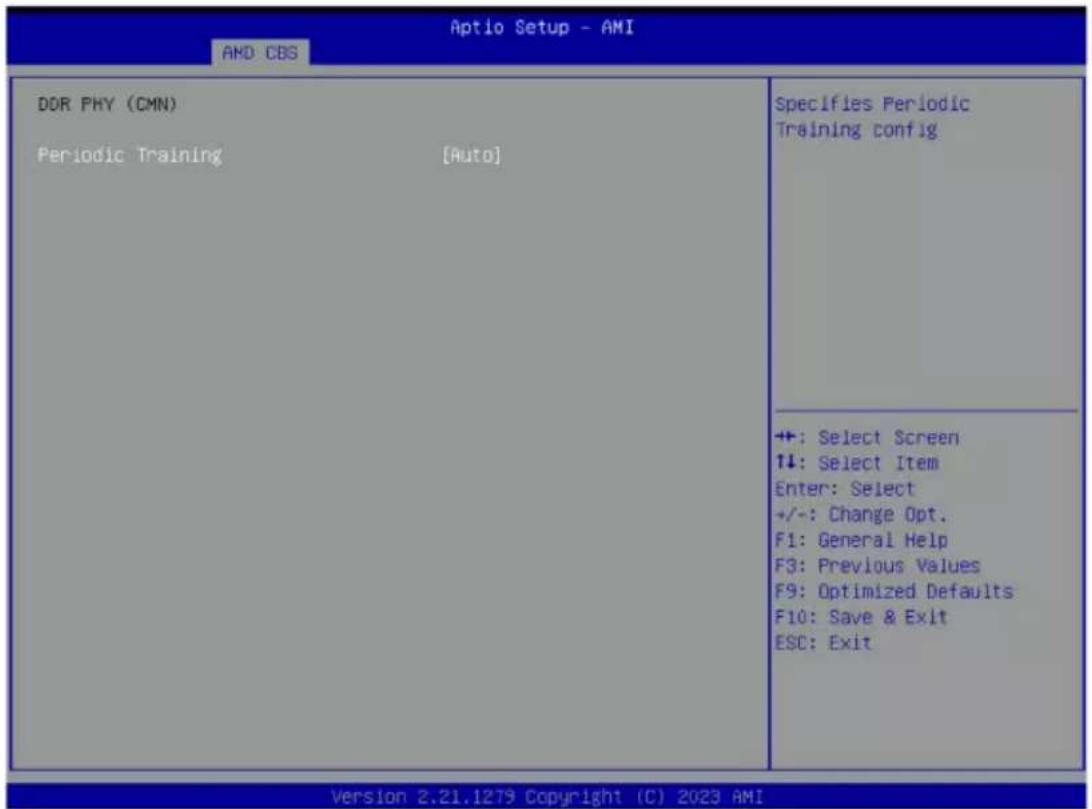

DDR PHY (CMN) Press [Enter] for configuration of advanced items.

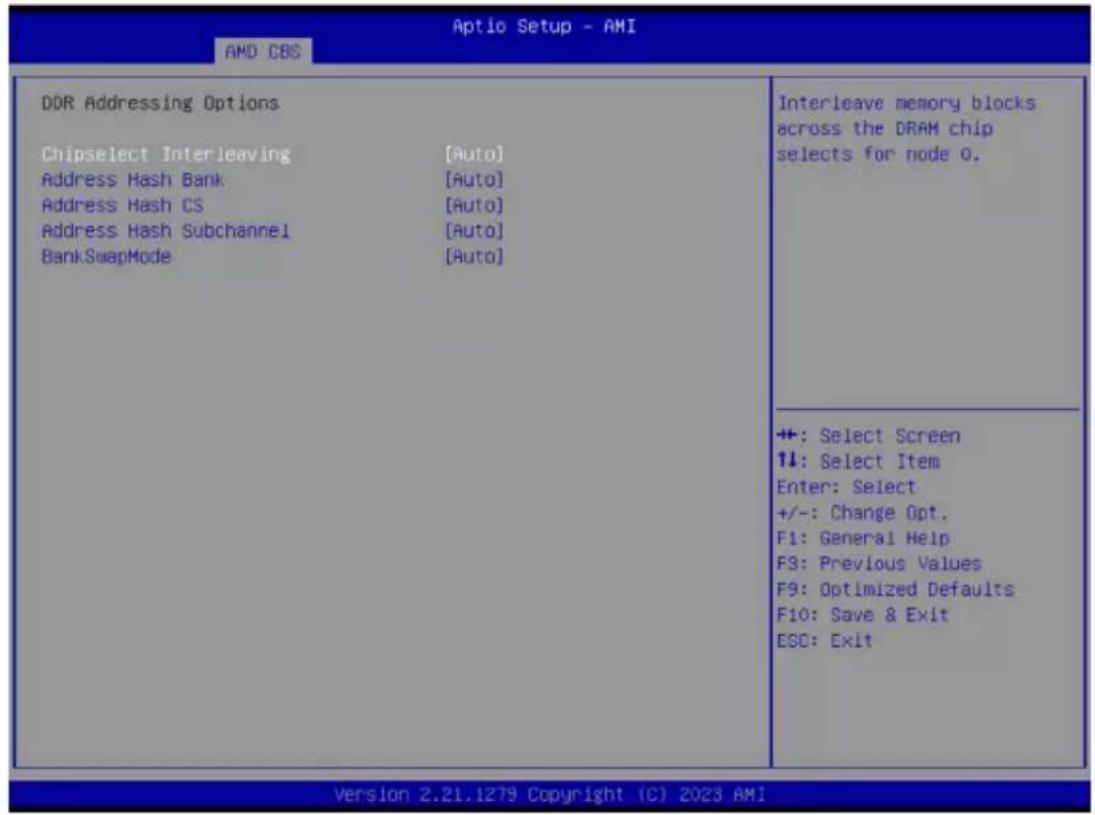

2-3-3-1 DDR Addressing Options

Parameter Description
DDR Addressing Options
Chipselect Interleaving	Interleaves memory blocks across the DRAM chip selects for node 0. Options available: Disabled, Auto. Default setting is Auto.
Address Hash Bank	Enable or disable bank addressing hashing. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Address Hash CS	Enable or disable CS addressing hashing. Options available: Auto, Enabled, Disabled. Default setting is Auto.
Address Hash Subchannel	Enable or disable sub-channel addressing hashing. Options available: Auto, Enabled, Disabled. Default setting is Auto.
BankSwapMode Options available: Auto, Disabled, Swap CPU. Default setting is Auto.

2-3-3-2 DDR Controller Configuration

Parameter Description

DDR Cotroller Configuration

DDR Power Options Press [Enter] for configuration of advanced items.

Memory Channel Disable Press [Enter] for configuration of advanced items.

Refresh Management (RFM) Press [Enter] for configuration of advanced items.

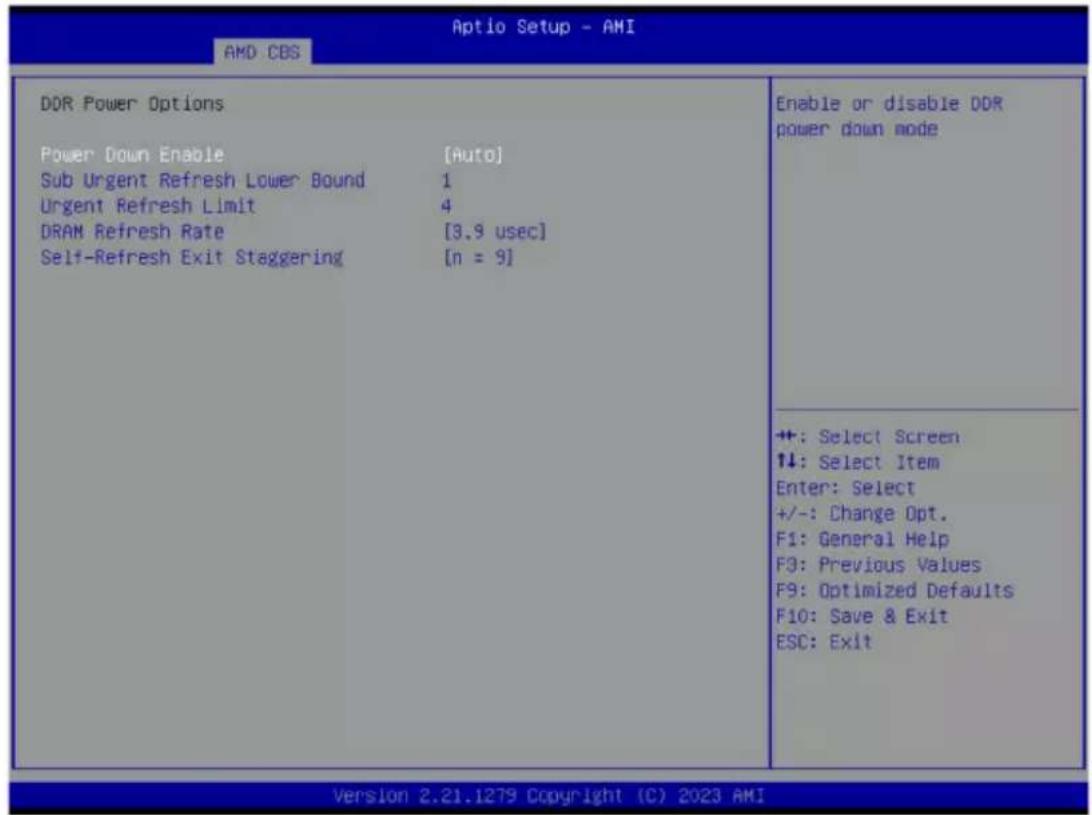

2-3-3-2-1 DDR Power Options

Parameter Description
DDR Power Options
Power Down Enable	Enable or disable DDR power down mode. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Sub Urgent Refresh Lower Bound	Specifies the stored refresh limit required to enter sub-urgent refresh mode.
Urgent Refresh Limit Specifies the stored refresh limit required to enter urgent refresh mode.
DRAM Refresh Rate	DRAM refresh rate: 1.95us or 3.9us. Options available: 3.9 usc, 1.95usec. Default setting is 3.9 usec.
Self-Refresh Exit Staggering Options available: Disabled, n=1~9. Default setting is n=9.

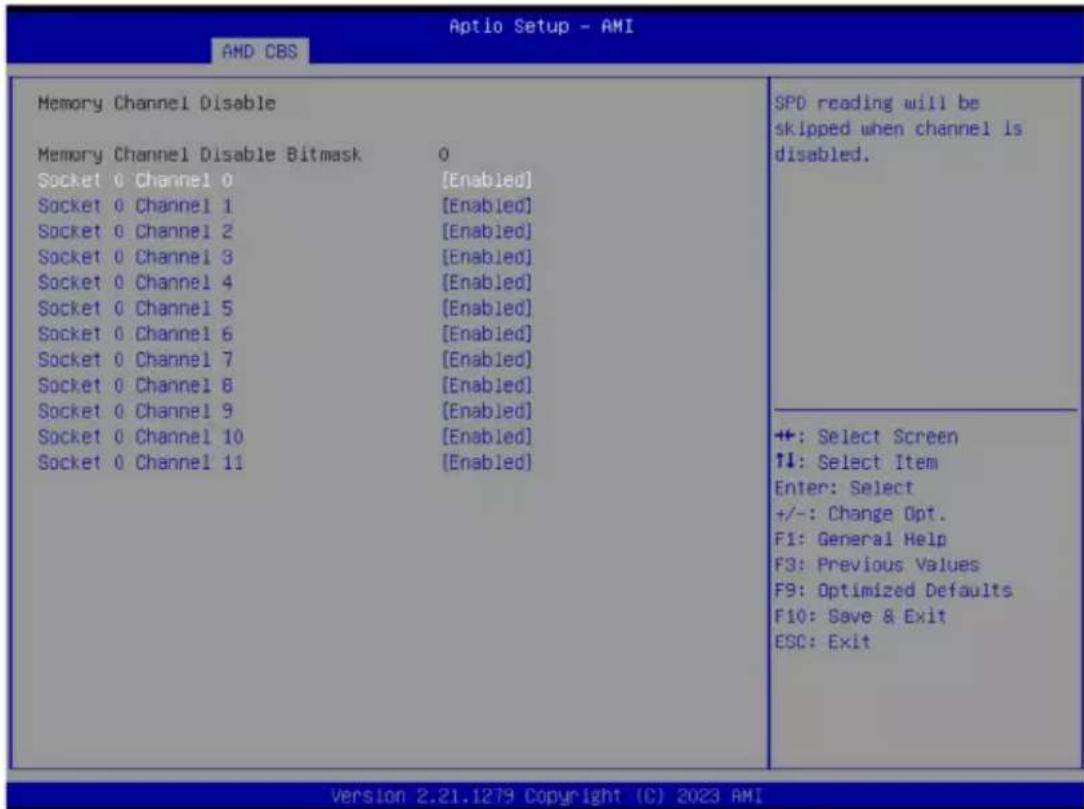

2-3-3-2-2 Memory Channel Disable

Parameter Description

Memory Channel Disable

Memory Channel Disable Bitmask

Socket 0 Channel_# Press [Enter] to enable/disable specific memory channel.

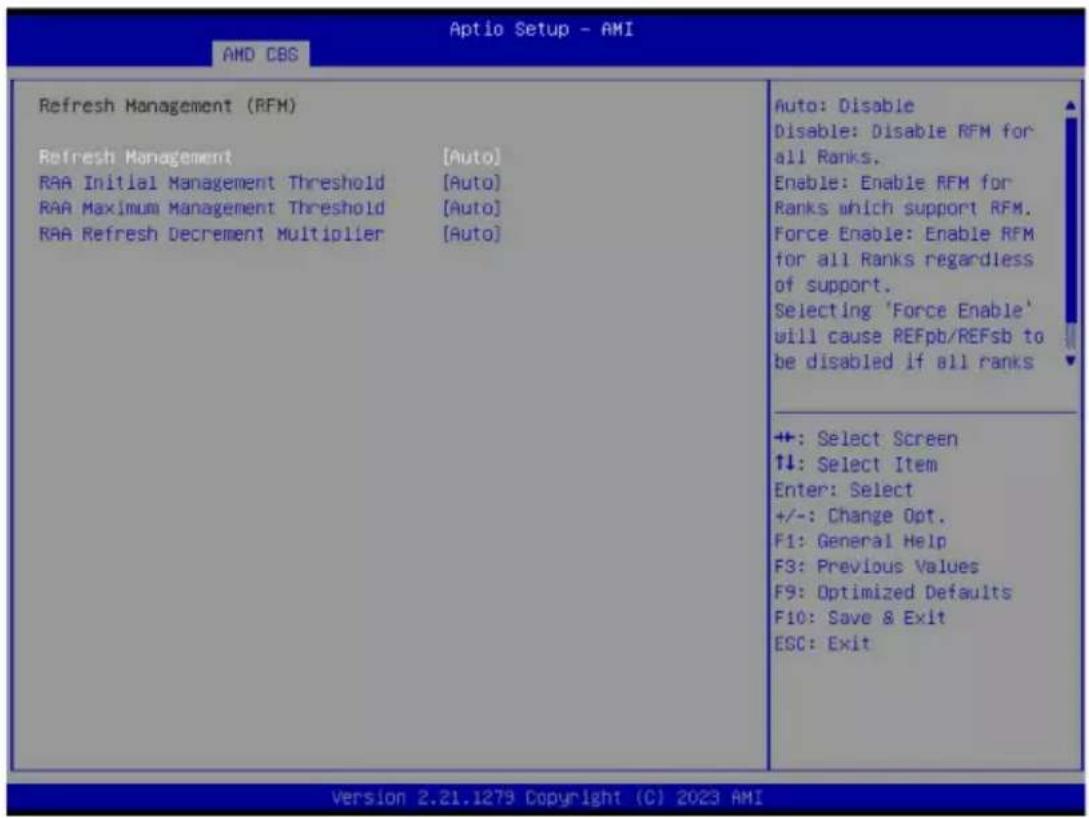

2-3-3-2-3 Refresh Management (RFM)

Parameter Description
Refresh Management (RFM)
Refresh Management	Configure Refresh Management. Options available: Enable, Disable, Auto, Force Enable. Default setting is Auto.
RAA Initial Management Threshold	Override Rolling Accumulated ACT Initial Management Threshold. Options available: 32, 40, 48, 56, 64, 72, 80, Auto. Default setting is Auto.
RAA Maximum Management Threshold	Override Rolling Accumulated ACT Maximum Management Threshold. Options available: 3X, 4X, 5X, 6X, Auto. Default setting is Auto.
RAA Refresh Decrement Multiplier	Override RAA Refresh Decrement Multiplier. Options available: 0.5, 1, Auto. Default setting is Auto.

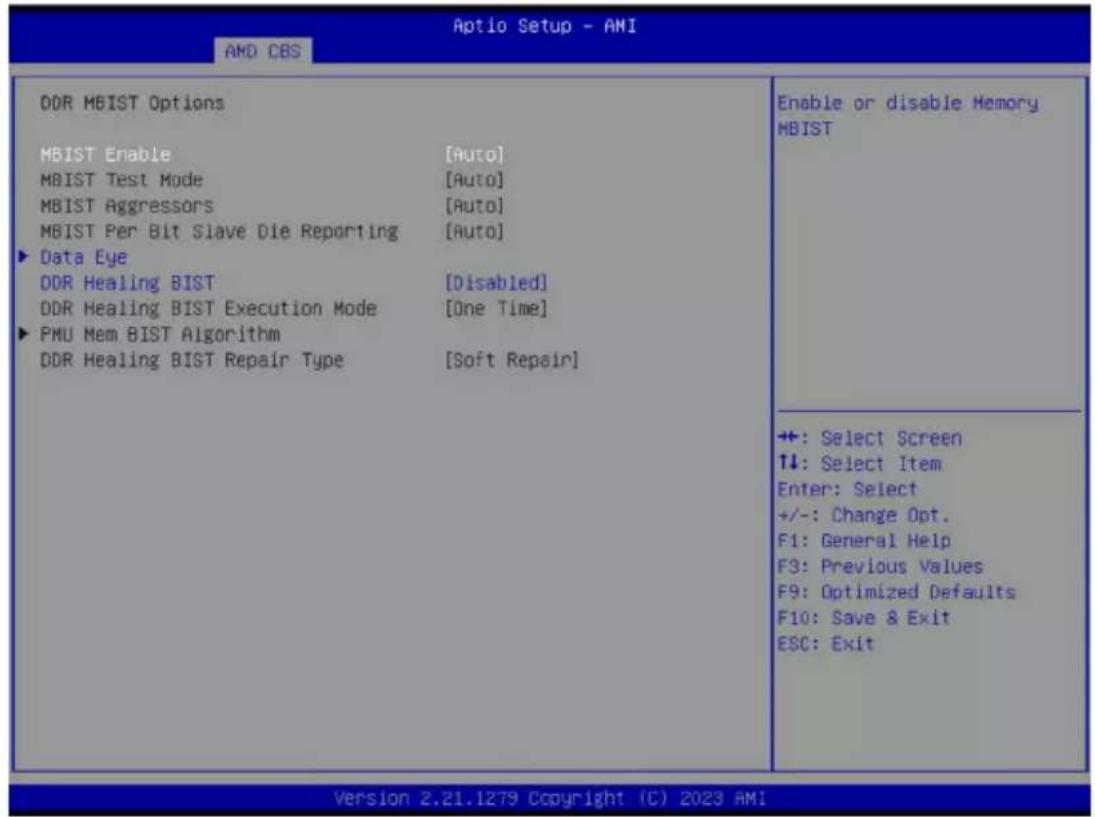

2-3-3-3 DDR MBIST Options

Parameter Description
DDR MBIST Options
MBIST Enable	Enable/Disable the Memory MBIST function. Options available: Disabled, Enabled, Auto. Default setting is Auto.
MBIST Test Mode(Note1)	Selects MBIST Test Mode. Interface Mode: Tests Single and Multiple CS transactions and Basic Connectivity. Data Eye Mode: Measures Voltage vs. Timing. Options available: Auto, Both, Interface Mode, Data Eye Mode. Default setting is Auto.
MBIST Aggressors(Note1)	Enable/Disable MBIST Aggressor test. Options available: Auto, Enabled, Disabled. Default setting is Auto.
MBIST Per Bit Slave Die Reporting(Note1)	Enable/Disable to report 2D data eye results in ABL log for each DQ, Chipselect, and Channel. Options available: Auto, Enabled, Disabled. Default setting is Auto.
Data Eye	Press [Enter] to configure advanced items.
Memory Healing BIST	Enable/Disable memory healing BIST. Options available: Disabled, PMU Mem BIST, Self-Healing Mem BIST, PMU and Self-Healing Mem BIST. Default setting is Disabled.

(Note1) This item appears when MBIST Enable is set to Enabled.

Parameter Description
DDR Healing BIST Execution Mode(Note2)	Options available: One Time, Every boot. Default setting is One Time.
PMU Mem BIST Algorithm(Note2)	Press [Enter] to enable/disable PMU Mem BIST Algorithm.
DDR Healing BIST Repair Type(Note2)	For DRAM errors found in the BIOS memory BIST select the repair type. Options available: Soft Repair, Hard Repair, No Repairs -Test only. Default setting is Soft Repair.

(Note2) This item appears when DDR Healing BIST is defined.

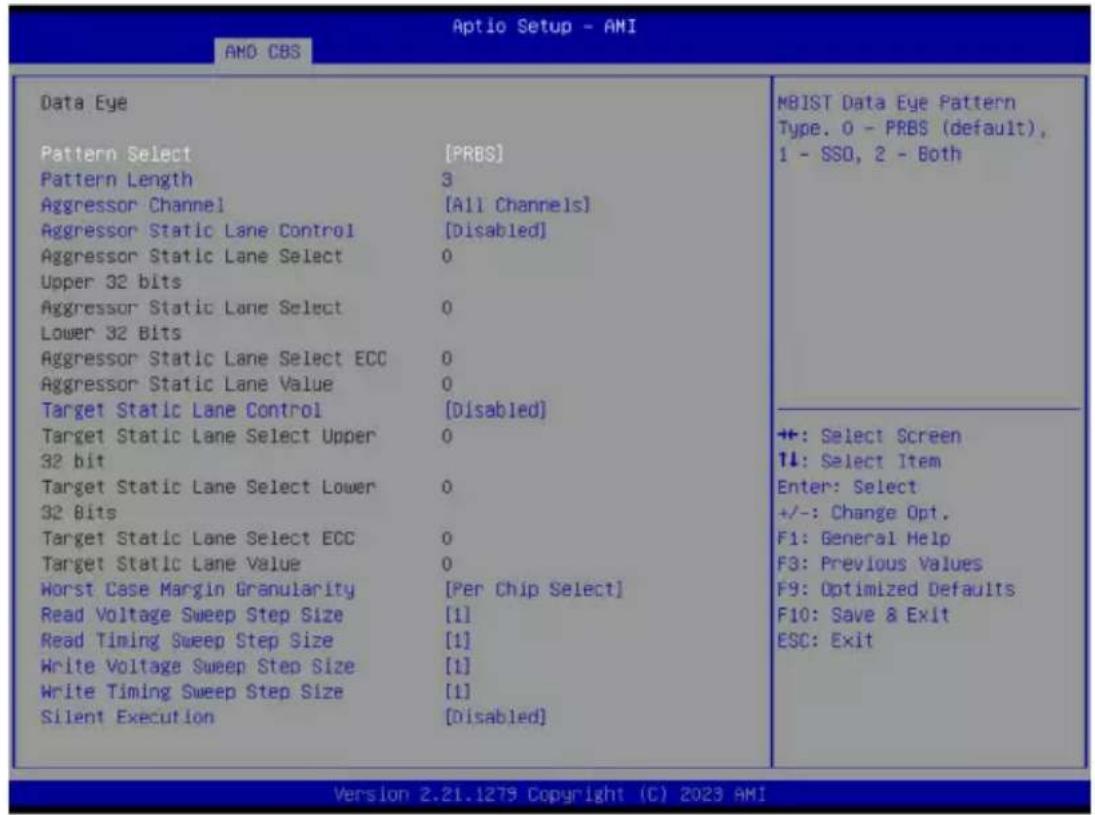

2-3-3-3-1 Data Eye

Parameter	Description
Data Eye
Pattern Select	Options available: PRBS, SSO, Both. Default setting is PRBS.
Pattern Length	Determines the pattern length. The possible options are N=3....12.
Aggressor Channel	This item helps read the aggressors channels. Options available: One Sub-Channel, Half Channels, All Channels. Default setting is All Channels.
Aggressor Static Lane Control	Enable/Disable the Aggressor Static Lane Control function. Options available: Enabled, Disabled. Default setting is Disabled.
Aggressor Static Lane Select Upper 32 bits	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Aggressor Static Lane Select Lower 32 bits	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Aggressor Static Lane Select ECC	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Aggressor Static Lane Value	This item is configurable when Aggressor Static Lane Control is set to Enabled.
Target Static Lane Control	Enable/Disable the Target Static Lane Control function. Options available: Enabled, Disabled. Default setting is Disabled.
Target Static Lane Select Upper 32 bits	This item is configurable when Target Static Lane Control is set to Enabled.
Target Static Lane Select Lower 32 bits	This item is configurable when Target Static Lane Control is set to Enabled.
Target Static Lane Select ECC	This item is configurable when Target Static Lane Control is set to Enabled.
Target Static Lane Value	This item is configurable when Target Static Lane Control is set to Enabled.
Worst Case Margin Granularity	Configs Worst Case Margin Granularity. Options available: Per Chip Select, Per Nibble. Default setting is Per Chip Select.
Read Voltage Sweep Step Size	Configs the step size for read Data Eye voltage sweep. Options available: 1, 2, 4. Default setting is 1.
Read Timing Sweep Step Size	Configs the step size for read Data Eye timing sweep. Options available: 1, 2, 4. Default setting is 1.
Write Voltage Sweep Step Size	Configs the step size for write Data Eye voltage sweep. Options available: 1, 2, 4. Default setting is 1.
Write Timing Sweep Step Size	Configs the step size for write Data Eye timing sweep. Options available: 1, 2, 4. Default setting is 1.
Silent Execution	Execute MBIST Data Eye silently without ABL log output. Options available: Enabled, Disabled. Default setting is Disabled.

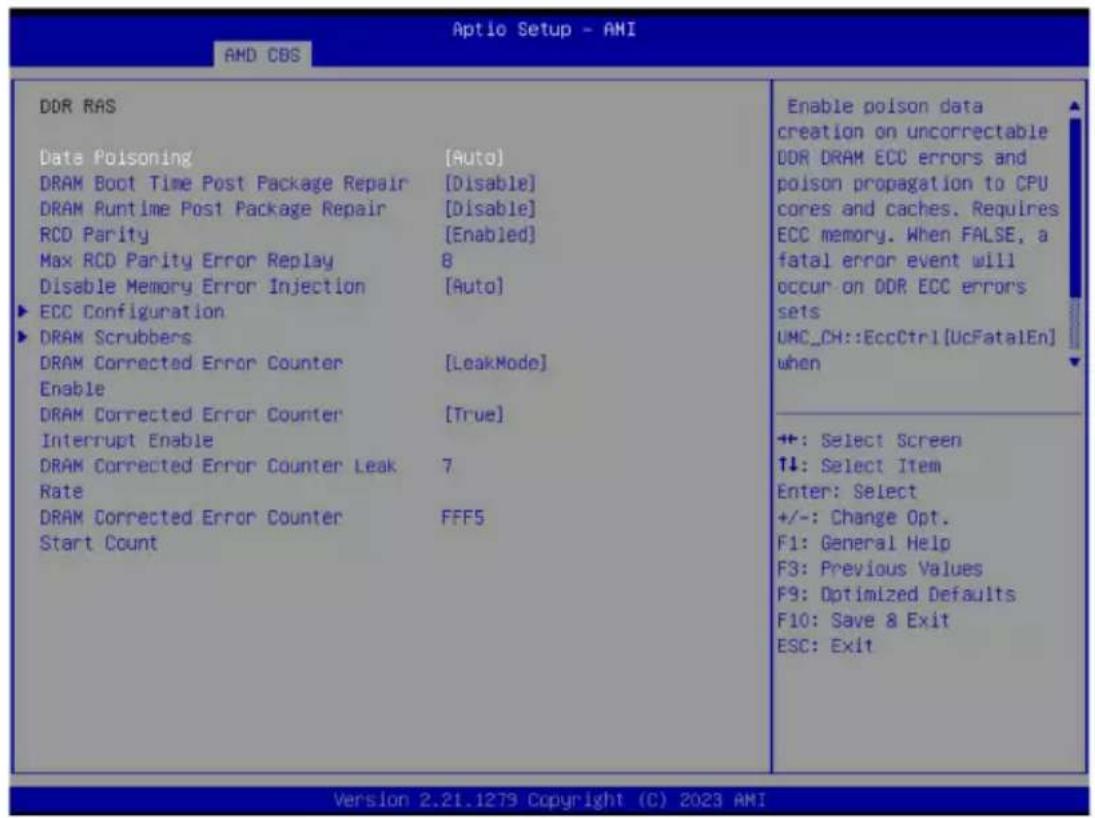

Parameter Description

DDR RAS
Data Poisoning	Enable/Disable the Data Poisoning function. Options available: Auto, Enabled, Disabled. Default setting is Auto.
DRAM Boot Time Post Package Repair	Enable/Disable the DRAM Boot Time Post Package Repair function. Options available: Enable, Disable. Default setting is Disable.
DRAM Runtime Post Package Repair	Enable/Disable the DRAM Runtime Post Package Repair function. Options available: Enable, Disable. Default setting is Disable.
RCD Parity	Enable/Disable the RCD Parity function. Options available: Auto, Enabled, Disabled. Default setting is Enabled.
Max RCD Parity Error Replay Default setting is 8.
Disable Memory Error Injection	Options available: False, True, Auto. Default setting is Auto.
ECC Configuration	Press [Enter] to configure advanced items. ◆ DRAM ECC Symbol Size - Configures the DRAM ECC Symbol Size. - Options available: Auto, x4, x16. Default setting is Auto. ◆ DRAM ECC Enable - Enable/Disable DRAM ECC. When set to Auto, it will set ECC to enable. - Options available: Auto, Enabled, Disabled. Default setting is Auto.
Parameter Description
ECC Configuration(continued)	DRAM UECC Retry- Enable/Disable DRAM UECC Retry.- Options available: Auto, Enabled, Disabled. Default setting isDisabled.Max DRAM UECC Error Replay(Note)- Default setting is 8.Memory Clear- Options available: Auto, Enabled, Disabled. Default setting isAuto ADDRESS XDR after ECC- Options available: Auto, Enabled, Disabled. Default setting isDisabled.
DRAM Scrubbers	Press [Enter] to configure advanced items.DRAM ECS Mode- Options available: Auto, AutoECS, ManualECS, DisableECS.Default setting is Auto.DRAM Redirect Scrubber Enable- Options available: Auto, Enabled, Disabled. Default setting isAuto.DRAM Scrub Redirection Limit- Options available: Auto, 8 Scrubs, 4 Scrubs, 2 Scrubs, 1 Scrub.Default setting is Auto.DRAM Scrub Time- Options available: Disabled, 1 hour, 4 hours, 6 hours, 8 hours,12 hours, 16 hours, 24 hours, 48 hours. Default setting is 24Hours.DRAM Error Threshold Count- Options available: Auto, ETC_4, ETC_16, ETC_64, ETC_256,ETC_1024, ETC_4096. Default setting is Auto.DRAM ECS Count Mode- Options available: Auto, Row Count Mode, Code Word CountMode. Default setting is Auto.DRAM AutoEcs during Self Refresh- Options available: Auto, AutoEcs Disabled, AutoEcs Enabled.Default setting is Auto.DRAM ECS WriteBack Suppression- Options available: Auto, Enable, Disable. Default setting isAuto.DRAM X4 WriteBack Suppression- Options available: Auto, Enable, Disable. Default setting isAuto.
DRAM Corrected Error Counter Enable	Configure DRAM Corrected Error Counter function. Options available: Disable, NoLeakMode, LeakMode. Default setting is LeakMode.
DRAM Corrected Error Counter Interrupt Enable	Enable SMI when DRAM corrected Error Counter count exceeds the threshold value. Options available: False, True. Default setting is True.
DRAM Corrected Counter Leak Rate	Program Rate value for DRAM Corrected Error Counter function. Default setting is 7.
DRAM Corrected Error Counter Start Count	Program starting value for DRAM Corrected Error Counter function. Default setting is FFF5.

2-3-3-5 DDR Bus Configuration

Parameter Description
DDR Bus Configuration
Dram ODT impedance RTT_NOM_WR	Select the DRAMs On-die Termination impedance for RTT_NOM_WR. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.
Dram ODT impedance RTT_NOM_RD	Select the DRAMs On-die Termination impedance for RTT_NOM_RD. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.
Dram ODT impedance RTT_WR	Select the DRAMs On-die Termination impedance for RTT_WR. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.
Dram ODT Timpeadance RTT_PARK	Select the DRAMs On-die Termination impedance for RTT_PARK. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.
Dram ODT Timpeadance DQS_RTT_PARK	Select the DRAMs On-die Termination impedance for DQS_RTT_PARK. Options available: Auto, RTT_OFF, RZQ (240), RZQ/2 (120), RZQ/3 (80) RZQ/4 (60), RZQ/5(48), RZQ/6(40), RZQ/7(34). Default setting is Auto.
Processor ODT impedance	Select the ODT impedance for all DBYTE IOs. Options available: Auto, High Impedance, 480 ohm, 240 ohm, 160 ohm, 120 ohm, 96 ohm, 80 ohm, 68.6 ohm, 60 ohm, 53.3 ohm, 48 ohm, 43.6 ohm, 40 ohm, 36.9 ohm, 34.3 ohm, 32 ohm, 30 ohm, 28.2 ohm, 26.7 ohm, 25.3 ohm. Default setting is Auto.
Dram DQ drive strengths	Select the Dram Pull-up and Pull-Down Output Driver Impedance for all DQ and DMI IOs.. Options available: Auto, 48 ohm, 40 ohm, 34 ohm, Default setting is Auto.

2-3-3-6 Enforce POR

Parameter Description
Enforce POR Decline/Accept to configure the advanced items.
Accept
Active Memory Timing Settings (Note)	Active memory Timing Settings. Options available: Auto, Enabled. Default setting is Auto.
Memory Target Speed	Specifies the memory target speed in MT/s. Options available: Auto, DDR3200, DDR3600, DDR4000, DDR44 DDR4800, DDR5200, DDR5600. Default setting is Auto.
SPD Timing Press [Enter] to configure advanced items.
Non-SPD Timing Press [Enter] to configure advanced items.

2-3-3-7 DDR Training Options

Parameter Description
DDR Training Options
DRAM PDA Enumerate ID Programming Mode	Specify PDA enumeration mode. Options available: Auto, Toggling PDA enumeration mode, Legacy PDA enumeration mode. Default setting is Auto.

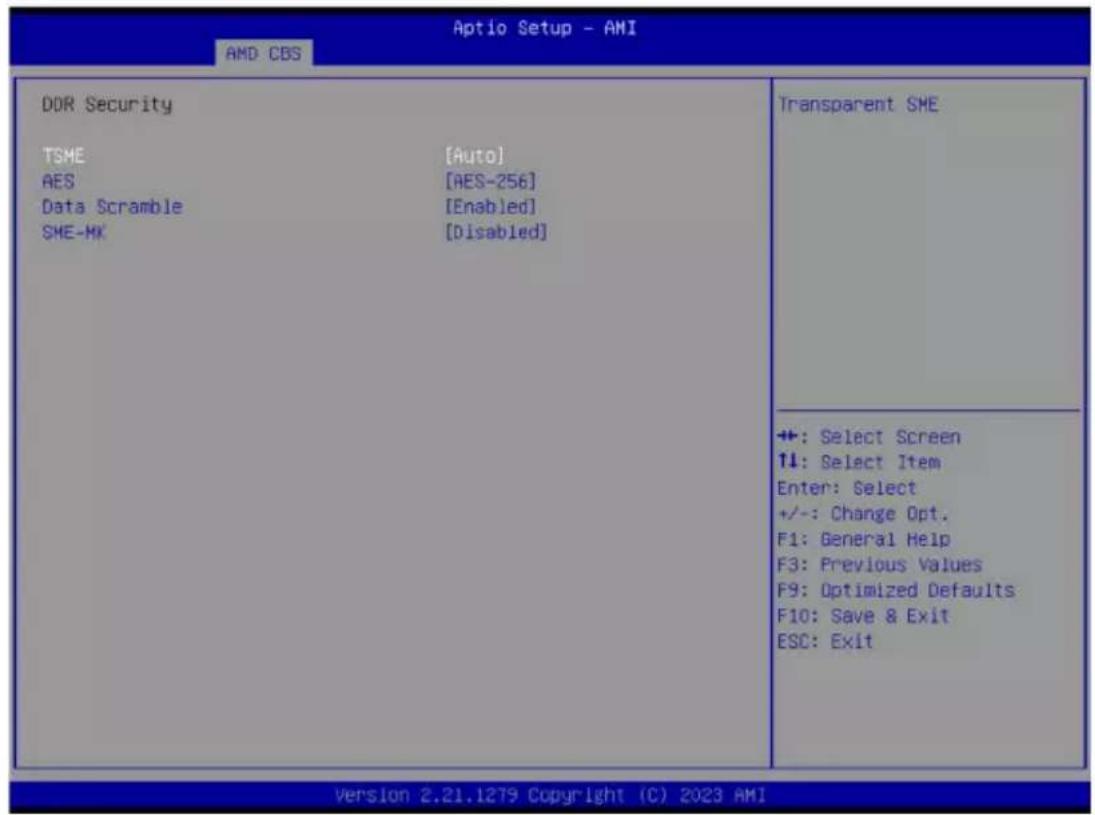

2-3-3-8 DDR Security

Parameter Description
Security
TSME	Enable/Disable Transparent SME. Options available: Auto, Enabled, Disabled. Default setting is Auto.
AES Options available: AES-128, AES-256. Default setting is AES-256.
Data Scramble	Enable/Disable Data Scrambling. Options available: Enabled, Disabled. Default setting is Enabled.
SME-MK Options available: Enabled, Disabled. Default setting is Disabled.

2-3-3-9 DDR PMIC Configuration

Parameter Description
DDR PMIC Configuration
PMIC Error Reporting	Enables support for PMIC Error Reporting. Options available: Auto, False, True. Default setting is Auto.
PMIC Operation Mode	Options available: Secure Mode, Programmable Mode. Default setting is Programmable Mode.
PMIC Fault Recovery Options available: Always, Never, Once. Default setting is Always.
PMIC SWC VDDIO Default setting is 1100.
PMIC SWA/SWB VDD Core Default setting is 1100.
PMIC Stagger Delay Default setting is 5.
Max PMIC Power On Default setting is FF.

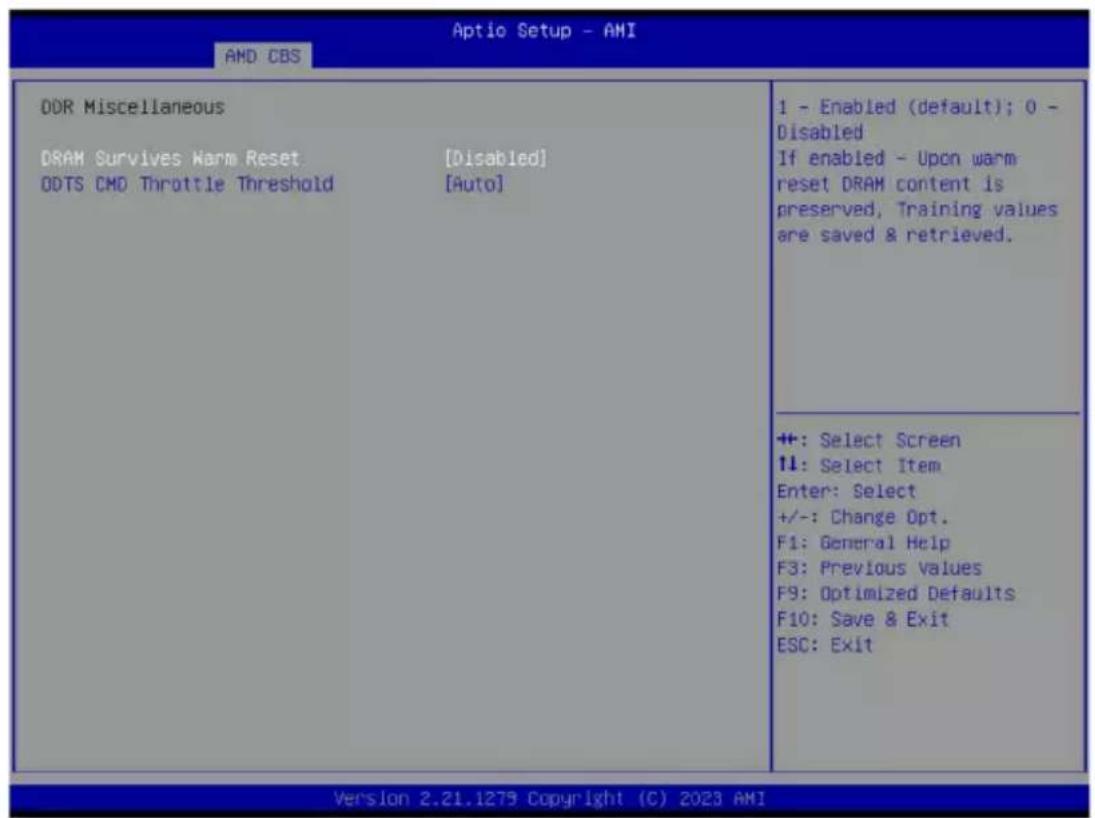

2-3-3-10 DDR Miscellaneous

Parameter Description

DDR Miscellaneous

DRAM Survives Warm Reset Options available: Enabled, Disabled. Default setting is Disabled.

ODTS CMD Throttle Threshold Options available: Auto, >85^, > 90^, > 95^ . Default setting is Auto.

2-3-3-11 DDR PHY (CMN)

Parameter Description

DDR PHY (CMN)

Periodic Training (Note)

Options available: Auto, Enabled, Disabled. Default setting is Auto.

Periodic Training Interval Specifies the Periodic Training interval in millisecond.

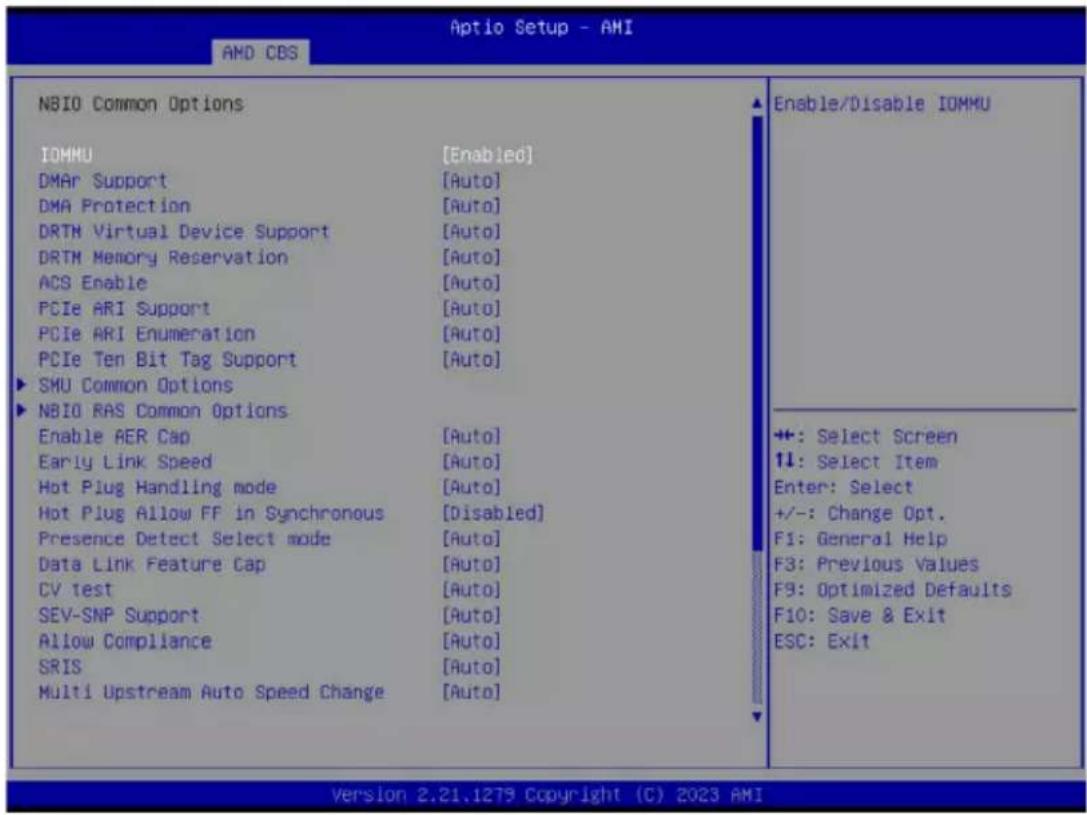

2-3-4 NBIO Common Options

Parameter	Description
NBIO Common Options
IOMMU	Enable/Disable the IOMMU function. Options available: Disabled, Enabled. Default setting is Enabled.
DMAr Support	Enable/Disable DMAr system protection during POST. Options available: Disabled, Enabled, Auto. Default setting is Auto.
DMA Protection	Enable/Disable DMA remap support in IVRS IVinfo Field. Options available: Auto, Enabled, Disabled. Default setting is Auto.
DRTM Virtual Device Support	Enable/Disable DRTM ACPI virtual device. Options available: Disabled, Enabled, Auto. Default setting is Auto.
DRTM Memory Reservation	Enable/Disable DRTM Memory reservation. Options available: Disabled, Enabled, Auto. Default setting is Auto.
ACS Enable	Enable/Disable ACS. Options available: Enable, Disabled, Auto. Default setting is Auto.
PCIe ARI Support	Enable/Disable Alternative Routing-ID Interpretation. Options available: Disable, Enable, Auto. Default setting is Auto.
PCIe ARI Enumeration	ARI Forwarding Enable for each downstream port. Options available: Disable, Enable, Auto. Default setting is Auto.
PCIe Ten Bit Tag Support	Enable/Disable PCIe ten bit tags for supported devices. (Auto=Disabled) Options available: Disable, Enable, Auto. Default setting is Auto.
SMU Common Options Press [Enter] for configuration of advanced items.
NBIO RAS Common Options	Press [Enter] for configuration of advanced items.
Enable AER Cap	Enable/Disable Advanced Error Reporting Capability. Options available: Enable, Disabled, Auto. Default setting is Auto.
Early Link Speed	Configs Early Link Speed. Options available: Auto, Gen1, Gen2. Default setting is Auto.
Hot Plug Handling mode	Controls the Hot Plug Handling mode. Options available: OS First, Firmware First/EDR if OS supports, Firmware First but allow OS First, System Firmware Intermediary, Auto. Default setting is Auto.
Hot Plug Allow FF in Synchronous	Allows firmware first hot plug handling mode to operate in mode A and mode B synchronous mappings. Options available: Disabled, Enabled. Default setting is Disabled.
Presence Detect Select mode	Controls the Presence Detect Select mode. Options available: OR, AND, Auto. Default setting is Auto.
Data Link Feature Cap	Enable/Disable the data link feature capability. Options available: Enabled, Disabled, Auto. Default setting is Auto.
CV test	Enable/Disable the running PCIE CV tool support. Options available: Auto, Enabled, Disabled. Default setting is Auto.
SEV-SNP Support	Enable/Disable the SEV-SNP support. Options available: Disable, Enable. Default setting is Disable.
Allow Compliance	When enabled, allows the PCIe RP to enter Polling.Compliance state. Options available: Auto, Disable, Enable. Default setting is Auto.
SRIS Options available: Auto, Disable, Enable. Default setting is Auto.
Multi Upstream Auto Speed Change	Defines the setting of this feature for all PCIe devices. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Multi Auto Speed Change On Last Rate	Options available: Disable, Enable, Auto. Default setting is Auto.
PCIE Link Speed Capability	Options available: Maximum speed, Gen1, Gen2, Gen3, Gen4, Gen5, Auto. Default setting is Auto.
RTM Margining Support Options available: Disable, Enable, Auto. Default setting is Auto.
EQ Bypass To Highest Rate	Options available: Disable, Enable, Auto. Default setting is Auto.
Non-PCIe Compliant Support	Options available: Disable, Enable, Auto. Default setting is Auto.
PCIE Idle Power Setting	Modify PCIE Power Savings Features that can impact lightly loaded latency. Options available: Optimize for Latency, Optimize for Perf/Power. Default setting is Optimize for Latency.
nBif Common Options Press [Enter] for configuration of advanced items.
Link EQ Preset Options Press [Enter] for configuration of advanced items.
Enable 2 SPC (Gen4)	Enable this setting to use 2 symbols per clock for devices at Gen4 speed. Options available: Auto, Enabled. Default setting is Auto.

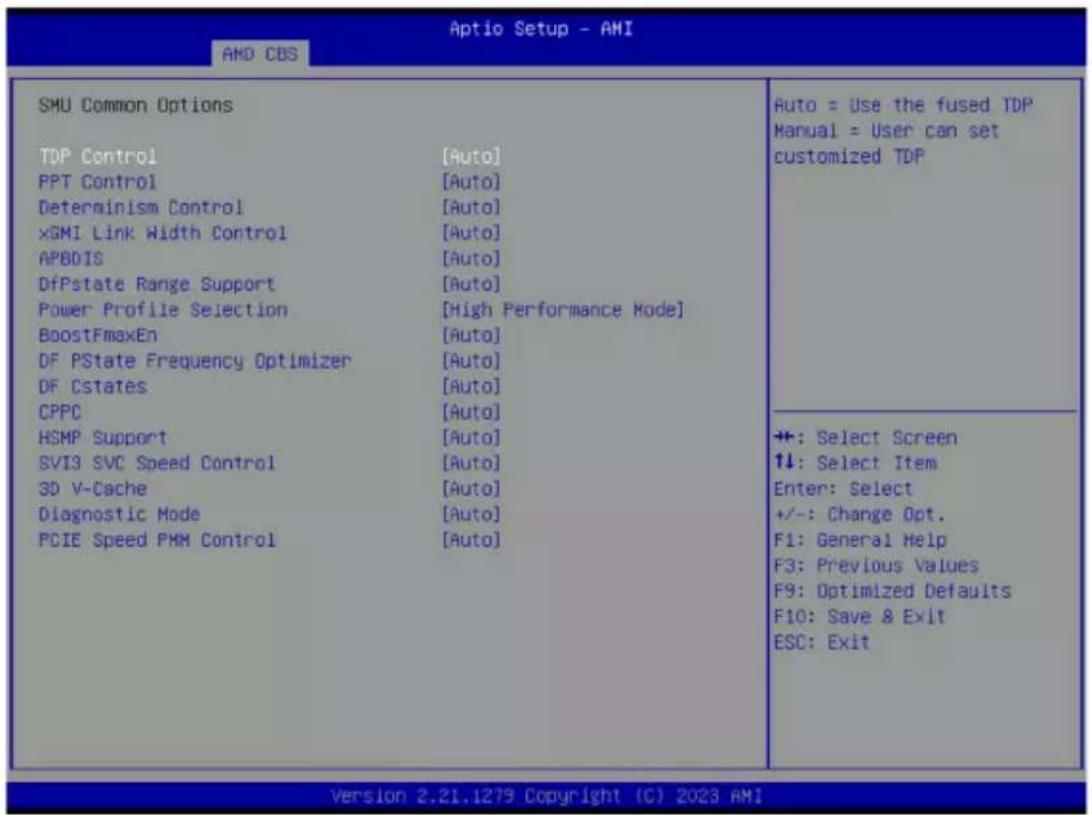

2-3-4-1 SMU Common Options

Parameter	Description
SMU Common Options
TDP Control	Options available: Manual, Auto. Default setting is Auto.
PPT Control	Options available: Manual, Auto. Default setting is Auto.
Determinism Control	Selects use the fused Determinism or set customized Determinism. Options available: Manual, Auto. Default setting is Auto.
xGMI Link Width Control Options available: Manual, Auto. Default setting is Auto.
APBDIS Options available: 0, 1, Auto. Default setting is Auto.
DfPstate Range Support Options available: Disable, Enable, Auto. Default setting is Auto.
Power Profile Selection	Options available: High Performance Mode, Efficiency Mode, Maximum IO Performance Mode. Default setting is High Performance Mode.
BoostFmaxEn Options available: Manual, Auto. Default setting is Auto.
DF PState Frequency Optimizer	Options available: Auto, Enabled, Disabled. Default setting is Auto.
DF Cstates Options available: Disabled, Enabled, Auto. Default setting is Auto.
CPPC	Enable/Disable the CPPC feature. Options available: Disabled, Enabled, Auto. Default setting is Auto.
HSMP Support	Enable/Disable the HSMP support. Options available: Disabled, Enabled, Auto. Default setting is Auto.
SVI3 SVC Speed Control	Options available: Auto, Manual. Default setting is Auto.
3D V-Cache Options available: Auto, Disable, 1 stack. Default setting is Auto.
Diagnostic Mode Options available: Disabled, Enabled, Auto. Default setting is Auto.
PCIE Speed PMM Control	Options available: Dynamic link speed determined by Power Management functionality, Static Target Link Speed (GEN4), Static Target Link Speed (GEN5), Auto. Default setting is Auto.

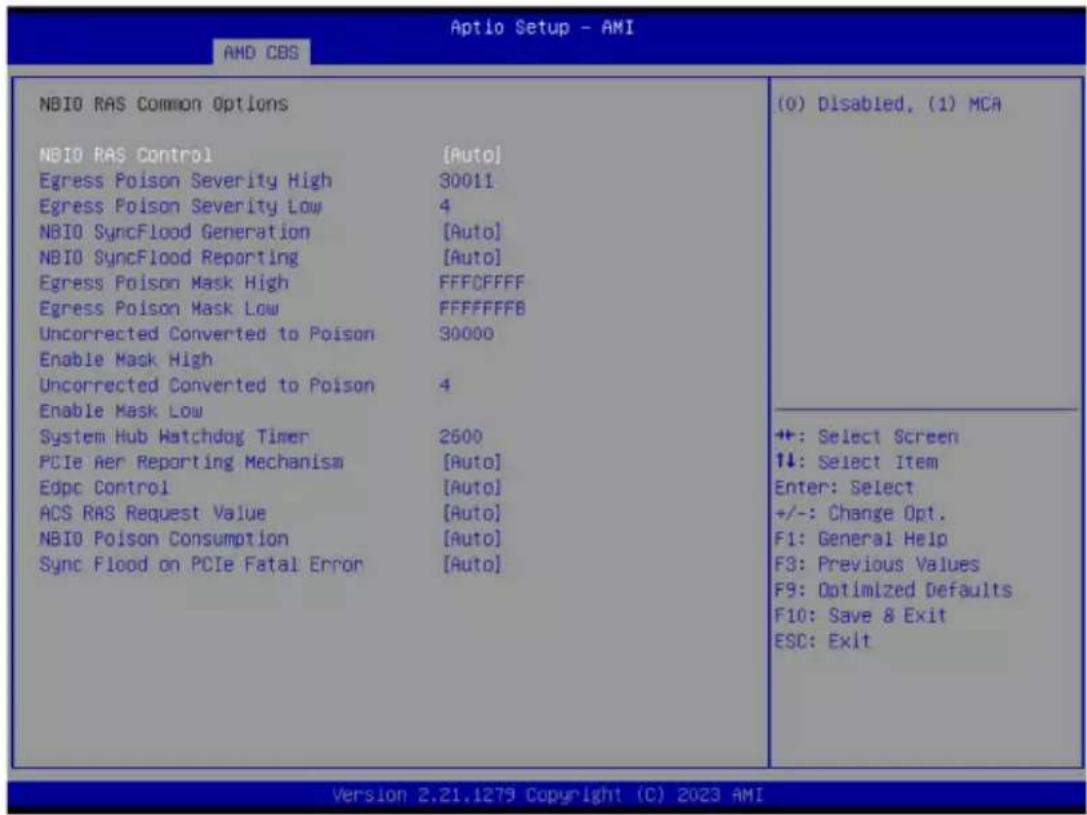

2-3-4-2 NBIO RAS Common Options

Parameter	Description
NBIO RAS Common Options
NBIO RAS Control Options available: Disabled, MCA, Auto. Default setting is Auto.
Egress Poison Severity High	Configs the Egress Poison High Severity. Each bit set to 1 enables High severity on the associated IOHC egress port. A bit of 0 indicates LOW severity.
Egress Poison Severity Low	Configs the Egress Poison Low Severity. Each bit set to 1 enables High severity on the associated IOHC egress port. A bit of 0 indicates LOW severity.
NBIO SyncFlood Generation	The value may be used to mask SyncFlood caused by NBIO RAS options. Options available: Enabled, Disabled, Auto. Default setting is Auto.
NBIO SyncFlood Reporting	The value may be used to enable SyncFlood reporting to APML. Options available: Enabled, Disabled, Auto. Default setting is Auto.
Egress Poison Mask High	Enables mask for masking of errors logged in EGRESS_POISON_STATUS. For each bit set to 1, errors are masked. For each bit set to 0, errors trigger response actions.
Egress Poison Mask Low	Enables mask for masking of errors logged in EGRESS_POISON_STATUS. For each bit set to 1, errors are masked. For each bit set to 0, errors trigger response actions.
Uncorrected Converted to Poison Enable Mask High	Enables mask for masking of uncorrectable parity errors on internal arrays.
Uncorrected Converted to Poison Enable Mask Low	Enables mask for masking of uncorrectable parity errors on internal arrays.
System Hub Watchdog Timer	Specifies the timer interval of the SYSHUB Watchdog timer in milliseconds.
PCIe Aer Reporting Mechanism	Selects the method of reporting AER errors from PCI Express. Options available: Firmware First, Firmware Frist but allow OS First, OS First, Auto. Default setting is Auto.
Edpc Control Options available:	Disabled, Enabled, Auto. Default setting is Auto.
ACS RAS Request Value	Options available: Direct Request Access Enabled, Request Blocking Enabled, Request Redirect Enabled, Auto. Default setting is Auto.
NBIO Poison Consumption Options available:	Auto, Enabled, Disabled. Default setting is Auto.
Sync Flood on PCIe Fatal Error	Options available: Auto, True, False. Default setting is Auto.

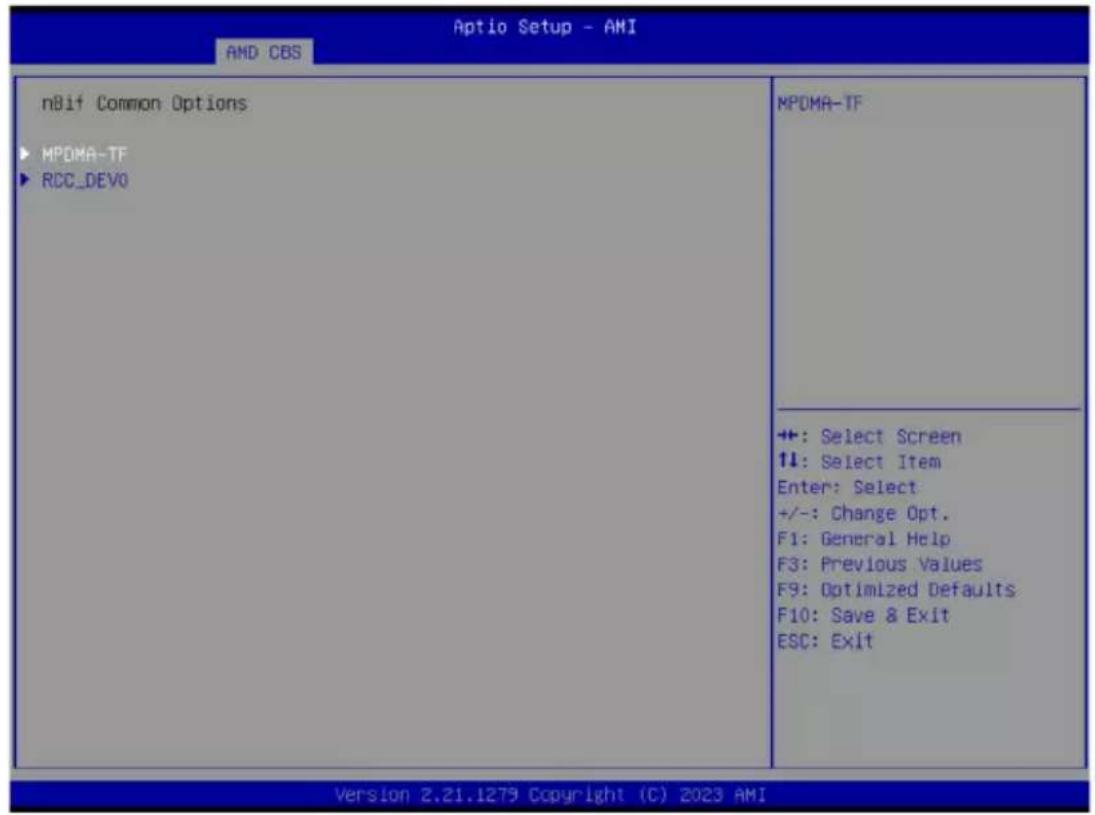

2-3-4-3 nBif Common Options

Parameter	Description
MPDMA-TF	• SROV - Options available: Auto, Disable, Enable. Default setting is Auto. • ARI - Options available: Auto/Default, Disable, Enable. Default setting is Auto/Default. • AER - Options available: Auto, Disable, Enable. Default setting is Auto. • ACS - Options available: Auto, Disable, Enable. Default setting is Auto. • ATS - Options available: Auto, Disable, Enable. Default setting is Auto. • PASID - Options available: Auto, Disable, Enable. Default setting is Auto. • RTR - Options available: Auto, Disable, Enable. Default setting is Auto. • PAGE_REQ - Options available: Auto, Disable, Enable. Default setting is Auto. • PWR - Options available: Auto, Disable, Enable. Default setting is Auto. • ATC_ENABLE - Options available: Auto, Disable, Enable. Default setting is Auto.
RCC_DEV0	·ACS Rcc Dev0 -Options available: Auto, Disable, Enable. Default setting is Auto. ·AER Rcc Dev0 -Options available: Auto, Disable, Enable. Default setting is Auto. ·DlfEnableStrap1 -Options available: Auto, Disable, Enable. Default setting is Auto. ·Phy16GTrap1 -Options available: Auto, Disable, Enable. Default setting is Auto. ·MarginEnStrap1 -Options available: Auto, Disable, Enable. Default setting is Auto. ·SourceValStrap5 -Options available: Auto, Disable, Enable. Default setting is Auto. ·TranslationalBlockingStrap5 -Options available: Auto, Disable, Enable. Default setting is Auto. ·P2pReq ACS Control -Options available: Auto, Disable, Enable. Default setting is Auto. ·P2pCompStrap5 -Options available: Auto, Disable, Enable. Default setting is Auto. ·UpstreamFwdStrap5 -Options available: Auto, Disable, Enable. Default setting is Auto. ·P2PEgressStrap5 -Options available: Auto, Disable, Enable. Default setting is Auto. ·DirectTranslatedStrap5 -Options available: Auto, Disable, Enable. Default setting is Auto. ·SsidEnStrap5 -Options available: Auto, Disable, Enable. Default setting is Auto. ·PriEnPageReq -Options available: Auto, Disable, Enable. Default setting is Auto. ·PriResetPageReq -Options available: Auto, Disable, Enable. Default setting is Auto. ·SourceVal ACS cntl -Options available: Auto, Disable, Enable. Default setting is Auto. ·TranslationalBlocking ACS Control -Options available: Auto, Disable, Enable. Default setting is Auto. ·P2pComp ACS Control -Options available: Auto, Disable, Enable. Default setting is Auto. ·UpstreamFwd ACS Control -Options available: Auto, Disable, Enable. Default setting is Auto. ·P2PEgress ACS Control -Options available: Auto, Disable, Enable. Default setting is Auto. ·P2pReqStrap5 -Options available: Auto, Disable, Enable. Default setting is Auto. ·E2E_PREFIX -Options available: Auto, Disable, Enable. Default setting is Auto.
RCC_DEV0	• EXTENDED_FMT
(continued)	- Options available: Auto, Disable, Enable. Default setting is Auto.

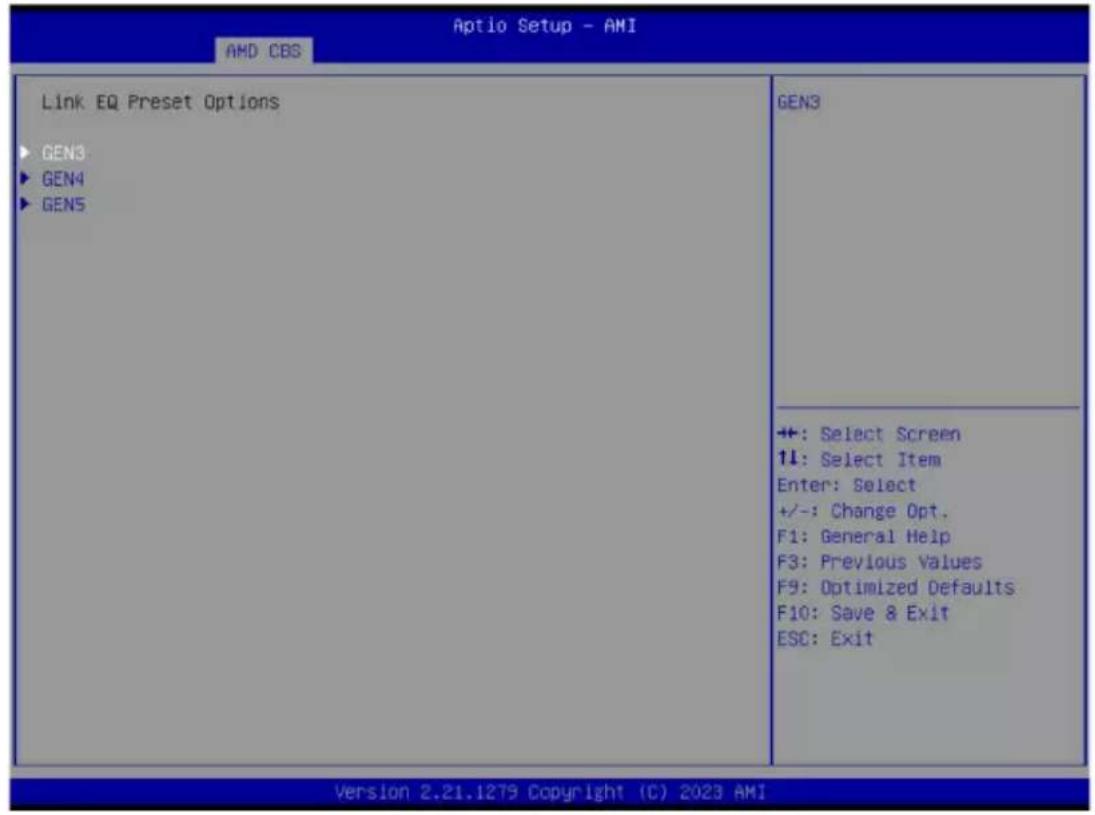

2-3-4-4 Link EQ Preset Options

Parameter	Description
GEN3/4/5	Press [Enter] to configure advanced items.
	• Preset Search Mask Configuration
	- Options available: Custom, Auto. Default setting is Auto.

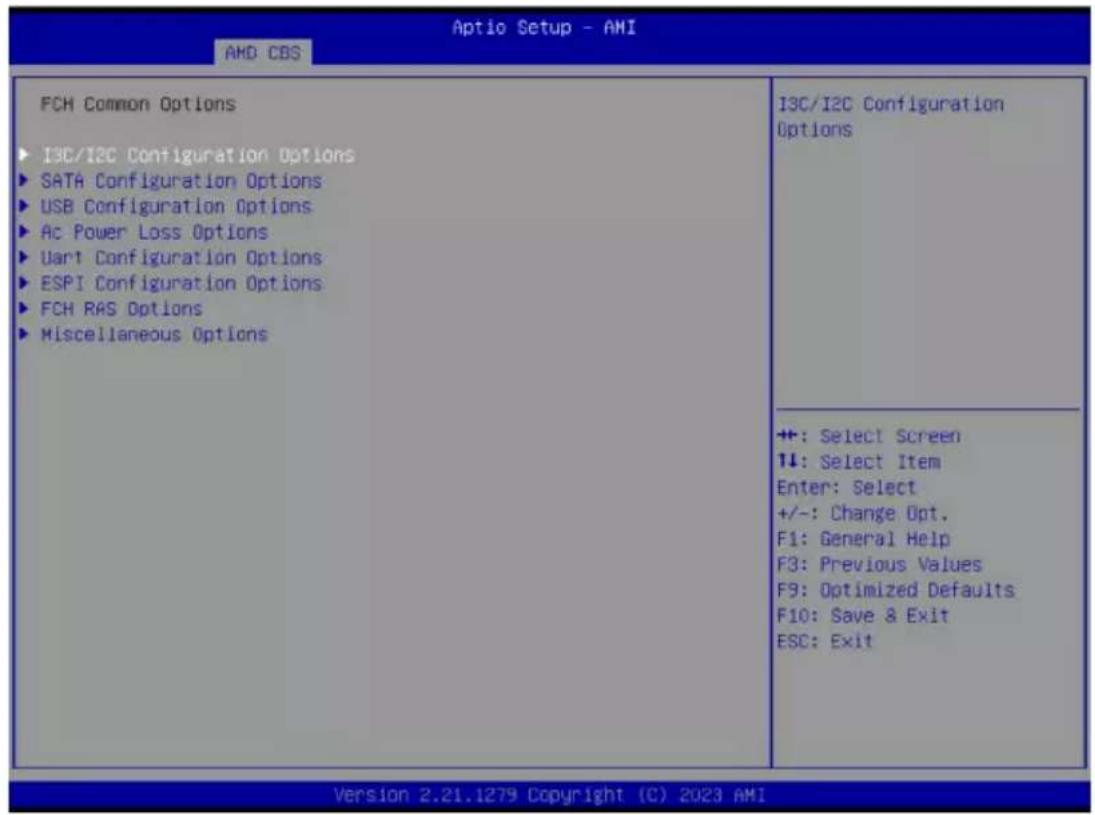

2-3-5 FCH Common Options

Parameter Description

FCH Common Options

I3C/I2C Configuration Options Press [Enter] for configuration of advanced items.

SATA Configuration Options Press [Enter] for configuration of advanced items.

USB Configuration Options Press [Enter] for configuration of advanced items.

AC Power Loss Options Press [Enter] for configuration of advanced items.

Uart Configuration Options Press [Enter] for configuration of advanced items.

ESPI Configuration Options Press [Enter] for configuration of advanced items.

FCH RAS Options Press [Enter] for configuration of advanced items.

Miscellaneous Options Press [Enter] for configuration of advanced items.

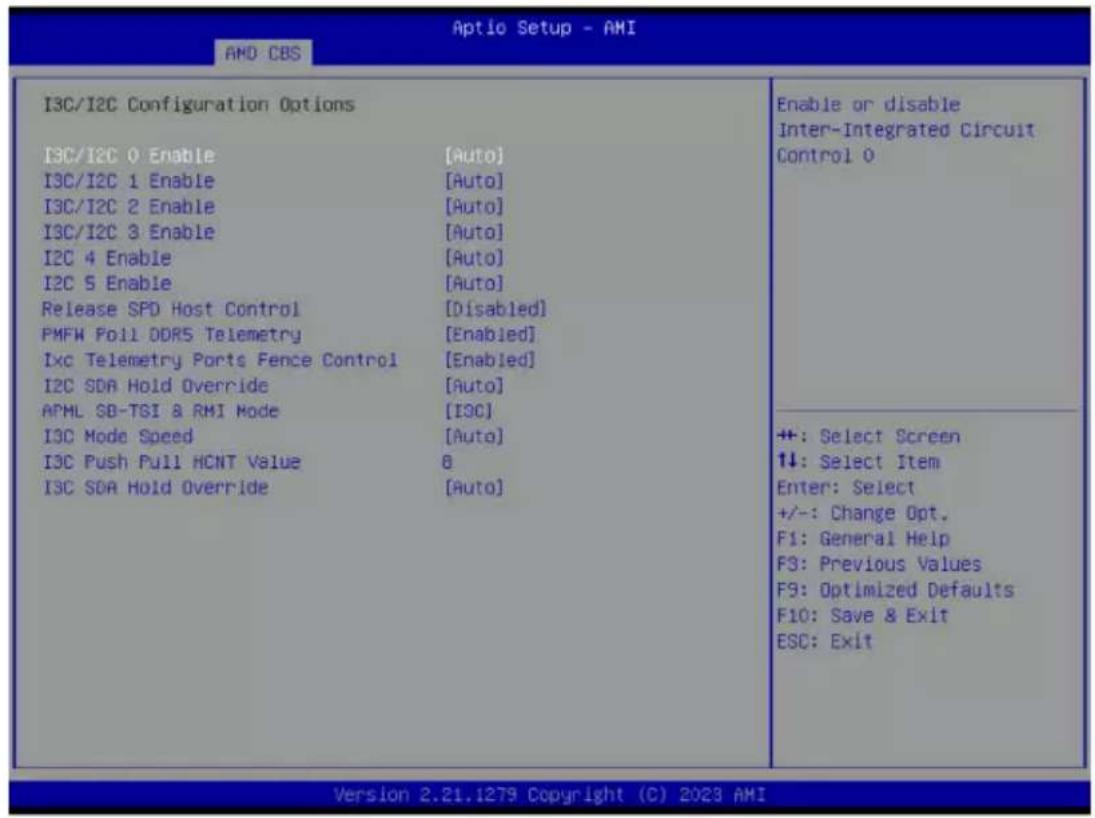

2-3-5-1 I3C/I2C Configuration Options

Parameter	Description
I3C/I2C Configuration Options
I3C/I2C 0/1/2/3 Enable	Options available: Both Disabled, I3C Enabled, I2C Enabled, Auto. Default setting is Auto.
I2C 4/5 Enable	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Release SPD Host Control	Options available: Disabled, Enabled. Default setting is Disabled.
PMFW Poll DDR5 Telemetry	Options available: Disabled, Enabled. Default setting is Enabled.
Ixc Telemetry Ports Fence Control	Options available: Disabled, Enabled. Default setting is Disabled.
I2C SDA Hold Override	Options available: Disabled, Enabled, Auto. Default setting is Auto.
APML SB-TSI $ RMI Mode	Options available: I3C, I2C. Default setting is I3C.
I3C Mode Speed	Options available: SDR2(6MHz), SDR0(12.5MHz), Auto. Default setting is Auto.
I3C Push Pull HCNT Value	SCL push-pull High count for I3C transfers targeted to I3C devices.
I3C SDA Hold Override	Override I3C SDA Hold value. Options available: Disabled, Enabled, Auto. Default setting is Auto.

2-3-5-2 SATA Configuration Options

Parameter	Description
SATA Configuration Options
SATA Enable	Enable/Disable OnChip SATA controller. Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA RAS Support	Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Staggered Spin-up	Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Disabled AHCI prefetch Function	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Aggressive SATA Device Sleep P0/P1	Options available: Disabled, Enabled, Auto. Default setting is Auto.
SATA Controller options	Press [Enter] for configuration of advanced items. • SATA Controller Enable • SATA Controller eSATA • SATA Controller DevSlp • SATA Controller SGPIO

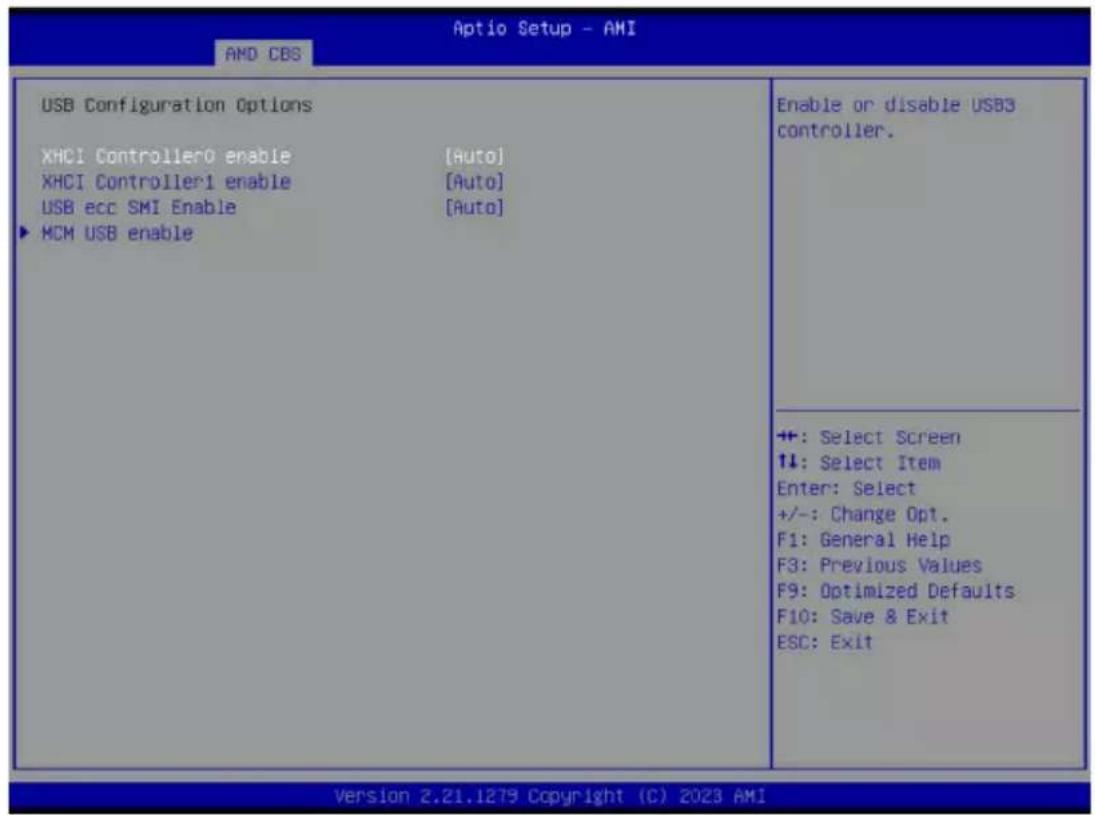

2-3-5-3 USB Configuration Options

Parameter	Description
USB Configuration Options
XHCI Controller0/1 enable	Enable/Disable USB controller. Options available: Enabled, Disabled, Auto. Default setting is Auto.
USB ecc SMI Enable	Options available: Enable, Off, Auto. Default setting is Auto.
MCM USB enable	Press [Enter] for configuration of advanced items. • XHCI2/ XHCI3 enable (Socket1) - Options available: Enabled, Disabled, Auto. Default setting is Auto.

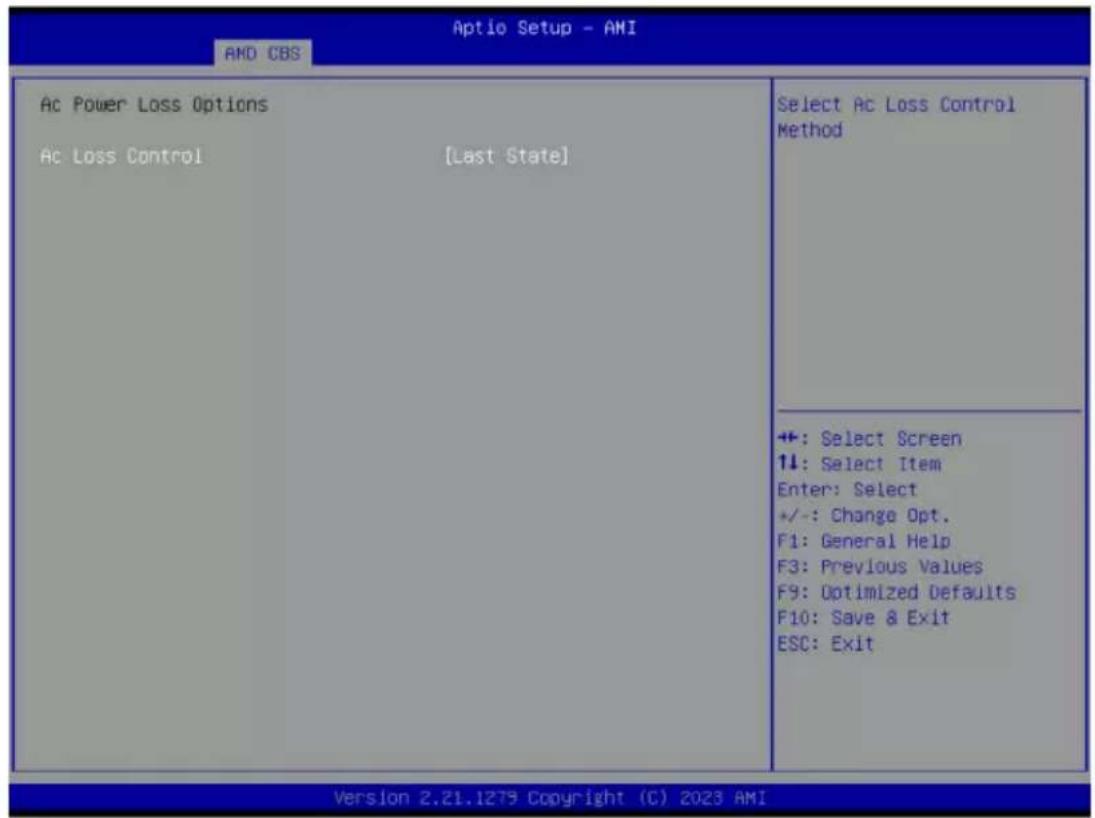

2-3-5-4 AC Power Loss Options

Parameter	Description
AC Power Loss Options
AC Loss Control	Selects the AC Loss Control Method. Options available: Power Off, Power On, Last State. Default setting is Last State.

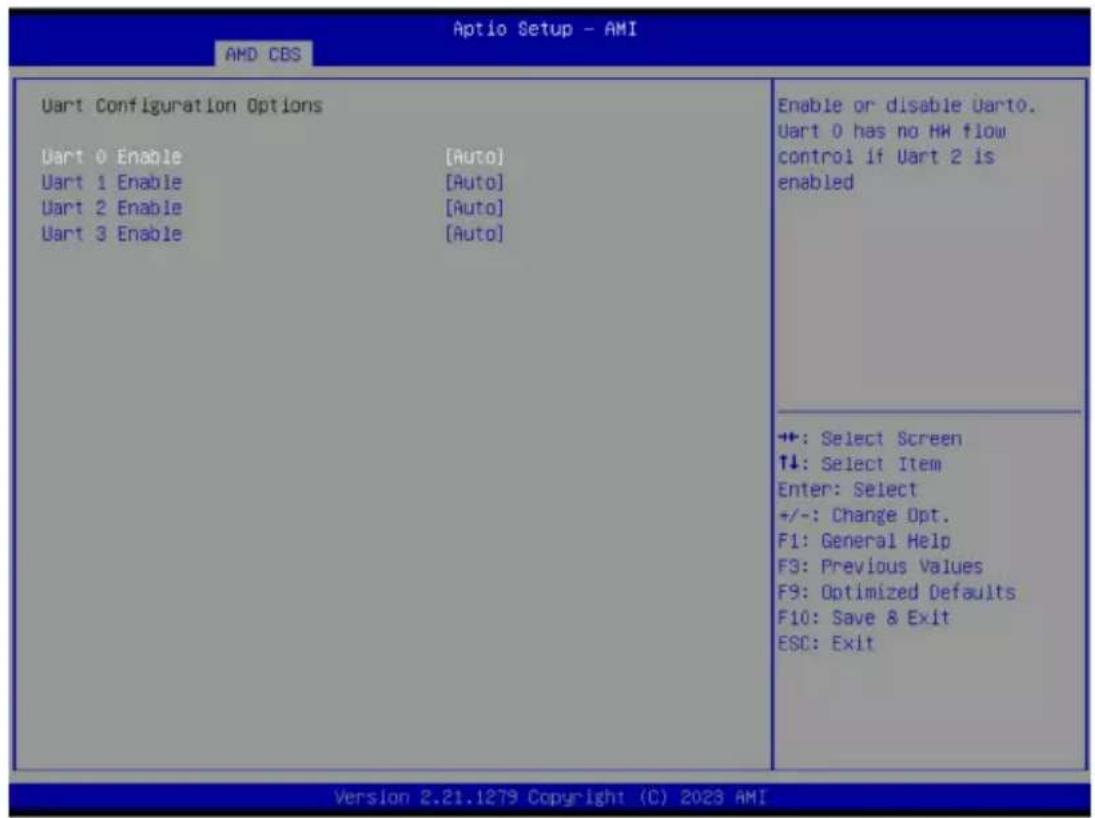

2-3-5-5 Uart Configuration Options

Parameter	Description
Uart Configuration Options
Uart 0/1/2/3 Enable	Options available: Disabled, Enabled, Auto. Default setting is Auto.

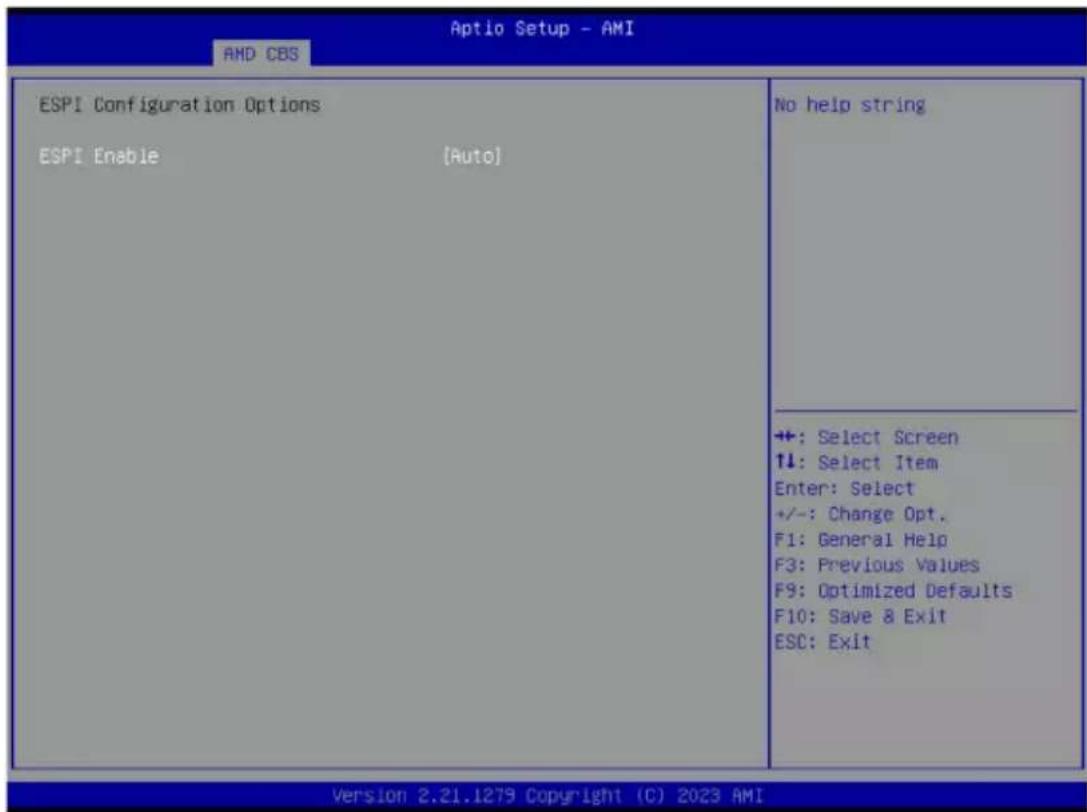

2-3-5-6 ESPI Configuration Options

Parameter	Description
ESPI Configuration Options
ESPI Enable	Options available: Disabled, Enabled, Auto. Default setting is Auto.

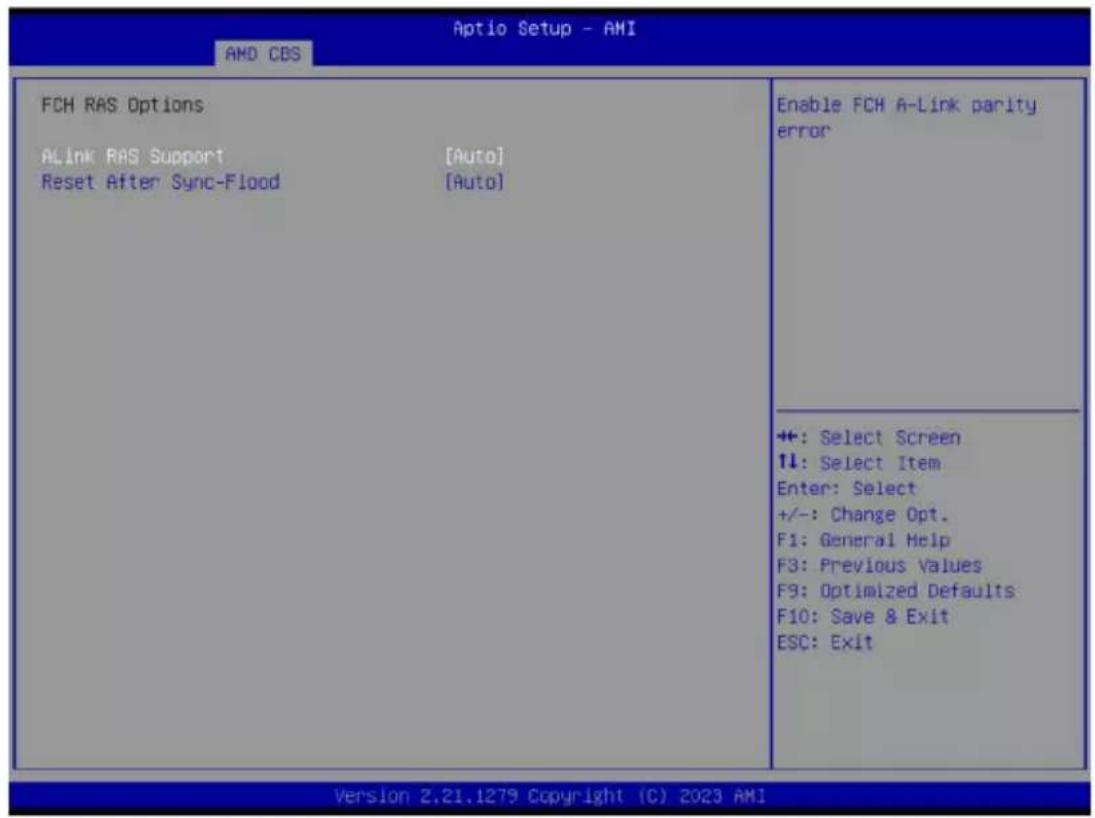

2-3-5-7 FCH RAS Options

Parameter	Description
FCH RAS Options
ALink RAS Support	Enable/Disable the ALink RAS Support. Options available: Disabled, Enabled, Auto. Default setting is Auto.
Reset after sync flood	Enables AB to forward downstream sync-flood message to system controller. Options available: Enable, Disable, Auto. Default setting is Auto.

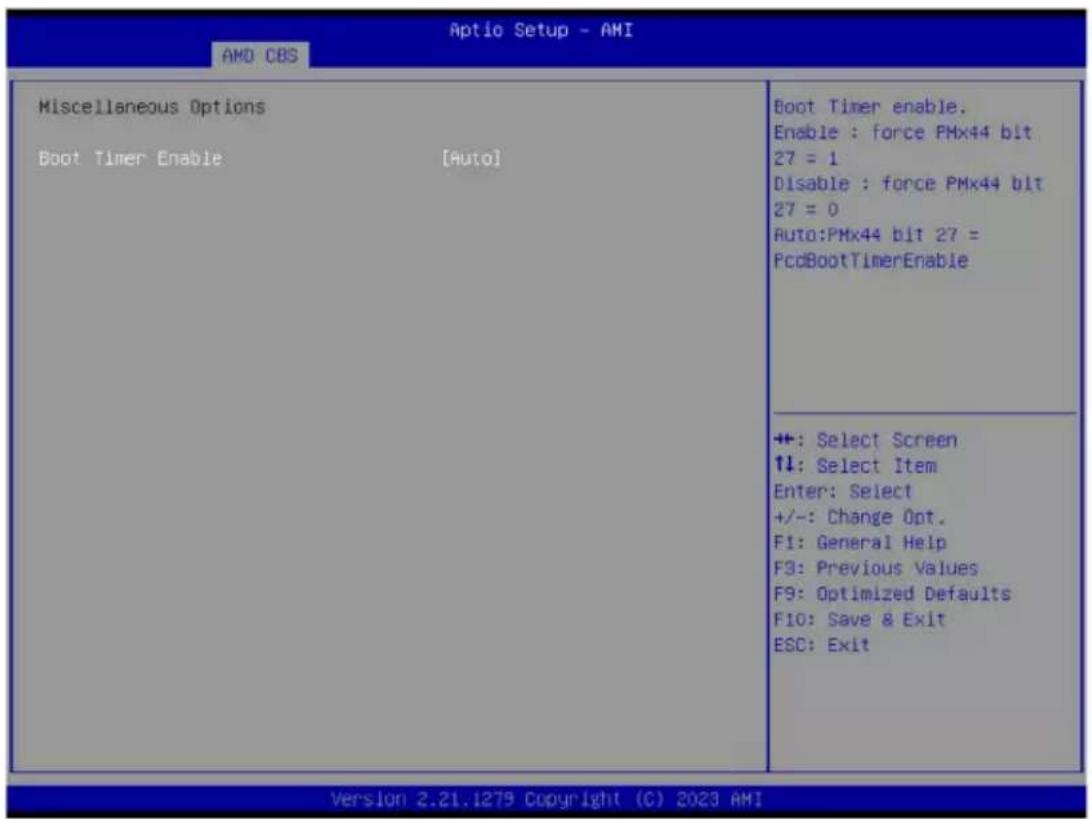

2-3-5-8 Miscellaneous Options

Parameter	Description
Miscellaneous Options
Boot Timer Enable	Enable/Disable Boot Timer. Options available: Disabled, Enabled, Auto. Default setting is Auto.

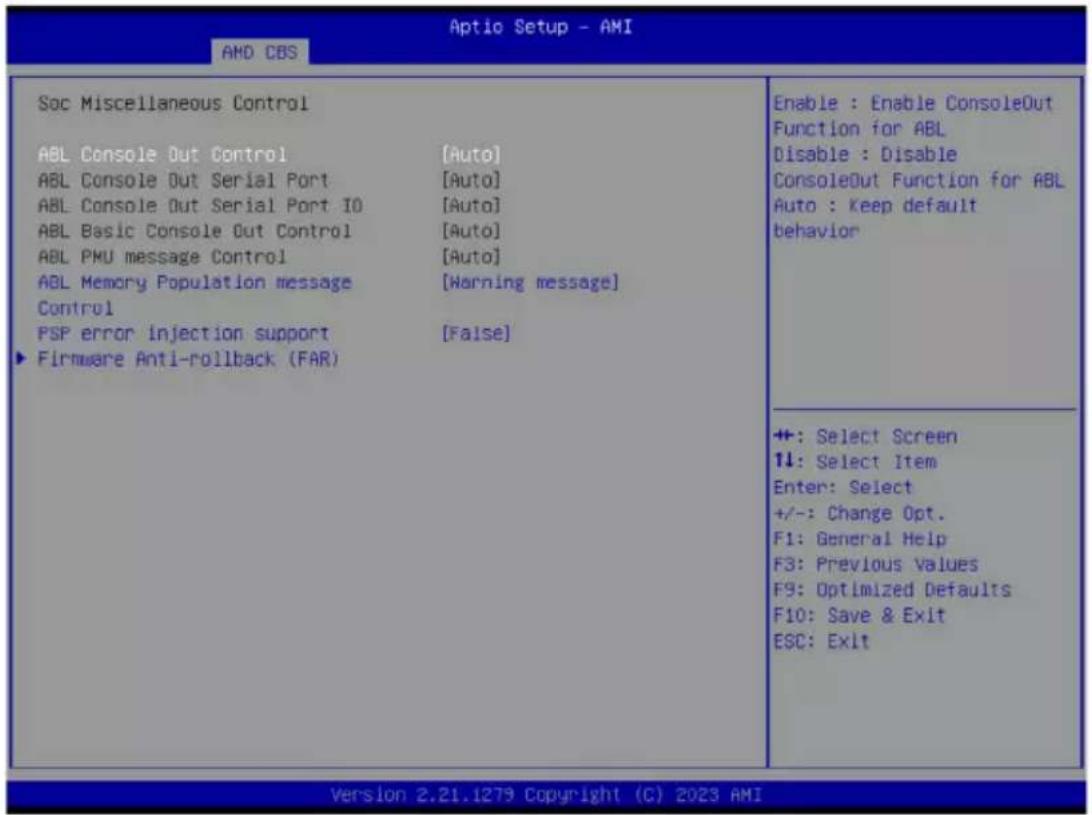

2-3-6 SOC Miscellaneous Control

Parameter	Description
SOC Miscellaneous Control
ABL Console Out Control(Note)	Enable/Disable the ConsoleOut function for ABL. Options available: Disable, Enable, Auto. Default setting is Auto.
ABL Console Out Serial Port(Note)	Options available: eSPI, SOC UART0, SOC UART1, Auto. Default setting is Auto.
ABL Console Out Serial Port IO	Options available: 0x3F8, 0x2F8, 0x3E8, 0x2E8, Auto. Default setting is Auto.
ABL Basic Console Out Control	Enable/Disable the Basic ConsoleOut function for ABL. Options available: Disable, Enable, Auto. Default setting is Auto.
ABL PMU message Control	To Control the total number of PMU debug messages. Options available: Auto, Detailed debug message, Coarse debug message, Stage completion, Assertion messages, Firmware completion message only. Default setting is Auto.
ABL Memory Population message Control	Options available: Warning message, Fatal error. Default setting is Warning message.
PSP error injection support	Options available: False, True. Default setting is False.

(Note) Advanced items are configurable when this item is defined.

Firmware Anti-rollback (FAR)

Press [Enter] for configuration of advanced items.

FAR enforcement state

• Default setting is Enabled.

SPL value in the CPU Fuse
SPL value in the SPL table
FAR Switch

• Options available: Disabled, Enabled, Auto. Default setting is Auto.

2-3-7 Workload Tuning

Parameter	Description
Workload Tuning
Workload Profile	Select the profile for different workloads. Options available: CPU Intensive, Java Throughput, Java Latency, Power Efficiency, Memory Throughput Intensive, Storage IO Intensive, NIC Throughput Intensive, NIC Latency Sensitive, Accelerator Throughput, VMware vSphere Optimized, Linux KVM Optimized, Container Optimized, RDBMS Optimized, Big Data Analytics Optimized, IOT Gateway, HPC Optimized, OpenStack NFV, OpenStack for ReakTime Kernel, Auto. Default setting is Auto.
Performance Tracing	Enable to allow capturing performance traces. Options available: Disabled, Enabled, Auto. Default setting is Auto.

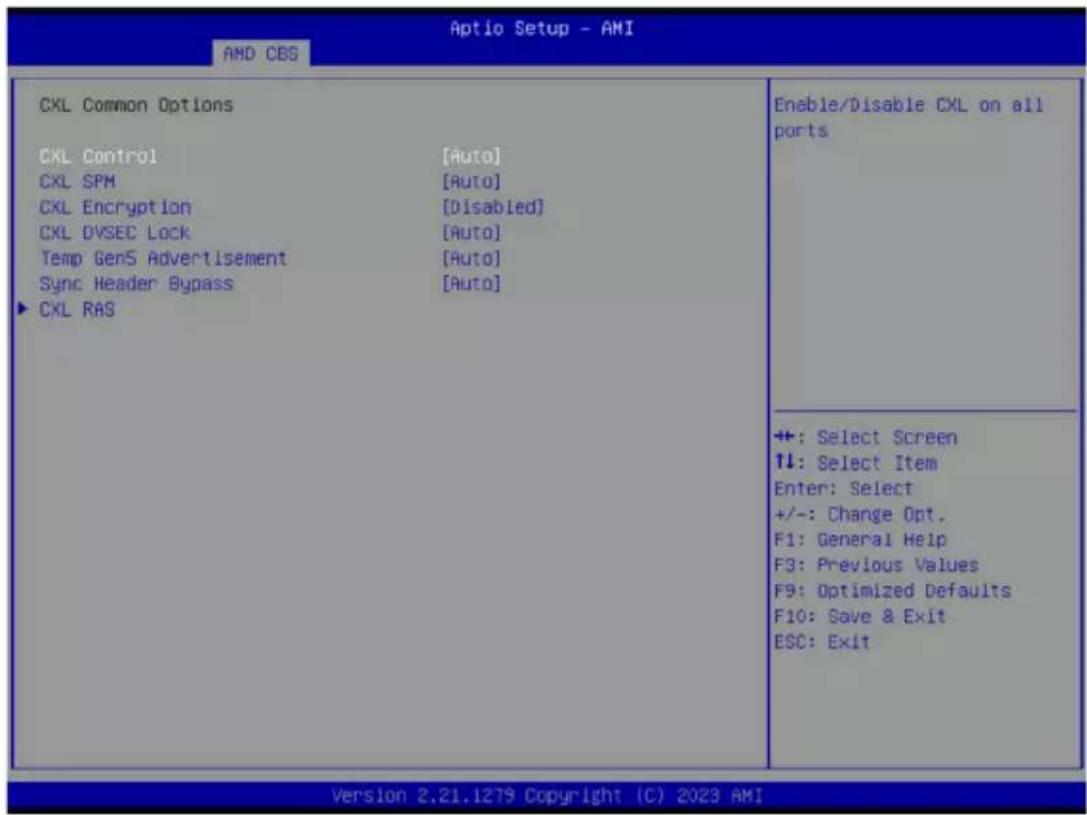

2-3-8 CXL Common Options

Parameter	Description
CXL Common Options
CXL Control Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL SPM Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL Encryption Options available: Enabled, Disabled. Default setting is Disabled.
CXL DVSEC Lock Options available: Auto, Enabled, Disabled. Default setting is Auto.
Temp Gen5 Advertisement	Options available: Disabled, Enabled, Auto. Default setting is Auto.
Sync Header Bypass Options available: Auto, Enabled, Disabled. Default setting is Auto.
CXL RAS	Press [Enter] for configuration of advanced items. • CXL Protocol Error Reporting - Options available: Disabled, SameAsPcieAer, ForceAerFwFirstIfCxIPresent. Default setting is SameAsPcieAer. • CXL Component Error Reporting - Options available: OS First, FW-First. Default setting is FW-First.

2-4 AMD PBS Menu

AMD PBS Option menu displays submenu options for configuring the function of AMD PBS. Select a submenu item, then press [Enter] to access the related submenu screen.

Parameter Description

RAS Press [Enter] for configuration of advanced items.

SPI Locking

Enable/Disable SPI Locking for protect ROM part. Options available: Disabled, Enabled. Default setting is Disabled.

Parameter	Description
RAS Periodic SMI Control	Enable/Disable the Periodic SMI for polling [MCA Threshold] error. Options available: Disabled, Enabled. Default setting is Enabled.
SMI Threshold Configures the SMI Threshold value.
SMI Scale Configures the SMI Scale value.
SMI Scale Unit	Defines the unit of time scale. Options available: millisecond, second, minute. Default setting is millisecond.
SMI Period Configures the SMI Period.
GHES Notify Type	Selects the Notification type for deferred/ corrected errors. Options available: Polled, SCI. Default setting is Polled.
GHES UnCorr Notify Type	Selects the Notification type for uncorrected errors. Options available: Polled, NMI. Default setting is NMI.
PCIe GHES Notify Type	Selects the Notification type for PCIe corrected errors. Options available: Polled, SCI. Default setting is Polled.
PCIe UnCorr GHES Notify Type	Selects the Notification type for PCIe uncorrected errors. Options available: Polled, NMI. Default setting is NMI.
PCIe Root Port Corr Err Mask Reg	Initialize the PCIe AER Corrected Error Mask register of Root Port.
PCIe Root Port UnCorr Err Mask Reg	Initialize the PCIe AER Uncorrected Error Mask register of Root Port.
PCIe Root Port UnCorr Err Sev Reg	Initialize the PCIe AER Uncorrected Error Severity register of Root Port.
PCIe Device Corr Err Mask Reg	Initialize the PCIe AER Corrected Error Mask register of PCIe device.
PCIe Device UnCorr Err Mask Reg	Initialize the PCIe AER Uncorrected Error Mask register of PCIe device.
PCIe Device UnCorr Err Sev Reg	Initialize the PCIe AER Uncorrected Error Severity register of PCIe device.
DRAM Hard Post Package Repair	This feature allows spare DRAM rows to replace malfunctioning rows via an in-field repair mechanism. Options available: Disabled, Enabled. Default setting is Disabled.
HEST DMC Structure Support	HEST DMC (Deferred Machine Check) Structure Support. Options available: Disabled, Enabled. Default setting is Disabled.
CXL Error Report Support	Enable/Disable CXL Error Reporting. Options available: Disabled, Enabled. Default setting is Disabled.

2-5 Chipset Setup Menu

Chipset Setup menu displays submenu options for configuring the function of the North Bridge. Select asubmenu item, then press to access the relatedsubmenu screen.

Parameter	Description
PCIe Link Training Type	Options available: 1 Step, 2 Step. Default setting is 1 Step.
PCIe Compliance Mode Options available: Off, On. Default setting is Off.
Program All VR	Enable/Disable program all VR on MB. Options available: Disabled, Enabled. Default setting is Enabled.
North Bridge Press [Enter] for configuration of advanced items.
Fabric Resource Press [Enter] for configuration of advanced items.

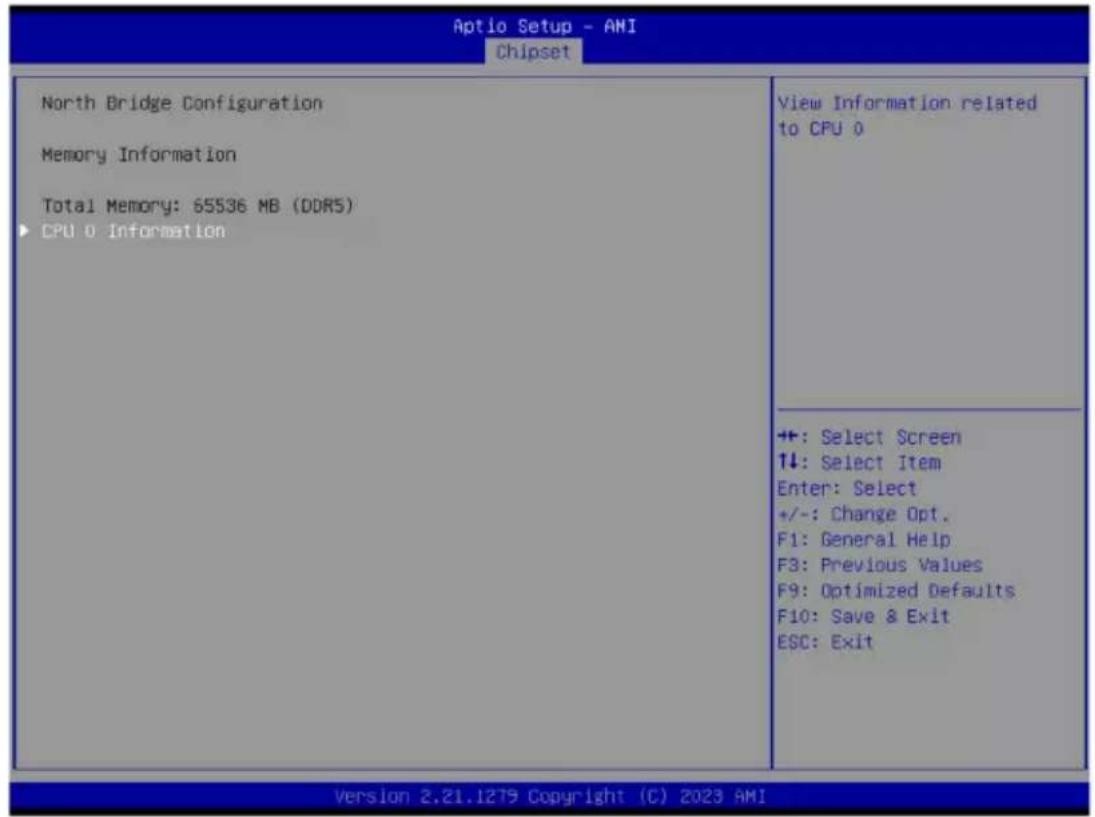

2-5-1 North Bridge

Parameter	Description
North Bridge Configuration
Memory Information
Total Memory Displays the total memory information.
CPU 0 Information Press [Enter] to view information related to CPU 0.

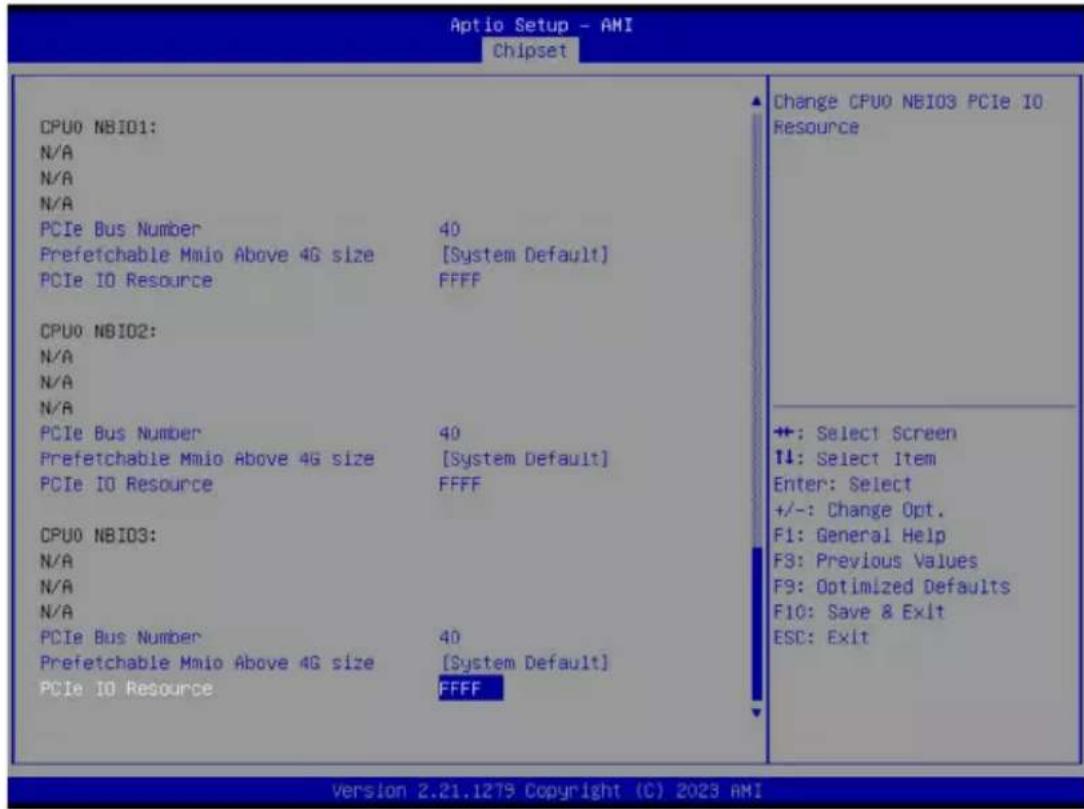

2-5-2 Fabric Resource

Parameter	Description
Fabric Resource
CPU 0 NBIO_# PCIe Bus Number	Change CPU 0 NBIO_# PCIe Bus Number.
Prefetchable Mnio Above 4G size	Change CPU 0/1 NBIO_# Prefetchable MMIO Above 4G Size. Options available: System Default, 0, 1G, 2G, 4G, 8G, 16G, 32G, 64G, 128G, 256G, 512G, 1T, 2T, 4T, 8T. Default setting is System Default.
PCIe IO Resource Change CPU 0 NBIO_# PCIe IO Resource.

2-6 Server Management Menu

Parameter	Description
FRB-2 Timer	Enable/Disable FRB-2 timer (POST timer).Default setting is Enabled.
FRB-2 Timer timeout	Configs the FRB2 Timer timeoutOPTIONS available: 3 minutes, 4 minutes, 5 minutes, 6 minutes. Default setting is 6 minutes.
FRB-2 Timer Policy	Configs the FRB2 Timer policyOPTIONS available: Do Nothing, Reset, Power Down, Power Cycle.Default setting is Do Nothing.
OS Watchdog Timer	Enable/Disable OS Watchdog Timer functionOPTIONS available: Enabled, Disabled. Default setting is Disabled.
OS Wtd Timer Timeout(Note)	Configs OS Watchdog TimerOPTIONS available: 5 minutes, 10 minutes, 15 minutes, 20 minutes.Default setting is 10 minutes.
OS Wtd Timer Policy(Note)	Configure OS Watchdog Timer PolicyOPTIONS available: Do Nothing, Reset, Power Down, Power Cycle.Default setting is Reset.
Wait BMC Ready	Post wait BMC ready and reboot systemOPTIONS available: Disabled, 2 minutes, 4 minutes, 6 minutes. Default setting is 2 minutes.

(Note) This item is configurable when OS Watchdog Timer is set to Enabled.

Parameter	Description
System Event Log	Press [Enter] to configure advanced items.
View FRU Information	Press [Enter] to view the FRU information.
BMC network configuration	Press [Enter] to configure advanced items.
IPv6 BMC Network Configuration	Press [Enter] to configure advanced items.

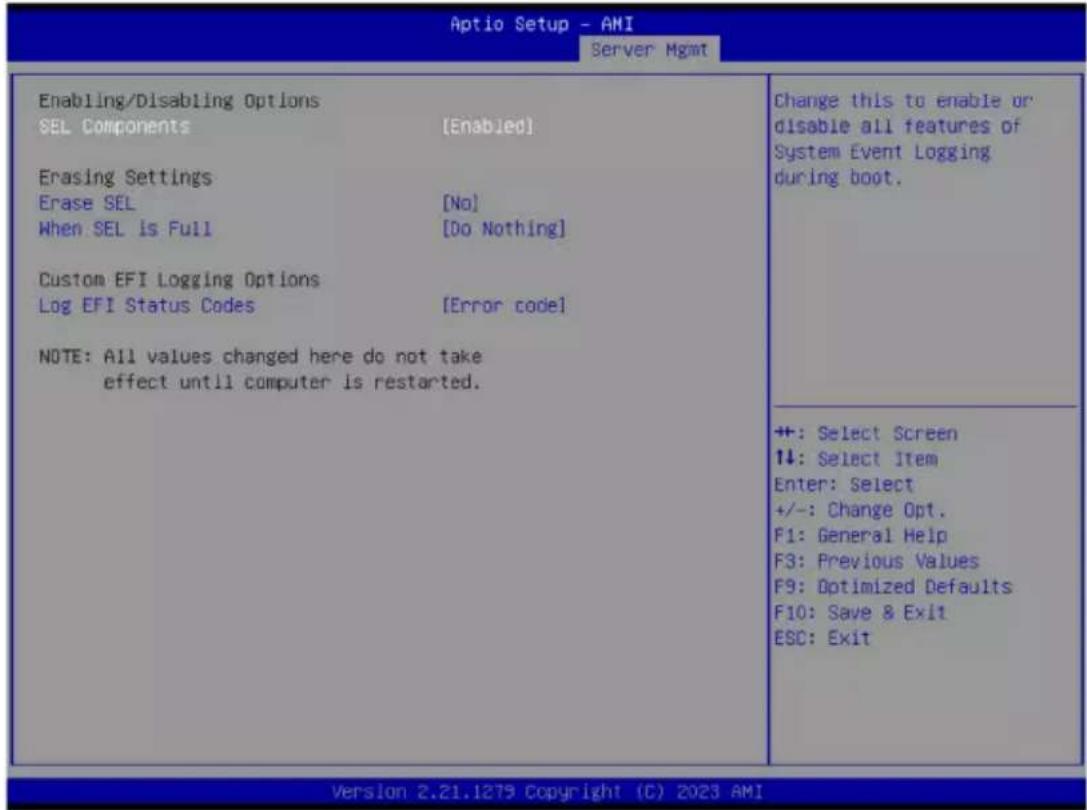

2-6-1 System Event Log

Parameter	Description
Enabling / Disabling Options
SEL Components	Change this item to enable or disable all features of System Event Logging during boot. Options available: Disabled, Enabled. Default setting is Enabled.
Erasing Settings
Erase SEL	Choose options for erasing SEL. Options available: No/Yes, On next reset/Yes, On every reset. Default setting is No.
When SEL is Full	Choose options for reactions to a full SEL. Options available: Do Nothing, Erase Immediately. Default setting is Do Nothing.
Custom EFI Logging Options
Log EFI Status Codes	Enable/Disable the logging of EFI Status Codes (if not already converted to legacy). Options available: Disabled, Both, Error code, Progress code. Default setting is Error code.

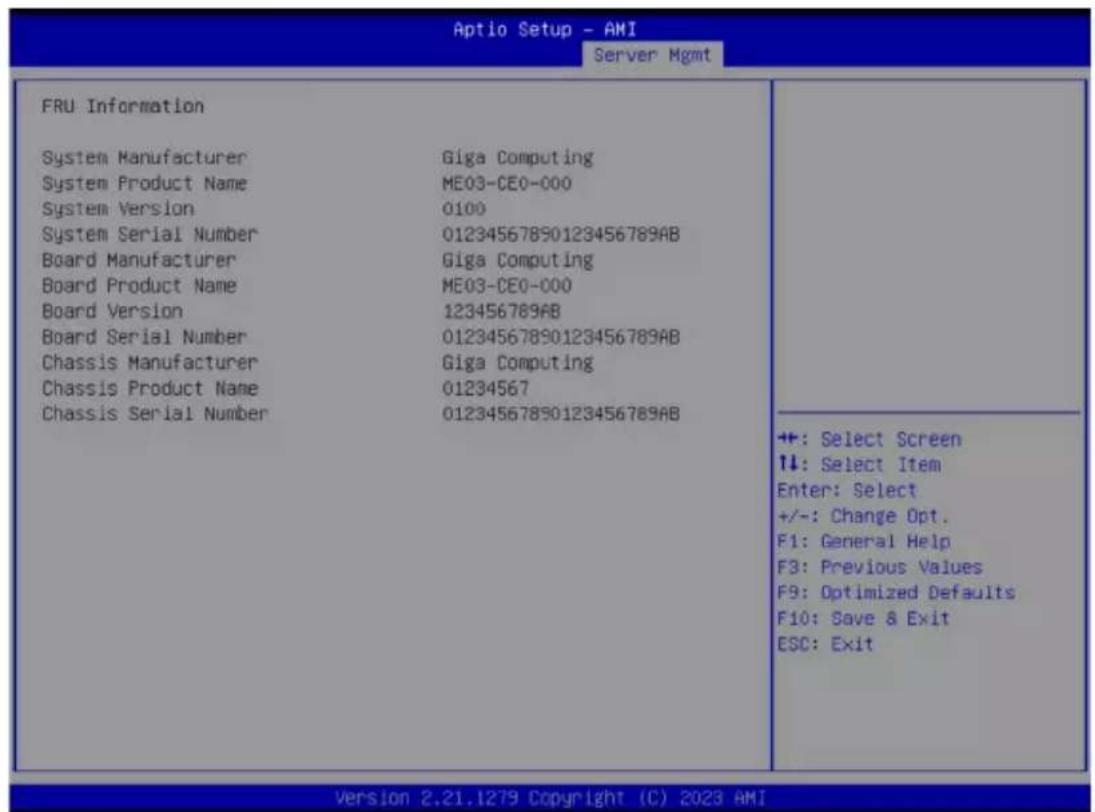

2-6-2 View FRU Information

The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable.

2-6-3 BMC Network Configuration

Parameter	Description
BMC network configuration
Lan Channel 1
Configuration Address source	Selects to configure LAN channel parameters statically or dynamically (DHCP). Do nothing option will not modify any BMC network parameters during BIOS phase. Options available: Unspecified, Static, DynamicBmcDhcp. Default setting is DynamicBmcDhcp.
Station IP address	Displays IP Address information.
Subnet mask	Displays Subnet Mask information. Please note that the IP address must be in three digitals, for example, 192.168.000.001.
Router IP address	Displays the Router IP Address information.
Station MAC address	Displays the MAC Address information.
VLAN Support	Set BMC to enable/disable VLAN support. Options available: Enabled, Disabled. Default setting is Disabled.
Real-time synchronize BMC network parameter values	Press [Enter] will set Address source(Static/DHCP) to BMC and then get Station IP address, Subnet mask and Router IP address from BMC.

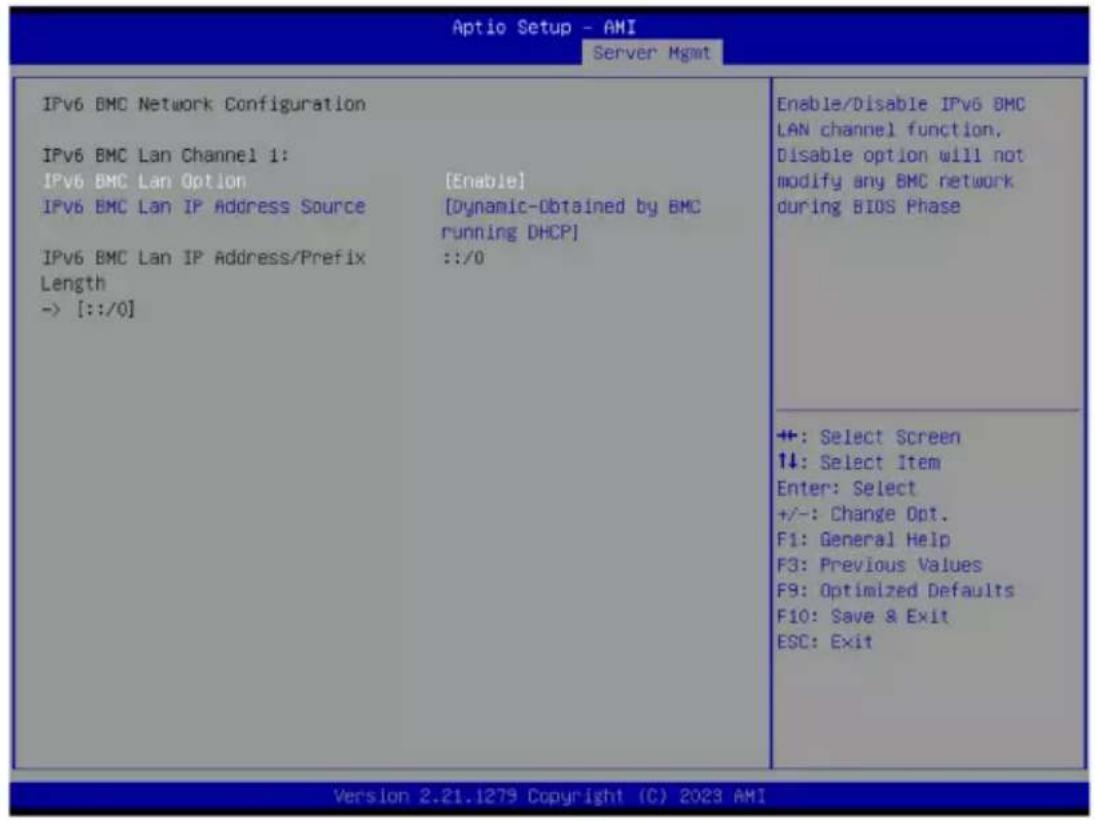

2-6-4 IPv6 BMC Network Configuration

Parameter	Description
IPv6 BMC network configuration
IPv6 BMC Lan Channel 1
IPv6 BMC Lan Option	Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify any BMC network during BIOS phase. Options available: Unspecified, Disable, Enable. Default setting is Enable.
IPv6 BMC Lan IP Address Source	Selects to configure LAN channel parameters statically or dynamically (by BIOS or BMC). Options available: Unspecified, Static, Dynamic-Obtained by BMC running DHCP. Default setting is Dynamic-Obtained by BMC running DHCP.
IPv6 BMC Lan IP Address/ Prefix Length	Check if the IPv6 BMC LAN IP address matches those displayed on the screen.

2-7 Security Menu

The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords.

There are two types of passwords that you can set:

• Administrator Password

Entering this password will allow the user to access and change all settings in the Setup Utility.

• User Password

Entering this password will restrict a user's access to the Setup menus. To enable or disable this field, a Administrator Password must first be set. A user can only access and modify the System Time, System Date, and Set User Password fields.

Parameter	Description
Administrator Password	Press [Enter] to configure the administrator password.
User Password	Press [Enter] to configure the user password.
Secure Boot	Press [Enter] to configure advanced items.

2-7-1 Secure Boot

The Secure Boot feature is applicable if supported by your Operating System. If your Operating System is not supporting Secure Boot, the system will hang when starting the Operating System.

Parameter	Description
System Mode	Displays if the system is in User mode or Setup mode.
Secure Boot	Enable/ Disable the Secure Boot function. Options available: Enabled, Disabled. Default setting is Disabled.
Secure Boot Mode(Note)	Secure Boot requires all the applications that are running during the booting process to be pre-signed with valid digital certificates. This way, the system knows all files being loaded before the Operating System loads to the login screen have not been tampered with. When set to Standard, it will automatically load the Secure Boot keys form the BIOS databases. When set to Custom, you can customize the Secure Boot settings and manually load its keys from the BIOS database. Options available: Standard, Custom. Default setting is Standard.
Restore Factory Keys	Forces the system to user mode and installs factory default Secure Boot key database.
Reset To Setup Mode	Press [Enter] to reset the system mode to Setup mode.
Enter Audit Mode	Press [Enter] to set the system mode to audit mode.

(Note) Advanced items prompt when this item is set to Custom.

Parameter

Description

Key Management

Press [Enter] to configure advanced items.Pleases note that this item is configurable when Secure Boot Mode is set to Custom.Factory Key Provision- Allows to provision factory default Secure Boot keys when system is in Setup Mode.- Options available: Enabled, Disabled. Default setting is Disabled.Restore Factory Keys- Installs all factory default keys. It will force the system in User Mode.- Options available: Yes, No.Enroll EFI Image- Press [Enter] to enroll SHA256 hash of the binary into Authorized Signature Database (db).Secure Boot variable- Displays the current status of the variables used for secure boot Platform Key (PK)- Displays the current status of the Platform Key (PK).- Press [Enter] to configure a new PK.- Options available: Update.Key Exchange Keys (KEK)- Displays the current status of the Key Exchange Key Database (KEK).- Press [Enter] to configure a new KE or load additional KE from storage devices.- Options available: Update, AppendAuthorized Signatures (DB)- Displays the current status of the Authorized Signature Database.- Press [Enter] to configure a new DB or load additional DB from storage devices.- Options available: Update, AppendForbidden Signatures (DBX)- Displays the current status of the Forbidden Signature Database.- Press [Enter] to configure a new dbx or load additional dbx from storage devices.- Options available: Update, AppendAuthorized TimeStamps (DBT)- Displays the current status of the Authorized TimeStamps Database.- Press [Enter] to configure a new DBT or load additional DBT from storage devices.- Options available: Update, Append.OsRecovery Signatures- Displays the current status of the OsRecovery Signature Database.- Press [Enter] to configure a new OsRecovery Signature or load additional OsRecovery Signature from storage devices.- Options available: Update, Append.

2-8 Boot Menu

The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable.

Parameter	Description
Boot Configuration
Setup Prompt Timeout	Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting.Press the numeric keys to input the desired values.
Bootup NumLock State	Enable/Disable the Bootup NumLock functionOPTIONS available: On, Off. Default setting is On.
Full Screen LOGO Show	Enable/Disable showing the logo during POSTOPTIONS available: Enabled, Disabled. Default setting is Enabled.
Setup Flash	Press [Enter] to run setup flash.
Dump full Setup Data	Press [Enter] to dump full setup data to file.
Dump non-default Setup Data	Press [Enter] to dump non-default setup data to file.
Restore Setup Data	Press [Enter] to restore setup data from file (cJson format).
Fast Boot	Options available: Enabled, Disabled. Default setting is Disabled.
Boot mode select	Selects the boot modeOPTIONS available: LEGACY, UEFI. Default setting is UEFI.
FIXED BOOT ORDER Priorities
Boot Option #1 / #2 / #3 / #4 / #5	Press [Enter] to configure the boot priority. By default, the server searches for boot devices in the following sequence: 1. Hard drive. 2. CD-COM/DVD drive. 3. USB device. 4. Network. 5. UEFI.
UEFI Network Drive BBS Priorities	Press [Enter] to configure the boot priority.
UEFI Application Boot Priorities	Press [Enter] to configure the boot priority.

2-9 Save & Exit Menu

The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press .

Parameter	Description
Save Options
Save Changes and Exit	Saves changes made and closes the BIOS setup. Options available: Yes, No.
Discard Changes and Exit	Discards changes made and exits the BIOS setup. Options available: Yes, No.
Save Changes	Saves changes done so far to any of the setup options. Options available: Yes, No.
Default Options
Restore Defaults	Loads the default settings for all BIOS setup parameters. Setup Defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low-performance components and you choose to load these settings, the system might not function properly. Options available: Yes, No.
Boot Override	Press [Enter] to configure the device as the boot-up drive.
Launch EFI Shell from filesystem device	Attempts to Launch EFI Shell application (Shell.efi) from one of the available file system devices.

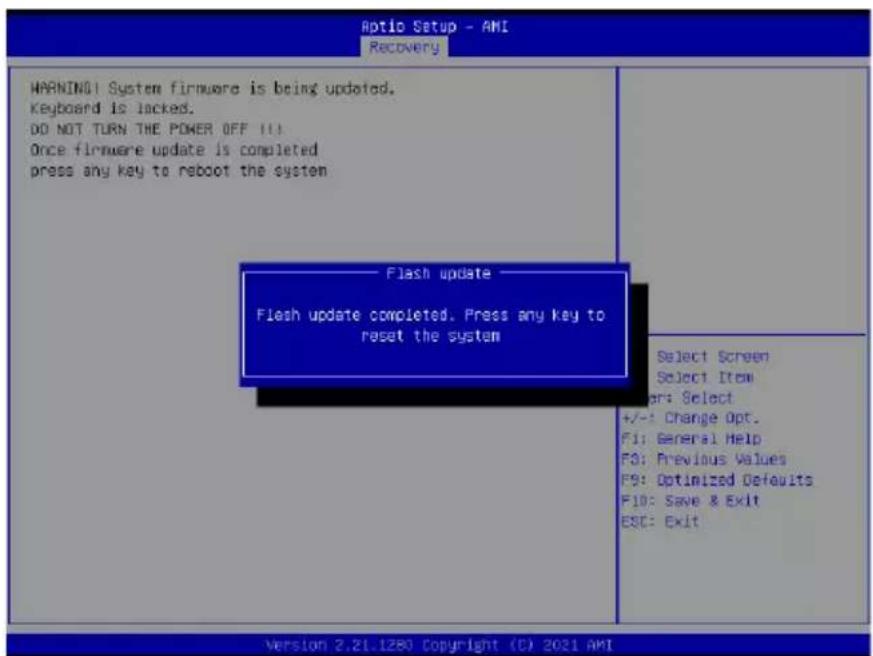

2-10 BIOS Recovery

The system has an embedded recovery technique. In the event that the BIOS becomes corrupt the boot block can be used to restore the BIOS to a working state. To restore your BIOS, please follow the instructions listed below:

Recovery Instruction:

1. Copy the XXX.rom to USB diskette.
2. Setting BIOS Recovery jump to enabled status.
3. Boot into BIOS recovery.
4. Run Proceed with flash update.
5. BIOS updated.

2-11 BIOS POST Beep code (AMI standard)

2-11-1 PEI Beep Codes

# of Beeps Description
1	Memory not Installed.
1	Memory was installed twice (InstallPeiMemory routine in PEI Core called twice)
2	Recovery started
3 DXEiplL was not found
3 DXE Core Firmware Volume was not found
4 Recovery failed
4	S3 Resume failed
7	Reset PPI is not available

2-11-2 DXE Beep Codes

# of Beeps Description

1 Invalid password

4 Some of the Architectural Protocols are not available

5 No Console Output Devices are found

5 No Console Input Devices are found

6 Flash update is failed

7 Reset protocol is not available

8 Platform PCI resource requirements cannot be met
