Modèle	HONOR 8X 128
Écran	6,5 pouces, Full HD+ (1080 x 2340 pixels)
Processeur	HiSilicon Kirin 710
Mémoire RAM	4 Go ou 6 Go
Stockage interne	128 Go, extensible via microSD
Caméra arrière	Double capteur : 20 MP + 2 MP
Caméra avant	16 MP
Batterie	3750 mAh, non amovible
Système d'exploitation	Android 8.1 (Oreo), EMUI 8.2
Dimensions	160.4 x 76.6 x 7.8 mm
Poids	175 g
Connectivité	4G LTE, Wi-Fi, Bluetooth 4.2, GPS
Capteur d'empreintes digitales	À l'arrière
Maintenance	Nettoyage régulier, mise à jour du système
Sécurité	Verrouillage par empreinte digitale, reconnaissance faciale
Informations générales	Bon rapport qualité-prix, adapté pour les utilisateurs quotidiens

FOIRE AUX QUESTIONS - 8X 128 HONOR

Comment redémarrer mon HONOR 8X 128 ?

Pour redémarrer votre HONOR 8X, appuyez et maintenez le bouton d'alimentation jusqu'à ce que le menu apparaisse, puis sélectionnez 'Redémarrer'.

Comment effectuer une capture d'écran ?

Pour faire une capture d'écran, appuyez simultanément sur le bouton d'alimentation et le bouton de réduction du volume pendant une seconde.

Que faire si mon téléphone ne s'allume pas ?

Vérifiez si la batterie est chargée en connectant votre téléphone à un chargeur. Si cela ne fonctionne pas, essayez de maintenir le bouton d'alimentation pendant 10 secondes.

Comment libérer de l'espace de stockage ?

Allez dans 'Paramètres' > 'Stockage' et supprimez les applications, photos ou fichiers dont vous n'avez plus besoin.

Comment réinitialiser mon HONOR 8X aux paramètres d'usine ?

Accédez à 'Paramètres' > 'Système' > 'Réinitialiser' > 'Réinitialiser les données d'usine'. N'oubliez pas de sauvegarder vos données avant de procéder.

Pourquoi mon téléphone chauffe-t-il ?

Le téléphone peut chauffer en raison de l'utilisation intensive, de la charge prolongée ou d'applications en arrière-plan. Fermez les applications inutilisées et évitez de l'utiliser pendant la charge.

Comment connecter mon HONOR 8X à un réseau Wi-Fi ?

Allez dans 'Paramètres' > 'Wi-Fi', activez le Wi-Fi, puis sélectionnez votre réseau et entrez le mot de passe.

Que faire si mon capteur d'empreintes digitales ne fonctionne pas ?

Assurez-vous que vos doigts sont propres et secs. Si le problème persiste, réenregistrez votre empreinte digitale dans 'Paramètres' > 'Sécurité' > 'Empreinte digitale'.

Comment mettre à jour le logiciel de mon HONOR 8X ?

Allez dans 'Paramètres' > 'Système' > 'Mise à jour logicielle' et vérifiez les mises à jour disponibles.

Comment activer le mode nuit ?

Accédez à 'Paramètres' > 'Affichage' > 'Mode nuit' et activez-le selon vos préférences.

MODE D'EMPLOI 8X 128 HONOR

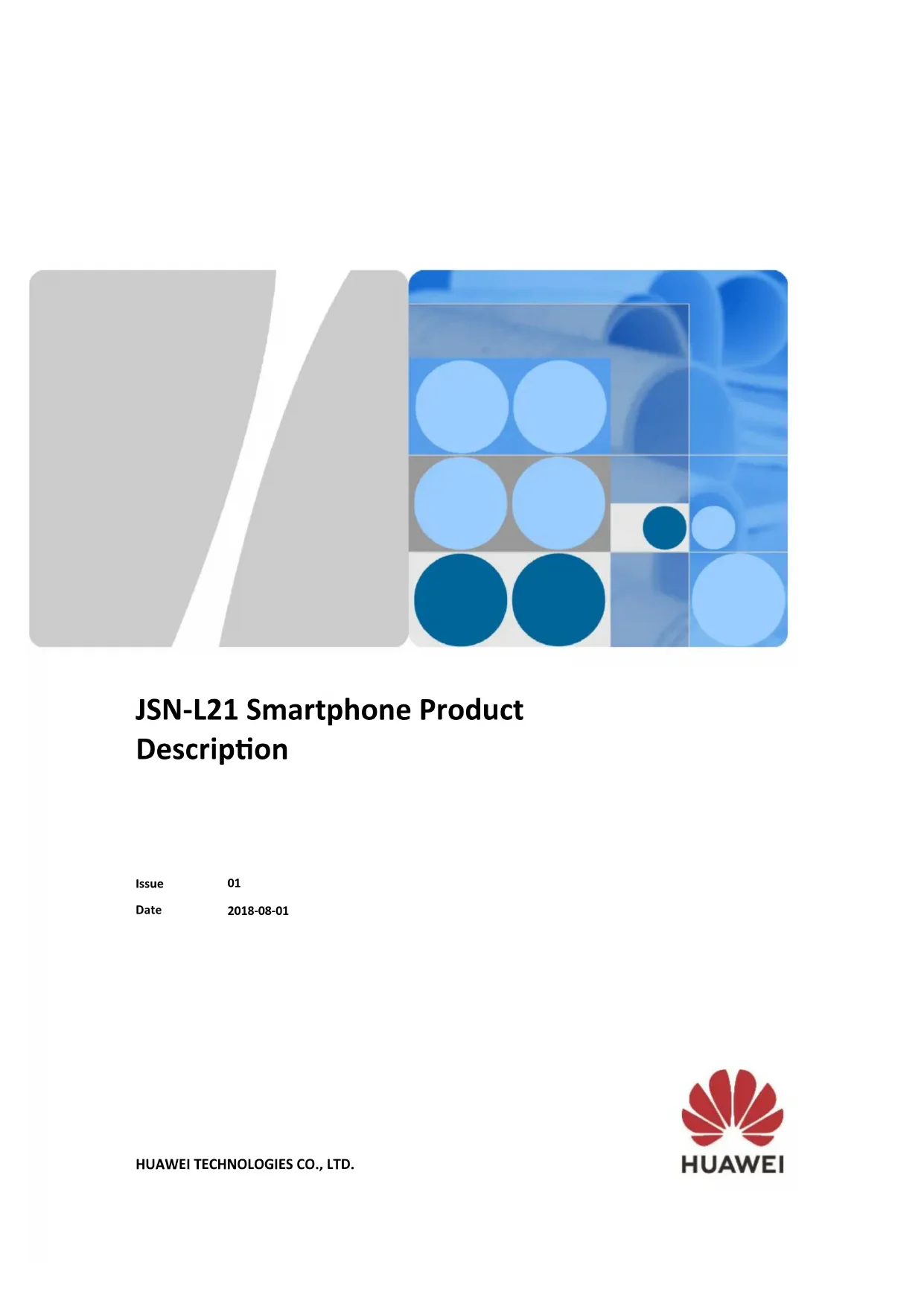

JSN-L21 Smartphone Product Description

Issue

01

Date

2018-08-01

HUAWEI TECHNOLOGIES CO., LTD.

Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

HUAWEI and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and th customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: [e-mail]

Contents

1 Change Record 1
2 Product Overview 2
2.1 Introduction 2
2.2 Appearance 2
3 Hardware specification 3
4 Software specifications 7
5 Packing List 9

Change Record

Version	SE	Modify Content	Released Data
01	sangzhao 00281253	First released	2018.7.10

1 Product Overview

1.1 Introduction

JSN-L21 is a smart phone developed by HUAWEI. It is based on Google Operating System. It gives you an excellent browsing experience with the Operating System from Google™, all in a thin touch phone.

1.2 Appearance

TBD

2

Hardware specification

Item	Description
Appearance
Shape	Bar-type
Color	White,Black,Blue,Red,Ultra Violet
Size	160.4 mm (H)*76.6 mm (W)*7.8 mm (D) Note: The actual dimensions may vary depending on the configuration, manufacturing process, and measurement method.
Weight	Approx. 175g (including the battery) Note: The actual weight may vary depending on the configuration, manufacturing process, and measurement method.
Battery Type	Lithium polymer
Display
LCD	• Screen size: 6.5 inches • Screen type: LTPS • Screen colors: 16.7M • Screen resolution: 2340 x 1080 • Screen PPI: 397
Touch-sensitive screen	Touch-sensitive screen. Support multi-touch technology
Network
Network standard	LTE FDD/WCDMA/GSM
Frequency band	4G LTE FDD: B1/3/7/8/20 3G UMTS: B1/8 2G GSM: B2/3/8
Maximum transmit power	4G LTE FDDLTE FDD B1: 21-25 dBm(Power Class 3)LTE FDD B3: 19.5-25 dBm(Power Class 3)LTE FDD B7: 19.5-25 dBm(Power Class 3)LTE FDD B8: 19.5-25 dBm(Power Class 3)LTE FDD B20: 21-25 dBm (Power Class 3)3G WCDMA· WCDMA B1: +24 dBm(Power Class 3)· WCDMA B8: +24 dBm(Power Class 3)2G GSM· GSM B2: +30 dBm(Power Class 1)· GSM B3: +30 dBm(Power Class 1)· GSM B8: +33 dBm(Power Class 4)
Static sensitivity	4G LTE FDDLTE FDD B1: better than -100 dBm/5 MHzLTE FDD B3: better than -101.7 dBm/1.4 MHzLTE FDD B7: better than -98 dBm/5 MHzLTE FDD B8: better than -102.2 dBm/1.4 MHzLTE FDD B20: better than -97 dBm/3 MHz3G WCDMA· WCDMA B1: better than -106.7 dBm/3.84 MHz· WCDMA B8: better than -103.7 dBm/3.84 MHz2G GSM· GSM B2: better than -102 dBm/200 kHz· GSM B3: better than -102 dBm/200 kHz· GSM B8: better than -102 dBm/200 kHz
Network rate	4G LTE FDD· 150 Mbit/s(DL), 50 Mbit/s(UL)3G WCDMA (HSDPA/ HSUPA)· 42 Mbit/s(DL), 5.76Mbit/s(UL)2G GPRS/EDGE· 296Kbit/s(DL), 236.8Kbit/s(UL)Note: The data is the testing results in the laboratory and is for reference only
CA	Not supported
MIMO	Not supported
QAM	64 QAM (DL), 16 QAM (UL)
Storage
Memory	ROM: 128GBRAM: 4GBNote: The available internal storage may be smaller as part of the internal storage is occupied by software.
External memory support	Type: microSDMax Capacity: 256GBNote: microSD card is non-standard configuration
System
Processor	AP model: Kirin 710AP Core Number: Octa-CoreAP Frequency: 4xCortex-A73 2.2 GHz + 4xCortex-A53 1.7 GHz
Device control	Power key; Volume up button; Volume down button; rear fingerprint scanner
External interface	Headset type: 3.5mmHeadset line sequence: LRGMData interface: MicroUSB
SIM card interface	Card slot 1: nano-SIM cardCard slot 2: nano-SIM cardCard slot 3: microSD card
Transmission function
GPS	GPSGLONASSBeiDou Navigation SystemAGPS
WLAN	802.11a/b/g/n/ac, 2.4G/5G
USB	USB 2.0
Bluetooth	BT4.2+BLE
NFC	supported
Sensors	Fingerprint sensorProximity sensorAmbient light sensorDigital compass
	• Gravity sensor • gyroscope
Others
Camera	• Front camera: 16M,F/2.0 aperture • Rear camera: 20M+2M, F/1.8 + F/2.4 aperture
FM	Support
Battery	• Capability: 3650(Minimum value), 3750mAh(Typical value) • Theoretical Charging Time: approx. 150 mins (Note: Laboratory data is generated by charging using the standard charger with the screen off. The actual charging time may vary depending on usage.) • Theoretical 3G talk time: up to 21 hours (Note: The data is derived from laboratory testing. The actual talk time may vary depending on the local network and usage habits.) • Theoretical Standby Time: LTE FDD: 675 hours, WCDMA: 639 hours, GSM: 662 hours (Note: The data is derived from laboratory testing. The actual standby time may vary depending on the local network and usage habits.)
Power supply	• Input: 100V-240V, 0.5A • Output: 5V, 2A
Temperature	• Operating temperature: 0°C—35°C • Warehouse temperature: -20°C —+45°C
Relative humidity	5%-95%
Certification	CE, Wi-Fi,BQB, WEEE, ROSH,REACH

3

Software specifications

Item	Description
System
Operating system	AndroidO+EMUI8.2
Home screen	EMUI 8.2
Browser	Android native browser
Input method	TBD
4G Voice resolution	• VoLTE • CSFB
Entertainment
Messaging	• SMS • MMS
Email	Support(POP3/IMAP/Exchange)
Sound effect	Noise reduction: Dual-microphone noise reduction
Google mobile suite	Availability of Google applications, services, and features may vary according to your country or carrier.
Shooting function
Camera & Video resolution	• Front camera: 16M,F/2.0 aperture • Photo: 4608*3456 pixels • Video: up to 1080p 30fps • Rear camera: 20M+2M, F/1.8 + F/2.4 aperture • Photo: 5120*3840 pixels • Video: up to 1080p 30fps
Shooting mode	Dependent on software
Focus mode	• Front camera: FF
	• Rear camera: AF, PDAF
Other function	• Front camera: NA • Rear camera: PDAF
Flash	• Front camera: NA • Rear camera: single color temperature
Others
Transmission function	• Wi-Fi hotspot • Wi-Fi Direct • Bluetooth
Software update	• Huawei OTA online update
USB function	• USB OTG • USB tethering • Charging

4

Packing List

Index	Item	Count	Description
1	Handset	1	Standard
2	Charger	1	Standard
3	USB cable	1	Standard
4	Headset	1	Dependent on market
5	Quick Start Guide	1	Standard
6	Warranty Card	1	Dependent on market
7	Eject tool	1	Standard
8	TPU Protective case	1	Standard
