USER MANUAL 8X 128 HONOR
JSN-L21 Smartphone Product Description
Issue
01
Date
2018-08-01
HUAWEI TECHNOLOGIES CO., LTD.
Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
HUAWEI and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and th customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: support@huawei.com
Contents
1 Change Record 1
2 Product Overview 2
2.1 Introduction 2
2.2 Appearance 2
3 Hardware specification 3
4 Software specifications 7
5 Packing List 9
Change Record
| Version | SE | Modify Content | Released Data |
| 01 | sangzhao 00281253 | First released | 2018.7.10 |

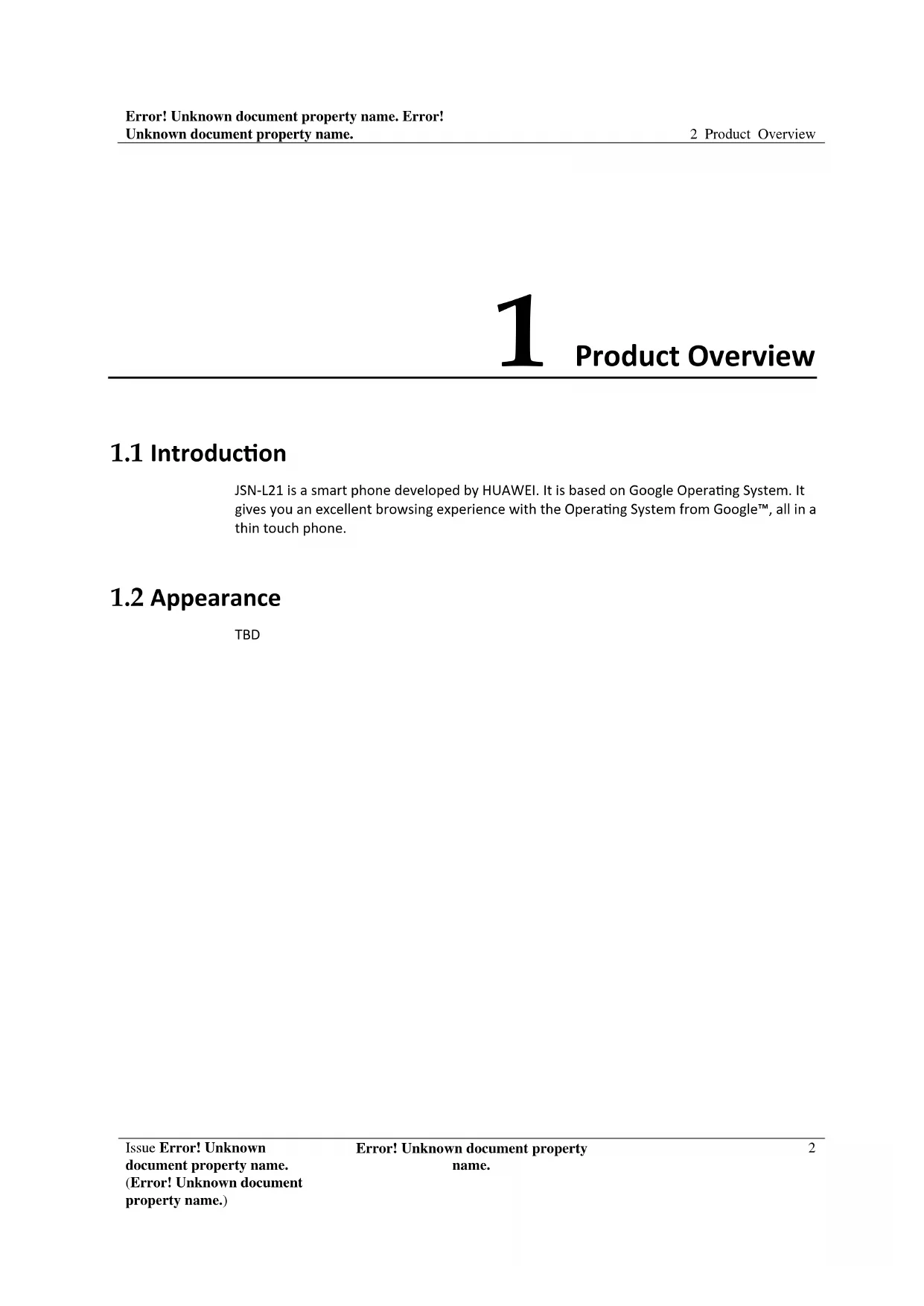

1 Product Overview
1.1 Introduction
JSN-L21 is a smart phone developed by HUAWEI. It is based on Google Operating System. It gives you an excellent browsing experience with the Operating System from Google™, all in a thin touch phone.
1.2 Appearance
TBD
2
Hardware specification
| Item | Description |
| Appearance | |
| Shape | Bar-type |
| Color | White,Black,Blue,Red,Ultra Violet |
| Size | 160.4 mm (H)*76.6 mm (W)*7.8 mm (D) Note: The actual dimensions may vary depending on the configuration, manufacturing process, and measurement method. |
| Weight | Approx. 175g (including the battery) Note: The actual weight may vary depending on the configuration, manufacturing process, and measurement method. |
| Battery Type | Lithium polymer |
| Display | |
| LCD | • Screen size: 6.5 inches • Screen type: LTPS • Screen colors: 16.7M • Screen resolution: 2340 x 1080 • Screen PPI: 397 |
| Touch-sensitive screen | Touch-sensitive screen. Support multi-touch technology |
| Network | |
| Network standard | LTE FDD/WCDMA/GSM |
| Frequency band | 4G LTE FDD: B1/3/7/8/20 3G UMTS: B1/8 2G GSM: B2/3/8 |
| Maximum transmit power | 4G LTE FDDLTE FDD B1: 21-25 dBm(Power Class 3)LTE FDD B3: 19.5-25 dBm(Power Class 3)LTE FDD B7: 19.5-25 dBm(Power Class 3)LTE FDD B8: 19.5-25 dBm(Power Class 3)LTE FDD B20: 21-25 dBm (Power Class 3)3G WCDMA· WCDMA B1: +24 dBm(Power Class 3)· WCDMA B8: +24 dBm(Power Class 3)2G GSM· GSM B2: +30 dBm(Power Class 1)· GSM B3: +30 dBm(Power Class 1)· GSM B8: +33 dBm(Power Class 4) |
| Static sensitivity | 4G LTE FDDLTE FDD B1: better than -100 dBm/5 MHzLTE FDD B3: better than -101.7 dBm/1.4 MHzLTE FDD B7: better than -98 dBm/5 MHzLTE FDD B8: better than -102.2 dBm/1.4 MHzLTE FDD B20: better than -97 dBm/3 MHz3G WCDMA· WCDMA B1: better than -106.7 dBm/3.84 MHz· WCDMA B8: better than -103.7 dBm/3.84 MHz2G GSM· GSM B2: better than -102 dBm/200 kHz· GSM B3: better than -102 dBm/200 kHz· GSM B8: better than -102 dBm/200 kHz |
| Network rate | 4G LTE FDD· 150 Mbit/s(DL), 50 Mbit/s(UL)3G WCDMA (HSDPA/ HSUPA)· 42 Mbit/s(DL), 5.76Mbit/s(UL)2G GPRS/EDGE· 296Kbit/s(DL), 236.8Kbit/s(UL)Note: The data is the testing results in the laboratory and is for reference only |
| CA | Not supported |
| MIMO | Not supported |
| QAM | 64 QAM (DL), 16 QAM (UL) |
| Storage | |
| Memory | ROM: 128GBRAM: 4GBNote: The available internal storage may be smaller as part of the internal storage is occupied by software. |
| External memory support | Type: microSDMax Capacity: 256GBNote: microSD card is non-standard configuration |
| System | |
| Processor | AP model: Kirin 710AP Core Number: Octa-CoreAP Frequency: 4xCortex-A73 2.2 GHz + 4xCortex-A53 1.7 GHz |
| Device control | Power key; Volume up button; Volume down button; rear fingerprint scanner |
| External interface | Headset type: 3.5mmHeadset line sequence: LRGMData interface: MicroUSB |
| SIM card interface | Card slot 1: nano-SIM cardCard slot 2: nano-SIM cardCard slot 3: microSD card |
| Transmission function | |
| GPS | GPSGLONASSBeiDou Navigation SystemAGPS |
| WLAN | 802.11a/b/g/n/ac, 2.4G/5G |
| USB | USB 2.0 |
| Bluetooth | BT4.2+BLE |
| NFC | supported |
| Sensors | Fingerprint sensorProximity sensorAmbient light sensorDigital compass |
| • Gravity sensor • gyroscope | |
| Others | |
| Camera | • Front camera: 16M,F/2.0 aperture • Rear camera: 20M+2M, F/1.8 + F/2.4 aperture |
| FM | Support |
| Battery | • Capability: 3650(Minimum value), 3750mAh(Typical value) • Theoretical Charging Time: approx. 150 mins (Note: Laboratory data is generated by charging using the standard charger with the screen off. The actual charging time may vary depending on usage.) • Theoretical 3G talk time: up to 21 hours (Note: The data is derived from laboratory testing. The actual talk time may vary depending on the local network and usage habits.) • Theoretical Standby Time: LTE FDD: 675 hours, WCDMA: 639 hours, GSM: 662 hours (Note: The data is derived from laboratory testing. The actual standby time may vary depending on the local network and usage habits.) |
| Power supply | • Input: 100V-240V, 0.5A • Output: 5V, 2A |
| Temperature | • Operating temperature: 0°C—35°C • Warehouse temperature: -20°C —+45°C |
| Relative humidity | 5%-95% |
| Certification | CE, Wi-Fi,BQB, WEEE, ROSH,REACH |
3
Software specifications
| Item | Description |
| System | |
| Operating system | AndroidO+EMUI8.2 |
| Home screen | EMUI 8.2 |
| Browser | Android native browser |
| Input method | TBD |
| 4G Voice resolution | • VoLTE • CSFB |
| Entertainment | |
| Messaging | • SMS • MMS |
| Support(POP3/IMAP/Exchange) | |
| Sound effect | Noise reduction: Dual-microphone noise reduction |
| Google mobile suite | Availability of Google applications, services, and features may vary according to your country or carrier. |
| Shooting function | |
| Camera & Video resolution | • Front camera: 16M,F/2.0 aperture • Photo: 4608*3456 pixels • Video: up to 1080p 30fps • Rear camera: 20M+2M, F/1.8 + F/2.4 aperture • Photo: 5120*3840 pixels • Video: up to 1080p 30fps |
| Shooting mode | Dependent on software |
| Focus mode | • Front camera: FF |
| • Rear camera: AF, PDAF | |
| Other function | • Front camera: NA • Rear camera: PDAF |
| Flash | • Front camera: NA • Rear camera: single color temperature |
| Others | |
| Transmission function | • Wi-Fi hotspot • Wi-Fi Direct • Bluetooth |
| Software update | • Huawei OTA online update |
| USB function | • USB OTG • USB tethering • Charging |
4
Packing List
| Index | Item | Count | Description |
| 1 | Handset | 1 | Standard |
| 2 | Charger | 1 | Standard |
| 3 | USB cable | 1 | Standard |
| 4 | Headset | 1 | Dependent on market |
| 5 | Quick Start Guide | 1 | Standard |
| 6 | Warranty Card | 1 | Dependent on market |
| 7 | Eject tool | 1 | Standard |
| 8 | TPU Protective case | 1 | Standard |
