Type de produit	Répéteur WiFi
Marque	TP-LINK
Modèle	AC750
Norme WiFi	AC750 (double bande 2,4 GHz et 5 GHz)
Dimensions (approx.)	100 x 70 x 30 mm
Poids (approx.)	200 g
Alimentation	Prise secteur intégrée (100-240 V~, 50/60 Hz)
Boutons	WPS, Reset
Port Ethernet	1 port RJ-45 10/100 Mbps
Méthodes de configuration	Application Tether, navigateur web, bouton WPS
Fonctionnalités principales	Extension WiFi, OneMesh (itinérance transparente), répéteur double bande
Installation recommandée	À mi-chemin entre le routeur et la zone sans signal
Indicateurs LED	Power, 2,4 GHz, 5 GHz, Signal, Ethernet, WPS
Entretien et nettoyage	Débrancher avant nettoyage ; utiliser un chiffon doux et sec. Ne pas utiliser de liquides.
Sécurité	Garder à l'abri de l'eau, du feu et des environnements humides ; ne pas démonter.
Pièces détachées et réparabilité	Non réparable par l'utilisateur ; contacter le support technique en cas de problème.
Température de fonctionnement	0 °C à 40 °C
Humidité de fonctionnement	10 % à 90 % HR (sans condensation)
Contenu de l'emballage	Répéteur AC750, guide d'installation rapide
Garantie	2 ans (selon le pays)

FOIRE AUX QUESTIONS - AC750 TP-LINK

Comment configurer le répéteur AC750 TP-LINK ?

Vous pouvez configurer le répéteur via l'application Tether, via un navigateur web à l'adresse tplinkrepeater.net, ou en utilisant le bouton WPS. Suivez les instructions dans le guide rapide.

Que faire si je ne peux pas accéder à la page de gestion du répéteur ?

Assurez-vous d'être connecté au réseau du répéteur (pas à celui du routeur). Si les noms sont identiques, utilisez un câble Ethernet ou l'application Tether. Vérifiez que l'adresse http://tplinkrepeater.net est correcte et que votre ordinateur obtient une adresse IP automatiquement.

Le voyant LED ne devient pas fixe après la configuration. Que faire ?

Vérifiez que le mot de passe WiFi saisi est correct. Placez le répéteur près du routeur (moins de 5 mètres) et éloignez-le des gros appareils électriques. Désactivez le filtrage MAC sur le routeur si actif. Réessayez avec le bouton WPS ou réinitialisez le répéteur.

Comment réinitialiser le répéteur AC750 ?

Avec le répéteur sous tension, insérez un trombone dans l'orifice Reset et maintenez enfoncé pendant environ 1 seconde. Le répéteur redémarrera avec les paramètres d'usine.

Le répéteur supporte-t-il la norme OneMesh ?

Oui, le répéteur AC750 est compatible OneMesh. Avec un routeur OneMesh TP-LINK, ils forment un réseau WiFi unifié avec itinérance transparente. Configurez simplement via le bouton WPS.

Quel est le nom du réseau WiFi étendu ?

Par défaut, le répéteur ajoute _EXT à la fin du nom du réseau de votre routeur. Le mot de passe reste le même. Si vous utilisez OneMesh, le réseau conserve le même nom.

Comment gérer les paramètres du répéteur après installation ?

Utilisez l'application Tether (recommandée) ou connectez-vous à l'interface web à l'adresse tplinkrepeater.net. Vous pouvez modifier le nom du réseau, le mot de passe et d'autres options.

Le répéteur prend-il en charge le double bande simultané ?

Oui, le répéteur AC750 fonctionne à la fois sur les bandes 2,4 GHz et 5 GHz simultanément, offrant une meilleure couverture et performance.

Où placer le répéteur pour un signal optimal ?

Placez-le à mi-chemin entre votre routeur et la zone sans signal. Le voyant Signal doit être vert fixe. S'il est rouge, rapprochez-le du routeur. Utilisez l'application Tether pour un assistant de placement.

Que faire si le répéteur ne s'allume pas ?

Vérifiez que la prise secteur fonctionne. Essayez une autre prise. Si le voyant Power reste éteint, contactez le support technique TP-LINK.

MODE D'EMPLOI AC750 TP-LINK

Quick Installation Guide

Range Extender

Need setup videos?

Scan the QR code, or visit

https://www.tp-link.com/support/setup-video/

and search for the setup video of your model.

*Images may differ from actual product.

1

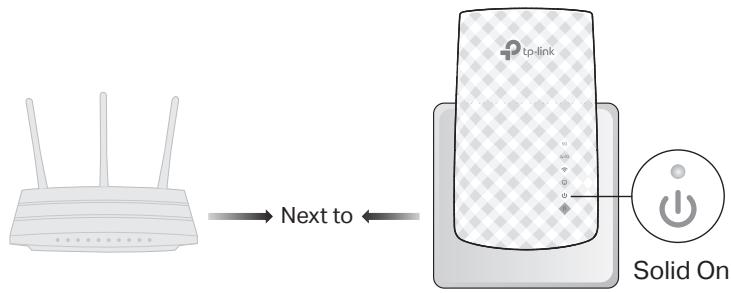

Power On

Plug the extender into a power outlet next to your router. Wait until its Power LED turns solid on.

2

Set Up

Method 1: Via the Tether App

1. Get the up-to-date Tether app.

or

Tether

1. Connect your smartphone to the extender's network TP-Link_Extender.

1. Launch the Tether app, and select your extender. Create a password to log in.

1. Follow app instructions to complete the setup. The LED should turn solid on, indicating successful connection to your router.

Note: If the LED does not turn solid on, refer to FAQ > Q2.

Solid On

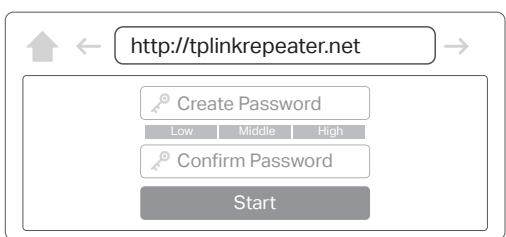

Method 2: Via a Web Browser

1. Connect your computer or smartphone to the extender's network TP-Link_Extender. If you are using a computer, unplug the Ethernet cable if any.

1. Launch a web browser, and enter http://tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in. Note: If the login window does not appear, refer to FAQ > Q1.

1. Follow web instructions to complete the setup. The LED should turn solid on, indicating successful connection to your router.

Note: If the LED does not turn solid on, refer to FAQ > Q2.

Solid On

Method 3: Via the WPS Button

1. Press the WPS button on your router.

The WPS button might look like one of these:

1. Within 2 minutes, press the WPS button on the extender for 1 second. The LED should change from blinking to solid on, indicating successful connection.

Note: If the LED does not turn solid on, try again or use Method 1 or 2.

Blinking
Solid On

1. If the extender connects to a dual band router, repeat steps 1 and 2 above to connect to the other band.

Solid On

Extended Network Names:

Router's network name with _EXT at the end

Passwords:

Same as your router

Note: If you want to change the extended network names, refer to Manage the Extender on the back page.

If you cannot find the network names with _EXT in your Wi-Fi network list, this means that the extender has been connected to a OneMesh router and automatically copied its Wi-Fi settings. See back for more information.

3

Relocate

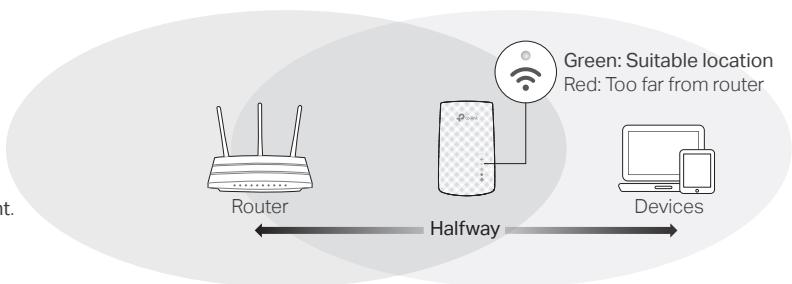

1. Plug in the extender about halfway between your router and the Wi-Fi dead zone. The location you choose must be within the range of your router.
2. Wait for about 2 minutes until the LED turns solid green. If it doesn't, relocate the extender closer to the router to achieve better signal quality.

Tip: For more intuitive location assistant, access extender settings via the Tether app and go to Tools > Location Assistant.

Enjoy the internet!

Manage the Extender

After setup, you can manage the extender via any of the methods below. Note: If your extender and router use the same network name, Method 1 is recommended.

Method 1: Via the Tether App

1. Connect your smartphone to the extender's or router's network.
2. Launch the Tether app, select your extender, and log in.
3. Manage the extender as needed.

Method 2: Via a Web Browser

1. Connect your computer or smartphone to the extender's network. If you are using a computer, unplug the Ethernet cable if any.
2. Launch a web browser, enter http://tplinkrepeater.net in the address bar, and log in. Note: If the login window does not appear, refer to FAQ > Q1.
3. Manage the extender as needed.

OneMesh™ with Seamless Roaming

TP-Link OneMesh router and extenders work together to form one unified Wi-Fi network. Walk through your home and stay connected with the fastest possible speeds thanks to OneMesh's seamless coverage.

Unified Wi-Fi Network

Router and extenders share the same wireless settings, including network name, password, access control settings and more.

Seamless Roaming

Devices automatically switch between your router and extenders as you move through your home for the fastest possible speeds.

Easy Setup and Management

Set up a OneMesh network with a push of WPS buttons. Manage all network devices on the Tether app or at your router's web management page.

To check full list of TP-Link OneMesh devices, scan the QR code, or visit https://www.tp-link.com/One-Mesh/compatibility.

FAQ (Frequently Asked Questions)

Q1. What should I do if I cannot access the extender's web management page?

• Make sure your computer or smartphone has connected to the extender's network, and not that of your router. If your router and extender share the same network name, connect your computer to the extender via an Ethernet cable, or use the Tether app.
• If you are using a computer, make sure it is set to obtain an IP address and DNS server address automatically.
• Verify that http://tplinkrepeater.net or http://192.168.0.254 is correctly entered in the web browser and press Enter. Note that http://192.168.0.254 applies only for extenders with factory default settings.
• Use another web browser and try again.
• Reboot or reset the extender and try again.

If you are still having problems, contact our technical support.

Q2. What should I do if the LED doesn't turn solid on after completing setup via the Tether app or web browser?

• You may have entered incorrect Wi-Fi passwords for your host networks during the configuration. Check the passwords and try again.
• Make sure the extender is close to your router, preferably within 16 feet, and away from large electrical appliances.
• If you have enabled wireless MAC filtering, wireless access control, or access control list (ACL) on your router, disable them first, then follow any method on the front page to complete the configuration.
  Try setting up via the WPS button.
• Reset the extender and go through the configuration again.

If you are still having problems, contact our technical support.

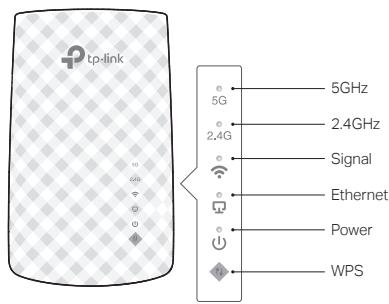

LED Explanation

LED	Status	Indication (For Range Extender Mode)
5GHz	On/Off	The extender is connected or not connected to the 5GHz wireless network of your host router.
2.4GHz	On/Off	The extender is connected or not connected to the 2.4GHz wireless network of your host router.
(Signal)	Solid green	The extender is connected to your router's wireless network and is in a suitable location.
	Solid red	The extender is experiencing poor signal strength.
	Off	Try relocating it closer to your router.
		No wireless connection is established.
(Ethernet)	On/Off	The Ethernet port is connected or not connected to a powered-on device.
(Power)	On/Off	The extender is on or off.
	Blinking	The system is starting up or firmware is being upgraded.
(WPS)	On	WPS connection is established.
	Blinking	WPS connection is in progress.
	Off	WPS connection has been established for more than 5 minutes or WPS connection failed.

Q3. How do I reset the extender?

• With the extender powered on, use a pin to press the RESET button for 1 second. The extender will reboot.

Safety Information

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU) 2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
