Type d'appareil	Enceinte sans fil
Connectivité	Bluetooth
Autonomie	Jusqu'à 8 heures
Temps de charge	Environ 3 heures
Puissance de sortie	Non précisé
Résistance à l'eau	IPX5 (résistant aux éclaboussures)
Commandes	Volume +, volume -, bouton multifonction
Microphone intégré	Oui
Poids	Non précisé
Dimensions	Compacte, portable
Matériau	Tissu et plastique
Fonction mains libres	Oui
Portée Bluetooth	Jusqu'à 10 mètres
Couleur	Noir
Accessoires inclus	Câble de charge, manuel d'utilisation

FOIRE AUX QUESTIONS - P190 Grey ONEARZ

Comment connecter le ONEARZ P190 Grey à mon appareil Bluetooth ?

Pour connecter le ONEARZ P190 Grey, activez le Bluetooth sur votre appareil, puis allumez les écouteurs. Ils entreront automatiquement en mode de couplage. Sélectionnez 'ONEARZ P190 Grey' dans la liste des appareils disponibles.

Que faire si le son est faible sur le ONEARZ P190 Grey ?

Vérifiez le niveau de volume de votre appareil et assurez-vous qu'il est réglé au maximum. Si le problème persiste, essayez de réinitialiser les écouteurs en maintenant le bouton d'alimentation enfoncé pendant 10 secondes.

Les écouteurs ONEARZ P190 Grey ne se chargent pas, que faire ?

Assurez-vous que le câble de chargement est correctement branché et que la prise est fonctionnelle. Essayez d'utiliser un autre câble ou adaptateur. Si le problème persiste, contactez le service client.

Comment réinitialiser le ONEARZ P190 Grey ?

Pour réinitialiser vos écouteurs, éteignez-les, puis maintenez enfoncé le bouton d'alimentation et le bouton de volume + pendant 10 secondes jusqu'à ce que les LED clignotent en rouge et bleu.

Pourquoi mon ONEARZ P190 Grey se déconnecte-t-il fréquemment ?

Cela peut être dû à une distance trop éloignée de l'appareil source ou à des interférences. Assurez-vous que votre appareil est à moins de 10 mètres des écouteurs et éloignez-vous des appareils électroniques pouvant causer des interférences.

Comment vérifier le niveau de batterie des écouteurs ONEARZ P190 Grey ?

Pour vérifier le niveau de batterie, allumez les écouteurs et une notification sonore vous informera du niveau de charge. Vous pouvez également vérifier l'indicateur de batterie sur votre appareil connecté.

Les ONEARZ P190 Grey sont-ils résistants à l'eau ?

Les ONEARZ P190 Grey ne sont pas spécifiquement conçus pour être résistants à l'eau. Évitez de les exposer à l'humidité ou à l'eau pour assurer leur longévité.

Comment nettoyer mes écouteurs ONEARZ P190 Grey ?

Utilisez un chiffon doux et sec pour nettoyer l'extérieur des écouteurs. Évitez d'utiliser des produits chimiques ou de l'eau. Pour les embouts en silicone, vous pouvez les retirer et les rincer à l'eau tiède.

Mon ONEARZ P190 Grey ne s'allume pas, que faire ?

Vérifiez si les écouteurs sont chargés. Si la LED ne s'allume pas lors de la charge, essayez un autre câble ou adaptateur. Si le problème persiste, contactez le service client.

MODE D'EMPLOI P190 Grey ONEARZ

xe on·earz

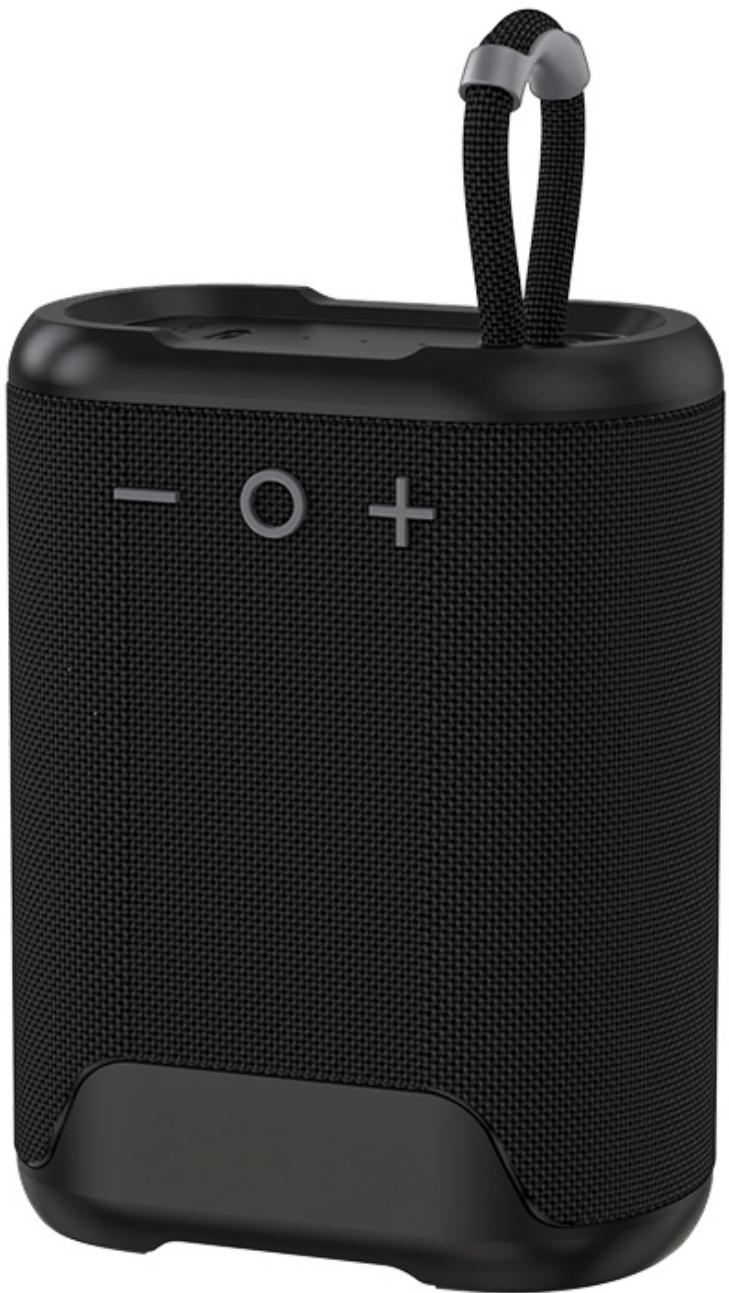

WIRELESS SPEAKER P190 USER'S MANUAL

1. GETTING STARTED

First thank you for buying ON.EARZ P190 wireless speaker. Please read this user's manual carefully before using the product to make a correct use of the functions and know well about the system connection and usage. Keep this manual in a safe place for future reference.

2. BOX CONTENT

Please make sure that the following items are in the packaging when you open it for the first time.

• P190 wireless Speaker
  -User's Manual (FR-NL-EN-SP)
• USB-C charging cable

3. INTRODUCTION

This speaker allows you to listen wirelessly to your music from your mobile phone, tablet or other wireless audio enabled device. It delivers powerful and clear sound. The built-in microphone allows you to answer calls from mobile phone. The powerful battery offers a music play time of about 8 hours at 60% volume.

4. PRECAUTIONS

Read the following recommendations before using the speaker.

• Keep it dry and don't take it to damp places to avoid the product's internal circuit being affected.

• Keep the product away from direct sunlight or hot places. High temperatures will shorten the life of electronic devices, destroy the battery or distort certain plastic parts.

• Don't expose the product to extremely cold area. It may damage the internal circuit board.

• Don't try to disassemble the product as it may get damaged and the warranty will be cancelled.
• Don't let it fall down onto the floor or other hard surfaces. The internal circuit might get damaged.
• Don't use intensive chemical products or detergent to clean the product.

Don't scratch the surface with sharp objects.

Take care when charging the speaker, excessive prolonged charging can damage battery lifetime. Charge the speaker to full capacity when using for the first time.

When the battery voltage is low, the speaker will emit some beeps, please charge battery in time. If the speaker is not used for long time, please charge at least once within one month, in order to prevent the lithium battery from causing and damaging because of excessive consumption.

The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

5. CHARGING THE SPEAKER

Connect the USB connector of the USB-C cable supplied together with the product to one free USB port of the computer or to a USB wall charger (not included), and the other end to the USB-C port (DC IN) located on the top of the product. The LED charge indicator light will turn RED during charging. It will take around 1-2 hours for the lithium battery to be fully charged with a 5.0V - 1.0A USB charger. The red LED indicator light will turn OFF when the battery is fully charged.

Note:

• Please use the good quality USB charger to charge the speaker.
• We suggest you use a power adaptor with specification 5.0V / 1.0A.
• When speaker has low battery capacity, please charge the it immediately.
• The speaker can be charged by different charging current, if using the computer USB port to charge the speaker, the charging time will be longer as the charging current will be about 500mA only.

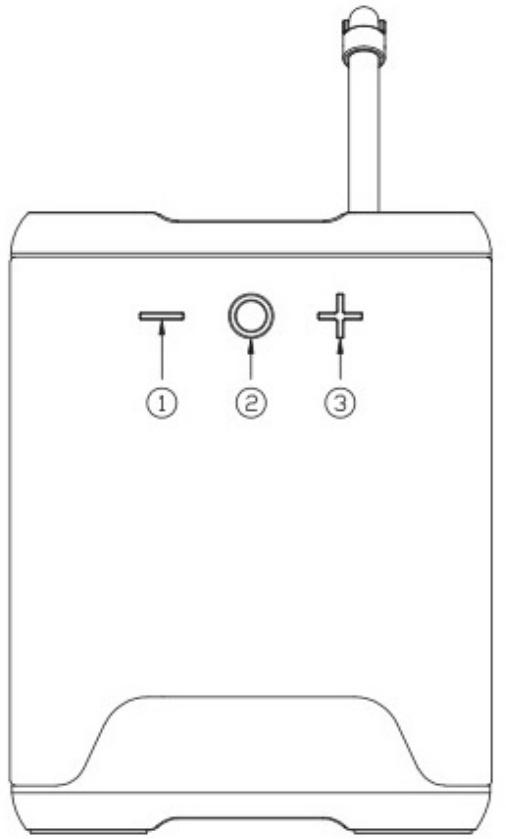

6. PRODUCT OVERVIEW AND KEYS DESCRIPTION

1. Previous track / Decrease volume: Short press to decrease the volume Long press to go to previous track
2. Power / Play / Pause / Phone: Press and hold about 3 seconds to turn ON or OFF
   Short press to play or pause music
   Short press to answer or end a phone call
   Press and hold about 1 second the button to reject a call
3. Next track / Increase volume: Short press to increase the volume Long press to go to next track

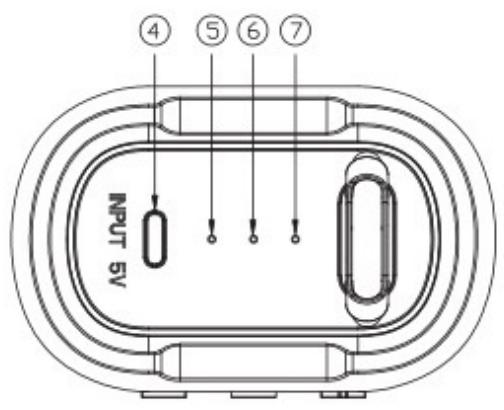

4. USB-C (5V INPUT) port for charging the battery
5. LED charging indicator
6. Wireless audio status LED indicator
7. Microphone hole

7. OPERATING INSTRUCTIONS

Power ON/OFF

Press the "O" button and hold for 3 seconds to power on/off the speaker.

Wireless Music Pairing

1. Power on the speaker. It will enter in pairing mode automatically. The BLUE LED indicator is now blinking.

2. Place the speaker and the audio player device close to each other.

3. Now turn on the wireless audio function of your mobile or other music player and start to search for new devices. The device named "OE_P190" will appear in the list, select it and confirm the connection. When connected, the speaker will emit a confirmation tone. The BLUE LED indicator is now fixed. Note: If a password is asked during pairing procedure, please enter 0000 and confirm.

4. You can now start to use the speaker.

Note: Once you have paired the speaker with a device, the speaker will remember this device and will pair automatically when the device is in the range with the wireless audio activated. You don't need to re-pair any previously connected devices.

The speaker will attempt to automatically connect to the last device paired with when the wireless audio mode is turned on. If you want to pair it with a new device, please disconnect it first from your last wireless audio device (phone or music device) then use your new device to search and select the pairing name.

Wireless Music Playing

Start to play music on the mobile phone or other music player devices, and the speaker will play the selected music accordingly.

Short press the "O" button to pause or play the music
Short press the "+" button to increase the volume
Short press the "- " button to decrease the volume
Long press the "+" button to go to the next music track
Long press the "- " button to go to the previous music track

Connecting two P190 speakers in TWS mode

1. Turn ON both speakers by pression the "O" button for about 3 seconds. The BLUE LED status light is blinking rapidly.
2. Long press the "+" and "-" button at the same time on one of the speakers. They will connect to each other after some seconds, you will hear a prompt tone when the connection is established. The BLUE LED on the auxiliary speaker is now fixed.
3. Start the wireless audio pairing procedure as described above in this manual. Your mobile phone or other audio device will find one device names "OE_P190". After a successful connection, the BLUE LED status light is now fixed on the master speaker too.
4. If you want to cancel the TWS connection, long press the "+" and "-" button at the same time on one of the speakers. They will disconnect to each other after some seconds. The BLUE LED lights will be blinking on both speakers.

In TWS mode:

Short press the "+" or "-" button on any speaker to adjust the volume Long press the "+" or "-" button on any speaker to go to next or previous song Press the "O" button on any speaker to pause or play the music. Long press the "O" button on any speaker and they will both shut down at the same time.

Mobile Hands-free Communication

If you receive a call when your mobile device is connected wirelessly to the speaker, the music will be paused and you will hear a ring tone in the speaker.

Short press the "O" button to answer the call.

Short press the "O" button again to end the call.

Long press for about 1 second the "O" button to reject the call.

8. TROUBLESHOOTING

1. The speaker can't pair with the wireless audio device and play music accordingly.

(1) Please check the specifications and the manual of the wireless audio device (mobile phone, tablet or computer), and check if the device can support the A2DP stereo audio transmission. If yes, please turn on the A2DP stereo mode.
(2) Ensure that the speaker mode is well on wireless audio mode. Also if there are many wireless audio devices around you, it may be hard to scan, then please turn off other devices.
(3) Check that the speaker is not already paired with another device. If yes disconnect it first from this device and then try to pair it again with the new device.

9. TECHNICAL SPECIFICATIONS

Wireless audio specifications: V5.0

Wireless operation range: up to 10 meters in open space

Speaker driver: Ø45mm, 4Ω / 5W

Musical power output: 12W Max.

RMS power output: 5W

Power Input: DC 5.0V - 1.0A

Built-in Battery: 3.7V 1800mAh

Charging Time: 1,5-2 hours (with a 5V 1A adapter)

Playing Time: about 8 hours at 60% volume

Waterproof with IPX5 level

Handsfree call function

Support TWS (True Wireless Stereo) function

Size: 105^80^50mm - Weight: 280g

Operating frequency: 2,4Ghz

MAX RF output power: 1.075 dBm

Protection class: Class III

10. DISPOSAL OF ELECTRICAL & ELECTRONIC EQUIPMENT

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. It should be taken to an applicable collection point for the recycling of electrical and electronic equipment. For more information, please contact your local council or waste disposal service.

11. ABOUT THIS MANUAL

We strive to ensure that the information contained in this manual are as accurate as possible. Changes may be made to the manual or the product without prior notification. The latest updates will be available on our website www.onearz.com. Our company shall under no circumstances be held liable for injury or damage caused by errors or omissions in this manual.

© ONEARZ 2022. All rights reserved. The specifications and/or design of the product can change without prior notice. All brands and trademarks mentioned in this manual are the property of their respective owners.

EU DECLARATION OF CONFORMITY

We, A6 Europe s.a. located 127-129 rue Colonel Bourg, 1140 Brussels, Belgium, declare under our own responsibility that the following equipment:

Brand: ON.EARZ

Item code: OE_P190

Product description: Wireless Speaker

Complies to the essential provisions of the following EC Directive(s):

RED Directive: 2014/53/EU

LVD Directive: 2014/35/EU

EMC Directive: 2014/30/EU

RoHS Directive: 2011/65/EU, amendment 2015/863/EU

And complies with the essential provisions of the following harmonized European standards:

EMC：

ETSI EN301489-1 V2.2.3: 2019-11

ETSI EN301489-17 V3.2.4: 2020-09

EN55035:2017+A11:2020

EN55032:2015+A1:2020

EN IEC61000-3-2 :2019

EN61000-3-3 :2013+A1 :2019

Radio:ETSI EN300328 V2.2.2:2019-07

Safety: EN IEC62368-1:2020+A11:2020

Health: EN62479:2010 EN50663:2017

Date: November 2, 2022

David Peroo, Product Manager
