Arcade Legends Ultimate 300 JEUX - Borne Arcade ATGAMES - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Console de jeux d'arcade avec 300 jeux intégrés
Caractéristiques techniques principales	Écran HD, contrôleurs de type arcade, son stéréo
Alimentation électrique	Adaptateur secteur inclus, compatible avec les prises standards
Dimensions approximatives	Dimensions : 60 cm x 40 cm x 80 cm
Poids	Environ 25 kg
Compatibilités	Compatible avec les téléviseurs via HDMI
Fonctions principales	Jouer à des jeux d'arcade classiques, options multijoueur
Entretien et nettoyage	Nettoyage avec un chiffon doux, éviter les produits abrasifs
Pièces détachées et réparabilité	Disponibilité limitée des pièces, consulter le fabricant pour les réparations
Sécurité	Utiliser sous la supervision d'un adulte pour les enfants, ne pas exposer à l'humidité
Informations générales utiles	Vérifier la compatibilité avec votre téléviseur avant l'achat

FOIRE AUX QUESTIONS - Arcade Legends Ultimate 300 JEUX ATGAMES

Comment allumer l'ATGAMES Arcade Legends Ultimate ?

Pour allumer l'ATGAMES Arcade Legends Ultimate, branchez l'adaptateur secteur à une prise électrique et appuyez sur le bouton d'alimentation situé à l'arrière de l'appareil.

Que faire si l'écran reste noir ?

Vérifiez que l'appareil est bien branché et que le câble HDMI est correctement connecté à votre télévision. Testez avec un autre port HDMI ou un autre câble si nécessaire.

Comment ajouter de nouveaux jeux ?

Connectez l'Arcade Legends Ultimate à votre ordinateur via USB, puis suivez les instructions fournies dans le manuel pour ajouter de nouveaux jeux via le logiciel approprié.

Les contrôles ne fonctionnent pas, que faire ?

Assurez-vous que les câbles des manettes sont bien connectés. Si le problème persiste, essayez de redémarrer l'appareil ou de réinitialiser les contrôles via le menu des options.

Comment régler le volume ?

Utilisez le bouton de volume situé sur le panneau de contrôle de l'Arcade Legends Ultimate pour augmenter ou diminuer le volume.

L'appareil surchauffe-t-il ?

Assurez-vous de placer l'Arcade Legends Ultimate dans un endroit bien ventilé. Si l'appareil chauffe, éteignez-le et laissez-le refroidir avant de le rallumer.

Comment réinitialiser l'appareil aux paramètres d'usine ?

Accédez au menu des paramètres dans l'interface principale, puis choisissez l'option 'Réinitialiser aux paramètres d'usine'. Suivez les instructions à l'écran.

Est-ce que l'ATGAMES Arcade Legends Ultimate supporte le multijoueur ?

Oui, l'ATGAMES Arcade Legends Ultimate permet le jeu multijoueur. Assurez-vous que toutes les manettes sont correctement connectées pour jouer avec d'autres personnes.

Que faire si le son est désynchronisé avec l'image ?

Essayez de redémarrer l'appareil et assurez-vous que le câble HDMI est bien connecté. Vous pouvez également essayer de changer de port HDMI sur votre télévision.

Où puis-je trouver des mises à jour pour le système ?

Visitez le site officiel d'ATGAMES pour télécharger les dernières mises à jour du système et suivez les instructions pour les installer sur votre appareil.

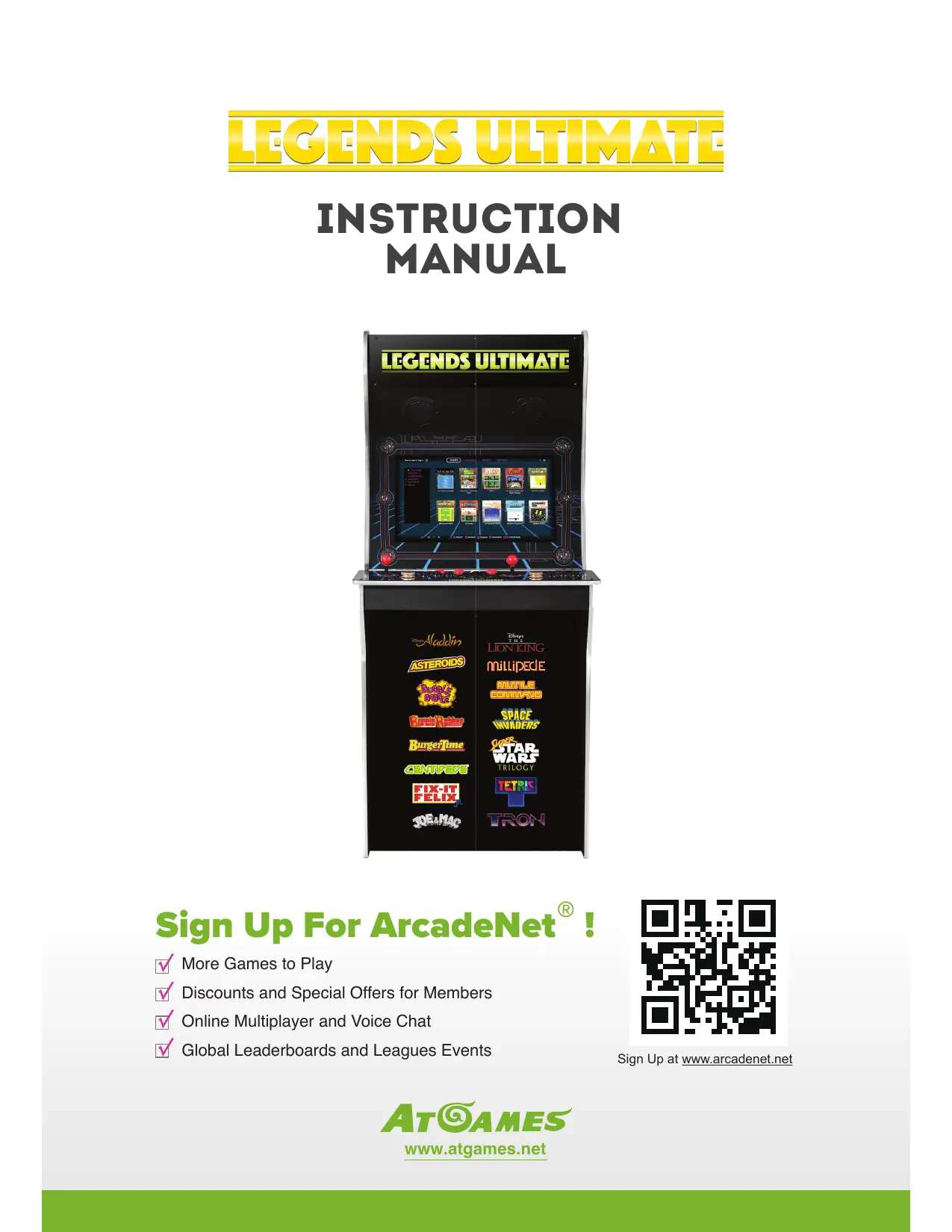

MODE D'EMPLOI Arcade Legends Ultimate 300 JEUX ATGAMES

LEGENDS ULTIMATE

INSTRUCTION MANUAL

Sign Up For ArcadeNet®!

More Games to Play
Discounts and Special Offers for Members
Online Multiplayer and Voice Chat
Global Leaderboards and Leagues Events

Sign Up at www.arcadenet.net

INDEX

ASSEMBLYGUIDE P2

LEGENDS ULTIMATE FEATURES P 11

QUICK START GUIDE P 12

HOW TO UPDATE FIRMWARE P 12

HOW TO SIGN IN WITH YOUR ARCADENET® ACCOUNT P 13

HOW TO CONNECT ATGAMES BLAST! DONGLES AND CONSOLES P 14 TO LEGENDS ULTIMATE

WHEN TO SAFELY POWER OFF ARCADE P 15

WARRANTY INFO P 15

FEATURED GAMES P 16

SAFETY NOTICE, FCC STATEMENT P 17

- TOOLS NEEDED (NOT INCLUDED)

Phillips head screwdriver

Straight head screwdriver

PARTS

SCREWS

X16

X6

X2

X22

CORD

ANTI-TIPPING KIT

Cable tie

HOW TO USE THE CAM BOLT KIT

Step A. Use Phillips head screwdriver to fasten the cam bolt onto the panel. To avoid insufficient length to connect the cam lock, please do not overtighten it.
Step B. Attach both panels. Please make sure the cam bolts align with the holes.
Step C. Insert the cam locks to the matching holes.
Step D. Tighten clockwise with straight head screwdriver.

Step 1. Insert the 16 [S1] to the matching holes on [A] and [B] on both panels with Phillips head screwdriver. Please insert and make sure to tighten perpendicular to the board, redo the step as needed. Do not use excessive force or risk breaking the panels.

Step 2. Insert 16 [S2] to the matching holes on the pairs of [C] and [D]. Please note the side with the slotted faces outwards.

Step 3. Lay [A] aside and take out a piece of [C]. Insert [C] into [A]. Please note the sides with holes face outwards. Use straight head screwdriver to rotate [S2] with mark "+" to tighten. Repeat process for the rest of [C] and [D].

Step 4. Slide [E] into the tracks of the pair of [D].

Step 5. Insert [B] to the matching holes on [C] and [D]. Use straight head screwdriver to rotate the 8 [S2] with mark "+" to tighten.

Step 6. Slide [G] and [F] into the tracks of [A] and [B].

Step 7. Insert [S3] to the matching holes on [G] and [F] with Phillips head screwdriver.
Step 8. Attach bar top [H] to the bottom part of the cabinet.

Step 9. Connect the cables to the matching slots on the control panel [I]. Please make sure the slots are aligned. Insert [I] to the cabinet.

Step 10. Insert a pair of [S4] to the matching holes on [I], and then insert [S5] to 6 matching holes on the sides of the cabinet and tighten.

Step 11. Insert [S6] to 22 matching holes on [J] and [K] and tighten.

Step 13. Drill holes against the wall and insert plastic anchors [N] into the holes firmly.

Step 14. Tighten [S8] on the bracket [O] against the wall.

1. P1 JOYSTICK
2. P2 JOYSTICK
3. P1 SPINNER
4. P2 SPINNER

5. TRACKBALL

6. RETURN

7. P1 START
8. HOME/MENU
9. P2 START

10. POWER

11. HDMI PORT

12. USB PORT
13. RESET BUTTON
14. USB PORT
15. CHANNEL BUTTON
16. VOLUME ADJUSTER

-FRONT

REAR

QUICK START GUIDE

Note: All screenshots shown are for illustration purposes only. Actual screens may vary.

1. Plug in AC adapter and press the Power button to turn on.
2. Use P1 joystick to select and play 300 pre-loaded games. (Note: Internet connection is not required. The games can be played offline.)

3. Connect internet via Ethernet (Ethernet cable is not included) or Wi-Fi to play more games on ArcadeNet®.

4. To connect through Wi-Fi:

4-1. Select [Wi-Fi] under the [ SETTINGS] page.
4-2. Select the Wi-Fi SSID you would like to connect to, and select [Connect]. If prompted, enter the Wi-Fi password using the on-screen keyboard and select [Submit] when done.

HOW TO UPDATE FIRMWARE

1. Power on the arcade.
2. Connect internet via Ethernet (Ethernet cable is not included) or Wi-Fi.
3. Go to [ SETTINGS] and select [Version].
4. If there is a newer version, follow the instruction and start download the latest firmware. Make sure the internet connection is stable during this process.
5. Once the firmware is downloaded successfully, select [Upgrade] and the device will reboot automatically to activate the new firmware version.

Note: If you encounter any issues on firmware update, please refer to: https://www.atgames.net/arcades/release-notes/ or contact [e-mail]

HOW TO SIGN IN WITH YOUR ARCADENET® ACCOUNT

1. Go to [SETTINGS] and select [SIGN IN].
2. Sign up for a new account if you don't have one yet.
3. Once you have an ArcadeNet® account, you can choose either to sign in with your email or with the QR code. To sign in with your email, enter the email address and password.

1. To sign in with the QR-code, a smartphone is required.
2. Use a smartphone to scan the QR-code on the screen to launch the ArcadeNet® website. You will be directed to the login page, where you can choose either to sign in with your existing Google/Facebook account or your e-mail.

Copyright © AtGames Cloud Holdings Ltd. All rights reserved.

1. You will see the authorization notification once complete. Now you can close the window and return to your arcade. A "Success!" message will show on the arcade once signed in.

HOW TO CONNECT ATGAMES BLAST! DONGLES AND CONSOLES TO LEGENDS ULTIMATE*

Step 1. Plug the "Blast! dongle" or connect "AtGames console" with HDMI cable in the HDMI PORT, and connect USB power cord.
Step 2. Press HDMI CHANNEL button to selected HDMI source.
Step 3. The Games Menu will display on the screen. Select the game you like and play!

*Legends Ultimate supports the following AtGames products:

2019: Legends Flashback (FB8660), Atari Flashback X (AR3060), Bandai Namco Arcade Blast! (WD3305 and WD3305S), Adventure Flashback Blast! (WD3308), Star Flashback Blast! (WD3309).
2018: Activision Flashback Blast! (WD3301), Atari Flashback Blast! Vol.1 (WD3302), Atari Flashback Blast! Vol.2 (WD3303), Legends Flashback Blast! (WD3304), Bandai Namco Flashback Blast! (WD3306).

For 2018 Blast! and 2019 WD3305S, please follow the instructions shown on the screen at SETTINGS to pair the dongle with Legends Ultimate.

Do not power off the cabinet during the following:

Firmware update
Factory reset
Data cleanup
- Read/write USB drive

This could prevent irreversible data loss and/or damage to your cabinet and USB drives.

WARRANTY INFO

The manufacturer warrants this product to be free and clear of defects in the materials and workmanship, under normal residential use and conditions, for a period of thirty (30) days from the original invoice date. Shipping and handling fees are to be paid for by the customer. To make a warranty claim, please submit a service request here: [e-mail].

Standard warranty coverage for the AtGames Legends Ultimate does not apply to and is considered invalid due to misuse, improper maintenance, self-repair, tampering, or invasive hardware modifications of any kind, and damages or dysfunction caused by shipping or non-manufacturing related causes.

Note: Standard warranty services are valid with receipt from an authorized retailer.

Purchases through third-party sellers and resellers do not fall under the standard warranty program. For warranty support, please contact the third-party seller or reseller where you purchased the product.

Adventure (2600)

Aladdin

Asteroids® (Arcade)

Bad Dude vs. Dragon Ninja

Bubble Bobble™

Bubble Symphony™

BurgerTime™ (Arcade)

Burnin' Rubber™ (Arcade)

CadashTM

Centipede® (Arcade)

Chack'n Pop™

City Connection

Colony 7^TM

Crystal Castles® (Arcade)

Donald in Maui Mallard

Elevator ActionTM

Fighter's History Dynamite / Karnov's Revenge

Fix-It Felix, Jr.

Front LineTM

Joe & Mac: Caveman Ninja (Arcade)

Karate Champ

Lock 'n' Chase (arcade)

Magical Drop / Chain Reaction

Major Havoc (Arcade)

Millipede® (Arcade)

Missile Command® (Arcade)

Operation Thunderbolt™

Operation WolfTM

Peter Pepper's Ice Cream Factory

Pong® (Arcade)

QixTM

RastanTM

Space InvadersTM

Space Invaders DX™

Super Breakout® (Arcade)

Super Burger Time

Super Star Wars

Super Star Wars: Return of the Jedi

Super Star Wars: The Empire Strikes Back

Tempest® (Arcade)

Tetris®

Tetris® Plus

The Jungle Book

The Lion King

Tron

Warlords® (Arcade)

Wild WesternTM

Yars' Revenge® (2600)

Zombies Ate My Neighbors

Zoo KeeperTM

And many more...

© 2020 Atari Interactive, Inc.

Atari and Atari logo are trademarks owned by Atari Interactive, Inc.

All individual Atari game names and logos are trademarks or registered trademarks of Atari Interactive, Inc. or its affiliates.

All other trademarks are the property of their respective owners.

CITY CONNECTION CO., LTD

DATA EAST and DATA EAST logo(s) are trademarks in United States and other countries or registered trademarks in European Union and Japan of G-MODE Corporation.

© 2020 Disney. All rights reserved.

© 2020 & ™ Lucasfilm Ltd. All rights reserved.

Copyright © Piko Interactive LLC - All Rights Reserved.

SPACE INVADERS™ & © TAITO CORPORATION 1978 ALL RIGHTS RESERVED.

BUBBLE BOBBLE™ & © TAITO CORPORATION 1986 ALL RIGHTS RESERV

TAITO, the TAITO logo, SPACE INVADERS™ and BUBBLE BOBBLE™ are trademarks and/or registered trademarks of TAITO CORPORATION in Japan and/or other countries.

Tetris © & © 1985~2020 Tetris Holding.

Tetris logos, Tetris theme song and Tetriminos are trademarks of Tetris Holding.

The Tetris trade dress is owned by Tetris Holding.

Licensed to The Tetris Company.

Tetris Game Design by Alexey Pajitnov.

All Rights Reserved.

SAFETY NOTICE

• Do not submerge the arcade cabinet in water or expose it to extreme heat or to strong magnetic fields. Doing so may cause permanent damage to your device.
• Always use a dry towel to clean the cabinet and the control top.
• Transformers are suitable for indoor use only. Transformers and power supplies for toys are not intended to be used as toys, and the use of these products by children shall be under the full supervision of parents.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution

Any changes or modi fications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For Game Host

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

WARNING

Adult assembly required. Due to the presence of small parts during assembly, keep out of reach of children until assembly is complete.

For additional support please email: [e-mail]

AT©AMES

© 2020 AtGames Interactive

www.atgames.net

PO Box 1691, El Segundo, CA 90245

All rights reserved.

*Content and images are for reference only and subject to change.

Made in China
