Type de produit	Chaîne micro-composant
Marque	Victor
Modèle	UX-S59
Puissance de sortie	120 W (60 W + 60 W) sous 6 Ω (10 % de distorsion)
Impédance des enceintes	6 Ω - 16 Ω
Entrée audio AUX	400 mV / 50 kΩ
Section tuner FM	87,50 MHz - 108,00 MHz
Section tuner AM (MW)	522 kHz - 1 629 kHz
Rapport signal/bruit (lecteur CD)	85 dB
Pleurage et scintillement (CD)	Imperceptible
Alimentation	CA 230 V, 50 Hz
Consommation électrique	125 W en fonctionnement, 0,9 W en veille
Dimensions (unité principale)	175 mm × 232 mm × 412 mm (L × H × P)
Poids (unité principale)	6,6 kg
Type d'enceintes	2 voies, bass-reflex
Haut-parleurs	Woofer : cône 10 cm × 1, Tweeter : cône 4 cm × 1
Dimensions (enceinte)	144 mm × 231 mm × 201 mm (L × H × P)
Poids (enceinte)	2,0 kg chacune
Entretien et nettoyage	Débrancher l'appareil avant nettoyage. Utiliser un chiffon doux et sec. Ne pas utiliser de solvants.
Sécurité	Ne pas ouvrir l'appareil. Confier toute réparation à un personnel qualifié. Utiliser des pièces de rechange identiques.

FOIRE AUX QUESTIONS - UX-S59 VICTOR

Comment puis-je connecter une source externe (par exemple un smartphone) ?

Utilisez l'entrée AUX située à l'avant ou à l'arrière. Branchez un câble audio 3,5 mm de votre appareil à la prise AUX, puis sélectionnez la source AUX sur le système.

Comment régler la station de radio ?

Appuyez sur la touche FM/AM pour choisir la bande, puis utilisez les touches de recherche automatique ou manuelle. Pour mémoriser une station, maintenez enfoncée une touche de présélection.

Que faire si le lecteur CD ne lit pas le disque ?

Vérifiez que le disque est propre et inséré correctement, face imprimée vers le haut. Si le problème persiste, essayez un autre disque. Le système peut ne pas lire les CD-RW ou les disques endommagés.

Comment nettoyer l'appareil en toute sécurité ?

Débranchez le cordon d'alimentation. Utilisez un chiffon doux et sec. N'utilisez pas de produits chimiques, d'abrasifs ou de chiffons humides. Pour les fentes, un pinceau doux peut être utilisé.

Quels sont les fusibles de protection et comment les remplacer ?

L'appareil utilise un fusible de type T1.25AL 250V. Pour le remplacer, retirez le panneau arrière (après débranchement) et localisez le porte-fusible près du transformateur. Utilisez un fusible identique.

Puis-je utiliser des enceintes d'une autre marque ?

Oui, à condition qu'elles aient une impédance comprise entre 6 Ω et 16 Ω et une puissance admissible suffisante. Assurez-vous de respecter la polarité (+/-) et de ne pas court-circuiter les bornes.

Comment économiser de l'énergie ?

Mettez l'appareil en veille lorsque vous ne l'utilisez pas. La consommation en veille est de seulement 0,9 W. Pour une économie maximale, débranchez-le si vous vous absentez longtemps.

Que faire si le son est déformé ou faible ?

Vérifiez les connexions des enceintes, le réglage du volume et les sources. Assurez-vous que les enceintes sont compatibles (6 Ω - 16 Ω). Réduisez le volume si la distorsion persiste. Un niveau élevé de 10 % THD à pleine puissance peut déformer.

L'appareil chauffe-t-il normalement ?

Oui, un échauffement est normal en fonctionnement, surtout autour du dissipateur thermique et de l'amplificateur. Assurez une ventilation suffisante en laissant un espace libre autour de l'appareil. Ne le placez pas sur une surface molle.

Où trouver la notice complète ou une assistance technique ?

La notice complète au format PDF est disponible gratuitement sur notice-facile.com. Pour une assistance technique, contactez un réparateur agréé Victor/JVC ou consultez le site du fabricant.

MODE D'EMPLOI UX-S59 VICTOR

SPECIFICATION

Amplifier section	Output Power		120 W (60 W + 60 W) at 6 Ω (10% THD)
	Speakers/Impedance		6 Ω - 16 Ω
	Audio Input AUX		400 mV/50 kΩ
Tuner section	FM tuning range		87.50 MHz - 108.00 MHz
	AM (MW) tuning rangeDynamic range		522 kHz - 1 629 kHz
CD player section			85 dB
	Signal-to-noise ratio		85 dB
	Wow and flutter		Immeasurable
General	Power requirement		AC 230 V, 50 Hz
	Power consumption		125 W (at operation)0.9 W (on standby)
	Dimensions (approx.)		175 mm × 232 mm × 412 mm (W/H/D)
	Mass (approx.)		6.6 kg
Speakers	Type		2-way Bass reflex
	Speaker units	Woofer	10 cm cone × 1
		Tweeter	4 cm cone × 1
	Impedance		6 Ω
	Dimensions (approx.)		144 mm × 231 mm × 201 mm (W/H/D)
	Mass (approx.)		2.0 kg each

Designs & specifications are subject to change without notice

SECTION 1 PRECAUTIONS

1.1 Safety Precautions

(1) This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits. Services should be performed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should not be made. Any design alterations of the product should not be made. Any design alterations or additions will void the manufacturers warranty and will further relieve the manufacture of responsibility for personal injury or property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have special safety-related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in the Parts List of Service Manual. Electrical components having such features are identified by shading on the schematics and by (▲) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the same safety characteristics as the recommended replacement parts shown in the Parts List of Service Manual may create shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after reassembling.
(5) Leakage shock hazard testing

After reassembling the product, always perform an isolation check on the exposed metal parts of the product (antenna terminals, knobs, metal cabinet, screw heads, headphone jack, control shafts, etc.) to be sure the product is safe to operate without danger of electrical shock. Do not use a line isolation transformer during this check.

• Plug the AC line cord directly into the AC outlet. Using a "Leakage Current Tester", measure the leakage current from each exposed metal parts of the cabinet, particularly any exposed metal part having a return path to the chassis, to a known good earth ground. Any leakage current must not exceed 0.5mA AC (r.m.s.).

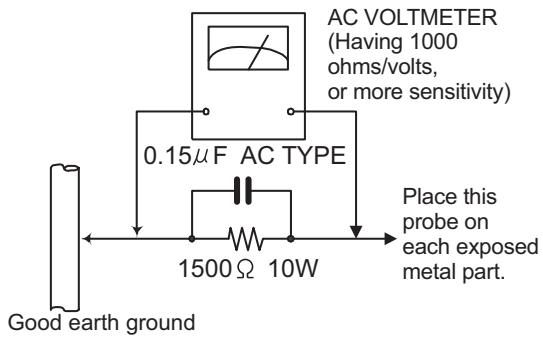

  • Alternate check method

Plug the AC line cord directly into the AC outlet. Use an AC voltmeter having, 1,000Ω per volt or more sensitivity in the following manner. Connect a 1,500Ω 10W resistor paralleled by a 0.15μF AC-type capacitor between an exposed metal part and a known good earth ground.

Measure the AC voltage across the resistor with the AC

voltmeter.

Move the resistor connection to each exposed metal part, particularly any exposed metal part having a return path to the chassis, and measure the AC voltage across the resistor. Now, reverse the plug in the AC outlet and repeat each measurement. Voltage measured any must not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5 mA AC (r.m.s.).

AC VOLTmeter (Having 1000 ohms/volts, or more sensitivity) 0.15μF AC TYPE 1500 Ω 10W Place this probe on each exposed metal part. Good earth ground

1.2 Warning

(1) This equipment has been designed and manufactured to meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant safety standards.
(4) It is essential that safety critical components are replaced by approved parts.
(5) If mains voltage selector is provided, check setting for local voltage.

1.3 Caution

Burrs formed during molding may be left over on some parts of the chassis.

Therefore, pay attention to such burrs in the case of pre-forming repair of this system.

1.4 Critical parts for safety

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " " mark nearby are critical for safety. When replacing them, be sure to use the parts of the same type and rating as specified by the manufacturer.

(This regulation dose not Except the J and C version)

1.5 Safety Precautions (U.K only)

(1) This design of this product contains special hardware and many circuits and components specially for safety purposes. For continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer. Replacement parts must be identical to those used in the original circuits.
(2) Any unauthorised design alterations or additions will void the manufacturer's guarantee; furthermore the manufacturer cannot accept responsibility for personal injury or property damage resulting therefrom.
(3) Essential safety critical components are identified by ( ) on the Parts List and by shading on the schematics, and must never be replaced by parts other than those listed in the manual. Please note however that many electrical and mechanical parts in the product have special safety related characteristics. These characteristics are often not evident from visual inspection. Parts other than specified by the manufacturer may not have the same safety characteristics as the recommended replacement parts shown in the Parts List of the Service Manual and may create shock, fire, or other hazards.
(4) The leads in the products are routed and dressed with ties, clamps, tubings, barriers and the like to be separated from live parts, high temperature parts, moving parts and/or sharp edges for the prevention of electric shock and fire hazard. When service is required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to normal, after re-assembling.

1.5.1 Warning

(1) Service should be performed by qualified personnel only.
(2) This equipment has been designed and manufactured to meet international safety standards.
(3) It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
(4) Repairs must be made in accordance with the relevant safety standards.
(5) It is essential that safety critical components are replaced by approved parts.
(6) If mains voltage selector is provided, check setting for local voltage.

CAUTION Burrs formed during molding may be left over on some parts of the chassis. Therefore, pay attention to such burrs in the case of preforming repair of this system.

SECTION 2 SPECIFIC SERVICE INSTRUCTIONS

This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.

SECTION 3

DISASSEMBLY

3.1 Disassembly of Right plate left plate Top cover

- Replacement of the fuses and AMP IC .THMS RES. Transistor. 7808 IC.

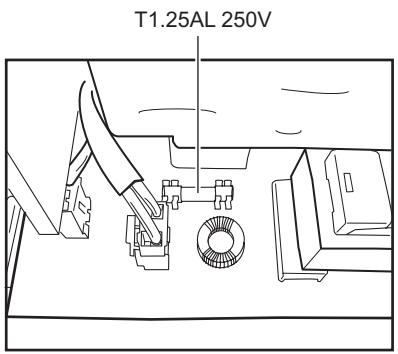

3.1.1 Replacing the fuses (See Fig.1)

- Prior to performing the following procedure, remove right plate, left plate, top cover.

(1) Replace the fuses inside.

Caution:

Be sure to use fuses with the specified

T1.25AL 250V

Fig.1

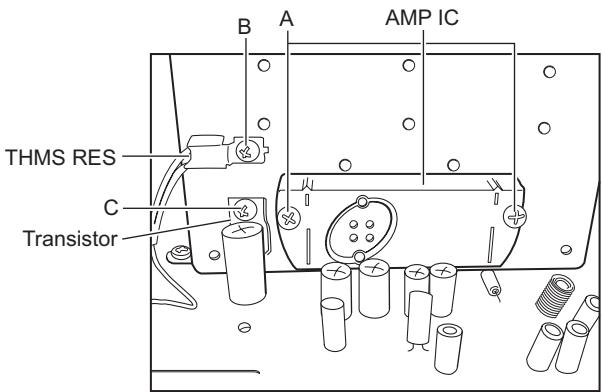

3.1.2 Replacing the AMP IC (See Fig.2)

- Prior to performing the following procedure, remove the right plate, left plate, top cover.

(1) Remove the two screws A from the heat sink between AMP IC.
(2) Remove the solder fixing the AMP IC.

3.1.3 Replacing the THMS RES (See Fig.2)

- Prior to performing the following procedure, remove right plate, left plate, top cover.

(1) Remove the one screw B from head sink.
(2) Remove the solder fixing THMS RES.

3.1.4 Replacing the transistor (See Fig.2)

(1) Remove the one screw C from head sink.
(2) Remove the solder fixing the Transistor.

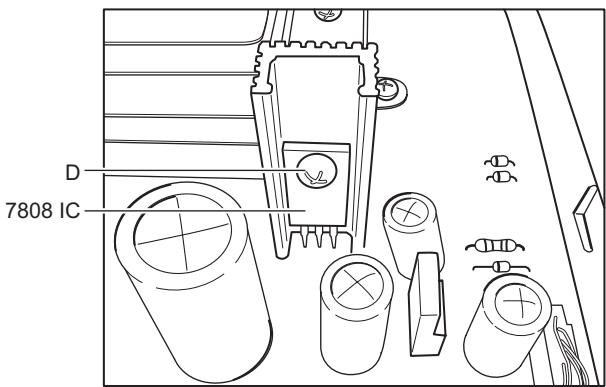

3.1.5 Replacing the 7808 IC (See Fig.3)

(1) Remove the one screw D from head sink.
(2) Remove the solder fixing 7808 IC.

B A AMP IC THMS RES C Transistor

Fig.2

D 7808 IC

Fig.3

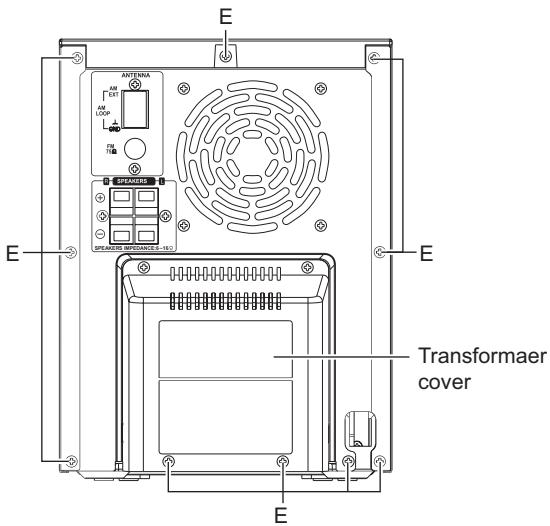

3.1.6 Removing the transformer cover (See Fig.4)

(1) Remove the ten screws E from top cover.
(2) Take off transformer cover from rear plate.

E ANTENIA AV OUT AW LOOP FS TRB SPEAKER REFERENCE=NEO E E Transformer cover E

Fig.4

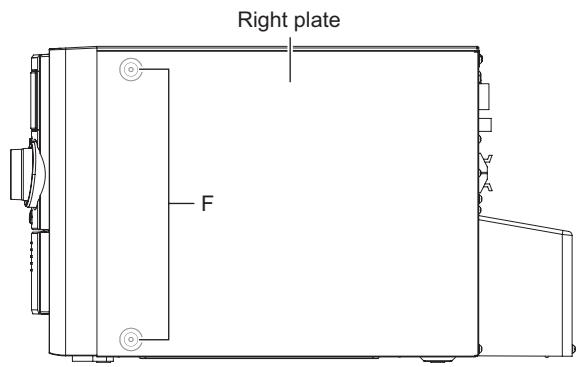

3.1.7 Removing the right plate (See Fig.5)

(1) Remove the two screws F from right plate.
(2) Take off right plate from main body.

Right plate F

Fig.5

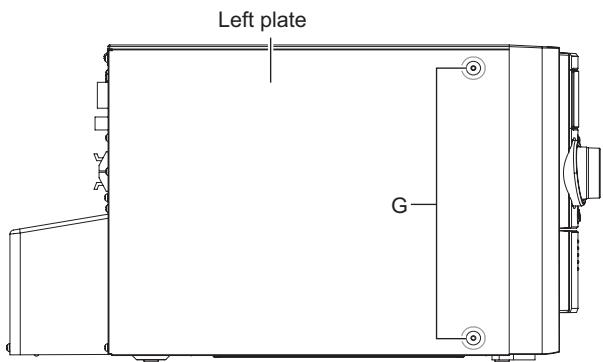

3.1.8 Removing the left plate (See Fig.6)

(1) Remove the two screws G from left plate.
(2) Take off left plate from main body.

Left plate G

Fig.6

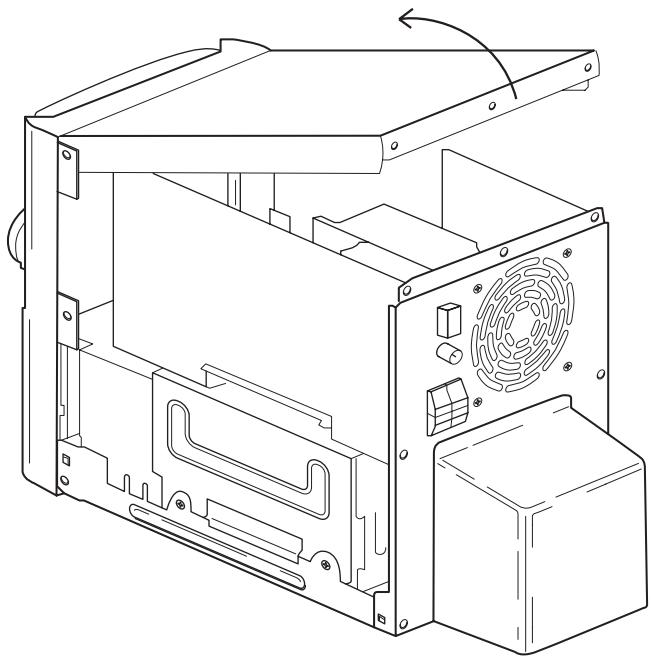

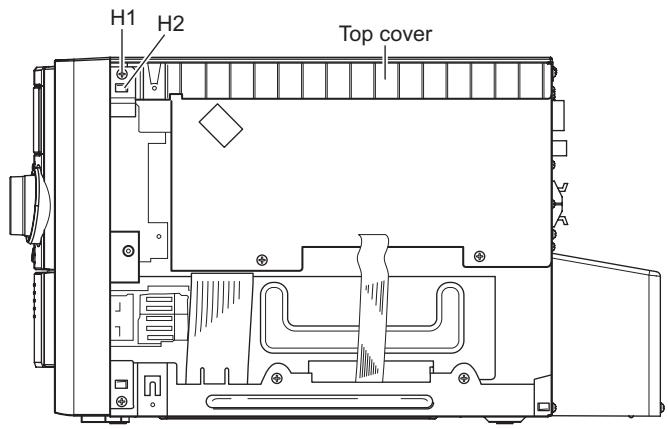

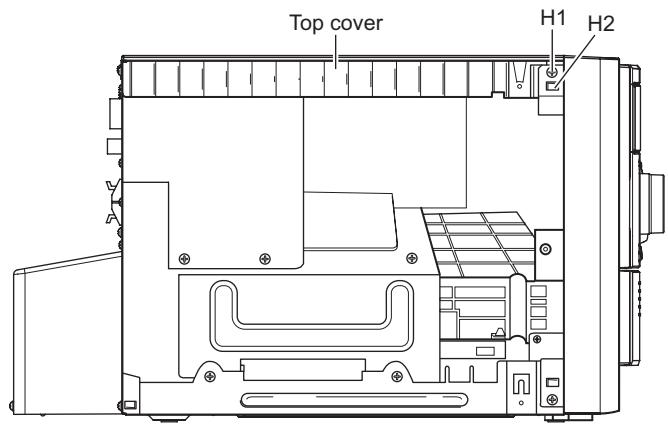

3.1.9 Removing the top cover (See Fig.7 to 9)

(1) Remove the two screws H1 (See Fig.7,8).
(2) Disengage the claws H2 on both side of the front cabinet (See Fig.7, 8).
(3) Rotate top cover and let's away from main body (See Fig.9).

Caution:

When you rotate top cover, must to slow raise, Don't to destroy the two claws of front cabinet.

H1 H2 Top cover

Fig.7

Top cover H1 H2

Fig.8

Technical line drawing of a computer tower case with visible internal components and mounting holes (no text or labels)

Fig.9

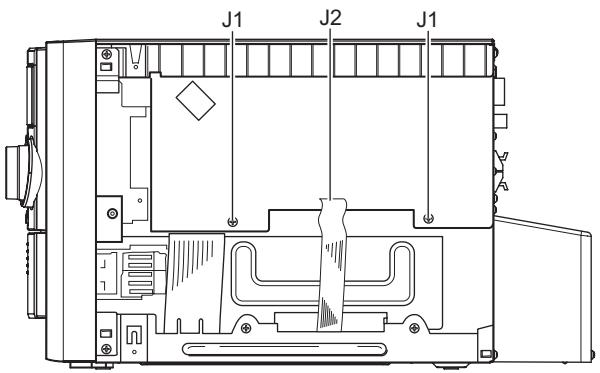

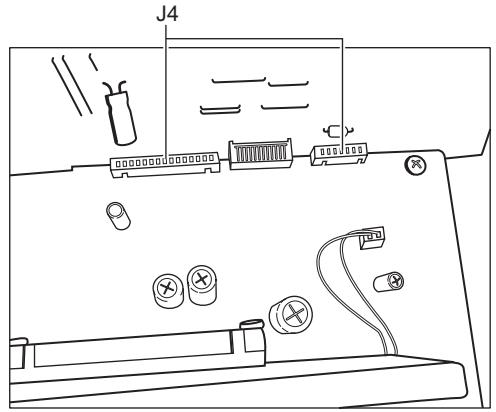

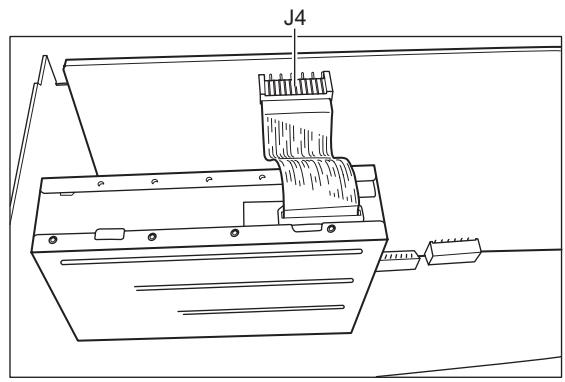

3.1.10 Removing the main board (See Fig.10 to 13)

(1) Remove the two screws J1. (See Fig.10)
(2) Disconnect the FFC cables J2 from the connector CN661 on main board. (See Fig.10)
(3) Disconnect the FFC cables J3 from the connector CN402 on main board. (See Fig.11)
(4) Disconnect the FFC cables J4 from the connector CN681 on main board. (See Fig.12)
(5) Remove main board from AMP board after disconnect the connector J319 and CN601. (SeeFig.13)

J1 J2 J1 A

Fig.10

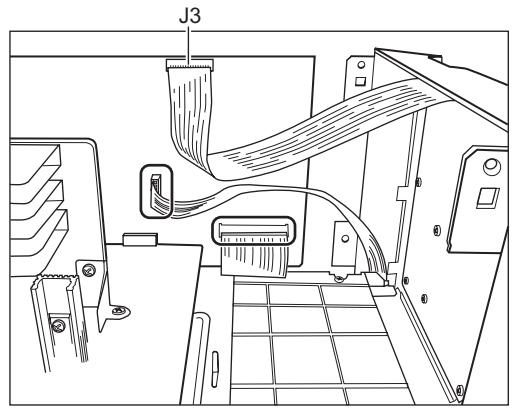

J3

Fig.11

J4

Fig.12

J4

Fig.13

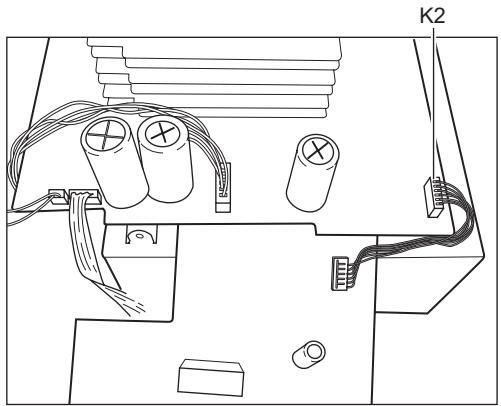

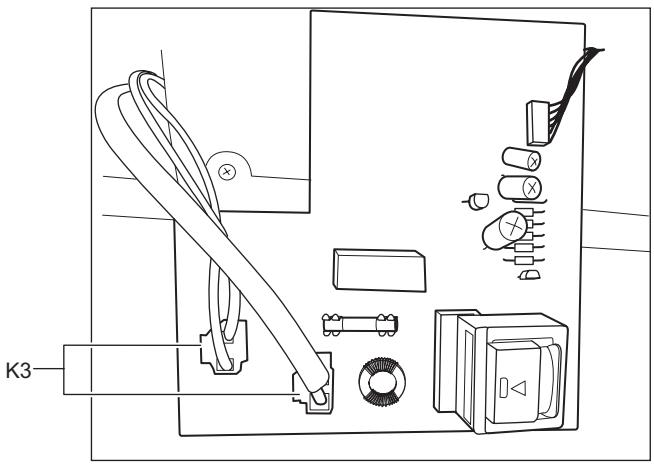

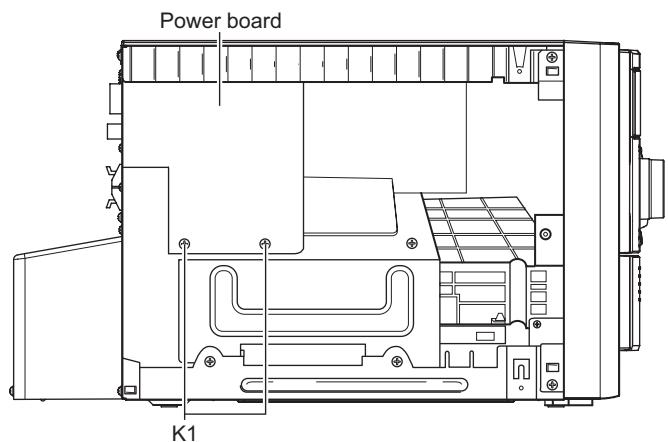

3.1.11 Removing the power board (See Fig.14 to 16)

(1) Remove the two screws K1 from CD mechanism cover and power board. (See Fig.14)
(2) Disconnect the wire K2 from the connector CN102 on the AMP board. (See Fig.15)
(3) Disconnect the two wire K3 from the connector CN901 and CN902. (See Fig.16)

Power board K1

Fig.14

Technical line drawing of an electronic component with capacitors, wires, and connectors (no text or symbols)

Fig.15

Technical line drawing of a mechanical or electronic device with labeled components (no readable text or symbols)

Fig.16

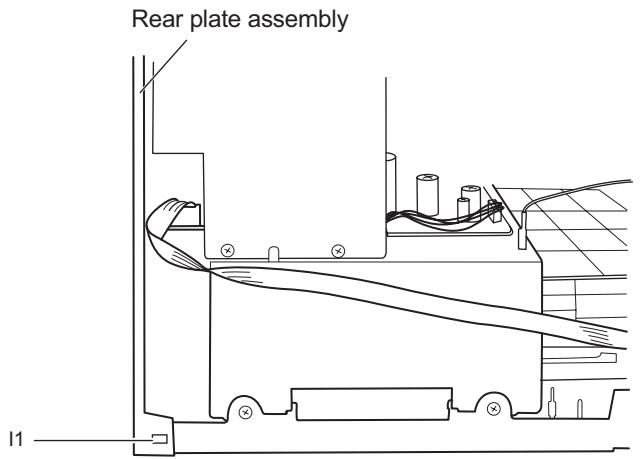

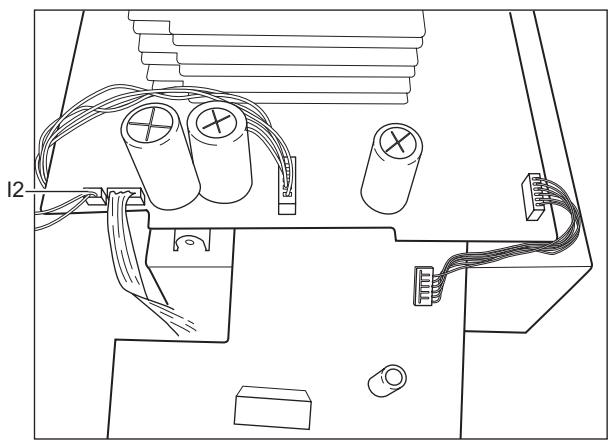

3.1.12 Removing the rear plate assembly (See Fig.17 to 18)

(1) Disengage the claws I1 on both sides of bottom plate. (See Fig.17)
(2) Disconnect the wire I2 from the connector CN105 on the AMP board. (See Fig.18)

Rear plate assembly I1

Fig.17

Technical line drawing of an electrical connector with batteries, wires, and connectors (no text or symbols)

Fig.18

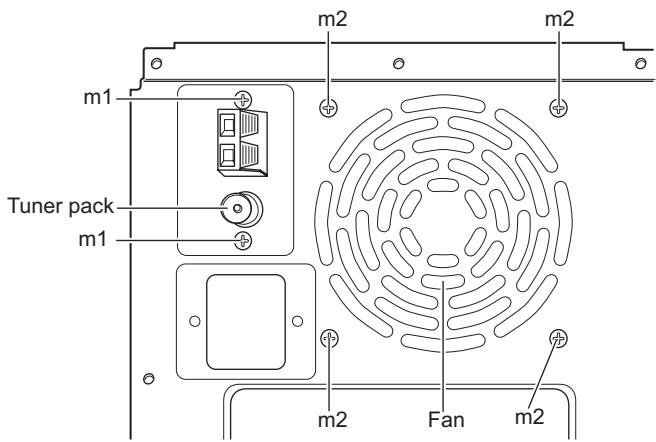

3.1.13 Removing the fan (See Fig.19)

(1) Removing the four screws M2.

3.1.14 Removing the tuner pack (See Fig.19)

(1) Removing the two screws M1.

m1 Tuner pack m1 m2 m2 m2 Fan m2

Fig.19

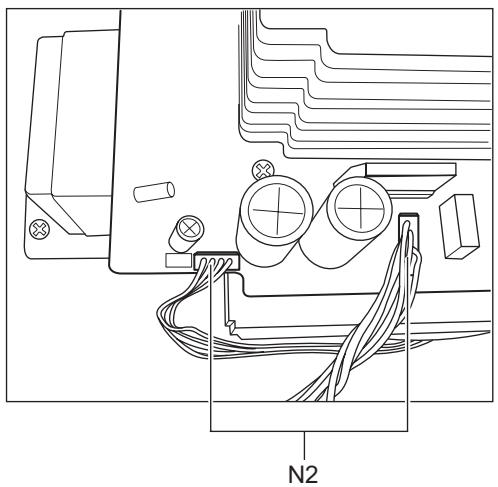

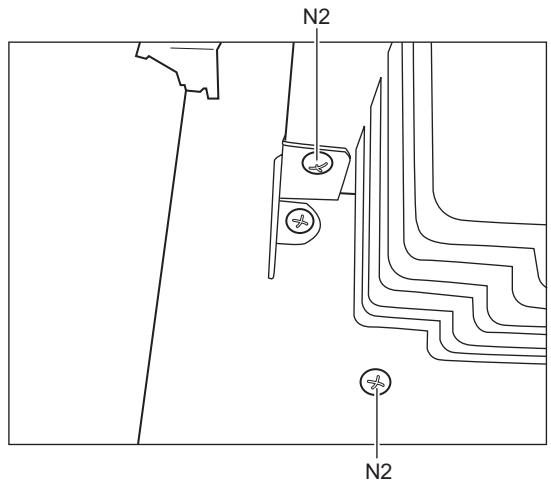

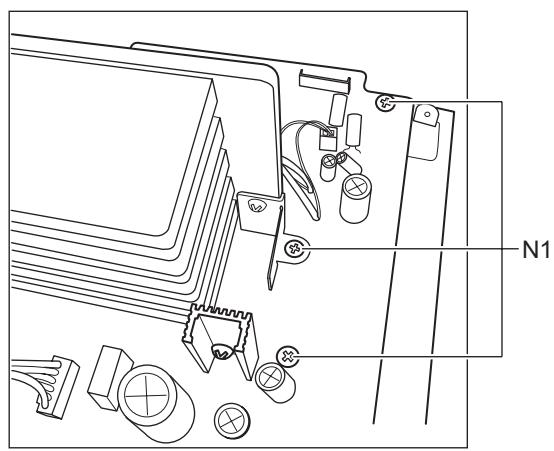

3.1.15 Removing the AMP board (See Fig.20 to 22)

(1) Removing the three screws N1 of the AMP board between CD mechanism cover. (See Fig.20)
(2) Removing the two screws N2 of the AMP board between CD mechanism cover. (See Fig.21)
(3) Disconnect the two wires N3 from the connector CN101 and CN204 on the AMP board. (See Fig.22)

Technical line drawing of a mechanical assembly with components like gears, bolts, and fasteners (no text or symbols)

Fig.20

N2 N2

Fig.21

Technical line drawing of a mechanical assembly with labeled component N2 (no text or symbols beyond label)

Fig.22

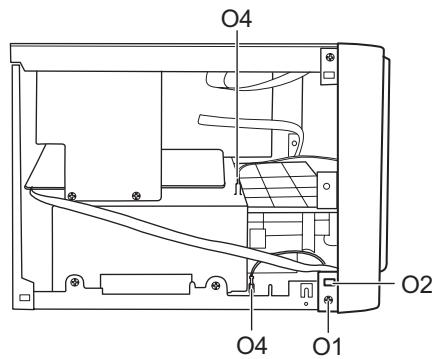

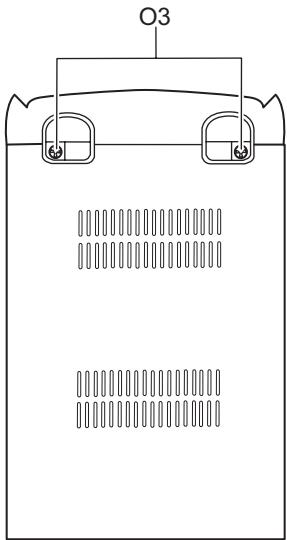

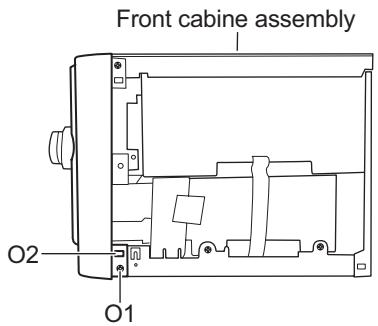

3.1.16 Removing the front cabinet (See Fig.23 to 25)

(1) Removing the two screws O1. (See Fig.23, 24)
(2) Disengage the claws O2 on both side of the bottom plate. (See Fig.23, 24)
(3) Pull out two connect wire 04 separate on CD mechanism cover and bottom plate. (See Fig.24)
(4) Remove the two screws O3. (See Fig.25)

Front cabine assembly O2 O1

Fig.23

O4 O2 O4 O1

Fig.24

Simple line drawing of a battery with two side tabs and internal circuit-like patterns (no text or symbols)

Fig.25

3.1.17 Removing the volume knob (See Fig.26, 27)

(1) Place the flat screw driver top in hole front cabinet and the key board. (See Fig.26)
(2) Hand hold volume knob, Use the flat screw driver prop up volume knob bottom surface and let's move out of the Front cabinet. (See Fig.27)

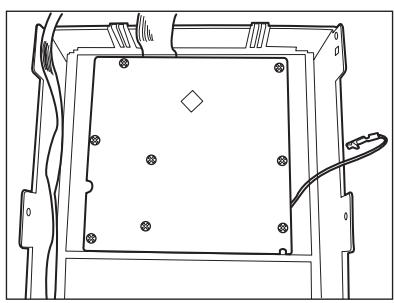

Technical line drawing of a mechanical component with mounting holes and wiring (no text or symbols)

Fig.26

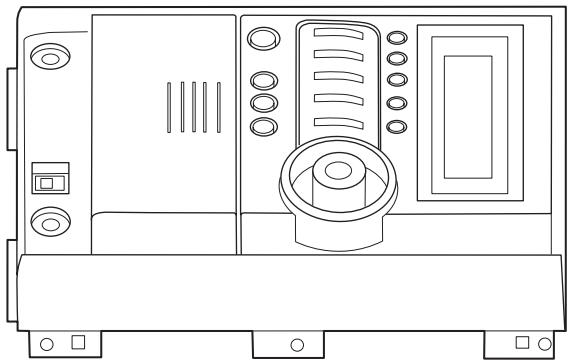

Volume knob

Line drawing of a portable electronic device with front panel, buttons, and control panel (no text or symbols)

Fig.27

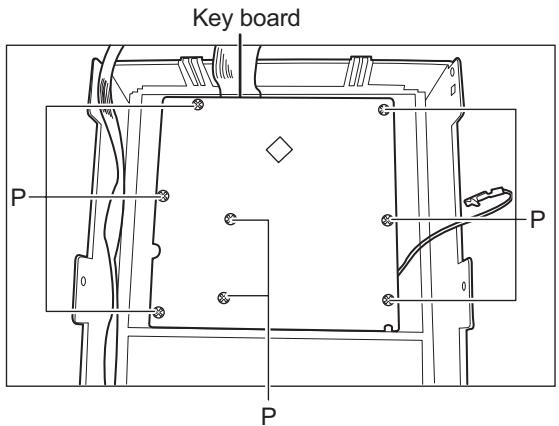

3.1.18 Removing the key board (See Fig.28)

(1) Remove the eight screws P from the front cabinet and the key board.

Key board P P P

Fig.28

3.1.19 Removing the AUX board (See Fig.29)

(1) Remove the two screws Q from the front cabinet and the aux board.

3.1.20 Removing the phones board (See Fig.29)

(1) Remove the two screws R from the front cabinet and the phones board.

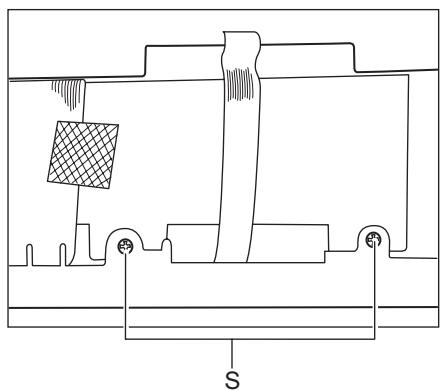

3.1.21 Removing the CD mechanism cover (See Fig.30, 31)

(1) Remove the four screws S.

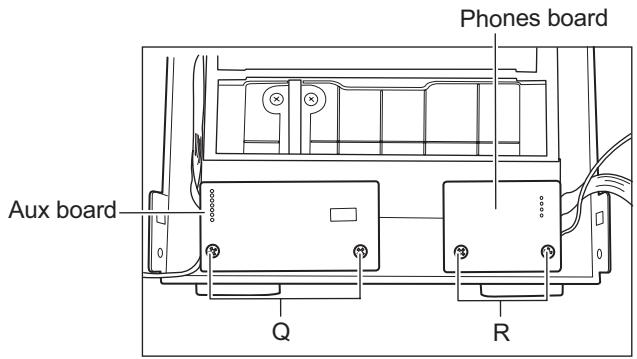

Phones board Aux board Q R

Fig.29

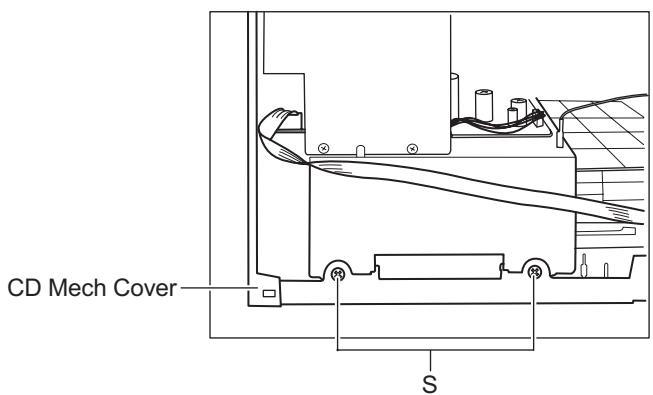

CD Mech Cover S

Fig.30

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig.31

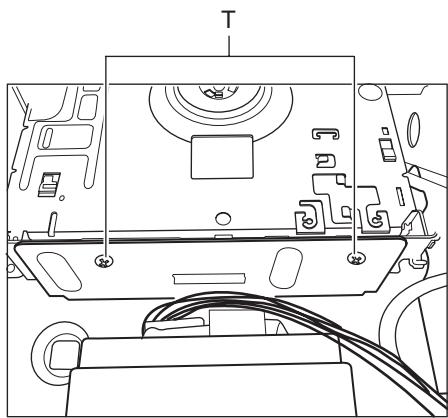

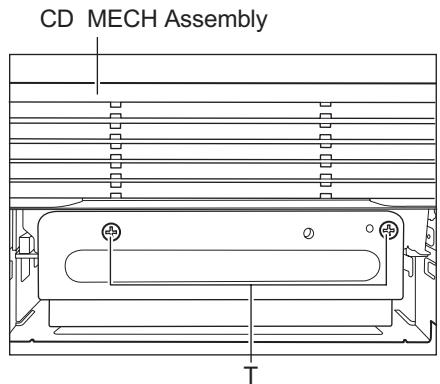

3.1.22 Removing the CD mechanism Assembly (See Fig.32, 33)

(1) Remove the two screws T from the CD mechanism-F and CD mechanism assembly. (See Fig.32)
(2) Remove the two screws T from the CD mechanism-B and CD mechanism assembly. (See Fig.33)
(3) Take out CD mechanism assembly from the CD mechanism-F between the CD mechanism-B.

CD MECH Assembly T

Fig.32

Technical line drawing of a mechanical device with labeled component T and cable (no text or symbols)

Fig.33

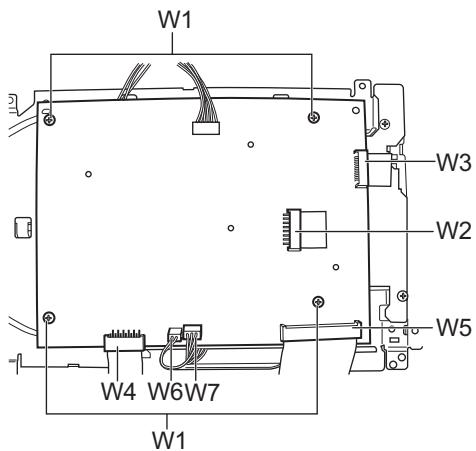

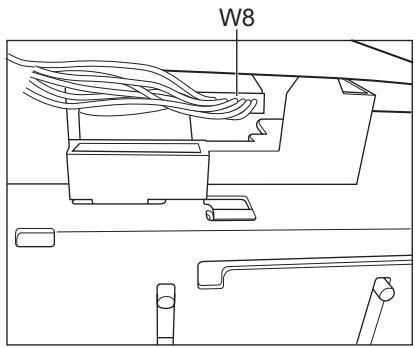

3.1.23 Removing the CD board (See Fig.34, 35)

(1) Removing the four screws W1 from the CD board and CD mechanism holder. (See Fig.34)
(2) Disconnect the FFC cable W2 from the connector CN701 on the CD board. (See Fig.34)
(3) Disconnect the FFC cable W3 from the connector JW756 on the CD board. (See Fig.34)
(4) Disconnect the FFC cable W4 from the connector CN802 on the CD board. (See Fig.34)
(5) Disconnect the FFC cable W5 from the connector CN801 on the CD board. (See Fig.34)
(6) Disconnect the wire W8 from connector of the CD mechanism "CMS". (See Fig.35)

W1 W3 W2 W5 W4 W6W7 W1

Fig.34

W8

Fig.35

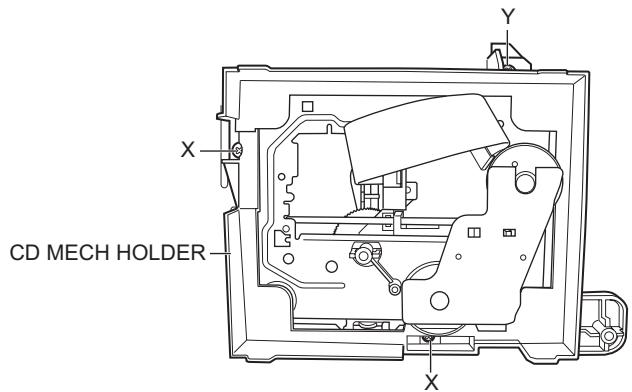

3.1.24 Removing the CD mechanism holder (See Fig.36)

(1) Remove the three screws X from the CD mechanism holder and the CD mechanism.

3.1.25 Removing the CD mechanism "CMS" (See Fig.36, 37)

(1) Remove the four screws Y from the CD mechanism holder.
(2) Take out CD mechanism "CMS".

Caution:

Don't touch laser camera lens and PCB.

CD MECH HOLDER X Y X

Fig.36

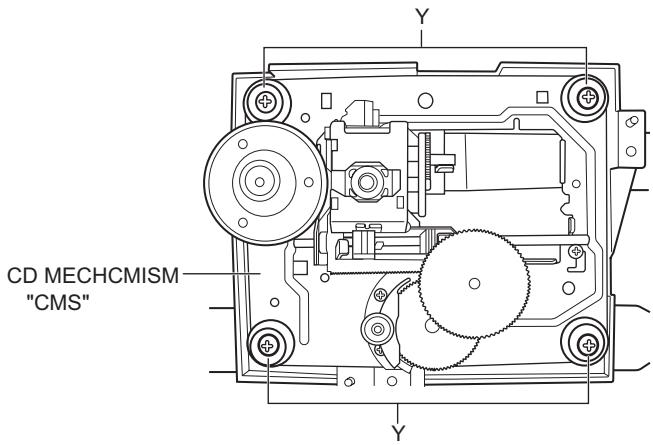

CD MECHCMISM "CMS"

Fig.37

SECTION 4

ADJUSTMENT

This service manual does not describe ADJUSTMENT.

SECTION 5

TROUBLESHOOTING

This service manual does not describe TROUBLESHOOTING.

PARTS LIST

[ UX-S59 ]

* All printed circuit boards and its assemblies are not available as service parts.

Area suffix

B U.K.
E ---- Continental Europe
EN ---- Northern Europe
EV ---- Eastern Europe

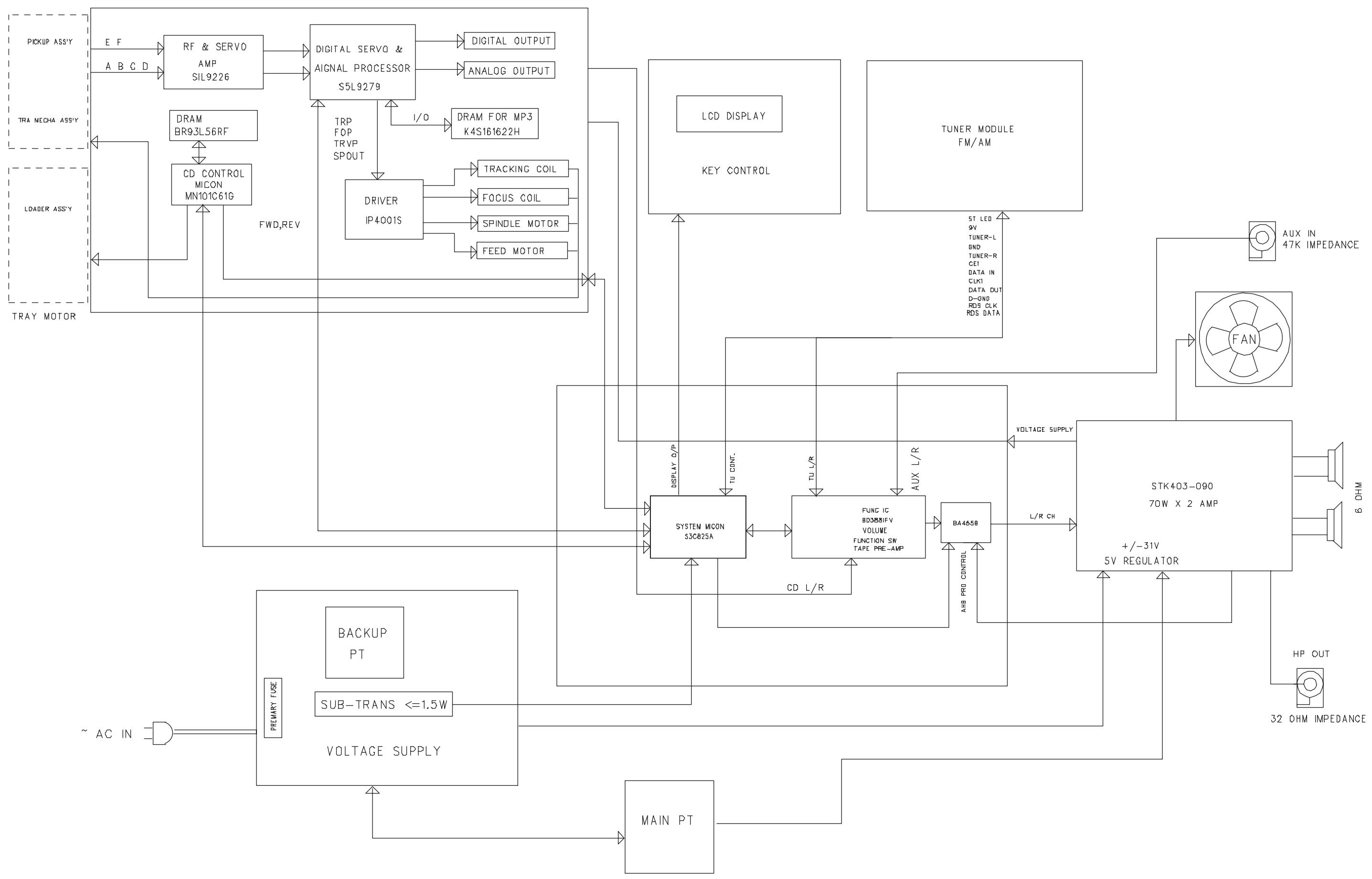

- Contents -

Exploded view of general assembly and parts list (Block No.M1) 3-2

CD mechanism assembly and parts list (Block No.MB) 3-5

Electrical parts list (Block No.01\~06) 3-7

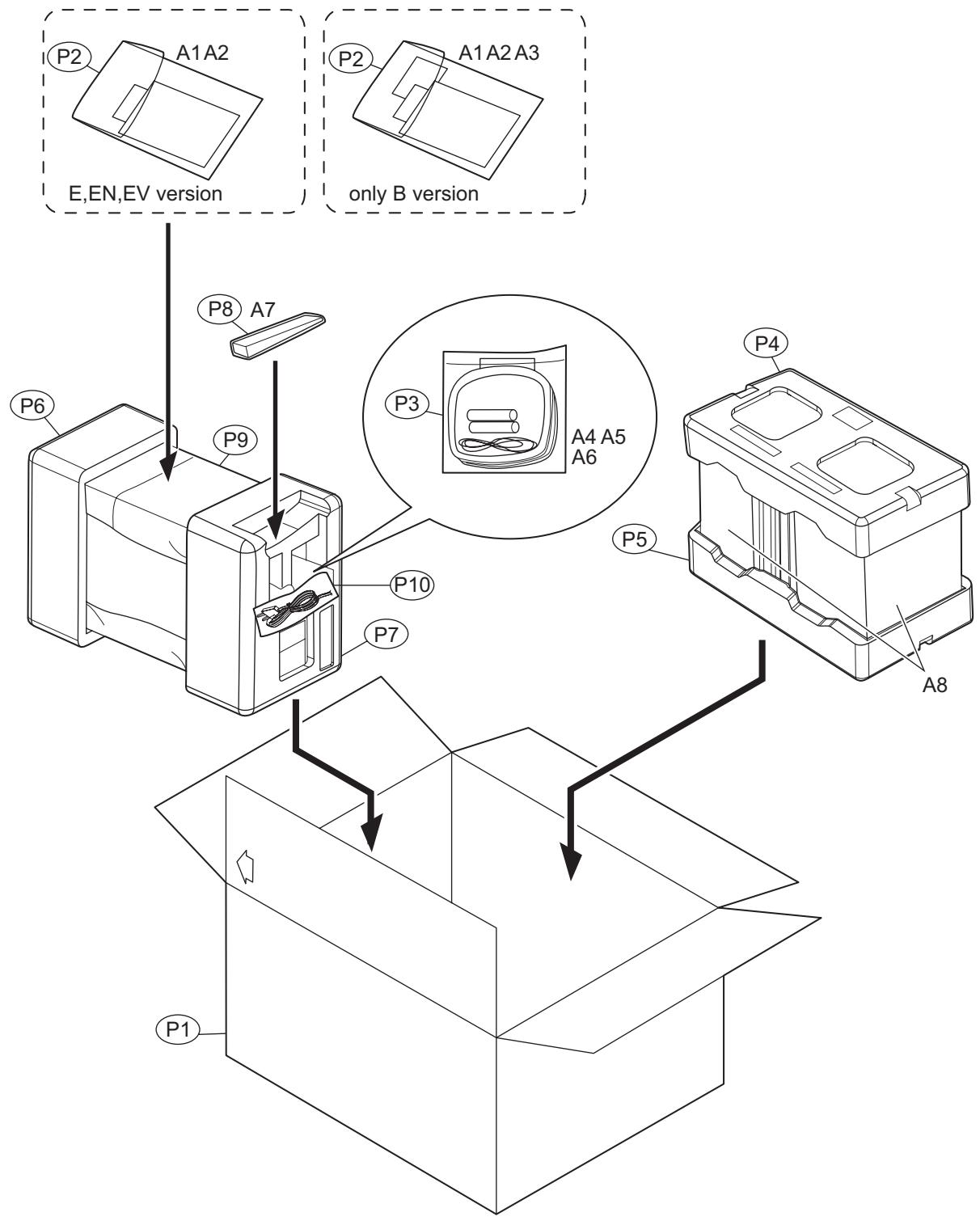

Packing materials and accessories parts list (Block No.M3) 3-14

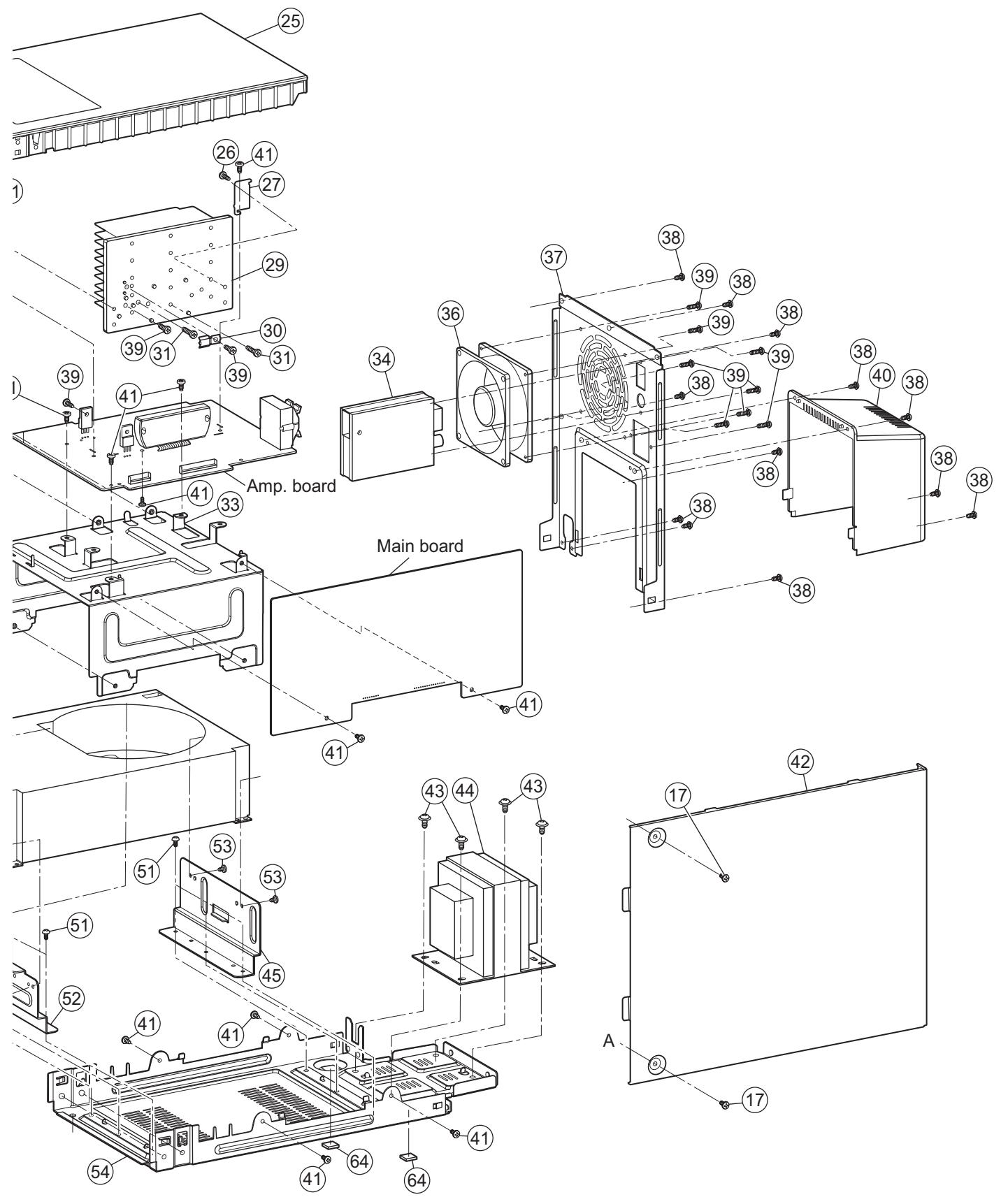

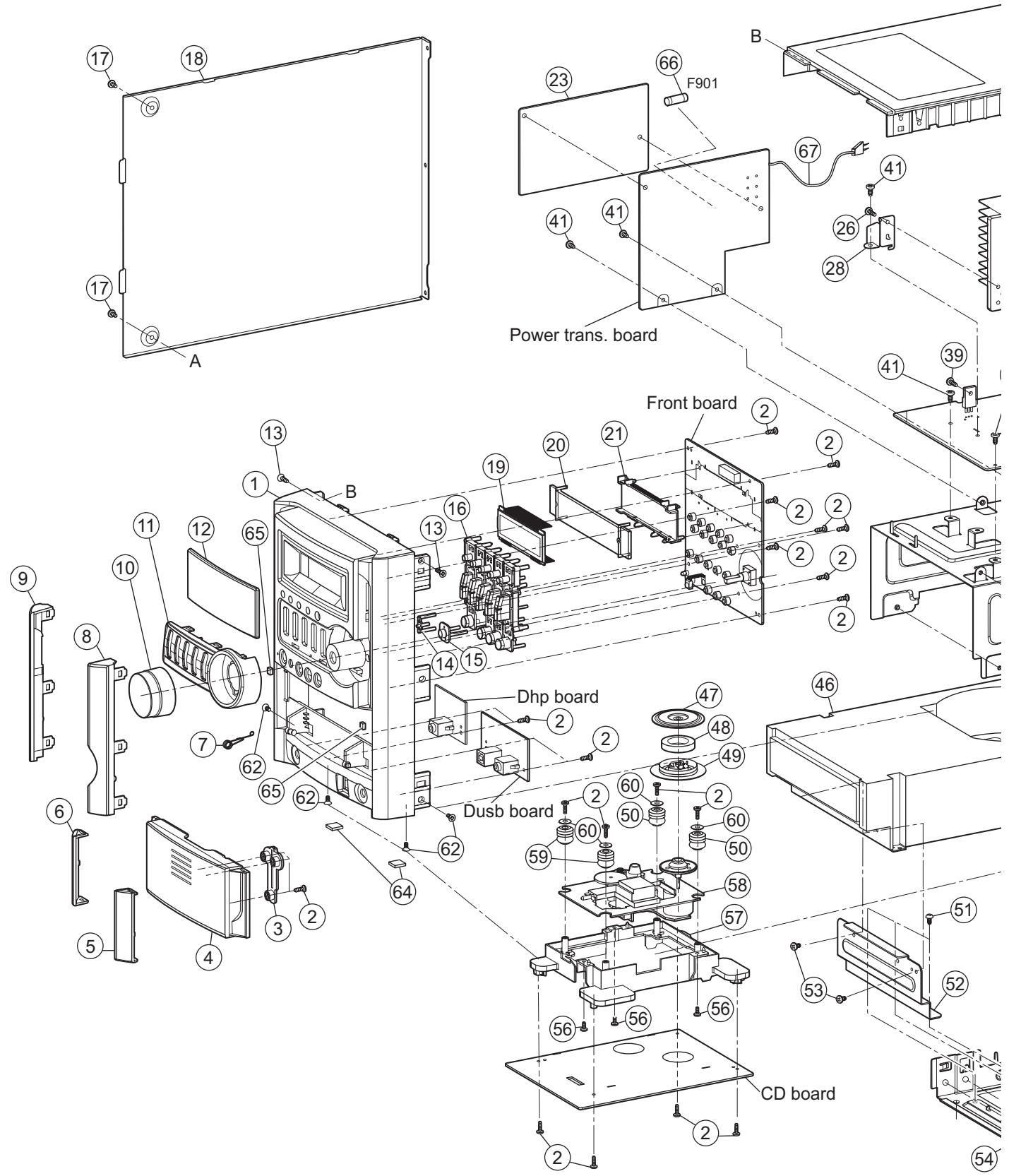

Exploded view of general assembly and parts list

Block No. M 1 M M

Exploded view diagram of a power trans. board assembly with numbered components and labeled parts

General Assembly
Block No. [M][1][M][M]

△ Symbol No.	Part No.	Part Name	Description	Local
1	BI1080670202V1	FRONT CABINET	USB
2	BIBT000418	TAPPING SCREW	(x23)
3	BI1081770101X1	SLIDE BLOCK
4	BI1080690101V1	CD DOOR
5	BI1080770201V1	BOTTOM LENS R
6	BI1080780201V1	BOTTOM LENS L
7	BI202904010201	CD DOOR SPRING
8	BI1080750201V1	TOP LENS R
9	BI1080760201V1	TOP LENS L
10	BI1080800101V1	VOLUME KNOB
11	BI1080820101V1	KEY PANEL
12	BI1080720201V1	WINDOW LENS
13	BIKT000606	TAPPING SCREW	(x2)
14	BI1080730201V1	POWER LENS
15	BI1080740101V1	LENS
16	BI1080810101V1	FUNCTION KEY
17	BIRT000608B1W	TAPPING SCREW	(x4)
18	BI2028960101W1	LEFT PLATE
19	BI2702191V	LCD	TCM-4217
20	BI680FSG505L	LED BACK LIGHT
21	BI1080840101V1	LCD HOLDER
23	BI302209010101	PCB PLATE
25	BI1080680101V1	TOP COVER
26	BIRT000611B3	TAPPING SCREW	(x2)
27	BI2029350101W1	HEATSINK BKT	B
28	BI2029340101W1	HEATSINK BKT	F
29	BI202903010101	HEATSINK
30	BI2029330101W1	HEAT RES BKT
31	BIBT0006091	TAPPING SCREW	(x2)
33	BI2029000101W1	CD MECH COVER
34	BIZ25094901VV	TUNER PACK
36	BI2400241V	DC FAN	DC12V
37	BI2028950301W1	REAR PLATE
38	BIRM000603S3	TAPPING SCREW	(x12)
39	BIRT000617B3	TAPPING SCREW	(x11)
40	BI1080790101V1	TRANS. COVER
41	BIBT000604S3	TAPPING SCREW	(x14)
42	BI2028970101W1	RIGHT PLATE
43	BIPMW001101S3	TAPPING SCREW	(x4)
△ 44	BI211041011001W	POWER TRANS.
45	BI2028990101W1	CD MECH BRAKET
46	BI251051000300V	5CD CHANGER
47	BI2029060101W1	CD CHUCK PLATE
48	BI202930010101	CD MAGET
49	BI1081030101V1	CD CHUCK
50	BI301942010101	CUSHION RUBBER	RED(x2)
51	BIRT000604S3	TAPPING SCREW	(x6)
52	BI2028980101W1	CD MECHA BKT
53	BIRT000603P3	TAPPING SCREW	(x4)
54	BI2028940101W1	BOTTOM PLATE
56	BIBT000405S3	TAPPING SCREW	(x3)
57	BI1080830101V1	CD MECH HOLDER
58	BI251011003200V	CD MECHANISM	CMS-B35SG6U
59	BI301943010101	CUSHION RUBBER	GREEN(x2)
60	BI300856010101	WASHER	(x4)
62	BIKT0006-06B3	TAPPING SCREW	(x4)
64	BI302197010101	RUBBER FOOT	(x4)
65	BI302193010101	CD DOOR RUBBER	(x2)
△ 66	BI403131	FUSE	2.5A/250V F901
△ 67	BI1401731V	POWER CORD

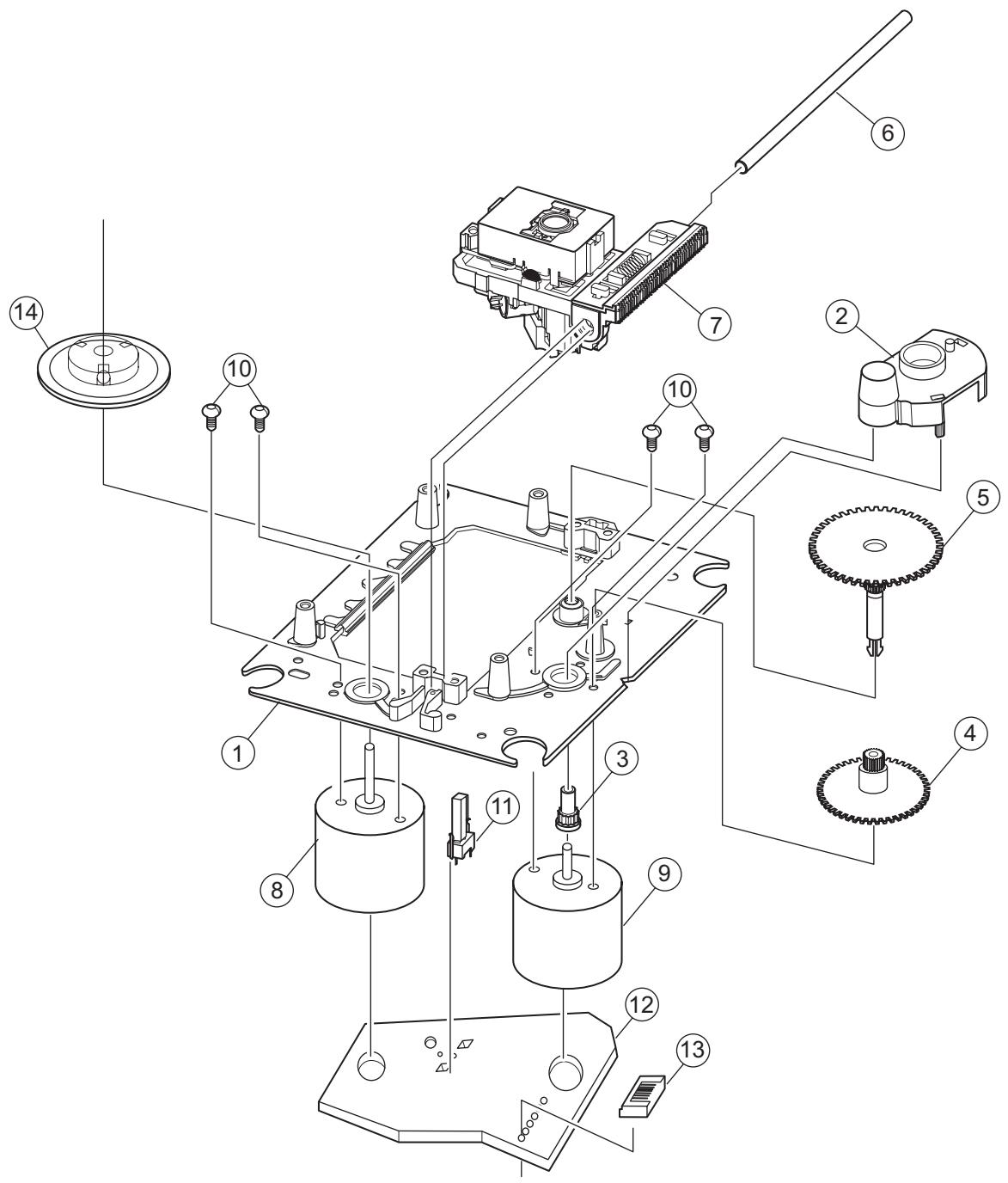

CD mechanism assembly and parts list

Block No. M B M M

Exploded view diagram of a mechanical assembly with numbered components for identification

The parts without symbol number are not service.

CD mechanism
Block No. [M][B][M][M]

△ Symbol No.	Part No.	Part Name	Description	Local
1	BIAJ7000601E	CHASSIS
2	BIAJ6600601G	GEAR COVER
3	BIAJ6600601D	GEAR	A
4	BIAJ6600601B	GEAR	B
5	BIAJ6600601F	GEAR	C
6	BIAJ7000601A	SHAFT
7	BISOHAAN	PICK UP
8	BIAJ3100601B	SPINDLE MOTOR
9	BIAJ3100601A	FEED MOTOR
10	BIAJ6000601D	SCREW	M2XL3(x4)
11	BI3409000174	LEAF SWITCH
12	BIAJ4100601E	SUB PCB
13	BIAJ3700601A	CONNECTOR
14	BIAJ7500601K	TURN TABLE

Electrical parts list Main board

△ Symbol No.	Part No.	Part Name	Block No. [0][1]
			Description	Local
IC401	S3C825A	IC	BI118131
IC402	PST3429UL	IC	BI117161
IC501	BA4558F	IC	BI103952 OP/AMP
IC601	BD3881FV	IC	BI112721
Q401	DTC114YK	TRANSISTOR	BI2DTC114YKA011
Q402	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q403	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q404	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q405	2SA1980G	TRANSISTOR	BI2SA1980GP000 V
Q501	KTC3199GR	TRANSISTOR	BI2KTC3199GP00 0
Q502	KTC3199GR	TRANSISTOR	BI2KTC3199GP00 0
Q602	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q603	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q683	KTA1267GR	TRANSISTOR	BI2KTA1267GP000
Q684	2SC3052	TRANSISTOR	BI2SC3052FA013V
D401	1SS133	FR DIODE	BI31SS133M000V 7
D402	1SS133	FR DIODE	BI31SS133M000V 7
D403	1SS133	FR DIODE	BI31SS133M000V 7
D404	1SS133	FR DIODE	BI31SS133M000V 7
D405	1SS133	FR DIODE	BI31SS133M000V 7
D406	1SS133	FR DIODE	BI31SS133M000V 7
D407	1SS133	FR DIODE	BI31SS133M000V 7
D501	1SS133	FR DIODE	BI31SS133M000V 7
D502	1SS133	FR DIODE	BI31SS133M000V 7
D601	1SS355	DIODE	BI31SS355A0077
D602	1SS355	DIODE	BI31SS355A0077
D603	1SS133	FR DIODE	BI31SS133M000V 7
C401	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C402	BICE107160MP015	E CAPACITOR	100uF 16V
C403	BICC150500JA041	C CAPACITOR	15pF 50V
C404	BICC330500JA041	C CAPACITOR	33pF 50V
C405	BICC101500JA041	C CAPACITOR	100pF 50V
C406	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C407	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C408	BICE226160MP015	E CAPACITOR	22uF 16V
C409	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C411	BICC220500JA041	C CAPACITOR	22pF 50V
C412	BICC220500JA041	C CAPACITOR	22pF 50V
C413	BICE477063MP015	E CAPACITOR	470uF 6.3V
C414	BICE477063MP015	E CAPACITOR	470uF 6.3V
C415	BICE107100MP015	E CAPACITOR	100uF 10V
C416	BICC222500KA042	C CAPACITOR	2200pF 50V
C417	BICC104500KA042	C CAPACITOR	0.1uF 50V
C421	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C422	BICC330500JA041	C CAPACITOR	33pF 50V
C423	BICC330500JA041	C CAPACITOR	33pF 50V
C424	BICC330500JA041	C CAPACITOR	33pF 50V
C425	BICC330500JA041	C CAPACITOR	33pF 50V
C426	BICC220500JA041	C CAPACITOR	22pF 50V
C501	BICE107160MP015	E CAPACITOR	100uF 16V
C502	BICE107160MP015	E CAPACITOR	100uF 16V
C503	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C504	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C505	BICM124101KP015	M CAPACITOR	0.12uF 100V
C506	BICM124101KP015	M CAPACITOR	0.12uF 100V
C507	BICE107160MP015	E CAPACITOR	100uF 16V
C508	BICE107160MP015	E CAPACITOR	100uF 16V

Symbol No.	Part No.	Part Name	Description	Local
C509	BICE475500MP015	E CAPACITOR	4.7uF 50V
C510	BICE475500MP015	E CAPACITOR	4.7uF 50V
C511	BICE475500MP015	E CAPACITOR	4.7uF 50V
C609	BICC561500JA041	C CAPACITOR	560pF 50V
C610	BICC561500JA041	C CAPACITOR	560pF 50V
C611	BICE225500MP015	E CAPACITOR	2.2uF 50V
C612	BICE225500MP015	E CAPACITOR	2.2uF 50V
C631	BICC822500KA042	C CAPACITOR	8200pF 50V
C632	BICC822500KA042	C CAPACITOR	8200pF 50V
C633	BICC101500JA041	C CAPACITOR	100pF 50V
C634	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C635	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C636	BICE227100MP015	E CAPACITOR	220uF 10V
C637	BICE107100MP015	E CAPACITOR	100uF 10V
C641	BICM124101KP015	M CAPACITOR	0.12uF 100V
C642	BICM124101KP015	M CAPACITOR	0.12uF 100V
C643	BICE104500MP015	E CAPACITOR	0.1uF 50V
C644	BICE474500MP015	E CAPACITOR	0.47uF 50V
C645	BICC683160KA042	C CAPACITOR	0.068uF 16V
C646	BICC683160KA042	C CAPACITOR	0.068uF 16V
C647	BICE474500MP015	E CAPACITOR	0.47uF 50V
C648	BICE104500MP015	E CAPACITOR	0.1uF 50V
C649	BICC222500KA042	C CAPACITOR	2200pF 50V
C650	BICC222500KA042	C CAPACITOR	2200pF 50V
C661	BICC222500KA042	C CAPACITOR	2200pF 50V
C662	BICC222500KA042	C CAPACITOR	2200pF 50V
C663	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C671	BICE225500MP015	E CAPACITOR	2.2uF 50V
C672	BICE225500MP015	E CAPACITOR	2.2uF 50V
C673	BICC222500KA042	C CAPACITOR	2200pF 50V
C674	BICC222500KA042	C CAPACITOR	2200pF 50V
C675	BICE225500MP015	E CAPACITOR	2.2uF 50V
C676	BICE225500MP015	E CAPACITOR	2.2uF 50V
C681	BICC102500KA042	C CAPACITOR	1000pF 50V
C682	BICC102500KA042	C CAPACITOR	1000pF 50V
C683	BICE476160MP015	E CAPACITOR	47uF 16V
C684	BICC101500JA041	C CAPACITOR	100pF 50V
C685	BICC101500JA041	C CAPACITOR	100pF 50V
C686	BICC101500JA041	C CAPACITOR	100pF 50V
C689	BICC101500JA041	C CAPACITOR	100pF 50V
C690	BICC101500JA041	C CAPACITOR	100pF 50V
R401	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R402	BIRC0000105A005	C RESISTOR	0Ω 1/10W
R403	BIRC1530105A005	C RESISTOR	15KΩ 1/10W
R405	BIRC1030085N000	C RESISTOR	10KΩ 1/8W
R406	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R407	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R408	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R409	BIRC4710105A005	C RESISTOR	470Ω 1/10W
R410	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R411	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
R412	BIRC0000105A005	C RESISTOR	0Ω 1/10W
R413	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R419	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R420	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R421	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R422	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R423	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R424	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R425	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R426	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R427	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R428	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R429	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R430	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R431	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R432	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R433	BIRC1010085N000	C RESISTOR	100Ω 1/8W
R434	BIRC1010085N000	C RESISTOR	100Ω 1/8W
R435	BIRC1010085N000	C RESISTOR	100Ω 1/8W
R436	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R437	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R438	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R440	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R443	BIRC1010085N000	C RESISTOR	100Ω 1/8W
R444	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R445	BIRC1010085N000	C RESISTOR	100Ω 1/8W
R446	BIRC1010085N000	C RESISTOR	100Ω 1/8W
R447	BIRC1010085N000	C RESISTOR	100Ω 1/8W
R448	BIRC1010085N000	C RESISTOR	100Ω 1/8W
R449	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R451	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R452	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R454	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R455	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R456	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R457	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R458	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R459	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R460	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R461	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R462	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R469	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R470	BIRC2230105A005	C RESISTOR	22KΩ 1/10W
R471	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R472	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R473	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R474	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R475	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R477	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R478	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R479	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R480	BIRC1010085N000	C RESISTOR	100Ω 1/8W
R485	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R486	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R487	BIRC1030085N000	C RESISTOR	10KΩ 1/8W
R488	BIRC1030085N000	C RESISTOR	10KΩ 1/8W
R501	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R502	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R503	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
R504	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
R505	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R506	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R507	BIRC1220105A005	C RESISTOR	1.2KΩ 1/10W
R508	BIRC1220105A005	C RESISTOR	1.2KΩ 1/10W
R509	BIRC5620105A005	C RESISTOR	5.6KΩ 1/10W
R510	BIRC5620105A005	C RESISTOR	5.6KΩ 1/10W
R511	BIRC0000105A005	C RESISTOR	0Ω 1/10W
R512	BIRC0000105A005	C RESISTOR	0Ω 1/10W
R513	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R514	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R515	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R516	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R517	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
R518	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
R519	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R520	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R521	BIRC1030085M000	C RESISTOR	10KΩ 1/8W
R522	BIRC2220085M000	C RESISTOR	2.2KΩ 1/8W
R523	BIRC1520085M000	C RESISTOR	1.5KΩ 1/8W
R524	BIRC1520085M000	C RESISTOR	1.5KΩ 1/8W
R607	BIRC0000105A005	C RESISTOR	0Ω 1/10W
R608	BIRC0000105A005	C RESISTOR	0Ω 1/10W
R609	BIRC4710105A005	C RESISTOR	470Ω 1/10W
R610	BIRC4710085M000	C RESISTOR	470Ω 1/8W
R619	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R620	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
R631	BIRC5630105A005	C RESISTOR	56KΩ 1/10W
R632	BIRC5630105A005	C RESISTOR	56KΩ 1/10W
R633	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R635	BIRC4720105A005	C RESISTOR	4.7KΩ 1/10W
R636	BIRC4720085M000	C RESISTOR	4.7KΩ 1/8W
R637	BIRC2210045M000	C RESISTOR	220Ω 1/4W
R638	BIRC2210045M000	C RESISTOR	220Ω 1/4W
R641	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R642	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R643	BIRC2020105A005	C RESISTOR	2KΩ 1/10W
R644	BIRC2020105A005	C RESISTOR	2KΩ 1/10W
R645	BIRC6830105A005	C RESISTOR	68KΩ 1/10W
R646	BIRC6830105A005	C RESISTOR	68KΩ 1/10W
R650	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R661	BIRC1830105A005	C RESISTOR	18KΩ 1/10W
R662	BIRC1830105A005	C RESISTOR	18KΩ 1/10W

Symbol No.	Part No.	Part Name	Description	Local
R663	BIRC1220105A005	C RESISTOR	1.2K 1/10W
R664	BIRC1220105A005	C RESISTOR	1.2K 1/10W
R671	BIRC8220105A005	C RESISTOR	8.2K 1/10W
R672	BIRC8220105A005	C RESISTOR	8.2K 1/10W
R673	BIRC1020105A005	C RESISTOR	1K 1/10W
R674	BIRC1020105A005	C RESISTOR	1K 1/10W
R675	BIRC3330105A005	C RESISTOR	33K 1/10W
R676	BIRC3330105A005	C RESISTOR	33K 1/10W
R677	BIRC8220105A005	C RESISTOR	8.2K 1/10W
R678	BIRC8220105A005	C RESISTOR	8.2K 1/10W
R681	BIRC5630085M000	C RESISTOR	56K 1/8W
R682	BIRC5630085M000	C RESISTOR	56K 1/8W
R683	BIRC1520105A005	C RESISTOR	1.5K 1/10W
R684	BIRC1520105A005	C RESISTOR	1.5K 1/10W
R688	BIRC4710105A005	C RESISTOR	470 1/10W
R689	BIRC4700105A005	C RESISTOR	47 1/10W
R690	BIRC1040105A005	C RESISTOR	100K 1/10W
R691	BIRC3320105A005	C RESISTOR	3.3K 1/10W
L402	BI26100000KN000	COIL	10uH
L403	BI26100000KN000	COIL	10uH
L661	BI18A843556N000	FILTER BEAD	843556
L682	BI18A843556N000	FILTER BEAD	843556
CN401	BI12S280004U	SOCKET	28P V TYPEP=1.25mm
CN402	BI12S160033V	SOCKET	16P V P=1.25mm
CN501	BI12S150029V	CONNECTOR	15P
CN601	BI12S80059V	CONNECTOR	8PINS H P=2.0mm
CN661	BI12S120048V	CONNECTOR	12P FFC/FPC
CN671	BI12S700221V	SOCKET	7P
CN681	BI12S120047U	SOCKET	12P V P=1.25mm
JR603	BIRC0000105A005	C RESISTOR	0 1/10W
X401	BI29ZTA800P015U	C RESONATOR	8MHz
X402	BI2101012	CRYSTAL	32.768 KHz
XXXXX	BI251395G01V	MAIN PCB	PCB
XXXXX	BI301635010101	CUSH	CUSH
ZD401	UZ3.9BSB	Z DIODE	BI3UZ39BSBM0000
ZD601	UZ4.7BSA	Z DIODE	BI3UZ47BSAM000V
ZD602	UZ4.7BSA	Z DIODE	BI3UZ47BSAM000V

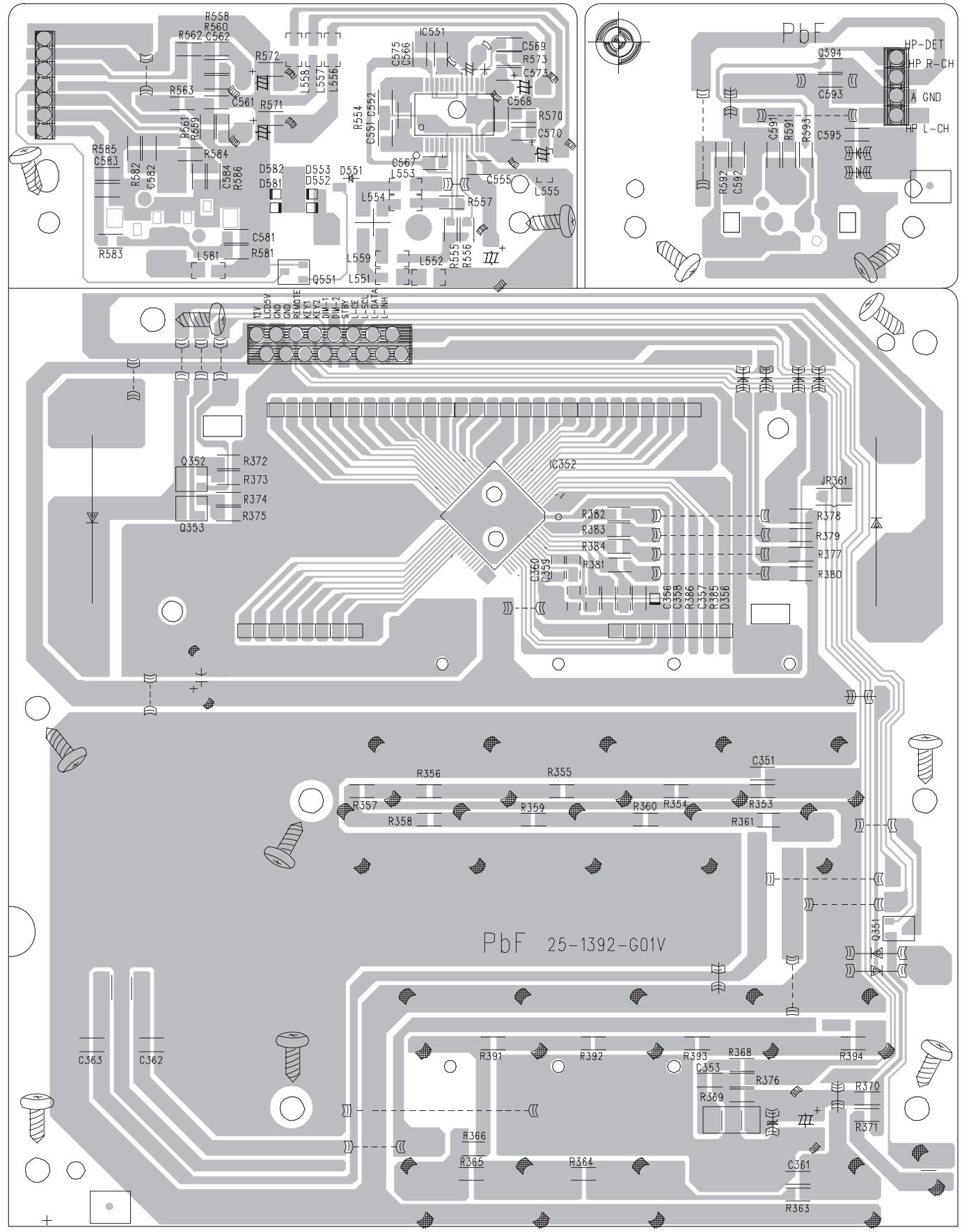

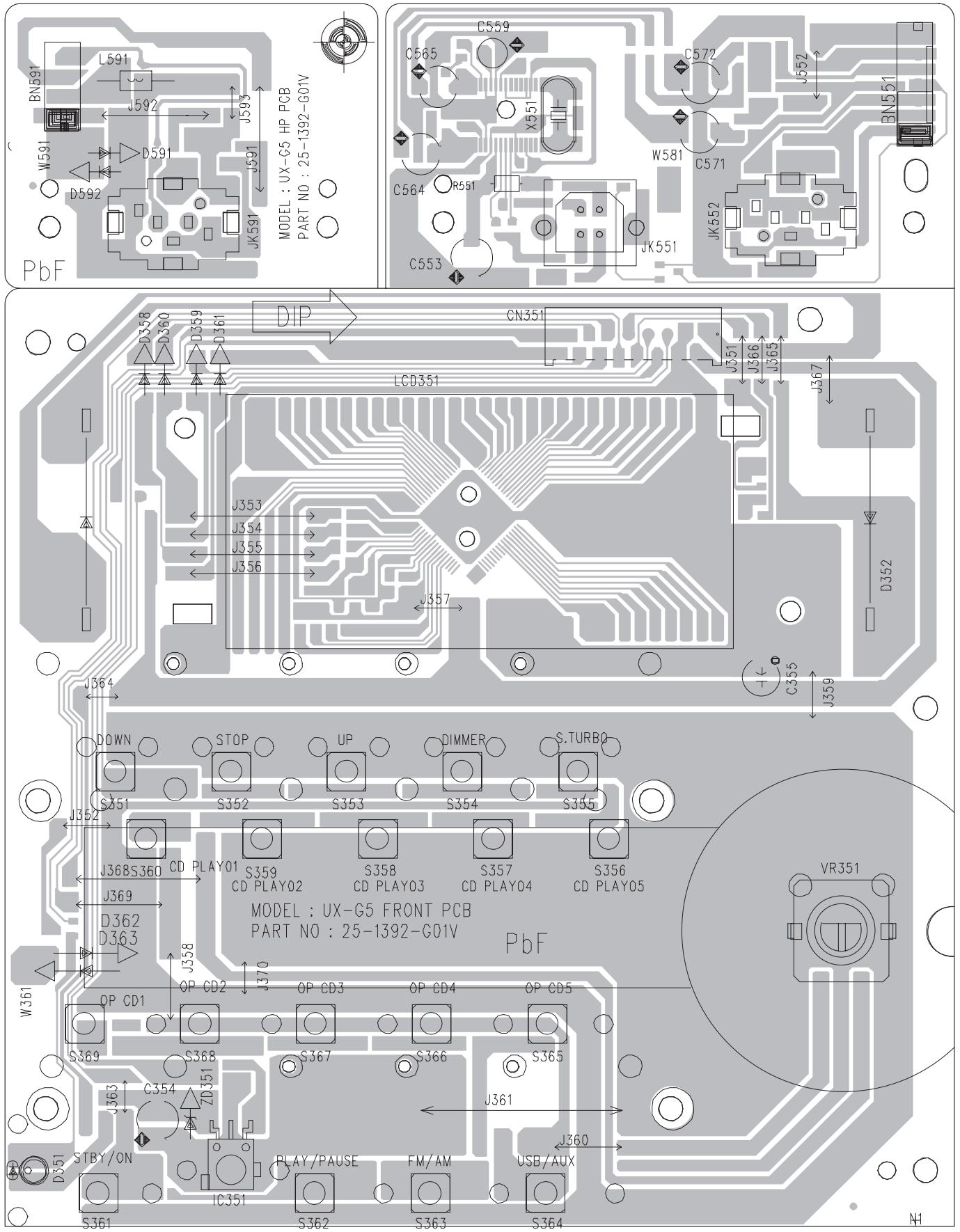

Front board

△ Symbol No.	Part No.	Part Name	Block No. [0][2]
			Description	Local
IC351	RPM7138-V4	IC	BI115291
IC352	PT6524LQ	IC	BI118101
IC551	PCM2704	IC	BI118061
Q351	DTA114YK	TRANSISTOR	BI2DTA114YKA011
Q352	DTC114YK	TRANSISTOR	BI2DTC114YKA0117
Q353	DTC114YK	TRANSISTOR	BI2DTC114YKA0117
Q551	DTC114YK	TRANSISTOR	BI2DTC114YKA0117
D351	SLR-342VCT31	LED	BI28SLR342VP010
D352	BI680FSG505L	BACK LIGHT	CM04115
D358	1SS133	FR DIODE	BI31SS133M000V7
D359	1SS133	FR DIODE	BI31SS133M000V7
D360	1SS133	FR DIODE	BI31SS133M000V7
D361	1SS133	FR DIODE	BI31SS133M000V7
D362	1SS133	FR DIODE	BI31SS133M000V7
D363	1SS133	FR DIODE	BI31SS133M000V7
D551	1SS355	DIODE	BI31SS355A0077
Symbol No.	Part No.	Part Name	Description	Local
D552	1SS355	DIODE	BI31SS355A0077
D553	1SS355	DIODE	BI31SS355A0077
D581	1SS355	DIODE	BI31SS355A0077
D582	1SS355	DIODE	BI31SS355A0077
D591	1SS133	FR DIODE	BI31SS133M000V7
D592	1SS133	FR DIODE	BI31SS133M000V7
C351	BICC103500KA042	C CAPACITOR	0.01uF 50V
C353	BICC102500KA042	C CAPACITOR	1000pF 50V
C354	BICE107100MP115	E CAPACITOR	100uF 10V
C355	BICE107100MP115	E CAPACITOR	100uF 10V
C356	BICC103500KA042	C CAPACITOR	0.01uF 50V
C357	BICC103500KA042	C CAPACITOR	0.01uF 50V
C358	BICC102500KA042	C CAPACITOR	1000pF 50V
C359	BICC103500KA042	C CAPACITOR	0.01uF 50V
C360	BICC103500KA042	C CAPACITOR	0.01uF 50V
C361	BICC103500KA042	C CAPACITOR	0.01uF 50V
C362	BICC103500KA042	C CAPACITOR	0.01uF 50V
C363	BICC103500KA042	C CAPACITOR	0.01uF 50V
C551	BICC220500JA041	C CAPACITOR	22pF 50V
C552	BICC220500JA041	C CAPACITOR	22pF 50V
C553	BICE476160MP010	E CAPACITOR.	47uF 16V
C555	BICC104500KA042	C CAPACITOR	0.1uF 50V
C559	BICE476100MP111	E CAPACITOR	47uF 10V
C561	BICC472500KA042	C CAPACITOR	4700pF 50V
C562	BICC472500KA042	C CAPACITOR	4700pF 50V
C564	BICE106160MP115	E CAPACITOR	10uF 16V
C565	BICE106160MP115	E CAPACITOR	10uF 16V
C566	BICC105100ZA043	C CAPACITOR	1uF 10V
C568	BICC105100ZA043	C CAPACITOR	1uF 10V
C569	BICC105100ZA043	C CAPACITOR	1uF 10V
C570	BICC223250KA042	C CAPACITOR.	0.022uF 25V
C571	BICE105500MP115	E CAPACITOR	1uF 50V
C572	BICE105500MP115	E CAPACITOR	1uF 50V
C573	BICC223250KA042	C CAPACITOR.	0.022uF 25V
C581	BICC102500KA042	C CAPACITOR	1000pF 50V
C582	BICC102500KA042	C CAPACITOR	1000pF 50V
C583	BICC102500KA042	C CAPACITOR	1000pF 50V
C584	BICC102500KA042	C CAPACITOR	1000pF 50V
C586	BICC104500KA042	C CAPACITOR	0.1uF 50V
C591	BICC102500KA042	C CAPACITOR	1000pF 50V
C592	BICC102500KA042	C CAPACITOR	1000pF 50V
C593	BICC220500JA041	C CAPACITOR	22pF 50V
C594	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C595	BICC104500ZA043	C CAPACITOR	0.1uF 50V
R353	BIRC9110105A005	C RESISTOR	910Ω 1/10W
R354	BIRC1120105A005	C RESISTOR	1.1KΩ 1/10W
R355	BIRC1320105A005	C RESISTOR	1.3KΩ 1/10W
R356	BIRC1820105A005	C RESISTOR	1.8KΩ 1/10W
R357	BIRC2020105A005	C RESISTOR	2KΩ 1/10W
R358	BIRC3020105A005	C RESISTOR	3KΩ 1/10W
R359	BIRC3920105A005	C RESISTOR	3.9KΩ 1/10W
R360	BIRC6220105A005	C RESISTOR	6.2KΩ 1/10W
R361	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R363	BIRC9110105A005	C RESISTOR	910Ω 1/10W
R364	BIRC1120105A005	C RESISTOR	1.1KΩ 1/10W
R365	BIRC1320105A005	C RESISTOR	1.3KΩ 1/10W
R366	BIRC1820105A005	C RESISTOR	1.8KΩ 1/10W
R368	BIRC2210105A005	C RESISTOR	220Ω 1/10W
R370	BIRC2210105A005	C RESISTOR	220Ω 1/10W
R371	BIRC4710105A005	C RESISTOR	470Ω 1/10W
R372	BIRC1810105A005	C RESISTOR	180Ω 1/10W
R373	BIRC1810105A005	C RESISTOR	180Ω 1/10W
R374	BIRC1510105A005	C RESISTOR	150Ω 1/10W
R375	BIRC1510105A005	C RESISTOR	150Ω 1/10W
R376	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
R377	BIRC4720105A005	C RESISTOR	4.7KΩ 1/10W
R378	BIRC4720105A005	C RESISTOR	4.7KΩ 1/10W
R379	BIRC4720105A005	C RESISTOR	4.7KΩ 1/10W
R380	BIRC4720105A005	C RESISTOR	4.7KΩ 1/10W
R381	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R382	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R383	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R384	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R386	BIRC4730105A005	C RESISTOR	47KΩ 1/10W

Symbol No.	Part No.	Part Name	Description	Local
R391	BIRC2020105A005	C RESISTOR	2K 1/10W
R392	BIRC3020105A005	C RESISTOR	3K 1/10W
R393	BIRC3920105A005	C RESISTOR	3.9K 1/10W
R394	BIRC6220105A005	C RESISTOR	6.2K 1/10W
R551	BIRC2200085M000	C RESISTOR	22 1/8W
R554	BIRC1050105A005	C RESISTOR	1M 1/10W
R555	BIRC1520105A005	C RESISTOR	1.5K 1/10W
R556	BIRC2200105A005	C RESISTOR	22 1/10W
R557	BIRC2200105A005	C RESISTOR	22 1/10W
R558	BIRC1020105A005	C RESISTOR	1K 1/10W
R559	BIRC1020105A005	C RESISTOR	1K 1/10W
R560	BIRC4730105A005	C RESISTOR	47K 1/10W
R561	BIRC4730105A005	C RESISTOR	47K 1/10W
R562	BIRC1020105A005	C RESISTOR	1K 1/10W
R563	BIRC1020105A005	C RESISTOR	1K 1/10W
R570	BIRC1500105A005	C RESISTOR	15 1/10W
R571	BIRC3310105A005	C RESISTOR	330 1/10W
R572	BIRC3310105A005	C RESISTOR	330 1/10W
R573	BIRC1500105A005	C RESISTOR	15 1/10W
R581	BIRC2230105A005	C RESISTOR	22K 1/10W
R582	BIRC2230105A005	C RESISTOR	22K 1/10W
R583	BIRC2720105A005	C RESISTOR	2.7K 1/10W
R584	BIRC2720105A005	C RESISTOR	2.7K 1/10W
R585	BIRC8220105A005	C RESISTOR	8.2K 1/10W
R586	BIRC8220105A005	C RESISTOR	8.2K 1/10W
R591	BIRC8200105A005	C RESISTOR	82 1/10W
R592	BIRC8200105A005	C RESISTOR	82 1/10W
R593	BIRC1010105A005	C RESISTOR	100 1/10W
VR351	BI804691	VOLUME	RE012304PVB25F
L551	BI26BLM21BA0000	COIL	BLM21B272S
L552	BI26BLM21BA0000	COIL	BLM21B272S
L553	BI26BLM21BA0000	COIL	BLM21B272S
L554	BI26BLM21BA0000	COIL	BLM21B272S
L555	BI26BLM21BA0000	COIL	BLM21B272S
L556	BI26BLM21BA0000	COIL	BLM21B272S
L557	BI26BLM21BA0000	COIL	BLM21B272S
L558	BI26BLM21BA0000	COIL	BLM21B272S
L559	BI26BLM21BA0000	COIL	BLM21B272S
L581	BI26BLM21BA0000	COIL	BLM21B272S
L591	BI26010000KM002	COIL	1uH
BN551	BI12P70100V	PLUG CONNECTOR	7PINS P=2.0mm
BN591	BI12P402341	WIRE	4P
CN351	BI12S160034V	SOCKET	16P
JK552	BI23B0292	AUX JACK	HTJ-035-18ABT
JK591	BI23B0292	HP JACK	HTJ-035-18ABT
LCD1	BI2702191V	LCD	TCM-4217
S351	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S352	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S353	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S354	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S355	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S356	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S357	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S358	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S359	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S360	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S361	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S362	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S363	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S364	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S365	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S366	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S367	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S368	BISKRGAED0P015	TACT SWITCH	SKRGAED010
S369	BISKRGAED0P015	TACT SWITCH	SKRGAED010
USB	BI23B1541V	USB TERMINAL	SA0412110
X551	BI2102391	CRYSTAL	12MHz
XXXXX	BI251392G01V	FRONT PCB	FRONT PCB
XXXXX	BI1080840101V1	LCD HOLDER
XXXXX	BI202814010101	HLDR SENSOR

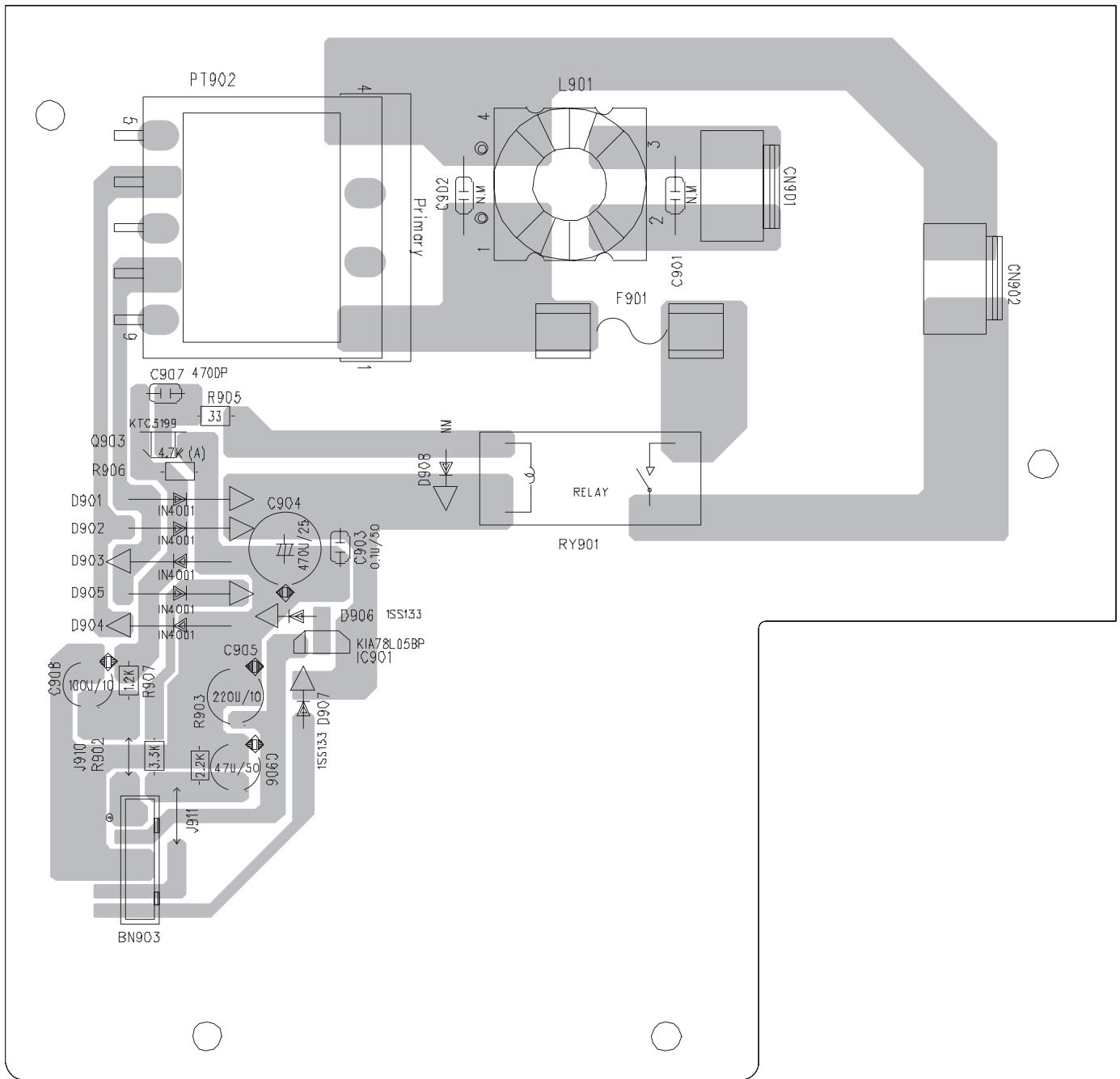

Power trans board
Block No. [0][3]

△ Symbol No.	Part No.	Part Name	Description	Local
IC901	78L05	IC	BI101851
Q903	KTC3199GR	TRANSISTOR	BI2KTC3199GP000
D901	1N4001	DIODE	BI31N4001M0006
D902	1N4001	DIODE	BI31N4001M0006
D903	1N4001	DIODE	BI31N4001M0006
D904	1N4001	DIODE	BI31N4001M0006
D905	1N4001	DIODE	BI31N4001M0006
C903	BICH104500KM019	CAPACITOR	0.1uF 50V
C904	BICE477250MP015	E CAPACITOR	470uF 25V
C905	BICE227100MP015	E CAPACITOR	220uF
C906	BICE476160MP015	E CAPACITOR	47uF 16V
C907	BICH472500KM019	CAPACITOR	4700pF
R902	BIRC3320085M000	C RESISTOR	3.3KΩ 1/8W
R903	BIRC2220085M000	C RESISTOR	2.2KΩ 1/8W
R905	BIRC3300085M000	C RESISTOR	33Ω 1/8W
R906	BIRC4720085M000	C RESISTOR	4.7KΩ 1/8W
R907	BIRC1220085M000	C RESISTOR	1.2KΩ 1/8W
△ L901	BI2601102	LINE FILTER
BN903	BI12P60170V	WIRE	6P
CN901	BI12S200691V	CONNECTOR	2P
CN902	BI12S200691V	CONNECTOR	2P
△ PT902	BI2110410070001	POWER TRANS	2598A
△ RY901	BI8RL00171V	RELAY	KTC3199GR
XXXXX	BI251393G01V	POWER PCB	PT PCB

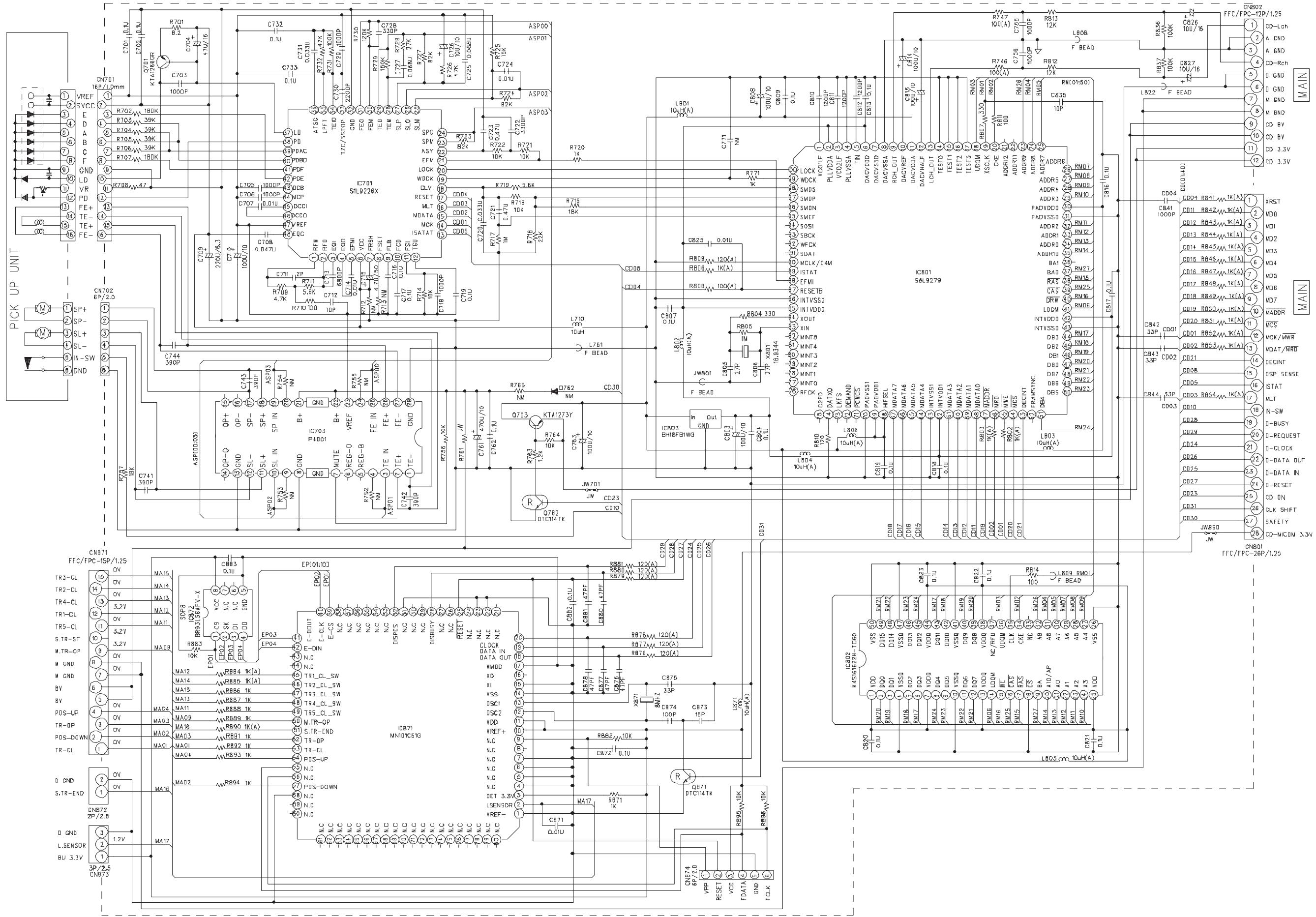

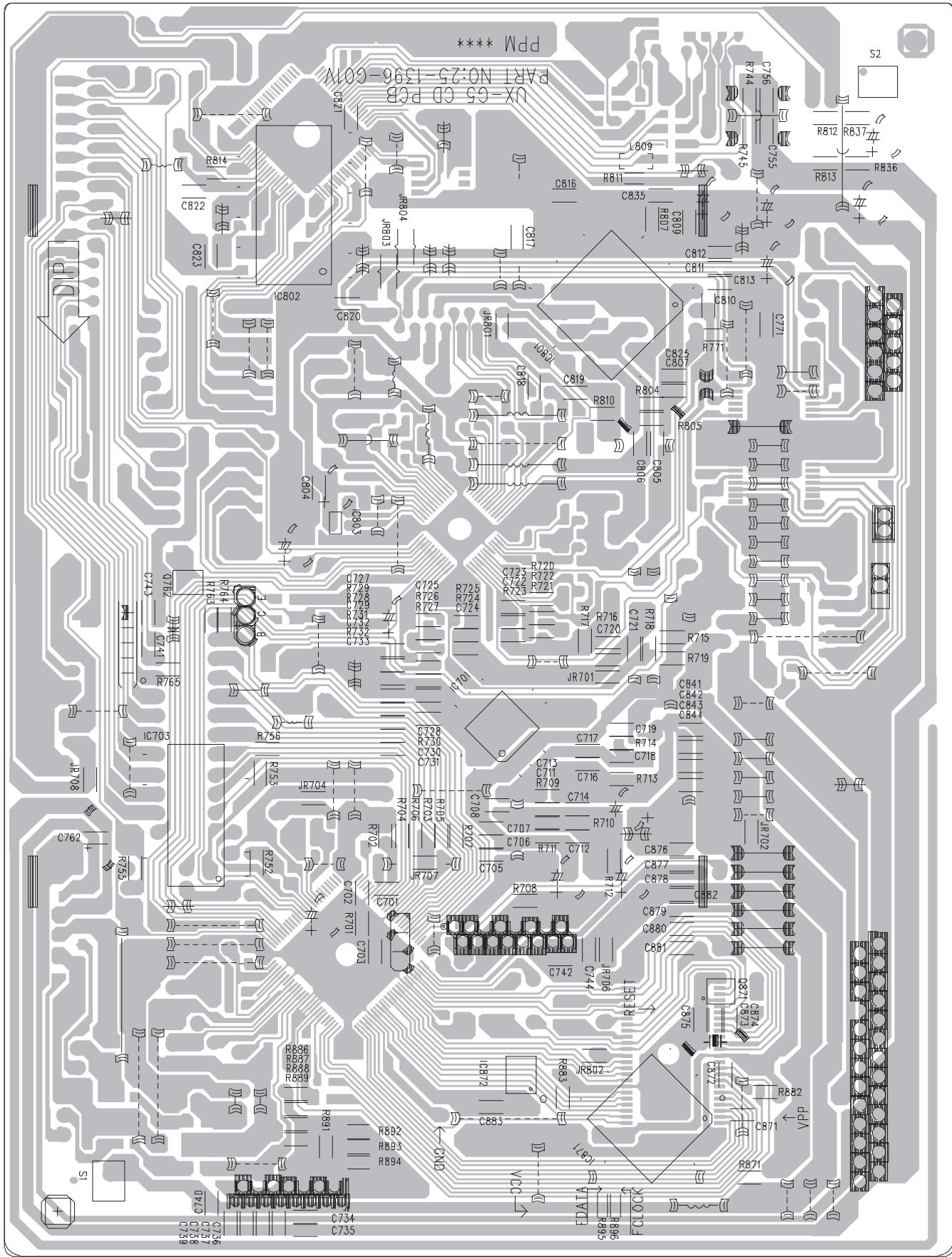

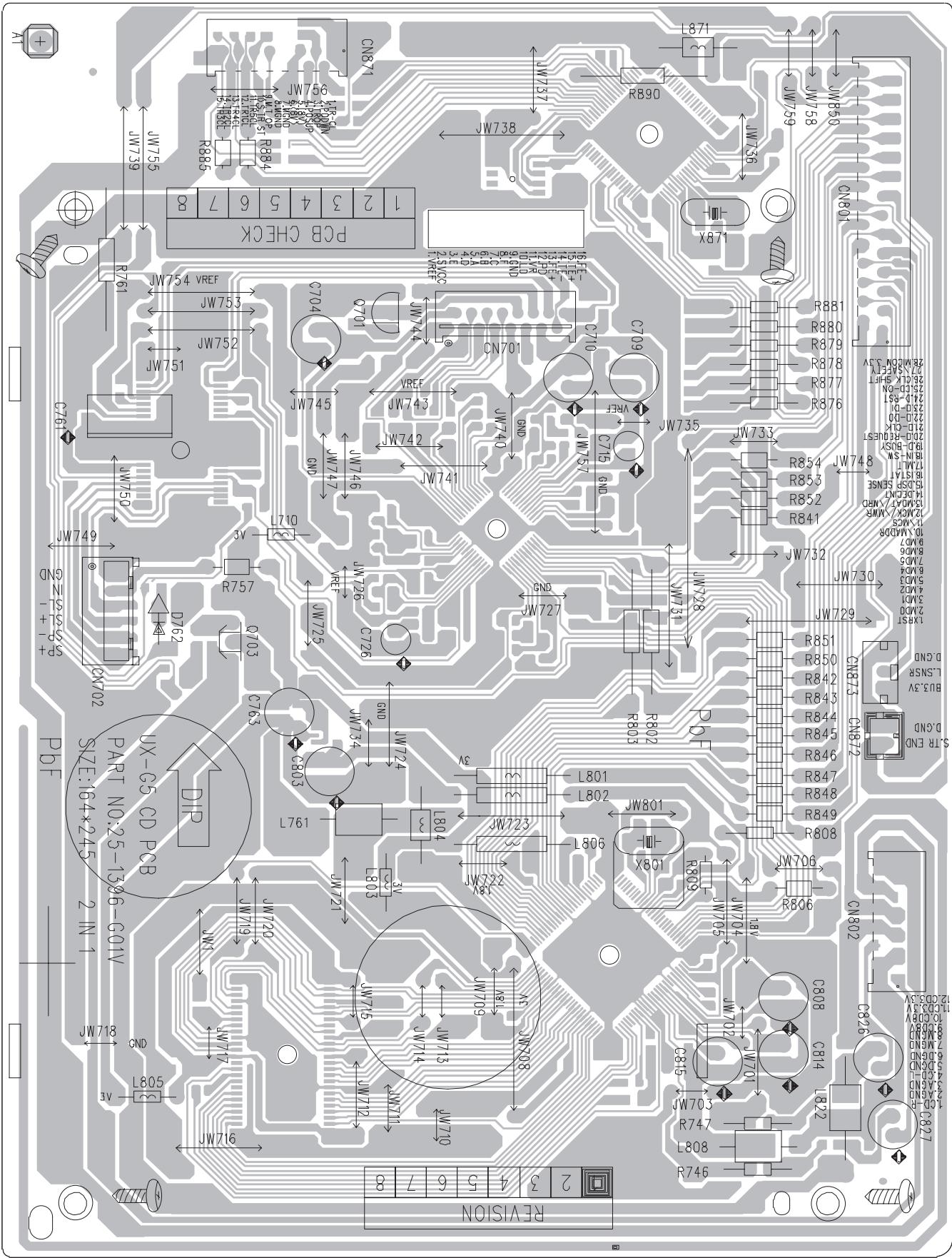

CD board
Block No. [0][4]

Symbol No.	Part No.	Part Name	Description	Local
IC701	S1L9226	IC	BI116431
IC703	IP4001S	IC	BI118471
IC801	S5L9279	IC	BI116401
IC802	K4S161622H-UC60	IC	BI117401V
IC803	BH18FB1WG	IC	BI118171
IC871	MN101C61G	IC	BI118121
IC872	BR93L56RF	IC	BI118251
Q701	KTA1266GR	TRANSISTOR	BI2KTA1266GP000
Q703	KTA1273Y	TRANSISTOR	BI2KTA1273YP000
Q762	DTC114TK	TRANSISTOR	BI2DTC114TKA011
Q871	DTC114TK	TRANSISTOR	BI2DTC114TKA011
D762	1SS133	FR DIODE	BI31SS133M000V7
C701	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C702	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C703	BICC102500JA041	C CAPACITOR	1000pF 50V
C704	BICE476160MP111	E CAPACITOR	47uF 16V
C705	BICC102500JA041	C CAPACITOR	1000pF 50V
C706	BICC102500JA041	C CAPACITOR	1000pF 50V
C707	BICC103250KA042	C CAPACITOR	0.01uF 25V
C708	BICC473250KA042	C CAPACITOR	0.047uF 25V
C709	BICE227063MP111	E CAPACITOR	220uF 6.3V
C710	BICE107100MP111	E CAPACITOR	100uF 10V
C711	BICC040500CA041	C CAPACITOR	4pF 50V
C712	BICC100500DA041	C CAPACITOR	10pF 50V
C713	BICC682500KA042	C CAPACITOR	6800pF 50V
C714	BICC103250KA042	C CAPACITOR	0.01uF 25V
C715	BICE475500MP111	E CAPACITOR	4.7uF 50V
C716	BICC10450KA042	C CAPACITOR	0.1uF 50V
C717	BICC10450KA042	C CAPACITOR	0.1uF 50V

△ Symbol No.	Part No.	Part Name	Description	Local
C718	BICC102500JA041	C CAPACITOR	1000pF 50V
C719	BICC10450KA042	C CAPACITOR	0.1uF 50V
C720	BICC333250KA042	C CAPACITOR	0.033uF 25V
C721	BICC474100KA042	C CAPACITOR	0.47uF 10V
C722	BICC474100KA042	C CAPACITOR	0.47uF 10V
C723	BICC332500KA042	C CAPACITOR	3300pF 50V
C724	BICC103250KA042	C CAPACITOR	0.01uF 25V
C725	BICC683160KA042	C CAPACITOR	0.068uF 16V
C726	BICE106100MP111	E CAPACITOR	10uF 10V
C727	BICC823160KA042	C CAPACITOR	0.082uF 16V
C728	BICC331500JA041	C CAPACITOR	330pF 50V
C729	BICC102500JA041	C CAPACITOR	1000pF 50V
C730	BICC222500KA042	C CAPACITOR	2200pF 50V
C731	BICC333250KA042	C CAPACITOR	0.033uF 25V
C732	BICC10450KA042	C CAPACITOR	0.1uF 50V
C733	BICC10450KA042	C CAPACITOR	0.1uF 50V
C734	BICC101500JA041	C CAPACITOR	100pF 50V
C735	BICC101500JA041	C CAPACITOR	100pF 50V
C736	BICC101500JA041	C CAPACITOR	100pF 50V
C737	BICC101500JA041	C CAPACITOR	100pF 50V
C738	BICC101500JA041	C CAPACITOR	100pF 50V
C739	BICC101500JA041	C CAPACITOR	100pF 50V
C740	BICC101500JA041	C CAPACITOR	100pF 50V
C741	BICC391500JA041	C CAPACITOR	390pF 50V
C742	BICC391500JA041	C CAPACITOR	390pF 50V
C743	BICC391500JA041	C CAPACITOR	390pF 50V
C744	BICC391500JA041	C CAPACITOR	390pF 50V
C755	BICC102500JA041	C CAPACITOR	1000pF 50V
C756	BICC102500JA041	C CAPACITOR	1000pF 50V
C761	BICE477100MP015	E CAPACITOR	470uF 10V
C762	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C763	BICE107100MP111	E CAPACITOR	100uF 10V
C803	BICE107100MP111	E CAPACITOR	100uF 10V
C804	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C805	BICC270500JA041	C CAPACITOR	27pF 50V
C806	BICC270500JA041	C CAPACITOR	27pF 50V
C807	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C808	BICE107100MP111	E CAPACITOR	100uF 10V
C809	BICC10450KA042	C CAPACITOR	0.1uF 50V
C810	BICC122500KA042	C CAPACITOR	1200pF 50V
C811	BICC122500KA042	C CAPACITOR	1200pF 50V
C812	BICC122500KA042	C CAPACITOR	1200pF 50V
C813	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C814	BICE107100MP111	E CAPACITOR	100uF 10V
C815	BICE107100MP111	E CAPACITOR	100uF 10V
C816	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C817	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C818	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C819	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C820	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C821	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C822	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C823	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C825	BICC103250KA042	C CAPACITOR	0.01uF 25V
C826	BICE106100MP111	E CAPACITOR	10uF 10V
C827	BICE106100MP111	E CAPACITOR	10uF 10V
C835	BICC100500DA041	C CAPACITOR	10pF 50V
C841	BICC102500KA042	C CAPACITOR	1000pF 50V
C842	BICC330500JA041	C CAPACITOR	33pF 50V
C843	BICC330500JA041	C CAPACITOR	33pF 50V
C844	BICC330500JA041	C CAPACITOR	33pF 50V
C871	BICC103250KA042	C CAPACITOR	0.01uF 25V
C872	BICC104500ZA043	C CAPACITOR	0.1uF 50V
C873	BICC150500JA041	C CAPACITOR	15pF 50V
C874	BICC101500JA041	C CAPACITOR	100pF 50V
C875	BICC330500JA041	C CAPACITOR	33pF 50V
C876	BICC470500JA041	C CAPACITOR	47pF 50V
C877	BICC470500JA041	C CAPACITOR	47pF 50V
C878	BICC470500JA041	C CAPACITOR	47pF 50V
C880	BICC470500JA041	C CAPACITOR	47pF 50V
C881	BICC470500JA041	C CAPACITOR	47pF 50V
C882	BICC10450KA042	C CAPACITOR	0.1uF 50V
C883	BICC104500ZA043	C CAPACITOR	0.1uF 50V
R701	BIRC0820105A005	C RESISTOR	8.2Ω 1/10W
R702	BIRC1840105A005	C RESISTOR	180KΩ 1/10W
R703	BIRC3930105A005	C RESISTOR	39KΩ 1/10W
R704	BIRC3930105A005	C RESISTOR	39KΩ 1/10W
Symbol No.	Part No.	Part Name	Description	Local
R705	BIRC3930105A005	C RESISTOR	39KΩ 1/10W
R706	BIRC3930105A005	C RESISTOR	39KΩ 1/10W
R707	BIRC1840105A005	C RESISTOR	180KΩ 1/10W
R708	BIRC4700105A005	C RESISTOR	47Ω 1/10W
R709	BIRC4720105A005	C RESISTOR	4.7KΩ 1/10W
R710	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R711	BIRC5620105A005	C RESISTOR	5.6KΩ 1/10W
R714	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R715	BIRC1830105A005	C RESISTOR	18KΩ 1/10W
R716	BIRC2230105A005	C RESISTOR	22KΩ 1/10W
R717	BIRC1050105A005	C RESISTOR	1MΩ 1/10W
R718	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R719	BIRC5620105A005	C RESISTOR	5.6KΩ 1/10W
R720	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R721	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R722	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R723	BIRC8230105A005	C RESISTOR	82KΩ 1/10W
R724	BIRC8230105A005	C RESISTOR	82KΩ 1/10W
R725	BIRC1530105A005	C RESISTOR	15KΩ 1/10W
R726	BIRC4730105A005	C RESISTOR	47KΩ 1/10W
R727	BIRC1240105A005	C RESISTOR	120KΩ 1/10W
R728	BIRC2730105A005	C RESISTOR	27KΩ 1/10W
R729	BIRC1540105A005	C RESISTOR	150KΩ 1/10W
R730	BIRC1240105A005	C RESISTOR	120KΩ 1/10W
R731	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
R732	BIRC4730105A005	C RESISTOR	47KΩ 1/10W
R746	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R747	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R756	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R757	BIRC1830085M000	C RESISTOR	18KΩ 1/8W
R763	BIRC1220105A005	C RESISTOR	1.2KΩ 1/10W
R764	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R765	BIRC4710105A005	C RESISTOR	470Ω 1/10W
R771	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R802	BIRC1020085N000	C RESISTOR	1KΩ 1/8W
R803	BIRC1020085N000	C RESISTOR	1KΩ 1/8W
R804	BIRC3310105A005	C RESISTOR	330Ω 1/10W
R805	BIRC1050105A005	C RESISTOR	1MΩ 1/10W
R806	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R807	BIRC3310105A005	C RESISTOR	330Ω 1/10W
R808	BIRC1010085M000	C RESISTOR	100Ω 1/8W
R809	BIRC1210085M000	C RESISTOR	120Ω 1/8W
R810	BIRC1210105A005	C RESISTOR	120Ω 1/10W
R811	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R812	BIRC1230105A005	C RESISTOR	12KΩ 1/10W
R813	BIRC1230105A005	C RESISTOR	12KΩ 1/10W
R814	BIRC1010105A005	C RESISTOR	100Ω 1/10W
R836	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
R837	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
R841	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R842	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R843	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R844	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R845	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R846	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R847	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R848	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R849	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R850	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R851	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R852	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R853	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R854	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R871	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R876	BIRC1210085M000	C RESISTOR	120Ω 1/8W
R877	BIRC1210085M000	C RESISTOR	120Ω 1/8W
R878	BIRC1210085M000	C RESISTOR	120Ω 1/8W
R879	BIRC1210085M000	C RESISTOR	120Ω 1/8W
R880	BIRC1210085M000	C RESISTOR	120Ω 1/8W
R881	BIRC1210085M000	C RESISTOR	120Ω 1/8W
R882	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R883	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
R884	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R885	BIRC1020085M000	C RESISTOR	1KΩ 1/8W
R886	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R887	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R888	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
R889	BIRC1020105A005	C RESISTOR	1KΩ 1/10W

Symbol No.	Part No.	Part Name	Description	Local
R890	BIRC1020085N000	C RESISTOR	1K 1/8W
R891	BIRC1020105A005	C RESISTOR	1K 1/10W
R892	BIRC1020105A005	C RESISTOR	1K 1/10W
R893	BIRC1020105A005	C RESISTOR	1K 1/10W
R894	BIRC1020105A005	C RESISTOR	1K 1/10W
R895	BIRC1030105A005	C RESISTOR	10K 1/10W
R896	BIRC1030105A005	C RESISTOR	10K 1/10W
L710	BI26100000KM002	COIL	10uH
L761	BI18A843556N000	FILTER BEAD	843556
L801	BI26100000KN000	COIL	10uH
L802	BI26100000KN000	COIL	10uH
L803	BI26100000KM002	COIL	10uH
L804	BI26100000KM002	COIL	10uH
L805	BI26100000KM002	COIL	10uH
L806	BI26100000KN000	COIL	10uH
L808	BI18A843556N000	FILTER BEAD	843556
L809	BI18A916121A005	FERITTE BEAD	120ohm
L822	BI18A843556N000	FILTER BEAD	843556
L871	BI26100000KM002	COIL	10uH
CN701	BI12S160043V	SOCKET	16PIN H
CN702	BI12P60170V	WIRE	6P P=2.0mm
CN801	BI12S280005U	SOCKET	28P
CN802	BI12S120038	SOCKET	12P
CN871	BI12S150027V	SOCKET	15PIN H
CN872	BI12S200161	SOCKET CONNECTOR	2 P
CN873	BI12S30039	SOCKET	3P
JR701	BIRC0000105A005	C RESISTOR	0 1/10W
JR702	BIRC0000105A005	C RESISTOR	0 1/10W
JR704	BIRC0000105A005	C RESISTOR	0 1/10W
JR706	BIRC0000105A005	C RESISTOR	0 1/10W
JR707	BIRC0000105A005	C RESISTOR	0 1/10W
JR708	BIRC0000105A005	C RESISTOR	0 1/10W
JR801	BIRC0000105A005	C RESISTOR	0 1/10W
JR802	BIRC0000105A005	C RESISTOR	0 1/10W
JR803	BIRC0000085A003	C RESISTOR	0 1/10W
JR804	BIRC0000085A003	C RESISTOR	0 1/10W
JW801	BI18A843556N000	FILTER BEAD	843556
X801	BI2100796	CRYSTAL	16.9344MHZ
X871	BI29ZTA800P015U	CRYSTAL	8MHz
XXXXX	BI251396G01V	PCB	CD PCB
XXXXX	BI301635010101	CUSH

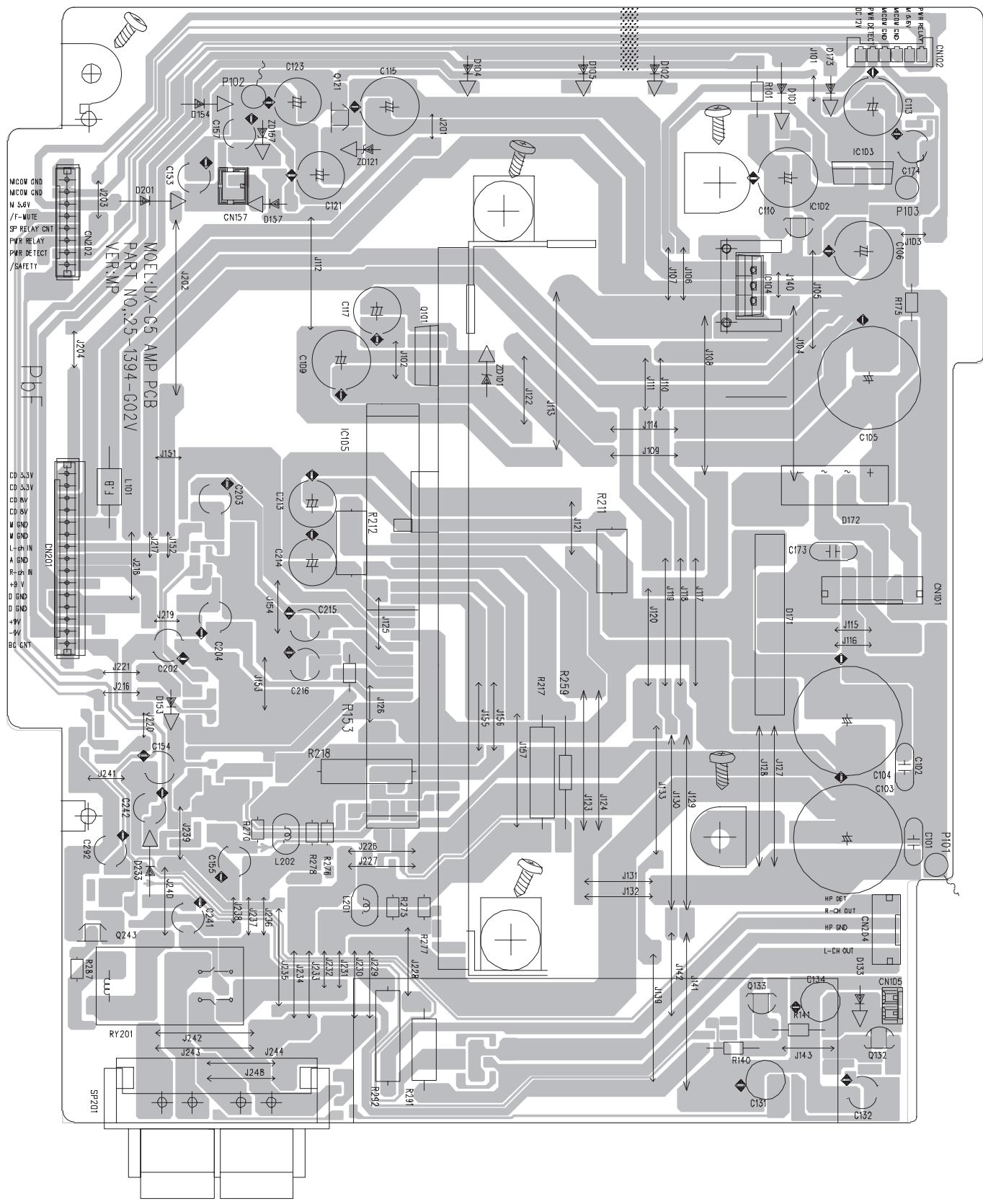

Amp. board
Block No. [0][5]

Symbol No.	Part No.	Part Name	Description	Local
IC102	NJM79L09	IC	BI118381
IC103	KIA7809AP	IC	BI111971
IC104	KIA7808AP	IC	BI110891
IC105	STK403-090	IC	BI118401
Q101	KTB1366Y	TRANSISTOR	BI2KTB1366Y8V
Q102	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q121	KTC3198GR	TRANSISTOR	BI2KTC3198GP000
Q131	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q132	KTA1273Y	TRANSISTOR	BI2KTA1273YP000
Q133	KTA1273Y	TRANSISTOR	BI2KTA1273YP000
Q134	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q151	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q153	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q154	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q155	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q157	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q171	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q172	2SC3052	TRANSISTOR	BI2SC3052FA013V
Q201	DTC323TK	TRANSISTOR	BI2DTC323TKA011
Q202	DTC323TK	TRANSISTOR	BI2DTC323TKA011
Q203	DTC114TK	TRANSISTOR	BI2DTC114TKA011

△ Symbol No.	Part No.	Part Name	Description	Local	△ Symbol No.	Part No.	Part Name	Description	Local
Q204	DTA114YK	TRANSISTOR	BI2DTA114YKA011		C202	BICE476250MP015	E CAPACITOR	47uF 25V
Q241	2SA1235F	TRANSISTOR	BI2SA1235FA012V		C203	BICE105500MP015	E CAPACITOR	1uF 50V
Q242	2SA1235F	TRANSISTOR	BI2SA1235FA012V		C204	BICE105500MP015	E CAPACITOR	1uF 50V
Q243	KTC3199GR	TRANSISTOR	BI2KTC3199GP00		C205	BICC471500KA042	C CAPACITOR	470pF 50V
			0		C206	BICC471500KA042	C CAPACITOR	470pF 50V
Q244	DTC114YK	TRANSISTOR	BI2DTC114YKA011		C207	BICC221500JA041	C CAPACITOR	220pF 50V
Q291	DTC323TK	TRANSISTOR	BI2DTC323TKA01		C208	BICC221500JA041	C CAPACITOR	220pF 50V
			1		C213	BICE107500MP015	E CAPACITOR	100uF 50V
Q292	DTC323TK	TRANSISTOR	BI2DTC323TKA01		C214	BICE107500MP015	E CAPACITOR	100uF 50V
			1		C215	BICE476500MP015	CAPACITOR	47uF 50V
Q293	DTC114TK	TRANSISTOR	BI2DTC114TKA011		C216	BICE476500MP015	CAPACITOR	47uF 50V
Q294	DTA114YK	TRANSISTOR	BI2DTA114YKA011		C237	BICC104500KA042	C CAPACITOR	0.1uF 50V
					C238	BICC104500KA042	C CAPACITOR	0.1uF 50V
D101	1SS133	FR DIODE	BI31SS133M000V		C239	BICC104500KA042	C CAPACITOR	0.1uF 50V
			7		C240	BICC104500KA042	C CAPACITOR	0.1uF 50V
D102	1SS133	FR DIODE	BI31SS133M000V		C241	BICE106500MP015	E CAPACITOR	10uF 50V
			7		C242	BICE105500MP015	E CAPACITOR	1uF 50V
D104	1SS133	FR DIODE	BI31SS133M000V		C243	BICC153500KA042	C CAPACITOR	0.015uF 50V
			7		C244	BICC153500KA042	C CAPACITOR	0.015uF 50V
D105	1SS133	FR DIODE	BI31SS133M000V
			7
D131	MC2838	C DIODE	BI3MC2838A002V		R101	BIRF0220045N000	F RESISTOR	2.2Ω 1/4W
			H		R104	BIRC6820105A005	C RESISTOR	6.8KΩ 1/10W
D133	1SS133	FR DIODE	BI31SS133M000V		R105	BIRC3320105A005	C RESISTOR	3.3KΩ 1/10W
			7		R107	BIRC2210105A005	C RESISTOR	220Ω 1/10W
D153	1SS133	FR DIODE	BI31SS133M000V		R108	BIRC2210105A005	C RESISTOR	220Ω 1/10W
			7		R109	BIRC2210105A005	C RESISTOR	220Ω 1/10W
D154	1SS133	FR DIODE	BI31SS133M000V		R110	BIRC2210105A005	C RESISTOR	220Ω 1/10W
			7		R111	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
D157	1SS133	FR DIODE	BI31SS133M000V		R121	BIRC2210105A005	C RESISTOR	220Ω 1/10W
			7		R131	BIRC4730105A005	C RESISTOR	47KΩ 1/10W
D171	RS603M	DIODE	BI3RS603M1		R132	BIRC4730105A005	C RESISTOR	47KΩ 1/10W
D172	RS202	DIODE	BI3RS2021		R134	BIRC2240105A005	C RESISTOR	220KΩ 1/10W
D173	1SS133	FR DIODE	BI31SS133M000V		R135	BIRC4730105A005	C RESISTOR	47KΩ 1/10W
			7		R136	BIRC5600105A005	C RESISTOR	56Ω 1/10W
D201	1SS133	FR DIODE	BI31SS133M000V		R137	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
			7		R139	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
D231	1SS355	DIODE	BI31SS355A0077		R140	BIRC5600045M000	C RESISTOR	56Ω 1/4W
D232	1SS355	DIODE	BI31SS355A0077		R141	BIRC1510045M000	C RESISTOR	150Ω 1/4W
D233	1SS133	FR DIODE	BI31SS133M000V		R142	BIRC5620105A005	C RESISTOR	5.6KΩ 1/10W
			7		R143	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
D234	1SS355	DIODE	BI31SS355A0077		R144	BIRC5620105A005	C RESISTOR	5.6KΩ 1/10W
D235	1SS355	DIODE	BI31SS355A0077		R151	BIRC1830105A005	C RESISTOR	18KΩ 1/10W
D236	1SS355	DIODE	BI31SS355A0077		R152	BIRC6840105A005	C RESISTOR	680KΩ 1/10W
C101	BICM103101KP015	M CAPACITOR	0.01uF 100V		R153	BIRC1030085M000	C RESISTOR	10KΩ 1/8W
C102	BICM103101KP015	M CAPACITOR	0.01uF 100V		R155	BIRC4700105A005	C RESISTOR	47Ω 1/10W
C103	BICE33856M1	E CAPACITOR	3300uF 56V		R156	BIRC1040105A005	C RESISTOR	100KΩ 1/10W
C104	BICE33856M1	E CAPACITOR	3300uF 56V		R157	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
C105	BICE47825M61	E CAPACITOR	4700uF 25V		R158	BIRC3910105A005	C RESISTOR	390Ω 1/10W
C106	BICE108250MP015	E CAPACITOR	1000uF 25V		R174	BIRC2230105A005	C RESISTOR	22KΩ 1/10W
C107	BICC103500KA042	C CAPACITOR	0.01uF 50V		R175	BIRC2230085M000	C RESISTOR	22KΩ 1/8W
C108	BICC103500KA042	C CAPACITOR	0.01uF 50V		R176	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
C109	BICE108160MP015	E CAPACITOR	1000uF 16V		R201	BIRC3920105A005	C RESISTOR	3.9KΩ 1/10W
C110	BICE477250MP015	E CAPACITOR	470uF25V		R203	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
C113	BICE108160MP015	E CAPACITOR	1000uF 16V		R204	BIRC1030105A005	C RESISTOR	10KΩ 1/10W
C114	BICC104500ZA043	C CAPACITOR	0.1uF 50V		R205	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
C115	BICE108160MP015	E CAPACITOR	1000uF 16V		R206	BIRC2220105A005	C RESISTOR	2.2KΩ 1/10W
C116	BICC104500ZA043	C CAPACITOR	0.1uF 50V		R207	BIRC2730105A005	C RESISTOR	27KΩ 1/10W
C117	BICE107160MP015	E CAPACITOR	100uF 16V		R208	BIRC2730105A005	C RESISTOR	27KΩ 1/10W
C118	BICC104500ZA043	C CAPACITOR	0.1uF 50V		R209	BIRC2020105A005	C RESISTOR	2KΩ 1/10W
C121	BICE227100MP015	E CAPACITOR	220uF 10V		R210	BIRC2020105A005	C RESISTOR	2KΩ 1/10W
C122	BICC104500ZA043	C CAPACITOR	0.1uF 50V		R211	BIRF1010025N000	F RESISTOR	100Ω 1/2W
C123	BICE227100MP015	E CAPACITOR	220uF 10V		R212	BIRF1010025N000	F RESISTOR	100Ω 1/2W
C124	BICC104500ZA043	C CAPACITOR	0.1uF 50V		R215	BIRC5630105A005	C RESISTOR	56KΩ 1/10W
C131	BICE105500MP111	E CAPACITOR	1uF 50V		R216	BIRC5630105A005	C RESISTOR	56KΩ 1/10W
C132	BICE106500MP115	E CAPACITOR	1uF 50V		R217	BIRM0022N25N000	C RESISTOR	0.22Ω 2W
C134	BICE227160MP111	E CAPACITOR	220uF 16V		R218	BIRM0022N25N000	C RESISTOR	0.22Ω 2W
C151	BICC222500KA042	C CAPACITOR	220oPf 50V		R259	BIRC1020085N000	C RESISTOR	1KΩ 1/8W
C153	BICE105500MP015	E CAPACITOR	1uF 50V		R260	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
C154	BICE226160MP015	E CAPACITOR	22uF 16V		R261	BIRC1530105A005	C RESISTOR	15KΩ 1/10W
C155	BICE475500MP015	E CAPACITOR	4.7uF 50V		R262	BIRC1530105A005	C RESISTOR	15KΩ 1/10W
C157	BICE107160MP015	E CAPACITOR	100uF 16V		R263	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
C171	BICC103500KA042	C CAPACITOR	0.01uF 50V		R264	BIRC1020105A005	C RESISTOR	1KΩ 1/10W
C172	BICC103500KA042	C CAPACITOR	0.01uF 50V		R269	BIRC1540105A005	C RESISTOR	150KΩ 1/10W
C173	BICM223101KP015	M CAPACITOR	0.022uF 100V		R270	BIRC1540085M000	C RESISTOR	150KΩ 1/8W
C174	BICE106500MP015	E CAPACITOR	10uF 50V		R275	BIRC220085M000	C RESISTOR	22Ω 1/8W
C175	BICC103500KA042	C CAPACITOR	0.01uF 50V		R276	BIRC220085M000	C RESISTOR	22Ω 1/8W
C176	BICC103500KA042	C CAPACITOR	0.01uF 50V		R277	BIRC220085M000	C RESISTOR	22Ω 1/8W
C177	BICC223500KA042	C CAPACITOR	0.022uF 50V		R278	BIRC220085M000	C RESISTOR	22Ω 1/8W

Symbol No.	Part No.	Part Name	Description	Local
R279	BIRC2200085A002	C RESISTOR	22 1/8W
R280	BIRC2200085A002	C RESISTOR	22 1/8W
R281	BIRC2200085A002	C RESISTOR	22 1/8W
R282	BIRC2200085A002	C RESISTOR	22 1/8W
R283	BIRC1030105A005	C RESISTOR	10K 1/10W
R284	BIRC1030105A005	C RESISTOR	10K 1/10W
R285	BIRC4710105A005	C RESISTOR	470 1/10W
R286	BIRC4740105A005	C RESISTOR	470K 1/10W
R287	BIRC1000085M000	C RESISTOR	10 1/8W
R289	BIRC2220105A005	C RESISTOR	2.2K 1/10W
R290	BIRC1030105A005	C RESISTOR	10K 1/10W
R291	BIRC6810025N000	C RESISTOR	680 1/2W
R292	BIRC6810025N000	C RESISTOR	680 1/2W
R293	BIRC2710105A005	C RESISTOR	270 1/10W
R294	BIRC2710105A005	C RESISTOR	270 1/10W
R295	BIRC2220105A005	C RESISTOR	2.2K 1/10W
R296	BIRC2220105A005	C RESISTOR	2.2K 1/10W
R297	BIRC3920105A005	C RESISTOR	3.9K 1/10W
L101	BI18A843556N000	FILTER BEAD	843556
L201	BI2600702V	CHOCK COIL	1.0uH
L202	BI2600702V	CHOCK COIL	1.0uH
CN101	BI12S60119V	SOCKET	6P
CN102	BI12S600961	CONNECTOR	6P
CN105	BI12S20057V	SOCKET	2P
CN157	BI12S200161V	SOCKET	2P
CN201	BI12S150028V	SOCKET	15P
CN202	BI12S80058V	SOCKET	8 P
CN204	BI12S40047V	SOCKET	4P
JR101	BIRC0000085A003	C RESISTOR	0 1/8W
JR102	BIRC0000085A003	C RESISTOR	0 1/8W
JR103	BIRC0000085A003	C RESISTOR	0 1/8W
JR104	BIRC0000085A003	C RESISTOR	0 1/8W
JR105	BIRC0000085A003	C RESISTOR	0 1/8W
JR106	BIRC0000085A003	C RESISTOR	0 1/8W
JR107	BIRC0000085A003	C RESISTOR	0 1/8W
P103	BI11A050M0Y	BLACK WIRE
RY201	BI8RL00191V	RELAY	DC 12V
SP201	BI23F0741V	TERMINAL SP	4P
XXXXX	BI251394G01V	AMP PCB	AMP PCB
XXXXX	BI202903010101	HEAT SINK
XXXXX	BIRT000617B3	SCREW	3 × L10mm(x3)
XXXXX	BI202672010101	HEAT SINK	IC104
XXXXX	BIBT0006091	SCREW	(x2)
XXXXX	BIBT000604S3	SCREW
XXXXX	BI12P20205V	CONNECTOR ASSY	2P P=2.0mm
XXXXX	BIRT103THMSP015	SCREW	10K
XXXXX	BIRT000611B3	SCREW	(x2)
ZD101	UZ12BSC	Z DIODE	BI3UZ12BSCM000 V
ZD121	MTZ J 3.3B	Z DIODE	BI3MTZJ33BM000 V
ZD157	UZ5.6BSB	Z DIODE	BI3UZ56BSBM000 V

Wiring
Block No. [0][6]

△ Symbol No.	Part No.	Part Name	Description	Local
XXXXX	BI1206561V	FFC CABLE	16P 1.0 L=95mm
XXXXX	BI1206821V	FFC CABLE	12P 1.25 L=50mm
XXXXX	BI1206831V	FFC CABLE	16P 1.25 L=200mm
XXXXX	BI1206841V	FFC CABLE	28P 1.25 L=180mm
XXXXX	BI1206851V	FFC CABLE	12P 1.25 L=160mm

Packing materials and accessories parts list

Block No. M 3 M M

No additional / supplemental order of WARRANTY CARDs are available.

P2 A1 A2 E,EN,EV version P8 A7 P9 P10 P7 P3 A4 A5 A6 P4 A8 P1

Packing and Accessories
Block No. [M][3][M][M]

△ Symbol No.		Part No.	Part Name	Description	Local
	A 1	BI440001532000	INST BOOK	ENG LVT1358-001A	B
	A 1	BI440001531000	INST BOOK	GER FRE DUT LVT1358-002A	E
	A 1	BI440001540000	INST BOOK	SWE FIN DAN GER FRE SPA ITA LVT1358-003A EN
	A 1	BI440001544000	INST BOOK	POL HUN CZE LVT1358-004A	EV
	A 2	----	WARRANTY CARD	BT-54026-1
	A 3	BI400083291001	REGISTRATION CARD		B
	A 4	----	BATTERY	(x2)
	A 5	BIAN01281V	AM LOOP ANT
	A 6	BIAN01022V	ANT WIRE FM
	A 7	BI643UXS59020	REMOTE CONTROL
	A 8	BI644UXS59202S	SPEAKER SYSTEM	(x2)
	P 1	BI430001843000	CARTON
	P 2	BI470011031001W	POLY BAG	I/B
	P 3	BI470011057001W	POLY BAG	ANT LOOP
	P 4	BI450012012000	TOP CUSHION	Speaker Box
	P 5	BI450012013000	BOTTOM CUSHION	Speaker Box
	P 6	BI450012031000W	FRONT CUSHION	UNIT
	P 7	BI450012030000W	REAR CUSHION	UNIT
	P 8	BI4005355	POLY BAG	for Remote control
	P 9	BI450032001000W	PROTECT SHEET	UNIT
	P 10	BI470011067001W	POLY BAG	For AC Cord

JVC

SCHEMATIC DIAGRAMS

MICRO COMPONENT SYSTEM

UX-S59

CD-ROM No.SML200507

Area suffix

B U.K.

E ---- Continental Europe

EN ---- Northern Europe

EV ---- Eastern Europe

Line drawing of a JVC audio amplifier with three speakers and control panel (no text or symbols)

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

Contents

Block diagram 2-1

Standard schematic diagrams 2-2

Printed circuit boards 2-6 to 11

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the parts that are printed over with black such as the resistor (—), diode (■) and ICP (●) or identified by the "△" mark nearby are critical for safety.

Block diagram
        direction TB
        A["TRA MECHA ASSY"] --> B["DRAM BR93L56RF"]
        B --> C["CD CONTROL MICON MN10IC61G"]
        C --> D["FWD,REV"]
        D --> E["DRIVER IP4001S"]
        E --> F["TRACKING COIL"]
        E --> G["FOCUS COIL"]
        E --> H["SPINDLE MOTOR"]
        E --> I["FEED MOTOR"]
        J["TRAY MOTOR"] --> K["TRI PFP TRVP SPOUT"]
        L["PICKUP ASSY"] --> M["E F"]
        M --> N["RF & SERVO AMP SIL9226"]
        N --> O["DIGITAL SERVO & SIGNAL PROCESSOR S5L9279"]
        O --> P["DIGITAL OUTPUT"]
        O --> Q["ANALOG OUTPUT"]
        R["LADJER ASSY"] --> S["DDR"]
    end

    subgraph Outputs
        T["LDL DISPLAY KEY CONTROL"] --> U["ST LED 9V TUNER-L END TUNER-R CEI DATA IN CLM DATA OUT D=0ND RDS CLK RDS DATA"]
        V["TUNER MODULE FM/AM"] --> W["AUX IN 47K IMPEDANCE"]
        X["FAN"] --> Y["VOLTAGE SUPPLY"]
        Z["STK403-090 70W x 2 AMP +/-31V 5V REGULATOR"] --> AA["PLL"]
        AB["MAIN PT"] --> AC["KEY CONTROL"]
        AD["BACKUP PT"] --> AE["SUB-TRANS <=1.5W"]
        AF["~ AC IN"] --> AG["VOLTAGE SUPPLY"]
        AH["~ AC IN"] --> AI["PRIMARY USE"]
    end

    J --> AD
    K --> AD
    L --> AD
    M --> AD
    N --> AD
    O --> AD
    P --> AD
    Q --> AD
    R --> AD
    S --> AD
    T --> AD
    U --> AD
    V --> AD
    W --> AD
    X --> AD
    Y --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD
    AA --> AD

Standard schematic diagrams

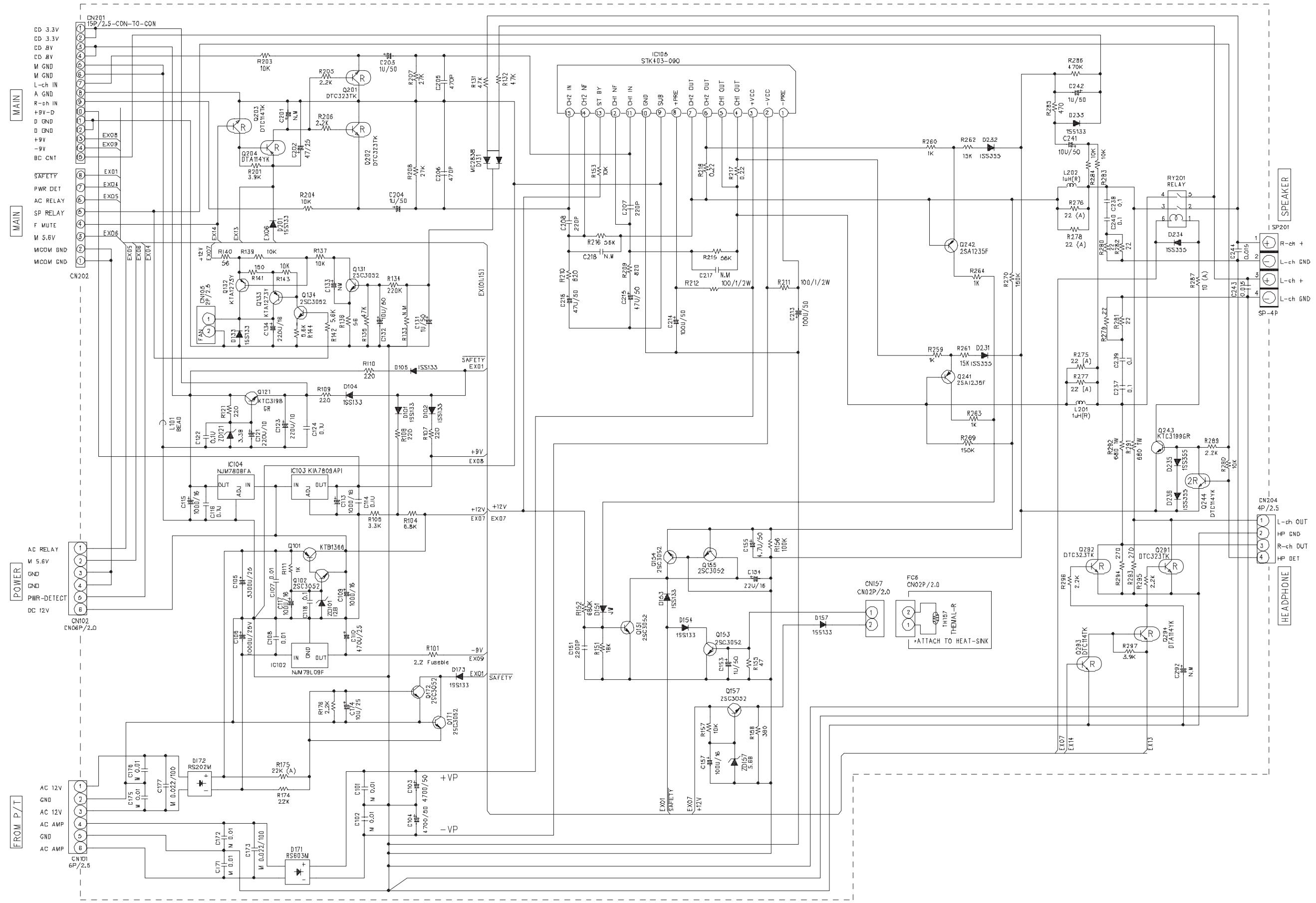

■ Amp. section

CN01 CD 3.3V CD 3.3V CD BV CD BV M GND M GND L-ch IN A GND R-ch IN +9V-D G GND +9V -9V BC CNT SAFETY PWR DET AC RELAY SP RELAY F MUTE M S.BV MODM BND MODM CND CN202 +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12 N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12N +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12 S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12S +12N + - C77 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.07 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.09 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.14 0.37 N. ICD7_78B8FA. ICD7_78B8FA. ICD7_78B8FA. ICD7_78B8FA. ICD7_78B8FA. ICD7_78B8FA. ICD7_78B8FA. ICD7_78B8FA. ICD7_78B8FA. ICD7_78B8FA. ICD7_78B8FVA. ICD7_78B8FVA. ICD7_78B8FVA. ICD7_78B8FVA. ICD7_78B8FVA. ICD7_78B8FVA. ICD7_78B8FVA. ICD7_78B8FVA. ICD7_78B8FVA. ICD7_78B8FVA . ICD7_78B8FVA . ICD7_78B8FVA . ICD7_78B8FVA . ICD7_78B8FVA . ICD7_78B8FVA . ICD7_78B8FVA . ICD7_78B8FVA . ICD7_78B8FVA . ICD7_78B8FVA . IOUTO3KIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHIL KIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILK IRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIR WQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRW QTRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRR WQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRR QTRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRWQIPJINHILKIRW QTRWQIPJINHILKIRR QTRWQIPJINHILKIRR QTRWQIPJINHILKIRR QTRWQIPJINHILKIRR QTRWQIPJINHILKIRR QTRWQIPJINHILKIRR QTRWQIPJINHILKIRR QTRWQIPJINHILKIRR QTRWQIPJINHILKIRR QTRW QTRWQIFITAT TO HEAT-SNK

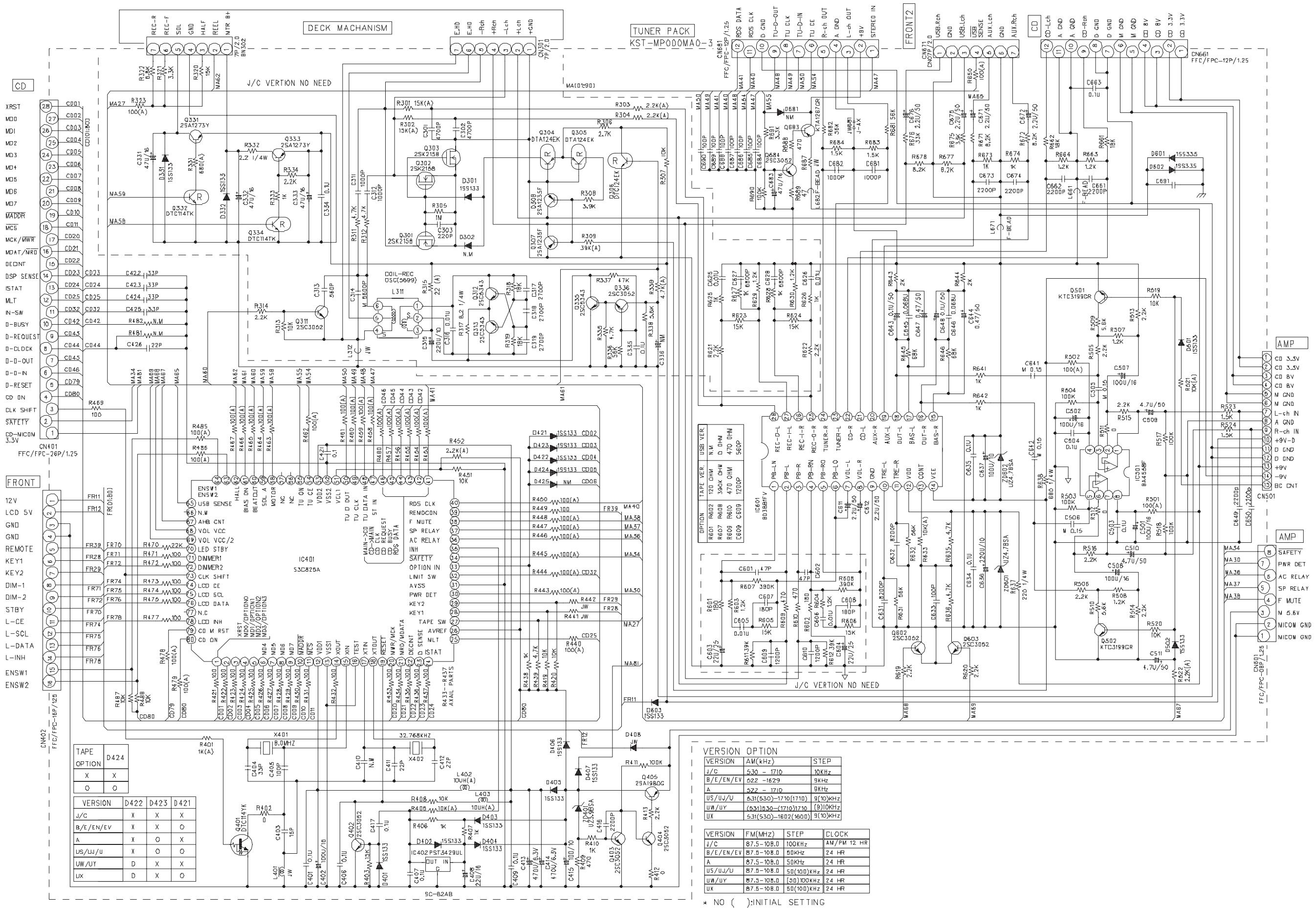

■ Micon section

CD XRS1 M00 M01 M02 M03 M04 M05 M06 M07 M08 M09 M10 M11 M12 M13 M14 M15 M16 M17 M18 M19 M20 M21 M22 M23 M24 M25 M26 M27 M28 M29 M30 M31 M32 M33 M34 M35 M36 M37 M38 M39 M40 M41 M42 M43 M44 M45 M46 M47 M48 M49 M50 M51 M52 M53 M54 M55 M56 M57 M58 M59 M60 M61 M62 M63 M64 M65 M66 M67 M68 M69 M70 M71 M72 M73 M74 M75 M76 M77 M78 M79 M80 TUNER PACK KST-MP00MAO 0 1/2/3 1/4/5 1/6/7 1/7/9 1/8/10 1/9/11 1/10/11 1/11/12 1/12/13 1/13/14 1/14/15 1/15/16 1/16/17 1/17/18 1/18/19 1/19/20 1/20/21 1/21/22 1/22/23 1/23/24 1/24/25 1/25/26 1/26/27 1/27/28 1/28/29 1/29/30 1/30/31 1/31/32 1/32/33 1/33/34 1/34/35 1/35/36 1/36/37 1/37/38 1/38/39 1/39/40 1/40/41 1/41/42 1/42/43 1/43/44 1/44/45 1/45/46 1/46/47 1/47/48 1/48/49 1/49/50 1/50/51 1/51/52 1/52/53 1/53/54 1/54/55 1/55/56 1/56/57 1/57/58 1/58/59 1/59/60 1/60/61 1/61/62 1/62/63 1/63/64 1/64/65 1/65/66 1/66/67 1/67/68 1/68/69 1A-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CHD-CDCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB- DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCB-DCBC-DCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-BCC-SATETY CN-TNCON DCF/TNFE-FR-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF -CSPS SENSIS STAT MTS N-SW D-USS CCK D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-D-AH-CAD-SATETY CN-TNCON DCF/TNFE-FR-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV FFC/FPC-RF-VFV ACP CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDJ CDI ACP BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCTR ACP BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCT BCTR ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACP ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ACF ADF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFP-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFF-AFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FAFOA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-FACFA-LAB(A) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -COSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSKCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSkCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOScCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOSsCOS

CD section

PICK UP UNIT CN701 VREF SVCC F-E D-B R-02 VR VD PD FE+ TE- FE+ ON ONL VR VD PD FE+ TE- FE+ ON ONL SPS- DSL+ DSL- IN-W GND CN702 BV 2.0 C744 560P C743 380P C742 370P C741 360P C740 350P C739 340P C738 330P C737 320P C736 310P C735 300P C734 290P C733 280P C732 270P C731 260P C730 250P C729 240P C728 230P C727 220P C726 210P C725 200P C724 190P C723 180P C722 170P C721 160P C720 150P C719 140P C718 130P C717 120P C716 110P C715 100P C714 90P C713 80P C712 70P C711 60P C710 50P C709 40P C708 30P C707 20P C696 10P C695 0.5P C694.5A 4.4Z C693.5A 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4Z 4.4 Z 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W 5W

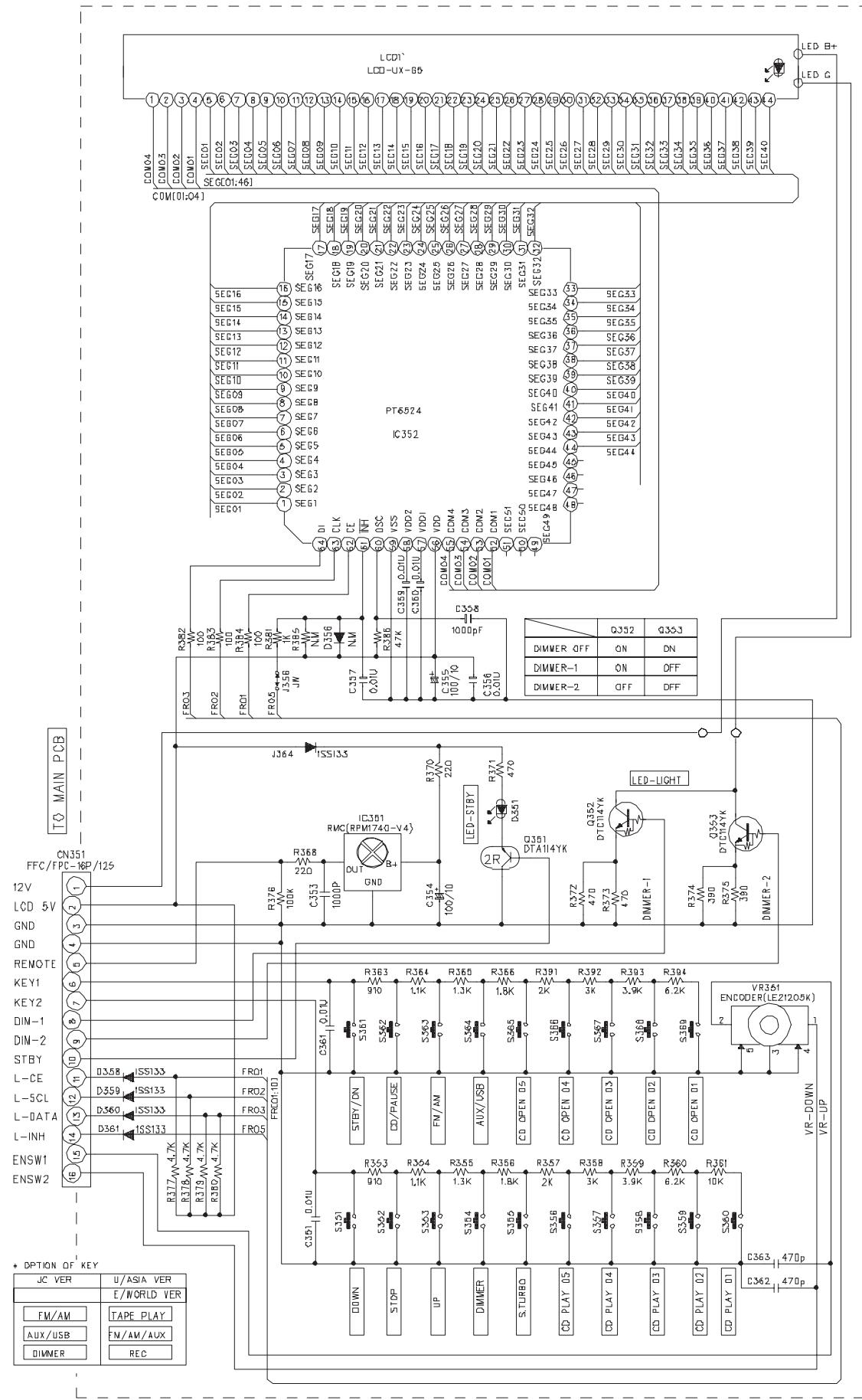

■ Display and Primary section

LCD1 LED-UX-B5 COM[01:04] 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 SEC16 SEC15 SEC14 SEC13 SEC12 SEC11 SEC10 SEC9 SEC8 SEC7 SEC6 SEC5 SEC4 SEC3 SEC2 SEC1 PT6024 IC352 SEG07 SEG06 SEG05 SEG04 SEG03 SEG02 SEG01 R382 FR03 FR02 FR01 R383 FR02 R384 FR01 R385 FR06 R386 FR07 R387 FR08 R388 FR09 R389 FR10 R390 FR11 R391 FR12 R392 FR13 R393 FR14 R394 FR15 R395 FR16 R396 FR17 R397 FR18 R398 FR19 R399 FJ64 ISS13.5 R370 220 LED-SI8Y R371 470 D5401 C356 DUT GND C354 B1 C356 DQ1/14YK R368 220 R369 220 R370 220 R371 220 R372 220 R373 220 R374 220 R375 220 R376 220 R377 220 R378 220 R379 220 R380W4.7K R381W4.7K R382W4.7K R383W4.7K R384W4.7K R385W4.7K R386W4.7K R387W4.7K R388W4.7K R389W4.7K R390W4.7K R391W4.7K R392W4.7K R393W4.7K R394W4.7K S361 W4.7K S362 W4.7K S363 W4.7K S364 W4.7K S365 W4.7K S366 W4.7K S367 W4.7K S368 W4.7K S369 W4.7K S370 W4.7K S371 W4.7K S372 W4.7K S373 W4.7K S374 W4.7K S375 W4.7K S376 W4.7K S377 W4.7K S378 W4.7K S379 W4.7K S380W4.7K S381W4.7K S382W4.7K S383W4.7K S384W4.7K S385W4.7K S386W4.7K S387W4.7K S388W4.7K S389W4.7K S390W4.7K

Printed circuit boards

■ Main board

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

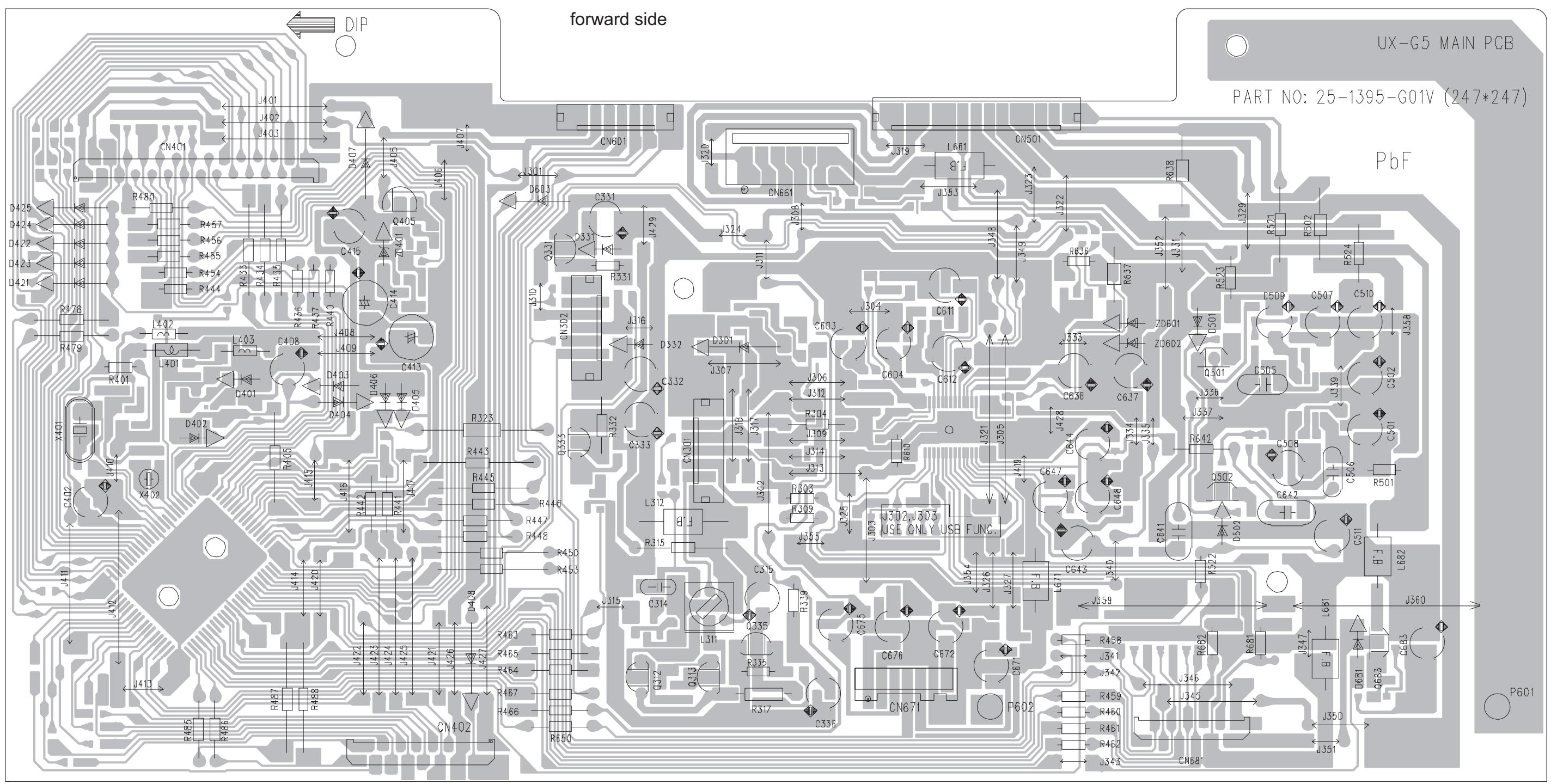

forward side DN-G5 MAIN PCB PART NO: 25-1395-G01V (247*247) PbF DN6D1 CN501 R618 L1729 J327 DN661 JU19 L661 CN501 J324 J356 JU11 L353 JU12 R636 R637 JU12 R324 R502 R524 D509 C507 C510 J358 ZDB01 ZD602 Q501 C505 J339 C637 J327 R642 C508 C642 C506 R501 J360 J350 J351 UX-G5 MAIN PCB DN401 J401 J402 J403 CN401 R480 R457 R456 R455 R454 R453 R452 R451 R449 R448 R447 R446 R445 R444 R443 R442 R441 R440 R439 R438 R437 R436 R435 R434 R433 R432 R431 R430 R429 R428 R427 R426 R425 R424 R423 R422 R421 R420 R419 R418 R417 R416 R415 R414 R413 R412 R411 R410 R409 R408 R407 R406 R405 R404 R403 R402 R399 R398 R397 R396 R395 R394 R393 R392 R391 R390 R389 R388 R387 RN801NBNBGBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNBNPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKPNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNKNNNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHNNHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHWHHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHWHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHTHT HTTTTATTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTATTTTAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT TAT UNTUOCCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCCDDCC DCGGSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSHSH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHH SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHI SHi Shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi shi snn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnm nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn twnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttntthttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttttt twnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttnttntthrnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwthwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnntwnctwnntwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwnctwncftwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthwthw thwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwhwwhwwhhwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwwww wwwveu wth whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whh whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whg whqshghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghghgghhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh hhhhh aa

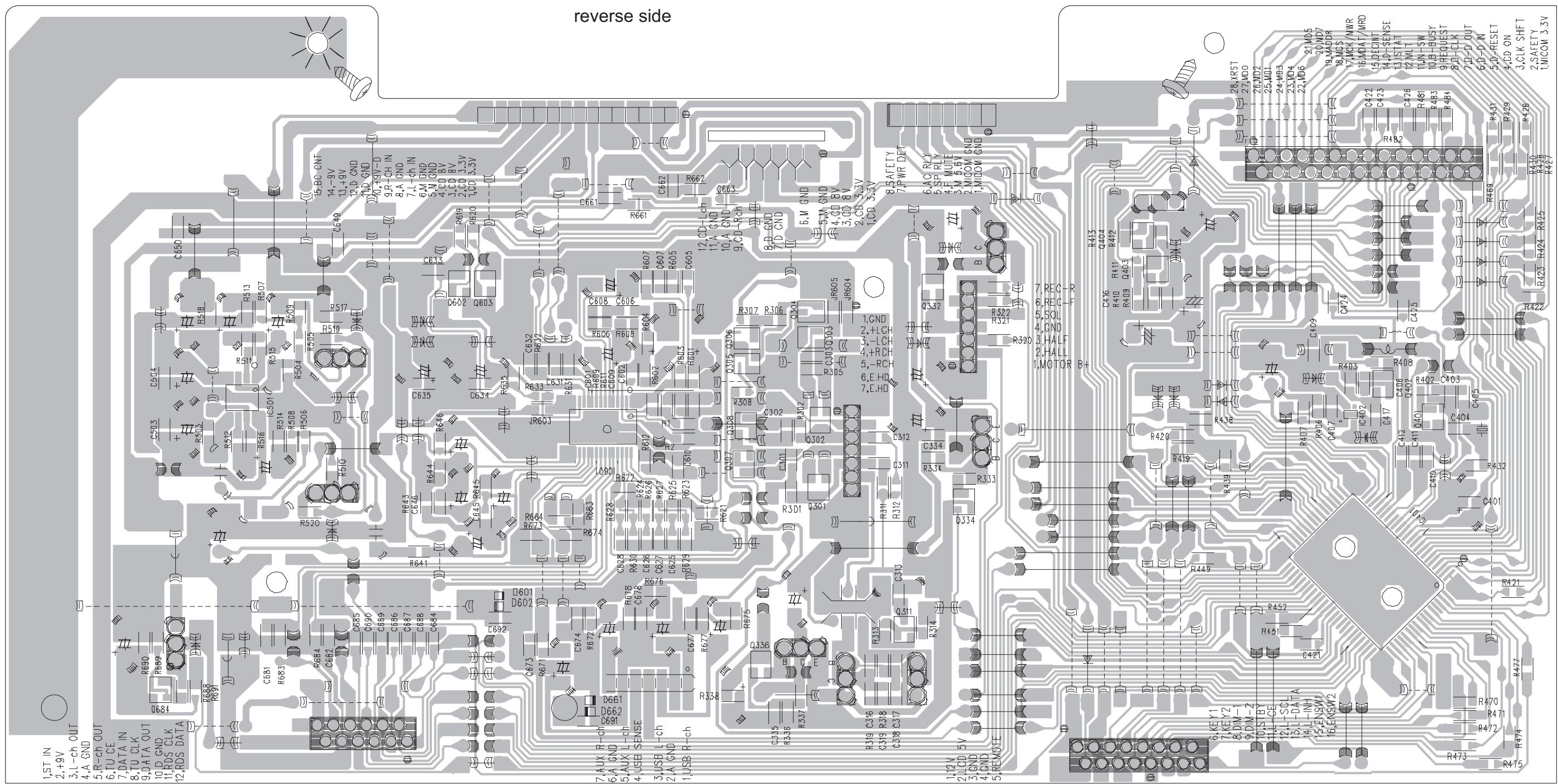

reverse side 1ST IN 2+9V 3-1-ch OUT 4.A GND 5.RCH OUT 6.DUCE 7.DATA IN 8.TU CLK 9.DATA OUT 10.D GND 11.0DS CLK 12.RDS DATA CB81 CB83 CB85 CB89 CB86 CB87 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB88 CB89 CB87 CB86 CB85 CB84 CB83 CB82 CB81 CB79 CB78 CB77 CB76 CB75 CB74 CB73 CB72 CB71 CB70 CB69 RB00 RB01 RB02 RB03 RB04 RB05 RB06 RB07 RB08 RB09 RB10 RB11 RB12 RB13 RB14 RB15 RB16 RB17 RB18 RB19 RB20 RB21 RB22 RB23 RB24 RB25 RB26 RB27 RB28 RB29 RB30 RB31 RB32 RB33 RB34 RB35 RB36 RB37 RB38 RB39 RB40 RB41 RB42 RB43 RB44 RB45 RB46 RB47 RB48 RB49 RB50 RB51 RB52 RB53 RB54 RB55 RB56 RB57 RB58 RB59 RB60 RB61 RB62 RB63 RB64 RB65 RB66 RB67 RB68 RB69 RB70 RB71 RB72 RB73 RB74 RB75 RB76 RB77 RB78 RB79 RB80 RB81 RB82 RB83 RB84 RB85 RB86 RB87 RB88 RB89 RB90 RB91 RB92 RB93 RB94 RB95 RB96 RB97 RB98 RB99 RB100

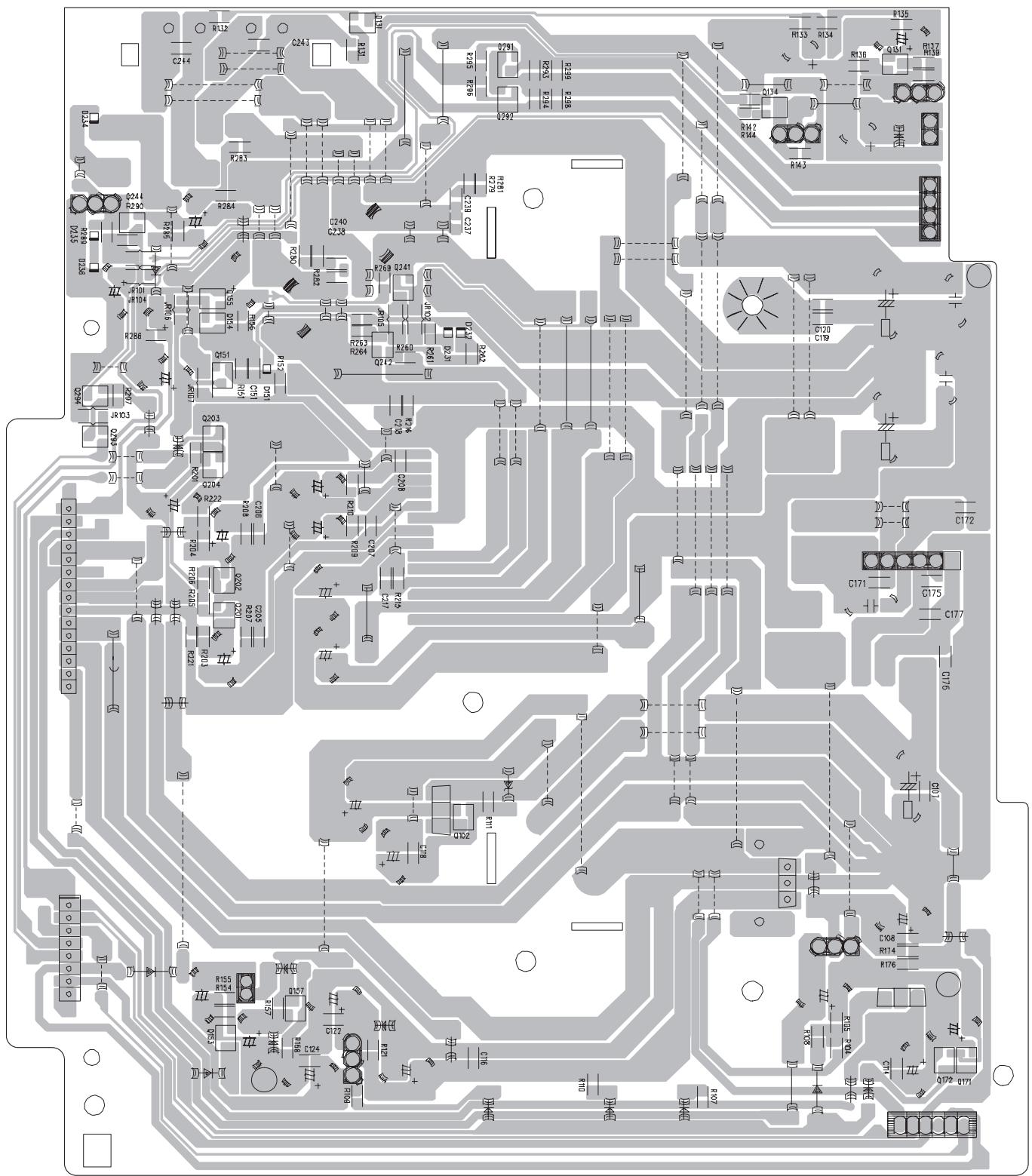

forward side

Circuit board layout diagram with component labels and pin connections

reverse side

Circuit board layout diagram with component labels and pin connections

forward side

BN591 L591 J592 J593 W591 D591 D592 JK591 MODEL : UX-G5 HP PCB PART NO : 25-1392-G01V PbF C559 C565 X551 C564 R591 C553 JX551 C572 J552 W581 C571 JX552 BN551 D358 D360 D359 J361 DIP CN351 LCD351 J353 J354 J355 J356 J357 J364 J359 C356 J367 J368S360 CD PLAY01 S359 S358 S357 S356 CD PLAY02 CD PLAY03 CD PLAY04 CD PLAY05 J369 D362 D363 J368S360 OP CD2 UP DIMMER S.TURBO OP CD1 OP CD3 OP CD4 OP CD5 S369 S368 S367 S366 S365 J363 ZD 351 J361 STBY/ON IC351 PLAY/PAUSE FM/AM USB/AUX S361 S362 S363 S364 W361 VR351 N1

forward side

R58B R560 R562 C562 R572 L558 L557 R563 R561 R569 R571 R584 C584 D582 D581 D553 D552 D551 C566 C568 C570 C570 R571 R572 R573 R574 R575 R576 R577 R578 R579 R580 R581 R582 R583 Q551 L551 Q552 L552 Q553 L553 Q554 L554 Q555 L555 Q556 L556 Q557 L557 Q558 L558 Q559 L559 Q560 L560 Q561 L561 Q562 L562 Q563 L563 Q564 L564 Q565 L565 Q566 L566 Q567 L567 Q568 L568 Q569 L569 Q570 L570 Q571 L571 Q572 L572 Q573 L573 Q574 L574 Q575 L575 Q576 L576 Q577 L577 Q578 L578 Q579 L579 Q580 L580 Q581 L581 Q582 L582 Q583 L583 PbF HP-DET HP R-CH A GND HP L-CH Q361 JRC61 R378 R379 R377 R380 R381 R382 R383 R384 R385 R386 R387 R388 R389 R390 R391 R392 R393 R394 R395 R396 R397 R398 R399 R39A Q361 Q362 Q363 Q364 Q363

forward side

PCB CHECK JW754 VREF JW753 JW752 JW751 JW750 JW749 GN-ZS-15-SP+1 DNZ02 UX-G5 CD PCB SIZE:164*245 1386-C01V 2 IN 1 JW713 GND L805 JW716 JW719 JW717 JW718 JW719 JW720 JW721 JW722 JW723 JW724 JW725 JW726 JW727 JW728 JW729 JW730 JW731 JW732 JW733 JW734 JW735 JW736 JW737 JW738 JW739 JW740 JW741 JW742 JW743 JW744 JW745 JW746 JW747 JW748 JW749 JW750 JW751 JW752 JW753 JW754 JW755 CN871 99-100-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-000-88 R885 R884 R883 R882 R881 R880 R879 R878 R877 R876 R854 JW748 R853 R852 R841 JW732 JW733 JW734 JW735 JW736 JW737 JW738 JW739 JW740 JW741 JW742 JW743 JW744 JW745 JW746 JW747 JW748 JW749 JW750 JW751 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

reverse side

Ppp M**** Npp X-CCS CD PCB PART NO:25-1396-601V C814 C822 C833 ICB02 CB20 R814 RB04 J803 C17 L609 C816 C835 C812 C811 C813 C819 C825 C807 C804 R810 R804 R805 C725 R726 R727 C724 R725 R726 R727 C724 R723 R722 R721 C723 R716 C720 R715 R719 JR701 C841 C842 C843 C844 C717 C719 R714 C718 C716 C713 C714 C707 C706 C712 C705 R708 R709 R710 C876 C877 C878 C879 C880 C881 RESET 92.80 92.80 92.80 R836 R837 R838 R839 R891 R892 RB95 RB94 DND30 VDDA S588H S589H FCLKOW

PT902 L901 C902 Primary C901 F901 Q903 470DP R905 33 KTC5199 4.7K (A) D901 IN4001 C904 470U/25 C903 0.11/50 IN4001 D906 ISS133 D908 RELAY RY901 C90B 100U/10 R907 C905 220U/10 KIA78L05BP IC901 J910 R902 3.3K 4.7U/50 J911 ISS133 C906 909 BN903
