ZOP27902XU - Four encastrable ZANUSSI - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Four encastrable
Marque	Zanussi
Modèle	ZOP27902XU
Volume	57 litres
Poids net	33.5 kg
Source d'énergie	Électricité
Classe énergétique	A+
Consommation énergétique (mode conventionnel)	0.87 kWh/cycle
Consommation énergétique (mode chaleur tournante)	0.64 kWh/cycle
Nombre de cavités	1
Fonctions de cuisson	Chaleur tournante, Convection naturelle, Gril, Gril rapide, Turbo gril, Chaleur sole, Pizza, Cuisson humide, Décongélation, Pyrolyse
Nettoyage	Pyrolytique (brûle les résidus à haute température)
Types d'accessoires inclus	Grille métallique, plaque de cuisson
Nombre de positions de grille	4
Éclairage intérieur	Ampoule résistante à 300°C
Sécurité enfant	Oui (verrouillage des touches et de la porte)
Arrêt automatique de sécurité	Oui (selon température)
Fonctions d'horloge	Minuteur, Durée, Fin, Départ différé, Heure
Affichage	Numérique avec indicateurs de chauffe et de verrouillage
Installation	Encastrable sous plan ou dans meuble haut
Réparabilité	Remplacement de l'ampoule possible par l'utilisateur ; porte démontable pour nettoyage

FOIRE AUX QUESTIONS - ZOP27902XU ZANUSSI

Comment régler l'heure sur le four ZOP27902XU ?

Après la première mise sous tension, l'écran affiche hr et 12:00. Utilisez les touches + et - pour régler les heures, puis appuyez sur la touche ① pour confirmer. Réglez ensuite les minutes de la même manière. La validation automatique a lieu après 5 secondes.

Comment utiliser la fonction pyrolyse pour nettoyer le four ?

Retirez tous les accessoires et les supports de grille amovibles. Nettoyez manuellement les gros résidus. Sélectionnez la fonction Pyrolysis sur le bouton des fonctions. Appuyez sur la touche ① ou tournez la température pour démarrer. Le cycle dure 2 heures. La porte se verrouille automatiquement pendant le nettoyage. Ne pas utiliser d'autres appareils dans le même meuble pendant la pyrolyse.

Comment activer la sécurité enfant ?

Assurez-vous que le bouton des fonctions est en position arrêt. Appuyez simultanément sur les touches ① et + pendant 2 secondes. Un signal sonore retentit et l'écran affiche SAFE. La porte est verrouillée. Pour désactiver, répétez la même opération.

Que faire si le four ne chauffe pas ?

Vérifiez d'abord que le four est branché et que l'horloge est réglée. Assurez-vous qu'une fonction de cuisson est sélectionnée et que la température est réglée. Si la sécurité enfant est activée, désactivez-la. Si le problème persiste, le fusible a peut-être sauté. Contactez un électricien si le fusible saute à nouveau.

Comment nettoyer les vitres de la porte ?

Ouvrez la porte en grand et soulevez les leviers des charnières. Fermez la porte à moitié, puis soulevez-la et retirez-la. Placez-la sur un chiffon doux. Tournez les deux attaches à 90° pour retirer les vitres. Lavez les vitres à l'eau savonneuse et séchez-les soigneusement. Ne pas mettre au lave-vaisselle. Remontez dans l'ordre inverse.

Comment régler une durée de cuisson ?

Sélectionnez une fonction de cuisson. Appuyez plusieurs fois sur la touche ① jusqu'à ce que le symbole Durée clignote. Utilisez + et - pour régler les minutes puis les heures, et confirmez avec ①. Le four s'éteindra automatiquement à la fin du temps réglé.

Le four affiche 'C3', que faire ?

Le code C3 indique que la fonction pyrolyse ne peut pas démarrer car la porte n'est pas complètement fermée ou le verrou est défectueux. Vérifiez que la porte est bien fermée et réessayez. Si le problème persiste, contactez le service après-vente.

Comment remplacer l'ampoule du four ?

Éteignez le four et débranchez-le. Laissez refroidir. Placez un chiffon au fond de la cavité. Tournez le capot en verre de l'ampoule pour le retirer. Remplacez l'ampoule par une ampoule résistante à 300°C (mêmes spécifications). Remettez le capot en place. Rebranchez le four.

Quels accessoires sont fournis avec le four ?

Le four est livré avec une grille métallique pour les plats et rôtis, et une plaque de cuisson pour les gâteaux et biscuits.

Comment économiser de l'énergie lors de la cuisson ?

Utilisez de préférence les fonctions avec ventilateur (chaleur tournante). Ne préchauffez pas inutilement. Pour les cuissons de plus de 30 minutes, réduisez la température 3 à 10 minutes avant la fin pour utiliser la chaleur résiduelle. Gardez la porte fermée et la jointure propre. Utilisez des plats métalliques.

MODE D'EMPLOI ZOP27902XU ZANUSSI

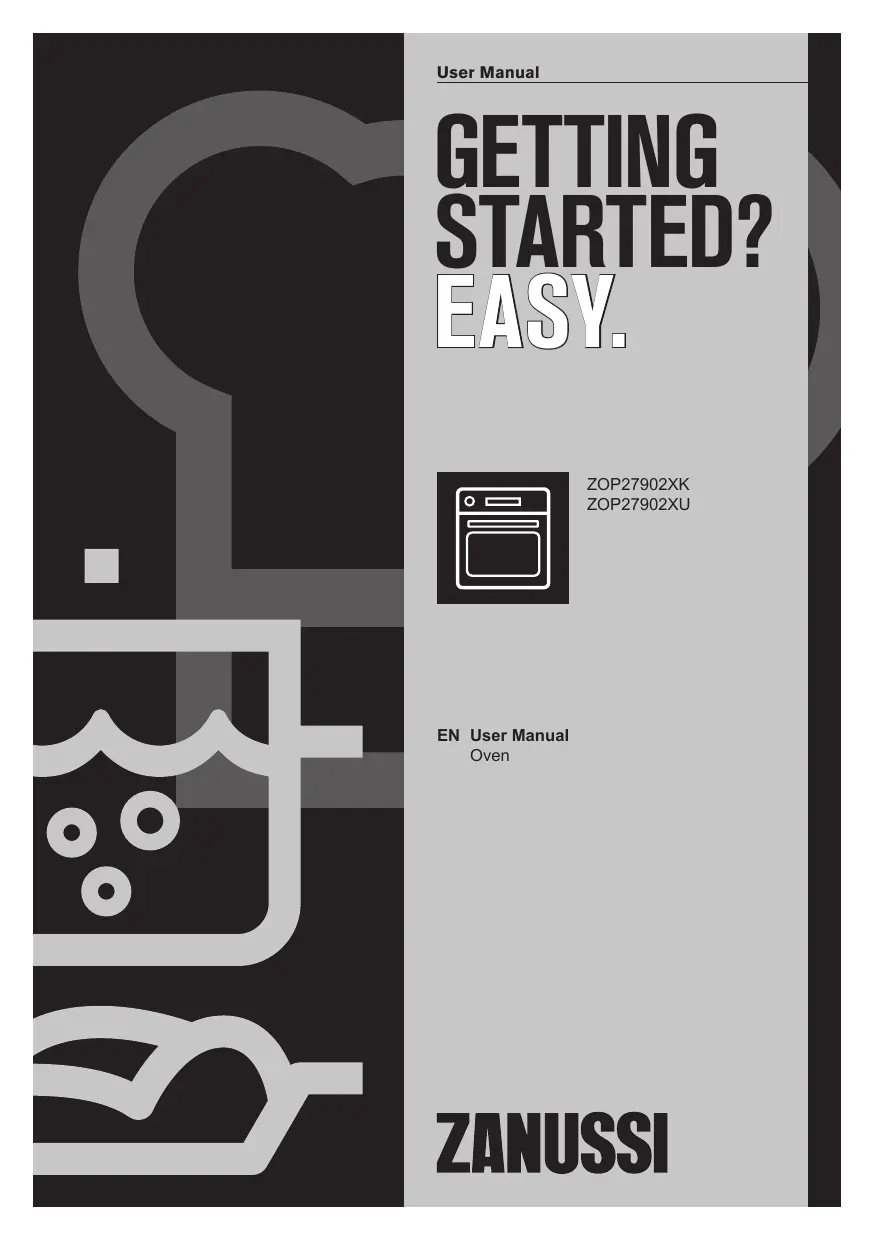

User Manual

GETTING STARTED?

EASY.

ZOP27902XK

ZOP27902XU

EN User Manual Oven

ZANUSSI

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

CHILDREN AND VULNERABLE PEOPLE SAFETY

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

GENERAL SAFETY

• Only a qualified person must install this appliance and replace the cable.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Always use oven gloves to remove or put in accessories or ovenware.

• Before carrying out any maintenance, disconnect the appliance from the power supply.

• Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Excessive spillage must be removed before the pyrolytic cleaning. Remove all parts from the oven.
• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

SAFETY INSTRUCTIONS

INSTALLATION

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from other appliances and units.
  Install the appliance in a safe and suitable place that meets installation requirements.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.

ELECTRICAL CONNECTION

WARNING! Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  The appliance must be earthed.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door, especially when the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• Fully close the appliance door, before you connect the mains plug to the mains socket.
  This appliance complies with the E.E.C. Directives.

USE

WARNING! Risk of injury, burns and electric shock or explosion.

• This appliance is for household use only.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:

• do not put ovenware or other objects in the appliance directly on the bottom.

• do not put aluminium foil directly on the bottom of cavity of the appliance.
• do not put water directly into the hot appliance.
  do not keep moist dishes and food in the appliance after you finish the cooking.

• be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
  Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

• This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.
  Always cook with the oven door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance is in operation. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

CARE AND CLEANING

WARNING! Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
  Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use any abrasive products, abrasive cleaning pads, solvents or metal objects.
  If you use an oven spray, follow the safety instruction on it's packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.

PYROLYTIC CLEANING

WARNING! Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

Before carrying out a Pyrolitic self-cleaning function or the First Use please remove from the oven cavity:

• any excess food residues, oil or grease spills / deposits.
• any removable objects (including shelves, side rails etc., provided with the product)

particularly any non-stick pots, pans, trays, utensils etc.

• Read carefully all the instructions for Pyrolytic cleaning.
• Keep children away from the appliance while the Pyrolytic cleaning is in operation. The appliance becomes very hot and hot air is released from the front cooling vents.
• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking residues and construction materials, as such consumers are strongly advised to:

provide good ventilation during and after each Pyrolytic cleaning.
provide good ventilation during and after the first use at maximum temperature operation.

• Unlike all humans, some birds and reptiles can be extremely sensitive to potential fumes emitted during the cleaning process of all Pyrolytic Ovens.
• Remove any pets (especially birds) from the vicinity of the appliance location during and after the Pyrolytic cleaning and first use maximum temperature operation to a well ventilated area.
• Small pets can also be highly sensitive to the localized temperature changes in the vicinity of all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.

• Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for low level harmful fumes.

• Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful to humans, including infants or persons with medical conditions.

INTERNAL LIGHTING

WARNING! Risk of electric shock.

• The type of light bulb or halogen lamp used for this appliance is for household appliances only. Do not use it for house lighting.
• Before replacing the lamp, disconnect the appliance from the power supply.
• Only use lamps with the same specifications.

SERVICE

• To repair the appliance contact an Authorised Service Centre.
• Use original spare parts only.

DISPOSAL

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

GENERAL OVERVIEW

1 Control panel
Knob for the heating functions
3 Display
4 Control knob (for the temperature)
5 Air vents for the cooling fan
Heating element
7 Lamp
8 Fan
9 Shelf support, removable
10 Shelf positions

ACCESSIONS

• Wire shelf

For cookware, cake tins, roasts.

Baking tray

For cakes and biscuits.

CONTROL PANEL

BUTTONS

Sensor field / Button	Function	Description
-	MINUS	To set the time.
①	CLOCK	To set a clock function.
+	PLUS	To set the time.

DISPLAY

A. Timer / Temperature
B. Heat-up and residual heat indicator
C. Core temperature sensor (selected models only)
D. Door lock (selected models only)
E. Hours / minutes
F. Demo mode (selected models only)
G. Clock functions

WARNING! Refer to Safety chapters.

To set the Time of day refer to "Clock functions" chapter.

INITIAL CLEANING

Remove all accessories and removable shelf supports from the oven.

Refer to "Care and cleaning" chapter.

Clean the oven and the accessories before first use.

DAILY USE

WARNING! Refer to Safety chapters.

RETRACTABLE KNOBS

To use the appliance press the knob. The knob comes out.

HEATING FUNCTIONS

Oven function	Application
Off position	The oven is off.
True Fan Cooking	To bake on up to two shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
Conventional Cooking (Top / Bottom Heat)	To bake and roast food on one shelf position.

Put the accessories and the removable shelf supports back to their initial position.

PREHEATING

Preheat the empty oven before first use.

1. Set the function Set the maximum temperature.
2. Let the oven operate for 1 hour.
3. Set the function Set the maximum temperature.
4. Let the oven operate for 15 minutes.
5. Turn off the oven and let it cool down.

Accessories can become hotter than usual. The oven can emit an odour and smoke. Make sure that the airflow in the room is sufficient.

Oven function	Application
Grilling	To grill flat food and to toast bread.
Fast Grilling	To grill flat food in large quantities and to toast bread.
Turbo Grilling	To roast larger meat joints or poultry with bones on one shelf position. To make gratins and to brown.
Bottom Heat	To bake cakes with crispy bottom and to preserve food.
Pizza Setting	To bake pizza. To make intensivebrowning and a crispy bottom.
Moist Fan Bak-ing	This function is designed to save energy during cook-ing. For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. The oven door should be closed during cooking so that the function is not interrupted and to ensure that the oven operates with the highest energy efficiency possible. When you use this function, the temperature in the cavity may differ from the set temperature. The residual heat is used. The heating power may be reduced. For gener-ral energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving. This function was used to comply with the energy efficiency class according to EN 60350-1. When you use this function the lamp automatically turns off after 30 seconds.

Oven function	Application
Defrost	To defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food.
Pyrolysis	To turn on the pyrolytic cleaning of the oven. This function burns off residual dirt in the oven.

SETTING A HEATING FUNCTION

1. Turn the knob for the heating functions to select a heating function.
2. Turn the control knob to select the temperature.

The lamp turns on when the oven operates.
3. To turn off the oven, turn the knob for the heating functions to the off position.

HEAT-UP INDICATOR

When the oven function operates, the bars in the display appear one by one when the temperature in the oven increases, and disappear when it decreases.

CLOCK FUNCTIONS

CLOCK FUNCTIONS TABLE

Clock function	Application
TIME OF DAY	To show or change the time of day. You can change the time of day only when the oven is off.
|→|DURATION	To set how long the oven works. Use only when a heating function is set.
→|END	To set when the oven turns off. Use only when a heating function is set.
|→|→|TIME DELAY	Combination of DURATION and END function.

Clock function	Application
MINUTE MINDER	Use to set a countdown time. This function has no effect on the operation of the oven. You can set the MINUTE MINDER at any time, also if the oven is off.
00:00 COUNT UP TIMER	If you do not set any other clock function the COUNT UP TIMER automatically monitor how long the oven works. It is on immediately when the oven starts to heat. The Count Up Timer cannot be used with the functions: DURATION, END.

SETTING AND CHANGING THE TIME

After the first connection to the mains, wait until the display shows hr and "12:00". "12" flashes.

1. Press + or - to set the hours.
2. Press ① to confirm and set the minutes.

The display shows min and the set hour. "00" flashes.

1. Press + or - to set the current minutes.
2. Press ① to confirm or the set time of day will be saved automatically after 5 seconds.

The display shows the new time.

To change the time of day press ① again and again until the indicator for the time of day ① flashes in the display.

SETTING THE DURATION FUNCTION

1. Set a heating function.
2. Press ① again and again until starts to flash.
3. Press + or - to set the minutes and then the hours. Press ① to confirm.

When the set Duration time ends the signal sounds for 2 minutes. | | and time setting flash in the display. The oven turns off automatically.

1. Press any button or open the oven door to stop the signal.
2. Turn the knob for the heating functions to the off position.

SETTING THE END FUNCTION

1. Set a heating function.
2. Press ① again and again until starts to flash.
3. Press + or - to set the hours and then the minutes. Press ① to confirm.

At the set End time the signal sounds for 2 minutes. and time setting flash in the display. The oven turns off automatically.

1. Press any button or open the oven door to stop the signal.
2. Turn the knob for the heating functions to the off position.

USING THE ACCESSORIES

WARNING! Refer to Safety chapters.

SETTING THE TIME DELAY FUNCTION

1. Set a heating function.
2. Press again and again until starts to flash.
3. Press + or - to set the minutes and then the hours for DURATION time. Press ① to confirm.

The display shows flashing

1. Press + or - to set the hours and then the minutes for END time. Press ① to confirm. The display shows || | and the set temperature.

Oven turns on automatically later on, works for the set DURATION time and stops at the set END time. At the set END time the signal sounds for 2 minutes. and time setting flash in the display. The oven turns off.

1. Press any button or open the oven door to stop the signal.
2. Turn the knob for the heating functions to the off position.

SETTING THE MINUTE MINDER

Minute minder can be both set when the oven is turned on and off.

1. Press ① again and again until starts to flash.

2. Press + or - to set the seconds and than the minutes. When the time you set is longer than 60 minutes, hr flash in the display.

3. Set the hours.

4. The MINUTE MINDER starts automatically after 5 seconds. After 90% of the set time the signal sounds.
5. When the set time ends the signal sounds for 2 minutes. "00:00" and flash in the display. Press any button to stop the signal.

COUNT UP TIMER

To reset the Count Up Timer, press and hold + and -. The timer starts to count up again.

INSERTING THE ACCESSORIES

Wire shelf:

Push the shelf between the guide bars of the shelf support and make sure that the feet point down.

Baking tray:

Push the baking tray between the guide bars of the shelf support.

ADDITIONAL FUNCTIONS

USING THE CHILD LOCK

When the Child Lock is on the oven cannot be turned on accidentally.

1. Ensure the knob for the oven functions is in the off position.
2. Press and hold ① and ^+ at the same time for 2 seconds.

The signal sounds. SAFE and appear on the display. The door is locked.

The symbol appear on the display also when Pyrolysis function operates.

To turn off the Child Lock, repeat step 2.

RESIDUAL HEAT INDICATOR

When you turn off the oven, the display shows the residual heat indicator if the temperature in the oven is more than 40^ . Turn the knob for the temperature left or right to check the oven temperature.

Wire shelf and baking tray together:

Push the baking tray between the guide bars of the shelf support and the wire shelf on the guide bars above.

Small indentation at the top increase safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.

AUTOMATIC SWITCH-OFF

For safety reasons the oven turns off automatically after some time if a heating function operates and you do not change the oven temperature.

Temperature (℃)	Switch-off time (h)
30 - 115	12.5
120 - 195	8.5
200 - 245	5.5
250	1.5

After an automatic switch-off, press any button to operate the oven again.

The Automatic switch-off does not work with the functions: Light, Duration, End.

COOLING FAN

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continues to operate until the oven cools down.

HINTS AND TIPS

SAFETY THERMOSTAT

Incorrect operation of the oven or defective components can cause dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven turns on again automatically when the temperature drops.

WARNING! Refer to Safety chapters.

The temperature and baking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used.

COOKING RECOMMENDATIONS

The oven has four shelf positions.

Count the shelf positions from the bottom of the oven floor.

Your oven may bake or roast differently to the oven you had before. The below tables provide you with the standard settings for temperature, cooking time and shelf position.

If you cannot find the settings for a special recipe, look for the similar one.

The oven has a special system which circulates the air and constantly recycles the steam. With this system you can cook in a steamy environment and keep the food soft inside and crusty outside. It

decreases the cooking time and energy consumption.

Baking cakes

Do not open the oven door before 3/4 of the set cooking time is up.

If you use two baking trays at the same time, keep one empty level between them.

Cooking meat and fish

Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.

To prevent too much smoke in the oven during roasting, add some water into the deep pan. To prevent the smoke condensation, add water each time after it dries up.

Cooking times

Cooking times depend on the type of food, its consistency, and volume.

Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.

BAKING AND ROASTING

Cakes

Food	Top / Bottom Heat		True Fan Cooking		Time (min)	Comments
	Temperature (℃)	Shelf posi- tion	Temperature (℃)	Shelf posi- tion
Whisked recipes	170	2	160	2 (1 and 3)	45 - 60	In a cake mould
Short- bread dough	170	2	160	2 (1 and 3)	24 - 34	In a cake mould
Butter-milk cheese cake	170	1	160	2	60 - 80	In a 26 cm cake mould
Temperature (℃)	Shelf position	Temperature (℃)	Shelf position
Apple cake (Apple pie)	170	1	160	2 (1 and 3)	100 - 120	In two 20 cm cake moulds on a wire shelf
Strudel	175	2	150	2	60 - 80	In a baking tray
Jam-tart	170	2	160	2	30 - 40	In a 26 cm cake mould
Fruit cake	170	2	155	2	60 - 70	In a 26 cm cake mould
Sponge cake (Fat-less sponge cake)	170	2	160	2	35 - 45	In a 26 cm cake mould
Christmas cake / Rich fruit cake	170	2	160	2	50 - 60	In a 20 cm cake mould
Plum cake1)	170	2	160	2	50 - 60	In a bread tin
Small cakes	170	3	160	3 (1 and 3)	20 - 30	In a baking tray
Biscuits1)	150	3	150	3	20 - 30	In a baking tray
Meringues	100	3	100	3	90 - 120	In a baking tray
Buns1)	190	3	180	3	15 - 20	In a baking tray
Choux1)	190	3	180	3	25 - 35	In a baking tray
Plate tarts	180	3	170	2	45 - 70	In a 20 cm cake mould
Victoria sandwich	180	1 or 2	170	2 (left and right)	40 - 55	Left + right in a 20 cm cake mould

1) Preheat the oven for 10 minutes.

Bread and pizza

Food	Top / Bottom Heat		True Fan Cooking		Time (min)	Comments
	Temperature (℃)	Shelf position	Temperature (℃)	Shelf position
White bread1)	190	1	190	1	60 - 70	1 - 2 pieces, 500 gr one piece
Rye bread	190	1	180	1	30 - 45	In a bread tin
Bread rolls1)	190	2	180	2 (1 and 3)	25 - 40	6 - 8 rolls in a baking tray
Pizza1)	190	1	190	1	20 - 30	On a deep pan
Scones1)	200	3	190	2	10 - 20	In a baking tray

1) Preheat the oven for 10 minutes.

Flans

Food	Top / Bottom Heat		True Fan Cooking		Time (min)	Comments
	Temperature (℃)	Shelf position	Temperature (℃)	Shelf position
Pasta flan	180	2	180	2	40 - 50	In a mould
Vegetable flan	200	2	175	2	45 - 60	In a mould
Quiches	190	1	190	1	40 - 50	In a mould
Lasagne	200	2	200	2	25 - 40	In a mould
Cannelloni	200	2	190	2	25 - 40	In a mould
Yorkshire pudding¹)	220	2	210	2	20 - 30	6 pudding mould

1) Preheat the oven for 10 minutes.

Meat

Food	Top / Bottom Heat		True Fan Cooking		Time (min)	Comments
	Temperature (℃)	Shelf position	Temperature (℃)	Shelf position
Beef	200	2	190	2	50 - 70	On a wire shelf and a deep pan
Pork	180	2	180	2	90 - 120	On a wire shelf and a deep pan
Veal	190	2	175	2	90 - 120	On a wire shelf and a deep pan
English roast beef rare	210	2	200	2	44 - 50	On a wire shelf and a deep pan
English roast beef medium	210	2	200	2	51 - 55	On a wire shelf and a deep pan
English roast beef well done	210	2	200	2	55 - 60	On a wire shelf and a deep pan
Shoulder of pork	180	2	170	2	120 - 150	On a deep pan
Shin of pork	180	2	160	2	100 - 120	2 pieces on a deep pan
Lamb	190	2	190	2	110 - 130	Leg
Chicken	200	2	200	2	70 - 85	Whole on a deep pan
Turkey	180	1	160	1	210 - 240	Whole on a deep pan
Duck	175	2	160	2	120 - 150	Whole on a deep pan
Goose	175	1	160	1	150 - 200	Whole on a deep pan
Rabbit	190	2	175	2	60 - 80	Cut in pieces
Hare	190	2	175	2	150 - 200	Cut in pieces
Pheasant	190	2	175	2	90 - 120	Whole on a deep pan

Fish

Food	Top / Bottom Heat		True Fan Cooking		Time (min)	Comments
	Temperature (℃)	Shelf position	Temperature (℃)	Shelf position
Trout / Sea bream	190	2	175	2 (1 and 3)	40 - 55	3 - 4 fishes
Tuna fish / Salmon	190	2	175	2 (1 and 3)	35 - 60	4 - 6 fillets

GRILLING

Preheat the oven for 10 minutes.

Use the third position.

Set the temperature to 250^ .

Food	Quantity		Time (min)
	Pieces	Quantity (kg)	1st side	2nd side
Fillet steaks	4	0.8	12 - 15	12 - 14
Beef steaks	4	0.6	10 - 12	6 - 8
Sausages	8	-	12 - 15	10 - 12
Pork chops	4	0.6	12 - 16	12 - 14
Chicken (cut in 2)	2	1	30 - 35	25 - 30
Kebabs	4	-	10 - 15	10 - 12
Breast of chicken	4	0.4	12 - 15	12 - 14
Hamburger	6	0.6	20 - 30	-
Fish fillet	4	0.4	12 - 14	10 - 12
Toasted sandwiches	4 - 6	-	5 - 7	-
Toast	4 - 6	-	2 - 4	2 - 3

TURBO GRILLING

Use the third shelf position.

Set the maximum temperature of 200^ .

Food	Quantity		Time (min)
	Pieces	(kg)	1st side	2nd side
Rolled joints (turkey)	1	1	30 - 40	20 - 30
Chicken (cut in two)	2	1	25 - 30	20 - 30
Chicken drum-sticks	6	-	15 - 20	15 - 18
Quail	4	0.5	25 - 30	20 - 25
Vegetable gratin	-	-	20 - 25	-
Scallops	-	-	15 - 20	-
Mackerel	2 - 4	-	15 - 20	10 - 15
Fish slices	4 - 6	0.8	12 - 15	8 - 10

For best results follow suggestions listed in the table below.

Food	Accessories	Temperature (℃)	Shelf posi- tion	Time (min)
Sweet rolls, 12 pieces	baking tray or dripping pan	180	2	35 - 40
Rolls, 9 pieces	baking tray or dripping pan	180	2	35 - 40
Pizza, frozen, 0.35 kg	wire shelf	220	2	35 - 40
Swiss roll	baking tray or dripping pan	170	2	30 - 40
Brownie	baking tray or dripping pan	180	2	30 - 40
Souffle, 6 pieces	ceramic ramekins on wire shelf	200	3	30 - 40
Sponge flan base	flan base tin on wire shelf	170	2	20 - 30
Victoria Sand- wich	baking dish on wire shelf	170	2	35 - 45
Poached fish, 0.3 kg	baking tray or dripping pan	180	3	35 - 45
Whole fish, 0.2 kg	baking tray or dripping pan	180	3	35 - 45
Fish fillet, 0.3 kg	pizza pan on wire shelf	180	3	35 - 45
Poached meat, 0.25 kg	baking tray or dripping pan	200	3	40 - 50
Shashlik, 0.5 kg	baking tray or dripping pan	200	3	25 - 35
Cookies, 16 pieces	baking tray or dripping pan	180	2	20 - 30
Macaroons, 20 pieces	baking tray or dripping pan	180	2	40 - 45
Muffins, 12 pieces	baking tray or dripping pan	170	2	30 - 40
Savory pastry, 16 pieces	baking tray or dripping pan	170	2	35 - 45
Short crust bis- cuits, 20 pieces	baking tray or dripping pan	150	2	40 - 50
Tartlets, 8 pieces	baking tray or dripping pan	170	2	20 - 30
Poached vege- tables, 0.4 kg	baking tray or dripping pan	180	3	35 - 40
Vegetarian ome- lette	pizza pan on wire shelf	200	3	30 - 45
Vegetables, mediterrean 0.7 kg	baking tray or dripping pan	180	4	35 - 40

PIZZA

Use the Pizza setting function.

Preheat the empty oven for 10 minutes before cooking.

Food	Temperature (℃)	Time (min)	Shelf position	Comments
Pizza, large	200	15 – 25	1	In a baking tray
Pizza, small	200	10 – 20	1	In a baking tray
Bread rolls	200	15 – 25	1	In a baking tray

DEFROST

Food	Quantity (kg)	Defrosting time (min)	Further defrosting time (min)	Comments
Chicken	1.0	100 - 140	20 - 30	Place the chicken on an upturned saucer placed on a large plate. Turn halfway through.
Meat	1.0	100 - 140	20 - 30	Turn halfway through.
Meat	0.5	90 - 120	20 - 30	Turn halfway through.
Trout	0.15	25 - 35	10 - 15	-
Strawberries	0.3	30 - 40	10 - 20	-
Butter	0.25	30 - 40	10 - 15	-
Cream	2 x 0.2	80 - 100	10 - 15	Cream can also be whip-ped when still slightly frozen in places.
Gateau	1.4	60	60	-

INFORMATION FOR TEST INSTITUTES

Tests according to IEC 60350-1.

Food	Function	Accesso-ries	Shelf position	Tempera-ture (℃)	Time (min)	Comments
Small cake	Conven- tional Cooking	Baking tray	3	170	20 - 30	Put 20 small cakes per one baking tray.
Apple pie	Conven- tional Cooking	Wire shelf	1	170	80 - 120	Use 2 tins (20 cm diameter), diago- nally shifted.
Sponge cake	Conven- tional Cooking	Wire shelf	2	170	35 - 45	Use a cake mould (26 cm diameter).
Short bread	Conven- tional Cooking	Baking tray	3	150	20 - 35	Preheat the oven for 10 minutes.
Toast 4 - 6 pieces	Grilling	Wire shelf	3	max.	2 - 4 minutes first side; 2 - 3 minutes sec- ond side	Preheat the oven for 3 minutes.
Beef bur- ger 6 pieces, 0.6 kg	Grilling	Wire shelf and dripping pan	3	max.	20 - 30	Put the wire shelf on the third level and the dripping pan on the sec- ond level of the oven. Turn the food halfway through the cook- ing time. Preheat the oven for 3 minutes.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

NOTES ON CLEANING

Clean the front of the oven with a soft cloth with warm water and a mild cleaning agent.

To clean metal surfaces, use a dedicated cleaning agent.

Clean the oven interior after each use. Fat accumulation or other food remains may result in a fire.

Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a cleaning agent. Do not clean the accessories in the dishwasher.

Clean stubborn dirt with a special oven cleaner.

If you have nonstick accessories, do not clean them using aggressive agents, sharp-edged objects or a dishwasher. It can cause damage to the nonstick coating.

Moisture can condense in the oven or on the door glass panels. To decrease the condensation, operate the oven for 10 minutes before cooking.

Clean the moisture from the cavity after each use.

STAINLESS STEEL OR ALUMINIUM OVENS

Clean the oven door with a damp cloth or sponge only. Dry it with a soft cloth.

Do not use steel wool, acids or abrasive materials as they can damage the oven surface. Clean the oven control panel with the same precautions.

REMOVING THE SHELF SUPPORTS

To clean the oven, remove the shelf supports.

CAUTION! Be careful when you remove the shelf supports.

1. Pull the front of the shelf support away from the side wall.

1. Pull the rear end of the shelf support away from the side wall and remove it.

Install the removed accessories in the opposite sequence.

PYROLYSIS

CAUTION! Remove all accessories and removable shelf supports.

Do not start the Pyrolysis if you did not fully close the oven door. In some models, the display shows "C3" when this error occurs.

WARNING! The appliance becomes very hot. There is a risk of burns.

CAUTION! If there are other appliances installed in the same cabinet, do not use them at the same time as the Pyrolysis function. It can cause damage to the appliance.

1. Remove the worst dirt manually.
2. Clean the inner side of the door with hot water, so that the residues do not burn from the hot air.
3. Set the Pyrolysis function. Refer to "Oven functions".

flashes.

1. You can use the End function to delay the start of the cleaning procedure.

2. Press ① or turn the knob for the temperature clockwise to start the cleaning procedure.

Time of the procedure: 2 h.

During the Pyrolysis the oven lamp is off.

When the oven is at its set temperature, the door locks. The display shows the symbol 1 and the bars of the heat indicator until the door unlocks.

CLEANING REMINDER

To remind you that the pyrolysis is necessary, PYR flashes in the display for 10 seconds after each activation and deactivation of the oven.

The cleaning reminder goes out:

after the end of the pyrolysis.
- if you press + and — at the same time while PYR flashes in the display.

REMOVING AND INSTALLING DOOR

The oven door has four glass panels. You can remove the oven door and the internal glass panels to clean them. Read the whole "Removing and installing door" instruction before you remove the glass panels.

The oven door may close if you try to remove the glass panels before you remove the oven door.

CAUTION! Do not use the oven without the glass panels.

1. Open the door fully and hold both hinges.

1. Lift and turn the levers fully on both hinges.

1. Close the oven door halfway to the first opening position. Then lift and pull forward and remove the door from its seat.

1. Put the door on a soft cloth on a stable surface.

1. Release the locking system to remove the glass panels.

1. Turn the two fasteners by 90^ and remove them from their seats.

1. First lift carefully and then remove the glass panels one by one. Start from the top panel.

1. Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher.

When the cleaning is completed, install the glass panels and the oven door.

Make sure that you put the glass panels (A, B and C) back in the correct sequence. Check for the symbol / printing on the side of the glass panel, each of the glass panels looks different to make the disassembly and assembly easier.

When installed correctly the door trim clicks.

Make sure that you install the middle panel of glass in the seats correctly.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

WHAT TO DO IF...

Problem	Possible cause	Remedy
You cannot activate or operate the oven.	The oven is not connected to an electrical supply or it is con- nected incorrectly.	Check if the oven is correctly connected to the electrical supply (refer to the connection diagram if available).
The oven does not heat up.	The oven is deactivated.	Activate the oven.
The oven does not heat up.	The clock is not set.	Set the clock.
The oven does not heat up.	The necessary settings are not set.	Make sure that the settings are correct.

REPLACING THE LAMP

WARNING! Risk of electric shock.

The lamp can be hot.

1. Turn off the oven.
   Wait until the oven is cooled down.
2. Disconnect the oven from the mains.
3. Put a cloth on the bottom of the cavity.

The back lamp

1. Turn the lamp glass cover to remove it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300^ heat-resistant lamp.
4. Install the glass cover.

Problem	Possible cause	Remedy
The oven does not heat up.	The automatic switch-off is ac- tivated.	Refer to "Automatic switch- off".
The oven does not heat up.	The Child Lock is on.	Refer to "Using the Child Lock".
The oven does not heat up.	The fuse is blown.	Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
The lamp does not operate.	The lamp is defective.	Replace the lamp.
It takes too long to cook the dishes or they cook too quick- ly.	The temperature is too low or too high.	Adjust the temperature if nec- essary. Follow the advice in the user manual.
Steam and condensation settle on the food and in the cavity of the oven.	You left the dish in the oven for too long.	Do not leave the dishes in the oven for longer than 15 - 20 minutes after the cooking process ends.
The display shows "C3".	The cleaning function does not operate. You did not fully close the door, or the door lock is defective.	Fully close the door.
The display shows "F102".	You did not fully close the door. The door lock is defective.	Fully close the door. Deactivate the oven with the house fuse or the safety switch in the fuse box and activate it again. If the display shows "F102" again, contact the Custom- er Care Department.
The display shows an error code that is not in this table.	There is an electrical fault.	Deactivate the oven with the house fuse or the safety switch in the fuse box and activate it again. If the display shows the er- ror code again, contact the Customer Care Depart- ment.
The appliance is activated and does not heat up. The fan does not operate. The display shows "Demo".	The demo mode is activated.	1. Deactivate the oven. 2. Press and hold the button + 3. The first digit on the dis-play and Demo indicator start to blink. 4. Enter the code 2468 by pressing the buttons + or - to change the values and press Ⓞ to confirm. 5. The next digit starts to blink. 6. Demo mode deactivates when you confirm the last digit and the code is correct.

SERVICE DATA

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of

the oven cavity. Do not remove the rating plate from the oven cavity.

We recommend that you write the data here:

Model (MOD.)	..................
Product number (PNC)	..................
Serial number (S.N.)	..................

INSTALLATION

WARNING! Refer to Safety chapters.

SECURING THE APPLIANCE TO THE CACINET

ELECTRICAL INSTALLATION

The manufacturer is not responsible if you do not follow the safety precautions from the Safety chapters.

This appliance is supplied with a main plug and a main cable.

CABLE

Cable types applicable for installation or replacement:

H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F

For the section of the cable refer to the total power on the rating plate. You can also refer to the table:

Total power (W)	Section of the cable (mm2)
maximum 1380	3 x 0.75
maximum 2300	3 x 1
maximum 3680	3 x 1.5

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

ENERGY EFFICIENCY

PRODUCT FICHE AND INFORMATION ACCORDING TO EU 65-66/2014

Supplier's name	Zanussi
Model identification	ZOP27902XK ZOP27902XU
Energy Efficiency Index	81.0
Energy efficiency class	A+
Energy consumption with a standard load, conventional mode	0.87 kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.64 kWh/cycle
Number of cavities	1
Heat source	Electricity
Volume	57 l
Type of oven	Built-In Oven
Mass	ZOP27902XK	33.8 kg
	ZOP27902XU	33.5 kg

EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

ENERGY SAVING

The oven contains features which help you save energy during everyday cooking.

General hints

Make sure that the oven door is closed properly when the oven operates. Do not open the door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal dishes to improve energy saving.

When possible, do not preheat the oven before you put the food inside.

When the cooking duration is longer than 30 minutes, reduce the oven temperature to minimum 3 - 10 minutes before the end of the cooking time, depending on the duration of the cooking. The residual heat inside the oven will continue to cook.

Use the residual heat to warm up other dishes.

Keep breaks between baking as short as possible when you prepare few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

If a programme with the Duration or End Time selection is activated and the cooking time is longer than 30 minutes, the heating elements automatically deactivate earlier in some oven functions.

The fan and lamp continue to operate.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm. The residual heat indicator or temperature appears on the display.

Moist Fan Baking

Function designed to save energy during cooking. When you use this function the lamp automatically turns off after 30 seconds.

Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked

with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WWW.ZANUSSI.COM/SHOP
