Marque	SAMSUNG
Modèle	Nexus S
Type de produit	Téléphone portable
Système d'exploitation	Android
Écran	Écran tactile capacitif
Appareil photo	Caméra avant et arrière avec flash LED
Connectivité	Wi-Fi, Bluetooth, GPS
Batterie	Amovible, rechargeable
Alimentation	Chargeur secteur et câble USB
Accessoires fournis	Casque, câble USB, chargeur
Entretien et nettoyage	Nettoyer les lentilles avec un chiffon non pelucheux
Sécurité	Verrouillage par code PIN, déverrouillage par PUK
Pièces détachées et réparabilité	Batterie et carte SIM amovibles
Informations générales	Appareil Google Nexus S, compatible GSM
Fonctions principales	Appels, SMS, navigation Web, messagerie, applications Android
Prise casque	3,5 mm
Port de charge	Micro USB
Bouton d'alimentation	Marche/arrêt, maintien pour éteindre
Configuration initiale	Connexion au compte Google requise
Volume	Boutons de volume sur le côté

FOIRE AUX QUESTIONS - NEXUS S SAMSUNG

Comment installer la batterie et la carte SIM ?

Retirez le cache arrière en soulevant la languette au-dessus de l'appareil photo. Insérez la batterie en alignant les contacts dorés, puis insérez la carte SIM dans son logement, encoche en bas à droite et contacts vers le bas.

Comment recharger le Nexus S ?

Branchez le chargeur sur une prise secteur, puis connectez le câble USB au chargeur et au port micro USB du téléphone. Vous pouvez aussi le charger via un ordinateur.

Comment allumer et éteindre le téléphone ?

Pour allumer, appuyez sur le bouton d'alimentation jusqu'à ce que l'écran s'allume. Pour éteindre, maintenez le bouton d'alimentation, puis touchez 'Éteindre' et confirmez.

Que faire si j'oublie mon code PIN ?

Après trois mauvaises tentatives, la carte SIM est bloquée. Vous devez obtenir un code PUK auprès de votre opérateur. Composez \*05*PUK*NouveauPIN*NouveauPIN# pour débloquer et définir un nouveau PIN.

Comment utiliser le casque ?

Branchez le casque dans la prise 3,5 mm. Le volume se contrôle avec les boutons de volume du téléphone.

Comment nettoyer les caméras ?

Utilisez un chiffon non pelucheux pour nettoyer les lentilles avant et arrière. Les traces de doigts peuvent déformer les photos.

Puis-je utiliser le téléphone sans compte Google ?

Lors de la première mise en marche, vous êtes invité à vous connecter à un compte Google. Sans cela, certaines fonctionnalités peuvent être limitées.

Comment retirer le cache arrière ?

Localisez le petit cran au-dessus de l'objectif de l'appareil photo, insérez votre ongle et soulevez fermement le cache.

Où trouver plus d'informations sur l'utilisation ?

Consultez le guide de l'utilisateur Android sur http://www.nexushelp.com ou le site de votre opérateur.

Que faire si l'écran ne réagit pas ?

Assurez-vous que le téléphone est allumé et que la batterie est chargée. Si le problème persiste, essayez de redémarrer en maintenant le bouton d'alimentation enfoncé.

MODE D'EMPLOI NEXUS S SAMSUNG

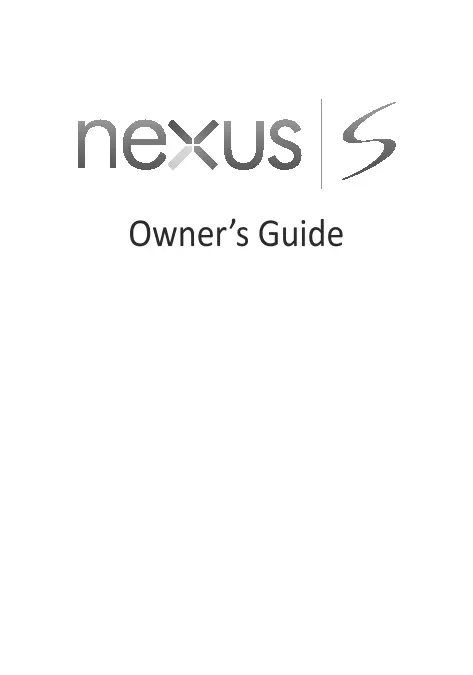

nexus

Owner's Guide

Legal

Copyright © 2011 Google Inc. All rights reserved.

Google, the stylized Google logo, Android, the stylized Android logo, Nexus, the stylized Nexus logo, Nexus S, and the stylized Nexus S logo, are trademarks of Google Inc. All other company and product names may be trademarks of the companies with which they are associated.

Availability of Google applications, services, and features may vary by country, carrier, and manufacturer.

For more information about your Nexus S phone, visit http://www.nexushelp.com.

Google

Contents

Contents 3

Your phone and accessories 4

What's in the box 5

Getting to know your phone 6

Installing the battery, and SIM card 7

Open the phone's back cover 7

Replace the phone's back cover 8

Remove or insert the battery 8

Remove or insert a SIM card 10

Charging your phone 11

Charge the phone 11

Using the headset 12

Turning the phone on and off 13

Turn on the phone 13

Unblock a SIM 14

Turn off the phone 14

Your phone and accessories

Your Google™ Nexus S™ phone comes with a number of accessories, including a headset, USB cable, and charger. For safety reasons, the battery is not shipped inside the phone, so you need to insert it and charge it fully before using your phone. This guide describes the parts of your phone, how to install and charge the battery, how to turn the phone on and off, and other useful information.

For more information about using the Android™ mobile technology platform that runs on your phone, including the basics of using it to place phone calls and how to use its applications to browse the web, read email, and so on, visit your carrier's support site and refer to the Android User's Guide, available from http://www.nexushelp.com.

In this section

"What's in the box" on page 5

"Getting to know your phone" on page 6

"Installing the battery, and SIM card" on page 7

"Charging your phone" on page 11

"Using the headset" on page 12

"Turning the phone on and off" on page 13

What's in the box

Your Google™ Nexus S™ phone comes with the following accessories.

Health & safety and warranty booklets

Nexus S phone

Charger

Headset

If you purchased the phone with a contract with a GSM mobile carrier, a SIM card for your carrier is included with the phone. See "Installing the battery, and SIM card" on page 7 to learn how to insert or remove the battery, and SIM.

It may take a few minutes to import contacts from the SIM or USIM card to your device depending on the SIM or USIM card.

Getting to know your phone

Before you use the phone, insert the battery and charge it fully. (See "Installing the battery, and SIM card" on page 7 and "Charging your phone" on page 11.)

Other sections in this chapter describe the use and function of the headset, status light, turning the phone on and off, and more.

Your carrier's support site and the Android User's Guide (available from http://www.nexushelp.com) describe how to place calls, and other basic features of the phone, including turning it on for the first time.

Be sure to keep the front and back camera lenses clean with lint-free cloth; smudges and fingerprints will distort your pictures. The back camera's LED flash is next to the lens. Taking pictures and shooting videos is described in the Android User's Guide.

Installing the battery, and SIM card

To install or replace the battery or SIM, you must remove the phone's back cover.

You must install the battery and insert a SIM before you can use the phone.

Open the phone's back cover

Hold the device firmly and locate the cover release latch. The release latch has a small indentation, just large enough to insert a fingernail and is located above the camera lens. Place your fingernail in the opening and firmly lift the cover off the device.

Replace the phone's back cover

Place the cover on the back of the phone and push it down into place.

Remove or insert the battery

You must open the phone's back cover to remove or insert the battery.

1 Turn off the phone.

See "Turning the phone on and off" on page 13.

2 Life out the battery by slipping your finger into the small opening next to the battery.

GH68-34265B

Rev.1.0

Insert the battery by aligning the gold contacts on the phone and the battery and then gently pressing the battery into place.

Remove or insert a SIM card

You must open the phone's back cover and remove the battery to remove or insert the SIM card.

Remove the SIM card by sliding it out of its slot with the tip of your finger.

Insert the SIM card by aligning it (notch to the lower right and gold contacts down) and then sliding it into its slot.

Charging your phone

Before you can use your phone, you must charge it fully.

The phone also charges when it is connected to a computer's USB port with the included USB cable. For information about connecting the phone to a computer, see the Android User's Guide.

Charge the phone

1 Plug one end of the charger into an AC outlet.
2 Plug one end of the USB cable into the supplied charger or into the USB port of your computer.
3 Plug the other end into the micro USB port on your phone.

When charging, the screen displays a battery charging status icon.

4 When the phone is fully charged, disconnect it from the charger.

Using the headset

The headset plugs into the phone's 3.5mm headset jack.

You control the headphones' volume with the phone's Volume Up/Down button, and with the applications on your phone (as described in the Android User's Guide and in the documentation for your applications).

Turning the phone on and off

You use the power button to turn the phone on and off.

Turn on the phone

Press the Power button for a few seconds, until the screen illuminates.

The first time you turn on the phone, you're welcomed to Android and prompted to sign into your Google Account. For more information, consult your carrier and the Android User's Guide.

When you turn on the phone, you may be prompted to enter a personal identification number (PIN) for your SIM card.

Unblock a SIM

If you enter the wrong SIM-unlock PIN three times, the SIM card is blocked and you can't use your phone except to dial an emergency number. You must obtain a PIN Unblocking Key (PUK) from your carrier to unlock the SIM and set a new PIN.

Dial the following, replacing "PUK" with the PUK from your carrier and replacing both instances of "PIN" with a 4- to 8-digit PIN of your choosing: ^ 05^PUK^PIN^*PIN#

Turn off the phone

1 Press & hold the Power button until a menu opens.
2 Touch Power off in the menu.
3 Touch OK when asked to confirm that you want to turn off the phone. For more about working with the touchscreen and menus, see the Android User's Guide.
