Type de produit	Casque audio Bluetooth sans fil
Marque	Plantronics
Modèle	Voyager Legend (EOTE14)
Poids	18 grammes
Autonomie en communication	Jusqu'à 7 heures
Autonomie en veille	Jusqu'à 11 jours
Distance de fonctionnement	Jusqu'à 10 mètres (classe II)
Connecteur de charge	Micro USB avec fixation magnétique
Temps de charge	90 minutes
Technologie Bluetooth	Bluetooth v3.0
Profils Bluetooth	A2DP, AVRCP, HFP v1.6, HSP v1.2, PBAP, SSP
Réduction de bruit et vent	Triple micro avec DSP, filtres triple barrière
Température de fonctionnement	0°C à 40°C
Contenu de la boîte	Casque, câble USB, chargeur secteur, embouts en silicone et mousse (S/M/L)
Fonctions principales	Appels mains libres, commandes vocales, capteurs intelligents, multipoint, annonce du nom de l'appelant
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec; ne pas utiliser de liquides
Sécurité	Utiliser à un volume modéré pour protéger l'audition
Pièces détachées et réparabilité	Embouts disponibles en S/M/L, câble USB, chargeur secteur; batterie non remplaçable

FOIRE AUX QUESTIONS - EOTE14 PLANTRONICS

Comment appairer le casque avec mon téléphone ?

Allumez le casque. Vous entendrez 'appairage' et les voyants clignoteront en rouge et bleu. Activez le Bluetooth sur votre téléphone et recherchez les appareils. Sélectionnez 'PLT_Legend'. Si demandé, entrez le code 0000. Vous entendrez 'appairage réussi'.

Comment recharger le casque ?

Utilisez le câble USB fourni avec connecteur magnétique. Connectez-le au casque et à un chargeur mural ou à un ordinateur. La charge complète prend environ 90 minutes. Les voyants s'éteignent lorsque la batterie est pleine.

Comment répondre à un appel ?

Vous pouvez répondre en mettant le casque sur l'oreille, en disant 'répondre' après l'annonce de l'appel, ou en appuyant sur le bouton d'appel.

Comment mettre en sourdine le microphone ?

Pendant un appel, appuyez sur le bouton Mute. Vous entendrez 'sourdine activée'. Un rappel sonore se produit toutes les 15 minutes. Appuyez à nouveau pour désactiver.

Comment régler le volume ?

Utilisez le bouton de volume (+ ou -) pendant un appel ou la lecture de musique. Lorsque le casque est en veille, vous pouvez régler le volume des alertes vocales.

Que faire si les capteurs intelligents ne fonctionnent pas ?

Portez le casque et appuyez sur le bouton d'appel pour tester. Si vous entendez une alerte de durée de conversation, les capteurs fonctionnent. Sinon, rechargez le casque et placez-le sur une surface plane non métallique pendant plus de 10 secondes pour réinitialiser.

Comment utiliser la fonction multipoint avec deux téléphones ?

Appairez d'abord le casque avec le premier téléphone. Ensuite, pour ajouter un second téléphone, mettez le casque en mode appairage en disant 'mode appairage' ou en maintenant le bouton d'appel enfoncé. Sélectionnez 'PLT_Legend' sur le second téléphone. Pour basculer entre les appels, utilisez le bouton d'appel.

Comment changer la langue des alertes vocales ?

Connectez le casque à un ordinateur via USB et téléchargez l'outil MyHeadset Updater sur www.plantronics.com/myheadset. Vous pourrez y modifier la langue (français, anglais, etc.) et d'autres paramètres.

Comment nettoyer le casque ?

Utilisez un chiffon doux et sec pour essuyer le casque. N'utilisez pas de liquides ni de produits abrasifs. Les embouts peuvent être retirés et lavés à l'eau tiède savonneuse, puis séchés avant de les remettre.

Quelle est l'autonomie de la batterie ?

L'autonomie en communication est de 7 heures et en veille de 11 jours. La batterie est rechargeable et non remplaçable. Une charge complète prend 90 minutes.

MODE D'EMPLOI EOTE14 PLANTRONICS

Manuals+

User Manuals Simplified.

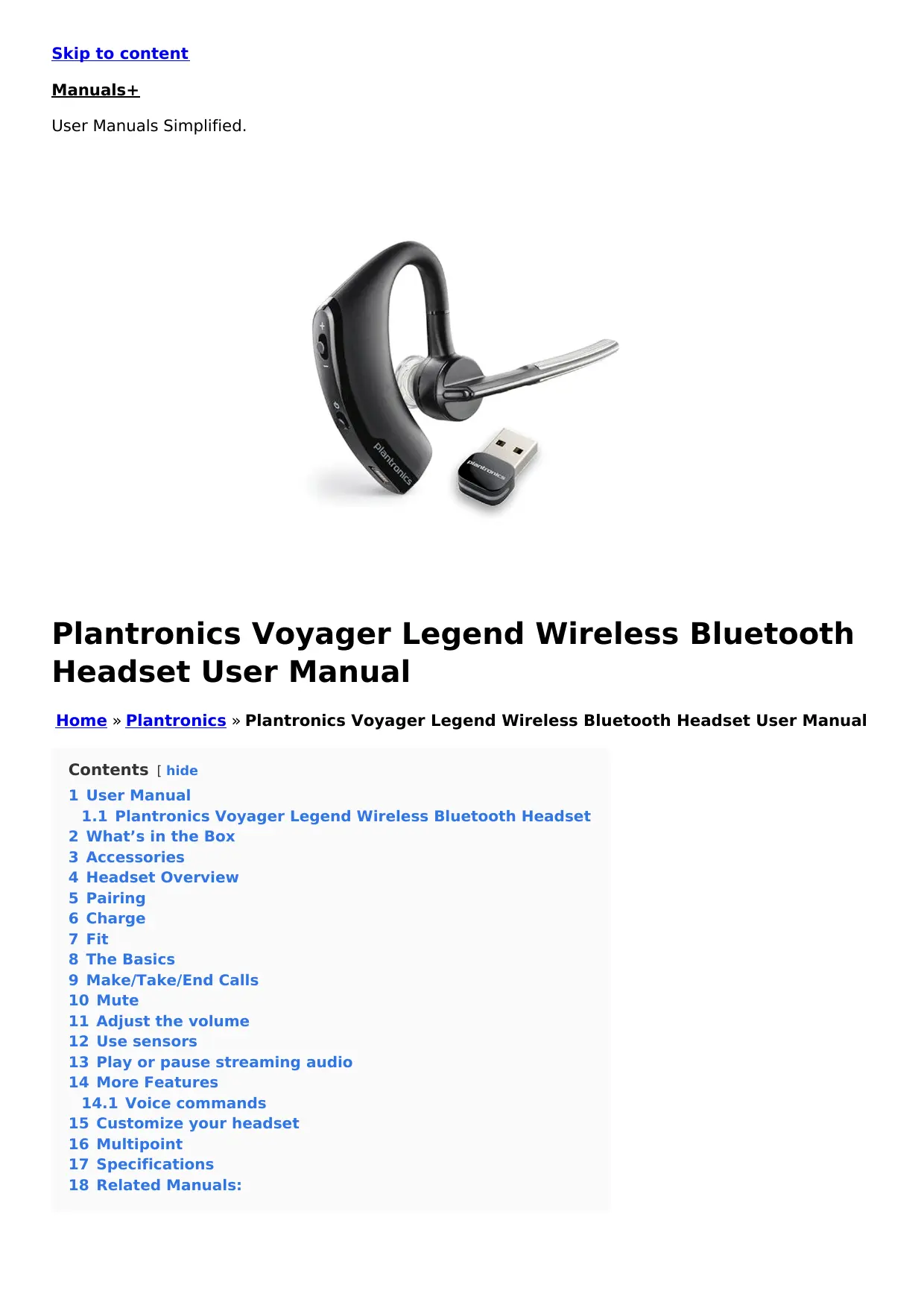

Plantronics Voyager Legend Wireless Bluetooth Headset User Manual

Home » Plantronics » Plantronics Voyager Legend Wireless Bluetooth Headset User Manual

Contents [hide

1 User Manual
1.1 Plantronics Voyager Legend Wireless Bluetooth Headset
2 What's in the Box
3 Accessories
4 Headset Overview
5 Pairing
6 Charge
7 Fit
8 The Basics
9 Make/Take/End Calls
10 Mute
11 Adjust the volume
12 Use sensors
13 Play or pause streaming audio
14 More Features
14.1 Voice commands
15 Customize your headset
16 Multipoint
17 Specifications
18 Related Manuals:

User Manual

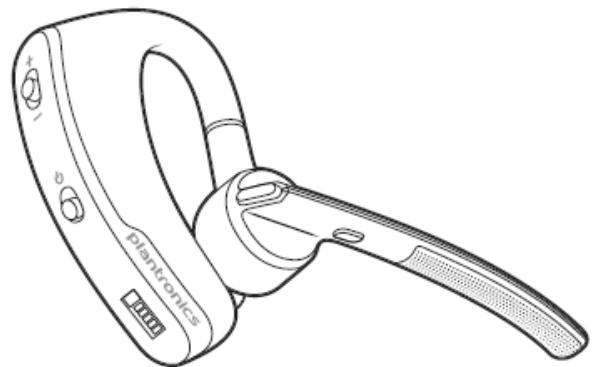

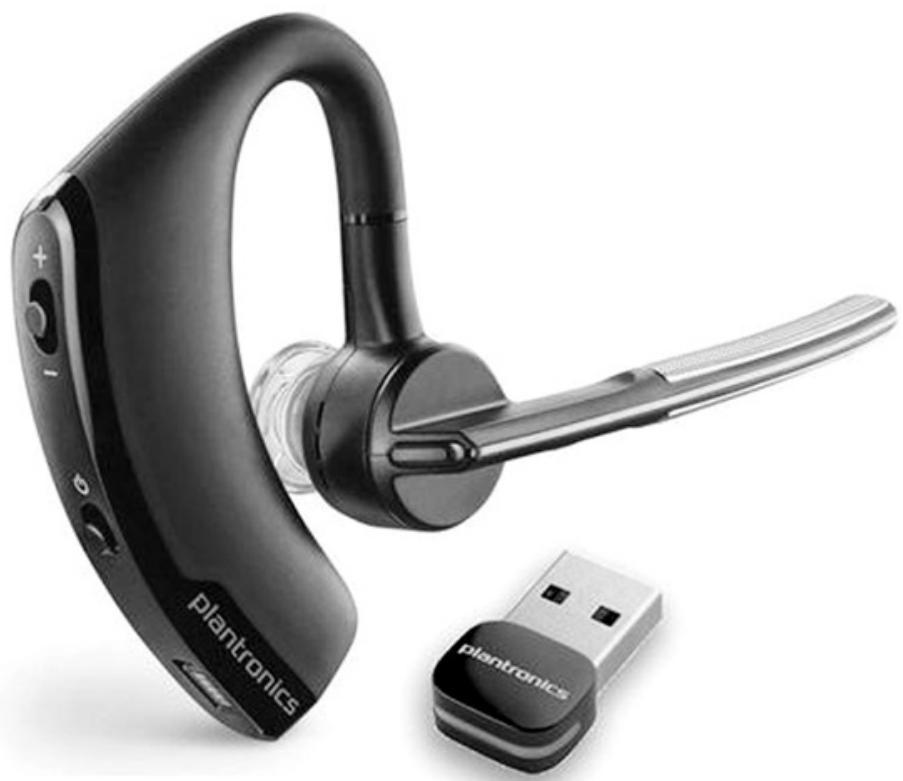

Plantronics Voyager Legend

http://martialsbys/wp-content/videos/Plantronics-VoyagerLegend-Wireless-Bluetooth-Headset-Compatible-with-iPhoneAndroid-and-Othe.mp4

Headset

USB charge cable*

AC charger

Foam eartip covers and silicone eartips

NOTE *Cable style may vary by product.

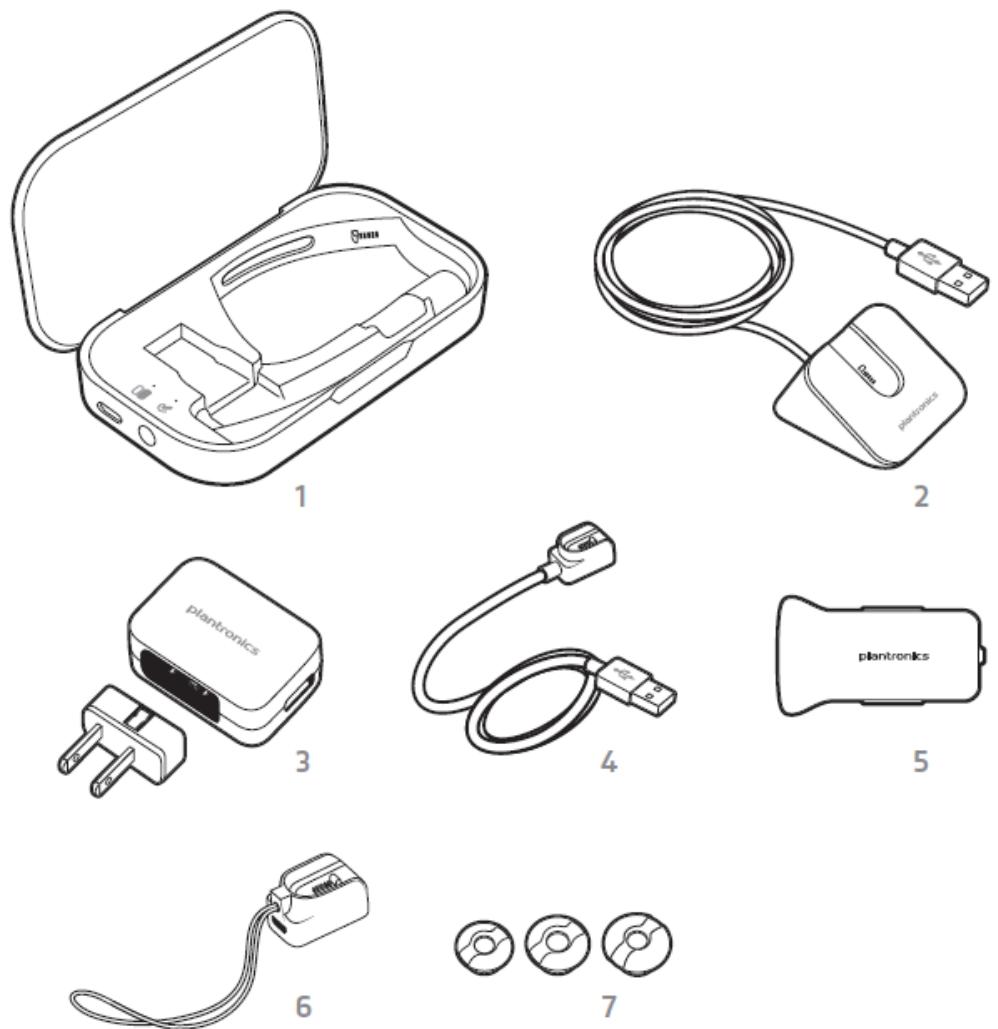

Accessories

Sold separately.

1. Portable charge case
2. Desktop charge stand
3. AC charger
4. USB charge cable
5. Car charge adapter
6. Micro USB charge adapter
7. Eartip kit (available in S, M, L)

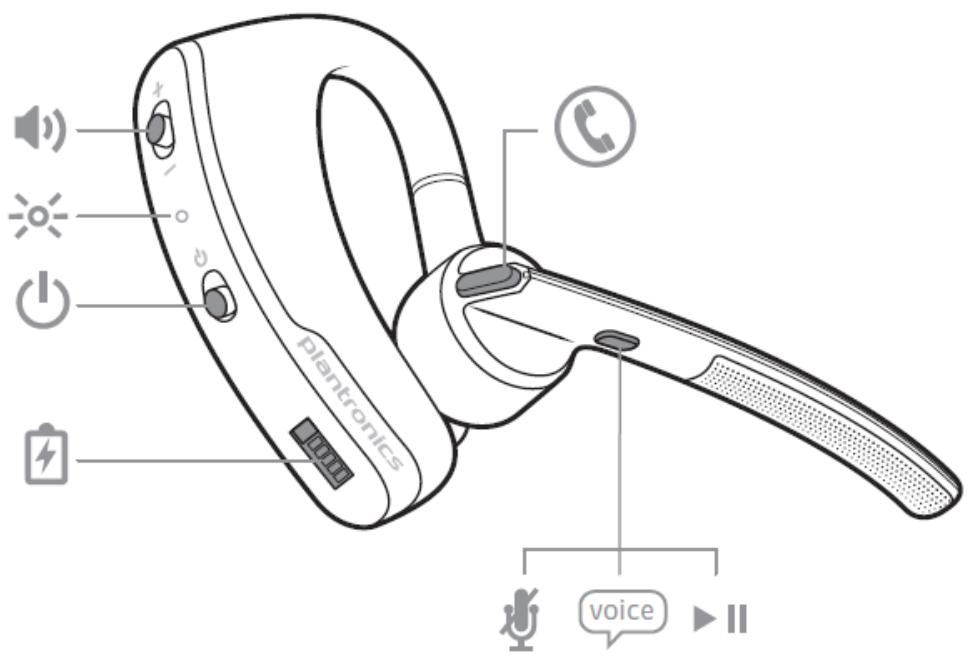

Headset Overview

Call button

Volume button

Headset LED (indicator light)

Power button

Magnetic charge port

Mute button

Voice button

Play/Pause button

Pairing

Get Paired

The first time you power on your headset, it begins the pairing process.

1. Wearing your headset, power it on. You hear "pairing" and the headset indicator lights flash red

and blue.

1. Activate Bluetooth® on your phone and set it to search for new devices.

2. iPhone® Settings > Bluetooth > On*

3. Android™ > Bluetooth: On > Scan for devices*

NOTE *Menu may vary by device.

1. Select "PLT_Legend."

If necessary, enter four zeros (0000) for the passcode or accept the connection.

Once successfully paired, you hear "pairing successful" and the headset indicator lights stop flashing.

NOTE To enable caller name announcement, allow access to your contacts if your phone prompts you.

Pair another phone

After pairing your headset to your phone you may want to pair another or new phone.

1. Switch on your headset then choose:

2. Tap the Voice button and say "Pair mode," or

3. Press and hold the Call button until you hear "Pairing"

4. While the headset LEDs are flashing red and blue, activate Bluetooth® on your phone and set it to search for new devices.

5. Select "PLT_Legend." If your phone asks, enter four zeros (0000) for the passcode or accept the connection.
6. Once successfully paired, LEDs stop flashing red and blue and you hear "pairing successful."

NOTE : To enable caller name announcement, allow access to your contacts if your phone prompts you.

Charge

Your new headset has enough power to pair and make a few calls before charging is needed, though you may charge at any time.

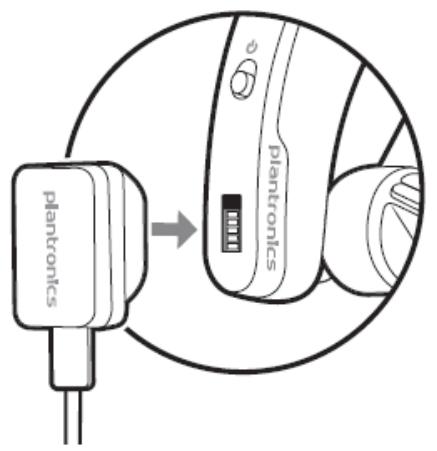

1. Align snap-fit magnetic areas of headset and USB cable.

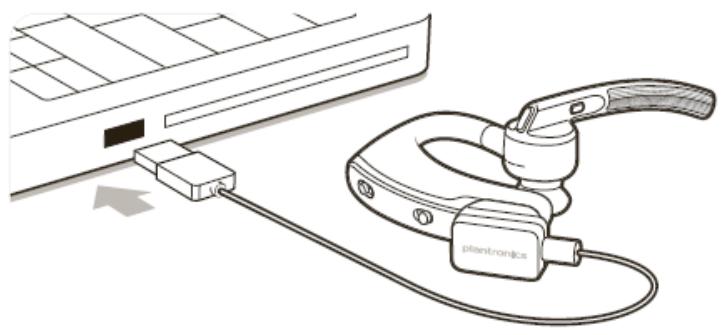

1. Attach cable to USB wall charger or laptop for 90 minutes. LEDs turn off once fully charged.

Table 1: Headset LED behavior while charging

Off	Charging complete
●●●	Battery high
●●	Battery medium
●●	Battery low
●●●	Battery critical

Fit

Change the Eartip : Change the eartip for a better fit.

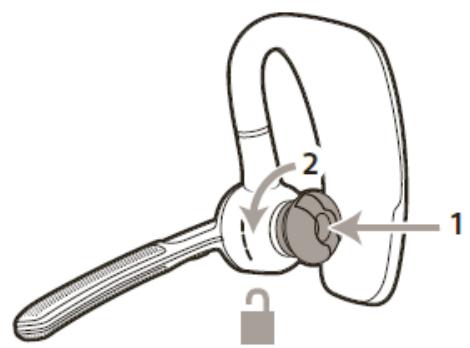

1. Push in eartip and rotate to the left to unlock it.

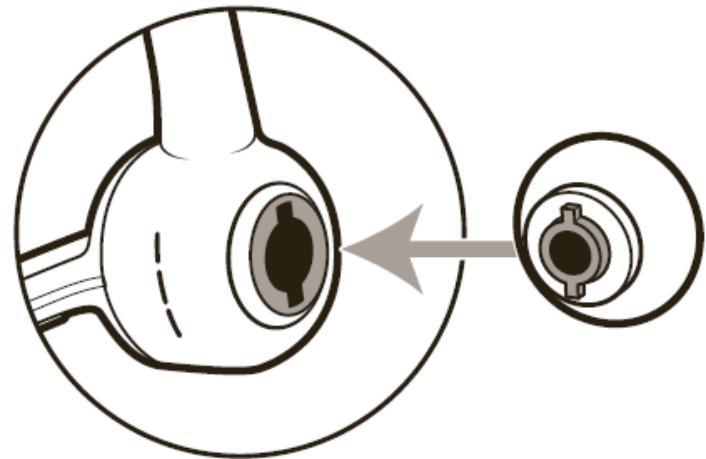

1. Align new eartip into slot.

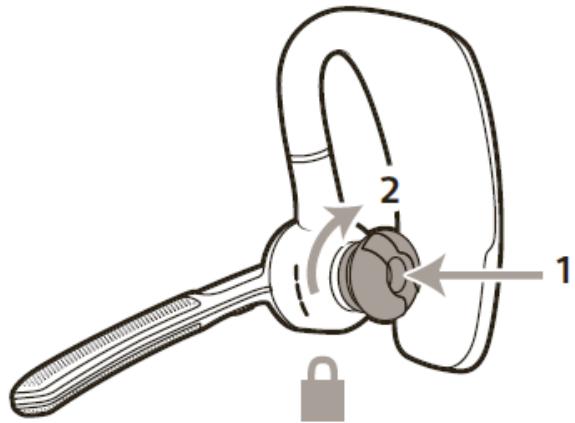

1. Rotate it to the right to lock it into place.

Wear on the left or right :

To wear the headset on your other ear, rotate the boom upwards then twist it around so the eartip is on the other side before lowering the boom.

The Basics

Make/Take/End Calls

Answer a call

Choose:

• Put on the headset to answer call, or
• Say "answer" after call is announced, or
• Tap the "Call button"

Answer a second call

First, tap the Call button to end current call, then tap the Call button again to answer new call.

End a call

Tap the Call button to end current call.

Reject a call

Choose:

Take off the headset, or
- Say "ignore" after call is announced, or
- Press Call button for 2 seconds

Call back last call

Double-tap the Call button .

Voice dial (phone feature)

If your smartphone has a voice-enabled assistant, press the call button for 2 seconds and wait for phone prompt.

Caller Announcement

When wearing your headset, you will hear the name of a contact calling you so you can decide whether to answer or ignore the call.

An incoming caller name is announced:

• if your phone has the Phone Book Access Profile (PBAP)
• if you granted access to your contacts during pairing process
• if they are a stored contact

However, in the following situations, an incoming caller name is not announced:

• if you use the sensors to automatically answer a call while putting on your headset
• if the caller is unknown, unlisted, or blocked
• if your phone doesn't support PBAP

NOTE: Cantonese, Danish, Japanese, Korean, Russian and Swedish do not have native language caller announcement support.

Mute

During a call, you can mute the microphone.

Tap the Mute button. You will hear "mute on" confirmation. An alert repeats every 15 minutes to remind you of microphone mute. Tap the Mute button again to open the microphone and hear "mute off" confirmation.

Adjust the volume

Toggle the Volume button up (+) or down (-) during a call or while streaming audio.

Use sensors

Smart Sensors™ technology in this headset recognizes if the headset is being worn and can automatically perform time-saving functions.

Putting on your headset will:

• Answer an incoming call
• Transfer an active call from your phone
• Resume streaming audio

Taking off your headset will:

Reject an incoming call
- Transfer an active call to your phone handset
- Pause streaming audio
- Lock the Call button to avoid accidental calls

Reset Sensors

You may need to reset the sensors if they are not working as expected.

1. Test Wearing the headset, tap the Call button to test sensors.
   A talk time voice alert means sensors are working. A tone means sensors need to be reset .
2. Reset To reset the sensors, charge your headset and place on a flat non-metallic surface for more than 10 seconds.

Play or pause streaming audio

A 2-second press of the Play/Pause button will either pause or resume playback of streaming audio.

NOTE : You must pause your streaming audio before you:

• use your headset's voice commands
• initiate an outbound call with your headset (call back or voice dial)

NOTE : If you power off the headset or go out of phone range while streaming audio, your headset will not play/pause the stream upon reconnecting until you manually resume streaming with your phone.

More Features

Voice alerts :

Your headset understands and speaks in English. You can change the language online by visiting www.plantronics.com/myheadset and downloading the MyHeadset™ Updater tool. The available languages for voice alerts are Cantonese, English (UK and US), Danish, French, German, Italian, Japanese, Korean, Mandarin, Norwegian, Russian, Spanish and Swedish.

Voice alerts list

• "Power on/off"
• "Answering call"
• "Talk-time (x) hours"
• "Battery low"
• "Recharge headset"
• "Lost connection"
• "PC connected"/"PC disconnected"
• "Phone 1 connected/Phone 2 connected"
• "Pairing"
• "Pairing successful"
• "Pairing incomplete, restart headset"
• "Mute on/off"
• "Volume maximum/minimum"
• "Voice recognition on/off"
• "Calling back last number"
  "You can say"

Adjust voice alert volume

Toggle the volume button when the headset is powered on and idle (not on a call or streaming music) to adjust the volume of the headset's voice alerts.

Voice commands

Tap the Voice button, wait for command request, then say a command. For example, "What can I say?" tells you the full list of available commands. You can change the voice command language by visiting www.plantronics.com/myheadset and downloading the MyHeadset™ Updater tool. The available languages are English (US and UK), French, German, Italian, Japanese, Korean, Mandarin, Russian, Spanish and Swedish. Voice commands for Cantonese, Danish and Norwegian must be spoken in English.

Voice commands list

"Am I connected?"
- "Answer"
"Cancel"
- "Check battery"
- "Ignore"
- "Pair mode"
"Call back"
What can I say

NOTE : The voice-dial feature on your phone is initiated by pressing the Call button for 2 seconds. The voice-dial feature is not a headset voice command.

Disable the answer/ignore voice commands

To disable the "answer/ignore" voice commands:

1. Switch on the headset.
2. Press and hold the Voice button until you hear a double tone.
3. Repeat to reactivate the voice answer commands.

Customize your headset

Your headset understands and speaks in English. You can change the language and other settings using a USB cable, PC and Plantronics tool.

The MyHeadset™ Updater (www.plantronics.com/myheadset) tool enables you to:

Receive firmware updates
- Change language for voice alerts and commands
- Turn voice commands on/off
- Turn Smart Sensors™ on/off
- Turn high quality audio (A2DP) streaming on/off
- Turn "mute off" voice alert on/off
- Turn Wideband Audio for HD Voice on/off

1. Connect your headset and USB cable to your computer.
2. Download the MyHeadset™ Updater tool by visiting www.plantronics.com/myheadset.
3. Edit language, regional settings, configure other features, and download updates when available.

Multipoint

Voyager Legend supports multipoint technology, which allows you to use one headset with two different Bluetooth mobile phones. To pair your headset to a second phone, see "Pair another phone".

To answer a second call on the other phone, the current call must be terminated or transferred back to the first phone. If you choose not to answer, the second call will go to voice mail.

1. Tap the Call button to end the first call.
2. Tap the Call button again to answer the second call

NOTE : To avoid issues with multipoint, use theCall button on the headset rather than your phone controls.

Specifications

Talk Time	Up to 7 hours
Standby Time	Up to 11 days
Operating Distance (Range)	Up to 33 feet (10 meters), Class II
Headset Weight	18 grams
Charge Connector	Micro USB cable with magnetic snap-fit connection to headset, modular AC wall charger 100-240v
Battery Type	Rechargeable non-replaceable lithium ion polymer
Charge Time (Maximum)	90 minutes for full
Power Requirements	5V DC - 180mA
Bluetooth Version	Bluetooth v3.0
Bluetooth Profiles	Supports Advanced Audio Distribution (A2DP), Audio/Video Remote Control (AVRCP), Wideband Hands-free v1.6 (HFP), Headset v1.2 (HSP), Phone Book Access Profile (PBAP), Secure Simple Pairing (SSP2)
Noise and Wind Canceling	Triple-mic active Digital Signal Processing (DSP) plus: • Internal, adaptive 20-band equalizer • Acoustic echo cancellation • Sidetone detection for noise conditions Triple-barrier wind noise protection includes: • Stainless steel windscreens • Acoustic fabric mesh • Electronic filter in microphone circuitry
Operating Temperature	32°F - 104°F (0 - 40°C)
Storage Temperature	32°F - 104°F (0 - 40°C)
Charging Temperature	32°F - 104°F (0 - 40°C)
