MODE D'EMPLOI FVXS25F DAIKIN

Air Conditioning

Technical Data

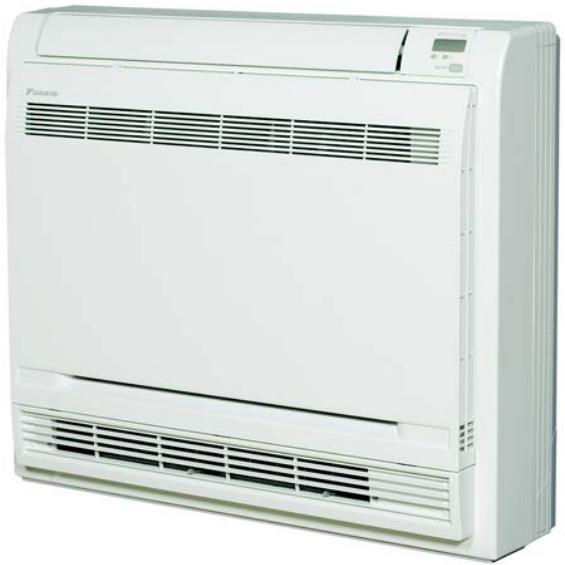

Floor standing unit

EEDEN14-100

TABLE OF CONTENTS

FVXS-F

1 Features 2

2 Specifications 3

Technical Specifications 3

Electrical Specifications 4

3 Options 5

4 Dimensional drawings 6

5 Centre of gravity 7

6 Piping diagrams 8

7 Wiring diagrams 9

Wiring Diagrams - Single Phase 9

8 Sound data 10

Sound Pressure Spectrum - Cooling 10

Sound Pressure Spectrum - Heating 11

1 Features

• Its low height enables the unit to fit perfectly beneath a window

• Can be installed against a wall or recessed
  Vertical auto swing moves the discharge flaps up and down for efficient air and temperature distribution throughout the room

• Online controller (optional): control your indoor unit from any location via smartphone, laptop, pc, tablet or touch screen

• Weekly timer can be set to start heating or cooling anytime on a daily or weekly basis
  Whisper quiet operation: down to 23dBA sound pressure level

1

Econo mode

Night set mode

Fan only

Powerful mode

Auto cooling-heating changeover

Whisper quiet

Indoor unit silent operation

Vertical auto swing

Auto fan speed

Fan speed steps

Dry programmeTitanium apatite photocatalytic air purification filter

Titanium apatite photocatalytic air purification filter

Weekly timer Infrared remote control

Auto_restart

Self diagnosis

Multi model application

VRV for residential application

2 Specifications

2-1 Technical Specifications					FVXS25F	FVXS35F	FVXS50F
Power input - 50Hz	Cooling	Nom.		kW	0.015		0.027
	Heating	Nom.		kW	0.017		0.034
Casing	Colour				White
Dimensions	Unit	Height/Width/Depth		mm	600/700/210
	Packed unit	Height/Width/Depth		mm	696/786/286
Weight	Unit			kg	14
	Packed unit			kg	18
Heat exchanger	Length			mm	510
	Rows	Quantity			2
	Fin pitch			mm	1.2
	Stages	Quantity			22
	Tube type				ø6.35 Hi-XU
	Fin	Type			Multi slit fin
Fan	Type				Turbo fan
	Quantity				-	1
	Air flow rate	Cooling	High	m³/min	8.2	8.5	10.7
				cfm	290	-
			Nom.	m³/min	8.2	8.5	10.7
				cfm	290	-
			Low	m³/min	4.8	4.9	7.8
				cfm	169	-
			Silent operati on	m³/min	4.1	4.5	6.6
				cfm	145	-
		Heating	High	m³/min	8.8	9.4	11.8
				cfm	311	-
			Nom.	m³/min	6.9	7.3	10.1
				cfm	244	-
			Low	m³/min	5.0	5.2	8.5
				cfm	177	-
			Silent operati on	m³/min	4.4	4.7	7.1
				cfm	155	-
Fan motor	Quantity				-	1
	Model				D48D-28
	Speed	Steps			5 + silent, + auto	5
		Cooling	High/ Mediu m/Low/ Silent operati on	rpm	640/520/400/360	650/530/410/380	800/700/600/520
		Heating	High/ Mediu m/Low/ Silent operati on	rpm	680/550/420/380	700/560/420/390	850/740/630/540
	Output	High		W	48
Sound power level	Cooling			dBA	52		60
	Heating			dBA	52		60
Sound pressure level	Cooling	High/Nom./Low/ Silent operation		dBA	38/32/26/23	39/33/27/24	44/40/36/32
	Heating	Super high/High/ Nom./Low/Silent operation		dBA	-/38/32/26/23	-/39/33/27/24	-/45/40/36/32
Refrigerant	Type				R-410A

2 Specifications

2-1 Technical Specifications			FVXS25F	FVXS35F	FVXS50F
Piping connections	Liquid	OD	6.35
	Gas	OD	9.5	9.52	12.7
	Drain		20
	Heat insulation		Both liquid and gas pipes
Temperature control			Microcomputer control
Air direction control			Right, Left, Horizontal, Downward
Air filter	Type		Removable / washable / mildew proof

Standard Accessories : Wireless remote control; Quantity : 1 ;
Standard Accessories : Air purification filter; Quantity : 2 ;
Standard Accessories : Batteries; Quantity : 2 ;
Standard Accessories : Remote control holder; Quantity : 1 ;
Standard Accessories : Thermal insulation tape; Quantity : 2 ;
Standard Accessories : Installation manual; Quantity : 1 ;
Standard Accessories : Drain hose; Quantity : 1 ;
Standard Accessories : Operation manual; Quantity : 1 ;
Standard Accessories : Air supply filter ; Quantity : 1 ;

2-2 Electrical Specifications				FVXS25F	FVXS35F	FVXS50F
Power supply	Name			V1
	Phase			1~
	Frequency		Hz	50
	Voltage		V	220-240
Current	Nominal running current (RLA) - 50Hz	Cooling	A	0.14 / 0.13 / 0.12		0.17
		Heating	A	0.15 / 0.14 / 0.13		0.19
Current - 50Hz	Zmax	List		-	No requirements
	Maximum running current		A	-		0.20
Wiring connections - 50Hz	For power supply	Quantity		-		3
		Remark		3 for power supply, 4 for interunit wiring (Earth wire included)		4 for interunit wiring (earth wire included)

Notes

(1) 220 ~V
(2) 230 V
(3) 240 ~V
(4) When connected with multi-system outdoor unit, refer to the specifications of the multi outdoor unit to be connected.

3 Options

3-1 Options

FVXS-F
Indoor Units - Control systems

		PVX525F	PVX535F	PVX550F
Wiring adapter normal open contact / normal open pulse contact		KRF413A15 (1)
Centralised control board	Up to 5 rooms	KRC72 (2)
Central remote controller		DC302C51
Unified ON/OFF control		DC301B51
Schedule timer		DST301B51
Interface adapter for DIII-net		KRF928A25
Online controller		KKRP01A
External mounting kit for online controller		KKRPW01A
Will power cable for online controller		KKRPW01A
Touch LCD wall controller (3)		KBCRC01A
Simple wall controller (3)		KBCRC501A
KNX gateway		KUC-DD

(1) Wiring adapter supplied by Daikin. Time clock and other devices: to be purchased locally.
(2) Wiring adapter is also required for each indoor unit.
(3) Can only be used in combination with online controller KRRPO1A.

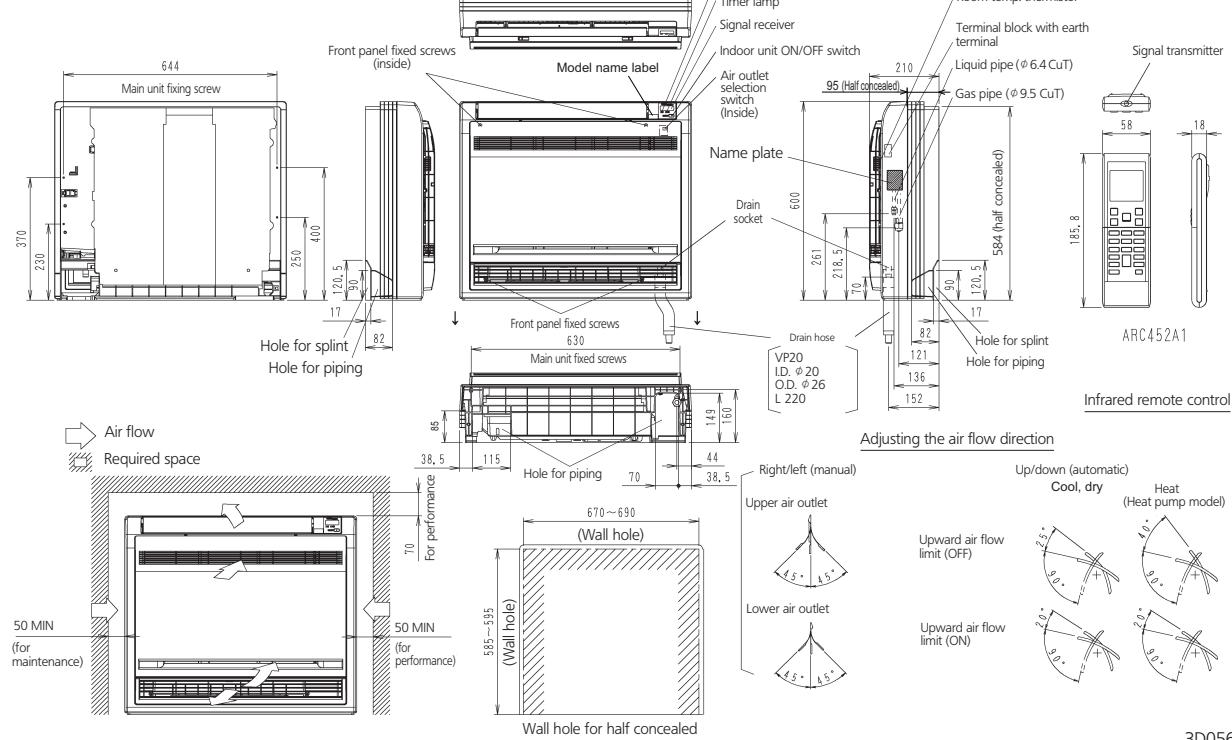

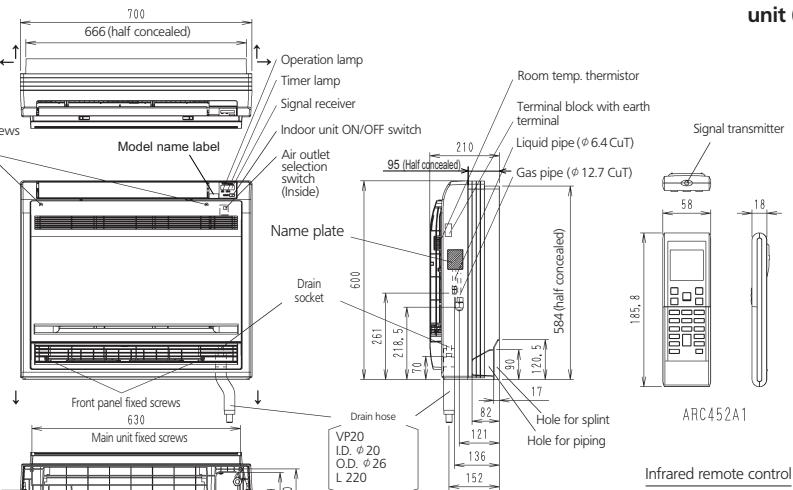

4 Dimensional drawings

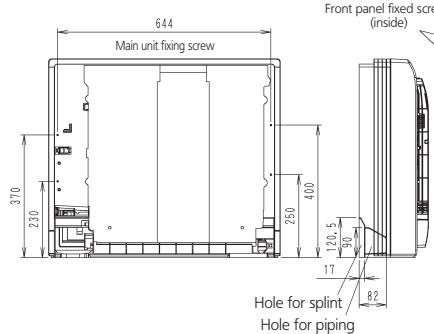

4-1 Dimensional Drawings

FVXS25-35F

Note) 1. The mark () shows piping direction

unit (mm)
FVXS50F

Note) 1. The mark () shows piping direction

unit (mm)

Air flow

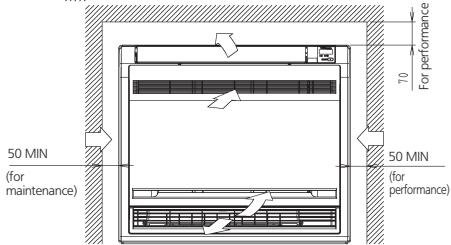

Required space

Wall hole for half concealed

Adjusting the air flow direction
Right/left (manual)

Up/down (automatic)
Cool, dry
flow
Upward air flow limit (ON)
Heat
(Heat pump model)

3D056136A

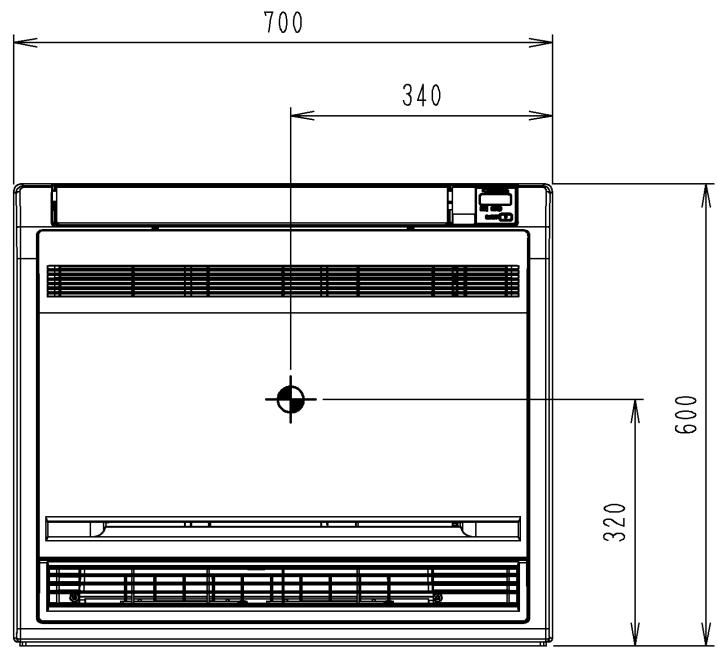

5 Centre of gravity

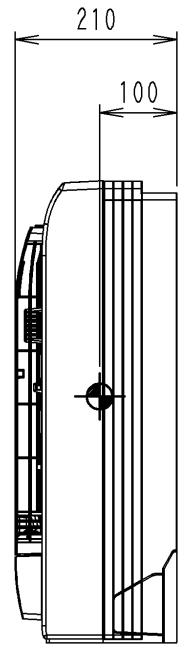

5-1 Centre of Gravity

FVXS-F

4D056197D

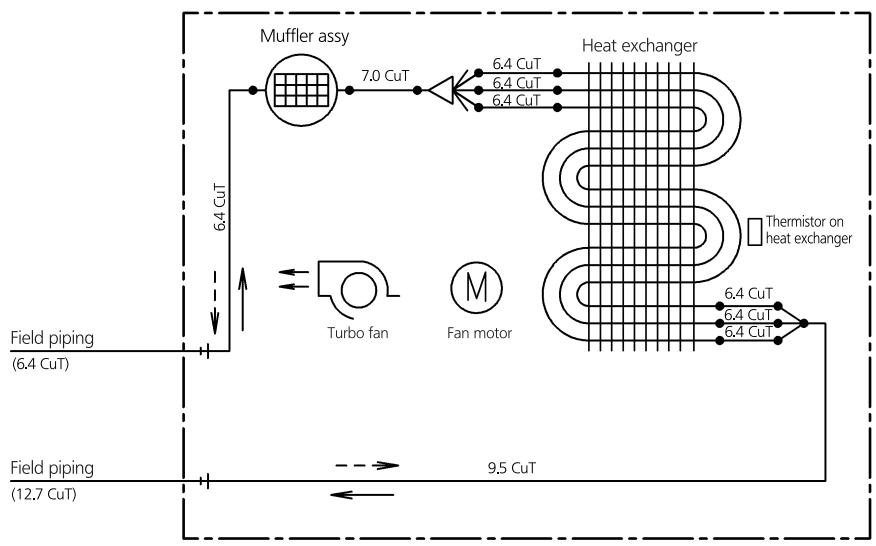

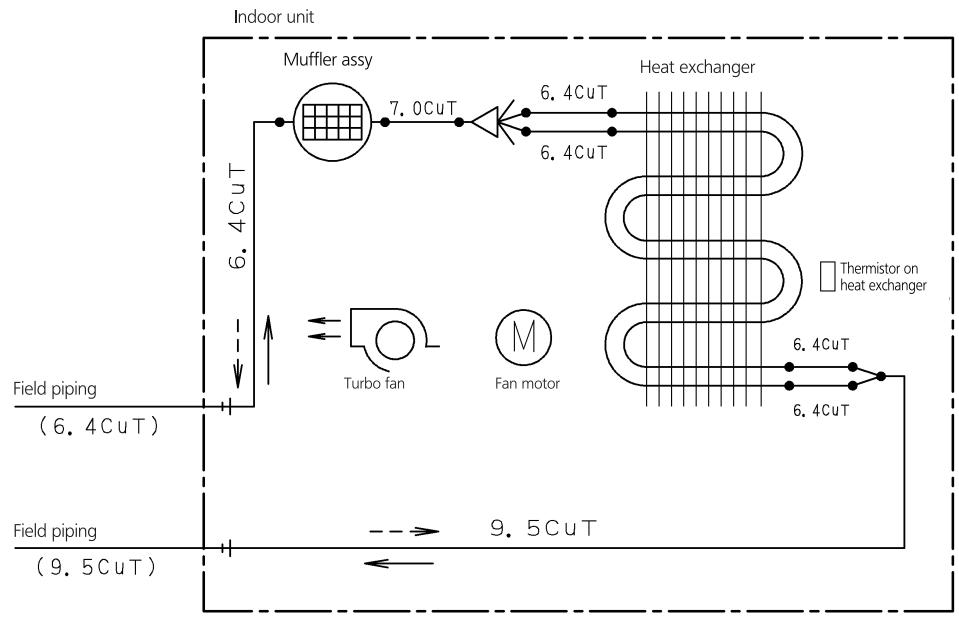

6 Piping diagrams

6-1 Piping Diagrams

FVXS25-35F

Refrigerant flow

4D056137B

FVXS50F

Refrigerant flow

4D056138D

7 Wiring diagrams

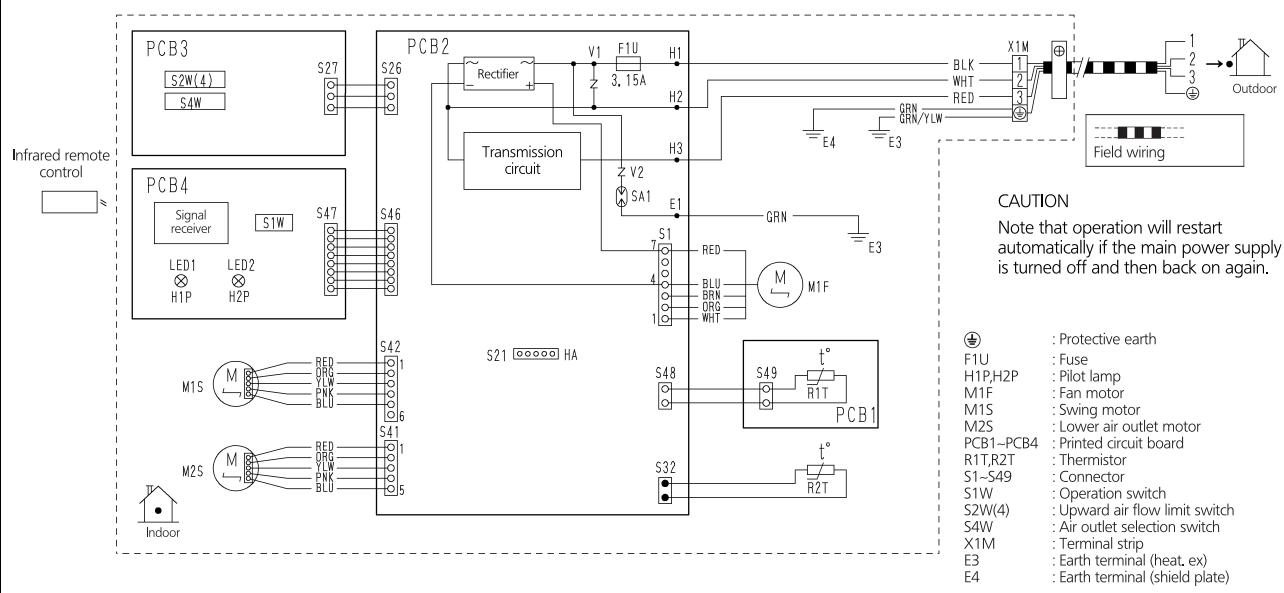

7 - 1 Wiring Diagrams - Single Phase

FVXS25-50F

3D055953A

8 Sound data

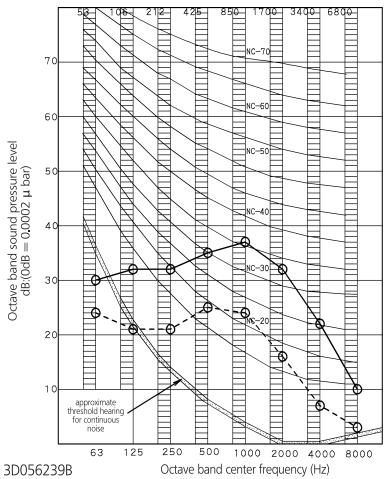

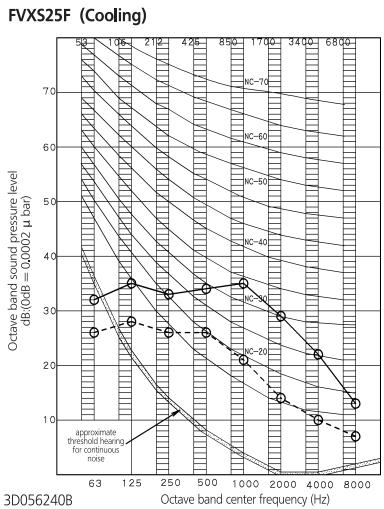

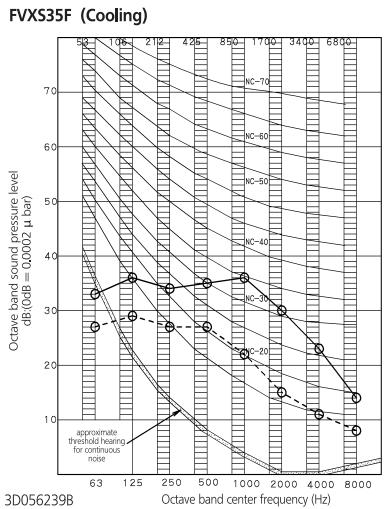

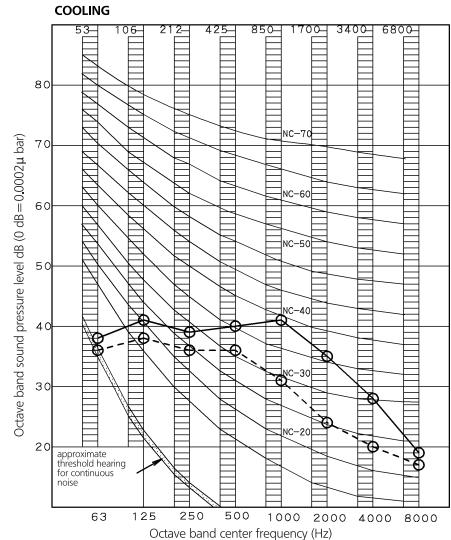

8 - 1 Sound Pressure Spectrum - Cooling

8

NOTES
1	Overall (dB): (B,G,N is already rectified)
2	Measuring place: Measured in an anechoic room
3	Operation noise differs with operation and ambient conditions.
4	Operating conditions: Power source 220-240V, 50Hz Standard external static pressure ○-○ 50Hz 220-240v(H) ○-○ 50Hz 220-240V(L)
5	Location of microphone, JSC9612 The operation noise measuring method is in accordance with JSC9612

NOTES
1	Overall (dB): (B,G,N is already rectified)
2	Measuring place: Measured in an anechoic room
3	Operation noise differs with operation and ambient conditions.
4	Operating conditions: Power source 220-240V, 50Hz Standard external static pressure ○-50Hz 220-240v (H) ○---○ 50Hz 220-240V (L)
5	Location of microphone, JSC9612 The operation noise measuring method is in accordance with JSC9612

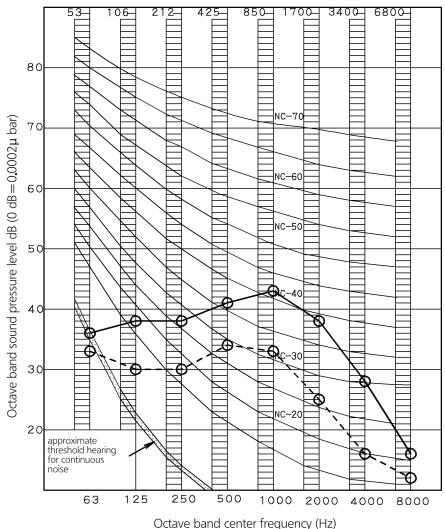

FVXS50F

NOTES

Overall (dB)

50mL 230V (p)	50mL 230V (L)
44	36

(B.G.N is already rectified).

2 Measuring place: Measure in anechoic room

3 Operation noise differs with operation and ambient conditions.

4 Operating conditions: Power source 220-240V 50Hz

JIS Standard

5 Standard external static pressure

O—O 50 Hz 220-240V (H)

O-50Hz220-240V(L)

Cooling

5 Location of microphone 156343

JSC9612 The operation noise measuring method is in accordance with JSC9612.

3D056238C

8 Sound data

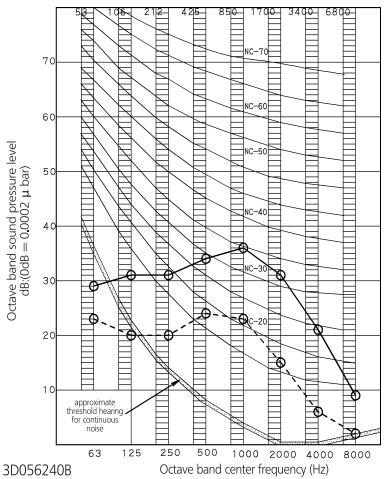

8 - 2 Sound Pressure Spectrum - Heating

FVXS25F (Heating)

NOTES

1 Overall (dB):

(B,G,N is already rectified)

2 Measuring place: Measured in an anechoic room

3 Operation noise differs with operation and ambient conditions.

4.Operating conditions:Power source 220-240V,50Hz

Standard external static pressure

50Hz 220-240v (H) O---O 50Hz 220-240V (L)

5 Location of microphone.

JSC9612

The operation noise measuring

method is in accordance with JISC9612

Scale	50Hz 230V(H)	50Hz 230V(L)
A	38	26

FVXS50F
HEATING

NOTES

1 Overall (dB)

Scale	50Hz 230V(H)	50Hz 230V(L)
A	45	36

(B.G.N is already rectified)

1. Measuring place: Measure in anechoic room

3 Operation noise differs with operation and ambient conditions.

4 Operating conditions: Power source 220-240V 50Hz

JIS Standard

5 Standard external static pressure

O-50Hz220-240V(H)O---O,50Hz,220-240V(1)

Heating

6 Location of microphone

JSC9612 The operation noise measuring method is in accordance with JSC9612.

3D056238C

FVXS35F (Heating)

NOTES

Overall (dB)

(B,G,N is already rectified)

Measuring place: Measured in an anechoic room

Operation noise differs with operation and ambient conditions.

Operating conditions: Power source 220-240V, 50Hz

Standard external static pressure

50Hz220-240v(H) 50Hz220-240V(L)

Location of microphone.

JISC9612

The operation noise measuring

method is in accordance with JSC9612

Scale	50Hz 230V(H)	50Hz 230V(L)
A	39	27

Daikin Europe N.V. participates in the Eurorent Certification programme for Liquid Chilling Packages (LCP), Air handling units (AHU) and Fan coil units (FCU). Check ongoing validity of certificate online: www.eurorent-certification.com or using: www.certiflash.com

The present leaflet is drawn up by way of information only and does not constitute an offer binding upon Daikin Europe N.V., Daikin Europe N.V. has compiled the content of this leaflet to the best of its knowledge. No express or implied warranty is given for the completeness, accuracy, reliability or fitness for particular purpose of its content and the products and services presented therein. Specifications are subject to change without prior notice. Daikin Europe N.V. explicitly rejects any liability for any direct or indirect damage, in the broadest sense, arising from or related to the use and/or interpretation of this leaflet. All content is copyrighted by Daikin Europe N.V.

BARCODE
