Intitulé	Description
Type de produit	Caméra vidéo numérique
Caractéristiques techniques principales	Résolution vidéo HD, capteur CMOS, objectif grand angle
Alimentation électrique	Alimentation par USB ou batterie rechargeable
Dimensions approximatives	10 cm x 5 cm x 3 cm
Poids	200 grammes
Compatibilités	Compatible avec Windows, macOS, et systèmes Android
Type de batterie	Batterie lithium-ion rechargeable
Tension	5V
Puissance	5W
Fonctions principales	Enregistrement vidéo, prise de photo, détection de mouvement
Entretien et nettoyage	Essuyer avec un chiffon doux, éviter l'eau et les produits chimiques
Pièces détachées et réparabilité	Disponibilité limitée des pièces, consulter le service après-vente
Sécurité	Ne pas exposer à des températures extrêmes, éviter les chocs
Informations générales	Vérifier la compatibilité avec les logiciels de montage avant l'achat

FOIRE AUX QUESTIONS - VIDEOCAM EYE GENUIS

Comment installer la caméra GENUIS VIDEOCAM EYE sur mon ordinateur ?

Pour installer la caméra, branchez-la sur un port USB de votre ordinateur. Windows devrait installer automatiquement le pilote. Si ce n'est pas le cas, vous pouvez télécharger les pilotes depuis le site officiel de GENUIS.

Pourquoi ma caméra ne fonctionne-t-elle pas ?

Vérifiez que la caméra est correctement branchée et que le voyant LED est allumé. Assurez-vous également que le logiciel de webcam est bien installé et que la caméra est sélectionnée comme périphérique d'entrée.

Comment ajuster la qualité vidéo de ma GENUIS VIDEOCAM EYE ?

Vous pouvez ajuster la qualité vidéo dans les paramètres de l'application que vous utilisez pour la vidéo. Recherchez les options d'affichage ou de résolution et choisissez la qualité souhaitée.

Mon image est floue, que faire ?

Assurez-vous que l'objectif de la caméra est propre. Si l'image reste floue, essayez de modifier l'éclairage de votre environnement ou de régler la mise au point dans les paramètres de l'application.

Comment désinstaller la caméra GENUIS VIDEOCAM EYE ?

Pour désinstaller la caméra, allez dans le 'Panneau de configuration', puis 'Gestionnaire de périphériques'. Trouvez la caméra sous 'Périphériques d'image', faites un clic droit et sélectionnez 'Désinstaller'.

La caméra est reconnue, mais je n'entends pas de son, que faire ?

Vérifiez si votre caméra est équipée d'un microphone intégré et qu'il est activé. Assurez-vous que le niveau sonore est adéquat dans les paramètres de votre système et de l'application que vous utilisez.

Où puis-je trouver le manuel d'utilisation de la GENUIS VIDEOCAM EYE ?

Le manuel d'utilisation est généralement inclus dans la boîte du produit. Sinon, vous pouvez le télécharger au format PDF depuis le site officiel de GENUIS dans la section 'Support'.

Comment mettre à jour le pilote de ma caméra ?

Vous pouvez mettre à jour le pilote en allant dans 'Gestionnaire de périphériques', en faisant un clic droit sur la caméra et en sélectionnant 'Mettre à jour le pilote'. Vous pouvez également visiter le site de GENUIS pour télécharger la dernière version du pilote.

MODE D'EMPLOI VIDEOCAM EYE GENUIS

VideoCAM Eye Features

1 SnapShot Button
2 LED Indicator
3 Lens
4 Swivel Base

Installing the VideoCAM Eye

1. Please install the driver first and then connect VideoCAM Eye to the USB port.

2. Installing the VideoCAM Eye driver

Windows Environment

a. Insert the VideoCAM Eye Installation CD into the CD-ROM drive.
b. The Autorun screen will bring up the installation screen. Click on "Driver" then simply follow the on-screen instructions.
c. Install DirectX from the CD.

Notice: If the Autorun screen doesn't start, please follow these steps:

• Click on "Start Menu"
• Type D \SETUP.EXE , then click Enter key. (Assume your CD-ROM is in Drive D)

Mac Environment

a. Insert the VideoCAM Eye Installation CD into the CD-ROM drive.

b. Double click on the CD-ROM drive
c. Click on the file folder of "VideoCAM Eye Driver OSX 1.0"
d. Click on "VideoCAM Eye Driver Install" then simply follow the on-screen instructions.

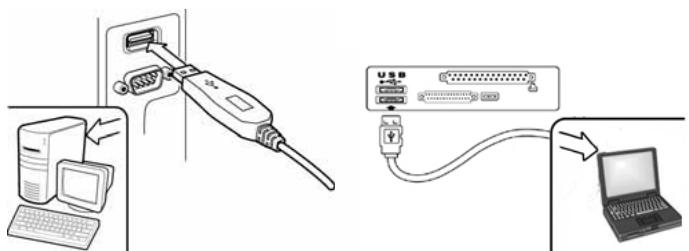

1. Insert the VideoCAM Eye's USB cable to your desktop's or laptop's USB port.

1. Complete software and hardware installation. You can install the software you would like to use for video conferencing or chat with your friends.

NOTE

To remove the driver installation:

Windows Environment:

Please go to the taskbar and follow "Start Program VideoCAM Eye Click "Uninstall", then follow the on-screen instructions to remove the driver.

Mac OSX Environment:

Please put the VideoCAM Eye installation CD into CD-ROM drive go to the file folder of "VideoCAM Eye Driver OSX 1.0" Click on "VideoCAM Eye Uninstall" Follow the on-screen instructions to remove the driver.

Genius Application (Windows Only)

You can use our software to capture the real-time image, record or execute the simply security function.

To run the software, please go to the taskbar and follow "Start" Click "Program" Choose "VideoCAM Eye" Click "VideoCAM Eye. Or you may execute the software by simply clicking the shortcut of "VideoCAM Eye"

NOTE

After installing the driver of VideoCAM Eye, the system will automatically create a file (C:\WINDOWS\Album or C:\WINNT\Album) to save the images you take using the Genius Application.

1. Description for the major icon

Preview mode

Snapshot mode

Video Clip Mode

Security monitoring system

Exit the Genius VideoCAM Series UI

Camera Control

NOTE

In the camera control section, you can personalize your camera

settings for different circumstances.

Camera Control:

You can set different values for different circumstances and environment

-Press "Default" to return to the manufacturer's settings.

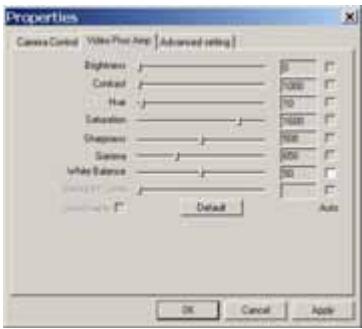

Video Proc Amp:

In the section, you can adjust different values toward image itself.

-Press "Default" to return to the manufacturer's settings.

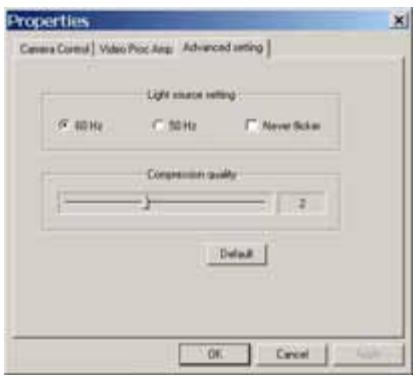

Advanced setting:

Select the correct frequency according to the country where you are using the web camera.

Also, you can have different compression choices for your images.

-Press "Default" to return to the manufacturer's settings.

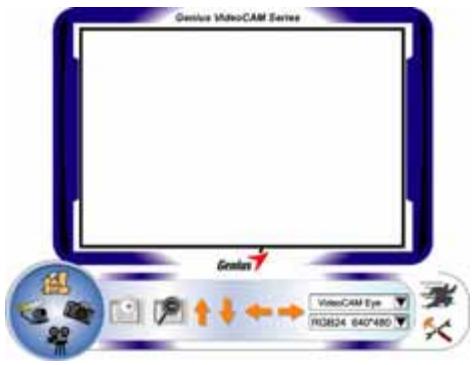

2. Preview Mode

You can use the function buttons on the control panel to zoom in/out and move upward/downward/left/right.

Zoom in the image

Zoom Out the image

Move the image upward

Move the image downward

Move the image to the left

Move the image to the right

RGB24 640*480

Resolution Selection There are 2 categories of resolution: RGB24 and I420. You can select 5 different image resolutions for each of them. The file size of I420 will be smaller than RGB24. So, I420 may be the better choice for transmission.

3. Snapshot Mode

You can press the Snapshot button in the right of the circle to take a picture right away and share with your friends.

Send photo by e-mail

Shoot Continuously

Zoom in the image

Zoom Out the image

Move the image upward

Move the image downward

Move the image to the left

Move the image to the right

Resolution selection

RGB24 640*480

This section shows the resolution you selected in the "Preview Mode". If you want to change the resolution, please click "to go back to the Preview Mode" to make the changes.

NOTE

You can zoom in/out or move the image to the position you would like, and then take pictures.

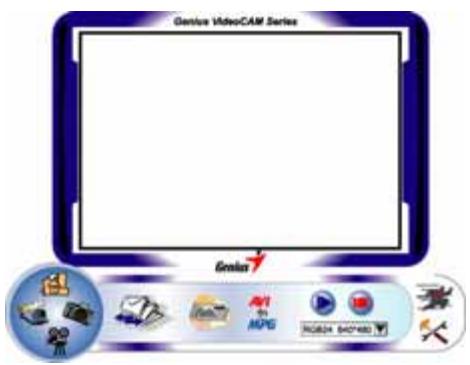

4. Video Clip Mode

You can record real-time image in this section.

Send photo by e-mail

Convert AVI files into MEPG-1 format

Start recording

Stop recording Exit the Video Clip Mode

To Create animation

Press to start; Press

Press to return to the video recording mode

This function has to be under the resolution of RGB320 x 240 or I420 320 x 240. Please make sure the resolution is correct before executing this function.

RGB24 640*480

Resolution selection

This section shows the resolution you selected in the "Preview Mode". If you want to change the resolution, please click "to go back to the Preview Mode" to make the changes.

5. Security Monitoring System

This Function records any movements that appear in front of your monitor automatically. It can also record anytime until the HD is full. If there's no movement, it will shut down automatically after four seconds or until it detects new movement. It's a great security monitoring system and you can

set the software so it works at times when you're not around.

A.

Start recording

B.

Stop recording

C.

Setup time of the security monitoring system

D.

Set up the degree of the variance for every second of recording image. When the differences are over the setup degree, the system will alert you.

E.

Set up the different alerting sound effects

NOTE

In "Security Monitoring System" section, you can record in any size of image resolution. If you want to change the resolution, please click

"to go back to the Preview Mode" and make the changes.

WebCam Monitor (MAC Only)

For MAC users, while you are installing the driver, the web camera's application, called "WebCam Monitor", will be installed at the same time. Once you finish the driver installation, the icon "WebCam Monitor" will show up on the desktop automatically.

With WebCam Monitor, you can take image shots, record video clips, personalize the camera settings for different circumstances, and so on.

1. Snapshot function

You can just simply press the snapshot button on the web camera to take pictures.

2. Video Clip

You have two ways to record images.

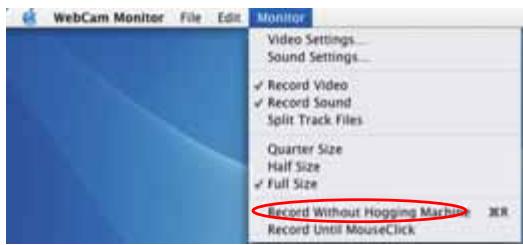

a. Record Without Hogging Machine

Go to "Monitor" Click

"Record Without

Hogging Machine"

Change the file name you would like to save as and the location Click

"Save" to start recording

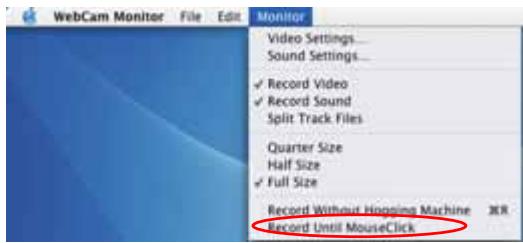

b. Record Until MouseClick

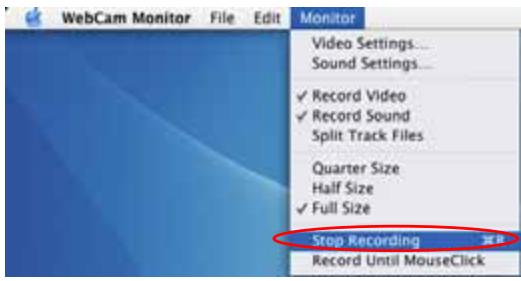

To stop recording, please go to "Monitor" and then click "Stop Recording"

Go to "Monitor" Click "Record Until

MouseClick" Change the file name you would like to save as and the location Click "Save" to start recording To stop recording, just click your mouse.

3. Personalized values settings

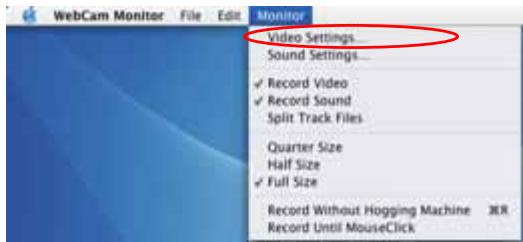

You can have the personalized values in "Video Settings".

There are four sections to adjust values due to different circumstances.

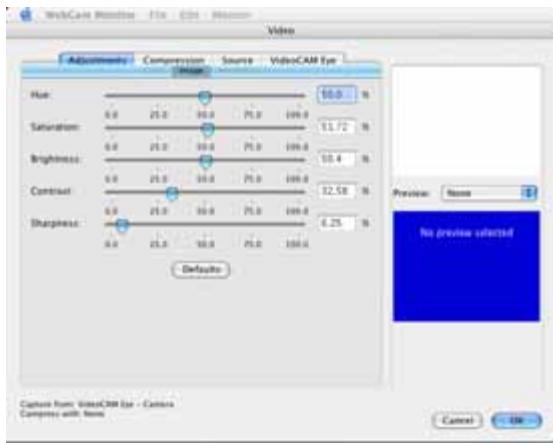

Adjustments:

In the section, you can adjust different values toward image itself.

-Press "Default" to return to the manufacturer's settings.

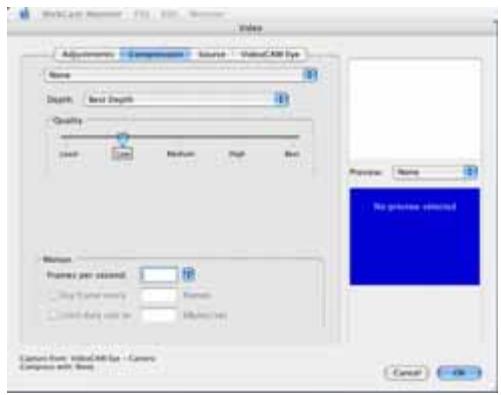

Compression:

In this section, you can have different compression choices for your images, file type and image quality. Also, you can set up the frame rate for the video clip recording.

Please note that before you change the file format, make sure that you have application to support the file format you set up.

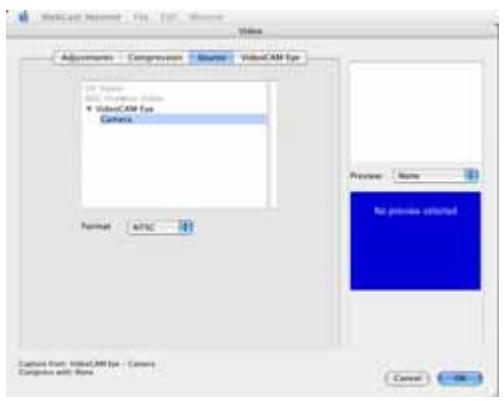

Source:

In this section, you have to make sure that the image source is correspondent to the input device you are using.

-Format: Select the correct video system, which depends on the country you are in.

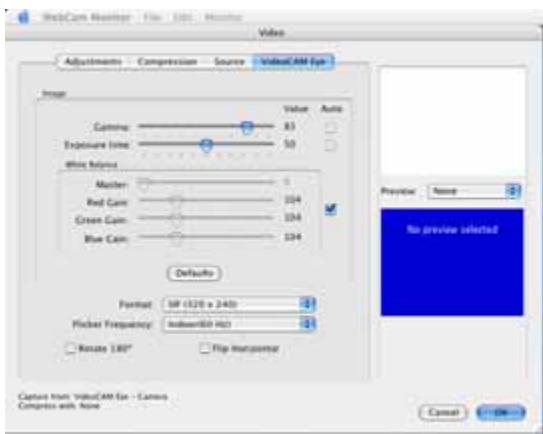

VideoCAM Eye:

In this section, you can adjust different values toward image appearance for different environment.

• In "Gamma and Exposure time", you can simply click "Auto" or adjust the values by yourself.

-In "White Balance", the default is "Auto". If you want to adjust the values by yourself, please unclick

"Auto" first.

-Press "Default" to return to the manufacturer's settings.

• Format: You can choose different image sizes.

-Flicker Frequency:

Please choose the correct light frequency, which depends on the country you are in.

• Also, you can rotate or flip the image if you want.

MSN Messenger, Yahoo Messenger, CUSeeME

The camera is compatible with MSN Messenger, Yahoo Messenger, and CUSeeMe.

• MSN Messenger Guide

Microsoft Windows MSN Messenger has been included with

Microsoft Windows XP (or you can download from

http://www.msnMESSenger-download.com) to provide

videoconferencing service.

Using MSN Messenger as for Videoconferencing

• If you are using MSN Messenger included with Windows XP, please follow the procedure as below:

Click the person's name you would like to connect with Click

the Start cameras button The text message window will display the message: "You have asked to have a video and voice conversation. Please wait for a response or Cancel (Alt +Q) the pending invitation." the other person will click Accept or Decline to begin or terminate the video and voice conversation.

• If you download the MSN Messenger from the website (http://www.msnmessenger-download.com), please follow the procedure as below: Click the person's name you would like to connect with Click the Webcam button the other person will click Accept or Decline to begin or terminate the video and voice conversation. Click "Get a webcam"

Yahoo Messenger Guide From the main window, click the Tools menu, select Start My Webcam, then press the Broadcast button press the camera icon on the toolbar select the Friend menu and choose Invite to View My Webcam
- CUseeMe (for more details, please access http://www.cuworld.com/join_room.asp) Click "Join a Group Video Chat and Meet CUWorld Members" on the main CUseeMe window The webpage of Join a CUworld Video Chatroom Select a channels link under the icon on the left of the webpage Pick a Room from the list you want to join You will automatically be launched into a video chat

NOTE

Please make sure you already installed the camera driver and connect the camera to the computer before running video conferencing or video chat.
Please make sure you close other webcam programs before running the video conferencing or video chat.
