Type de produit	Cadre photo numérique
Marque	GENUIS
Modèle	PF801
Taille de l'écran	8 pouces TFT LCD
Mémoire interne	128 Mo flash
Formats photo compatibles	JPG, BMP
Formats audio compatibles	MP3
Formats vidéo compatibles	Motion-JPEG (AVI)
Supports de stockage externes	SD, MMC, MS, CF, MD, clé USB
Diaporama	Simple ou multi-photos (jusqu'à 4 photos par écran), intervalle réglable
Rotation des photos	90°, 180°, 270°
Fonctions supplémentaires	Calendrier et horloge en temps réel, fonction veille, haut-parleur intégré
Alimentation	12 V CC via adaptateur secteur fourni
Télécommande	Oui (incluse)
Entretien et nettoyage	Essuyer avec un chiffon doux et sec. Ne pas utiliser de liquides ou de produits abrasifs.
Sécurité	Ne pas ouvrir le boîtier. Ne pas exposer à l'eau ou à l'humidité. Débrancher pendant les orages.
Pièces détachées et réparabilité	Aucune pièce réparable par l'utilisateur. Contacter un professionnel en cas de panne.
Informations générales	Cadre photo numérique GENUIS PF801. Garantie et SAV selon revendeur.

FOIRE AUX QUESTIONS - PF801 GENUIS

Comment allumer et éteindre le cadre photo ?

Branchez l'adaptateur secteur à l'appareil et à une prise électrique. Poussez l'interrupteur situé au bas du dos vers la position ON. Pour éteindre, mettez l'interrupteur sur OFF.

Quels types de cartes mémoire sont compatibles ?

Le cadre accepte les cartes SD, MMC, MS (Memory Stick) via un slot, et les cartes CF et Microdrive via un autre slot. Il supporte également les clés USB.

Comment lancer un diaporama ?

Insérez une carte mémoire ou une clé USB contenant des photos. Le cadre affichera automatiquement un aperçu des miniatures. Utilisez la télécommande pour sélectionner une photo et appuyez sur le bouton 'Slide' pour lancer le diaporama.

Comment régler l'intervalle entre les photos du diaporama ?

En mode aperçu des 12 miniatures, appuyez sur 'Exit' pour accéder au menu de configuration. Naviguez jusqu'à 'Slide Interval' et choisissez entre 5 sec, 10 sec, 30 sec, 1 min, 1 h, 2 h, 3 h ou 4 h.

Est-il possible de copier des photos de la carte mémoire vers la mémoire interne ?

Oui, sélectionnez la photo souhaitée en mode aperçu, puis appuyez sur le bouton 'Copy' sur la télécommande. La photo sera copiée dans la mémoire interne.

Comment régler l'heure et la date ?

Depuis le menu de configuration (appuyez sur 'Exit' en mode aperçu), sélectionnez 'Set Date & Time'. Utilisez les touches fléchées pour naviguer et ajuster les valeurs. Note : les réglages sont perdus si l'appareil est débranché.

Peut-on écouter de la musique MP3 avec ce cadre ?

Oui, placez des fichiers MP3 sur une carte mémoire ou une clé USB. Appuyez sur le bouton 'MP3' de la télécommande pour afficher la liste des morceaux, puis sélectionnez celui que vous souhaitez lire.

Comment faire pivoter une photo ?

En mode photo unique, utilisez les touches fléchées gauche/droite de la télécommande. La touche '←' tourne l'image de 90° dans le sens antihoraire, la touche '▶' dans le sens horaire.

Y a-t-il une fonction de mise en veille ?

Oui, dans le menu de configuration, vous pouvez régler 'Sleep Interval' de 30 minutes à 8 heures. Le cadre s'éteindra automatiquement après la durée définie pour économiser le rétroéclairage.

Comment nettoyer l'écran du cadre photo ?

Utilisez un chiffon doux et sec pour essuyer l'écran. N'utilisez jamais de liquides, de produits chimiques ou de matériaux abrasifs qui pourraient endommager la surface.

MODE D'EMPLOI PF801 GENUIS

Symbol for Separate Collection in European Countries

This symbol indicates that this product is to be collected separately.

The following apply only to users in European countries:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste.
• For more information, contact the retailer or the local authorities in charge of waste management.

Important Notice

The Digital Photo Frame has been thoroughly tested to be certain it meets our own exacting quality control standards. Please take a few moments to review the following important information before using it.

For your safety

CAUTION

• TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. THERE ARE NO USER-SERVICEABLE PARTS INSIDE.
• TO DEDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TOWATER OR MOISTURE.

The lightning flash with arrow-head symbol within an equilateral triangle is intended to alert the user to the presence of insinuated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

IMPORTANT SAFETY INSTRUCTIONS

All the safety and operating instructions should be read, adhered to and followed before the unit is operated.

DANGER

To reduce the risk of electric shock, burns, fire or injury:

1. Always unplug the unit from the electrical outlet immediately after using.
2. Do not use while bathing or in a shower.
3. Do not place or store unit where it can fall or be pulled into a tub or sink.
4. Do not place in or drop into water or other liquid.
5. Do not reach for unit that has fallen into water.
6. Care should be taken so that objects do not fall and liquids are not spilled onto the unit.

WARNING

1. Close supervision is necessary when this unit is used by or near children.
2. Use this unit only for its intended use as described in this manual.
3. Unplug this unit during lightning storms or when unused for long periods of time.
4. Never drop or insert an object into any opening.
5. Protect the power cord from being walked on or pinched, particularly at plug outlets, convenience receptacles, and the point where it exits the unit.
6. Do not allow cord to touch hot surfaces. Wrap cord loosely around the unit when storing.
7. The unit should be situated away from direct sunlight or heat sources, such as radiator, electric heaters, heat registers, stoves, or other units (including amplifiers) that product heat. Avoid placing on top of stereo equipment that radiates heat.
8. Never block the air openings of the unit with materials such as a bed or couch, where the air openings may be blocked.
9. Do not overload electrical outlet. Use only the power source as indicated.
10. Do not carry this unit by cord or use cord as handle.
11. Never operate this unit if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged or drooped into water. If the unit's power supply cord or plug is damaged, do not attempt to fix it by yourself.
12. To avoid the risk of electrical shock, do not disassemble or attempt to repair the unit. Incorrect repair can cause risk of electrical shock or injury to persons when unit is used.
13. Do not operate in the presence of explosive and/or flammable fumes.

Introduction

Features Overview

• 8-inch Digital TFT LCD with 128MB flash memory
• Photo playback without pixel limitation (JPG/BMP)
  Different photo slide show: Single or multi-photos(up to 4 photos on one screen)
• 9 thumbnails preview (3x3)
• Delete & Copy photo function
• Resize photo when copying photos from card to internal flash memory.
• Different slide show speed: 5sec/10sec/30sec/1min/41hr/2hr/3hr/4hr
  Supports photo rotation: 90^ / 180^ / 270^
  Supports MP3 music playback
  Supports Motion-JPEG playback
  Calendar and Real Time Display function
  Built-in speaker
• Sleep mode function to increase the life of backlight (30 min /1hr /2hr /4hr/8h)

Ps. Card capacity:

MMC:~1G	MS:~1G	MD:~4G
SD:~2G	CF:~4G

Package contents

Carefully unpack your package and make sure that you have the following items. In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer.

PF-801
Quick guide
Remote control

USB cable
Stand
Power adapter

System requirements

Intel Pentium III 200Hz CPU or above
- Minimum 40 MB hard disk space available
One free USB 1.1 port or higher
- USB storage compatible with Windows 2K/XP/Vista, Linux 2.4.2
- CD-ROM drive

Product Overview

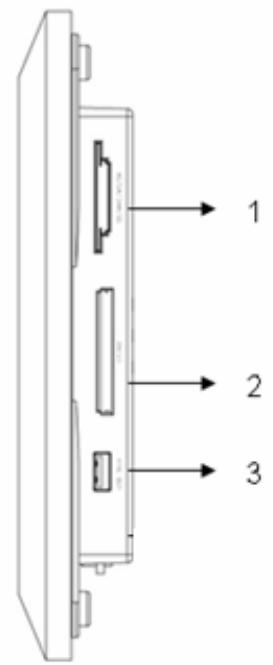

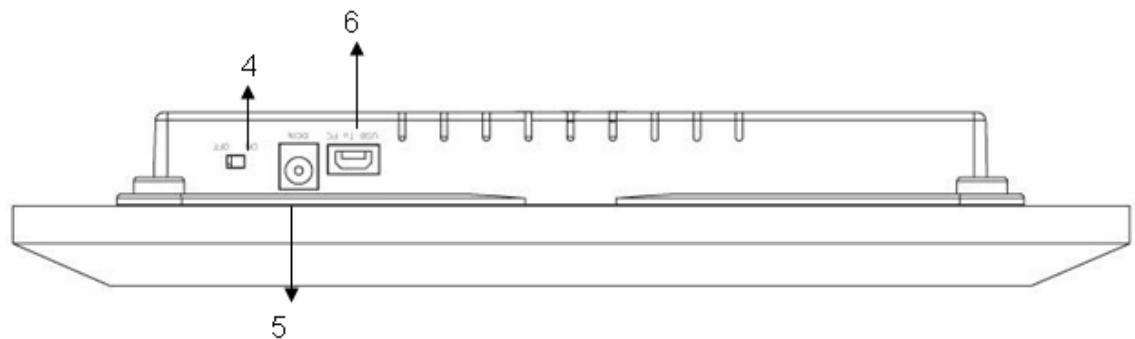

Product overview

1. MEMORY CARD SLOT: SD/MMC/MS/ (for Secure Digital, MultiMedia Card, Memory Stick cards)
2. MEMORY CARD SLOT: CF/MD (for Compact Flash and Microdrive cards)
3. USB Stick
4. Power Switch: On-Off
5. 12V DC IN
6. USB to PC port

LEFT SIDE

RIGHT SIDE

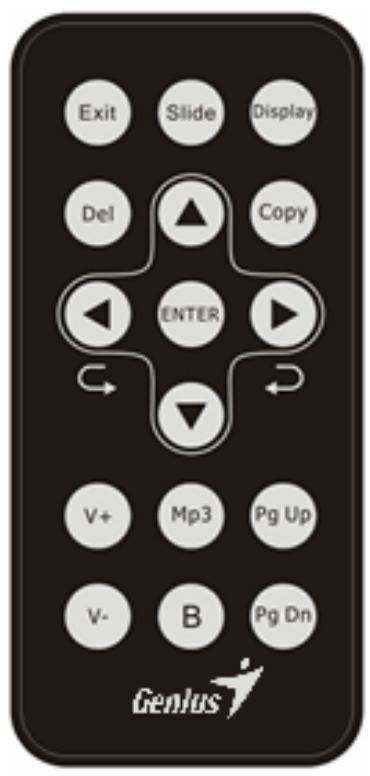

Key	Function
Exit	Press to return to thumbnail /Set-up
Slide	Press for single slide show or multi-picture slide show
Display	Display real-time clock and calendar
Del	Press to delete the file
Copy	Press to copy the file from cards to internal memory
▲、▼	Press up or down to select the item
▲、▲	Press left or right to select the item
V+ V-	Enlarge or decrease sound volume
Mp3	Press to play MP3 music
B	Press to adjust panel brightness
Pg Up Pg Dn	In Preview 12 photos (Thumbnails) Mode. Press to move to next / previous page.

Basic Operation

Turning on/off

1. Insert one end of the AC ADAPTER into 12V DC IN, and the other end into an electrical outlet.
2. Push the power switch of the player to the ON position. The button is at the bottom of the back cover. The red POWER ON INDICATOR illuminates.
3. After power on, if no memory cards and memory stick plugged in, or no photo stored in the built-in memory, the screen will show “Insert Memory Card or Memory Stick”, after you plug a memory card or memory stick then the screen displays preview (thumbnails) 12 photos.

Insert cards or USB storage device

1. Insert your memory card into CF/MD or SD/MS/SM/MMC card slot according to indicators on the memory card. The green PHOTO READER INDICATOR illuminates, and then plays photos.
2. You can also plug a USB drive or USB data bank (mass storage Hard Drive) into the USB STICK PORT. This unit can play JPEG, MP3 and AVI (Motion-JPEG) format.
3. If no operation occurs when you are in the nine preview photo mode, 30 seconds later the screen will auto display the Slideshow feature in five second intervals.

Up/Down/Left/Right

In Preview 9 photos (Thumbsnails) Mode

Press , , , button to move to the selected photo.

Under Single Photo Mode

Press "←" to rotate 90 degrees counter-clockwise for four directions.

Press “▶” to rotate 90 degrees clockwise for four directions.

MP3 playback

Press "MP3" button, the screen will show MP3 LIST.

Press to select song.

Set-up

(All operation buttons are on the remote control.)

Setup Manu: In Preview 12 photos (Thumbnails) Mode. Press Exit button to enter setup Manu.

• Slide Interval

Slide Interval: 5sec/10sec/30sec/1min/41hr/2hr/3hr/4hr (press "ENTER" to select).

• Multi Interval

3 / 6 / 12 / 30 sec (press "ENTER" to select).

• Sleep Interval

30 / 1 hr / 2 hr / 4hr/ 8hr / Off (press "ENTER" to select)

Music Repeat

ALL / ONE / NONE (press "ENTER" to select).

Volume:

1 to 9 (press "ENTER" to select).

• Set Date & Time

Date:YYYY/MM/DD

Time: HH: MM: SS

Press “ENTER” and either the , button to move to the selected item. Press , to adjust.

Note: You need to re-setup the Date & Time if you remove the power adaptor.

Press EXIT button again to return to Preview 12 photos (Thumbnails) Mode.
