Type de produit	Écran de projection électrique
Marque	DA-LITE
Modèle	HORIZON ELECTROL
Formats d'image préréglés	NTSC (1.33:1), HDTV (1.78:1), Letterbox (1.85:1), Anamorphic (2.35:1)
Nombre de moteurs	2 (écran et masque)
Type de commande	Interrupteur mural à 6 boutons
Alimentation électrique	240 V
Protection thermique	Oui, arrêt automatique en cas de surchauffe
Méthodes d'installation	Montage encastré au plafond (méthodes A, B, C)
Câblage	Câbles T6 et T4 avec adaptateur
Transformateur	Oui, branché sur la prise côté non-moteur
Fonctions des boutons	Montée, arrêt, 4 formats préréglés
Réglage des limites	Possible via interrupteur et dipswitch
Sécurité	Ne pas démonter, risque de choc électrique
Entretien	Ne pas couper le ruban avec un objet tranchant
Réparabilité	Moteur scellé, contacter un service agréé

FOIRE AUX QUESTIONS - HORIZON ELECTROL DA-LITE

Comment installer l'écran HORIZON ELECTROL ?

Déballez l'écran, vérifiez les mesures, montez le boîtier entre les solives en le mettant de niveau. Fixez les supports avec des tirefonds. Consultez la section Installation de la notice pour les détails.

Comment connecter le câblage de l'interrupteur mural ?

Acheminez les deux câbles T6 de l'interface bus vers le boîtier de l'interrupteur. Branchez-les sur l'adaptateur T6 2-à-1. Reliez ensuite un câble T6 court à l'adaptateur et à l'arrière de l'interrupteur mural 6 boutons. Voir le schéma de câblage dans la notice.

Quels sont les formats d'image préréglés ?

Les quatre formats préréglés sont : NTSC (1.33:1), HDTV (1.78:1), Letterbox (1.85:1) et Anamorphic (2.35:1). Chacun est accessible via un bouton dédié de l'interrupteur.

Comment ajuster la position d'arrêt de l'écran pour un format personnalisé ?

Coupez l'alimentation, débranchez le câble T6 du moteur 2, puis retirez le câble T4 'moteur 2' de l'interface bus. Rebranchez l'alimentation, utilisez le bouton 1 pour descendre l'écran à la position souhaitée, appuyez sur Stop, puis maintenez enfoncé le bouton 2, 3 ou 4 pendant 5 secondes pour enregistrer. Rebranchez les câbles.

Comment ajuster la position du masque ?

Coupez l'alimentation, débranchez le câble T4 'moteur 1' de l'interface bus et le câble T6 'moteur 1' de l'adaptateur. Rebranchez l'alimentation, utilisez le bouton 1 pour descendre le masque à la position voulue, appuyez sur Stop, puis maintenez enfoncé le bouton 2, 3 ou 4 pendant 5 secondes. Rebranchez les câbles.

L'écran ne descend pas, que faire ?

Vérifiez d'abord le fusible ou le disjoncteur du circuit. Assurez-vous que l'alimentation arrive à la boîte de jonction et à l'interface bus. Contrôlez les connexions des câbles T4 et T6. Si le moteur bourdonne sans bouger, il peut être bloqué ; coupez l'alimentation et tournez le rouleau à la main.

Le moteur s'arrête après une utilisation prolongée, que faire ?

C'est normal : le moteur a une protection thermique. Laissez-le refroidir pendant environ 15 minutes avant de réutiliser l'écran. Évitez les cycles continus excessifs.

Quelles précautions de sécurité faut-il respecter ?

Lisez toutes les instructions avant utilisation. Ne placez pas le cordon d'alimentation dans une zone de passage. N'utilisez pas de rallonge de calibre inférieur. Ne démontez pas l'appareil ; confiez les réparations à un technicien agréé. Respectez les consignes de câblage électrique locales.

Quelle est la fonction de chaque bouton de l'interrupteur ?

Le bouton haut remonte l'écran et le masque. Stop arrête tout mouvement. Les boutons 1 à 4 sélectionnent respectivement les formats NTSC, HDTV, Letterbox et Anamorphic. Appuyez et relâchez rapidement ; ne maintenez pas plus de 3 secondes pour éviter de reprogrammer.

Comment réinitialiser les positions de montée et de descente ?

Retirez le couvercle de l'interface bus. Débranchez le câble T4 du moteur à régler et branchez-le sur le connecteur RJ22 en haut à gauche de l'interrupteur. Utilisez le dipswitch 3 positions : bas pour régler la limite basse, haut pour la limite haute. Maintenez le bouton correspondant pour déplacer l'écran, puis replacez le dipswitch au milieu. Rebranchez le câble à l'interface bus.

MODE D'EMPLOI HORIZON ELECTROL DA-LITE

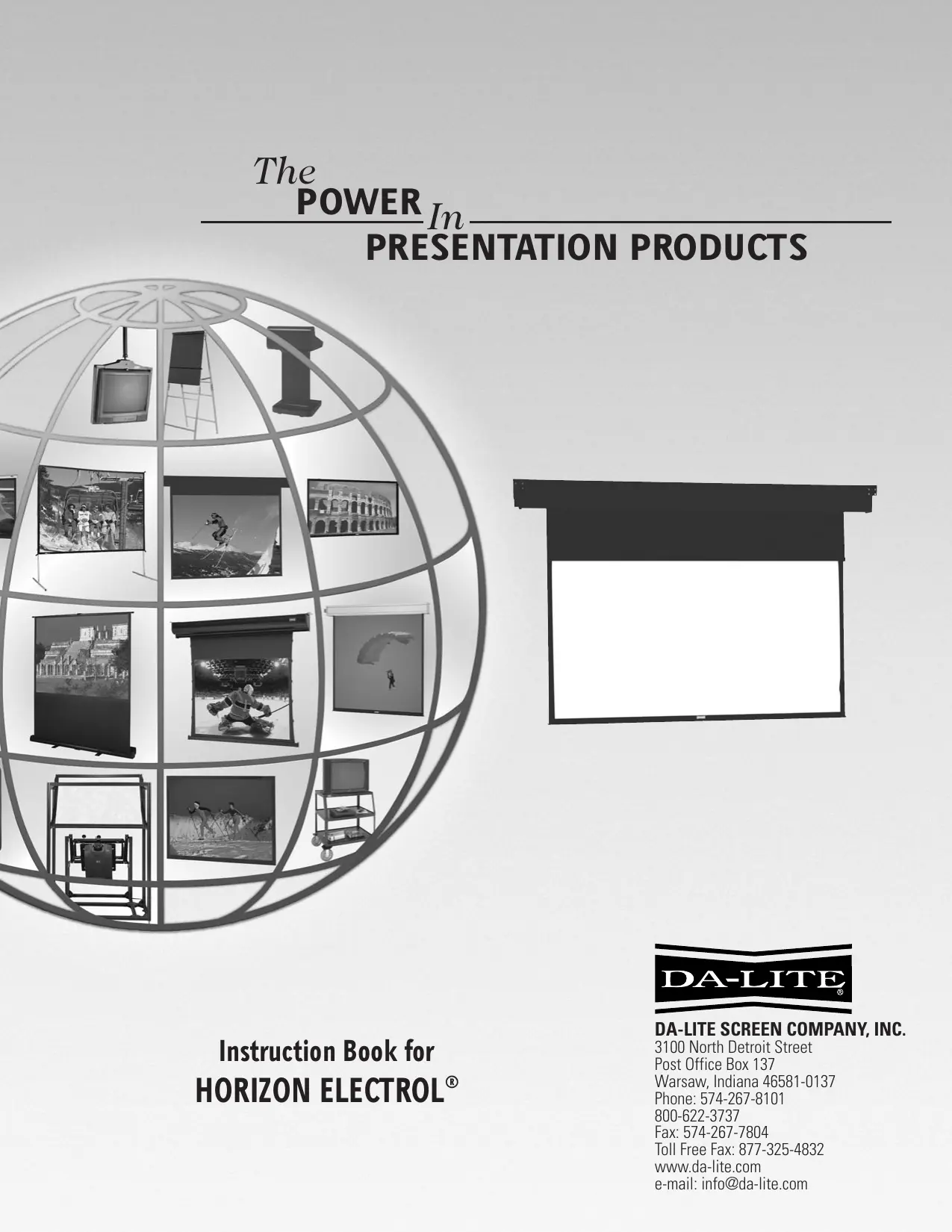

The

POWER

In

PRESENTATION PRODUCTS

Instruction Book for HORIZON ELECTROL®

DA-LITE SCREEN COMPANY, INC.

3100 North Detroit Street

Post Office Box 137

Warsaw, Indiana 46581-0137

Phone: [phone]

800-622-3737

Fax: [phone]

Toll Free Fax: [phone]

www.da-lite.com

e-mail: [e-mail]

IMPORTANT SAFETY INSTRUCTIONS

When using your video equipment, basic safety precautions should always be followed, including the following:

1. Read and understand all instructions before using.
2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces.
3. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat.
4. To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer when repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subsequently.
5. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock, or injury to persons.

SAVE THESE INSTRUCTIONS

PRE-INSTALLATION

1. Carefully unpack screen and remove outer wrapping from case.
2. Make sure to recheck measurements of screen location before installation.

FIGURE 1

FIGURE 2

INSTALLATION

1. Install screen by raising unit into position between joists at one end only. Install one lag screw in each mounting bracket.
2. Level unit lengthwise with a carpenter's level and plumb level. Secure opposite end.

Jtion! Do not seal in until screen has been secured in position and properly tested for satisfactory operation.

1. Detach access panel by removing screws (Fig. 1).
2. Unwrap the two T6 cables that are attached to the bus interface control. Route them through the hole in the end of the screen case.
3. Run both T6 cables to the wall switch box and connect them to the double end of the 2 to 1, T6 phone jack adapter.
4. Plug one end of the remaining short T6 cable into the single plug end of the T6 adapter and plug the other end of the T6 cable into the back of the 6 button wall switch. Install the switch in the box and attach the cover plate.
5. Unplug the transformer located on the non-motor end of the screen.
6. Remove the receptacle cover plate. Install electrical hook up as shown in the wiring diagram.

NOTE: Screen has been internally wired at Da-Lite. Wiring designated "external" is completed by installer conforming to local and national codes.

1. After the electrical connections are completed replace the cover plate and reinstall the transformer into the receptable.

CAUTION! DO NOT CUT TAPE ON FABRIC WITH A KNIFE OR ANY SHARP TOOL. REMOVE BY PULLING TAB ATTACHED TO ORANGE STRING.

1. Carefully remove two wood boards securing mask surface to case.
2. Test installation by carefully running picture and mask surfaces up and down several times. Be prepared to stop screen. IMPORTANT. READ OPERATING INSTRUCTIONS BEFORE TESTING SCREEN.

NOTE: When rolled down, the picture surface should wrap fully around the roller. No part of the roller should be exposed. Picture and mask surfaces will automatically stop in the down position.

CAUTION! Excessive continuous operation may cause overheating. If this happens the motors will shut off until they cool to normal operating temperature.

SCREEN OPERATION

The Horizon screen has been preset to four different formats. The screen can be set to any format by simply pressing the corresponding button on the six-button switch. Below is a list of each button function.

IMPORTANT. When operating the switch, press and release the buttons. DO NOT hold the button for more than three (3) seconds or the button will be reprogrammed to the current screen position.

Returns the screen and mask to the up position.

STOP Stops the screen and mask at any position when pressed.

1 Lovers screen to NTSC (1.33:1) format. Mask will travel down and reverse wrap on the roller. The mask is not used for this format.
2 Sets format to HDTV (1.78:1)
3 Sets format to Letterbox (1.85:1)
4 Sets format to Anamorphic (2.35:1)

SCREEN ADJUSTMENT

ADJUSTING THE SCREEN

The motors on the Horizon Electrol® have been preset to four different screen formats based on your screen size. They are 1.33:1, 1.78:1, 1.85:1 and 2.35:1. It is possible to adjust these formats for your particular needs. If you want to change formats we suggest you contact your Da-Lite Dealer to make the adjustments for you.

The mask surface and the projection screen must be adjusted separately. The following instructions walk you through this process.

SCREEN ADJUSTMENT (MOTOR 1)

1. Make sure the power is disconnected to the screen before starting.
2. Remove the cover plate from the wall switch, and then remove the switch from the box.
3. Unplug the T6 cable marked motor 2 from the T6 adapter.
4. Locate the bus interface control. It is located on the motor end of the screen case. Remove the screw that holds the cover shut. Slide the cover back and unplug the T4 wire marked motor 2.
5. Reconnect the power to the screen.
6. Press the button marked 1 to lower the screen. When the screen reaches the desired level press the stop button. If you go past the desired position, press the stop button to stop the screen and then press the up arrow to return the screen to a position above the new stop point and try again until the screen stops at the new position. The new stop point can now be assigned to whichever format location you want, button 2, 3 or 4. Press and hold in the chosen button for 5 seconds, then release.
7. The new stop position is now recorded for the selected button. Repeat this process for any other changes to the remaining 2 locations.
8. Make sure the power is disconnected to the screen, then insert the T4 cable marked motor 2 in the jack it was disconnected from on the bus interface control and reconnect the T6 cable to the T6 adapter.

MASK ADJUSTMENT (MOTOR 2)

1. Make sure the power is disconnected to the screen before starting.
2. Unplug the T4 cable marked motor 1 from the bus interface control.
3. Unplug the T6 cable marked motor 1 from the T6 adapter.
4. Reconnect the power to the screen.
5. Press the button marked 1 to lower the mask. When the mask reaches the desired level press the stop button. If you go past the desired position, press the stop button to stop the mask and then press the up arrow to return the mask to a position above the new stop point and try again until the mask stops at the new position. The new stop point can now be assigned to whichever format location you want, button 2, 3 or 4. Press and hold in the chosen button for 5 seconds, then release.
6. The new stop position is now recorded for the selected button. Repeat this process for any other changes to the remaining 2 locations.
7. Make sure the power is disconnected to the screen, then insert the T4 cable marked motor 1 in the jack it was disconnected from on the bus interface control, shut the cover and fasten the screw.
8. Reconnect the T6 cable marked motor 1 to the 2-1, T6 adapter jack.
9. Reinstall the wall switch into the box and attach the cover plate.
10. Reconnect the power to the screen.

LIMIT CONTROL ADJUSTMENT

This procedure will reset the stop positions for the "up" button and button 1. If you have a wall switch with just two T6 connectors on the bottom you will need to use a separate 3-button switch for this operation. Otherwise you will use the wall switch that controls the bus interface unit. Below is a diagram of switch you will use.

1. Remove cover screw from bus interface unit located on the motor end of screen case.
2. Locate the T4 wires coming from the motors to the bus interface (see wiring diagram).
3. Unplug the T4 wire of the motor to be adjusted from the bus interface unit and plug it into the top left RJ22 4-pin connector of wall switch.
4. Locate the 3-position dipswitch in top right corner of switch. To adjust the down limit flip the switch in the down direction. Press and hold the 1 button on the switch to run the screen down to the desired position. Release the button to stop the screen.

NOTE: If you push the down button and the screen runs in the up direction press and release the stop button. Then press the down button again. This should reverse the motor.

1. When the screen is at the desired location flip the dipswitch back in to the middle position.
2. To adjust the up limit (the screen should be in down position first) flip the dipswitch to the up direction. Press and hold the up button to run the screen to the desired top position.
3. When the screen is at the desired location flip the dipswitch to the middle position. Now press 1 button to make sure the screen stops at the new down position. Then press the up button and watch carefully to make sure it stops in the new up position.
4. Unplug the T4 wire from the switch and plug it into the SAME location you unplugged it from the bus interface unit.

240V WIBING DIAGRAM

SELECT INSTALLATION METHOD ACCORDING TO CEILING TYPE.

NOTE: MUST MARK HOLE LOCATION OF SCREWS IN 3-1/2" PANEL FOR REMOVAL, IF COVERING WITH TILE.

METHOD A

Offset mounting, recessed above ceiling. For plaster, dry wall, tile or paneling. Bottom of case painted same finish as ceiling.

METHOD B

Offset mounting, recessed above ceiling. May be adapted for 3/4 "ceiling, but cut to 1/4 " thick under screen case and panel.

METHOD C

Offset mounting, recessed above ceiling. May be adapted for 1/4 paneling for ceiling.

Flush mounting, recessed above ceiling. For use with dropped ceiling. May also be adapted for use with acoustical or other ceiling 3/4 " thick but cut to 1/4 " thick under screen case and panel.

SYMPTOM	CAUSE	SOLUTION
1. Screen or mask will not operate.Motor does not hum.	(a) Blown facility fuse.(b) Tripped facility circuit breaker.(c) No power to receptacle in junction box.(d) No power to bus interface unit.(e) Loose control wire connectionsPower at junction box(f) Thermal overload tripped.(g) Transformer not plugged in.(h) Defective motor.(i) Temporary binding.	(a) Replace facility fuse.(b) Reset facility circuit breaker.(c) Check above. Tighten all loose wire connections. Recheck wiring. See installation instructions.(d) Make sure transformer is connected to bus interface - see wiring diagram.Defective transformer - replace.(e) Check all T4 and T6 wire connections - see wiring diagram.(f) Let motor cool down for 15 minutes. Try again.(g) Plug transformer into receptacle on non-motor end of screen.(h) Replace motor assembly.NOTE: Motor is a sealed assembly.(i) With power "off," turn roller by hand to free binding.
Motor hums.
2. Image on screen does not match picture area.	(a) Screen not set to the correct format.(b) Screen or mask out of adjustment.	(a) Set screen to the format being projected.(b) See screen adjustment. We recommend you have your dealer make these adjustments for you.
3. Noise.NOTE: Screen will operate with a low-pitched hum.	(a) Grinding. Foreign object in screen rubbing on roller or fabric.	(a) Remove.
4. Coasting.	(a) Defective brake.	(a) Replace motor assembly.
5. Fabric hangs crooked.	(a) Screen not installed properly.(b) Fabric has backed up inside case.(c) Fabric is damaged.	(a) Check for level and plumb.(b) Lower screen and carefully pull fabric to remove any slack on the roller.(c) Replace fabric.
