Type d'appareil	Ordinateur portable multimédia
Écran	Non précisé
Processeur	Non précisé
Mémoire RAM	Non précisé
Stockage	Non précisé
Système d'exploitation	Non précisé
Connectivité	Wi-Fi, Ethernet (général)
Ports	USB, HDMI (général)
Carte graphique	Intégrée (général)
Autonomie de la batterie	Non précisé
Poids	Non précisé
Dimensions	Non précisé
Clavier	Azerty ou Qwerty (selon région)
Webcam	Intégrée (général)
Audio	Haut-parleurs intégrés
Garantie	Non précisé

FOIRE AUX QUESTIONS - PRO 6000T MAXDATA

Comment démarrer le MAXDATA PRO 6000T ?

Pour démarrer le MAXDATA PRO 6000T, branchez l'appareil sur une source d'alimentation et appuyez sur le bouton d'alimentation situé à l'arrière de l'unité.

Que faire si l'écran reste noir au démarrage ?

Vérifiez que l'appareil est correctement alimenté et que le câble d'alimentation est en bon état. Si le problème persiste, essayez de débrancher l'appareil, d'attendre quelques minutes, puis de le rebrancher.

Comment réinitialiser le MAXDATA PRO 6000T aux paramètres d'usine ?

Pour réinitialiser l'appareil, accédez au menu des paramètres, sélectionnez 'Réinitialiser' et suivez les instructions à l'écran. Notez que cela effacera toutes vos données.

Mon imprimante ne fonctionne pas avec le MAXDATA PRO 6000T, que faire ?

Assurez-vous que l'imprimante est correctement connectée et que les pilotes nécessaires sont installés. Vérifiez également que l'imprimante est en ligne et prête à imprimer.

Comment augmenter la mémoire de l'appareil ?

Le MAXDATA PRO 6000T permet d'ajouter de la mémoire RAM. Ouvrez le panneau d'accès à la mémoire, insérez les modules de mémoire compatibles et refermez le panneau.

Que faire si l'ordinateur se bloque fréquemment ?

Essayez d'identifier les programmes qui pourraient consommer trop de ressources. Vérifiez également l'état de la mémoire et du disque dur. Une mise à jour des pilotes peut également aider.

Comment mettre à jour le système d'exploitation ?

Accédez à 'Paramètres', puis à 'Mise à jour et sécurité'. Vérifiez les mises à jour disponibles et suivez les instructions pour les installer.

Le ventilateur est bruyant, que faire ?

Un ventilateur bruyant peut indiquer une accumulation de poussière. Nettoyez le ventilateur et les grilles de ventilation. Si le bruit persiste, il se peut que le ventilateur doive être remplacé.

Comment connecter le MAXDATA PRO 6000T à un réseau Wi-Fi ?

Accédez aux paramètres réseau, sélectionnez 'Wi-Fi', choisissez votre réseau, entrez le mot de passe, puis cliquez sur 'Connecter'.

Que faire si je perds mon mot de passe ?

Si vous avez perdu votre mot de passe, vous pouvez le réinitialiser en utilisant l'option de réinitialisation sur l'écran de connexion ou en utilisant un disque de réinitialisation de mot de passe si vous en avez créé un.

MODE D'EMPLOI PRO 6000T MAXDATA

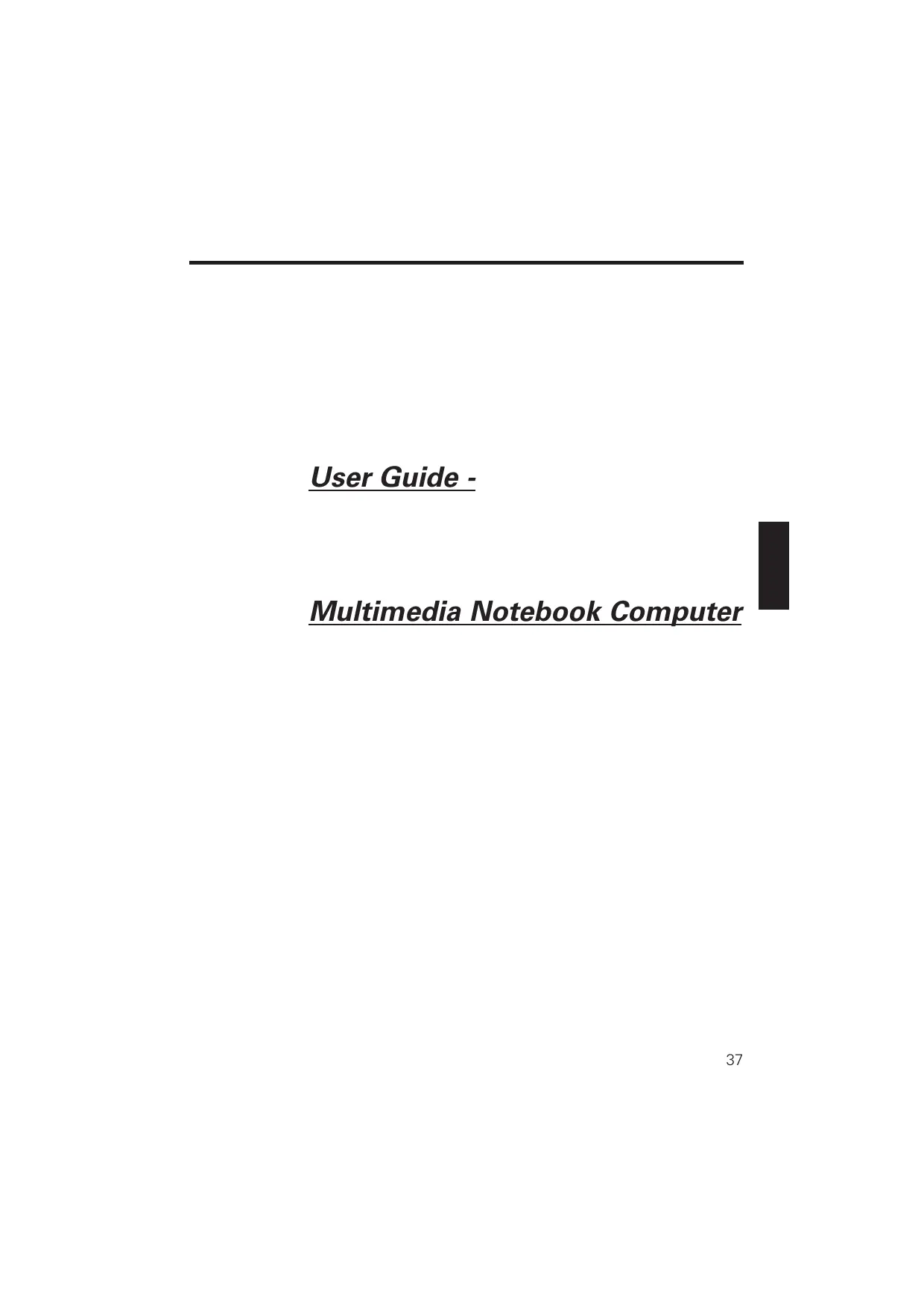

User Guide -

Multimedia Notebook Computer

Contents

NOTE 41

IMPORTANT SAFETY INFORMATION 44

SHIPPING CONTENTS 46

PREPARATION 47

Inserting the Battery 48

Removing the Battery 48

Power Supply Hardware 49

Switching the Computer On 50

Power Management 51

SYSTEM OVERVIEW 52

Left and Right Sides 52

Rear View 53

Underside 53

Explanation of LED Indicators 54

Hot Keys 55

The Quick Launch Keys 56

The Keyboard 56

The TouchPad 57

TouchPad and Buttons Configuration 57

The CD-ROM/DVD Drive 58

The PC Card Slot 58

The Data/Fax Modem 59

INSTALLATION INSTRUCTIONS 60

Restoring the Drivers 60

Windows XP 60

Modem Installation 61

Windows 2000 62

Modem Installation 62

Audio Installation 63

REGIONAL SETTINGS 63

SPECIFICATIONS 64

FAULT DIAGNOSIS AND TROUBLESHOOTING 67

NOTE

The company reserves the right to make unadvertised modifications to this document. Information contained in this document is intended solely for reference purposes and in no way constitutes a basis for asserting obligations on the part of the manufacturer or vendor. Neither the manufacturer nor the vendor accept liability for any errors or inaccuracies that this document may contain. Nor is liability accepted for damages or losses that arise from the incorrect application of this guide. No part of this document and the accompanying software may be copied, translated, or distributed without the prior permission of the dealer, manufacturer, or authors. Archive copies for private use are excepted from this rule. Brand or product names mentioned in this document may be names protected by copyright law or registered trademarks of other companies. These are mentioned only for identification purposes and have no recommendatory character in respect of the product or manufacturer.

© July 2002

Legal Information

Acrobat and the Acrobat logo are trademarks of Adobe Systems Incorporated or its subsidiaries. In certain jurisdictions these trademarks may be registered. Intel and Pentium are registered trademarks of Intel Corporation. MS-DOS, Windows, Windows 95, Windows 98, Windows Me, Windows 2000, Windows XP, and Windows NT are registered trademarks of Microsoft.

Copyright-Protected Technology

This product contains copyright-protected technology that is protected by method claims of particular US patents and other intellectual property rights of Macrovision Corporation and other patent owners. The use of the copyright-protected technology must be authorized by Macrovision Corporation and is provided exclusively for private and other limited purposes unless another use is expressly permitted by Macrovision Corporation. Reverse engineering or disassembling is prohibited.

Application & References

This user guide offers an introduction and is intended to provide instructions for your first steps with your new computer.

All references refer to the accompanying device drivers and utilities CD-ROM (Utility CD), which contains the drivers and special utilities for your notebook. If you wish to use an operating system that is not mentioned in these documents, consult the ReadMe files on the CD-ROM for the relevant information. Please also consult your dealer to make sure that it is possible to run your chosen operating system on your notebook. The operating system is not contained on the device drivers and utilities CD-ROM.

Note: Some or all system configurations may have been made already. If this is not the case or if parts of the system need to be reconfigured, please refer to the "Installation Instructions" section for the relevant instructions.

Declaration:

This device meets the EN 55022 product standard for interference emissions, the EN 50082-1 basic standard for interference, and the EN 60950 low voltage directive standard.

If any modification that has not been agreed with the manufacturer is made to the device, adherence to these standards can no longer be guaranteed.

To ensure electromagnetic compatibility (EMC), please observe the information given in the handbook.

Sound Power Level

The workplace-based sound power level is less than 55 dB A.

Federal Communications Commission (FCC) Note

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

Operator Note:

This device has been carefully RF suppressed and tested to avoid radio interference. However, please pay attention to the following concerning external data cables:

If it becomes necessary to replace a data cable specified by the manufacturer, then for correct radio interference suppression the operator must ensure that replacement cables match the original cable also as pertains to screening quality.

Use only screened cables and external devices that are identical with this product in safety level and EMC behavior.

In case of non-observance, compliance with the standards mentioned above is no longer guaranteed!

Laser (Service Information)

Laser radiation when the cover is open!

This laser radiation is contained in the CD drives. When dismantling and / or opening this drive, be careful:

WARNING

• Not to look into the beam, not even with optical instruments
• Not to become exposed to the beam
• To avoid eyes or skin being exposed to direct or scattered beam.

Failure to observe these guidelines can lead to permanent blindness.

CD-ROM Drive:

The built-in CD drives contain no user-serviceable or reparable parts. CD drives are to be repaired solely by the manufacturer. Laser products of laser classes 1 to 3B may be used in the product. With the housing unopened, the device meets the requirements of laser class 1. By opening the device, laser devices up to laser class 3B may be accessible.

Unless the drive is expressly designated for the simultaneous use of more than one CD, never insert more than one CD into the drive.

Field of Application

This product is not intended for use in medical, life-saving or life support applications.

Returning the Device

We offer a return guarantee: We use materials that allow professional reprocessing or disposal. This means that your notebook is fully recyclable. The outside packaging and all inner parts of the box can be disposed of as waste paper.

IMPORTANT SAFETY INFORMATION

Although the notebook is highly robust, it is not indestructible. To prevent damage from occurring, please pay attention to the following:

• Avoid exposing the notebook to strong shocks or vibrations.
• Keep it away from intense heat (radiators, direct sunlight).
• Protect the notebook from electromagnetic interference. This will also prevent data loss.
• Do not expose it to moisture. This is an electrical device!
• Be sure to use the correct power supply.

Always use an approved power adapter.

WARNING

The power adapter requires a fluctuation-free and uninterrupted power supply. If you have any questions, consult your local electricity supply company.

The power adapter must be fitted with a grounded (earthed) plug.

Never pull the cable to unplug the power supply – always pull the plug itself.

Disconnect the external power supply (power adapter or car adapter) before cleaning the computer.

Notes on Using Batteries

Only ever use batteries designed for use with this computer. Recharge batteries via the notebook.

ATTENTION

Do not attempt to repair faulty batteries yourself. Entrust repairs to your dealer or qualified service personnel.

Keep damaged batteries away from children and dispose of them properly as soon as possible. Exercise caution in handling damaged batteries. Batteries may explode if exposed to fire or improperly handled or disposed of.

The notebook is provided with a battery. The battery is recyclable. It is prohibited by law to dispose of the battery in ordinary household waste. If you have questions concerning proper disposal, consult your garbage collection service.

Note on the System Clock Battery

WARNING

Caution: There is a risk of explosion if batteries are installed incorrectly. Replace the battery only with a battery recommended by the manufacturer or with a battery of the same type. Dispose of the battery according to the manufacturer's instructions.

Servicing

Do Not Service Your Computer Yourself! You could invalidate your warranty rights and expose yourself and the device to the risk of electrical shock. If servicing is required, consult qualified service personnel. Disconnect the computer from the power supply. If the following problems occur, consult qualified service personnel:

WARNING

• Power adapter or power cable is damaged or frayed.
• Liquid has entered the computer.
• Despite operating it correctly, the computer is not functioning properly.
• The computer has been dropped or damaged.

- Cleaning

Never apply cleaning agents directly to the computer. Use only a soft, lint-free cloth. Never use volatile (petroleum distillates) or scouring cleaning agents.

SHIPPING CONTENTS

Before you begin installing your notebook, make sure that all components are present.

If any item listed in the shipping contents is missing from your computer package, please contact your dealer immediately.

Notebook
- Battery
- Utility CD
- Power adapter
- Power cable
- User guide
- CD or DVD-ROM drive (built in)
- Modem cable

Please retain the original packaging in case you need to send the device in for repairs or upgrades.

PREPARATION

Before first using the computer, make sure you are familiar with the individual components of your system.

Slide the catch (1) to the right and open the display.

(1) Catch
Fig. 1

Fig. 2

(1) ON/OFF button
(2) Catch
(3) Display
(4) Hot Keys
(5) Status LEDs
(6) Keyboard
(7) TouchPad
(8) Stereo loudspeakers
(9) Power LED
(10) Battery LED
(11) Scroll buttons

INSERTING THE BATTERY

The battery is included in the notebook's shipping contents. This battery is only partially charged.

Take the new battery out of its packaging.

Now slide the battery into the battery slot in the direction of the arrow until it clicks into place.

The battery can now be charged up.

PLEASE NOTE

Fig. 3

Make sure that you allow the battery to charge for TWO hours if the computer is switched off, or for FIVE hours if the computer is switched on.

It is absolutely essential that the first time you charge the battery you fully charge it. Do not unplug the notebook from the power adapter until the battery is fully charged!

REMOVING THE BATTERY

Fig. 4

Slide the catch (1) upwards. The battery is released.

Pull the battery out of the battery slot in the direction of the arrow (2).

You can now run the notebook with the power adapter alone.

POWER SUPPLY HARDWARE

The first time you use the computer, you need to use the power adapter. Use only the supplied power adapter. Using the wrong power adapter can cause damage to the computer.

WARNING

The notebook is supplied with a power cable and a universal, self-adjusting power adapter. The power adapter can operate with any constant voltage between 100 and 240 volts.

To use the power adapter:

1. Connect the power cable to the power adapter.
2. Connect the power adapter to the DC IN socket on the computer.
3. Connect the power cable to a power outlet.

You can choose to run the notebook via battery or power supply.

The power adapter contains no serviceable parts.

NEVER OPEN THE POWER ADAPTER!

WARNING

Fig. 5

DANGER OF DEATH!

SWITCHING THE COMPUTER ON

Fig. 6

You've completed the preparation. Now press and hold the on/off button (1) for one second to switch on the notebook. Once the computer is switched on, the on/off switch can perform several functions depending on the energy settings.

In the standard settings, pressing it again will switch off the computer.

Note:

Please note that with the Windows operating systems you should always switch off the computer as follows: Click the Start button Select Shut Down Click OK

This avoids any problems with the hard disk and operating system.

Tip:

If you experience a program or system crash, press the Ctrl + Alt + Del keys all at the same time. If you're lucky this will enable you to end only the task that has crashed and/or restart the computer.

(Warm start). If this does not work, hold down the on/off button for more than four seconds – this will switch off the computer. You can now start up the computer as normal (cold start).

POWER MANAGEMENT

Your system is compatible with APM and the newer (and more efficient) ACPI energy saving system.

Note on PC Cards

HARDWARE (Battery Status &Warnings)

Never unplug a PC card while the system is in save-to-disk mode. This would deactivate the slot and problems could occur with a modified system configuration the next time you start up the computer

After completing the POST (power-on self-test), the battery status display shows the charge state of the battery. The symbol flashes when the battery charge is low. Save your data immediately and connect the power adapter.

PLEASE NOTE

Low charge level & SUSPEND

When the battery runs low (without the power adapter connected), one of these two protective functions is automatically activated:

Without Save-to-Disk

If there is no save-to-disk file or partition set up on your system, then current data will be stored in RAM and the system automatically switches into suspend mode.

With Save-to-Disk

Data is saved in the special file or partition on the hard disk reserved for this purpose. The computer then automatically switches off. If there is no save-to-disk file or partition available, the system switches into suspend mode.

SYSTEM OVERVIEW

LEFT AND RIGHT SIDES

Fig. 7

(1) Modem port
(2) Microphone socket
(3) PC card release catch
(4) PC card slot
(5) Floppy disk drive eject button
(6) Floppy disk drive
(7) Headphones socket
(8) RJ-45 network port

Fig. 8

(1) CD drive eject button
(2) Optical digital out port
(3) CD drive emergency eject button
(4) CD drive
(5) Battery

REAR VIEW

Fig. 9

(1) Infrared interface
(2) Power in socket
(3) PS2 port or S-Video **
(4) IEEE 1394 port
(5) USB ports
(6) Serial port
(7) VGA port
(8) Parallel port
(9) Ventilation opening *

• All air intake and ventilation openings must be kept free from obstructions at all times. If not, the device is liable to overheat.

** depending on model

PLEASE NOTE

UNDERSIDE

Fig. 10

(1) Battery pack
(2) Port replicator connector
(3) Ventilation opening *
(4) Memory cover
(5) Hard disk slot
(6) Battery release

• All air intake and ventilation openings must be kept free from obstructions at all times. If not, the device is liable to overheat.

PLEASE NOTE

EXPLANATION OF LED INDICATORS

Table 1

Symbol	Meaning
	Hard disk is being accessed.
/	Floppy disk or CD-ROM drive is being accessed.
1	Lights when Num Lock is on.
A	Lights when Caps Lock is on.
	Lights when Scroll Lock is on.
	Flashing green: the notebook is in suspend mode Lights green: notebook is switched on
	Flashing orange: battery charging

HOT KEYS

(Shortcut key combinations with special functions)

Table 2

Symbol	Keys	Meaning
×	Fn +F3	Switches loudspeaker on/off
	Fn +F4	Switches between external mouse and TouchPad
	Fn +F5	Zooms smaller resolutions to full screen mode
	Fn +F6	Reduces brightness
	Fn +F7	Increases brightness
	Fn +F8	Reduces the volume
	Fn +F9	Increases the volume
	Fn +F10	Switches between LCD / monitor / both

The original graphics drivers must be installed for the Fn + F10 function.

THE QUICK LAUNCH KEYS

There are four quick launch keys just above the keyboard. You can use these to launch frequently used applications.

If the keys are not assigned to any functions, you can find the drivers to activate the keys on the Utility CD. The path is Operating System\ SwiftButton.e.g.: D:\WinXP\ SwiftButton\setup.exe.

You can customize the function of these keys in .

Fig. 11

THE KEYBOARD

otypewriter -

Function keys -

Your notebook's keyboard has all the functions of a normal AT-compatible keyboard plus some extras:

These keys correspond to a typewriter's keys. In many operating systems (and applications), special functions are available via these keys. You can find more detailed information on this in the relevant handbooks.

Special keys -

These keys (and key combinations) are used for controlling various hardware functions.

Fig. 12

Press Fn + Num Lock to activate this field

LED lights up

THE TOUCHPAD

The system automatically sets up the integrated TouchPad. Provided you are using Windows, you do not need to install any drivers for the basic functions.

If you wish to use the advanced functions (rocker keys and other advanced settings), you can find the drivers to activate the keys on the Utility CD. The path is Operating System\Touchpad. e.g.:

D:\WinXP\Touchpad\setup.exe.

(1) Sensor field
(2) Left "mouse" button
(3) Rocker keys - function like a mouse wheel
(4) Right "mouse" button

Note for left-handers: Most operating systems enable reversal of the mouse buttons.

TOUCHPAD AND BUTTONS CONFIGURATION

You can configure the TouchPad and the individual button functions via the TouchPad icon at the bottom right corner of the screen.

If you connect an external PS/2 mouse, the TouchPad is automatically deactivated.

PLEASE NOTE

Fig. 13

Only USB devices and PCMCIA cards may be connected or disconnected while the computer is switched on!

Connect/disconnect all other peripheral devices ONLY with the computer switched off!

PLEASE NOTE

THE CD-ROM/DVD DRIVE

To insert a CD, press the eject button on the front side of the drive. Place a CD onto the spindle with the label side facing up and push it gently down onto the spindle. Push the CD tray back in until it locks into place. The CD is now ready to read. Some CDs have an autostart function. This means that installation programs or music CDs automatically run after you place them in the drive.

Fig. 14

THE PC CARD SLOT

The computer is provided with two PC card slots. These are 2x type II or I PCMCIA slots or 1 x type III.

To insert a PC card (3), push it into the slot (2) until it locks into place.

To remove it, push the eject button (1) next to the slot.

Fig. 15

THE DATA/FAX MODEM

The system automatically sets up the integrated analog modem. To use the modem functions, connect the modem socket to an analog telephone socket (not ISDN) using the telephone cable.

Proper Use:

The modem can be connected to all analog sockets (TBR 21) in Europe.

It is to be used solely for data communication purposes.

PLEASE NOTE

Do not attempt to connect the modem to an ISDN telephone socket!

This would result in serious damage to the device.

Fig. 16

If you are using Windows 2000, please read the information on regional settings in the Software section.

INSTALLATION INSTRUCTIONS

RESTORING THE DRIVERS

Your system is supplied in a preloaded condition. This means that all the data and drivers that the system requires are already on the hard disk. In case you erase and/or format your hard disk drive, the system drivers are stored on the Utility CD supplied with the computer.

After reinstalling the operating system (for example, with the Recovery CD), this allows you to restore your notebook to a usable condition.

WINDOWS XP

After installing the Windows XP operating system, you need to insert the Utility CD.

Run the "setup.exe" file in each of the directories indicated. We recommend you install the graphics drivers (VGA) first of all. This will improve the appearance of the desktop environment. Then install the AGP driver (VXD) and the chipset driver (INF). It doesn't matter which order you complete the installation in. Recommended: modem - audio.

Install the Swift Button and TouchPad drivers as required.

MODEM INSTALLATION

The drivers for your modem have to be installed manually. Please click in the following order:

1. Press and hold the Windows logo key and press the Pause key.
2. The System Properties window opens. Here, select:
3. (double-click to open)

This will start the device driver update assistant.

1. Select:
2. Deactivate the checkbox
3. Check the box
   8

Select the path: CD-ROM drive D:\WinXP\Modem

Now select "Audio Controller" in the Device Manager.

Select:

Carry out points 4 to 7 as for modem installation.

Select the path: CD-ROM drive D:\WinXP\Audio

You can now close the device manager and the control panel.

WINDOWS 2000

After installing the Windows XP operating system, you need to insert the Utility CD.

Run the "setup.exe" file in each of the directories indicated.

We recommend you install the graphics drivers (VGA) first of all. This will improve the appearance of the desktop environment.

Then install the AGP driver (VXD) and the chipset driver (INF).

It doesn't matter which order you complete the installation in.

MODEM INSTALLATION

The drivers for your modem have to be installed manually. Please click in the following order:

(double-click to open)

(double-click to open)

This will start the device driver update assistant.

Select:

You can now close the device manager and the control panel.

AUDIO INSTALLATION

The drivers for your sound card have to be installed manually. Please click in the following order:

(double-click to open)

This will start the device driver update assistant.

Select:

You can now close the device manager and the control panel.

REGIONAL SETTINGS

Depending on the version of the Windows 2000^TM driver for the modem, the basic settings for the location may be set to "United States of America".

To check/modify this, do the following:

Click with the left mouse button, in this order, on:

You can set the telephone and modem options here.

On the Dialing Rules tab, select New Location and click .

Enter a location name (optional; for example, home, office, or similar), then under Country/Region select the country you are in and type in your local area code.

Click to save this setting.

Click < OK> to leave this menu.

You can now close the control panel.

SPECIFICATIONS

Processor and Core Logic

• Mobile Intel Pentium 4 processor M: 1.6 GHz and upwards
• 512 Kb 2nd level cache
  400 MHz frontside bus, PCI / AGP

BIOS and Chipset

• Inside BIOS
  VIA P4N266 (VT8703 + VT8233)

RAM

2 SO-DIMM slots, max. 1 GB DDR RAM/ PC2100 (266 MHz)

Display and Video

14.1" XGATFT XGA, 1024 x 768 / 32 bpp
15.1" XGA TFT XGA, 1024 x 768 / 32 bpp
- On-board graphics controller S3 Graphics ProSavage4TM, up to 32 MB video RAM
Simultaneous LCD/CRT display
Max. external CRT: 1024 x 768 / 16 million colors / 85 Hz

Storage Capacity

20/30/40GBIDEhard disk drive
Integrated 3.5" floppy DD 1.44 MB
- Integrated 24x CD-ROM drive or 8x/24x DVD drive or combo drive

Audio

AC97 compliant codec: Conexant Cx20468
- Mic in, loudspeaker out, internal stereo loudspeakers
Hotkey: Fn + F8 (Down), F9 (Up) / Fn + F3 (Mute)

Communications

Built-in Conexant™ SmartAMCTM audio modem CODEC
56Kbps,V.90
LAN Realtech RTL8139CL 10BaseT / 100BaseTX LAN

Pointing Device and Keyboard

88-key keyboard, touch-type QWERTY keyboard with imbedded numeric keypad
- TouchPad pointing device with 2 buttons and 2 scroll buttons.

PC Card

• 2 × type I/II or 1 × type III in PC card slot (32-bit CardBus)

Ports

1x serial, 1x parallel
1 x IrDA 1.1
- 2 × type I/II or 1 × type III in PC card slot (32-bit CardBus)
- 1 x modem, 1 x LAN, 1 x CRT, 2 x USB ports
- 1 x IEEE 1394, 1 x S/PDIF, 1 x docking connector
1 x mic in, 1 x loudspeaker out
1x power pack
One IEEE1394 i.Link port

Power Supply

• Main battery Li-Ion 8 cell, 14.8 ~V, 4000 mAh, 59.2 Wh
  External AC adapter: AC input: 90-240 V, DC output: 19 V/4.2 A, 80 W

BIOS

• Inside BIOS
  VIA P4N266 (VT8703 + VT8233)

Operating System

Microsoft Windows XP Professional, XP Home, 2000

Other Data

• Dimensions 260 (D) x 319 (W) x 34 (H) mm
  2.9 kg (14.1", FDD, HDD, CD-ROM, Li-Ion battery)

Operating Environment

• Operating temperature: 5 to 35^ C (41 to 95^ F )
• Operating humidity: 20 to 85 % RH (5 to 35 ^ C )

FAULT DIAGNOSIS AND TROUBLESHOOTING

If a problem occurs while working with your computer, first of all try using the following information to solve the problem. If the problem cannot be solved in this way, you can find additional information in the advanced service handbook (on the device drivers and utilities CD-ROM). If the problem persists, switch off the system for several minutes and then restart it. You will lose all unsaved data, but the system may work properly again. Subsequently contact your dealer or customer support agent.

Although I'm pressing the power switch the computer stays switched off

Possible cause of the problem: The battery is missing or is incorrectly installed

Note: The power on LED is not lit.

Troubleshooting:

o Make sure that the battery is in the battery compartment and is inserted properly.
Check that the battery terminals are making direct contact.
o Connect your notebook to the power adapter so that the battery (if present) can recharge.

Possible cause of the problem: battery level low

Note: The battery display LED flashes.

Troubleshooting:

Operate the computer using the power adapter. If the system does not immediately start up, switch off the computer and then restart it.

The screen is not working

Possible cause of the problem: The energy saving mode is activated.

Note: The suspend LED flashes.

Troubleshooting:

o Press any key

Possible cause of the problem: The screen settings are incorrect.

Troubleshooting:

o Press the Fn + F7 key combination, several times if necessary.
If an external monitor is connected, switch it on.

Possible cause of the problem: In the system settings, a different screen type to the existing one is set.

Troubleshooting:

o Press the Fn + F10 key combination.
If an external monitor is connected, connect this to a power source and switch it on. Also check the brightness and contrast settings (you can find additional information on this topic in the advanced service handbook).

The system stops working.

Possible cause of the problem: An energy saving function has been activated.

Note: The screen switches itself off.

Troubleshooting:

Press any key or press the on/off button if none of the status LEDs are lit.

Possible cause of the problem: A software error has caused a system crash.

Troubleshooting:

o Additional information is available in the operating system handbook.
If you cannot remedy the problem, then restart the system. You will lose any unsaved data! If this doesn't work either, briefly switch off the computer and then switch it back on again.

Warnings

Each time the system starts, it carries out a self-test (POST). If an error occurs, an error message appears, briefly describing the problem. You can find information on what to do next in the advanced service handbook.
