PHOTO DISPLAY 7 PDJL007 - Affichage numérique JOBO - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Cadre photo numérique
Marque	JOBO
Modèle	PHOTO DISPLAY 7 PDJL007
Taille de l'écran	7 pouces (17,8 cm)
Résolution	480 × 234 pixels (RGB)
Luminosité	350 cd/m²
Contraste	300:1
Angles de vision	60°/60°/50°/40° (CR≥10)
Temps de réponse	30 ms
Format d'écran	16:9
Formats de fichiers pris en charge	JPEG
Résolution photo max	48 millions de pixels
Cartes mémoire compatibles	SD, MMC, USB (clé USB)
Alimentation	AC 100-240 V / DC 12 V
Consommation électrique	6 W
Dimensions (L×H×P)	231 × 160 × 36 mm
Poids	0,4 kg
Température de fonctionnement	-20 °C à 65 °C
Température de stockage	-30 °C à 75 °C
Fonctions principales	Diaporama avec intervalle réglable, rotation d'image (90°/180°/270°), zoom avant/arrière (jusqu'à 5×), mode paysage/portrait, accroche murale, changement du logo de démarrage
Effets de transition	14 effets (3D Flip, 3D Circle, Shutter, Fade, etc.)
Options de langue OSD	Anglais, Français, Espagnol, Italien, Néerlandais, Allemand, Russe, Portugais
Contenu de la boîte	Cadre photo, adaptateur secteur, support, manuel d'instructions

FOIRE AUX QUESTIONS - PHOTO DISPLAY 7 PDJL007 JOBO

Comment insérer une carte mémoire dans le cadre photo ?

Insérez la carte SD ou MMC dans le slot situé sur le côté droit du cadre, en respectant le sens indiqué. La carte doit s'enclencher légèrement. Pour retirer, appuyez doucement dessus pour la déverrouiller.

Comment lancer un diaporama ?

Appuyez sur le bouton PLAY/PAUSE pour afficher les vignettes. Utilisez les flèches gauche/droite pour sélectionner une photo, puis appuyez à nouveau sur PLAY/PAUSE pour lancer le diaporama. Un symbole 'play' apparaît en haut de l'écran.

Comment modifier l'intervalle entre les photos du diaporama ?

En mode veille, appuyez sur SETUP. Utilisez les flèches gauche/droite pour sélectionner 'Slideshow interval', puis appuyez sur PLAY/PAUSE pour choisir parmi 3 secondes, 10 secondes, 1 minute ou 2 heures.

Comment faire pivoter une photo ?

Pendant l'affichage d'une photo en plein écran, appuyez sur SETUP puis sélectionnez 'Rotate'. Utilisez les flèches gauche/droite pour faire pivoter l'image par paliers de 90° (90°, 180°, 270°, 360°).

Comment zoomer sur une photo ?

Lorsqu'une photo est affichée en plein écran, appuyez plusieurs fois sur PLAY/PAUSE pour zoomer progressivement (jusqu'à 5 fois). Le sixième appui ramène à la taille originale.

Comment changer le logo de démarrage ?

Affichez la photo souhaitée en plein écran. Appuyez sur SETUP puis sélectionnez 'Save as logo'. La photo deviendra alors le logo d'accueil.

Pourquoi mon cadre n'affiche-t-il pas mes photos ?

Vérifiez que la carte mémoire ou la clé USB est correctement insérée et au bon format (FAT32). Assurez-vous que les photos sont au format JPEG et ne dépassent pas 48 millions de pixels. Essayez de redémarrer le cadre en débranchant puis rebranchant l'alimentation.

Comment nettoyer l'écran du cadre photo ?

Utilisez un chiffon doux, sec et non pelucheux. N'utilisez jamais de détergents, d'alcool, de benzène ou de produits similaires. Évitez tout liquide qui pourrait pénétrer à l'intérieur du cadre.

Puis-je monter le cadre au mur ?

Oui, le cadre dispose de trous de fixation au dos pour un montage mural. Utilisez le support fourni et suivez les instructions. Assurez-vous que le mur peut supporter le poids (0,4 kg).

Comment réinitialiser le cadre aux paramètres d'usine ?

Appuyez sur SETUP pour entrer dans le menu. Sélectionnez 'Reset Setting' à l'aide des flèches, puis confirmez avec PLAY/PAUSE. Tous les paramètres reviendront aux valeurs par défaut.

MODE D'EMPLOI PHOTO DISPLAY 7 PDJL007 JOBO

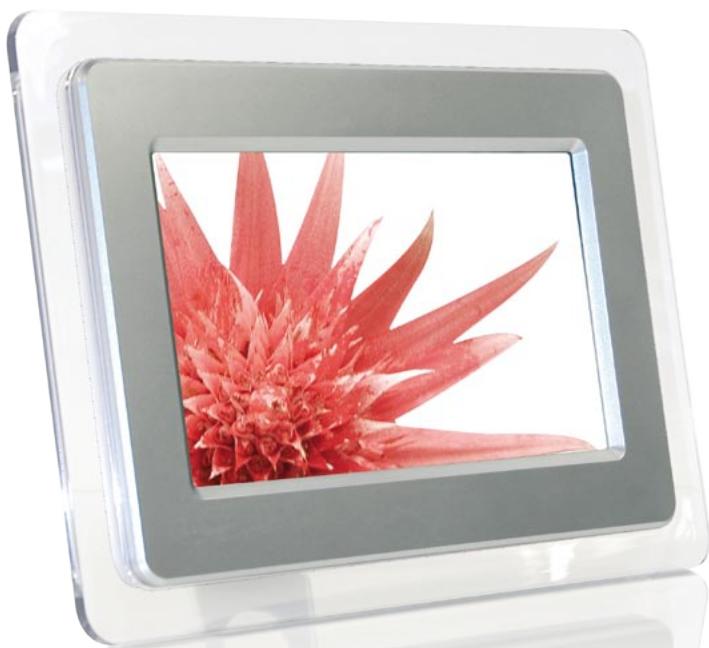

Photo Display 7"

PDJL007

Instruction Manual

Safety Instructions

Caution with Power Cord

Always pull the power cord out holding the plug. Never pull on the cord itself, and never pull out the power cord with wet hands as this may cause a short-circuit or electric shock. Do not place furniture, etc. on the power cord and take care that it does not become tangled. Never make a knot in the power cord and do not tie it together with other cables. The power cord should be positioned in such a way that nobody can stand on it. A damaged power cord can cause fire or electric shock. Check the power cord from time to time. If it is damaged, contact your nearest authorised customer service or dealer to replace it.

Devices using a power cord must only be connected to the type of power supply specified on its label.

Never apply brute force when inserting the power plug into the wall outlet. If you cannot connect the power adapter, the wall outlet may be obsolete. In this case, consult an electrician to replace the obsolete outlet.

Risk of electric shock by improper handling of electrical power.

Risk of electric shock: if the power cord has been visibly damaged, turn the device off immediately and unplug the power cord.

Never open the housing of the device, of the power adapter or the accessories as they contain no replaceable parts. By opening the housing you endanger your life through risk of electric shock.

Electrical Devices and Children

Do not allow children to use electrical devices when not under supervision. Children may not comprehend the presence of potential risks.

Batteries / rechargeable batteries can be lethal if swallowed. Keep batteries out of reach of children. If batteries are swallowed, seek medical advice immediately.

Keep the packaging away from children too. There is danger of suffocation.

The device should not be exposed to sprayed or dripping water. No objects filled with liquids such as vases or drinks should be placed on, above or near the device.

Setting the Device Up Safely

Position the device on a stable, flat surface. It has not been designed for

operation in very damp rooms (eg. bathrooms). Also, take care that

• Sufficient ventilation is always available (do not place the device on shelves or likewise.
  The device is not set up on a thick carpet or bed;
• Direct heat sources (eg. heating) do not affect the device;
  The device is not exposed to direct sunlight;
• Contact with sprayed and dripping water is avoided (place no objects filled with liquids, such as vases, on, above or near the device);
• The device is not placed in the immediate vicinity of magnetic fields (eg. loudspeakers);
• No open fire sources (eg. burning candles) are positioned on or near the device.
• Avoid also foreign bodies entering the device.

Before a storm and/or lightning disconnect the device from the power supply and pull out the antenna plug.

Disposal of Old Devices

If this symbol of a crossed out trash can appears on a product, it means that this product is subject to the European Directive 2002/96/EC.

All old electrical and electronic devices must be disposed of separately from household rubbish at designates places.

With the proper disposal of old devices you avoid damage to the environment and your personal health.

You can obtain more information on the disposal of old devices by contacting your municipal administration, the disposal office or the place where you bought the product.

CAUTION: Notices on Mains Disconnection

In order to disconnect the device fully from the mains power supply, the plug must be pulled out from the wall outlet. Therefore the equipment should be set up in such a way that unobstructed access to the wall outlet is always ensured, so that the plug can be immediately removed in an emergency situation. To avoid the danger of fire, the plug should always be removed when not being used for a long period of time from the wall outlet, such as during holidays.

Connect the product as described in the User's Manual.

Follow the instructions in the User's Manual of your computer.

Place the product away from humidity and avoid wet environments. Never use this device near water.

Any repair and maintenance of the devices must be performed by qualified service personnel only. Repair or maintenance is necessary when you observe any kind of damage (e.g. damaged power cord or plug, when liquids have entered the device, when objects have fallen onto the equipment, when the device has been dropped, when the device has been exposed to rain or moisture) or when you observe a reduced performance of the product.

To avoid the risk of electric shock, the case may only be opened by qualified service technicians.

Only use a soft, dry and fluff-free cloth or brush. Do not use any detergents, alcohol, benzene, furniture cleaner or any similar products.

Install all cables so that they cannot be tripped over.

1. Features:

• Large 3.5 × 6' TFT LCD
• Screen resolution: 480 × 234 (RGB)
• Supports popular memory cards: SD, MMC, USB
• JPEG file format reading
• Easy to use and operate
• Picture Auto Slide-showing and Auto-Circulation Function
• Picture rotation function
• Rotate the pictures in clockwise or counter-clockwise with different angles of 90degree/180degree/270degree
• Adjustable slideshow delay interval(3sec, 10sec, 1min, 2h)
• Zoom in and out the picture
• Landscape/Portrait positioning /wall mounting
• Power consumption: 6w
• Freely change starting logo

2. Installation

2.1 Install the support bracket

Take out the support bracket and fix it to the slot on the back of the photo frame, there are three kinds of different view positions:

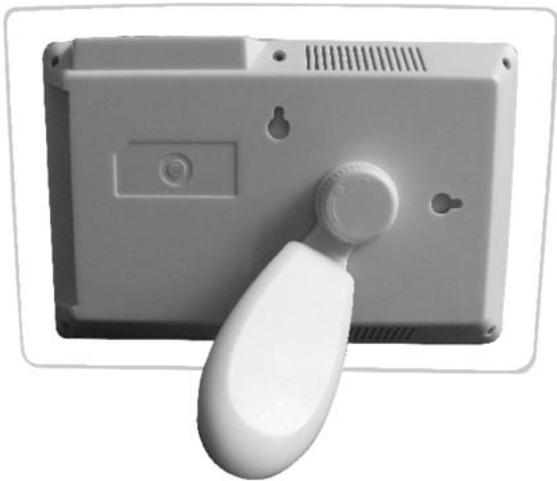

Landscape positioning:

Portrait positioning:

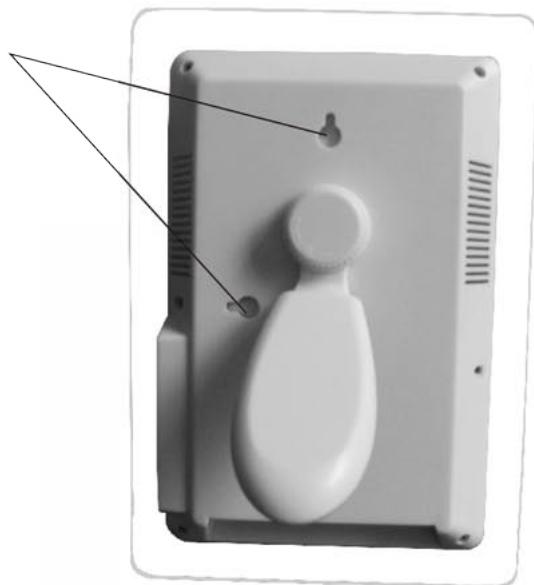

Wall mounting:

Wall mounting wholes

2.2 Install the SD/MMC card / USB

Take out the SD/MMC card from your digital camera, insert it into the SD/MMC card slot at the right side of photo frame following the correct direction.

2.3 Connect the power adapter

Connect the Power adaptor to the AC power (110v-240v), the photo frame will start with thumbnail view

3. Button Assignment

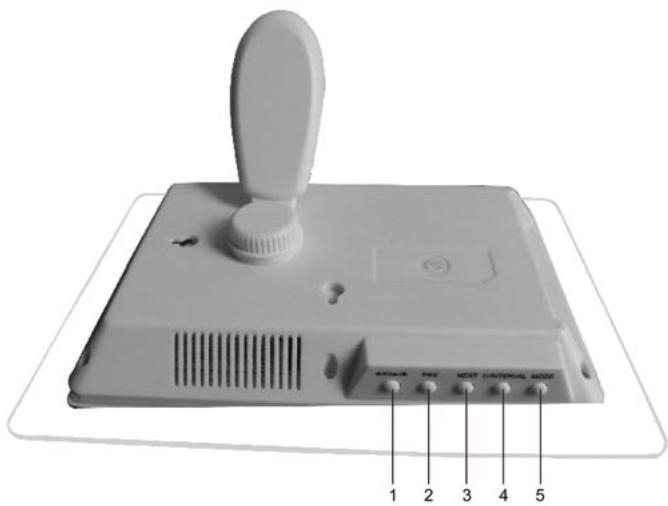

Button functions:

1. Play / Pause Play/Pause or confirm button
   2.Left Move left or up
2. Right Move right or down
3. Exit Exit current mode
4. Setup Enter Setup mode

Control function

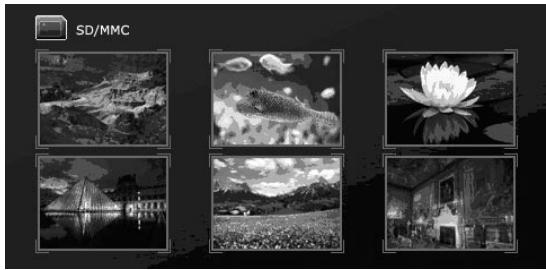

In the PHOTO mode, six images will be showed one time on the screen for easy image selection

LEFT/RIGHT: Use the two button of the Control panel to select an image

PLAY/PAUSE: Press the PLAY/PAUSE button of the control panel to view the selected image at full screen size.

EXIT Press the EXIT button of the control panel to return to the previous image

SLIDE SHOW AND IMAGE CONTROL

When viewing an image:

LEFT: When viewing an image, press the left button on the control panel to return to the previous image.

RIGHT: When viewing an image, press the right button on the control panel to skip to the next image.

PLAY/PAUSE: Press PLAY/PAUSE button confirm to enter SLIDESHOW view.

EXIT: Press EXIT button on the control panel to return to the thumbnail state.

SETUP

To set viewing parameter:

SETUP: Press SETUP button to enter the setup menu.

LEFT/RIGHT: USE the LEFT and RIGHT button to scroll to selection function

PLAY/PAUSE: Press PLAY/PAUSE button to choose an item and confirm selection

EXIT: Press the EXIT button to exit the menu

SLIDE SHOW DISPLAY

it will enter the selection picture when you press PLAY/PAUSE button for the first time. Press again, there are "play" word on the photos, it will play pictures automatically. There are "pause" word when you Press the third time, the photos will stop play. Continuously to play automatically when you press once again.

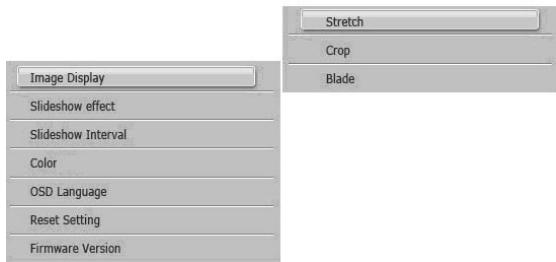

There are seven items will be displayed on the screen press setup button when the Digital photo frame is in thum brail display mode.

Image Dispaly

There are three image display mode:

1) stretch 2) crop 1) original

Slideshow Effect

1) ALL
2) 3D Filp
3) 3D Cirde
(4) 3D Flo
5) 3D Cube
6) Shutter
7) Boxing Shutter
8) Cross Comb
9) Insert
10) News
11) Plus Sign
12) Flabellate
13) Fade
14) Shrink

Slideshow interval

Set interval time of each image as follows:

3 seconds.

1 minute

10 seconds

2 hours

Color

color&contrast , Debugging picture and screen brightness

Use LEFT and RIGHT buttons to adjust Brightness: Brightness

Operation Ibid: Contrast

Operation Ibid: Saturation

Operation Ibid: Hue

OSD Language

Press LEFT or RIGHT buttons on the top panel to switch language

1 (English)

3 (Spanish)

5 (Dutch)

7 (Russia)

2 (French)

4 (Italian)

6 (German)

8 (Portuguese)

Reset Setting

Reset Setting: It will revert to the factory setting after pressing this buttom.

Software Version:

Enter this menu can see the Software Version

There are six items will be displayed on the screen press setup button when the Digital frame is in the playing a photo or the PAUSE mode.

Exif

To see the camera model, aperture size, ISO value & date four functions

Save as logo

To press this setup to set your favorite picture as welcome LOGO

Delete

PAUSE button to confirm whether need delete or not/Press Pnot

ZOOM

The image can be enlarged up to 5 times by press PLAY/PAUSE button

Continuously, on the 6^th times it will revert to the original size.

Rotate

press the SETUP button to selection ROTATE item, screen image-When viewing a full 90 degrees rotate image, PAUSE button can select the rotation of the image/press PLAY per time, 90 degrees for a total of four rotating.

EXIT

Press this button exit from the current setup item

6 Technical Specification:

Panel size	7 inches
Screen resolution	480*234
Brightness	350cd/m²
Contrast	300
View angles	60/60/50/40(CR≥10)
Response time	30ms
Screen size mode	16:9
Slideshow delay interval	3sec, 10sec, 1min, 2h
File format Type	JPEG
Photo size	48m Pixels
Power supply	AC100V-240V/DC12V
Power consumption	6W
Operation temperature	-20 – 65°C
Storage temperature	-30 – 75°C
Dimensions	231(L)*160(W)*36(H) mm
Weight: 0.4 kg	0.4Kg

7 Package content:

Digital Photo Frame
- Instruction Manual
- Power adapter
- Frame support bracket
