MODE D'EMPLOI 320 U ADLY

INDEX

302-01 Cylinder head cover 汽缸頭蓋 3
302-02 Cylinder head 汽缸頭 5
302-03Cooling system 冷卻系統 7
302-04 Cylinder/piston/cranksha汽缸/活塞/曲軸 9
302-05 Camshaft/Valve/Cam凸輪軸/門閘/內鍵條 11
302-06 Water Pump/Oil Pump 水泵/機油泵 13
302-07 Right Crankcase Cover 右曲軸箱蓋 15
302-08 Generator/StartingMot(發電機/起動馬達) 17
302-09 Crankcase 曲軸箱 19
302-10 Driven Pulley 傳動皮帶輪 21
302-11 Left Crankcase Cover 左曲軸箱蓋 25
302-12 Transmission 傳動系 27
302-13A-SL HANDLE BAR (SI 手把(EU2)-(銀) 31
302-14A-SL STEERING (SL) 輸向系統(EU2)-(銀) 33
302-15-SL A-ARM (SL) 三角架-(銀) 35
302-16-SL FRAME BODY (SL) 車架總成(EU2)-(銀)-(225吊架) 37
302-17A-SL SWING ARM SUB 後叉總成(EU2)-(銀) 41
302-18D WHEEL FRONT & RF 前後輸(EU2) 217-10/2011-9 45
302-19 BODY COVER,SEAT(C車體蓋,座墊（桶） 47
302-19A BODY COVER,SEAT(車體蓋，座墊（黑） 53
302-20A_BRAKE.CALIPER 斜車卡鉛 55
302-21A BRAKE SYSTEM 利車油路系統(EU2) 57
302-22A BATTERY & WIRE H 電瓶&主配線(EU2) 61
302-23A FUEL TANK 油箱 65
302-24 AIR CLEANER ASS'Y 空氣濾清器 67
302-25A SIGNAL LIGHT.TALI 方向燈,後燈(EU2) 69
302-26B_MUFFLER 排氣管 71
302-27 CARBURETOR 化油器 73
302-28 GEAR SHIFT SYSTEM 排檔系統 75
302-A7 STICKER 貴紙(法國SIMA) 77

Page

ADLY 320 U - INDEX - 1

ADLY 320 U - INDEX - 2

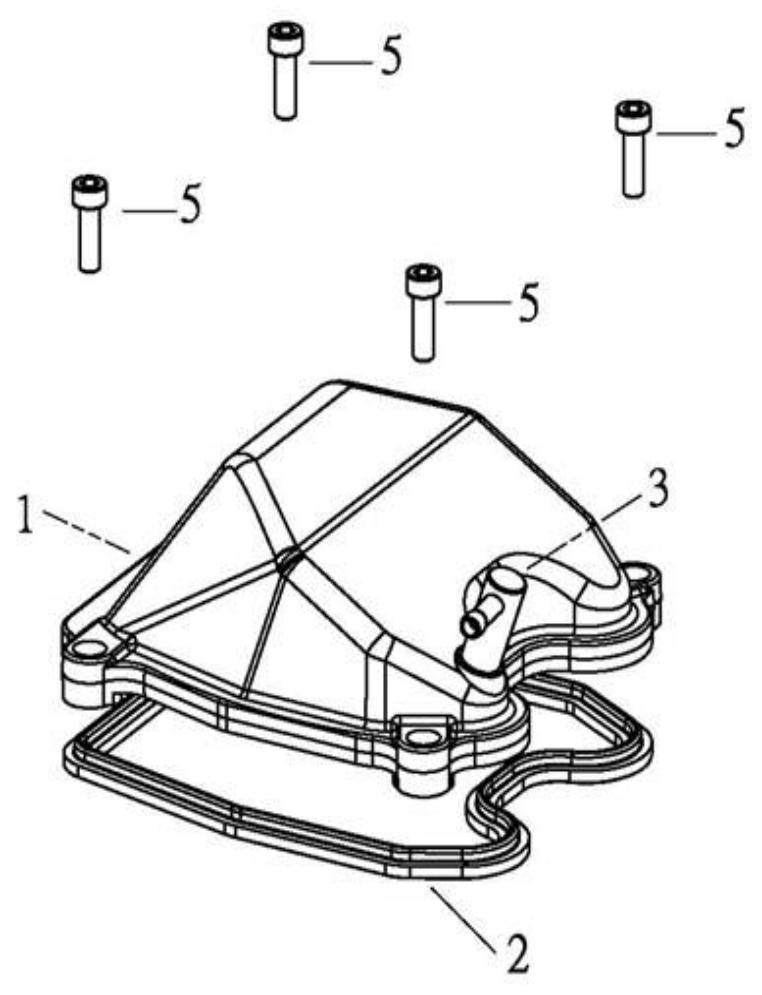

組件編號：302-01

汽缸頭蓋 Cylinder head cover

Item No.IParts No.IU

nit Q'tyl

Parts Name

項次部品番號

用量零件名稱

1 12310-272-000

1 CYLINDER HEAD COVER

2 12391-272-000

1 HEAD COVER GASKET

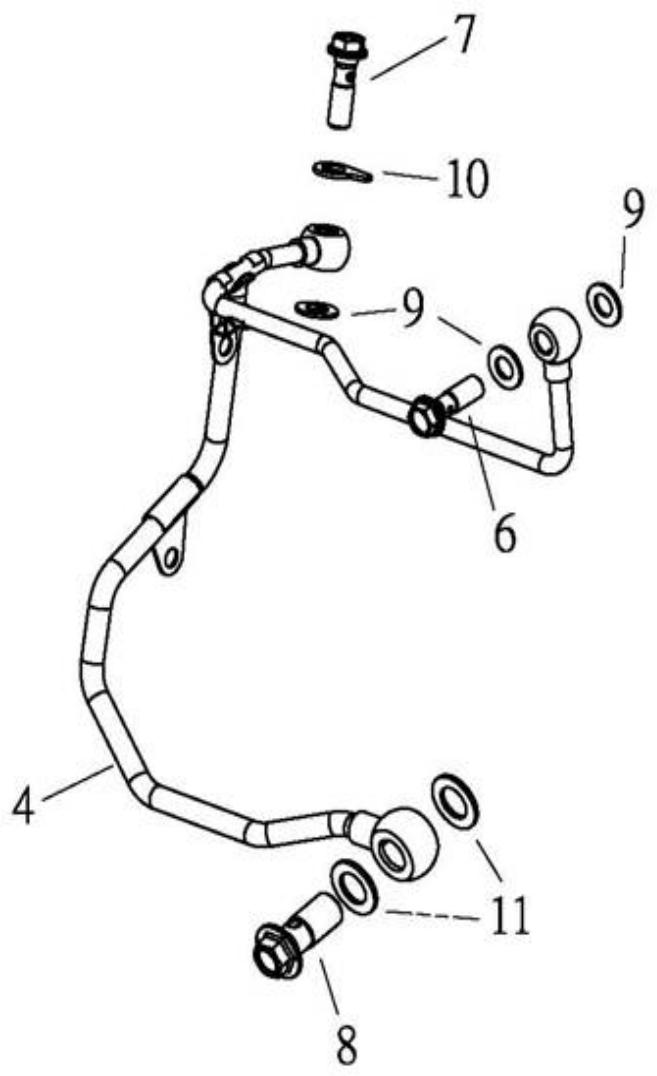

PK-M504C

3 11210-272-000

1 BREATHER TUBE

4 15201-272-000

1 OIL PIPE

5 91000-06020C

4 HEX SOCKET BOLT

6*20

6 45456-225-000

1 OIL BOLT

8*25.5

7 45457-225-000

1 OIL BOLT

8*25.5

8 45458-225-000

1 OIL BOLT

12*28

9 94103-0815012

3 COPPER PLAIN WASHER

8151.2

10 15207-225-000

1 FIX BRACKET

11 94103-1220015

2 COPPER PLAIN WASHER

12.5201.5

ADLY 320 U - INDEX - 3

ADLY 320 U - INDEX - 4

1	91314-225-000	1	OIL-RING	14.8*2
2	12251-272-000	1	CYLINDER HEAD GASKET
3	94301-10140	2	DOWEL PIN	81014
4	94101-0818035B	4	PLAIN WASHER
5	94031-08000B	4	HEX ACORM WASHER FACE NUT	M81712
6	91000-06025B	2	HEX SOCKET BOLT	6*25

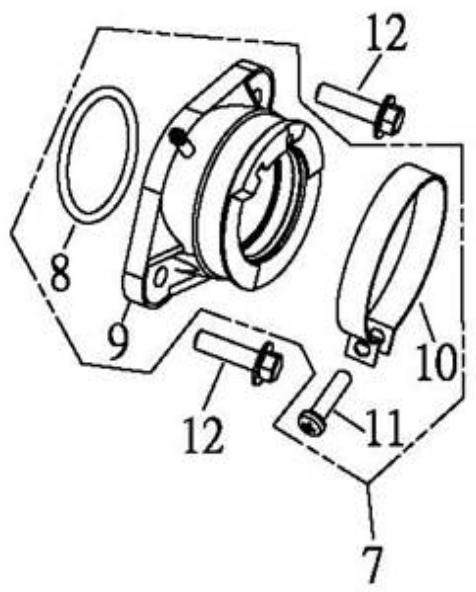

7	17101-272-00A	1	INTAKE MANIFOLD ASS'Y
8	91336-169-000	1	OIL RING	36*3
9	17100-272-00A	1	INTAKE MANIFOLD ASS'Y
10	14111-169-000	1	CARBURETOR CLIP
11	93500-05020K	1	PAN PHILLIPS BOLT	5*20
12	19313-225-000	1	THERMOSTAT BODY
13	98076-179-000	1	SPARK PLUG	CR8E
14	91001-08042B	2	STUD BOLT	8*42
15	19315-225-000	1	THERMOSTAT DOWN COVER
16	91000-06018K	1	HEX SOCKET BOLT	6*18
17	96000-06016-08B	4	HEX FLANGE BOLT	6*16
18	19310-225-000	1	THERMOSTAT ASS'Y
19	19310-179-000	1	THERMOSTAT WITH GASKET
20	19312-225-000	1	SENSOR

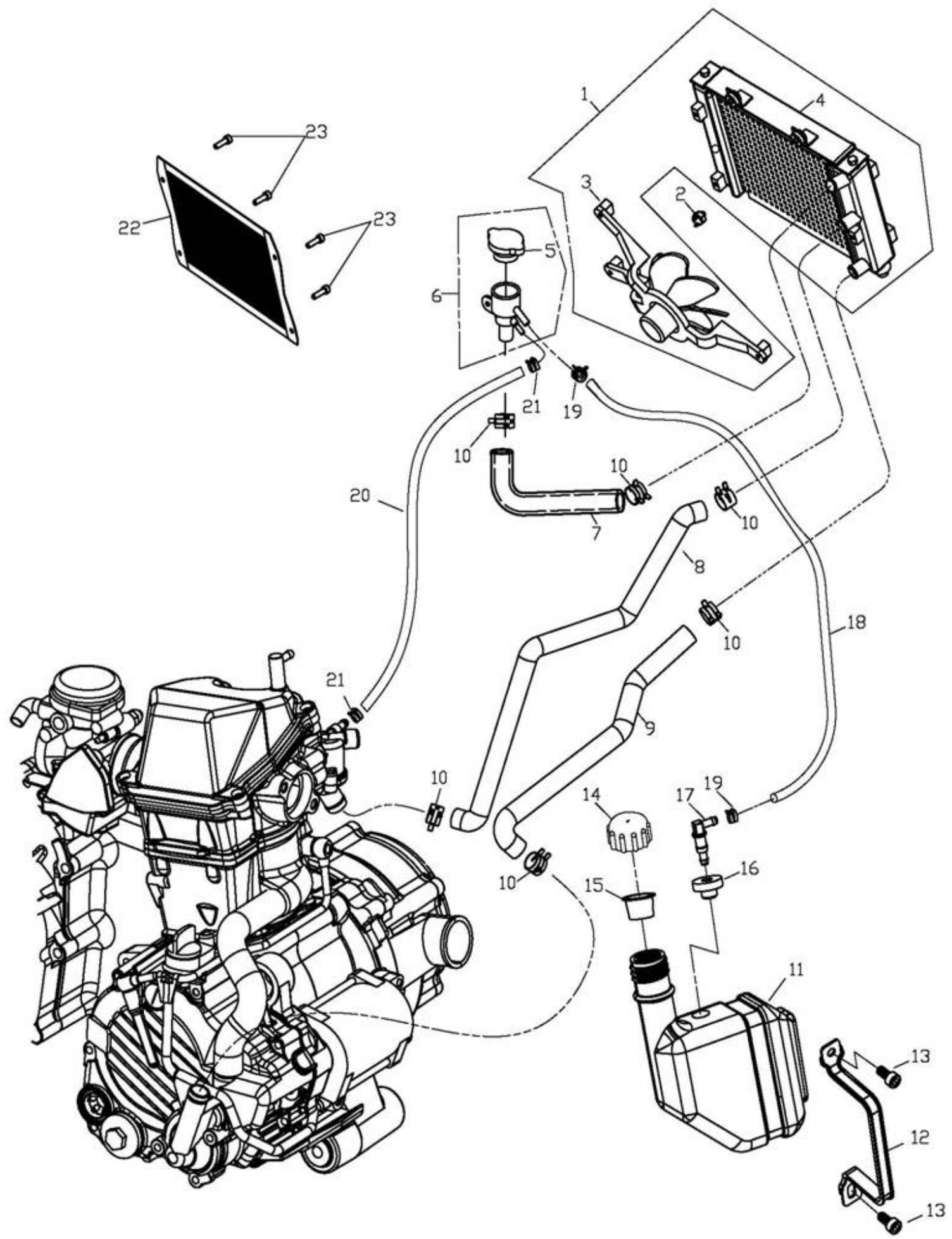

ADLY 320 U - INDEX - 5

1	19000-225-000	1	RADIATOR ASS'Y
2	35510-225-000	1	FAN SWITCH
3	19120-225-000	1	RADIATOR FAN ASSY
4	19100-225-000	1	RADIATOR BODY
5	19110-225-000	1	PRESSURE CAP
6	19113-225-000	1	FILL NECK
7	19109-225-00A	1	CONNECTING HOSE
8	19107-272-000	1	HOSE RAD. IN
9	19102-225-000	1	HOSE RAD. OUT	560mm
10	94516-27000	6	CLAMP	#27.5(1 1/16")
11	19200-179-000	1	COOLANT TANK	REV.A
12	19201-179-000	1	TANK ANCHOR
13	96000-06016-10G	2	HEX FLANGE BOLT	6*16
14	19210-179-000	1	COOLANT TANK CAP
15	19211-179-000	1	CAP PRROTECTOR
16	19106-179-000	1	GROMMET
17	19220-179-000	1	MALE CONNECTOR
18	94400-0609300	1	HOSE	69300
19	94513-08000	2	SPRING CLAMP
20	94403-0511400	1	HOSE OUT	511400
21	94515-11000	2	HOSE BUNCH	HY110
22	19115-225-000	1	RADIATOR GUARD
23	96000-06010-10K	4	HEX FLANGE BOLT	M6*10

ADLY 320 U - INDEX - 6

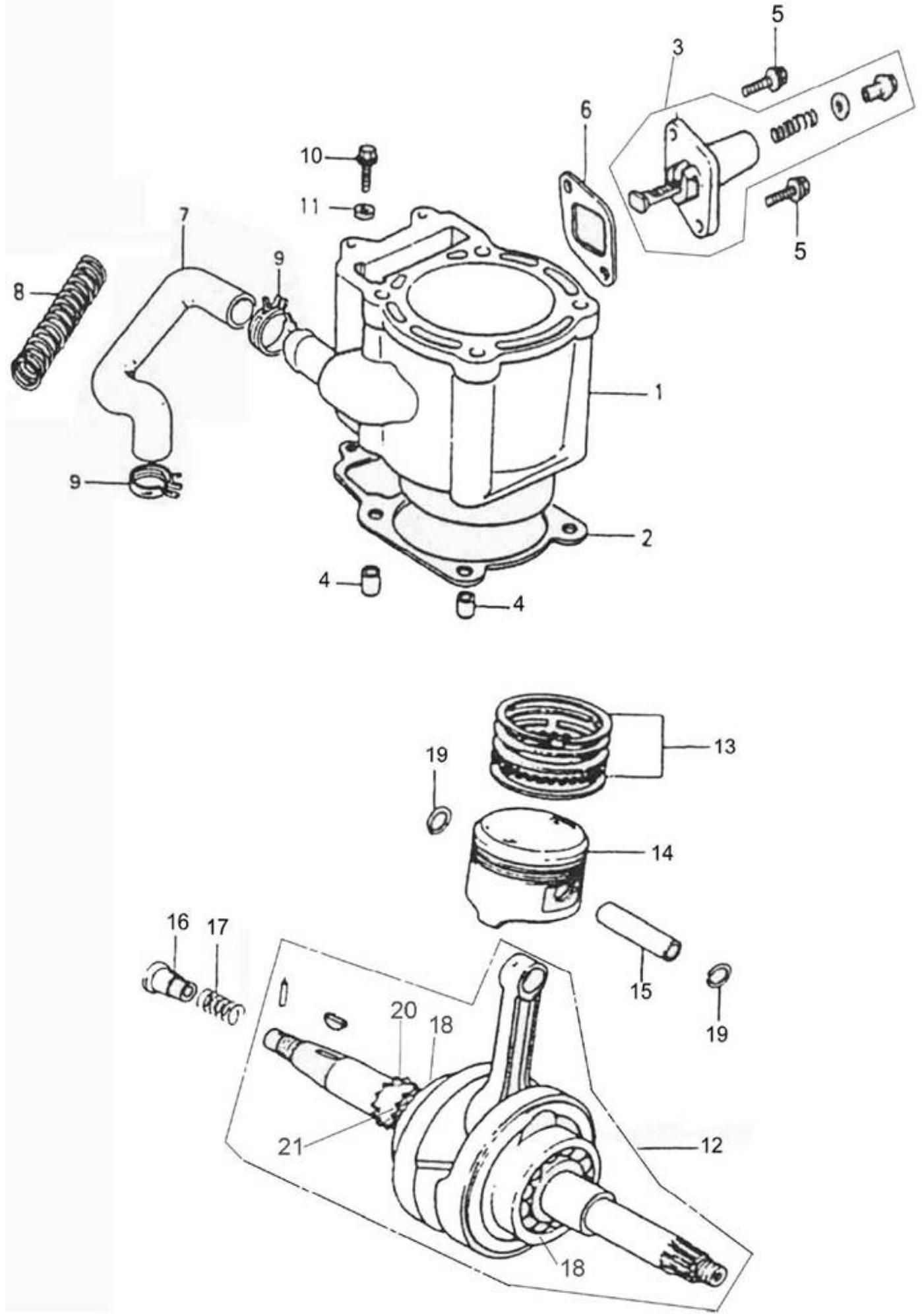

1	12100-272-000	1	CYLINDER ASS'Y
2	12191-272-000	1	CYLINDER GASKET
3	14520-133-000	1	TENSIONER LIFTER ASS'Y
4	94301-10140	2	DOWEL PIN	81014
5	96000-06016-10B	2	HEX FLANGE BOLT	6*16
6	14523-133-000	1	TENSIONER LIFTER GASKET
7	15822-225-000	1	WATER PUMP OUTLET HOSE
8	15821-225-000	1	SPRING
9	94516-27000	2	CLAMP	#27.5(1 1/16")
10	96000-06025-08B	1	HEX FLANGE BOLT	6*25
11	94103-0613020	1	PLAIN WASHER	6132
12	13000-225-000	1	CRANK SHAFT ASS'Y
13	13011-272-000	1	PISTON RING SET
14	13100-272-000	1	PISTON
15	13111-272-000	1	PISTON PIN
16	15441-225-000	1	VALVE
17	15447-225-000	1	SPRING
18	96100-6328V4	2	RADIAL BALL BEARING
19	13115-169-000	2	PISTON PIN CLIP
20	14311-225-000	1	TIMING SPROCKET	17T
21	14322-225-000	1	OIL PUMP DRIVE GEAR	16T

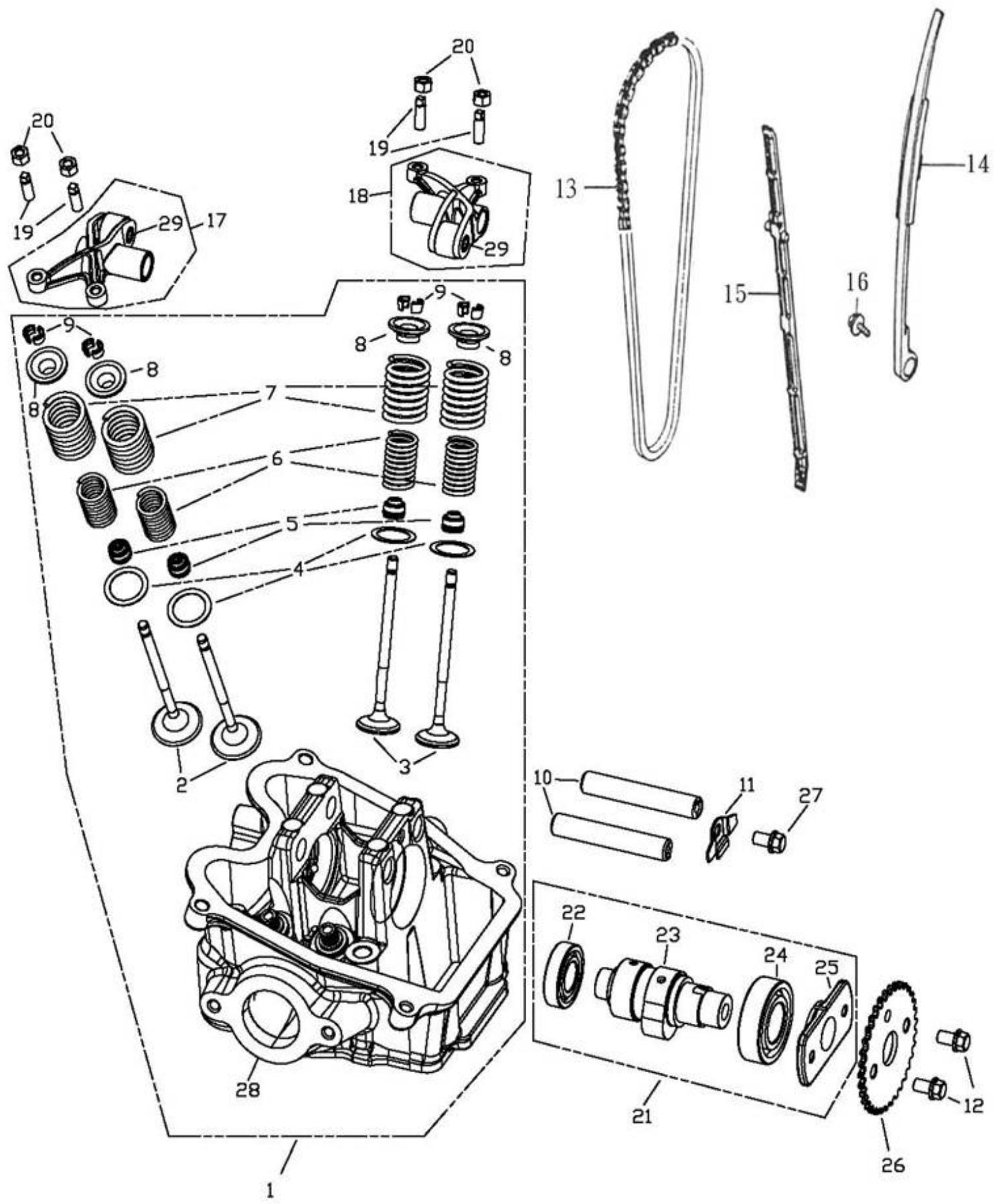

ADLY 320 U - INDEX - 7

1	12200-272-000	1	CYLINDER
2	14711-272-000	2	IN. VALVE
3	14721-272-000	2	EX. VALVE
4	14775-120-000	4	VALVE SPRING SEAT
5	12209-272-000	4	VALVE STEM SEAL
6	14761-272-000	4	VALVE INNER SPRING
7	14751-272-000	4	VALVE OUTER SPRING
8	14771-225-000	4	VALVE RETainer
9	14781-225-000	8	VALVE COTTER
10	14451-272-000	2	ARM SHAFT
11	14456-272-001	1	STOPPER PLATE
12	96000-06008-10K	2	HEX FLANGE BOLT	6*8
13	14401-225-000	1	CAM CHAIN	98目
14	14550-225-000	1	CAM CHAIN TENSIONER
15	14500-225-000	1	CAM CHAIN GUIDE COMP
16	92006-06012-10K	1	HEX WASHER FACE BOLT	6*12
17	14431-272-000	1	IN. VALVE ROCKER
18	14432-272-000	1	EXHAUST ROCKER ARM
19	90012-120-000	4	VALVE GAP ADJUSTING SCREW
20	90206-120-000	4	VALVE GAP ADJUSTING NUT
21	14100-272-000	1	CAMSHAFT COMP
22	96100-16002	1	RADIAL BALL BEARING		16002
23	14104-272-000	1	CAMSHAFT BODY
24	96100-16004	1	RADIAL BALL BEARING		16004
25	14103-272-000	1	CAM SHAFT SP. HOUSING
26	14321-272-000	1	TIMING GEAR
27	91201-06008K	1	HEX SOCKET BOLT	6*8
28	12201-272-000	1	CYLINDER HEAD
29	14435-272-000	2	CAM ROLLER	F-46946-300

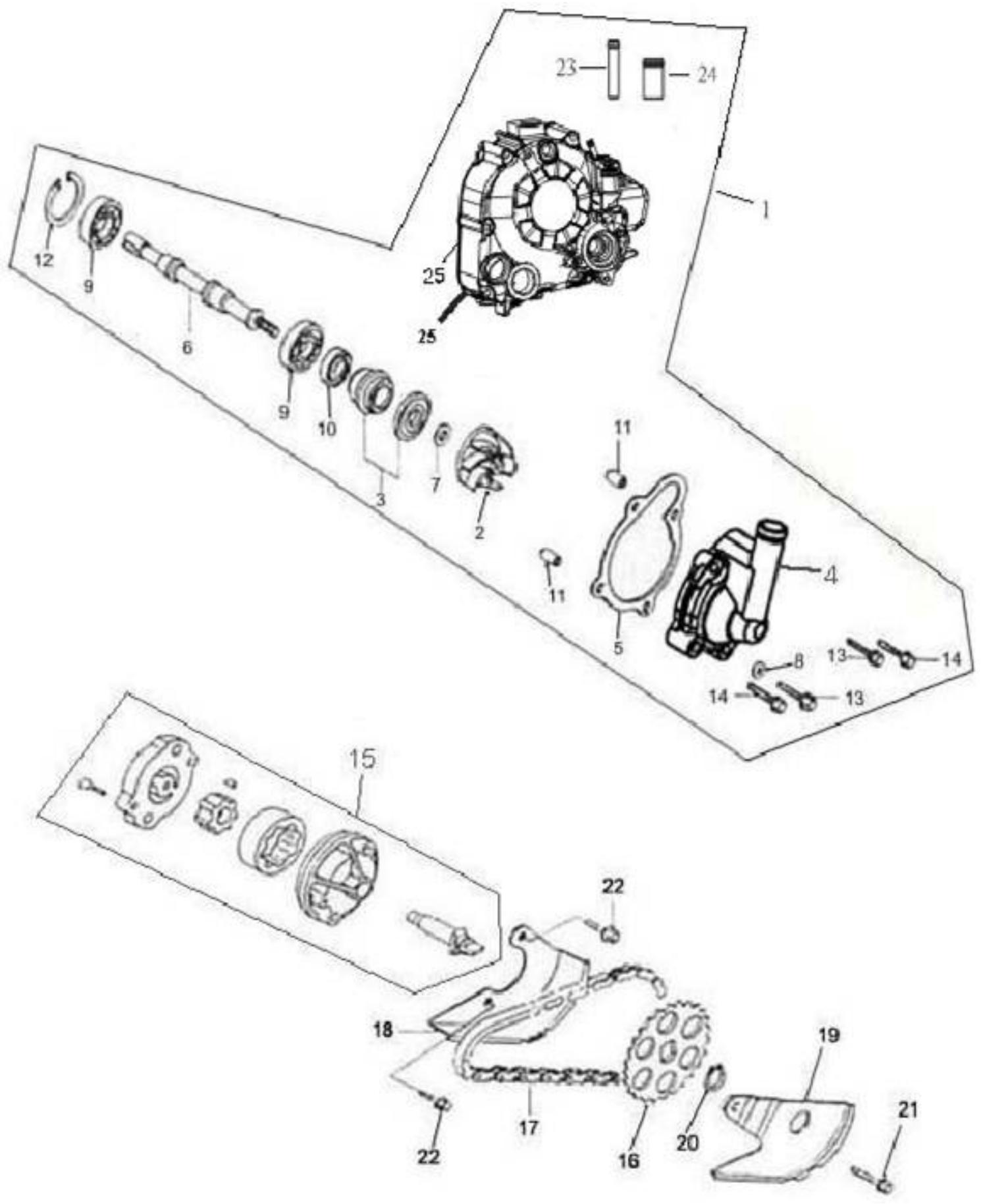

ADLY 320 U - INDEX - 8

1	11331-225-000	1	RIGHT CRANKCASE COVER ASS'Y
2	15803-225-000	1	WATER PUMP IMPELLER
3	15805-225-000	1	WATER PUMP OIL SEAL
4	15820-225-001	1	WATER PUMP COVER
5	15823-225-000	1	WATER PUMP COVER GASKET
6	15802-225-000	1	WATER PUMP SHAFT
7	94101-0713010B	1	PLAIN WASHER	7131.2
8	94103-0612010	1	SEALING WASHER	6.5121
9	96100-68000	2	RADIAL BALL BEARING		6800
10	96500-10205	1	OIL SEAL	10205
11	94301-08140	2	DOWEL PIN	6.3814
12	94512-1900R	1	INTERNAL CIR CLIP	RTW-19
13	96000-06025-08B	2	HEX FLANGE BOLT	6*25
14	96000-06040-08B	2	HEX FLANGE BOLT	6*40
15	15100-225-000	1	OIL PUMP ASS'Y
16	15150-225-000	1	OIL PUMP DRIVE GEAR	25T
17	15141-225-000	1	OIL PUMP CHAIN	46目
18	15711-225-000	1	OIL SEPARATOR
19	15712-225-000	1	OIL SEPARATOR
20	94511-1000S	1	EXTERNAL CIR CLIP	STW-10
21	96000-06012-08B	1	HEX FLANGE BOLT	6*12
22	96000-06028-08B	2	HEX FLANGE BOLT	6*28
23	11336-225-000	1	COPPER PIPE
24	11337-225-000	1	TUBE JOINT
25	11330-225-000	1	RIGHT CRANKCASE COVER

ADLY 320 U - INDEX - 9

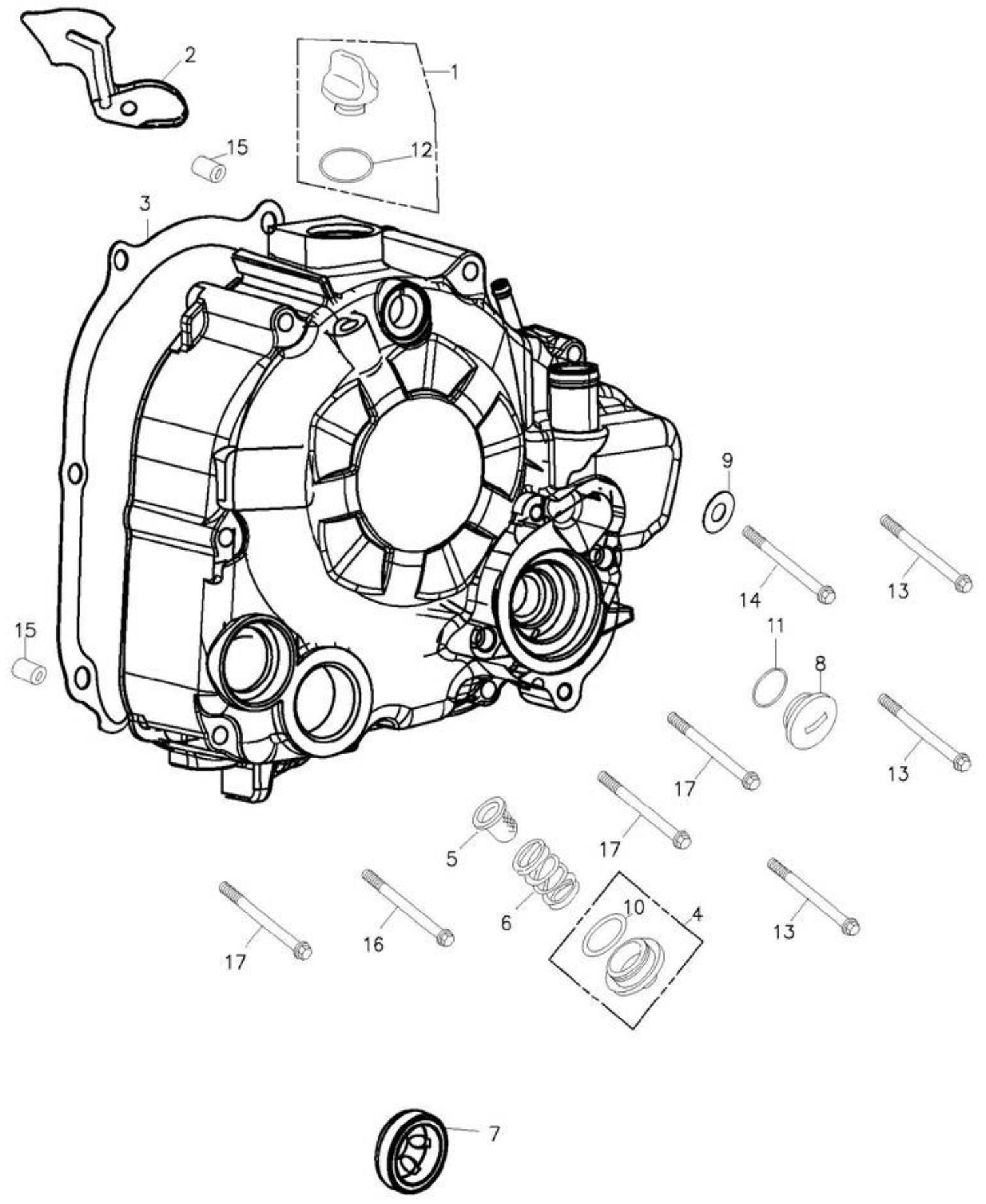

1	15650-225-001	1	OIL PLUG	M3G
2	32961-225-000	1	A.C.GENERATOR CORD CLAMPER
3	11393-225-000	1	R. CRANKCASE COVER GASKET
4	12361-120-000	1	CAP ASS'Y
5	15421-120-000	1	OIL FILTER SCREEN
6	15426-225-000	1	OIL FILTER SPRING
7	15651-225-000	1	OIL VIEW WINDOW
8	90084-108-000	1	A.C.G. CAP (small)	14mm
9	94103-0612010	1	SEALING WASHER	6.5121
10	91330-120-000	1	OIL RING	30.8mm
11	91313-108-000	1	OIL RING	13.8*2.5
12	91318-108-000	1	OIL RING	18*3
13	96000-06070-08B	3	HEX WASHER FACE BOLT	6*70
14	96000-06080-08B	1	HEX WASHER FACE BOLT	6*80
15	94301-08140	2	DOWEL PIN	6.3814
16	96000-06028-08B	1	HEX FLANGE BOLT	6*28
17	96000-06040-08B	3	HEX FLANGE BOLT	6*40

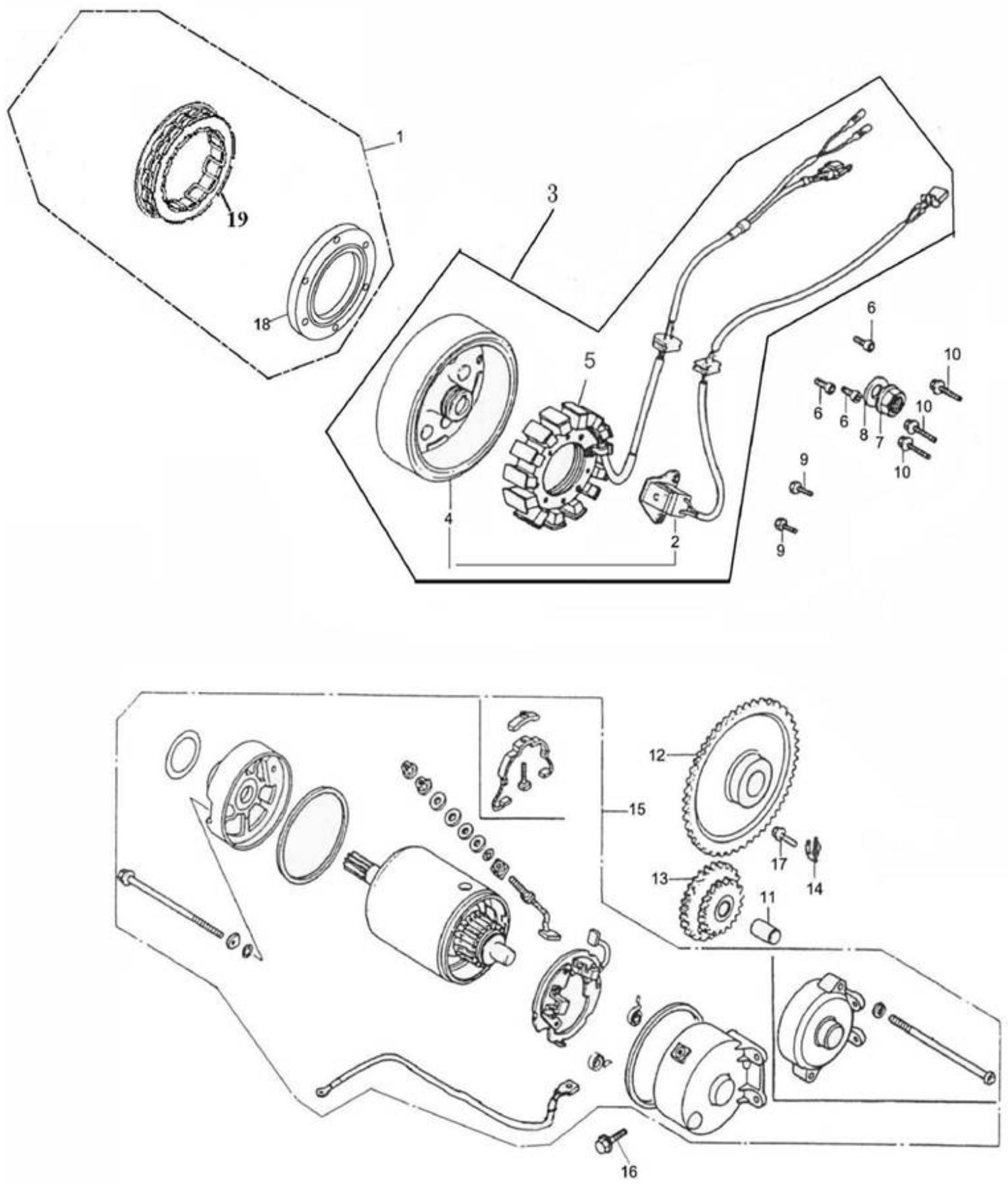

ADLY 320 U - INDEX - 10

1 28410-225-000

1 STARTER CLUTCH ASS'Y

2 31124-225-000

1 PULSE ALTERNATOR COMP.

3 31100-225-000

1 GENERATOR ASS'Y

4 31110-225-000

1 GENERATOR FLYWHEEL

5 31120-225-000

1 STATOR COMP

6 91000-08018CL

3 HEX SOCKET BOLT 8*18

7 94050-16000B

1 HEX FLANGE NUT WITH SERRATIO16*1.0

8 94101-1630020B

1 PLAIN WASHER 16.2302

9 96000-05016-08B

2 HEX WASHER FACE BOLT 5*16

10 96000-06032-08B

3 HEX FLANGE BOLT 6*32

11 28132-225-000

1 STARTER REDUCTION GEAR SHAFT

12 28220-225-000

1 STARTING CLUTCH GEAR

13 28422-225-000

1 STARTER REDUCTION GEAR

14 28423-225-000

1 STARTER REDUCTION GEAR PLATE-REV.1

15 31200-225-000

1 STARTING MOTOR ASS'Y

16 96000-06022-10B

2 HEX FLANGE BOLT 6*22

17 96000-06016-08B

1 HEX FLANGE BOLT 6*16

18 28125-225-000

1 STARTING CLUTCH OUTER COMP.

19 28500-179-001

1 SPRAG CLUTCH

ADLY 320 U - INDEX - 11

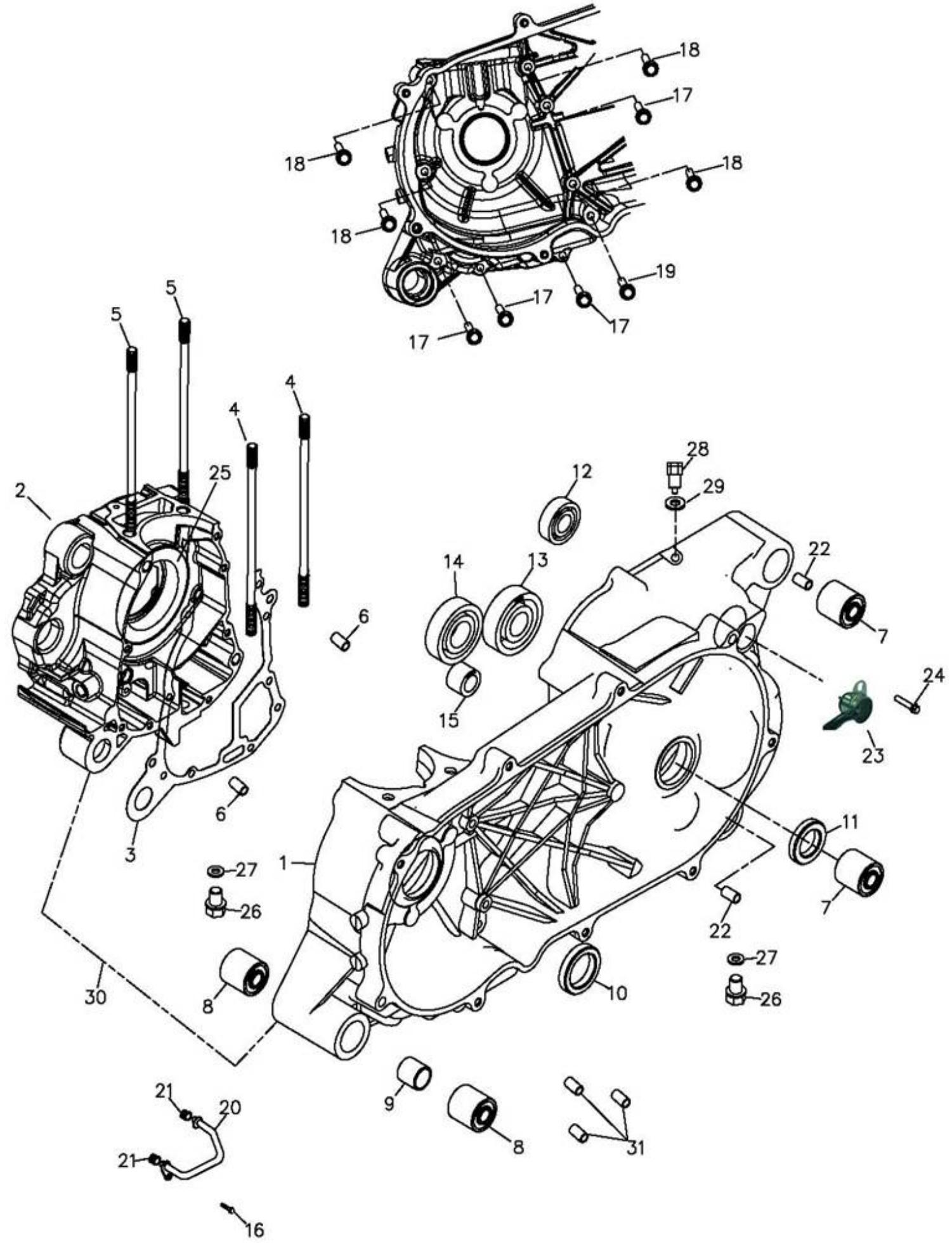

1	11201-272-001	1	L. CRANK CASE COMP
2	11101-272-000	1	RIGHT CRANKCASE
3	11191-225-000	1	CRANKCASE GASKET
4	91001-08187C	1	STUD BOLT	8*187
5	91001-08179C	3	STUD BOLT	8*179
6	94301-08140	2	DOWEL PIN	6.3814
7	96400-102829	2	RUBBER BUSHING	102829
8	96400-102632	2	BUSH	102632
9	96401-101848	1	BUSHING	101847.6
10	96500-28407	1	OIL SEAL	TC28407
11	96500-22366	1	OIL SEAL	22366
12	96100-62020	1	RADIAL BALL BEARING		6202
13	96100-63040	1	RADIAL BALL BEARING		6304
14	96100-TMB222	1	RADIAL BALL BEARING	TMB2/22CCS15
15	96200-NK142216	1	NEEDLE BEARING	NK142216
16	96000-06012-08B	1	HEX FLANGE BOLT	6*12
17	96000-06065-10B	4	HEX FLANGE BOLT	6*65
18	96000-06075-10B	4	HEX WASHER FACE BOLT	6*75
19	96000-06052-10B	1	HEX WASHER FACE BOLT	6*52
20	15101-225-001	1	OIL PIPE COMP.
21	15102-225-000	2	RUBBER BUSHING
22	96401-101931	2	BUSHING	101931.5
23	35750-225-0A0	1	SHIFT GEAR SWITCH
24	96000-06010-10B	1	HEX WASHER FACE BOLT	6*10
25	11205-225-000	2	COVER OF L.CASE BEARING
26	11131-179-000	2	MAGNETIC DRAIN PLUG	M12*1.5
27	94103-1218013	2	COPPER PLAIN WASHER	12181.3
28	92000-18010C	1	HEX BOLT	M181.510
29	94104-1824010	1	PLAIN WASHER(AL)	18241
30	11100-272-001	1	LEFT/RIGHT CRANKCASE
31	96205-06007	3	CRANKCASE PLUG(AL)

ADLY 320 U - INDEX - 12

1	22103-225-000	1	MOVABLE DRIVE FACE ASS'Y
2	22102-225-000	1	DRIVE FACE
3	96401-192763	1	BUSHING	192762.5
4	22110-225-000	1	FACE COMP MOVABLE DRIVE
5	96500-26354	2	OIL SEAL	26354
6	22121-225-000	6	WEIGHT ROLLER
7	22131-225-000	1	CAM PLATE
8	22132-225-000	3	SLIDE PIECE
9	22001-225-000	1	PLATE ASS'Y DRIVE
10	22350-225-000	1	DRIVE PLATE
11	22804-225-000	3	CLUTCH DAMPER BUBBER
12	22535-225-001	1	CLUTCH WEIGHT SET
13	22401-225-000	3	SPRING CLUTCH
14	22351-225-000	1	CLUTCH SIDE PLATE
15	94511-0700E	3	EXTERNAL CIR CLIP	ETW-7
16	23200-225-000	1	CVT DRIVE UNIT
17	23210-225-000	1	FACE ASS'Y DRIVEN
18	96100-6902LU	1	RADIAL BALL BEARING	6902LU C3
19	94512-2800R	1	INTERNAL CIR CLIP	RTW-28
20	96200-223112	1	NEEDLE BEARING	223112
21	23220-225-000	1	SECONDARY SLIDING SLOT WHEEL
22	96500-40474	2	OIL SEAL	39.7474
23	91336-225-000	2	O-RING	46*2
24	23225-225-000	4	GUIDE PIN
25	23237-225-000	1	SECONDARY SPRING SEAT
26	23233-225-000	1	COMPRESSION SPRING
27	23238-225-000	1	COMPRESSION SPRING COVER
28	90202-225-000	1	HEX NUT	M36*1.5
29	96500-21315	1	OIL SEAL	21315
30	23226-225-000	4	GUIDE ROLLER

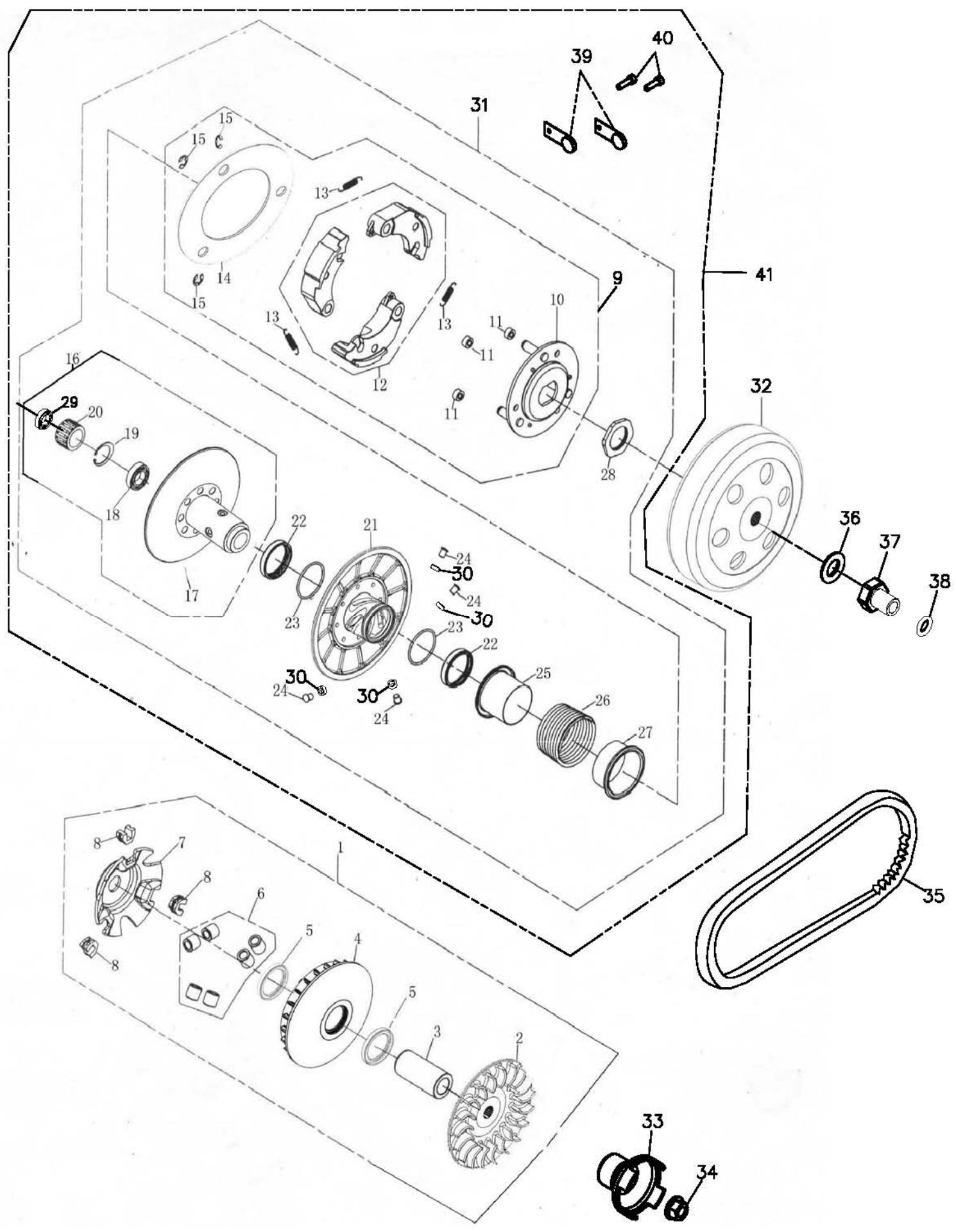

ADLY 320 U - INDEX - 13

31 22000-225-001

1 DRIVE FACE ASS'Y

32 22100-225-000

1 CLUTCH OUTER COMP

33 28350-225-000

1 STARTING DISH

34 94050-14000C

1 HEX FLANGE NUT WITH SERRATIO14mm

35 23100-272-000

1 V-BELT

36 94105-1229015A

1 PLAIN WASHER 12291.5

37 90201-179-001

1 FLANGE NUT 12mm

38 91316-179-000

1 OIL RING 16*2.5

39 22540-201-000

2 SPRING PLATE L=36

40 93702-03013B

2 PAN HEAD BOLT 3*13mm

41 22002-225-001

1 DRIVE FACE ASS'Y B -SPRING PLATE

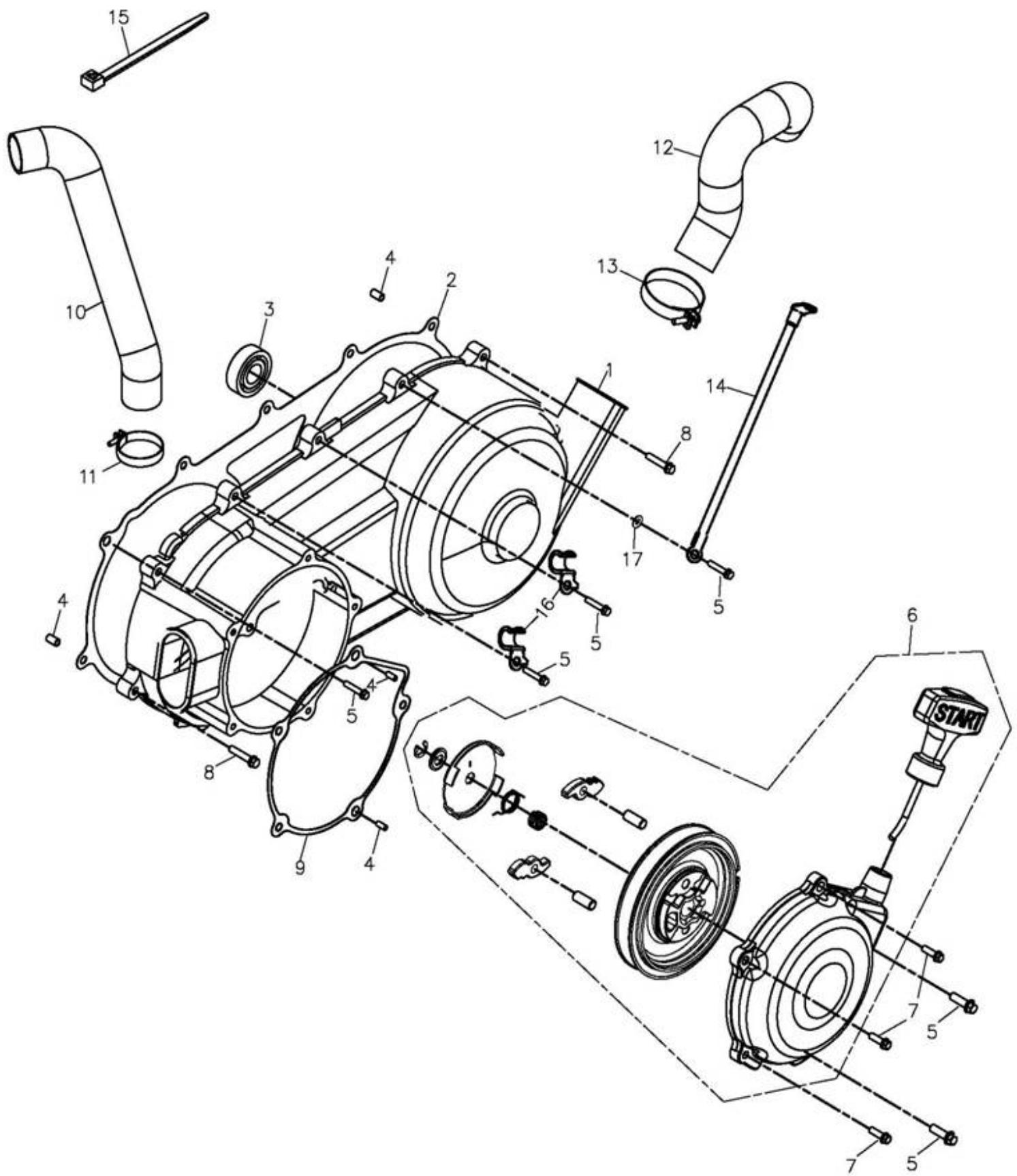

ADLY 320 U - INDEX - 14

1	11341-225-000	1	L. CRANK CASE COVER
2	11359-225-000	1	L COVER GASKET
3	96100-6203LLU	1	RADIAL BALL BEARING	6203 LLU
4	94301-08140	4	DOWEL PIN	6.3814
5	96000-06030-08B	9	HEX FLANGE BOLT	6*30
6	28330-225-000	1	RECOIL HOUSING ASS'Y(REV.1)
7	96000-06025-08B	3	HEX FLANGE BOLT	6*25
8	96000-06035-08B	2	HEX WASHER FACE BOLT	6*35
9	28344-225-000	1	RECOIL COVER GASKET
10	11345-261-000	1	AIR INLET
11	94516-48000	1	CLAMP	#48
12	11346-225-000	1	AIR OUTLET
13	94514-55000	1	CLAMP	#55
14	32103-179-000	1	GROUND CABLE
15	90669-218-000	1	CABLE TIE	3.6*330 m/m
16	11351-120-00A	2	CLAMP
17	94115-0611006	1	EXT. TOOTHED LOCK WASHER	6110.6

ADLY 320 U - INDEX - 15

1	21301-272-000	1	MISSION COVER	225+攻牙
2	21395-225-000	1	MISSION COVER GASKET
3	23411-225-000	1	DRIVE SHAFT
4	23420-225-000	1	MAIN AXLE COMP
5	23430-225-001	1	FINAL GEAR COMP
6	96100-TMB301	1	RADIAL BALL BEARING	TMB301
7	96200-NK142216	1	NEEDLE BEARING	NK142216
8	23421-225-000	2	MAIN AXLE COMP(AS1528)		1432010
9	96100-6305UU	1	RADIAL BALL BEARING	6305UU
10	96500-32628	1	OIL SEAL	TC32628
11	96100-62010	1	RADIAL BALL BEARING	6201C3
12	24300-225-000	1	SHIFT DRUM ASS'Y
13	24241-169-000	1	SHIFT FORK GUIDE SHAFT
14	24231-225-000	2	GEAR SHIFT FORK
15	24431-225-000	1	REVERSE SHIFT STOPPER COMP
16	96000-06022-10B	1	HEX FLANGE BOLT	6*22
17	24630-225-000	1	GEAR SHIFT ARM
18	96500-12245	1	OIL SEAL	12245
19	94301-10140	2	DOWEL PIN	81014
20	96400-102829	2	RUBBER BUSHING	102829
21	16610-104-00A	1	BREATHER HOSE HEAD
22	16615-104-000	1	BREATHER HOSE
23	96000-08030-10B	2	HEX WASHER FACE BOLT	8*30
24	96000-08040-10B	3	HEX FLANGE BOLT	8*40
25	96000-08045-10B	1	HEX WASHER FACE BOLT	8*45
26	96000-08055-10B	2	HEXFLANGE BOLT	8*55
27	90084-108-000	1	A.C.G. CAP (small)	14mm
28	94104-0816020	1	PLAIN WASHER	8162
29	91313-108-000	1	OIL RING	13.8*2.5
30	24435-225-000	1	SHIFT DRUM STOPPER SPRING

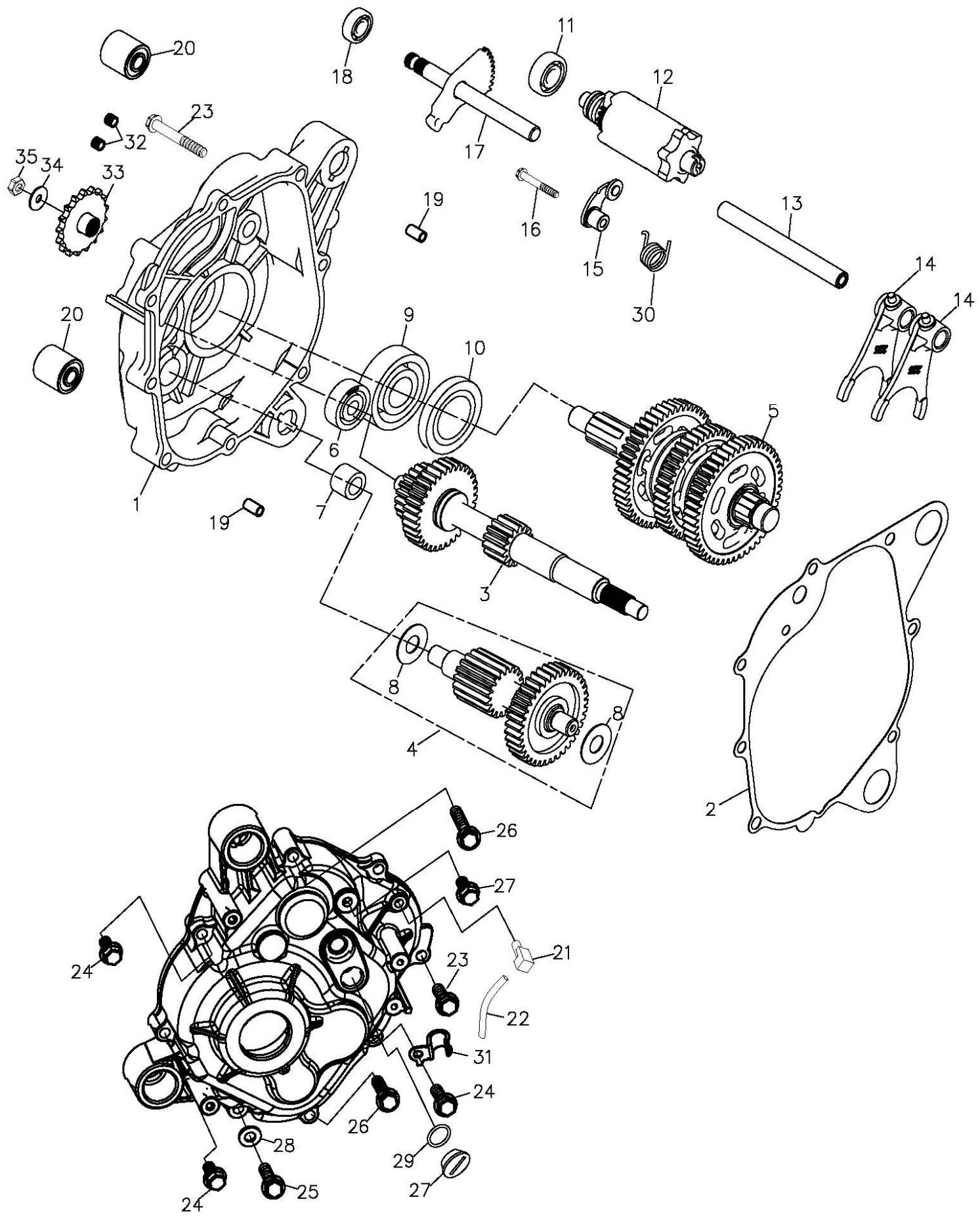

ADLY 320 U - INDEX - 16

31 11351-201-000

1 CLAMPER CARB, DRAIN TUBE

M8孔

32 11108-272-000

2 THREAD BUSH

33 23801-256-00B

1 DRIVE SPROCKET ASS'Y

18T

34 94101-1629030C

1 PLAIN WASHER

16293

35 90350-16000C

1 NUT NYLON

16mm

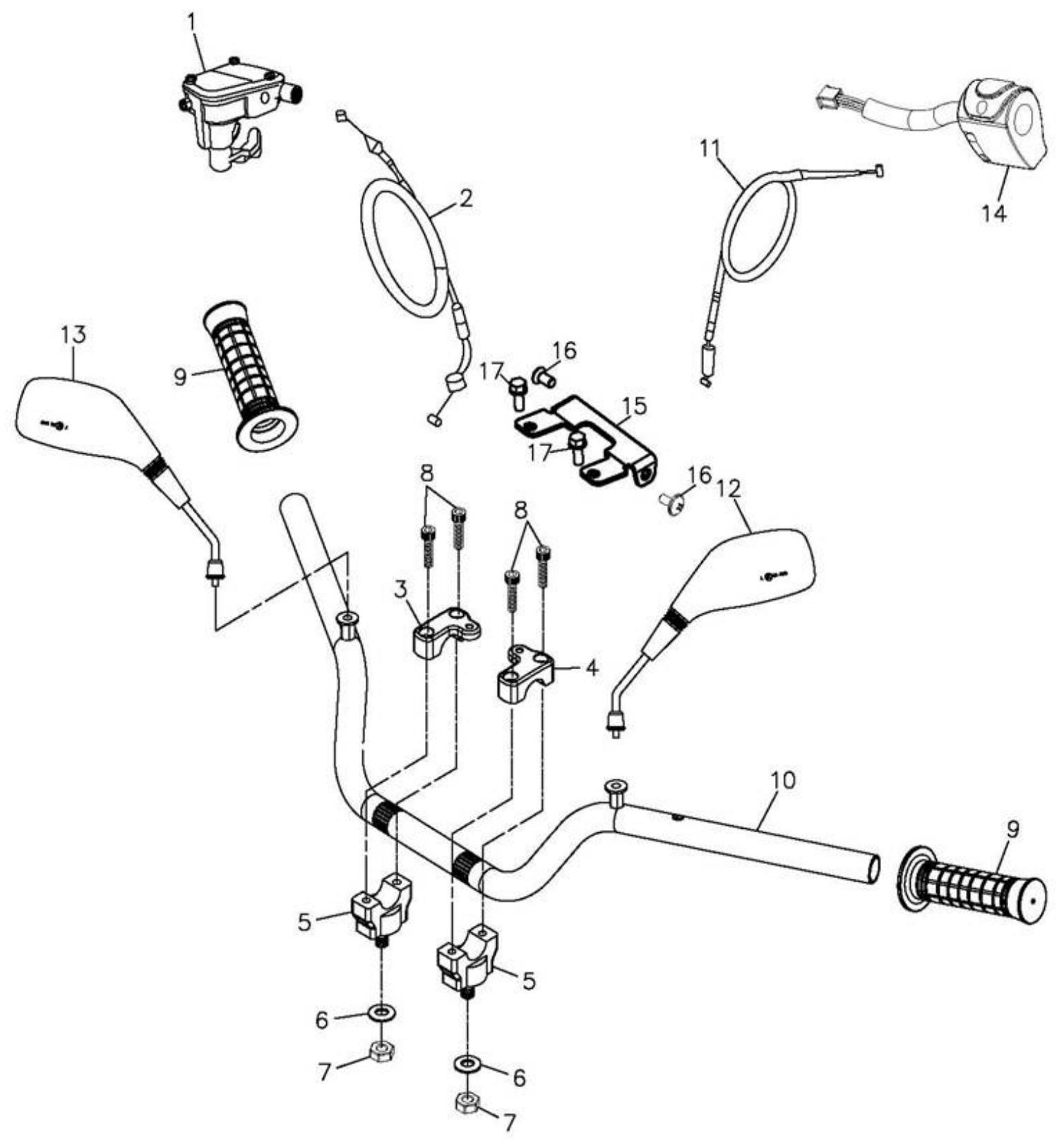

ADLY 320 U - INDEX - 17

ADLY 320 U - INDEX - 18

Item No.IParts No.IU 項次部品番號	nit Q'tyl	Parts Name
Item No.IParts No.IU 項次部品番號	用量零件名稱

1	53170-261-000	1	THROTTLE LEVER ASS'Y
2	17910-272-0A0	1	THROTTLE CABLE
3	53103-145-00A	1	RIGHT HANDLE BAR CLAMP
4	53102-145-00A	1	LEFT HANDLE BAR CLAMP
5	53101-154-000	2	HANDLE BAR BOTTOM CLAMP
6	94105-1022025G	2	PLAIN WASHER	10222.5
7	90350-10000G	2	NYLON NUT	M10*P1.25
8	91000-06025K	4	HEX SOCKET BOLT	M6*25
9	53165-179-000	2	HANDLE GRIP
10	53100-223-000SL	1	HANDLE BAR-SL
11	17950-272-000	1	CHOCK CABLE
12	88120-145-000	1	L.REAR VIEW MIRROR
13	88110-145-000	1	R.REAR VIEW MIRROR
14	35200-256-00A	1	L.HANDLE SWITCH ASS'Y
15	37210-225-000	1	SPEEDOMETER BRACKET
16	93701-06015G	2	PAN FLAT HEAD PHILLIPS BOLT	6*15
17	91000-06012K	2	HEX SOCKET BOLT	6*12
18	32206-272-000	1	REVERSE GEAR OVERDRIVE SWITCH

ADLY 320 U - INDEX - 19

Item No.IParts No.IU 項次部品番號	nit Q'tyl	Parts Name

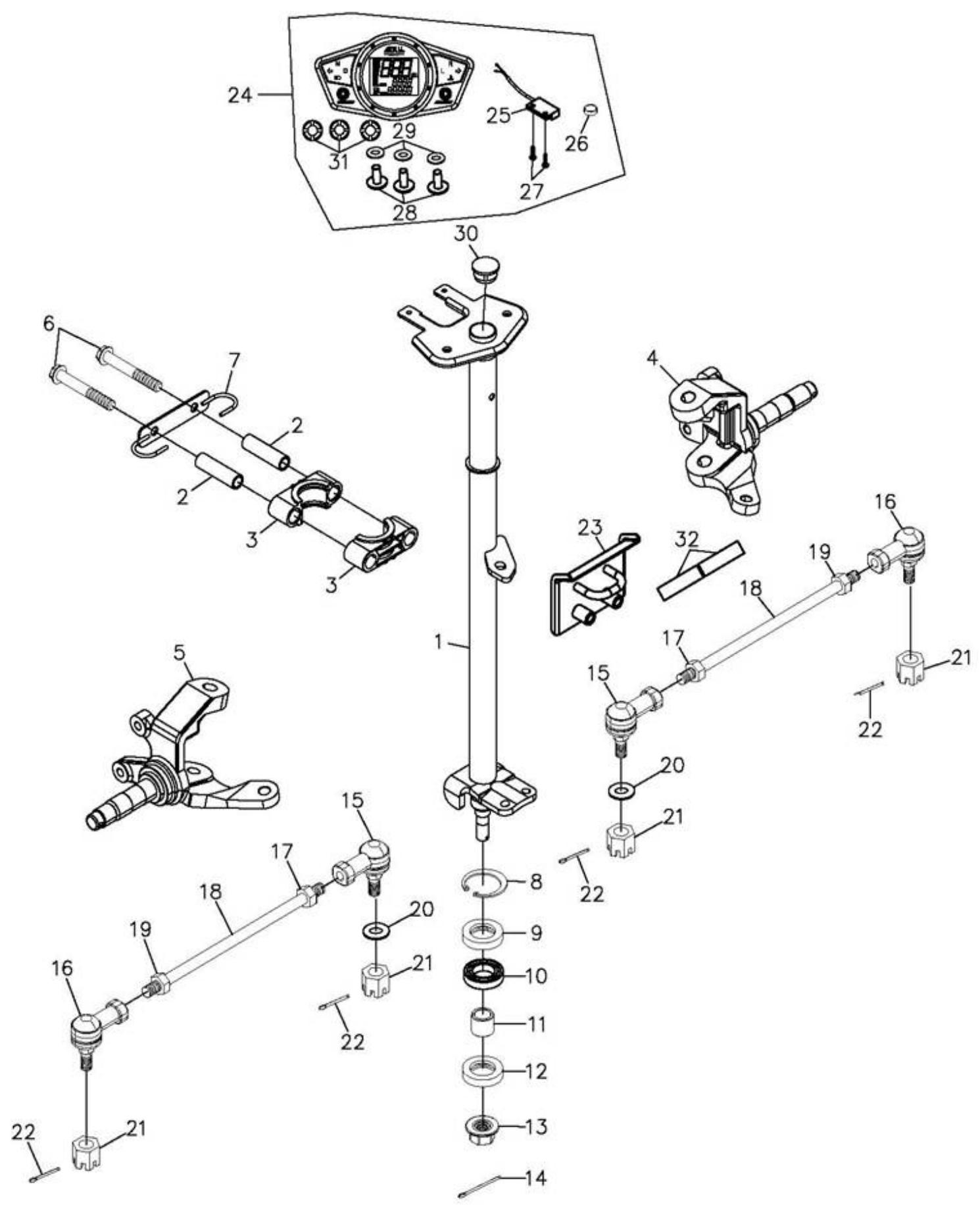

Item No.IParts No.IU 項次部品番號	用量零件名稱

1	51109-231-00BSL	1	STEERING SHAFT ASS'Y
2	51114-169-000	2	HOLDER SPACER COLLER	1014.250
3	51113-169-000	2	STEERING SHAFT HOLDER
4	44520-169-000	1	RIGHT KNUCKLE ASS'Y
5	44510-169-000	1	LEFT KNUCKLE ASS'Y
6	96000-10110-14G	2	HEX FLANGE BOLT	M10*110
7	45451-197-000	1	BRACKET
8	94512-4000R	1	INTERNAL CIR CLIP	RTW-40
9	96500-274008	1	OIL SEAL	27408
10	96100-6203ZZ	1	RADIAL BALL BEARING	6203ZZCS05/2A
11	51120-169-000	1	STEERING SHAFT BUSHING	14.52213
12	96500-22357	1	OIL SEAL	22357
13	90350-14000G	1	NYLON NUT	M14
14	94201-03450B	1	COTTER PIN	3*45
15	44511-256-000	2	BALL JOINT,LEFT THREAD
16	44521-256-000	2	BALL JOINT,RIGHT THREAD
17	94001-12000LC	2	HEX NUT	M12
18	91001-12265B	2	ROD	M12*265
19	94001-12000B	2	HEX NUT	M12
20	94101-1020020G	2	COPPER PLAIN WASHER	10202
21	90350-10000G	4	NYLON NUT	M10*P1.25
22	94201-20190B	4	COTTER PIN	2*19
23	51112-225-000	1	FIX BRACKET(REV.1)	1521.715
24	37200-225-000	1	SPEEDOMETER ASS'Y
25	37218-225-000	1	SENSOR
26	37217-256-000	1	MAGNET	圖型(M6)
27	91000-05016B	2	HEX SOCKET BOLT	5*16
28	93903-04012K	3	TAPPING SCREW TRUSS HEAD PHIL 4*12
29	94101-0514010K	3	PLAIN WASHER	5141
30	96421-197-000	1	RUBBER CAP
31	37202-225-000	3	DAMPER
32	94701-3004125	2	SPONGE PAD	304125

ADLY 320 U - INDEX - 20

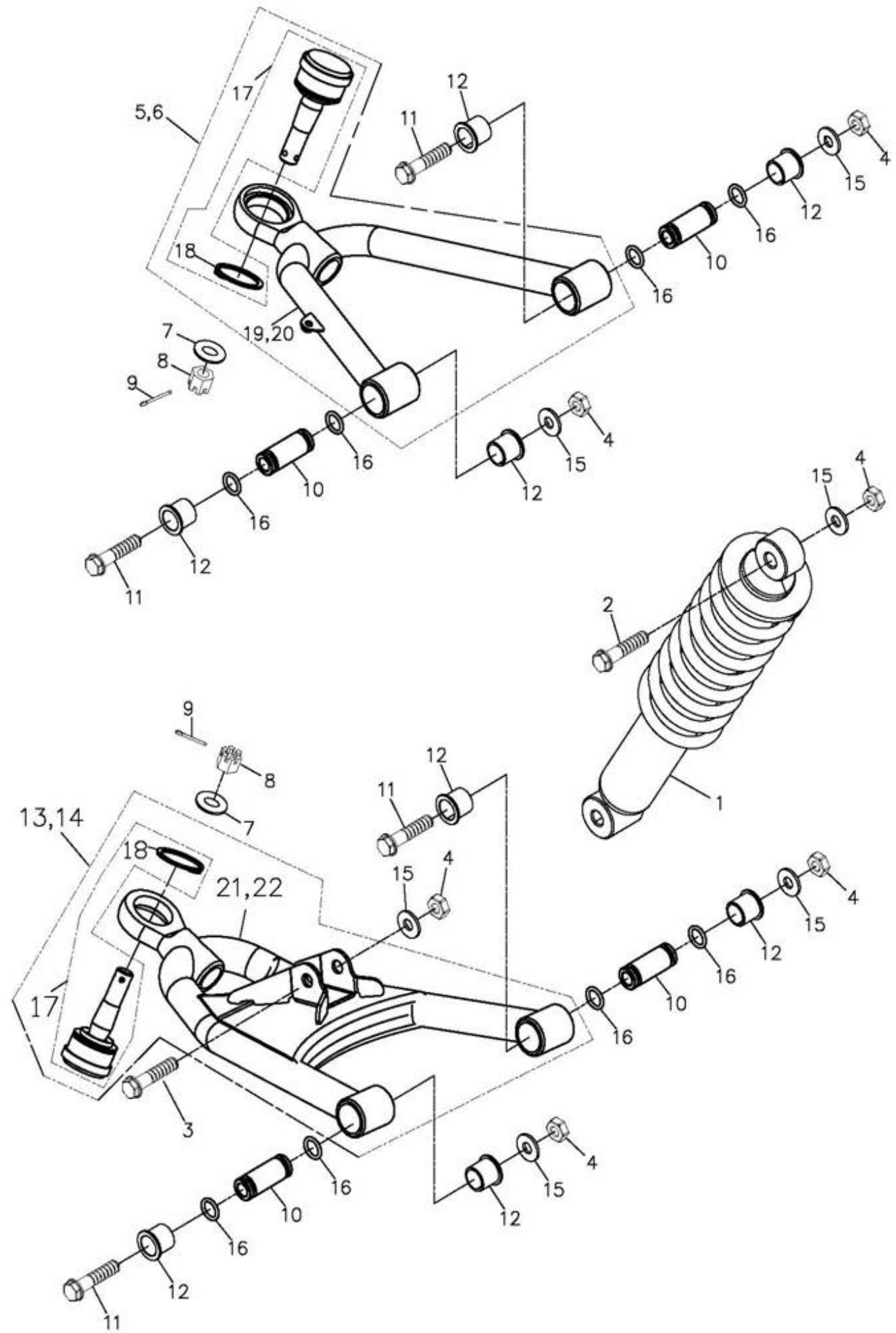

Item No.lParts No.IU 項次部品番號	nit Q'tyl 用量	零件名稱	Parts Name
1 51400-225-000	2	FRONT CUSHION ASS'Y	356mm
2 96000-10040-14G	2	HEX FLANGE BOLT	M10*40
3 96000-10050-14G	2	HEX FLANGE BOLT	M10*50
4 90350-10000G	12	NYLON NUT	M10*P1.25
5 51210-256-000SL	1	R. UPPER SUSPENSION ARM ASS'Y
6 51310-256-000SL	1	L. UPPER SUSPENSION ARM ASS'Y
7 94101-1222020C	4	PLAIN WASHER	12222
8 94051-12000-17G	4	HEX,SLOTTED NUT	12mm
9 94201-30320B	4	COTTER PIN	3*32
10 51350-169-000	8	BUSHING	101744
11 96000-10065-12G	8	HEX WASHER FACE BOLT	10*65
12 51202-169-000	16	BUSH	φ1723.119.2
13 51610-256-000SL	1	R. LOWER SUSPENSION ARM
14 51510-256-000SL	1	L. LOWER SUSPENSION ARM
15 94101-1020020G	10	COPPER PLAIN WASHER	10202
16 91312-169-00A	16	O-RING	12.5*2.4
17 44540-256-000	4	BALL JOINT
18 94511-3000S	4	EXTERNAL CIR CLIP	內徑27.9mm
19 51200-256-000SL	1	R. UPPER SUSPENSION ARM
20 51300-256-000SL	1	L. UPPER SUSPENSION ARM
21 51600-256-000SL	1	R. LOWER SUSPENSION ARM
22 51500-256-000SL	1	L. LOWER SUSPENSION ARM

ADLY 320 U - INDEX - 21

Item No.IParts No.IU

nit Q^ tyl

Parts Name

項次部品番號

用量零件名稱

1	50100-225-002SL	1	FRAME COMP
2	50104-225-000SL	1	FRONT BUMPER
3	50105-225-001SL	1	REAR BUMPER
4	64309-225-001	1	FRONT COVER LOWER POLE
5	95011-101-000	2	RUBBER DAMPER
6	50120-256-000	1	TOOL BAG
7	50717-225-000	1	R.STEP BAR COMP
8	50718-225-000	1	L.STEP BAR COMP
9	96403-1027010	1	SPACE TUBE	10.22710
10	96000-08040-12K	1	HEX WASHER FACE BOLT	8*40
11	96000-10035-14G	2	HEX FLANGE BOLT	M10*35
12	33461-225-000	1	R.L. BLINKER BRACKET
13	50114-225-000	1	SOCKET OF RADIATOR
14	96000-10135-14G	1	HEX WASHER FACE BOLT	10*135
15	77212-169-000	2	RUBBER
16	77211-145-000	2	RUBBER
17	96000-10015-14G	4	HEX FLANGE BOLT	M10*15
18	96000-10110-14Z	2	HEX WASHER FACE BOLT	M10*110
19	90350-10000Z	4	NYLON NUT	10mm*1.25
20	96000-08016-12G	20	HEX WASHER FACE BOLT	8*16 中碳錫
21	96000-10048-14G	2	HEX WASHER FACE BOLT	M10*48
22	17415-272-000	1	A.I.S VALVE BRACKET
23	50360-225-000	1	ENGINE BRACKET ASS'Y
24	52112-169-000	1	CHAIN ROLLER	142222
25	52119-169-000	1	CHAIN ROLLER COLLER	8.21425.5
26	96422-197-000	2	TUBE CAP
27	64342-225-000	1	FRONT COVER RIGHT FIXED POLE
28	83402-225-000	1	REAR COVER UP FIXED PLATE
29	96000-08020-12G	3	HEX FLANGE BOLT	M8*20
30	18354-272-000	1	EXHAUST REAR BRACKET

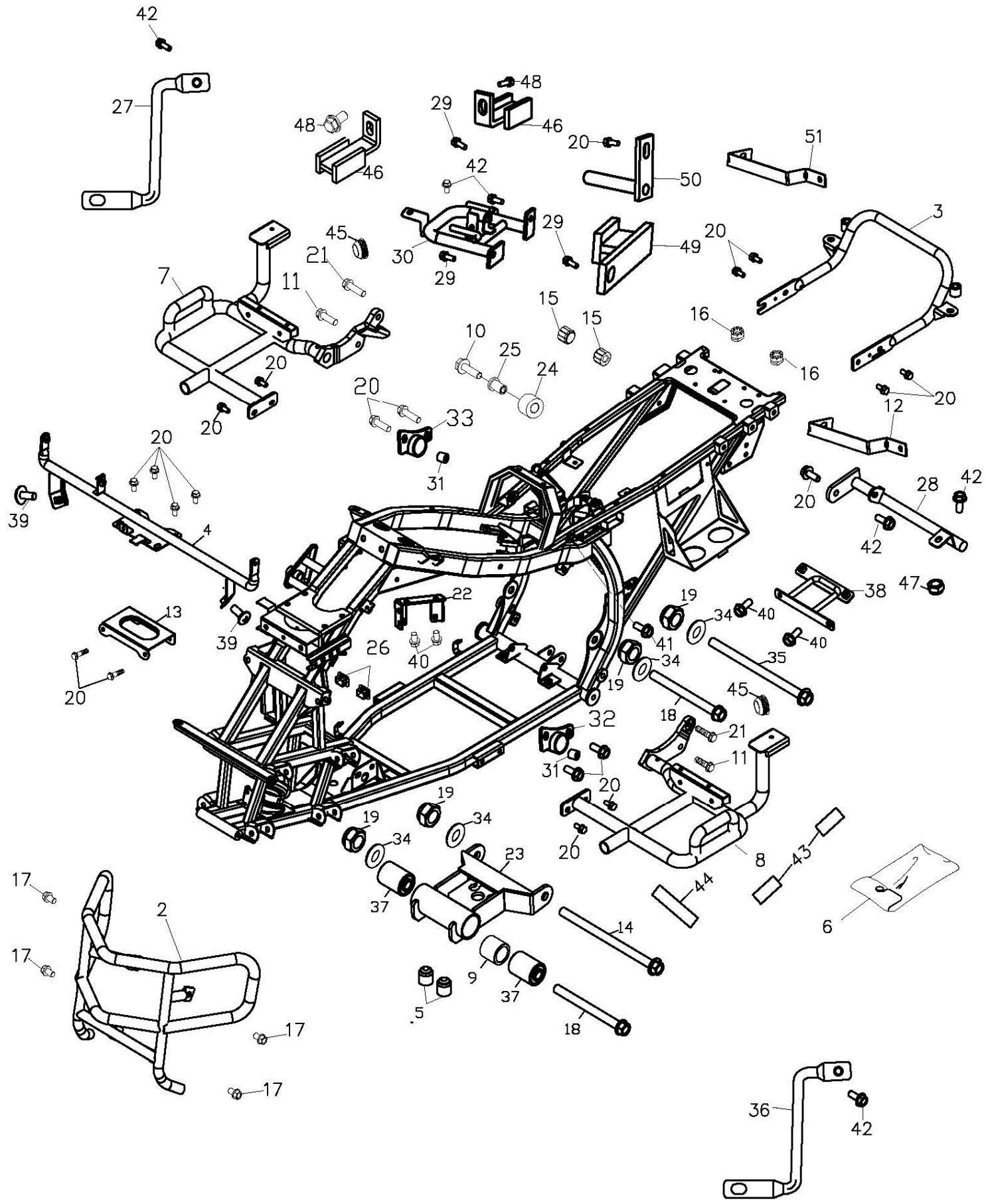

ADLY 320 U - INDEX - 22

Item No.IParts No.IU 項次部品番號	nit Q'tyl 用量	零件名稱	Parts Name
31 96400-102832	2	BUSH	102832
32 50353-225-000	1	R. ENGINE UPPER HANGER PLATE
33 50354-225-000	1	L. ENGINE UPPER HANGER PLATE
34 94101-1020020G	4	COPPER PLAIN WASHER	10202
35 96000-10165-14B	1	HEX WASHER FACE BOLT	10*165
36 64341-225-000	1	FRONT COVER LEFT FIXED POLE
37 96400-102840	2	BUSH	10.228.136/40
38 80120-225-000	1	PLATE BRACKET
39 93800-06016K	2	PAN PHILLIPS BOLT	6*16
40 96000-06016-10G	4	HEX FLANGE BOLT	6*16
41 96000-06010-10G	1	HEX FLANGE BOLT	M6*10
42 96000-06020-10K	6	HEX WASHER FACE BOLT	6*20
43 94701-3004075	4	SPONGE PAD	30475
44 94701-3004230	2	SPONGE PAD	304230
45 50117-179-000	4	PLUG
46 18357-272-000	2	BRACKET B
47 94050-06000C	1	HEX FLANGE NUT	6mm
48 96000-06014-10G	2	HEX FLANGE BOLT	M6*14
49 18356-272-000	1	BRACKET A
50 18358-272-000	1	BRACKET
51 33449-225-000	1	R.R. BLINKER BRACKET

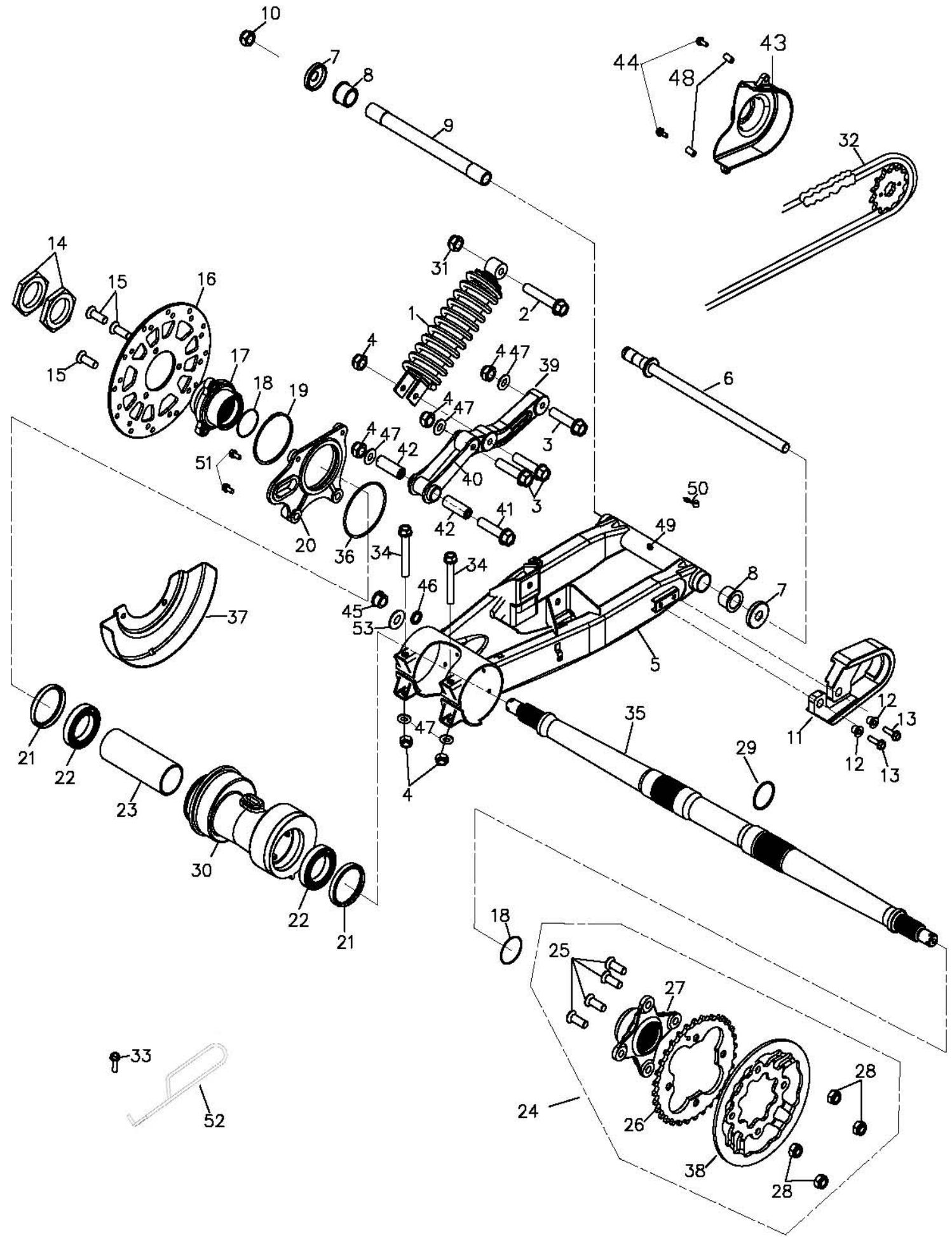

ADLY 320 U - INDEX - 23
302-17A-SL SWING ARM SUB ASS'Y (SL)

Item No.IParts No.IU 項次部品番號	nit Q' tyl 用途	Parts Name
1	52400-256-000	1	REAR CUSHION ASS'Y 370mm(ATV-220)
2	96000-1208017GL	1	HEX WASHER FACE BOLT M12*80
3	96000-10055-14G	3	HEX WASHER FACE BOLT 10*55
4	90350-10000G	6	NYLON NUT M10*P1.25
5	52100-225-001SL	1	SWING ARM SUB ASS'Y
6	52116-169-000	1	SWING ARM BOLT
7	52144-145-000	2	SWING ARM SEAL COVER
8	52103-145-000	2	BUSH
9	52115-169-000	1	COLLAR 1420230.5
10	90350-14000G	1	NYLON NUT M14
11	40533-169-000	1	SHOE SLIDER
12	40534-169-000	2	BUSHING
13	92006-06020-10G	2	HEX WASHER FACE BOLT 6*20
14	94001-38150B	2	HEX NUT M3815P1.5
15	93901-08018GL	3	HEX SOCKET FLAT HEAD BOLT M8*18
16	42105-169-00A	1	REAR BRAKE DISC 直徑200
17	42106-169-000	1	REAR BRAKE DISC FLANGE COMP.
18	91340-169-000	2	O-RING 40*1.3
19	94511-7000S	1	EXTERNAL CIPCLIP $70
20	52120-225-000	1	REAR CALIPER STAY
21	52102-169-000	2	O-SEAL 52627/9
22	96100-69082RS	2	RADIAL BALL BEARING 69082RS
23	52113-169-000	1	REAR AXLE BUSH 4045.5120
24	42600-256-00A	1	REAR SPROCKET ASS'Y
25	93901-10035G	4	HEX SOCKET FLAT HEAD BOLT M10*35
26	23802-169-00B	1	DRIVE SPROCKET 32T
27	42610-169-00A	1	REAR SPROCKET FLANGE M10*P1.5
28	90350-10015G	4	NYLON NUT M10*P1.5
29	42100-169-000	1	EXTERNAL CIRCLIP
30	52200-169-001	1	REAR AXLE HOLDER

302-17A-SL SWING ARM SUB ASS'Y (SL)

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 1

Item No.IParts No.IU 項次部品番號	nit Q'tyl 用途	零部件名稱	Parts Name
31 94050-12000C	1	HEX FLANGE NUT WITH SERRATIOI'12mm
32 40530-256-00A	1	DRIVE CHAIN ASS'Y	94目
33 96000-06014-10G	1	HEX FLANGE BOLT	M6*14
34 96000-10090-14G	2	HEX FLANGE BOLT	M10*90
35 42301-256-000	1	REAR WHEEL AXLE
36 91370-225-000	1	OIL RING	70*2.0
37 45018-179-000	1	BRAKE DISC COVER (REV.1)
38 40510-256-000	1	CHAIN PROTECT DISC
39 52125-225-000	1	ROCKER ARM OF REAR CUSHION
40 52126-225-000	1	AUXILIARY ROCKER ARM
41 96000-10080-14G	1	HEX FLANGE BOLT	M10*80
42 96400-102230	2	BUSH	102225/30
43 40511-197-000	1	FRONT CHAIN COVER
44 96000-08048-12G	2	HEX WASHER FACE BOLT	8*48
45 52131-225-001	1	COLUMN
46 91308-108-000	1	OIL RING	8*1.9
47 94105-1022025G	6	PLAIN WASHER	10222.5
48 96403-0914030	2	SPACE TUBE	091430
49 96501-06000	1	GREASE VALEVE	6mm X 5牙
50 96502-06000	1	GREASE VALEVE CAP	6mm
51 96000-08012-10C	2	HEX WASHER FACE BOLT	8*12
52 44831-261-000	1	SPEEDOMETER CABLE BRACKET
53 91316-179-000	1	OIL RING	16*2.5

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 2

Item No.IParts No.IU 項次部品番號	nit Q 'tyl 用量	零件名稱	Parts Name
1 42711-182-00C	2	FRONT TIRE
2 42811-182-00C	2	REAR TIRE
3 42701-169-00DBK	2	FRONT RIM	10*5.5
4 42801-169-00EBK	2	REAR RIM	9*8.5
5 42814-145-000	4	RUBBER COVER
6 42707-169-000	2	COLLAR
7 96500-29435	4	OIL SEAL	29.343.64.5
8 96100-6004ZZ	4	RADIAL BALL BEARING	6004ZZCM/2A-T0
9 42037-256-000RD	2	REAR SHAFT HUB(RD)
10 42705-169-000	2	COLLER
11 42036-169-000RD	2	FRONT WHEEL HUB(RD)
12 42616-145-000	4	AIR NOZZLE
13 94001-10018B	16	WHEEL NUT	M10*18
14 94101-1840045C	4	PLANE WASHER	18404.5
15 94201-35400B	4	COTTER PIN	3*54
16 94051-18000B	4	SCOTCH NUT	M18
17 96005-10035C	8	HUB STUD BOLT	10*35
18 94113-1024025B	8	DISC SPRING WASHER	10242.5

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 3

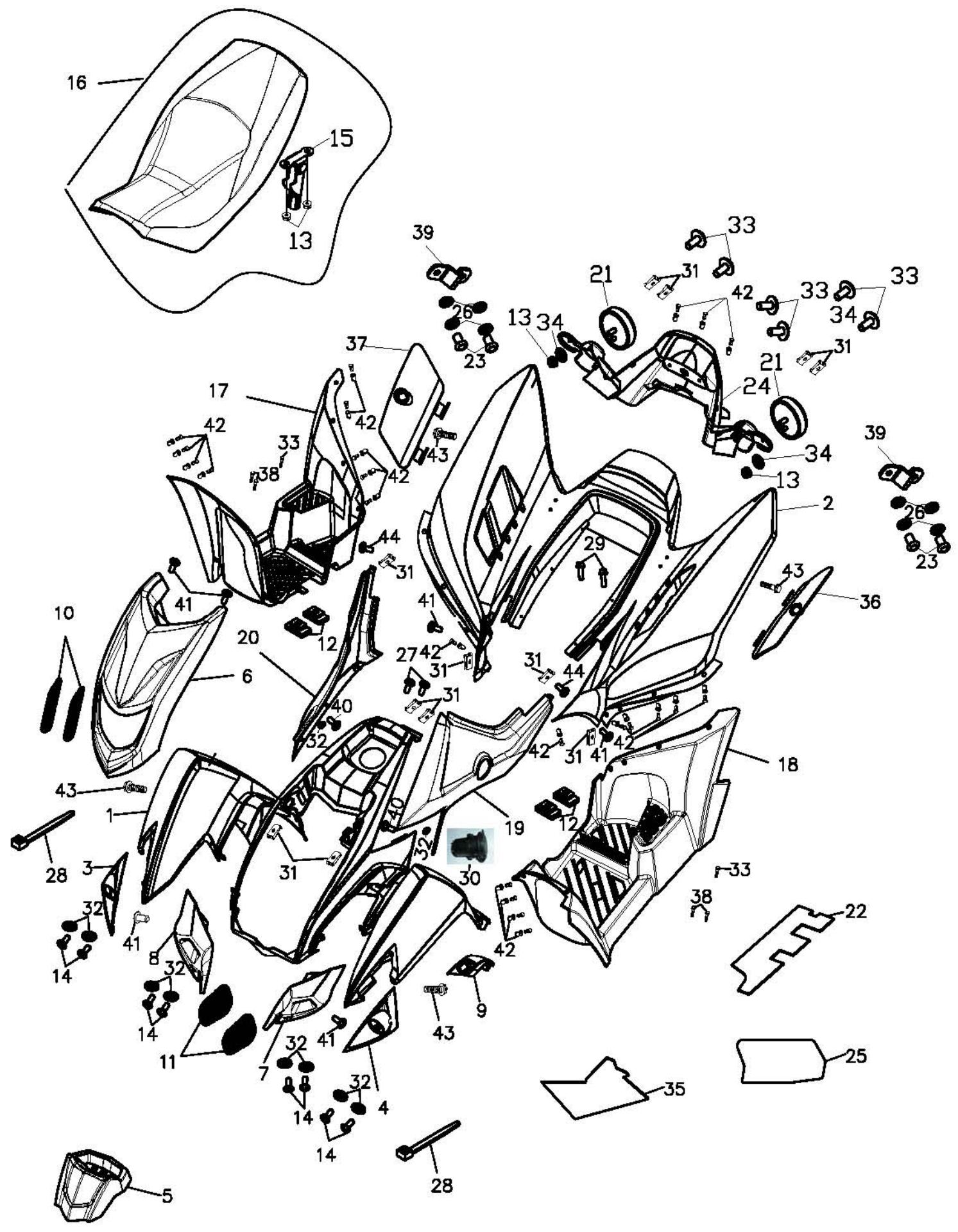

1 64301-225-000OR 1 FRONT COVER(OR)
2 83400-225-000OR 1 REAR COVER
3 64325-225-000 1 LEFT SIGNAL LIGHT COVER
4 64326-225-000 1 RIGHT SIGNAL LIGHT COVER
5 64211-225-000OR 1 SPEEDOMETER COVER
6 64321-225-000 1 FRONT FASCIA
7 64305-225-000 1 LEFT AIRING COVER
8 64304-225-000 1 RIGHT AIRING COVER
9 64339-225-000 1 FRONT LUGGAGE BOX COVER
10 64353-225-000 2 SCREEN NET
11 64352-225-000 2 SCREEN NET
12 64334-179-000 4 RUBBER STOPPER
13 90350-06000G 4 NYLON NUT M6
14 93903-04016K 5 TAPPING SCREW TRUSS HEAD PHIL 416
15 77201-169-000 1 SEAT LATCH
16 77200-225-00A 1 SEAT ASS'Y
17 64312-225-000 L. FLOOR PANEL
18 64313-225-000 1 R. FLOOR PANEL
19 83600-225-000 1 LEFT SIDE COVER
20 83500-225-000 1 RIGHT BODY COVER
21 33741-145-000 2 REFLECTOR SAE JUTE 9823
22 83407-225-000 1 REAR COVER ISOLATION GASKET
23 90662-261-000 4 RIVET #4-6
24 80118-225-000 1 TAIL LIGHT BASE
25 83420-225-000 1 R.R.COVER LSOLATION GASKET
26 94101-0310010B 8 PLAIN WASHER 3.5101
27 93800-06012S 2 PAN PHILLIPS BOLT 612
28 90669-168-000 6 CABLE TIE 3^150m / m
29 96000-06020-10K 2 HEX WASHER FACE BOLT 620
30 35116-225-000 1 POWER SUPPLY

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 4

Item No.IParts No.IU 項次部品番號	nit Q'tyl		Parts Name
Item No.IParts No.IU 項次部品番號	用量	零件名稱
31	90344-0600A	12	U PLATE NUT
32	94101-0514010K	10	PLAIN WASHER
33	93800-06020K	8	PAN PHILLIPS BOLT
34	94101-0615010B	2	PLAIN WASHER
35	64345-225-000	1	SIDE COVER ISOLATION GASKET
36	83417-225-000OR	1	L. REAR LUGGAGE BOX COVER
37	83418-225-000OR	1	R. REAR LUGGAGE BOX COVER
38	96000-06025-10K	4	HEX WASHER FACE BOLT
39	81144-225-000	2	INNER BOX LID BRACKET
40	93903-04012K	2	TAPPING SCREW TRUSS HEAD PHIL
41	93701-06015G	6	PAN FLAT HEAD PHILLIPS BOLT
42	90663-179-000	23	PLASTIC BOLT
43	92006-06018-10K	4	HEX WASHER FACE BOLT
44	93800-06015S	2	PAN PHILLIPS BOLT

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 5

Item No.IParts No.IU

nit Q 'tyl

Parts Name

項次部品番號

用量零件名稱

1 64301-225-000BK 1 FRONT COVER(BK)
2 83400- 225- 000BK 1 REAR COVER
3 64325-225-000 1 LEFT SIGNAL LIGHT COVER
4 64326-225-000 1 RIGHT SIGNAL LIGHT COVER
5 64211-225-000BK 1 SPEEDOMETER COVER
6 64321-225-000 1 FRONT FASCIA
7 64305-225-000 1 LEFT AIRING COVER
8 64304-225-000 1 RIGHT AIRING COVER
9 64339- 225- 000 1 FRONT LUGGAGE BOX COVER
10 64353-225-000 2 SCREEN NET
11 64352-225-000 2 SCREEN NET
12 64334-179-000 4 RUBBER STOPPER
13 90350-06000G 4 NYLON NUT M6
14 93903-04016K 5 TAPPING SCREW TRUSS HEAD PHIL 416
15 77201-169-000 1 SEAT LATCH
16 77200-225-000 1 SEAT ASS'Y
17 64312-225-000 L. FLOOR PANEL
18 64313-225-000 1 R. FLOOR PANEL
19 83600-225-000 LEFT SIDE COVER
20 83500-225-000 1 RIGHT BODY COVER
21 33741-145-000 2 REFLECTOR SAE JUTE 9823
22 83407- 225- 000 1 REAR COVER ISOLATION GASKET
23 90662-261-000 4 RIVET #4-6
24 80118-225-000 1 TAIL LIGHT BASE
25 83420-225-000 1 R.R.COVER LSOLATION GASKET
26 94101-0310010B 8 PLAIN WASHER 3.5101
27 93800-06012S 2 PAN PHILLIPS BOLT 612
28 90669-168-000 6 CABLE TIE 3^150m / m
29 96000-06020-10K 2 HEX WASHER FACE BOLT 620
30 35116-225-000 1 POWER SUPPLY

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 6

Item No.IParts No.IU 項次部品番號	nit Q 'tyl 用量	Parts Name 零件名稱
31 90344-0600A	12	U PLATE NUT	6mm
32 94101-0514010K	10	PLAIN WASHER	5141
33 93800-06020K	8	PAN PHILLIPS BOLT	6*20
34 94101-0615010B	2	PLAIN WASHER	6.5151
35 64345-225-000	1	SIDE COVER ISOLATION GASKET	0.1+3MM/200°C
36 83417-225-000BK	1	L. REAR LUGGAGE BOX COVER
37 83418-225-000BK	1	R. REAR LUGGAGE BOX COVER
38 96000-06025-10K	4	HEX WASHER FACE BOLT	6*25
39 81144-225-000	2	INNER BOX LID BRACKET
40 93903-04012K	2	TAPPING SCREW TRUSS HEAD PHIL	4*12
41 93701-06015G	6	PAN FLAT HEAD PHILLIPS BOLT	6*15
42 90663-179-000	23	PLASTIC BOLT
43 92006-06018-10K	4	HEX WASHER FACE BOLT	6*18
44 93800-06015S	2	PAN PHILLIPS BOLT	6*15

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 7

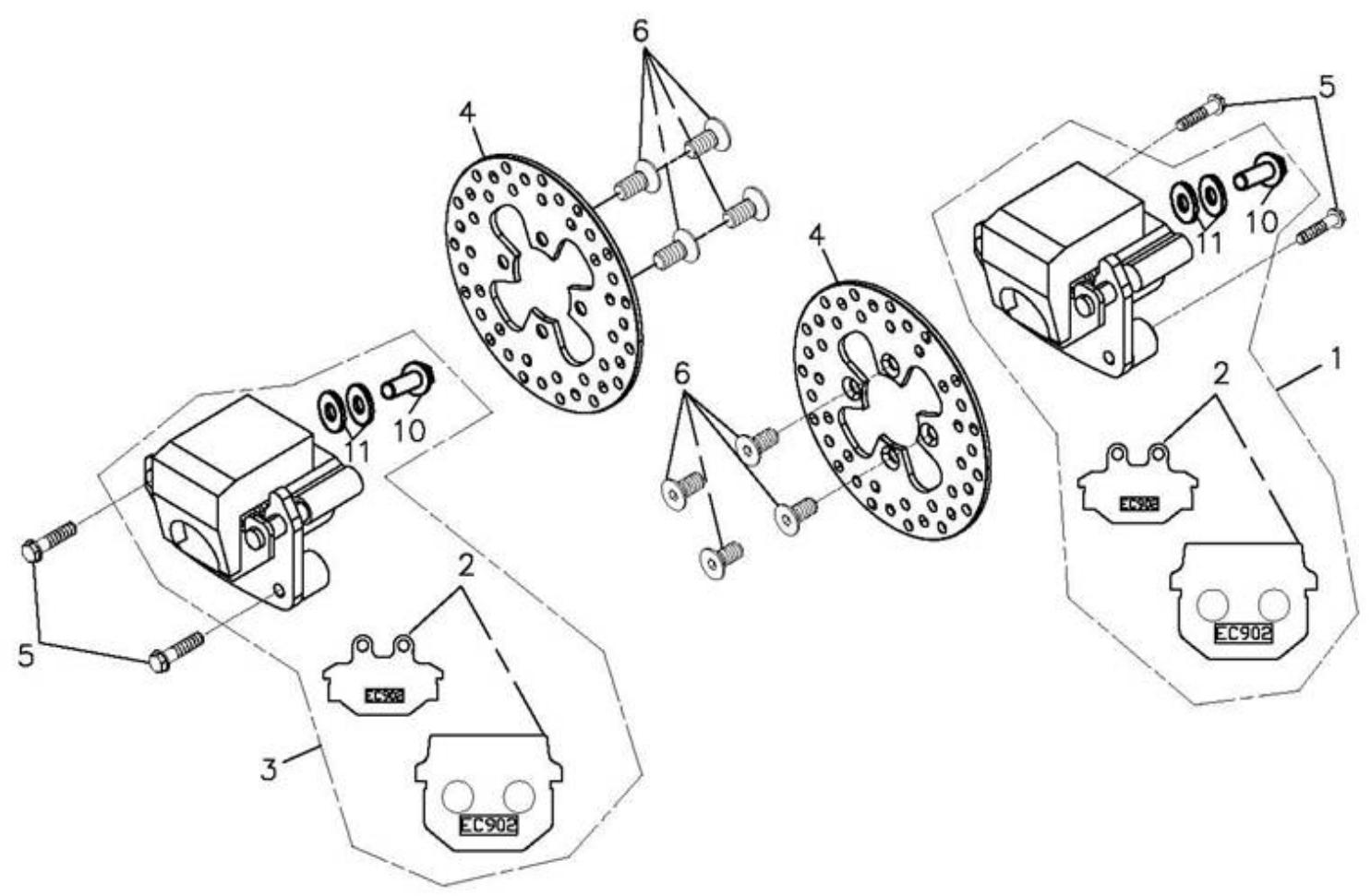

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 8

1	45000-256-000	1	R. FRONT BRAKE CALIPER ASS'Y	紅色
2	45120-256-000	2	FRONT BRAKE PAD KIT
3	45200-256-000	1	L. FRONT BRAKE CALIPER ASS'Y
4	45015-169-000	2	BRAKE DISC	直徑164mm
5	96000-0802012GL	4	HEX FLANGE BOLT	M8*20
6	93901-08018GL	8	HEX SOCKET FLAT HEAD BOLT	M8*18
7	43000-256-000	1	REAR BRAKE CALIPER ASS'Y
8	43120-256-000	1	BRAKE PAD KIT
9	96000-10028-14G	2	HEX WASHER FACE BOLT	10*28
10	45456-107-000	3	BRAKE HOSE FIX BOLT	10*22
11	94103-1015012	6	COPPER PLAIN WASHER	10151.2

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 9

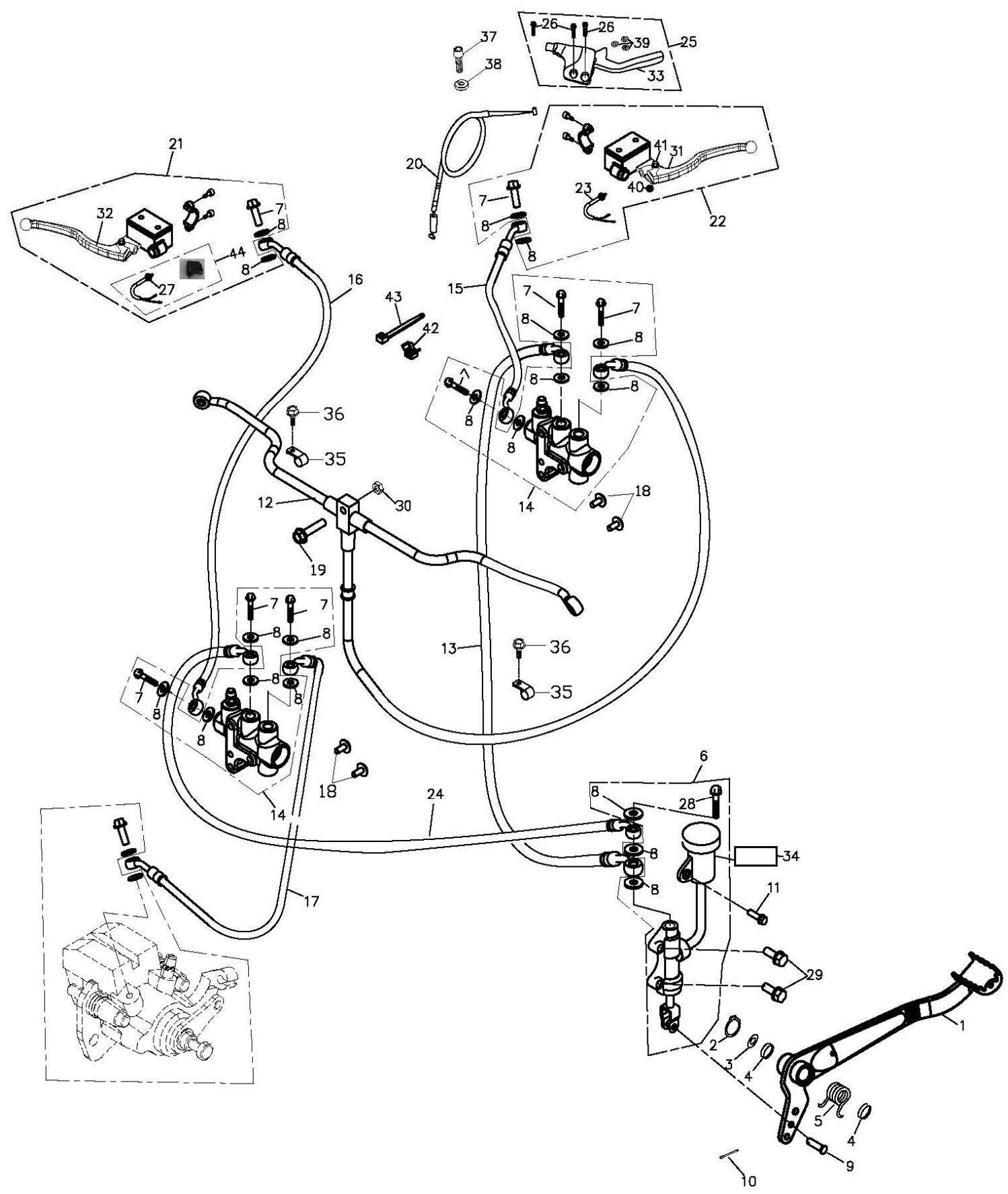

1	46500-197-001	1	BRAKE PEDAL COMP
2	94511-1700S	1	EXTERNAL CIRCLIP	STW-17
3	94101-1731023B	1	PLAIN WASHER	17.6312.3
4	91316-169-000	2	OIL RING	16.7*3.2
5	46501-169-000	1	RETURN SPRING
6	43500-256-00B	1	REAR BRAKE CYLINDER SUB ASS'Y
7	45456-107-000	8	BRAKE HOSE FIX BOLT	10*22
8	94103-1015012	19	COPPER PLAIN WASHER	10151.2
9	45521-168-000	1	PIN	7mm
10	94251-108-000	1	LOCK PIN
11	96000-06016-10G	1	HEX FLANGE BOLT	6*16
12	45450-225-000	1	FRONT BRAKE HOSE ASS'Y
13	43460-225-000	1	OIL TUBE(FRONT)
14	45502-256-000	2	BRAKE SHUNT ASS'Y
15	45550-256-000	1	R. BRAKE HOSE
16	45560-225-000	1	L. BRAKE HOSE
17	45570-256-000	1	BRAKE HOSE OF REAR CALIPER
18	96000-06035-10B	4	HEX FLANGE BOLT	6*35
19	96000-06025-10C	1	HEX WASHER FACE BOLT	M6*25
20	43482-256-000	1	PRAKING BRAKE CABLE	L=1650
21	43520-256-000	1	L. CYLINDER SUB ASS'Y
22	45500-256-000	1	R. CYLINDER SUB ASS'Y
23	35340-256-000	1	R.BRAKE SWITCH
24	43461-256-000	1	OIL TUBE(REAR)
25	53186-256-001	1	PRAKING BRAKE LEVER SET
26	91000-06012C	3	HEX SOCKET BOLT	6*12
27	35345-256-000	1	L.BRAKE SWITCH WIRE
28	43501-197-000	1	BRAKE HOSE FIX BOLT	10*40
29	96000-08028-12G	2	HEX WASHER FACE BOLT	M8*28
30	94050-06000C	1	HEX FLANGE NUT	6mm

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 10

31 53175-256-000

1 RIGHT LEVER

32 53178-256-000

1 LEFT LEVER

33 53187-256-001

1 PRAKING BRAKE LEVER

34 43503-256-000

1 REAR MASTER CYLINDER GASKET

35 45452-197-000

2 BRAKE HOSE CLAMP

36 96000-06012-10G

2 HEX WASHER FACE BOLT 6*12

37 53191-168-000

1 LOCK BLOT

38 53192-168-000

1 LOCK NUT

39 94111-0610015C

3 SPRING WASHER 6101.5

40 90350-06000C

1 NYLON NUT 6mm

41 91200-06036C

1 HEX SOCKET AND LADDER BOLT 6*36

42 90801-179-000

1 PUSH TIE MOUNT

43 90669-168-000

1 CABLE TIE 3^*150m / m

44 35346-256-000

1 L.BRAKE SWITCH WIRE ASS'Y

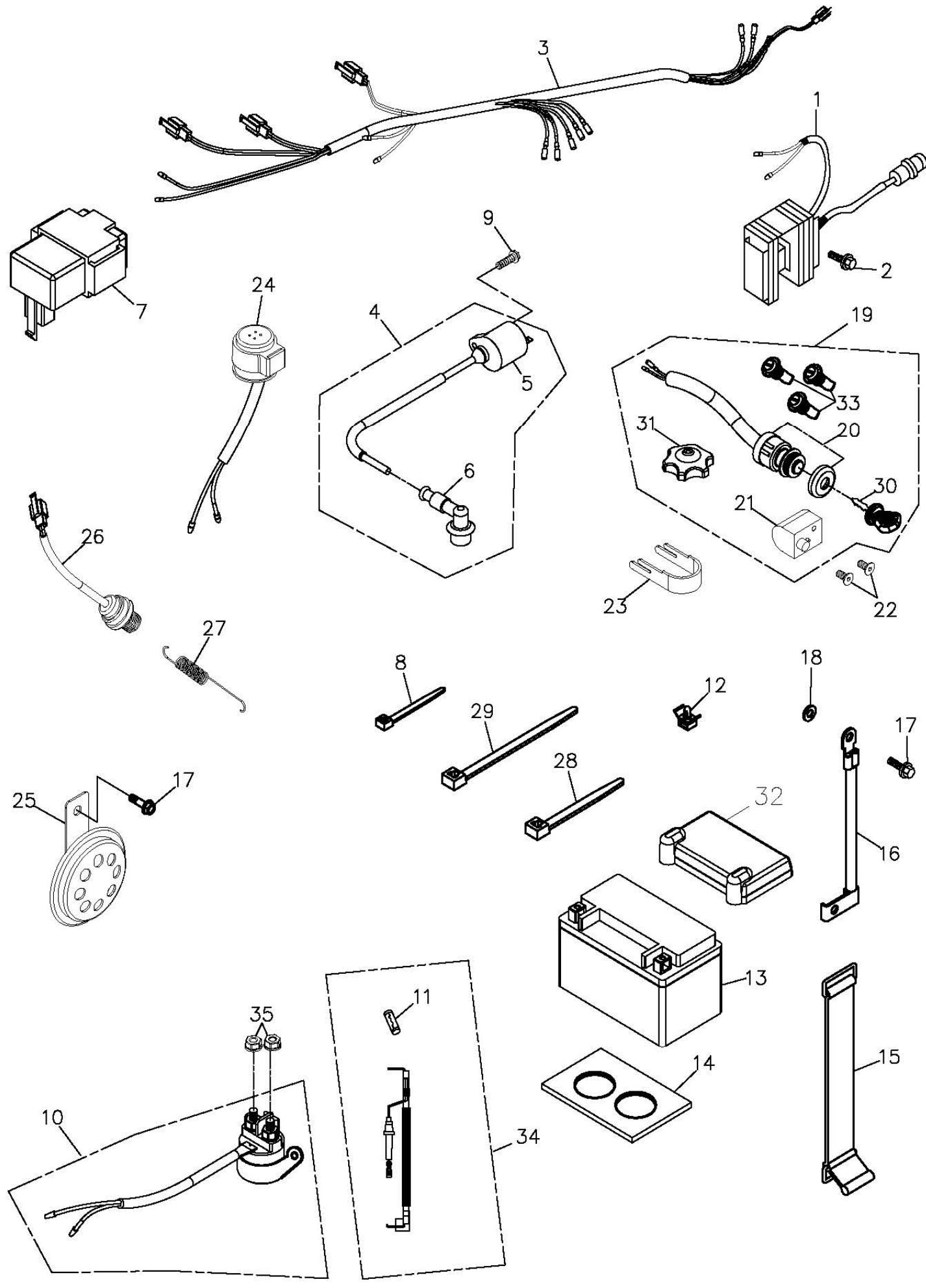

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 11

1	31600-169-0A1	1	REGULATER RECTIFIER(25A)	250型插殼
2	96000-06016-10G	2	HEX FLANGE BOLT	6*16
3	32100-225-00A	1	WIRE HARNESS-REV.2
4	30500-169-000	1	IGNITION COIL ASS'Y
5	30510-169-000	1	HIGH TENSION COIL
6	30700-169-000	1	SPARK PLUG CAP
7	30410-225-003	1	C.D.I UNIT
8	90669-168-000	1	CABLE TIE	3*150 m/m
9	96000-05024-08C	1	HEX WASHER FACE BOLT	5*24
10	38501-179-000	1	STARTER SOLENOID	REV.a
11	98200-169-000	1	FUSE	20A
12	90801-179-000BK	1	PUSH TIE MOUNT
13	31500-225-000	1	Battery	WP 12-B
14	30003-169-000	1	RUBBER PAD
15	31520-169-000	1	BATTERY STRAP
16	32103-169-001	1	GROUND WIRE
17	96000-06012-10G	2	HEX WASHER FACE BOLT	6*12
18	94115-0611006	1	EXT. TOOTHED LOCK WASHER	6110.6
19	35010-225-00A	1	KEY SET
20	35100-223-00A	1	MAIN SWITCH
21	53600-223-000	1	STEERING HANDLE LOCK
22	93902-06012BL	2	FLAT HEAD PHILLIPS BOLT	6*12
23	35102-145-000	1	MAIN SWITCH BRACKET
24	38301-107-00C	1	FLASHER RELAY	12V 40W
25	38110-256-000	1	LEFT SOUND HORN	CL-2
26	35350-108-000	1	STOP SWITCH ASS'Y
27	35357-197-000	1	STOP SWITCH SPRING
28	90669-101-000	19	CABLE TIE	4.8*200 m/m
29	90669-101-00A	1	CABLE TIE	4.8*250m/m
30	35101-223-000	1	KEY(L)

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 12

組件編號：302-22A

電瓶&主配線(EU2) BATTERY & WIRE HARDNESS

Item No.IParts No.IU

nit Q'tyl

Parts Name

項次部品番號

用量零件名稱

31 17620-169-00C

1 FUEL CAP (W/LOCK)

32 31504-169-000

1 BATTERY COVER

33 81142-261-000

3 INNER BOX LOCK

34 32108-169-000

1 POSITIVE CABLE

35 94055-06000C

2 HEX FLANGE NUT WITH SERRATION(TOOTH)

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 13

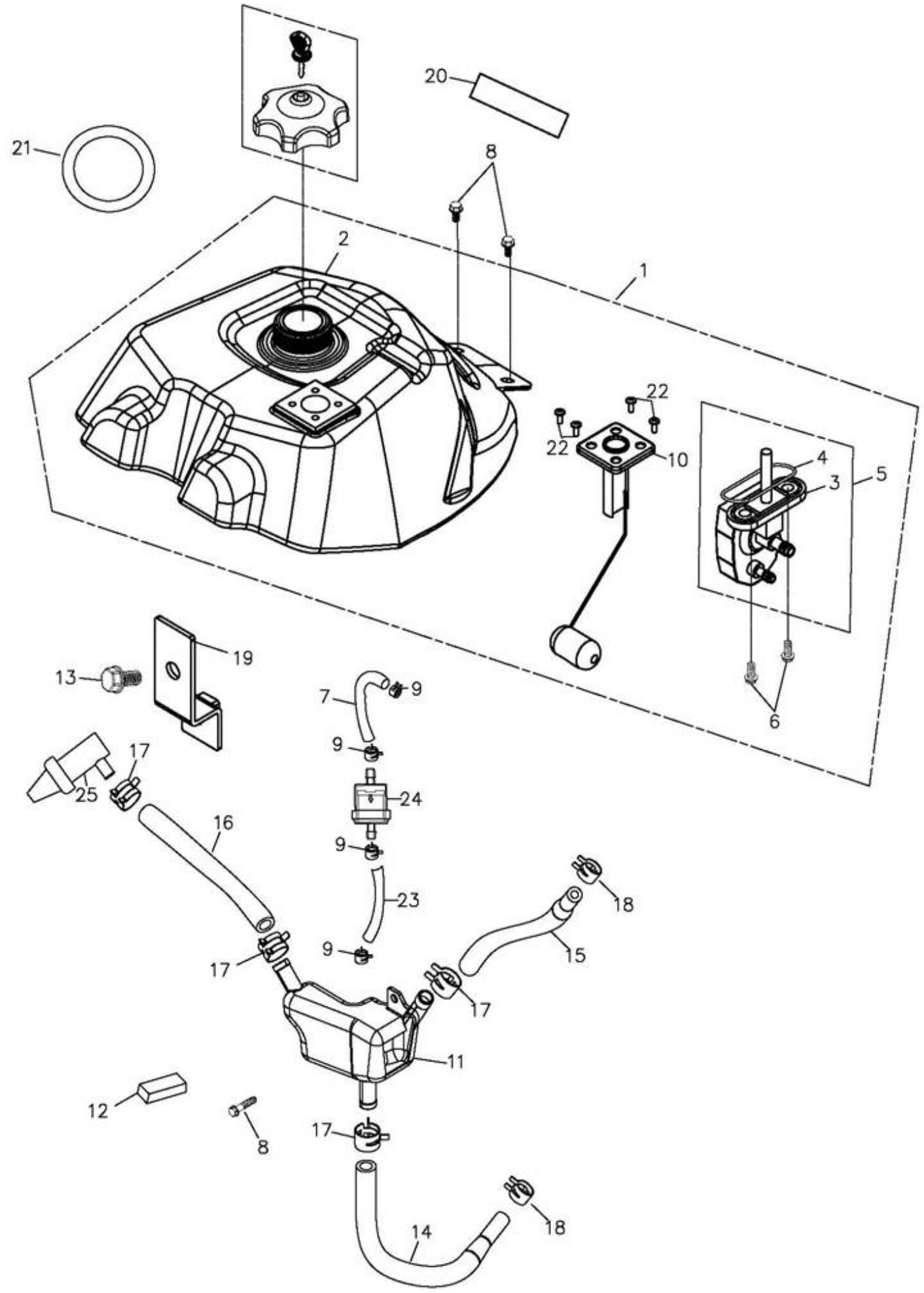

1	17511-225-000	1	FUEL TANK ASS'Y
2	17500-225-000	1	FUEL TANK COMP
3	16953-225-000	1	FUEL CAP BODY
4	16951-169-000	1	FUEL CUP RING
5	16950-225-000	1	Fuel VALVE
6	96000-06012-08B	2	HEX FLANGE BOLT	6*12
7	94400-0510060	1	HOSE	51060
8	92006-06014-10G	3	HEX WASHER FACE BOLT	6*14
9	94513-09000	4	SPRING CLAMP
10	37800-225-000	1	PETROL GAUGE ASS'Y
11	55110-169-000	1	SECONDARY OIL TANK
12	55114-225-000	1	SPONGE
13	96000-06012-10G	1	HEX WASHER FACE BOLT	6*12
14	55113-272-000	1	OIL TUBE	L=420
15	55112-225-000	1	OIL TUBE
16	55111-272-001	1	OIL TUBE	L=500
17	94513-16000	4	SPRING CLAMP	16mm
18	94513-10000	2	SPRING CLAMP
19	55117-272-000	1	SECONDARY OIL TANK BRACKET
20	94701-3004140	1	SPONGE PAD	304140
21	17504-155-000	2	FRONT COVER RUBBER GASKET
22	93701-05012C	4	PAN FLAT HEAD PHILLIPS BOLT	5*12mm
23	94400-0510100	1	HOSE	510100
24	16952-101-000	1	PETROL FILTER
25	17361-175-000	1	CATCH TANK

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 14

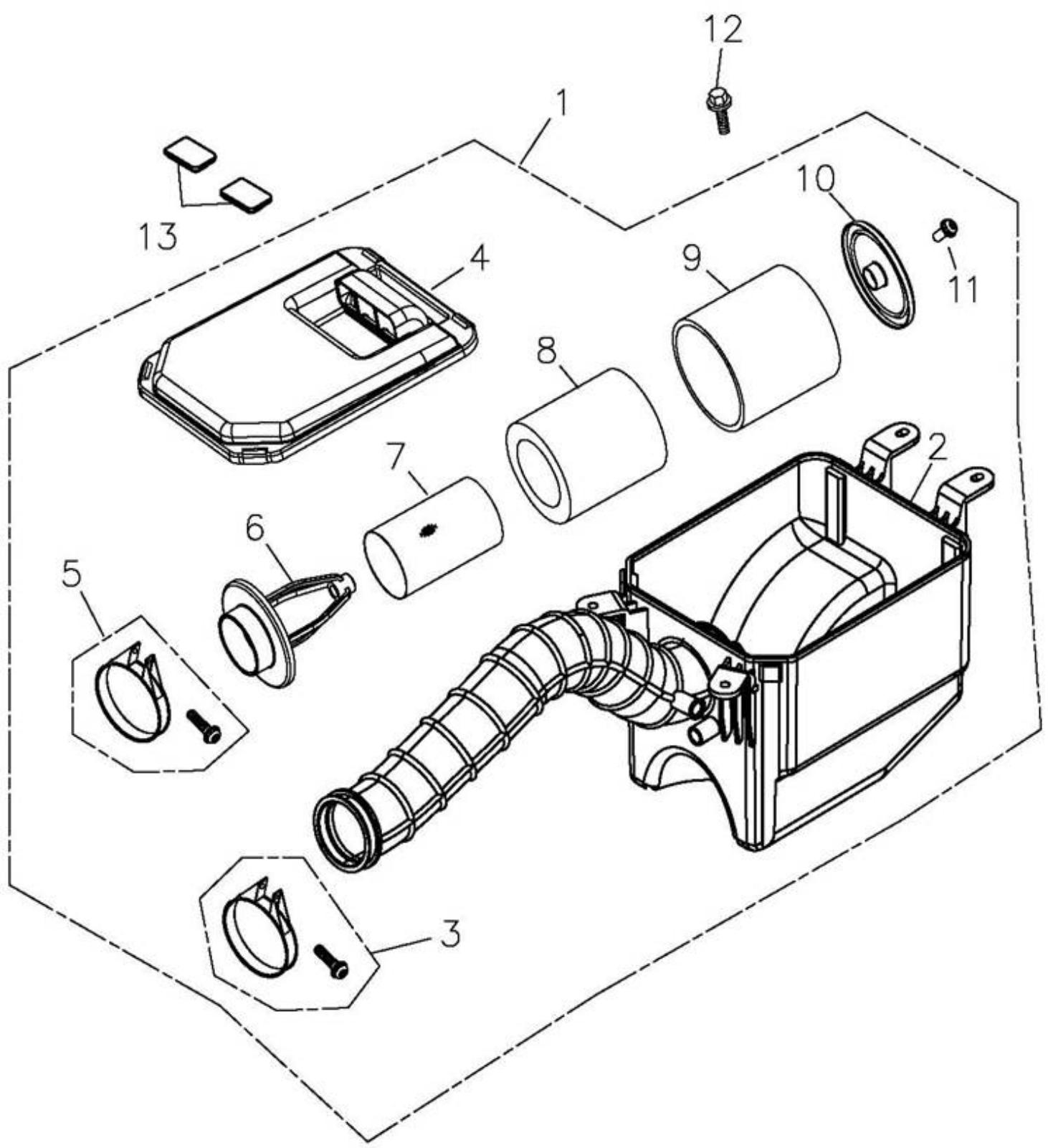

1	17200-272-000	1	AIR CLEANER ASS'Y
2	17206-272-000	1	AIR CLEANER CASE
3	17254-272-000	1	CLAMP
4	17207-169-000	1	CLEANER CASE CAP
5	17255-169-000	1	CLAMP
6	17260-169-000	1	BODY COMP
7	17261-169-000	1	FILTER SCREEN
8	17205-169-000	1	AIR CLEANER ELEMENT A
9	17262-169-000	1	AIR CLEANER ELEMENT B
10	17263-169-000	1	ELEMENT COVER
11	93500-05016K	1	PAN PHILLIPS BOLT	M5*16
12	90111-06011-10G	4	LADDER BOLT	6116
13	17209-272-000	2	RUBBER PLNG

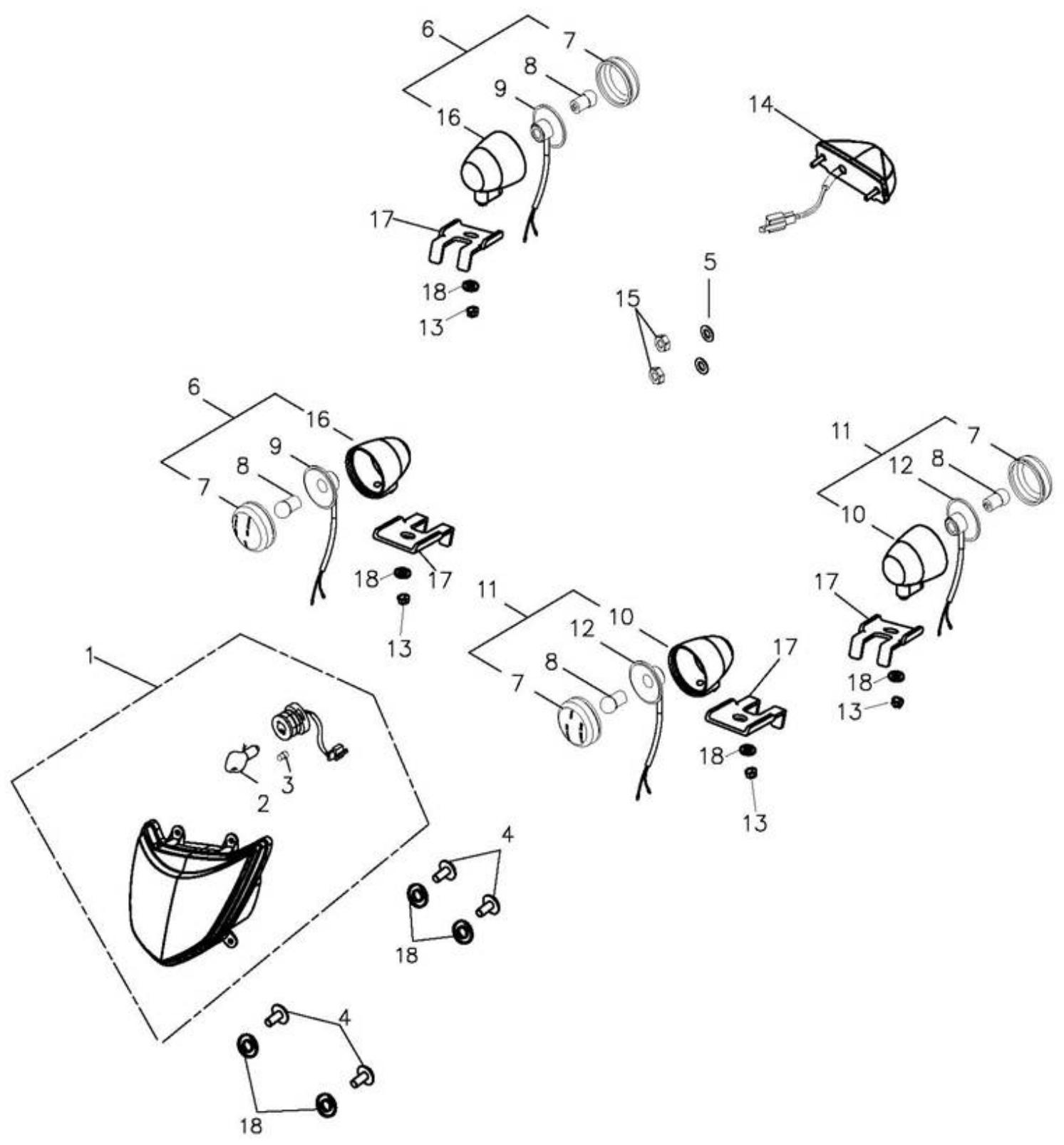

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 15

1	33100-225-000	1	HEAD LIGHT ASS'Y	EC
2	34901-190-00B	1	HEAD LIGHT BULB	12V35W35W
3	34909-169-000	1	POSITION LAMP	12V5W
4	93903-05016K	4	TAPPING SCREW TRUSS HEAD PHIL 5*16
5	94101-0618020B	2	PLAIN WASHER	6182
6	33400-225-00A	2	R.SIGNAL ASS'Y (E-MARK)
7	33410-225-00A	4	SIGNAL COVER
8	34905-118-00A	4	BULB(E-MARK)
9	33425-145-00A	2	SIGNAL BULB SOCKET
10	33451-145-000	2	L.SIGNAL SOCKET
11	33450-225-00A	2	L.SIGNAL ASS'Y(E-MARK)
12	33435-145-00A	2	L.SIGBAL BULB SOCKET
13	94050-05000C	4	HEX FLANGE NUT WITH SERRATIO15mm
14	33700-225-000	1	TAIL LIGHT ASS'Y	E-MARK
15	90350-06000G	2	NYLON NUT	M6
16	33401-145-000	2	R.SIGNAL SOCKET
17	33403-225-000	4	FIX BRACKET
18	94101-0514010K	8	PLAIN WASHER	5141

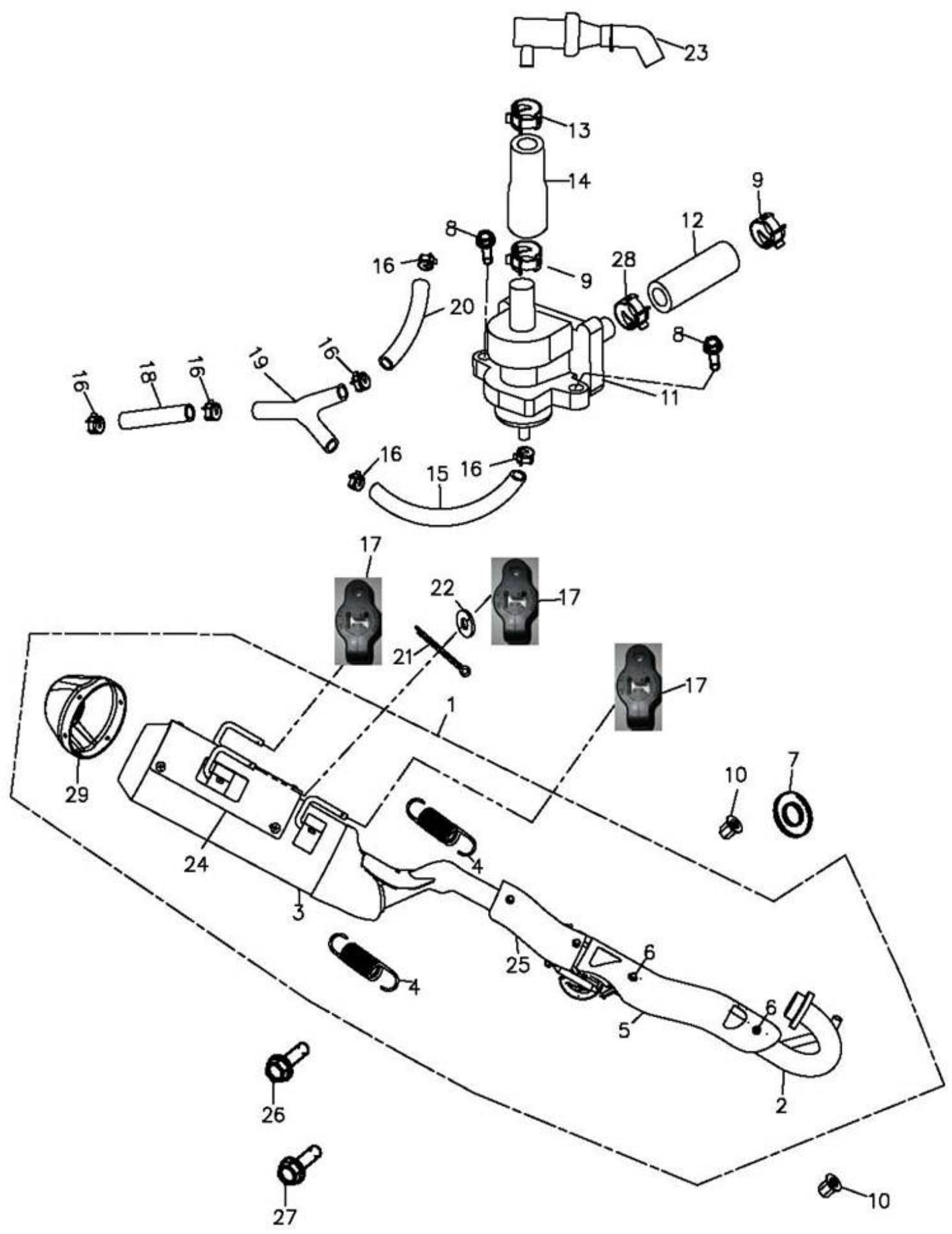

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 16

1	18300-272-00B	1	EXHAUST PIPE ASS'Y(CATA)
2	18311-272-00A	1	EXHAUST PIPE OF FRONT SECTION
3	18321-272-00B	1	SILENCER MUFFLER
4	18307-272-000	2	EX.PIPE SPRING W/RVBBER
5	18318-272-000	1	MUFFLER SHROUD
6	96000-06010-08B	2	HEX FLANGE BOLT	6*10
7	18291-225-000	1	EXHAUST PIPE GASKET	31.539T3.5
8	91000-06016C	2	HEX SOCKET BOLT	6*16
9	94513-16000	2	SPRING CLAMP	16mm
10	94053-08000G	2	NUT	8mm
11	17410-225-000	1	A.I.S VALVE
12	17412-272-000	1	A.I.S HOSE	210mm
13	94513-12000	1	SPRING CLAMP	12mm
14	17411-145-000	1	REED VALVE COMP IN. PIPE	L=60
15	94400-0408300	1	TUBE	4.88300
16	94513-08000	6	SPRING CLAMP
17	18305-272-000	3	ANTI-VIBRATION RUBBER
18	94400-0408200	1	FUEL TUBE	4.8*8
19	16139-120-000	1	3-WAY CONNECTOR
20	94400-0408150	1	FUEL TUBE	4.8*8
21	94201-20250B	1	COTTER PIN	2*25
22	94105-0932012A	1	PLAIN WASHER	9321.2
23	1736A-175-000	1	CATCH TANK COMP
24	18301-225-00A	1	MUFFLER PROTECTOR
25	18319-272-000	1	MUFFLER SHROUD
26	96000-08020-12G	1	HEX FLANGE BOLT	M8*20
27	96000-08012-12G	1	HEX WASHER FACE BOLT	8*12
28	94514-14000	1	CLAMP	14MM白鐵
29	18324-225-000	1	SILENCER MUFFLER COVER

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 17

1	16100-272-000	1	CARBURETOR ASS'Y	AH4A
2	16124-272-000	1	TOP COVER
3	93500-04008	4	PAN PHILLIPS BOLT	4*8
4	16102-272-000	1	THROTTLE VALVE SPRING
5	16037-272-000	1	VALVE PLATE SET
6	16104-272-000	1	NEEDLE SET
7	16103-272-000	1	THROTTLE VALVE
8	16114-272-000	1	THROTTLE SCREW SET
9	16156-272-000	1	COVER BOLT
10	16152-272-000	1	COVER
11	17215-272-000	1	MANUAL CHoke
12	16154-272-000	1	NOZZLE HOLDER COMP.
13	16108-272-000	1	MAIN NOZZLE
14	16110-272-000	1	PILOT JET
15	16105-272-000	1	NEEDLE NOZZLE
16	16115-272-000	1	AIR ADJUST SCREW SET
17	16117-272-000	1	NEEDLE VALVE ASS'Y
18	16118-272-000	1	FLOAT
19	16106-272-000	1	FLOAT CHAMBER GASKET
20	16119-272-000	1	FLOAT PIN
21	93500-04014	4	PAN PHILLIPS BOLT	4*14
22	16111-272-000	1	FUEL RELEASE SCREW
23	16171-272-000	1	CARB COVER GASKET
24	94400-0408320	1	TUBE	4.883
25	94510-08000	1	CLIP	8*0.8

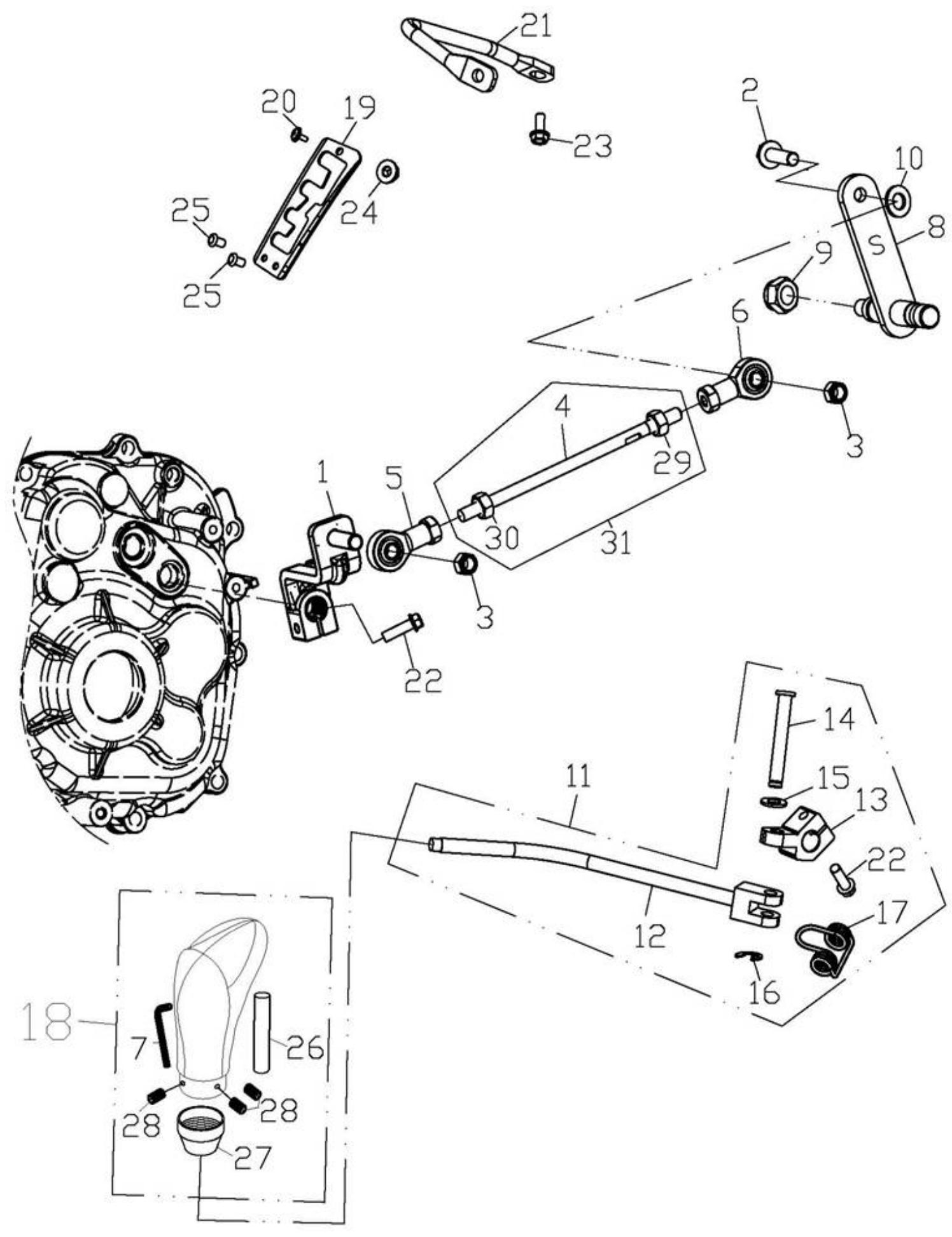

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 18

Item No.IParts No.IU 項次部品番號	nit Q'tyl	Parts Name
Item No.IParts No.IU 項次部品番號	用量	零件名稱
1 24811-256-000	1	SHIFT LEVER-REV.1
2 96000-08028-12G	1	HEX WASHER FACE BOLT	M8*28
3 94053-08000G	2	NUT	8mm
4 91001-08500B	1	CONNECTING ROD	8*500
5 24714-256-000	1	ROD END (LEFT THREAD)
6 24715-256-000	1	ROD END (RIGHT THREAD)
7 24812-197-000	1	SPANER
8 24705-225-00A	1	SHIFTING PLATE	112MM
9 90350-10000G	1	NYLON NUT	M10*P1.25
10 94101-0816020B	1	PLAIN WASHER	8162
11 24720-225-000	1	SHAFT LEVER ASSY
12 24701-225-000	1	SHAFT ROD
13 24719-256-000	1	SHAFT LEVER
14 24716-256-000	1	PIN
15 94101-0814020G	1	PLAIN WASHER	8162
16 94511-0700E	1	EXTERNAL CIR CLIP	ETW-7
17 24708-256-000	1	SHAFT ROD RETURN SPRING
18 24807-197-000	1	KNOB
19 24712-225-000	1	SHAFT LEVEL PLATE
20 93502-05016B	1	PAN PHILLIPS BOLT	5*16
21 24721-225-000	1	SHAFT LEVEL PLATE FIX ROD
22 96000-06025-10G	2	HEX WASHER FACE BOLT	M6*25
23 96000-06014-10G	1	HEX FLANGE BOLT	M6*14
24 90350-05000K	1	NYLON INSERT LOCK NUT	5mm
25 90662-118-000	2	RIVET	#6-5
26 24813-197-000	1	KNOB SFIFT	1116.550
27 24814-197-000	1	KNOB BRACKER
28 91003-04006K	3	SOCKET BOLT	4*6
29 94001-08000B	1	HEX NUT	8mm
30 94001-08000LC	1	HEX NUT	8mm
31 91002-08500B	1	ROD	M8*500

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 19

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 20

ADLY 320 U - 302-17A-SL SWING ARM SUB ASS'Y (SL) - 21

WARNING

STEP ON FOOT BRAKE FIRMILY BEFORE SHIFTING THE LEVER.

ADLY 320 U - WARNING - 1

-8

ADLY 320 U - WARNING - 2

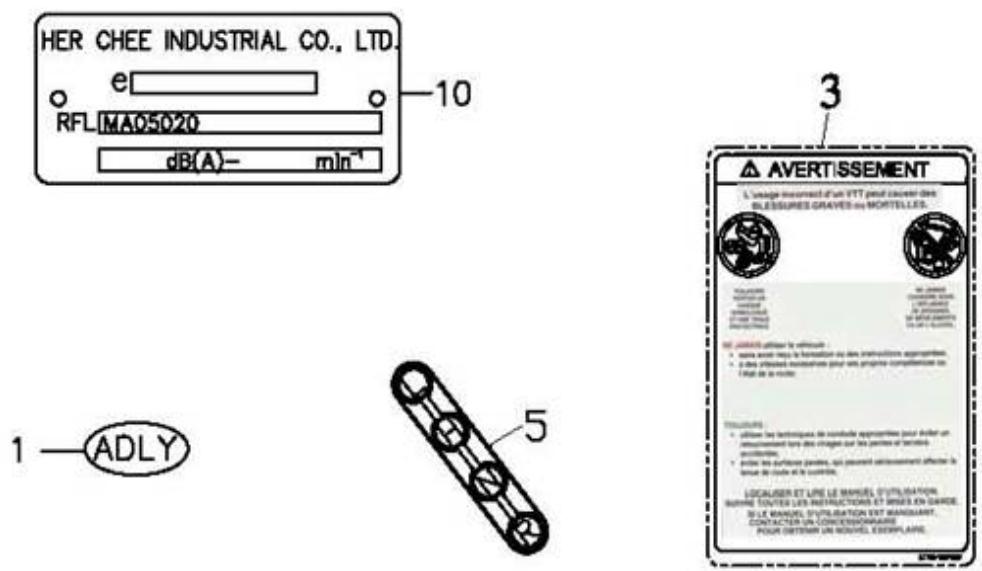

1 87700-888-00Z

1 ADLY POLY STICKER

2 87781-169-000

1 DECAL WARNING HILL

3 87758-169-00D

1 WARNING LABLE(INGURIES DEATH)

4 87759-169-00C

1 WARNING LABLE(16 YEARS OLD AND UNDER)

5 87729-256-000

1 INDICATOR STICKER

6 87747-197-00C

1 WARNING STICKER

7 87700-225-000

1 STICKER ASS'Y

8 87739-179-000

1 CHAIN INSTRUCTION DECAL

9 50110-101-001

1 I.D PLATE

80*35

Sommaire Cliquez un titre pour y accéder

INDEX
302-17A-SL SWING ARM SUB ASS'Y (SL)
WARNING

Assistant notice

En attente de votre message

Informations produit

Marque : ADLY

Modèle : 320 U

Catégorie : Moteur thermique
