MODE D'EMPLOI CECF-9 KONICA
Stores up to 5.000 colour standards
Battery operated and thus fully stand-alone capable
Unprecedented easy and fast operation
Sphere geometry and 8 mm aperture, perfect for all sample sizes and structures

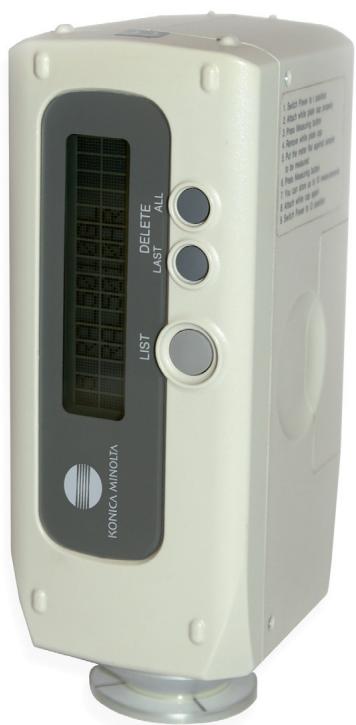

The „Customised Electronic Colour-Fan“ CECF-9 is a unique and simple to use instrument to instantly assign any measured colour out of up to 5.000 stored reference colours from any colour-fan.
The CECF-9 is an ideal instrument for Point of Sales applications, designers, interior decorators, architects or colour consultants for instant colour identifications according to colour-fan codes instead of colorimetric values
UNIQUE, RELIABLE AND EASY TO USE CONCEPT
The CECF-9 is a very unique, compact and light instrument to instantly indentify and assign any measured colour to one of the 5.000 stored standard colour codes of colour fans such as RAL or any other colour swatchbook. Together with the very easy operation and stand-alone function, the CECF-9 is the ideal tool to be used as „color identifyfier“ at Points of Sale in Do-it-Yourself and paint retail shops.
Operation is as simple as counting from 1 to 3: 1. Switch power on, 2. Calibration with attached white tile, 3. Measure the sample and read the identified color code!
By using a sphere geometry (8:di) and 8mm measuring area, the CECF-9 can handle all sample sizes and shapes with very high reliability. Battery operation allows full autonomy, independent from PC and thus, carry the instrument to the sample.
The optional „Data-Management-Software“ allows to manage the memory content of the CECF-9 for up to 5.000 colour standards at any time. New colour standards can be added, others deleted and then the new data-set can be simply copied to the EPROM of any other CECF-9 instruments.
Specifications:
Illuminating /Viewing system
Eight degree illumination; Diffuse measurement geometry 8^ :di (specular included) Conforms to CIE 15.3, ISO 7024-1, DIN 5033-7,ASTM E1164 and JIS Z 8722.
Receptors
6 silicon photocells filtered to detect primary stimulus values for red, green and blue 8mm / 11mm
Measurement / Illumination Area
10-100L*
Measurement Range
Halogen Thungsten lamp
Light Source
CIE 10^ Standard Observer; Illuminant D65
Measuring Conditions
1 second
Measurement Time
3 seconds
Minimum Measurement Interval
dE*ab standard deviation 0.1
Repeatability
5000 standard data sets
Data Memory
9 digit of Colour-Code (alphanumeric) withcolour difference indications by symbols: no Symbol = dE^ max. 1.5 + = dE^ 1.5 - 3.0, ++ = dE*ab < 3.0
Display Mode
4 AA size batteries or optional AC Adapter
Power Source
59 × 158 × 85mm ; 360g (without batteries)
Dimensions / Weight
Soft Case CR-A68; Protective Cap incl. White Plate CR-A72; Wrist Strap CR-A73; 4 AA-size batteries
Standard Accessories
AC Adapter AC-A13, RS-232C Cable CR-A77 Data-Management Software
Optional Accessories
This mark indicates ISO 9001:2000-certified quality management system.
