MP471 - Lecteur multimédia SWEEX - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Lecteur MP3
Capacité de stockage	8 Go
Formats audio supportés	MP3, WMA, WAV
Écran	Écran LCD de 1,8 pouces
Autonomie de la batterie	Jusqu'à 10 heures
Type de batterie	Batterie lithium-ion rechargeable
Connectivité	USB 2.0
Dimensions approximatives	90 x 40 x 10 mm
Poids	50 g
Fonctions principales	Lecture de musique, radio FM, enregistrement vocal
Entretien et nettoyage	Essuyer avec un chiffon doux, éviter l'humidité
Pièces détachées et réparabilité	Non spécifié, consulter un professionnel pour les réparations
Compatibilités	Compatible avec Windows et Mac OS
Sécurité	Ne pas exposer à l'eau, éviter les températures extrêmes
Informations générales	Produit léger et portable, idéal pour les déplacements

FOIRE AUX QUESTIONS - MP471 SWEEX

Comment installer le SWEEX MP471 sur mon ordinateur ?

Pour installer le SWEEX MP471, connectez-le à un port USB disponible sur votre ordinateur. Le système devrait reconnaître automatiquement le dispositif et installer les pilotes nécessaires.

Le SWEEX MP471 ne s'allume pas, que faire ?

Vérifiez que le SWEEX MP471 est correctement chargé. Branchez-le à une source d'alimentation et attendez quelques minutes. Si l'appareil ne s'allume toujours pas, essayez un autre câble USB.

Comment transférer des fichiers vers le SWEEX MP471 ?

Connectez le SWEEX MP471 à votre ordinateur avec un câble USB. Ouvrez l'explorateur de fichiers, localisez le SWEEX MP471 dans la liste des périphériques et faites glisser les fichiers souhaités vers le dossier de l'appareil.

Pourquoi le SWEEX MP471 ne reconnait-il pas certains fichiers ?

Le SWEEX MP471 ne prend en charge que certains formats de fichiers. Assurez-vous que vos fichiers sont dans un format compatible, comme MP3 pour la musique ou JPEG pour les images.

Comment réinitialiser le SWEEX MP471 ?

Pour réinitialiser le SWEEX MP471, maintenez enfoncé le bouton de réinitialisation situé à l'arrière de l'appareil pendant environ 10 secondes jusqu'à ce que l'écran s'éteigne et se rallume.

Le son du SWEEX MP471 est trop faible, que faire ?

Vérifiez le niveau de volume sur l'appareil ainsi que sur vos écouteurs ou haut-parleurs. Assurez-vous également que le mode 'silencieux' n'est pas activé.

Comment mettre à jour le firmware du SWEEX MP471 ?

Visitez le site web de SWEEX et recherchez les mises à jour du firmware pour le MP471. Suivez les instructions fournies pour télécharger et installer la mise à jour.

Quel est l'autonomie de la batterie du SWEEX MP471 ?

L'autonomie de la batterie du SWEEX MP471 est d'environ 10 heures d'utilisation continue, selon le type de fichiers lus et le niveau de volume.

Comment résoudre les problèmes de connexion Bluetooth avec le SWEEX MP471 ?

Assurez-vous que le Bluetooth est activé sur votre appareil et que le SWEEX MP471 est en mode de couplage. Si les problèmes persistent, essayez de désactiver puis de réactiver le Bluetooth.

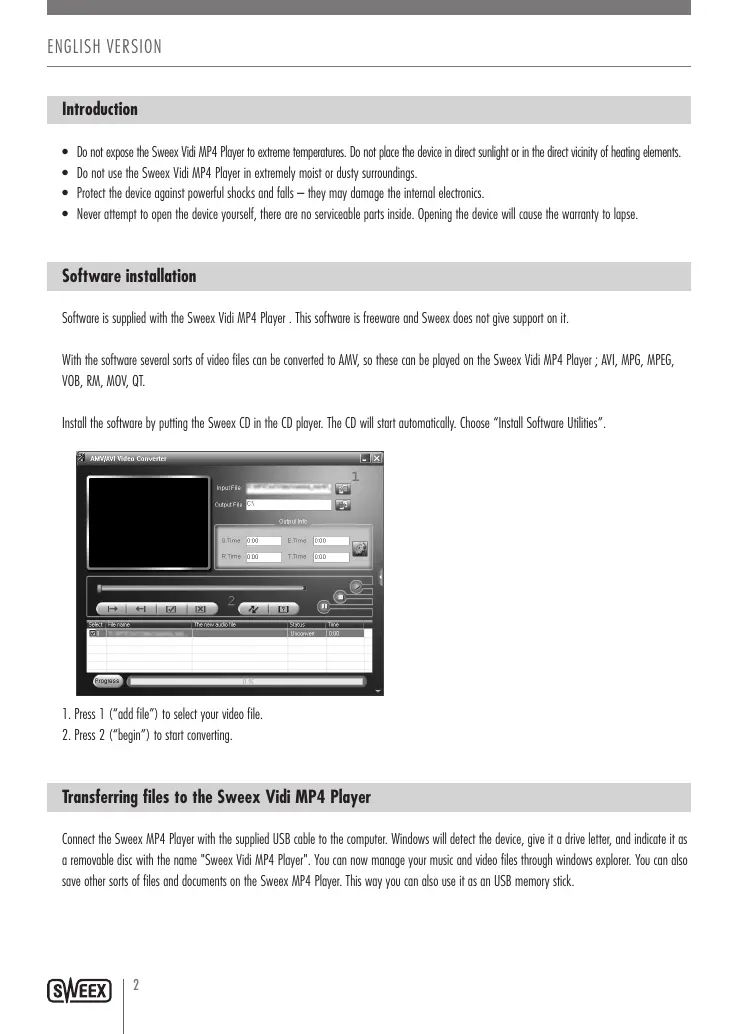

MODE D'EMPLOI MP471 SWEEX

Introduction

• Do not expose the Sweex Vidi MP4 Player to extreme temperatures. Do not place the device in direct sunlight or in the direct vicinity of heating elements.
• Do not use the Sweex Vidi MP4 Player in extremely moist or dusty surroundings.
• Protect the device against powerful shocks and falls - they may damage the internal electronics.
• Never attempt to open the device yourself, there are no serviceable parts inside. Opening the device will cause the warranty to lapse.

Software installation

Software is supplied with the Sweex Vidi MP4 Player . This software is freeware and Sweex does not give support on it .

With the software several sorts of video files can be converted to AMV, so these can be played on the Sweeex Vidi MP4 Player; AVI, MPG, MPEG, VOB, RM, MOV, QT.

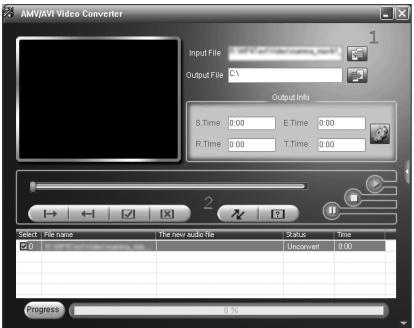

Install the software by putting the Sweex CD in the CD player. The CD will start automatically. Choose "Install Software Utilities".

1. Press 1 ("add file") to select your video file.
2. Press 2 ("begin") to start converting.

Transferring files to the Sweex Vidi MP4 Player

Connect the Sweex MP4 Player with the supplied USB cable to the computer. Windows will detect the device, give it a drive letter, and indicate it as a removable disc with the name "Sweex Vidi MP4 Player". You can now manage your music and video files through windows explorer. You can also save other sorts of files and documents on the Sweex MP4 Player. This way you can also use it as an USB memory stick.

Operation

Buttons:

Menu : Open menu, select menu option,

Next menu option, fast forward

: Previous menu option, rewind

0 :On/off,play/pause,exit from menu

VOL :Volume

Switching on the Sweex MP4 Player.

On the upper side there is a main switch. Switch it to "ON". By briefly pressing the O Button you turn on the Sweex MP4 Player. After turning on the Sweex MP4 Player you are in the main menu. To directly enter the main menu at any time press the menu button Menu for three seconds.

The menu

The menu of the Sweex MP4 Player is available in multiple languages. Go to "Setup" and choose the third line by pressing twice ("Language"). The following languages are available: Chinese (simple & traditional), Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Thai.

Scroll through the menu with the and buttons. Use Menu to choose the menu option and go one step back by pressing "Exit" or 0.

The options in the main menu are:

Setup : Device settings and information

Movie : Play video files

Music : Play music files

Record : Record sound

Voice :Playback sound recordings

Photo : View photos

E-Book : Reading text files

Playback of sound and video files

For music go to the menu option "Music". For movie go to "Movie". Press Menu to access your files. Press O to play back. Also use O to stop or pause. With the buttons and you can go to the previous or next file.

In pause mode you can enter the menu with the Menu button to select different options such as: deleting files and playing files out of a different folder.

During playback of music you can enter the menu with the Menu button to change different options such as: repeat (repeat function) and equalizer settings.

To change the volume during playback of music or video files press the volume button. Now you can change the volume with the and buttons. When you playback a video there is no indication of the volume level, but you can still adjust the volume after pressing the volume button.

Recording sound

To record sound go the menu option "Record". Press the Menu button to choose "Rec type" in the menu and to determine the format of the recording.

Fine REC = WAV 32 Kbps

Long REC = WAV 8 Kbps

Fine VOR = ACT 32 Kbps

Long VOR = ACT 8 Kbps

To start recording press 0 . To pause and continue recording use the same O button. To stop recording press the O button for 3 seconds. The recorded files are saved numbered in the "Record" folder of the player. Playing back the recorded files can be done by choosing the option "Voice" in the main menu.

Switching off

Switching off the Sweex Vidi MP4 Player is done by pressing the O button for 3 seconds. You can use the main switch on the top of the device to prevent the player from being switched off accidentally.

Charging

Charging the Sweex Vidi MP4 Player is done with the supplied USB cable through a free USB port on your computer.

Warranty

Thank you for purchasing this Sweeex product. Sweeex devotes ample attention and care to the quality, reliability, functionality, durability and user friendliness of all its products. In this way Sweeex distinguishes itself in the market and can we convince you as a buyer to continue purchasing products of the Sweeex brand. We wish you a lot of pleasure with your purchase.

An important extra advantage for you is the possibility of product registration.

You can register the product you purchased online on www.sweex.com/productregistration.

By registering your product Sweex offers you a number of important yet equally useful advantages.

For example, if you wish so, you are regularly informed by us of the latest developments in our assortment by means of a digital newsletter.

Where applicable, you also automatically receive the latest drivers and/or firmware from us for the product you purchased to preserve or improve the compatibility and the performance.

Moreover, our support desk can assist you faster in case of possible support questions about the product if you registered the product.

Sweeex warranty conditions.

2-year standard warranty within the EU

• In a standard manner a warranty period of 2 years as from the purchase date is available for this Sweex product within the EU.
• Should you wish to invoke this warranty within the first 2 years after the purchase then you can directly apply to the point of sale where you purchased the product for the conditions and procedures.

Matters that are excluded from the warranty

• The warranty of Sweex only covers manufacturing defects. Excluded from the warranty are accessories like batteries, rechargeable batteries and also supplied software, where applicable.
• The liability of Sweex is limited to the costs of repair and/or replacement of the product covered by the warranty.
• The standard warranty is null and void if the product has been opened, changes have been made, physical damage was caused to the product and if the product is used for another purpose than for which it is originally meant.

All brand names and associated rights mentioned in this manual are and remain the sole property of the rightful claimant.
