DS001 - Station d'accueil USB SWEEX - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Station d'accueil USB
Marque	SWEEX
Modèle	DS001
Dimensions (L x l x H)	187 x 73 x 27 mm
Poids	200 g
Alimentation	DC 5V, 1.2 A (adaptateur secteur inclus)
Port amont (uplink)	1 port USB-B
Ports aval (downlink)	2 ports USB-A 2.0
Port PS/2	Pour clavier et souris
Port série	1 port RS-232
Port parallèle	1 port
Port Ethernet	1 port 10/100 RJ-45
Port de transfert de fichiers	1 port USB-B (USB 1.1) pour PC Linq
Systèmes d'exploitation supportés	Windows ME, 2000, XP
Configuration minimale	PC IBM, 64 Mo RAM, Pentium 233 MHz, 1 port USB libre
Contenu du carton	Station d'accueil, câble USB, adaptateur secteur, CD-ROM
Température de fonctionnement	0 à 72 °C
Température de stockage	-10 à 80 °C
Humidité	0 à 90 % HR
Certifications	CE, FCC
Garantie	3 ans
Entretien	Nettoyer avec un chiffon doux et sec
Sécurité	Utiliser uniquement l'adaptateur secteur fourni

FOIRE AUX QUESTIONS - DS001 SWEEX

Comment installer la station d'accueil DS001 ?

Avant de connecter la station au PC, installez d'abord le pilote série depuis le CD-ROM (dossier 'drivers', fichier Serial Driver Installer.exe). Branchez ensuite l'adaptateur secteur, puis reliez la station au PC via le câble USB-B sur le port amont. Windows détectera le matériel : suivez les invites en pointant vers le dossier 'drivers' du CD.

Quels systèmes d'exploitation sont supportés ?

La station SWEEX DS001 supporte officiellement Windows ME, 2000 et XP. Les versions ultérieures (Vista, 7, 8, 10) ne sont pas garanties mais peuvent fonctionner avec des pilotes adaptés.

Comment connecter une imprimante via la station ?

Lors de l'installation de l'imprimante, sélectionnez le port 'Virtual printer port for USB'. Si l'imprimante est déjà installée, allez dans 'Imprimantes et télécopieurs', faites un clic droit, choisissez 'Propriétés du serveur', onglet 'Ports', puis changez le port en 'Virtual printer port for USB'.

Comment utiliser la fonction PC Linq pour transférer des fichiers entre deux PC ?

Installez le logiciel PC Linq depuis le CD-ROM. Une fois la station installée sur le premier PC, connectez un second PC au port 'Transfer' (USB-B, marqué 'transfert') à l'aide d'un câble USB. Lancez PC Linq sur les deux machines pour échanger des fichiers.

Que faire si l'ordinateur ne détecte pas la station ?

Vérifiez que l'adaptateur secteur est branché et que le voyant est allumé. Assurez-vous d'avoir installé le pilote série avant de connecter le câble USB. Essayez un autre port USB du PC. Si le problème persiste, redémarrez l'ordinateur et réinstallez les pilotes depuis le CD.

Quels câbles et accessoires sont fournis avec la station ?

Le carton contient : la station d'accueil, un câble USB (USB-A vers USB-B), un adaptateur secteur et un CD-ROM contenant les pilotes, le manuel et le logiciel PC Linq.

Puis-je utiliser la station DS001 avec Windows 10 ?

La notice mentionne officiellement Windows ME, 2000 et XP. Sous Windows 10, les pilotes ne sont pas garantis. Vous pouvez essayer d'installer les pilotes en mode compatibilité Windows XP ou rechercher des pilotes génériques. Le port série et parallèle peuvent ne pas fonctionner correctement.

Comment changer le port de l'imprimante si elle était déjà installée ?

Allez dans 'Panneau de configuration' > 'Imprimantes et télécopieurs'. Faites un clic droit sur l'imprimante, choisissez 'Propriétés de l'imprimante'. Sous l'onglet 'Ports', sélectionnez 'Virtual printer port for USB' dans la liste. Cliquez sur 'Appliquer' puis 'OK'.

La station fonctionne-t-elle sans adaptateur secteur ?

Non, la station d'accueil nécessite une alimentation externe via l'adaptateur secteur (DC 5V, 1.2A). Le port USB seul ne fournit pas assez de puissance pour faire fonctionner tous les ports (notamment Ethernet et parallèle).

Quelle est la garantie de ce produit SWEEX ?

Les produits de marque SWEEX bénéficient d'une garantie de trois ans à compter de la date d'achat. Les logiciels et batteries rechargeables ne sont pas couverts. Pour toute réclamation, contactez votre revendeur.

MODE D'EMPLOI DS001 SWEEX

Exterior view of a rectangular electronic device with black and silver casing (no visible text or symbols)

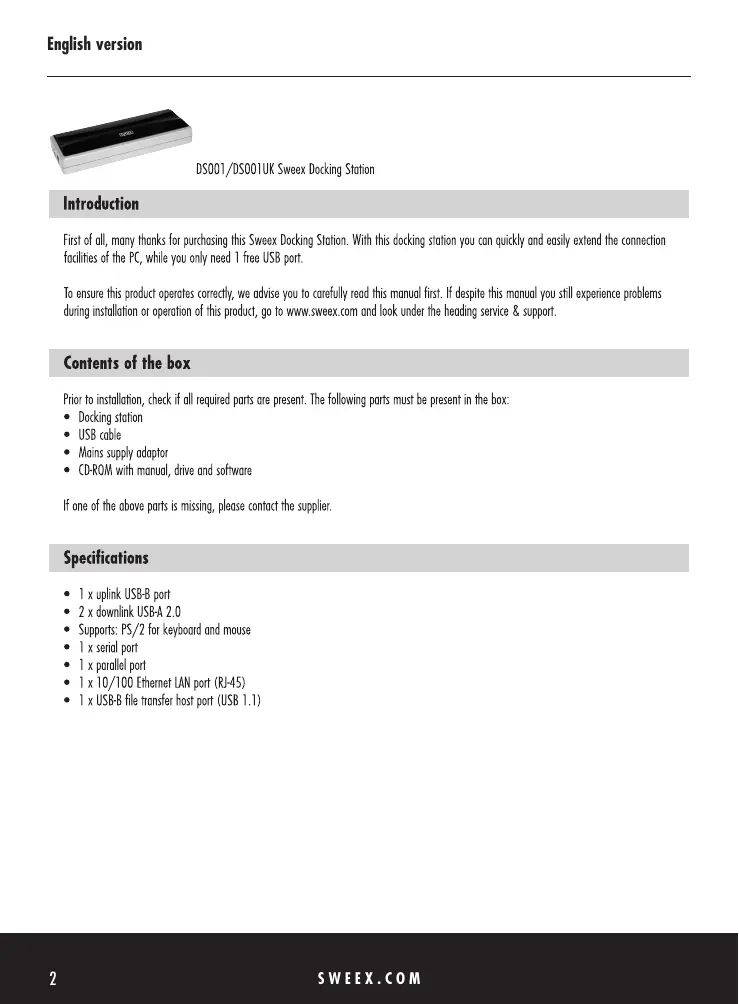

DS001/DS001UK Sweex Docking Station

Introduction

First of all, many thanks for purchasing this Sweex Docking Station. With this docking station you can quickly and easily extend the connection facilities of the PC, while you only need 1 free USB port.

To ensure this product operates correctly, we advise you to carefully read this manual first. If despite this manual you still experience problems during installation or operation of this product, go to www.sweex.com and look under the heading service & support.

Contents of the box

Prior to installation, check if all required parts are present. The following parts must be present in the box:

• Docking station
• USB cable
• Mains supply adaptor
  • CD-ROM with manual, drive and software

If one of the above parts is missing, please contact the supplier.

Specifications

• 1 x uplink USB-B port
• 2 x downlink USB-A 2.0
  • Supports: PS/2 for keyboard and mouse
• 1 x serial port
• 1 x parallel port
  • 1 x 10/100 Ethernet LAN port (RJ-45)
• 1 x USB-B file transfer host port (USB 1.1)

Additional specifications

• Dimensions: 187 x 73 x 27 mm (w x d x h)
• Weight: 200 grams
- Input voltage: DC 5V
- Input current: 1.2A
- Operating temperature: 0^ 72^ C
• Storage temperature: -10^ \~ 80^ C
• Humidity level: 0\~90%RH
• EMI: CE & FCC
• Supports: Windows ME, 2000 and XP

System requirements

• IBM-compatible PC
• Windows ME, 2000 or XP
• 1 available USB port
• 64 MB of RAM
• Pentium 233 MHz or higher

Installation

Before installing the docking station, it must have a power supply. This is done by connecting the docking station to the mains supply adaptor. Before connecting the PC to the docking station, the serial port driver must be installed. The link to this driver is shown in the menu that appears automatically when the CD-ROM is placed in the drive. If automatic start is disabled, the driver Serial Driver Installer.exe can be found on the CD-ROM in the "drivers" folder.

When executed, the following screen appears:

InstallShield Wizard Welcome to the InstallShield Wizard for PL 2303 USB to Send The InstallShield Wizard will install PL 2303 USB to send on your computer. To continue, click Next OK Next Cancel

Push the next button.

InstallShield Wizard InstallShield Wizard Complete InstallShield already successfully to installed PL 2003 USB to Install Drive. Please press [Form] button to close and out of InstallShield. If you have been plugged cable on PC before run the setup, please upzug and then plug cable again for system detect this device!

Push Finish to complete the installation successfully.

Then the docking station must be connected to the computer by means of the USB-B cable supplied. Connect the USB-B cable to the Upstream port (next to the supply inlet).

Windows now automatically detects the hardware, and the following window will appear:

Found New Hardware Wizard Welcome to the Found New Hardware Wizard This wizard helps you install software for: AV00772 If your hardware came with an installation CD or Happy disk, insert it now. What do you want the wizard to do? • Install the software automatically (Recommended) • Install from a slot or specific location (Advanced) Click Next to continue. OK Next Cancel

Select the second option and click on "next".

Find new hardware Wizard Please choose your search and installation options. Search for the best drive in these locations. Use the check boxes below to list or expand the default search, which includes local parks and renewable media. The best drive should be installed. Search removable goods (happy, CD-ROM...) Include this location in the search. *Driven Browse Don't search. I will choose the drive to install. Choose this option to select the device from a list. Windows does not guarantee that the drive you choose will be the best match for your hardwares. < Back Next > Cancel

On the CD-ROM, look for the folder "Drivers" and select it.

Hardware Installation The software you are installing for this hardware: ASIA AV80772 USB2.0 to Fast Ethernet Adapter has not passed Windows Logo testing to verify its compatibility with Windows XP (I'll me who this test is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

During installation, click on "Continue anyway" if Windows requests this. Finally, click on finish in order to complete the installation of this component. A new component is detected automatically and generates the following window:

Found New Hardware Wizard Welcome to the Found New Hardware Wizard Windows will search for current and updated software by launching on your computer on the hardware installation (L), or on the Windows Update Web site (with your permission) Read our instructions policy. Can Windows connect to Windows Update to search for software? ○ Yes, this line only ○ Yes, now and given line! Connect a device ● No, not the line! Click to continue. OK Next > Cancel

Select "no, not at this moment" and click "next".

Found New Hardware Wizard This wizard helps you install software for: USB Device If your hardware cane with an installation CD or floppy disk, insert it none. What do you want the wizard to do? © (install the software automatically) (Recommended) © (install items a lot or specific location Advanced) Click Next to continue. < Back Next > Cancel

Select the second option and click on "next".

Found New Hardware Wizard Please choose your search and installation options. Search for the best drive in these locations. Use the check boxes below to list or expand the default search, which includes local walls and wireless media. The best drive found will be installed. Search remote pins (appy, CD-ROM...) Include this linkout in the search. * I'm drawn... Browse Don't search. I will choose the drive to install. Choose this option to select the device from a list. Windows does not guarantee that the drive you choose will be the best match for your hardwares. < Back Next > Cancel

On the CD-ROM, look for the folder "Drivers" and select it. Then click on "next". Another window opens, i.e. that for the PCLinQ installation. See the chapter PCLinQ for more information. Finally, click on finish in order to complete the installation of this component.

PC Linq

PC Linq is the programme that enables you to exchange files between 2 PCs. To this end, connect the docking station (after it has been installed) to a second PC via the "Transfer" USB-B port.

InstallShield Wizard Welcome to the InstallShield Wizard for PC Ling The InstallShield Wizard will install PC Ling on your computer. To continue, click Next. Next Cancel

Click on "next" to continue.

InstallShield Wizard Choose Destination Location Select folder where Setup will install files. Setup will install PC Long in the following folder. To install to the folder, click New. To install to a different folder, click Browse and select another folder. Destination Folder C:\Program Files\PC Long Browse InstallShield < Back Next > Cancel

Then select the location where you wish to install the programme. Click on "next" in order to finish the installation.

USB printer setup

If you wish to use a printer via the docking station, do not forget to change the printer port. You can do this by selecting the "Virtual printer port for USB" when installing the printer. If a printer has already been installed and you wish to connect it to the docking station, do not forget to change the port. You can do this by right-clicking in the Printers and faxes menu and selecting "server properties", which you can see in the window below.

New Settings Add Settings Set up New New Data Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings Set up New New Settings Add Settings

Right-click and go to "server properties".

Print Server Properties Forms: Ports | Drivers | Advanced Data on this server Port 1 Description Printer LPT2. Printed Port LPT3. Printed Port COM1. Serial Port COM2. Serial Port COM3. Serial Port COM4. Serial Port PLC. Print to File P50001. Valid printed port to USB Add Port. Delete Port. Configure Port. OK Cancel Save

In the window that appears next, click on the second tab. You will see the following screen.

Here, you change the printer port to "Virtual printer port for USB". The printer now has the correct port in order to print.

Warranty

Any products under the Sweex brand are warranted for a period of three years. The Sweex Digital photo cameras, however, are warranted for two years. We do not grant support or warranties for any software and/or (rechargeable) batteries included. Warranty claims are only settled via the dealer where the product concerned was purchased.

The rightful owner has and retains title to all brand names and related rights mentioned on this packaging/in this manual.
