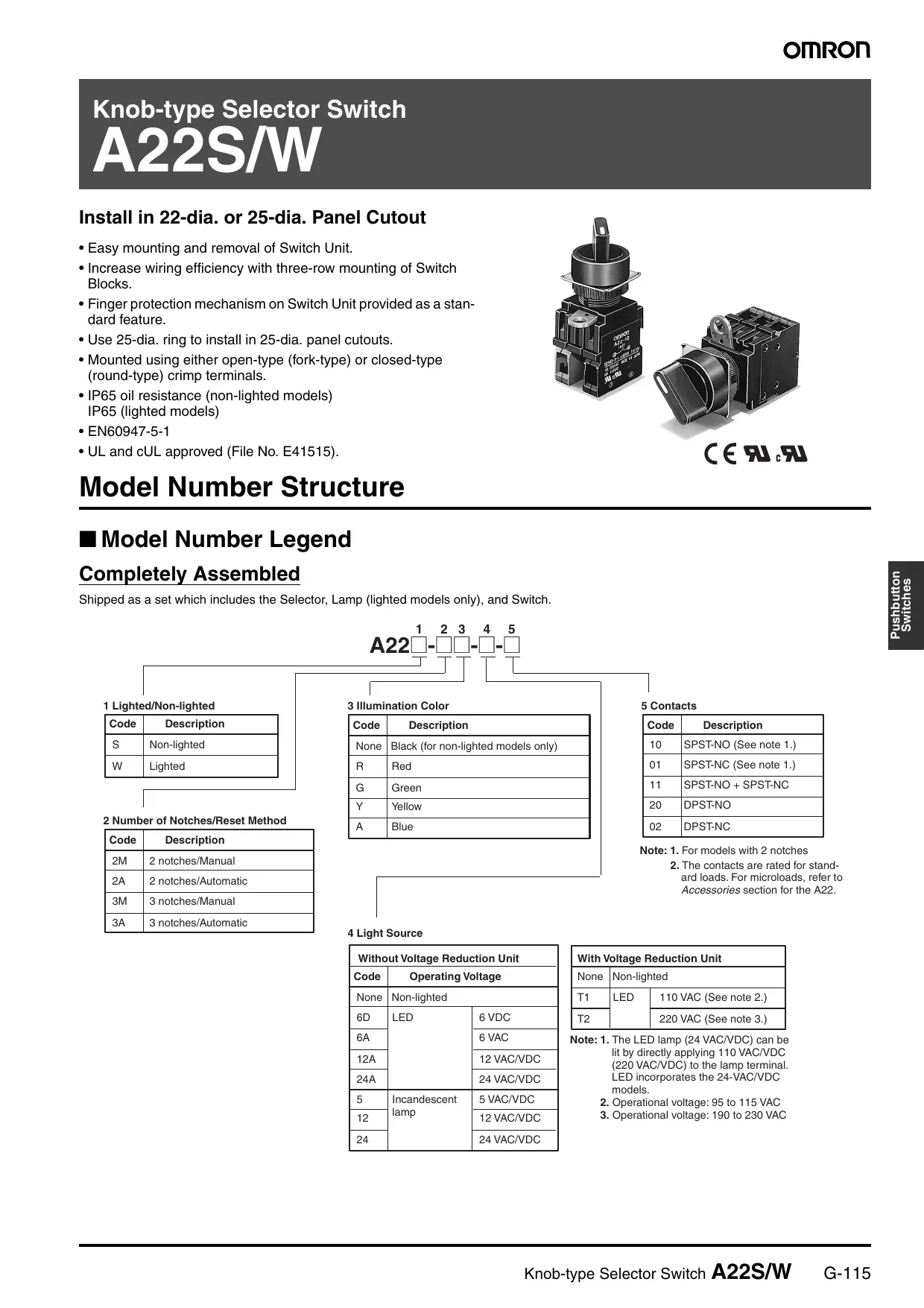

MODE D'EMPLOI A22W OMRON

Knob-type Selector Switch

A22S/W

Install in 22-dia. or 25-dia. Panel Cutout

  • Easy mounting and removal of Switch Unit.
  • Increase wiring efficiency with three-row mounting of Switch Blocks.
  • Finger protection mechanism on Switch Unit provided as a standard feature.
  • Use 25-dia. ring to install in 25-dia. panel cutouts.
  • Mounted using either open-type (fork-type) or closed-type (round-type) crimp terminals.
  • IP65 oil resistance (non-lighted models) IP65 (lighted models)
    • EN60947-5-1
  • UL and cUL approved (File No. E41515).

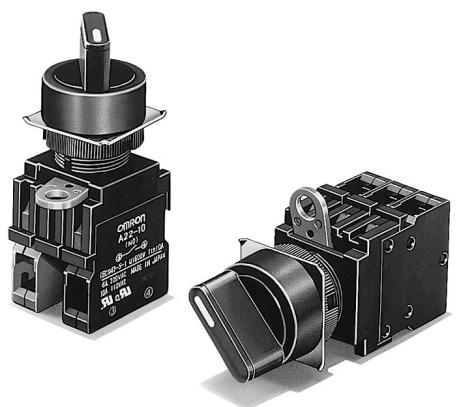

OMRON A22W - Install in 22-dia. or 25-dia. Panel Cutout - 1

natural_image Technical illustration of two types of industrial control switches, one with a handle and the other with a camera module (no visible text or symbols)

CE RU c RU

Model Number Structure

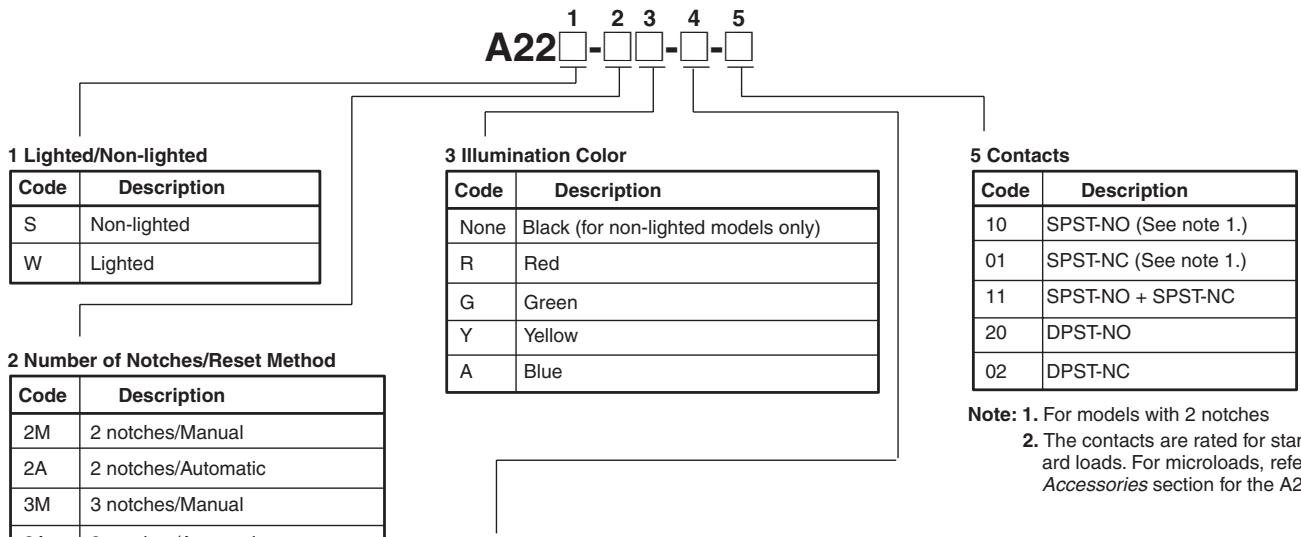

■ Model Number Legend

Completely Assembled

Shipped as a set which includes the Selector, Lamp (lighted models only), and Switch.

OMRON A22W - Completely Assembled - 1
1 Lighted/Non-lighted

CodeDescription
SNon-lighted
WLighted

3 Illumination Color

CodeDescription
NoneBlack (for non-lighted models only)
RRed
GGreen
YYellow
ABlue

5 Contacts

CodeDescription
10SPST-NO (See note 1.)
01SPST-NC (See note 1.)
11SPST-NO + SPST-NC
20DPST-NO
02DPST-NC

Note: 1. For models with 2 notches
2. The contacts are rated for standard loads. For microloads, refer to Accessories section for the A22.

2 Number of Notches/Reset Method

CodeDescription
2M2 notches/Manual
2A2 notches/Automatic
3M3 notches/Manual
3A3 notches/Automatic

4 Light Source

Without Voltage Reduction Unit
CodeOperating Voltage
NoneNon-lighted
6DLED6 VDC
6A6 VAC
12A12 VAC/VDC
24A24 VAC/VDC
5Incandescent lamp5 VAC/VDC
1212 VAC/VDC
2424 VAC/VDC
With Voltage Reduction Unit
NoneNon-lighted
T1LED110 VAC (See note 2.)
T2220 VAC (See note 3.)

Note: 1. The LED lamp (24 VAC/VDC) can be lit by directly applying 110 VAC/VDC (220 VAC/VDC) to the lamp terminal. LED incorporates the 24-VAC/VDC models.
2. Operational voltage: 95 to 115 VAC
3. Operational voltage: 190 to 230 VAC

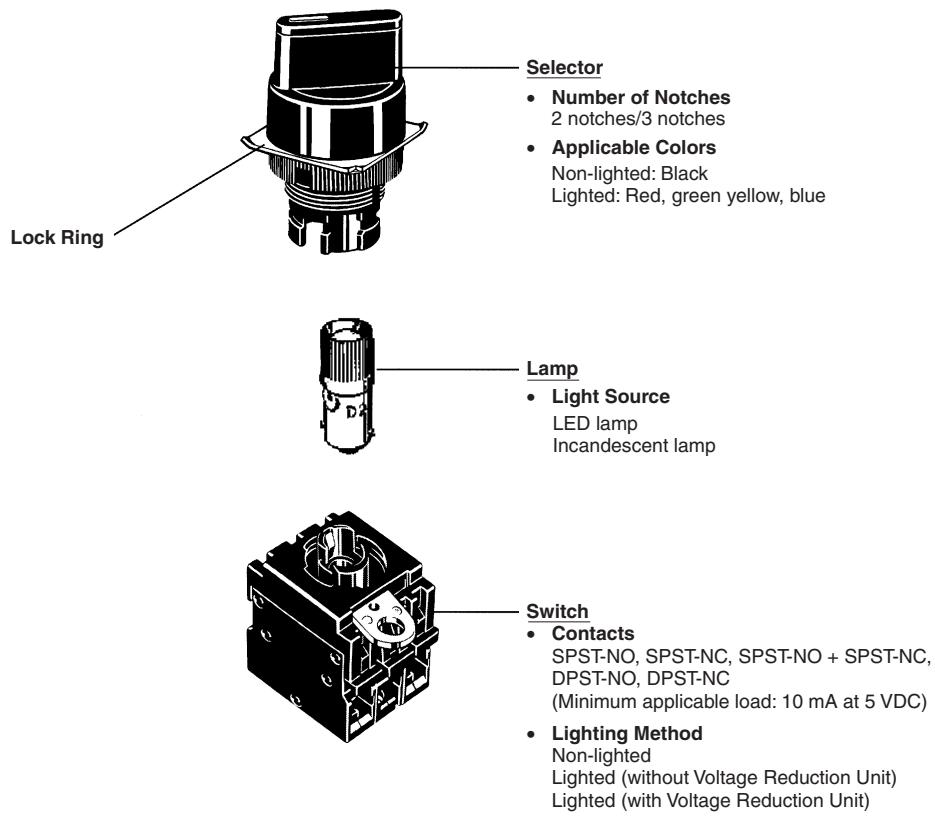

Subassembled

The Selector, Lamp, or Switch can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

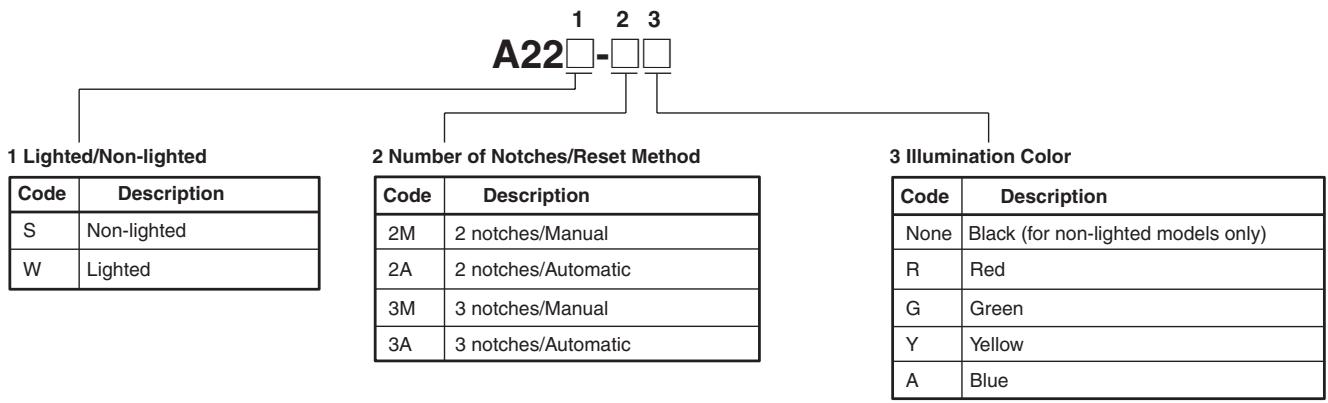

1. Selector

OMRON A22W - Selector - 1

    E["Code"] --> F["Description"]
    G["S"] --> H["Non-lighted"]
    I["W"] --> J["Lighted"]

    K["Code"] --> L["Description"]
    M["2M"] --> N["2 notches/Manual"]
    O["2A"] --> P["2 notches/Automatic"]
    Q["3M"] --> R["3 notches/Manual"]
    S["3A"] --> T["3 notches/Automatic"]

    U["Code"] --> V["Description"]
    W["None"] --> X["Black (for non-lighted models only)"]
    Y["R"] --> Z["Red"]
    AA["G"] --> AB["Green"]
    AC["Y"] --> AD["Yellow"]
    AE["A"] --> AF["Blue"]

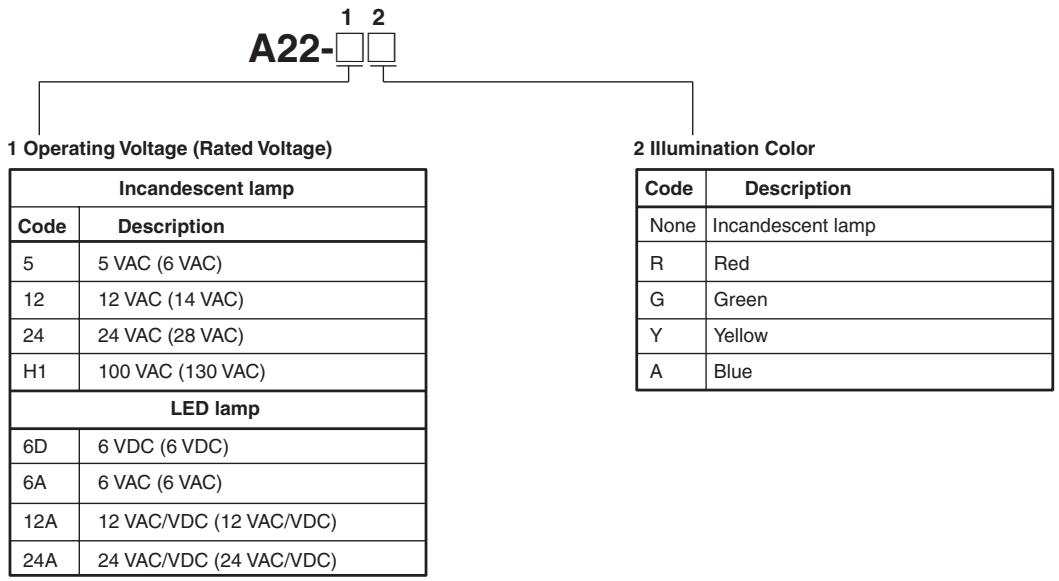

2. Lamp

OMRON A22W - Lamp - 1

other A22-□□ 1 Operating Voltage (Rated Voltage) Code Description 5 VAC (6 VAC) 12 VAC (14 VAC) 24 VAC (28 VAC) H1 100 VAC (130 VAC) LED lamp 6D 6 VDC (6 VDC) 6A 6 VAC (6 VAC) 12A 12 VAC/VDC (12 VAC/VDC) 24A 24 VAC/VDC (24 VAC/VDC) 2 Illumination Color Code Description None Incandescent lamp R Red G Green Y Yellow A Blue

3. Switch (General-purpose Load)

OMRON A22W - Switch (General-purpose Load) - 1

■ List of Models

Ordering as a Set

Non-lighted

AppearanceNumber of notchesResetting methodOutputModelColor of Selector
Knob-type Selector SwitchOMRON A22W - Ordering as a Set - 1S2 notchesManualOMRON A22W - Ordering as a Set - 2SPST-NOA22S-2M-10Black
SPST-NCA22S-2M-01
SPST-NO + SPST-NCA22S-2M-11
DPST-NOA22S-2M-20
DPST-NCA22S-2M-02
AutomaticOMRON A22W - Ordering as a Set - 3SPST-NOA22S-2A-10
SPST-NCA22S-2A-01
SPST-NO + SPST-NCA22S-2A-11
DPST-NOA22S-2A-20
DPST-NCA22S-2A-02
3 notchesManualOMRON A22W - Ordering as a Set - 4SPST-NO + SPST-NCA22S-3M-11
DPST-NOA22S-3M-20
DPST-NCA22S-3M-02
AutomaticOMRON A22W - Ordering as a Set - 5SPST-NO + SPST-NCA22S-3A-11
DPST-NOA22S-3A-20
DPST-NCA22S-3A-02

Lighted (Without Voltage Reduction Unit)

AppearanceNumber of notchesResetting methodOutputOperating voltageModelIllumination color
Knob-type Selector SwitchLED lighting(without Voltage Reduction(Init) - OMRON A22W - Ordering as a Set - 6A22W2 notchesManualSPST-NO6 VDCA22W-2M□-6D-10Insert one of the following letters into the box □.R (red)Y (yellow)G (green)A (blue)
6 VACA22W-2M□-6A-10
12 VAC/VDCA22W-2M□-12A-10
24 VAC/VDCA22W-2M□-24A-10
SPST-NC6 VDCA22W-2M□-6D-01
6 VACA22W-2M□-6A-01
12 VAC/VDCA22W-2M□-12A-01
24 VAC/VDCA22W-2M□-24A-01
SPST-NO + SPST-NC6 VDCA22W-2M□-6D-11
6 VACA22W-2M□-6A-11
12 VAC/VDCA22W-2M□-12A-11
24 VAC/VDCA22W-2M□-24A-11
DPST-NO6 VDCA22W-2M□-6D-20
6 VACA22W-2M□-6A-20
12 VAC/VDCA22W-2M□-12A-20
24 VAC/VDCA22W-2M□-24A-20
DPST-NC6 VDCA22W-2M□-6D-02
6 VACA22W-2M□-6A-02
12 VAC/VDCA22W-2M□-12A-02
24 VAC/VDCA22W-2M□-24A-02
AutomaticSPST-NO6 VDCA22W-2A□-6D-10
6 VACA22W-2A□-6A-10
12 VAC/VDCA22W-2A□-12A-10
24 VAC/VDCA22W-2A□-24A-10
SPST-NC6 VDCA22W-2A□-6D-01
6 VACA22W-2A□-6A-01
12 VAC/VDCA22W-2A□-12A-01
24 VAC/VDCA22W-2A□-24A-01
SPST-NO + SPST-NC6 VDCA22W-2A□-6D-11
6 VACA22W-2A□-6A-11
12 VAC/VDCA22W-2A□-12A-11
24 VAC/VDCA22W-2A□-24A-11
DPST-NO6 VDCA22W-2A□-6D-20
6 VACA22W-2A□-6A-20
12 VAC/VDCA22W-2A□-12A-20
24 VAC/VDCA22W-2A□-24A-20
DPST-NC6 VDCA22W-2A□-6D-02
6 VACA22W-2A□-6A-02
12 VAC/VDCA22W-2A□-12A-02
24 VAC/VDCA22W-2A□-24A-02
3 notchesManualSPST-NO + SPST-NC6 VDCA22W-3M□-6D-11
6 VACA22W-3M□-6A-11
12 VAC/VDCA22W-3M□-12A-11
24 VAC/VDCA22W-3M□-24A-11
DPST-NO6 VDCA22W-3M□-6D-20
6 VACA22W-3M□-6A-20
12 VAC/VDCA22W-3M□-12A-20
24 VAC/VDCA22W-3M□-24A-20
DPST-NC6 VDCA22W-3M□-6D-02
6 VACA22W-3M□-6A-02
12 VAC/VDCA22W-3M□-12A-02
24 VAC/VDCA22W-3M□-24A-02
Knob-type Selector SwitchLED lighting(without Voltage Reduction [1-2A]OMRON A22W - Ordering as a Set - 73 notchesAutomaticSPST-NO + SPST-NC6 VDCA22W-3A□-6D-11Insert one of the following letters into the box □.R (red)Y (yellow)G (green)A (blue)
6 VACA22W-3A□-6A-11
12 VAC/VDCA22W-3A□-12A-11
24 VAC/VDCA22W-3A□-24A-11
DPST-NO6 VDCA22W-3A□-6D-20
6 VACA22W-3A□-6A-20
12 VAC/VDCA22W-3A□-12A-20
24 VAC/VDCA22W-3A□-24A-20
DPST-NC6 VDCA22W-3A□-6D-02
6 VACA22W-3A□-6A-02
12 VAC/VDCA22W-3A□-12A-02
24 VAC/VDCA22W-3A□-24A-02

Lighted (With Voltage Reduction Unit)

AppearanceNumber of notchesResetting methodOutputOperating voltageModelSelector symbol (color)
Knob-type Selector SwitchLED voltage-reduction lighting(with Voltage Reduction UI ...OMRON A22W - Ordering as a Set - 82 notchesManualSPST-NO110 VACA22W-2M□-T1-10Insert one of the following letters into the box □.R (red)Y (yellow)G (green)A (blue)
220 VACA22W-2M□-T2-10
SPST-NC110 VACA22W-2M□-T1-01
220 VACA22W-2M□-T2-01
SPST-NO + SPST-NC110 VACA22W-2M□-T1-11
220 VACA22W-2M□-T2-11
DPST-NO110 VACA22W-2M□-T1-20
220 VACA22W-2M□-T2-20
DPST-NC110 VACA22W-2M□-T1-02
220 VACA22W-2M□-T2-02
AutomaticSPST-NO110 VACA22W-2A□-T1-10
220 VACA22W-2A□-T2-10
SPST-NC110 VACA22W-2A□-T1-01
220 VACA22W-2A□-T2-01
SPST-NO + SPST-NC110 VACA22W-2A□-T1-11
220 VACA22W-2A□-T2-11
DPST-NO110 VACA22W-2A□-T1-20
220 VACA22W-2A□-T2-20
DPST-NC110 VACA22W-2A□-T1-02
220 VACA22W-2A□-T2-02
3 notchesManualSPST-NO + SPST-NC110 VACA22W-3M□-T1-11
220 VACA22W-3M□-T2-11
DPST-NO110 VACA22W-3M□-T1-20
220 VACA22W-3M□-T2-20
DPST-NC110 VACA22W-3M□-T1-02
220 VACA22W-3M□-T2-02
AutomaticSPST-NO + SPST-NC110 VACA22W-3A□-T1-11
220 VACA22W-3A□-T2-11
DPST-NO110 VACA22W-3A□-T1-20
220 VACA22W-3A□-T2-20
DPST-NC110 VACA22W-3A□-T1-02
220 VACA22W-3A□-T2-02

Note: When ordering, specify the symbol that indicates color of the Selector in the □ of the model number.

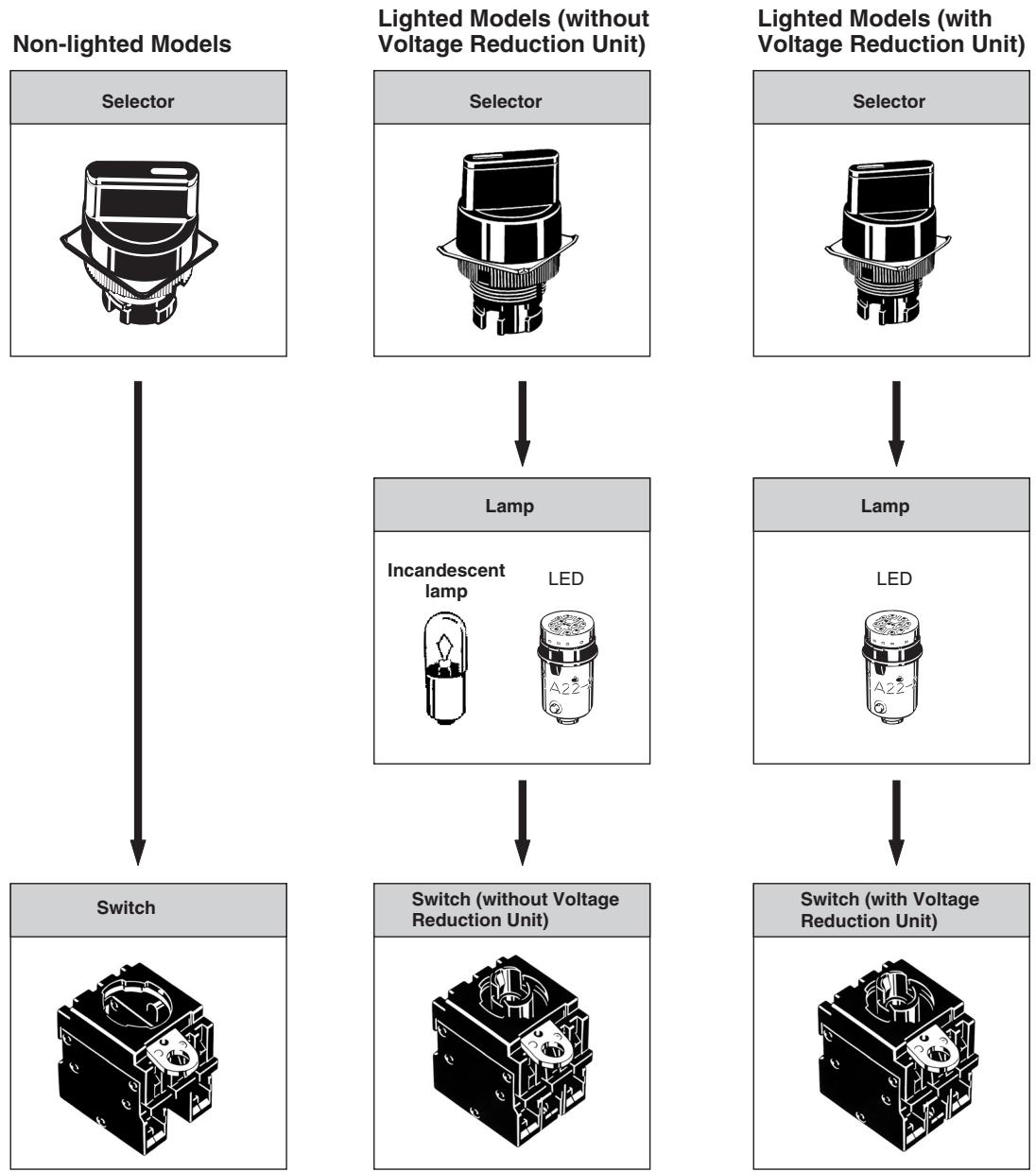

Ordering Individually

OMRON A22W - Ordering Individually - 1

Selectors

Non-lighted (Color: Only Black is Available)

NotchesReset methodStandard leverIP65 (oil-resistant)OMRON A22W - Selectors - 1
2 notchesManualA22S-2M
AutomaticA22S-2A
3 notchesManualA22S-3M
AutomaticA22S-3A
Left automaticA22S-3AM
Right automaticA22S-3MA
NotchesReset methodStandard leverIP65 (oil-resistant)OMRON A22W - Selectors - 2
2 notchesManualA22S-C2M
AutomaticA22S-C2A
3 notchesManualA22S-C3M
AutomaticA22S-C3A
Left automaticA22S-C3AM
Right automaticA22S-C3MA

Lighted

NotchesReset methodSelector colorStandard lever IP65OMRON A22W - Selectors - 3
2 notchesManualRedA22W-2MR
GreenA22W-2MG
YellowA22W-2MY
BlueA22W-2MA
AutomaticRedA22W-2AR
GreenA22W-2AG
YellowA22W-2AY
BlueA22W-2AA
3 notchesManualRedA22W-3MR
GreenA22W-3MG
YellowA22W-3MY
BlueA22W-3MA
AutomaticRedA22W-3AR
GreenA22W-3AG
YellowA22W-3AY
BlueA22W-3AA
Left automaticRedA22W-3AMR
GreenA22W-3AMG
YellowA22W-3AMY
BlueA22W-3AMA
Right automaticRedA22W-3MAR
GreenA22W-3MAG
YellowA22W-3MAY
BlueA22W-3MAA

Note: Either incandescent lamps or LED lamps can be used with the above models.

Lamps

LED Lamp

AppearanceOperating voltage6 V12 V24 V24 VSuper-bright
AC/DCLED lightModel
OMRON A22W - Lamps - 1DCRedA22-6DR---------
GreenA22-6DG---------
Yellow (See note 2.)A22-6DY---------
BlueA22-6DA---------
ACRedA22-6AR---------
GreenA22-6AG---------
Yellow (See note 2.)A22-6AY---------
BlueA22-6AA---------
AC and DCRed---A22-12ARA22-24ARA22-24ASR
Green---A22-12AGA22-24AGA22-24ASG
Yellow (See note 2.)---A22-12AYA22-24AYA22-24ASY
Blue---A22-12AAA22-24AAA22-24ASA

Note: 1. For voltage-reduction lighting, use the A22-24A☐.
2. Used when the Selector color is yellow or white.

Incandescent Lamp

Operating voltage5 VAC/VDC12 VAC/VDC24 VAC/VDC100 VAC/VDC
[DEWOS]A22-5A22-12A22-24A22-H1

Switches (General-purpose Load)

Non-lighted

Switch operationOMRON A22W - Switches (General-purpose Load) - 1ContactsModel
AutomaticSPST-NOA22-10M
SPST-NCA22-01M
SPST-NO + SPST-NCA22-11M
DPST-NOA22-20M
DPST-NCA22-02M

Lighted

Switch operationContactsVoltage-reduction circuit
Without Voltage Reduction UnitOMRON A22W - Switches (General-purpose Load) - 2With Voltage Reduction Unit
110 VACOMRON A22W - Switches (General-purpose Load) - 3~220 VACOMRON A22W - Switches (General-purpose Load) - 4~
AutomaticSPST-NOA22L-10MA22L-10M-T1A22L-10M-T2
SPST-NCA22L-01MA22L-01M-T1A22L-01M-T2
SPST-NO + SPST-NCA22L-11MA22L-11M-T1A22L-11M-T2
DPST-NOA22L-20MA22L-20M-T1A22L-20M-T2
DPST-NCA22L-02MA22L-02M-T1A22L-02M-T2

Note: For voltage-reduction lighting, use the A22-24A☐.

■ Accessories (Order Separately)

The A22S/W uses the same accessories as the A22. Refer to the relevant information in the section for the A22.

Specifications

With the exception of the following items, the specifications are the same as for the A22. Refer to the relevant information in the Specifications section for the A22.

■ Operation Angle

Two notches
OMRON A22W - ■ Operation Angle - 1

Three notches
OMRON A22W - ■ Operation Angle - 2
Note: 1. The angle used for automatic reset is shown in parentheses.
2. FP: Free Position

Contacts

2-notch Type

Knob positionSPST-NOSPST-NCSPST-NO + SPST-NCDPST-NODPST-NC

3-notch Type

Knob positionSPST-NO + SPST-NCDPST-NODPST-NC

OMRON A22W - Contacts - 1

• Number of Notches 2 notches/3 notches
- Applicable Colors Non-lighted: Black Lighted: Red, green yellow, blue

• Light Source LED lamp Incandescent lamp

- Contacts SPST-NO, SPST-NC, SPST-NO + SPST-NC, DPST-NO, DPST-NC (Minimum applicable load: 10 mA at 5 VDC)

- Lighting Method Non-lighted Lighted (without Voltage Reduction Unit) Lighted (with Voltage Reduction Unit)

Dimensions

Note: All units are in millimeters unless otherwise indicated.

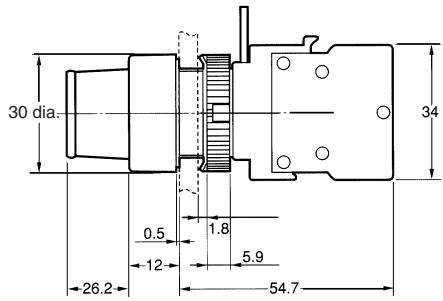

■ Knob-type Selector Switch (Lighted/Non-lighted)

A22S/A22W
OMRON A22W - ■ Knob-type Selector Switch (Lighted/Non-lighted) - 1

natural_image Technical line drawing of an electrical contactor or relay device (no text or symbols visible)

OMRON A22W - ■ Knob-type Selector Switch (Lighted/Non-lighted) - 2

text_image 30 dia. 26.2 0.5 12 1.8 5.9 54.7 34

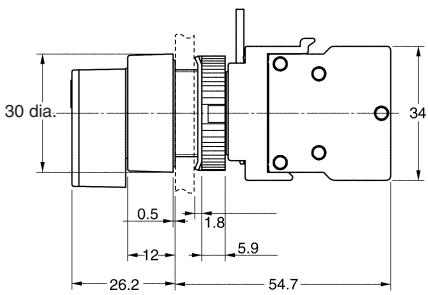

A22S-C
OMRON A22W - ■ Knob-type Selector Switch (Lighted/Non-lighted) - 3

natural_image Technical illustration of an electrical contactor device (no text or symbols visible)

OMRON A22W - ■ Knob-type Selector Switch (Lighted/Non-lighted) - 4

text_image 30 dia. 0.5 12 1.8 5.9 26.2 54.7 34

■ Accessories (Common to A22, A22S/W, A22K, M22, and A22E)

The A22S/W uses the same accessories as the A22. Refer to the relevant information in the corresponding section for the A22.

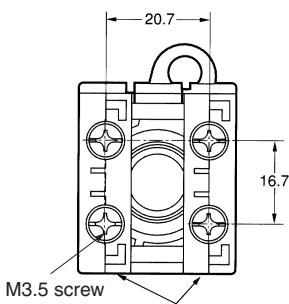

■ Terminal Arrangement (Bottom View)

Non-lighted (SPST-NO + SPST-NC)Lighted (SPST-NO + SPST-NC)
OMRON A22W - ■ Terminal Arrangement (Bottom View) - 1Switch BlocksOMRON A22W - ■ Terminal Arrangement (Bottom View) - 2 Lamp socket

■ Terminal Connection

TypeConnection diagram
Non-lightedBottom viewOMRON A22W - ■ Terminal Connection - 1
Lighted without Voltage Reduction UnitBottom viewOMRON A22W - ■ Terminal Connection - 2
Lighted with Voltage Reduction UnitBottom viewOMRON A22W - ■ Terminal Connection - 3

Note: The above terminal connection diagrams are examples for SPST-NO + SPST-NC.

■ Panel Cutouts (Top View)

OMRON A22W - ■ Panel Cutouts (Top View) - 1

OMRON A22W - ■ Panel Cutouts (Top View) - 2

Note: 1. When applying coating such as paint to the panel, the dimensions should be those after the application of coating. Lock Ring is provided as a standard item.

  1. Recommended panel thickness: 1 to 5 mm.

  2. Use an A22Z-R25 Ring when mounting to a panel with 25-mm holes.

Installation

The A22S/W uses the same installation method as the A22. Refer to the relevant information in the Installation section for the A22.

Precautions

The precautions for the A22S/W are the same as those for the A22. Refer to the relevant information in the Precautions section for the A22 and the Technical Information for Pushbutton Switches (Cat. No. A143).

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. A129-E1-02

In the interest of product improvement, specifications are subject to change without notice.

Assistant notice
Powered by Anthropic
En attente de votre message
Informations produit

Marque : OMRON

Modèle : A22W

Catégorie : Interrupteur électrique
