61F-GPN-BT - Contrôleur de niveau liquide OMRON - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Contrôleur de niveau liquide conductif
Marque	OMRON
Modèle	61F-GPN-BT
Tension d'alimentation	24 VDC
Plage de tension admissible	85 % à 110 % de la tension nominale
Tension entre électrodes	5 VAC max.
Résistance de fonctionnement	Variable (0 à 100 kΩ)
Résistance de relâchement	200 % max. de la résistance de fonctionnement
Type de sortie	Collecteur ouvert (NPN)
Spécifications de sortie	30 VDC, 100 mA max.
Commutation alimentation/drainage	Bornes 7 et 8 ouvertes : drainage ; court-circuitées : alimentation
Distance de câblage max.	100 m (avec câble 0,75 mm²)
Température ambiante de fonctionnement	-10 à 55 °C
Humidité ambiante de fonctionnement	25 % à 85 %
Résistance d'isolement	100 MΩ min. (500 VDC)
Tension de tenue diélectrique	2 000 VAC, 50/60 Hz pendant 1 min
Consommation électrique	2 W max.
Temps de réponse	Fonctionnement : 1,5 s max. ; Relâchement : 3,0 s max.
Socket avant compatible	PF113A-E
Poids	Environ 150 g (estimation)
Dimensions	Env. 48 x 80 x 80 mm (estimation)
Entretien et nettoyage	Nettoyer avec un chiffon sec ; éviter l'humidité et les gaz corrosifs
Sécurité	Ne pas utiliser en atmosphère inflammable ; respecter la tension nominale
Pièces détachées et réparabilité	Socket PF113A-E ; porte-électrodes séparés ; pas de pièces réparables par l'utilisateur

FOIRE AUX QUESTIONS - 61F-GPN-BT OMRON

Quelle est la tension d'alimentation du 61F-GPN-BT ?

Le contrôleur fonctionne sous une tension continue de 24 VDC, avec une plage admissible de 85 % à 110 % de la tension nominale.

Comment régler la sensibilité du contrôleur de niveau ?

La sensibilité se règle via un potentiomètre intégré. La résistance de fonctionnement est variable de 0 à 100 kΩ. Ajustez-la en fonction de la conductivité du liquide.

Quelle est la différence entre les bornes 7 et 8 ouvertes et court-circuitées ?

Bornes 7 et 8 ouvertes : fonctionnement en drainage automatique. Bornes 7 et 8 court-circuitées : fonctionnement en alimentation automatique (remplissage).

Quel type de sortie possède le modèle 61F-GPN-BT ?

Le modèle BT est équipé d'une sortie collecteur ouvert NPN, capable de commuter 30 VDC / 100 mA max. Cette sortie peut être directement connectée à une entrée PLC.

Puis-je utiliser plusieurs contrôleurs dans le même réservoir ?

Oui, les circuits d'alimentation et de détection sont isolés, permettant d'utiliser plusieurs contrôleurs dans le même réservoir sans interférence.

Quel est le temps de réponse du 61F-GPN-BT ?

Le temps de réponse au fonctionnement est de 1,5 seconde maximum, et le temps de relâchement est de 3,0 secondes maximum.

Quelle est la distance maximale de câblage entre le contrôleur et les électrodes ?

La distance maximale est de 100 mètres avec un câble blindé à 3 conducteurs de section 0,75 mm².

Quels sont les accessoires disponibles pour ce contrôleur ?

Les accessoires principaux sont le socket avant PF113A-E et différents porte-électrodes adaptés à diverses applications.

Comment entretenir le contrôleur de niveau OMRON 61F-GPN-BT ?

Nettoyez l'appareil avec un chiffon sec. Évitez les environnements humides, poussiéreux ou contenant des gaz corrosifs. Respectez les plages de température et d'humidité spécifiées.

Ce contrôleur est-il certifié CE et UL ?

Oui, l'appareil porte le marquage CE et est un composant reconnu UL (C∈cRus).

MODE D'EMPLOI 61F-GPN-BT OMRON

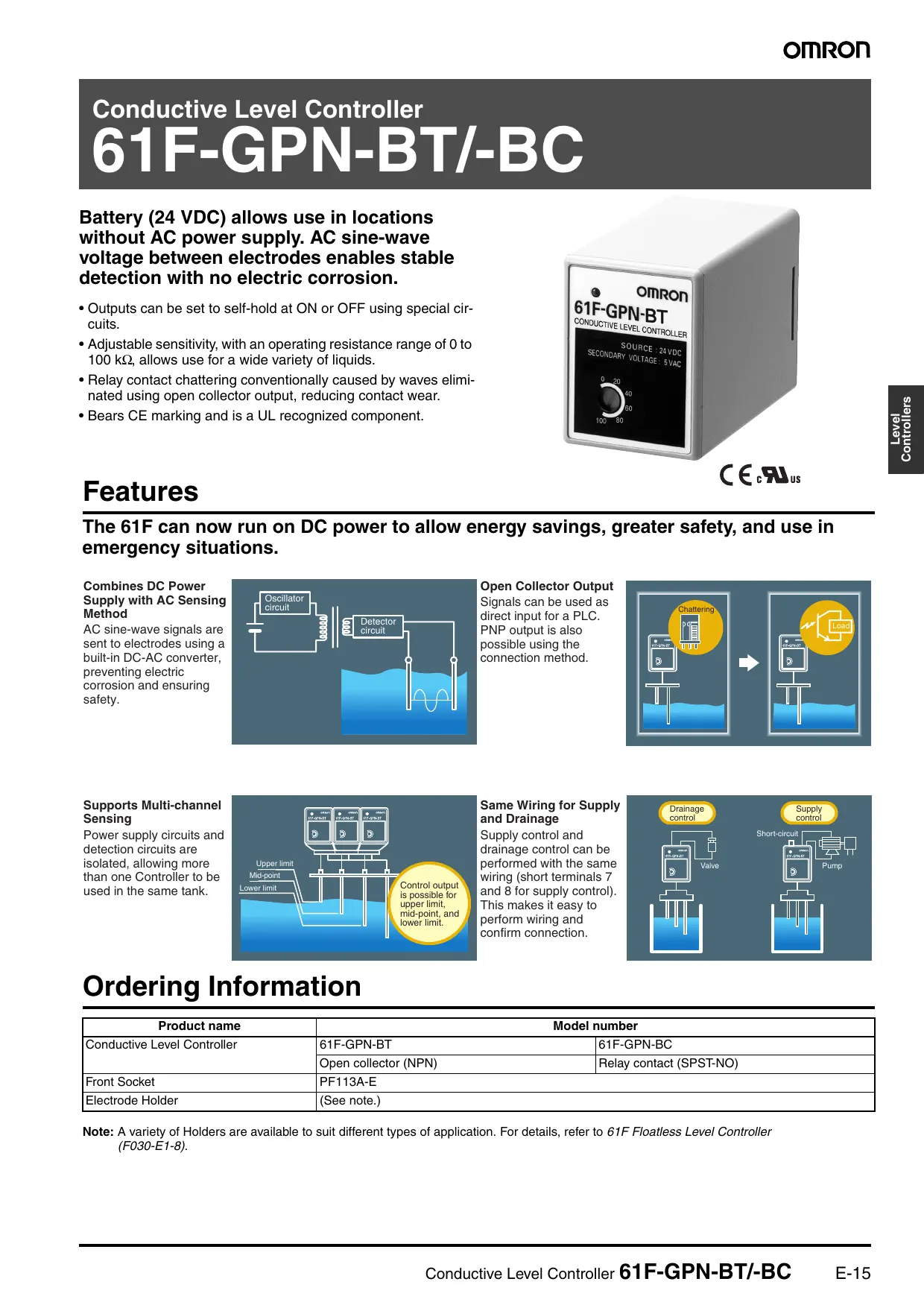

Conductive Level Controller

61F-GPN-BT/-BC

Battery (24 VDC) allows use in locations without AC power supply. AC sine-wave voltage between electrodes enables stable detection with no electric corrosion.

• Outputs can be set to self-hold at ON or OFF using special circuits.
• Adjustable sensitivity, with an operating resistance range of 0 to 100k , allows use for a wide variety of liquids.
• Relay contact chattering conventionally caused by waves eliminated using open collector output, reducing contact wear.
• Bears CE marking and is a UL recognized component.

C∈cRus

Features

The 61F can now run on DC power to allow energy savings, greater safety, and use in emergency situations.

Combines DC Power Supply with AC Sensing Method

AC sine-wave signals are sent to electrodes using a built-in DC-AC converter, preventing electric corrosion and ensuring safety.

Open Collector Output Signals can be used as direct input for a PLC. PNP output is also possible using the connection method.

Supports Multi-channel Sensing

Power supply circuits and detection circuits are isolated, allowing more than one Controller to be used in the same tank.

Same Wiring for Supply and Drainage

Supply control and drainage control can be performed with the same wiring (short terminals 7 and 8 for supply control). This makes it easy to perform wiring and confirm connection.

Ordering Information

Product name	Model number
Conductive Level Controller	61F-GPN-BT	61F-GPN-BC
	Open collector (NPN)	Relay contact (SPST-NO)
Front Socket	PF113A-E
Electrode Holder	(See note.)

Note: A variety of Holders are available to suit different types of application. For details, refer to 61F Floatless Level Controller (F030-E1-8).

Ratings

	61F-GPN-BT	61F-GPN-BC
Rated voltage	24 VDC
Allowable voltage range	85% to 110% of the rated voltage
Interelectrode voltage	5 VAC max.
Operation resistance (See note 1.)	Variable (0 to 100 kΩ)
Error	For scale of 0: +10 kΩ; For scale of 100: ±10 kΩ
Release resistance	200% max. of the operation resistance
Switching between supply and drainage	Terminals 7 and 8 open: Automatic drainage operation Terminals 7 and 8 shorted: Automatic supply operation
Output specifications	Open collector (NPN) 30 VDC, 100 mA max.	SPST-NO 5 A, 240 VAC (Resistive load) 2 A, 240 VAC (Inductive load: cosφ=0.4)
Life expectancy	---	Electrical: 100,000 operations min. Mechanical: 20,000,000 operations min.
Wiring distance (See note 2.)	100 m max.

Note: 1. The 61F may not operate at resistance settings close to zero. Adjust the sensitivity to match actual usage conditions.
2. The figure for wiring distance above is for when 600-V 3-core cabtyre cable with a cross-sectional area of 0.75mm^2 is used.

Characteristics

Ambient operating temperature	-10 to 55°C
Ambient operating humidity	25% to 85%
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength (See note.)	2,000 VAC, 50/60 Hz for 1 minute
Power consumption	2 W max.
Response time	Operating: 1.5 s max. Releasing: 3.0 s max.

Note: The dielectric strength is measured between power terminals and electrode terminals, power terminals and output terminals, and between electrode terminals and output terminals.

Connections

Automatic Drainage Operation

Note: The part within the dotted-line box is for the 61F-GPN-BC (relay-output type) only.

Automatic Water Supply Operation

Short terminals 7 and 8 for automatic water supply operation. (Operation shown in parentheses in the diagram above.)

■ Reading Signals for the Liquid Level Only (No Control)

Only E1 and E3 are used. Output will turn ON when the liquid level reaches E1 if terminals 7 and 8 are open, and will turn OFF if terminals 7 and 8 are closed. Also, to take signals for liquid level at several points, use terminal 4 as a common for all of the Controllers and use terminal 5 of each Controller as an electrode.

Note: If terminals 7 and 8 are shorted, operation of the 61F relay is "de-energizing" (i.e., energized normally and de-energized when liquid is present across the electrodes). Therefore, if the power supply connected across terminals 3 and 9 is interrupted, the output from terminals 10 and 11 will turn OFF, enabling detection of power interruptions.

Dimensions

Application Examples

Drainage control for semiconductor wafer cleaning installations.

Liquid level control for solar power generation systems.

Meet safety standards by using DC power supply for all devices in a panel.

Liquid level control for waste-heat recovery boilers in co-generation systems.

Liquid level control for remote regions without AC power supply.

Cut costs by using the 61F in situations where ultrasonic/electrostatic capacity level controllers were used because only DC power supply was available.

General Precautions

Before using the Controller under conditions not described in the relevant documents or applying the Controller to nuclear control systems, railroad systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment and other systems, machines, and equipment that may have a serious influence on lives and property if used improperly, consult your OMRON representative.

Make sure that the ratings and performance characteristics of the Controller are sufficient for the systems, machines, and equipment and be sure to provide the systems, machines, and equipment with double safety-mechanisms.

Safety Precautions

In order to ensure safe operation, be sure to observe the following points.

• Use a power supply voltage within the specified range.
• Do not use the Controller in locations subject to flammable gases or objects.
• Insert the Socket until it securely clicks into place.
• Do not short the load connected to the output terminals.
• Do not connect the power supply in reverse.

Correct Use

Mounting

Mount to a panel of thickness 1 to 5mm

Do not mount the Controller in the following places.

• Locations subject to strong vibrations or shocks.
• Locations outside the specified temperature and humidity ranges, or locations prone to condensation. (The Controller detects high impedances. Do not use in locations subject to high humidity levels.)
• Locations subject to dust.
• Locations subject to corrosive gases (in particular, sulphurized gas or ammonia gas).
• Outdoors, or in locations subject to direct sunlight.
• Near devices that generate strong, high-frequency noise (e.g., high-frequency welders, machines).

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. F053-E1-02

In the interest of product improvement, specifications are subject to change without notice.
