Type de produit	Réveil radio CD
Marque	EBENCH
Modèle	KH 2251
Alimentation principale	CA 230 V ~ 50 Hz
Alimentation de secours	Pile 9 V type 6F22 (non fournie)
Lecture CD	CD audio, réponse en fréquence 100 Hz – 16 kHz (±3 dB)
Laser CD	λ = 760 nm, puissance max. 0,4 mW
Radio FM	87,5 – 108 MHz
Radio MW	530 – 1600 kHz
Nombre d'alarmes	2 indépendantes (AL1 et AL2)
Modes de réveil	Buzzer, Radio, CD, Programmation CD
Fonction Snooze	Arrêt temporaire de 6 minutes
Fonction Sommeil	Arrêt différé : 90, 60 ou 30 minutes
Fonctions CD	Lecture, pause, stop, saut, recherche, répétition (1/disque), aléatoire, programmation (20 pistes)
Afficheur	Numérique
Antenne FM	Filaire, déployable
Haut-parleurs	Intégrés
Nettoyage	Chiffon doux, pas de solvants
Sécurité laser	Rayonnement laser invisible – ne pas ouvrir. Confier la réparation à un personnel qualifié
Protection	Ne pas exposer à la pluie ou à l'humidité

FOIRE AUX QUESTIONS - KH 2251 CD-RADIO ALARM CLOCK EBENCH

Comment régler l'heure sur le réveil KH 2251 ?

Maintenez enfoncé le bouton TIME tout en appuyant sur HOUR ou MINUTE pour ajuster l'heure. Relâchez TIME pour mémoriser.

Comment programmer une alarme avec le réveil ?

Pour l'alarme 1 : maintenez ALARM 1 enfoncé, réglez l'heure avec HOUR/MINUTE, puis relâchez. Pour l'alarme 2, utilisez ALARM 2. Ensuite, choisissez le mode de réveil sur Alarm Mode (Buzzer, Auto pour radio/CD) et sélectionnez l'alarme active via Alarm Selector.

Pourquoi l'affichage clignote-t-il '12:00' ?

Cela indique une panne de courant ou l'absence de pile de secours. Si la pile 9V (non fournie) est installée, l'heure est conservée mais peut nécessiter un réajustement. Sinon, vous devez régler à nouveau l'heure et les alarmes.

Comment utiliser la fonction sommeil (sleep) ?

Sélectionnez la source (CD/FM/AM) puis appuyez sur SLEEP. L'affiche indique '---'. Appuyez à nouveau pour choisir 90, 60 ou 30 minutes. La minuterie se lance. Pour le CD, lancez la lecture avec PLAY/PAUSE. L'appareil s'éteindra automatiquement.

Le CD ne lit pas, que faire ?

Vérifiez que le disque est chargé correctement (étiquette vers le haut) et qu'il n'est pas rayé ou sale. Nettoyez-le avec un chiffon doux du centre vers le bord. Assurez-vous que le sélecteur de fonction est sur CD et que l'appareil est sous tension.

Comment arrêter une alarme qui sonne ?

Vous pouvez : appuyer sur SNOOZE pour la répéter après 6 minutes, sur POWER pour l'arrêter jusqu'au lendemain, ou placer le sélecteur Alarm Mode sur OFF pour la désactiver définitivement.

Comment écouter la radio ?

Placez le sélecteur de fonction sur FM ou AM. Appuyez sur POWER, puis réglez le volume. Utilisez le bouton Tuning pour choisir votre station. Déployez l'antenne FM pour une meilleure réception.

Puis-je programmer une liste de lecture sur le CD ?

Oui, insérez le CD, appuyez sur PROGRAM, l'affiche montre 'P0 I'. Utilisez SKIP pour sélectionner une piste, puis PROGRAM pour la mémoriser. Répétez jusqu'à 20 pistes. Lancez la lecture avec PLAY/PAUSE.

Comment nettoyer l'appareil ?

Utilisez un chiffon doux ou une peau de chamois légèrement humide. N'utilisez jamais de solvants, d'alcool ou de produits abrasifs.

Que faire si le son est faible ou déformé ?

Vérifiez le réglage du volume. Pour la radio, déployez l'antenne FM ou réorientez l'appareil. Pour le CD, nettoyez le disque. Assurez-vous que les haut-parleurs ne sont pas obstrués.

MODE D'EMPLOI KH 2251 CD-RADIO ALARM CLOCK EBENCH

KH 1201

Technical specifications

Power Supply: AC 230V 50Hz

Battery back-up - 9V type 6F22 / 006P / PP3 (not included)

CD Player: Response curve (± 3dB) 100Hz to 16kHz

Laser: = 760nm P max = 0.4mW

Radio: FM / Frequency Modulation - 87.5 / 108 MHz

MW / Medium Wave - 530 / 1600 kHz

CAUTION!

This set uses a laser beam. To prevent any accident due to this type of beam, the set should only be opened by properly trained personnel. The unit conforms to the international safety specifications and to guide lines of the European community, and also complies with current standards concerning electrical safety and electromagnetic compatibility EMC.

WARNING:

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Ventilation holes not being impeded.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam.

ATTENTION:

To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside the unit. Refer all servicing to qualified personnel.

IMPORTANT! Do not throw batteries in fire!

Do not be expose to dripping or splashing, and that no object filled with liquids, such as vases, shall be placed on the apparatus.

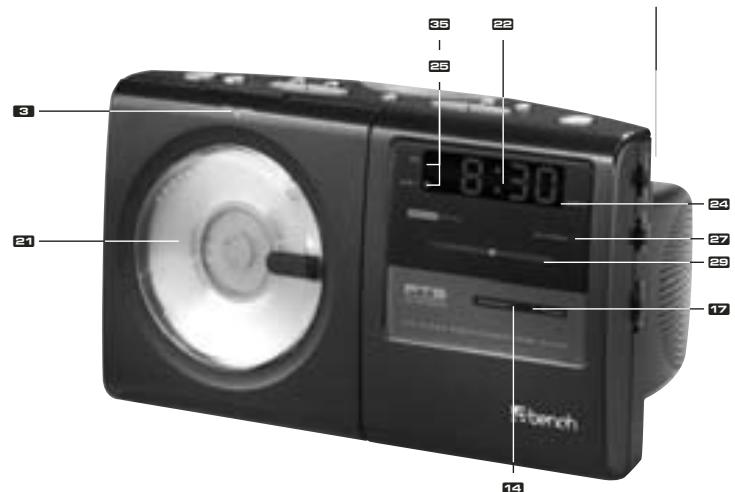

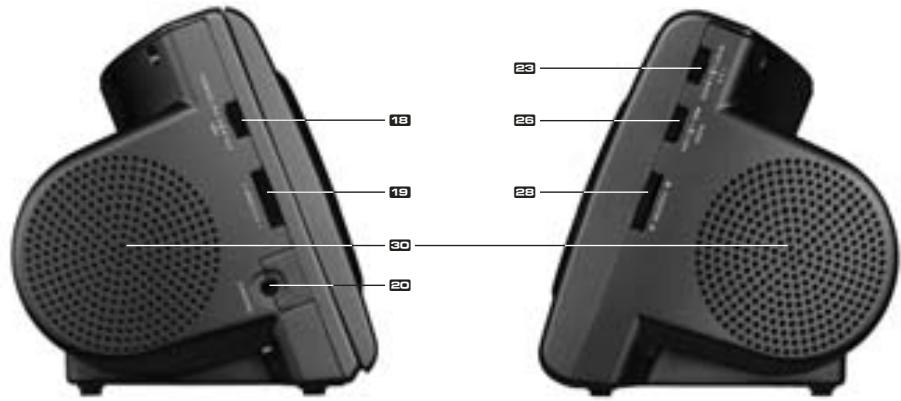

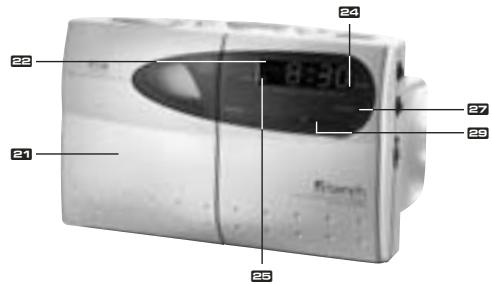

Location of controls

PLAY/PAUSE : To start playing the CD or to stop momentarily the disc playera
STOP:To stop playing the disc
CD door open
- Skip / Fast Search (« backward / forward ») - HOUR / MINUTE:

• CD track skip and fast search within the track
• All clock functions minute and hour setting

PTS (PROGRAM) : to set programmable CD tracks
ALARM 1: set / ALARM-Set (KH 2251)
ALARM 2: set (KH 1201, KH 2252)
POWER
CD Random function LED indicator
RANDOM: To select the desired mode of play
REPEAT: To play the disc continuously
CD repeat function LED indicator
SNOOZE:Interval alarm repetition
CD Program LED indicator
TIME: set
SLEEP
Power Led Indicator
Function selector : CD - AM - FM
Volume control
Phones jack (KH 1201, KH 2252)
CD compartment

Digital Display
Alarm Selector : AL 1 - AL 1+2 - AL 2
ALARM2LEDIndicator
ALARM 1 LED Indicator
Alarm Mode : Off - Buzzer - Auto
FM Stereo LED indicator
Tuning knob : To select your radio station
Dial scale and pointer
Speakers
AC power cord
Battery compartment
FM wire antenna
PM Indicator

Power Supply

This CD clock radio operates on AC230V~50Hz. It is also equipped with a clock battery back-up system, powered by an optional 9V battery type 6F22 (not provided).

1. Insert the AC power cord into a convenient standard AC wall outlet.
2. Connect the 9V battery inside the compartment at the bottom of the unit.

Note: An alkaline type battery is recommended. For optimum performance, this battery should be replaced every 6 months.

Battery Backup System

Ensures that the unit will continue to operate as normal during AC power disruption (in order to preserve the battery life the display will not light). All clock settings will be kept in the memory, however, the clock time may require adjustment for exact accuracy. If this battery is not installed, the display will blink 12:00 to indicate that you have to redo the time and alarm settings.

Setting the time

1. Press and hold TIME 4 and MINUTE or HOUR 4 to adjust to your desired time.
2. Release TIME to store your setting in memory.

Listening to the radio

1. Switch to FM or AM position with the function selector 13.
2. For a better reception in FM, extend the antenna . In AM, rotate the unit.
3. Press POWER
4. Adjust the volume to the desired level.
5. Select your desired radio station and - (If the FM station is being received in stereo, the FM STEREO LED indicator will alight).
6. To stop listening to the radio press Power 3.

Listening to the CD player

1. Open the CD door, load your disc (label up) into CD compartment.
2. Switch to the CD position

3. Press POWER, the Display will show total track numbers. It will return to the clock time after few seconds.

4. Press 9 to start listening from the first track. The Display 2 will show "1 ", then it will return to the clock time.

Note: Use also this knob to suspend momentarily the playing track. Press once again to continue playing.

1. Rotate the volume to adjust the desired level.
2. Press to stop listening the disc.

Other CD player functions

8

SKIP/FASTSEARCH

Press to skip forward to the next track or repeatedly to skiptracks. Press return to the beginning of the track, or press repeatedly to skip backwards several tracks. Press and hold or to search quickly within a track.

REPEAT

9

1. Press once to repeat your selected track. REPEAT indicator blinks.
2. Press twice to play the disc continuously. REPEAT indicator alight.
3. Press again to switch off this function, REPEAT indicator goes off.

PROGRAM E: To set your own musical program

10

1. Insert the disc (a, b). The total number of tracks is displayed a.
2. Press , the display show P0 I . PROGRAM indicator 出 blinks
3. Select with or your desired track, then press to store your program in memory. Redo this operation as many times as necessary. 20 tracks can be memorised.

4. Press to start playing.

5. Press STOP to stop the disc.

6. To cancel this function, open the CD compartment

RANDOM

11

1. Press RANDOM to select RANDOM play mode and it will play randomly all the tracks of the CD. RANDOM indicator alight.
2. Press again to switch off this function until the RANDOM indicator goes off.

Setting the alarm and wake up mode

12

This unit allows you to set two different wake up times which you can choose to use independently or simultaneously AL 1 or AL 2, or AL 1 and 2.

Setting the alarm

13

1. 1st Alarm (AL 1): Press and hold the ALARM 1 to adjust your desired alarm time, then release ALARM 1 to store your setting in memory.
2. 2nd Alarm (AL 2): Press and hold the ALARM 2 and redo the same operation as above.

Select your wake-up mode in AUTO (for RADIO or CD), BUZZER (for alarm sound) or OFF to switch off the alarm.

Select you wake-up time with alarm selector.

Wake up to the BUZZER sound

14

Switch to the BUZZER position, the alarm LED indicator (and/or) will alight.

Wake up to the radio

15

1. Follow procedures 1 to 6, in "LISTENING TO THE RADIO", to select your desired radio station.
2. Switch to the AUTO position, the alarm indicator (and/or 3) will alight.

Wake up to the CD

16

1. Follow procedures 1 to 6, in "LISTENING TO THE CD PLAYER".
2. Switch to the AUTO position, the alarm LED indicator (and/or) will alight.
3. Press POWER and POWER indicator goes off

Note: If the CD play time is longer than 60 minutes, the music will stop after playing 60 minutes.

Wake up to the programmable tracks

17

1. Switch to the CD position and press POWER. POWER indicator alight.
2. Follow procedures 1 to 5 in "LISTENING TO THE CD PLAYER - PROGRAM".
3. Switch to the AUTO position, the alarm LED indicator (and/or) will alight.
4. Press POWER and POWER and PROGRAM indicators (u, u) goes off.

Note: The music will stop after the programmed tracks, e.g. if one track is programmed, the alarm will stop at the end of this track. The programmed memory will be erased once the CD door be opened.

Stopping the alarm

The alarm is programmed to run for 60 minutes.

1. SNOOZE: Press to stop the alarm temporarily, the alarm will stop and ring again automatically, after 6 min.
2. POWER : The alarm will stop, and will sound again 24 hours later.
3. OFF: To turn off the alarm permanently the alarm LED indicators (四, 四) will go off.

Sleep to the music

1. Select CD/FM/AM for the sleep mode, then
2. Press SLEEP, the display shows "---", press again to select the desired sleep time.(three Sleep time 90-60-30 minutes). It will start countdown after few seconds.
3. If in CD mode, it needs to press PLAY-PAUSE for CD playing
4. Press POWER to stop

Note: If the CD play time is shorter than your selected sleep time, the music will stop at the end of the disc.

More information

Do not use your set immediately after transport from a cold place to a warm place, there may be condensation problems.
Make sure that you keep your set away from water and high temperatures.
Clean the player with a soft cloth, or a damp chamois leather. Never use solvents.

Notes on Compact Disces

If there is a scratch, dirt or fingerprints on the CD, it may cause tracking error.

Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out.

Don't store discs in places with high temperatures or high humidity - they can become warped. After playing, store the CD in its case.
