ZOOM SYSTEMS - Systèmes de zoom LEICA - Notice d'utilisation et mode d'emploi gratuit

Type d'appareil	Microscope à zoom
Rapport de zoom	16:1, 6:1
Marque	Non précisé
Modèle	Non précisé
Grossissement	Variable selon zoom
Type d'optique	Zoom optique
Utilisation	Observation microscopique
Compatibilité	Non précisé
Alimentation	Non précisé
Dimensions	Non précisé
Poids	Non précisé
Accessoires inclus	Non précisé
Type de montage	Non précisé
Matériau	Non précisé
Garantie	Non précisé

FOIRE AUX QUESTIONS - ZOOM SYSTEMS LEICA

Comment puis-je nettoyer les lentilles de mon système de zoom Leica ?

Utilisez un chiffon en microfibre doux et un nettoyant pour lentilles. Évitez d'utiliser des produits chimiques agressifs.

Mon système de zoom Leica fait des bruits étranges lors du zoom. Que dois-je faire ?

Vérifiez si l'objectif est bien monté. Si le bruit persiste, contactez le service après-vente pour une inspection.

Comment puis-je étalonner mon système de zoom Leica ?

Référez-vous au manuel d'utilisation pour suivre les étapes d'étalonnage spécifiques à votre modèle.

Que faire si mon système de zoom ne fonctionne pas correctement ?

Vérifiez les connexions et assurez-vous que la batterie est chargée. Si le problème persiste, contactez le support technique.

Le système de zoom est-il étanche ?

Certains modèles de systèmes de zoom Leica sont résistants à l'eau. Vérifiez les spécifications de votre modèle pour plus de détails.

Comment puis-je améliorer la qualité de l'image lors de l'utilisation de mon zoom Leica ?

Assurez-vous d'utiliser un trépied pour stabiliser l'appareil et vérifiez les réglages d'exposition et de mise au point.

Y a-t-il des mises à jour logicielles disponibles pour le système de zoom ?

Oui, vérifiez le site officiel de Leica pour les mises à jour logicielles et suivez les instructions pour l'installation.

Comment stocker correctement mon système de zoom Leica ?

Conservez-le dans un endroit frais et sec, à l'abri de la lumière directe et dans une housse de protection.

Mon zoom Leica a-t-il besoin d'entretien régulier ?

Oui, il est recommandé d'effectuer un entretien régulier pour assurer la performance optimale de votre appareil.

Où puis-je trouver des pièces de rechange pour mon système de zoom Leica ?

Les pièces de rechange sont disponibles auprès des distributeurs autorisés Leica ou directement sur le site officiel.

MODE D'EMPLOI ZOOM SYSTEMS LEICA

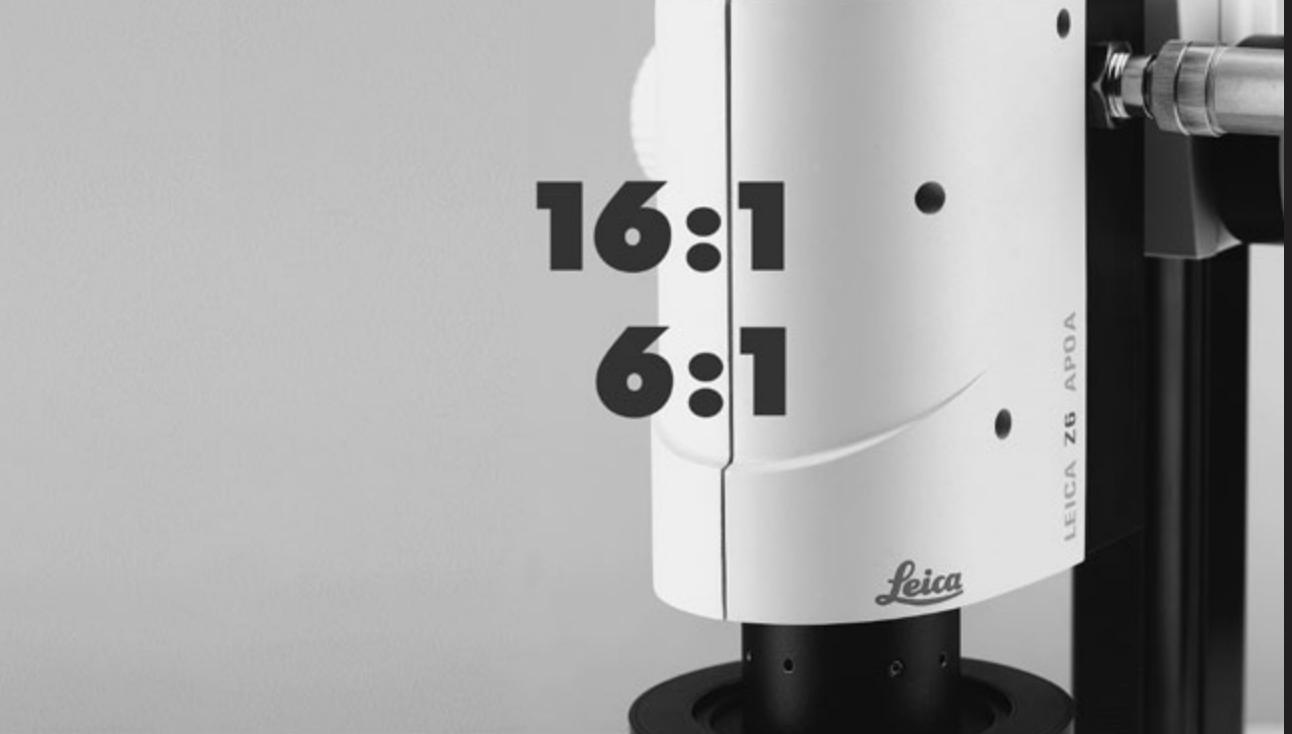

16:1 6:1 Leica LEICA Z6 APOA

Leica Zoom Systems

Technical Information

Living up to Life

Leica Z6 APO & Z16 APO, Z6 APO A & Z16 APO A

Technical Data, Performance Characteristics

Close-up of a black precision optical lens with no visible text or symbols on the body (pure branding)

Close-up of a black cylindrical optical lens with measurement scale (no visible text or symbols)

Exterior view of a white cylindrical device with black top and side ports (no visible text or symbols)

Exterior view of a white cylindrical device with black top and side ports (no visible text or symbols)

Zoom system	Leica Z6 APO	Leica Z16 APO	Leica Z6 APO A	Leica Z16 APO A
Type	Apochromatic zoom system with central beam path, lead-free	Apochromatic zoom system with central beam path, lead-free	Apochromatic zoom system with central beam path, lead-free, motorized functions	Apochromatic zoom system with central beam path, lead-free, motorized functions
Zoom	6.3:1	16:1	6.3:1, motorized	16:1, motorized
Zoom factor	0.57×-3.6×	0.57×-9.2×	0.57×-3.6×	0.57×-9.2×
Built-in iris diaphragm	for adjusting the depth of field	for adjusting the depth of field	for adjusting the depth of field, motorized	for adjusting the depth of field, motorized
Switchable approachable positions for repetitive tasks	0.57/0.8/1/1.25/1.6/2/2.5/3.2/3.6	0.57/0.8/1/1.25/1.6/2/2.5/3.2/4/5/6.3/8/9.2	continuously motorized and approachable positions	continuously motorized and approachable positions
Zoom travel speed	-	-	1.6 s for zoom range	2.5 s for zoom range

Visual data with 1× planapochromatic objective / 10× eyepieces / 1.25× Y tube

Magnification	7.1×-45×	7.1-115×	7.1×-45×	7.1×-115×
Resolution	60-351 Lp/mm	51-336 Lp/mm	60-351 Lp/mm	51-336 Lp/mm
Visible structural width	8.3-1.4 μm	9.8-1.49 μm	8.3-1.4 μm	9.8-1.49 μm
Numerical aperture	0.02-0.117nA	0.017-0.112nA	0.02-0.117nA	0.017-0.112nA
Object field ∅	32.3 mm-5.1 mm	32.3 mm-2.0 mm	29.5 mm-4.7 mm	29.5 mm-1.83 mm
Depth of field (diaphragm open)	3.1 mm-0.09 mm	3.8 mm-0.05 mm	3.1 mm-0.09 mm	3.8 mm-0.05 mm
Depth of field (diaphragm closed)	18.1 mm-0.4 mm	18.4 mm-0.4 mm	18.1 mm-0.4 mm	18.4 mm-0.4 mm

Visual data with 2× planapochromatic objective / 40× eyepieces / 1.25× Y tube

Magnification	57×-360×	57×-920×	57×-360×	57×-920×
Resolution	120-702 Lp/mm	102-672 Lp/mm	120-702Lp/mm	102-672Lp/mm
Visible structural width	4.2-0.7 μm	4.9-0.74 μm	4.2-0.7 μm	4.9-0.74 μm
Numerical aperture	0.04-0.234nA	0.034-0.224nA	0.04-0.234nA	0.034-0.224nA
Object field ∅	4.2 mm-0.67 mm	4.2 mm-0.26 mm	4.2 mm-0.67 mm	4.2 mm-0.26 mm

Data with Leica DFC490 digital camera / 1× planapochromatic objective / AS tube / 0.63× video objective

Magnification Chip: Object	0.36× - 2.3×	0.36× - 5.8×	0.36× - 2.3×	0.36× - 5.8×
Digital resolution*	33.3 - 210 Lp/mm	33.3 - 336 Lp/mm	33.3 - 210 Lp/mm	33.3 - 336Lp/mm
Object field projected onto chip	24.5 mm × 18.4 mm / 3.9 mm × 2.9 mm	24.5 mm × 18.4 mm / 1.5 mm × 1.14 mm	24.5 mm × 18.4 mm / 3.9 mm × 2.9 mm	24.5 mm × 18.4 mm / 1.5 mm × 1.14 mm
Depth of field (diaphragm open)	1.06 mm - 0.03 mm	1.4 mm - 0.03 mm	1.06 mm - 0.03 mm	1.4 mm - 0.03 mm
Depth of field (diaphragm closed)	10.7 mm - 0.26 mm	10.9 mm - 0.3 mm	10.7 mm - 0.26 mm	10.9 mm - 0.3 mm

Close-up of a black precision camera lens with visible aperture and focal point (no text or symbols)

Close-up of a black cylindrical optical lens with visible focal points and adjustment knobs (no text or symbols)

Exterior view of a white cylindrical device with black top and side ports, no visible text or symbols on the body.

Exterior view of a white cylindrical device with black casing and mounting bracket (no visible text or symbols)

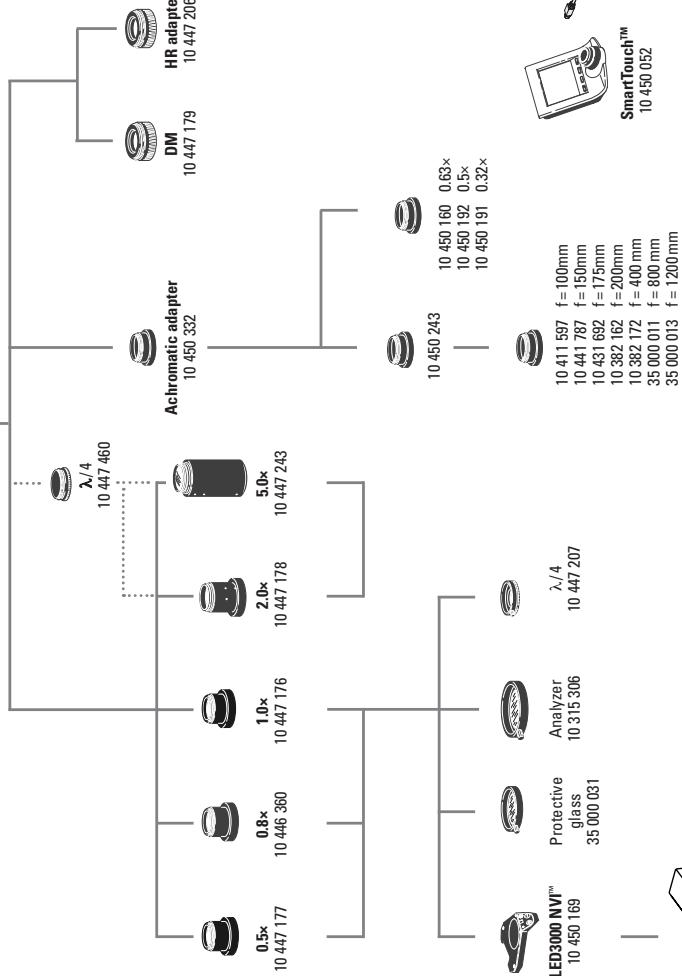

Optical accessories	Leica Z6 APO & Z6 APO	Leica Z6 APO A & Z16 APO A

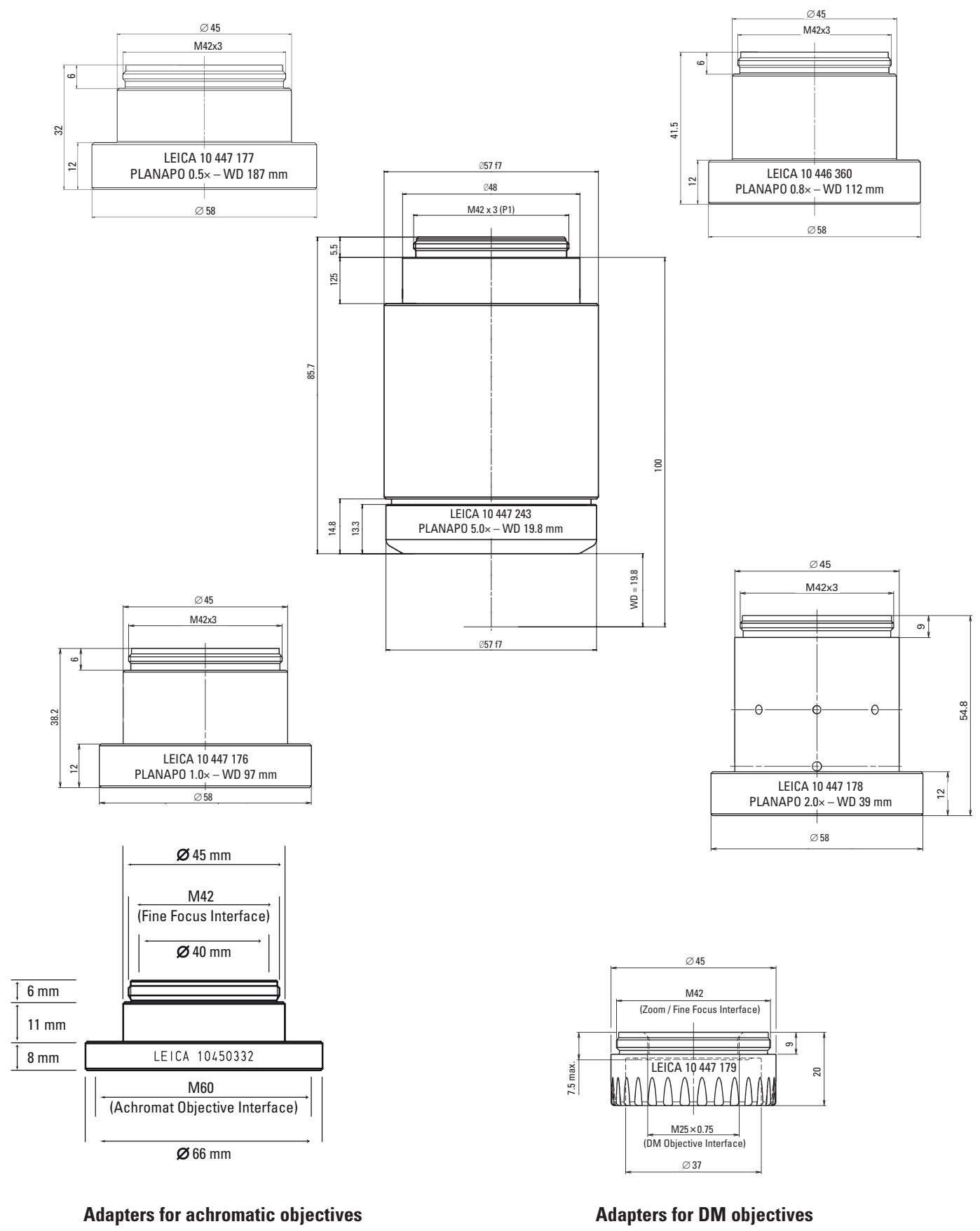

Objectives	- planapochromatic 1×, 2×, 0.8×, 0.5×, 5×- achromatic objectives M series 0.63×, 0.5×, 0.32×, lead-free	- planapochromatic 1×, 2×, 0.8×, 0.5×, 5×- achromatic objectives M series 0.63×, 0.5×, 0.32×, lead-free
Working distance	- 187 mm (planapochromat 0.5×)- 97 mm (planapochromat 1×)- 112 mm (planapochromat 0.8×)- 39 mm (planapochromat 2×)- 19 mm (planapochromat 5.0×)	- 187 mm (planapochromat 0.5×)- 97 mm (planapochromat 1×)- 112 mm (planapochromat 0.8×)- 39 mm (planapochromat 2×)- 19 mm (planapochromat 5.0×)
Objective adapter	- for M series achromats- for HR objectives 10× and 20×- for DM objectives 10× and 20×	- for M series achromats- for HR objectives 10× and 20×- for DM objectives 10× and 20×
HR objectives*	- HR 10×/0.45, working distance 19mm- HR 20×/0.42, working distance 13mm	- HR 10×/0.45, working distance 19mm- HR 20×/0.42, working distance 13mm
DM objectives*	- DM objective N Plan L 20× /0.40 corr- DM objective N Plan 10× /0.25-/A5.8	- DM objective N Plan L 20× /0.40 corr- DM objective N Plan 10× /0.25-/A5.8
Fine focusing	10-mm path, optional	10-mm path, motorized and integrated
Binocular tubes, ergonomics	- inclined and straight binocular tubes- apochromatic ErgoTube® 10^ - 50^ with synchronous interpupillary distance adjustment- various ErgoModules® (optional)	- inclined and straight binocular tubes- apochromatic ErgoTube® 10^ - 50^ with synchronous interpupillary distance adjustment- various ErgoModules® (optional)
	ErgoTube® and ErgoModule® are registered in the United States Patent and Trademark Office	ErgoTube® and ErgoModule® are registered in the United States Patent and Trademark Office
Interpupillary distance	55 mm – 75 mm	55 mm – 75 mm
Ergonomic wide-field eyepieces for persons wearing glasses	10×/21, 16×/14, 25×/9.5, 40×/6, distortion-free plug-on eyecups to protect against infections	10×/21, 16×/14, 25×/9.5, 40×/6, distortion-free plug-on eyecups to protect against infections
Electrical Interface		RS232, USB via motorized focus

* suitable for upper zoom range only

Optical Data – Visual Data with Y Tube 1.25×

Objectives		1× planapochromat		0.5× planapochromat		0.8× planapochromat		2× planapochromat		5× planapochromat
Working distances		97 mm		187 mm		112 mm		39 mm		20 mm
Eyepieces	Zoom position	Total mag. ×	Object field ∅ mm	Total mag. ×	Object field ∅ mm	Total mag. ×	Object field ∅ mm	Total mag. ×	Object field ∅ mm	Total mag. ×	Object field ∅ mm
10×/23B	0.57	7.1	32.3	3.6	64.6	5.7	40.4	14.3	16.1	35.6	6.5
	0.8	10	23.0	5	46.0	8	28.8	20	11.5	50	4.6
	1	12.5	18.4	6.3	36.8	10	23.0	25	9.2	62.5	3.7
	1.25	15.6	14.7	7.8	29.4	12.5	18.4	31.3	7.4	78.1	2.9
	1.6	20	11.5	10	23.0	16	14.4	40	5.8	100	2.3
	2	25	9.2	12.5	18.4	20	11.5	50	4.6	125	1.8
	2.5	31.3	7.4	15.6	14.7	25	9.2	62.5	3.7	156.3	1.5
	3.2	40	5.8	20	11.5	32	7.2	80	2.9	200	1.2
	3.6	45	5.1	22.5	10.2	36	6.4	90	2.6	225	1.0
	4	50	4.6	25	9.2	40	5.8	100	2.3	250	0.9
	5	62.5	3.7	31.3	7.4	50	4.6	125	1.8	312.5	0.7
	6.3	78.8	2.9	39.4	5.8	63	3.7	157.5	1.5	393.8	0.6
	8	100	2.3	50	4.6	80	2.9	200	1.2	500	0.5
	9.2	115	2.0	57.5	4.0	92	2.5	230	1.0	575	0.4
16×/15B	0.57	11.4	21.1	5.7	42.1	9.1	26.3	22.8	10.5	57	4.2
	0.8	16	15.0	8	30.0	12.8	18.8	32	7.5	80	3.0
	1	20	12.0	10	24.0	16	15.0	40	6.0	100	2.4
	1.25	25	9.6	12.5	19.2	20	12.0	50	4.8	125	1.9
	1.6	32	7.5	16	15.0	25.6	9.4	64	3.8	160	1.5
	2	40	6.0	20	12.0	32	7.5	80	3.0	200	1.2
	2.5	50	4.8	25	9.6	40	6.0	100	2.4	250	1.0
	3.2	64	3.8	32	7.5	51.2	4.7	128	1.9	320	0.8
	3.6	72	3.3	36	6.7	57.6	4.2	144	1.7	360	0.7
	4	80	3.0	40	6.0	64	3.8	160	1.5	400	0.6
	5	100	2.4	50	4.8	80	3.0	200	1.2	500	0.5
	6.3	126	1.9	63	3.8	100.8	2.4	252	1.0	630	0.4
	8	160	1.5	80	3.0	128	1.9	320	0.8	800	0.3
	9.2	184	1.3	92	2.6	147.2	1.6	368	0.7	920	0.3
25×/9.5B	0.57	17.8	13.3	8.91	26.7	14.3	16.7	35.6	6.7	89	2.7
	0.8	25	9.5	12.5	19.0	20	11.9	50	4.8	125	1.9
	1	31.3	7.6	15.6	15.2	25	9.5	62.5	3.8	156	1.5
	1.25	39.1	6.1	19.5	12.2	31.3	7.6	78.1	3.0	195	1.2
	1.6	50	4.8	25	9.5	40	5.9	100	2.4	250	1.0
	2	62.5	3.8	31.3	7.6	50	4.8	125	1.9	313	0.8
	2.5	78.1	3.0	39.1	6.1	62.5	3.8	156	1.5	391	0.6
	3.2	100	2.4	50	4.8	80	3.0	200	1.2	500	0.5
	3.6	113	2.1	56.3	4.2	90	2.6	225	1.1	562	0.4
	4	125	1.9	62.5	3.8	100	2.4	250	1.0	625	0.4
	5	156	1.5	78.1	3.4	125	1.9	313	0.8	781	0.3
	6.3	197	1.2	98.4	2.4	158	1.5	394	0.6	984	0.2
	8	250	1.0	125	1.9	200	1.2	500	0.5	1250	0.2
	9.2	288	0.8	144	1.6	230	1.0	575	0.4	1438	0.2
40×/6B	0.57	28.5	8.4	14.3	16.8	22.8	10.5	57	4.2	143	1.7
	0.8	40	6.0	20	12.0	32	7.5	80	3.0	200	1.2
	1	50	4.8	25	9.6	40	6.0	100	2.4	250	1.0
	1.25	62.5	3.8	31.3	7.7	50	4.8	125	1.9	313	0.8
	1.6	80	3.0	40	6.0	64	3.8	160	1.5	400	0.6
	2	100	2.4	50	4.8	80	3.0	200	1.2	500	0.5
	2.5	125	1.9	62.5	3.8	100	2.4	250	1.0	625	0.4
	3.2	160	1.5	80	3.0	128	1.9	320	0.8	800	0.3
	3.6	180	1.3	90	2.7	144	1.7	360	0.7	900	0.3
	4	200	1.2	100	2.4	160	1.5	400	0.6	1000	0.2
	5	250	1.0	125	1.9	200	1.2	500	0.5	1250	0.2
	6.3	315	0.8	158	1.5	252	1.0	630	0.4	1575	0.2
	8	400	0.6	200	1.2	320	0.8	800	0.3	2000	0.1
	9.2	460	0.5	230	1.0	368	0.7	920	0.3	2300	0.1

Z6 APO / Z6 APO A: Zoom 0.57× - 3.6×

Z16 APO / Z16 APO A: Zoom 0.57× - 9.2×

Major User Segments

General
Documentation	- Parallax-free precise imaging- Ideal for multi-focus applications
Polarization	- Axial imaging for true polarization colors
Measuring, analysis	- Parallax-free precise imaging
Technology, industry
OEM	Checking the production flow, detection of position and orientation
Semiconductor industry	- Testing, checking, sorting semiconductor components- Inspecting gallium arsenide wafers (GaAs)
Microelectronics	Inspecting flex circuits and inkjet print heads
Fiber optic cable technology	- Aligning fiber optic cables- Inspecting laser diodes
Measuring and test facilities	Materials testing and measuring, placement of test probes
Metalworking industry	Quality control, testing metallographic specimens, documentation
Plastics industry	- Structural examinations of thin sections- Polarization-optical testing
Gemology	Inspection and classification of diamonds and gemstones
Implants	Control of coated stents (vascular supports) and catheters
Criminology	Sorting and documentation of trace materials such as fibers, human and animal hair, ammunition and documents (counterfeit). Documentation of impressions.
Natural science, life science
Biology	Examination and documentation of illnesses, pests and ecological damages to plants
Geology	Testing petrological thin sections in polarized light
Medicine	Examination and documentation of histological thin sections
Education, training	Observing and demonstrating processes
Entomology	Documentation of beetles and insects
Pathology	Documenting organs

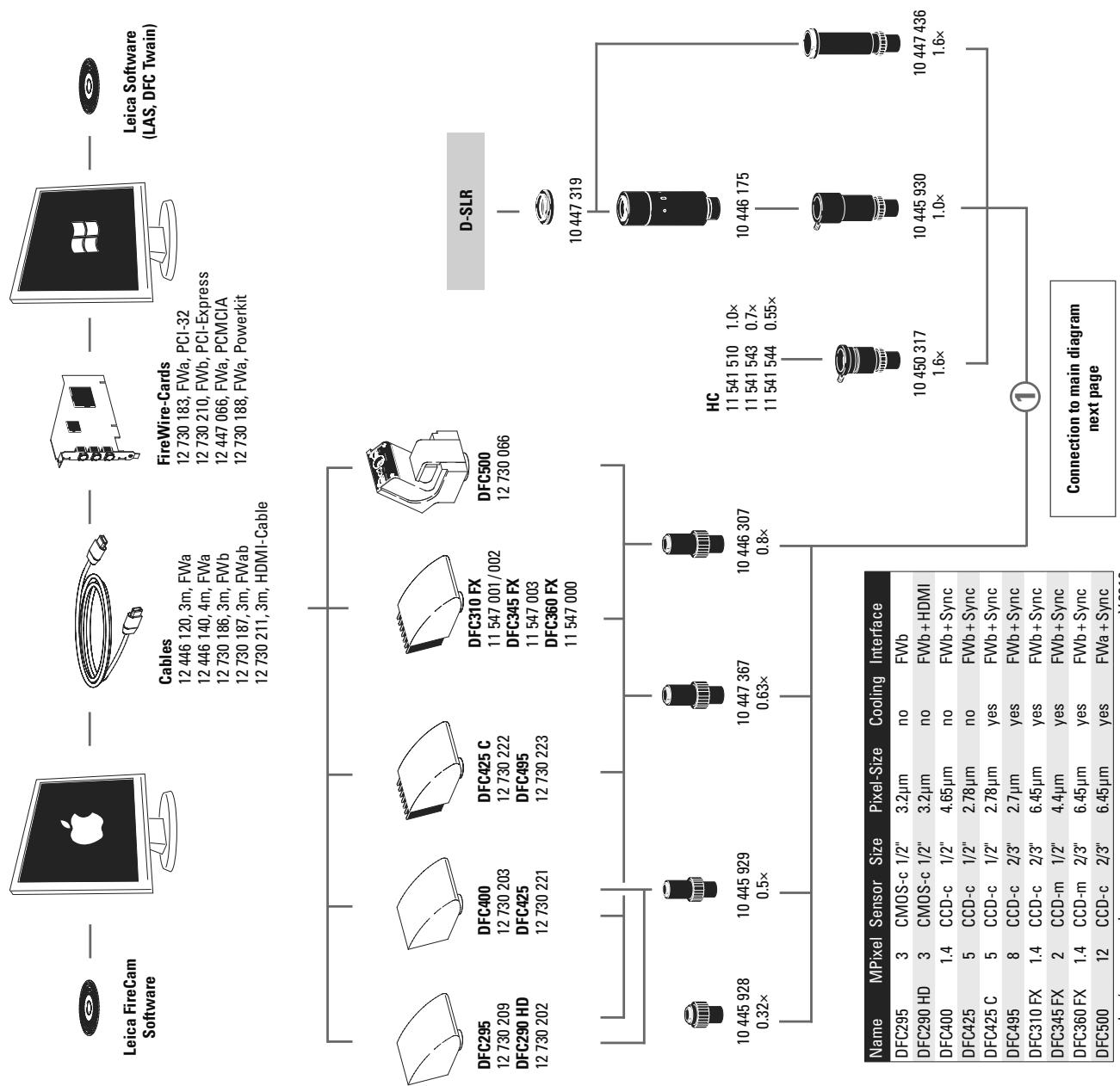

Digital camera systems
12 730 209 Leica DFC295 camera kit
12 730 202 Leica DFC290 HD camera kit*
12 730 203 Leica DEC400 camera kit*
12 730 221 Leica DEC425 camera kit*
12 700 221 Leisha DFG125 camera kit 12 720 221 Leisha DEC425 C camera kit
12 750 221 Leica DTC425 C camera Kit
12 730 223 Leica DFC495 camera kit*
11 547 001 Leica DFC310 FX camera kit for Mac
11 547 002 Leica DFC310 FX camera kit for PC
11 547 003 Leica DEC345 EX camera kit*
11 547 000 Leica DFC36 FX camera 11 547 000 Leica DEC260 FX camera
11 347 000 Leica DRC500 FX camera 12 788 000 Laiyu DF6500
12 730 066 Leica DFC500 camera kit
12 730 216 Leica IC80 HD camera (incl. USB cable
and LAS EZ software)
12 730 228 Stand-alone kit (power pack, video cable, HDMI-cable.
SD card, HD BC remote control)
12 730 220. Palm or foot switch with 2m cable
12 730 229 Palm of foot switch
*no Mac-Support
Digital camera system accessories
12 446 120 FireWire cable, FWa, 3m, 6-pin to 6-pin
12 446 140 FireWire cable EWa 4m 6-pin to
12 730 186 FireWire cable, 3m, FW/h, 9 pin t
12 750 166 Firewire cable, 3m, 1Wb, 9-pm t
12 730 187 FireWire cable, FVWab, 3m, 6-pin to 9-pin
12 730 211 HDMI cable, 3m, HDMI both ends
12 730 183 OHCI FireWire PCI32 card. FWa
12 730 225 PowerKit for DEC290 HD
12 730 210 OHCL FireWire PCI express card, EWh
12 750 210 Offer Firewire For Express card, FWb 12 447 200. Inverter: DCMCHA Fire Wireless Software Inc. FWb
12 447 066 Laptop PCMCIA Firewire interface card for FWa
12 730 188 Laptop power kit, for use with 4-pin or unpowered
6-pin FireWire ports
•
Photo tubes and C-mounts
10 447 319 Adapter T2, Canon EOS
10 447 436 DSLR-tube with T2 thread
SLB projection lens 2.5 for reflex cameras with T2 thread
GEN projection lens 2.6, for reflex cameras with single lens reflex cameras on video/photo tubes
singleiens reflex cameras on video/photo tubes
10 445 928 0.32× video objective with C-mount for 1/3" digital cameras
10 445 929 0.5× video objective with C-mount for 1/2" digital cameras
10 447 367 0.63× video objective with C-mount for 2 / 3" digital cameras
10 446 307 0.8× video objective with C-mount for 2 /3" digital cameras
10 445 930 - 1.0× video/photo objective
10 445 356 - 1.6× video/photo objective 10 450 317 - C mount adapter for UC
10 450 317 C-mount-adapter for HC
2. 100% of the total
on to main next page
-c: color / -m: monochrome

ARTICLE DESCRIPTIONS

Evenieces and graticules

Wide-field eyepieces for persons wearing glasses 10×/23,

distortion-free, dioptric correction, with eyecups* – can lead to

vignetting when used with other accessories, such as

ergonomic or documentation tubes.

Remedy: Use ErgoTube 45° or 16× eyepieces

Wide-field eyepieces for persons wearing glasses 16×/15,

distortion-free, dioptric correction, with eyecups*

Wide-field eyepieces for eyeglass wearers 25×/9.5,

distortion-free, diantric correction, with eyecuns*

Wide-field evenpieces for eyeglass wearers 40×/6

Wade held eyepieces for eyeglasses wearers 10x76, distortion-free, dioptric correction, with evecups*

* replaceable

Replacement eyecups for wide-field eyepieces for persons

wearing glasses (not shown)

10 450 054 Graticule for encoded M series

10 450 116 Graticule, 5 mm/0.05 mm

10 450 117 Graticule, 10 mm/0.1 mm

10 450 118 Graticule, 100 Div./0.001

10 450 119 Graticule, crosshair

Tubes, ergonomics and integrated camera modules

10 450 252 Inclined binocular tube, 45^ viewing angle

10 450 156 Binocular ErgoTube® with 45° viewing angle and long tubes.

extension factor 1.6×

10 450 157 Straight binocular tube with 90^ viewing angle

10 450 158 Binocular ErgoTube® with variable viewing angle 10°–50°

10 450 042 Trinocular video-/ phototube 50%, 30° viewing angle

10 450 043 Trinocular video-/phototube 100%, 30° viewing angle

10 450 044 Trinocular video-/phototube 100%, 5°–45° viewing angle

10 446 123 ErgoWedge® 5° – 25° (not to be used with trinocular tubes

10 346 910 ErgoWedge® +15 (not to be used with trinocular tubes)

10 450 301 Video-/phototube HD F. 50%, 50%

10 450 302 Video-/phototube HD V, 100%, 50%, 50%, 100%

12 730 216 Leica IC80 HD camera kit

12 730 054 Leica IC D camera kit

10 447 158 Filter slide housing with 2 filter slides

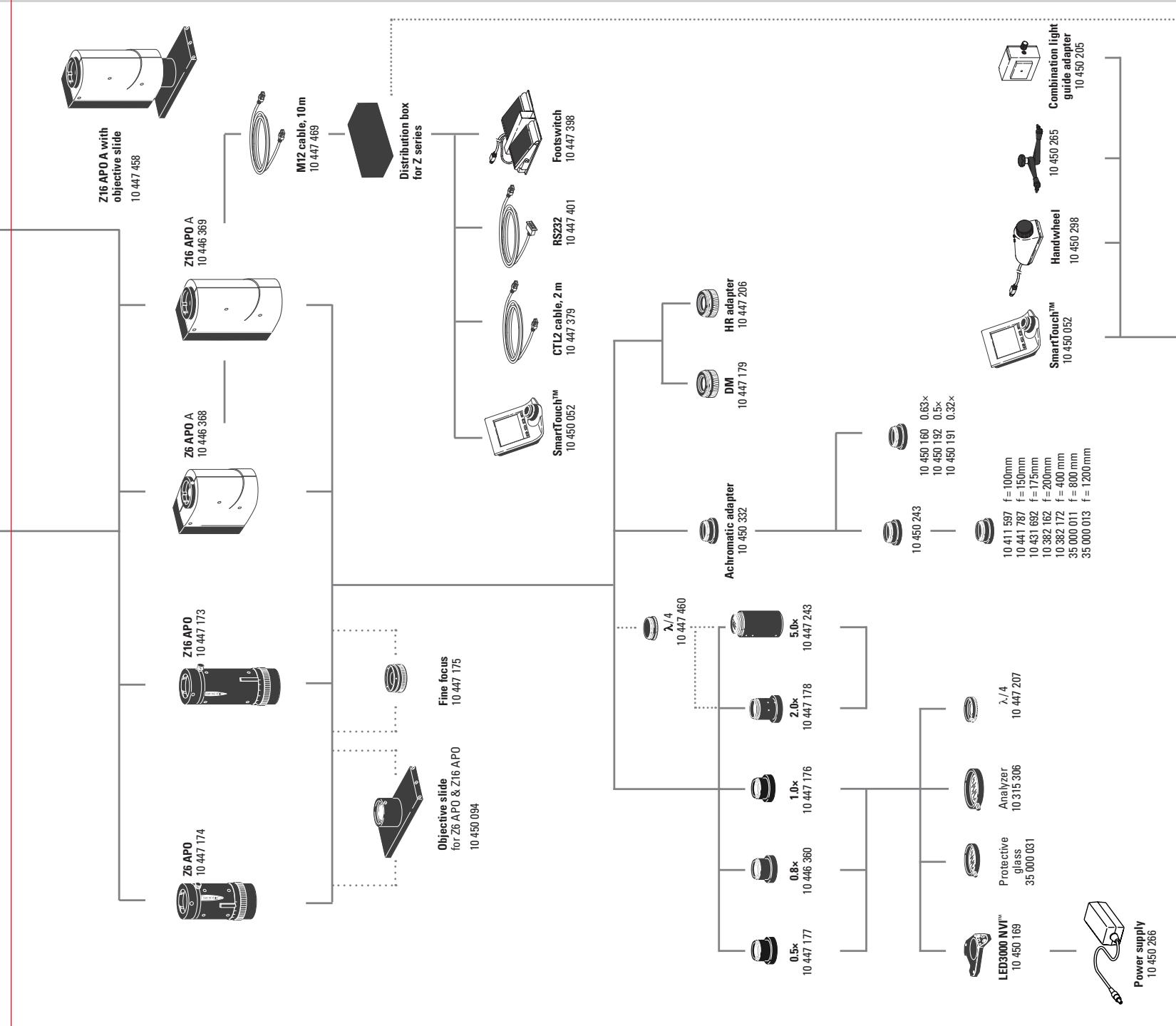

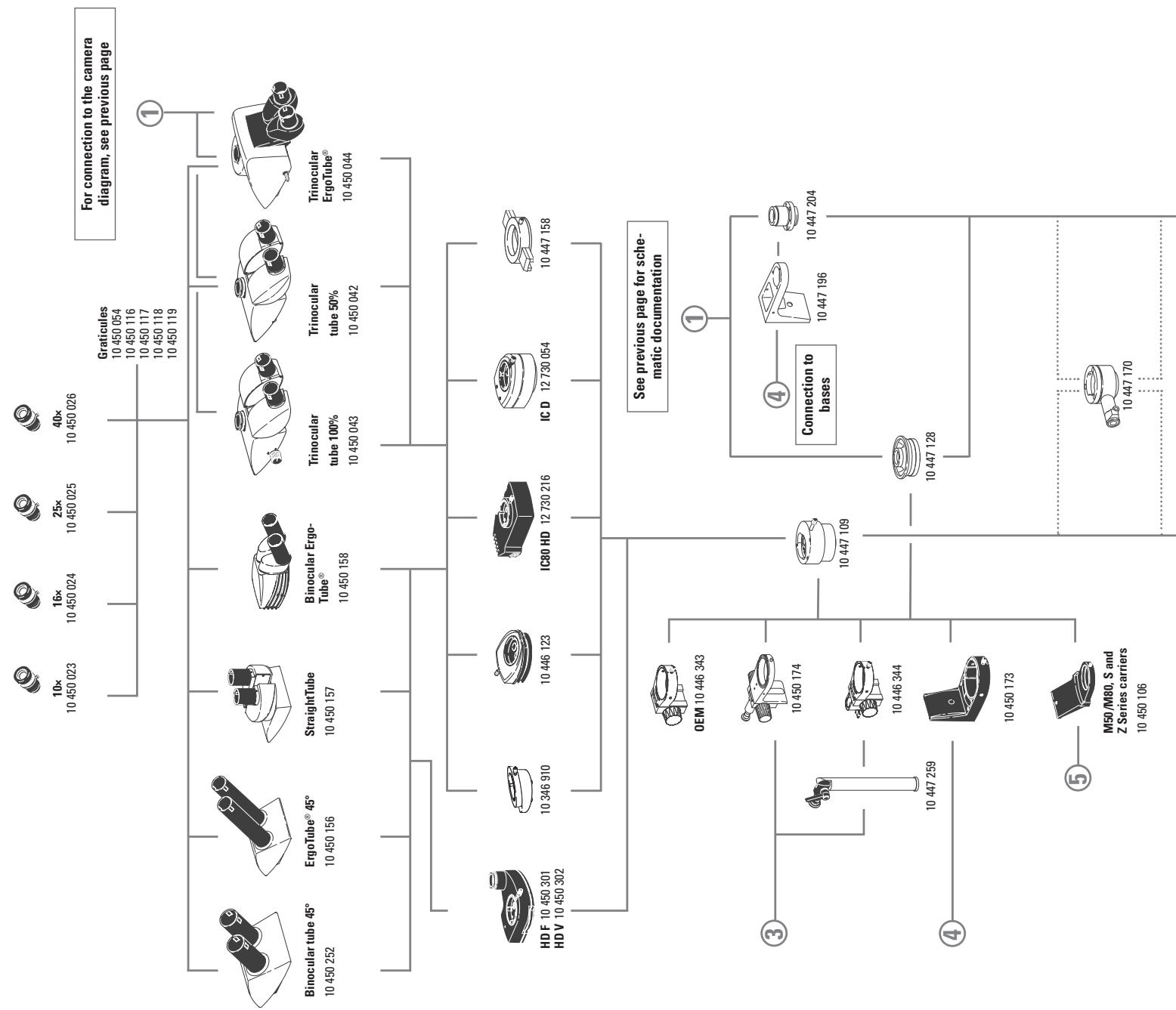

Microscope carriers and accessories

10 446 343 Focusing arm for probers 10 450 174 Tiltable focusing arm

10 446 344 Focusing arm for columns ∅ 25mm to bonders

10 447 259 Photo column, inclinable, ∅ 25 mm

10 450 173 Microscope carrier for focusing drive 10 450 217

10 450 106 Microscope carrier, compatible with M50/M80, S and Z series

10 447 109 Y tube for tubes of the Leica M series, tube factor 1.25×,

night dis

10 447 128 A tube

10 447 196 Carrier to AS tube at focusing drive

10 447 204 AS tube

10 447 170 Coaxial incident light housing for fiber-optic light

Graticules

10 450 054 10 450 116

10 450 117

10 450 118

10 450 119

Pure electrical circuit lines without any symbols

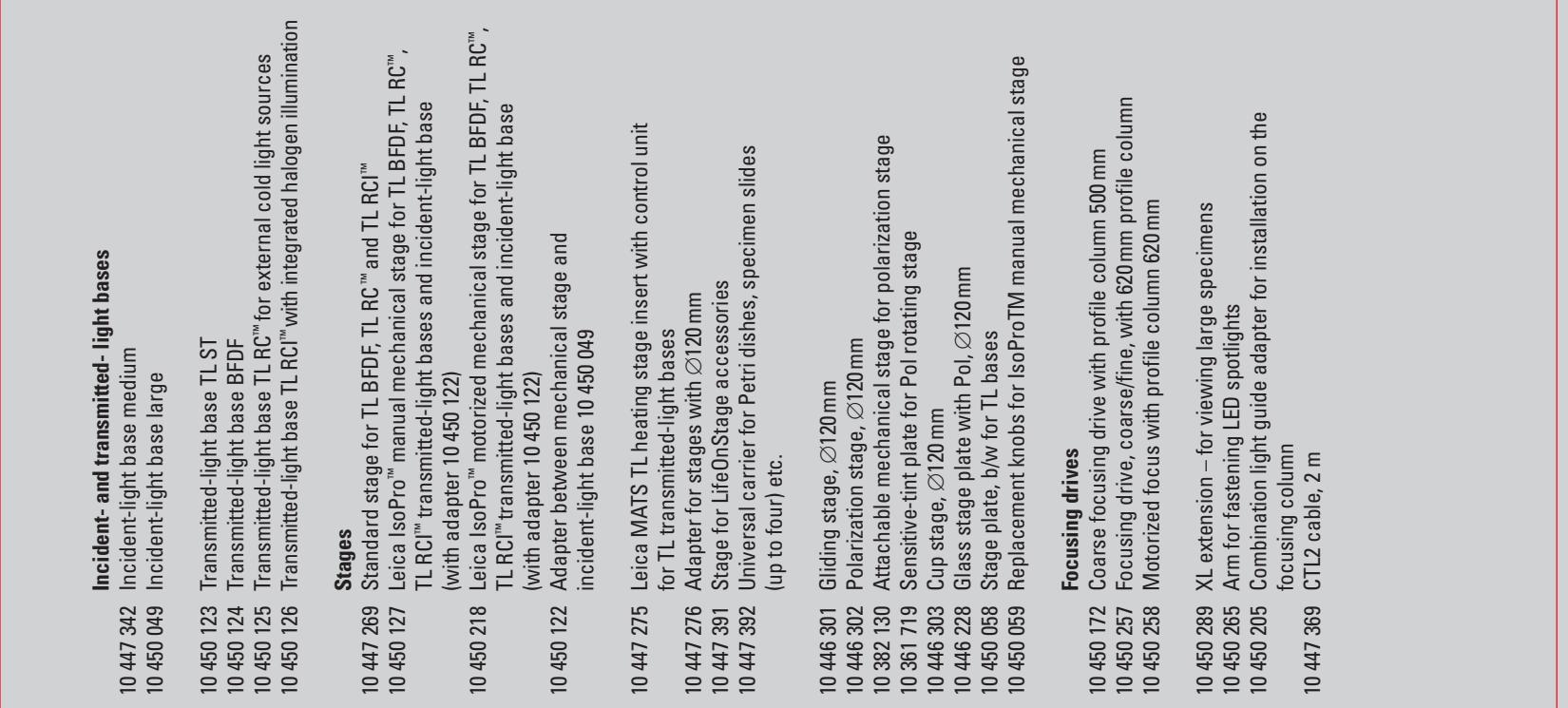

Incident- and transmitted-light bases

10 447 342 Incident-light base medium 10 450 049 Incident-light base large

10 450 123 Transmitted-light base TL ST 10 450 124 Transmitted-light base BFDF

10 450 125 Transmitted-light base TL RC ^™ for external cold light sources 10 450 126 Transmitted-light base TL RC ^™ with integrated halogen illumination

Stages

10 447 269 Standard stage for TL BFD, TL RC ^TM and TL RCI ^TM

10 450 127 Leica Isopro ^TM manual mechanical stage for TL BDF, TL RC ^TM ,

TL RCI ^™ transmitted-light bases and incident-light base

(with adapter 10 450 122)

10 450 218 Leica Isopro ^TM motorized mechanical stage for TL BFDF, TL RC ^TM ,

TL RCI ^™ transmitted-light bases and incident-light base

(with adapter 10 450 122)

10 450 122 Adapter between mechanical stage and

incident-light base 10 450 049

10 447 275 Leica MATS TL heating stage insert with control unit

for TL transmitted-light bases

10 447 276 Adapter for stages with ∅120 mm

10 447 391 Stage for LifeOnStage accessories

10 447 392 Universal carrier for Petri dishes, specimen slides

(up to four) etc.

10 446 301 Gilding stage, ∅120 mm

10 446 302 Polarization stage, ∅120 mm

10 382 130 Attachable mechanical stage for polarization stage

10 361 719 Sensitive-tint plate for Pol rotating stage

10 446 303 Cup stage, ∅120 mm

10 446 228 Glass stage plate with Pol, ∅120 mm

10 450 058 Stage plate, b/w for TL bases

10 450 059 Replacement knows for IsoproTM manual mechanical stage

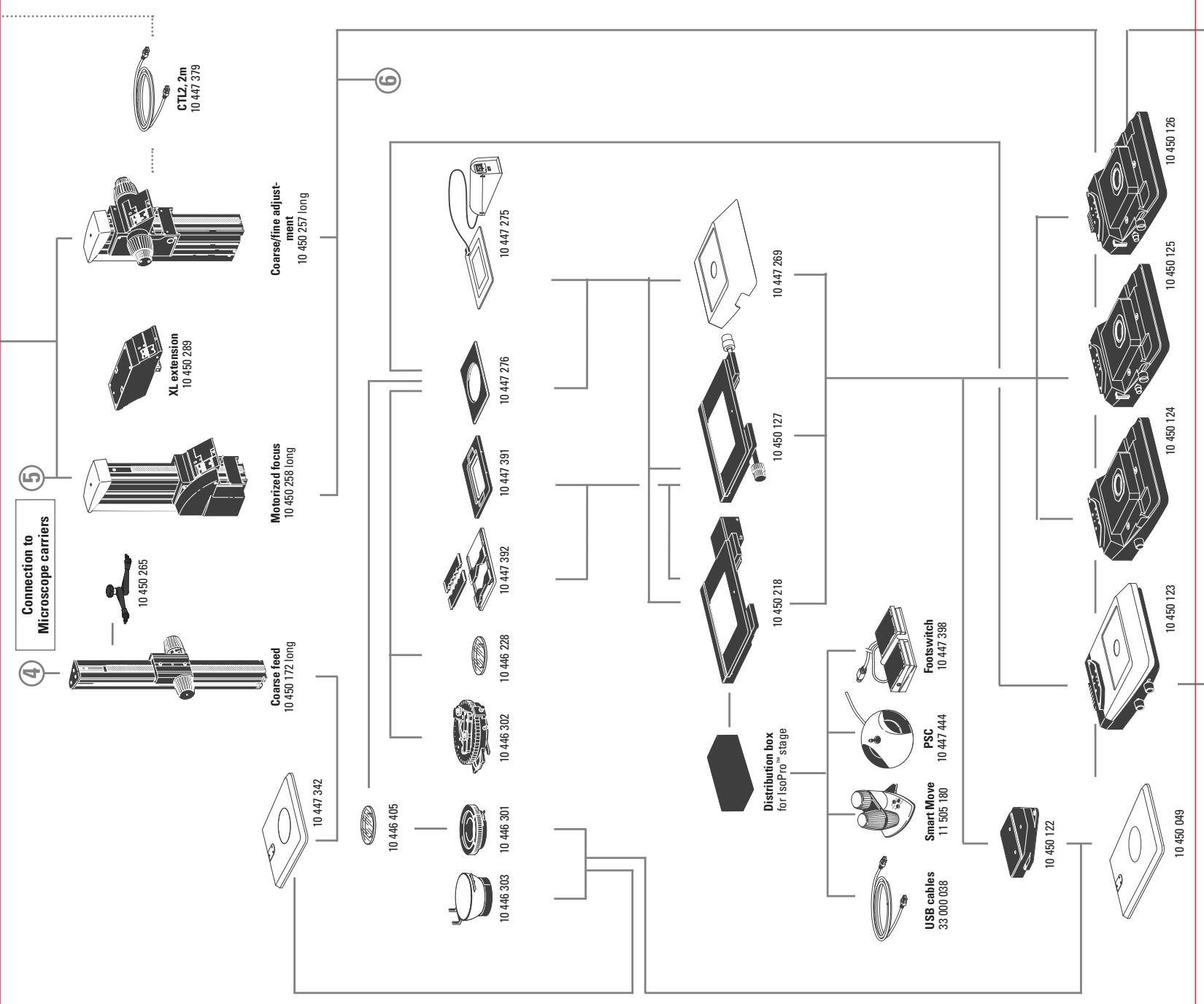

Focusing drives

10 450 172 Coarse focusing drive with profile column 500 mm

10 450 257 Focusing drive, coarse/finie, with 620 mm profile column

10 450 258 Motorized focus with profile column 620 mm

m = 311

10 450 289 XL extension – for viewing large specimens

10 450 265 Arm for fastening LED spotlights

10 450 205 Combination light guide adapter for installation on the

focusing column

10 447 369 CTLL2 cable, 2 m

CTL2, 2m 10 447 379

XL extension 10 450 289

Coarse/ Fine adjust-

10 450 257 long

Motorized focus 10 450 258 long

Coarse feed 10 450 172 long

10 447 342

10 446 405

10 447 275

10 447 276

10 447 391

10 447 392

10 446 228

10 446 302

10 446 301

10 446 303

10 447 398 10 447 394 10 447 395 10 447 431 10 447 443 10 447 396 10 447 399 10 450 079

10 447 400

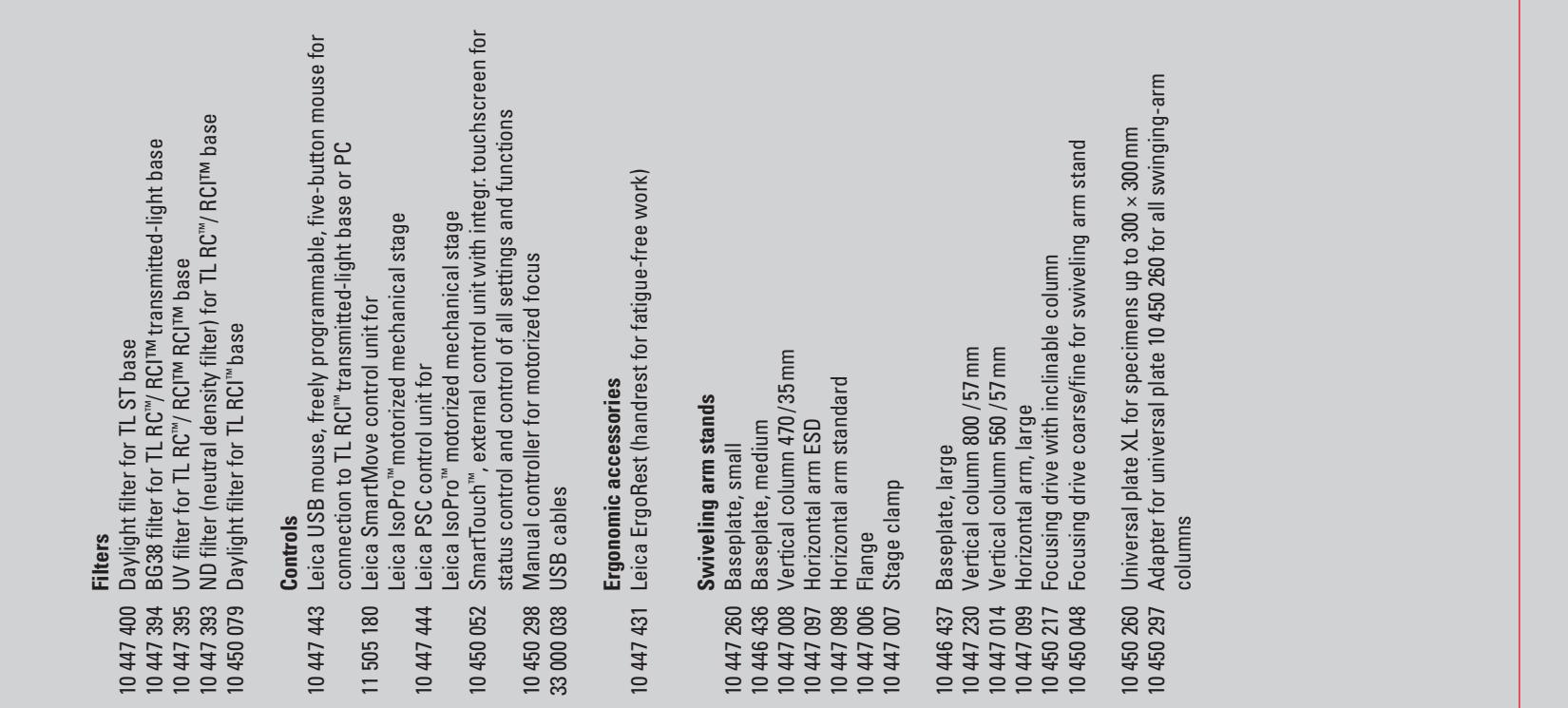

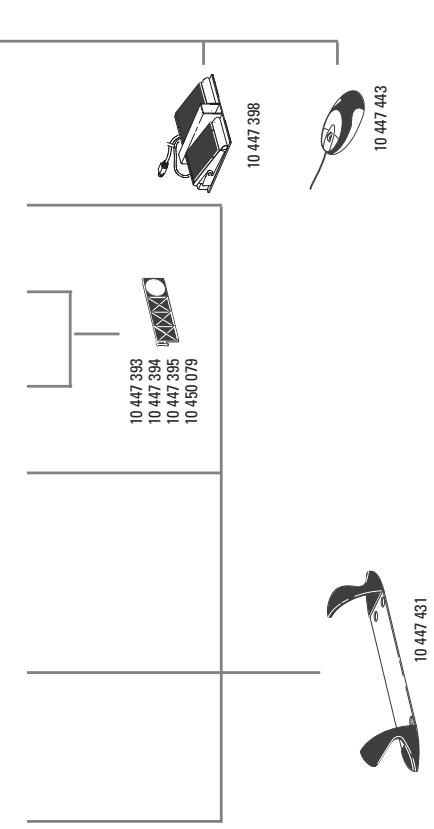

Controls

10 447 443 Leica USB mouse, freely programmable, five-button mouse for connection to TL ROI ^™ transmitted-eight base or PC 11 505 180 Leica SmartMove control unit for

Leica Isopro ^tm motorized mechanical stage 10 447 444 Leica PSC control unit for Leica Isopro ^tm motorized mechanical stage

10 450 052 SmartTouch ^™ , external control unit with integer touchscreen for status control and control of all settings and functions 10 450 298 Manual controller for motorized focus 33 000 038 USB cables

Ergonomic accessories

10 447 431 Leica Ergofest (handrest for fatigue-free work)

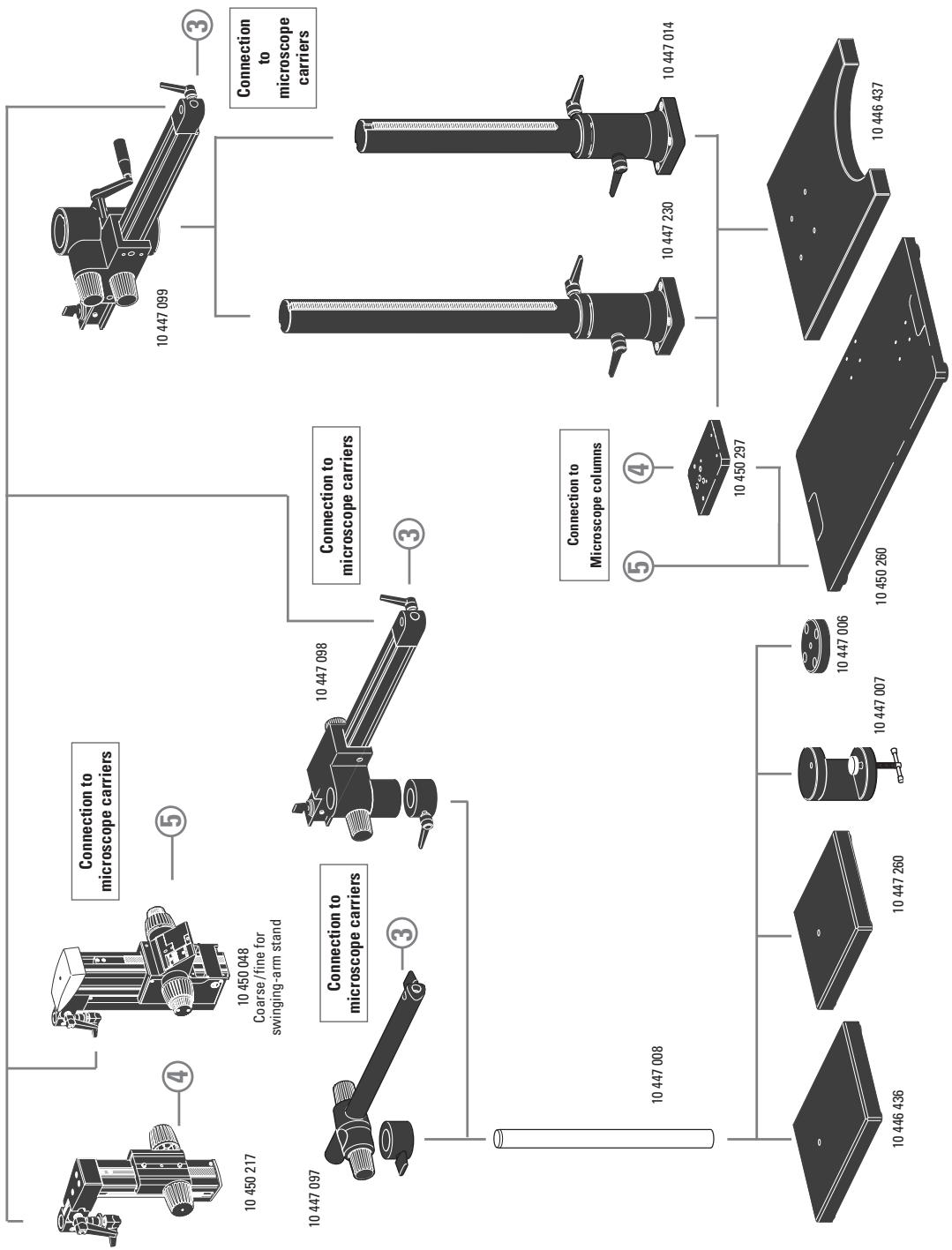

Swirling arm stands

10 447 260 Baseplate, small

10 446 436 Baseplate, medium

10 447 008 Vertical column 470/35mm

10 447 097 Horizontal arm ESD

10 447 098 Horizontal arm standard

10 447 006 Flange

10 447 007 Stage clamp

10 446 437 Baseplate, large

10 447 230 Vertical column 800 / 57 mm

10 447 014 Vertical column 560 / 57 mm

10 447 099 Horizontal arm, large

10 450 217 Focusing drive with incilnable column

10 450 048 Focusing drive coarse/ Fine for swelling arm stand

10 450 260 Universal plate XL for specifications up to 300 × 300 mn

10 450 297 Adapter for universal plate 10 450 260 for all swinging-arm columns


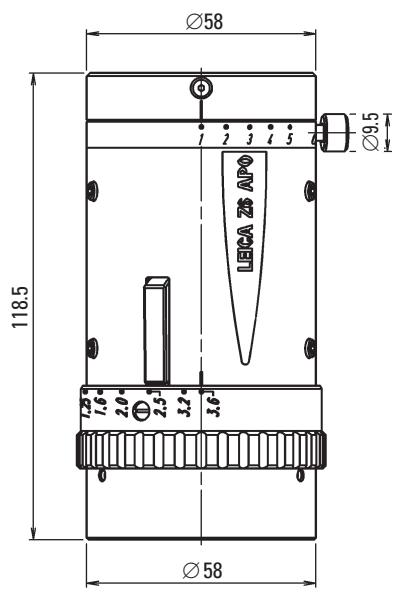

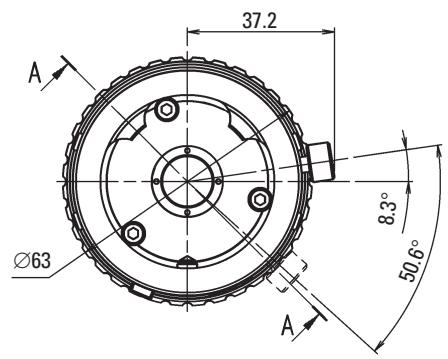

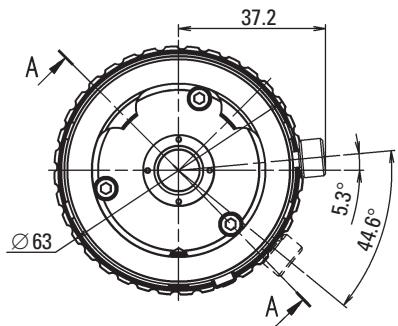

Leica Z6 APO & Z16 APO

Dimensions of Zoom System, Coaxial Incident Light Housing

Ø58 118.5 Ø9.5 LECA 26 APO 1.2 1.6 2.0 2.5 3.2 3.6 Ø58

37.2 8.3° Ø63 50.6° A

Leica Z6 APO

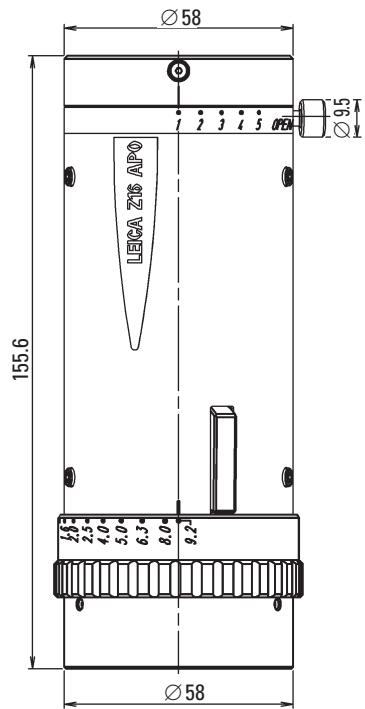

Ø 58 LEICA Z16 APO 155.6 Ø 58 1.6 2.5 4.0 5.0 6.3 8.0 9.2

37.2 A Ø63 5.3° 44.6° A

Leica Z16 APO

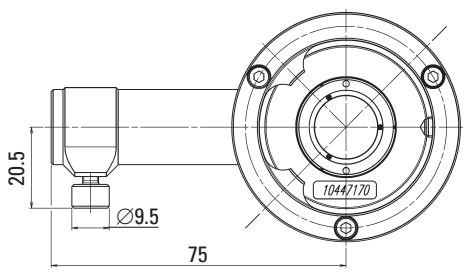

Coaxial incident light housing

Ø58 20 Ø39 7

Interface for Zoom

39 11 Ø13

Interface for light guide

20.5 Ø9.5 75 10447170

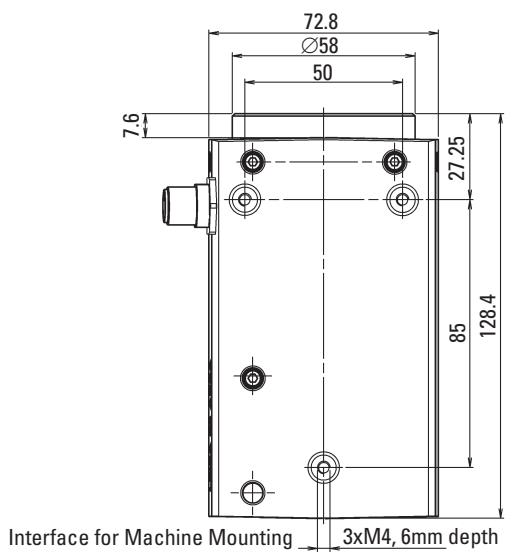

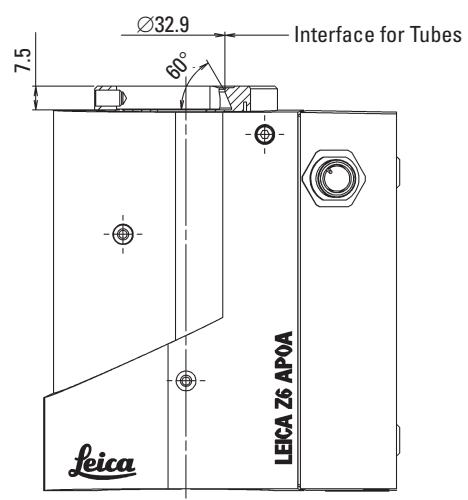

Leica Z6 APO A & Z16 APO A

Dimensions of Zoom System

72.8 Ø58 50 7.6 27.25 85 128.4 Interface for Machine Mounting 3xM4, 6mm depth

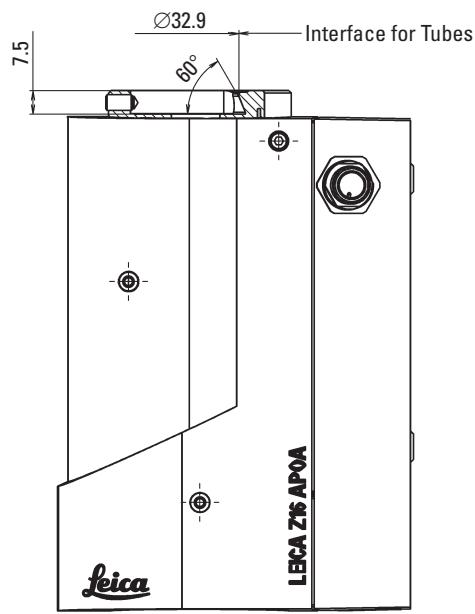

Ø32.9 Interface for Tubes 7.5 60° LEICA Z6 APOA Leica

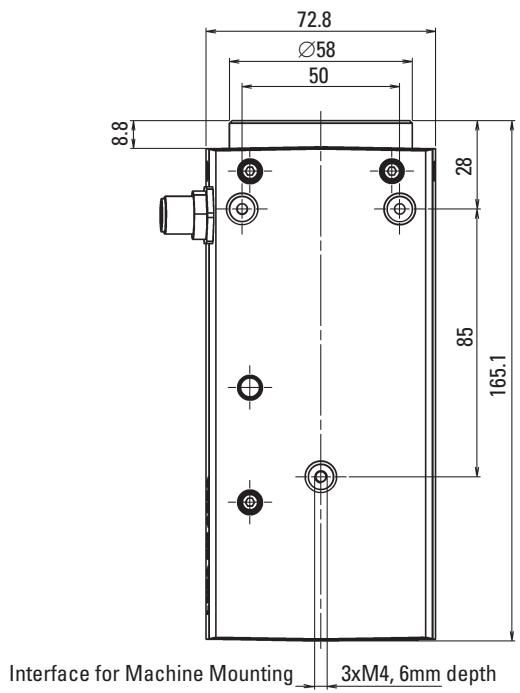

72.8 Ø58 50 8.8 28 85 165.1 Interface for Machine Mounting 3xM4, 6mm depth

Ø32.9 Interface for Tubes 7.5 60° LECA Z16 APOA leica

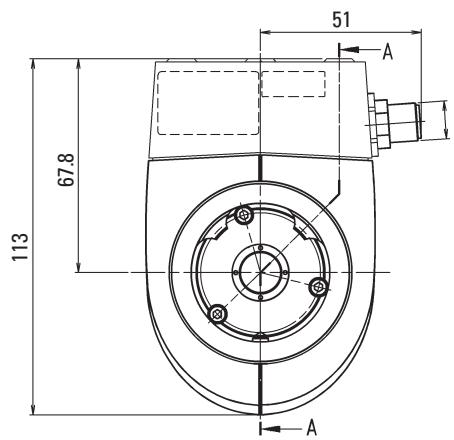

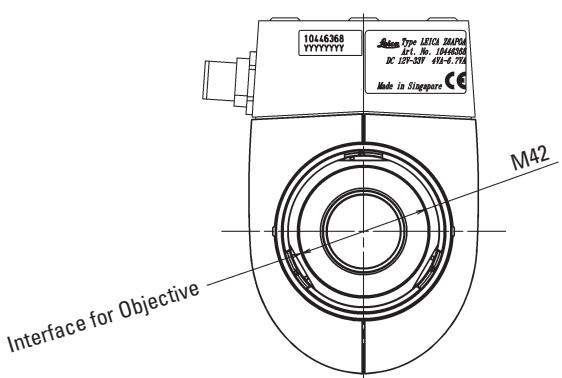

10446368 YYYYYY M42 Interface for Objective Made in Singapore

51 A 67.8 113 A

Dimensions of Objectives, Adapters

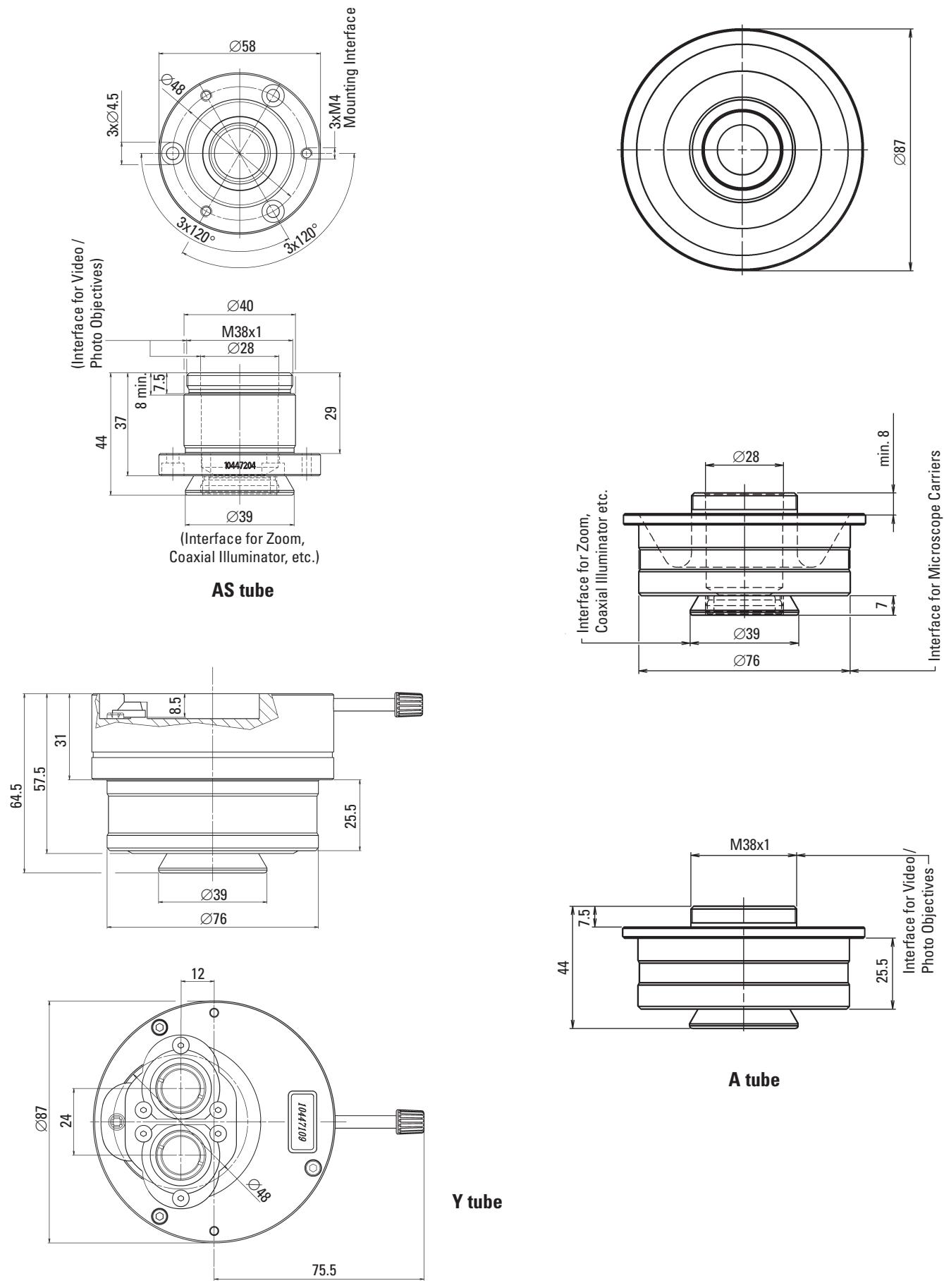

Dimensions of Tubes

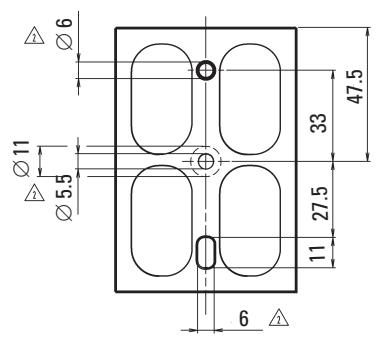

Dimensions of Carriers

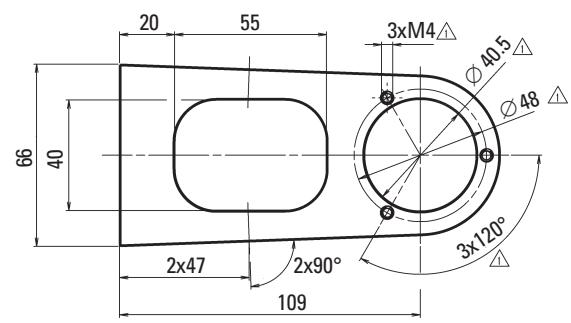

Carrier for AS tube

138 8 95 10° 16

Ø6 Ø11 Ø5.5 Ø5.5 33 47.5 27.5 11 6

20 55 3xM4△ Ø 40.5△ Ø 48 △ 66 40 2x47 2x90° 109 3x120°

△ Interface for CMO Focus Drivers
Interface for AS Tube 10447204

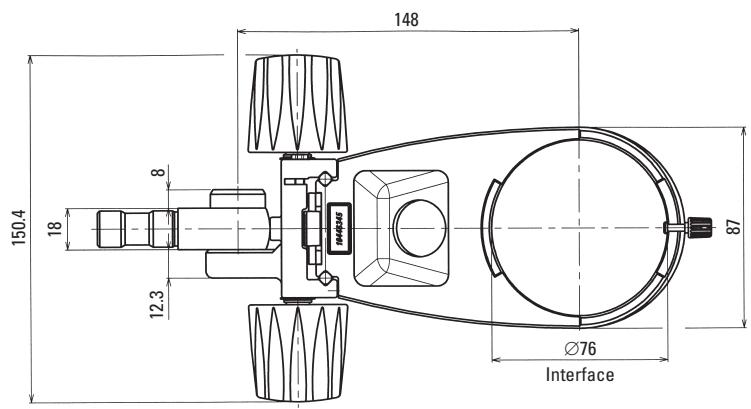

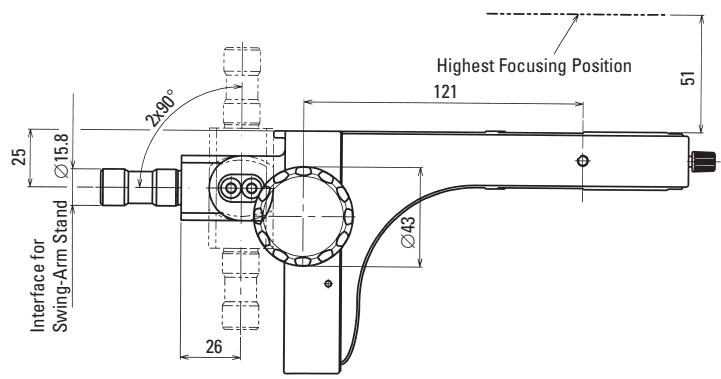

Tiltable focusing arm

Interface for Swing-Arm Stand 25 Ø15.8 240° Highest Focusing Position 121 Ø43 26 51

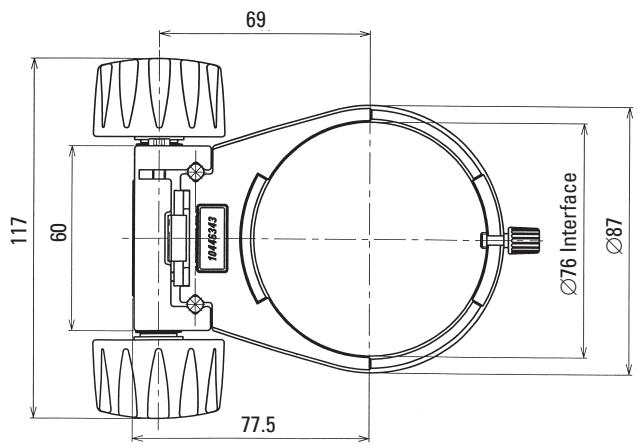

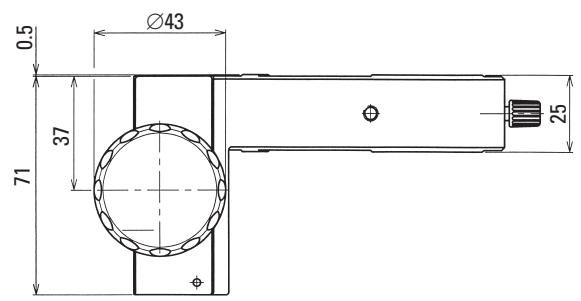

Focusing arm for probers

Ø43 0.5 37 71 25

148 150.4 18 8 12.3 Ø76 Interface 87

69 117 60 1048343 Ø76 Interface Ø87 77.5

“With the user, for the user” Leica Microsystems

Leica Microsystems operates globally in four divisions, where we rank with the market leaders.

• Life Science Division

The Leica Microsystems Life Science Division supports the imaging needs of the scientific community with advanced innovation and technical expertise for the visualization, measurement, and analysis of microstructures. Our strong focus on understanding scientific applications puts Leica Microsystems' customers at the leading edge of science.

- Industry Division

The Leica Microsystems Industry Division's focus is to support customers' pursuit of the highest quality end result. Leica Microsystems provide the best and most innovative imaging systems to see, measure, and analyze the microstructures in routine and research industrial applications, materials science, quality control, forensic science investigation, and educational applications.

- Biosystems Division

The Leica Microsystems Biosystems Division brings histopathology labs and researchers the highest-quality, most comprehensive product range. From patient to pathologist, the range includes the ideal product for each histology step and high-productivity workflow solutions for the entire lab. With complete histology systems featuring innovative automation and Novocastra™ reagents, Leica Microsystems creates better patient care through rapid turnaround, diagnostic confidence, and close customer collaboration.

• Medical Division

The Leica Microsystems Medical Division's focus is to partner with and support surgeons and their care of patients with the highest-quality, most innovative surgical microscope technology today and into the future.

The statement by Ernst Leitz in 1907, “with the user, for the user,” describes the fruitful collaboration with end users and driving force of innovation at Leica Microsystems. We have developed five brand values to live up to this tradition: Pioneering, High-end Quality, Team Spirit, Dedication to Science, and Continuous Improvement. For us, living up to these values means: Living up to Life.

Active worldwide

Australia:	North Ryde	Tel. [phone]	Fax [phone]
Austria:	Vienna	Tel. [phone]	Fax [phone]
Belgium:	Groot Bijgaarden	Tel. [phone]	Fax [phone]
Canada:	Richmond Hill/Ontario	Tel. [phone]	Fax [phone]
Denmark:	Ballerup	Tel. [phone]	Fax [phone]
France:	Nanterre Cedex	Tel. [phone]	Fax [phone]
Germany:	Wetzlar	Tel. [phone]	Fax [phone]
Italy:	Milan	Tel. [phone]	Fax [phone]
Japan:	Tokyo	Tel. [phone]	Fax [phone]
Korea:	Seoul	Tel. [phone]	Fax [phone]
Netherlands:	Rijswijk	Tel. [phone]	Fax [phone]
People’s Rep. of China:	Hong Kong	Tel. [phone]	Fax [phone]
Portugal:	Lisbon	Tel. [phone]	Fax [phone]
Singapore		Tel. [phone]	Fax [phone]
Spain:	Barcelona	Tel. [phone]	Fax [phone]
Sweden:	Kista	Tel. [phone]	Fax [phone]
Switzerland:	Heerbrugg	Tel. [phone]	Fax [phone]
United Kingdom:	Milton Keynes	Tel. [phone]	Fax [phone]
USA:	Bannockburn/Illinois	Tel. [phone]	Fax [phone]

and representatives in more than 100 countries

In accordance with the ISO 9001 certificate, Leica Microsystems (Switzerland) Ltd, Industry Division, has at its disposal a management system that meets the requirements of the international standard for quality management. In addition, production meets the requirements of the international standard ISO 14001 for environmental management.
