| Type de produit | Projecteur LED pour microscope stéréoscopique |
| Marque | Leica |
| Modèle | LED2000 |
| Source lumineuse | LED de puissance 1,2 W (4 LED pour anneau, 3 pour oblique) |
| Types d'éclairage | Lumière incidente (anneau 4 points et éclairage oblique) |
| Durée de vie des LED | 25 000 heures |
| Température de couleur | 6500 K (lumière du jour) |
| Refroidissement | Thermogestion passive, sans ventilateur, silencieux |
| Contrôle de l'éclairage | Commutation indépendante de la lumière incidente via panneau tactile |
| Réglages programmés | 5 modes prédéfinis |
| Contrôle de luminosité | Réglage par incréments de 10 niveaux |
| Luminosité maximale (lux) | 15 500 lux en lumière incidente |
| Alimentation | 100-240 V~, 50/60 Hz (détection automatique) |
| Consommation électrique | 30 W max |
| Conformité | CE, cUL, UL |
| Conception antistatique | Oui (ESD) |
| Fonctions supplémentaires | Arc d'éclairage ajustable, technologie PWM pour température constante |
| Entretien | LED sans entretien ; nettoyer avec un chiffon doux et sec |
| Sécurité | Utiliser uniquement l'alimentation spécifiée ; ne pas exposer à l'humidité |
| Utilisation prévue | Applications de lumière incidente pour stéréomicroscopes |
| Garantie | Consultez le manuel ou contactez Leica |
FOIRE AUX QUESTIONS - LED2000 LEICA
Questions des utilisateurs sur LED2000 LEICA
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Projecteur LED au format PDF gratuitement ! Retrouvez votre notice LED2000 - LEICA et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil LED2000 de la marque LEICA.
MODE D'EMPLOI LED2000 LEICA
Leica LED2000 - LED2500
Powerful Illumination Stands for Stereomicroscopes
Living up to Life

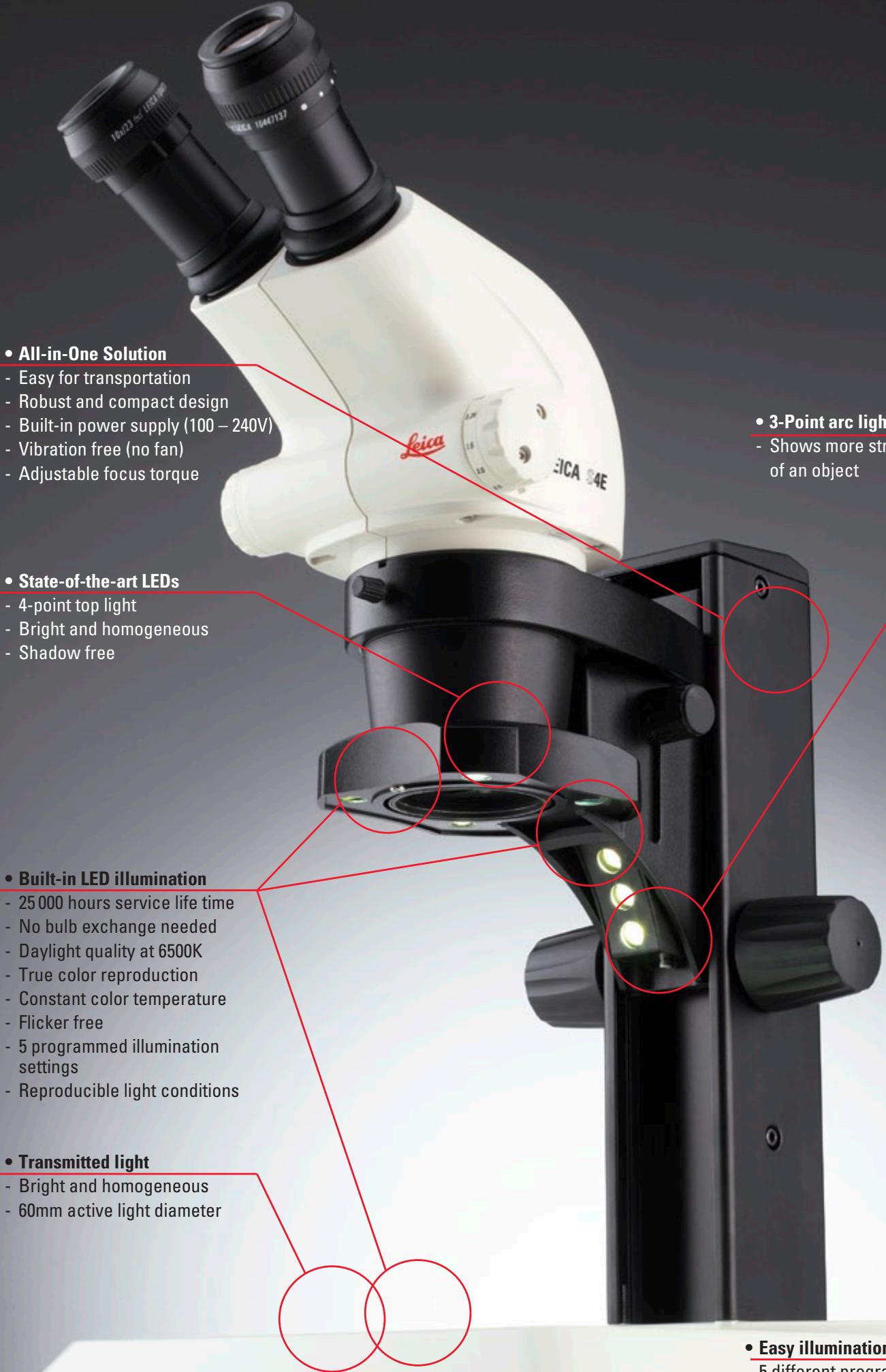

Powerful LED Illumination
The high quality Leica LED2000/LED2500 illumination stands are so robust they are suitable for almost any environment.
The LED2000 stand suits all incident light applications to provide a cost effective solution where no transmitted light is needed. With five illumination options available, you can choose exactly where and how much incident light you want to apply to your sample. This can range from applying all 7 LED's to achieve full brightness, a 4 point top light for shadow free illumination, 2 side LED's for improved contrast or 1 oblique LED where a semi-dark illumination is required. Each illumination option also provides a dimming control to allow brightness levels to be fully optimized to individual needs. With the light manager touch panel, each setting can be selected and easily reproduced.
The Leica LED2500 includes both incident and transmitted light capabilities, which can either be used together or controlled individually. With a 60mm active light diameter, the LED2500 is perfect for performing detailed inspections with consistent light levels across samples with a large field of view. The 5500^ K color temperature also means that specimens can be examined with true color reproduction.
Moveable Arc Illumination
The LED2000/LED2500 provides an adjustable arc illumination, which is perfect for increasing the contrast level to exactly meet your requirements. This can be optimised for 1.0 × (none), 1.6 × and 2.0 × supplemental lenses to achieve the desired results.
Maintenance Free
LED's have a lifespan of at least 25000 hours and maintain a constant color temperature. The light-emitting diodes are preferable over traditional incandescent light. Due to intelligent heat dissipation, the Leica LED2000/LED2500 bases do not require a fan. This ensures that light vibrations do not hinder the inspection of a sample.
Clear as Daylight
The Leica LED2000 and LED2500 use the latest LED technology that closely resembles the light spectrum of daylight. As a result of "Pulse Width Modulation" (PWM), the color temperature remains constant during the complete dimming range. Thus, there is no need to readjust the white balance of a camera making the complete system easier to handle.
- Easy illumination control
- 5 different programmed settings

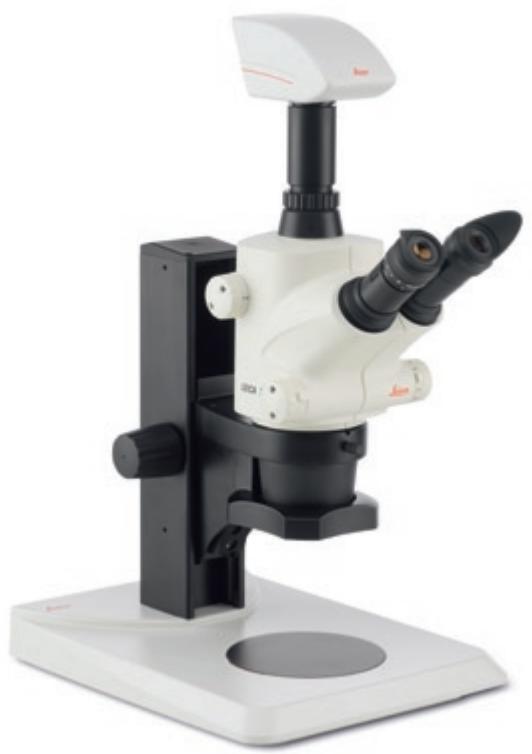

Technical data for the Leica LED2000/LED2500
| Illumination System | Leica LED2000/LED2500 | |
| Illumination source | Power LED's, 1.2Watt (4 LED for ring light, 3 for oblique) | |
| Illumination types | Incident light (4-point ring light and oblique illumination) Transmitted light (LED2500 only) | |
| Average LED lifetime | 25000 hours | |
| Color temperture | 6500°K (daylight), 5500 °K for transmitted light (LED2500 only) | |
| Cooling | Thermo-management for LED's, silent and vibration free | |
| Illumination control | Incident and transmitted light independently switchable | |
| Brightness control | 10-step increments | |
| Brightness (Lux) | Incident light: | 15500 lux |
| Transmitted light: | 13700 lux (LED2500 only) | |
| Built-in power supply unit, | 100V ... 240V ~ 50 / 60 Hz | |
| Voltage sensing | ||
| Power consumption | max. 30W | |
| Conformity with standards | CE cUL UL | |
| ESD design | antistatic | |
Equipment components
Order numbers
10447347 LeicaLED2000
10447348 LeicaLED2500
Power Cables
10 445 662 2m, EURO
10445661 2m,USA
10 280 636 2.5m, Switzerland
10445663 2m-2.5m,BS
10447346 2m,Japan
10 450 012 Power cable Argentina
10 450 013 Power cable Australia
10450014 Power cable China
10 450 015 Power cable Israel
10450016 Power cable Italy
10 450 017 Power cable South Africa
