MODE D'EMPLOI M844 F40 LEICA
Leica M844 F40
Redefining the premium class in Ophthalmic Surgery
Living up to Life
Leica
M844 F40
See more of what you need to see.
Combining a higher level of optical quality than ever before with the best technologies of today's surgical microscopes, the Leica M844 truly redefines the premium class of ophthalmic surgical microscopes.
The Leica M844 is the microscope you must see!
Uniquely Leica
Crisp and sharp!

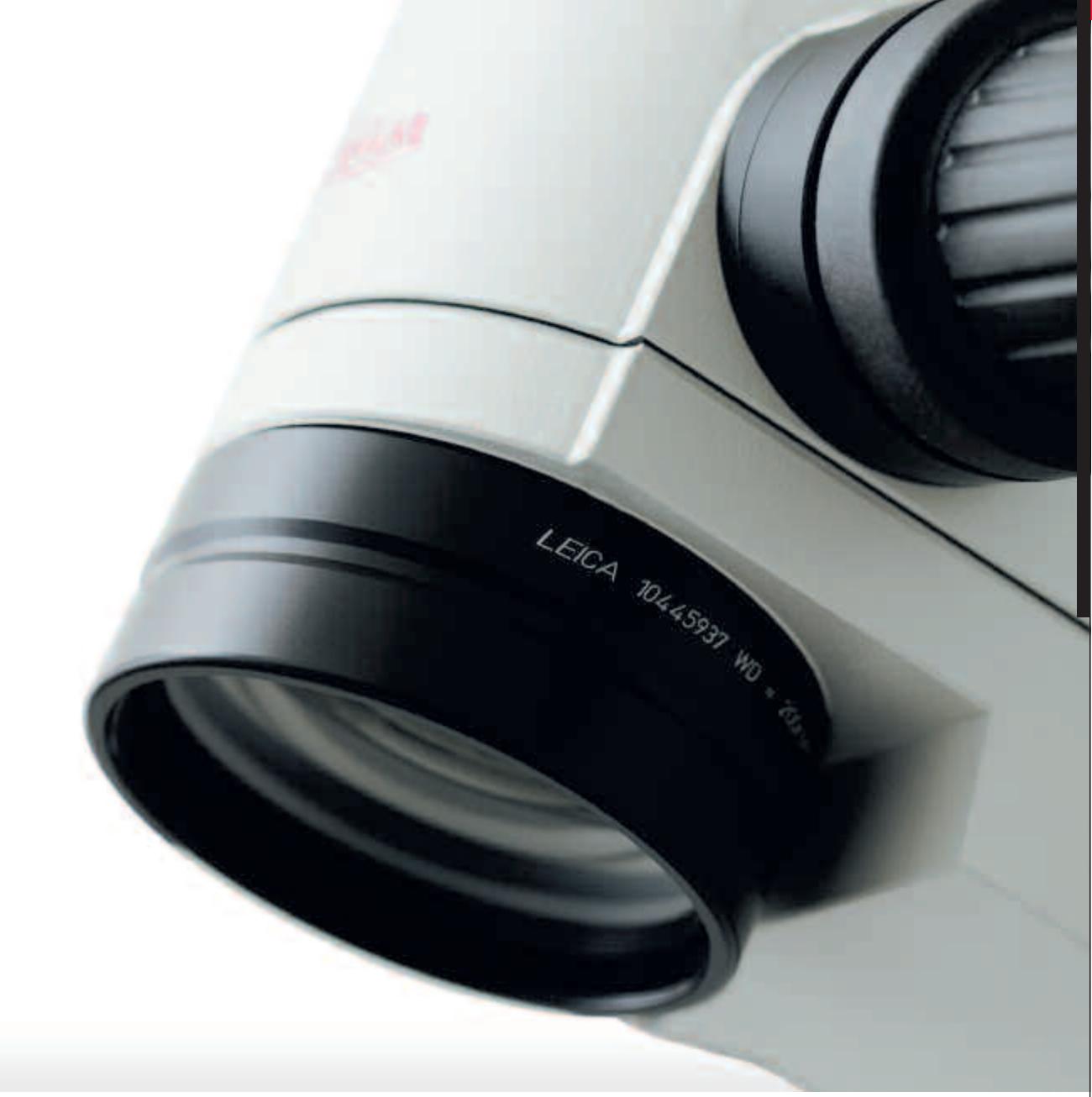

Leica's APO OptiChrome™ M844 Optics provide the highest resolution to see even the smallest anatomical details.
Same perfect view, same perfect light!
Leica's QuadZoom™ gives both the surgeon and assistant 100% of the illumination and the same magnification.
Safety for the patient, fatigue-free viewing for the surgeon!
Leica's exclusive direct illumination system offers the best clarity, contrast and colour at safe low-light levels.
APO OptiChrome™ Changing microsurgery forever
QuadZoom™ Uniquely Leica
Leica introduces the original APO OptiChrome™
Providing an extraordinary degree of light transmission for maximum detail recognition is critical for all types of ophthalmic microsurgery. For the posterior segment surgeon, where availability of light is limited, a high degree of light transmission is essential. For refractive and anterior segment surgery, low light is always better for the patient.
Expect only the highest standards in optics from the Leica M844
- Sharper and crisper image
Higher light transmission
Natural colour fidelity
Outstanding depth of focus
Higher contrast
Efficient illumination
By utilising four separate beam paths through the same common zoom system, the Leica QuadZoom™ delivers 100% APO OptiChrome™ stereovision and 100% illumination for both the main surgeon and the assistant.
2 × 2 views always synchronized
By putting both pairs of beam paths through one common zoom system, as the surgeon changes magnification, the assistant's view is perfectly synchronized with the surgeon's view.
See more with less light
OttoFlex™ II See more with less light
Low light ensures fatigue-free viewing and patient safety
With two bulbs and two prisms, the Leica M844 creates true three-dimensional illumination. Using a focused, direct illumination system instead of fiber optics, the Leica M844 takes a ray of light and projects a crisp, sharp and homogeneous image even at very low light levels. Proven for over 25 years, this combination of direct halogen illumination and highly efficient optical transmission ensures patient safety and fatigue-free viewing for the surgeon.
See things in a different light
OttoFlex™ II, an integrated independent illumination system, gives a brilliant red reflex even in low light conditions and enhances the view's contrast. Difficult anatomical conditions, such as small pupils or very advanced cataracts are more easily visualised through this unique system. Continuously adjustable from 4mm to 35mm diameter, OttoFlex™ II places the brightness where the surgeon needs it most.
Take control
Leica Two-in-One display control unit mode (above) and video mode (below)
Intuitive control unit
The touch panel offers intuitive control of all the Leica M844's functions. The control unit's operation is simple and straightforward with many innovative features.
Everyone is an individual
Customised start settings, such as illumination and magnification levels, are easily programmed into the control unit for up to 30 different users. By having a surgeon's individual settings available at the touch of a button, the microscope is instantly ready for the next procedure and/or surgeon and the workflow of the surgical team is faster and more efficient.
StepCycleTM for greater efficiency
Different levels of light, focus and zoom can optimize each phase of surgery. Making these adjustments today takes surgeons' precious time. The automatic StepCycle™ function enables the surgeon to program predefined settings that are used throughout typical surgical procedures. After simple programming, a touch of a button on the foot pedal will activate the microscope's predefined settings, step by step, during the procedure.
Real-time video
With one touch of a button the control unit's display becomes a general use, real-time video monitor, which allows an immediate and convenient view of the current surgical procedure for the operating room staff. For general video viewing there is no need for an extra video cart.
Easy to use from start to finish
Leica F40 space saving stand with extended net reach
The Leica M844 F40 has the smallest footprint and the longest net reach of any ophthalmic surgical microscope on the market. Due to this design, the microscope is easy to position anywhere around the operating table. Four large, fully pivoting casters and an easy to grasp handlebar make the microscope effortless to transport into and out of position.
Auto Reset and it's ready to go
When the surgeon pushes the swingarm up after each procedure, all the microscope functions automatically reset and the microscope is ready for the next case. A real time saver for the operating room staff and peace of mind for the surgeon.
Focus Lock – for quick movement in and out of the operative site Focus Lock allows the surgeon to move the microscope in and out of position laterally. With the microscope staying on the same focus plane, the surgeon does not have to waste precious time refocusing to continue his procedure.
Positioning in the Operating Room The extra long reach of the Leica M844 F40 allows flexible positioning, even in small rooms with many pieces of equipment. Whether on the side of the patient or over the surgeon's shoulder, the M844 F40 leaves a lot of space around the operating table.
Side-to-side change
Eyepiece to field distance "XL"
Eyepiece to field distance "S"
Easy side-to-side quick change for the assistant
Changing the assistant's position from one side to the other can be done quickly and easily without removing any parts. Simply lift the main surgeon's binoculars and rotate the assistant's bridge. No parts to drop or damage!
The UltraLow™ II for ideal eyepiece-to-field distance
The UltraLow™ II binocular eyepiece tubes drop lower than conventional binoculars, which compensates for stacking auxiliary accessories on the optics, such as inverters or laser shutters. The surgeon now works in comfort.
ErgonOptics™ for individual comfort and concentration
Every surgery requires the highest level of concentration from the surgeon and his or her surgical team. The physical comfort of the surgeon is critical to this concentration. Leica provides a large selection of binoculars and three different objective lens types to meet each individual surgeon's physical requirements. No other microscope system offers this range of surgeon and assistant binoculars and objective lenses.
Binocular Tube
Perfect ergonomics in every situation.
Widest range of ergonomics to ensure comfort
Leica M844 controlling Oculus SDI/BiOM system
Rotatable handles
Independent choice of wide-angle observation accessories
The Leica M844 is designed to accept the integration of wide-angle observation systems or stereo image inverters. In addition, when integrating the Oculus SDI/BIOM system, the surgeon can control its functions through the Leica M844's 16-function foot pedal therefore the system can be fully controlled by a single foot pedal instead of two.
Additional microscope functions at your fingertips
All-brake release and new Focus Lock multi-function are conveniently located on the rotatable handles. If desired, additional functions can be programmed to meet a wide variety of individual surgeon's preferences.
Wide choice of foot pedals
Leica offers three foot pedal styles to meet the needs of all users. XY, zoom, focus and illumination can be controlled from either the 12-function cross or 12-function long pedals. The 16-function cross pedal gives the user four additional options for individual tasks, such as inverter usage, StepCycle™ or room light function.
Wide selection of foot pedals to fulfill any ergonomic need
Flexibility for individual needs
Leica Zoom Video Adapter on integrated video port
Leica precision slit lamp
Video port now stays in place
The video port is now integrated into the back of the optics, which means the video camera is always correctly configured and ready to use. The need to switch the video camera from side to side is no longer necessary. A real convenience for the operating room staff. And, having a dedicated video port protects the video adapter and camera from possible damage.
Leica Zoom Video Adapter
The Leica Zoom Video Adapter has a 3 × optical zoom and sterile fine focus adjustment. Individual magnification adjustment of the video image is independent of the microscope zoom, which gives the surgeon full freedom to adjust the monitor image for the surgical team without affecting the surgeon's view.
Leica precision operating slit lamp
The Leica surgical slit lamp, with world-renowned Swiss precision, provides full slit functions. The slit beam is adjustable in width and length and can be scanned over the cornea +/-23^ from any position via the foot pedal. A retractable blue filter and integrated quick change lamp add to its functionality.
Laser adaptability
Most commercially available laser shutters and laser filters can be easily integrated with the Leica M844 system.
Training for the future
Leica Two-in-One display control unit in video mode
Leica M844 with double wing assistant bridge
QuadZoom™ – The ultimate view for everyone
Proper surgical training requires everyone to see the same view. The Leica M844 optical system delivers the same magnification and stereo view simultaneously for both the teacher and the student. A focus override knob on the assistant bridge allows individual fine-tuning separately from the main surgeon.
Two-in-One control unit and video screen
The Leica M844 is equipped with a unique control unit that can be switched to a general use, real-time video monitor during surgery. With camera, camera control unit, and monitor all mounted on the Leica F40 floor stand, there is no need for a separate video cart. The entire surgical team can have the benefit of video for every case. If there is a need for extremely high quality documentation, the staff may choose to connect an additional video monitor to the system.
Double wing = three stereo observers
The unique Leica double wing assistant bridge enables the teacher to have two students in full stereo view simultaneously at the same magnification. With the newly integrated video display, all three along with the operating room staff and additional students can observe and learn via the video monitor.
Documentation for education
All the latest documentation options are available with the Leica M844. The Leica MDRS4 digital recording system, as well as many other commercially available digital video systems can be interfaced. Even classic 35mm photography can still be done with the Leica M844. All this to ensure ideal documentation capabilities for training the surgical teams of tomorrow.
| Electrical data | |
| Power supply | 90-265VAC, 50/60Hz |
| Power consumption | 400 VA |
| Classification | Class 1 |
| Type | Type B |
| Microscope | |
| Magnification changer | APO-Zoom 6:1, motorized, with 4 separate beam paths |
| Magnification | 3.5× - 21× (WD 175mm, 10× eyepieces) |
| Optic | APO-chromatic corrected optics |
| Field diameter | 7mm - 80mm |
| Working distance | 175mm, 200mm and 225mm |
| Focus range | 54mm, motorized, with automatic reset |
| Eyepieces | Wide field eyepieces for eyeglass wearers (8.33×, 10×, 12.5×) Dioptric setting +/-5 with adjustable eye cup |
| Objectives | Leica OptiChrome™, WD 175mm, APO Leica OptiChrome™, WD 200mm, APO Leica OptiChrome™, WD 225mm, APO, (WD = working distance) |
| Illumination | |
| Quick-change lamp mount | With two 12V / 50W halogen lamps |
| Filters | IR-barrier filter, UV-barrier filter, two built-in filter holders for optional filters |
| Stand | |
| Type | Floor stand with 4 electromagnetic brakes Alternatives: Ceiling Mount Leica M844 C40 or Telescope Mount Leica M844 CT40 |
| Balancing | Continuously adjustable gas spring |
| Maximum load | 12.2kg accessories to the microscope |
| Maximum reach | 1492mm |
| Vertical range | 846mm |
| Minimum transport height | 1949mm |
| Weight without microscope | Approx. 330kg |
| XY-unit | Motorized, movement range 50 × 50mm, with automatic reset |
| Tilt mechanism | Motorized, +15°/-50° |
| Hand switch/Foot pedals | 16- or 12-function foot pedal with controls arranged longitudinally or transversely 12-function hand switch |
| Control unit | Two-in-one display, control and video display in one. The latest electronic control for the continuous monitoring of all motor functions and the light intensity. Data shown by means of LCD, with adjustable contrast and brightness. Operation by modern touch-panel control. ISUS™ Intelligent SetUp System, menu selection based on unique software for user-specific configuration, with built-in electronic auto-diagnosis and user support. Open architecture for future software developments. |
Technical Data
Leica M844 F40
Accessories
| 0° assistant attachment | 100% Stereopsis at same magnification, including documentation interface, rotatable from side to side (temporal approach), built-in fine focusing, rotatable ring for binocular tube |
| Double wing | For three observers simultaneously |
| TV/Photo | Leica 2D video systems, Leica MDRS4 digital recording system, Leica Zoom Video Adapter f = 35–100mm Photo/TV Dual-attachment, f = 60/85/107mm for TV, f = 250/350mm for 35mm camera, TV tube f = 107mm Phototube f = 250/350mm |
| Wide-angle observation | BIOM, EIBOS |
| Inverters | AVI, SDI, OIVSL, ROLS |
| Laser | Can be fitted, adapters available from laser suppliers |
| Slit lamp | Leica, motorized travel +/-23°, Slit width 0.01..15mm, length 3..15mm, Rotatable 180°, quick lamp-changer |
| Asepsis | Sterilizable components for all drive knobs, commercially available drapes |
| Conformity CC | • Medical devices directive 93/42/EEC Classification: Class I, in compliance with appendix IX, rule 1, with reference to rules 12 of the directive. • Medical electrical equipment, Part 1: General requirements for safety IEC 60601-1; EN 60601-1; UL60601-1; CAN/CSA-C22.2 NO. 601.1-M90 • Electromagnetic compatibility IEC 60601-1-2; EN 60601-1-2 The Surgical Division, within Leica Microsystems (Schweiz) AG, has the management system certificate for the international standards ISO 9001:2000 / ISO 13485:2003 and ISO 14001:2004 relating to quality management, quality assurance and environmental management. |
