DREAM DREAMBOX DM-500S - Récepteur satellite DREAM MULTIMEDIA - Notice d'utilisation et mode d'emploi gratuit
Retrouvez gratuitement la notice de l'appareil DREAM DREAMBOX DM-500S DREAM MULTIMEDIA au format PDF.
| Type de produit | Récepteur satellite numérique DVB-S |
| Marque | DREAM MULTIMEDIA |
| Modèle | DREAM DREAMBOX DM-500S |
| Processeur | IBM PowerPC 250 MHz (350 MIPS) |
| Mémoire vive (RAM) | 32 Mo |
| Système d'exploitation | Linux (Open Source) |
| Décodeur vidéo | MPEG-2 / MPEG-1 compatible |
| Décodeur audio | MPEG-1 & MPEG-2 Layer I et II, Dolby Digital (AC3) via sortie optique |
| Récepteur intégré | DVB-S (satellite) : 950-2150 MHz, QPSK, 2-45 Mbaud/s |
| Interfaces vidéo | 1 x Scart (FBAS, RGB, S-VHS), 1 x Cinch composite (FBAS) |
| Interfaces audio | 1 x Cinch analogique (gauche/droite), 1 x Toslink optique (AC3) |
| Interfaces réseau | Ethernet 10/100 Mbit (RJ45) |
| Interface série | RS232 (Sub-D 9 broches) pour mise à jour du firmware |
| Lecteur de carte à puce | 1 x DreamCrypt (avant) |
| Alimentation | Adaptateur secteur externe 12 V / 110-230 V AC |
| Alimentation LNB | 500 mA max., commutation verticale/horizontale, arrêt en veille |
| Dimensions (L x P x H) | 196 x 130 x 40 mm |
| Poids | 500 g |
| Consommation | Environ 12 W (selon adaptateur) |
| Fonctions principales | Guide électronique des programmes (EPG), listes de chaînes et bouquets, minuterie d'enregistrement via NGrab, contrôle parental, télétexte (TuxText), mise à jour logicielle via réseau, skins OSD |
| Entretien et nettoyage | Débrancher avant nettoyage, utiliser un chiffon légèrement humide sans produit nettoyant. |
| Sécurité | Ne pas exposer à l'humidité, ne pas ouvrir le boîtier, débrancher en cas d'orage, respecter la ventilation. |
| Pièces détachées et réparabilité | Adaptateur secteur, télécommande, piles. Réparations par un technicien agréé, installation du disque dur par un revendeur recommandé. |
| Informations générales | Marquage CE, version logicielle 1.09 (novembre 2005), modifications possibles sans préavis. |
FOIRE AUX QUESTIONS - DREAM DREAMBOX DM-500S DREAM MULTIMEDIA
Questions des utilisateurs sur DREAM DREAMBOX DM-500S DREAM MULTIMEDIA
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Récepteur satellite au format PDF gratuitement ! Retrouvez votre notice DREAM DREAMBOX DM-500S - DREAM MULTIMEDIA et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil DREAM DREAMBOX DM-500S de la marque DREAM MULTIMEDIA.
MODE D'EMPLOI DREAM DREAMBOX DM-500S DREAM MULTIMEDIA

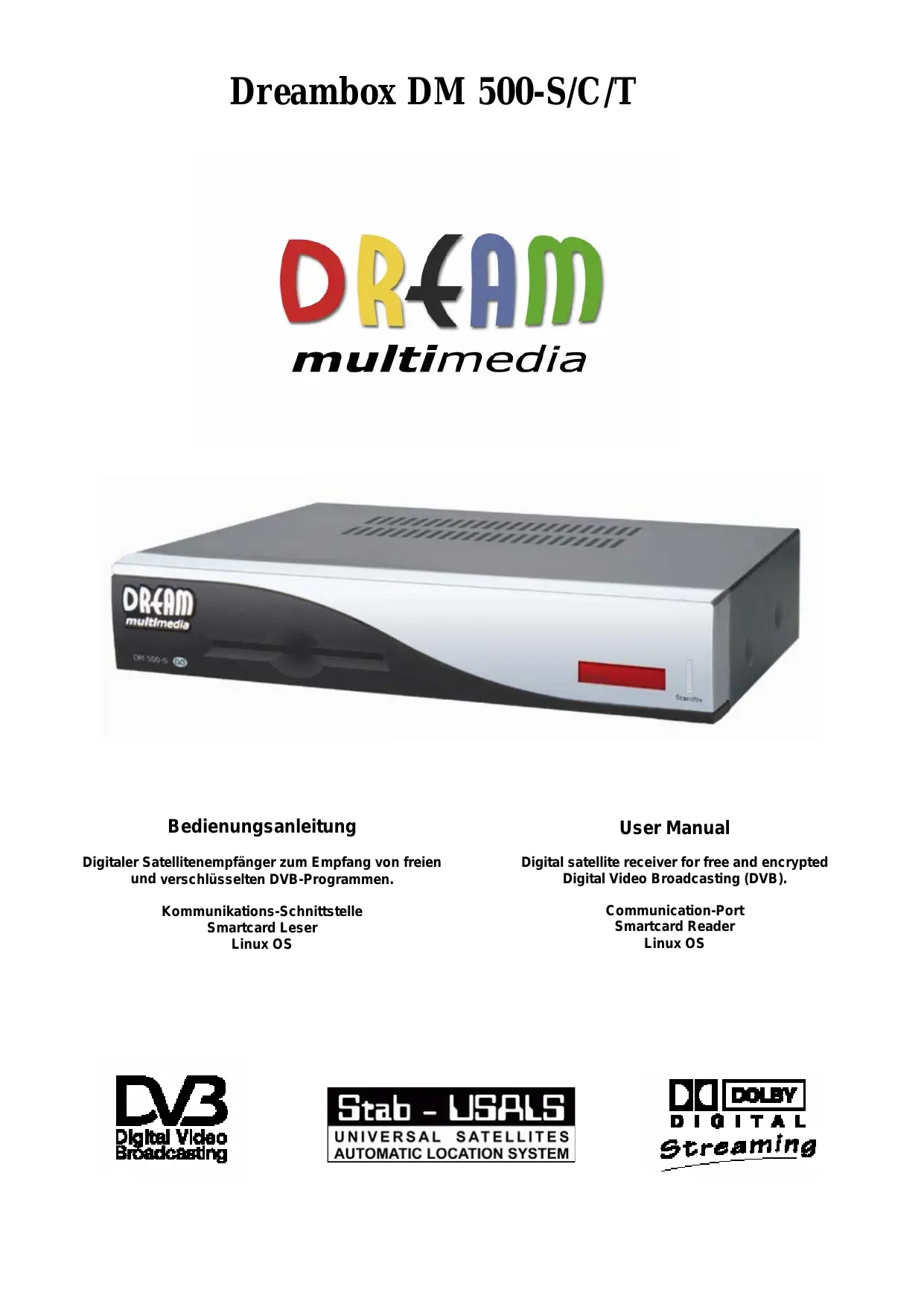

Dreambox DM 500-S/C/T
DRAM
multimedia
Bedienungsanleitung
Digitaler Satellitenempfänger zum Empfang von freienden und verschlüssen DVB-Programmen.
Kommunikations-Schnittstelle
Smartcard Leser
Linux OS
User Manual
Digital satellite receiver for free and encrypted Digital Video Broadcasting (DVB).
Communication-Port
Smartcard Reader
Linux OS
1. Table of contents
- Table of contents
- Views
3.Explanation front panel. -5-
4.Explanation rear panel. 5- - Safety instructions - 7
6.Shut down -8- - Additional safety instructions 8
- Disposal instructions. - 9 -
- Packaging contents - 10
- Installation 10-
- Remote control - 11
- Important notes about operation. 12
- Remote control buttons 13
- Turning your Dreambox on and off 15 -

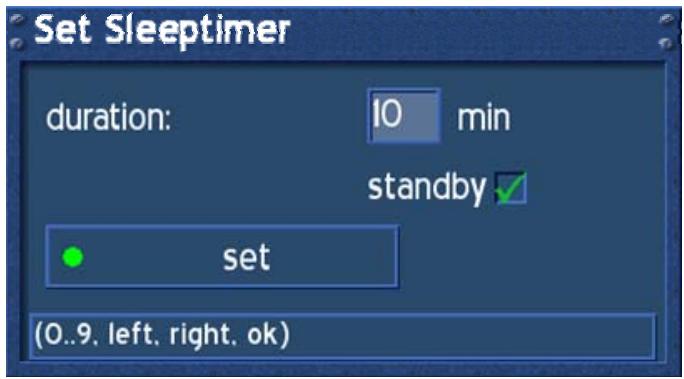

- Sleeptimer 16
- Main OSD Menu 16
- Infobar 18
17.1 Infobar - EPG 19
17.2 Infobar - Sub Services 21
17.3 Infobar - Audio tracks 22
17.4 Infobar - Plugins 22 - Setting OSD language 23

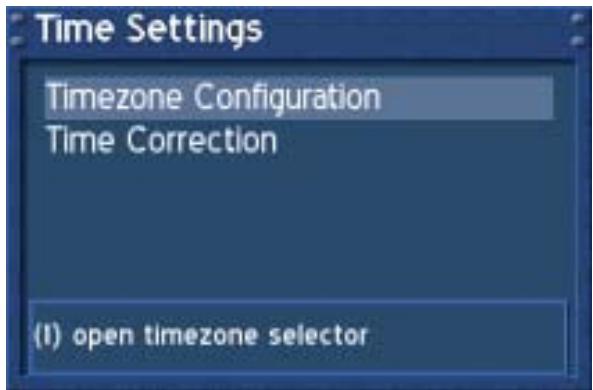

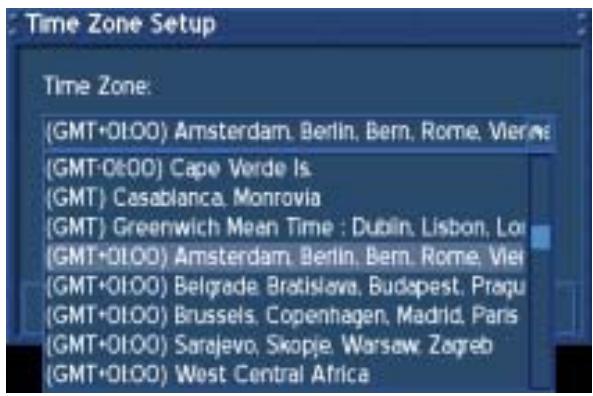

- Setting the time zone 24
19.1 Manual time correction 26 - Signal strength (Adjusting your antenna, DM 500-T) . - 27 -
20.1 Disable 5V (DM 500-T) . - 28 -

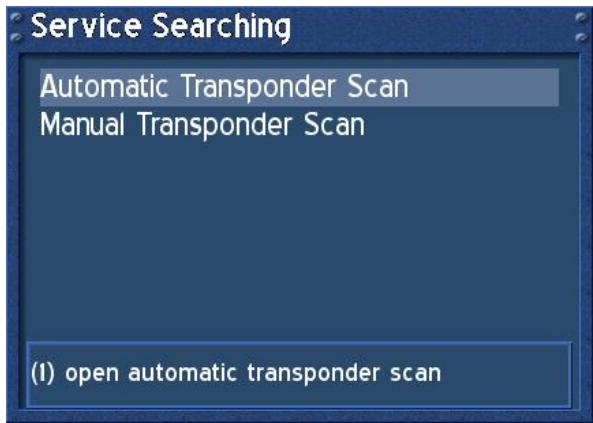

20.2 Automatic transponder scan (DM 500-T) - 29 -
20.3 Manual transponder scan (DM 500-T) . 31 - Automatic transponder scan (DM 500-C) 32 -
21.1 Manual transponder scan (DM 500-C) -34

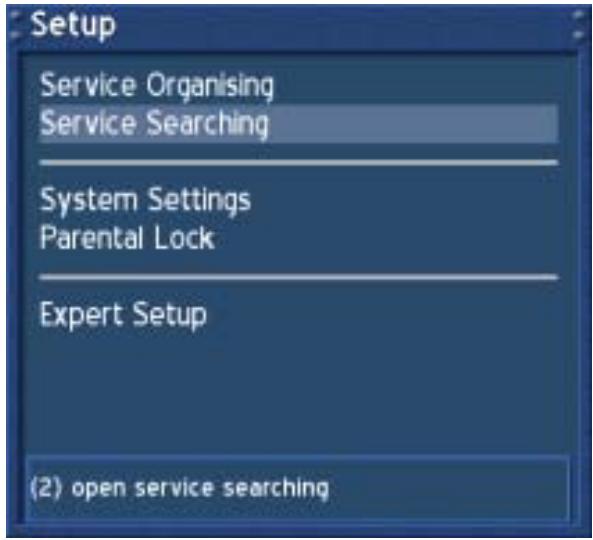

22.Satfinder (Adjusting your dish,DM 500-S) -35- - Satellite configuration 36

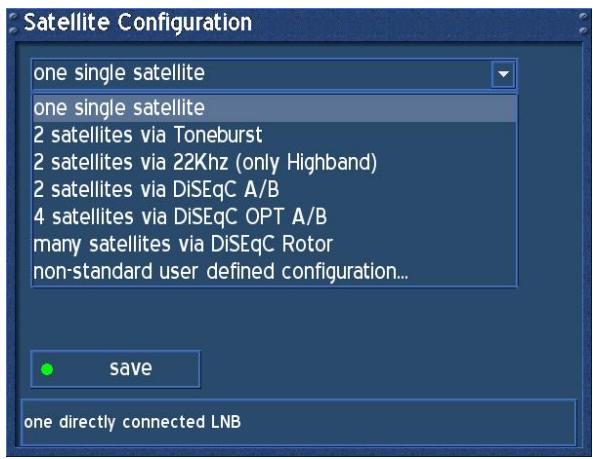

23.1 one single satellite - direct connection 37
23.2 2 satellites via Toneburst 38 -
23.3 2 satellites via 22kHz (Highband only) -39

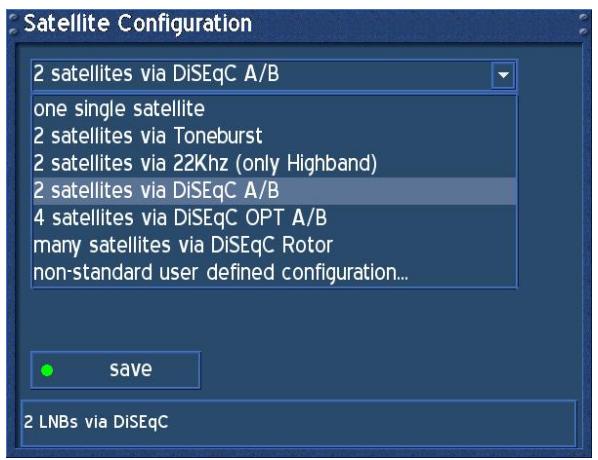

23.4 2 satellites via DiSEqC A/B -40

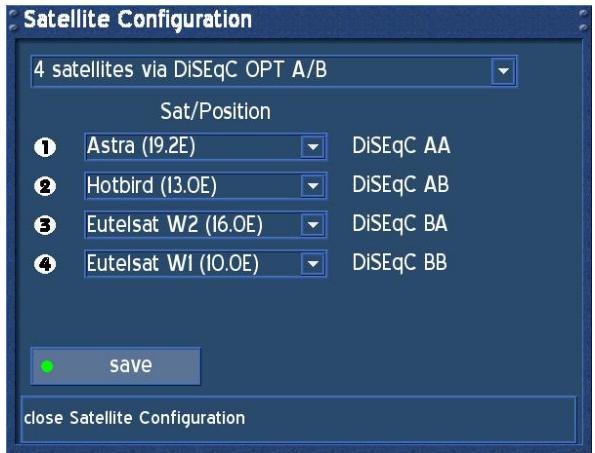

23.5 4 satellites via DiSEqC OPT A/B. -41
23.6 Many satellites via DiSEqC Rotor 42

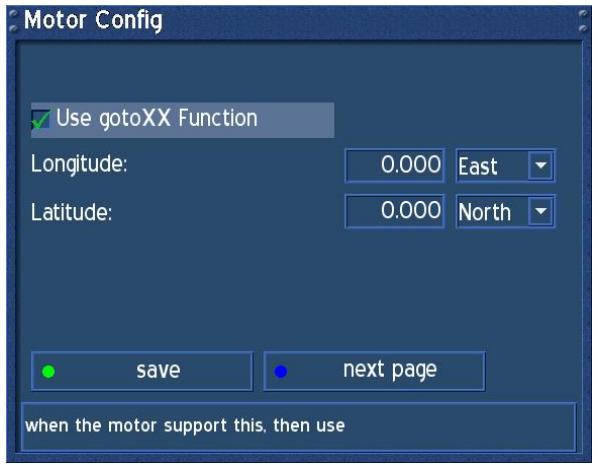

24.Motor setup 45- - Example table for the DiSEqC 1.2 Rotor (SG21000)

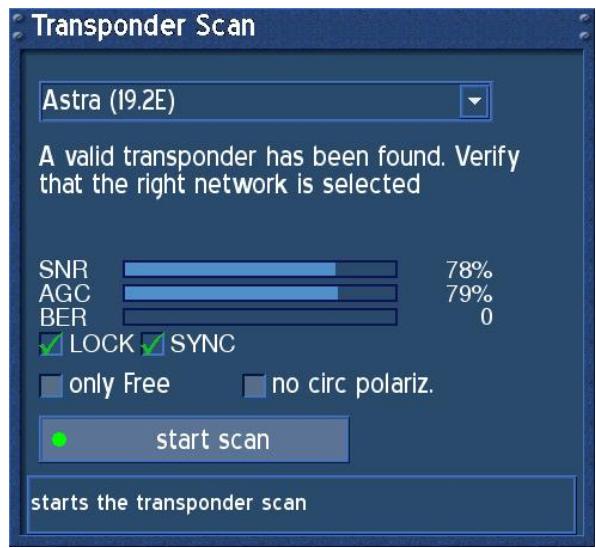

- Automatic transponder scan (DM 500-S) -47
- Automatic multisat scan (DM 500-S) - 50 -
- Manual transponder scan (DM 500-S) . - 54 -

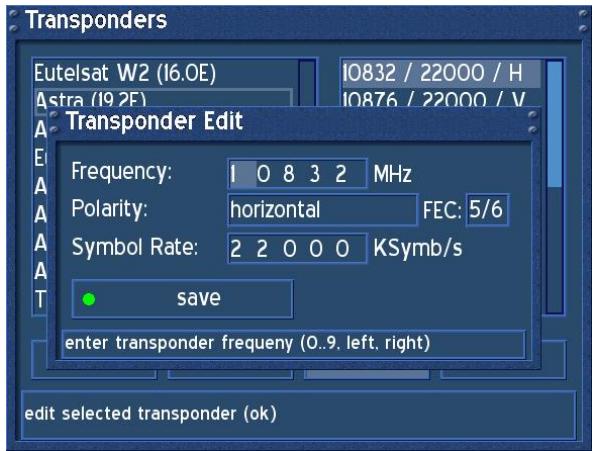

- Edit a transponder (DM 500-S)

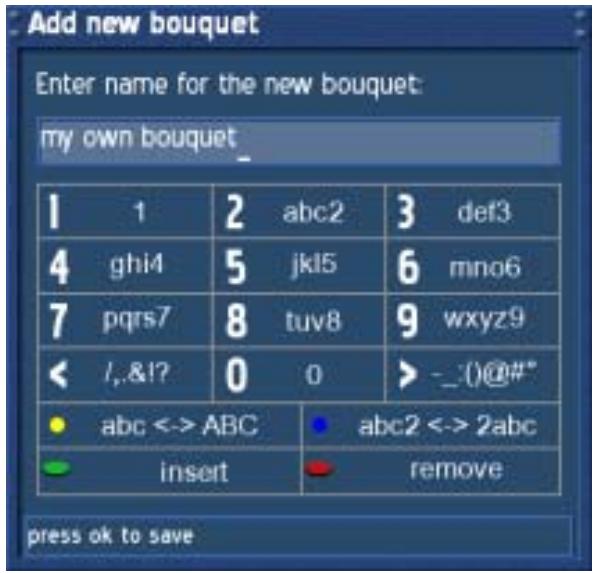

- Service organizing - Adding a new Bouquet 58

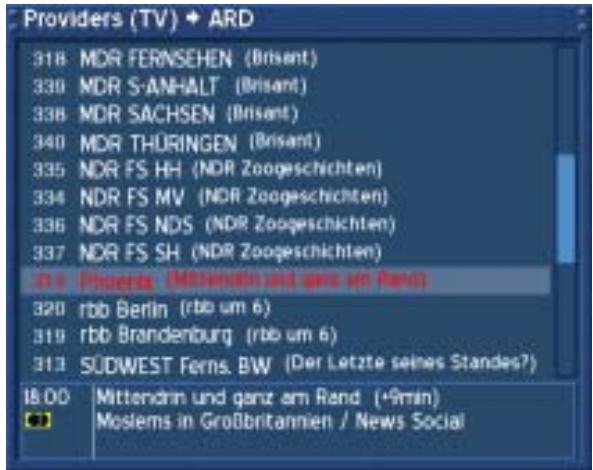

30.1 Service organizing - Adding services to an existing Bouquet 60 -

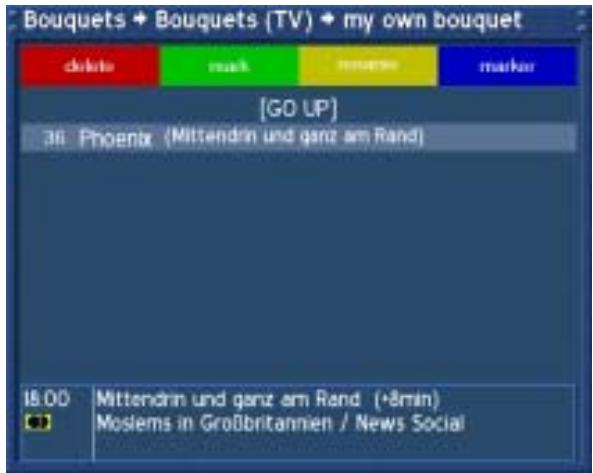

30.2 Service organizing - Editing a Bouquet 62 - Parental lock and Setup lock 64 -

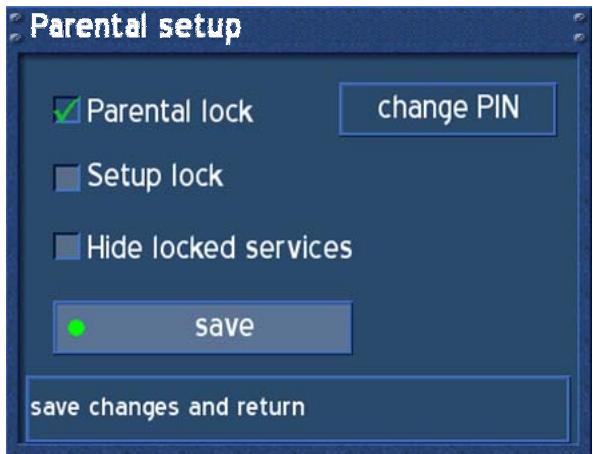

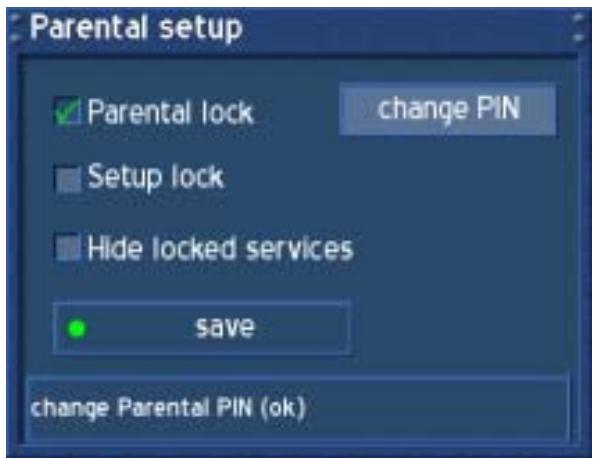

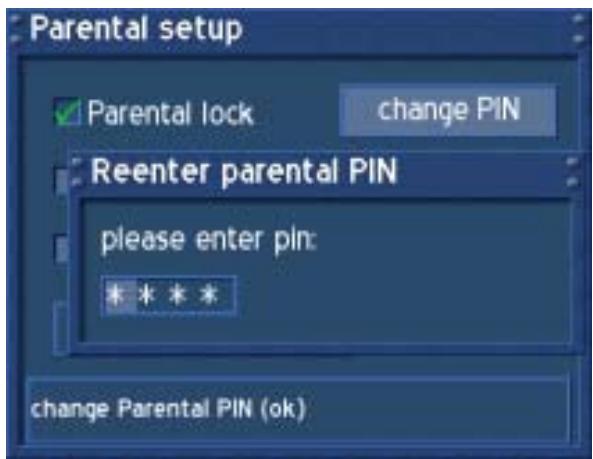

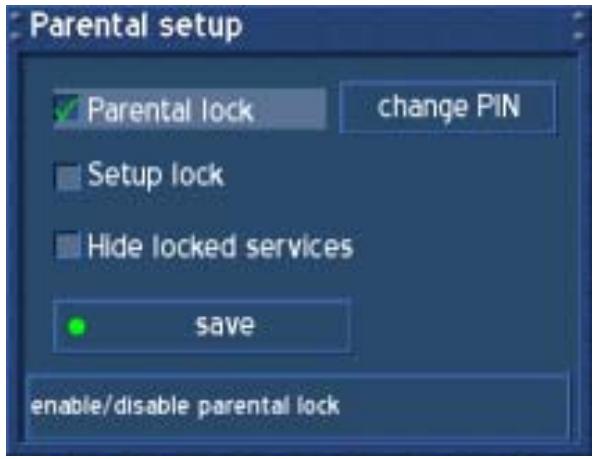

31.1 Activating the parental lock 65 -
31.2 Deactivating the parental lock 67

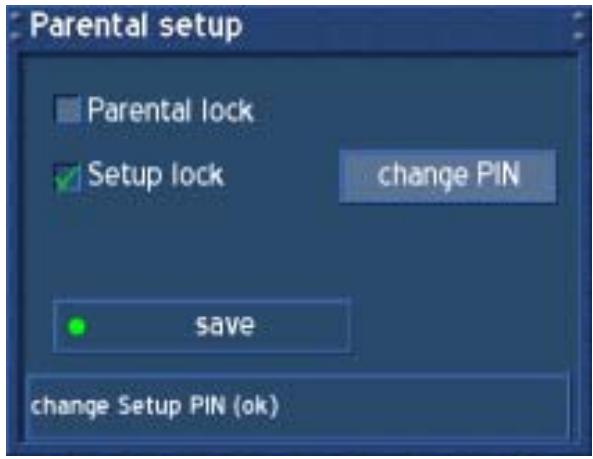

31.3 Activating the setup lock. 68 -
31.4 Deactivating the setup lock 70 - Locking a service 71

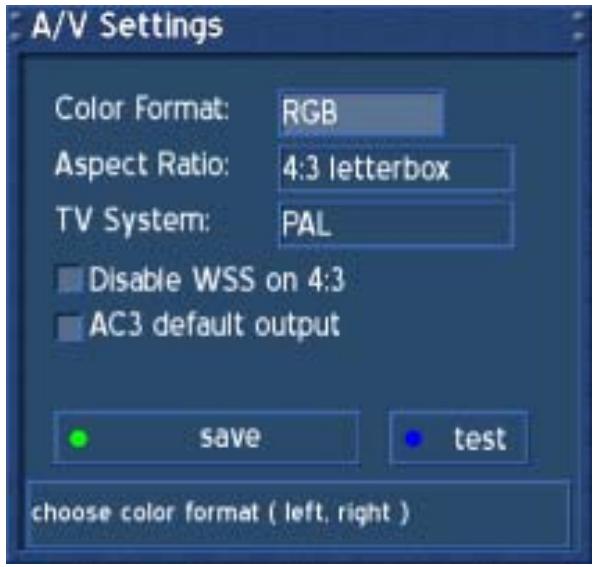

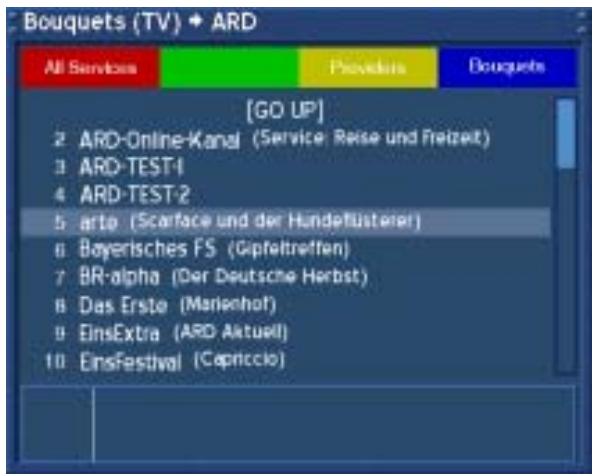

33.Unlocking a service -72- - Audio/Video settings 73
-
Keyboard 75
-
OSD settings 76

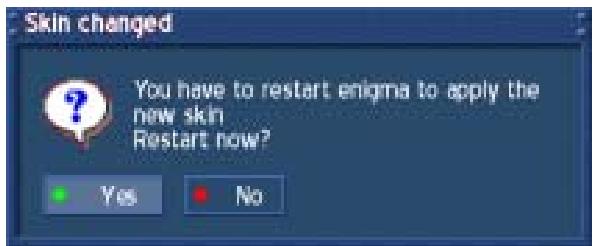

36.1 Skin Setup. 78 -

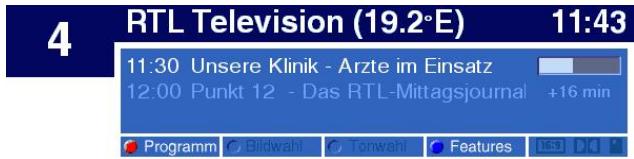

36.2 Available Skins . 79 -

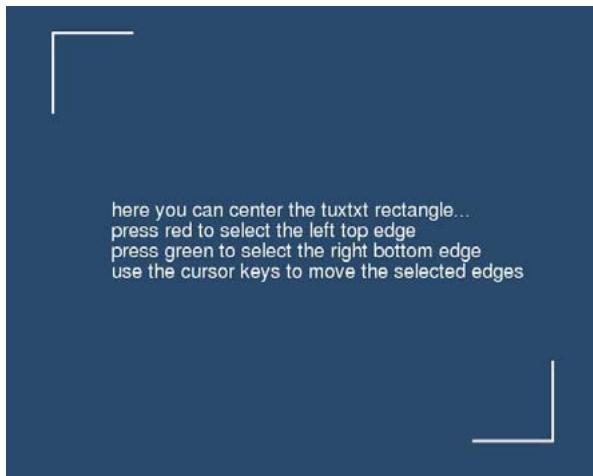

36.3 Setting the teletext (TuxText) position 80
-
Teletext (TuxText) - 82 -
-
Expert setup 84
38.1 Communications setup (Setting up LAN, NFS shares) 86
38.2 Ngrab - Streaming setup 89
38.3 Manual software update 90
38.4 Remote control setup 91
38.5 Reset to factory defaults 92
- Timer - 93

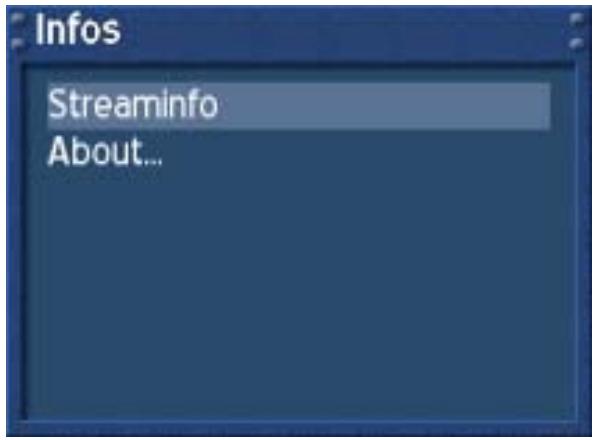

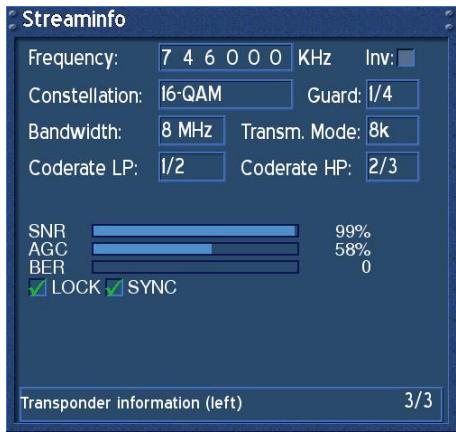

- Information - Streaminformation 94
- Information - About
- Technical data 96
- Contact & support information 98 -
- Warranty card 99 -
- Copyright notes 100
46.GNU General Public License. 101 -
Note: The Dreambox DM 500 carries the CE-sign and fulfills all requirements form the EU.
Version: November 2005.
Software: Release 1.09
Subject to change without prior notification.
2. Views

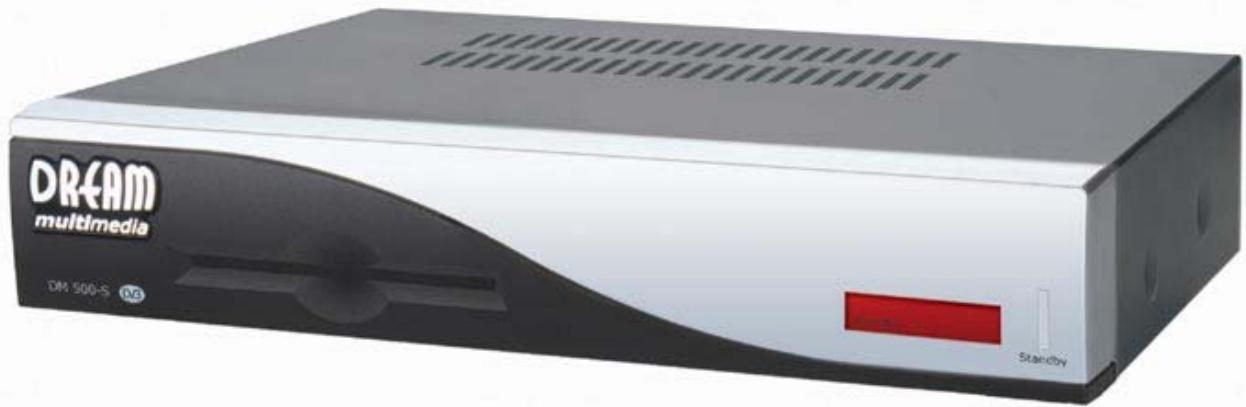

Front panel
Rear panel DM 500-C/T
Rear panel DM 500-S
3. Explanation front panel
3.1 Smartcard Reader
Insert your Dreamcrypt Smartcard with the golden chip facing down and forward into the Smartcard reader. Dreamcrypt is a registered trademark of Dream-Multimedia.
3.2 Standby LED
The Standby LED lights up red if the Dreambox is in standby mode. It lights up green if the Dreambox is powered on.
3.3 Remote Control (RC) Led
The remote control LED lights up every time the Dreambox receives a signal from the remote control.
3.4 Standby on/off
The Standby on/off button toggles between standby mode and powered on mode.
4. Explanation rear panel
4.1 Antenna input (DM 500-C/T)
Connect your antenna cable here.
4.2 Antenna output (DM 500-C/T)
You can optionally connect your TV or VCR here.
4.3 LNB input (DM 500-S)
Connect the coaxial cable from your LNB here.
4.4 LNB output (DM 500-S)
You can connect an analogue/digital receiver here. Remember to shutdown your Dreambox completely in order for the receiver to work.
4.5 Video output (FBAS)
You can optionally connect your Dreambox to a TV using a RCA/Chinch cable. (Composite)
4.6 Audio output - analog (Cinch)
Connect your Dreambox with a RCA/Cinch cable to your HiFi-Amplifier (e.g. AUX In or Tape In ports).
4.7 Serial interface (RS232C, Sub-D, 9-pin)
The Serial Port is used to update the operating system. Please connect a serial null modem cable here.
4.8 TV Scart
Connect your TV or beamer to your Dreambox using a Scart cable.
4.9 Audio output - digital (Toslink)
You can connect your Dreambox with an optical (Toslink) cable to your HiFi-Amplifier or DSP. The AC3 signal is also available at this port in case the selected channel transmits Dolby Digital signals.
4.10 Power supply connector
Plug the power cable of the power supply that came with your Dreambox into power outlet. Connect your power supply to your Dreambox. You must not connect the power plug of the power supply to anything other than a socket that supplies 230V/50Hz.
4.11 Network interface (Ethernet 10/100Mbit, RJ45)
The Communication Port is an Ethernet port. It is used to communicate with your Dreambox via HTTP, FTP, NFS, Telnet and Samba. This port is also used to update the operating system of your Dreambox. Please use a regular patch cable to connect your Dreambox to your LAN.
5. Safety Instructions
Please read the safety instructions completely and carefully, before using the Dreambox. The Manufacturer takes no responsibility for incorrect handling of the Dreambox.
- Allow enough space around the Dreambox for sufficient ventilation.
- Do not cover the Dreambox's ventilation openings with items such as newspapers, tablecloths, curtains etc.
- Do not expose the Dreambox to dripping or splashing liquids.
- Do not place open flame sources, such as lit candles, on the Dreambox.
- Do not place any containers with liquid, such as vases, on the Dreambox.
- Do not connect or modify cables while the Dreambox is connected to the power.
- Do not remove the cover. Risk of electric shock!
- Do not put any metal things into the slots or ventilation openings.
- Please note that the only way to isolate the Dreambox completely from the main power supply is to unplug the main power cable!
WARNING!
Modifications and changes to the Dreambox lead to loss of warranty. We recommend the installation of a hard disk by your local dealer. Unskilled installation of a hard disk leads to loss of warranty.
6. Shut Down
- In case your Dreambox is in use for a longer period of time disconnect the power plug from the power outlet.
- During thunder storm the unit should also be physically disconnected from the power outlet.
7. Additional safety instructions
- (Dis-)Connecting to a LNB:
Turn the Dreambox off before you connect or disconnect a cable coming from a LNB. - Connecting to a TV:
Before connecting or disconnecting your Dreambox to a TV please turn it off. - In case you notice any damage to the power cord or power plug immediately disconnect the unit from the power outlet.
- In case the unit was exposed to humidity immediately disconnect the unit from the power outlet.
- In case you notice any serious damage to the outer shell of the unit immediately disconnect the unit from the power outlet.
- Do not expose the Dreambox to direct sunlight, lightning or rain.
- Grounding:
The LNB cable must be grounded.
The grounding system must match SABS 061.
- Cleaning:
Disconnect the mains power cord before cleaning the cover. Use a slightly damp cloth without cleaning agents
- Connect the Dreambox only to suitable sockets. Do not allow overloads to occur.
8. Disposal instructions
The packaging of the Dreambox only consists of reusable materials. Please recycle if possible.
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.
For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Please note that empty batteries and electric waste is not to be put into the regular garbage.
9. Packaging contents
Please check the completeness of the box.
Included in box:
- 1 Dreambox DM 500
- 1 Power supply
- 1 Power cord
- 1 Remote control
- 2 Batteries (1,5V Micro / AAA / LR6)
- 1 User manual (latest release via Internet http://www.dream-multimedia-TV.de)
10. Installation
- Insert 2 AA (1,5V) batteries, taking care to observe the + and - markings indicated inside, into the remote control.
Before using the Dreambox, please read the safety instructions. - Connect the LNB or antenna with a coaxial cable to LNB or Antenna In at your Dreambox.
- Connect the Dreambox with a Scart cable to your television screen.
- Plug in the power cable into a 230 ~V / 50 ~Hz power socket.
- If you are using a switchable power socket please shutdown your Dreambox into deep standby before switching off the power socket.
- If you switch on your Dreambox for the first time, you will see the setup wizard. The setup wizard will guide you through the first time installation. You will be asked for your TV standard, the regional settings and your language. Please choose and follow the instructions on the screen.
- Please note that the video format meets the factory setting CVBS (FBAS).

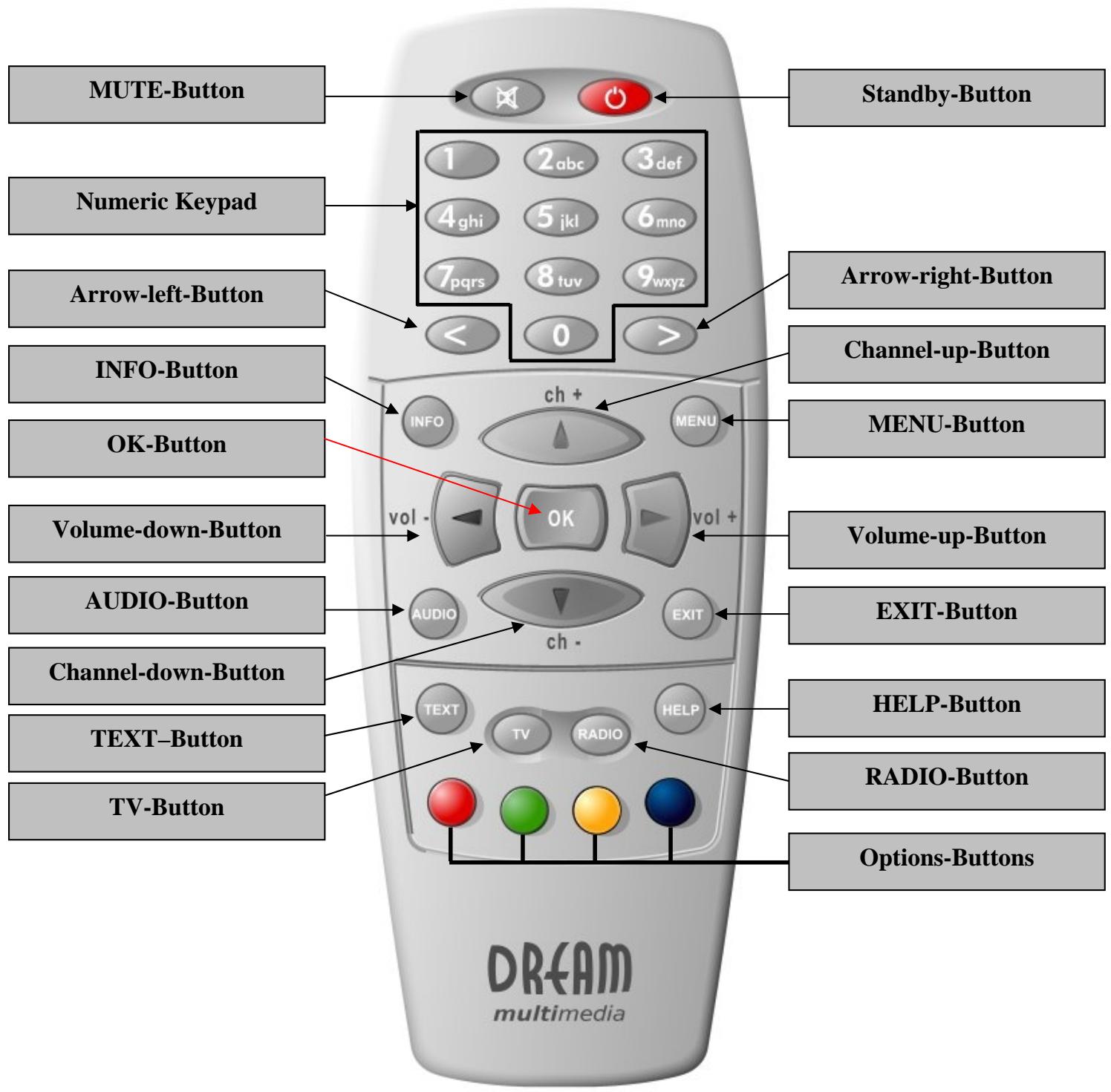

11. Remote Control
12. Important notes about operation
All functions of the Dreambox can be controlled via OSD-Menu (On-Screen-Display). This makes the handling of the Dreambox very easy for you. All options are indicated by four colored dots or beams (red, green, yellow, blue) in the OSD-Menu and can be started with the Option-Buttons on the Remote Control.
Depending on the chosen Menu, these options do change.
All Menus and Service lists are closed with the EXIT-Button.
During Menu and Channellist navigation the following buttons are used to navigate: Channel-up = up Channel-down = down Volume down = left Volume up = right
If you want to enter a Menu press the OK-Button.
13. Remote Control Buttons
MENUBuTton
If you are in TV- or RADIO-Mode, pressing this button will bring up the OSD main menu. The OSD main menu has the following options:

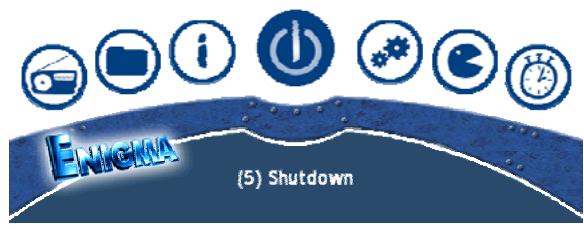

- (1) TV Mode
- (2) Radio Mode
- (3) File Mode
- (4) Information
- (5) Shutdown
- (6) Setup
- (7) Games
- (8) Timer
You can switch to the needed option by pressing the Navigation-Buttons left or right. Also see: Important notes about operation.
The numbers in front of each option can be used to directly access the needed function by pressing the according number on the Numeric Keypad of your Remote control.
If you are in the service list, pressing the MENU-Button brings up the service menu. The shown options may vary depending on the service list you selected.
Standby-Button
The Standby-Button switches your Dreambox on and off. Also see: Turning your Dreambox on / off.
Numeric Keypad
Enter a service number to directly access the option by using the Numeric Keypad. The service numbers are on the left side of the service list.
The Numeric Keypad can also be used to enter the page number in teletext mode, if you have pressed the TEXT-Button and activated the teletext decoder. The TV station has to submit teletext information; otherwise this feature cannot be used.
MUTE-Button
Pressing the MUTE-Button mutes the Volume. A crossed speaker symbol will appear on the TV screen. Pressing it again or pressing one of the Volume-up or down-Buttons brings back the audio.
Arrow-left-Button
Arrow-right-Button
These Buttons enable to jump back or forwards through the Playlist. The Playlist contains the last chosen services, which have been selected.
Once having opened the service list, you are able to jump at the Beginning or the End of the Servicelist or to the next Marker.
INFO-Button
If no OSD menu is visible on the screen and you are in TV or RADIO-Mode, pressing the INFO-Button will reveal the Infobar. Pressing it again while the Infobar still is visible will bring up the EPG information of the chosen station as long as it available.
OK-Button
By pressing the OK-Button you confirm a selection in the menu or service list navigation.
If no OSD menu is present on your screen, the service list is shown once you press the OK-Button.
Channel-up-Button
Pressing the Channel-up-Button takes you to the next station in your selected service list. If the menu or service list is visible this button will move the cursor up.
Channel-up-Button
Pressing the Channel-down-Button takes you to the previous station in your selected service list. If the menu or service list is visible this button will move the cursor down.
Volume-up-Button
Pressing the Volume-up-Button will turn up the volume. If the menu or service list is visible this button will move the cursor to the right.
Volume-down-Button
Pressing the Volume-down-Button will lower the volume. If the menu or service list is visible this button will move the cursor to the left.
AUDIO-Button
By pressing the AUDIO-Button you can choose the different audio tracks offered by the station. Different audio tracks are indicated by the yellow dot in the Infobar.
EXIT-Button
You can leave all menus and service lists by pressing the EXIT-Button.
TEXT-Button
The TEXT-Button activates the Teletext (TuxTxt). If you are in the stations list, pressing this button will directly take you to the FILE-Mode.
TV-Button
Pressing the TV-Button activates the TV-Mode.
RADIO-Button
Pressing the RADIO-Button activates the RADIO-Mode.
HELP-Button
Pressing the HELP-Button activates the Help menu.
Options-Buttons
All possible options are shown by the four colored dots/blocks (red, green, yellow, blue) and can be activated by the Options-Buttons.
Depending on the menu you currently are in the options will change and will be named differently.
14. Turning your Dreambox on and off
Use the Standby-Button to turn your Dreambox on and off.
To put your Dreambox into Standby-Mode either press the Standby-Button on your remote control or on your Dreambox.
Holding down the Standby-Button on your remote control for three seconds will show the Shutdown / Standby menu.
This is the Shutdown / Standby menu.
Navigate to the desired option and confirm by pressing the OK-Button.
Reboot now:
Your Dreambox will be rebooted.
Goto standby:
Your Dreambox goes into standby mode.
Set sleeptimer.
You can find an explanation in the section Sleeptimer.
15. Sleeptimer
Press the Power-Button for at least 3 seconds, select "set sleptimer" to access this menu.
This is he sleptimer menu.
Define a maximum duration of 240 minutes. Define if the Dreambox should shutdown or should go into standby mode by setting a check into one of the checkboxes beside shutdown and standby using the OK-Button.
Either press the green Options-Button or the OK-Button to accept the setting.
16. Main OSD menu
If no OSD menu is shown on your screen you can access the main OSD menu by pressing the Menu-Button on your remote control.
Through the main OSD menu you can access the submenus and functions of your Dreambox. Please use the Navigation-Buttons left and right or up and down, depending on you main OSD menu's view, to access the desired functions and submenus. Use the OK-Button to activate your selection.
As an alternative you can directly access the submenu or function by pressing the corresponding number in your remote control's Numeric Keypad.
Selecting this symbol activates the TV mode.
Selecting this symbol activates the Radio mode.
Selecting this symbol activates the file mode.
Selecting this symbol takes you to the Info menu. The Info menu supplies you with additional information about the station, signal strength and software version of you Dreambox.
Selecting this symbol takes you to the shutdown menu. Selecting the option, Shutdown now' will turn you Dreambox off. Pressing the Power-Button on your remote control will turn your Dreambox on again.
Selecting this symbol takes you to the setup menu. You can change all your Dreambox's settings in the setup menu.

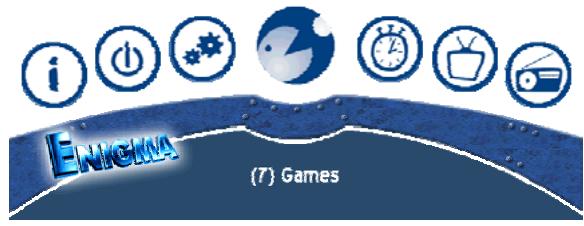

Selecting this symbol takes you to the games.
Selecting this symbol takes you to the Timer menu. All set timers can be viewed, changed and deleted here.
Through the menu options
(5) Setup ->
(3) System ->
(6) OSD Settings ->

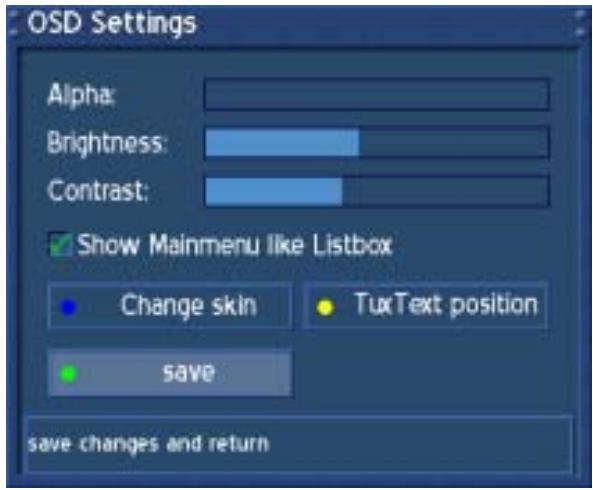

You can choose to view the main OSD menu as a regular menu.
See section OSD Settings.
17. Infobar

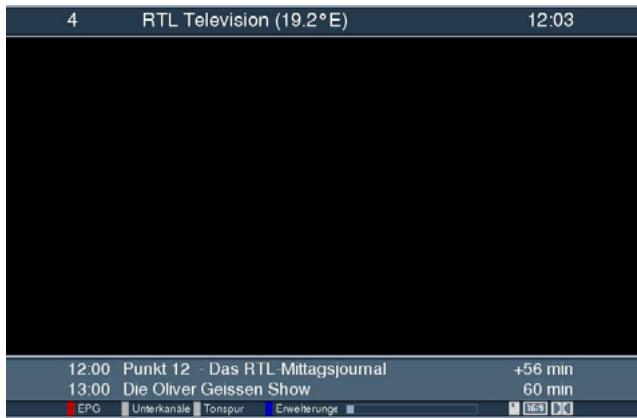

The Infobar appears and disappears by pressing the OK-Button once, if no OSD menu is shown on your screen. The Infobar shows all necessary Information about the selected service.
Encrypted
Is highlighted yellow as soon as a show is broadcasted encrypted.
Apect ratio
Is highlighted yellow as soon as a show is broadcasted in 16:9 aspect ratio.
Dolby Digital
Is highlighted yellow as soon as a show is broadcasted in Dolby Digital.
17.1 Infobar - EPG (Electronic Program Guide)
The red dot in the Infobar appears if the selected station transmits EPG information.
If no OSD menu is visible on your screen and you are in TV mode press the TV-Button to access the service list.
Press the Info-Button to get to the selection of the EPG style.
Or you can press the red Options-Button to directly access the EPG of the station without having to go through the service list.
Select „Channel EPG“ and press the OK-Button to activate it.
Use the Navigation-Buttons to navigate to the desired event and press the OK-Button to view additional information.
Pressing the EXIT-Button will quit the EPG.
The Options-Buttons are mapped differently in this view, press the Help-Button to see an explanation.
Pressing the green Options-Button will show the "Timer Edit" menu. Use the Navigation-Buttons to reach the desired option and use the OK-Button to open up the drop down menus.
Change the setting to fit your needs.
The drop down menu „Switch“ offers the same options that you can directly access from the EPG using the colored Options-Buttons.
"Switch" will switch to the desired service.
"NGrab" will record via LAN.
Press the green Options-Button to save your settings.
After saving you timer event you will be taken back to the EPG.
The set timers will be symbolized with a red clock symbol for NGrab Timers and a yellow clock symbol for Switch Timers.

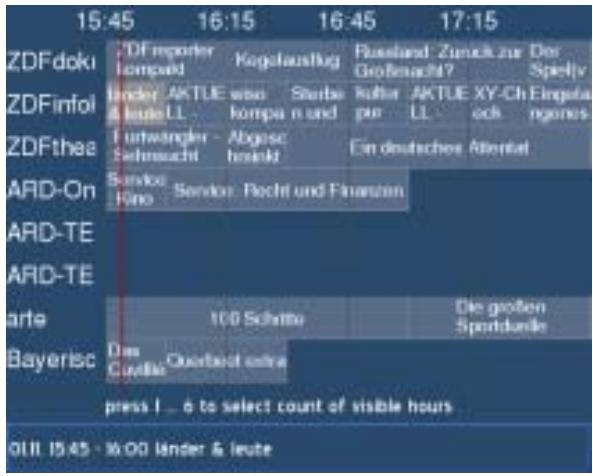

Press the numbers 1-6 to adjust the number of hours shown on the screen. The red line marks the current time.
If you selected Multi-EPG when you were asked for the EPG style you will see this view.
Use the Navigation-Buttons to navigate to the desired event. The current selection is highlighted gray. Pressing the Info-Button once will show additional information. Pressing the Info-Button again will return you to the Multi-EPG screen.
Pressing the OK-Button in Multi-EPG mode will directly switch to the selected service.
The Options-Buttons are mapped differently in this view, press the Help-Button to see an explanation.
Pressing the EXIT-Button will quit the EPG.
17.2 Infobar - Sub services
The green dot in the Infobar appears if the selected station transmits sub services.
You can quit the Quickzap-Mode by either re-entering this menu and pressing the green Options-Button again or by accessing the service list and selecting a new service by pressing the Navigation-Button up or down.
Pressing the green Options-Button in TV or Radio mode will reveal the sub services menu.
Use the Navigation-Buttons up and down to move to one of the sub services. Press the OK-Button to select.
If you chose the option "Enable quickzap" (green Options-Button), you will stay in the sub services and can jump between the sub services by pressing the Navigation-Buttons left and right.
The option „Add to Bouquet“ (yellow Options-Button) will add the selected service to a newly created or already existing Bouquet of your choice. See section Managing Services.
17.3 Infobar - Audio tracks
The yellow dot in the Infobar appears if the selected station transmits multiple Audio tracks.
Pressing the yellow Options-Button in TV or Radio mode will reveal the audio menu of the service.
Use the Navigation-Buttons up and down to move to desired audio track. Press the OK-Button to select.
The contents of this menu will vary from service to service.
Move to the option "Stereo". Use the Navigation-Buttons left or right to choose the different audio modes, Left-Mono, Stereo, Right-Mono. Press the OK-Button to select.
17.4 Infobar - Plugins
The blue dot in the info bar is always visible.
Pressing the blue Options-Button in TV or Radio mode will reveal the Plugins menu.
The option Teletext - Software Decoder will open the service's teletext.
See section Teletext (TuxText).
The options „Start/Stop NGrab recording“ are still in development and therefore will not be explained in detail.
18. Setting OSD language

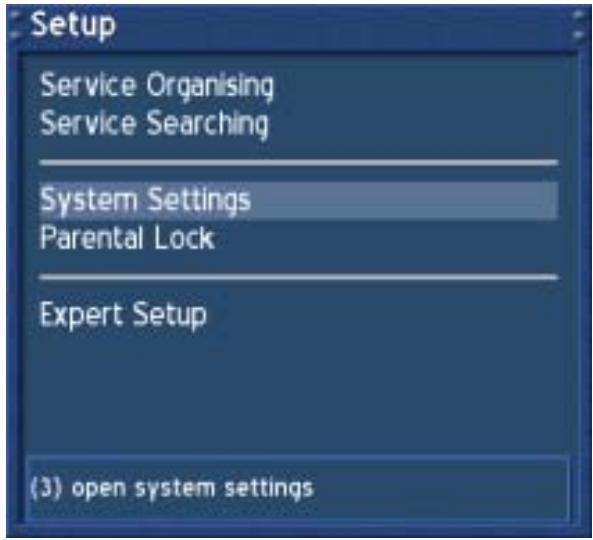

If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "System Settings" and press the OK-Button.
The "System Settings" menu will open up.

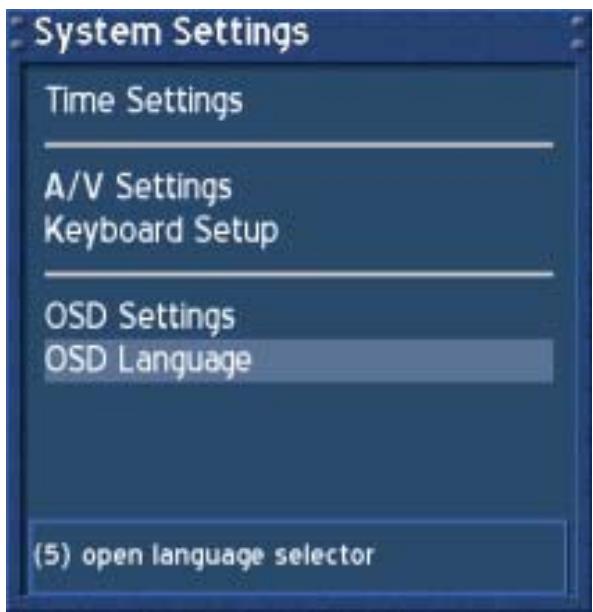

Navigate to the option "OSD Language" and press the OK-Button.
The "OSD Language" menu will open up.
Select your desired and language with the Navigation-Buttons up and down. Press the OK-Button to activate.
The Exit-Button will quit this menu.
19. Setting the time zone
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.

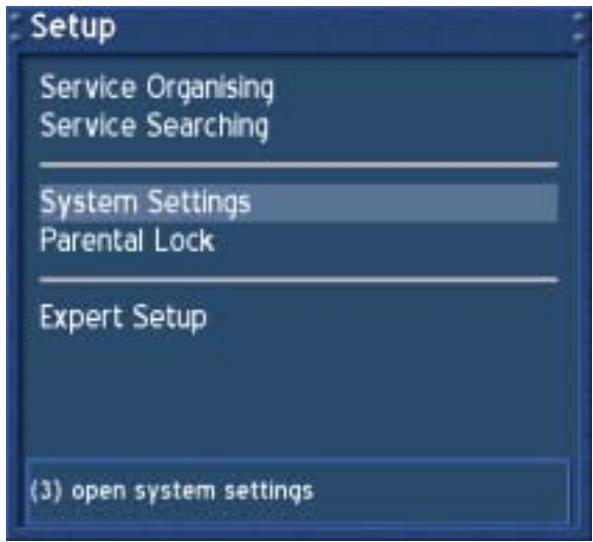

Navigate to the option "System Settings" and press the OK-Button.
The "System Settings" menu will open up.

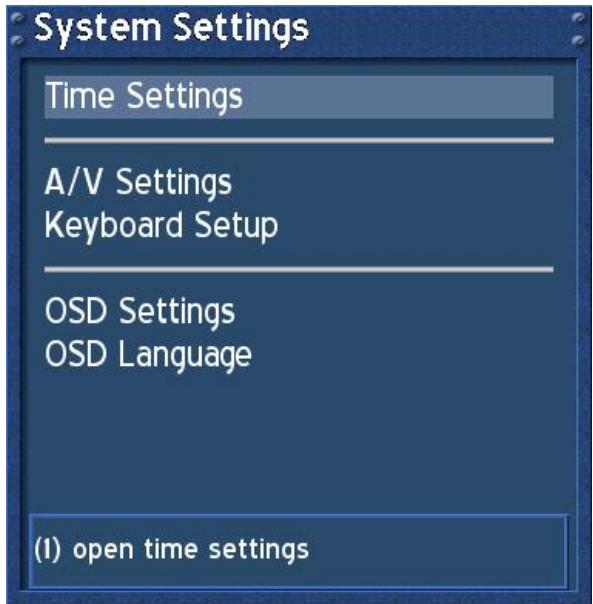

Navigate to the option "Time" and press the OK-Button.
The "Time Settings" menu will open up.
You can either set your time zone or manually adjust the time of you Dreambox in this menu.
Navigate to the option "Time Zone Setup" and press the OK-Button.

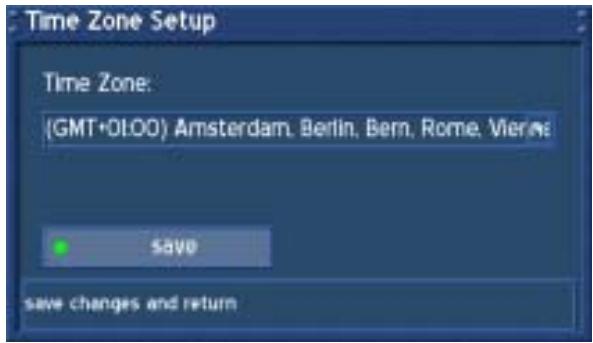

The "Time Zone Setup" menu will open up.
Press the OK-Button to get open the list of time zones.
Select your desired and time zone with the Navigation-Buttons up and down. Press the OK-Button to activate.
The time zone list will disappear and you current selection is shown as seen in the picture above.
Navigate to the option "save" and press the OK-Button to save your settings. Optionally you can press the green Options-Button to save.
You are taken back to the "Time" menu.
19.1 Manual time correction
Please read the section Setting the time zone to learn how to get into this menu.
Navigate to the option "Time Correction" and press the OK-Button.
When entering this menu, please wait a second. The Dreambox tries to receive the current time. The Transponder Time and Date will be automatically updated. If this fails, enter the new time and date manually.
Navigate to the option "set" and press the OK-Button to save your settings. Optionally you can press the green Options-Button to save.
You are taken back to the "Time Settings" menu. Pressing the Exit-Button will leave this menu.
20. Signal strength (Adjusting your antenna, DM 500-T)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.

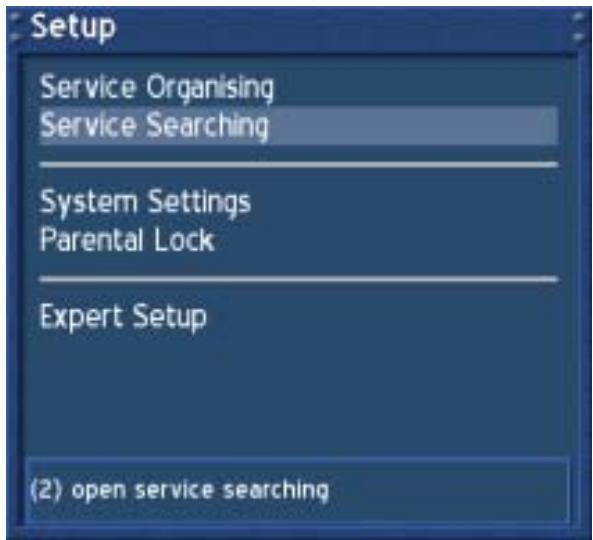

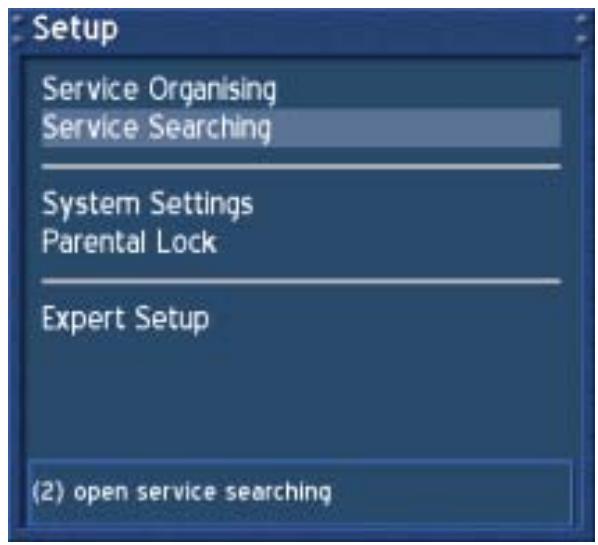

Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Signalfind" and press the OK-Button.
Press the OK-Button to select a transponder.
Choose the region where you live in from the drop down menu „Region“ and press the OK-Button.
Move your antenna around a bit and keep an eye on the SNR and SGC values. The higher they are the better the reception is.
Pressing the Exit-Button will leave this menu.
20.1 Disable 5V (DM 500-T)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Disable 5V".
Press the OK-Button to set a check behind this option if you use a passive antenna.
If you connected an active antenna and want to use it without its power supply, press the OK-Button to remove the check behind this option.
20.2 Automatic transponder scan (DM 500-T)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Automatic Transponder Scan" and press the OK-Button.
Select the region you live in the drop down menu and press the OK-Button.

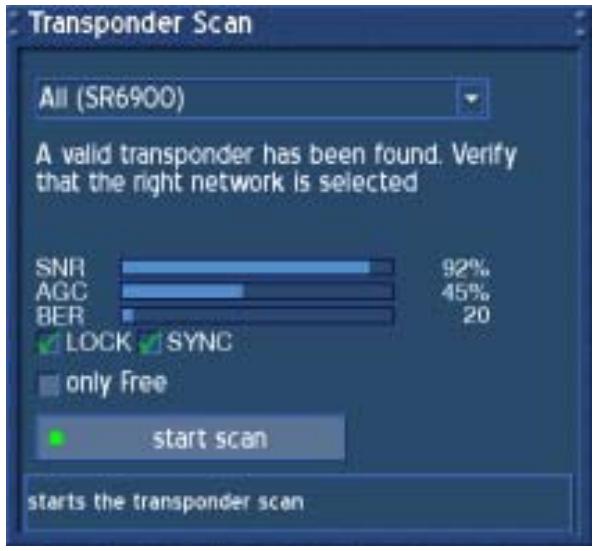

You now should see that a valid transponder has been found and the checkboxes in front of "LOCK" and "SYNC" should be checked.
SNR:
Signal to Noise Ratio
AGC:
Automatic Gain Control
BER:
Bit Error Rate (should be equals 0 if possible)
only Free:
If you check the checkbox in front of the "only Free" option, your Dreambox will search on for FTA (non-encrypted) services.
Press the green Options-Button to start searching.

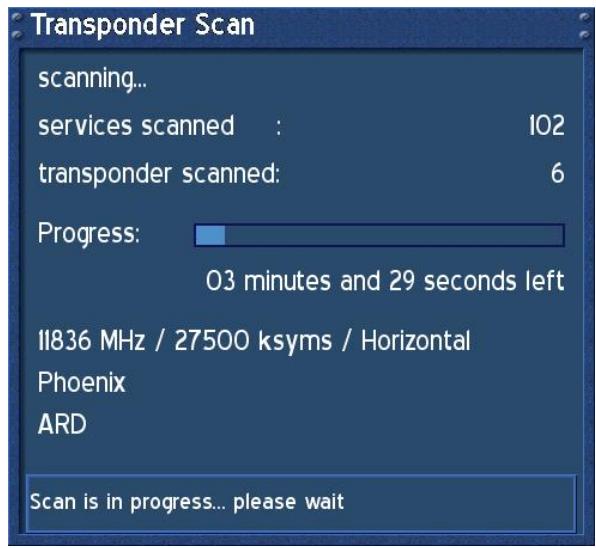

After you started searching you will see the progress bar and the estimated remaining time.
Please wait until your Dreambox finished searching for services.
You can always abort the searching by pressing the Exit-Button several times.

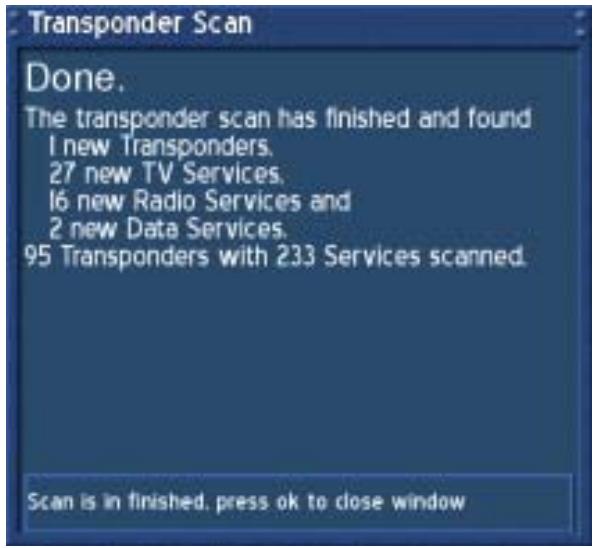

Once your Dreambox is done searching you will see this menu on the right. A brief summary of the search is shown.
Press the OK-Button to close this menu.
20.3 Manual Transponder scan (DM 500-T)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Manual Transponder Scan" and press the OK-Button.
Enter the desired frequency with the Numeric Keypad on your remote control.
Use the Navigation-Buttons to reach the individual options.
Press the green Options-Button to start the scan.
21. Automatic transponder scan (DM 500-C)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Automatic Transponder Scan" and press the OK-Button.
- Select your cable provider in the drop down menu and press the OK-Button.
You now should see that a valid transponder has been found and the checkboxes in front of "LOCK" and "SYNC" should be checked.
SNR:
Signal to Noise Ratio
AGC:
Automatic Gain Control
BER:
Bit Error Rate (should be equals 0 if possible)
Only free:
If you check the checkbox in front of the "Only free" option, your Dreambox will search on for FTA (non-encrypted) services.
Press the green Options-Button to start searching.
After you started searching you will see the progress bar and the estimated remaining time.
Please wait until your Dreambox finished searching for services.
You can always abort the searching by pressing the Exit-Button several times.
Once your Dreambox is done searching you will see this menu on the right. A brief summary of the search is shown.
Press the OK-Button to close this menu.
21.1 Manual transponder scan (DM 500-C)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Manual Transponder Scan" and press the OK-Button.

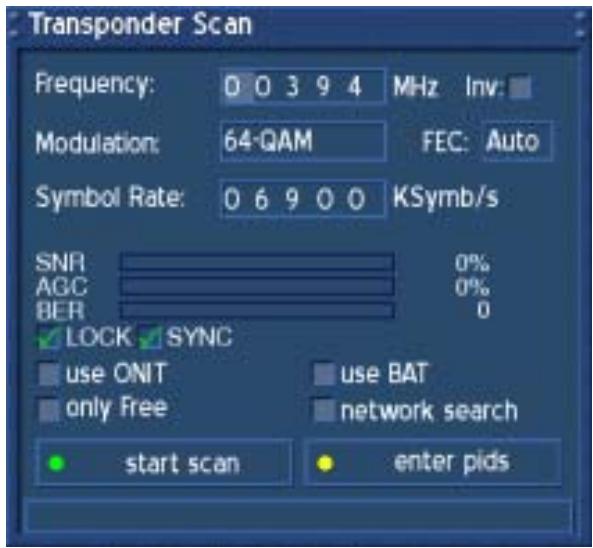

Enter the desired frequency with the Numeric Keypad on your remote control.
Use the Navigation-Buttons to reach the individual options.
Press the green Options-Button to start the scan.
22. Satfinder (Adjusting your dish, DM 500-S)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Satfind" and press the OK-Button.
Select the satellite and transponder in the drop down menu and press the OK-Button.
Adjust the dish towards the desired satellite until you have a high value on the signal strength AGC and on the signal quality SNR indicator. The BER should always indicate a value of zero if the satellite is locked andynced.
23. Satellite configuration
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.

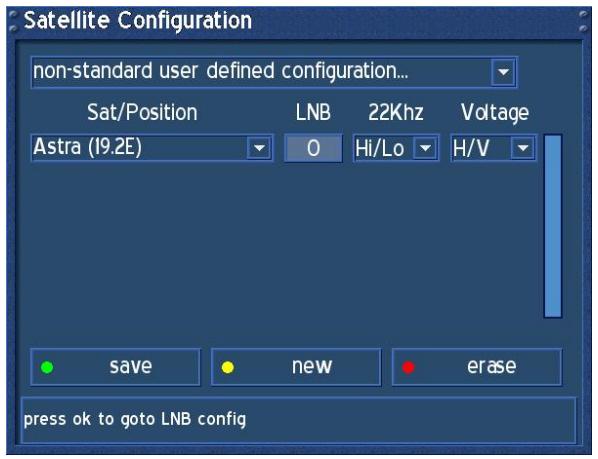

Navigate to the option "Satellite Configuration" and press the OK-Button.
23.1 one single satellite - direct connection
Use this type of configuration if you want to receive a single satellite with a Single Universal LNB. The coax cable is directly connected from you Dreambox to the LNB. Please read the section Satellite configuration to learn how to get into this menu.
The "Satellite Configuration" menu will open up.
Choose the upper drop down menu and press the OK-Button.

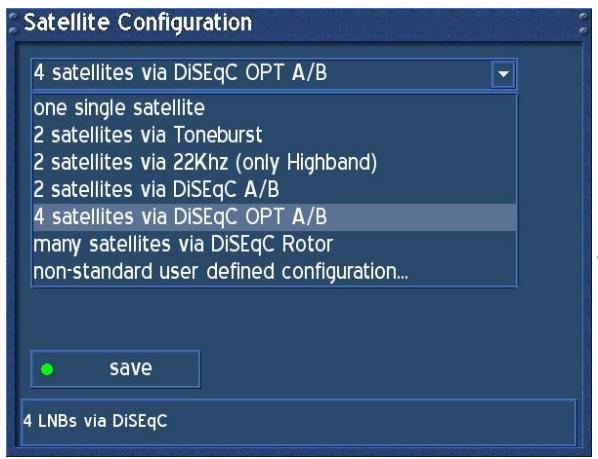

A list of all possible configurations will show up.
Select the "one single satellite" option and press the OK-Button.
Choose the drop down menu „Sat/Position“ and press the OK-Button.
A list of all available satellites will show up.
Choose your desired satellite and press the OK-Button.
Choose "save" and press the OK-Button.
The configuration for "single satellite" is now done.
The menu "Transponder scan" will show up. See sections Automatic transponder scan or Automatic multisat transponder scan for details.

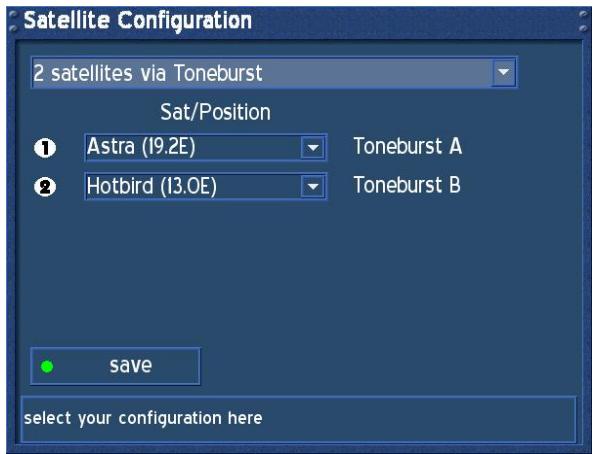

23.2 2 satellites via Toneburst
Use this type of configuration if you want to receive two satellites from one LNB each. It does not matter if you use one or two dishes to achieve this. Connect the two coax cables form the two LNBs to a so-called Toneburst switch and connect the coax cable from the Toneburst switch to your Dreambox. Please read the section Satellite configuration to learn how to get into this menu.
Choose the upper drop down menu and press the OK-Button.
A list of all possible configurations will show up.
Select the "2 satellites via Toneburst" option and press the OK-Button.
Select your desired satellites as described in the one single satellite - direct connection section.
Make sure you know which satellite is connected to which input on the Toneburst switch.
If you do not find any services in the transponder scan later, exchange the two satellites in this list and try again.
Choose "save" and press the OK-Button.
The configuration for "2 satellites via Toneburst" is now done.
The menu "Transponder scan" will show up. See sections Automatic transponder scan or Automatic multisat transponder scan for details.
23.3 2 satellites via 22KHz (Highband only)
Use this type of configuration if you want to receive two satellites from one LNB each. It does not matter if you use one or two dishes to achieve this. Connect the two coax cables form the two LNBs to a so-called 22kHz switch and connect the coax cable from the Toneburst switch to your Dreambox. Please read the section Satellite configuration to learn how to get into this menu.
Choose the upper drop down menu and press the OK-Button.
A list of all possible configurations will show up.
Select the "2 satellites via 22kHz (Highband only)" option and press the OK-Button.
Select your desired satellites as described in the one single satellite - direct connection section.
Make sure you know which satellite is connected to which input on the 22kHz switch.
If you do not find any services in the transponder scan later, exchange the two satellites in this list and try again.
Choose "save" and press the OK-Button.
The configuration for "2 satellites via 22kHz (Highband only)" is now done.
The menu "Transponder scan" will show up. See sections Automatic transponder scan or Automatic multisat transponder scan for details.
23.4 2 satellites via DiSEqC A/B
Use this type of configuration if you want to receive two satellites from one Twin Universal or Quad Universal LNB. It does not matter if you use one or two dishes to achieve this. In this case the LNBs are connected to a so-called Multiswitch from which the signal is via coax cabled to the satellite receivers in your household. Please read the section Satellite configuration to learn how to get into this menu.
Choose the upper drop down menu and press the OK-Button.
A list of all possible configurations will show up.

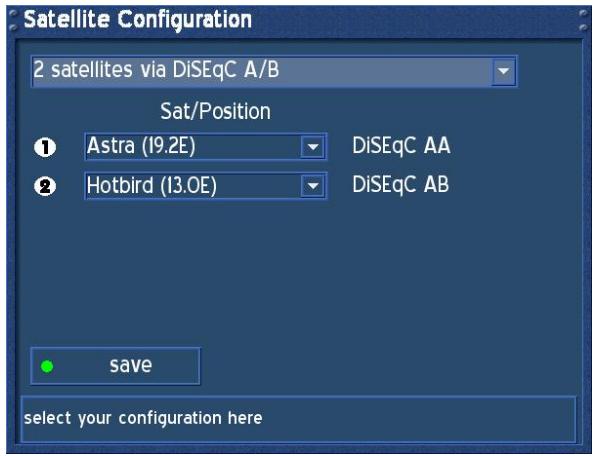

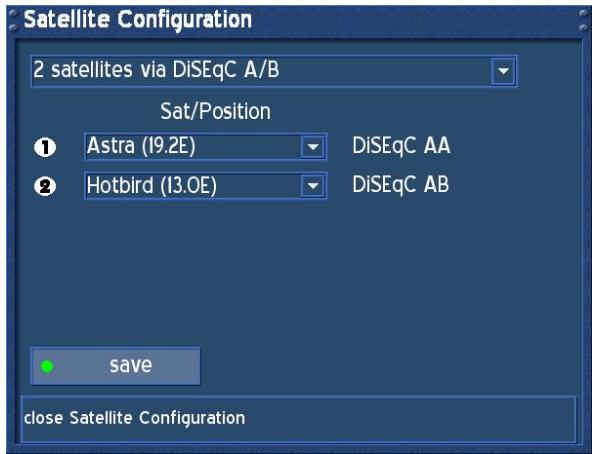

Select the "2 satellites via DiSEqC A/B" option and press the OK-Button.
Select your desired satellites as described in the one single satellite - direct connection section.
Make sure you know which satellite is connected to which input.
If you do not find any services in the transponder scan later, exchange the two satellites in this list and try again.
Choose "save" and press the OK-Button.
The configuration for "2 satellites via DiSEqC A/B" is now done.
The menu "Transponder scan" will show up. See sections Automatic transponder scan or Automatic multisat transponder scan for details.
23.5 4 satellites via DiSEqC OPT A/B
Use this type of configuration if you want to receive four satellites from one Twin Universal or Quad Universal LNB. It does not matter if you use one or two dishes to achieve this. In this case the LNBs are connected to a so-called Multiswitch from which the signal is via coax cabled to the satellite receivers in your household. Please read the section Satellite configuration to learn how to get into this menu.
Choose the upper drop down menu and press the OK-Button.
A list of all possible configurations will show up.
Select the "4 satellites via DiSEqC OPT A/B" option and press the OK-Button.
Select your desired satellites as described in the one single satellite - direct connection section.
Make sure you know which satellite is connected to which input.
If you do not find any services in the transponder scan later, exchange the two satellites in this list and try again.
Choose "save" and press the OK-Button.
The configuration for "4 satellites via DiSEqC OPT A/B" is now done.
The menu "Transponder scan" will show up. See sections Automatic transponder scan or Automatic multisat transponder scan for details.
23.6 Many satellites via DiSEqC Rotor
Use this type of configuration if you want to receive many satellites with a DiSEqC 1.2 Rotor or Stab from a Single Universal LNB. The coax cable is directly connected from you Dreambox to the LNB. Please read the section Satellite configuration to learn how to get into this menu.
Choose the upper drop down menu and press the OK-Button.
A list of all possible configurations will show up.
Select the "Many satellites via DiSEqC Rotor" option and press the OK-Button.
Edit the list of the satellites you can and want to receive. The order does not matter in this case. The number of satellites you can receive varies depending on your Rotor or Stab.
Press the green Options-Button to save your settings. You will be taken back to the service searching menu.

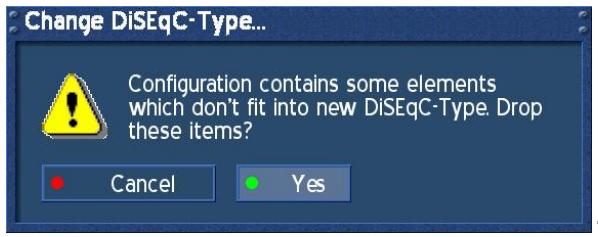

Hint:
If you do not want to change the satellite position list before hand, just select the option "Single satellite - direct connection" and choose "Yes" in case you are prompted the message on the left.
You will now see the configuration menu depicted on the right.
Choose "Non standard - user defined configuration" in the upper drop down menu. Press the OK-Button.
For now you will only see one satellite in the list. Please select LNB 0 and press the OK-Button.
Astra 19.2^ Ost is preset for your convenience.
The sub menu "LNB configuration" will show up.
Please change nothing here for now. Except in cause your coax cable to the LNB has a too high damping value you can check the checkbox in front of "Higher voltage". Usually this is not necessary..
Now please press the blue Options-Button to get to the next sub menu.

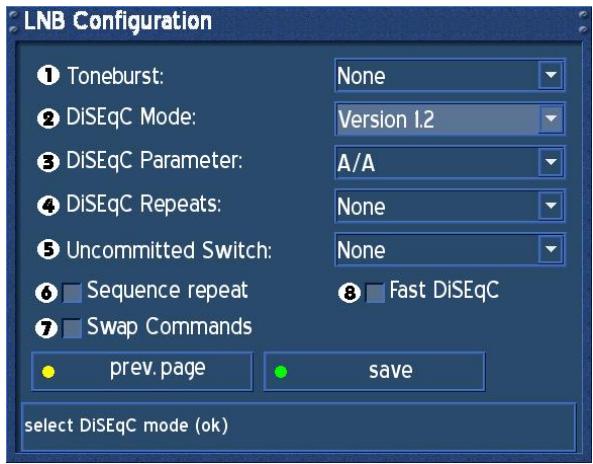

As you can see, the „DiSEqC - Mode“ is not set yet.
Please leave the "Toneburst" mode as it is.
Press the number "2" on your Numeric Keypad and select the "DiSEqC - Mode" Version 1.2.
To save the settings press the OK-Button.
The menu will change and reveal additional options now.
There is no need to change anything here.
Press the green Options-Button to save the settings.
You are taken back to the "Satellite configuration" menu.
You can now use the yellow Options-Button to add more satellites.
Once you are done press the green Options-Button to save your settings.
You are now taken back to the "Transponder scan" menu.
W
24. Motor Setup
Use this type of configuration if you want to receive many satellites with a Rotor or Stab from a Single Universal LNB. The coax cable is directly connected from you Dreambox to the LNB. Please read the section Satellite configuration to learn how to get into this menu.
Choose the drop down menu „Motor Setup“ and press the OK-Button.
Refer to the Rotors Manual for correct values degrees/second.
Visit the Website http://www.heavens-above.com to figure out your geographical location. Enter the values for Longitude and Latitude and press the green Option-Button to save you settings.
Remove the check from the checkbox in front of "Use gotoXX function" to use a DiSEqC 1.2 Rotor like the SG2100 Rotor without USALS support.
As you can see on the left, a new menu with new options will appear.
For a better understanding please take a look at the Example table for the DiSEqC 1.2 Rotor (SG2100). It is borrowed from the original manual.
Take the list of preset satellite positions of your rotor, which can usually be found in the rotor's manual and add each satellite that you want to receive in the list in the left.
i.e.: Number 1 in the rotor is Hotbird 13^ Ost
You will have to enter a 1 in the "Number in rotor" field and a 130 in the "Orbital position" field.
Press the yellow Options-Button to add the satellite to your list.
An example table of 4 satellites is depicted on the left.
Attention: You can later on only scan for services on satellites that you have entered in this list.
Press the green Options-Button to save your settings.
The menu "Transponder scan" will show up. See sections Automatic transponder scan or Automatic multisat transponder scan for details.
25. Example table for the DiSEqC 1.2 Rotor (SG2100)
| Nummer in Rotor | Satelltitlename | Position | Wert für Orbital Position Dreambox | Nummer in Rotor | Satelltitlename | Position | Wert für Orbital Position Dreambox |
| 1 | Hotbird | 13° O | 130 O | 14 | Hispasat | 30° W | 300 W |
| 2 | Astra | 19.2° O | 192 O | 15 | Telstar 11 | 37.5° W | 375 W |
| 3 | Eutelsat W2 | 16° O | 160 O | 16 | Kopernikus | 23.5° O | 235 O |
| 4 | Eutelsat W1 | 10° O | 100 O | 17 | Arabsat 2A3A | 26° O | 260 O |
| 5 | Eutelsat W3 | 7° O | 70 O | 18 | Astra 2 | 28.2° O | 282 O |
| 6 | Sinus 2/3 | 5° O | 50 O | 19 | Eurobird | 28.5° O | 285 O |
| 7 | Thor 2/3 | 0.8° W | 8 W | 20 | Arabsat 2B | 30.5° O | 305 O |
| 8 | Intelsat 707 | 1° W | 10 W | 21 | Türksat 1B | 31.3° O | 313 O |
| 9 | Telekom 2C | 5° W | 50 W | 22 | Türksat 1C | 42° O | 420 O |
| 10 | Telekom 2D | 8° W | 80 W | 23 | Intelsat 601 | 34.5° W | 345 W |
| 11 | Intelsat 705 | 18° W | 180 W | 24 | Pas 3R | 43° W | 430 W |
| 12 | NSS 803 | 21.5° W | 215 W | 25 | Amos | 4° W | 40 W |
| 13 | Intelsat 605 | 27.5° W | 275 W | 26 | Nilsat | 7° W | 70 W |
O = East, W = West (this table is not up to date, it is only for explanation)
26. Automatic transponder scan (DM 500-S)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Automatic Transponder Scan" and press the OK-Button.
This option is primarily used for only scanning a single satellite in your list.
Please select the option "Automatic Multisat Scan" if you want to scan for services on all set satellites at once. See section Automatic Multisat Scan for details.
Select one of the two satellites in the drop down menu and press the OK-Button.
You now should see that a valid transponder has been found and the checkboxes in front of "LOCK" and "SYNC" should be checked.
SNR:
Signal to Noise Ratio
AGC:
Automatic Gain Control
BER:
Bit Error Rate (should be equals 0 if possible)
only Free:
If you check the checkbox in front of the "only Free" option, your Dreambox will search on for FTA (non-encrypted) services.
No circular polarization:
If you scan anything other than a C-Band satellite please check the checkbox.
Press the green Options-Button to start searching.
After you started searching you will see the progress bar and the estimated remaining time.
Please wait until your Dreambox finished searching for services.
You can always abort the searching by pressing the Exit-Button several times.
Once your Dreambox is done searching you will see this menu on the right. A brief summary of the search is shown.
Press the OK-Button to close this menu.
You will now be prompted if you want to scan another satellite. Press the green Options-Button if that is the case and you have setup another satellite in the satellite list.
Press the red Options-Button to end the scan.
You are taken back to the "Service searching" menu.
27. Automatic multisat scan (DM 500-S)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Automatic Multisat Scan" and press the OK-Button.
This option will scan all satellites in your satellite list without asking you if you want to scan any other satellites.
The transponder scan menu for a multisat scan will pop up.
Pressing the OK-Button will change the scan option of the selected satellite.
The options "nothing" means that the satellite is not scanned for any transponders.
Pressing the OK-Button will toggle between the available scan options.
Setting the multisat scan option to "all" will scan for all available services no matter if they are free or encrypted.
Pressing the OK-Button will toggle between the available scan options.
Setting the multisat scan option to "only free" will scan for all available services that are not encrypted.
Pressing the OK-Button will toggle between the available scan options.
Usually the "all" option is the best choice.
Press the green Options-Button to start the scan.

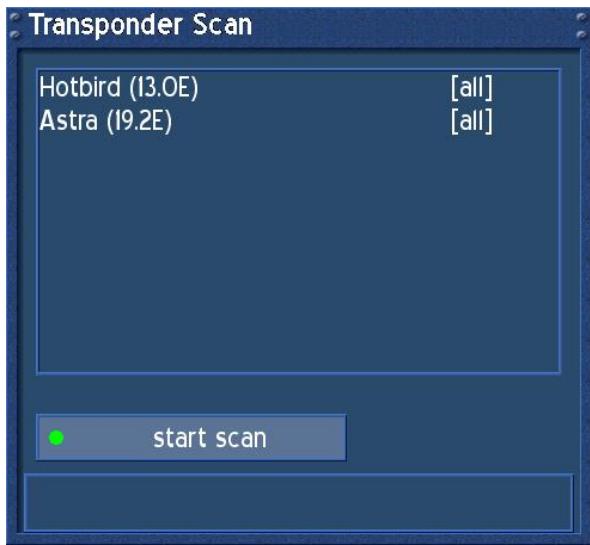

The menu for the first scanned satellite is depicted on the left.
The menu for the second scanned satellite is depicted on the left.

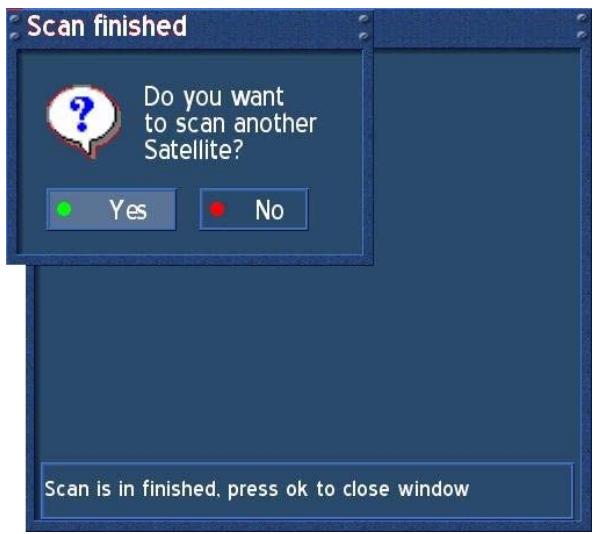

Once your Dreambox is done searching you will see this menu on the right. A brief summary of the search is shown.
Press the OK-Button to close this menu.
The System will now ask you, if you want to scan any other transponders.
Press the red Options-Button to quit the transponder scan.
You are taken back to the "Service searching" menu.
28. Manual transponder scan (DM 500-S)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Manual Transponder Scan" and press the OK-Button.
First choose the satellite you want to scan on with the OK-Button.
Enter the transponder frequency with the Numeric Keypad on your remote control.
Use the Navigation-Buttons left and right to switch between horizontal and vertical polarization and to change the FEC.
Enter the symbol rate with the Numeric Keypad on your remote control.
Press the green Options-Button to start the scan.
29. Edit a transponder (DM 500-S)
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Searching" and press the OK-Button.
Navigate to the option "Transponder Edit" and press the OK-Button.
This menu will let you edit the satellite and transponder lists that are used for the service scan. New transponders and satellites are usually announced in the Internet or in magazines.
Press the red Options-Button to delete a satellite.
Press the green Options-Button to add a satellite.
Press the OK-Button to edit a satellite entry.
Follow the instructions in this menu. Press the Navigation-Buttons to reach the desired option and use the OK-Button to change them.
Network search:
The NIT holds the Information about the Satellites
and the TV/Radio- Programs.
(NIT = Network Information Table)
Extended network search:
Set a check to scan the NIT from other Transponders.
Use BAT:
Bouquet Tables of the Provider will be used, if
available.
(BAT = Bouquet Association Table)

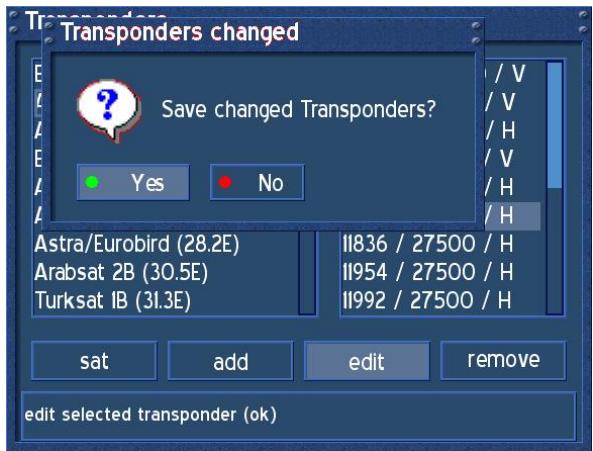

Press the green Options-Button to save your settings.
You are taken back to the "Transponder" menu.

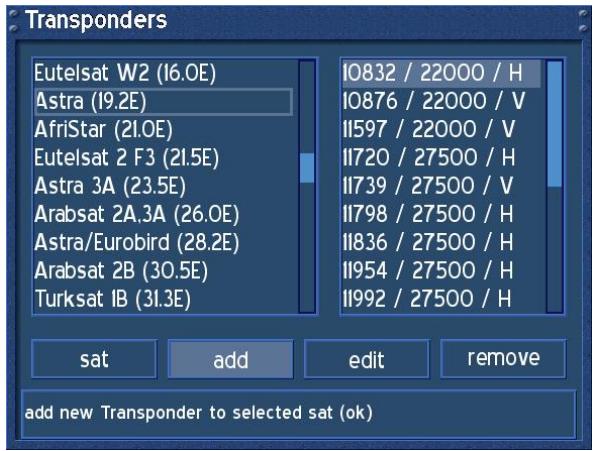

Navigate to the option "add" and press the OK-Button.
Through this menu you can a transponder to a satellite.
Using the Numeric Keypad of your remote control enter the transponder frequency and symbol rate.
Press the green Options-Button to save your settings.
After you have made your changes to the transponder and satellite list, press the Exit-Button to leave the menu. You will be prompted if you want to save your changes.
Press the green Options-Button to save your changes.
Press the red Options-Button to discard your changes.
You are taken back to the "Transponder scan" menu. Start the transponder scan to find services on newly added satellites or transponders.
30. Service organizing - Adding a new Bouquet
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Service Organizing" and press the OK-Button.

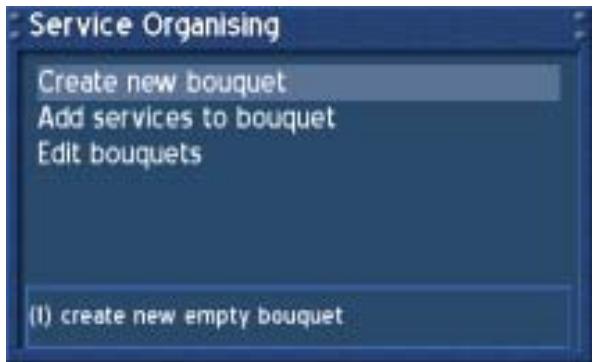

Navigate to the option "Create new bouquet" and press the OK-Button.
You are asked for the type of Bouquet you want to add.
In our example we add a TV Bouquet.
Press the OK-Button.
Using the Numeric Keypad on your remote control and pressing the numbers several times will let you choose the desired letters and numbers.
Pressing the yellow Options-Button will toggle between capital and small letters.
Pressing the blue Options-Button toggles between numeric and regular mode.
Pressing the green Options-Button adds a space.
Pressing the red Options-Button will act as a backspace.
Pressing the OK-Button will take you back to the "Service organizing" screen.
30.1 Service organizing - Adding services to an existing Bouquet
Please read the section Service organizing - Adding a new Bouquet to learn how to get into this menu.
Navigate to the option "Add services to bouquet" and press the OK-Button.
You are asked for the type of Bouquet you want to add.
In our example we add a TV Bouquet.
Press the OK-Button.
You are asked in which Bouquet to place the service.
We will use our freshly created "my new bouquet" in this example.
Press the OK-Button.
You can now choose whether to take a service from the providerlist or servicelist or the new services list.
Note: All services that were not found in your services list when you did an automatic transponder scan will be saved in the new services list.
We will use the providerlist in our example.
Press the OK-Button.

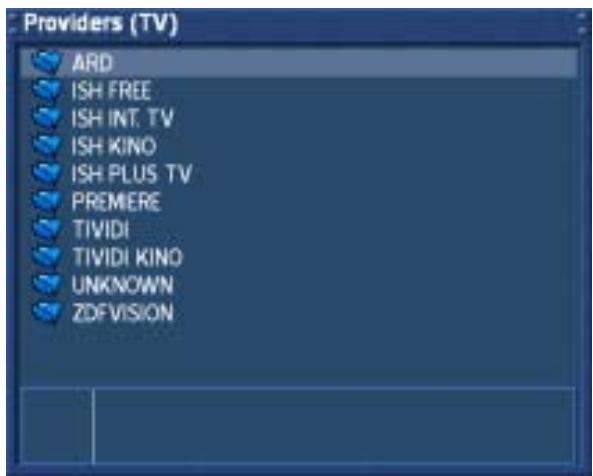

The providerlist will show up. In our example we will choose the provider "ARD".
Press the OK-Button.
You now see the services that are provided by "ARD".
In our example we mark the service "Phoenix" by pressing the OK-Button.
You can choose more than one service by selecting them and pressing the OK-Button. They will be highlighted in red text if selected.
Pressing the Exit-Button will quit your selection.
You are taken back to the "Service organizing" menu.
30.2 Service organizing - Editing a Bouquet
Please read the section Service organizing - Adding a new Bouquet to learn how to get into this menu.

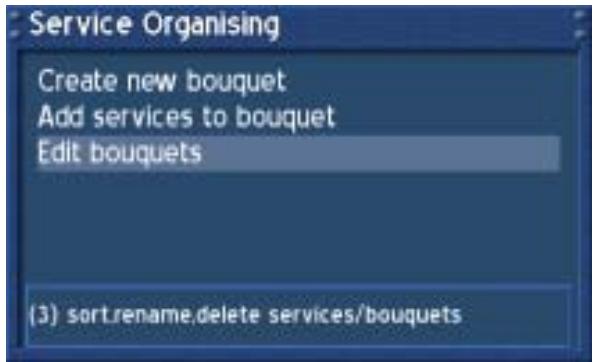

Navigate to the option "Edit bouquets" and press the OK-Button.
In our example we will edit a TV Bouquet.
Press the OK-Button to edit the TV Bouquets.

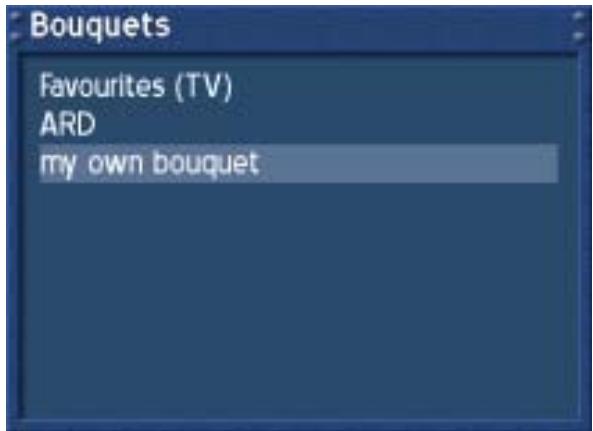

In our example we will edit our freshly created "my own bouquet" Bouquet.
Select it and press the OK-Button.
Pressing the red Options-Button will delete the service from the Bouquet.
Attention: This will happen without question if you really want to do it!
Pressing the green Options-Button will pick up the selected service and enable you to move its position in the Bouquet. Pressing the green Options-Button again will release the service.
Pressing the yellow Options-Buttons will let you rename the selected service. See section Service organizing - Adding a new Bouquet for details.
Pressing the blue Options-Button will add a marker than you can name whatever you want it to be named. See section Service organizing - Adding a new Bouquet for details. This allows you to divide your Bouquet list into several sections.
The above describes procedures also apply for Radio and File Bouquets.
31. Parental lock and Setup lock
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Parental lock" and press the OK-Button.
You can activate the parental and setup lock in this menu. It prevents anyone else from having unauthorized access to certain services, videos and MP3s. It also offers the possibility to only make certain services available to your kids.
These protection mechanisms are controlled by a four digit PIN that only is know to you.
Attention:
If you loose your PIN you will have to reset your Dreambox to the factory defaults in order to deactivate any locks.
31.1 Activating the parental lock
Please read the section Parental lock and Setup lock to learn how to get into this menu.
Check the checkbox in front of "Parental lock" by pressing the OK-Button.
The Option "Change PIN" will appear.
Navigate to the option "Change PIN" and press the OK-Button.
You also choose to hide all locked services form the service list by checking the checkbox in front of the "Hide locked services" option.

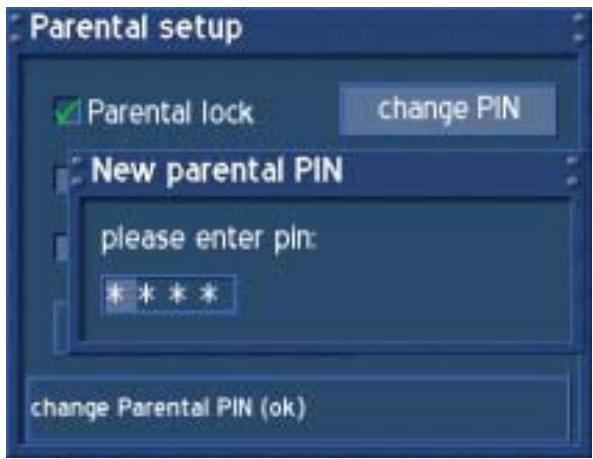

Enter a four digit PIN with the Numeric Keypad on your remote control.
Attention:
Entering "0000" as your PIN will deactivate any locks. Please choose a PIN that differs from "0000".
Re-enter you PIN to make sure you entered the right one.
If everything went right you will be prompted that your PIN has been changed.
Press the OK-Button.
If the PIN you entered twice are not the same you will be prompted this error message.
Pressing the green Options-Button will let you re-enter your PIN and try again.
Pressing the red Options-Button will abort.
Press the green Options-Button to save your settings.
You will be taken back to the "Setup" menu.
31.2 Deactivating the parental lock
Please read the section Parental lock and Setup lock to learn how to get into this menu.
Uncheck the checkbox in front of "Parental lock" by pressing the OK-Button. You will be prompted for your current PIN.
Enter your PIN to deactivate the parental lock.
The check in front of "Parental lock" is now gone.
Press the green Options-Button to save your settings.
You will be taken back to the "Setup" menu.
31.3 Activating the setup lock
Please read the section Parental lock and Setup lock to learn how to get into this menu.
Check the checkbox in front of "Setup lock" by pressing the OK-Button.
The Option "Change PIN" will appear.
Navigate to the option "Change PIN" and press the OK-Button.
Enter a four digit PIN with the Numeric Keypad on your remote control.
Attention:
Entering "0000" as your PIN will deactivate any locks. Please choose a PIN that differs from "0000".
Re-enter you PIN to make sure you entered the right one.
If everything went right you will be prompted that your PIN has been changed.
Press the OK-Button.

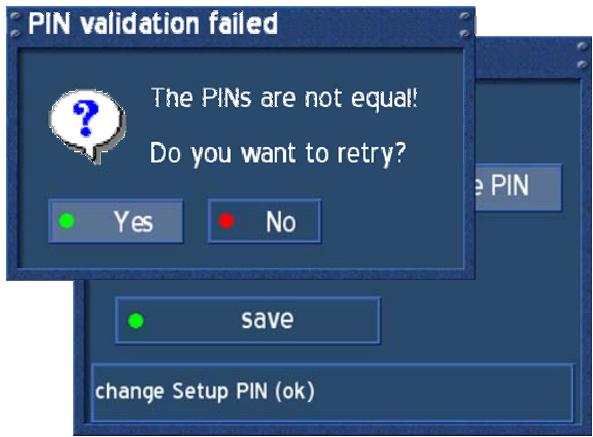

If the PIN you entered twice are not the same you will be prompted this error message.
Pressing the green Options-Button will let you re-enter your PIN and try again.
Pressing the red Options-Button will abort.
Press the green Options-Button to save your settings.
You will be taken back to the "Setup" menu.
31.4 Deactivating the setup lock
Please read the section Parental lock and Setup lock to learn how to get into this menu.

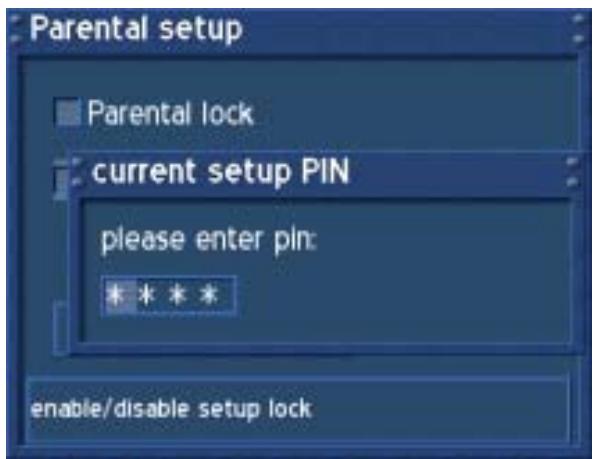

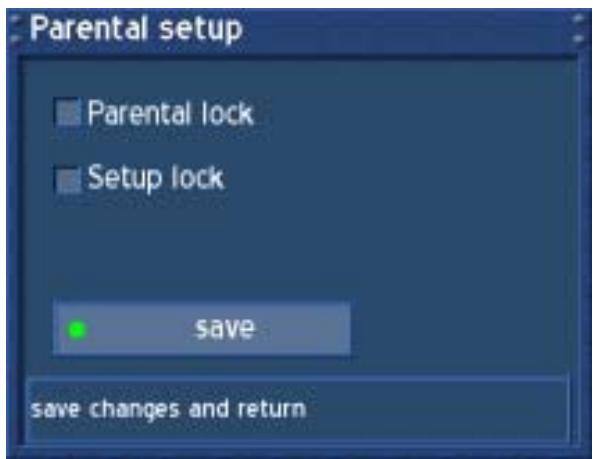

Uncheck the checkbox in front of "Setup lock" by pressing the OK-Button. You will be prompted for your current PIN.
Enter your PIN to deactivate the setup lock.
The check in front of "Setup lock" is now gone.
Press the green Options-Button to save your settings.
You will be taken back to the "Setup" menu.
32. Locking a service
Please read the section Parental lock and Setup lock to learn how activate the parental lock.
Press the OK-Button to open the service list.
Navigate to the service you want to lock and press the Menu-Button.
You can lock any entry of your choice in the service list. (All services, Satellites, Providers and Bouquets)

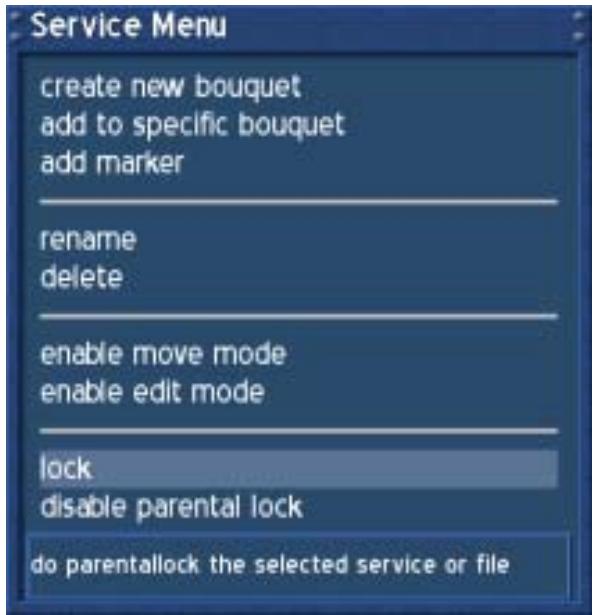

Navigate to the option "Lock" and press the OK-Button to lock a service.
You can also deactivate the parental lock in this menu. Navigate to the option "Parental lock" and press the OK-Button.
You will prompted for your PIN.
Once you have locked a service you will see the locked symbol next to its name in the service list. You will be prompted for your PIN every time you want to access the service from now on.
33. Unlocking a service
Press the OK-Button to open the service list.

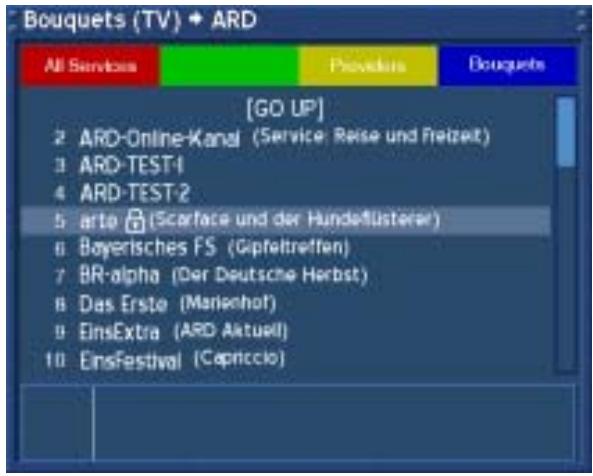

Navigate to the service you want to unlock and press the Menu-Button.
You can unlock any entry of your choice in the service list. (All services, Satellites, Providers and Bouquets)
Navigate to the option "Unlock" and press the OK-Button to unlock a service.
You will prompted for your PIN.
Once you have unlocked a service you will he locked symbol next to its name in the service list will disappear.
34. Audio/Video settings
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "System" and press the OK-Button.
Navigate to the option "A/V settings" and press the OK-Button.
Disable WSS on 4:3:
Check the checkbox to disable zooming on some 16:9 TV's during 4:3 transmissions.
AC3 default output:
If a program is transmitted with an AC3 audio track (e.g. Dolby Digital), the Dreambox switches automatically to this audio track. The AC3 signal will only be available at the optical socket. The Dreambox has no built-in Dolby Digital Decoder, AC3 signals are not available on the analog socket, therefor you need an external Dolby Digital Amplifier to adjust the volume.
Use the Navigation-Buttons left and right and the OK-Button to change the values.
Color format:
CVBS(FBAS), RGB (Red, Green, Blue separated), SVideo (Color- and Brightness signal separated) and YPbPr (Component signal e.g. for Projectors).
Aspect ratio:
4:3 Letterbox (Standard), (16:9 programs will be displayed on 4:3 TV's with black beams at top and bottom)
4:3 Panscan (16:9 programs will be zoomed to full high on 4:3 TV's, parts of the picture on the left and right side will cut off)
16:9 (programs transmitted in 16:9 will be displayed automatically in 16:9, on 4:3 TV's the picture will be reduced in height)
TV System:
Choose the standard that your TV supports.
PAL; PAL + PAL60; Multinorm and NTSC.
Test:
Press the blue Options-Button to activate the testscreen mode. Press the number 1-8 on the Numeric Keypad to select a testscreen. Press any other key to quit the testscreen mode.
Press the green Options-Button to save your settings.
You will be taken back to the "System" menu.
35. Keyboard
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "System Settings" and press the OK-Button.
Navigate to the option "Keyboard Setup" and press the OK-Button.

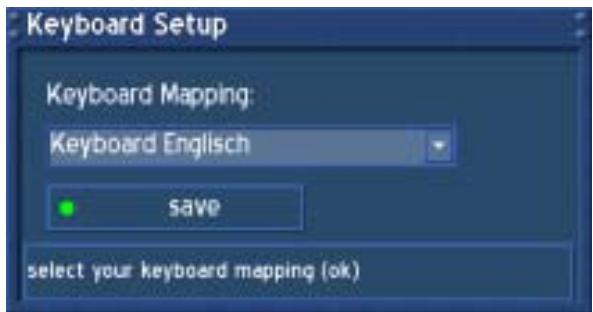

Press the OK-Button to open the drop down menu and select your desired keyboard layout.
Press the green Options-Button to save your settings.
36. OSD settings
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "System Settings" and press the OK-Button.
Navigate to the option "OSD settings" and press the OK-Button.
Using the Navigation-Buttons left and right you can change the transparency, brightness and contrast settings of the OSD (On Screen Display).
Alpha:
The "Alpha" option controls how strong you will see the TV picture through the OSD menu.
Brightness:
Changes the brightness of the OSD menu.
Contrast:
Changes the contrast of the OSD menu.
Show main menu as list box:
Check the checkbox if you want to view the main OSD menu like all other menus, as a list box.
Change skin:
See section Skin Setup
TuxText Position:
See section Setting the Teletext position
Press the green Options-Button to save your settings.
You will be taken back to the "System" menu.
36.1 Skin Setup
Please read the section OSD settings to learn how to get into this menu.
A skin changes the appearance of the OSD.
Choose the skin to your liking and press the OK-Button to select it.
The standard skin is Screwed Stone.
See section Available skins for a complete list of available skins.
To completely activate a skin Enigma has to be restarted.
Make your choice and press the green Options-Button to activate the skin.
Press the red Options-Button to discard any changes.
36.2 Available Skins
Bluenigma BIG
Silver Metal
Neutrino-style
Screwed Stone
Carbon
BlueQT
Simple and Stylish
The skin Simple and Stylish 16:9 looks just like the Simple and Stylish skin. It is only optimized for a 16:9 TV screen.
36.3 Setting the teletext (TuxText) position
Please read the section OSD settings to learn how to get into this menu.
What is TuxText? TuxText is a Plugin (additional Software), which allows the Dreambox to decode the digital Teletext. TuxText is faster and easier to use than the regular teletext that is built in to your TV screen.
This menu is used to adjust the position of the TuxText. Maybe the clock does not appear or the text pages are not shown in the middle of the screen.
Press the yellow Options-Button to enter the TuxText position setup.
You see the blue screen as depicted on the left.
Press the red Options-Button to select the upper left corner.
Use the Navigation-Buttons to move the rectangle in the upper left corner.
Press the green Options-Button to select the lower right corner.
Use the Navigation-Buttons to move the rectangle in the lower right corner.
Attention:
If you don't see any rectangle, then they are out of range. Please adjust the rectangle towards the middle of the screen..
Once the positions are set press the OK-Button to save the settings.
Press the green Options-Button to save your settings.
You will be taken back to the "System" menu.
37. Teletext (TuxText)
What is TuxText? TuxText is a Plugin (additional Software), which allows the Dreambox to decode the digital Teletext. TuxText is faster and easier to use than the regular teletext that is built in to your TV screen.
You are in the TV or Radio mode.
Press the TEXT-Button to activate the Teletext.
Keep in mind that not every station submits teletext!
Alternative: Press the blue Options-Button to enter the Plugins menu.
You will see the menu depicted on the left.
Navigate to the option "Teletext" and press the OK-Button.
TuxText navigation:
Press the OK-Button to enter the interactive mode. Use the Navigation-Buttons to select a text page and press the OK-Button to call this site. You don't need to type in a Text page number in this mode, but it is still possible.
Press the EXIT-Button to exit.
Press the Mute-Button a couple of times to toggle between alpha-mode, invisible-mode and full mode. The alpha-mode shows the picture from the running program through the Text pages. The invisible-mode shows the complete picture from the running program without exiting the TuxText. The full-mode brings back the text page.
Press the Volume-up-Button to toggle between double high from the upper half, double high from the lower half and full view Text page.
Press the Volume-down-Button to activate or deactivate the FIG-Mode (Picture in Graphics). Same view from Text page and Program picture. (best results are show on 16:9 TV's during 4:3 transmission).
TuxText configuration menu:
If teletext page 100 is shown you can press the MENU-Button to enter the configuration menu of the TuxText.
You have the following options:
Teletext - Selection:
Use the Navigation-Button left or right to choose another teletext provider from the current transponder and press the OK-Button to view.
This option is only available if there is more than one station on the current provider that transmit teletext.
Aspect ratio:
16:9 im Standard-Modus = ein/aus (16:9 during Standard-Mode = enable/disable)
Enabling this shows the TuxText in 16:9 Aspect Ratio. Press the OK-Button to enable or disable this option. The default setting is disabled.
16:9 im TextBild-Modus = ein/aus (16:9 during TextPicture-Mode = enable/disable)
Enabling this, switches the TV to 16:9 Aspect Ratio if the PIG-Mode is activated with the Volume-down-Button. Press the OK-Button to enable or disable this option. The default setting is disabled.
Note:
On some older 4:3 TV's these Modes may not work. If enabled, it could happen, that your TV switches away from the VCR or A/V socket. The reason is a technical problem. The Switch signal on the Scart connector is at PIN 8 using 12 Volts. Using a 16:9 Aspect Ratio switches the PIN 8 to 6 Volts, which some older 4:3 TV's can not handle. If you are using a 4:3 TV, we suggest not to enable these modes.
Brightness:
Here you can adjust the brightness of your Teletext. Press the Navigation-Buttons left or right to adjust the brightness.
Alpha:
Here you can adjust the alpha value of your Teletext. Press the Navigation-Buttons left or right to adjust the alpha value.
National codepage:
automatische Erkennung = ein/aus (automatic detection = enable/disable)
The national codepage detection is used to display the teletextpages with the right letters for your location. Press the OK-Button to enable or disable this option. The default setting is enabled. If disabled, use the Navigation-Buttons left or right, to choose your codepage.
Additional information can be found at www.tuxtxt.net
38. Expert setup
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Setup" and press the OK-Button to select.
Navigate to the option "Expert Setup" and press the OK-Button.
Serviceselector help buttons:
Press the OK-Button to turn the colored help buttons off. The default setting is enabled.
Show Sat position:
Putting a check behind this option by pressing the OK-Button will show the sat position of the current station in the Infobar.
Enable Fast zapping:
Pressing the OK-Button will remove the check behind this option. Switching stations will be a few nano seconds slower.
Skip confirmations:
Press the OK-Button to put a check behind this option. No more confirmation windows will be shown. Be careful with this option. The System does not ask anymore, if you would like to see the recorded movie after stopping recording nor if you would like to really delete a movie. The default setting is disabled.
Hide error windows:
If enabled no more error messages, i.e.: service not found, will be shown.
Automatically show Infobar.
If enabled the Infobar will be shown every time a new show starts.
Show remaining Time:
If enabled the remaining time rather than the total time of the running show will be displayed in the Infobar.
Use http authentication:
If disabled you will no more need a username and password to access the web interface of your Dreambox.
Do not open serial interface:
If enabled no more debug messages will be send from Enigma to the serial interface.
Auto bouquet change:
If enabled your Dreambox will automatically jump to the next Bouquet once you have reached the last entry in a Bouquet.
Disable teletext caching:
If enabled no more background caching of teletext pages will happen.
Enable Zapping History:
If enabled you are able to switch to a different service type in the file mode.
Press the Exit-Button to quit this menu.
38.1 Communication setup (Setting up LAN, NFS shares)
Please read the section Expert setup to learn how to get into this menu.
Navigate to the option "Communication setup" and press the OK-Button.
Attention:
If you are using a DHCP server in your LAN, configure the DHCP server so it does not assign the IP address used by the Dreambox. Otherwise an IP address collision is possible. Refer to the DHCP server's manual about how to configure a DHCP address pool.
Port:
Enter a port number of your choice to configure the HTTP port for the Dreambox's web interface. The default port is 80.
If the default port is set you can simply enter http://ip-of-your-box into the address bar of you browser to access the web interface. Otherwise you have to enter http://ip-of-your-box:portnumber
Use the Navigation-Buttons and the Numeric Keypad to enter or change the values.
IP:
Enter the IP address here.
DHCP:
If enabled your Dreambox will get its IP from a DHCP server. Disable this option to set a static IP address.
Netmask:
Enter the subnet mask (Usually 255.255.255.0).
Type:
LAN (Local Area Network); Connection to the home Network. The default setting is LAN.
WAN/PPPoE (Wide Area Network) / (Point-to-Point Protocol over Ethernet); Direct Connection to the Internet, (e.g. DSL Modem directly connected to the Dreambox). Please proceed to next passage for WAN settings
Nameserver:
Enter the DNS-Server's IP address here. DNS is used to translate a Domain name to an IP address. Normally, if the Type is set to LAN, there is no need for a DNS entry. If the Dreambox is connected to the Internet over a router, enter the router's IP address Here.
Gateway:
Enter the router's IP address here, if the Dreambox is connected to the Internet over a router.
Activate network:
Setting a check enables the network. The default setting is disabled.
Press the green Options-Button to save your settings.
Checking the checkbox in front of the option "Automount" will automatically mount the selected NFS share at the next boot of your Dreambox.
Press the green Options-Button to test the mount. You will get a system message if it was successful or not.
Press the yellow Options-Button to save you settings.
Press the red Options-Button to unmount the selected NFS share.
Navigate between the 8 possible shares by using the Navigation-Buttons left or right.
Pressing the blue Options-Button in the
"Communication setup" menu will take you to the "Mount Manager" menu. You can setup up to eight different configurations to connect your Dreambox to shared folders on your PC. Right now only NFS sharing is supported.
IP:
IP address of the NFS server you want to access.
NFS:
Right now only the option NFS is available. Once more share types are supported you can select the type in this drop down menu.
Dir:
Enter the name of the NFS share on the NFS server that you want to access.
LocalDir:
The default setting is /mnt and does not need to be changed unless you want to add more than one share. Adding more than one share requires you to create several sub directories via telnet on your Dreambox. The suggestion is to create /varmnt1 to /var/mnt8
Options:
Either choose the option "rw" to have read and write access or choose the option "ro" to have read-only access to the NFS share.
Extra:
You can add additional mount parameters here. You have to know what you are doing otherwise leave this setting alone.
38.2 NGrab - Streaming Setup
Please read the section Expert setup to learn how to get into this menu.
In this menu you can set the IP address and port number of the NGrab server. The server can be running on any workstation or server in the LAN or WAN.
Navigate to the option "NGrab-Streaming" and press the OK-Button.

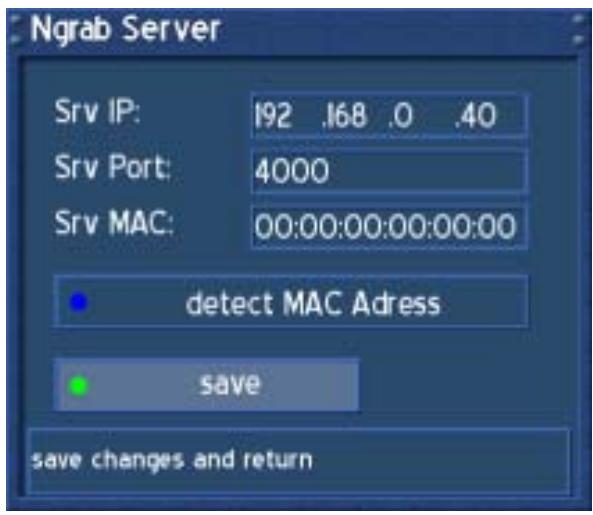

Srv IP:
Enter the IP address of the server or workstation running the NGrab software.
Srv Port:
Enter the port number of the server or workstation running the NGrab software.
Srv MAC:
The MAC address of the NGrab server will show once you have it running and press the blue Options-Button.
The MAC address is needed for the WOL (Wake On LAN) function of the server. The server needs to fully support APM (Advanced Power Management) and WOL to use this function.
Press the green Options-Button to save your settings.
You will be taken to the "Expert setup" menu.
38.3 Manual software update
Please read the section Expert setup to learn how to get into this menu.

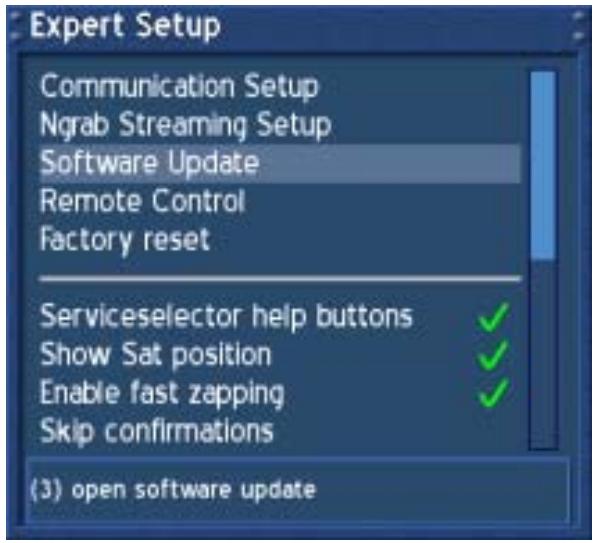

Navigate to the option "Software update" and press the OK-Button.

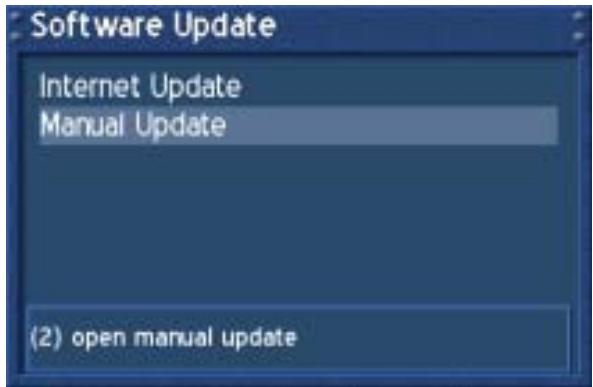

Navigate to the option "Manual update" and press the OK-Button.
Requirements for the manual update:
You have set an IP address and subnet mask in the "Communication setup" menu.
Follow the instructions on your screen.
Press the green Options-Button to start the update.
Follow the instructions on your screen.
38.4 Remote control setup
Please read the section Expert setup to learn how to get into this menu.
Navigate to the option "Remote control" and press the OK-Button.
This Menu is used to customize the remote control for your needs.
Use the Navigation-Buttons left or right to adjust the Repeat Rate and the Repeat Delay.
Press the green Options-Button to save your settings.
You will be taken back to the "Expert" menu.
38.5 Reset to factory defaults
Please read the section Expert setup to learn how to get into this menu.

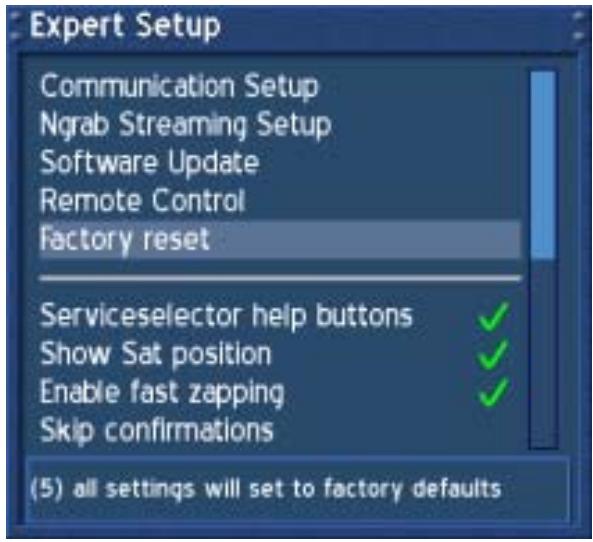

Navigate to the option "Remote control" and press the OK-Button.

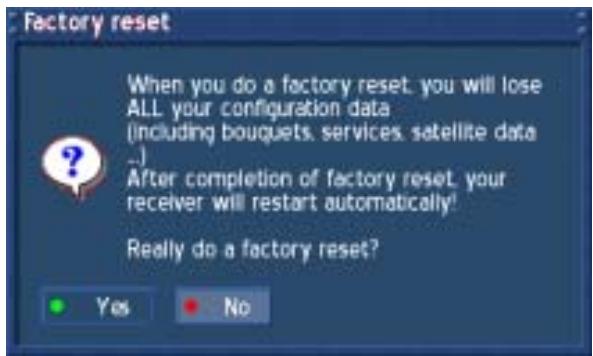

Follow the instructions on the screen and pick your choice.
39. Timer
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Timer" and press the OK-Button to select.
This is the timer list.
You can see a timer event that has been entered as an example.
A green checkmark in front of the timer event means that is has been successfully executed.
A red cross in front of the timer event means that is has been aborted or not executed at all.
Sleeptimer events are also shown in this list and can be edited or deleted here.
Press the blue Options-Button to clean up the timer list.
We suggest only adding timer event through the EPG. This timer list is mainly meant for management purposes.
40. Information - Streaminformation
If no OSD menu is visible on your screen, press the Menu-Button to open the main OSD menu. Navigate to the option "Information" and press the OK-Button to select.
Navigate to the option "Stream information" and press the OK-Button.
Use the Navigation-Buttons left and right to switch between the three windows.
Pressing the Exit-Button will close this window.
This window shows information about the used and/or supported encryption types.

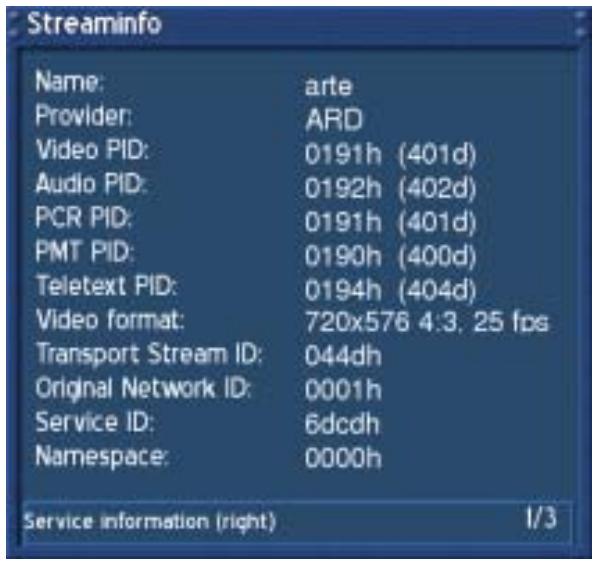

This window shows detailed technical data about the current service.
This window shows the additional technical data of the current service. The left picture shows the DM 500-S, the middle one the DM 500-T and the right one the DM 500-C
41. Information - About
Please read the section Information - Streaminformation to learn how to get into this menu.
Navigate to the option "About..." and press the OK-Button.
This window summarizes all relevant information about the system.
Press the green Options-Button to close the window.
The Information „Tuner:" depends on the type of your Dreambox DM 500:
DM 500-S:Satellite
DM 500-C: Cable
DM 500-T: Terrestrial
42. Technical data
- 250 MHz IBM PowerPC Processor (350 MIPS)
- Linux Operating System, Open Source
DreamCrypt CA integrated - 1 x Smartcard-Reader
- MPEG2 Hardware decoding (DVB compliant)
V.24 / RS232 connector
100Mbit voll duplex Ethernet Interface - 2 Status-LED
- 32 MByte RAM
- Unlimited service list for TV/Radio
- Switching services in less than a second
- Fully automated service seraching / transponder scan
- Bouquet list support
- EPG-Support (electronic program guide)
- Multi language OSD with skin support
- SPDI/F optical connector AC-3
- 1 x Scart-Connector (completely software controlled)
external 12V power converter
A/V Output (Audio/Video Cinch)
Size: 196mm× 130mm× 40mm (H× B× T)
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible
Video Standard PAL G/25 Hz
Video Formats 4:3 / 16:9
Footage 16:9, automatic assimilation for 16:9 TV-Device (over Scart)
Letterbox percolating for 4:3 TV-Device
Audio decoder:
Audio compression MPEG-1 & MPEG-2 Layer I and II
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB
Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical (AC3)
Output Video:
Output Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
TV-Scart:
Output: FBAS,RGB,S-VHS over OSD selectable
Serial Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function Update of Firmware and Preprogramming
Ethernet:
100 Mbit compatible, bi-directional interface Function
Update of Firmware and Preprogramming
Input voltage:
12V power converter 110-230V / 50-60Hz AC +/- 15%
Physical specification:
Ambient Temperature +15^ C +35^ C
Humidity < 80%
Size (B x T x H): 196 mm x 130 mm x 40 mm
Weight: 500g
DM 500-C/T specific data:
DVB-C/T Tuner:
Frequency Range 51 .... 858 MHz
Input Impedance 75 Ohm
Symbolrate 1 .... 6.9 Mbaud/s
DM 500-S specific data:
DVB-S-Tuner:
Frequency Range 950 - 2150 MHz
Signal Level - 65 dBm - 25 dBm
Signal-to-Noise Level 12 dB max.
DBS-Tuner Input Connector F-Type female
Input Impedance 75 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK
Symbolrate 2 - 45 Mbaud/s, SCPC / MCPC
Inner FEC: Rates:1/2, 2/3, 3/4, 5/6, 7/8 (DVB specification)
Demultiplexing according to ISO 13818-1
LNB power supply:
LNB Strom 500mA max.; kurzschlussfest
LNB Spannung vertical < 14V ohne Last, > 11,5V bei 400mA
LNB Spannung horizontal < 20V ohne Last, > 17,3V bei 400mA
LNB Abschaltung im Standby-Mode
Anzahl aktiver Satellitenpositionen:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor-Steuerung
43. Contact & support information
Headquarter & Distribution:
Dream-Multimedia
Sales and distribution through Visoduck Discount GmbH
Pierbusch 24-26
44536 Lünen
Germany
Dealer's Hotline:
(Dealers only)
Tel.: +49 (0)180 - 368 43 98 - 000 (0,09€/min.)
Fax: +49 (0)180 - 368 43 98 - 001 (0,09€/min.)
You can reach the dealer's hotline from :
Mo - Fr. 09:00 am - 12:00 pm and 01:00 pm - 03:00 pm
Technical Hotline:
Tel.: +49 (0)180 - 368 43 99 - 777 (0,09€/min.)
Fax: +49 (0)180 - 368 43 99 - 778 (0,09€/min.)
You can reach the technical hotline from:
Mo - Fr. 09:00 am - 12:00 pm and 01:00 pm - 03:00 pm
Dealers & Pricing:
E-Mail: info@dream-multimedia-TV.de
Technical Support:
E-Mail: support@dream-multimedia-TV.de
Website:
Weblink: http://www.dream-multimedia-TV.de
Support Forum:
Weblink: http://www.dream-multimedia-TV.de/board
Software Support (actual images):
Weblink DM500: http://www.dm500.de
44. Warranty card
multimedia
Warranty Card
Model Type:
Serial. - No.:
MAC - No.:
(Serial and MAC-No. is located at the back of your Dreambox)
Customer Address:
Name:
Street:
Country:
Postcode: City:
Reseller Address:
Name:
Street:
Country:
Postcode: City:
Stamp: Date of purchase:
45. Copyright Notes
© Dream-Multimedia 2006. All rights reserved.
This product contains files that are distributed under different licenses, especially a Open
Source License, the GNU General Public License. You can find details about this
License on the next three pages. Additional notes about the source code and patches under
The GPL license can be found on the internet under this link:
http://www.dream-multimedia-TV.de/deutsch/downloads.php
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
- This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.
- You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
- You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
- You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for non commercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
- You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
-
You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
-
Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
-
If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
-
If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
-
The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.
- If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
- BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, Either EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
- IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
