POWERMAXX LI PRO - Outil électrique sans fil METABO - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Perceuse-visseuse sans fil
Caractéristiques techniques principales	Couple maximum : 30 Nm, Vitesse à vide : 0-400/0-1300 tr/min
Alimentation électrique	Batterie lithium-ion 10,8 V
Dimensions approximatives	Longueur : 200 mm, Largeur : 60 mm, Hauteur : 220 mm
Poids	1,1 kg (avec batterie)
Compatibilités	Compatible avec les batteries Metabo 10,8 V
Type de batterie	Li-ion
Tension	10,8 V
Puissance	Max 300 W
Fonctions principales	Perçage, vissage, fonction de percussion
Entretien et nettoyage	Nettoyer régulièrement avec un chiffon sec, vérifier l'état de la batterie
Pièces détachées et réparabilité	Disponibilité des pièces détachées via le service après-vente Metabo
Sécurité	Protection contre la surcharge, frein moteur, poignée ergonomique
Informations générales utiles	Garantie de 3 ans, poids léger pour un usage prolongé

FOIRE AUX QUESTIONS - POWERMAXX LI PRO METABO

Comment charger la batterie du METABO POWERMAXX LI PRO ?

Pour charger la batterie, insérez-la dans le chargeur METABO adapté et branchez-le sur une prise secteur. Le témoin lumineux indiquera l'état de charge.

Que faire si la batterie ne se charge pas ?

Vérifiez que le chargeur est correctement branché et que la batterie est bien insérée. Si le problème persiste, essayez une autre prise ou remplacez la batterie.

Comment remplacer la batterie du METABO POWERMAXX LI PRO ?

Pour remplacer la batterie, appuyez sur le bouton de déverrouillage de la batterie et retirez-la. Insérez ensuite la nouvelle batterie jusqu'à ce qu'elle s'enclenche.

Quelle est la capacité de la batterie du METABO POWERMAXX LI PRO ?

La batterie du METABO POWERMAXX LI PRO a une capacité de 2,0 Ah.

Comment nettoyer l'outil ?

Éteignez l'outil et débranchez la batterie. Utilisez un chiffon doux et sec pour nettoyer la surface. Évitez l'utilisation de produits chimiques agressifs.

L'outil ne fonctionne pas, que faire ?

Vérifiez que la batterie est chargée et correctement installée. Si l'outil ne fonctionne toujours pas, consultez le manuel d'utilisation ou contactez le service client.

Quels accessoires sont compatibles avec le METABO POWERMAXX LI PRO ?

Le METABO POWERMAXX LI PRO est compatible avec divers accessoires METABO, y compris les forets, les embouts de vissage et les accessoires de meulage. Vérifiez la compatibilité dans le manuel d'utilisation.

Quelle est la garantie du METABO POWERMAXX LI PRO ?

La garantie du METABO POWERMAXX LI PRO est généralement de 3 ans, mais cela peut varier selon le revendeur. Consultez les conditions de garantie fournies avec le produit.

Comment stocker correctement l'outil ?

Stockez l'outil dans un endroit sec, à l'abri de l'humidité et à température ambiante. Retirez la batterie et rangez-la séparément.

Où trouver des pièces de rechange ?

Les pièces de rechange peuvent être commandées auprès de revendeurs agréés METABO ou directement sur le site web de METABO.

MODE D'EMPLOI POWERMAXX LI PRO METABO

METABOCORDLESS.

Metabo has a solid range of cordless machines that can cover a wide range of applications. The compatibility of the battery packs ensures economically efficient use. With Li Power – the lithium-ion technology by Metabo – a new battery technology era has begun. Li Power batteries are up to 40% lighter and yet still provide up to 40% more power than previous battery packs. Along with the Metabo AIR COOLED charging technology, Metabo is once again one step ahead when it comes to battery technology. Metabo. Work. Don’t play.

Li Power battery packs

are up to 40 % lighter and still provide up to 40 % more power than NiCd battery packs.

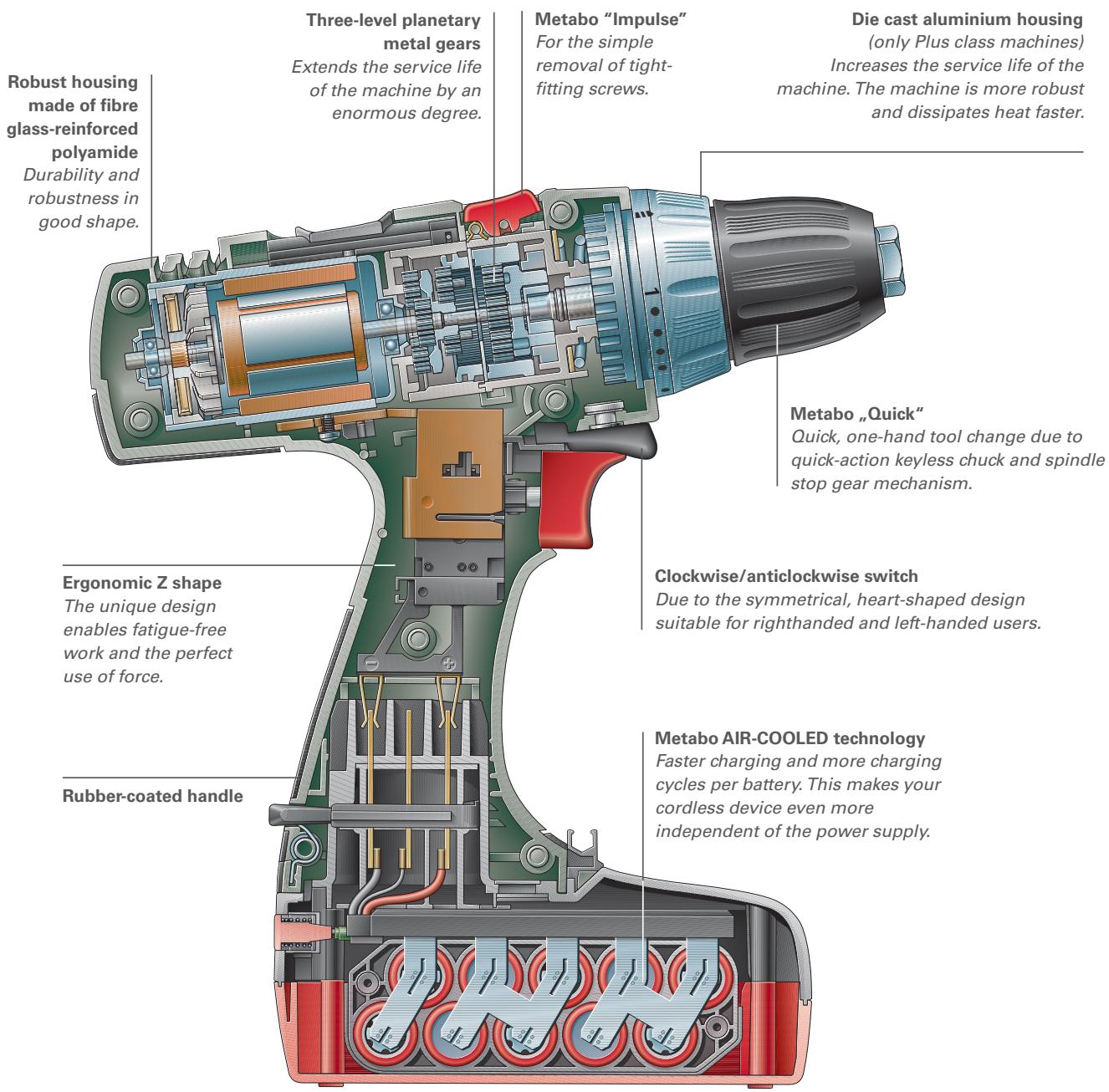

TRUE PROS GET EVERYWHERE.

For professional users, mobility is essential. They still want to screw, drill, cut and saw even without electrical power supply. They need power, for as long as possible.

Therefore, besides the torque and speed criteria, the battery capacity and the charging system also plays an important role.

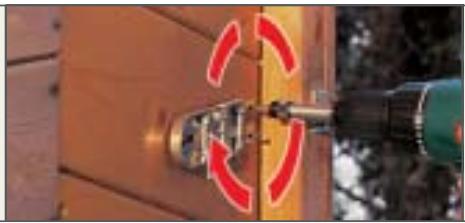

Metabo "Impulse" technology

Tight-fitting screws or damaged screw heads can be easily removed using this "start-up aid."

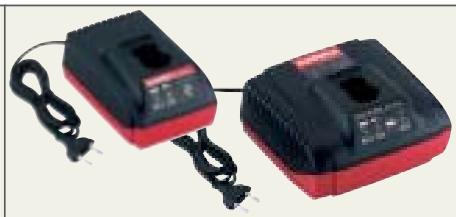

Gentle and faster charging

The new Metabo quick re-charging devices are suited to re-charge old and new Metabo NiCd- and NiMH-battery packs. With the "Plus" devices, Li-power battery-packs can also be re-charged

System flexibility

Battery packs that always fit. Regardless of the charger you use.

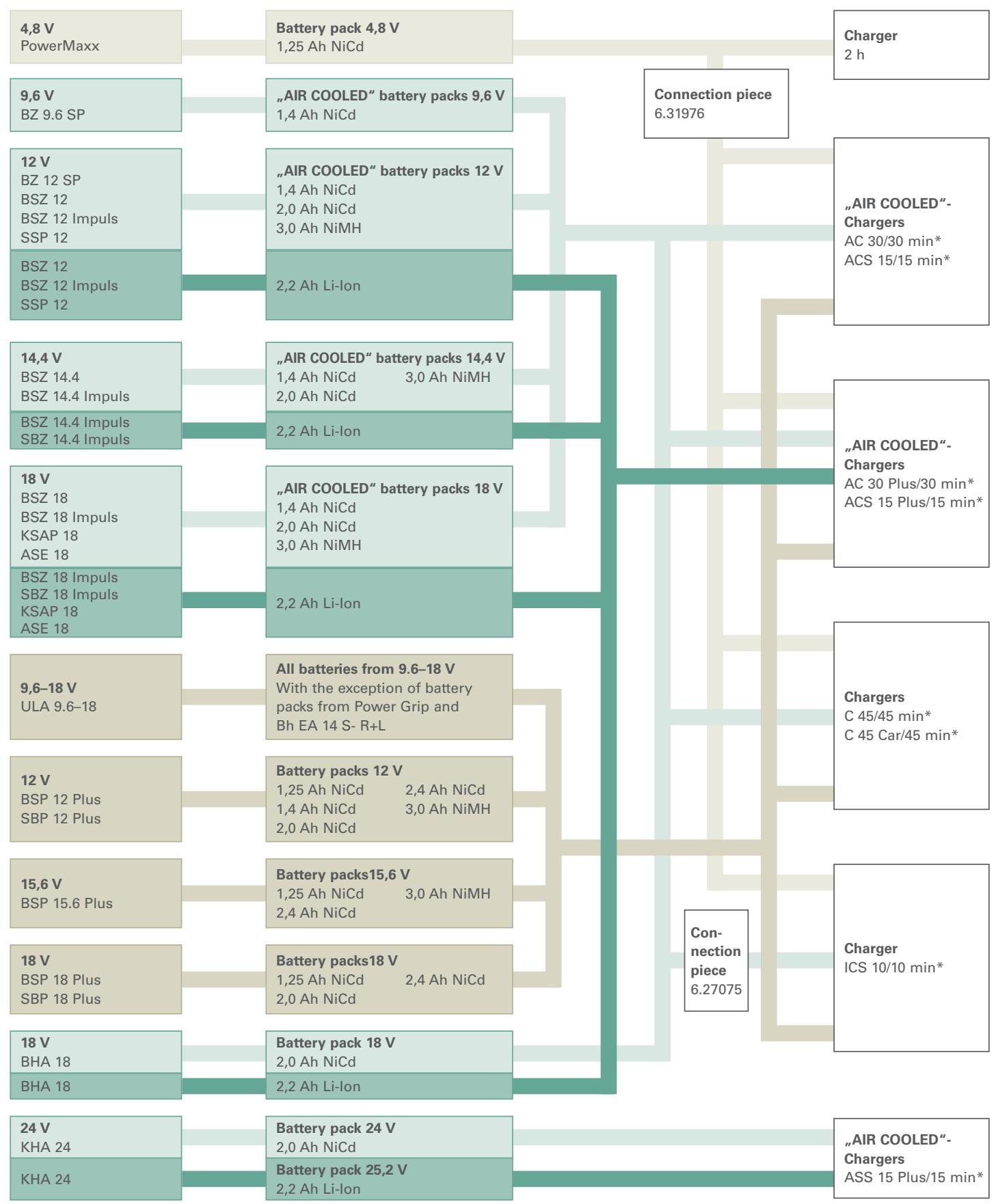

THE METABO RANGE OF BATTERIES WITH HIGH SYSTEM FLEXIBILITY.

For charging your battery packs, you can choose between the universal quick chargers C 45, the pulse computer quick charger ICS 10 and the air-cooled chargers AC 30, AC 30 Plus, ACS 15 and ACS 15 Plus. You can even charge battery packs of the first generation with

our latest chargers and thus enjoy shorter charging times. When the charging process is finished, the charger automatically switches to trickle charging. The battery pack can therefore remain in the charger, is not overcharged and is always fully ready for use.

*charging time at 9,6 V/1,4 Ah

EQUIPMENT FEATURES

Lightweight for fatigue-free work
Variospeed (V) electronics
Motor with integrated air cooling
Quick stop
Spindle stop
Integrated working light
Sturdy die cast gear housing
- Pistol grip for optimum power transmission in direction of drilling
Rubber-coated handle
- With LC 60 charger, charging time approx. 30 mins (for 1.1 Ah)

... 40 % more output with 40 % less weight

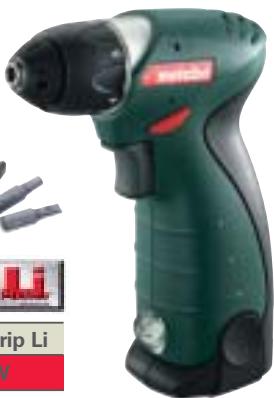

PowerGrip Li

NEW

EQUIPMENT FEATURES

Lightweight for fatigue-free work
- Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop
Spindle stop
Spindle with hexagon recess for screwdriver bits
Pistol grip for optimum power transmission in direction of drilling
Sturdy die cast gear housing
Easy and quick change of battery pack
- Charger (charge time approx. 2 hours)

	7.2 Volt Cordless Screwdriver Power Grip Li
Comparative device characteristics
Type of battery pack	Li-lon
Battery pack voltage	7,2 V 1)
Capacity of battery pack	1,1 Ah
Maximum torque, soft	7 Nm
Maximum torque, hard	13 Nm
No load speed	0 - 250 /min
Adjustable torque	0,3 - 3,5 Nm
Weight (including battery pack)	0,6 kg
Standard equipment	Li-lon battery pack (7.2 V/1.1 Ah), charger, charger LC 60, bit assortment (7-piece)
1) at nominal voltage, maximum voltage 8 Volts
Type	PowerGrip Li
Order no.	6.00077.50

ACCESSORIES FOR THE CORDLESS SCREWDRIVER POWERGRIP LI

		Order no.
	Rechargeable battery pack 7.2 V, 2.2 Ah, Li-ion	6.25487
	Rechargeable battery pack 7.2 V, 1.1 Ah, Li-ion (as spare)	6.25485

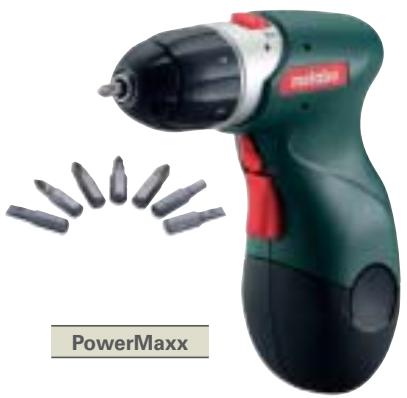

	4,8 Volt Cordless Drill / Screwdriver PowerMaxx
Comparative device characteristics
Type of battery pack	NiCd
Battery pack voltage	4,8 V
Capacity of battery pack	1,25 Ah
Maximum torque, soft	5 Nm
Maximum torque, hard	9 Nm
No-load speeds	0 - 200 / 0 - 600 /min
Weight (including battery pack)	0,66 kg
Standard equipment	NiCd battery pack (4.8 V/ 1.25 Ah), charger, carry case, bit assortment (7-piece)
Type Order no.	PowerMaxx 6.00059.51

ACCESSIONS FOR THE CORDLESS DRILL / SCREWDRIVER POWERMAXX

		Order no.
Battery charger 2 h, 4.8 V, EU Mains voltage: 230 - 240 V Mains frequency: 50/60 Hz		6.27270
Battery pack 4.8 V, 1.25 Ah, NiCd		6.31858
Accessories for PowerGrip/ PowerMaxx rechargeable battery For using the 4.8 Volt battery pack in the current Metabo chargers		6.31976

COMMON FEATURES

Lightweight for fatigue-free work
- Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Motor with integrated air cooling
Clockwise and anticlockwise rotation
Quick stop
Spindle stop
Spindle with hexagon recess for screwdriver bits

Pistol grip for optimum power transmission in direction of drilling
Rubber-coated handle
3-level planetary metal gears
Sturdy die cast gear housing
Powerful Li-lon battery pack. No memory effect!
- Charger (charge time approx. 1 hours)

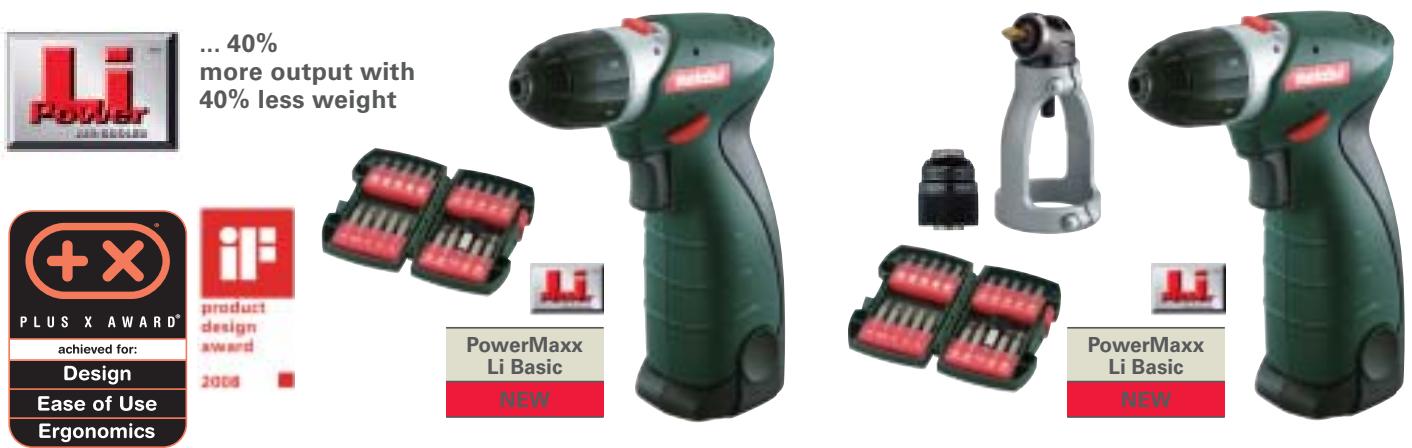

	7.2 Volt Cordless Drill / Screwdriver PowerMaxx Li Basic	7.2 Volt Cordless Drill / Screwdriver PowerMaxx Li Pro
Comparative device characteristics
Maximum torque, soft	9 Nm	9 Nm
Maximum torque, hard	16 Nm	16 Nm
Drilling capacity in
- Steel	3 mm	3 mm
- Wood	6,5 mm	6,5 mm
No-load speeds	0 - 250 / 0 - 750 /min	0 - 250 / 0 - 750 /min
Drilling spindle thread	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity	-	0,8 - 6,5 mm
Weight (including battery pack)	0,73 kg	0,73 kg
Standard equipment	2 Li-Ion battery packs (7.2 V 1)/2.2 Ah), charger LC 60, carry case, bit assortment (20-piece)	Quick-action keyless chuck Futuro Plus, screw-type angle attachment, 2 Li-Ion battery packs (7.2 V 1)/2.2 Ah), charger LC 60, carry case, bit assortment (20-piece)
1) at nominal voltage, maximum voltage 8 Volts
Type	PowerMaxx Li Basic	PowerMaxx Li Pro
Order no.	6.00068.50	6.00069.50

ACCESSIONS FOR THE CORDLESS DRILL / SCREWDRIVER POWERMAXX

		Order no.
	Quick-action keyless chuck Futuro Plus H1 M Clamping width: 0,8 - 6,5 mm	6.366231)
	Screw-type angle attachment for PowerMaxx For fixing screws more easily at locations difficult to reach Specially for PowerMaxx ■ Magnetic bit holder with 1/4" (6.35mm) hexagonal shank ■ Gears made of special steel ■ Suitable for clockwise and anticlockwise rotation	6.306501)

1) Standard equipment with power Maxx Li Pro

ACCESSORIES FORTHE CORDLESS DRILL /SCREWDRIVER POWERMAXX

	Order no.
Battery charger LC 60, 7.2 V, EU	6.27306

ACCESSIONS FOR THE CORDLESS SCREWDRIVER POWERMAXX LI BASIC / PRO

		Order no.
	Rechargeable battery pack 7.2 V, 2.2 Ah, Li-lon (as spare)	6.25487

COMMON FEATURES

• Variospeed (V) electronics
  20-level adjustable torque, plus drilling level
  Clockwise and anticlockwise rotation
  Quick stop
• Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
  T-handle for optimum centre of gravity
  Fatigue-free operation due to perfect ergonomy

3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack

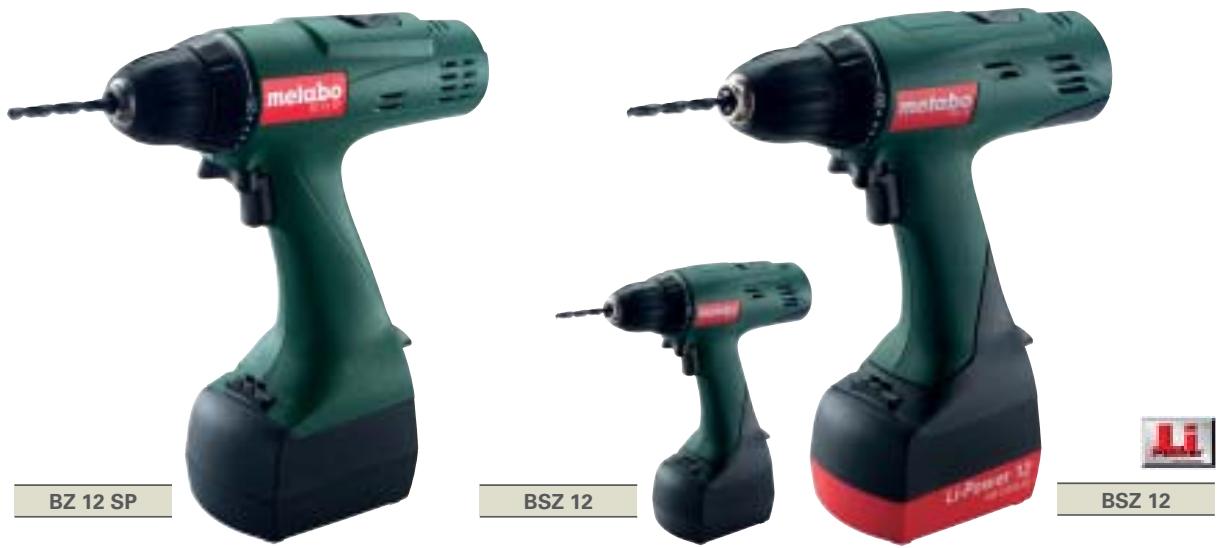

		12 Volt Cordless Drill / Screwdriver BZ 12 SP	12 Volt Cordless Drill / Screwdriver BSZ 12	12 Volt Cordless Drill / Screwdriver BSZ 12
Special advantages
■ Rubber-coated handle			●	●
■ Li-Ion battery packs for up to 40% more power with up to 40% less weight. No memory effect!				●
Comparative device characteristics
Maximum torque, soft		18 Nm	22 Nm	22 Nm
Maximum torque, hard		35 Nm	52 Nm	52 Nm
Drilling capacity in
- Steel		10 mm/5 mm	10 mm/5 mm	10 mm/5 mm
- Wood		20 mm/16 mm	25 mm/20 mm	25 mm/20 mm
No-load speeds		0 - 400 / 0 - 1.450 /min	0 - 400 / 0 - 1.350 /min	0 - 400 / 0 - 1.350 /min
Drilling spindle thread		1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity		1 - 10 mm	1,5 - 13 mm	1,5 - 13 mm
Weight (including battery pack)		1,7 kg	2 kg	1,7 kg
Standard equipment		2 battery packs, charger, carry case	2 battery packs, charger, carry case	2 battery packs, charger, carry case
1) at maximum voltage, nominal voltage 10,8 Volts
Type Order no. Machine with Battery pack	Charger	BZ 12 SP	BSZ 12	BSZ 12
-NiCd (12 V / 2 Ah)	AC 30	6.02151.50	6.02153.51	-
-Li-Ion (12 V1) / 2,2 Ah)	AC 30 Plus	-	-	6.02161.50

COMMON FEATURES

• Selectable impulse mode
• Variospeed (V) electronics
  20-level adjustable torque, plus drilling level
  Clockwise and anticlockwise rotation
  Quick stop
• Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
  T-handle for optimum centre of gravity
  Fatigue-free operation due to perfect ergonomy

Rubber-coated handle
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack

... 40 % more output with 40 % less weight

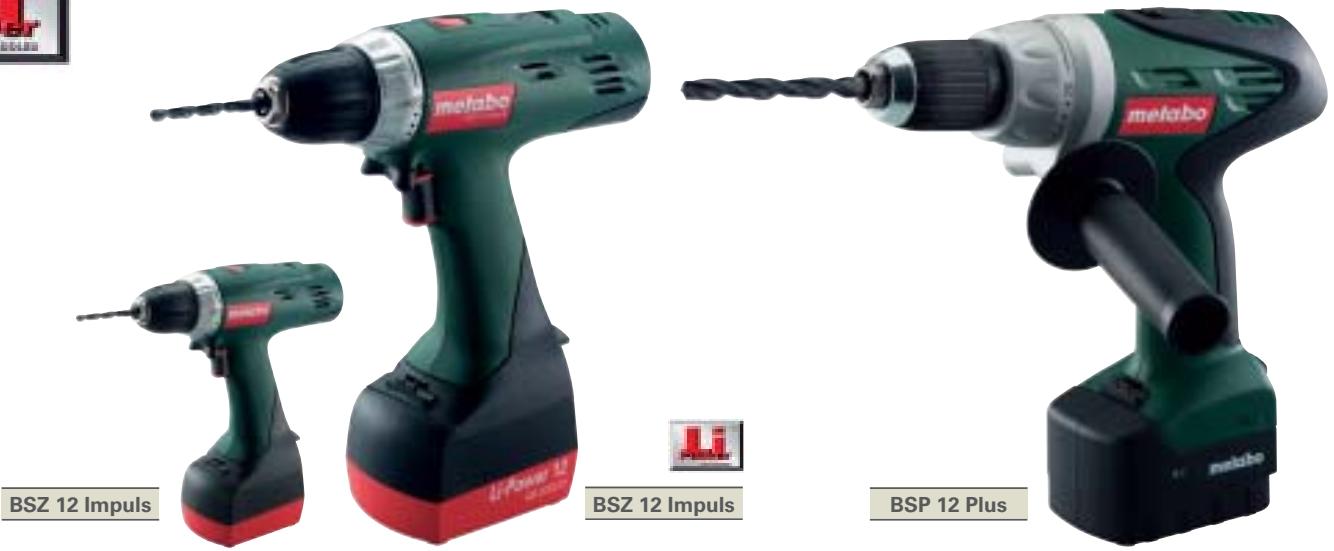

		12 Volt Cordless Drill / Screwdriver BSZ 12 Impuls	12 Volt Cordless Drill / Screwdriver BSZ 12 Impuls	12 Volt Cordless Drill / Screwdriver BSP 12 Plus
Special advantages
■ Side handle				●
■ Die cast aluminium gear housing				●
■ Li-lon battery packs for up to 40% more power with up to 40% less weight. No memory effect!			●
Comparative device characteristics
Maximum torque, soft		22 Nm	22 Nm	20 Nm
Maximum torque, hard		52 Nm	52 Nm	55 Nm
Drilling capacity in
- Steel		10 mm/5 mm	10 mm/5 mm	13 mm/8 mm
- Wood		25 mm/20 mm	25 mm/20 mm	40 mm/20 mm
No-load speeds		0 - 400 / 0 - 1.350 /min	0 - 400 / 0 - 1.350 /min	0 - 400 / 0 - 1.400 /min
Drilling spindle thread		1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity		1,5 - 13 mm	1,5 - 13 mm	1,5 - 13 mm
Weight (including battery pack)		2 kg	1,7 kg	2,5 kg
Standard equipment		2 battery packs, charger, carry case	2 battery packs, charger, carry case	Quick-action keyless chuck Futuro Plus, additional handle, 2 battery packs, charger, carry case
1) at maximum voltage, nominal voltage 10,8 Volts
Type Order no. Machine with Battery pack	Charger	BSZ 12 Impuls	BSZ 12 Impuls	BSP 12 Plus
-NiCd (12 V / 2 Ah)	AC 30	6.02157.51	-	6.02419.50
-NiCd (12 V / 2 Ah)	ACS 15	-	-	6.02419.51
-NiMH (12 V / 3 Ah)	AC 30	6.02157.60	-	-
-Li-Ion (12 V 1) / 2,2 Ah)	AC 30 Plus	-	6.02164.51	-
-Li-Ion (12 V 1) / 2,2 Ah)	ACS 15 Plus	-	6.02164.50	-

COMMON FEATURES

• Variospeed (V) electronics
  20-level adjustable torque, plus drilling level
  Clockwise and anticlockwise rotation
  Quick stop
• Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
  T-handle for optimum centre of gravity
  Fatigue-free operation due to perfect ergonomy
  Rubber-coated handle

3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack

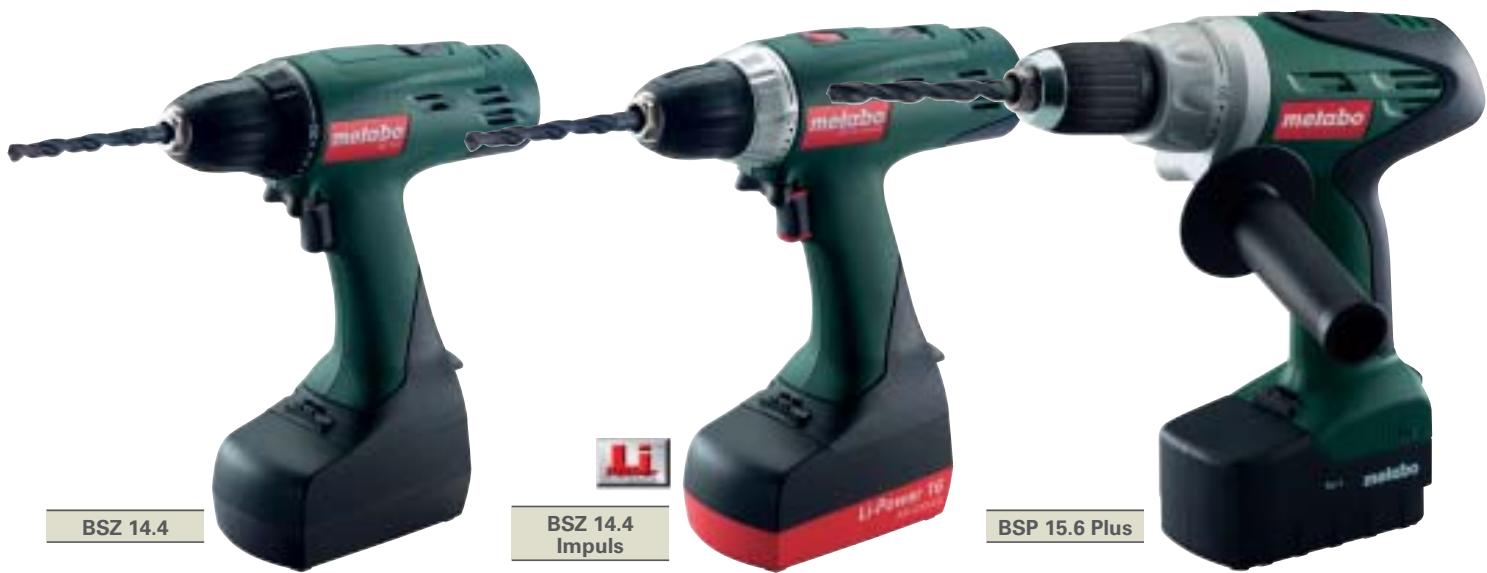

		14,4 Volt Cordless Drill / Screwdriver BSZ 14.4	14.4 Volt Cordless Drill / Screwdriver BSZ 14.4 Impuls	15,6 Volt Cordless Drill / Screwdriver BSP 15.6 Plus
Special advantages
■ Selectable impulse mode			●	●
■ Side handle				●
■ Die cast aluminium gear housing				●
Comparative device characteristics
Maximum torque, soft		24 Nm	24 Nm	26 Nm
Pulse torque		-	28 Nm	28 Nm
Maximum torque, hard		55 Nm	55 Nm	60 Nm
Drilling capacity in
- Steel		12 mm/5 mm	12 mm/5 mm	13 mm/8 mm
- Wood		30 mm/22 mm	30 mm/22 mm	45 mm/25 mm
No-load speeds		0 - 400 / 0 - 1.400 /min	0 - 400 / 0 - 1.400 /min	0 - 400 / 0 - 1.400 /min
Drilling spindle thread		1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity		1,5 - 13 mm	1,5 - 13 mm	1,5 - 13 mm
Weight (including battery pack)		2,1 kg	2,1 kg	2,6 kg
Standard equipment		2 battery packs, charger, carry case	2 battery packs, charger, carry case	Quick-action keyless chuck Futuro Plus, additional handle, 2 battery packs, charger, carry case
2) at nominal voltage, maximum voltage 16 Volts
Type Order no. Machine with Battery pack	Charger	BSZ 14.4	BSZ 14.4 Impuls	BSP 15.6 Plus
- NiCd (14,4 V / 2 Ah)	AC 30	6.02154.51	6.02158.53	-
- NiMH (14,4 V / 3 Ah)	AC 30	-	6.02158.60	-
- Li-Ion (14,4 V2) / 2,2 Ah)	AC 30	-	6.02165.51	-
- Li-Ion (14,4 V2) / 2,2 Ah)	ACS 15	-	6.02165.50	-
- NiCd (15,6 V / 1,25Ah)	AC 30	-	-	6.02420.50
- NiCd (15,6 V / 2,4 Ah)	AC 30	-	-	6.02420.51
- NiCd (15,6 V / 2,4 Ah)	ACS 15	-	-	6.02420.60

COMMON FEATURES

• Variospeed (V) electronics
  20-level adjustable torque, plus drilling level
  Clockwise and anticlockwise rotation
  Quick stop
• Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
  T-handle for optimum centre of gravity
  Fatigue-free operation due to perfect ergonomy
  Rubber-coated handle

3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack

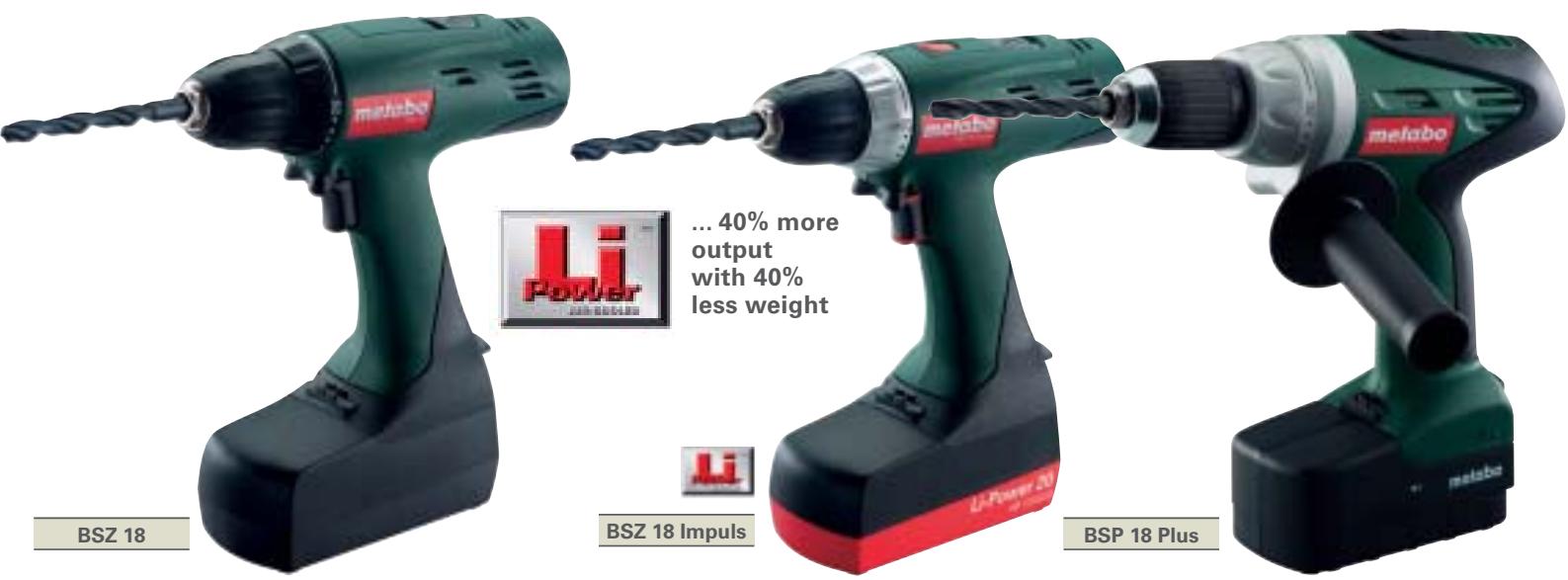

		18 Volt Cordless Drill / Screwdriver BSZ 18	18 Volt Cordless Drill / Screwdriver BSZ 18 Impuls	18 Volt Cordless Drill / Screwdriver BSP 18 Plus
Special advantages
■ Selectable impulse mode			·	·
■ Side handle				·
■ Die cast aluminium gear housing				·
■ Li-Ion battery packs for up to 40% more power with up to 40% less weight. No memory effect!			·
Comparative device characteristics
Maximum torque, soft		28 Nm	28 Nm	30 Nm
Pulse torque		-	32 Nm	32 Nm
Maximum torque, hard		62 Nm	62 Nm	65 Nm
Drilling capacity in
- Steel		12 mm/6 mm	12 mm/6 mm	13 mm/8 mm
- Wood		30 mm/22 mm	30 mm/22 mm	50 mm/25 mm
No-load speeds		0 - 450 / 0 - 1.450 /min	0 - 450 / 0 - 1.450 /min	0 - 400 / 0 - 1.400 /min
Drilling spindle thread		1/2" - 20 UNF	1/2" - 20 UNF	1/2" - 20 UNF
Chuck capacity		1,5 - 13 mm	1,5 - 13 mm	1,5 - 13 mm
Weight (including battery pack)		2,2 kg	1,9 kg	2,8 kg
Standard equipment		2 battery packs, charger, carry case	2 battery packs, charger, carry case	Quick-action keyless chuck Futuro Plus, additional handle, 2 battery packs, charger, carry case
3) at nominal voltage, maximum voltage 20 Volts
Type Order no. Machine with Battery pack	Charger	BSZ 18	BSZ 18 Impuls	BSP 18 Plus
- NiCd (18 V / 1,25 Ah)	AC 30	-	-	6.02421.50
- NiCd (18 V / 2 Ah)	AC 30	6.02155.60	6.02159.53	-
- NiCd (18 V / 2,4 Ah)	AC 30	-	-	6.02421.60
- NiCd (18 V / 2,4 Ah)	ACS 15	-	-	6.02421.51
- NiMH (18 V / 3 Ah)	AC 30	-	6.02159.61	-
- Li-Ion (18 V 3/2,2 Ah)	AC 30	-	6.02166.51	-
- Li-Ion (18 V 3/2,2 Ah)	ACS 15	-	6.02166.50	-

EQUIPMENT FEATURES

• Compact cordless impact screwdriver for tough applications
  High torque machine with low kick-back torque
  T-handle for optimum centre of gravity
  Rubber-coated handle
  Variospeed (V) electronics
  Ergonomic clockw./anticl. switch for comfortable, hassle free operation
  Die cast aluminium gear housing
  Bit case
  Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
  Easy and quick change of battery pack
  Li-lon battery packs for up to 40% more power with up to 40% less weight. No memory effect!

... 40 % more output with 40 % less weight

SSP 12

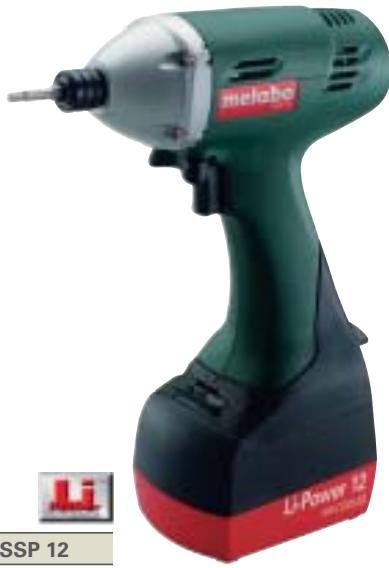

	12 Volt Cordless Impact Screwdriver SSP 12
Comparative device characteristics
Type of battery pack	Li-lon
Battery voltage	12 V 1)
Capacity of battery pack	2,2 Ah
No load speed	0 - 2,500 /min
Maximum impact rate	3.000 /min
Maximum tightening torque	100 Nm
Bit retainer	Hexagon recess 1/4" (6.35 mm)
Weight (including battery pack)	1,6 kg
Standard equipment	2 Li-lon battery packs (12 V/2.2 Ah), "AIR COOLED" quick charger AC 30 Plus, carry case
1) at maximum voltage, nominal voltage 10,8 Volts
Type	SSP 12
Order no.	6.02167

ACCESSORIES FOR CORDLESS SCREWDRIVERS

Screwdriver bit assortments 1/4" (6.35 mm) hexagonal shank
		Order no.
NEW	Bit box with stainless steel bits (10-piece) Small plastic case Consisting of a "rapid in/easy out" bit holder and the bits mostly commonly used in woodwork. Sizes: PH2, PZ2x2, PZ1, TX10, TX15, TX20, TX25, TX30 Bits and holders are made from stainless steel.	6.25388
NEW	Bit box with stainless steel bits (10-piece) Small plastic case Consisting of a "rapid in/easy out" bit holder and the bits most commonly used in metal-working. Sizes: PH1x2, PH2x2, PH3, Allen 2.5,3.0,4.0,5.0. Bits and holders are made from stainless steel.	6.25389
NEW	Bit box torsion (10-piece) Small plastic case Consisting of: Phillips bits, sizes 1, 2, 3 (1 each size) Pozidriv bits, sizes 1, 2, 3 (1 each size) each with one bit for slotted-head screws 0.8 x 5.5 mm, 1.0 x 5.5 mm and 1.2 x 6.5 mm Bit holder "Rapid in/easy out"	6.25390
NEW	Bit box Torx + Pozidriv (10-piece) Small plastic case Consisting of: Pozidriv bits sizes 1, 2, 3 (torsion bits, 1 each size) Torx bits sizes TX 10, 15, 20, 25, 30 and 40 (1 each) Bit holder "Rapid in/easy out"	6.25391
NEW	Bit box torsion Universal (10-piece) Small plastic case Consisting of: Phillips bits, sizes 1, 2, 3 (1 each size) Pozidriv bits, sizes 1, 2, 3 (1 each size) bits for slotted-head screws 0.8x5.5 mm, 1.0x5.5 mm and 1.2x6.5 mm (1 each) Bit holder "Rapid in/easy out"	6.25396
NEW	Bit box diamond Pozidriv (7-piece) Small plastic case Consisting of: Pozidriv bits 2 x size 1, 3 x size 2, 1 x size 3 (diamond) Bit holder "Rapid in/easy out"	6.25393
NEW	Bit box torsion Torx (7-piece) Small plastic case Consisting of: Torx bits 8, 9, 10, 15, 20, 25, 27, 30 and 40 (1 each) Bit holder "Rapid in/easy out"	6.25394
NEW	Bit box diamond Universal (7-piece) Small plastic case Consisting of: Phillips bits, sizes 1, 2, 3 (1 each size) Pozidriv bits, sizes 1, 2, 3 (1 each size) bits for slotted-head screws 0.8x5.5 mm, 1.0x5.5 mm and 1.2x6.5 mm (1 each) Bit holder "Rapid in/easy out"	6.25397
Further accessories for the cordless screwdrivers can be found on pages 147-149.

Universal fast-action charger

	Order no.
Universal quick charger AC 30 • For charging all old (with 6.27075 adapter) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 30 minutes at 1.4 Ah • "AIR COOLED" function • For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN)	6.27300 6.27303 6.27305 6.27304
Universal quick charger AC 30 Plus • For charging all old (with adapter 6.27075) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V, as well as the new Li-lon battery packs of 12 V-18 V • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 30 minutes at 1.4 Ah • "AIR COOLED" function • For connecting to 230/240V, 50-60 Hz (EU) to 230/240V, 50-60 Hz (GB) to 230/240V, 50-60 Hz (AUS/NZ) to 110/120V, 50-60 Hz (USA/CDN)	6.27275 6.27276 6.27278 6.27277

Fast-action charger

	Order no.
Super quick charger ACS 15 • For charging all old (with 6.27075 adapter) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 15 minutes at 1.4 Ah • "AIR COOLED" function • For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN)	6.27089 6.27090 6.27092 6.27091
Super quick charger ACS 15 Plus • For charging all old (with adapter 6.27075) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V, as well as the new Li-lon battery packs of 12 V-18 V • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 15 minutes at 1.4 Ah • "AIR COOLED" function • Refresh" function for maintenance of batteries for NiCd and NiMH battery packs • For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN)	6.27109 6.27109 6.27109
Super quick charger ASS 15 Plus • For charging Metabo NiCd battery packs of 24 V, as well as Li-lon battery packs of 25.2 V. • The battery packs must be suitable for being pushed on to the charger. (slide in design) • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 15 minutes at 1.4 Ah • "AIR COOLED" function • Refresh" function for maintenance of batteries for NiCd battery packs • For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN)	6.37060 6.37061 6.37063 6.37062

YOU WON'T FIND A BETTER PERCENTAGE ANYWHERE!

Greater efficiency with more power at considerably less weight: That's Metabo Li-Power! A Metabo Li-power lithium battery supplies around 96 % efficiency, 16 % more than NiCd or NiMH, as a result it can provide approximately 40 % more energy the NiCd & NiMH batteries. At the same time it is around 40 % lighter. A 18 V 2.2 Ah Li- ion pack weighs in at approx 700g where as a normal NiMH battery pack comes in at just over 1kg!

This is not all Li-Power has to offer. Thanks to its lower self discharge rate, Li-ion packs can be used immediately at full power even after long period of non use. When you charge the battery, neither the memory nor the lazy battery effect arises. And unlike NiMH batteries, Li-ion batteries work from -20 °C to 50 °C without any problems (just like NiCd).

Electronics

An electronic overcharging and discharging protection mechanism ensures optimum charging and the maximisation of the service life of the battery pack.

Patented multifunction display

All information on one display: capacity querying, temperature monitoring, overload warning and automatic display when a low capacity level is reached.

Corepack

Power tool lithium cells of the highest quality for maximum performance.

Cell connector

Their special design guarantees optimum conductivity and an extremely robust construction. Control and monitoring of every single cell for protection against overcharging, undercharging, total discharge and overstraining.

METABO AIR COOLED CHARGING TECHNOLOGY: THE QUICKEST CHARGERS.

"AIR COOLED" is a technology that only Metabo has to offer. In combination with Li Power, it forms what is possibly the most effective battery system on the market.

The cooler the battery is while charging the faster it can be used again. Every battery heats up when used, which impedes an immediate, effective recharge. The new, patented AIR COOLED charging technology takes this problem out of the equation, since the battery is cooled down before and during the charging process. The charging process thus becomes around 30% quicker, the batteries last longer and

you save yourself the hassle of hanging around waiting for batteries to charge. Another outstanding new feature is the refresh function (only with ACS 15 PLUS). This feature brings the performance impairing unbalanced charge levels of the cells back into line. This 'cell balancing' process should be activated at the end of the charging process once every month on NiCd and NiMH batteries only.

NiCd battery packs

	Battery pack voltage V	Capacity of battery pack Ah	Order no.
	NiCd battery packs series 1
	7,2	1,4	6.30069
	9,6	1,4	6.30070
	9,6	1,7	6.30072
	12	1,7	6.30073
	12	2	6.31723
	NiCd battery packs series 2
	9,6	1,7	6.30065
	12	2	6.31724
	14,4	2	6.31725
	NiCd battery packs series 3
	9,6	1,4	6.31746
	9,6	2	6.31728
	12	1,25	6.31737
	12	1,4	6.31747
	12	2	6.31729
	12	2,4	6.31748
	15,6	1,25	6.31738
	15,6	2,4	6.31749
	18	1,25	6.31739
	18	2	6.31857
	18	2,4	6.31740
	"AIR COOLED" NiCd battery packs
	9,6	1,4	6.25470
	9,6	2	6.25471
	12	1,4	6.25473
	12	2	6.25474
	14,4	1,4	6.25475
	14,4	2	6.25476
	18	1,4	6.25477
	18	2	6.25478
	"AIR COOLED" NiCd battery packs
	24	2	6.25488

NiMH battery packs

	Battery pack voltage V	Capacity of battery pack Ah	Order no.
	NiMH battery packsseries 1
	12	3	6.31776
	15,6	3	6.31777
	"AIR COOLED"NiMH battery packs
	12	3	6.25479
	14,4	3	6.25480
	18	3	6.25481

"AIR COOLED" Li-lon battery packs

	Battery pack voltage 1) V	Capacity of battery pack Ah	Order no.
"AIR COOLED" Li-Ion battery packs
10.8 / 12	2,2	6.25486
14.4 / 16	2,2	6.25482
18 / 20	2,2	6.25484
"AIR COOLED" Li-Ion battery packs
25,2 / 28	2,2	6.25489

1) Nominal voltage / max. voltage

NiCd battery pack for Bh EA 14 S - R+L

	Battery pack voltage V	Capacity of battery pack Ah	Order no.
	14,4	4	6.31727

Adapter for older Metabo chargers

	Order no.
For inserting older battery packs (starting 1981, models 1 and 2) into the new "AIR COOLED" chargers. Also for inserting "AIR COOLED" batteries into older chargers	6.27075

Carry case

	Order no.
melabo	6.25441
Carry case SBT/BSP/SBP
For BSP 12 Plus, BSP 15.6 Plus, BSP 18 Plus and chargers ACS 15, AC 30, ICS 10, C 45 For SBP 12 Plus, SBP 18 Plus and chargers ACS 15, AC 30, ICS 10, C 45
