MAP - GPS / Système de navigation MIO - Notice d'utilisation et mode d'emploi gratuit

Intitulé	Description
Type de produit	GPS de navigation portable
Caractéristiques techniques principales	Écran tactile, cartographie détaillée, mise à jour des cartes
Alimentation électrique	Batterie rechargeable via USB
Dimensions approximatives	15 cm x 9 cm x 2 cm
Poids	250 g
Compatibilités	Compatible avec les systèmes de navigation GPS standards
Type de batterie	Batterie lithium-ion
Tension	5 V
Puissance	5 W
Fonctions principales	Navigation GPS, points d'intérêt, itinéraires personnalisés
Entretien et nettoyage	Essuyer avec un chiffon doux, éviter les produits abrasifs
Pièces détachées et réparabilité	Disponibilité de pièces de rechange auprès du fabricant
Sécurité	Utiliser uniquement dans des conditions de conduite sécuritaires
Informations générales utiles	Vérifier les mises à jour de carte régulièrement, consulter le manuel d'utilisation

FOIRE AUX QUESTIONS - MAP MIO

Comment mettre à jour la carte de mon MIO MIO MIOMAP ?

Pour mettre à jour la carte, connectez votre appareil à votre ordinateur, ouvrez le logiciel MioMore et suivez les instructions pour télécharger les mises à jour disponibles.

Que faire si mon MIO MIO MIOMAP ne s'allume pas ?

Vérifiez que l'appareil est chargé. Si l'écran reste noir, essayez de le laisser charger pendant au moins 30 minutes, puis essayez de l'allumer à nouveau.

Comment réinitialiser mon MIO MIO MIOMAP ?

Pour réinitialiser l'appareil, maintenez enfoncé le bouton d'alimentation pendant environ 10 secondes jusqu'à ce que l'écran s'éteigne, puis relâchez le bouton et rallumez l'appareil.

Pourquoi mon MIO MIO MIOMAP ne capte pas le GPS ?

Assurez-vous que vous êtes dans un endroit dégagé, loin des bâtiments ou des arbres. Si le problème persiste, essayez de redémarrer l'appareil et vérifiez les paramètres de localisation.

Comment changer la langue de mon MIO MIO MIOMAP ?

Allez dans les paramètres de l'appareil, sélectionnez 'Langue' et choisissez la langue souhaitée dans la liste disponible.

Mon MIO MIO MIOMAP affiche un message d'erreur, que faire ?

Notez le code d'erreur et consultez le manuel d'utilisation pour des instructions spécifiques. Vous pouvez également essayer de réinitialiser l'appareil.

Comment télécharger des points d'intérêt sur mon MIO MIO MIOMAP ?

Connectez l'appareil à votre ordinateur et utilisez le logiciel MioMore pour télécharger des points d'intérêt supplémentaires à partir de la bibliothèque disponible.

Le volume de mon MIO MIO MIOMAP est trop faible, comment l'augmenter ?

Accédez aux paramètres de volume dans le menu principal et réglez le niveau de volume selon vos préférences.

Comment installer des mises à jour logicielles sur mon MIO MIO MIOMAP ?

Connectez votre appareil à votre ordinateur, ouvrez le logiciel MioMore, puis suivez les instructions pour installer les mises à jour logicielles disponibles.

Mon MIO MIO MIOMAP ne se connecte pas à mon ordinateur, que faire ?

Vérifiez que le câble USB est correctement branché et qu'il n'est pas endommagé. Essayez de changer de port USB ou de redémarrer l'ordinateur.

MODE D'EMPLOI MAP MIO

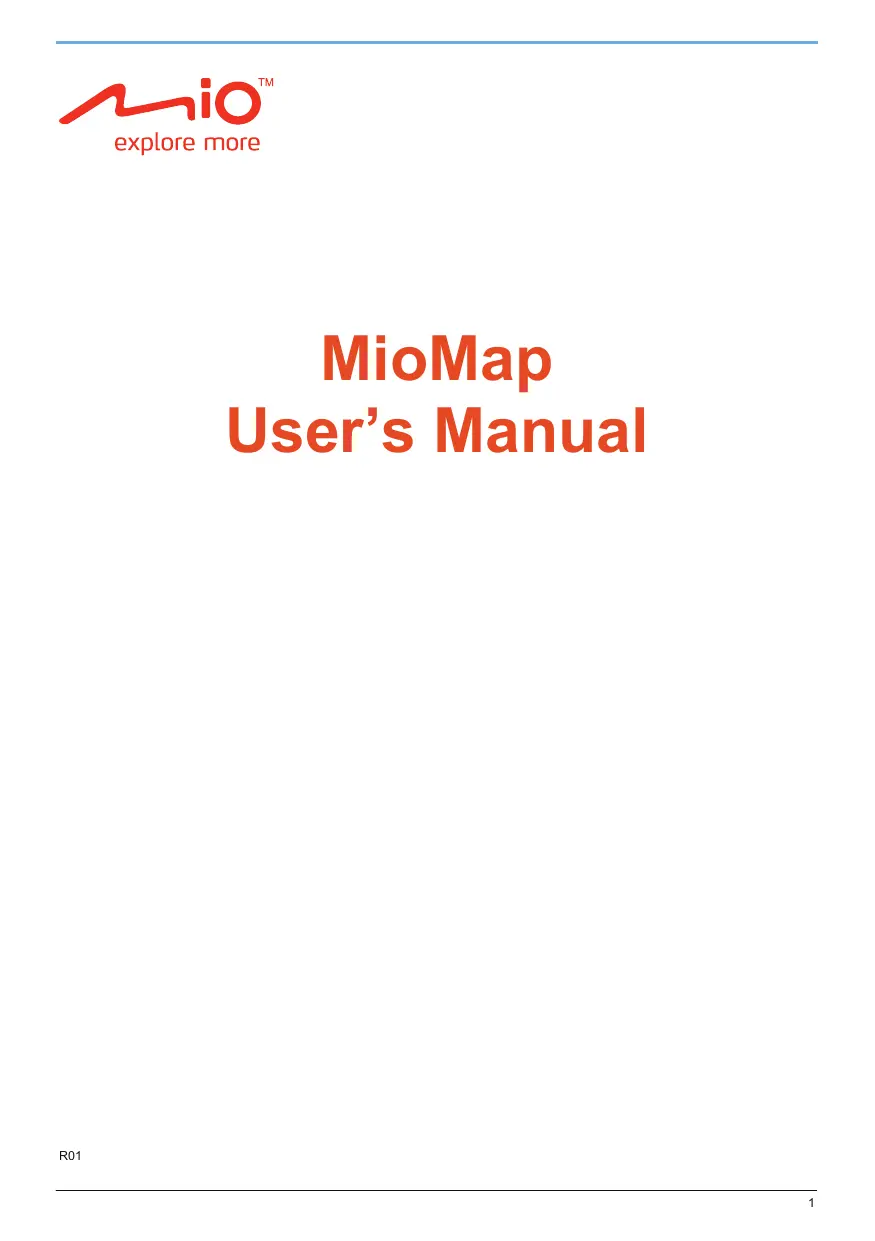

MioMap

User's Manual

Contents

Welcome. 4

Important information for using the manual 4

What are the main screens I will use? 5

Main Map screen 5

Main Menu screen 5

How do I navigate with GPS? 6

How do I go from A to B? 7

What if I miss a turn? 7

How do I search for an address? 8

Case Study: How do I search for an address? 8

Using the Keyboard screen 10

How do I create a trip with multiple stops? 11

Case Study: How do I navigate to multiple addresses? 11

How do I skip a waypoint during a multi-stop trip? 12

How do I search for a Point of Interest (POI)? 13

Case Study: How do I search for a Point of Interest? 13

How do I save Favourites and My Home? 15

How do I save a Favourite or My Home? 15

How do I navigate to a Favourite? 16

How do I navigate to My Home? 16

How do I edit the name of a Favourite? 17

How do I delete a Favourite? 17

How do I navigate to a recent location? 18

How do I view my route? 19

Navigation screen 19

How do I use the Route Menu? 21

How do I use the Trip Menu? 22

How do I use the Map Menu? 23

How do I demonstrate a trip? 24

How do I use saved trip? 25

How do I view my NavPix albums? 26

NavPix Albums 26

How do I view a NavPix in full-screen? 27

How do I navigate to a NavPix? 28

GPS Status 29

What can I customize? 30

Route Options 31

Route Calculation 1/4 31

Road Types 2/4 & 3/4 31

Driving Alerts 4/4 32

Map Display 33

Map Display 1/2 33

Select Map 2/2. 33

Map POIs 34

Volume 35

Screen 36

POI Alerts 37

Language 38

Time settings 39

Power 40

Keyboard 41

Units 42

Restore defaults 43

Welcome

Thank you for purchasing this Mio. This manual has been prepared to guide you through the operation of your Mio from first set-up through to continuous use. Please read this manual carefully before using your Mio for the first time. Keep this manual in a safe place and use as your first point of reference.

Important information for using the manual

It is important to understand the terms and typographical conventions used in this manual.

Formatting

The following formatting in the text identifies special information:

Convention	Type of Information
Bold	Mio components or items displayed on screen, including buttons, headings, field names and options.
Italics	Indicates the name of a screen.

Icons

The following icons are used throughout this manual:

Icon	Description
	Case study

Terms

The following terms are used throughout this manual to describe user actions.

Term	Description
Press	Press and release a button quickly.
Press and hold	Press and hold a button for 2-3 seconds.
Tap	Press and release an item displayed on the touch screen.
Tap and hold	Tap and hold an item displayed on the touch screen for 2-3 seconds.
Select	Tap an item in a list or tap a command from a menu.

What are the main screens I will use?

Main Map screen

Then Main Map screen is the application starting point and its main view. You can browse map, plan a journey or just track your vehicle on the map.

Main Menu screen

The Main Menu screen is your starting point for searching for a destination. The Main Menu screens also allow you to customize preferences, make and receive phone calls, browse images or play music.

The Main Menu can be accessed from the map screen by tapping at the bottom left corner of main map screen.

Note: The Main Menu screens may differ from those displayed above, depending on your Mio model.

How do I navigate with GPS?

The Global Positioning System (GPS) is available at any time, free of charge, and is accurate to within 5m (15ft). GPS navigation is made possible by a network of satellites that orbit the Earth at around 20,200km (12,552mi). Each satellite transmits a range of signals which are utilized by GPS receivers, such as your Mio, to determine an exact location. Although a GPS receiver can detect signals from up to 12 satellites at any time, only four signals are required to provide a position or "GPS fix" (latitude and longitude), for vehicle navigation systems.

How does my Mio receive GPS signals?

Your Mio receives GPS signals via the internal GPS antenna. To guarantee the optimum GPS signal strength, ensure your Mio is outdoors, or in a vehicle outdoors, and has an unobstructed view of the sky. GPS reception is not usually affected by weather, however, very heavy rain or snow may have a negative effect on your reception.

How do I view my GPS status?

You can view your GPS status at any time from the map screens or the GPS status screen. displays green when a GPS fix is established and red when a GPS fix is unavailable. To indicate the reception strength of a GPS fix, displays between one and four green vertical bars.

Note: Before you begin, check if your vehicle is fitted with a heat-reflective or heated windscreen. If so, you may need to purchase an external antenna for your Mio to receive GPS signals. The first time you use your Mio, it may take up to 15 minutes to establish a GPS connection.

To view your GPS status in more detail, see "GPS Status".

How do I go from A to B?

Your Mio is equipped with maps that provide street-level detail for door-to-door navigation, including Points of Interest such as accommodation, parking areas, petrol stations, railway stations and airports.

When you ...	Then ...
know the address of your destination	use the Find address menu command to enter the address • see "How do I search for an address?".
want to make multiple stops	use the Add a destination or Add a via point concepts to enter multiple waypoints • see "How do I create a trip with multiple stops?".
need to find a named site, feature, landmark or public venue	search for a Point of Interest • see "How do I search for a Point of Interest (POI)?".
want to navigate to a NavPixTM location	use the Go To NavPix screen to navigate to a preinstalled NavPix • see "How do I navigate to a NavPix?".

WARNING For your safety, enter destination information before you start a journey. Do not enter a destination while driving.

What if I miss a turn?

You will be automatically redirected if you make a wrong turn. In most cases you will not even notice that Mio has just recalculated your route.

How do I search for an address?

Enter a destination using the Find address screen. There are five ways to enter an address, depending on the data about destination you may have. These five ways are:

1. Find city centre, which you will use if your destination is centre of some city or settlement
2. Find address, which you will use if you have complete address information including city, street and house number
3. Find intersection, which you will use if your destination is intersection of two streets within some city
4. Postcode, if you are looking for destination described as postcode
5. Longitude/Latitude, which you will use if you have exact GPS location of your destination

Note: When specifying Longitude/Latitude as the destination, use period to separate the values of degree, minute, and second. For example, if the latitude is 50^08'45'' , please input 50.145833.

This section provides a case study to help guide you through setting your destination. You are going to enter destination which has complete city, street and house number information.

Quick Steps

1. Open the Find address screen
2. Select Street address
3. Type City, Street and House number and press Find

4. Select your address from the list of found matches

5. Tap from the Destination Preview screen.

Case Study: How do I search for an address?

This case study will show you how to enter an address and how to navigate to it.

The address we will be using in this example is:

Ilica 13

10000 Zagreb

Croatia

Tip: Before you enter your destination address, ensure that you have set your route preferences. For more information, see "Route Options".

1. Open the Find address screen

The Find address screen will display.

2. Search for the Street address

a) From the Find address screen, tap Street address. The Street address lookup screen will display.

Note: although you may have installed maps covering several countries, you do not need to enter country name to find address. Your Mio will search all your maps to find the best possible address match.

b) Use the Street address lookup screen to type Zagreb in the city field, type Ilica in the street field and finally 13 in the house number field. Press Find. The Search results screen will display.

c) Tap the list item with Ilica 13, Zagreb. The Location Preview screen will display.

Note: If required house number is not available, the list with search results will display only the street name.

d) Complete one of the following:

If you want to ...	Then ...
navigate to your selected destination	tap Your route is calculated; the 3D Map screen will display.
add the destination to a multi-stop trip	tap Add a destination or Add a via point. For detailed explanation of these actions see “How do I create a trip with multiple stops?”
set this location as start of a planned trip	tap Set as start
save the destination as My Home	tap Next... then Set as home. Destination will become your new home location.
save the destination as a favourite	tap Next... then Add to favorites. The Edit Favourite Name screen will display. Type the name of newly created favourite location and press OK.

Using the Keyboard screen

The Keyboard screen will display when you are required to enter text, such as when searching for a street name. Search results will be listed in matching order, with the closest matches appearing at the top of the list. A maximum of 100 results will display.

The Keyboard screen can display with various layouts depending on the information you need to enter, including alphabet, number, alternate characters and combinations of these.

You can also choose the type of keyboard you prefer from alphabetic, QWERTY and keypad. For more information, see "Keyboard".

To delete a character, tap
To display more characters, tap 123, ABC or abc, if available.

Depending on your language, a different character set may be displayed on keyboard. For example, Hebrew keyboard layout will be:

For all non-Latin keyboards there is a button to which switches between native language keyboard and the Latin keyboard.

How do I create a trip with multiple stops?

You can use the Add a destination or Add a via point screen to set multiple stops or waypoints for your trip. Your route will be calculated to go via each of these points in the specified order.

If you use Add a destination your location will be added as the last destination of you trip. However, if you use Add a via point then destination will be added as the first next stop.

Quick Steps

1. Open the Find address screen
2. Select Street address
3. Type City, Street and House number and press Find
4. Select your address from the list of found matches
5. Tap Add a destination or Add a via point

Case Study: How do I navigate to multiple addresses?

This case study will show you how to set a multi-stop trip by entering multiple waypoints.

The address we will be using in this example is:

Dicmo Croatia

Tip: Before you enter your destination address, ensure that you have set your route preferences. For more information, see "Route Options".

1. Open the Find address screen

The Find address screen will display.

2. Search for the City centre

a) From the Find address screen, tap City center. The City centre lookup screen will display.

b) Use the City centre lookup screen to type Dicmo in the city field. Press Find. The Search results screen will display.

c) Tap the (only) list item containing Dicmo, Hrvatska. The Location Preview screen will display.

d) Complete one of the following:

If you want to ...	Then ...
add this destination as the last destination of your trip	tap Add a destination. Your route is calculated; the 3D Map screen will display.
add this destination as the first next destination	tap Add a via point. Destination will be added to your route as the first next destination; the 3D Map screen will display.
set this location as start of a planned trip	tap Set as start Location will be set as your starting location instead of your GPS location.

How do I skip a waypoint during a multi-stop trip?

To skip a waypoint during a multi-stop trip, complete the following:

1. Tap the Route options button.

The Route options context menu will display.

1. Tap Drop next via point

The next waypoint will be skipped and the route recalculated to the following waypoint.

How do I search for a Point of Interest (POI)?

A POI is a named site, feature, landmark or public venue which can be displayed as an icon on the map. POIs are grouped by type, such as petrol stations, parks, beaches and museums.

Tip: You can also quickly search for certain POIs based upon your current location via the Main Menu screen.

This section provides a case study to help guide you through finding or setting your POI as a destination.

Quick Steps

1. Open the POI Lookup screen
2. Type what and where you are looking for POI

3. Select POI from the search results window

4. Tap

Case Study: How do I search for a Point of Interest?

This case study will show you how to find POI and navigate to it.

The address used in this example is:

Koncertna dvorana Vatoslav Lisinski

Trg Stjepana Radica 4

Zagreb

Croatia.

1. Select the POIs command from the Main Menu

The POI lookup screen will display.

2. Search for a POI

a) Type Lisinski in What field and type Zagreb in Where field.

b) Select Koncertna dvorana Vatroslav Lisinski from the search results window. The Preview screen will display.

c) Complete one of the following:

If you want to ...	Then ...
navigate to your selected destination	tap Your route is calculated and displayed on the 3D Map screen.
add this destination as the last destination of your trip	tap Add a destination. Your route is calculated; the 3D Map screen will display.
add this destination as the first next destination	tap Add a via point. Destination will be added to your route as the first next destination; the 3D Map screen will display.
set this location as start of a planned trip	tap Set as start
save the destination as My Home	tap Next... then Set as home. The New Favourite screen will display..
save the destination as a favourite	tap Next... then Add to favorites. The New Favourite screen will display.
make a phone call to the POI	tap Next... then tap Dial.

How do I save Favourites and My Home?

You can save up to 256 destinations as favourites, one of which can be saved as My Home.

You can save a favourite from the Preview screen after searching for an address, or from the Map Menu. For more information, see "How do I use the Map Menu?"

How do I save a Favourite or My Home?

1. Search for an address until the Preview screen is displayed.
2. Tap Add to favourites or Set as home.

The Edit Favourite screen will display if you selected Add to favourites.

1. After you have entered a name for the favourite, tap A message box saying that location was saved to favourites will display.
2. Complete one of the following:

If you want to ...	Then ...
save as a Favourite	tap Add to favourites. The Edit Favourite screen will display . Type the name of your favourite and press √ The favourite is saved.
save as My Home	tap Set as home. The favourite is saved as My Home.

How do I navigate to a Favourite?

1. Tap the Favourite destination you want to travel to.

The Preview screen will display.

1. Tap

Your Mio will calculate the route from your current location. The 3D Map screen will display.

How do I navigate to My Home?

If you have not set an address as My Home, option Take me home will be disabled.

Option 1 - Via the Main Menu

Your Mio will calculate the route from your current location. The 3D Map screen will display.

Option 2 - Via the Favourite Destinations screen

1. From the Favourite Destinations screen, select My Home. The Preview screen will display.

1. Tap

Your Mio will calculate the route from your current location. The 3D Map screen will display.

How do I edit the name of a Favourite?

1. From the Favourite Destinations screen, select a favourite to edit. The Favourite Preview screen will display.

1. Tap Change name.

The Edit Name screen will display.

1. After you have edited the favourite name, tap
2. Complete one of the following:

If you want to …	Then …
rename the Favourite	tap Change name. The Edit favourite name displays. Change favourite name and tap

How do I delete a Favourite?

1. From the Favourite Destinations screen, select a favourite to delete. The Preview screen will display.

1. Tap Delete.

A warning message will display prompting you to confirm action. The favourite will be deleted if you press Yes.

How do I navigate to a recent location?

To make navigating to an address easier, your Mio will automatically save all your destinations in a list of recent locations.

1. Tap a recent location.

The Preview screen will display.

2. Complete one of the following:

If you want to ...	Then ...
calculate the route and open the 3D Map screen	tap The 3D Map screen will display.
save the recent location as My Home	tap Set as home. Location will be set as new home location
save the recent location as a favourite	tap Add to favourites. The Edit favourite name screen displays. Type new favourite name and tap

How do I view my route?

When a route has been calculated, the 3D Map screen will display. You will be directed to your destination by spoken and visual instructions.

Navigation screen

The Navigation screen displays your current position and follows your direction of travel.

• Tap and drag the screen, to move across the map.
• Tap the map to view the Route Menu (see "How do I use the Route Menu?").
• Tap the map to view the Map Menu (see "How do I use the Map Menu?").

Note: Depending on the country you are travelling in, the colour of the direction and distance buttons may differ from the above example.

	Item	Description
1	Next street	The name of the street to turn in to.
2	Direction and distance of next turn	The direction and distance of your next turn. Note: To repeat the spoken prompt of your next turn, tap the turn arrow.
3	Route	Your current route is highlighted.
4	Current position	Your current position is marked with ↘.
5	Route menu	Route Menu button allows you search for POIs on the route, to avoid roads on the route, to see route summary information etc.
6	Status bar	Displays one of the following: • The name of the street you are located on • Selected POI or street name..
7	Main Menu	The Main Menu button allows you to enter an address for your destination and customize preferences.
8	Distance and Time Information	Tap to expand and see the following options: • Time • km/h or mph (Speed) • TTG (Time to Go) • DTG (Distance to Go) • ETA (Estimated Time of Arrival). Tap to cycle through the options. Note: During a trip with multiple via points, Time to Go, Distance to Go and ETA will display as: Time to via point, Distance to via point and ETA at via point.
911	Zoom	To view zoom options, tap To zoom out, tap To zoom in, tap
10	North up	Tap to change tracking mode from heads-up to north-up.
12	2D/3D switch	Tap to change map view between 2D and 3D.
13	Mute/unmute volume, Bluetooth™, phone, battery and GPS information.	Tap to expand and see the following options: Mute/unmute volumeBluetooth and phone connection indicator.The icon is grey when Bluetooth is on, but a phone has not been paired.Battery charge indicatorGPS status indicatorThe icon displays green when a GPS fix is established and red when a GPS fix is unavailable. To indicate the reception strength of a GPS fix between one and four green vertical bars are displayed.

How do I use the Route Menu?

The Route Menu allows you to access navigational functions from the 3D Map and 2D Map screens.

Route Menu options

The following options are available via the Route Menu:

Menu Option	Description
Drop next via point	Cancels your next destination. If next destination was also the last destination this option also stops navigation.
POI along the route	Displays POI along the route screen. This option allows you to quickly find POIs along your route.
	Petrol stations Parking Restaurants
	Tourist Cash More
	POI along the route
Avoid next...	Displays the Avoid next sub-menu from where you select how many kilometres (or miles) of the calculated route Mio should avoid:1 km, 2 km, 5 km, 10 km, 20 km..This option is useful when, for example, you know that in front of you there is traffic jam you would like to avoid.
Route summary	Displays Route summary window:From: Bruna Bulicca10000 Zagreb, HrvatskaTo: Selska10434 Svetna Nedelj, HrvatskaEstimated time: 00:23 hDistance: 22 km
	Route summary
More...	Displays the Route sub-menu from where you can:Manoeuvres list- the list of all manoeuvres on your route.Via points list - the list of all your via points on your route. You can also rearrange order of via points as well as or delete them from the route.Save this route. Saves this route to My TripsDelete this route. Cancels this route and stops navigation.

How do I use the Trip Menu?

If you have calculated your route using Set as start options instead of using your GPS position as start location then you have a trip. Trips are useful when you want to plan and view a route without a GPS fix, such as when you are inside a building

The Trip Menu allows you to access trip specific functions from the 3D Map and 2D Map screens.

Trip Menu options

The following options are available via the Route Menu:

Menu Option	Description
Demonstrate	Once the route has been determined, you can demonstrate the route using this option.
POI along the trip	Displays POI along the trip screen. This option allows you to quickly find POIs along your trip.
	Petrol stations Parking Restaurants
	Tourist Cash More
	POI along the route
Drive this trip	Changes trip to navigation route, effectively replacing trip start point with your GPS position.
Trip summary	Displays Trip summary window:From: Bruna Bulica10000 Zagreb, HrvatskaTo: Selska10434 Sveta Nedelj, HrvatskaEstimated time: 00:23 hDistance: 22 km
	Route summary
More...	Displays the Trip sub-menu from where you can:Manoeuvres list- the list of all manoeuvres on your trip.Via points list - the list of all your via points on your trip. You can also rearrange order of via points as well as or delete them from the trip.Save this trip. Saves this trip to My Trips/Delete this trip. Removes this trip and all trip via point from the map.

How do I use the Map Menu?

The Map Menu allows you to access location specific and navigational functions from the 3D Map and 2D Map screens.

Displaying the Map Menu

1. Tap and drag to move around the map to your selected location.
2. Tap the map. The Map Menu will display.

Map Menu options

The following options are available via the Map Menu:

Menu Option	Description
Navigate To	Calculates a route from your current location, if your Mio has a GPS fix.
Find nearest POI	Displays the Find nearest POI screen from where you can browse for POIs in vicinity of selected location: Petrol stations Parking Tourist Cash Find nearest POI 1/2 >
Add a destination	Adds selected location as last destination of your route or planned trip.
Add a via point	Adds selected location as the first next destination of your route or planned trip.
Set as start	Sets selected location as starting point of planned trip.
Save location	Saves selected location to Favourites.

How do I demonstrate a trip?

Route demonstration allows you to:

Preview a route.
Plan and view a route without a GPS fix, such as when you are inside a building.

The following steps will show you how to preview one route.

1. Select a departure point

a) Tap the 3D Map or 2D Map screen at your departure point. The Map Menu will display.

b) Tap Set As Start.

The Map Menu will close, and the selected point is set as your departure point.

2. Select a destination point

Set a destination either by using the address entry wizard or by using the Map Menu:

a) Locate your destination.
b) Tap your destination to display the Map Menu.
c) Tap Add a destination.

The Map Menu will close and the map screen will display the calculated route.

3. Demonstrate the route

Once the route has been determined, you can demonstrate the route by completing the following:

a) Tap the trip menu button to display the Trip Menu.
b) Tap Demonstrate.

The 3D Map screen will display the calculated route in Route Demonstration mode.

How do I use saved trip?

If you saved your route or planned trip using Route Menu or Trip Menu, it will be stored under My Trips. You may quickly reload your saved trip from the Main Menu:

Trips are saved with start and end location together will all intermediate via locations. The list with all your saved trips will display.

The following steps will show you what you can do with saved trip:

1. Tap a saved trip from the list. The Preview screen will display.

1. Complete one of the following:

If you want to ...	Then ...
load this saved trip to main map	Tap Load. The 3D Map screen will display. This saved trip will become current planned trip. You may now use all Trip Menu options.
navigate this trip	Tap Drive this trip. The 3D Map screen will display and navigation will start.
remove this trip from the list	tap Delete this trip.

How do I view my NavPix albums?

NavPix Albums

Your NavPix images are stored in device internal memory. All images within each subfolder in NavPix folder represent one NavPix album. You should use MioMore desktop tool to add organize your NavPix images.

To display list of your NavPix albums use Main Menu:

Your collection of NavPix albums will display:

1. The albums contain all your NavPix and display them as thumbnails. You can scroll the list to see all images by simple dragging:

1. The NavPix Details screen displays information about your NavPix. Tap a NavPix to display the Photo Details screen.

How do I view a NavPix in full-screen?

1. From the NavPix Details screen, tap the thumbnail of the NavPix. The NavPix will appear in full-screen.

1. Complete the following:

If you want to ...	Then ...
zoom into the NavPix	tap
zoom out of the NavPix	tap
rotate the NavPix	tap
	The NavPix will rotate 90 degrees anticlockwise each time is tapped; the NavPix is saved at the new angle.
view parts of the NavPix not displayed on-screen	tap and hold the NavPix, then drag across the screen.
return to the NavPix Details screen	Tap NavPix and then tap

How do I navigate to a NavPix?

Your Mio contains preinstalled NavPix that you can navigate to.

Note: To navigate to a NavPix location, either a GPS fix must have been available when the NavPix was taken, or GPS coordinates have been added using MioMore.

How do I navigate to a NavPix from my albums?

1. Tap the NavPix you want to navigate to. The Photo Details screen displays. Tap Map. The Preview screen will display.

1. Complete one of the following:

If you want to ...	Then ...
navigate to NavPix	tapYour route is calculated and displayed on the 3D Map screen.
add this NavPix as the last destination of your trip	tap Add a destination.Your route is calculated; the 3D Map screen will display.
add this NavPix as the first next destination	tap Add a via point.NavPix will be added to your route as the first next destination; the 3D Map screen will display.
set this NavPix as start of a planned trip	tap Set as start
save the NavPix as My Home	tap Next... then Set as home.The New Favourite screen will display..
save the NavPix as a favourite	tap Next... then Add to favorites.The New Favourite screen will display.

GPS Status

Signals are transmitted by Global Positioning System (GPS) satellites orbiting the Earth. The GPS Status screen provides a visual representation of the information being received.

Latitude and longitude are displayed, along with ground speed and the heading in degrees. The strength of each satellite is displayed on a bar chart.

The satellites available from your current position are shown as grey, red and green coloured bars:

Bar colour	Description
Grey	No signal.
Red	A valid signal, but not being used to fix your position.
Green	A valid signal being used to fix your position.

What can I customize?

There are various customization options available to enhance your navigation experience.

The Preferences menu screens are accessed by pressing

To move forward through the Preferences screens, tap
To revisit the previous screen, tap

Route Options

You can enhance your navigation experience by modifying aspects of your route and route calculation.

Route Calculation 1/4

Complete the following:

• Your preferences are automatically saved.

Road Types 2/4 & 3/4

Complete the following:

If you want to...	Then...
avoid highways roads	select theHighway check box in the Avoid column.
avoid toll roads	select the Toll roads check box in the Avoid column.
avoid ferry routes	select the Ferries check box in the Avoid column.

• Your preferences are automatically saved.

Driving Alerts 4/4

Map Display

You can change the look and behaviour of the Map screens by customizing the Map Display preferences.

Map Display 1/2

Complete the following:

If you want to...	Then...
set the screen contrast to automatically adjust	select the Auto day/night option.
improve screen contrast in light or dark conditions	select either the Day or the Night option to manually adjust the contrast.

• Your preferences are automatically saved.

Select Map 2/2

Complete the following:

If you want to...	Then...
use maps from a different continent	select a different map data from the maps you are currently using.

• Your preferences are automatically saved.

Map POIs

Points of Interest (POIs) are grouped into categories. You may choose to either display (or hide) icons of all POI categories on the map screens, or only display the icons from selected categories.

For example, you may only be interested in entertainment venues and want to disable other categories such as schools.

Complete the following:

If you want to...	Then...
display all POI icons (ie, icons from all categories)	Tap
display no POI icons	Tap
select a specific POI category icon for display on the map screens	select the required POI category checkbox; repeat until all required categories are selected.

• Your preferences are automatically saved.

Volume

Complete the following:

If you want to...	Then...
increase or decrease the volume	move the Volume slider towards High to increase the volume. move the Volume slider towards Low to decrease the volume.
completely mute sounds	select the Mute check box.

• Your preferences are automatically saved.

Screen

Complete the following:

If you want to...	Then...
change the screen brightness for day display scheme	move the Screen Brightness slider towards Bright to increase screen brightness. move the Screen Brightness slider towards Dim to decrease screen brightness. Warning: Your Mio can heat up when the Brightness scale is set above 70% - i.e., when more than seven rectangles are coloured - therefore, use lower brightness whenever acceptable.
change the screen brightness for night display scheme	move the Screen Brightness slider towards Bright to increase screen brightness. move the Screen Brightness slider towards Dim to decrease screen brightness. Warning: Your Mio can heat up when the Brightness scale is set above 70% - i.e., when more than seven rectangles are coloured - therefore, use lower brightness whenever acceptable.

• Your preferences are automatically saved.

POI Alerts

The POI Alert preferences allow you to set a warning chime and/or visual warning to Point of Interest categories that you have installed via MioMore (Custom POIs). You may also be able to set warnings to certain POI categories that were preinstalled on your Mio or available by subscription, such as Safety Cameras.

If you have a route set, the warnings will occur when you are a certain distance (set by the Warning Distance preference) from the POI on your route.

If you do not have a route set, the warnings will occur when you are in the vicinity of the POI.

1. Tap a custom POI category.

The activation preferences for the selected category will display.

2. Complete the following:

If you want to...	Then...
display locations in this category on the map	select the Display on the map check box.
enable a warning chime when locations in this category are in close proximity	select the With an audible alert check box.
enable a visual warning when locations in this category are in close proximity	select the With a visual alert check box.
select the distance at which the warnings will activate	move the Warning distance slider to select the distance at which the warnings will activate.

• Your preferences are automatically saved.

Language

Complete the following:

If you want to...	Then...
change the on-screen language	select your preferred language from the Language box and tap Yes. Your language preference is saved and the map screen is displayed.
change the voice guidance between male and female voice	select your preferred voice gender from the Voice box.

• Your preferences are automatically saved.

Time settings

You can set Mio time zone settings to match your current location.

From the Time settings screen:

Complete the following:

If you want to...	Then...
change Mio time zone	select your preferred time zone from Time zones .

• Your preferences are automatically saved.

Power

The Battery Status bar shows the percentage of power left in the Mio battery; the words External Power will display when the battery is charging from an external power source. To charge the battery, see "Internal battery".

Keyboard

Keyboard type:

Alphabetic (abc)

QWERTY

Behaviour:

Change upper/lower case

Keyboard

Complete the following:

If you want to...	Then...
use an alphabetic keyboard for entering information	select the Use alphabetic type (a, b, c...) option.
use a QWERTY keyboard for entering information	select the Use QWERTY type option.
allow Mio to automatically capitalize first letters of words	select the Change upper/ lower case check box.

• Your preferences are automatically saved.

Units

You can change the units used by your Mio by customizing the measurements preferences.

Complete the following:

If you want to...	Then...
change the time format	select either the 12 hour or 24 hour option
change the distance units1	select your preferred distance unit type from the Distance Units options.

• Your preferences are automatically saved.

Restore defaults

This option will restore all factory default settings.

Note: The Restore Factory Defaults option does not delete recent locations or saved favourite destinations.
