Intitulé	Description
Type de produit	Réfrigérateur combiné
Capacité totale	251 litres
Dimensions approximatives	Hauteur : 155 cm, Largeur : 55 cm, Profondeur : 60 cm
Poids	55 kg
Alimentation électrique	220-240 V, 50 Hz
Consommation énergétique	Classe énergétique A+
Fonctions principales	Réfrigération, congélation, contrôle de température
Entretien et nettoyage	Nettoyage régulier des surfaces intérieures et extérieures, dégivrage du congélateur si nécessaire
Pièces détachées et réparabilité	Disponibilité de pièces détachées auprès des revendeurs agréés
Sécurité	Conforme aux normes de sécurité électrique, protection contre les surcharges
Compatibilités	Compatible avec les accessoires de réfrigération standards
Garantie	2 ans

FOIRE AUX QUESTIONS - FR-251 DAEWOO

Comment régler la température du réfrigérateur DAEWOO FR-251 ?

Pour régler la température, tournez le bouton de thermostat situé à l'intérieur du réfrigérateur. Les réglages vont de 1 (température la plus chaude) à 5 (température la plus froide).

Pourquoi mon réfrigérateur DAEWOO FR-251 ne refroidit-il pas ?

Vérifiez si le réfrigérateur est correctement branché, si la porte est bien fermée et si le thermostat est réglé à une température adéquate. Si le problème persiste, il peut y avoir un problème avec le compresseur ou le circuit de réfrigération.

Comment dégivrer le réfrigérateur DAEWOO FR-251 ?

Pour dégivrer, débranchez le réfrigérateur et laissez la glace fondre naturellement. Placez des serviettes en dessous pour absorber l'eau. Ne jamais utiliser d'objets pointus pour retirer la glace.

Quels sont les conseils d'entretien pour le DAEWOO FR-251 ?

Nettoyez régulièrement l'intérieur et l'extérieur avec un chiffon humide. Vérifiez les joints de porte et nettoyez les serpentins de condensation à l'arrière pour garantir un bon fonctionnement.

Que faire si le réfrigérateur fait du bruit ?

Des bruits peuvent être normaux, mais si le bruit est inhabituel, vérifiez si le réfrigérateur est de niveau et s'il n'est pas en contact avec d'autres objets. Si le bruit persiste, contactez un technicien.

Comment savoir si le réfrigérateur DAEWOO FR-251 est en mode éco ?

Le mode éco est généralement activé lorsque le thermostat est réglé sur une température inférieure à 3. Vérifiez le manuel d'utilisation pour des détails spécifiques à votre modèle.

Quelle est la capacité de stockage du DAEWOO FR-251 ?

Le DAEWOO FR-251 a une capacité de stockage d'environ 251 litres, ce qui permet de conserver une quantité importante d'aliments et de boissons.

Puis-je utiliser le DAEWOO FR-251 dans une pièce non chauffée ?

Il est recommandé d'utiliser le DAEWOO FR-251 dans un environnement tempéré. Évitez de l'exposer à des températures inférieures à 10°C, car cela pourrait affecter son fonctionnement.

MODE D'EMPLOI FR-251 DAEWOO

When out of operating for a long time.

Remove the power supply cord.
Dry your refrigerator, opening the door for 2-3 days.

When you get ready to move.

• Securely fasten removable interior parts (or move and package them separately).
• Do not lay your refrigerator horizontally, otherwise compressor may be get damaged.

When you need service; Before calling for service check a few things noted below for yourself first.

If the refrigerator is not operating:

Is the power supply cord unplugged?
Is home fuse blown or circuit breaker off?

If refrigerator is warmer than usual:

Has the door been open frequently or for a long period?
■ Is refrigerator overcrowded preventing good air circulation?
■ Is the clearance between side and rear plate of the refrigerator and the wall allowed sufficiently?

If there are unusual sounds:

■ Is refrigerator placed on the level?
Are foreign objects behind the refrigerator?
Are dishes on refrigerator shelves vibrating? If so, re-arrange the dishes.

CAUTION

Improper use of the grounding plug can result in a risk of electric Shock. If a grounding adapter is used, make sure the receptacle box is fully grounded.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similary qualified person in order to avoid a hazard.

DAEVOO

Model No.: FR-251

REFRIGERATOR INSTRUCTION MANUAL

Thank you for selecting this refrigerator.
Before using this refrigerator, please read this manual carefully.

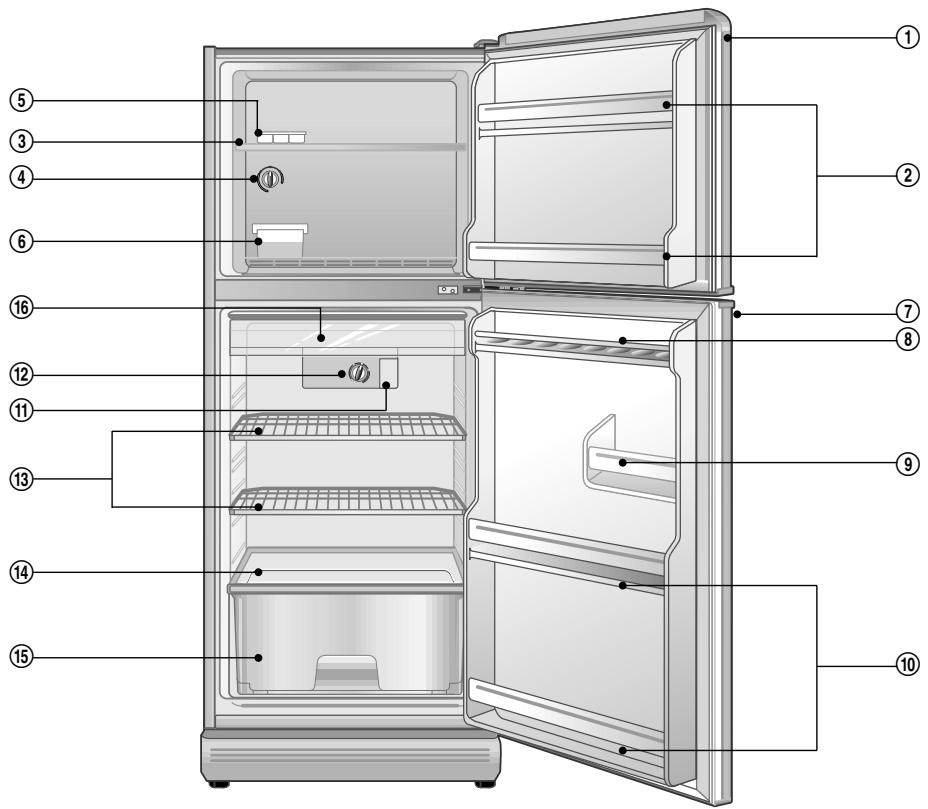

① FREEZER DOOR GASKET
② FREEZER POUCHET
③ FREEZER REMOVABLE SHELF
(4) FREEZER TEMPERATURE CONTROL KNOB
⑤ ICE TRAY
⑥ ICE BOX
⑦ REFRIGING-ROOM DOOR GASKET
⑧ EGG POUCHET

⑨ REFRIGING-ROOM POUCHET(SMALL)
10 REFRIGING-ROOM POCKET(LARGE)
⑪ LAMP COVER
⑫ REFRIGERATOR TEMPERATURE CONTROL KNOB
⑬ REMOVABLE SHELF (LARGE)
14 GLASS SHELF
15 VEGETABLEBOX
16 CHILLED TRAY

Here are the features of your new refrigerator.

Take a moment to know all the features and convenience it was designed to provide. Numbers match those in the illustration on page 1.

Ice tray

Fill tray 3/4 full to allow expansion of water during freezing. Place tray in freezer chest. To release cubes, twist lid slightly.

Removable shelf

Shelves can be removed by pulling forward. The shelf can be placed at your desirable position.

Freezer Shelf

To remove the freezer shelf!

1. Remove the screw on the left of inside freezer shelf with screw driver.
2. Push the shelf hooks to the back slightly and remove it by lifting off the slots of bottom side.
3. Reverse procedure to install.

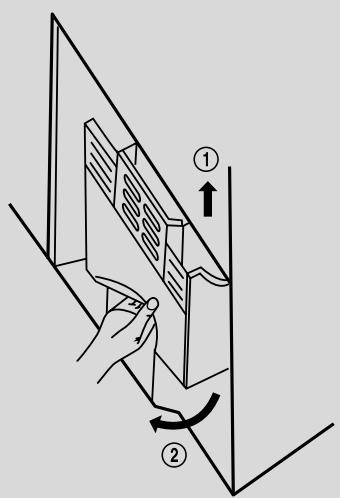

Defrost Drain Vessel

To remove defrost drain vessel.

1. Lift the defrost drain vessel slightly, then rotate bottom out and pull it down.
2. Reverse procedure to install.

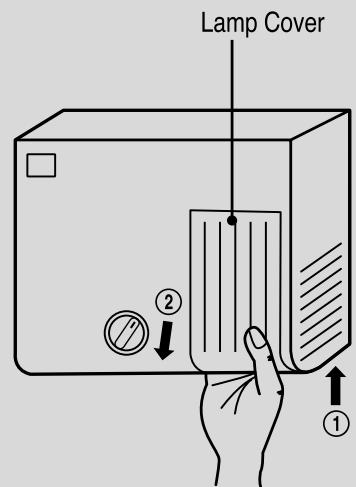

Lamp Cover

To remove lamp cover

1. Push up the bottom ends of lamp cover gently, then pull out.
2. Reverse procedure to install.

Vegetable Crisper

May be used for fruit and vegetable storage. Both the crisper and its cover shelf are removable for easy cleaning. Simply slide forward to remove.

Egg Pocket

Egg supporter in this pocket can be turned upside down.

May be used for small size goods.

CAUTION

1. Check your voltage before inserting the power supply cord into the socket.
2. Contact the earthing conductor to this unit with an attachment earthing screw.
3. Don't make it spill to this unit.
4. Don't work with flammable spray, such as painting, near this unit.
5. Don't put ignitable materials, such as benzine, L.P. Gas, alcohol, etc., into this unit.
6. Precaution to the leakage of any gas equipment near this unit.
7. Precaution not to hold on to the door of this unit by children.
8. Precaution not to reinsert the power supply cord within 5 minutes after release it from socket. If not, a trouble may be occurred to compressor.

1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR

• Place the refrigerator on hard and level floor.

• Avoid places that are exposed to smoke. The discoloring can occur to the refrigerator.

• Place your refrigerator where there is no heat source nearby. High surrounding temperature will lower cooling efficiency and increases your electricity bill.

• For good ventilation place refrigerator with the spaced specified on the figure. This helps cooling efficiency and lowers the electricity bill.

• Place the refrigerator in an area with low moisture.
  Splashing water or a high moisture area may cause a short circuit and make rusting easier.

• Placing the refrigerator on the carpet may cause heat to develop and discolor the appliance. In such a case put a hard wooden board or a rubber mat between the refrigerator and the carpet.

2. INSTALLATION STEPS

• Select a safe place to install your refrigerator.

• Level the refrigerator by using the adjustable foot.

• Check if the doors are completely shut.

• Check the voltage and wait about an hour before plugging the power cord into an outlet.

• Install the parts to their own place.

After running the refrigerator for 2 3 Hours put food in the refrigerator.

3. THINGS TO KNOW BEFORE MOVING OR RELOCATING THE REFRIGERATOR!

• Unplug the power cord.

Take food out of the refrigerator compartments.

• Fasten the interior components with tape.

• For relocating indoors use the wheels.

• When moving have two people carry the refrigerator for safety

• Fasten the doors with tape while moving to prevent them from opening.

4. CLEANING YOUR REFRIGERATOR

• When cleaning your refrigerator, unplug the power cord and use a soft cloth and dishwashing liquid to clean.

• Do not splash water directly on the refrigerator itself.

• The refrigerator can smell on its initial operation, but the odour will be away when the refrigerator is cooled sufficiently.

• Put the parts back to their original position.

• Use a soft cloth for cleaning the interior and exterior of the refrigerator.

Location

Install refrigerator in a convenient location away from extreme heat and cold. Allow sufficient clearance about 6 cm between the refrigerator and rear wall so it is easy for refrigerator to radiate heat.

Select a place with strong level floor.
- Allow 6cm of space between the refrigerator's side and the wall.

Leveling

Level refrigerator so it rests solidly on the floor, without rocking. There are two leveling glides, one at each front corner. Turn to the left to raise a corner, to the right to lower it. Use shims under rear corners, if necessary.

If you want, the refrigerator door to close when not held open, adjust glides so that the front of the refrigerator is raised. However, front corners must be level with each other, and rear corners with each other.
If you want the refrigerator door to remain motionless when open, adjust the leveling glides so that all four corners are level with each other.

NOTE

Make sure all packing material is removed. If the shipping tape has left a residue on the door, touch the residue lightly with the adhesive side of tape or with isopropyl alcohol (most rubbing alcohol is this type).

TEMPERATURE CONTROL

Temperature is controlled automatically. The TEMPERATURE CONTROL at the inside of the refrigerator and freezer section control the degree of cooling of each compartment.

Freezer temperature control

Refrigerator temperature control

The control has three settings from MIN to MAX.

Starting your new refrigerator

1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the inside with a damp cloth.
2. Set TEMPERATURE CONTROL at MED.
3. Connect the power supply cord.

To change temperature

Many factors influence the internal temperature of the refrigerator section and freezer section

The temperature and humidity of the home.
The frequency of door openings and the amount of warm food placed in the refrigerator.
The combination of foods and containers stored in the refrigerator.

For these reasons, you may want to adjust the control to suit the season and your needs. When adjusting the temperature:

Turn TEMPERATURE CONTROL toward MAX for colder temperature in refrigerator and freezer sections, and toward MIN for warmer temperature in refrigerator and freezer sections
- Allow approximately 12 hours or overnight for the temperature to stabilize, Then check to see if further adjustments are necessary.

To turn off refrigerator

Disconnect the power supply cord. Remove ice tray and food. Leave doors ajar for air circulation and dehumidification of both sections.

DEFROSTING THE REFRIGERATOR

It is defrosted automatically in the refrigerator. You don't need to defrost the refrigerator.

CAUTION

To Avoid The Risk of Electrical Shock or Death unplug the power cord before replacing a burned out light bulb or cleaning.

Remove all food and special compartments from the freezer and refrigerator sections.

Exterior

: Wash with warm, soapy water, rinse and dry.

Use appliance polish or wax periodically to keep the exterior looking like new.

Door gasket

Clean at least twice a year with mild soap and water. Rinse and dry. Apply a light film of petroleum jelly to the gaskets to keep them soft.

Interior

: Wash the liner with warm, soapy water, rinse and dry.

NOTE

Interior and Exterior

1. DO NOT USE abrasive, heavy-duty Powders, etc.

These can scratch and dull the surface, depending on their abrasiveness and the cleaning pressure applied.

Avoid metal pads and abrasive impregnated plastic, nylon and cloth pads, etc.

1. DO NOT USE concentrated liquid dishwashing detergent (disslove in warm water before using.), abrasive cleaners, solvents or polishing agents on plastic parts. These cleaners may cause cracking or discoloring.
