MODE D'EMPLOI D6 JURA

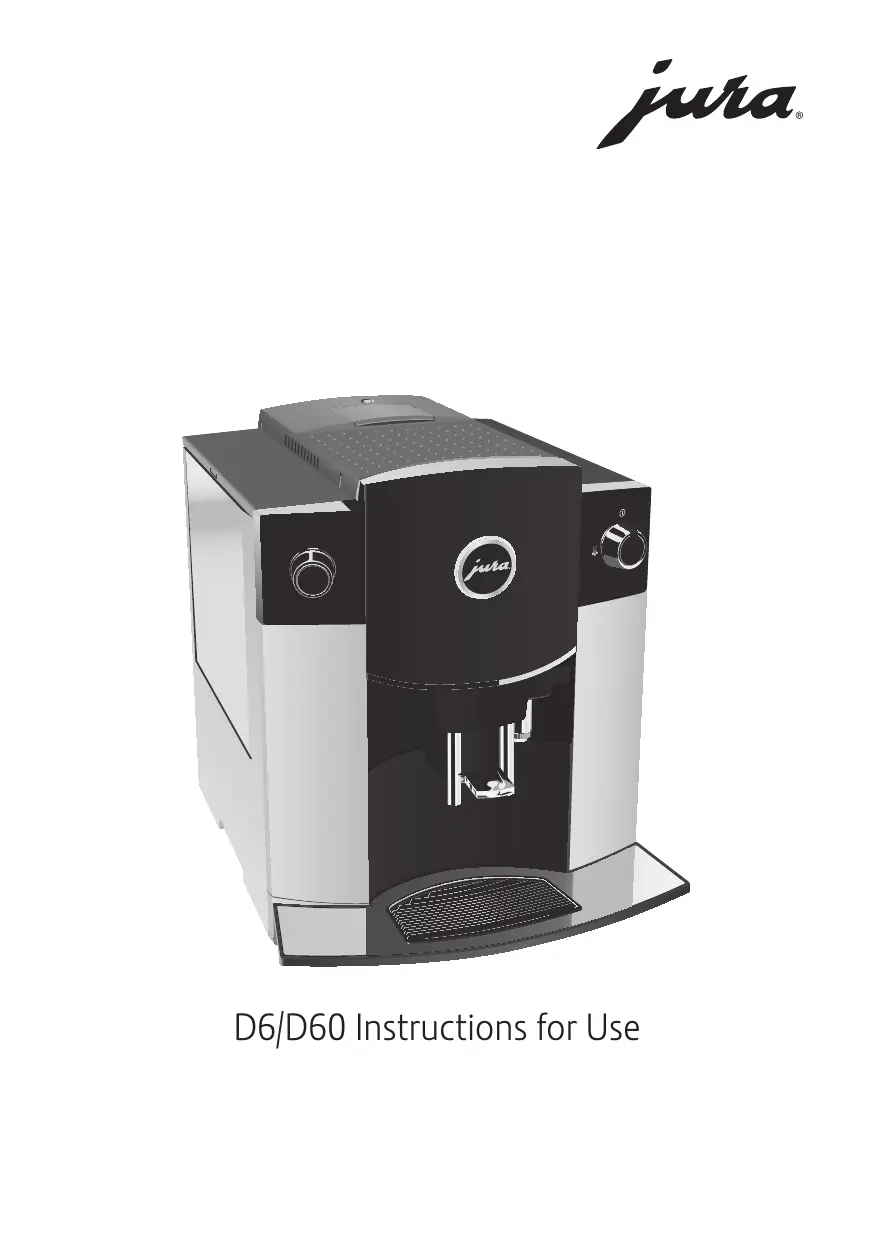

D6/D60 Instructions for Use
Your D6/D60
Control elements 4
Proper use 6
For your safety. 6
1 Preparing and using for the first time 10
JURA on the Internet. 10
Setting up the machine 10
Filling the bean container. 10
Determining the water hardness 11
First-time use 11
Connecting milk. 13
2 Preparation 14
Espresso and coffee 14
Two speciality coffees at the touch of a button. 15
Cappuccino. 15
Milk foam. 16
Permanently setting the amount of water for the cup size 17
Adjusting the grinder 17
Hot water 18
3 Daily operation 19
Filling the water tank. 19
Switching on 19
Daily maintenance. 19
Regular maintenance 20
Switching off the machine 20
4 Permanent settings in programming mode 22
Product settings 22
Setting the water hardness 24
Automatic switch-off 24
Unit for amount of water. 25
Language 25
5 Maintenance 26
Rinsing the fine foam frother 26
Cleaning the fine foam frother 26
Dismantling and rinsing the fine foam frother 27
Inserting/changting the filter 28
Cleaning the machine 29
Dscaling the machine 30
Cleaning the bean container. 32
Dscaling the water tank 32
6 Display messages 33
7 Troubleshooting 34
8 Transport and environmentally friendly disposal 35
Transport/Emptying the system 35
Disposal 35
9 Technical data 36
10 Index 37
11 JURA contact details / Legal information 40
Scope of validity
These instructions for use apply to the following models:
D6
D60
In the interests of clarity, however, the instructions for use only refer to the 'D6' model.
Symbol description
Warnings
| ▲WARNING
▲CAUTION | Always take note of any information marked with the words CAUTION or WARNING and a warning sign. The signal word WARNING draws your attention to potential serious injury, and the signal word CAUTION to potential minor injury. |
| CAUTION | CAUTION draws your attention to potential damage to the machine. |
Symbols used
| ▶ | Prompt to take action. This symbol means that you are being prompted to perform some action. |
| i | Information and tips to make it even easier to use your D6. |
| COFFEE | Display |
Control elements
1 On/Off button
2 Water tank cover
3 Water tank
4 Mains cable (back of the machine)
5 Height-adjustable coffee spout
6 Coffee grounds container
7 Drip tray
8 Cup grille
9 Cover of filler funnel for cleaning tablet
10 Filler funnel for cleaning tablet
11 Bean container cover
12 Grinderradjustment switch
13 Bean container with aroma preservation cover
14 Switch for hot water and milk foam preparation
15 Fine foam frother
1 Display
3 P P symbol (programming)
2 Rotary Switch
4 Maintenance symbol
5 Milk foam symbol
Service socket for optional JURA Smart Connect (under cover)
Proper use
The machine is designed and intended for private domestic use. It should only be used for coffee preparation and to heat milk and water. Use for any other purpose will be deemed improper. JURA Elektroapparate AG cannot accept any responsibility for the consequences of improper use.
Before using the machine read these instructions for use thoroughly and completely and comply with the instructions they contain. A warranty service is not applicable for damage or defects caused by non-compliance with the instructions for use. Keep these instructions for use close to the machine and pass them on to the next user.
For your safety
Please carefully read and observe the important safety information set out below.
To avoid danger of potentially fatal electric shock:
- Never use a machine which is damaged or has a defective mains cable.
In the event of signs of damage, for example if there is a smell of burning, unplug the machine immediately from the mains supply and contact JURA service.
If the mains cable of this machine is damaged, it must be repaired either directly by JURA or by an authorised JURA service centre.
Make sure that the D6 and the mains cable are not located close to hot surfaces.
-
Be careful to ensure that the mains cable is not trapped and does not rub against sharp edges.
-
Never open and repair the machine yourself. Do not modify the machine in any way that is not described in these instructions for use. The machine contains live parts. If opened, there is a danger of potentially fatal injury. Repairs may only be carried out by authorised JURA service centres, using original spare parts and accessories.
- To completely and safely disconnect the machine from the power supply, first switch off the D6 using the On/Off button. Only then should you remove the mains plug from the power socket.
There is a risk of scalds or burns on the spouts and fine foam frother:
Place the machine out of the reach of children.
- Do not touch any hot parts. Use the handles provided.
- Be careful to ensure that the fine foam frother is correctly installed and clean. If incorrectly fitted or if it becomes blocked, the fine foam frother or its parts might come off.
A defective machine is not safe and could cause injury or fire. To avoid damage and any associated risk of injury or fire:
- Never allow the mains cable to loosely hang down. The mains cable could pose a tripping hazard or become damaged.
- Protect the D6 from environmental influences such as rain, frost and direct sunlight.
- Do not immerse the D6, mains cable or connections in water.
- Do not put the D6 or any individual parts in the dishwasher.
Before cleaning, switch the D6 off with the On/Off button. Always wipe the D6 with a damp cloth rather than a wet one, and protect it from prolonged exposure to water splash.
- Only connect the machine to the mains voltage in accordance with the information on the rating plate. The rating plate is located on the underside of your D6. Further technical data is provided in these instructions for use (see Chapter 9 'Technical data').
- Connect the D6 directly to a domestic power socket. Using multi SOCKET adapters or extension cords may cause overheating.
- Please only use original JURA maintenance products. Use of products that are not explicitly recommended by JURA could damage the machine.
- Do not use any coffee beans treated with additives or caramelised coffee beans.
Only fill the water tank with fresh, cold water.
- Switch the machine off with the On/Off button if you are going to be absent for a longer period of time and remove the mains plug from the power socket.
Children may not clean or service the machine unless supervised by a responsible person.
- Do not allow children to play with the machine.
- Keep children under the age of 8 away from the machine, or supervise them constantly.
Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely. Children must be able to recognise and understand the potential dangers arising from incorrect use.
People, including children, who
do not have the physical, sensory or mental capabilities to use the machine safely or
are inexperienced or lack knowledge in how to use the machine safely
must be supervised by a responsible person when using it, or must be instructed in how to use it correctly.
Safety when handling the CLARIS Smart filter cartridge:
Filter cartridges should be kept out of the reach of children.
- Store filter cartridges in a dry place in the sealed packaging.
- Protect cartridges from heat and direct sunlight.
- Do not use damaged filter cartridges.
- Do not open filter cartridges.
1 Preparing and using for the first time
1 Preparing and using for the first time
JURA on the Internet
Visit us on the Internet. You can download short operating instructions for your machine from the JURA website (www.jura.com). You will also find interesting and up-to-date information on your D6 and on every aspect of coffee.
If you need assistance with using your machine, you can find this at www.jura.com/service.
Setting up the machine
When setting up your D6, please note the following:
- Place the D6 on a horizontal surface that is not sensitive to water.
Choose a spot for your D6 which protects the machine against overheating. Ensure that the ventilation slots are not covered.
Filling the bean container
CAUTION
The bean container has an aroma preservation cover. This will ensure that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g. sugar), ground coffee or freeze-dried coffee will damage the grinder.
-
Only use roasted, untreated coffee beans to fill the bean container.
-
Open the bean container cover and remove the aroma preservation cover.
- Remove any dirt or foreign objects from inside the bean container.
- Fill the bean container with coffee beans, then close the aroma preservation cover and the bean container cover.
Determining the water hardness
When you use the machine for the first time, you must set the water hardness. If you do not know the hardness of your water, you can find this out first. Use the Aquadur® test strips supplied with the machine.
- Hold the test strip briefly (for 1 second) under flowing water. Shake off the water.
Wait for about 1 minute.
- You will then be able to read the degree of water hardness from the discolouration of the Aquadur® test strip and the description on the packaging.
First-time use
WARNING
If the machine is operated with a defective mains cable, there is a danger of potentially fatal electric shock.
- Never use a machine which is damaged or has a defective mains cable.
CAUTION
Milk, sparkling mineral water or other liquids can damage the water tank or the machine.
Only fill the water tank with fresh, cold water.
Precondition: The bean container has been filled.
Insert the mains plug into a power socket.
Press the On/Off button to switch the D6 on.
EPRACHE DE appears on the display.
- Turn the Rotary Switch until the required language is displayed, e.g. LANGUAGE EN.
Press the Rotary Switch to confirm the setting.
OK appears briefly on the display.
HARDNESS, 16
If you do not know the hardness of your water, you can find this out first (see Chapter 1 'Preparing and using for the first time - Determining the water hardness').
- Turn the Rotary Switch to change the water hardness setting, e.g. to 25^ C .
Press the Rotary Switch.
OK appears briefly on the display.
INSERT FILTER
- Open the water tank cover.
Remove the water tank and rinse it with cold water.
Open the filter holder.
- Insert the CLARIS Smart filter cartridge into the water tank, exerting slight pressure.
- Close the filter holder. It will click into place audibly.
- Fill the water tank with fresh, cold water and reinsert the tank.
The machine automatically detects that you have just inserted the filter cartridge.
appears briefly on the display.
OPEN SWITCH, the light segment on the switch lights up.
- Place a receptacle (at least 500ml ) under the fine foam frother and the coffee spout.
Turn the switch to the position.
FILTER RINSING, water flows out of the fine foam frother.
You can interrupt rinsing of the filter at any time. To do this, turn the switch clockwise. Turn the switch anticlockwise to continue rinsing the filter.
The water may be slightly discoloured. This is not harmful to health and does not affect the taste.
Rinsing of the filter stops automatically.
CLOSE SWITCH
Turn the switch to the ① position.
SYSTEM FILLING, the system fills up with water.
EMPTYTRAY
Connecting milk
- Empty the drip tray and coffee grounds container and put them back into the machine.
Place a receptacle under the coffee spout. HEATING
RINSING, the system is rinsed. Water flows out of the coffee spout. The rinse stops automatically. CAPPULOO appears on the display. Your D6 is ready for use.
Your D6 creates fine, creamy, feather-light milk foam with a perfect consistency. The most important requirement for frothing milk is a milk temperature of 4 - 8^ . We would therefore recommend using a milk cooler or a milk container.
Remove the protective cover from the fine foam frother.
Connect the milk pipe to the fine foam frother.
- Connect the other end of the milk pipe to a milk container or a milk cooler.
2 Preparation
2 Preparation
During the grinding operation you can select the coffee strength of single products by turning the Rotary Switch: MILD, NORMAL, STRONG or EXTRA.
During preparation, you can change the preset amounts (e.g. amount of water or milk foam) by turning the Rotary Switch.
- You can stop preparation at any time. Just press the Rotary Switch (for a speciality coffee) or return the switch to its original position (for milk foam and hot water).
The last speciality coffee prepared is always displayed, even if the D6 was switched off in the meantime.
Coffee tastes best served hot. A cold porcelain cup cools the beverage – and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer.
You can make permanent settings for all products in programming mode (see Chapter 4 'Permanent settings in programming mode - Product settings').
Espresso and coffee
Espresso and coffee are both prepared following this model.
Example: Proceed as follows to prepare one coffee.
Precondition: CAPPUCO is displayed (example).
Place a cup under the coffee spout.
Turn the Rotary Switch until COFFEE is displayed.
Press the Rotary Switch.
Preparation starts. COFFEE and the coffee strength are displayed. The preset amount of water for coffee flows into the cup.
Preparation stops automatically. COFFEE appears on the display.
When you prepare two speciality coffees at once, the amount of water selected for the single product is used for each cup.
The preparation of two espressi and two coffees follows this same model.
Example: Proceed as follows to prepare two espressi.
Precondition: CAPPUCO is displayed (example).
Place two espresso cups under the coffee spout.
- Turn the Rotary Switch until ESPRESSO is displayed.
Press the Rotary Switch twice (within 2 seconds) to start preparation of two espressi.
CUPS
Preparation starts. The preset amount of water flows into the cups.
Preparation stops automatically. ESPRESS appears on the display.
Cappuccino
Your D6 can prepare a cappuccino at the touch of a button. There is no need to move the cup.
Precondition: CAPPUCO, is displayed. Milk is connected to the fine foam frother.
Place a cup under the coffee spout and the fine foam frother.
1 Ensure that the filling height of the milk is no higher than the milk pipe connection on the fine foam frother.
Press the Rotary Switch.
CFFUCC
HEATING
As soon as the machine has heated up, OPEN SWITCH appears, the light segment on the switch lights up.
Turn the switch to the position.
The milk foam is prepared. Preparation stops automatically when the preset amount of milk foam is reached.
CLOSE SWITCH
Milk foam
Turn the switch to the 1 position.
Coffee preparation starts. The preset amount of water for espresso flows into the cup.
Preparation stops automatically. CAPPUCO appears on the display.
To ensure that the fine foam frother always works properly, you must clean it daily when you have been preparing milk (see Chapter 5 'Maintenance – Cleaning the fine foam frother').
Precondition: CAPPUCO is displayed (example). Milk is connected to the fine foam frother.
Place a cup under the fine foam frother.
1 Ensure that the filling height of the milk is no higher than the milk pipe connection on the fine foam frother.
Touch the Milk foam symbol 日
HEATING/MILK
As soon as the machine has heated up, MILK / READY, the light segment on the switch lights up.
Turn the switch to the position.
The milk foam is prepared.
Preparation stops automatically when the preset amount of milk foam is reached.
Turn the switch to the ① position.
MILK / READY
You can continue to prepare milk foam for the next 40 seconds or so without the machine having to heat up again.
To ensure that the fine foam frother always works properly, you must clean it daily when you have been preparing milk (see Chapter 5 'Maintenance – Cleaning the fine foam frother').
Permanently setting the amount of water for the cup size
It is easy to make permanent settings for the amount of water for all speciality coffees according to the cup size. Adjust the amount once as shown in the following example. Every time you prepare a drink in the future, this amount of water will be dispensed.
The process for permanently adapting the amount of water to the cup size is the same for all speciality coffees.
Example: Proceed as follows to permanently set the amount of water for one coffee.
Precondition: CAPPUCO is displayed (example).
Place a cup under the coffee spout.
Turn the Rotary Switch until COFFEE is displayed.
Press and hold the Rotary Switch, until ENOUGH COFFEE appears.
Release the Rotary Switch.
Preparation starts and the coffee flows into the cup.
As soon as there is sufficient coffee in the cup, press the Rotary Switch.
Preparation stops. OK appears briefly on the display. The set amount of water for one coffee is permanently stored. COFFEE appears on the display.
i You can alter this setting at any time by repeating the above procedure.
You can also permanently set the amount of water for all speciality coffees in programming mode (see Chapter 4 'Permanent settings in programming mode - Product settings').
Adjusting the grinder
CAUTION
You can adjust the grinder to suit the degree of roast of your coffee.
If you adjust the consistency of grind when the grinder is not operating, the grinder adjustment switch could be damaged.
- Only adjust the consistency of grind when the grinder is running.
The consistency of grind is correct if the coffee flows regularly from the coffee spout. In addition a fine, thick crema forms.
2 Preparation
Hot water
CAUTION
Example: Proceed as follows to change the consistency of grind during the preparation of an espresso.
Place a cup under the coffee spout.
- Open the bean container cover and remove the aroma preservation cover.
Turn the Rotary Switch until ESPRESSO is displayed.
Press the Rotary Switch to start preparation.
- Turn the grinder adjustment switch to the desired position while the grinder is running.
The preset amount of water flows into the cup. Preparation stops automatically.
There is a danger of scalding from hot water splashes.
- Avoid direct contact with the skin.
Example: Proceed as follows to prepare hot water.
Precondition: CAPPUCO is displayed (example).
Place a cup under the fine foam frother.
Turn the switch to the position.
WATER, water flows out of the fine foam frother.
Preparation stops automatically when the preset amount of water is reached.
Turn the switch to the ① position.
CAPPUO appears on the display (example).
3 Daily operation
Filling the water tank
CAUTION
Daily maintenance of the machine and hygiene when handling milk, coffee and water are key to a perfect coffee result in the cup every time. You should therefore change the water daily.
Milk, sparkling mineral water or other liquids can damage the water tank or the machine.
Only fill the water tank with fresh, cold water.
- Open the water tank cover.
Remove the water tank and rinse it with cold water.
- Fill the water tank with fresh, cold water and reinsert the tank.
- Close the water tank cover.
Switching on
Place a receptacle under the coffee spout.
Press the On/Off button to switch the D6 on.
HEATING
RINSING, the system is rinsed. The rinse stops automatically. CAPPUCO appears on the display (example). Your D6 is ready for use.
Daily maintenance
To ensure that you get many years of reliable service out of your D6 and to guarantee the optimum coffee quality, the machine requires daily maintenance.
Pull out the drip tray.
- Empty the coffee grounds container and the drip tray. Rinse them both with warm water.
i Always empty the coffee grounds container when the machine is switched on. This is the only way of resetting the coffee grounds counter.
Regular maintenance
Switching off the machine
- Refit the coffee grounds container and the drip tray.
Rinse the water tank with clean water.
- Clean the fine foam frother (see Chapter 5 'Maintenance - Cleaning the fine foam frother').
- Remove the milk pipe and rinse it thoroughly under running water.
- Dismantle and rinse the fine foam frother (see Chapter 5 'Maintenance - Dismantling and rinsing the fine foam frother').
- Wipe the surface of the machine with a clean, soft, damp cloth (e.g. microfibre cloth).
Carry out the following maintenance actions regularly or as required:
In the interests of hygiene, we recommend changing the milk pipe and interchangeable milk spout on a regular basis (approximately every 3 months). Replacements are available from specialised dealers.
Clean the inside of the water tank, e.g. with a brush. Further information about the water tank is provided in these instructions for use (see Chapter 5 'Maintenance - Descaling the water tank').
Traces of milk and coffee may stick to the top and bottom of the cup grille. If this happens, clean the cup grille.
When the D6 is switched off, the system is automatically rinsed if a speciality coffee has been prepared. If milk has been prepared, you will also be prompted to clean the milk system.
- Place a receptacle under the fine foam frother and under the coffee spout.
Press the On/Off button.
i If milk has been prepared, you will be prompted to clean the milk system (CLEAN MILKP). You can start milk system cleaning by pressing the Rotary Switch. After 10 seconds the switch-off process continues automatically.
If milk has been prepared but you have not started milk system cleaning, you will be prompted to carry out milk system rinsing first (M-RINSE).
OPEN SWITCH
Turn the switch to the position.
the milk system is rinsed.
The rinse stops automatically.
CLOSE SWITCH
Turn the switch to the ① position.
RINSING, the system rinses itself. The rinse stops automatically. Your D6 is switched off.
4 Permanent settings in programming mode
You can make permanent settings in programming mode. You can navigate through the programme items and permanently save the required settings simply by turning and pressing the Rotary Switch. You can make the following settings with the Rotary Switch:
| Programme item | Sub-item | Explanation |
| RINSE | M-RINSE,
M-CLEAN,
RINSE,
CLEAN,
DESCALE | Select the desired maintenance programme. |
| BUTTONS | | Select your settings for speciality coffees. |
| HARDNESS | 1 °dH - 30 °dH | You can set the water hardness of the water used. |
| OFF FROM | 15 MIN., 30 MIN.,
1 HRS. - 3 HRS. | Set the time after which the D6 should switch off automatically. |
| UNITS | ML, OZ | Select the unit for the amount of water. |
| LANGUAGE | | Select your language. |
| EXIT | | Exit programming mode. |
You can exit programming mode directly at any time. Simply touch the P symbol for approximately 2 seconds.
In the programme item BUTTONS you can make individual, permanent settings for all products:
Product settings
| Product | Amount | Coffee strength | Temperature |
| Cappuccino | Water: | MILD, NORMAL, | NORMAL, |
| 25 ML - 240 ML | STRONG, EXTRA | HIGH |
| Milk foam: | | |
| 3 SECO. - 60 SECO. | | |
| Espresso | Water: | MILD, NORMAL, | NORMAL, |
| 15 ML - 80 ML | STRONG, EXTRA | HIGH |
| Coffee | Water: | MILD, NORMAL, | NORMAL, |
| 25 ML - 240 ML | STRONG, EXTRA | HIGH |
| Milk foam | Milk foam: | - | - |
| 3 SEC. - 60 SEC. | | |
| Hot water | Water: | - | - |
| 25 ML - 450 ML | | |
| 2 cups | When you prepare two speciality coffees at once, the temperature and amount of water selected for the single product are used for each cup. |
Permanent settings in programming mode always follow the same model.
Example: Proceed as follows to change the coffee strength for one coffee from NORMAL to STRONG.
Precondition: CAPPUCO is displayed (example).
- Touch the P symbol for approximately 2 seconds until RINEE appears on the display.
- Turn the Rotary Switch until BUTTON is displayed.
Press the Rotary Switch to enter the programme item.
Turn the Rotary Switch until COFFEE is displayed.
Press the Rotary Switch.
- Turn the Rotary Switch until STRENGTH is displayed.
Press the Rotary Switch.
Turn the Rotary Switch until STRONG is displayed.
Press the Rotary Switch to confirm the setting. OK appears briefly on the display. STRENGTH
- Turn the Rotary Switch until EXIT is displayed.
Press the Rotary Switch to exit the programme item. COFFEE
- Touch the P symbol to exit programming mode. CAPPUCC. (example)
Setting the water hardness
The harder the water is, the more frequently the D6 needs to be descaled. It is therefore important to set the water hardness accurately.
The water hardness was set when the machine was first used. You can change this setting at any time.
The water hardness can be adjusted on a continuous scale between 1^ and 30^ .
Precondition: CAPPUCO is displayed (example).
- Touch the P symbol for approximately 2 seconds until RINEE appears on the display.
Turn the Rotary Switch until HARDNESS is displayed.
Press the Rotary Switch to enter the programme item.
Turn the Rotary Switch to change the setting.
Press the Rotary Switch to confirm the setting. OK appears briefly on the display. HARDNESS
- Touch the P symbol to exit programming mode. CAPPUCC. (example)
Automatic switch-off
By instructing your D6 to automatically switch itself off, you can cut down your energy consumption. If this function is activated, your D6 switches off automatically after the preset time following the last action on the machine.
You can set the automatic switch-off to 15 minutes, 30 minutes or 1-9 hours.
Precondition: CAPPULOCC is displayed (example).
- Touch the P symbol for approximately 2 seconds until RINEE appears on the display.
Turn the Rotary Switch until OFF FROM is displayed.
Press the Rotary Switch to enter the programme item. 30 MIN.
Turn the Rotary Switch to change the setting.
Press the Rotary Switch to confirm the setting. OK appears briefly on the display. OFF FROM
Touch the P symbol to exit programming mode.
CAPPUCO. (example)
Unit for amount of water
In the programme item UNITS you can set the unit used for the amount of water.
Example: Proceed as follows to change the unit for the amount of water from ML to QZ.
Precondition: CAPPUCO is displayed (example).
- Touch the P symbol for approximately 2 seconds until RINSE appears on the display.
- Turn the Rotary Switch until UNITE is displayed.
Press the Rotary Switch to enter the programme item.
Turn the Rotary Switch until 品 is displayed.
Press the Rotary Switch to confirm the setting.
OK appears briefly on the display.
UNITS
Touch the P symbol to exit programming mode.
CAPPUCO. (example)
Language
In the programme item LANGUAGE you can set the language used by your D6.
Example: Proceed as follows to change the language from EN to DE.
Precondition: CAPPUCO is displayed (example).
- Touch the P symbol for approximately 2 seconds until RINSE appears on the display.
Turn the Rotary Switch until LANGUAGE is displayed.
Press the Rotary Switch to enter the programme item. EN
Turn the Rotary Switch until DE is displayed.
Press the Rotary Switch to confirm the setting.
appears briefly on the display.
F
Touch the P symbol to exit programming mode.
CAPPUCO. (example)
5 Maintenance
Your D6 has the following integrated maintenance programmes:
Cleaning the fine foam frother (H-CLEAN)
Cleaning the machine (CLEAN)
Descalating the machine (DESCALE)
i Proceed with the maintenance programmes when prompted to do so.
i You can start the maintenance programmes at any time in programming mode (programme item RINSE).
Rinsing the fine foam frother
Ten minutes after milk preparation, the D6 prompts you to perform milk system rinsing.
Precondition: M-RINSE / CAPPUCC. is displayed (example).
Place a receptacle under the fine foam frother.
- Touch the Maintenance symbol for approximately 2 seconds until OPEN SWITCH appears.
Turn the switch to the position.
The fine foam frother is rinsed.
CLOSE SWITCH
Turn the switch to the ① position.
CAPPUCO. (example)
Cleaning the fine foam frother
CAUTION
To ensure that the fine foam frother always works properly, you must clean it daily when you have been preparing milk
If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water.
Use only original JURA maintenance products.
JURA milk system cleaner is available from specialised dealers.
Precondition: CAPPUCO is displayed (example).
- Touch the P symbol for approximately 2 seconds until RINSE appears on the display.
Press the Rotary Switch to enter the programme item.
Turn the Rotary Switch until M-CLEAN is displayed.
Press the Rotary Switch.
CLEANER / WATER
- Remove the milk pipe from the milk container or milk cooler.
- Pour 250ml of fresh water into a receptacle and add 1 capful of milk system cleaner.
Immerse the milk pipe in the receptacle.
Place a receptacle under the fine foam frother.
Press the Rotary Switch.
M-CLEAN, OPEN SWITCH, the light segment on the switch lights up.
Turn the switch to the position.
The fine foam frother and the milk pipe are cleaned.
CLOSE SWITCH
Turn the switch to the ① position.
MATER
- Rinse the receptacle thoroughly, fill it with 250ml of fresh water and immerse the milk pipe in the water.
- Empty the other receptacle and place it under the fine foam frother once more.
Press the Rotary Switch.
OPEN SWITCH
Turn the switch to the position.
The fine foam frother and the milk pipe are rinsed with fresh water.
CLOSE SWITCH
Turn the switch to the ① position.
CAPPUCO. (example)
Dismantling and rinsing the fine foam frother
To make sure the fine foam frother works properly, and in the interests of hygiene, it must be dismantled and rinsed daily if you have been preparing milk. Your D6 will not prompt you to dismantle and rinse the frother.
- Remove the milk pipe and rinse it thoroughly under running water.
- Carefully remove the fine foam frother from the Connector System by twisting slightly.
Inserting/changing the filter
Dismantle the fine foam frother into its individual parts.
- Rinse all the parts under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in a solution of 250ml cold water and 1 capful of JURA milk system cleaner. Then rinse the parts thoroughly.
- Re-assemble the fine foam frother.
i Ensure that all individual parts are correctly and firmly connected to ensure optimum operation.
- Firmly attach the fine foam frother to the Connector System.
Your D6 no longer has to be descaled if you are using the CLARIS Smart filter cartridge.
i Once the filter cartridge stops working (depending on the water hardness setting), the D6 will prompt you to change the filter.
i CLARIS Smart filter cartridges are available from specialised dealers.
Precondition: FILTER / CAPPUCO. is displayed (example).
- Open the water tank cover.
- Remove and empty the water tank.
- Open the filter holder and remove the old CLARIS Smart filter cartridge.
- Insert a new CLARIS filter cartridge Smart into the water tank, exerting slight pressure.
- Close the filter holder. It will click into place audibly.
- Fill the water tank with fresh, cold water and reinsert the tank.
The machine has automatically detected that you have just inserted/changed the filter cartridge.
OPEN SWITCH, the light segment on the switch lights up.
Place a receptacle under the fine foam frother.
Turn the switch to the position.
FILTER RINSING, water flows out of the fine foam frother.
Rinsing of the filter stops automatically.
C C C H T H
Turn the switch to the ① position.
CAPPUCO. (example)
Cleaning the machine
After 180 preparations or 80 switch-on rinses, the D6 will prompt you to clean it.
CAUTION
If the wrong cleaning agent is used, the machine could be damaged and/or traces could be left behind in the water.
Use only original JURA maintenance products.
i The cleaning programme lasts approximately 20 minutes.
1 Do not interrupt the cleaning programme. The quality of cleaning will be impaired if you do so.
i JURA cleaning tablets are available from specialised dealers.
Precondition: CLEAN / CAPPUCC. is displayed (example).
Touch the Maintenance symbol for approximately
2 seconds.
EMPTY TRAY appears on the display.
- Empty the drip tray and coffee grounds container and put them back into the machine.
Place a receptacle under the coffee spout.
Touch the Maintenance symbol:
CLEANING, water flows out of the coffee spout.
The operation is interrupted, ADD TABLET.
CLEANING, water flows out of the coffee spout several times.
The operation stops automatically.
EMPTYTRAY
- Empty the drip tray and coffee grounds container and put them back into the machine.
CAPPUCO. (example)
Dscaling the machine
The D6 builds up deposits of limescale over time and automatically prompts you to descale it when necessary. The degree of calcification depends on the hardness of your water.
CAUTION
If the descending agent comes into contact with the skin or eyes, this can cause irritation.
Avoid contact with the skin or eyes.
- Rinse off the descending agent with clean water. Should you get any descending agent in your eye, see a doctor.
CAUTION
If the wrong descending agent is used, the machine could be damaged and/or traces could be left behind in the water.
Use only original JURA maintenance products.
CAUTION
If the descending operation is interrupted, there may be damage to the machine.
- Allow the descending programme to run to the end.
CAUTION
If the descending agent comes into contact with sensitive surfaces (e.g. marble), damage cannot be ruled out.
Clean up any splashes immediately.
i The descending programme lasts approximately 45 minutes.
JURA descending tablets are available from specialised dealers.
Precondition: DESCALE / CAPPUCC. is displayed (example).
Touch the Maintenance symbol for approximately
2 seconds.
EMPTY TRAY appears on the display.
- Empty the drip tray and coffee grounds container and put them back into the machine.
AGENT IN TANK
- Remove and empty the water tank.
- Completely dissolve 3 JURA descaling tablets in a receptacle holding 500 ml of water. This may take several minutes.
- Pour the solution into the empty water tank and insert it into the machine.
OPEN SWITCH, the light segment on the switch lights up.
Place a receptacle under the fine foam frother.
Turn the switch to the position.
DESCAILE appears and water flows out of the fine foam frother repeatedly. The Maintenance symbol flashes during the descending operation.
The operation is interrupted, CLOSE SWITCH.
Turn the switch to the ① position.
DESCAILE. The descending operation is continued.
The operation is interrupted, ENPTY TRAY.
- Empty the drip tray and coffee grounds container and put them back into the machine.
FILL TANK
- Empty the receptacle and place it under the coffee spout and fine foam frother.
- Remove the water tank and rinse it thoroughly.
- Fill the water tank with fresh, cold water and reinsert the tank.
OPENSWITCH, the light segment on the switch lights up.
Turn the switch to the position.
DESCAL
The operation is interrupted, CLOSE SWITCH.
Turn the switch to the ① position.
DESCAL
The operation is interrupted, DESCALE.
Water flows out of the coffee spout.
EMPTYTRAY
- Empty the drip tray and coffee grounds container and put them back into the machine.
CAPPUCO. (example)
If the descending operation stops unexpectedly, rinse the water tank thoroughly.
Cleaning the bean container
Coffee beans may be covered with a slight oil film which remains on the walls of the bean container. These traces may negatively affect the coffee result. For this reason clean the bean container from time to time.
Precondition: FILL BEANS is displayed.
Press the On/Off button to switch the D6 off.
- Open the bean container cover and remove the aroma preservation cover.
Clean the bean container with a soft, dry cloth.
- Fill the bean container with coffee beans and close the aroma preservation cover.
- Close the bean container cover.
Dscaling the water tank
Limescale deposits may form in the water tank. To ensure correct function of the machine, descale the water tank from time to time.
Remove the water tank.
If you use a CLARIS Smart filter cartridge, remove this.
- Completely fill the water tank and dissolve 3 JURA descaling tablets in it.
- Leave the water tank with the descending solution for several hours (e.g. overnight).
Empty the water tank and rinse it thoroughly.
If you use a CLARIS Smart filter cartridge, insert this again.
- Fill the water tank with fresh, cold water and reinsert the tank.
6 Display messages
| Message | Cause/Result | Action |
| FILL TANK | The water tank is empty. You cannot prepare any products. | Fill the water tank (see Chapter 3 ‘Daily operation – Filling the water tank’). |
| EMPTY TRAY | The drip tray is full. No speciality coffees can be prepared. You can prepare hot water and milk foam. | Empty the coffee grounds container and the drip tray (see Chapter 3 ‘Daily operation – Daily maintenance’). |
| TRAY MISSING | The drip tray is not inserted correctly or is not inserted at all. You cannot prepare any products. | Fit the drip tray. |
| FILL BEANS | The bean container is empty. No speciality coffees can be prepared. You can prepare hot water and milk foam. | Fill the bean container (see Chapter 1 ‘Preparing and using for the first time – Filling the bean container’). Press the Rotary Switch to confirm that the bean container has been filled. |
| PRESS RINSE | The D6 is prompting you to continue a previously started maintenance programme. | Touch the Maintenance symbol to continue the programme. |
| FILTER / CAPPUCO. (example) | The filter cartridge no longer works. | Replace the CLARIS Smart filter cartridge (see Chapter 5 ‘Maintenance – Inserting/changing the filter’). |
| CLEAN / CAPPUCO. (example) | The D6 is prompting you to clean it. | Perform cleaning (see Chapter 5 ‘Maintenance – Cleaning the machine’). |
| DESCALE / CAPPUCO. (example) | The D6 is prompting you to descale it. | Perform descaling (see Chapter 5 ‘Maintenance – Descaling the machine’). |
| TOO HOT | The system is too hot to start a maintenance programme. | Wait for several minutes until the system has cooled or prepare a speciality coffee or hot water. |
7 Troubleshooting
| Problem | Cause/Result | Action |
| Insufficient foam is produced when the milk is frothed or milk sprays out of the fine foam frother. | The fine foam frother is dirty. | • Clean the fine foam frother (see Chapter 5 ‘Maintenance – Cleaning the fine foam frother’).
• Dismantle and rinse the fine foam frother (see Chapter 5 ‘Maintenance – Dismantling and rinsing the fine foam frother’). |
| Coffee only comes out in drips when it is being prepared. | The coffee is ground too finely and obstructs the system. | • Set the grinder to a coarser setting (see Chapter 2 ‘Preparation – Adjusting the grinder’). |
| The water hardness may not have been correctly set. | • Perform descaling (see Chapter 5 ‘Maintenance – Dscaling the machine’). |
| FILL TANK is displayed although the water tank is full. | The water tank float is trapped. | • Descale the water tank (see Chapter 5 ‘Maintenance – Dscaling the water tank’). |
| Grinder is making a very loud noise. | There are foreign objects in the grinder. | • Contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). |
| ERROR 2 or ERROR 3 is displayed. | If the machine has been exposed to the cold for a long period of time, heating may be disabled for safety reasons. | • Warm the machine at room temperature. |
| Other ERROR messages are displayed. | - | • Switch the machine off with the On/Off button Ⓞ. Contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). |
If you were unable to solve the problem, contact customer support in your country (see Chapter 11 'JURA contact details / Legal information').
8 Transport and environmentally friendly disposal
Transport / Emptying the system
Keep the packaging for your D6. It should be used to protect the machine during transport.
In order to protect the D6 from frost during transport, the system must be emptied.
Precondition: CAPPUCO is displayed (example).
- Remove the milk pipe from the fine foam frother.
- Place a receptacle under the fine foam frother.
- Touch the Milk foam symbol 日
HEATING/MILK
As soon as the machine has heated up, MILK / READY appears, the light segment on the switch lights up.
Turn the switch to the position.
MILK, hot steam is discharged from the fine foam frother.
- Remove and empty the water tank.
Change the time to 80 sec..
Steam will continue to be discharged from the fine foam frother until the system is empty.
Turn the switch to the ① position.
FILL TANK
Press the On/Off button.
Your D6 is switched off.
Disposal
Please dispose of old machines in an environmentally neutral way.
Old machines contain valuable, recyclable materials which should be recycled. Please therefore dispose of old machines via suitable collection systems.
9 Technical data
| Voltage | 220–240 V ~, 50 Hz |
| Power | 1450 W |
| Conformity mark | CE |
| Pump pressure | static, max. 15 bar |
| Holding capacity of water tank | 1.9 l |
| Holding capacity of bean container | 200 g |
| Holding capacity of coffee grounds container | max. 16 portions |
| Cable length | approx. 1.1 m |
| Weight | approx. 8.7 kg |
| Dimensions (W × H × D) | 28 × 34.5 × 41.5 cm |
10 Index
A
Addresses 40
Aroma preservation cover
Bean container with aroma preservation
cover 4
Automatic switch-off 24
B
Bean container
Bean container with aroma preservation
cover 4
Cleaning 32
Filling 10
Bus bar
Technical data 36
Button
On/Off button 4
C
Cappuccino 15
CLARIS Smart filter cartridge
Changing 28
Inserting 28
Cleaning
Bean container 32
Fine foam frother 26
Machine 29
Coffee 14
Coffee grounds container 4
Coffee spout
Height-adjustable coffee spout 4
Consistency of grind
Adjusting the grinder 17
Grinder adjustment switch 4
Contact details 40
Cover
Bean container 4
Filler funnel for cleaning tablet 4
Water tank 4
Cup grille 4
Customer support 40
D
Daily maintenance 19
Dscaling
Machine 30
Water tank 32
Display 5
Display messages 33
Disposal 35
Double product 15
Drip tray 4
E
Emptying the system 35
Errors
Troubleshooting 34
Espresso 14
F
Filler funnel
Filler funnel for cleaning tablet 4
Filling
Bean container 10
Water tank 19
Filter
Changing 28
Inserting 28
Fine foam frother 4
Cleaning 26
Dismantling and rinsing 27
Rinsing 26
First-time use 11
G
Grinder adjustment switch 4
H
Height-adjustable coffee spout 4
Homepage 10
Hotline 40
Hot water 18
Hot water and milk foam preparation
Switch for hot water and milk foam preparation 4
10 Index
Internet 10
J JURA Contact details 40 Internet 10
L Language 25
M
Machine Cleaning 29 Daily maintenance 19 Descaling 30 Regular maintenance 20 Setting up 10 Switching off 20 Switching on 19
Mains cable 4
Maintenance 26 Daily maintenance 19 Regular maintenance 20
Messages, display 33
Milk Connecting milk 13
Milk foam 16
Milk system Cleaning the fine foam fro Rinsing the fine foam fro
P Permanently setting the water for the cup size 17
Permanent settings in programming mode 22
Preparation 14 Cappuccino 15 Coffee 14
Espresso 14 Hot water 18
Milk foam 16 Two speciality coffees 15
Problems Troubleshooting 34
Product settings 22
Programming mode 22 Automatic switch-off 24 Language 25 Product settings 22 Setting the water hardness 24 Unit for amount of water 25
Proper use 6
Regular maintenance 20
Rinsing
Fine foam frother 26
Rotary Switch 5
Safety 6
Safety information 6
Service socket 5
Settings Permanent settings in programming mode 22
Setting up Setting up the machine 10
Short operating instructions 10
Smart Connect 5
Switch for hot water and milk foam preparation 4
Switching off 20
Switching on Machine 19
Switch-off Automatic switch-off 24
Symbol Maintenance 5 Milk foam 5 P (programming) 5
Symbol description 3
Technical data 36
Tel 40
Transport 35
Troubleshooting
Two products 15
U Unit for amount of water 25 Use,First-time 11
W
Water hardness
Determining the water hardness 11
Setting the water hardness 24
Water tank 4
Dscaling 32
Filling 19
Website 10
11 JURA contact details / Legal information
JURA Elektroapparate AG
Kaffeeweltstrasse 10
CH-4626 Niederbuchsiter
Tel. +41 (0)62 38 98 233
@ You will find additional contact details for your country at www.jura.com.
@ If you need assistance with using your machine, you can find this at www.jura.com/service.
Directives The machine complies with the following directives:
2014/35/EU - Low Voltage Directive
2014/30/EU - Electromagnetic Compatibility
2009/125/EC - Ecodesign Directive
2011/65/EU - RoHS Directive
Technical changes We reserve the right to make technical changes. The diagrams used in these instructions for use are for illustration purposes only and do not represent the original colours of the machine. Some details of your D6 may vary.
Feedback Your opinion is important to us! Use the contact details at www.jura.com.
Copyright The instructions for use contain information which is protected by copyright. It is not permitted to photocopy these instructions for use or translate them into another language without the prior written consent of JURA Elektroapparate AG.
