Type de produit	Ordinateur portable GIGABYTE P55K
Processeur	Intel Core i7-4710HQ
Carte graphique	NVIDIA GeForce GTX 860M
Mémoire RAM	8 Go DDR3
Stockage	1 To HDD + 128 Go SSD
Écran	15,6 pouces Full HD (1920 x 1080)
Système d'exploitation	Windows 8.1 (préinstallé)
Connectivité	Wi-Fi 802.11ac, Bluetooth 4.0, Ethernet
Ports	3 x USB 3.0, 1 x HDMI, 1 x Mini DisplayPort, 1 x RJ-45
Dimensions approximatives	385 x 255 x 28 mm
Poids	2,5 kg
Type de batterie	Li-ion 4 cellules
Autonomie de la batterie	Environ 4 heures
Fonctions principales	Jeux, multimédia, bureautique
Entretien et nettoyage	Utiliser un chiffon doux, éviter les produits abrasifs
Pièces détachées et réparabilité	Accès facile aux composants internes pour mise à niveau
Sécurité	Antivirus recommandé, mise à jour régulière du système
Informations générales	Garantie de 2 ans, support technique disponible

FOIRE AUX QUESTIONS - P55K GIGABYTE

Comment réinitialiser mon GIGABYTE P55K aux paramètres d'usine ?

Pour réinitialiser votre GIGABYTE P55K, allez dans les paramètres, puis dans 'Mise à jour et sécurité', sélectionnez 'Récupération' et cliquez sur 'Réinitialiser ce PC'. Suivez les instructions à l'écran.

Que faire si mon GIGABYTE P55K ne s'allume pas ?

Vérifiez d'abord si la batterie est chargée. Si l'ordinateur ne s'allume toujours pas, essayez de le brancher sur une prise de courant différente ou de retirer la batterie pendant quelques minutes avant de la remettre.

Comment mettre à jour les pilotes de mon GIGABYTE P55K ?

Vous pouvez mettre à jour les pilotes en visitant le site Web de GIGABYTE, en naviguant vers la section de support pour votre modèle, puis en téléchargeant les derniers pilotes disponibles.

Comment augmenter la mémoire RAM de mon GIGABYTE P55K ?

Pour augmenter la mémoire RAM, éteignez l'ordinateur, retirez le panneau arrière, localisez les emplacements de RAM et insérez la nouvelle mémoire. Assurez-vous que la RAM est compatible avec votre modèle.

Que faire si le Wi-Fi ne fonctionne pas sur mon GIGABYTE P55K ?

Assurez-vous que le Wi-Fi est activé dans les paramètres de votre ordinateur. Si le problème persiste, essayez de redémarrer votre routeur ou de mettre à jour les pilotes de votre carte réseau.

Comment résoudre les problèmes de surchauffe de mon GIGABYTE P55K ?

Vérifiez que les évents de ventilation ne sont pas obstrués. Nettoyez régulièrement l'intérieur de l'ordinateur pour enlever la poussière et utilisez un support de refroidissement si nécessaire.

Comment vérifier l'état de la batterie de mon GIGABYTE P55K ?

Vous pouvez vérifier l'état de la batterie dans les paramètres d'alimentation de Windows. Allez dans 'Paramètres', puis 'Système', et enfin 'Alimentation et mise en veille' pour consulter les informations sur la batterie.

Que faire si mon GIGABYTE P55K a un écran noir ?

Essayez de redémarrer l'ordinateur. Si l'écran reste noir, vérifiez les connexions de l'écran et essayez de brancher un moniteur externe pour voir si le problème provient de l'écran intégré.

Comment désinstaller un programme sur mon GIGABYTE P55K ?

Pour désinstaller un programme, allez dans 'Paramètres', puis 'Applications', sélectionnez le programme que vous souhaitez désinstaller et cliquez sur 'Désinstaller'.

Comment activer le mode jeu sur mon GIGABYTE P55K ?

Pour activer le mode jeu, ouvrez le logiciel de gestion de GIGABYTE, recherchez l'option 'Mode jeu' et activez-la. Cela optimisera les performances de votre ordinateur pour les jeux.

MODE D'EMPLOI P55K GIGABYTE

P55

USER'S MANUAL

使用手册

• English

V1.0

Congratulations on your purchase of the GIGABYTE Notebook.

This manual will help you to get started with setting up your notebook. The final product configuration depends on the model at the point of your purchase. GIGABYTE reserves the right to amend without prior notice. For more detailed information, please visit our website at www.gigabyte.com

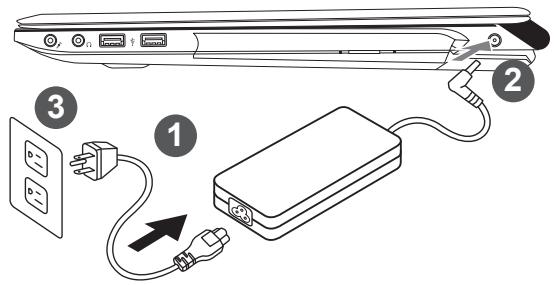

Using GIGABYTE Notebook for the First Time

Diagram showing cable installation and connection to a device with labeled components

1 Connect the power cord to the AC adapter.
2 Connect the AC adapter to the DC-in jack on the right side of the notebook.
3 Connect the power cord to the power outlet.

IMPORTANT

• Ensure that your Notebook PC is connected to a grounded power adapter before turning it on for the first time.
• When using your Notebook PC on power adapter mode, the socket outlet must be near to the unit and easily accessible.
• Locate the input/output rating label on your Notebook PC and ensure that it matches the input/output rating information on your power adapter. Some Notebook PC models may have multiple rating output currents based on the available SKU.
  • Power adapter information: Input voltage: 100-240Vac, - Input frequency: 50-60Hz, - Rating output voltage: 19.5V

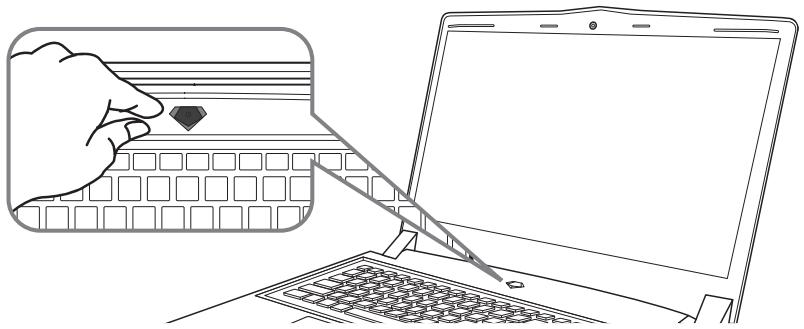

Line drawing of a hand using a smartphone to interact with a laptop keyboard and screen (no text or symbols present)

Switching on the Power

After you turn on the Notebook for the very first time, do not turn it off until the operating system has been configured. Please note that the volume for the audio will not function until Windows ^® Setup has completed.

Booting Up the Notebook for the First Time

Depending on your configuration, the Microsoft ^® Windows ^® Boot Screen will be the first screen that you will see as the notebook starts up. Follow the on-screen prompts and instructions and enter your personal information to complete the setup of the Windows ^® Operating System.

Your GIGABYTE Notebook Tour

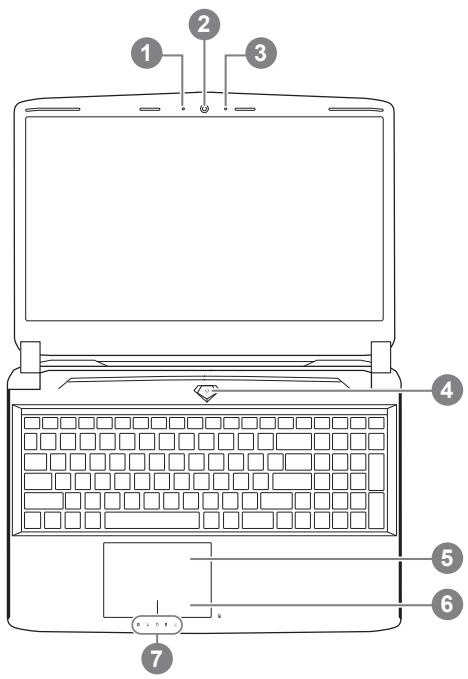

Top View

Laptop keyboard diagram with numbered labels pointing to key components

1 Webcam Status LED Indicator
2 Webcam
3 Microphone
4 Power Button
5 TouchPad
6 Battery Indicator Button ①
7 LED Indicators ②

① Right-click to show the remaining power percentage.

As shown below, the battery life indicator is available when the laptop is shut down, in stand-by or hibernation. (Battery mode)

1 2

<10% ○ ○ ○ ○ ○ 11-30% ● ○ ○ ○ ○ 31-50% ● ● ○ ○ ○ 51-70% ● ● ● ○ ○ 71-90% ● ● ● ● ○ >90% ● ● ● ● ●

2 Bluetooth Status LED

Wireless Lan Status LED
HDD Status LED
Battery Status LED
Power Status LED

Left View

1 2 3 4 5

1 Kensington Lock Slot
2 D-sub (VGA) Port
3 Ethernet Port
4 HDMI Port
5 USB Port

Right View

2 1 3 4 5

1 Microphone Jack
2 Headphone Jack
3 USB Port
4 Optical Disc Drive
5 DC-in Jack

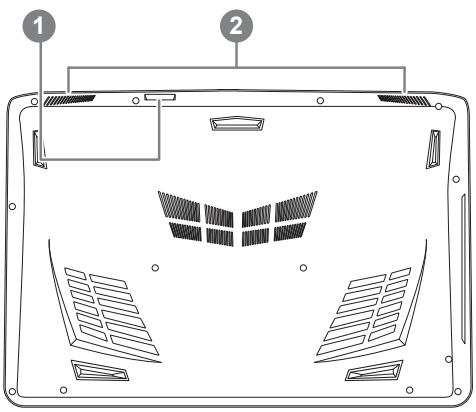

Base View

Diagram of a laptop back panel with labeled parts, showing internal structure and ventilation slots

1 SD Card Reader
2 Speakers

Warning:

DO NOT remove the built-in lithium battery. For any service needs, please contact your local GIGABYTE Authorized Service Center.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output. To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey		Function	Description
▶/II	Fn + ~	Playback	Media Playback control.
	Fn + F1	Touchpad Toggle	Turn the internal touchpad ON/OFF
	Fn + F2	LCD Toggle	Turn LCD OFF(Press a key to or use TouchPad to turn on)
[K06A]	Fn + F3	Speaker Toggle	Turn the sperker ON/OFF
[4T4Z]	Fn + F4	Sleep Toggle	Put the computer in Sleep mode
	Fn + F5	Volume Down	Decrease the sound Volume
[3GW0]	Fn + F6	Volume Up	Increase the sound Volume
	Fn + F7	Display Toggle	Switch display output between the display screen, external monitor (if connected) and both.
[4KZW]	Fn + F8	Brightness Down	Decrease the screen brightness
[Σ7XD]	Fn + F9	Brightness Up	Increase the screen brightness
	Fn + F10	Webcam	Turn the internal webcam ON/OFF.
[107W]	Fn + F11	Airplane Mode Toggle	Turn the Airplane Mode ON/OFF*This function is only available in certain region
[7TC46]	Fn + F12	Keyboard Backlight Toggle	Turn the keyboard backlight ON/OFF

GIGABYTE Software Application

■ GIGABYTE Smart Manager

You can activate GIGABYTE Smart Manager by double clicking on the shortcut icon on the desktop if the machine you purchased has the operation system built-in. GIGABYTE Smart Manager is an icon-based control interface, enabling users to intuitively access common system setup as well as GIGABYTE exclusive utilities. Please be noted that the GIGABYTE Smart Manager interface, icons, utilities and software versions may vary based on the purchased models. Please operate GIGABYTE Smart Manager according to the actual version built-in.

Smart USB Backup Guide (Original: Recovery Image USB)

WARNING

● You can backup original recovery image through this application in case of losing by device damage.
- You can backup original recovery image to USB disk and restore the system if any storage system replacement with the recovery USB disk.
● Before you restore the system through the recovery USB disk, please make sure that you have already made the backup of your data.
- Please DO NOT shut down or un-plug the system when performing backup through recovery USB disk.

1

GSSAR11.6 USB >20G

- Please plug in the USB disk which is at least 20GB in capacity to make the original image (backup the data in USB first. All data will be eliminated during the creation of recovery USB disk)

2

- Insert the driver disk to your optical drive and run the install of "Smart USB Backup" (for none-ODD model, please use USB ODD device or download from http://www.gigabyte.com

3

- Run the “Smart USB Backup” after finishing the install.

4

Smart USB Backup Removable Storage List 如例如式存储器配置 Cred(建立) Refresh Date(重新创建配置) please back up your personal files first, and prepare one USB storage device which capacity more than 20GB 請先備份個人資料。並準備一個大於200的USB儲存裝置(僅限USB隨身印)。 就儲存吸置資料將被清空並製作可開機的退原複製。 GIGABYTE COPYRIGHT Ver 1.0.20131001

- Select your USB disk from the dropdown list and start to create the recovery USB disk.

5

• The window will pop out when the creation of recovery disk is done.
• Please press F12 on starting the system when you need to restore the system. Select “boot from recovery USB disk” and the system will be restored.
• The time needed for restore will be around 30 mins(time needed may vary by USB disk model).

System Recovery (Restore your laptop operating system)

When something is going wrong with the laptop operating system, the storage of the laptop has a hidden partition containing a full back up image of the operating system that can be used to restore the system to factory default settings.

Note

• If the storage has been switched or the partition deleted, the recovery option will no longer be available and a recovery service will be needed.
• The recovery function is only available on devices with O/S preinstalled. Devices with DOS do not have the recovery function.

Launch System Recovery

The system recovery feature is preinstalled before the laptop is shipped from the factory. The option menu allows you to launch the Windows recovery tool to reinstall the operating system to factory default.

The brief introduction below will show you how to start the recovery tool and restore your system.

All ready to go

Make sure your PC is plugged in. This will take a few minutes.

Windows 7 Recovery Guide

1 Turn off and restart the laptop.

2

GIGABYTE™ Press +12+ for Enter SETUP. Press +12+ for BBS POPUP Menu. Press +19+ for System Recovery.

During the laptop turn on process, press and hold F9 key to launch the tool.

3

GIGABYTE® Smart Recovery PREP

The recovery will be activated and you will see the option buttons on the window. Click on “Recovery” to start it.

Caution

Once the “Recovery” is selected, your personal data and files will be deleted after the laptop starts restoring, and the operating system will be reset to factory default settings.

4

GIGABYTE® Smart Prior set a recent RESTORE NOW

A progress indicator bar will show on the window when the recovery process is running. Please make sure the AC-adapter is plugged in and do not turn off the laptop.

5

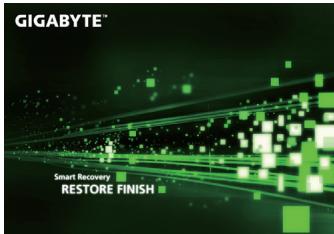

GIGABYTE™ Smart Recovery RESTORE FINISH

Reboot the laptop after the system recovery is complete.

Windows 8.1 Recovery Guide

1 Turn off and restart the laptop.

2

GIGABYTE™ Press <12> for Enter SETUP. Press <13> for 885 POPUP Menu. Press <19> for System Recovery.

During the laptop turn on process, press and hold F9 key to launch the tool.

3

Choose “Troubleshoot” to enter the recovery settings. (Also you can choose “Continue” to exit recovery system and continue to Windows 8.1 for files or data backup.)

There are two options for system recovery

- Refresh your PC

You can refresh your laptop to improve the system stability without losing your files.

- Reset your PC

If you want to remove all of your files, you can reset your PC completely.

Caution: All personal data and files will be lost.

4

Choose "Refresh your PC"

Choose an account to continue.

Here are what will happen

• Your files and personalization settings won't be changed.
• Your PC settings will be restored to factory default settings.
• Apps from Windows Store will be kept.
• Apps you installed from discs or websites will be removed.
• A list of removed apps will be saved on your desktop.

Choose "Reset your PC"

▶Just remove my files

Only personal data and files will be removed, but computer settings will be kept.

▶ Fully clean the drive

The drive will be completely restored to factory default settings. It takes more time. > [Click on "Reset" to execute recovery function.]

Here are what will happen

• All of your personal files and apps will be removed.
• Your PC settings will be restored to factory default settings.

Advanced options

System Restore

Use a restore point recorded on your PC to restore Windows.

System Image Recovery

Recover Windows using a specific system image file.

Automatic Repair

Fix problems that keep Windows from loading.

Command Prompt

Use the Command Prompt for advanced trobleshooting.

UEFI Firmware Settings

Change settings in your PC's UEFI firmware.

Startup Settings

Change Windows Startup behavior.

Appendix

■ Warranty & Service:

Warranty and service and related information please refer to the warranty card or GIGABYTE service website as the below link:

http://www.gigabyte.com/support-downloads/technical-support.aspx

■ FAQ:

FAQ (Frequent Asked Questions) please refer to the below link:

http://www.gigabyte.com/support-downloads/faq.aspx
